Background

Cotton (Gossypium Species) has the importance for natural fiber all over the globe. The primary goals of upland cotton (G. hirsutum) perspectives have been always to achieve better quality with higher yield [1]. Mostly G. hirsutum bears staple fibers 25–40 mm in length and 15 μm in thickness at their full maturity. Fiber cells must undergo four distinct but partially overlapped developmental stages, including initiation, elongation, secondary cell wall deposition, and maturation. The secondary cell wall of fiber, which is mainly composed of cellulose, is important especially for fiber quality perspective. However, some studies have shown that secondary cell wall of fibers of flax (Linum usitatissimum L.), ramie (Boehmeria nivea L.), and Spanish broom (Spartium junceum L.) also contain phenolics along with cellulose. Their fibers are known for their physical properties such as length and strength and have been used for textile purposes. A thicker secondary cell wall was estimated to contain no less than 70% cellulose content while the cotton fiber contains almost 90% cellulose [2, 3]. Lignin is another important component in cell wall [4]. It provides strength to plant cell wall and response to biotic and abiotic stresses in vascular plants [5]. The presence of lignin, which is reported at lower level in secondary cell wall of cotton fibers [6], negatively regulates fiber elongation and secondary cell wall synthesis in cotton. Studies demonstrated that the cotton plants that accumulate less lignin and lignin-like phenolics in mature fibers tend to have longer and stronger fibers [7]. From an active perspective, lignin and phenolics defend the cellulose fiber against dreadful conditions and increase the ability of response to biotic and abiotic stresses, and thus influence the growth and strength of plant cell walls [8]. Previous studies in herbaceous plants demonstrated the involvement of O-methyltransferases (OMTs) in lignin biosynthesis [9]. The involvement of OMTs mediate normal plant growth in the presence of lignin [10]. The initial OMT cDNA was described in 1991 [11], then a series of OMT cDNAs have been cloned from diverse plants species, including Zea mays, Arabidopsis thaliana, Iris hollandica, and Nicotiana tabacum [12].

According to substrate classification, plant methyltransferases have three major categories, I. O-methyltransferases (OMTs), II. N-methyltransferases (NMTs), and III. C-methyltransferases (CMTs). Category I OMTs are further classified into five sub-categories. Sub-category I-a comprises caffeoyl coenzyme A 3-O-methyltransferase (CCoAOMT) and caffeic acid 3-O-methyltransferases (COMTs), which are involved in methylation in phenylpropanoids. Sub-categories I-b, I-c, and I-d act in methylation of hydroxyl in flavonoid, alkaloids, and myoinositol, respectively. The fifth sub-category I-e takes part in methylation of carboxyl of diverse acids. The results of a study discovered the crystal structure of OMTs from Medicago sativa [13]. In the light of the explanations, the OMT gene that was cloned and characterized from a medicinal plant Ligusticum chuanxiong and contained higher ferulic acid was named as LcCOMT. The differential expression of LcCOMT gene under chilling stress was more than 6-fold higher than that under controlled conditions, suggesting that ferulic acid may increase plant tolerance to cold stress. BLAST analysis showed that LcCOMP was 23.9–40.2% similar to OMTs of alkaloid, flavonoid, isoflavonoid, and phenylpropanoids [14].

In the whole life cycle of cotton plant, it undergoes various environmental conditions from the cold spring in April when it is sowed to hot mid-summer when it grows rapidly in vegetation and reproduction and to late freezing autumn when it gets mature and is harvested. During the whole growth procedure, the cotton plant maintains an exquisite molecular controls and regulations. But little is known what roles the OMT family genes have played in cotton plant especially in early or late growth stage when season transition occurs, or in various stress conditions. Therefore, in this study, we identified the OMT family genes in the genome-wide scale and made detailed bioinformatics analysis of gene structure, chromosomal distribution, selection pressure during their evolution, sub-cellular localization, cis-regulatory elements etc., together with their expression profiling in different developmental stages and in responses to various stresses. Their expression profiling in developing fiber cells was verified using RNA sequencing data from RILs, CSSLs, and TM-1 at different fiber development stages. This study could open the way to comprehend the functions of OMTs in fiber quality advancement and in cotton plant responses to abiotic stresses, and thus could assume a noteworthy part for further investigation in the molecular mechanism of fiber improvement and stress tolerance.

Results

Genomewide identification and characterization of OMT genes

A genome wide analysis was conducted to characterize OMT family genes in three Gossypium species. A total of 192 OMT members were identified, including 82 in G. hirsutum, 55 in G. arboreum, and 55 in G. raimondii (Table S3. Sheet A). For phylogenetic analysis [15], 33 OMT members in A. thaliana, and 26 members in T. cacao species were also retrieved (Table S3. Sheet B). Retrieving information of OMT genes in G. hirsutum revealed that GhOMT75_Scaf, which was detected in scaffold, coded the smallest protein of 62 amino acids (aa) with a molecular weight of 6.642 kDa. While GhOMT33_Dt, which was identified on chromosome Dt02, coded the largest protein of 969 aa with a molecular weight of 108.296 kDa among all OMT members in three Gossypium species.

In domain analysis of OMT family genes in Gossypium species, the results revealed that 64, 45 and 47 OMTs in G. hirsutum, G. arboreum and G. raimondii contained Pfam domain Pf00891, and that only 20, 10 and 9 OMTs in G. hirsutum, G. arboreum and G. raimondii contained Pfam domain Pf01596. In A. thaliana and T. cacao, 25, 24 OMTs contained Pf00891 domain, and 8, 2 OMTs contained Pf01596 domain respectively.

Chromosomal distribution, collinearity, duplication, and loss of OMT genes

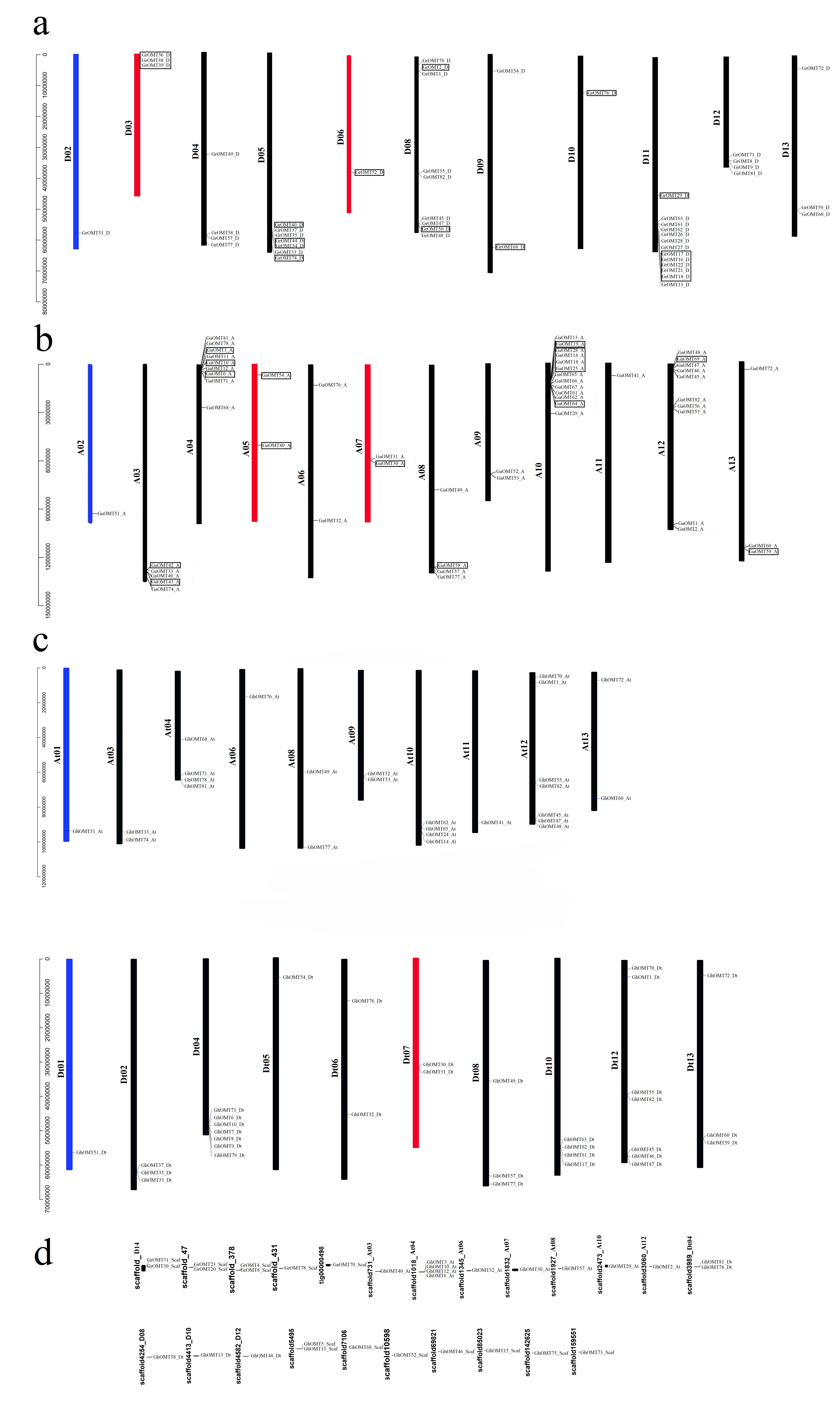

The analysis of chromosomal positioning was performed by using TBtools software [16]. A total of 161OMT genes were positioned on their respective chromosomes, while seven of G. raimondii, one of G. arboreum, and 23 of G. hirsutum were positioned in scaffolds (Figure S1). In G. raimondii (D genome), chr11 was mapped with 13 genes followed by chr08 with nine genes. The minimum number of genes in a chromosome was one in chr2, chr6, and chr10 respectively. There was no OMT family members identified in chr01 and chr07 (Figure S1.a). In G. arboreum (A-genome) (Figure S1.b), 54 OMT genes were mapped in all chromosomes except chr1. Chr10 harbored 13 OMT genes which were the highest per chromosome, followed by chr12 and chr04 with 10 and 9 genes respectively. The minimum number of genes located in a chromosome was one in chr02 and chr11 respectively. In G. hirsutum (AtDt genome) (Figure S1.c), unexpectedly, there were no OMT genes in At02, At05, At07, Dt03, Dt09, and Dt11 chromosomes. The distribution of genes in Dt sub-genome (33 genes) was higher than in At sub-genome (26 genes). The maximum number of genes in a chromosome was seven in Dt04 and At12, followed by four in Dt10 and At10 chromosomes, respectively. Dt01, Dt05, At01, At06, and At11 only had one OMT gene, and Dt06, Dt07, At03, At08, At09, At13 two OMT genes and Dt02, Dt08, and Dt13 three OMT genes respectively (Figure S1.c). A collinearity analysis of the OMT family genes in Gossypium species chromosomes was shown in Fig. 1. The results demonstrated a pair wise collinearity of OMT genes between the chromosomes on which OMT family genes were mapped. Noticeably, a number of available genes in At and Dt scaffolds were collinear with their homologues in A and D genomes suggesting the collinearity of the DNA fragments between the scaffolds and chromosome where these OMT genes locate (Fig. 1). Taken the OMT gene numbers identified in each A/D genome or At/Dt sub-genome, collinearity analysis also revealed that there were totally 21 and 19 OMT genes exclusively detected in A and D genomes respectively. Their homologous counterparts in AtDt genomes of G. hirsutum are lost. There are also a few OMT genes that are exclusively detected in AtDt genome of G. hirsutum without homologous counterparts in A and D genomes (Figure S1).

Fig. 1
figure 1

Collinearity analysis of OMT genes between AtDt (G. hirsutum), A (G. arboreum), and D (G. raimondii) genomes

Full size image

According to previous studies there are five types of duplications including singleton, dispersed, proximal, tandem, and segmental or whole-genome duplication [17]. In the present study, the analysis of gene pairs duplication events predicted a total of 31, 28, and 54 gene pairs of D_Dt, A_At and D_A genomes from their common ancestor, 33 gene pairs of At_Dt subgenomes in segmental duplication, and 5 gene pairs of At_Dt subgenomes in tandem duplication events (Table S4 Sheet A).

Analysis of selection pressure

In genetics, the Ka/Ks ratio used to estimate the balance between neutral mutations, purifying selections, and positive mutations based on a set of homologous genes [18]. The ratio of the number of non-synonymous substitutions per non-synonymous site (Ka) to the number of synonymous substitutions per synonymous site (Ks) represents selection pressure of the gene [19]. Ka/Ks < 1 demonstrates purifying selection pressure, while Ka/Ks = 1 and Ka/Ks > 1 show neutral and positive selection pressures respectively. Analysis of Ka/Ks ratio of homologous OMTs in three Gossypium species revealed that they are under purifying selection pressure. The Ka/Ks ratio of homologous OMTs in G. raimondii and G. arboreum ranged from 0.09 to 0.8, in G. raimondii and G. hirsutum ranged 0 to 0.7, and in At and Dt of G. hirsutum ranged 0.4 to 0.7 (Table S4 Sheet B).

Sequences alignment, phylogenetic analyses, conserved motifs and gene structure

The sequence alignment of 251 OMT genes, including 192 genes from three Gossypium species, 33 from A. thaliana, and 26 from T. cacao species was performed to understand the phylogenetic relationship of these genes. The evolutionary relationship of OMT genes in three Gossypium species was monophyletic (Fig. 2a), and the member of A. thaliana and T. cacao were distributed in paraphyletic manner (Fig. 2b). According to the topology of constructed tree, the OMT gene family is divided into five clades (I, II, III, IV, and V) in Gossypium, A. thaliana, and T. cacao species. The results showed that each clade of OMT genes were symmetrically distributed within Gossypium species (Fig. 2a), while in A. thaliana and T. cacao, OMT genes were identified in cluster forms (Fig. 2b). The results demonstrated that these Gossypium OMT members might be evolutionary close within respective species and their identified clades.

Fig. 2
figure 2

Phylogenetic analysis of OMT genes in Gossypium, A. thaliana, and T. cacao species. a Neighbor-joining phylogenetic tree of 192 OMT genes of G. hirsutum, G. arboreum, and G. raimondii. b Neighbor-joining phylogenetic tree of 251 OMT sequences of G. hirsutum, G. arboreum, G. raimondii, A. thaliana, and T. cacao. I, II, III, IV and V indicate the five groups of phylogenetic tree. Shapes with different colors represent OMT members of G. hirsutum, G. arboreum, G. raimondii, A. thaliana, and T. cacao

Full size image

To examine the conserved motifs of each clade, the analysis of representative motif logo and conserved motifs prediction were conducted (Figure S2). The results revealed that motif 1, enriched with leucine, valine, and glycine, motif 2, enriched with leucine and valine, and motif3, motif 4, motif 5, and motif 6 were common in clades I, II, III, IV and clade V. While motif 7 was found missing in some members of clade V, which was then replaced with motif 8 at same positions (Figure S2). The enriched amino acid residues of conserved motif1 (L/VDVGGG/TG) was previously identified in S-adenosyl-l-methionine (SAM)-dependant OMTs that shared 95% similarity with G. hirsutum OMT [20].

Investigation of gene structure has uncovered the different number of exons and introns of OMT genes. Exon and intron number of OMT genes varied from the least one exon and no intron to the most 7 to 9 exons and 6 to 8 introns (Table S5). Two members in G. hirsutum including GhOMT82_At and GhOMT82_Dt contain nine exons as the highest (Table S5). Same as, two members including GaOMT82_A in G. arboreum, and GrOMT82_D in G. raimondii contain 9 exons (Table S5). Gene structure analysis revealed that the OMT genes with higher number of exons had a shorter exons and introns, and vice versa. These results demonstrated that OMT members possess different structural patterns in accordance with their features.

Identification of cis-regulatory elements in OMT family

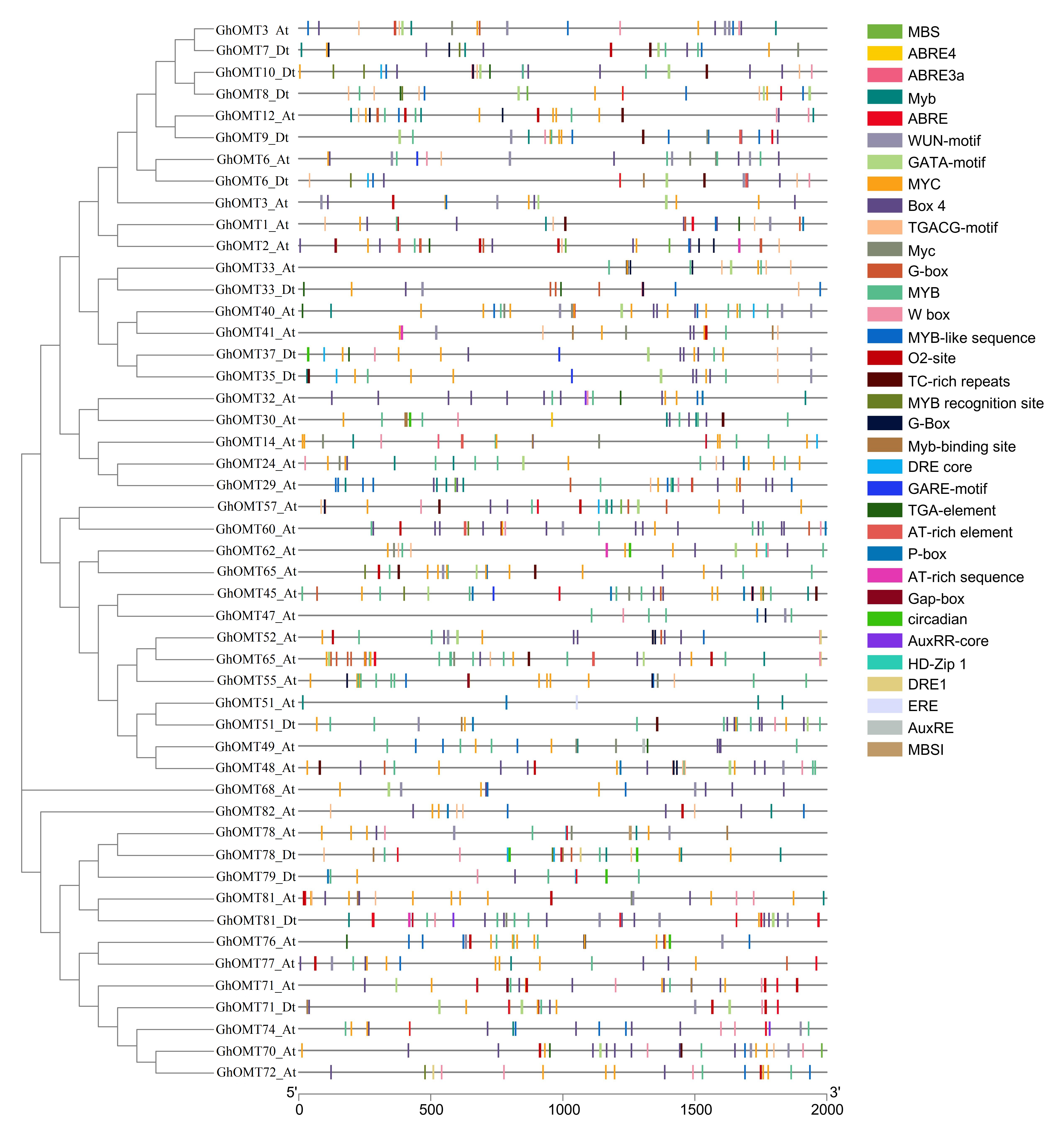

The promoter regions of the OMT family contain precisely a large number of cis-regulatory elements. The analysis of cis-regulatory elements revealed the enrichment of MYB cis-regulatory elements, which was detected more than 350 times in OMT genes (Figure S3). The MYC was another important element that was found 183 times in enlisted OMT genes. Box 4 (part of a conserved DNA module involved in light responsiveness) was found 152 times in 43/82 genes in G. hirsutum. ABRE elements was detected 119 times in 29/82 OMT genes in G. hirsutum. The ERE element was detected 113 times in 37/82 and G-Box 97 times in 37/82 G. hirsutum OMT genes. An auxin RR-core and cis-acting regulatory element involved in the MeJA-responsiveness (TGACG-motif) were also observed in Gossypium OMT genes where this element was identified 48 times in 25/82 genes. Some other important cis-regulatory elements including wun-motif 44 times in 26/82, W-box 39 times in 31/82, GATA-motif 32 times in 27/82, O2-site 30 times in 22/82 OMT genes respectively, in G. hirsutum (Figure S3). These cis-regulatory elements might function collectively in accordance with their specific roles and with specific conditions as well as growth and development stages (Figure S3).

Sub-cellular localization prediction of OMT genes

Understanding and determining the sub-cellular localization of proteins is an important strategy to identify the function of protein at cellular level [21]. This approach includes proteomic-based experiments and microscopic high throughputs [22, 23]. Several sequence-based approaches have been developed to predict the sub-cellular localization by providing amino acid sequences including PSORT [24], Yloc [25], BaCelLO [26], LOCtree [27]. According to CELLO prediction, most of OMT genes were located in the cytoplasm (Table 1), while seven genes were predicted in periplasm, including, GhOMT45_At, GhOMT45_Dt, GhOMT46_Dt, GhOMT48_At, GhOMT48_Dt, GhOMT49_At, and GhOMT49_Dt. Five OMTs were predicted to be localized in both periplasm and cytoplasm, including GhOMT47_At, GhOMT47_Dt, GhOMT53_At, GhOMT54_Dt, and GhOMT68_At. Two genes GhOMT82_At and GhOMT82_Dt were predicted in the outer membrane. Only GhOMT55_At was predicted in inner membrane and cytoplasm (Table. 1). The results of Wolf Psort were highly in agreement with those of CELLO analysis regarding the presence of most of the OMT genes in cytoplasm, however, with exceptions of GhOMT48_At, GhOMT82_At, GhOMT82_Dt, which were predicted in chloroplast and one gene GhOMT76_Dt in mitochondria (Table. 1). The function of the OMT genes might be related to their predicted localizations, though the experimental approach is still needed for further confirmation.

Table 1 Predicted Subcellular localization of OMT genes of G. hirsutum
Full size table

GO enrichment and KEGG pathway analyses

To understand the functional annotations of OMT family genes of G.hirsutum, 82 genes in G. hirsutum were undergone through gene ontology (GO) enrichment, kyoto encyclopedia of genes and genomes (KEGG Pathway), and InterPro analyses. GO term analysis verified their O-methyltransferase activity of all 82 OMT genes, while 62 of the 82 genes were also enriched in methyltransferase activity and 53 of the 82 genes in protein dimerization activity (Fig. 3a). KEGG Pathway analysis revealed that these OMTs were involved in different metabolic pathways. Twenty-nine OMTs were involved in monolignol biosynthesis, phenylpropanoid, secondary metabolism, and metabolic pathways respectively. Eleven genes were involved in phenylalanine and flavonoid biosynthesis pathways respectively (Fig. 3b). InterPro analysis (http://www.ebi.ac.uk/interpro/) categorized these 82 OMT genes as functional genes of S-adenosyl-L-methionine-dependent methyltransferase (Fig. 3c). Sixty-two genes were also predicted in categories of methyltransferase_2 and O-methyltransferase COMT-type respectively (Fig. 3c), while fifty-seven in winged helix-turn-helix DNA-binding domain, fifty-three in plant methyltransferase dimerization (Fig. 3c).

Fig. 3
figure 3

Enrichment analysis of OMT family genes in G. hirsutum. a The functional annotations of Gene Ontology. b The functional annotations of KEGG pathways. c The functional annotations of Interpro. The scales indicate the enriched gene number in respective categories

Full size image

Expression profiling of OMT genes and their homologues in fiber development and salt stress

In order to verify the biological functions of OMT family genes, several transcriptome data sets including TM-1 [28], G. arboreum, G. raimondii, CSSLs [29], and RILs [30], were applied to analyze their expression profiles in different developmental stages, organs, or tissues, and responses to various abiotic stress treatments. The transcriptome clusters showed that the OMT genes can be assorted into three basic groups (Fig. 4a): Those that have a broad responses to different developmental stages from germination to fiber maturation, typical examples of which included GhOMT48_At, GhOMT48_Dt, GhOMT49_At and GhOMT49_Dt; those that have specific responses to root development, including GhOMT1_At, GhOMT2-At and GhOMT40_At; and those that have responses to early germination in seed, cotyledon, root and stem, including GhOMT47_At, GhOMT9_Dt, and GhOMT58_Dt. When fiber specific transcriptome data sets of G. arboreum, G. raimondii were applied to observe the expression profiling diploid OMT family genes, the result also supported specific expression profiling of some OMT genes in diploid species of G. arboreum (Fig. 4b) and G. raimondii (Fig. 4c).

Fig. 4
figure 4

Transcriptome analysis of OMT family genes in different growth, ovule and fiber development stages. a: Transcriptome heatmap of GhOMT family genes in standard genetic cultivar TM-1 of G. hirsutum at different growth, ovule and fiber development stages [28, 31]. b: Transcriptome heatmap of GaOMT family genes in G. arboreum [31]. c: Transcriptome heatmap of GrOMT family genes in G. raimondii [32]

Full size image

The gene expression profiling was further verified with trancriptome datasets of RILs (Fig. 5a) two CSSLs (Fig. 5b and c). The results showed that the genes that had specific expressions during fiber development (Fig. 4a) also had specific expressions in fiber development of RILs and CSSLs materials. These genes had a highly consistent expression profiling among the different cotton cultivars and lines during fiber development. Some selected GhOMT examples genes, GhOMT49_At (Fig. 5d), GhOMT70_At (Fig. 5e), GhOMT48_At (Fig. 5f), GhOMT10_Dt (Fig. 5g), and GhOMT49_Dt (Fig. 5h), were verified through qRT-PCR using sGK9708 and 0–153, the two parental lines of the RIL population with different fiber quality traits. The results showed that GhOMT48_At, GhOMT49_At, and GhOMT49_Dt were significantly up-regulated during fiber development in sGK9708 than in 0–153 Fig. 5d, f and h) and that GhOMT70_At and GhOMT10_Dt did not show differences between the two cultivars (Fig. 5e and g). Noticeably, GhOMT49_At and GhOMT49_Dt reached the highest expression levels at 20 DPA and their high expression lasted in a short time as compared with that of GhOMT48_At. GhOMT48_At had a rapid expression increase from 10 DPA to 15DPA and then its expression steadily increased until 25 DPA when it reached its highest expression level.

Fig. 5
figure 5

Specific responses of selected OMT genes in fiber development. a Transcriptome heatmap of selected GhOMT genes in RIL lines and their parents [30]. b Transcriptome heatmap of selected GhOMT genes in CSSLs of CCRI45 and Hai1 [33, 34]; Z, S, L, and Y represent CCRI45, MBI7561, MBI7747, and MBI7285, respectively; 5, 7, 10, 15, 20, 25, and 28 represent different DPA. c Transcriptome heatmap of selected GhOMT genes in CSSLs of CCRI36 and Hai1 [29, 34]; Z, H1, and H2 represent CCRI36, MBI9915, and MBI9749; 10, 15, 20, 25, and 28 represent different DPA. d-h qRT-PCR verification results of GhOMT49_At, GhOMT70_At, GhOMT48_At, GhOMT10_Dt, GhOMT49_Dt in developing fibers of sGK9708 and 0–153 at 10, 15, 20, and 25 DPAs

Full size image

Based on the expression profiling of the OMT gene family in responses to cold, hot, osmotic, and salt stress treatments (Fig. 6a), two genes specific in salt stress responses, GhOMT70_At and GhOMT10_Dt, and three genes specific in fiber development, GhOMT48_At, GhOMT49_At, and GhOMT49_Dt, were verified by qRT-PCR with RNA samples extracted from salt treatment. The results indicated that both GhOMT70_At and GhOMT10_Dt showed an elevated expression in salt treatments in salt-tolerant cultivar as compare to the control treatments (Fig. 6b and c). These two genes had different expression profiles from 2 h to 6 h after salt treatment. GhOMT70_At had the highest expression at 2 h and then its expression went down at 6 h; whereas GhOMT10_Dt had an increasing expression pattern from 2 h to 6 h. Both genes had much higher expression in roots than in stem or leaf.

Fig. 6
figure 6

Specific responses of selected OMTs in salt stress treatment. a Transcriptome heatmap of selected GhOMT genes in cold, hot, osmotic and salt treatments [28, 31]. b-f qRT-PCR verification results of GhOMT70_At, GhOMT10_Dt, GhOMT49_Dt, GhOMT49_At, and GhOMT48_At in salt treatments of sGK9708

Full size image

Discussion

A genome-wide survey of OMTs

A genome wide search of G. hirsutum [28], G. arboreum [35], and G. raimondii [36] resulted in the identification of 192 genes (82 in G. hirsutum, 55 in G. arboreum, and 55 in G. raimondii). Recent study testified that modern allotetraploid Gossypium species were developed from a natural hybridization between the ancestors of two diploid species of G. raimondii (D-genome) [32] and G. arboreum (A-genome) [35] 1.7 to 1.9 million years ago [28]. The results of current study revealed a loss of quite a large number of OMT genes in G. hirsutum AtDt genome as compared to the total number of OMT genes in A and D genomes. Possibly 19 OMT genes in At sub-genome and 17 in Dt sub-genome in G. hirsutum (Figure S1) were lost during the evolution procedure after it arose from above mentioned hybridization [28]. Gene losses can be the result of premature stop codon, disruption of genes as compared to their orthologous [37], and rapid genome re-organization during polyploidization and diploidization process [38,39,40]. Previous studies have evidenced that polyploidization processes may result in losing of homologous members or altered expression profiles of the homologous genes or both [31, 41,42,43]. Similar phenomenon was noticed in the expression profiling of homologous OMT genes between At and Dt in G. hirsutum, which clued that these genes might have experienced abovementioned events during evolution processes. Collectively, a higher number of genes were also identified in whole genome duplication event. The whole genome duplication may have resulted from an organism that inherited two genomes from each parent. Whole genome duplication events results duplicate genes that may lost through fractionation [44]. Besides the whole genome duplication, segmental duplication events were also identified with a large number in OMT gene pairs. Segmental duplication is widespread in flowering plants, which might lead to the evolution of novel genes and their functions [45].

Phylogenetic analysis showed high similarity and monophyletic distribution of OMTs within Gossypium species that might support the conservative evolution mode of OMT genes within five phylogenetic clades. Previous study also reported five clades of OMT genes in Catalpa bungei [46]. Analyses of selection pressures revealed that most of OMT genes in Gossypium species were under a purifying selection pressure. The purifying selection pressure might suggest the importance of OMT genes in Gossypium species. But noticeable exceptions were also observed in some interspecific homologous pairs, in which their Ka/Ks values were > 1, indicating these homologous pairs were under a positive selection pressure. These homologous pair exceptions included GrOMT52_D-GhOMT52_Scaf and GrOMT29_D-GhOMT29_At in G. raimondii and G. hirsutum, GaOMT30_A-GhOMT30_At in G. arboreum and G. hirsutum, GrOMT63_D-GaOMT64_A and GrOMT29_D-GaOMT29_A in G. raimondii and G. arboreum. These results suggested that the OMT genes might had experience positive selection pressures during the evolution from diploids to tetraploids. Previous studies have evidenced that the positive selection pressure might be associated with the onsets of new functions in genes [47, 48]. Considering the fact that quite a proportion of OMT genes were lost during the formation and evolution of allotetraploid cotton (see afore discussion and Figure S1). In the current study, six OMT family members in G. hirsutum, one in G. arboreum and nine in G. raimondii were characterized as (R,S)-reticuline 7-O-methyltransferase. 7OMTs convert reticuline to laudanine in tetrahydrobenzylisoquinoline biosynthesis in the opium poppy Papaver somniferum, however, this enzymatic activity is unknown in most higher plants [49]. Therefore, how these genes function is still open to discussion. Taken all findings together, the results might suggest that the OMTs that experienced positive selective pressure be lost or take on some novel functions in G. hirsutum during the processes of its evolution and ancestor formation.

Previous findings have reported that the G. raimondii (D-genome) and G. arboreum (A-genome) are the closest relatives to the Dt and At sub-genomes of allotetraploids, respectively [28]. Each gene in A or D genome will always have a homolog in the correspondent At or Dt sub-genomes of G. hirsutum [50]. However, in both A and D genomes we detected quite a large number of OMT genes that do not have homologs in their relative At and Dt sub-genomes (Figure S1). Previous studies evidenced that such homolog loss could result from two possible reasons: one is that the homologs were lost during the procedure of polyploidization from diploids to tetraploid; the other is that after the tetraploid formation, the OMT members in each genome started their separate evolution procedure. This separate evolution procedure makes the newly evolved members have no homologs in its relative genomes [28]. Previous studies revealed that in A, D, AtDt genomes do not maintain same speed of evolution. A faster evolution rate was observed in allotetraploid cottons than in diploid cottons [28]. Taken the fact that OMT genes undergo purifying selection procedures (Table S4. Sheet B), the first reason is possibly endorsed as the main cause for the current evolution status of OMT gene family and the second reason may also play a role.

Function prediction of OMT candidates

OMTs are involved in diverse cis-regulatory elements

Plants encounter various biotic and abiotic stresses during their entire life cycles that negatively affect growth, development, and productivity [51]. Under exposure of these stresses, plants require some potential mechanism, which can be activated in critical circumstances, to support whole plant life cycle [52]. Excessive salinity is also a major factor that affects the cotton production all around the world [53]. Identification of cis-regulatory elements revealed that the OMT genes are enriched with important cis-regulatory elements that are essential against negative environmental stresses. Some important regulatory elements, including W-box, MYB, MYC, DRE, ABRE, G-Box, MBS [54], were identified in OMT genes. W-box is important to regulate the expression of genes and to bind WRKY TFs. WRKY TFs are important to mediate plants to defense against chilling, wounding, drought, salinity and heat stresses [55,56,57,58,59,60,61,62,63]. MYB and MYC have been identified as involved in dehydration-response [64]. DRE [65], which up-regulate gene expression under cold stress and increase the tolerance of plants was also identified in these specific genes. ABRE is an important regulatory element that enhances salt stress tolerance in plants. It plays a key role in dehydration and in response to salinity stress in Arabidopsis thaliana, soybean and rice, and in response to chilling or cold in Paeonia suffruticosa [66]. G-box is identified in several gene promoters in previous studies and it contributes to development, hormone response, and tolerance against fungal infections in plants. Besides, a gibberellins response element (GARE) was also identified to be important to promote flowering in plants. The auxin hormones play a major role in growth and development of diverse plant species [67]. These results were in accordance with our findings. Especially the repetitively identified cis-regulatory elements might have biological functions in plants under specific conditions and development stages.

OMTs are possibly involved in secondary metabolic pathways

The KEGG pathways enrichment analysis revealed the involvement of OMT genes in secondary metabolism and metabolic pathways including monolignol, phenylpropanoid, flavonoid, and phenylalanine metabolisms. Secondary metabolic pathways are demonstrated to have exceptional impacts on biotic and abiotic stresses. Secondary metabolites are phytochemicals, which are synthesized through secondary metabolism. In plants, phenylpropanoids are categorized in several groups such as phenolic acids, flavonoids, and lignins, which are involved in diverse physiological processes and tolerance under unfavorable conditions [68,69,70,71,72]. The activity of secondary metabolites increases during the response of abiotic stresses. These phenolics provide plants with higher tolerance against heavy metals [73, 74], salinity [75], drought [76], and temperature stresses [71]. These pathways also play an important role in plant cell elongations [77, 78]. Same as, plant OMT genes have been identified in secondary metabolism [79]. Higher expression of secondary metabolic pathways related genes in developing cotton fiber is reported in previous studies [80, 81]. Importantly, OMT genes were reported to be involved in lignin synthesis and to be induced by inoculation of Verticillium dahliae in cotton [82,83,84]. During the inoculation of pathogens, changes in the expression patterns of phenylpropanoid related OMT genes were identified. These identified OMT genes included GhOMT53_At, GhOMT58_Dt, GhOMT61_Dt, and GhOMT78_Dt that were found significantly expressed in 12 and 48 h post inoculation V. dahliae [85]. In the current study, these genes were down-regulated under abiotic stresses and in fiber development stages (Fig. 4). Previous reports have evidenced that desoxyhemigossypol-6-O-methyltransferase (dHG-6-OMT) catalyzed the biosynthesis of terpenoid and provided an effective defense mechanism to cotton plant against biotic stresses including insects and pathogens [86]. In response to V. dahliae (V991) in CSSLs lines CCRI36 and MBI8255, diverse genes were found differentially expressed in lignin biosynthesis including CCoAOMT, which can adequately utilize lignin and has been characterized in several previous studies [87, 88]. Another study also reported that CCoAOMT was up-regulated in response to Verticillium pathogen in cotton and rendered cotton plants a comparable phenotypic resistance as compared to control plants [89]. A RNA-seq analysis based research identified differential expression patterns of CCoAOMT in response to V. dahliae, confirming the effect of this OMT gene in the plant response to V. dahliae in cotton [90]. These results consequently evidenced the important role of secondary metabolic pathways and OMT genes in biotic stresses in cotton.

OMTs are possibly involved in plant growth, abiotic stress tolerance, and fiber development of cotton

Salinity is one of the major causes to reduce crop yield [91] and incurs up-regulation and/or down-regulation of plant genes in response [92]. The OMT genes have been found specific for salt stress tolerance and fruit development in tomato plant (Solanum lycopersicum) [93]. The SAM-dependent methyltransferases genes were identified to play important role in sweet potato (Ipomoea batatas) in response to salt stress [94]. In wheat, TaCOMT-3D contributes to stem mechanical support [95]. Another TaCOMT gene was also observed with constitutive expression in stem along with leaf and root [96]. The OMT gene (BdCOMT1) was strongly expressed in stem node and internode but poorly expressed in other tissues in Brachypodium distachyon plant [97]. The expression profiles of OMT gene family in the transcriptome data of TM-1 [28] and verification results through qRT-PCR also suggested that two OMT members GhOMT10_Dt and GhOMT70_At might contribute to salt stress tolerance in G. hirsutum. In the qRT-PCR verifications, GhOMT10_Dt and GhOMT70_At showed different expression profiling from 2 h and 6 h after 200 mM NaCl treatment (Fig. 5). Probably they act differently in response to salt stress in G. hirsutum. Five genes including GhOMT1_At, GhOMT41_At, GhOMT47_At, GhOMT17_Dt, and GhOMT37_Dt had significant expressions in stem (Fig. 4a) where they might be the potential candidates to provide structural support and survival to plant in environmental stresses.

Cotton fiber quality of is an important attribute to develop elite cultivars in the presence of negative environmental factors. Studies demonstrated that GhOMT48_At and GhOMT49_At were expressed at elongation stages of a CSSL (CS-B25) and TM-1 respectively [28, 98]. In the current study, the fiber specific OMT genes were consistently identified across various populations and species including TM-1 (Fig. 4a) G. arboreum (Fig. 4b) G. raimondii (Fig. 4c), RILs (Fig. 5a), CSSLs (Fig. 5b, c). They also showed highly similar expression patterns in different fiber development stages. The expression specificities of GhOMT48_At, GhOMT49_At, and GhOMT49_Dt in developing fibers were further verified through qRT-PCR studies (Fig. 5d, f and h). The results demonstrated that these OMT members could have a significant function in fiber development and fiber quality formation. But how these genes function during fiber quality formation was still open to discussion.

Lignins-like phenolics are widely studied in response to stress [99]. Recent research advancements revealed that lignin or phenolics influence fiber development at elongation and secondary cell wall synthesis stages [100]. The knock-down of Lignin-like phenolics related gene (GhbHLH18) in G. hirsutum evidenced the regulation of lignin-like phenolics pathway genes including a COMT and others, during cotton fiber elongation and secondary cell wall synthesis stages. The results demonstrated the roles of these genes in regulating the lignification in developing cotton fibers [7]. This study has gathered important information of OMT gene family which is a forward step in research to uncover the possible functions or to support previous studies in exploration the functions of OMT genes in plant response to salt stress and in cotton fiber development.

Conclusions

Methyltransferases are versatile class of enzymes. OMT contributes to diverse phenolics that are essential for plant growth and serves as protective shield against several kinds of stresses. Various bioinformatics analyses revealed that OMT gene family is a strong growth regulator, which not only provide protection to the plant, but also are involved in fiber elongation and secondary cell wall synthesis stages. Furthermore, expression profiling analysis based on several transcriptome data and qRT-PCR validation inferred that GhOMT10_Dt and GhOMT70_At might be the potential candidates for salt stress tolerance and that GhOMT48_At, GhOMT49_At, and GhOMT49_Dt might have significant influence in fiber development at elongation and secondary cell wall thickness stages of G. hirsutum. This proposed study concludes the important roles of OMT family genes in cotton fiber development and in salt stress tolerance.

Methods

Identification of OMT protein family members, sequences alignment, and phylogenetic tree construction

Genome data of three Gossypium species including G. arboreum (CRI), G. raimondii (JGI), and G. hirsutum (NAU) were downloaded from cotton functional genomic database (https://cottonfgd.org/) [101]. Genome data of A. thaliana (Athaliana/TAIR10, https://genome.jgi.doe.gov/portal/pages/dynamicOrganismDownload.jsf?organism=Athaliana#) [102] and T. cacao (Tcacao/v2.1, https://genome.jgi.doe.gov/portal/pages/dynamicOrganismDownload.jsf?organism=Tcacao#) [103] were also downloaded for comparative analysis of OMT genes. The hidden Markov model profiles (PF00891 and PF01596) were downloaded from Pfam database (https://pfam.xfam.org/). The hmmsearch program of HMMER 3.0 software [104] was used to search for protein sequences of three Gossypium species with the E-value of 1e− 5. OMT protein sequences of A. thaliana and T. cacao were also retrieved from the Phytozome database (https://phytozome.jgi.doe.gov/pz/portal.html) for phylogenetic analysis. The proteins with absence of required domains were manually removed. Other features of OMT genes including protein length (aa), and molecular weight (kDa) were characterized by using cotton functional genomic database (http://www.cottonfgd.org/) [101]. The full length amino acid sequences of G. hirsutum, G. arboreum, G. raimondii, A. thaliana, and T. cacao encoded by OMT genes were aligned with clustalx2 software (http://www.clustal.org/) [105] with default parameters for the neighbor-joining phylogenetic tree as 1000 bootstraps. Subsequently, two neighbor-joining phylogenetic trees were generated by using Mega7 [106]. The topology of both phylogenetic trees was confirmed to understand the phylogenic relationship within the five plant species.

Nomenclature of these members was based on their chromosomal locations, homology and numbers in each Gossypium species.

Chromosomal mapping and collinearity analysis

TBtools was used to perform the chromosomal mapping of the given OMT genes, to search the homologous pairs of OMT genes between genomes of the three Gossypium species through protein-protein blast (E-value le-5). Circle gene viewer model of TBtools software was used to visualize the results of collinearity between homologous gene pairs [16].

Gene structure and conserved motifs

The structure of the OMT genes was analyzed using the online server of Gene Structure Display (GSDS 2.0, http://gsds.cbi.pku.edu.cn) [107]. The conserved motifs were predicted online in MEME web based motif prediction tool version 5.0.5 (http://meme-suite.org/) by providing protein sequences of OMT genes [108].

Selection pressure, cis-regulatory elements, sub-cellular localization and gene enrichment analysis

The CDS of homologous gene pairs of G. hirsutum (NAU), G. arboreum (CRI), and G. raimondii (JGI) were assigned to TBtools software to estimate the Ka/Ks ratio to predict selection pressure between the genes of each pair in genomes and sub-genomes [16]. The upstream sequences (2000 bp) of OMT genes were retrieved through cotton functional genomic database (http://www.cottonfgd.org) and were submitted to PlantCARE database [109] to obtain the cis-regulatory elements. Sub-cellular localization of genes was predicted using online bioinformatics tools CELLO v.2.5 and Wolf Psort with their protein sequences [24, 110]. KEGG IDs of OMT family genes were downloaded from cotton functional genomic database (http://www.cottonfgd.org), then annotation was performed by providing KEGG IDs in kyoto encyclopedia of genes and genomes database (https://www.genome.jp/kegg/) [111]. Gene ontology (GO) annotation IDs of OMT family genes were downloaded from cotton functional genomic database (http://www.cottonfgd.org) and were submitted to Gene ontology database (http://geneontology.org/) to perform GO analysis [112].

Expression profiling of OMT genes

The different sets of RNA sequencing data including TM-1, a genetic standard line of G. hirsutum (Nanjing Agricultural University, Nanjing, Jiangsu, China) (PRJNA248163) [28, 31], 69,307 and 69,362 (selected lines from a RIL population sGK9708 × 0–153, Institute of Cotton Research, Anyang, Henan, China) (PRJNA542946) [30], MBI7747, MBI7561, and MBI7285 (selected lines from CSSL population CCRI45 × Hai1, SRP084203) [33, 34], and MBI9915 and MBI9749 (selected lines from CSSL population CCRI36 × Hai1, SRX2843778) (Institute of Cotton Research, Anyang, Henan, China) [29, 34] were included in this study to observe the expression pattern of OMT family genes at different growth stages, under abiotic stress treatment stages, ovule development, and in different fiber development stages of cotton. Briefly, 69,307, 0–153, MBI7747, MBI7561, MBI9915, MBI9749, and Hai1 have high fiber quality traits, while 69,362, MBI7285, sGK9708, CCRI36, and CCRI45 have low fiber quality traits. Detailed information of these referenced materials is presented in Table S1.

Transcriptome data of G. arboreum (PRJNA179447) [35], and G. raimondii (PRJNA79005) [32] were also included to compare the comparative expression of these OMT genes.

Plant material, RNA isolation, cDNA synthesis, and qRT-PCR

Upland cotton cultivar 0–153 had elite fiber quality while sGK9708 had high yield potential and wide adaptability. They are successfully used to tag fiber quality and yield QTLs in our previous reports [30, 113, 114]. In the current study, sGK9708 and 0–153 (Table S1) were planted in April 2018 in the experimental fields of the Institute of Cotton Research, Chinese Academy of Agricultural Sciences, Anyang, Henan. Flowers were tagged on the day of anthesis for fiber sampling in July 2018. Bolls of tagged flowers were sampled in the morning between 9:00 and 10:00 AM at 10, 15, 20, and 25 days’ post anthesis (DPA). The fibers were dissected from the developing seeds right after boll picking and immediately stored at − 80 °C for RNA extraction.

To examine the expression profiling of OMT genes under salt stress, seeds of sGK9708 cultivar were germinated in wet filter papers for 72 h and then were transferred to hydroponic conditions. The seedlings were treated with 200 mM NaCl at three leaves stage. The true leaves, stems, and roots were sampled at 0 h, 2 h, and 6 h of the treatment. The 0 h of treatment was considered as control sample to compare the expression profiling with treated samples.

Total RNA isolation was performed with the RNAprep Pure Plant Kit by (Tiangen, Beijing, China). To eliminate the genomic DNA contamination, the RNA samples were treated with DNase1. RNA concentration and integrity was observed on Nano Drop 2000 spectrophotometer (Thermo scientific, USA) and 1% agarose gel electrophoresis. cDNAs of the RNA samples that the A260/280 ratio reached 2.00 were synthesized using PrimeScript® RT Reagent Kit (Perfect Real Time, Takara Biotechnology Co., Ltd., Dalian, China). qRT-PCR was performed with ABI 7500 fast Real-Time PCR system (Applied Biosystems, USA), with Gh-Histone3 gene was used as reference to normalize the relative expression level. Primers pairs of five OMT genes were designed by using Oligo 7 [115] (Table S2). 2−ΔΔCt method was used to calculate the gene expressions [116].
