Advanced quantum techniques for future gravitational-wave detectors

  • Stefan L. DanilishinEmail author
  • Farid Ya. Khalili
  • Haixing Miao
Open Access
Review Article

Abstract

Quantum fluctuation of light limits the sensitivity of advanced laser interferometric gravitational-wave detectors. It is one of the principal obstacles on the way towards the next-generation gravitational-wave observatories. The envisioned significant improvement of the detector sensitivity requires using quantum non-demolition measurement and back-action evasion techniques, which allow us to circumvent the sensitivity limit imposed by the Heisenberg uncertainty principle. In our previous review article (Danilishin and Khalili in Living Rev Relativ 15:5, 2012), we laid down the basic principles of quantum measurement theory and provided the framework for analysing the quantum noise of interferometers. The scope of this paper is to review novel techniques for quantum noise suppression proposed in the recent years and put them in the same framework. Our delineation of interferometry schemes and topologies is intended as an aid in the process of selecting the design for the next-generation gravitational-wave observatories.

Keywords

Gravitational-wave detectors Optomechanics Quantum measurement theory Quantum noise Standard quantum limit Fundamental quantum limit Optical rigidity Quantum speed meter Squeezed light Back-action evasion Atomic spin ensemble White-light cavity

1 Introduction

The second generation of ground-based gravitational-wave (GW) interferometers, Advanced LIGO (Aasi et al. 2015) and Advanced Virgo (Acernese et al. 2015), with significantly improved sensitivities, superseded the initial generation in 2015, which led to a Nobel Prize-winning first direct observation of GWs from the binary black hole (BBH) coalescence on September 14, 2015 (Abbott et al. 2016c). This has marked the start of the new era of GW astronomy.

Contrary to the predictions based on the previous X-ray observations (Abbott et al. 2016a), the first detected GW signal has come from an unexpectedly massive BBH with the mass of components \(\sim \,30\,M_\odot \) and the final BH with mass \(\sim \,60\,M_\odot \). The following detections (Abbott et al. 2016b, 2017c, d, g) have not only confirmed the existence of this new population of massive black holes but also highlighted the importance of sensitivity improvement at low frequencies (< 30 Hz) for better parameter estimation and more quantitative analysis of the nature of these exotic objects.

However, massive BBHs are not the only reason for low-frequency improvement. With all three detectors of the LIGO-Virgo network being online, the sky localisation is dramatically improved (see Sect. 4.2. in Abbott et al. 2018) enabling multi-messenger astronomy of compact binaries (Abbott et al. 2017b). The longer lead times before the merger necessary for directing electromagnetic (EM) telescopes to the right sky location depend directly on the low-frequency sensitivity where the spectral components of the inspiral stage of the binary evolution are most prominent (Harry and Hinderer 2018). We observed this situation when LIGO and Virgo had detected a GW signal from the final stages of evolution of the binary neutron-star (BNS) system (Abbott et al. 2017e) before the coalescence and merger that has produced a chain of follow-on electromagnetic (EM) counterparts detected by the EM partners of LIGO (Abbott et al. 2017b).

This fascinating discovery has also revealed the significance of enhancing the GW detector sensitivity in the relatively high-frequency band, from 1 to 5 kHz, which hosts the spectrum of the merger and the ringdown phases of the BNS system. It is the precise measurement of the GW signal shape emitted in these two phases that promise to unveil many details about the physics of nuclear matter and also to shed light on the physical mechanisms of short gamma-ray bursts (Abbott et al. 2017a).

And this brings us to the point of this review. As we can see from the Advanced LIGO design sensitivity shown in Fig. 1, the fundamental quantum fluctuations of light are limiting the sensitivity of the current generation of GW detectors in the most of its detection band, above \(\sim \) 10 Hz. The dominant noises below 10 Hz comprise seismic and gravity gradient fluctuations (Harms 2015) together with suspension thermal noise (LIGO Scientific Collaboration 2018), while at medium frequencies around \(\sim \) 50 Hz the mirror coating thermal fluctuations come close to the level of projected quantum noise. There is an active research going on to suppress the low-frequency noise sources further in the next generation facilities (Cole et al. 2013). With these classical noises suppressed, we need to reduce the quantum noise to further improve the detector sensitivity. Similarly for the next-generation GW interferometers (Punturo et al. 2010; Hild et al. 2011; Abbott et al. 2017f), to go beyond their design sensitivity goal of at least an order of magnitude better sensitivity than in Fig. 1, we will need to incorporate the advanced techniques of quantum noise suppression that this review is about.

Quantum noise (QN) comes from quantum fluctuations of the phase and amplitude of the light, which are two conjugate canonical observables. As such they do not commute with each other and, due to Heisenberg uncertainty principle, cannot have vanishing uncertainties simultaneously. For the ground-based GW detectors, the GW signal is inferred from the relative phase difference between the two light beams that propagate in the arms of the Michelson interferometer. One might expect that only the quantum fluctuations of the phase, known as quantum shot noise (QSN), shall limit their sensitivity. However, this is not the case. The beating between the strong carrier field circulating in the arm cavities with the vacuum quantum fields from the detection port creates a random differential radiation pressure force, which shakes the freely suspended mirrors and manifests as the low-frequency component of the QN. It is called the quantum radiation pressure noise (QRPN) or quantum back-action noise, in the context of quantum measurement theory. Its domination at low frequencies comes from the strong frequency dependence of the response of the test mass’ centre of mass motion to the external force.
Fig. 1

Design sensitivity of Advanced LIGO interferometer with major noise sources

Hence, to reach the aforesaid objective and suppress the QN in the entire detection band, one has to suppress the uncertainties of both non-commuting observables in parallel, which seemingly violates the Heisenberg uncertainty relation. It sounds impossible, at a first glance. Yet, there are actually many approaches that seek to perhaps not violate (it’s impossible indeed), but circumvent the limitations imposed by the uncertainty principle. In this review, we will focus on those of these techniques applicable to interferometric GW detection.

The quantum noise-mitigation techniques we consider in this review include (1) techniques well tested and already applied in the large scale GW detectors, such as squeezed light injection (Caves 1981; Abadie et al. 2011; Aasi et al. 2013; Schnabel 2017), (2) techniques that are at the stage of prototyping, e.g., speed meters (Braginsky and Khalili 1990; Chen 2003; Purdue 2002; Purdue and Chen 2002; Chen 2003; Danilishin 2004; Wade et al. 2012; Gräf et al. 2014; Voronchev et al. 2015) and frequency-dependent squeezing (Oelker et al. 2016; Isogai et al. 2013), and (3) recently proposed ones, which would require quite some research and development, before one could implement them in a real detector, like conditional frequency-dependent squeezing (Ma et al. 2017; Brown et al. 2017) or white-light-cavity based schemes (Wicht et al. 1997; Zhou et al. 2015; Ma et al. 2015; Peano et al. 2015; Korobko et al. 2017; Miao et al. 2015; Page et al. 2018; Miao et al. 2018).

Experience shows that it takes more than tens of years from concepts to the implementation of some advanced techniques in the large-scale GW detector facility. Most of the methods in this review are not targeted at short, or medium-term upgrades of Advanced LIGO and Advanced Virgo, rather at the next-generation instruments and beyond. It is quite difficult to predict what parameters these future detectors will have and what the level of classical noise sources will be. In this review, we decide to present only the QN in all the sensitivity curves for considered configurations, and adopt the set of nominal parameters listed in Table 1 as the common ground. Notations used throughout this text are listed in Table 2.
Table 1

Parameters for all configurations considered in the paper, unless explicitly specified otherwise

Parameter

Notation

Value

Mirror mass (kg)

M

200

Arm length (km)

L

20

Laser wavelength (nm)

\(\lambda _p\)

1550

Optical power in each arm (MW)

\(P_c/2\)

4.0

Effective detector bandwidth (Hz)

\(\gamma \)

100

The structure of the review is the following. In the next section, we give a brief introduction into the physics of quantum noise and how it manifests in GW interferometers. In Sect. 3, we consider the general limitations that arise in precision interferometry due to constraints that quantum mechanics imposes on the magnitude of quantum fluctuations of light. In Sect. 4, we review the concept of quantum noise mitigation using squeezed light injection, including frequency-dependent squeezing. Section 5 is devoted to the suppression of quantum noise through quantum non-demolition measurement of speed and to a myriad of different ways of realising this principle in GW detectors. In Sect. 6, the enhancement of the interferometer response to GW signal by modifying test masses’ dynamics is investigated and different variations based on optical rigidity also sometimes referred to as dynamical back-action are analysed. Section 7 deals with proposals which consider active elements, such as atomic spin ensembles and unstable optomechanical filters, for the mitigation of quantum noise both at low and at high frequencies. In Sect. 8, we give some concluding remarks and outlook.

It is worth emphasising that this review is by no means a replacement of the previous one under the title “Quantum measurement theory in GW detectors” (Danilishin and Khalili 2012), but rather a natural continuation thereof. The previous review defined the framework of and provided the tools for the analysis of quantum noise in this special regime of continuous quantum-limited interferometric measurements. This one builds up heavily on these materials by applying the tools and methods to the multitude of novel schemes and configurations developed recently. The main objective we had in mind is to give common ground to all of these various configurations and to facilitate the upcoming selection of the optimal design of the next generation instruments (Table 1).
Table 2

Notations and conventions, used in this review

Notation and value

Comments

L

Length of the arms of the interferometer

\(\tau =L/c\)

Light travel time at distance L

\(\omega \)

Optical frequencies

\(\omega _0\)

Interferometer resonance frequency

\(\omega _p\)

Optical pumping frequency (laser frequency)

\(\varOmega = \omega -\omega _p\)

Modulation sideband frequency w.r.t. laser frequency \(\omega _p\)

\(\varDelta =\omega _p-\omega _0\)

Optical pump detuning from the cavity resonance frequency \(\omega _0\)

\(\mathcal {E}_{0} = \sqrt{\dfrac{4\pi \hbar \omega _p}{\mathcal {A}c}}\)

Normalisation constant of the second quantisation of a monochromatic light beam

\(A^{in} = \sqrt{\dfrac{2P^{in}}{\hbar \omega _p}}\)

Classical quadrature amplitude of the incident light beam with power \(P^{in}\)

\(T\,(R)\)

Power transmissivity (reflectivity) of the mirror

\(\gamma _{\mathrm{arm}} = cT/4L\)

Arm cavity half-bandwidth for input mirror transsmissivity T and perfect end mirror

\(\delta _{\mathrm{arm}}\)

Arm cavity detuning/differential detuning of the arms of Fabry–Perot–Michelson interferometer

\(\gamma \)

Interferometer effective half-bandwidth

\(\beta (\varOmega )\)

Phase shift acquired by sidebands in the interferometer

\(\mathcal {K}(\varOmega )\)

Optomechanical coupling factor (Kimble factor) of the interferometer

\(P^{in}\)

Incident light beam power

\(P_c = 2P_{\mathrm{arm}}\)

Total power, circulating in both arms of the interferometer (at the test masses)

M

Mass of the mirror

m

Reduced mass of the signal mechanical mode of the interferometer (e.g., dARM mode)\(^\mathrm{a}\)

\(\varTheta = \dfrac{4\omega _p P_c}{mcL}\)

Normalised intracavity power

\(h_{\mathrm{SQL}} = \sqrt{\dfrac{8\hbar }{mL^2\varOmega ^2}}\)

Standard quantum limit of a free mass for GW strain

\(x_{\mathrm{SQL}} = \sqrt{\dfrac{2\hbar }{m\varOmega ^2}}\)

Standard quantum limit of a free mass for displacement

\(^\mathrm{a}\)Here we follow the same definition of the dARM mechanical mode as we adopted in Danilishin and Khalili (2012), i.e., \(x_{\mathrm{dARM}} = (x_{N}-x_{E})/2\), where \(x_{N,E}\) are the corresponding elongations of the arms of the interferometer. When so defined, the dARM-mode has the same reduced mass as a single test mass, \(m=M\). Another popular definition of the dARM as \(\tilde{x}_{\mathrm{dARM}} = (x_{N}-x_{E})\) leads to the new reduced mass equal to \(m=M/4\) and to the correspondent redefinition of the SQL

2 Quantum noise

Laser interferometric GW detectors (see Fig. 2) use interference of two (almost) monochromatic light waves travelling in their arms to measure a tiny relative phase shift induced by the GW. Laser light in two orthogonal arms experiences opposite variations of the effective optical length of the arms (see yellow inset box in Fig. 2), which makes the light beams reflected off the arms to recombine at the beam splitter with a slight mismatch in phase. This violates the destructive interference condition at the beam splitter and a small fraction of carrier field makes it to the photodetector at the detection (readout) port. The green inset box in Fig. 2 shows how the intensity of light at the photodetector would depend on the effective difference of the optical path lengths of the arms \(\delta L\).
Fig. 2

Schematic of the working principle of a GW interferometer

In a nutshell, every interferometer is a device that uses interference to measure the relative phase of one beam to the other. It detects variations of intensity of the interference pattern caused by this phase shift. The precision of this procedure is dependent on many factors, which can be decomposed by source in a noise budget (cf. Fig. 1). The one, which we are focusing on, in this review is rooted in the very nature of light as a quantum field, i.e., the quantum fluctuation of optical phase and amplitude.

2.1 Two-photon formalism and input–output relations

As shown by Caves and Schumaker (1985) and Schumaker and Caves (1985), the quantum noise of light in any linear optical device can be conveniently described within the framework of the two-photon formalism. Namely, noise can be considered as tiny stochastic variations in the quadratures of the optical field travelling through the device. Any variations of interferometer parameters induced by the signal, e.g., differential arm length change, also lead to variations of the quadratures of the outgoing field, which can be described using the same formalism.

In the two-photon formalism, one starts with writing down the ingoing and outgoing optical fields of the interferometer at some fixed location in terms of sine and cosine quadratures:
$$\begin{aligned} \hat{E}^{in}(t)= & {} \mathcal {E}_0\left[ (A^{in}+\hat{a}^{in}_c)\cos \omega _p t+\hat{a}^{in}_s\sin \omega _pt\right] , \end{aligned}$$
(1)
$$\begin{aligned} \hat{E}^{out}(t)= & {} \mathcal {E}_0\left[ (B_{c}^{out}+\hat{b}^{out}_c)\cos \omega _p t+(B_s^{out}+\hat{b}^{out}_s)\sin \omega _pt\right] . \end{aligned}$$
(2)
Here \(\mathcal {E}_{0} = \sqrt{4\pi \hbar \omega _{p}/(\mathcal {A}c)}\) is a normalisation constant defined in the second quantisation of a monochromatic light beam with the carrier frequency \(\omega _{p}\), optical power \(P^{in}\) and cross-sectional area \(\mathcal {A}\); \(A^{in} = \sqrt{2 P^{in}/(\hbar \omega _{p})}\) (\(B^{out}\)) is classical mean amplitude of the input (output) light at frequency \(\omega _p\); \(\hat{a}^{in}_{c,s}\) (\(\hat{b}^{in}_{c,s}\)) describe small, zero-mean quantum fluctuations and variations due to the signal, and they are related to the creation and annihilation operators through
$$\begin{aligned} \hat{a}_c = \frac{\hat{a}+\hat{a}^\dag }{\sqrt{2}},\quad \text{ and }\quad \hat{a}_s = \frac{\hat{a}-\hat{a}^\dag }{i\sqrt{2}}, \end{aligned}$$
(3)
and similarly for outgoing fields. Note that we do not specify time as an argument in Eq. (3), as the same definition holds in the frequency domain, which is assumed in the rest of this article. The time and frequency domain are related through the following Fourier transform:
$$\begin{aligned} \hat{a}_{c,s}(t) = \int _{-\infty }^{\infty } \frac{d\varOmega }{2\pi } \hat{a}_{c,s}(\varOmega )e^{-i\varOmega t}. \end{aligned}$$
(4)
To fully describe signal and noise in a (lossless) GW interferometer, we shall quantify how the quadrature operators of the input field transform when propagating through the interferometer to the output. Mathematically, the transformation can be represented as a matrix operating on the two-dimensional vectors \(\hat{\varvec{a}} = \{\hat{a}_c,\,\hat{a}_s\}^{\mathrm{T}}\) and \(\hat{\varvec{b}} = \{\hat{b}_c,\,\hat{b}_s\}^{\mathrm{T}}\) and GW signal \(h(\varOmega )\). Note that one needs to calculate both, the propagation of the carrier field mean amplitudes (denoted by capital letters) and of the zero-mean fluctuational sideband fields defined above. The former ones are needed to calculate the response of the interferometer to the mirrors’ displacement as well as the effects of quantum back-action, as both depend on the value of the classical laser field amplitude at the mirror (cf. e.g., Eqs. (245) and (257) of Danilishin and Khalili 2012). We assume that the interferometer is working in a small perturbations regime where all the transformations of the signal and noise can be considered as linear ones, and all the noise sources under study are Gaussian and stationary, which can be quantified by using the frequency domain spectral density.
For a GW detector, the transformation, which is also called the input–output relation, can be written in the general form as:
$$\begin{aligned} \hat{\varvec{b}} = \mathbb {T}\cdot \hat{\varvec{a}} + {\mathbf {t}}\frac{\mathcal {X}}{\mathcal {X}_{\mathrm{SQL}}}, \end{aligned}$$
(5)
where
$$\begin{aligned} \mathbb {T} \equiv \begin{bmatrix} T_{cc}(\varOmega )&T_{cs}(\varOmega )\\ T_{sc}(\varOmega )&T_{ss}(\varOmega ) \end{bmatrix} \end{aligned}$$
(6)
is the optical transfer matrix of the interferometer (including the optomechanical back-action effects),
$$\begin{aligned} {\mathbf {t}} \equiv \begin{bmatrix} t_c(\varOmega )\\ t_s(\varOmega ) \end{bmatrix} \end{aligned}$$
(7)
is the optomechanical (OM), SQL-normalised response of the interferometer to a general signal. The signal is denoted as \(\mathcal {X}\) and describes only the change in the physical state of the interferometer caused by the signal in question, e.g., GW, and \(\mathcal {X}_{\mathrm{SQL}}\) is the corresponding free-mass standard quantum limit (SQL) for the mechanical degree of freedom expressed in the unit of \(\mathcal {X}\), which is a normalisation factor and will be explained later in more details (see Sect. 3). In precision interferometry, \(\mathcal {X}\) is either the signal displacement of the test mass, x, or an external signal force, F, that causes this displacement, or, more specific for GW interferometry, the GW strain, h. In each case, the corresponding SQL applies. The relation between these three quantities is discussed in Sect. 4.3 of Danilishin and Khalili (2012).
The interferometer’s readout quantity depends on the implemented readout scheme, but in all cases it invariably involves measuring the photocurrent \(\hat{i}^{out}(t)\) derived from the photodetectors that sense the light leaving the readout port of the interferometer. Assuming that all the future GW interferometers will use the balanced homodyne detection (BHD) (see Sect. 2.3.1 of Danilishin and Khalili 2012 for basics description of BHD, or Fritschel et al. 2014 for more in-depth analysis thereof) one can project to an arbitrary quadrature \(\hat{o}_{\phi _{\mathrm{LO}}}\) of the outgoing light, varying the homodyne phase \(\phi _{\mathrm{LO}}\):
$$\begin{aligned} \hat{o}_{\phi _{\mathrm{LO}}} \equiv \hat{b}_c\cos \phi _{\mathrm{LO}} + \hat{b}_s\sin \phi _{\mathrm{LO}} \equiv {\mathbf {H}}_{\phi _{\mathrm{LO}}}^{\mathrm{T}}\cdot \hat{\varvec{b}},\ {\mathbf {H}}_{\phi _{\mathrm{LO}}}\equiv \begin{bmatrix} \cos \phi _{\mathrm{LO}}\\ \sin \phi _{\mathrm{LO}} \end{bmatrix}. \end{aligned}$$
(8)
The corresponding quantum noise spectral density in the unit of the observable of interest, \(\mathcal {X}\) reads:
$$\begin{aligned} S^\mathcal {X}(\varOmega ) = \mathcal {X}^2_{\mathrm{SQL}}\frac{{\mathbf {H}}^{\mathrm{T}}_{\phi _{\mathrm{LO}}}\cdot \mathbb {T}\cdot \mathbb {S}_{a}^{in}\cdot \mathbb {T}^\dag \cdot {\mathbf {H}}_{\phi _{\mathrm{LO}}}}{|{\mathbf {H}}^{\mathrm{T}}_{\phi _{\mathrm{LO}}}\cdot {\mathbf {t}}|^2} \end{aligned}$$
(9)
where \(\mathbb {S}_a^{in}\) stands for spectral density matrix of input field and components thereof is defined as:
$$\begin{aligned} \pi \delta (\varOmega -\varOmega ') \, \mathbb {S}_{a, ij}^{in}(\varOmega ) \equiv \frac{1}{2}\langle in|\hat{a}_i(\varOmega )(\hat{a}_j(\varOmega '))^\dag +(\hat{a}_j(\varOmega '))^\dag \hat{a}_i(\varOmega )|in\rangle , \end{aligned}$$
(10)
where \(|in\rangle \) is the quantum state of the field injected in the dark port of the interferometer and \((i,j) = \{c,s\}\) (see Sect. 3.3 in Danilishin and Khalili 2012 for more details). In this article, we deal with single-sided spectral densities S and hence in the case of input vacuum state:
$$\begin{aligned} |in\rangle = |vac\rangle \qquad \Rightarrow \qquad \mathbb {S}_a^{in} = \mathbb {I}, \end{aligned}$$
where \(\mathbb {I}\) is the identity matrix.

2.1.1 Case of multiple input/output channels

This formalism can be easily extended to a more general case of an interferometer with more than one input and output channel. Two examples of such a schemes will be discussed in more detail in Sects. 4.3 and 7.1, where two-mode squeezed states are used as the input fields of the interferometer. Another situation, when one needs to take into account more optical degrees of freedom arises in the case of loss and imperfection analysis as we discuss below, in Sect. 2.6. In any of these situations, one simply needs to extend the number of dimensions of the model from 2, for two quadratures of a single optical degree of freedom, to 2N with N being the number of the input and output channels of interferometer. Then the vectors \(\hat{\varvec{a}}\) and \(\hat{\varvec{b}}\) are defined as:
$$\begin{aligned} \hat{\varvec{a}}&\equiv \{a_{c}^{(1)},\,a_{s}^{(1)},\,\ldots a_{c}^{(i)},\,a_{s}^{(i)},\,\ldots a_{c}^{(N)},\,a_{s}^{(N)}\}^{\mathrm{T}}\, \mathrm {with}\ i=\{1,N\} \end{aligned}$$
(11)
$$\begin{aligned} \hat{\varvec{b}}&\equiv \{b_{c}^{(1)},\,b_{s}^{(1)},\,\ldots b_{c}^{(i)},\,b_{s}^{(i)},\,\ldots b_{c}^{(N)},\,b_{s}^{(N)}\}^{\mathrm{T}}, \mathrm {with}\ i=\{1,N\} \end{aligned}$$
(12)
and the corresponding transfer matrix and response vector read:
$$\begin{aligned} \mathbb {T}_{2N\times 2N} \equiv \begin{bmatrix} \mathbb {T}^{(11)}&\cdots&\mathbb {T}^{(1j)}&\cdots&\mathbb {T}^{(1N)}\\ \vdots&\ddots&\vdots&\vdots \\ \mathbb {T}^{(i1)}&\cdots&\mathbb {T}^{(ij)}&\cdots&\mathbb {T}^{(iN)}\\ \vdots&\vdots&\ddots&\vdots \\ \mathbb {T}^{(N1)}&\cdots&\mathbb {T}^{(Nj)}&\cdots&\mathbb {T}^{(NN)} \end{bmatrix} \quad \mathrm {and} \quad {\mathbf {t}}_{2N} \equiv \begin{bmatrix} {\mathbf {t}}^{(1)}\\ \vdots \\ {\mathbf {t}}^{(i)}\\ \vdots \\ {\mathbf {t}}^{(N)} \end{bmatrix}, \end{aligned}$$
(13)
where each term \(\mathbb {T}^{(ij)}\) and \({\mathbf {t}}^{(i)}\) in the above expressions stands for a \(2\times 2\)-matrix block or a 2-dimensional response vector described by Eqs. (6) and (7), respectively. Naturally, \(\mathbb {T}^{(ij)}\) describes the contribution of the j-th input field \(\hat{\varvec{a}}^{(j)}\) to the i-th output field \(\hat{\varvec{b}}^{(i)}\), while \({\mathbf {t}}^{(i)}\) stands for the SQL-normalised response of the i-th output channel to the signal influence \(\mathcal {X}\). Transformation \(\mathbb {T}_{2N\times 2N}\) on the light quadrature operators \(\hat{\varvec{a}}\) is unitary and represents a Bogolyubov-type transformation. As we consider in this review only Gaussian quantum states of light, this automatically means that \(\mathbb {T}_{2N\times 2N}\) must be a symplectic matrix, i.e., such that keeps the fundamental commutator of field operators unchanged (Adesso and Illuminati 2007).
Another consequence of Gaussianity of the states of light and operations under study is that any entangled and/or squeezed multimode state injected in the GW detectors to boost its QN-limited sensitivity can be effectively represented as an additional symplectic transformation, \(\mathbb {T}^{\mathrm{sqz}}_{2N\times 2N}\), on a set of vacuum fields \(\hat{\varvec{a}}^{\mathrm{vac}}\), i.e.:
$$\begin{aligned} \hat{\varvec{a}}^{\mathrm{sqz}} = \mathbb {T}^{\mathrm{sqz}}_{2N\times 2N}\hat{\varvec{a}}^{\mathrm{vac}}\ \Rightarrow \ \mathbb {S}^{in,\,sqz}_{a} = \mathbb {T}^{\mathrm{sqz}}_{2N\times 2N}\cdot \mathbb {I}_{2N\times 2N}\cdot \bigl (\mathbb {T}^{\mathrm{sqz}}_{2N\times 2N}\bigr )^{\dag }, \end{aligned}$$
(14)
where \(\mathbb {I}_{2N\times 2N}\) is an identity matrix standing for the power spectral density of the 2N-mode vacuum state. By definition, \(\mathbb {T}^{\mathrm{sqz}}_{2N\times 2N}\) stands for all the manipulations that are performed on the input vacuum fields before they enter the main interferometer, which includes, for instance, squeezing and passage through the filter cavities for optimal frequency-dependent rotation of squeezing noise ellipse (see Sect. 4.2).
To conclude, we need to generalise the treatment of multiple readout channels. In the N-dimensional case, readout observable \( \hat{o}_{\phi _{\mathrm{LO}}}\) of Eq. (8) transforms into a vector of N outputs, \(\hat{\varvec{o}}_{N}\), where each output can have its own homodyne readout phase \(\phi _{\mathrm{LO}}^{(i)}\) and a corresponding homodyne vector \({\mathbf {H}}^{(i)}_{\phi _{\mathrm{LO}}}\) as defined in (8). Finally, all the readout channels comprising the readout vector \(\hat{\varvec{o}}_{N}\) which contain information about the GW signal and has added Gaussian noise needs to be processed so that the signal is extracted with the highest signal-to-noise ratio (SNR) possible. This is usually achieved by combining the readouts with some optimal weight functions, chosen so as to maximise the SNR, or any other chosen figure of merit. In general, this will require to define a vector of coefficient functions \(\varvec{\alpha }_N\) (generally, frequency dependent) that has to be found as a result of optimisation procedure of a chosen figure of merit, e.g. the SNR, in which case \(\alpha _{i}(\varOmega )\) are known as Wiener filters. The resulting combined readout then reads:
$$\begin{aligned} \hat{o}_{\mathrm{opt}} = \sum _{i=1}^{N} \alpha _i\Bigl \{\hat{b}_c^{(i)}\cos \phi _{\mathrm{LO}}^{(i)}+\hat{b}_s^{(i)}\sin \phi _{\mathrm{LO}}^{(i)}\Bigr \} \equiv \sum _{i=1}^{N} \alpha _i\, {\mathbf {H}}^{\mathrm{T}}_{\phi ^{(i)}_{\mathrm{LO}}}\cdot \hat{\varvec{b}}^{(i)}, \end{aligned}$$
which gives the following estimate for the signal observable \(\mathcal {X}\):
$$\begin{aligned} \tilde{\mathcal {X}}_{\mathrm{opt}} = \mathcal {X}_{\mathrm{SQL}}\hat{o}_{\mathrm{opt}}/\Biggl (\sum _{i=1}^{N} \alpha _i\, {\mathbf {H}}^{\mathrm{T}}_{\phi ^{(i)}_{\mathrm{LO}}}\cdot {\mathbf {t}}^{(i)}\Biggr ), \end{aligned}$$
(15)
where the sum in the denominator stands for the effective response function for a multi-channel interferometer. Gathering all the definitions of this section together, the noise power spectral density in the units of signal \(\mathcal {X}\) reads:
$$\begin{aligned}&S^{\mathcal {X}_{\mathrm{opt}}}(\varOmega ) = \frac{\mathcal {X}^2_{\mathrm{SQL}}}{\Bigl |\sum _{i=1}^{N} \alpha _i\, {\mathbf {H}}^{\mathrm{T}}_{\phi ^{(i)}_{\mathrm{LO}}}\cdot {\mathbf {t}}^{(i)}\Bigr |^2}\nonumber \\&\quad \times \sum _{i=1}^{N}\sum _{j=1}^{N}\alpha _i\alpha _j\, {\mathbf {H}}^{\mathrm{T}}_{\phi ^{(i)}_{\mathrm{LO}}}\cdot \Bigl [\mathbb {T}_{2N\times 2N}\cdot \mathbb {T}^{\mathrm{sqz}}_{2N\times 2N}\cdot (\mathbb {T}^{\mathrm{sqz}}_{2N\times 2N})^\dag \cdot (\mathbb {T}_{2N\times 2N})^\dag \Bigr ]_{ij} \cdot {\mathbf {H}}_{\phi ^{(j)}_{\mathrm{LO}}}\nonumber \\ \end{aligned}$$
(16)
with \([\ldots ]_{ij}\) denoting the \(2\times 2\) subblock with the indices ij within a large \(2N\times 2N\) matrix product written inside the brackets.

2.2 Transfer functions of the quantum-noise-limited interferometer

The internal structure of the above expressions might be rather complex for given advanced interferometer schemes, but the underlying physics is rather simple and comes from the following two facts:
  • mirrors can move when subject to the action of an external force, thus making the interferometer sensitive to the GW, and1

  • light interacts with the mirrors, which manifests in two ways, i.e., the mirror motion modulating the phase of light and the light exerting a radiation pressure force on the mirror.

Quantitatively, these two facts are described by means of corresponding transfer functions (TF)2:
  1. 1.

    Force-to-displacement TF is described by the mechanical susceptibility, \(\chi _{m}\) of the centre of mass motion of the test mass mirror;


  2. 2.

    Displacement-to-field TF, \(\varvec{R}_{x}\equiv \{\partial a_{c}/\partial x,\,\partial a_{s}/\partial x\}\), reflects how much the two quadratures of the outgoing field are changed by the displacement of the mirror x, and


  3. 3.

    Field-to-force TF, \(\varvec{F} \equiv \{\partial \hat{F}_{\mathrm{r.p.}}/\partial a_{c},\,\partial \hat{F}_{\mathrm{r.p.}}/\partial a_{s}\}\), describes how much the radiation pressure force depends on the sine and cosine quadrartures of the ingoing field;


  4. 4.

    Displacement-to-force TF, \(\varvec{K} \equiv -\partial F/\partial x\), describes the dynamic back-action or optical spring that manifests as restoring force created by the part of the optical field dependent on the mirror displacement x.


Fig. 3

Schematics of the input–output relations of the GW interferometer in a form of a flowchart

The basic operation of any interferometer can be described by means of a simple flowchart diagram including the above TFs, as shown in Fig. 3. Here the external signal force (GW) interacts with the mechanical degree of freedom (DoF), displacing its mirrors by x. The magnitude of this displacement is defined by the mechanical susceptibility \(\chi _m(\varOmega )\), which can be read off from the Fourier domain solution to the Newtonian equation of motion (the same as the Heisenberg equation of motion due to linearity of the system):
$$\begin{aligned} m \ddot{x}(t) = \mathcal {F}(x(t),\,\dot{x}(t)) + \sum _{k}F_k^{\mathrm{ext}}(t)\,\ \overset{\mathrm{Fourier}}{\underset{\mathrm{domain}}{\Longrightarrow }}\ x(\varOmega ) = \chi _m(\varOmega )\sum _kF_k^{\mathrm{ext}}(\varOmega ). \end{aligned}$$
Here m is the reduced mass of the mechanical DoF, \(\mathcal {F}(x,\,\dot{x})\) is the sum of the internal forces of the system (e.g. restoring force of the suspensions, dissipative forces), and \(F_k^{\mathrm{ext}}\) stand for all the external forces acting on the mirror, including the GW signal force G. For GW with the strain amplitude \(h(t)\leftrightarrow h(\varOmega )\), this effective differential force reads:
$$\begin{aligned} G(t) = mL\ddot{h}(t)\ \overset{\mathrm{Fourier}}{\underset{\mathrm{domain}}{\Longrightarrow }}\ G(\varOmega ) = -mL\varOmega ^2h(\varOmega ), \end{aligned}$$
Displacement of the mirrors modulates the light reflected off from the mirrors. This results in additional variation of the outgoing light quadratures, which is proportional to x. The displacement-to-field TF \(\varvec{R}_{x}\) essentially defines the strength of the interaction of light with the mechanics, i.e., the optomechanical coupling.

The other end of the optomechanical coupling is given by the field-to-force TF. It stems from the radiation pressure (RP) that light exerts on the mirrors. Thus the TF in question is a vector of coefficients at the corresponding quadratures of the input fields in the expression for a back-action force, \(F_{\mathrm{BA}}\). This force contributes to the actual displacement of the mirrors and thus mimics the signal displacement. Noteworthy is that the radiation pressure may depend on the displacement of the mirror, if the interferometer is detuned. This creates a feedback loop and results in a restoring force. This light-induced restoring force is known as dynamical back-action or optical rigidity, represented by a violet box in Fig. 3.

Finally, there is also the field-to-field TF that describes how the input light fields would be transformed by the interferometer, were its mirrors fixed. This is an optical TF shown as a yellow block in the flowchart.

Note that all these considerations apply equally to a system with an arbitrary number of inputs and outputs.

2.3 I/O-relations for tuned interferometers

We can use the developed formalism to derive the input–output (I/O) relation of a given interferometer configuration and the quantum noise. And quite astonishingly, a very broad class of so called tuned interferometers turns out to have the I/O-relations of the same general shape that depends on the two frequency dependent parameters, the optomechanical coupling strength \(\mathcal {K}(\varOmega )\) and the phase \(\beta (\varOmega )\):
$$\begin{aligned} \hat{\varvec{b}} = e^{2i\beta (\varOmega )} \begin{bmatrix} 1&0\\ -\mathcal {K}(\varOmega )&1 \end{bmatrix} \hat{\varvec{a}} + e^{i\beta (\varOmega )} \begin{bmatrix} 0\\ \sqrt{2\mathcal {K}(\varOmega )} \end{bmatrix}\frac{h}{h_{\mathrm{SQL}}}. \end{aligned}$$
(17)
Interferometers that are described by the above relations are tuned in the sense that the cosine quadrature of an incident light would be transformed into the cosine quadrature of an outgoing light, and likewise would the sine quadrature do, if the mirrors were fixed. Optomechanical coupling factor \(\mathcal {K}\) was introduced by Kimble et al. (2002) to describe the strength of interaction between light and the mechanical degrees of freedom of the test masses. By construction, \(\mathcal {K}\) is an absolute value of the product of force-to-displacement TF \(\times \) displacement-to-field TF \(\times \) field-to-force TF. It shows the fraction of light intensity modulation transformed into phase modulation at sideband frequency \(\varOmega \) mediated by the radiation pressure force. As for \(\beta \), it is an extra phase shift.
Hence the optical transfer matrix, \(\mathbb {T}\), of the tuned interferometer and its optomechanical response, \(\varvec{t}\), read:
$$\begin{aligned} \mathbb {T} = e^{2i\beta (\varOmega )} \begin{bmatrix} 1&0\\ -\mathcal {K}(\varOmega )&1 \end{bmatrix},\ \quad \ \varvec{t} = e^{i\beta (\varOmega )} \begin{bmatrix} 0\\ \sqrt{2\mathcal {K}(\varOmega )} \end{bmatrix}. \end{aligned}$$
(18)
We ought to mention that for the long-arm interferometric detectors where travel time of light in the arms become comparable with the GW half-period (as it is planned for all the designs of the next generation GW interferometers) the assumption of stationarity of the GW strain within the detection frequency band breaks. To account for the resulting reduction of response of the interferometer to GW signal, the following correction factor has to be applied to the above expression for the response (Schilling 1997; Essick et al. 2017):
$$\begin{aligned} \varvec{t} \rightarrow \varvec{t}D(\varOmega )\ \text{ where }\ D(\varOmega )= \mathrm {sinc}(\varOmega L/c), \end{aligned}$$
(19)
with \(\mathrm {sinc}(x)\equiv \sin x/x\). In general, factor \(D(\varOmega )\) depends on the mutual orientation of the detector and the source of GWs (Essick et al. 2017), but in the simple case of normal incidence with optimal polarisation it can be approximated as shown above.
Using Eq. (9), we can obtain the general expressions for the power spectral density of the quantum noise for tuned interferometers in unit of GW strain h. Given an arbitrary readout quadrature defined by the homodyne angle \(\phi _{\mathrm{LO}}\), it reads:
$$\begin{aligned} S^h = \frac{h_{\mathrm{SQL}}^2}{2 D^2}\left[ \dfrac{(\mathcal {K}-\cot \phi _{\mathrm{LO}})^{2}+1}{\mathcal {K}}\right] . \end{aligned}$$
(20)
In the special case of phase quadrature readout, \(\phi _{\mathrm{LO}}=\pi /2\), this expression simplifies as
$$\begin{aligned} S^h = \frac{h_{\mathrm{SQL}}^{2}}{2D^2}\left[ \dfrac{1}{\mathcal {K}}+\mathcal {K}\right] , \end{aligned}$$
(21)
which clearly shows two components of the quantum noise, namely the quantum shot noise represented by the first term inside the brackets, and the quantum radiation pressure noise given by the last term. In Sect. 3, we use this expression to derive the SQL.
Fig. 4

Schematics of a dual-recycled Fabry–Perot–Michelson interferometer with balanced homodyne readout

2.4 Quantum noise of a tuned Michelson interferometer

It will be instructive for our review to present here the relevant expressions for a conventional Michelson interferometer with Fabry–Perot cavities in the arms, a signal-recycling mirror and a power recycling mirror, as shown in Fig. 4. In the Appendix B.2.1, we derive rigorous expressions for the I/O-relations of such a Fabry–Perot–Michelson interferometer (FPMI) with optical loss and shall refer the interested reader to Sect. 5.3 of Danilishin and Khalili (2012) where even more detailed step-by-step derivation is performed. Here we merely write down the final expressions for the OM coupling factor \(\mathcal {K}_{\mathrm{MI}}\) and sideband phase shift \(\beta _{\mathrm{MI}}\) in the ideal case without optical losses:
$$\begin{aligned} \mathcal {K}_{\mathrm{MI}}&= \dfrac{\varTheta _{\mathrm{MI}}\tau }{\varOmega ^2} \dfrac{1-R^2_{\mathrm{ITM}}}{1-2\sqrt{R_{\mathrm{ITM}}} \cos 2\varOmega \tau + R_{\mathrm{ITM}}}\simeq \frac{2 \varTheta _{\mathrm{MI}} \gamma _{\mathrm{arm}}}{\varOmega ^2(\gamma _{\mathrm{arm}}^2+\varOmega ^2)}, \end{aligned}$$
(22)
$$\begin{aligned} \beta _{\mathrm{MI}}&= \mathrm{arctan}\left( \dfrac{1+\sqrt{R_{\mathrm{ITM}}}}{1-\sqrt{R_{\mathrm{ITM}}}} \tan \varOmega \tau \right) \simeq \mathrm{arctan}\left( \varOmega /\gamma _{\mathrm{arm}}\right) , \end{aligned}$$
(23)
with \(\varTheta _{\mathrm{MI}} = 4\omega _0 P_c/(McL)\), where \(P_c\) is the optical power circulating in the interferometer and \(\gamma _{\mathrm{arm}} = T_{\mathrm{ITM}}/(4\tau )\) is the half bandwidth of the arm cavity. Given the parameters listed in Table 1, the signal-referred noise spectral density Eq. (21) with \(\mathcal K\) replaced by \(\mathcal{K}_{\mathrm{MI}}\) is shown in Fig. 5a. We also show the noise spectrum of the quantum fluctuation \(\delta b_{s}^{out}\) in the phase quadrature (see Fig. 5b), and the detector response to the GW signal (see Fig. 5c).
Fig. 5

Quantum noise of a Michelson interferometer: a QNLS of the Michelson interferometer with phase quadrature readout (solid grey trace) for parameters given in the Table 1. Thin dash-dotted grey lines show the effect of change of readout quadrature (homodyne angle); b quantum fluctuations of the phase quadrature of the readout light of the Michelson interferometer (grey trace); c response functions of the Michelson (grey trace) interferometer to the GW strain

The above equations can be generalised to the case of signal-recycled interferometer, using the “scaling law” approach of Buonanno and Chen (2003). As shown in detail in Sect. 5.3.4 of Danilishin and Khalili (2012), if the distance between the SRM and the ITMs \(l_{\mathrm{SRC}}\ll L\) (see Fig. 4), the frequency-dependent phase shift, \(\varOmega l_{\mathrm{SRC}}/c\), acquired by light sidebands in the signal-recycling cavity can be neglected, and one can introduce an effective compound input mirror made of the SRM and the ITMs with effective complex reflectivity and transmissivity, leading to the following modification of the initial bandwidth and detuning of the arms:
$$\begin{aligned} \gamma&= \gamma _{\mathrm{arm}}\mathrm {Re}\left[ \dfrac{1-\sqrt{R_{\mathrm{SRM}}}e^{{2i\phi _{\mathrm{SR}}}}}{1+\sqrt{R_{\mathrm{SRM}}}e^{{2i\phi _{\mathrm{SR}}}}}\right] = \dfrac{\gamma _\mathrm{arm}T_\mathrm{SRM}}{1+2\sqrt{R_\mathrm{SRM}}\cos 2\phi _\mathrm{SR}+R_\mathrm{SRM}}\, \end{aligned}$$
(24a)
$$\begin{aligned} \delta&= \delta _{\mathrm{arm}}-\gamma _{\mathrm{arm}}\mathrm {Im}\left[ \dfrac{1-\sqrt{R_{\mathrm{SRM}}}e^{{2i\phi _{\mathrm{SR}}}}}{1+\sqrt{R_{\mathrm{SRM}}}e^{{2i\phi _{\mathrm{SR}}}}}\right] \nonumber \\&= \delta _\mathrm{arm}+\dfrac{2\gamma _\mathrm{arm}\sqrt{R_\mathrm{SRM}}\sin 2\phi _\mathrm{SR}}{1+2\sqrt{R_\mathrm{SRM}}\cos 2\phi _\mathrm{SR}+R_\mathrm{SRM}}\, \end{aligned}$$
(24b)
with \(\delta _{\mathrm{arm}}\) the differential detuning of the arms (zero for the tuned case considered here), \(\phi _{\mathrm{SR}} = \omega _pl_{\mathrm{SR}}/c\) the signal-recycling cavity single-pass phase shift, \(T_{\mathrm{SRM}}\) and \(R_{\mathrm{SRM}}\) the signal-recycling mirror transmissivity and reflectivity. The general formulas for signal-recycled interferometer are derived in Appendix B.3.1.
In the special case of \(\phi _{\mathrm{SR}} = 0\,(\pi /2)\) these formulas take particularly simple form, namely \(\delta = \delta _{\mathrm{arm}}\) and
$$\begin{aligned} \gamma _{\mathrm{SR\,(RSE)}} = \gamma _{\mathrm{arm}}\dfrac{1\mp \sqrt{R_{\mathrm{SRM}}}}{1\pm \sqrt{R_{\mathrm{SRM}}}} \end{aligned}$$
(25)
where the upper signs in the numerator and denominator correspond to the so called “resonant signal recycling” configuration, where resonant tuning of the SR cavity makes an effective bandwidth of the interferometer narrower, proportionally increasing the signal sideband amplitude in this narrow band, whereas the lower signs in the numerator and denominator give the case of “resonant sideband extraction”, where effective bandwidth of the interferometer is increased with respect to \(\gamma _{\mathrm{arm}}\) at the expense of proportional loss of signal. In Sect. 7.2, we discuss the ways to increase the effective bandwidth without loss of peak sensitivity.

The approximate expressions above are obtained assuming that cavity linewidth and signal frequency are much smaller than the cavity free spectral range \(FSR=c/2L\), which is known as a single-mode approximation. For the next generation GW detectors with longer arms where FSR may be close to the detection band, one normally needs to use the exact expressions, although the effect of factor \(D(\varOmega )\) is usually stronger and covers up any effects of departure of the interferometer response from the ones written in the single-mode approximation.

From Eq. (20) one can immediately notice that setting homodyne angle \(\phi _{\mathrm{LO}}\) such that \(\mathcal {K} = \cot \phi _{\mathrm{LO}}\), the second term in the brackets vanishes, which means one evades the back-action noise this term is standing for. This is the manifestation of the principle of variational readout, first proposed in Vyatchanin and Matsko (1996) and later generalised in Kimble et al. (2002) that prescribes to read out not the phase quadrature of the outgoing light where GW signal strength is maximal, rather the one that does not contain back-action noise. This technique, in an absence of loss, allows to completely get rid of the back action noise where the above match of homodyne phase to OM coupling strength could be satisfied. However, since \(\mathcal {K}_{\mathrm{MI}}\) is strongly frequency dependent, the total back action cancellation is only possible at a single frequency, as demonstrated by a series of thin dash-dotted traces in Fig. 5a with an envelope of these curves being the quantum shot noise-limited sensitivity. We show in Sect. 4 a fundamental relation of this shot noise-limited sensitivity and variational readout concept to the fundamental quantum limit for precision interferometry.

2.5 Quantum back-action and ponderomotive squeezing

The optical transfer matrix (18) allows an interesting interpretation from the point of view of the quantum state of the outgoing light. As shown in Kimble et al. (2002), the optomechanical transfer matrix (18) can be interpreted as a transformation of the phase space amounting to a sequence of rotations and squeezing. They showed that the initial quantum state \(|in\rangle \) of the vacuum fields entering the readout port of the interferometer light gets ponderomotively squeezed and rotated by the radiation pressure effects embodied by the off-diagonal term in the transfer matrix in (17):
$$\begin{aligned} |out\rangle = e^{2i\beta }\hat{R}(u_{\mathrm{pond}})\hat{S}(r_{\mathrm{pond}})\hat{R}(v_{\mathrm{pond}})|in\rangle , \end{aligned}$$
(26)
where \(\hat{R}(\alpha )\) is a rotation operator and \(\hat{S}(r)\) is a squeezing operator, defined, e.g., in Sect. 3.2 of Danilishin and Khalili (2012). Mathematically this means that transfer matrix \(\mathbb {T}\) can be represented, using singular value decomposition, as the following product3:
$$\begin{aligned} \varvec{b} = \mathbb {T}\,\hat{\varvec{a}} = e^{2i\beta }\,\mathbb {R}[u_{\mathrm{pond}}]\,\mathbb {S}[r_{\mathrm{pond}}]\,\mathbb {R}[v_{\mathrm{pond}}]\,\hat{\varvec{a}}, \end{aligned}$$
(27)
with \(\mathbb {R}\) the rotation matrix and \(\mathbb {S}\) the squeezing matrix that are defined as:
$$\begin{aligned} \mathbb {R}[\phi ] = \begin{bmatrix} \cos \phi&-\sin \phi \\ \sin \phi&\cos \phi \end{bmatrix},&\qquad \mathbb {S}[r] = \begin{bmatrix} e^r&0\\ 0&e^{-r} \end{bmatrix}. \end{aligned}$$
(28)
In a tuned case, transformed quantum state at the output port of the interferometer is described by the two numbers - ponderomotive squeezing factor \(r_{\mathrm{pond}}\) and squeezing angle, \(u_{\mathrm{pond}}\), that are expressed in terms of \(\mathcal {K}\) as follows (see Fig. 6):
$$\begin{aligned} e^{r_{\mathrm{pond}}} = \sqrt{1+\Bigl (\frac{\mathcal {K}}{2}\Bigr )^2}+\frac{\mathcal {K}}{2},\quad u_{\mathrm{pond}} = \frac{\pi }{2}+v_{\mathrm{pond}} = -\frac{1}{2}\arctan \frac{\mathcal {K}}{2}-\frac{\pi }{4}. \end{aligned}$$
(29)
Fig. 6

Ponderomotive squeezing in the Michelson interferometer. Left panel shows dependence of squeezing factor, \(r_{\mathrm{pond}}(\varOmega )\), on signal frequency, and right panel shows how the squeezing angle, \(u_{\mathrm{pond}}(\varOmega )\) depends on signal frequency. The noise ellipses at different signal frequencies are shown (not to scale!) to illustrate the effect that interferometer with movable mirrors imposes on the quantum state of the outgoing light

Ponderomotive squeezing is the direct consequence of quantum back action, since it is through this non-linear mechanism amplitude fluctuations of light are transformed into the additional fluctuations of phase with the frequency dependent gain given by the OM coupling factor \(\mathcal {K}\). Understanding quantum back-action in terms of squeezing of the state of light leaving the interferometer comes very useful when one tries to figure out why one needs frequency dependent squeezing injection to achieve broadband quantum noise suppression, and why injection of phase-squeezed light in the readout port does not suffice. We discuss these topics in Sect. 4. One can also gain additional understanding of noise transformations in more complicated schemes, like, e.g., the scheme of the EPR-speed meter that we consider in Sect. 5 (Fig. 25).

In Appendix B.1, we consider a more general case of a detuned interferometer and derive general formulas for ponderomotive squeezing.

2.6 Losses and imperfections

In a real experiment, the idealised situation where the interferometer can be described solely by the I/O-relations (5) with one input and one output channel can never work. According to the Fluctuation-Dissipation Theorem of Callen and Welton (1951), in a lossy system, there are always additional channels through which a part of the signal-carrying light field leaves the interferometer unobserved, while the incoherent vacuum fields from the environment enter and admix with the non-classical light travelling through the interferometer, thereby curtailing quantum correlations contained therein and increasing noise. Generally, there are many places in the interferometer where loss can occur and therefore, there are many loss channels and vacuum fields associated with them.

These vacuum fields propagate through the interfrometer and couple to the readout channel very similar to the input field \(\hat{\varvec{a}}\) with the only difference in the frequency dependence of the optical transfer matrix \(\mathbb {N}_k\) that reflects the fact that the optical path of loss vacuum fields differs from that of \(\hat{\varvec{a}}\) (see, e.g., treatment of a lossy Fabry–Perot–Michelson interferometer in Appendix B.2.1).

Thus one can describe the lossy interferometer as the multiple input/output device outlined above save to the fact that the loss channels are not measured, and the corresponding information is thereby lost. Input fields of a lossy interferometer thus can be written as:
$$\begin{aligned} \hat{\varvec{a}} \equiv \{a_{c}^{(1)},\,a_{s}^{(1)},\,n_{c}^{(2)},\,n_{s}^{(2)},\,\ldots n_{c}^{(i)},\,n_{s}^{(i)},\,\ldots n_{c}^{(N)},\,n_{s}^{(N)}\}^{\mathrm{T}}\, \mathrm {with}\ i=\{1,N\} \end{aligned}$$
and the corresponding transfer matrix reads:
$$\begin{aligned} \mathbb {T}_{loss} \equiv \begin{bmatrix} \mathbb {T}&\cdots&\mathbb {N}^{(1j)}&\cdots&\mathbb {N}^{(1N)}\\ \vdots&\ddots&\vdots&\vdots \\ \mathbb {N}^{(i1)}&\cdots&\mathbb {N}^{(ij)}&\cdots&\mathbb {N}^{(iN)}\\ \vdots&\vdots&\ddots&\vdots \\ \mathbb {N}^{(N1)}&\cdots&\mathbb {N}^{(Nj)}&\cdots&\mathbb {N}^{(NN)} \end{bmatrix}. \end{aligned}$$
(30)
As only one channel of the interferometer is measured, all the rows of the above transfer matrix but the first two (recall that \(\mathbb {T}\) is a \(2\times 2\)-matrix) are irrelevant. Hence the corresponding general expression for total quantum noise PSD of a lossy interferometer reads:
$$\begin{aligned} S^h_{\mathrm{PD\,loss}}(\varOmega ) = h^2_{\mathrm{SQL}}\frac{{\mathbf {H}}^{\mathrm{T}}_{\phi _{\mathrm{LO}}} \cdot \left[ \mathbb {T}\cdot \mathbb {S}^{in}_{a}\cdot \mathbb {T}^\dag + \sum _{k=2}^{N}\mathbb {N}^{(1k)}\cdot (\mathbb {N}^{(1k)})^{\dag }\right] \cdot {\mathbf {H}}_{\phi _{\mathrm{LO}}}}{|{\mathbf {H}}^{\mathrm{T}}_{\phi _{\mathrm{LO}}}\cdot {\mathbf {t}}_h|^2}, \end{aligned}$$
(31)
The exact frequency dependence of the loss-related transfer matrices \(\mathbb {N}^{(1i)}\) depends on the location of the element of the interferometer, where loss originates from. This means that the optical path of a specific loss-related vacuum field \(\hat{\varvec{n}}^{(i)}\) cannot be generalised. Below we consider several most common sources of loss and describe how they enter the final expression for the quantum noise PSD, which allows to categorise loss into a few types in regard to their place of origin.

As for the imperfections, by which we mean here departure of the parameters of key components of the interferometer from the assumed uniformity (e.g., perfect overlap of the signal and local oscillator beams, perfect mode matching on the beam splitter etc.) and symmetry (e.g. perfect 50/50 beam splitting ratio, equal mass of all test masses, equal length/tuning of the arms, equal absorption and photon loss in the arms etc.), it is hard to give a general recipe how to account for their influence on quantum noise. However, these studies are crucial for the design of the next generation GW interferometers, and there are several studies that attempted rigorous treatment of imperfections for selected configurations. Nonideal FPMI with frequency dependent squeezing injection (see Sect. 4) was studied in Miao et al. (2014). An in-depth comparison of FPMI and Sagnac speed meters (see Sect. 5 with account for imperfections was done in Voronchev et al. (2015). Influence of imperfections on Sagnac speed meter performance was the topic of Danilishin et al. (2015). Impact of optical path stability and mode matching in balanced homodyne readout was the topic of Steinlechner et al. (2015), Zhang et al. (2017).

2.6.1 Losses in the readout train

The sources of loss in the readout train are quite diverse, ranging from non-unity quantum efficiency of the photodiodes to the imperfect mode matching of the local oscillator beam with the signal beam in the balanced homodyne detector (Zhang et al. 2017). In most cases loss may be reduced to a single, frequency independent coefficient of an effective quantum efficiency, \(\eta _d = 1 - \epsilon _d < 1\), where \(\epsilon _d < 1\) can be thought of as a fractional photon loss at the photodetector (Kimble et al. 2002; Miao et al. 2014; Danilishin and Khalili 2012). Frequency dependence can be safely omitted here, for any resonant optical element in the readout train, including output mode cleaners (OMC), has bandwidth much larger than the detection band of the main interferometer.

The expression (8) for an output observable of the GW interferometer is modified in the presence of readout losses as follows:
$$\begin{aligned} \hat{o}_{\phi _{\mathrm{LO}}}^{\mathrm{loss}}\equiv & {} \sqrt{1-\epsilon _d} \left( \hat{b}_c\cos \phi _{\mathrm{LO}} + \hat{b}{}_s\sin \phi _{\mathrm{LO}}\right) \nonumber \\&+ \sqrt{\epsilon _d} \left( \hat{n}_{d;\;c}\cos \phi _{\mathrm{LO}} + \hat{n}_{d;\;s}\sin \phi _{\mathrm{LO}}\right) \nonumber \\\equiv & {} \sqrt{1-\epsilon _d}\,{\mathbf {H}}_{\phi _{\mathrm{LO}}}^{\mathrm{T}}\cdot \hat{\varvec{b}}+\sqrt{\epsilon _d}\,{\mathbf {H}}_{\phi _{\mathrm{LO}}}^{\mathrm{T}}\cdot \hat{\varvec{n}}{}_d, \end{aligned}$$
(32)
where \(\hat{\varvec{n}}{}_d = \{\hat{n}_{d;\;c},\,\hat{n}_{d;\;s}\}^{\mathrm{T}}\) stands quadrature vector of loss-associated vacuum fields with unity spectral density matrix.
Spectral density formula (9) in lossy readout case will read:
$$\begin{aligned} S^h_{\mathrm{PD\,loss}}(\varOmega ) = h^2_{\mathrm{SQL}}\frac{{\mathbf {H}}^{\mathrm{T}}_{\phi _{\mathrm{LO}}} \cdot \left[ \mathbb {T}\cdot \mathbb {S}^{in}_{a}\cdot \mathbb {T}^\dag +\xi ^2_d \right] \cdot {\mathbf {H}}_{\phi _{\mathrm{LO}}}}{|{\mathbf {H}}^{\mathrm{T}}_{\phi _{\mathrm{LO}}}\cdot {\mathbf {t}}_h|^2}, \end{aligned}$$
(33)
where \(\xi _d = \sqrt{\epsilon _d/(1-\epsilon _d)}\).

2.6.2 Optical loss in the arms and in filter cavities

Optical loss in Fabry–Perot cavities, such as arm cavities and filter cavities, is known to have frequency dependence with the major impact at low sideband frequencies within the cavity optical bandwidth. A very illuminating discussion on this subject is given in Miao et al. (2014) where optical loss in filter cavities is studied in detail. The main source of such loss in large suspended cavities is the scattering of light off the mirror surface imperfections of microscopic (micro-roughness) and relatively macroscopic (“figure error”) size (Isogai et al. 2013; Miao et al. 2014).

In general, optical loss in the cavity depends on the cavity length in an involved way (see, e.g., Appendix C in Miao et al. 2014). However, if we consider a cavity of a fixed length the single value of total photon loss per metre (\(\epsilon _f \) in ppm/m) will fully define the total optical loss and the conventional description of Fabry–Perot cavity with one lossy mirror (usually, an ETM one) and another lossless one (an ITM, respectively), works perfectly fine. A detailed derivation of lossy cavity I/O-relation is given in Appendix B.2.1. Here we only present its general form which reads:
$$\begin{aligned} \hat{\varvec{b}}_{{\mathrm {arm}}} = \mathbb {T}_{{\mathrm {arm}}}\hat{\varvec{a}}_{{\mathrm {arm}}} + \mathbb {N}_{{\mathrm {arm}}}\hat{\varvec{n}}_{{\mathrm {arm}}} + {\mathbf {t}}_{{\mathrm {arm}}}\frac{h}{h_{\mathrm{SQL}}}. \end{aligned}$$
(34)
with \(\mathbb {T}_{{\mathrm {arm}}} = \mathbb {T}_{{\mathrm {arm}}}^{\mathrm{s.n.}}+\mathbb {T}_{{\mathrm {arm}}}^{\mathrm{b.a.}}\) a transfer matrix for input fields, \(\hat{\varvec{a}}_{{\mathrm {arm}}}\), \(\mathbb {N}_{{\mathrm {arm}}} = \mathbb {N}_{{\mathrm {arm}}}^{\mathrm{s.n.}}+\mathbb {N}_{{\mathrm {arm}}}^{\mathrm{b.a.}}\) is a transfer matrix for loss-associated vacuum fields, \(\hat{\varvec{n}}_{{\mathrm {arm}}}\), and \({\mathbf {t}}_{{\mathrm {arm}}}\) is an optomechanical response function of the cavity defined by Eq. (7). We wrote transfer matrices \(\mathbb {T}_{{\mathrm {arm}}} \) and \(\mathbb {N}_{{\mathrm {arm}}} \) as sums of shot-noise component, \(\mathbb {T}_{{\mathrm {arm}}}^{\mathrm{s.n.}} (\mathbb {N}_{{\mathrm {arm}}}^{\mathrm{s.n.}})\), and back-action component, \(\mathbb {T}_{{\mathrm {arm}}}^{\mathrm{b.a.}} (\mathbb {N}_{{\mathrm {arm}}}^{\mathrm{b.a.}})\) (cf. Eqs. (178) and (179)), to discern Fabry–Perot cavities with strong classical carrier light circulating inside, as in the arms, from the ones with no, or very weak classical light inside, as in the filter cavity. In the latter case, the back-action components can be set to zero, as well as the optomechanical response function \({\mathbf {t}}_{{\mathrm {arm}}}=0\).

3 Quantum limits

3.1 Standard quantum limit

The standard quantum limit (SQL) was firstly pointed out by Braginsky when studying the quantum limit of continuous position measurements (Braginsky and Khalili 1992). In the context of laser interferometric GW detectors, it constraints the detector sensitivity in the nominal operation mode with tuned optical cavities and phase quadrature measurement. It comes from a trade-off between the shot noise and radiation pressure noise—the former is inversely proportional to the optical power while the latter is proportional to the power. There is an optimal power for achieving the maximum sensitivity at each frequency which defines the SQL.

We can derive the SQL explicitly for a tuned dual-recycled Michelson interferometer by using Eq. (21). In particular focusing on frequencies lower than the free spectral range c / (2L), we have \(D\approx 1\) and
$$\begin{aligned} S^h = \left( \frac{1}{\mathcal{K}} + \mathcal{K}\right) \frac{h_{\mathrm{SQL}}^2}{2} \ge h_{\mathrm{SQL}}^2 \equiv S^h_{\mathrm{SQL}}. \end{aligned}$$
(35)
The SQL is defined as
$$\begin{aligned} h_{\mathrm{SQL}} =\sqrt{ \frac{8\hbar }{M \varOmega ^2 L^2}} \approx 2.0\times 10^{-25}\,\mathrm{Hz}^{-\frac{1}{2}}\left( \frac{200\,\mathrm{kg}}{M}\right) ^{\frac{1}{2}}\left( \frac{100\,\mathrm{Hz}}{\varOmega /2\pi }\right) \left( \frac{20\,\mathrm{km}}{L}\right) . \end{aligned}$$
(36)
In Fig. 7, we show the quantum noise curves for different arm cavity powers and the SQL.
The SQL does not just apply to laser interferometric GW detectors, but to general linear continuous measurements with a test mass. Generally, according to Braginsky and Khalili (1992), Buonanno and Chen (2002), Chen (2013), the output of a linear displacement measurement device can be written as
$$\begin{aligned} \hat{Z} (\varOmega ) = \hat{Z}^{(0)}(\varOmega )+\frac{\chi _{ZF}(\varOmega ) }{1-\chi _m(\varOmega )\chi _{FF}(\varOmega )} [\chi _m(\varOmega )\hat{F}^{(0)}(\varOmega ) +x_{\mathrm{sig}}(\varOmega )]. \end{aligned}$$
(37)
Here \(\hat{Z}^{(0)}\) denotes the intrinsic fluctuation of the output port, \(\hat{F}\) is the degree of freedom coupled to the probe mass displacement \(\hat{x}\) with \(\chi _{FF}\) being its susceptibility, \(\chi _m\) is the mechanical susceptibility of the test mass, and \(x_{\mathrm{sig}}\) is some displacement signal. For an ideal quantum-limited device, the spectral density for \(\hat{Z}^{(0)}\) and \(\hat{F}^{(0)}\) satisfies the following Heisenberg relation (Braginsky and Khalili 1992; Buonanno and Chen 2002; Miao 2017):
$$\begin{aligned} S_{ZZ}(\varOmega ) S_{FF}(\varOmega ) - |S_{ZF}(\varOmega )|^2 \geqslant \hbar ^2 |\chi _{ZF}(\varOmega )|^2. \end{aligned}$$
(38)
In the special case where \(\chi _{FF}=0\) and there is no correlation between \(\hat{Z}^{(0)}\) and \(\hat{F}^{(0)}\), i.e. \(S_{ZF}=0\), the signal-referred noise spectral density is bounded by the general SQL:
$$\begin{aligned} S^x(\varOmega ) = \frac{S_{ZZ}(\varOmega )}{|\chi _{ZF}(\varOmega )|^2} +|\chi _m(\varOmega )|^2 S_{FF}(\varOmega )\ge 2\hbar |\chi _m(\varOmega )|\equiv S^x_{\mathrm{SQL}}(\varOmega ), \end{aligned}$$
(39)
where we have used \(a+b\ge 2\sqrt{ab}\) and \(S_{ZZ}S_{FF}=\hbar ^2 |\chi _{ZF}|^2\) and \(\hat{x}(\varOmega ) = \hat{Z}(\varOmega )/\Bigl [d\hat{Z}/dx_{\mathrm{sig}}|_{x_{\mathrm{sig}}=0}\Bigr ]\).
Applying to the Michelson interferometer, we have
$$\begin{aligned} \hat{Z}^{(0)} = e^{2i\beta }\hat{a}_2,\quad \hat{F}^{(0)} = \hbar \,\chi _{ZF}\,\hat{a}_1,\quad x_{\mathrm{sig}} = L\, h/2, \end{aligned}$$
(40)
and the susceptibilities are \(\chi _{ZF} = {e^{i\beta }2\sqrt{{2\mathcal K}}}/({L\,h_{\mathrm{SQL}}})\), \(\chi _m = -1/{(m\varOmega ^2)}\), and \(\chi _{FF}=0\). Therefore, in the context of laser interferometer, \(\hat{Z}^{(0)}\) introduces the shot noise, while \(\hat{F}^{(0)}\) is responsible for the radiation pressure noise (quantum backaction). Equation (35) is simply a special case of Eq. (39) when normalising to the GW strain.
Fig. 7

Plot showing the SQL for a tuned dual-recycled Michelson interferometer. It is defined as the locus of those points where the shot noise is equal to the radiation pressure noise at different powers

3.2 Fundamental quantum limit

The fundamental quantum limit (FQL) is a sensitivity limit that is more stringent than the SQL for a given interferometer configuration. It is also called the energetic quantum limit (Braginsky et al. 2000b) or quantum Cramér–Rao bound (Tsang et al. 2011; Miao et al. 2017) in quantum metrology. In the context of laser interferometric gravitational-wave detectors, it can be written as:
$$\begin{aligned} S^h_{\mathrm{FQL}}(\varOmega )=\frac{\hbar ^2c^2}{S_{PP}(\varOmega )L^2} = \frac{4\hbar ^2}{S_{\mathcal{EE}}(\varOmega )}. \end{aligned}$$
(41)
Here \(S_{PP}\) is the single-sided quantum noise spectral density for the optical power P inside the arm cavity and \(S_{\mathcal{EE}} = 4 S_{PP} L^2/c^2\) is the energy spectrum. This means a good sensitivity requires a high fluctuation of the power, or energy, in the quantum regime—a large energy fluctuation is needed to probe the spacetime precisely, which is directly related to the energy-time uncertainty relation. This is a very beautiful formula involving energy, spacetime, and \(\hbar \).
One point worthy emphasising is that SQL is the locus of a family of sensitivity curves at different power, while the FQL is a sensitivity limit at different frequencies for a given configuration with fixed parameters including the power. We can derive the FQL using the same linear-measurement formalism for deriving the SQL mentioned above (Miao et al. 2017). The key component is the correlation between \(\hat{Z}\) and \(\hat{F}\), i.e., \(S_{ZF}\). We first consider the special case with \(\chi _{FF}=0\). When including \(S_{ZF}\), Eq. (39) becomes
$$\begin{aligned} S^x&= \frac{S_{ZZ}}{|\chi _{ZF}|^2} + 2 \mathrm{Re}\left[ \chi _m^* \frac{S_{ZF}}{\chi _{ZF}}\right] +|\chi _m|^2 S_{FF}\nonumber \\&= \frac{\hbar ^2}{S_{FF}} + \left| \frac{S_{ZF}}{\chi _{ZF}}+ \chi _m S_{FF}\right| ^2 \ge \frac{\hbar ^2}{S_{FF}}, \end{aligned}$$
(42)
where we have used the uncertainty relation Eq. (38) in arriving at the second line. In the most general case with \(\chi _{FF}\ne 0\), we just need to replace \(\hat{F}\) by \(\hat{\mathcal{F}}\) which is defined as \(\hat{\mathcal{F}}\equiv {\hat{F}}/{(1-\chi _m \chi _{FF})}\). The resulting general FQL for the displacement measurement is given by
$$\begin{aligned} S^{x}_{\mathrm{FQL}} = \frac{\hbar ^2}{S_{\mathcal{FF}}}. \end{aligned}$$
(43)
In laser interferometric GW detectors, \(\hat{\mathcal{F}}\) corresponds to the radiation pressure force on the test mass, which is equal to \({2 P_c}/{c}\), and therefore
$$\begin{aligned} S_{\mathcal{FF}} = 4 S_{PP}/c^2. \end{aligned}$$
(44)
Converting the FQL for the displacement measurement to that for the strain, we obtain Eq. (41) as the outcome. Achieving the FQL requires \(S_{Z\mathcal{F}}\) to be equal to \(-\chi _m \chi _{Z\mathcal{F}} S_{\mathcal{FF}}\), As proven in Miao et al. (2017), for \(\chi _{FF}=0\), this can be realised by using the optimal frequency-dependent readout, which measures the optimal quadrature at different frequencies using the setup proposed by Kimble et al. (2002) with optical filter cavities. For \(\chi _{FF}\ne 0\) or more specifically \(\mathrm{Im}[\chi _{FF}]\ne 0\), this condition is not exactly realisable, however, the difference between the FQL and the sensitivity achieved by the optimal frequency-dependent readout is at most a factor of two. Therefore, the FQL sets a fundamental benchmark for the sensitivity limit of a given configuration.
Fig. 8

The top panel shows the quantum noise curves for reading out the phase quadrature, the optimal frequency dependent readout, and the FQL. The middle panel is the ratio of these curves to the FQL. The bottom panel is the optimal frequency-dependent readout angle. The left column is the case of a tuned signal-recycled Michelson interferometer while the right one is the detuned case

Again using the tuned dual-recycled Michelson interferometer as an example, the power fluctuation inside the arm cavity is given by
$$\begin{aligned} S_{PP}(\varOmega )= \frac{2 c P_c\hbar \gamma \omega _0}{L(\gamma ^2+\varOmega ^2)}. \end{aligned}$$
(45)
The resulting FQL is
$$\begin{aligned} S^h_{\mathrm{FQL}}(\varOmega ) = \frac{\hbar c (\gamma ^2 +\varOmega ^2)}{ 2 L P_c \gamma \omega _0} = \frac{h_{\mathrm{SQL}}^2(\varOmega )}{2\mathcal{K}_{\mathrm{MI}}}. \end{aligned}$$
(46)
Compared with Eq. (35), this simply corresponds to the shot-noise only sensitivity without contribution from the radiation pressure noise. Indeed, we know that such a sensitivity is achievable using the optimal frequency-dependent readout in the lossless case (Kimble et al. 2002), as mentioned earlier. A similar result applies to the speed meter configuration that we will discuss in Sect. 5 by replacing \(\mathcal{K}_{\mathrm{MI}}\) with the corresponding optomechanical coupling strength \(\mathcal{K}_{\mathrm{SM}}\) for a speed meter. The only difference is that \(\mathcal{K}_{\mathrm{SM}}\) is approximately constant (frequency independent) at low frequencies, and, therefore, a constant quadrature readout is sufficient to reach the FQL at those frequencies.
In Fig. 8, we illustrate the FQL for both the tuned and detuned dual-recycled Michelson interferometer, together with the quantum noise curves for constant phase quadrature readout and the optimal frequency-dependent readout. In the tuned case, the sensitivity with the optimal readout is identical to the FQL. In the detuned case, however, they overlap for most of the frequencies, but not at the detuning frequency. The difference is less than \(\sqrt{2}\) in amplitude (a factor of two in power), which matches the general theorem in Miao et al. (2017).
Fig. 9

A schematics showing the optical feedback in the detuned case of a dual-recycled Michelson interferometer. This is to explain the enhancement of quantum fluctuation in the amplitude quadrature (or equivalently the power fluctuation)

Worthy of highlighting, there are two noticeable dips in the FQL for the detuned case. The high-frequency one simply coincides with the detuning frequency which defines the optical resonance of the interferometer. The low-frequency one, as discussed by Buonanno and Chen (2002), is attributable to the so-called optical spring effect which shifts the test-mass centre-of-mass frequency due to the position-dependent radiation pressure. In sight of the FQL, we can provide an alternative point of view: the sensitivity is better around such a frequency implies that the optical power fluctuation is significantly larger than other frequencies, according to Eq. (41). It can be explained using the positive feedback as illustrated in Fig. 9. The quantum fluctuation in the amplitude quadrature is converted into that of phase quadrature due to the ponderomotive squeezing (amplification) effect. In the presence of non-zero detuning and the signal-recycling mirror, the phase quadrature fluctuation is feeding back to the amplitude one. With the round-trip feedback gain approaching unity, the amplitude quadrature fluctuation, or equivalently the power fluctuation, is significantly enhanced and leads to the dip in the sensitivity curve that we observe.

The above insight provides a new perspective on how the arm cavity power fluctuation can be enhanced, i.e., achieving a better sensitivity. In addition to increasing power or external squeezing injection, we can also take advantage of the internal ponderomotive squeezing. If we can insert proper optical filters such that the simple detuning in Fig. 9 is replaced by more sophisticated feedback, we could achieve a broadband resonant enhancement of the power fluctuation. We can, therefore, combine different techniques in a coherent way to optimise the the signal-to-noise ratio (SNR) for the signal of interest:
$$\begin{aligned} \mathrm{SNR}^2_{\mathrm{FQL}}= \int \frac{\mathrm{d}\varOmega }{2\pi } \frac{|h_{\mathrm{sig}}(\varOmega )|^2}{S^h_{\mathrm{FQL}}(\varOmega )}= \frac{L^2}{\hbar ^2 c^2} \int \frac{\mathrm{d}\varOmega }{2\pi } |h_{\mathrm{sig}}(\varOmega )|^2 S_{PP}(\varOmega ). \end{aligned}$$
(47)
We can shape the power fluctuation with different techniques such that it has a good spectral overlap with the signal, which implies a high SNR according to the above formula. This idea is now under study in the GW community. The only limitation to this idea comes from the optical loss which could set a more stringent bound if the FQL is made sufficiently low (Miao 2017). Coming up with schemes with low FQL and robust against is one of the challenges.

4 Interferometers using non-classical light

4.1 Squeezed vacuum injection

One approach to reducing quantum noise is using the non-classical state of light—the squeezed vacuum state, which is produced by non-linear optical processes mentioned earlier. This approach is originally proposed by Caves when analysing the quantum limit of laser interferometers (Caves 1981). The basic setup is shown schematically in Fig. 10. The squeezed light is injected into the dark port of the interferometer using an optical isolator (circulator). After several pioneering experimental works on the generation of squeezed state, it has been successfully demonstrated in GEO 600 (Abadie et al. 2011), and LIGO (Aasi et al. 2013) for reducing the high-frequency shot noise (see a recent review article by Schnabel 2017).
Fig. 10

Sketch of a laser interferometric GW detector with squeezed light injection (left) and the quantum-noise curve \(\sqrt{S_{hh}}\) for different squeezing angles (right). The SQL is shown as a reference

The detector sensitivity with squeezed light depends on the the squeezing quadrature (angle). The latter is determined by the relative phase between the carrier of the main interferometer and the pump field which produces the squeezed light. We again use the tuned dual-recycled Michelson interferometer as an example. Assuming that we measure the output phase quadrature, the quantum noise spectral density is
$$\begin{aligned} S^h(\varOmega )=\frac{h_{\mathrm{SQL}}^2}{2\mathcal{K}_{\mathrm{MI}}} \left[ e^{-2r_{\mathrm{s}}}(\sin \theta _{\mathrm{s}}-\mathcal{K}_{\mathrm{MI}} \cos \theta _{\mathrm{s}})^2+ e^{2r_{\mathrm{s}}}(\mathcal{K}_{\mathrm{MI}}\sin \theta _{\mathrm{s}}+\cos \theta _{\mathrm{s}})^2 \right] , \end{aligned}$$
(48)
where \(r_{\mathrm{s}}\) is the squeezing factor and \(\theta _{\mathrm{s}}\) is the squeezing angle. We show the resulting noise curves for different squeezing angles in the right panel of Fig. 10. The phase squeezing with \(\theta _s=0\) gives
$$\begin{aligned} S^{h}(\varOmega ) = \frac{h_{\mathrm{SQL}}^2}{2}\left[ \frac{e^{-2r_{\mathrm{s}}}}{\mathcal{K}_{\mathrm{MI}}} + e^{2r_{\mathrm{s}}} \mathcal{K}_{\mathrm{MI}}\right] , \end{aligned}$$
(49)
which implies that we reduce the shot-noise term at a price of increasing the radiation-pressure-noise term proportional to \(\mathcal K\). To reduce the shot noise and the radiation pressure noise simultaneously, the squeezing angle \(\theta _s\) needs to be frequency dependent, which will be discussed in the next section.

4.2 Frequency-dependent squeezing

As we have learnt from the previous section, a fixed squeezing angle only improves the sensitivity for some frequencies but not all. This is because the fluctuation in the amplitude quadrature and the phase quadrature contribute to the quantum noise differently at different frequencies. We can, therefore, optimise the sensitivity by making the squeezing angle frequency dependent.

Again using the tuned dual-recycled interferometer for illustration, the optimal frequency-dependent squeezing angle is equal to
$$\begin{aligned} \tan \theta _s = -1/\mathcal{K}_{\mathrm{MI}} \propto \varOmega ^{2}(\varOmega ^2+\gamma ^2)\, \end{aligned}$$
(50)
such that the anti-squeezing term, proportional to \(e^{2r_{s}}\), in Eq. (48) vanishes and the quantum noise is reduced over the entire frequency band. The frequency-dependent squeezing is realised by sending the squeezed light through a cascade of so-called filter cavities, which are Fabry–Perot cavities with proper bandwidth and detuning, as illustrated in Fig. 11.
Fig. 11

The left panel is a schematic of the dual-recycled Michelson interferometer with 10 dB frequency-dependent (FD) squeezing. The top right shows the quantum-noise curve with and without squeezing. The bottom right shows the optimal squeezing (SQZ) angle as a function of frequency

For a general detector configuration with the input–output relation given by Eq. (5), the optimal squeezing angle is determined by
$$\begin{aligned} \tan \theta _s(\varOmega ) = \frac{T_{cs}(\varOmega ) \cos \zeta + T_{ss}(\varOmega ) \sin \zeta }{T_{cc}(\varOmega ) \cos \zeta + T_{sc}(\varOmega )\sin \zeta }, \end{aligned}$$
(51)
where \(\zeta \) is the measured quadrature angle at the output. It is equal to \(-\mathcal{K}\) in the special case mentioned above. The number of filter cavities is determined by the order of \(\varOmega \) in the frequency dependence of \(\tan \theta _s\). As shown in Purdue and Chen (2002), if \(\tan \theta _s\) is a rational function of \(\varOmega \) with the highest order equal to \(\varOmega ^{2n}\) for its numerator and denominator, the number will be equal to n and we can derive the bandwidth \(\gamma _k\) and detuning \(\varDelta _k\) for the individual filter cavity analytically:
$$\begin{aligned} \frac{1+i \tan \theta _s(\varOmega )}{1-i\tan \theta _s(\varOmega )} = e^{2i\bar{\theta }} \prod _{k=1}^n \frac{\gamma _k+i(\varOmega +\varDelta _k)}{\gamma _k-i(\varOmega +\varDelta _k)} \frac{\gamma _k+i(-\varOmega +\varDelta _k)}{\gamma _k-i(-\varOmega +\varDelta _k)}, \end{aligned}$$
(52)
where \(\bar{\theta }\) defines the global constant phase of the filter cavity chain at \(\varOmega \rightarrow \infty \). However, if \(\tan \theta _s\) is not a rational function of \(\varOmega \) or one wish to approximately realise \(\theta _s\) using the number of cavities less than n, one can use a numerical algorithm to obtain the filter cavity parameters by fitting to the angle. The authors find that, when proper physical constraints on the parameters are imposed, using a minimisation routine to minimise the following cost function leads to a good answer:
$$\begin{aligned} \mathcal{J}= \left\{ \theta _s - \bar{\theta }- \sum _{k=1}^n \arctan [(\varOmega +\varDelta _k)/\gamma _k] + \sum _{k=1}^n\arctan [(\varOmega -\varDelta _k)/\gamma _k] \right\} ^2. \end{aligned}$$
(53)
Fig. 12

The difference in the squeezing angle between the optimal angle and the approximation realised by using only one filter cavity for different values of detector bandwidth

For example, in the tuned dual-recycled Michelson, two filter cavities are needed to achieve the optimal squeezing angle, as the highest order of \(\varOmega \) in \(\tan \theta _s\) is four, cf. Eq. (50). When the detector bandwidth \(\gamma \) is much larger than the frequency for the transition from the radiation-pressure-noise dominated to the shot-noise dominated, one filter cavity can approximately realise the optimal squeezing angle. This is the case for the resonant-sideband-extraction mode of detectors. Given the default parameters that we assumed, the bandwidth is of the order of a few hundred Hz and the transition frequency is around 30 Hz. Indeed, as shown in the left panel of Fig. 12, the difference between the optimal angle and the one realised with one filter cavity is less than one milliradian, and the projection noise from the anti-squeezing is smaller than 0.4 dB for 10 dB squeezing. However, when the detector bandwidth is narrow, e.g., around 100 Hz, as shown in the right panel of Fig. 12, one filter cavity is not able to produce the optimal angle which has a steeper change than the case of having a broad detector bandwidth.

One may also estimate how many filter cavities is sufficient for an interferometer from the perspective of loss, as discussed in Sect. 4.4. The price to pay in the case of imperfect rotation angle is the extra quantum noise that comes from the projection of anti-squeezed quadrature on the readout one. If this contribution, that can be estimated as \(\varDelta _{\mathrm{imp.}\, \theta _\mathrm{s}} = s_+\delta \theta _{s}\) (cf. Eq. (68)) is smaller than the contribution to the phase fluctuations due to loss in the squeezing injection optics (see Eq. (66)), which yields:
$$\begin{aligned} \delta \theta _s \lesssim \sqrt{\epsilon _{\mathrm{sqz}}e^{-2 r_+}}. \end{aligned}$$

4.3 Conditional frequency-dependent squeezing via EPR entanglement

As mentioned in the previous section, the canonical setup for realising the frequency-dependent squeezing for a broadband detector involves at least one additional filter cavity. In contrast, the recently proposed idea based upon the Einstein–Podolsky–Rosen (EPR) entanglement of light shows a new approach without a need of the external long filter cavity (Ma et al. 2017). This idea takes advantage of the entanglement (correlation) between fields around the half of the frequency \(\omega _p\) of the pump field that drives the nonlinear crystal.

Compared to the canonical setup, where \(\omega _p/2\) coincides with the carrier frequency \(\omega _0\) of the interferometer, this scheme slightly shifts the pump frequency by, e.g., tens of MHz, denoted as \(\varDelta \), which needs to much larger than the GW frequency but smaller than the bandwidth of the squeezed light source. The field around \(\omega _0\), which contains the GW signal, are called signal field (mode); that around \(\omega _0+\varDelta \) is called the idler field. They are correlated due to the nonlinear process in the squeezed light source; measuring one will allow us to reduce our uncertainty of the other, which is so-called conditional squeezing. Since the idler field is separated with the signal fields by tens of MHz, it will not mix with the strong carrier at \(\omega _0\) to produce a radiation pressure on the test masses. The interferometer will just behave like an optical filter cavity for the idler field; the conditional squeezing can gain the desired frequency dependence by properly tuning \(\varDelta \), and no external filter cavity is needed. The setup is shown in Fig. 13. The input path is the same as the frequency-independent squeezing. The additional complication comes from the output path. It requires a short (tens of centimetre scale) cavity similar to the output mode cleaner (OMC) to separate the signal field and the idler field. Two sets of balanced homodyne detection are needed to measure these two fields.

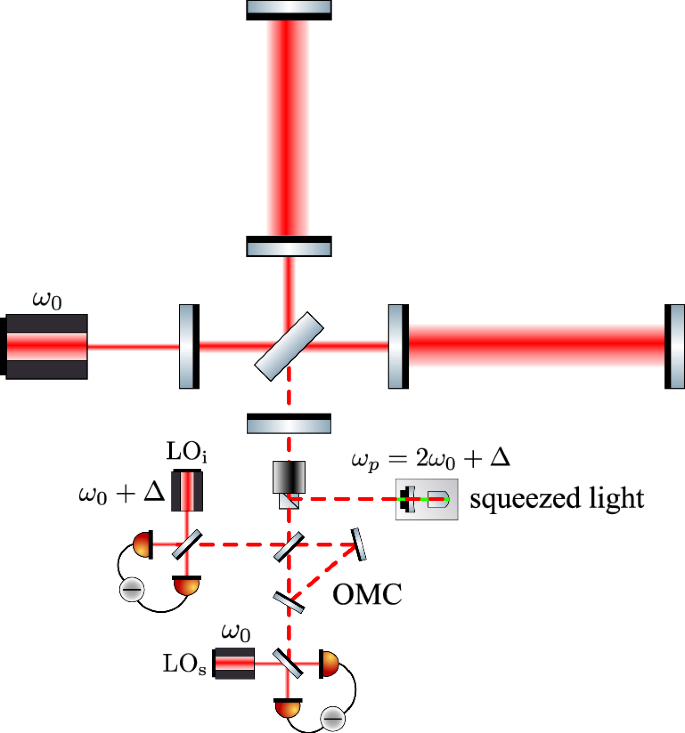

Fig. 13

A schematic showing the configuration of realising frequency-dependent squeezing using the idea of EPR entanglement. The basic setup is the same as frequency-independent squeezing but with the pump frequency slightly shifted away twice the carrier frequency \(\omega _0\) of the interferometer by \(\varDelta \)

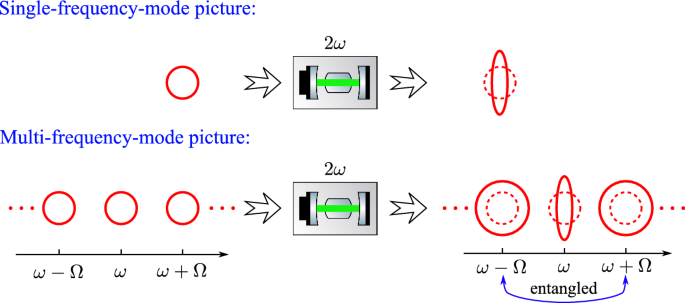

Fig. 14

The squeezer in the single-frequency-mode picture (top) and multi-frequency-mode picture (bottom). In the latter picture, the field is only squeezed precisely at \(\omega \), the half of the pump frequency. The upper and lower sidebands around \(\omega \) will have fluctuations larger than that of a vacuum state, but are entangled (correlated) if their sum frequency is equal to \(2\omega \)

To understand this idea, we need to look at the structure of EPR entanglement in the multi-frequency-mode picture, as illustrated in Fig. 14. The upper sideband at \(\omega +\varOmega \) and the lower sideband at \(\omega -\varOmega \) are entangled in the sense that their quantum fluctuations are not independent but correlated. In the standard case with \(\omega _p\) equal to twice the carrier frequency \(\omega _0\) of the interferometer, we often do not need to consider such an entanglement in the two-photon formalism after introducing the amplitude and phase quadratures which are linear combinations of the upper and lower sidebands. This is because the test-mass-light interaction inside the interferometer and the homodyne readout only involve these quadratures rather than individual sidebands. It turns out that the entanglement between upper and lower sidebands can be converted into quadrature squeezing in the frequency reference with respect to \(\omega _0\), as illustrated by Fig. 15.
Fig. 15

The upper panel illustrates the standard case with \(\omega _p=2\omega _0\). We can transform the entanglement between the upper and lower sidebands into quadrature squeezing without entanglement, by using the two-photon formalism. The lower panel shows the EPR squeezing idea where such an entanglement is explicitly explored to produce the conditional squeezing

In the EPR squeezing idea, the entanglement between the upper and lower sidebands is the key to create the conditional squeezing. Let us go through the math behind the illustration shown in the lower panel of Fig. 15. With the offset \(\varDelta \) of the pump frequency, the sidebands around \(\omega _0\) and those around \(\omega _0+\varDelta \) are correlated. Specifically, the optical field \(\hat{o}(\omega _0 -\varOmega )\) is correlated with \(\hat{o}(\omega _0+\varDelta +\varOmega )\), and \(\hat{o}(\omega _0 +\varOmega )\) is correlated with \(\hat{o}(\omega _0+\varDelta -\varOmega )\). To distinguish between the sidebands around \(\omega _0\) and those around \(\omega _0+\varDelta \), we introduce
$$\begin{aligned} \hat{a}_{\pm }\equiv \hat{o}(\omega _0\pm \varOmega ),\quad \hat{b}_{\pm }\equiv \hat{o}(\omega _0+\varDelta \pm \varOmega ). \end{aligned}$$
(54)
Their correlations can be quantified by the cross spectrum in the frequency domain. Specifically, given the squeezing factor \(r_s\) and angle \(\theta _s\) of the squeezed light source, we have
$$\begin{aligned} S_{a_+a_+}&=S_{a_-a_+} =S_{b_+b_+}=S_{b_-b_-}=\cosh 2r_s, \end{aligned}$$
(55)
$$\begin{aligned} S_{b_-a_+}&= S^*_{a_+b_-} = S_{b_+a_-} =S^*_{a_-b_+} = - e^{2i\theta _s}\sinh 2r_s, \end{aligned}$$
(56)
$$\begin{aligned} S_{a_-a_+}&=S_{a_-b_-}=S_{a_+b_+}=S_{b_-b_+} = 0. \end{aligned}$$
(57)
In terms of the amplitude and phase quadratures for \(\hat{a}\) and \(\hat{b}\), we can obtain the covariance matrix for \((\hat{a}_c\; \hat{a}_s\; \hat{b}_c\; \hat{b}_s)\):
$$\begin{aligned} \mathbf{S}=\left[ \begin{array}{cccc} \cosh 2r_s &{} 0 &{} -\cos 2\theta _s\sinh 2r_s &{} \sin 2\theta _s\sinh 2r_s \\ 0 &{} \cosh 2r_s &{} \sin 2\theta _s\sinh 2r_s &{} \cos 2\theta _s\sinh 2r_s \\ -\cos 2\theta _s\sinh 2r_s &{} \sin 2\theta _s\sinh 2r_s &{} \cosh 2r_s &{} 0 \\ \sin 2\theta _s\sinh 2r_s &{} \cos 2\theta _s\sinh 2r_s &{} 0 &{} \cosh 2r_s \end{array}\right] . \end{aligned}$$
(58)
In the special case when \(\theta _s=\pi /2\) (phase squeezing injection), the covariance matrix becomes
$$\begin{aligned} \mathbf{S}|_{\theta _s=\pi /2} = \left[ \begin{array}{cccc} \cosh 2r_s &{} 0 &{} \sinh 2r_s &{} 0 \\ 0 &{} \cosh 2r_s &{} 0 &{} -\sinh 2r_s \\ \sinh 2r_s &{} 0 &{} \cosh 2r_s &{} 0 \\ 0 &{} -\sinh 2r_s&{} 0 &{} \cosh 2r_s \end{array} \right] . \end{aligned}$$
(59)
We can see that \(\hat{a}\) and \(\hat{b}\) are mutually correlated, or equivalently forming quantum entanglement, manifested by the nonzero off-diagonal terms in the covariance matrix. It is such a correlation that allows us to reduce the uncertainty (variance) of \(\hat{a}\) by making a measurement on \(\hat{b}\), or vice versa. This is the main principle behind the conditional squeezing.
To show the conditional squeezing explicitly, suppose we use the homodyne detection scheme to measure the quadrature \(\hat{b}_{\phi }\):
$$\begin{aligned} \hat{b}_{\phi }\equiv \hat{b}_c \cos \phi +\hat{b}_s\sin \phi . \end{aligned}$$
(60)
The remaining uncertainty of \(\hat{a}_{1,2}\) conditional on the measurement of \(\hat{b}_{\phi }\), i.e., the conditional variance can be derived by using the definition of conditional probability:
$$\begin{aligned} P(\hat{\mathbf{a}}|\hat{b}_{\phi }) =\frac{P(\hat{\mathbf{a}}, \hat{b}_{\phi })}{P(\hat{b}_{\phi })}. \end{aligned}$$
(61)
Here \(P(\hat{\mathbf{a}},\hat{b}_{\phi })\) is the joint probability distribution of \(\hat{\mathbf{a}} \equiv (\hat{a}_1\; \hat{a}_2)\) and \(\hat{b}_{\phi }\) a three-dimensional Gaussian distribution with mean equal to zero and covariance matrix derived from Eq. (59). The resulting covariance matrix for the conditional probability is
$$\begin{aligned} \mathbf{S^{\mathrm{cond}}_{aa}} = \mathbf{S_{aa}} - \frac{\mathbf{S}_{\mathbf{a}b_{\phi }} \mathbf{S}_{b_{\phi }{} \mathbf{a}}}{S_{b_{\phi }b_{\phi }}} =\mathbf{R}_{-\phi }\left[ \begin{array}{cc} e^{-2 r_{\mathrm{eff}}} &{} 0 \\ 0 &{} e^{2r_{\mathrm{eff}}} \end{array}\right] \mathbf{R}_{\phi }, \end{aligned}$$
(62)
where the effective squeezing factor \(r_{\mathrm{eff}}\) is defined through
$$\begin{aligned} e^{2r_{\mathrm{eff}}} \equiv \cosh 2r_s. \end{aligned}$$
(63)
Therefore, the signal field \(\hat{a}\) is a squeezed state conditional on the measurement of \(\hat{b}_{\phi }\).4
The squeezing angle is \(-\phi \) and the magnitude of the conditional squeezing is around 3 dB less than the squeezing level directly measured using a local oscillator at \(\omega _0+\varDelta /2\). For example, given 10 dB squeezed light source, i.e. \(e^{2r_s}=10\), the observed conditional squeezing is approximately equal to 7 dB:
$$\begin{aligned} 10 \log _{10}(e^{2r_{\mathrm{eff}}})=10 \log _{10}(\cosh 2r_s)\approx 7. \end{aligned}$$
(64)
One would need to have 13 dB squeezing as the input to obtain 10 dB squeezing using this approach.

Fig. 16 illustrates how the interferometer affects the signal field and the idler field by only looking at the differential mode from the dark port (the interferometer is mapped into a coupled cavity). For the former, the signal-recycling cavity (SRC) formed by SRM and ITM is tuned on resonance with respect to \(\omega _0\) in the resonant sideband extraction case. The strong carrier inside the arm cavity mixes with the signal field and interacts with the test mass mediated by the radiation pressure. This process makes the signal field at the output squeezed, which is the ponderomotive squeezing effect mentioned earlier. It introduces the radiation pressure noise by converting the fluctuation of the amplitude quadrature into that of the phase quadrature. For the latter, there is no strong carrier at \(\omega _0+\varDelta \) and there is no radiation pressure effect associated with the idler field. The interferometer behaves as a passive filter cavity that imprints frequency-dependent rotation on the quadratures of the idler field. Since measuring \(\phi \) quadrature of the idler field will make \(-\phi \) quadrature of the signal field squeezed, cf. Eq. (62), the frequency dependence will be transferred to the squeezing of the signal field. As shown in Ma et al. (2017), we can achieve the desired frequency-dependent squeezing by choosing a proper value of \(\varDelta \) and fine tuning the length of SRC. One may as well use the I/O-relations formalism of Sect. 2.1 to arrive to the above described result. However, since the two modes of squeezed light are entangled and thus ought to be considered together, as manifested by Eq. (58), the dimensions of the corresponding transfer matrix \(\mathbb {T}\) and the response vector \({\mathbf {t}}\) should be expanded to \(4\times 4\) and \(4\times 1\), respectively.

There is one last issue worthy of emphasising, which is the optical loss. This idea removes the additional filter cavity that is needed in the conventional frequency-dependent squeezing. Therefore, the optical loss associated with the filter cavity is now absent, as the arm cavity is long enough to achieve the required filter bandwidth with a low finesse. However, since there are two readout channels: one for the signal field and the other for the idler field, the optical loss at the output, e.g., from the mode mismatching and finite quantum efficiency of the photo detector, is effective doubled compared with the conventional scheme. This scheme, if to be implemented, places a more stringent requirement on the output loss. In the section below, we will discuss in general how the optical loss influences the quantum-limited sensitivity of laser interferometers.
Fig. 16

The dual role of the interferometer (schematics showing the differential mode): it acts as a signal extraction device and a ponderomotive squeezer for the signal field (top panel), while acting as a filter cavity for the idler field (bottom panel). Measuring the output of the idler field will project the signal field into a squeezed state

4.4 Optical losses in interferometers with non-classical light

The performance of the described interferometers with squeezed vacuum injection depends rather strongly on how well the quantum correlations generated by the squeezer are transmitted to the interferometer to counteract the corresponding quantum correlations created by optomechanics (i.e., ponderomotive squeezing discussed earlier). As shown by Kimble et al. (2002), this effect is quite significant and detrimental. There are several mechanisms that cause deterioration of the QNLS of the interferometers using squeezing injection, which we consider below.

4.4.1 Optical loss in a squeezing injection optics

Optical loss in the injection train may be considered the main hindrance for squeezed vacuum to enter the GW detector dark port (Dwyer et al. 2013; Dooley et al. 2015; Isogai et al. 2013). The mechanism behind is mainly the scattering/mode mismatch and absorption in the auxiliary optical elements used to link the squeezer and the FC input mirror, or the interferometer dark port. As an upper bound estimate, it can be characterised by an integral, frequency-independent injection power loss coefficient, \(\epsilon _{\mathrm{sqz}}\). Following the same chain of argument as for the readout train loss in Sect. 2.6.1, the I/O-relation for the injection train can be written as:
$$\begin{aligned} \hat{\varvec{i}}_{\mathrm{dark\, port}} = \sqrt{1-\epsilon _{\mathrm{sqz}}}\,\hat{\varvec{i}}_{\mathrm{sqz}}+\sqrt{\epsilon _{\mathrm{sqz}}}\,\hat{\varvec{n}}_{{\mathrm {sqz}}}, \end{aligned}$$
(65)
where \(\hat{\varvec{i}}_{\mathrm{dark\ port}}\) stands for the light field, entering the dark port of the detector (or the filter cavity in case of frequency dependent squeezing injection), and \(\hat{\varvec{i}}_{{\mathrm {sqz}}}\) and \(\hat{\varvec{n}}_{{\mathrm {sqz}}}\) are the field generated by a squeezer and a vacuum field due to injection loss, respectively. If the squeezer is capable of generating squeezed state with (anti-)squeezing quadrature variances, \(s_- = e^{2r_-},\,(s_+=e^{2r_+})\), the effective (anti-)squeezing factor at the dark port reads:
$$\begin{aligned} s_-^{\mathrm{eff}}\equiv e^{-2r_-^{\mathrm{eff}}}= & {} (1-\epsilon _{\mathrm{sqz}})e^{-2r_-}+\epsilon _{\mathrm{sqz}},\nonumber \\ \Bigl (s_+^{\mathrm{eff}}\equiv e^{2 r_+^{\mathrm{eff}}}= & {} (1-\epsilon _{\mathrm{sqz}})e^{2r_+}+\epsilon _{\mathrm{sqz}}\Bigr ). \end{aligned}$$
(66)
Here we took into account that the real squeezer produces not a pure squeezed vacuum state, for which \(s_+ = 1/s_- = e^{2 r}\), rather a mixed state that can be described by a diagonal spectral density matrix:
$$\begin{aligned} \mathbb {S}_{i}^{\mathrm{sqz}} = \begin{bmatrix} s_+&0\\ 0&s_- \end{bmatrix} \end{aligned}$$
(67)
with \(s_+\) usually larger than \(1/s_-\) (see, e.g., Suzuki et al. 2006).

4.4.2 Squeezing angle fluctuations

Another source of noise is known as ‘phase quadrature noise’, or ‘squeezing angle jitter’ (Dooley et al. 2015). It comes from the random fluctuations of the optical path length between the squeezer and the dark port of the interferometer.

Although the fluctuation may happen anywhere along the squeezing injection train, the absence of active nonlinear components between the squeezer and the interferometer justifies viewing it as a random rotation of a squeezed vacuum state at the output of the squeezer. In this case, the effect can be described by a random angle of rotation, \(\lambda \), normally distributed around the zero mean with an r.m.s. uncertainty \(\sigma _{\lambda }\): \(w(\lambda ) = \frac{1}{\sqrt{2\pi \,\sigma _\lambda ^2}} \exp \left[ -\frac{\lambda ^2}{2\,\sigma _\lambda ^2} \right] \). Provided that the r.m.s. uncertainty \(\sigma _\lambda \) is quite small (\(\sim \,10\) mrad), one can assume that the resulted quantum state of light remains Gaussian to a good precision and therefore only the transformation of the field second moments, i.e. of the PSD matrix (67), under these random rotations is of interest. The averaged over \(\lambda \) squeezed state PSD matrix read:
$$\begin{aligned} \left\langle \mathbb {S}^{\mathrm{sqz}}_i\right\rangle _\lambda= & {} \int _{-\infty }^\infty d\lambda \,w(\lambda ) \mathbb {R}[\lambda ]\cdot \mathbb {S}_{i}^{\mathrm{sqz}}\cdot \mathbb {R}[-\lambda ] \nonumber \\= & {} \frac{s_++s_-}{2}\begin{bmatrix} 1+\frac{s_+-s_-}{s_++s_-}e^{-2\sigma _\lambda ^2}&0\\ 0&1-\frac{s_+-s_-}{s_++s_-}e^{-2\sigma _\lambda ^2} \end{bmatrix} \simeq \begin{bmatrix} s_+&0\\ 0&s_-+\sigma _\lambda ^2s_+ \end{bmatrix},\nonumber \\ \end{aligned}$$
(68)
where the last approximate inequality takes into account that \(\sigma _\lambda \ll 1\) and \(s_+\gg s_-\). So we see that the phase quadrature fluctuations lead to a contamination of the squeezed quadrature, \(s_-\), by the noise contained in the anti-squeezed quadrature, \(s_+\).

4.4.3 Losses in filter cavities

Filter cavities used for frequency-dependent squeezing have a bandwidth that is smaller than the detection band of the interferometer. Hence, the influence of extra vacuum fields associated with loss in the FC’s mirrors has a distinct frequency dependence that can be accounted for using the model of a lossy Fabry–Perot cavity derived in Appendix B.2.1. As there is no carrier light propagating in the FC, the general I/O-relations can be simplified by omitting back-action and signal parts in (176):
$$\begin{aligned} \hat{\varvec{o}}_f(\varOmega ) = \mathbb {T}_{\mathrm{FC}}\hat{\varvec{i}}(\varOmega ) + \mathbb {N}_{\mathrm{FC}}\,\hat{\varvec{n}}, \end{aligned}$$
(69)
where \(\hat{\varvec{i}}\) and \(\hat{\varvec{o}}\) stand for input and output fields of the FC, respectively, and \(\hat{\varvec{n}}\) represents vacuum fields due to loss. Transfer matrices for filter cavity are defined as:
$$\begin{aligned} \mathbb {T}_{\mathrm{FC}} = \mathbb {T}_{{\mathrm {arm}}}^{\mathrm{s.n.}}(\varOmega ),\quad \mathbb {N}_{\mathrm{FC}} = \mathbb {N}_{{\mathrm {arm}}}^{\mathrm{s.n.}}(\varOmega ), \end{aligned}$$
(70)
with expressions for \(\mathbb {T}_{{\mathrm {arm}}}^{\mathrm{s.n.}}\) and \(\mathbb {N}_{{\mathrm {arm}}}^{\mathrm{s.n.}}\) given by Eqs. (178) and (179), respectively.
Using this simplified formula, quantum noise spectral density for interferometer with lossy input filter cavities can be obtained by substituting into (33) the following expression for input field spectral density matrix:
$$\begin{aligned} \mathbb {S}_{o_f,\,loss}^{in} = \mathbb {T}_{\mathrm{FC}}\cdot \mathbb {R}_{\lambda }\cdot \mathbb {S}_i^{\mathrm{sqz}}\cdot \mathbb {R}^\dag _{\lambda }\cdot \mathbb {T}_{\mathrm{FC}}^\dag + \mathbb {N}_{\mathrm{FC}}\cdot \mathbb {N}_{\mathrm{FC}}^\dag . \end{aligned}$$
(71)
The last term here peaks near the resonant frequency of the cavity which thereby decreases squeezing of the vacuum fields entering the cavity. But the off-resonant squeezed vacuum fields reflect off the FC without deterioration. This explains why optical loss in the cavities have major impact at low frequencies within the FC linewidth.

4.5 Summary and outlook

After years of developments and researches, squeezing now becomes an indispensable quantum technique for enhancing the detector sensitivity. We can now produce a high level of squeezing, more than 10 dB, at the audio band for both 1064 nm and 1550 nm with the goal of expanding to other wavelengths (Schnabel 2017). To fully take advantage of the squeezing, efforts are being put into minimisation of the optical loss, due to scattering and mode mismatch, in between the squeezed light source and the interferometer output. The frequency-dependent squeezing with a filter cavity has already been demonstrated in a table-top experiment (Oelker et al. 2016), and the large scale filter cavity, of the order of hundred meter, will be implemented in the near term upgrades of current advanced detectors (LIGO Scientific Collaboration 2018). The EPR squeezing idea is at an early stage and requires table-top demonstrations, which have been started by several experimental groups. Since reducing the shot noise of a detuned interferometer also requires the frequency-dependent squeezing, this idea equally applies there, which has been modelled in details in Brown et al. (2017). Indeed, the on-going experimental demonstrations all use this fact.

Looking further into the future, more complex frequency-dependent squeezing might be needed to optimise the sensitivity of detectors operating beyond the current broadband operation. This may require a cascade of filter cavities with parameters that can be tuned in situ. For passive optics (without external energy input), one can achieve the tunability by using compound mirrors. The active optomechanical filter cavity idea provides an alternative approach and also can achieve narrow cavity bandwidth with a short cavity length (Ma et al. 2014). However, it has not yet been investigated experimentally as systematically as the passive filter cavity, and more researches are needed.

5 Speed-meter interferometers

Measurement of speed was first proposed by Braginsky and Khalili (1990) as an alternative to a position measurement performed by a conventional Michelson interferometer. The goal was to get rid of the back-action fluctuations of light and thereby drastically improve the sensitivity of GW interferometers at low frequencies. This is possible because, they argued, velocity of the free body is proportional to its momentum, which is a conserved quantity and thus a quantum-non-demolition (QND) observable. As such, any measurement of momentum is free from back action by design. The more careful analysis has shown that the dynamics of the test object cannot be considered separately from that of the meter, which is the laser light in the case of GW interferometers. For a combined system ‘mirrors+light’, the generalised momentum is rather a sum of two terms, \(\hat{P} = m\hat{v} - g_{\mathrm{SM}}(t)\hat{a}_c\) than a simple proportionality to velocity (see, e.g., Sect. 4.5.2 in Danilishin and Khalili 2012), where \(g_{\mathrm{SM}}(t)\) is the strength of coupling between the light and the mirrors’ mechanical motion, and \(\hat{a}_c = (\hat{a}+\hat{a}^\dag )/\sqrt{2}\) is the amplitude quadrature of light. Nevertheless, speed measurement offers a substantial reduction of random back-action force.
Fig. 17

Principle scheme of optical measurement of speed

The power of speed-meter interferometer (SI) to reduce back-action noise is nested in its ability to sense the relative rate, or in other words speed of an arm cavities length variation, whereas Michelson interferometer senses arms length variation itself. The simple way to understand how a speed measurement can reduce back-action is to consider a simple thought experiment depicted in Fig. 17. Here the free mirror is sensed twice by the same laser light that is reflected from both the front and the rear surfaces thereof with a time delay \(\tau \) between reflections. The phase of outgoing light is measured by, say homodyne detector, and is proportional to the the difference of the succesive mirror coordinates: \(\phi _{\mathrm{out}}\propto (x(t+\tau )-x(t))\simeq \bar{v}\tau \), where \(\bar{v}\) stands for the mean velocity of the mirror over the interval \(\tau \). If the signal force one seeks to measure, watching the change of the mirror velocity, has characteristic frequency \(\varOmega \) much smaller than \(\tau ^{-1}\), the two kicks light gives to the mirror on the consecutive reflection partly compensate each other and the resulting back-action force turns out to be depressed by a factor \(\propto \varOmega \tau \ll 1\):
$$\begin{aligned} \hat{F}_{\mathrm{b.a.}}(\varOmega ) \simeq -i\varOmega \tau \frac{2 \bar{P}_{\mathrm{pulse}}}{c}, \end{aligned}$$
(72)
as compared to the back-action of single light pulse with an average power \(\bar{P}_{\mathrm{pulse}}\) which one expects in a single reflection experiment sensitive to the test mass displacement.

5.1 Speed meters as GW detectors

The original paper by Braginsky and Khalili (1990) considered the microwave speed meter as a readout for bar GW detectors. The first of two proposed schemes was the microwave version of the scheme shown in Fig. 17. The second one used two coupled microwave cavities with one of them having a movable wall attached to the bar antenna to sense the GW-induced oscillations thereof, and the other cavity served for storing the EM signal with displacement information and sending (“sloshing”) it back to the readout cavity with an opposite sign (\(\pi \)-phase shift). This allowed sequential measurement of position as described above, thereby yielding speed measurement. In the subsequent years, a lot of new speed-meter interferometer designs were proposed, although it took almost 10 years till the first optical implementation of the original sloshing speed-meter principle has been finally developed by Braginsky et al. (2000a).

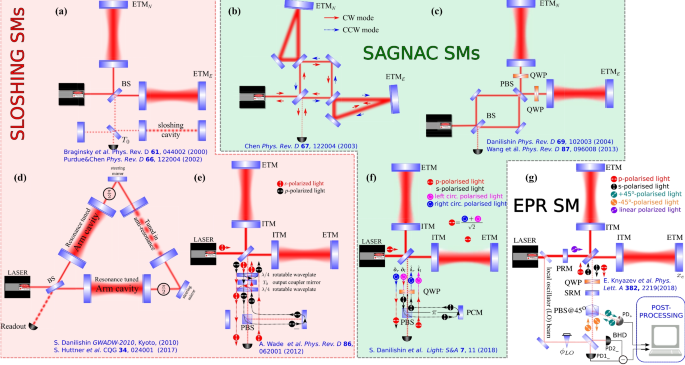

Fig. 18

Laser interferometers based on speed-meter principle (as of May 2018). All schemes are classified in 3 types: (i) Sagnac-like speed meters, (ii) sloshing speed meters and (iii) the EPR-speed meter by the mechanism the speed measurement is arranged

Fig. 19

Two possible ways of realisation of speed meter in a GW interferometer: a “Sloshing” speed meter scheme based on Braginsky et al. (2000a), and b zero-area Sagnac speed meter based on Chen (2003)

The more or less complete chart of configurations developed so far is shown in Fig. 18. All schemes are classified in 3 types—(i) Sagnac-like speed meters (Chen 2003; Khalili 2002; Danilishin 2004; Wang et al. 2013; Danilishin et al. 2018), (ii) sloshing speed meters (Braginsky et al. 2000a; Purdue 2002; Purdue and Chen 2002; Wade et al. 2012; Huttner et al. 2017) and (iii) the EPR-type speed meter (Knyazev et al. 2018) by the mechanism the speed measurement is arranged. In Sagnac speed meter, signal sidebands interact with the interferometer twice and co-propagate all the time with the carrier light. Sloshing speed meters use an additional not pumped sloshing cavity to store the signal sidebands between the two interactions with the interferometer arms and thus have an extra parameter, the sloshing frequency (defined by the sloshing cavity length and the input coupler mirror reflectivity), that discerns its response function from that of a Sagnac speed meters. And finally, the EPR-type speed meter uses two optically independent position-sensitive interferometers and devise the speed information by combining their outputs into sum and difference combinations with a beam-splitter and then adding the so obtained correlated photocurrents with optimal weights. Let us see how it works in individual schemes.

5.2 Sloshing speed meter

In the sloshing speed meter proposed by Braginsky et al. (2000a) (see Fig. 19a), an auxiliary “sloshing” optical cavity was added into the output port of the Fabry–Perot–Michelson interferometer. This makes the GW signal to “slosh” back and forth between the two coupled effective cavities with an alternating sign and the rate \(\omega _s = \frac{c}{2}\sqrt{\frac{T_0}{LL_0}}\) defined by the transmissivity \(T_0\) of the input coupler and the lengths of the arm L and sloshing cavity \(L_{0}\), respectively. Hence, after the second pass through the interferometer, the outgoing light bears exactly the required combination of position signals, \(\propto \hat{x}(t) - \hat{x}(t+\tau )\sim \tau \bar{v}\), yielding the speed measurement.
Fig. 20

Two possible realisations of sloshing speed-meter interferometer: a using additional sloshing cavity (Braginsky et al. 2000a; Purdue and Chen 2002) and b using the two orthogonal polarisations to make use of the main IFO as a sloshing cavity (Wade et al. 2012)

Two possible implementations of such a scheme are shown in Fig. 20. The left panel shows the variant with space separation of optical beams used for sequential measurement of arms’ differential displacement (Braginsky et al. 2000a; Purdue and Chen 2002), whereas the right one, proposed by Wade et al. (2012) employs two orthogonal polarisations to separate the beams. The latter also gets rid of an extra sloshing cavity by using the orthogonal not pumped polarisation mode of the interferometer.

In the simple case of no losses and resonantly tuned main IFO and the sloshing cavity, the quantum noise of such interferometer is characterised by the following I/O-relations of the same form as Eqs. (17):
$$\begin{aligned} \hat{b}_c^{out}&= e^{2i\beta _{\mathrm{SSM}}}\hat{a}_c^{in}, \end{aligned}$$
(73)
$$\begin{aligned} \hat{b}_s^{out}&= e^{2i\beta _{\mathrm{SSM}}}\bigl (\hat{a}_s^{in}-\mathcal {K}_{\mathrm{SSM}}\hat{a}_c^{in} \bigr ) + e^{i\beta _{\mathrm{SSM}}}\sqrt{2 \mathcal {K}_{\mathrm{SSM}}}\frac{h}{h_{\mathrm{SQL}}}. \end{aligned}$$
(74)
where \(\mathcal {K}_{\mathrm{SSM}}\) is the sloshing speed meter optomechanical coupling factor. For the general case it can be written as:
$$\begin{aligned} \mathcal {K}_{\mathrm{SSM}}(\varOmega ) = \dfrac{T_0\mathcal {K}_{\mathrm{MI}}\sin ^{2}\alpha _{\mathrm{SC}}}{\cos ^{2}(\beta _{\mathrm{MI}}+\alpha _{\mathrm{SC}})+T_0R_0\cos ^2\beta _{\mathrm{MI}}-T_0\cos (\beta _{\mathrm{MI}}+2\alpha _{\mathrm{SC}})} \end{aligned}$$
(75)
where \(\beta _{\mathrm{MI}}\) and \(\alpha _{\mathrm{SC}}\) stand for the frequency-dependent phase shifts gained by the sidebands at frequency \(\varOmega \) as they pass through the main Michelson interferometer and the sloshing cavity (see Eq. (23) for definition). It can be simplified, if one uses a single-mode approximation where all the sideband frequencies of interest are much smaller than the arm cavity \(FSR=c/2L\) (Miao et al. 2014):
$$\begin{aligned} \mathcal {K}_{\mathrm{SSM}}(\varOmega ) \simeq \dfrac{4 \varTheta \gamma }{(\varOmega ^2-\varOmega _s^2)^2+\gamma ^2\varOmega ^2} \end{aligned}$$
(76)
with \(\varOmega _{s} = \sqrt{c^2T_{0}/(4LL_0)}\) being the sloshing frequency that specifies the rate at which the signal sidebands “slosh” between the main IFO and the sloshing cavity with length \(L_{0}\), and \(\beta _{\mathrm{SSM}} = \arctan [(\varOmega _{s}-\varOmega )/(\varOmega \gamma )]\) is the frequency dependent phase that a modulation sideband \(\varOmega \) acquires as it travels through the interferometer.
Fig. 21

Quantum noise of a sloshing speed meter: a QNLS of the sloshing SM for parameters given in the Table 1 as compared to an equivalent Michelson (grey trace), with thick red dashed line showing noise in the phase quadrature at readout (\(\phi _{\mathrm{LO}}=\pi /2\)), and the thin red dashed line demonstrating the sub-SQL sensitivity of a SM for optimal readout quadrature \(\phi _{\mathrm{LO}}=\mathrm {arccot}(\mathcal {K}_{\mathrm{SSM}}(0)) = \pi /4\); b quantum fluctuations of the phase quadrature of the readout light of the SM (red dashed trace) and the equivalent Michelson (grey trace); c response functions of the sloshing SM (red dashed trace) and Michelson (grey trace) interferometers to the GW strain. For a sloshing cavity, we assumed the same length as the arm cavities \(L_{s}=L\) giving \(\alpha _{\mathrm{SC}} = 2\varOmega L_s/c\), no input mirror and chose the transmissivity \(T_{0}\) of the coupling mirror from the condition \(\mathcal {K}_{\mathrm{SSM}}(0)=1\) that yielded \(T_{0} = 0.96\)

It is straightforward to obtain the expression for quantum noise of the sloshing speed meter, using formula (10) that reads:
$$\begin{aligned} S^h_{\mathrm{SSM}} = \frac{h_{\mathrm{SQL}}^{2}}{2}\left[ \dfrac{(\mathcal {K}_{\mathrm{SSM}}-\cot \phi _{\mathrm{LO}})^{2}+1}{\mathcal {K}_{\mathrm{SSM}}}\right] . \end{aligned}$$
(77)
The corresponding plot of quantum noise limited sensitivity of a lossless sloshing speed meter is shown in the left panel of Fig. 21 along with a plot for the QNLS of a Michelson interferometer with similar parameters and a free mass SQL for scaling.

One can immediately see that the QNLS of speed meter has the same frequency dependence as the SQL at low frequencies, where quantum back-action noise dominates, which is a unique feature of the speed meters in general. It results from the back-action suppression, as expected from the QND speed measurement. However, it does not go parallel to the frequency axis, like, for instance, the frequency-dependent variational readout and the FQL do (see Fig. 8 in Sect. 3). One can see why on the two right panels of Fig. 21, where on the top plot, the quantum noise of the outgoing light phase quadrature (\(\phi _{\mathrm{LO}} = \pi /2\)) is plotted (the numerator of Eq. (10)), whereas on the lower panel we see the response of the interferometer to the signal variation of GW strain (the numerator of Eq. (10)). Hence the QNLS plot to the left is simply the ratio of the upper and lower plots to the right.

So, one can see in Fig. 21b that quantum back-action noise of speed meter is indeed heavily suppressed as compared to the Michelson interferometer and has the same constant-like frequency dependence as quantum shot noise. The 1 / f-slope in QNLS is coming from the speed response that rolls off as \(\propto f\) towards the DC as shown in Fig. 21c.

Mathematically, this suppression comes from the fact the OM coupling factor \(\mathcal {K}\) is constant below the cavity pole, i.e. at DC: \(\mathcal {K}_{\mathrm{SSM}}(\varOmega \rightarrow 0)=const\), while for the Michelson interferometer it is \(\mathcal {K}_{\mathrm{MI}}(\varOmega \rightarrow 0)\propto \varOmega ^{-2}\). This also means that unlike Michelson the power circulating in the arms of the speed meter must be above a certain threshold value \(\varTheta _{\mathrm{crit}}\), below which the speed meter cannot reach the SQL. Threshold is defined by the condition \(\mathcal {K}_{\mathrm{SSM}}(0) = 1\). When substituting this condition into the QNLS expression at low frequencies and for phase quadrature readout one gets:
$$\begin{aligned} S^h_{\mathrm{SSM}} = \frac{h_{\mathrm{SQL}}^{2}}{2}\left[ \mathcal {K}_{\mathrm{SSM}}(0)+\dfrac{1}{\mathcal {K}_{\mathrm{SSM}}(0)}\right] \rightarrow h_{\mathrm{SQL}}^{2}, \end{aligned}$$
Hence the threshold power reads \(\varTheta _{\mathrm{crit}} = \varOmega _{s}^{4}/4\gamma \), or \(P_{\mathrm{crit}} = M c L \varOmega _{s}^{4}/(16\omega _0\gamma )\).

Another consequence of the peculiar behaviour of \(\mathcal {K}_{\mathrm{SSM}}\) for a speed meter is the ability to surpass the SQL at low frequencies if the right quadrature is selected for readout. Indeed, the general expression for the SSM QNLS has a term \(\propto [\mathcal {K}_{\mathrm{SSM}}-\cot \phi _{\mathrm{LO}}]^{2}\) that can be made zero, were \(\cot \phi _{\mathrm{LO}}]=\mathcal {K}_{\mathrm{SSM}}\). This is quite easy to achieve, as \(\mathcal {K}_{\mathrm{SSM}} = const\) below the cavity pole. The resulting sensitivity at these low frequencies is the FQL for the speed meter, as mentioned in Sect. 3. For instance, at the threshold power where \(\mathcal {K}_{\mathrm{SSM}}(0)=1\) the optimal readout quadrature will equal \(\phi _{\mathrm{LO}} = \pi /4\). This case is plotted as a thin dashed line in Fig. 21a.

5.3 Sagnac-type speed meters

Another way to make a speed measurement with laser interferometer was suggested independently by Chen (2003); Khalili (2002). They showed that the zero-area Sagnac interferometer (Beyersdorf et al. 1999a, b) actually implements the initial double-measurement variant of the quantum speed meter, shown in Fig. 17. Indeed, visiting consequently both arms (see Fig. 22a), counter propagating light beams acquire phase shifts proportional to a sum of arms length variations \(x_{N,E}(t) \equiv \bigl [x_{\mathrm{ETM}}^{N,E}(t) - x_{\mathrm{ITM}}^{N,E}(t)\bigr ]\) (hereinafter I(E)TM stands for Input (End) Test Mass) for of both cavities taken with time delay equal to average single cavity storage time \(\tau _{\mathrm{arm}}\):
$$\begin{aligned} \delta \phi _R\propto & {} x_N(t) + x_E(t+\tau _{\mathrm{arm}}), \end{aligned}$$
(78)
$$\begin{aligned} \delta \phi _L\propto & {} x_E(t) + x_N(t+\tau _{\mathrm{arm}}). \end{aligned}$$
(79)
After recombining at the beam splitter and photo detection the output signal will be proportional to the phase difference of clockwise (R) and counter clockwise (L) propagating light beams:
$$\begin{aligned} \delta \phi _R - \delta \phi _L\propto & {} [x_N(t) - x_N(t+\tau _{\mathrm{arm}})] - [x_E(t) - x_E(t+\tau _{\mathrm{arm}})]\propto \nonumber \\\propto & {} \dot{x}_N(t) - \dot{x}_E(t) + O(\tau _{\mathrm{arm}}) \end{aligned}$$
(80)
that, for frequencies \(\varOmega \ll \tau _{\mathrm{arm}}^{-1}\), is proportional to relative rate of the interferometer arms length variation.
The originally proposed configuration that uses ring cavities for separation of the in- and outgoing beams is not very practical, as the experience of the experimental prototyping of this type interferometer at the University of Glasgow has shown (Gräf et al. 2014). Apart from the infrastructural complexity of placing two large suspended mirrors in the same vacuum tube, the ring arm cavities suffer heavily from the coherent back-scattering of light from one beam to the counter propagating one. This creates an unwanted coupling between the two modes of the ring cavity (associated with clockwise and counterclockwise propagating beams) thereby causing resonance frequency splitting. This means that the arms become detuned with respect to the pump light, which lead to the increase of quantum noise as shown in Pascucci (2019).
Fig. 22

Two possible realisations of Sagnac speed-meter interferometer: a using ring arm cavities to separate the in- and outgoing beams (Chen 2003; Khalili 2002) and b using the two orthogonal polarisations and a \(\lambda /4\)-plate, PBS and a mirror for the same purpose (Danilishin et al. 2018)

To avoid this problem, a few polarisation-based variants of speed-meter schemes were proposed (Danilishin 2004; Wang et al. 2013; Danilishin et al. 2018), which relaxed the need for modifications of the main interferometer significantly. The most recent proposal (Danilishin et al. 2018), depicted in Fig. 22b, no changes to the infrastructure of the main interferometer. It requires, however that all reflective coatings of the core optics have the same properties for both polarisations of light. This is a tough, though not impossible requirement, and some research in this direction is under way already (Hild 2017; Krocker 2017).

Quantum noise of the Sagnac speed meter can be written exactly in the same way as for the sloshing speed meter before. The only difference will be in the shape of the OM coupling factor that for Sagnac interferometer can be written as:
$$\begin{aligned} \mathcal {K}_{\mathrm{Sag}} = 4\,\mathcal {K}_{\mathrm{MI}} \sin ^2\beta _{\mathrm{MI}} \simeq \frac{8 \varTheta \gamma }{(\varOmega ^2+\gamma ^2)^2}. \end{aligned}$$
(81)
Fig. 23

Quantum noise of a Sagnac speed meter: a QNLS of the Sagnac SM for parameters given in the Table 1 as compared to an equivalent Michelson (grey trace), with thick blue dashed line showing noise in the phase quadrature at readout (\(\phi _{\mathrm{LO}}=\pi /2\)), and the thin blue dashed line demonstrating the effect of increased circulating power (ramped up by 2.5 times to 10 MW); b quantum fluctuations of the phase quadrature of the readout light of the SM (blue dashed traces) and the equivalent Michelson (grey trace); c response functions of the Sagnac SM (blue dashed traces) and Michelson (grey trace) interferometers to the GW strain

From this expression one can see that Sagnac has an advantage in response as compared to Michelson with the same pump power, as identified by the factor 4 before \(\mathcal {K}_{\mathrm{MI}}\). The reason is straightforward and comes from the fact that in Sagnac each beam that leaves the main beam splitter visits both cavities in a row. This means that each arm takes twice as much power as that of the equivalent Michelson, thereby producing twice of the optomechanical response. To show this, one just need to substitute \(\mathcal {K}_{\mathrm{SSM}}\rightarrow \mathcal {K}_{\mathrm{Sag}}\) in Eq. (82) and calculate the QNLS:
$$\begin{aligned} S^h_{\mathrm{Sag}} = \frac{h_{\mathrm{SQL}}^{2}}{2}\left[ \dfrac{(\mathcal {K}_{\mathrm{Sag}}-\cot \phi _{\mathrm{LO}})^{2}+1}{\mathcal {K}_{\mathrm{Sag}}}\right] . \end{aligned}$$
(82)
The above QNLS is plotted in Fig. 23a. It is instructive to see how speed meter’s sensitivity depends on circulating power.
Fig. 24

EPR-speed meter concept: a EPR speed meter based on two Fabry–Perot–Michelson interferometers with inputs and outputs combined using a beam-splitter and b practical EPR-speed meter scheme based on using two orthogonal polarisations

5.4 EPR-type speed meters

Knyazev et al. (2018) proposed a third distinct way to realise speed measurement in GW laser interferometer, using two-position meters (Fabry–Perot–Michelson interferometers, see Fig. 24a that have rigidly connected test masses (or simply share them) but have contrasting light storage times (bandwidths satisfy condition \(\gamma _1\gg \gamma _2\)). The information about the differential motion of the arms thus comes of the two interferometers at a very different rate given by respective bandwidths. Hence, combining the readout beams of the two interferometers on a beam-splitter and reading out the “−”-channel thereof one gets the difference of the two position signals at different times that is, in fact, velocity. There is an additional back-action noise associated with the vacuum fields entering the “\(+\)”-port of the beam-splitter that however can be subtracted from the readout, if one measures the amplitude quadrature at the “\(+\)”-channel and subtracts it, with optimal filter, from the readout of the “−”-channel. As the two output channels of the readout beam-splitter get entangled, when the two ponderomotively squeezed output fields, \(\hat{b}_{1}\) and \(\hat{b}_{2}\), of the two position meters get overlapped on it, and this entanglement is used to remove the excess back-action noise from the output, this speed meter was dubbed an EPR-speed meter.

As the design of Fig. 24a is obviously a nightmare to implement in a real GW detector (it was never intended to be), another one, based on orthogonal polarisation modes of light was proposed in Knyazev et al. (2018) and is shown in Fig. 24b. The key element here is the quarter-wave plate (QWP) that acts as a \(\pi /2\)-phase retarder between the two orthogonal polarisation modes of the main interferometer. The QWP placed between the main IFO and the signal-recycling mirror, which position with respect to the arm’s ITMs is chosen so that the resulting SR cavity (with the QWP) is tuned resonantly for one of the polarisation modes. The orthogonally polarised light sees the SR cavity as anti-resonant due to the \(\pi /2\) phase shift given to it by the QWP. As a consequence of the “scaling law” (Buonanno and Chen 2003), the polarisation mode that is in resonance with the SRC sees the interferometer with a very narrow effective bandwidth \(\gamma _2\) (tuned SR regime, see Eq. (24a) with \(\phi _\mathrm{SR} = 0\)), whereas for the orthogonal one the effective bandwidth \(\gamma _2\gg \gamma _1\) is greatly increased (resonant sideband extraction (RSE) regime, see Eq. (24a) with \(\phi _\mathrm{SR} = \pi /2\)). The polarisation beam splitter (PBS) with a polarisation plane rotated by \(45^{\circ }\) angle with respect to the s- and p-polarised modes of the main interferometer creates the EPR-type correlations in the “\(+\)” and “−” readout channels. The optimal distribution of circulating powers among the two effective position meters is organised by the proper choice of the angle \(\vartheta \) of the carrier light polarisation plane to the vertical direction (see the blue box in Fig. 24b).

Quantum noise of the EPR-speed meter can be calculated using the multi-channel formalism of Sect. 2.1 and the I/O-relations (17) for each of the individual Michelson interferometers of the scheme save to the assumption of different bandwidth for each of them and account for the common back action on the test masses imposed by both carriers, i.e.:
$$\begin{aligned} \hat{b}_c^{(1)}&= e^{2i\beta _1}\hat{a}_c^{(1)}, \end{aligned}$$
(83a)
$$\begin{aligned} \hat{b}_s^{(1)}&= \Bigl [e^{2i\beta _1}\hat{a}_s^{(1)}-\Bigl (e^{2i\beta _1}\mathcal {K}_1\hat{a}_c^{(1)}+ e^{i(\beta _1+\beta _2)}\sqrt{\mathcal {K}_1\mathcal {K}_2}\hat{a}_c^{(2)} \Bigr ) \Bigr ] \nonumber \\&\quad + e^{i\beta _1}\frac{\sqrt{2 \mathcal {K}_1}}{h_{\mathrm{SQL}}}h, \end{aligned}$$
(83b)
$$\begin{aligned} \hat{b}_c^{(2)}&= e^{2i\beta _2}\hat{a}_c^{2}, \end{aligned}$$
(83c)
$$\begin{aligned} \hat{b}_s^{(2)}&= \Bigl [e^{2i\beta _2}\hat{a}_s^{(2)}-\Bigl (e^{2i\beta _2}\mathcal {K}_2\hat{a}_c^{(2)} + e^{i(\beta _1+\beta _2)}\sqrt{\mathcal {K}_1\mathcal {K}_2}\hat{a}_c^{(1)} \Bigr ) \Bigr ] \nonumber \\&\quad + e^{i\beta _2}\frac{\sqrt{2 \mathcal {K}_2}}{h_{\mathrm{SQL}}}h. \end{aligned}$$
(83d)
Here \(\mathcal {K}_{1,2}\) and \(\beta _{1,2}\) stand for the OM coupling factors and sideband phase shifts of the two Michelsons, as defined by Eqs. (22) and (23). Note the terms in parentheses in the equations for sine quadratures, which describe radiation pressure contributions to the outgoing light. The EPR entanglement of the outgoing light fields happens at the main beam splitter of the scheme and described by junction equations:
$$\begin{aligned} \hat{\varvec{b}}^{(+)}&= \frac{\hat{\varvec{b}}^{(1)}+\hat{\varvec{b}}^{(2)}}{\sqrt{2}},&\hat{\varvec{b}}^{(-)}&= \frac{\hat{\varvec{b}}^{(1)}-\hat{\varvec{b}}^{(2)}}{\sqrt{2}} \end{aligned}$$
(83e)
$$\begin{aligned} \hat{\varvec{a}}^{(1)}&= \frac{\hat{\varvec{a}}^{(+)}+\hat{\varvec{a}}^{(-)}}{\sqrt{2}},&\hat{\varvec{a}}^{(2)}&= \frac{\hat{\varvec{a}}^{(+)}-\hat{\varvec{b}}^{(-)}}{\sqrt{2}}. \end{aligned}$$
(83f)
Solution of the above Eqs. (83) yields two output channels of the EPR-speed meter, namely the “\(+\)”- and “−”-channels that each carries an information about the GW-induced signal differential displacement the arms and quantum fluctuations of light:
$$\begin{aligned} \hat{\varvec{b}}^{(+)}= & {} \mathbb {T}_{++}\hat{\varvec{a}}^{(+)} + \mathbb {T}_{+-}\hat{\varvec{a}}^{(-)} + \varvec{t}_{+}\frac{h}{h_{\mathrm{SQL}}},\\ \hat{\varvec{b}}^{(-)}= & {} \mathbb {T}_{+-}\hat{\varvec{a}}^{(+)} + \mathbb {T}_{--}\hat{\varvec{a}}^{(-)} + \varvec{t}_{-}\frac{h}{h_{\mathrm{SQL}}}. \end{aligned}$$
where transfer matrices \(\mathbb {T}_{\pm \pm }\) are the subblocks of the \(4\times 4\) full transfer matrix of the form (13) read:
$$\begin{aligned} \mathbb {T}_{{\mathrm {++}}}= & {} e^{i\beta _+} \begin{bmatrix} \cos {\beta _-}&0\\ -\frac{1}{2}(\mathcal {K}_1e^{i\beta _-}+\mathcal {K}_2e^{-i\beta _-} +2\sqrt{\mathcal {K}_1\mathcal {K}_2}\cos \beta _-)&\cos \beta _- \end{bmatrix}\\ \mathbb {T}_{{\mathrm {--}}}= & {} e^{i\beta _+} \begin{bmatrix} \cos {\beta _-}&0\\ -\frac{1}{2}(\mathcal {K}_1e^{i\beta _-}+\mathcal {K}_2e^{-i\beta _-} -2\sqrt{\mathcal {K}_1\mathcal {K}_2}\cos \beta _-)&\cos \beta _- \end{bmatrix},\\ \mathbb {T}_{{\mathrm {+-}}}= & {} \mathbb {T}_{{\mathrm {-+}}} =e^{i\beta _+}\begin{bmatrix} i\sin {\beta _-}&0\\ -\frac{1}{2}(\mathcal {K}_1e^{i\beta _-}-\mathcal {K}_2e^{-i\beta _-})&i\sin \beta _- \end{bmatrix} \end{aligned}$$
and the responses of the “\(+\)” and “−” channels are:
$$\begin{aligned} \varvec{t}_{+}&= \varvec{t}_{1}+ \varvec{t}_{2} = e^{i\beta _+}\sqrt{2 \mathcal {K}_+}\begin{bmatrix} 0 \\ 1 \end{bmatrix},&\varvec{t}_{-}&= \varvec{t}_{1}- \varvec{t}_{2} = e^{i\beta _-}\sqrt{2 \mathcal {K}_-}\begin{bmatrix} 0 \\ 1 \end{bmatrix}, \end{aligned}$$
(84)
where we defined the ±-channel OM coupling factors, \(\mathcal {K}_{\pm }\), and phase shifts, \(\beta _\pm \) as:
$$\begin{aligned} \mathcal {K}_{\pm } \equiv \mathcal {K}_1+\mathcal {K}_2\pm \sqrt{\mathcal {K}_1\mathcal {K}_2}\cos (\beta _1-\beta _2), \, \mathrm {and}\ \beta _{\pm } \equiv \beta _1\pm \beta _2. \end{aligned}$$
(85)
Now, if one looks closely at the structure of the OM factors \(\mathcal {K}_{j=1,2}\) in Eq. (22), one sees that they can be factorised as follows:
$$\begin{aligned} \mathcal {K}_j&\simeq \Bigl [\frac{2 \varTheta _j}{ \gamma _j\varOmega ^2}\Bigr ]\frac{\gamma _j^2}{(\gamma _j^2+\varOmega ^2)} =\kappa _j\cos ^2\beta _j,&(j=1,2), \end{aligned}$$
(86)
with \(\kappa _j \equiv \frac{2 \varTheta _j}{ \gamma _j\varOmega ^2}\). Those can be made equal to each other at low enough frequencies (\(\varOmega \ll \mathrm {min}[\gamma _{1},\,\gamma _{2}]\)), if powers and bandwidths of the individual MIs satisfy the following relation:
$$\begin{aligned} \frac{\varTheta _1}{ \gamma _1} = \frac{\varTheta _2}{ \gamma _2}, \end{aligned}$$
(87)
which provides \(\kappa _1=\kappa _2 \equiv \mathcal {K}_0 = 2\varTheta /(\varOmega ^2(\gamma _1+\gamma _2))\) with \(\varTheta =\varTheta _{1}+\varTheta _{2}\) the sum power in both MIs. In this case, one can get for \(\mathcal {K}_-\):
$$\begin{aligned} \mathcal {K}_{-} = \mathcal {K}_{0} \sin ^2(\beta _1-\beta _2) = \frac{2\varTheta (\gamma _1-\gamma _2)^2}{(\gamma _1+\gamma _2)(\gamma _1^2+\varOmega ^2)(\gamma _2^2+\varOmega ^2)}, \end{aligned}$$
(88)
which behaves exactly as one expects from the speed meter, namely it tends to a constant value at low enough frequencies (see orange dashed trace on inset plot in Fig. 26a). Hence, “−”-channel of the EPR-scheme indeed performs the speed measurement (see orange dashed trace in Fig. 26c). However, there is an additional back-action created by the vacuum fields \(\hat{\varvec{a}}^{(+)}\), entering the “\(+\)” port of the beam splitter that compromise the speed meter’s low-frequency advantage. This may be explained by the fact that displacement information flows out of the “\(+\)” channel with the \(\hat{\varvec{b}}^{(+)}\) light fields, as one can see from the plot of the response of the “\(+\)”-channel given by a purple dash-dotted trace in Fig. 26c. This ensues from the shape of the OM coupling factor of the “\(+\)”-channel that reads:
$$\begin{aligned} \mathcal {K}_{+}= & {} \mathcal {K}_{0} (\cos ^2\beta _1+\cos ^2\beta _2-2\cos \beta _1\cos \beta _2\cos (\beta _1-\beta _2)) \nonumber \\= & {} \frac{2\varTheta [4\gamma _1^2\gamma _2^2 + \varOmega ^2(\gamma _1+\gamma _2)^2]}{\varOmega ^2(\gamma _1+\gamma _2)(\gamma _1^2+\varOmega ^2)(\gamma _2^2+\varOmega ^2)}. \end{aligned}$$
(89)
that grows as \(\mathcal {K}_{+}(\varOmega \ll \gamma _j)\propto \varOmega ^{-2}\) at low frequencies (see the inset in Fig. 21a).
Fig. 25

Ponderomotive squeezing of the output fields \(\hat{\varvec{b}}^{(1)}\) and \(\hat{\varvec{b}}^{(2)}\) of the two MIs that compose an EPR-speed meter, before the main beam splitter. a The ponderomotive squeezing factor of the outgoing light of the MI 1(red trace) and of the MI 2 (blue trace). b The dependence of squeezing angle at different frequencies as well as squeezing ellipses for the corresponding MIs (not to scale!) with phase quadrature uncertainty along the vertical axis. For clarity of representation we chose \(\gamma _1/2\pi = 60\) Hz and \(\gamma _2/2\pi = 6\) Hz here

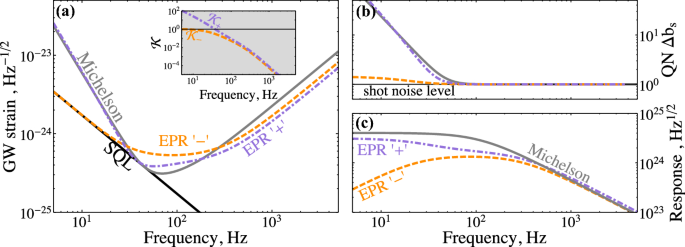

Fig. 26

Quantum noise of an EPR speed meter: a QNLS of the “−” channel (orange dashed trace) realising an EPR speed meter regime and of the “\(+\)”-channel (purple dash-dotted trace) that realises an EPR position meter regime. Parameters for the curves are given in the Table 1 and the plot of the QNLS of a Michelson (grey trace) is given; b quantum fluctuations of the phase quadrature of the readout light the equivalent Michelson (grey trace) and of the “\(+\)” and “−” channels of the EPR interferometer; c response functions of the Michelson (grey trace) interferometer and of the two channels of the EPR interferometer

It is possible however to remove this additional back-action noise from the readout of the “−” channel, by measuring at the “\(+\)”-channel the quadrature (amplitude) that is responsible for this back action, and subtracting it with a proper frequency-dependent weight function from the readout of the “−”-channel (cf. Sect. 2.1 and the Appendix of Knyazev et al. 2018). Quantum correlations between the two readouts are at its strongest at the lower frequencies, where both MIs output light fields, \(\hat{\varvec{b}}^{(1)}\) and \(\hat{\varvec{b}}^{(2)}\), are strongly squeezed due to ponderomotive squeezing discussed in Sect. 2, as shown in Fig. 25. After the beam splitter “\(+\)” and “−” channel are highly correlated (entangled), which allows aforementioned subtraction of quantum back action noise. The resulting QN-limited sensitivity for the speed meter channel (see orange trace in Fig. 26a) follows the general tuned interferometer pattern of Eq. (20):
$$\begin{aligned} S^h_{\mathrm{EPR-}} = \frac{h^2_{\mathrm{SQL}}}{2}\left[ \frac{(\mathcal {K}_--\cot \phi _{\mathrm{LO}}^{(-)})^2+1}{\mathcal {K}_-} \right] , \end{aligned}$$
(90)
with \(\phi _{\mathrm{LO}}^{(-)}\) standing for the “−”-channel readout quadrature angle. Similar expression for the “distilled” sensitivity of the “\(+\)” channel that exhibits a vivid position-meter behaviour, is obtained by exchanging “−” indices by “\(+\)” in the above formula, and the resulting plot is shown as a purple trace in Fig. 26a. Note that both expressions are special cases of the Eq. (16).

5.5 Imperfections and loss in speed-meter interferometers

Speed-meter interferometers suffer in general from the same sources of noise due to loss as Fabry–Perot–Michelson interferometers, since in most of the speed-meter configurations presented in Fig. 18 FPMI itself is an integral part. However, loss influence is different from the FPMI and there are also some specific features of speed meters worth mentioning.

Firstly, cancellation of back-action noise in speed meters comes from the coherent subtraction of back action forces created by the same light beam in two consequent interactions with the test mass. Therefore any admixture of incoherent vacuum due to loss between the two interactions, e.g., the loss in the arms, creates an unbalanced back-action force. This loss-associated back action leads to a position-meter-like rise of quantum noise at low frequencies, where it starts to dominate over the suppressed quantum back action of the speed meter.

Secondly, as any scheme where balancing of the noise contributions between the arms is essential for the noise cancellation, speed meters are very sensitive to the asymmetry of the arms, as discussed in detail in Danilishin et al. (2015). Asymmetry of the beam splitter in Sagnac interferometers, for instance, creates a coupling of laser fluctuations to the readout port through an excess radiation pressure they create on the mirrors which is quite strong as laser noise in the low-frequency range is far from the shot noise limit. This excess noise, however can be cancelled by a wise choice of local oscillator in the balanced homodyne readout as shown in the recent study by Zhang et al. (2018).

In general, speed-meter interferometers show higher robustness to intracavity loss than Michelson ones due to lower back-action component of quantum noise, which means lower ponderomotive squeezing as discussed in Sect. 2.5. This reduces the effect of loss vacuum fields on the internal squeezing of light since quantum correlation between phase and amplitude fluctuations is already suppressed by the speed meter. For the same reason the requirements on tolerable filter cavity loss and bandwidth in case of frequency-dependent squeezing injection are significantly relaxed for speed meters. The detailed study of loss influence on speed-meter quantum noise is given in Voronchev et al. (2015).

5.6 Summary and outlook

Speed-meter interferometers are arguably the most elaborate and well studied concept alternative to the Michelson interferometer based on position measurement. Their main advantage is a greatly reduced back-action noise that potentially allows to increase the rate of detection of massive binary black-hole systems by up to 2 orders of magnitude compared to the equivalent position meter (Danilishin et al. 2018) if only quantum noise is considered. Although there is an obvious penalty of vanishing response at low frequencies, the reduction of back-action is still greater to make the overall increase of the SNR worth it. The progress in development of new, more practical topologies of speed meters shown in Fig. 18 has led to designs that allow to keep the main interferometer intact, yet this comes at a price of using polarisation optics that is prone to imperfections and even more importantly, it requires development of the new all-polarisation type mirror coatings.

We have considered here all three main genera of speed meters and gave the comparison of their performance. All studies done so far indicate the superiority of speed meters’ performance over that of the conventional Michelson interferometers even in the presence of losses and imperfections (Wang et al. 2013; Miao et al. 2014; Voronchev et al. 2015; Danilishin et al. 2018). However, a thorough and systematic study of losses and imperfections in all the speed-meter schemes is needed as well as experimental prototyping, before any final conclusion can be made.

In the context of FQL, the speed-meter configuration is an approach to shaping the power fluctuation inside the arm cavity. The FQL can be reached at low frequencies, where the optomechanical coupling strength is approximately constant, by using the frequency-independent readout rather than the frequency-dependent readout as in the case of a position meter (Michelson interferometer). In the tuned case, the price we paid is that the power fluctuation gets reduced at low frequencies and the resulting FQL is parallel to the SQL rather than flat for the position meter.

An interesting future direction is to investigate detuned speed-meter configurations with additional intra and external filters. Since the optomechanical coupling strength is approximately constant at low frequencies, this means the resulting ponderomotive squeezing is frequency independent at these frequencies. With detuning, the optical feedback, illustrated in Fig. 9, could result in a broadband enhancement of the power fluctuation. Or equivalently, this can be viewed as a broadband enhancement of the mechanical response of the test mass, similar to the idea of negative inertia to be discussed in the section that follows.

6 Interferometers with optomechanically modified dynamics

6.1 Introduction

All schemes of suppression of quantum noise considered so far in this paper are based on the same principle, namely the quantum noise cancellation, that is the based on mutual compensation of the measurement noise and the back action noise which is possible by means of introducing the cross-correlation between these noise sources, see Sect. 4.4. of Danilishin and Khalili (2012). The main problem of this approach is that that the quantum correlations are very fragile and can be easily destroyed by additional noises caused by optical losses in the interferometer and by the non-ideal quantum efficiency of photodetectors. A rule of thumb for the limit of achievable SQL-beating in this case can be presented as follows (Chen et al. 2011):
$$\begin{aligned} S > rsim S_{\mathrm{SQL}}e^{-r}\sqrt{\frac{1-\eta }{\eta }}. \end{aligned}$$
(91)
Here S is the sum quantum noise spectral density of the detector, \(S_{\mathrm{SQL}}\) is the corresponding SQL, \(e^{-r}\) is the squeeze factor and \(\eta \) is the unified quantum efficiency of the detector. Even for rather optimistic values of the optical parameters with \(\eta =0.95\) and \(e^{-2r}=0.1\) (10 dB squeezing), we have \(S/S_{\mathrm{SQL}} > rsim 0.07\), which means that sensitivity (in units of the signal amplitude) can surpass the SQL by only a factor of \(\sqrt{S_{\mathrm{SQL}}/S}\lesssim 4\) with the noise-cancellation schemes.

At the same time, the SQL, normalized to the signal force, decreases as the test object susceptibility increases. Because this approach does not require any precise mechanisms for mutual compensation of measurement noise and back-action noise (and, in particular, the SQL is not evaded), it is much more robust with respect to optical losses, than quantum noise cancellation.

A trivial example is just the use of smaller inertial mass \(m_{\mathrm{inert}}\). This method can be used, for example, in atomic force microscopes. However, when detecting forces of a gravitational nature, particularly in gravitational-wave experiments, the signal force is proportional to the test-object gravitational mass \(m_{\mathrm{grav}}\). Taking into account that, due to the equivalence principle, \(m_{\mathrm{inert}}=m_{\mathrm{grav}}\), the overall sensitivity decreases with the mass, which can be seen, for example, from the expressions for SQL in the h-normalization (39) (see, however, Sect. 6.4).

Another possibility is to use a harmonic oscillator instead of a free test mass. The susceptibility of a harmonic oscillator rapidly increases near its resonance frequency \(\varOmega _0\), which improves the \(S_{\mathrm{SQL}}\) by a factor of \(\varOmega _0/\varDelta \varOmega \) in the frequency band \(\varDelta \varOmega \) centered at \(\varOmega _0\) (see Sect. 4.3.2 of Danilishin and Khalili 2012). This method was demonstrated in several “table-top” experiments with mechanical nano-oscillators (Teufel et al. 2009; Anetsberger et al. 2009; Westphal et al. 2012). In laser gravitational-wave detectors, the characteristic eigenfrequencies of the test mirror pendulum modes are close to 1 Hz, and in the operating frequency range these mirrors can be considered as almost free masses. Evidently, it is technically impossible to turn the differential mechanical mode of laser detector test mirrors into an oscillator with a frequency in the operating frequency range by using “ordinary” springs. However, the optical spring which arises in detuned interferometer configurations and possesses excellent noise properties can be used for this purpose instead.

The optical spiring is a particular case of the more general electromagnetic rigidity (e.m.) effect, which takes place in any detuned e.m. resonator. This effect, together with the associated e.m. damping, were most probably first discovered and explained in the very early work by Braginsky and Minakova (1964), where the low-frequency (sub-Herz) torsional pendulum was used as the mechanical object and the radio-frequency capacitor transducer—as the position sensor. Few years later, existence of these effects in the optical Fabry–Perot cavities (that is the optical spring proper) was predicted theoretically (Braginsky and Manukin 1967). After that, the e.m. damping was observed in the microwave Fabry–Perot type cavity (Braginskiǐ et al. 1970). In the beginning of 1980s, the first truly optical experiment was done (Dorsel et al. 1983).

Much later, quantum noise properties of the optical spring and the optical damping were analyzed in Braginsky et al. (1997), Braginsky et al. (2001), Braginsky and Khalili (1999), Braginsky and Vyatchanin (2002) and it was shown that the noise temperature of the optical damping can be very close to zero. This stimulated a series of experimental works where the optical rigidity was observed both in table-top optical setups (Bilenko and Samoilenko 2003; Sheard et al. 2004; Corbitt et al. 2006b, 2007a, b) and in larger-scale Caltech 40 m interferometer devoted to prototyping of future GW detectors (Miyakawa et al. 2006).

It have to be mentioned also that the very low noise temperature of the e.m. damping stimulated also a bunch of optomechanical and electromechanical experiments aimed at preparation of mechanical resonators in the ground state using this cold damping, see e.g.,Teufel et al. (2011), Chan et al. (2011) and the reviews by Aspelmeyer et al. (2014) and Khalili and Danilishin (2016).

Specifically in the context of the large-scale gravitational-wave detectors the optical rigidity was analyzed in Braginsky et al. (1997), Buonanno and Chen (2001), Khalili (2001), Buonanno and Chen (2002), Buonanno and Chen (2003). Most notably, it was shown in these works that in very long cavities with the bandwidth \(\gamma \) comparable with the or smaller than the characteristic mechanical frequencies \(\varOmega \), the optical spring has sophisticated frequency dependence which enables some interesting applications, see below.

6.2 Optical rigidity

The e.m. rigidity and the e.m. damping effects were correctly explained in Braginsky and Minakova (1964) by respectively, dependence of the e.m. eigen frequency and therefore of the energy \(\mathcal {E}\) stored in the e.m. resonator on the mechanical position x and by the time lag between the variation of x and the variation of \(\mathcal {E}\). We reproduce below the semi-qualitative, but simple and transparent reasoning of that paper.

Really, if
$$\begin{aligned} \omega _0(x) = \omega _0(1-x/L), \end{aligned}$$
(92)
then the effective detuning is equal to
$$\begin{aligned} \delta (x) = \omega _p - \omega _0(x) = \delta + \frac{\omega _0 x}{L} , \end{aligned}$$
(93)
and the optical energy is equal to
$$\begin{aligned} \mathcal {E}(x) = \frac{\gamma ^2+\delta ^2}{\gamma ^2+\delta ^2(x)}\,\mathcal {E}, \end{aligned}$$
(94)
where \(\mathcal {E}\) is the initial (at \(x=0\)) value of the energy. This, in turn, leads to the x-dependence of the ponderomotive force that acts on the mechanical object:
$$\begin{aligned} F(x) = \frac{\mathcal {E}(x)}{L} \approx F(0) - Kx + O(x^2). \end{aligned}$$
(95)
where
$$\begin{aligned} K = -\dfrac{\partial F(x)}{\partial x}\biggr |_{x=0} = \frac{m\varTheta \delta }{\gamma ^2+\delta ^2} \end{aligned}$$
(96)
is the e.m. rigidity.
Note also that the optical energy follows the mechanical motion not instantly, but with some delay \(\tau _{\mathrm{delay}} \sim 1/\gamma \). Therefore, the force (95) actually is equal to [we omit the constant term F(0)]
$$\begin{aligned} F \approx -Kx(t-\tau _{\mathrm{delay}}) \approx -Kx(t) + K\tau _{\mathrm{delay}}\frac{dx(t)}{dt} \approx -Kx(t) - H\frac{dx(t)}{dt}, \end{aligned}$$
(97)
where
$$\begin{aligned} H = -K\tau _{\mathrm{delay}}. \end{aligned}$$
(98)
is the e.m. damping.
The rigorous quantum treatment of the e.m. rigidity was done in the mentioned above articles (Braginsky et al. 1997; Buonanno and Chen 2001; Khalili 2001; Buonanno and Chen 2002, 2003). It was shown there that it is equal to
$$\begin{aligned} K(\varOmega ) = \frac{m\varTheta \delta }{\mathcal {D}(\varOmega )} = \mathfrak {R}K(\varOmega ) - i\varOmega H(\varOmega ). \end{aligned}$$
(99)
It is easy to see, that Eqs. (96, 98) describe the quasistatic (slow mechanical motion, \(\varOmega \rightarrow 0\)) particular case of (99) with the effective delay time
$$\begin{aligned} \tau _{\mathrm{delay}} = \frac{2\gamma }{\gamma ^2+\delta ^2}. \end{aligned}$$
(100)
According to the fluctuation-dissipation theorem, any damping \(H(\varOmega )\) is accompanied by the noise force having the spectral density
$$\begin{aligned} S_T(\varOmega ) = 2\varkappa _B|H(\varOmega )|\mathcal {T}(\varOmega ), \end{aligned}$$
(101)
where
$$\begin{aligned} \mathcal {T}(\varOmega ) = \frac{\hbar \varOmega }{2\varkappa _B}\coth \frac{\hbar \varOmega }{2\varkappa _BT} \end{aligned}$$
(102)
is the mean energy of the heatbath modes at the frequency \(\varOmega \), expressed in units of kelvins, and T is the effective noise temperature.
In the optical spring case, the fluctuational pondermotive force \(F_{\mathrm{fl}}\) imposed by the quantum fluctuations of the optical energy in the interferometer play the role of the thermal noise. Spectral density of this noise is calculated, inparticular, in the Sect. 6 of Danilishin and Khalili (2012), see Eq. (473). Combining this equation with Eqs. (99, 102), we obtain that
$$\begin{aligned} \mathcal {T}(\varOmega ) = \frac{S_{FF}(\varOmega )}{2\varkappa _B|H(\varOmega )|} = \frac{\hbar }{2\varkappa _B}\,\frac{\gamma ^2+\delta ^2+\varOmega ^2}{2|\delta |} . \end{aligned}$$
(103)
Minimum of this expression at any given frequency \(\varOmega \) is provided by \(\delta = -\sqrt{\gamma ^2 +\varOmega ^2}\) and is equal to
$$\begin{aligned} \mathcal {T}(\varOmega ) = \frac{\hbar \sqrt{\gamma ^2+\varOmega ^2}}{2\varkappa _B}. \end{aligned}$$
(104)
In the case of the narrow-band cavity, \(\gamma \ll |\varOmega |\),
$$\begin{aligned} \mathcal {T}(\varOmega ) \rightarrow \frac{\hbar |\varOmega |}{2\varkappa _B}, \end{aligned}$$
(105)
which corresponds to the noise temperature \(T\rightarrow 0\). The opposite case of the broad-band cavity, \(\gamma \gg |\varOmega |\) translates to much higher “temperature”
$$\begin{aligned} T \approx \mathcal {T} \approx \frac{\hbar \gamma }{2\kappa _B} \gg \frac{\hbar |\varOmega |}{2\varkappa _B}. \end{aligned}$$
(106)
However, large \(\gamma \) means strong flow of information on the mechanical position x from the cavity. This means that the fluctuational pondermotive force \(F_{\mathrm{fl}}\) in this case has to be treated not as the thermal noise of the optical damping, but as the quantum back action due to the measurement.

6.3 Characteristic regimes of the optical spring

Non-trivial frequency dependences of the optical rigidity (99) and of the quantum noise components of the detuned interferometers [see Eqs. (376–378) of Danilishin and Khalili 2012] lead to very sophisticated shape of the corresponding sum quantum noise spectral density, see Eq. (385) of Danilishin and Khalili (2012). This shape can be tuned flexibly by varying the interferometer bandwidth \(\gamma \) and detuning \(\delta \), homodyne and squeezing angles, and the squeezing amplitude, with the optimal tuning depending on many factors, such us the available optical power, intensity of non-quantum (“technical”) noise sources, optical losses etc. The corresponding exhaustive optimization exceeds the scope of this paper (as well as probably any single paper). Broad set of examples covering the most typical scenarios can be found e.g.,in the articles Buonanno and Chen (2001, 2003), Kondrashov et al. (2008), Danilishin and Khalili (2012). Therefore, here we concentrate specifically on the modification of the mechanical probe dynamics by the optical spring.

In Fourier domain, mechanical dynamics is described by the response function
$$\begin{aligned} \chi ^{-1}(\varOmega ) = m\left( -\varOmega ^2 + \frac{\varTheta \delta }{\mathcal {D}(\varOmega )}\right) . \end{aligned}$$
(107)
Analysis of the roots of the characteristic equation \(\chi ^{-1}(\varOmega )=0\) shows that this response function can have either two resonance minima or one broader minimum. If the interferometer bandwidth is sufficiently small, \(\gamma \ll \delta \), then frequencies of these minima can be approximated as
$$\begin{aligned} \varOmega _{1,2}^2 \approx \frac{\delta ^2}{2}\pm \sqrt{\frac{\delta ^4}{4} - \varTheta \delta }. \end{aligned}$$
(108)
In the weak pumping case with \(\varTheta \ll \varTheta _{\mathrm{crit}}\), where
$$\begin{aligned} \varTheta _{\mathrm{crit}} = \frac{\delta ^3}{4} \end{aligned}$$
(109)
is the critical value of the normalize optical power \(\varTheta \), roots of \(\chi ^{-1}(\varOmega )\) are approximately equal to
$$\begin{aligned} \varOmega _1 \approx \sqrt{\frac{\varTheta \delta }{\gamma ^2+\delta ^2}}\quad \text {and}\quad \varOmega _2 \approx \delta . \end{aligned}$$
(110)
The first of this root corresponds to the resonance frequency of the ordinary harmonic oscillator created by the static optical rigidity (96). This is so called mechanical resonance. The second root, so called optical resonance, is created by the sharp increase of the optical rigidity at \(\varOmega \approx \delta \), which allows the second term in (107) cancel the first one even if \(\varTheta \) is small.
With the increase of the ratio \(\varTheta /\varTheta _{\mathrm{crit}}\), these two roots drift toward each other (see Fig. 44 of Danilishin and Khalili 2012), and the area with the reduced \(\chi ^{-1}(\varOmega )\) (that is, with better sensitivity) forms between them (Buonanno and Chen 2001). At \(\varTheta \rightarrow \varTheta _{\mathrm{crit}}\) the roots merge into one broader second-order one. The detailed analysis of this second order pole regime (Khalili 2001) can be found in Sect. 6.3.4 of Danilishin and Khalili (2012). In particular, it is shown there this in essence narrow-band regime can in principle provide an arbitrarily-high signal-to-noise ratio for broadband signals, limited only by the level of the additional noise of non-quantum (technical) origin.
Fig. 27

Mechanical response function modified by the optical rigidity. This solid line: free mass \((|\chi ^{-1}|/m=\varOmega ^2)\); thick solid line: \(\delta =2\pi \times 300\,\mathrm{s}^{-1}\); short dashes: \(\delta =2\pi \times 150\,\mathrm{s}^{-1}\); long dashes: \(\delta =(4\varTheta )^{1/3}\). In all cases, \(\gamma =2\pi \times 2\,\mathrm{s}^{-1}\) and \(\varTheta =(2\pi \times 50)^3\,\mathrm{s}^{-1}\)

In Fig. 27 the absolute value of \(\chi ^{-1}\) normalized by the mechanical mass m is plotted as a function of the frequency for these characteristic cases. For pedagogical reason (to emphasize the frequency dependencies), a very small value of \(\gamma =2\pi \times 2\,\mathrm{s}^{-1}\) is used in these plots. It worth to be mentioned however such a narrow bandwidth actually can be used in configurations with two optical carriers belonging to two free spectral ranges of the interferometer, with one of them having “standard” \(\gamma \sim \,10^3\,\mathrm{s}^{-1}\) and being used for the measurement, and another one, with the small \(\gamma \), creating the optical rigidity. Two different values of the bandwidth can be implemented in the signal-recycled configurations of GW detectrors by using the resonant sideband extraction and the ultimate signal recycling regimes for respectively the broadband and the narrow-band carriers.
Fig. 28

Quantum noise spectral densities for the two-carrier interferometer, with the dedicated second carrier creating the optical spring. Thin dashed line: SQL; thin solid line: lossless SQL-limited interferometer; thick solid line: detuning of the second carrier \(\delta =2\pi \times 300\,\mathrm{s}^{-1}\); short dashes: \(\delta =2\pi \times 150\,\mathrm{s}^{-1}\); long dashes: \(\delta =(4\varTheta )^{1/3}\). Bandwidths: \(\gamma _1=2\pi \times 500\,\mathrm{s}^{-1}\) (the “signal” optical mode) and \(\gamma _2=2\pi \times 2\,\mathrm{s}^{-1}\) (the “spring” optical mode). For both carriers, \(\varTheta =(2\pi \times 50)^3\,\mathrm{s}^{-1}\). Quantum efficiency \(\eta =0.8\). Other parameters are listed in Table 1

In Fig. 28, quantum noise spectral densities for this setup are plotted for the same three characteristic values of the detuning of the narrow-band carrier as in Fig. 27. It is instructive to compare these plots with the corresponding ones for the case of the single carrier detuned carrier, see e.g., Fig. 45 of Danilishin and Khalili (2012). It is easy to see that while in the latter case the use of the detuned regime leads to sharp degradation of sensitivity at higher frequencies, in the former one the high-frequency sensitivity remains intact.

In these plots, we assumed good but not very high value of the overall quantum efficiency of the interferometer \(\eta =0.8\) (note that in “ordinary” interferometers without squeezed light injection, all optical losses can be absorbed into this unified factor, see Sect. 6.3.2 of Danilishin and Khalili 2012). This resulted only in the barely-visible sensitivity degradation in the shot noise dominated high-frequency area, confirming the above statement about tolerance of the optical spring based schemes to optical losses.

6.4 Cancellation of mechanical inertia

In the interferometer configurations with two or more optical carriers, more deep modification of the mechanical dynamics is possible, allowing, in some sense, to make the mechnaical inertial mass \(m_{\mathrm{inert}}\) smaller than the gravitational one \(m_{\mathrm{grav}}\) by attaching a negative optical inertia to the former one (Khalili et al. 2011; Danilishin and Khalili 2012). Existence of this effect immediately follows from the frequency dependence of the optical spring (99).

Assume for simplicity that \(\gamma \rightarrow 0\) and \(\varOmega \ll \delta \). In this case, Eq. (99) can be approximated as follows:
$$\begin{aligned} K(\varOmega ) \approx K(0) - m_{\mathrm{opt}}\varOmega ^2, \end{aligned}$$
(111)
where \(K(0)=\varTheta /\delta \) is the static rigidity and
$$\begin{aligned} m_{\mathrm{opt}} = -\frac{m\varTheta }{\delta ^3} \end{aligned}$$
(112)
is the optical inertia. which, similar to K(0), can be either positive or negative depending on the sign of the detuning \(\delta \).
We now assume that the interferometer is pumped with two detuned carriers having frequencies belonging to different free spectral ranges of the interferometer. In this case, each carrier creates its own optical rigidity. These two rigidities \(K_{1,2}\) can be combined in such a way that their static parts would compensate each other and the total optical inertia would compensate the usual mechanical inertia of the test mass:
$$\begin{aligned}&K_1(0) + K_2(0) = 0, \end{aligned}$$
(113a)
$$\begin{aligned}&m_{\mathrm{opt1}} + m_{\mathrm{opt2}} = -m. \end{aligned}$$
(113b)
Obviously, the exact compensation would happen only at zero frequency, but at other sufficiently small frequencies, the responce of such a test object would be significantly stronger than that of the initial test mass.
Let us derive the conditions for this inertia cmpensations. The two optical springs modify the mechanical susceptibility as follows:
$$\begin{aligned} \chi ^{-1}(\varOmega )= & {} -m\varOmega ^2 + K_1(\varOmega ) + K_2(\varOmega ) \nonumber \\= & {} m\frac{ -\varOmega ^2\mathcal {D}_1(\varOmega )\mathcal {D}_2(\varOmega ) + \varTheta _1\delta _1\mathcal {D}_2(\varOmega ) + \varTheta _2\delta _2\mathcal {D}_1(\varOmega ) }{\mathcal {D}_1(\varOmega )\mathcal {D}_2(\varOmega )}, \end{aligned}$$
(114)
where
$$\begin{aligned} \mathcal {D}_{1,2}(\varOmega ) = (\gamma _{1,2}-i\varOmega )^2 + \delta _{1,2}^2 \end{aligned}$$
(115)
and the parameters \(\gamma _{1,2}\), \(\delta _{1,2}\), and \(\varTheta _{1,2}\) correspond to the respective carriers. The conditions for cancelation of the total inertia and rigidity are equivalent to the cancelation of the terms proportional to \(\varOmega ^2\) and \(\varOmega ^0\) in the numerator of Eq. (114). Calculation gives that this cancelation is provided by
$$\begin{aligned} \varTheta _1\delta _1 = \frac{\varGamma _1^4\varGamma _2^2}{\varGamma _2^2-\varGamma _1^2}, \qquad \varTheta _2\delta _2 = \frac{\varGamma _1^2\varGamma _2^4}{\varGamma _1^2-\varGamma _2^2}, \end{aligned}$$
(116)
where \(\varGamma _{1,2}^2=\gamma _{1,2}^2+\delta _{1,2}^2\). It follows from these equations, that since \(\varTheta _{1,2}\) are, by definition, positive quantities, the signs of the detunings has to be opposite, with negative detuning corresponding to the larger \(\varGamma \). Below we assume that \(\varGamma _2>\varGamma _1\), \(\delta _1>0\), and \(\delta _2<0\).
Fig. 29

Mechanical response function modified by the negative optical inertia. This solid line: free mass \((|\chi ^{-1}|/m=\varOmega ^2)\); thick solid line: \(\gamma _1=\gamma _2=2\pi \times 2\,\mathrm{s}^{-1}\) (the inertia and the static rigidity are canceled); dashed line: \(\gamma _1=2\pi \times 2\,\mathrm{s}^{-1}\), \(\gamma _2=4\gamma _1\), see Eq. (117) (the inertia, the static rigidity, and the optical damping are canceled). In both cases, \(\varTheta _1=2/3\times (2\pi \times 100)^3\,\mathrm{s}^{-1}\), \(\varTheta _2 = 2\varTheta _1\), \(\delta _1\approx 2\pi \times 40\,\mathrm{s}^{-1}\), \(\delta _2=-2\delta _1\), see Eqs. (116)

The resulting mechanical response function is plotted in Fig. 29 (solid line). It can be seen from this plot that indeed below some threshold frequency (it can be shown that it is equal to the smaller detuning \(\delta _1\)) the value of \(\chi ^{-1}\) is noticeably suppressed (that is, the mechanical probe is more responsive) in comparison with the free mass. The “residual” low-freqeuncy value of \(|\chi ^{-1}|\) is created by optical damping, and for the parameters values used in this example, the gain is limited.

This scheme has also another disadvantage, namely it is dynamically unstable, and this instability could be significant. In Khalili et al. (2011), two methods of damping this instability were proposed. First, partial compensation of the mechanical inertia is possible, with the remaining non-zero inertia stabilizing the system and making the instability time long enough to be damped by an out-of-band feedback system.

The second way is to cancel, in addition to the rigidity and inertia, also the damping. This approach allows also to significantly improve the gain in \(|\chi ^{-1}|\). This cancellation can be achieved by adjusting the bandwidths \(\gamma _{1,2}\) as follows:
$$\begin{aligned} \frac{\gamma _2}{\gamma _1} = \left| \frac{\varTheta _1\delta _1}{\varTheta _2\delta _2}\right| . \end{aligned}$$
(117)
The corresponding response function is also plotted in Fig. 29 (dashed line), demonstrating much more significant low-frequency gain.

Similar to the previous (single optical spring) case, two strategies of implementation of the negative inertia are possible. In the first one, two carriers have to be used in order to both create the negative inertia and also measure the test mirrors motion. This strategy was analyzed in detail in Danilishin and Khalili (2012) in the context of the Advanced LIGO parameters set. The second one require three dedicated carriers: one for the measurement and additional two for creation of the negative inertia. Unfortunately, in both cases the results can not be considered as satisfactory ones. Within the optical power constrains of existing and planned GW detectors, they can provide only very moderate low frequency sensitivity gain which accompanied by strong sensitivity degradation at higher frequencies. The reason for this is simple: indeed the negative inertia strongly increase the mechanical response, but only in the frequency band where the radiation pressure dominates and the therefore the sensitivity does not depend on the mechanical susceptibility.

6.5 Summary and outlook

The method of increasing the GW detectors sensitivity by means of optical modification of the test masses dynamics was proposed two decades ago and looks very simple and elegant. It does not require any sophisticated quantum states of light or radical alterations in the GW detectors core optics and also tolerant to the optical losses. However, as long as we aware, no specific plans of implementing this method in future GW detectors exist. This probably can be attributed to the following two reasons: first, technical problems associated with the detuned regime of GW interferometers, and second, the optical power constraints. The rule-of-thumb estimates show that in broad-band configurations, in order to shift the mechanical resonance up to some frequency \(f_m\) by means of the optical spring, about the same optical power is required as make the back action noise equal to the shot noise at this frequency \(f_m\). This means that using a single carrier, it is impossible to shift \(f_m\) into the shot-noise dominated area where the increase of the mechanical response could provide a significant effect, and in the two-carriers configuration, the carrier which create the optical spring has to be more powerful than the one which do the measurement. Taking into account the tight optical power budget of the contemporary GW detectors and even more tight of the future ones (with much more heavy test masses and longer arms), implementation of this regime could be problematic.

A possible solution to this problem was proposed recently in Somiya et al. (2016); Korobko et al. (2018). In was shown in these works, that using the parametric amplification of the optical field inside the interferometer, it is possible to amplify the optical spring without increase of the optical power. This approach, in principle, can be combined with other applications of the intracavity parametric amplification (white-light cavity, back action evasion), see in particular Sect. 7.2.

7 Hybrid schemes

In this section, we review a relatively novel approach that seeks to enhance the sensitivity of the GW interferometer by coupling it to another, generally nonlinear, quantum system. Depending on the nature of the nonlinearity and on the way it is coupled to the interferometer, one can suppress back-action noise or reshape the optomechanical response of the interferometer so as to increase its bandwidth without sacrificing peak sensitivity.

The first effect, known as coherent quantum noise cancellation (CQNC) was pioneered by Tsang and Caves (2010). They suggested to use a combination of a nonlinear Kerr crystal and an unbalanced beam-splitter to couple the optomechanichal system under study (a GW interferometer, in our case) and an ancilla optical mode, where the frequency offset of the ancilla to the main interferometer, the splitting ratio of the beam-splitter and the nonlinear gain of the crystal are tailored so as to perfectly counteract the effect of ponderomotive squeezing due to optomechanical back-action. In this work, it was also shown that an all optical ancilla system interacts with the signal light as if it was an optomechanical system with negative mass mechanical oscillator. Wimmer et al. (2014) have developed this idea further to the level of a practical experiment that is currently being built at the University of Hannover. They also performed a thorough analysis of imperfections and their influence on this system ability for coherent cancellation of quantum back-action noise. This analysis has shown that it is problematic to realise this scheme in a GW detector due to stringent constraints on the ancilla’s optical bandwidth and frequency offset that must both be much smaller than the mechanical resonance frequency, which is \(\sim \,1\) Hz for Advanced LIGO mirrors. However, another physical implementation of the negative mass oscillator principle based on the interaction of the collective spin of caesium vapours in magnetic field with light was proposed by Polzik and Hammerer (2015), and the back-action cancellation effect in such systems was demonstrated experimentally by Møller et al. (2017). As we discuss in the following Sect. 7.1, such spin-based systems might be used in GW detectors.

Another way to use nonlinear system coupled to the optical degree of freedom is for creation a so-called white-light-cavity (WLC) effect (Wicht et al. 1997), that is to introduce in the interferometer an active element that compensates the positive dispersion of the arm cavities by its own negative dispersion and thereby increase the effective band of a high response to the GW signal. Original idea by Wicht et al. (1997) proposed to use atomic medium with electromagnetically induced transparency effect providing the desired negative dispersion, which suffered from the internal loss in the gas cell. In the following Sect. 7.2, we discuss more promising variants based on active nonlinear optical and optomechanical negative dispersion elements. These solutions are less lossy and thus stand a good chance to be a part of the next generation GW detectors, which might benefit from the additional astrophysical output the improved high-frequency sensitivity of such schemes may offer (Miao et al. 2018).

7.1 Negative-mass spin oscillator

7.1.1 The negative-frequency system

Multi-atomic spin ensembles proposed in Duan et al. (2000) and demonstrated experimentally in Julsgaard et al. (2001) (see also the review papers Hammerer et al. 2010; Polzik and Hammerer 2015) possess a set of unique features which make them attractive for use in quantum optomechanical experiments. Under certain conditions (see below), the dynamics of collective spin of such a system with high precision models the one of the ordinary harmonic oscillator, which eigen frequency can be made both positive and negative. Moreover, interaction of this spin system with light can be made similar to the ordinary pondermotive interaction of a movable mirror with the probing light.

The collective spin of the atomic ensemble can be described by the angular momentum vector \(\hbar \times \{\hat{J}_x, \hat{J}_y, \hat{J}_z\}\). Suppose that this system is placed in a strong external magnetic field B, which we assume to be pointed along the x-axis. The minimum energy state in this case corresponds to the large negative value \(-\hbar J_x\) of the x component of the angular momentum, with \(J_x\gg 1\) and the energy equal to \(-\hbar \varOmega _SJ_x\), where \(\varOmega _S\) is the Larmor frequency. Relatively weak (with the number of inverted spins much less that \(J_x\)) excitations can be described by the effective Hamiltonian (Holstein and Primakoff 1940; Møller et al. 2017)
$$\begin{aligned} \hat{\mathcal {H}}_S = -\hbar \varOmega _SJ_x + \frac{\hbar \varOmega _S}{2}(\hat{X}_S^2 + \hat{P}_S^2), \end{aligned}$$
(118)
where
$$\begin{aligned} \hat{X}_S = \frac{\hat{J}_z}{\sqrt{J_x}}, \qquad \hat{P}_S = \frac{\hat{J}_y}{\sqrt{J_x}} \end{aligned}$$
(119)
are the effective (dimensionless) position and momentum of the spin ensemble obeying the standard commutation relation
$$\begin{aligned}{}[\hat{X}_S, \hat{P}_S] = i. \end{aligned}$$
(120)
Up to the the irrelevant c-number term, the Hamiltonian (118) describes a harmonic oscillator with the eigen frequency \(\varOmega _S\).
In a similar way, if all atoms are optically pumped to the energetically inverted spin state, then the collective spin is given by the positive value \(\hbar J_x\). Weak de-excitations around this maximal value can be described by the effective Hamiltonian
$$\begin{aligned} \hat{\mathcal {H}}_S = \hbar \varOmega _SJ_x - \frac{\hbar \varOmega _S}{2}(\hat{X}_S^2 + \hat{P}_S^2), \end{aligned}$$
(121)
where in this case
$$\begin{aligned} \hat{X}_S = \frac{\hat{J}_z}{\sqrt{J_x}}, \qquad \hat{P}_S = -\frac{\hat{J}_y}{\sqrt{J_x}} \end{aligned}$$
(122)
which corresponds to a Harmonic oscillator with the negative eigen frequency \(\varOmega _S\). Note that the term negative mass is used in Julsgaard et al. (2001), Hammerer et al. (2009), Polzik and Hammerer (2015), Møller et al. (2017) instead. However, in order to implement the dynamics (121), the effective rigidity also have to be negative, which corresponds to the negative frequency \(-\varOmega _S\).
The Hamiltonian (121) gives the following equation of motion of the position \(X_S\):
$$\begin{aligned} \hat{X}_S(t) = \hat{X}_S(0)\cos \varOmega _St - \hat{P}_S(0)\sin \varOmega _St, \end{aligned}$$
(123)
while evolution of position \(X_m\) of an ordinary positive-frequency harmonic oscillator is described by the following equation:
$$\begin{aligned} \hat{X}_m(t) = \hat{X}_m(0)\cos \varOmega _St + \hat{P}_m(0)\sin \varOmega _St, \end{aligned}$$
(124)
where \(P_m\) is the corresponding momentum. Note that the sum of these positions autocommutes:
$$\begin{aligned}&[\hat{X}_S(t) + \hat{X}_m(t), \hat{X}_S(t') + \hat{X}_m(t')] \nonumber \\&\quad = [\hat{X}_S(t), \hat{X}_S(t')] + [\hat{X}_m(t), \hat{X}_m(t')] = 0, \end{aligned}$$
(125)
that is, \(\hat{X}_S+\hat{X}_m\) is a QND variable which can be continuously monitored with precision not limited by the uncertainty relation. During such a measurement, both \(\hat{X}_S\) and \(\hat{X}_m\) are perturbed, but these perturbations, being equal by absolute values and having opposite signs, cancel each other.
Consider now interaction of the atomic spin system with the probing light, which allows to implement such a measurement. Following Møller et al. (2017), we assume that the light propagates in z-direction. If the light is far detuned from the atomic resonance, then the interaction Hamiltonian can be presented as follows (see details in Hammerer et al. 2009; Møller et al. 2017):
$$\begin{aligned} \hat{\mathcal {H}}_{\mathrm{int}} = -\hbar \varkappa \hat{S}_3\hat{J}_z, \end{aligned}$$
(126)
where \(\varkappa \) is the coupling constant,
$$\begin{aligned} \hat{S}_3 = i(\hat{\mathrm{a}}_x^\dagger \hat{\mathrm{a}}_y - \hat{\mathrm{a}}_y^\dagger \hat{\mathrm{a}}_x) \end{aligned}$$
(127)
is the Stokes operator, and \(\hat{\mathrm{a}}_{x,y}\) are the annihilation operators of the two linear polarizations of the optical beam. This is so-called Faraday interaction (Hammerer et al. 2010), which describes mutual rotation of the collective atomic spin and the optical polarization. Suppose then that the light is linearly polarized in x-direction, and the corresponding classical amplitude is equal to \(\mathrm{a}_x = i\alpha \), where \(\alpha \) is real. In this case,
$$\begin{aligned} \hat{S}_3 \approx \sqrt{2}\alpha \hat{\mathrm{a}}_S^c, \end{aligned}$$
(128)
where
$$\begin{aligned} \hat{\mathrm{a}}_S^c = \frac{\hat{\mathrm{a}}_y + \hat{\mathrm{a}}_y^\dagger }{\sqrt{2}} \end{aligned}$$
(129)
is the cosine quadrature of the y-polarized light, and
$$\begin{aligned} \hat{\mathcal {H}}_{\mathrm{int}} \approx -\hbar \sqrt{2J_x}\varkappa \alpha \hat{X}_S\hat{\mathrm{a}}_S^c. \end{aligned}$$
(130)
This Hamiltonian is identical to the standard Hamiltonian describing the dispersive coupling of an optical mode and a mechanical object, with the factor \(\sqrt{2J_x}\varkappa \) playing the role of the vacuum optomechanical coupling strength \(g_0\) (Aspelmeyer et al. 2014).

7.1.2 Sequential scheme

The QND measurement discussed above was first demonstrated in Julsgaard et al. (2001) using two atomic spin systems having, respectively, positive and negative effective eigenfrequencies \(\varOmega _S\) and \(-\varOmega _S\) and consisting of \(\sim \,10^{12}\) Cesium atoms. Later, in Hammerer et al. (2009) the idea of combining the negative-frequency atomic spin system with the positive-frequency optomechanical system was put forward. Recently, this idea was implemented experimentally using silicon-nitride nanomembrane as the mechanical resonator (Møller et al. 2017).
Fig. 30

Scheme of back-action evading measurement using light which sequentially probes the atomic spin system and the interferometer test mass(es). OC—optical circulator; HD—homodyne detector; “VAC or SQZ”—incident optical field in vacuum or squeezed state

The sketch of this class of measurement schemes is shown in Fig. 30. Here the probing light interacts first with the atomic spin system and then is injected into the main interferometer, which measures the probe object position. The light leaving the interferometer is measured by the homodyne detector. It is easy to note similarity of this scheme with the one which uses the frequency-dependent squeezed light prepared by means of an additional filter cavity, see Kimble et al. (2002), Sect. 6.1 of Danilishin and Khalili (2012), and Sect. 4.2 of this paper. Another option is to put the atomic system system after the main interferometer, similar to the variational-output scheme of Kimble et al. (2002). In the case of the atomic spin system (and opposite to the filter cavity based schemes), both layouts provide identical results in the ideal (loss-free) case. Therefore, we consider here only the one shown in Fig. 30.

In order to demonstrate the basic features of this scheme while keeping the equations length within reasonable limit, we ignore the optical losses both in the atomic spin system and in the main interferometer. The full analysis with account of the optical losses can be found in Khalili and Polzik (2018). We would like to mention however, that while the problem of optical losses is a very serious one, it is generic for all interferometric schemes which use non-classical light, see Sect. 4.4. At the same time, the atomic spin system introuces a new source of imperfection, namely the noise associated with the imaginary part of its effective succeptibility. We take into account this noise source here.

Using the analogy with the ordinary optomechanical systems, Eqs. (121, 130) can be recast into the Heisenberg equations of motion for the atomic spin system interacting with the continuous traveling optical wave (see e.g.,Aspelmeyer et al. 2014):
$$\begin{aligned} \dfrac{d^2\hat{X}_S(t)}{dt^2} + 2\gamma _S\dfrac{d\hat{X}_S(t)}{dt} + \varOmega _S^2\hat{X}_S(t)= & {} -\varOmega _S\sqrt{2\Gamma _S}\,\hat{\mathrm{a}}_S^c(t) - \sqrt{\varOmega _S}\hat{f}_S(t), \end{aligned}$$
(131a)
$$\begin{aligned} \hat{\mathrm{b}}_S^c(t)= & {} \hat{\mathrm{a}}_S^c(t), \end{aligned}$$
(131b)
$$\begin{aligned} \hat{\mathrm{b}}_S^s(t)= & {} \hat{\mathrm{a}}_S^s(t) + \sqrt{2\Gamma _S}\,\hat{X}_S(t) , \end{aligned}$$
(131c)
where \(\hat{\mathrm{a}}_S^{c,s}\) are the cosine and sine quadratures of the incident light, \(\hat{\mathrm{b}}_S^{c,s}\) are the corresponding quadrature of the outgoing light, and \(\Gamma _S\) is the readout rate (see details in Møller et al. 2017). In Eq. (131a131b), the internal damping in the atomic spin system, with the damping rate \(\gamma _S\), is taken into account, together with the corresponding (normalized) thermal force \(\hat{f}_S\). It worth to be noted that the spin degree of freedom is very well isolated from the mechanical motion of the atoms and therefore can be prepared in an almost pure (e.g.,ground) quantum stated, even if the motional degree of freedom has the room temperature. This corresponds to the spectral density of \(\hat{f}_S\) equal to
$$\begin{aligned} S_S = 4|\varOmega |\gamma _S. \end{aligned}$$
(132)
In order to increase interaction with the probing light, the atomic spin system can be placed into the optical cavity, as shown in Fig. 30. In this case, the factor \(\Gamma _S\) scales up by the effective number of the light passes \(2\mathcal {F}/\pi \), where \(\mathcal {F}\) is the cavity finesse (Khalili and Polzik 2018).
Rewriting Eqs. (131) in Fourier picture and combining Eqs. (131a, 131c), we obtain that
$$\begin{aligned} \hat{\mathrm{b}}_S^c(\varOmega )= & {} \hat{\mathrm{a}}_S^c(\varOmega ), \end{aligned}$$
(133a)
$$\begin{aligned} \hat{\mathrm{b}}_S^s(\varOmega )= & {} \hat{\mathrm{a}}_S^s(\varOmega ) + 2\theta \chi _S(\varOmega )\hat{\mathrm{a}}_S^c(\varOmega ) + \sqrt{2\theta }\,\chi _S(\varOmega )\hat{f}_S(\varOmega ), \end{aligned}$$
(133b)
where
$$\begin{aligned} \chi _S(\varOmega ) = \frac{1}{\varOmega ^2 - \varOmega _S^2 +2i\varOmega \gamma _S} \end{aligned}$$
(134)
is the effective susceptibility of the atomic spin system and \(\theta =\varOmega _S\Gamma _S\).
In the simplest case of the resonance tuned interferometer without optical losses, its input/output relations look as follows (see Sect. 2.3):
$$\begin{aligned} \hat{\mathrm{b}}_I^c(\varOmega )= & {} \hat{\mathrm{a}}_I^c(\varOmega ), \end{aligned}$$
(135a)
$$\begin{aligned} \hat{\mathrm{b}}_I^s(\varOmega )= & {} \frac{\ell ^*(\varOmega )}{\ell (\varOmega )}\,\hat{\mathrm{a}}_I^s(\varOmega ) - \frac{2\gamma \varTheta }{\varOmega ^2\ell ^2(\varOmega )}\,\hat{\mathrm{a}}_I^c(\varOmega ) + \frac{1}{\ell (\varOmega )}\sqrt{\frac{2m\gamma \varTheta }{\hbar }}\, x_{\mathrm{sign}}(\varOmega ),\nonumber \\ \end{aligned}$$
(135b)
where \(x_{\mathrm{sign}}(\varOmega )\) is the signal displacement of the free test mass(es) of the interferometer and \(\hat{\mathrm{a}}_I^{c,s}\), \(\hat{\mathrm{b}}_I^{c,s}\) are, respectively, the cosine and sine quadratures of the light at the input and the output light of the interferometer and \(\ell (\varOmega ) = \gamma -i\varOmega \).
In the scheme of Fig. 30,
$$\begin{aligned} \hat{\mathrm{a}}_I^{c,s} = \hat{\mathrm{b}}_S^{c,s}. \end{aligned}$$
(136)
We assume also that the sine quadrature \(\hat{\mathrm{b}}_I^s\) of the interferometer output is measured by the homodyne detector. With account of this, combination of Eqs. (133, 135) gives that
$$\begin{aligned} \hat{\mathrm{b}}_I^s(\varOmega ) = \frac{1}{\ell (\varOmega )}\sqrt{\frac{2m\gamma \varTheta }{\hbar }} \left[ x_{\mathrm{sign}}(\varOmega ) + \hat{x}_{\mathrm{sum}}(\varOmega )\right] , \end{aligned}$$
(137)
where
$$\begin{aligned} \hat{x}_{\mathrm{sum}}(\varOmega )= & {} \ell ^*(\varOmega )\sqrt{\frac{\hbar }{2m\gamma \varTheta }}\Bigl \{ \hat{\mathrm{a}}_S^s(\varOmega ) + \sqrt{2\theta }\,\chi _S\hat{f}_S(\varOmega ) \nonumber \\&+ \Bigl [2\theta \chi _S(\varOmega ) - \mathcal {K}_{\mathrm{MI}}(\varOmega )\Bigr ] \hat{\mathrm{a}}_S^c(\varOmega ) \Bigr \} \end{aligned}$$
(138)
is the position-normalized sum quantum noise.
Suppose that the squeezed light in injected into the atomic spin system. In this case, the single-sided spectral densities of the quadratures \(\hat{\mathrm{a}}_S^c(\varOmega )\) and \(\hat{\mathrm{a}}_S^s(\varOmega )\) are equal to, respectively,
$$\begin{aligned} S[\hat{\mathrm{a}}_S^c] = e^{2r},\qquad S[\hat{\mathrm{a}}_S^s] = e^{-2r}, \end{aligned}$$
(139)
and spectral density of the sum noise \(\hat{x}_{\mathrm{sum}}\) is equal to
$$\begin{aligned} S^x(\varOmega ) = \frac{\hbar }{m\varOmega ^2\mathcal {K}_{\mathrm{MI}}(\varOmega )}\Bigl \{ e^{-2r} + 4\theta |\mathfrak {I}\chi _S(\varOmega )| + |2\theta \chi _S(\varOmega ) - \mathcal {K}_{\mathrm{MI}}(\varOmega )|^2e^{2r} \Bigr \}. \end{aligned}$$
(140)
In order to cancel the back action, which corresponds to the last term in the curly brackets, the following condition has to be satisfied:
$$\begin{aligned} 2\theta \chi _S(\varOmega ) = \mathcal {K}_{\mathrm{MI}}(\varOmega ). \end{aligned}$$
(141)
It can be seen from Eqs. (134, 22) that this requirement can not be fulfilled at all frequencies. However, in all planned GW detectors, the quantum back action will be significant only well within the interferometer bandwidth, \(\varOmega \ll \gamma \). In this frequency band, \(\mathcal {K}_{\mathrm{MI}}(\varOmega )\propto 1/\varOmega ^2\). On the other hand, if \(\varOmega \gg \varOmega _S,\gamma _S\) then dynamics of the atomic spin system is close to the one of a free mass, \(\chi _S(\varOmega )\propto 1/\varOmega ^2\). Therefore, in the frequency band \(\varOmega _S,\gamma _S\ll \varOmega \ll \gamma \) frequency dependencies of \(\mathcal {K}_{\mathrm{MI}}\) and \(\xi _S\) match to each other, allowing to satisfy (141) by setting
$$\begin{aligned} \theta = \frac{\varTheta }{\gamma }. \end{aligned}$$
(142)
Fig. 31

Quantum noise spectral densities for the measurement schemes using spin systems with negative effective frequency. Thin dashed line: SQL; thin solid line: SQL-limited interferometer; thick dashed line: sequential scheme of Fig. 30, no squeezing, \(\gamma _S=2\pi \times 3\,\mathrm{s}^{-1}\); thick dash-dotted line: sequential scheme of Fig. 30, 10 db squeezing, \(\gamma _S=2\pi \times 3\,\mathrm{s}^{-1}\); thick solid line: parallel scheme of Fig. 32, 10 db of squeezing, \(\gamma _S=2\pi \times 3\,\mathrm{s}^{-1}\); dotted line: parallel scheme of Fig. 32, 10 db of squeezing, \(\gamma _S=2\pi \times 30\,\mathrm{s}^{-1}\). In all cases, \(\gamma =2\pi \times 500\,\mathrm{s}^{-1}\), \(\varOmega _S=\times 3\,\mathrm{s}^{-1}\), \(\theta \) is given by Eq. (142), and all other parameters are listed in Table 1

In Fig. 31, quantum noise spectral densities of the considered scheme is plotted for two particular cases: no input squeezing and 10 db of squeezing. In these plots, parameters of the main interferometer (the normalized optical power and the bandwidth) correspond to the ones listed in Table 1. For the atomic spin spin system, the same quite demanding but realistic values
$$\begin{aligned} \varOmega _S = \gamma _S = 2\pi \times 3\,\mathrm{s}^{-1} \end{aligned}$$
(143)
as in Khalili and Polzik (2018) are used.

7.1.3 Parallel (or EPR) scheme

A serious problem of the scheme discussed in the previous section is the disparity of the typical optical wavelengths used in the GW detectors and the atomic spin systems. Optical transition of the cesium atoms used in Julsgaard et al. (2001); Møller et al. (2017) corresponds to the wavelength \(\approx 850\,\mathrm{nm}\). Light with this wavelength can be used in the table-top interferometers, as it was done in Møller et al. (2017). However, the contemporary GW detectors use light with the wavelength 1064 nm, and longer wavelengths are planned for future interferometers.
Fig. 32

Scheme of back-action evading measurement using two entangled beams probing the atomic spin system and the interferometer test mass(es). OC—optical circulator; HD—homodyne detectors; PDC—parametric down conversion; \(\hat{\mathrm{a}}_{I,S}\)—two entangled light beams

This problem can be avoided by using another “parallel” optical layout, see Fig. 32. It relies on high degree of cross-correlation between quantum fluctuations in the two entangled “signal” and “idler” light beams generated in the parametric down-conversion conversion (PDC) process. These two beams could have different wavelengths (the non-degenerate case), which should match the working frequency of the GW detector and the atomic transition frequency. Each of the beam has to interact with the respective subsystem, as shown in see Fig. 32. Then both output signals have to be combined using optimal weight factors. Due to the above-mentioned cross-correlation, both the shot noise and the radiation pressure noise contributions will be suppressed in the combined output signal.

Note that a similar scheme was proposed initially in Ma et al. (2017) for another purposes, namely, as a method of generation of effective frequency dependent squeezing without the use of an additional filter cavity (as in Kimble et al. 2002); see details in Sect. 4.3.

Consider quantum noise of this scheme, using the same assumptions as in Sect. 7.1.2. Quadratures of the two optical beams generated by the PDC are equal to
$$\begin{aligned} \hat{\mathrm{a}}_{I,S}^c= & {} \hat{\mathrm{z}}_{I,S}^c\cosh r + \hat{\mathrm{z}}_{S,I}^c\sinh r, \end{aligned}$$
(144a)
$$\begin{aligned} \hat{\mathrm{a}}_{I,S}^s= & {} \hat{\mathrm{z}}_{I,S}^s\cosh r - \hat{\mathrm{z}}_{S,I}^s\sinh r, \end{aligned}$$
(144b)
where \(\hat{\mathrm{z}}_I^{c,s}\) and \(\hat{\mathrm{z}}_S^{c,s}\) correspond to two independent vacuum fields and their (single-sided) spectral densities are equal to 1 / 2. Correspondingly, spectral densities of the PDC beams and their only non-zero cross-correlation spectral densities are equal to
$$\begin{aligned} S[\hat{\mathrm{a}}_I^c]= & {} S[\hat{\mathrm{a}}_I^s] = S[\hat{\mathrm{a}}_S^c] = S[\hat{\mathrm{a}}_S^s] = \cosh 2r, \end{aligned}$$
(145a)
$$\begin{aligned} S[\hat{\mathrm{a}}_I^c\hat{\mathrm{a}}_S^c]= & {} \sinh 2r, \qquad S[\hat{\mathrm{a}}_I^s\hat{\mathrm{a}}_S^s] = -\sinh 2r. \end{aligned}$$
(145b)
Input/output relations for the interferometer and the atomic spin system are given by the same equations Eqs. (133, 135) and in the scheme of Sect. 7.1.2, but with the input optical fields defined by Eqs. (144). The outgoing fields are be measured by two independent homodyne detectors, which output photocurrents are data-processed together. We assume that both detectors measure the sine quadratures of the respective output beams \(\hat{\mathrm{b}}_I^s\) and \(\hat{\mathrm{b}}_S^s\), which gives the following equation for the combined output signal:
$$\begin{aligned} \hat{\mathrm{b}}_I^s(\varOmega ) + \alpha (\varOmega )\hat{\mathrm{b}}_S^s(\varOmega ) = \frac{1}{\ell (\varOmega )}\sqrt{\frac{2m\gamma \varTheta }{\hbar }} \left[ x_{\mathrm{sign}}(\varOmega ) + \hat{x}_{\mathrm{sum}}(\varOmega )\right] , \end{aligned}$$
(146)
where \(\alpha (\varOmega )\) is the weight factor which has to be optimized,
$$\begin{aligned} \hat{x}_{\mathrm{sum}}(\varOmega )= & {} \ell ^*(\varOmega )\sqrt{\frac{\hbar }{2m\gamma \varTheta }}\Bigl \{ \hat{\mathrm{a}}_I^s(\varOmega ) - \mathcal {K}_{\mathrm{MI}}(\varOmega )\hat{\mathrm{a}}_I^c(\varOmega ) \nonumber \\&+\, \beta (\varOmega )\Bigl [ \hat{\mathrm{a}}_S^s(\varOmega ) + 2\theta \chi _S(\varOmega )\hat{\mathrm{a}}_S^c(\varOmega ) + \sqrt{2\theta \chi _S(\varOmega )}\hat{f}_S(\varOmega ) \Bigr ] \Bigr \} \end{aligned}$$
(147)
is the position-normalized sum quantum noise, and
$$\begin{aligned} \beta (\varOmega ) = \frac{\ell (\varOmega )}{\ell ^*(\varOmega )}\,\alpha (\varOmega ). \end{aligned}$$
(148)
With account of Eqs. (144), spectral density of this noise is equal to
$$\begin{aligned} S^x(\varOmega ) = \frac{\hbar }{m\varOmega ^2\mathcal {K}_{\mathrm{MI}}(\varOmega )}\Bigl [ \sigma _I(\varOmega ) - 2\mathfrak {R}(\beta (\varOmega )\sigma _{IS}(\varOmega )) + |\beta (\varOmega )|^2\sigma _S(\varOmega ) \Bigr ], \end{aligned}$$
(149)
where
$$\begin{aligned} \sigma _I(\varOmega )= & {} \bigl [1 + \mathcal {K}_{\mathrm{MI}}^2(\varOmega )\bigr ]\cosh 2r, \end{aligned}$$
(150a)
$$\begin{aligned} \sigma _S(\varOmega )= & {} \bigl [1 + 4\theta ^2|\chi _S(\varOmega )|^2\bigr ]\cosh 2r + 4\theta |\mathfrak {I}\chi _S(\varOmega )|, \end{aligned}$$
(150b)
$$\begin{aligned} \sigma _{IS}(\varOmega )= & {} \bigl [1 + 2\mathcal {K}_{\mathrm{MI}}(\varOmega )\theta \chi _S(\varOmega )\bigr ]\sinh 2r. \end{aligned}$$
(150c)
It is easy to see that the optimal value of \(\beta \) is equal to
$$\begin{aligned} \beta (\varOmega ) = \frac{\sigma _{IS}^*(\varOmega )}{\sigma _S(\varOmega )}, \end{aligned}$$
(151)
which gives that
$$\begin{aligned} S^x(\varOmega )= & {} \frac{\hbar }{m\varOmega ^2\mathcal {K}_{\mathrm{MI}}(\varOmega )}\biggl [ \sigma _I(\varOmega ) - \frac{|\sigma _{IS}(\varOmega )|^2}{\sigma _S(\varOmega )} \biggr ] \nonumber \\= & {} \frac{\hbar }{m\varOmega ^2\mathcal {K}_{\mathrm{MI}}(\varOmega )\sigma _S(\varOmega )}\Bigl \{ \bigl [1+\mathcal {K}_{\mathrm{MI}}^2(\varOmega )\bigr ] \nonumber \\&\bigl [1 + 4\theta ^2|\chi _S(\varOmega )|^2 + 4\theta |\mathfrak {I}\chi _S(\varOmega )|\cosh 2r\bigr ] \nonumber \\&+\, |2\theta \chi _S(\varOmega ) - \mathcal {K}_{\mathrm{MI}}(\varOmega )|^2\sinh ^22r \Bigr \}. \end{aligned}$$
(152)
Note that leading in \(e^{2r}\) term in this equation (the last one in the curly brackets) is similar to the corresponding term for the sequential scheme, see Eq. (140). Therefore, the same reasoning as in that case can be used here as well, giving the same optimization condition (142).
In order to provide better insight into the general structure of the obtained quite lengthy equations, it is instructive to consider a simple asymptotic case. First, we neglect the damping in the atomic spin system, assuming that \(\mathfrak {I}\chi _S\rightarrow 0\). Second, we consider the frequency band where the condition (142) is equivalent to the condition (141). In this case,
$$\begin{aligned} \beta (\varOmega ) = \tanh 2r \end{aligned}$$
(153)
and
$$\begin{aligned} S^x(\varOmega ) = \frac{\hbar }{m\varOmega ^2\cosh 2r} \biggl [\frac{1}{\mathcal {K}_{\mathrm{MI}}(\varOmega )} + \mathcal {K}_{\mathrm{MI}}(\varOmega )\biggr ]. \end{aligned}$$
(154)
Taking into account that if r is large, then \(\tanh 2r\rightarrow 1\), it follows form these equations, that in the strong squeezing case the optimal strategy is just summing up the outputs of two homodyne detectors, which gives the sensitivity gain, in comparison with the ordinary SQL-limited interferometer, equal to \(\cosh 2r\approx e^{2r}/2\).

Spectral density (152) optimized by the condition (142) is plotted in Fig. 31 for the same parameters (143) as in the previous case. It is easy to see that (in accord with the above reasoning) in the major part of the frequency band the sensitivity is worse by 3 db than in the sequential scheme (for the same squeeze factor r).

In order to reveal the influence of the internal damping in the atomic spin system, the case with \(\gamma _S=2\pi \times 30\,\mathrm{s}^{-1}\) also is presented in Fig. 31. It can be seen that this ten-fold increase of \(\gamma _S\) noticeably degrade the low-frequency sensitivity, preventing from overcoming the SQL.

It is interesting, that in the low-frequency band, where the condition (141) starts to deviate form the simplified one (142). the parallel scheme provide noticeably better sensitivity, than the sequential one (for the same value of \(\gamma _S\)). This result can be attributed to the fact, that the “software” summing of the photodetectors outputs using the optimized frequency-dependent factor (151) is more flexible procedure that simple “hardware” subtraction of the back actions.

7.1.4 Summary

Using the additional spin systems with negative effective mass, it is possible to suppress the quantum noise in GW detectors across the almost entire frequency bandwidth relevant for gravitational wave observation. In comparison to the most of the other proposals for reducing the quantum noise, the spin system based approach has a significant advantage of being completely compatible with existing and planning GW interferometers thus not requiring complex alterations in the interferometers’ core optics. In both “sequential” and “parallel” variants of this scheme, the only additional elements are the spin system itself, the source of the single-mode or two-mode squeezed light, and the optical scheme of injection the non-classical light into the interferometer. This setup strongly resembles the scheme of injection of “ordinary” squeezed light into the interferometer and evidently should has about the same level of complexity and cost.

It worth to be noted also that this scheme paves the road towards generation of an entangled state of the multi-kilogram GWD mirrors and atomic spins which would be of fundamental interest due to the sheer size of the objects involved.

7.2 Negative dispersion and white-light-cavity schemes

In the nominal operation mode of Advanced LIGO, the signal-recycling cavity is tuned to be resonant with respect to the carrier frequency. This is the so-called resonant sideband extraction idea, which increases the detector bandwidth.5 However, the peak sensitivity limited by the shot noise is decreased as a price, as illustrated in Fig. 33. Such a tradeoff between the bandwidth and peak sensitivity was firstly discovered by Mizuno when he compares different signal recycling schemes. Using the tuned signal-recycled Michelson as an example, such a tradeoff is manifested by the following integral of the shot-noise spectrum:
$$\begin{aligned} \int _0^{\infty }\frac{\mathrm{d}\varOmega }{2\pi } \frac{1}{S_{hh}^{\mathrm{shot}}(\varOmega )} = \int _0^{\infty } \frac{\mathrm{d}\varOmega }{2\pi } \frac{ 4 L P_c \gamma \omega _0}{\hbar c (\gamma ^2 +\varOmega ^2)} = \frac{P_c L\omega _0}{\hbar \, c}, \end{aligned}$$
(155)
where we have used a single-mode approximation for the shot-noise spectrum, otherwise, the upper limit for the integration would be the half of the free spectral range \(\varOmega _{\mathrm{fsr}}/2=\pi c / L\). Since \(1/S_{hh}\) has a Lorentzian profile, the enclosed area is a constant, independent of the detector bandwidth.
Fig. 33

The left panel shows the shot noise limited sensitivity for tuned signal-recycled Michelson interferometer with different effective signal recycling cavity (SRC) transmission; The right panel show the counterpart in the detuned case with a detune frequency equal to 1 kHz

To overcome the bandwidth-peak-sensitivity tradeoff, there are two approaches. One is keeping the bandwidth and increasing the peak sensitivity with the squeezed light, as discussed in Sec. 4. The other is broadening the bandwidth while keeping the peak sensitivity, which is the idea of so-called white light cavity—a cavity that resonates “all” frequencies. It is motivated by the physical origin of the tradeoff, and has to do with the extra phase \(\phi =\varOmega L/c\) picked up by the GW sidebands at \(\omega _0\pm \varOmega \) when propagating inside the arm cavity that is tuned on resonance with respect to the carrier frequency \(\omega _0\). Such a positive dispersion with \(\mathrm{d}\phi /\mathrm{d}{\varOmega } > 0\) implies that higher the sideband frequency is, the more phase it is accumulated and thus is far away from the resonance, which leads to a degradation of the signal response.

The white-light-cavity idea is introducing an active element, which has a negative dispersion \(\mathrm{d}\phi /\mathrm{d}{\varOmega } < 0\) around the frequencies of interest, inside the signal recycling cavity. Such a negative dispersion compensates the sideband phase and leads to a broadband resonance without changing the peak sensitivity. Earlier attempts of realising the white-light-cavity effect with passive optical elements, which have no external energy input, have problems with the absorption associated with negative dispersion—a consequence of the Kramers–Kronig relation. Recent studies instead propose the use of active elements with external pump energy, including atomic systems (Wicht et al. 1997; Zhou et al. 2015; Ma et al. 2015), nonlinear crystal (squeezer) (Peano et al. 2015; Korobko et al. 2017) and optomechanical devices (Miao et al. 2015; Page et al. 2018; Miao et al. 2018). Here we will focus on the idea of active optomechanical filter operating in the unstable regime as the negative dispersion element, of which the setup is illustrated in Fig. 34.
Fig. 34

The left panel shows the general scheme for the white-light-cavity cavity, where a negative-dispersion (ND) element is placed inside the signal-recycling cavity. The internal signal-recycling mirror (iSRM), which has the same transmission as ITM, is introduced to form an impedance match cavity with ITM so that the signal sidebands are not affected by the narrow bandwidth of the arm cavity. The right panel shows a realisation using the unstable optomechanical filter. A global feedback control is needed to stabilise the system

The optomechanical filter involves an optomechanical device (Chen 2013; Aspelmeyer et al. 2014) with a movable oscillator as one mirror of the filter cavity. The oscillator has a resonant frequency equal to \(\omega _m\), and is coupled to the signal field around \(\omega _0\) via the radiation pressure, which is created by the beating between the signal field and an external pump field at \(\omega _p=\omega _0+\omega _m\). The mechanical resonance frequency \(\omega _m\) is chosen to be much smaller than the bandwidth of the filter cavity—the so-called resolved sideband regime. In such a regime, the interaction between the mechanical oscillator and the filter cavity mode can be described by a non-degenerate parametric process. In the rotating frame at the pump laser frequency, the interaction Hamiltonian is
$$\begin{aligned} \hat{H}_{\mathrm{int}} = -\hbar g (\hat{a}\,\hat{b}+\hat{a}^{\dag }\hat{b}^{\dag }), \end{aligned}$$
(156)
where \(\hat{a}\) and \(\hat{b}\) are the annihilation operators for the cavity mode and mechanical mode, respectively. The coupling rate g is related to the intra-cavity pump power \(P_f\) by
$$\begin{aligned} g=\sqrt{\frac{P_f \omega _p}{m c L_f \omega _m}}, \end{aligned}$$
(157)
in which m is the oscillator mass and \(L_f\) is the filter cavity length. Solving the following Heisenberg equations of motion leads to the following frequency-domain input–output relation for the filter cavity mode:
$$\begin{aligned} \hat{a}_{\mathrm{out}}(\varOmega ) = \frac{\varOmega +i(\gamma _m +\gamma _{\mathrm{opt}})}{\varOmega +i(\gamma _m-\gamma _{\mathrm{opt}})}\hat{a}_{\mathrm{in}}(\varOmega ) + \frac{2\sqrt{\gamma _m \gamma _{\mathrm{opt}}}}{\varOmega +i(\gamma _m-\gamma _{\mathrm{opt}})}\hat{b}_{\mathrm{th}}^{\dag }(-\varOmega ), \end{aligned}$$
(158)
where \(\gamma _{\mathrm{opt}}\equiv g^2/\gamma \) with \(\gamma \) being the filter cavity bandwidth, and \(\gamma _m\) is the mechanical damping rate with \(\hat{b}_{\mathrm{th}}\) being the associated thermal fluctuation in accord with the fluctuation-dissipation theorem. The last term here comes from the additional noise that any linear phase-insensitive amplifier adds to the amplified signal as quantum uncertainty principle prescribes (Caves 1982). The fact that optomechanical ND cavity acts as an amplifier is clearly seen from its Hamiltonian (156) that has the same form as the Hamiltoniam of the non-degenerate optical parametric amplifier, save to that one of the modes here is mechanical rather than an optical one.
When \(\gamma _{opt}\), which is the anti-damping rate due to the optomechanical coupling, becomes much larger than the intrinsic mechanical damping \(\gamma _m\), the system will be unstable and deviate from the working point if no feedback control is applied. With a proper feedback control engaged, the above input–output relation can be interpreted as the open-loop transfer function between the input field and the output field of the filter cavity. In the regime of \(\gamma _{\mathrm{opt}}\gg \gamma _m\), if ignoring the thermal-fluctuation term at the moment, we have6
$$\begin{aligned} \hat{a}_{\mathrm{out}}(\varOmega ) \approx \frac{\varOmega +i \gamma _{\mathrm{opt}}}{\varOmega -i\gamma _{\mathrm{opt}}}\hat{a}_{\mathrm{in}}(\varOmega ) \approx - e^{-2i\varOmega /\gamma _{\mathrm{opt}}}\hat{a}_{\mathrm{in}}(\varOmega ). \end{aligned}$$
(159)
Apart from the unimportant \(\pi \)-phase offset, the filter will therefore approximately imprint a negative phase \(\phi _{\mathrm{filter}} = - 2\varOmega /\gamma _{\mathrm{opt}}\) onto those sidebands at \(\varOmega \lesssim \gamma _{\mathrm{opt}}\), which can cancel the positive round-trip phase \(\phi _{\mathrm{arm}} = 2\varOmega L/c\) when the following condition is satisfied
$$\begin{aligned} \gamma _{\mathrm{opt}} = \frac{c}{L} = 1.5\times 10^4 \, \mathrm{s}^{-1}\left( \frac{20\,\mathrm km}{L}\right) . \end{aligned}$$
(160)
Fig. 35 shows the effect of the unstable filter on the shot-noise limited sensitivity of a tuned Michelson interferometer. The propagation phase of sidebands is cancelled at low frequencies. At frequencies above 1 kHz, the cancellation starts to become imperfect; this is because the filter approximates \(e^{-2i\varOmega \tau }\), as shown in Eq. (159), only to the second order of \(\varOmega \). Also in the same figure, we have illustrated the effect of the thermal noise in the mechanical oscillator on the sensitivity. The thermal noise affects the sensitivity similar to the optical loss in the arm cavity, and we can define an effective optical loss as follows:
$$\begin{aligned} \epsilon _{\mathrm{eff}} = \frac{4 k_B}{\hbar \gamma _{\mathrm{opt}}}\left( \frac{T_{\mathrm{env}}}{Q_m}\right) , \end{aligned}$$
(161)
where \(k_B\) is the Boltzmann constant, \(T_{\mathrm{env}}\) is the environmental temperature and \(Q_m\) is the mechanical quality factor. The corresponding sensitivity limit from such an effective arm-cavity loss, according to Miao (2017), is
$$\begin{aligned} S^h_{\epsilon } \approx \frac{\hbar \, c^2 \epsilon _{\mathrm{eff}}}{4 L^2 \omega _0 P_c} = \left( 2.0\times 10^{-25}/\sqrt{\mathrm{Hz}}\right) ^2 \left( \frac{T_{\mathrm{env}}/Q_m}{10^{-9 }\mathrm{K}}\right) , \end{aligned}$$
(162)
given the default parameters \(L=20\,\mathrm km\), \(P_c = 4\,\mathrm MW\) and wavelength of 1550 nm.
Fig. 35

The left panel shows the improvement of the shot-noise limited sensitivity by adding the unstable optomechanical filter in the ideal case with the cancellation of the propagation phase illustrated at the bottom panel. The right panel illustrates the effect of the thermal noise in the mechanical oscillator of the optomechanical filter

7.3 Summary and outlook

Two main issues of active unstable optomechanical filter are the thermal noise and the optical loss. Intuitively, the thermal noise is significant because the light is exchanging information with the mechanical oscillator (effectively as a quantum memory) at a rate of kHz, one over the light propagation time inside the arm. The thermally-induced decoherence needs to be low enough such that the signal-to-noise ratio does not degrade at the quantum limit. One feasible approach to mitigating the thermal noise, instead of brutal-force cryogenic, is using the idea of optical dilution (Corbitt et al. 2007b; Korth et al. 2013). It takes advantage of the low mechanical dissipation of a suspended optics and increases the stiffness by using the optical spring effect. The issue of optical loss comes from both inside the filter and at the interface with the main interferometer due to mode mismatch. In particular, the loss introduced inside the signal recycling cavity limits the sensitivity improvement at high frequencies. Because of the narrow bandwidth of the arm cavity, the signal strength is suppressed significantly at high frequencies, and even a small amount of loss inside the signal recycling cavity is important. Specifically, according to Miao (2017), Miao et al. (2018),
$$\begin{aligned} S_{h}^{\mathrm{SRC}}(\varOmega )&= \frac{\hbar c (\gamma _{\mathrm{arm}}^2+\varOmega ^2)\epsilon _{\mathrm{SRC}}}{4 L \omega _0 P_c \gamma _{\mathrm{arm}} },\nonumber \\&\approx \left( 2.4\times 10^{-25} \,\mathrm{Hz}^{-\frac{1}{2}}\right) ^2 \left( \frac{\varOmega /2\pi }{1\, \mathrm{kHz}}\right) ^2\left( \frac{0.015}{T_{\mathrm{ITM}}}\right) \left( \frac{\epsilon _{\mathrm{SRC}}}{10^{-3}}\right) , \end{aligned}$$
(163)
where we have assumed the default parameters for the interferometers.

The atomic based active filter for broadening the detector bandwidth is not suffering the from same thermal noise issue as the optomechanical filter; the atomic transition involved happens at the optical frequency and the thermal environment can be viewed effectively as in the vacuum state. The main issue for the atomic system has to with the wavelength being tied to the transition of some specific species of atoms, which is different from those used in the current and proposed GW detectors. Exploring atomic systems with compatible wavelength or studying coherent frequency conversion scheme will be needed. The same issue of optical loss also applies.

8 Discussion and conclusion

We made an attempt to overview in this article the vast body of quantum techniques for suppression of quantum noise that are developed specifically for the field of gravitational-wave astronomy. We are standing now at the moment of inception of the concepts for the next generation of gravitational wave detectors that must have at least 10 times better sensitivity than the existing Advanced LIGO and Advanced Virgo instruments, which are about to be limited by quantum fluctuations of light in the almost entire detection band. The task of building the detector with the best astrophysical output justifies the need to bring some order into the massive collection of quantum noise-mitigation techniques that has beed developed so far. This was the goal of this work along with the aim to put all of those techniques in the same context and measure their merits and downsides against the common ruler. This pushed us towards the unified set of parameters for all considered schemes, taking the approach suggested by the GWIC 3G R&D Committee in LIGO-T1800221 and summarised by Table 1.

As an outlook, with the recent understanding of the fundamental quantum limit (FQL), which only depends on the power fluctuation inside the arm cavity, it seems to lead to a unified picture of different techniques: (1) the external squeezing injection is a direct approach to increasing the power fluctuation; (2) Modifying dynamics with the optical spring effect can be viewed as using the internal ponderomotive squeezing for enhancing the power fluctuation; (3) The white-light-cavity idea is to extend the enhancement over a broad frequency range; (4) The speed meter is an approach to shaping the power fluctuation at different frequencies such that the FQL can be reached using a frequency-independent readout quadrature at those frequencies; (5) The optimal frequency-dependent readout is in general needed to attain the FQL at different frequencies. Instead of comparing techniques against each other, as in the case for near-term upgrades of existing detectors, we may now start to think how we can coherently combine different techniques to enhance the power fluctuation at frequency of interest, i.e., lowering the FQL, and reach the limit. We can then study the susceptibility of different realisations to optical loss and other realistic imperfections. Eventually, we may obtain new configurations with high sensitivity that goes beyond what can be achieved with the current paradigm of design.

Footnotes

  1. 1.

    Strictly speaking, there are two possible ways of looking at the action of GW on the light in the interferometer. In this review, we will follow the point of view that the test masses move in a Local Lorentz (LL) frame of a central beam splitter, and GWs act akin to tidal forces on the test masses of the interferometer making them move w.r.t. the defined LL-frame of the detector (Blandford and Thorne 2008). Another way to describe GW action is to consider the interferometer in a so-called transverse-traceless (TT) gauge, where test masses are assumed to remain at rest and GW action leads to the modulation of the effective index of refraction of the space interval between the test masses. Interested readers are invited to read an excellent course book by Blandford and Thorne.

  2. 2.

    The rigorous mathematical treatment of the linear quantum measurement and of all transfer functions is given in Sect. 4.2 of Danilishin and Khalili (2012)

  3. 3.

    In fact, the symplectic nature of \(\mathbb {T}\) requires a more restrictive Bloch–Messiah Decomposition (Cariolaro and Pierobon 2016) that ensures singular values which include their own reciprocals.

  4. 4.

    In some sense, Eq. (62) is another way to derive a Wiener filter for a 2-channel interferometer, as described in Sect. 2.1. In this case the 2 quadratures of the signal field are combined with the idler-channel readout multiplied by a frequency-dependent coefficients \({\mathbf {K}} = \{K_{c}(\varOmega ),\,K_{s}(\varOmega )\}\) that minimise the spectral density of the difference: \((\hat{\varvec{a}}-{\mathbf {K}}\hat{b}_{\phi })\), i.e., \(\min \limits _{{\mathbf {K}}}\Bigl [\left\langle (\hat{\varvec{a}}-{\mathbf {K}}\hat{b}_{\phi })\circ (\hat{\varvec{a}}-{\mathbf {K}}\hat{b}_{\phi })^\dag \right\rangle \Bigr ]\)

  5. 5.

    It might seem counter intuitive, how a resonantly tuned signal-recycling cavity could result in a broader bandwidth of the combined effective cavity of the arms and the SRC. The reason for that is the sign flip (\(\pi \) phase shift) experienced by the light reflected off the resonance-tuned arm cavities. If combined with the SR mirror placed at a distance of an integer number of half-wavelengths of carrier light, it will result in an effectively anti-resonance tuned SRC and therefore will lead to a virtually lower finesse of the combined cavity.

  6. 6.

    Here, the negative dispersion may appear a positive one if one assumes a different sign convention as compared to Eq. (4). In that case a special care has to be taken to do ALL the calculations consistent with the chosen sign convention in the definition of the Fourier transform.

Notes

Acknowledgements

The authors are particularly grateful to Jan Harms for his careful and meticulous reading of the manuscript and for very helpful feedback. We also thank our colleagues from the LIGO-Virgo Scientific Collaboration (LVC) for illuminating discussions and suggestions on how to improve the paper. SLD would like to thank Lower Saxonian Ministry of Science and Culture that supported his research within the frame of the program “Research Line” (Forschungslinie) QUANOMET – Quantum- and Nano-Metrology. The FYK was supported by the Russian Foundation for Basic Research Grants 14-02-00399 and 16-52-10069. FYK was also supported by the LIGO NSF Grant PHY-1305863. HM is supported by UK STFC Ernest Rutherford Fellowship (Grant No. ST/M005844/1).

Supplementary material

References

  1. Aasi J et al (LIGO Scientific Collaboration) (2013) Enhanced sensitivity of the LIGO gravitational wave detector by using squeezed states of light. Nature Photon 7:613–619.  https://doi.org/10.1038/nphoton.2013.177 ADSCrossRefGoogle Scholar
  2. Aasi J et al (LIGO Scientific Collaboration) (2015) Advanced LIGO. Class Quantum Grav 32:074001.  https://doi.org/10.1088/0264-9381/32/7/074001. arXiv:1411.4547
  3. Abadie J et al (LIGO Scientific Collaboration) (2011) A gravitational wave observatory operating beyond the quantum shot-noise limit. Nature Phys 7:962–965.  https://doi.org/10.1038/nphys2083
  4. Abbott BP et al (LIGO Scientific and Virgo Collaboration) (2016a) Binary black hole mergers in the first Advanced LIGO observing run. Phys Rev X 6:041015.  https://doi.org/10.1103/PhysRevX.6.041015
  5. Abbott BP et al (LIGO Scientific and Virgo Collaboration) (2016b) GW151226: observation of gravitational waves from a 22-solar-mass binary black hole coalescence. Phys Rev Lett 116:241103.  https://doi.org/10.1103/PhysRevLett.116.241103
  6. Abbott BP et al (LIGO Scientific and Virgo Collaboration) (2016c) Observation of gravitational waves from a binary black hole merger. Phys Rev Lett 116:061102.  https://doi.org/10.1103/PhysRevLett.116.061102
  7. Abbott BP et al (2017a) Gravitational waves and gamma-rays from a binary neutron star merger: GW170817 and GRB 170817A. Astrophys J Lett 848:L13.  https://doi.org/10.3847/2041-8213/aa920c. arXiv:1710.05834 ADSCrossRefGoogle Scholar
  8. Abbott BP et al (2017b) Multi-messenger observations of a binary neutron star merger. Astrophys J Lett 848:L12.  https://doi.org/10.3847/2041-8213/aa91c9. arXiv:1710.05833 ADSCrossRefGoogle Scholar
  9. Abbott BP et al (LIGO Scientific and Virgo Collaboration) (2017c) GW170104: observation of a 50-solar-mass binary black hole coalescence at redshift 0.2. Phys Rev Lett 118:221101.  https://doi.org/10.1103/PhysRevLett.118.221101
  10. Abbott BP et al (LIGO Scientific and Virgo Collaboration) (2017d) GW170814: a three-detector observation of gravitational waves from a binary black hole coalescence. Phys Rev Lett 119:141101.  https://doi.org/10.1103/PhysRevLett.119.141101. arXiv:1709.09660
  11. Abbott BP et al (LIGO Scientific and Virgo Collaboration) (2017e) GW170817: observation of gravitational waves from a binary neutron star inspiral. Phys Rev Lett 119:161101.  https://doi.org/10.1103/PhysRevLett.119.161101. arXiv:1710.05832
  12. Abbott BP et al (LIGO Scientific Collaboration) (2017f) Exploring the sensitivity of next generation gravitational wave detectors. Class Quantum Grav 34:044001.  https://doi.org/10.1088/1361-6382/aa51f4 ADSCrossRefGoogle Scholar
  13. Abbott BP et al (LIGO Scientific Collaboration) (2017g) GW170608: observation of a 19-solar-mass binary black hole coalescence. Astrophys J 851:L35.  https://doi.org/10.3847/2041-8213/aa9f0c. arXiv:1711.05578 ADSCrossRefGoogle Scholar
  14. Abbott BP et al (LIGO, VIRGO, KAGRA Scientific Collaborations) (2018) Prospects for observing and localizing gravitational-wave transients with Advanced LIGO, Advanced Virgo and KAGRA. Living Rev Relativ 21:3.  https://doi.org/10.1007/s41114-018-0012-9. arXiv:1304.0670
  15. Acernese F et al (Virgo Collaboration) (2015) Advanced Virgo: a second-generation interferometric gravitational wave detector. Class Quantum Grav 32:024001.  https://doi.org/10.1088/0264-9381/32/2/024001. arXiv:1408.3978 ADSCrossRefGoogle Scholar
  16. Adesso G, Illuminati F (2007) Entanglement in continuous-variable systems: recent advances and current perspectives. J Phys A: Math Theor 40:7821ADSMathSciNetCrossRefGoogle Scholar
  17. Anetsberger G, Arcizet O, Unterreithmeier QP, Riviere R, Schliesser A, Weig EM, Kotthaus JP, Kippenberg TJ (2009) Near-field cavity optomechanics with nanomechanical oscillators. Nature Phys 5:909–914.  https://doi.org/10.1038/nphys1425 ADSCrossRefGoogle Scholar
  18. Aspelmeyer M, Kippenberg TJ, Marquardt F (2014) Cavity optomechanics. Rev Mod Phys 86:1391–1452.  https://doi.org/10.1103/RevModPhys.86.1391. arXiv:1303.0733 ADSCrossRefGoogle Scholar
  19. Beyersdorf PT, Fejer MM, Byer RL (1999a) Polarization Sagnac interferometer with a common-path local oscillator for heterodyne detection. J Opt Soc Am B 16:1354–1358.  https://doi.org/10.1364/JOSAB.16.001354 ADSCrossRefGoogle Scholar
  20. Beyersdorf PT, Fejer MM, Byer RL (1999b) Polarization Sagnac interferometer with postmodulation for gravitational-wave detection. Opt Lett 24:1112–1114.  https://doi.org/10.1364/OL.24.001112 ADSCrossRefGoogle Scholar
  21. Bilenko IA, Samoilenko AA (2003) Optical rigidity effect in a Fabry–Perot cavity. Vestn Mosk Univ Ser 3 2003(4):39–43 (in Russian)Google Scholar
  22. Blandford RD, Thorne KS (2008) Applications of classical physics (2012–2013 version of textbook), lecture notes. http://www.pmaweb.caltech.edu/Courses/ph136/yr2012/
  23. Braginskiǐ VB, Manukin AB, Tikhonov MY (1970) Investigation of dissipative ponderomotive effects of electromagnetic radiation. Sov Phys JETP 31:829ADSGoogle Scholar
  24. Braginsky VB, Khalili FJ (1990) Gravitational wave antenna with QND speed meter. Phys Lett A 147:251–256.  https://doi.org/10.1016/0375-9601(90)90442-Q ADSCrossRefGoogle Scholar
  25. Braginsky VB, Khalili FY (1992) Quantum measurement. Cambridge University Press, CambridgeCrossRefGoogle Scholar
  26. Braginsky VB, Khalili FY (1999) Low-noise rigidity in quantum measurements. Phys Lett A 257:241–246ADSCrossRefGoogle Scholar
  27. Braginsky VB, Manukin AB (1967) On pondermotive effects of electromagnetic radiation. Sov Phys JETP 25:653ADSGoogle Scholar
  28. Braginsky VB, Minakova II (1964) Influence of small displacements measurement system on dynamic features of mechanical oscillating systems. Vestn Mosk Univ Ser 3 1964(1):83–85 (in Russian)Google Scholar
  29. Braginsky VB, Vyatchanin SP (2002) Low quantum noise tranquilizer. Phys Lett A 293:228–234ADSCrossRefGoogle Scholar
  30. Braginsky VB, Gorodetsky ML, Khalili FY (1997) Optical bars in gravitational wave antenna. Phys Lett A 232:340–348.  https://doi.org/10.1016/S0375-9601(97)00413-1 ADSCrossRefGoogle Scholar
  31. Braginsky VB, Gorodetsky ML, Khalili FY, Thorne KS (2000a) Dual-resonator speed meter for a free test mass. Phys Rev D 61:044002.  https://doi.org/10.1103/PhysRevD.61.044002 ADSCrossRefGoogle Scholar
  32. Braginsky VB, Gorodetsky ML, Khalili FY, Thorne KS (2000b) Energetic quantum limit in large-scale interferometers. In: Meshkov S (ed) Gravitational waves. Third Edoardo Amaldi Conference, Pasadena, California 12–16 July, American Institute of Physics, Melville, NY, AIP Conf. Proc., vol 523, pp 180–189Google Scholar
  33. Braginsky VB, Khalili FY, Volikov SP (2001) The analysis of table-top quantum measurement with macroscopic masses. Phys Lett A 287:31–38ADSCrossRefGoogle Scholar
  34. Brown DD, Miao H, Collins C, Mow-Lowry C, Töyrä D, Freise A (2017) Broadband sensitivity enhancement of detuned dual-recycled Michelson interferometers with EPR entanglement. Phys Rev D 96:062003.  https://doi.org/10.1103/PhysRevD.96.062003. arXiv:1704.07173 ADSCrossRefGoogle Scholar
  35. Buonanno A, Chen Y (2001) Quantum noise in second generation, signal-recycled laser interferometric gravitational-wave detectors. Phys Rev D 64:042006.  https://doi.org/10.1103/PhysRevD.64.042006. arXiv:gr-qc/0102012 ADSCrossRefGoogle Scholar
  36. Buonanno A, Chen Y (2002) Signal recycled laser-interferometer gravitational-wave detectors as optical springs. Phys Rev D 65:042001.  https://doi.org/10.1103/PhysRevD.65.042001. arXiv:gr-qc/0107021 ADSCrossRefGoogle Scholar
  37. Buonanno A, Chen Y (2003) Scaling law in signal recycled laser-interferometer gravitational-wave detectors. Phys Rev D 67:062002.  https://doi.org/10.1103/PhysRevD.67.062002 ADSCrossRefGoogle Scholar
  38. Callen HB, Welton TA (1951) Irreversibility and generalized noise. Phys Rev 83:34–40.  https://doi.org/10.1103/PhysRev.83.34 ADSMathSciNetCrossRefzbMATHGoogle Scholar
  39. Cariolaro G, Pierobon G (2016) Bloch–Messiah reduction of Gaussian unitaries by Takagi factorization. Phys Rev A 94:062109.  https://doi.org/10.1103/PhysRevA.94.062109 ADSMathSciNetCrossRefGoogle Scholar
  40. Caves CM (1981) Quantum-mechanical noise in an interferometer. Phys Rev D 23:1693–1708.  https://doi.org/10.1103/PhysRevD.23.1693 ADSCrossRefGoogle Scholar
  41. Caves CM (1982) Quantum limits on noise in linear amplifiers. Phys Rev D 26:1817–1839.  https://doi.org/10.1103/PhysRevD.26.1817 ADSCrossRefGoogle Scholar
  42. Caves CM, Schumaker BL (1985) New formalism for two-photon quantum optics. I. Quadrature phases and squeezed states. Phys Rev A 31:3068–3092.  https://doi.org/10.1103/PhysRevA.31.3068 ADSMathSciNetCrossRefGoogle Scholar
  43. Chan J, Alegre TPM, Safavi-Naeini AH, Hill JT, Krause A, Groblacher S, Aspelmeyer M, Painter O (2011) Laser cooling of a nanomechanical oscillator into its quantum ground state. Nature 478:89–92.  https://doi.org/10.1038/nature10461. arXiv:1106.3614 ADSCrossRefGoogle Scholar
  44. Chen Y (2003) Sagnac interferometer as a speed-meter-type, quantum-nondemolition gravitational-wave detector. Phys Rev D 67:122004.  https://doi.org/10.1103/PhysRevD.67.122004 ADSCrossRefGoogle Scholar
  45. Chen Y (2013) Macroscopic quantum mechanics: theory and experimental concepts of optomechanics. J Phys B: At Mol Opt Phys 46:104001.  https://doi.org/10.1088/0953-4075/46/10/104001 ADSCrossRefGoogle Scholar
  46. Chen Y, Danilishin SL, Khalili FY, Müller-Ebhardt H (2011) QND measurements for future gravitational-wave detectors. Gen Relativ Gravit 43:671 arXiv:0910.0319 ADSCrossRefGoogle Scholar
  47. Cole GD, Zhang W, Martin MJ, Ye J, Aspelmeyer M (2013) Tenfold reduction of Brownian noise in high-reflectivity optical coatings. Nat Photon 7:644–650.  https://doi.org/10.1038/nphoton.2013.174 ADSCrossRefGoogle Scholar
  48. Corbitt T, Chen Y, Khalili FY, Ottaway D, Vyatchanin SP, Whitcomb S, Mavalvala N (2006a) Squeezed-state source using radiation-pressure-induced rigidity. Phys Rev A 73:023801.  https://doi.org/10.1103/PhysRevA.73.023801. arXiv:gr-qc/0511001 ADSCrossRefGoogle Scholar
  49. Corbitt T, Ottaway D, Innerhofer E, Pelc J, Mavalvala N (2006b) Measurement of radiation-pressure-induced optomechanical dynamics in a suspended Fabry–Perot cavity. Phys Rev A 74:021802.  https://doi.org/10.1103/PhysRevA.74.021802 ADSCrossRefGoogle Scholar
  50. Corbitt T, Chen Y, Innerhofer E, Müller-Ebhardt H, Ottaway D, Rehbein H, Sigg D, Whitcomb S, Wipf C, Mavalvala N (2007a) An all-optical trap for a gram-scale mirror. Phys Rev Lett 98:150802.  https://doi.org/10.1103/PhysRevLett.98.150802 ADSCrossRefGoogle Scholar
  51. Corbitt T, Wipf C, Bodiya T, Ottaway D, Sigg D, Smith N, Whitcomb S, Mavalvala N (2007b) Optical dilution and feedback cooling of a gram-scale oscillator to 6.9 mk. Phys Rev Lett 99:160801.  https://doi.org/10.1103/PhysRevLett.99.160801 ADSCrossRefGoogle Scholar
  52. Danilishin SL (2004) Sensitivity limitations in optical speed meter topology of gravitational-wave antennas. Phys Rev D 69:102003.  https://doi.org/10.1103/PhysRevD.69.102003. arXiv:gr-qc/0312016 ADSCrossRefGoogle Scholar
  53. Danilishin SL, Khalili FY (2012) Quantum measurement theory in gravitational-wave detectors. Living Rev Relativ 15:5.  https://doi.org/10.12942/lrr-2012-5 ADSCrossRefzbMATHGoogle Scholar
  54. Danilishin SL, Gräf C, Leavey SS, Hennig J, Houston EA, Pascucci D, Steinlechner S, Wright J, Hild S (2015) Quantum noise of non-ideal Sagnac speed meter interferometer with asymmetries. New J Phys 17:043031.  https://doi.org/10.1088/1367-2630/17/4/043031. arXiv:1412.0931 CrossRefGoogle Scholar
  55. Danilishin SL, Knyazev E, Voronchev NV, Khalili FY, Gräf C, Steinlechner S, Hennig JS, Hild S (2018) A new quantum speed-meter interferometer: measuring speed to search for intermediate mass black holes. Light: Sci Appl 7:11.  https://doi.org/10.1038/s41377-018-0004-2. arXiv:1702.01029 CrossRefGoogle Scholar
  56. Dooley KL, Schreiber E, Vahlbruch H, Affeldt C, Leong JR, Wittel H, Grote H (2015) Phase control of squeezed vacuum states of light in gravitational wave detectors. Opt Express 23:8235–8245.  https://doi.org/10.1364/OE.23.008235 ADSCrossRefGoogle Scholar
  57. Dorsel A, McCullen JD, Meystre P, Vignes E, Walther H (1983) Optical bistability and mirror confinement induced by radiation pressure. Phys Rev Lett 51:1550–1553.  https://doi.org/10.1103/PhysRevLett.51.1550 ADSCrossRefGoogle Scholar
  58. Duan LM, Cirac JI, Zoller P, Polzik ES (2000) Quantum communication between atomic ensembles using coherent light. Phys Rev Lett 85:5643–5646.  https://doi.org/10.1103/PhysRevLett.85.5643 ADSCrossRefGoogle Scholar
  59. Dwyer S, Barsotti L, Chua SSY, Evans M, Factourovich M, Gustafson D, Isogai T, Kawabe K, Khalaidovski A, Lam PK, Landry M, Mavalvala N, McClelland DE, Meadors GD, Mow-Lowry CM, Schnabel R, Schofield RMS, Smith-Lefebvre N, Stefszky M, Vorvick C, Sigg D (2013) Squeezed quadrature fluctuations in a gravitational wave detector using squeezed light. Opt Express 21:19047–19060.  https://doi.org/10.1364/OE.21.019047 ADSCrossRefGoogle Scholar
  60. Essick R, Vitale S, Evans M (2017) Frequency-dependent responses in third generation gravitational-wave detectors. Phys Rev D 96:084004.  https://doi.org/10.1103/PhysRevD.96.084004 ADSCrossRefGoogle Scholar
  61. Fritschel P, Evans M, Frolov V (2014) Balanced homodyne readout for quantum limited gravitational wave detectors. Opt Express 22:4224–4234.  https://doi.org/10.1364/OE.22.004224 ADSCrossRefGoogle Scholar
  62. Gräf C, Barr BW, Bell AS, Campbell F, Cumming AV, Danilishin SL, Gordon NA, Hammond GD, Hennig J, Houston EA, Huttner SH, Jones RA, Leavey SS, Lück H, Macarthur J, Marwick M, Rigby S, Schilling R, Sorazu B, Spencer A, Steinlechner S, Strain KA, Hild S (2014) Design of a speed meter interferometer proof-of-principle experiment. Class Quantum Grav 31:215009.  https://doi.org/10.1088/0264-9381/31/21/215009. arXiv:1405.2783 ADSCrossRefGoogle Scholar
  63. Hammerer K, Aspelmeyer M, Polzik ES, Zoller P (2009) Establishing Einstein–Poldosky–Rosen channels between nanomechanics and atomic ensembles. Phys Rev Lett 102:020501.  https://doi.org/10.1103/PhysRevLett.102.020501 ADSCrossRefGoogle Scholar
  64. Hammerer K, Sørensen AS, Polzik ES (2010) Quantum interface between light and atomic ensembles. Rev Mod Phys 82:1041–1093.  https://doi.org/10.1103/RevModPhys.82.1041 ADSCrossRefGoogle Scholar
  65. Harms J (2015) Terrestrial gravity fluctuations. Living Rev Relativ 18:3.  https://doi.org/10.1007/lrr-2015-3 ADSCrossRefGoogle Scholar
  66. Harry I, Hinderer T (2018) Observing and measuring the neutron-star equation-of-state in spinning binary neutron star systems. Class Quantum Grav 35:145010.  https://doi.org/10.1088/1361-6382/aac7e3. arXiv:1801.09972 ADSCrossRefGoogle Scholar
  67. Hild S (2017) personal communicationGoogle Scholar
  68. Hild S, Abernathy M, Acernese F, Amaro-Seoane P, Andersson N et al (2011) Sensitivity studies for third-generation gravitational wave observatories. Class Quantum Grav 28:094013.  https://doi.org/10.1088/0264-9381/28/9/094013 ADSCrossRefGoogle Scholar
  69. Holstein T, Primakoff H (1940) Field dependence of the intrinsic domain magnetization of a ferromagnet. Phys Rev 58:1098–1113.  https://doi.org/10.1103/PhysRev.58.1098 ADSCrossRefzbMATHGoogle Scholar
  70. Huttner SH, Danilishin SL, Barr BW, Bell AS, Gräf C, Hennig JS, Hild S, Houston EA, Leavey SS, Pascucci D, Sorazu B, Spencer AP, Steinlechner S, Wright JL, Zhang T, Strain KA (2017) Candidates for a possible third-generation gravitational wave detector: comparison of ring-Sagnac and sloshing-Sagnac speedmeter interferometers. Class Quantum Grav 34:024001ADSCrossRefGoogle Scholar
  71. Isogai T, Miller J, Kwee P, Barsotti L, Evans M (2013) Loss in long-storage-time optical cavities. Opt Express 21:30114–30125.  https://doi.org/10.1364/OE.21.030114 ADSCrossRefGoogle Scholar
  72. Julsgaard B, Kozhekin A, Polzik ES (2001) Experimental long-lived entanglement of two macroscopic objects. Nature 413:400–403.  https://doi.org/10.1038/35096524 ADSCrossRefGoogle Scholar
  73. Khalili FY (2001) Frequency-dependent rigidity in large-scale interferometric gravitational-wave detectors. Phys Lett A 288:251–256.  https://doi.org/10.1016/S0375-9601(01)00550-3 ADSCrossRefGoogle Scholar
  74. Khalili FY (2002) Quantum speedmeter and laser interferometric gravitational-wave antennae. ArXiv e-prints arXiv:gr-qc/0211088
  75. Khalili FY, Danilishin SL (2016) Quantum optomechanics. Prog Optics 61:113–236.  https://doi.org/10.1016/bs.po.2015.09.001 CrossRefGoogle Scholar
  76. Khalili FY, Polzik ES (2018) Overcoming the standard quantum limit in gravitational wave detectors using spin systems with a negative effective mass. Phys Rev Lett 121:031101.  https://doi.org/10.1103/PhysRevLett.121.031101. arXiv:1710.10405 ADSCrossRefGoogle Scholar
  77. Khalili FY, Danilishin SL, Müller-Ebhardt H, Miao H, Chen Y, Zhao C (2011) Negative optical inertia for enhancing the sensitivity of future gravitational-wave detectors. Phys Rev D 83:062003.  https://doi.org/10.1103/PhysRevD.83.062003 ADSCrossRefGoogle Scholar
  78. Kimble HJ, Levin Y, Matsko AB, Thorne KS, Vyatchanin SP (2002) Conversion of conventional gravitational-wave interferometers into QND interferometers by modifying their input and/or output optics. Phys Rev D 65:022002.  https://doi.org/10.1103/PhysRevD.65.022002. arXiv:gr-qc/0008026 ADSCrossRefGoogle Scholar
  79. Knyazev E, Danilishin S, Hild S, Khalili FY (2018) Speedmeter scheme for gravitational-wave detectors based on epr quantum entanglement. Phys Lett A 382:2219–2225.  https://doi.org/10.1016/j.physleta.2017.10.009 ADSCrossRefGoogle Scholar
  80. Kondrashov IS, Simakov DA, Khalili FY, Danilishin SL (2008) Optimizing the regimes of the Advanced LIGO gravitational wave detector for multiple source types. Phys Rev D 78:062004.  https://doi.org/10.1103/PhysRevD.78.062004 ADSCrossRefGoogle Scholar
  81. Korobko M, Kleybolte L, Ast S, Miao H, Chen Y, Schnabel R (2017) Beating the standard sensitivity-bandwidth limit of cavity-enhanced interferometers with internal squeezed-light generation. Phys Rev Lett 118:143601.  https://doi.org/10.1103/PhysRevLett.118.143601 ADSCrossRefGoogle Scholar
  82. Korobko M, Khalili FY, Schnabel R (2018) Engineering the optical spring via intra-cavity optical-parametric amplification. Phys Lett A 382:2238–2244.  https://doi.org/10.1016/j.physleta.2017.08.008. arXiv:1709.03055 ADSCrossRefGoogle Scholar
  83. Korth WZ, Miao H, Corbitt T, Cole GD, Chen Y, Adhikari RX (2013) Suppression of quantum-radiation-pressure noise in an optical spring. Phys Rev A 88:033805.  https://doi.org/10.1103/PhysRevA.88.033805. arXiv:1210.0309 ADSCrossRefGoogle Scholar
  84. Krocker S (2017) personal communicationGoogle Scholar
  85. LIGO Scientific Collaboration (2018) Instrument science white paper. Technical report. LIGO-T1800133-v4, LIGO, https://dcc.ligo.org/LIGO-T1800133/public
  86. Loudon R, Knight PL (1987) Squeezed light. J Mod Opt 34:709–759.  https://doi.org/10.1080/09500348714550721 ADSMathSciNetCrossRefzbMATHGoogle Scholar
  87. Ma Y, Danilishin SL, Zhao C, Miao H, Korth WZ, Chen Y, Ward RL, Blair DG (2014) Narrowing the filter-cavity bandwidth in gravitational-wave detectors via optomechanical interaction. Phys Rev Lett 113:151102.  https://doi.org/10.1103/PhysRevLett.113.151102 ADSCrossRefGoogle Scholar
  88. Ma Y, Miao H, Zhao C, Chen Y (2015) Quantum noise of a white-light cavity using a double-pumped gain medium. Phys Rev A 92:023807.  https://doi.org/10.1103/PhysRevA.92.023807 ADSCrossRefGoogle Scholar
  89. Ma Y, Miao H, Pang BH, Evans M, Zhao C, Harms J, Schnabel R, Chen Y (2017) Proposal for gravitational-wave detection beyond the standard quantum limit through EPR entanglement. Nature Phys 13:776–780.  https://doi.org/10.1038/nphys4118 ADSCrossRefGoogle Scholar
  90. Miao H (2017) General quantum constraints on detector noise in continuous linear measurements. Phys Rev A 95(1):012103.  https://doi.org/10.1103/PhysRevA.95.012103
  91. Miao H, Yang H, Adhikari RX, Chen Y (2014) Quantum limits of interferometer topologies for gravitational radiation detection. Class Quantum Grav 31:165010.  https://doi.org/10.1088/0264-9381/31/16/165010 ADSCrossRefzbMATHGoogle Scholar
  92. Miao H, Ma Y, Zhao C, Chen Y (2015) Enhancing the bandwidth of gravitational-wave detectors with unstable optomechanical filters. Phys Rev Lett 115:211104.  https://doi.org/10.1103/PhysRevLett.115.211104 ADSCrossRefGoogle Scholar
  93. Miao H, Adhikari RX, Ma Y, Pang B, Chen Y (2017) Towards the fundamental quantum limit of linear measurements of classical signals. Phys Rev Lett 119:050801.  https://doi.org/10.1103/PhysRevLett.119.050801 ADSCrossRefGoogle Scholar
  94. Miao H, Yang H, Martynov D (2018) Towards the design of gravitational-wave detectors for probing neutron-star physics. Phys Rev D 98:044044.  https://doi.org/10.1103/PhysRevD.98.044044. arXiv:1712.07345 ADSCrossRefGoogle Scholar
  95. Miyakawa O, Ward R, Adhikari R, Evans M, Abbott B, Bork R, Busby D, Heefner J, Ivanov A, Smith M, Taylor R, Vass S, Weinstein A, Varvella M, Kawamura S, Kawazoe F, Sakata S, Mow-Lowry C (2006) Measurement of optical response of a detuned resonant sideband extraction gravitational wave detector. Phys Rev D 74:022001.  https://doi.org/10.1103/PhysRevD.74.022001 ADSCrossRefGoogle Scholar
  96. Møller CB, Thomas RA, Vasilakis G, Zeuthen E, Tsaturyan Y, Balabas M, Jensen K, Schliesser A, Hammerer K, Polzik ES (2017) Quantum back-action-evading measurement of motion in a negative mass reference frame. Nature 547:191–195.  https://doi.org/10.1038/nature22980 ADSCrossRefGoogle Scholar
  97. Oelker E, Isogai T, Miller J, Tse M, Barsotti L, Mavalvala N, Evans M (2016) Audio-Band frequency-dependent squeezing for gravitational-wave detectors. Phys Rev Lett 116:041102.  https://doi.org/10.1103/PhysRevLett.116.041102 ADSCrossRefGoogle Scholar
  98. Page M, Qin J, La Fontaine J, Zhao C, Ju L, Blair D (2018) Enhanced detection of high frequency gravitational waves using optically diluted optomechanical filters. Phys Rev D 97:124060.  https://doi.org/10.1103/PhysRevD.97.124060. arXiv:1711.04469 ADSCrossRefGoogle Scholar
  99. Pascucci D (2019) On optics surface imperfections and their effects on the sensitivity of speed meters. Ph. D. thesis, University of Glasgow, Glasgow. http://theses.gla.ac.uk/40989/
  100. Peano V, Schwefel HGL, Marquardt C, Marquardt F (2015) Intracavity squeezing can enhance quantum-limited optomechanical position detection through deamplification. Phys Rev Lett 115:243603.  https://doi.org/10.1103/PhysRevLett.115.243603 ADSCrossRefGoogle Scholar
  101. Polzik ES, Hammerer K (2015) Trajectories without quantum uncertainties. Ann Phys 527:A15–A20.  https://doi.org/10.1002/andp.201400099 ADSMathSciNetCrossRefGoogle Scholar
  102. Punturo M, Abernathy M, Acernese F, Allen B, Andersson N et al (2010) The Einstein Telescope: a third-generation gravitational wave observatory. Class Quantum Grav 27:194002.  https://doi.org/10.1088/0264-9381/27/19/194002 ADSCrossRefGoogle Scholar
  103. Purdue P (2002) Analysis of a quantum nondemolition speed-meter interferometer. Phys Rev D 66:022001.  https://doi.org/10.1103/PhysRevD.66.022001 ADSCrossRefGoogle Scholar
  104. Purdue P, Chen Y (2002) Practical speed meter designs for quantum nondemolition gravitational-wave interferometers. Phys Rev D 66:122004.  https://doi.org/10.1103/PhysRevD.66.122004 ADSCrossRefGoogle Scholar
  105. Schilling R (1997) Angular and frequency response of LISA. Class Quantum Grav 14:1513ADSCrossRefGoogle Scholar
  106. Schnabel R (2017) Squeezed states of light and their applications in laser interferometers. Phys Rep 684:1–51.  https://doi.org/10.1016/j.physrep.2017.04.001 ADSMathSciNetCrossRefzbMATHGoogle Scholar
  107. Schumaker BL, Caves CM (1985) New formalism for two-photon quantum optics. II. Mathematical foundation and compact notation. Phys Rev A 31:3093–3111.  https://doi.org/10.1103/PhysRevA.31.3093 ADSMathSciNetCrossRefGoogle Scholar
  108. Sheard BS, Gray MB, Mow-Lowry CM, McClelland DE, Whitcomb SE (2004) Observation and characterization of an optical spring. Phys Rev A 69:051801.  https://doi.org/10.1103/PhysRevA.69.051801 ADSCrossRefGoogle Scholar
  109. Somiya K, Kataoka Y, Kato J, Saito N, Yano K (2016) Parametric signal amplification to create a stiff optical bar. Phys Lett A 380:521–524.  https://doi.org/10.1016/j.physleta.2015.11.010. arXiv:1403.1222 ADSCrossRefGoogle Scholar
  110. Steinlechner S, Barr BW, Bell AS, Danilishin SL, Gläfke A, Gräf C, Hennig JS, Houston EA, Huttner SH, Leavey SS, Pascucci D, Sorazu B, Spencer A, Strain KA, Wright J, Hild S (2015) Local-oscillator noise coupling in balanced homodyne readout for advanced gravitational wave detectors. Phys Rev D 92:072009.  https://doi.org/10.1103/PhysRevD.92.072009 ADSCrossRefGoogle Scholar
  111. Suzuki S, Yonezawa H, Kannari F, Sasaki M, Furusawa A (2006) 7 dB quadrature squeezing at 860 nm with periodically poled KTiOPO\(_4\). Appl Phys Lett 89:061116.  https://doi.org/10.1063/1.2335806 ADSCrossRefGoogle Scholar
  112. Teufel JD, Donner T, Castellanos-Beltran MA, Harlow JW, Lehnert KW (2009) Nanomechanical motion measured with an imprecision below that at the standard quantum limit. Nature Nanotechnol 4:820–823ADSCrossRefGoogle Scholar
  113. Teufel JD, Donner T, Li D, Harlow JW, Allman MS, Cicak K, Sirois AJ, Whittaker JD, Lehnert KW, Simmonds RW (2011) Sideband cooling micromechanical motion to the quantum ground state. Nature 475:359–363.  https://doi.org/10.1038/nature10261 ADSCrossRefGoogle Scholar
  114. Tsang M, Caves CM (2010) Coherent quantum-noise cancellation for optomechanical sensors. Phys Rev Lett 105:123601.  https://doi.org/10.1103/PhysRevLett.105.123601 ADSCrossRefGoogle Scholar
  115. Tsang M, Wiseman HM, Caves CM (2011) Fundamental quantum limit to waveform estimation. Phys Rev Lett 106:090401.  https://doi.org/10.1103/PhysRevLett.106.090401 ADSCrossRefGoogle Scholar
  116. Vahlbruch H, Mehmet M, Danzmann K, Schnabel R (2016) Detection of 15 dB squeezed states of light and their application for the absolute calibration of photoelectric quantum efficiency. Phys Rev Lett 117:110801.  https://doi.org/10.1103/PhysRevLett.117.110801 ADSCrossRefGoogle Scholar
  117. Voronchev NV, Tarabrin SP, Danilishin SL (2015) Broadband detuned Sagnac interferometer for future generation gravitational wave astronomy. ArXiv e-prints arXiv:1503.01062
  118. Vyatchanin SP, Matsko AB (1996) Quantum variation scheme of measurement of force and compensation of back action in intereferometric meter of position. Sov Phys JETP 83:690–697ADSGoogle Scholar
  119. Wade AR, McKenzie K, Chen Y, Shaddock DA, Chow JH, McClelland DE (2012) Polarization speed meter for gravitational-wave detection. Phys Rev D 86:062001.  https://doi.org/10.1103/PhysRevD.86.062001 ADSCrossRefGoogle Scholar
  120. Walls DF, Milburn GJ (eds) (2008) Quantum optics. Springer, Berlin.  https://doi.org/10.1007/978-3-540-28574-8 CrossRefzbMATHGoogle Scholar
  121. Wang M, Bond C, Brown D, Brückner F, Carbone L, Palmer R, Freise A (2013) Realistic polarizing Sagnac topology with DC readout for the Einstein Telescope. Phys Rev D 87:096008.  https://doi.org/10.1103/PhysRevD.87.096008 ADSCrossRefGoogle Scholar
  122. Westphal T, Friedrich D, Kaufer H, Yamamoto K, Goßler S, Müller-Ebhardt H, Danilishin SL, Khalili FY, Danzmann K, Schnabel R (2012) Interferometer readout noise below the standard quantum limit of a membrane. Phys Rev A 85:063806.  https://doi.org/10.1103/PhysRevA.85.063806. arXiv:1111.7236 ADSCrossRefGoogle Scholar
  123. Wicht A, Danzmann K, Fleischhauer M, Scully M, Müller G, Rinkleff R (1997) White-light cavities, atomic phase coherence, and gravitational wave detectors. Opt Commun 134:431.  https://doi.org/10.1016/S0030-4018(96)00579-2 ADSCrossRefGoogle Scholar
  124. Wimmer MH, Steinmeyer D, Hammerer K, Heurs M (2014) Coherent cancellation of backaction noise in optomechanical force measurements. Phys Rev A 89:053836.  https://doi.org/10.1103/PhysRevA.89.053836 ADSCrossRefGoogle Scholar
  125. Zhang T, Danilishin SL, Steinlechner S, Barr BW, Bell AS, Dupej P, Gräf C, Hennig JS, Houston EA, Huttner SH, Leavey SS, Pascucci D, Sorazu B, Spencer A, Wright J, Strain KA, Hild S (2017) Effects of static and dynamic higher-order optical modes in balanced homodyne readout for future gravitational waves detectors. Phys Rev D 95:062001.  https://doi.org/10.1103/PhysRevD.95.062001 ADSCrossRefGoogle Scholar
  126. Zhang T, Knyazev E, Steinlechner S, Khalili FY, Barr BW, Bell AS, Dupej P, Briggs J, Gräf C, Callaghan J, Hennig JS, Houston EA, Huttner SH, Leavey SS, Pascucci D, Sorazu B, Spencer A, Wright J, Strain KA, Hild S, Danilishin SL (2018) Quantum noise cancellation in asymmetric speed metres with balanced homodyne readout. New J Phys 20:103040.  https://doi.org/10.1088/1367-2630/aae86e. arXiv:1806.05488 ADSCrossRefGoogle Scholar
  127. Zhou M, Zhou Z, Shahriar SM (2015) Quantum noise limits in white-light-cavity-enhanced gravitational wave detectors. Phys Rev D 92:082002.  https://doi.org/10.1103/PhysRevD.92.082002 ADSCrossRefGoogle Scholar

Copyright information

© The Author(s) 2019

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors and Affiliations

  1. 1.Institut für Theoretische PhysikLeibniz Universität Hannover and Max-Planck-Institut für Gravitationsphysik (Albert-Einstein-Institut)HannoverGermany
  2. 2.Faculty of PhysicsM.V. Lomonosov Moscow State UniversityMoscowRussia
  3. 3.Russian Quantum CenterSkolkovoRussia
  4. 4.School of Physics and Astronomy and Institute of Gravitational Wave AstronomyUniversity of BirminghamBirminghamUK

Personalised recommendations
