Introduction

The synthesis of colloidal gold via citrate reduction was first introduced by Turkevich et al. in 1951 [1], and was later refined by Frens in the 1970s [2, 3]. This citrate reduction method is also reviewed in Hayat’s book on colloidal gold, along with the other well-known techniques for preparing gold nanoparticles of different sizes (using reducing agents such as white phosphorus, sodium borohydride, ascorbic acid) [4]. The citrate reduction process involves hot gold chloride and sodium citrate as reactants. In this reaction, the citrate molecules act as both reducing and stabilizing agents, allowing for the formation of the colloidal gold [5]. The synthesis process typically creates gold nanoparticles (GNPs) in the 10–150-nm size range with two major disadvantages: this technique produces very dilute GNP solutions ([Au3+] ≤ 0.25 mM) [6] and the size distribution broadens with increase in particle size, leading to polydisperse GNPs for sizes over 50 nm.

Gold nanoparticles display a variety of properties [7] and have important applications as diverse as cosmetics [8], electronics [9], therapeutics [1012], imaging [13, 14], drug delivery [15, 16], and pollution remediation [17, 18]. The mentioned applications often call for monodisperse nanoparticles of a particular size in large quantities and/or at high concentrations [19, 20]. Therefore, it is important to understand how changes in the synthesis conditions can affect the nanoparticle characteristics.

Variations of the Turkevich–Frens method have been investigated in the past years. Ji et al. [5] have demonstrated that molar ratios of citrate to gold(III) salt (Ct/Au) higher than 3:1 raise the pH of the reaction mixture (pH > 6.5), a condition that favors the formation of monodisperse GNPs. They also have observed that the diameter of the obtained GNPs levels off at very high citrate to gold(III) molar ratios (Ct/Au ≥ 14:1) [5]. Puntes group [21] and Sivaraman et al. [22] have shown that if the sequence of the addition of citrate and gold chloride is reversed, the GNPs formed are smaller and narrower in size distribution. Moreover, gold salt concentrations much higher than 0.25 mM have been studied by other groups. Kimling et al. [6] have noticed a significant increase in size (as well as in polydispersity) of the GNPs obtained from gold salt solutions with concentrations higher than 0.8 mM and Ct/Au ratios < 2. Li et al. [23] have reported the formation of concentrated GNP solutions ([Au3+] = 2.5 mM) with narrower size distributions by adjusting the pH and temperature of the reaction mixtures. Along with the decrease in polydispersity, a decrease of the diameter of the formed GNPs has also been observed [23].

Herein, by expanding the conditions of the Turkevich–Frens synthesis, we report a systematic study regarding the evolution of both size and size distribution of the GNPs formed, when the concentration of initial gold salt solutions and their respective citrate/gold(III) ratios are increased. To examine these trends, GNP solutions have been made under different starting conditions: a series of seven gold salt concentrations (ranging from 0.3 to 2 mM) have been investigated, and Ct/Au molar ratios from 2:1 to 18:1 have been studied. The sizes and polydispersity indices (PDI) of resulting gold nanoparticles have been measured via dynamic light scattering (DLS) spectroscopy and analyzed to assess for trends in the particle sizes and size distributions. The concentration of the starting gold solution is found to have a significant effect on the size and PDI of the formed nanoparticles. Simulations have also been performed in order to better understand these observations.

Experimental

Materials/chemicals

Tetrachloroauric acid monohydrate (HAuCl4∙H2O, 99.9 % assay) and trisodium citrate dihydrate (99.9 % assay) were purchased from Electron Microscopy Services (Fort Washington, PA). These chemicals were used without further purification. The TEM carbon-coated 200-mesh copper grids were also purchased from Electron Microscopy Services. All glassware used for GNPs syntheses was cleaned with freshly prepared aqua regia solution (three parts HCl, one part HNO3) and rinsed with Milli-Q water (18 MΩ cm resistivity). The same ultrapure water was used in the preparation of GNP solution and other aqueous solutions.

Gold nanoparticle synthesis

The GNP solutions were synthesized using a modified Frens method [5]. First, a gold salt stock solution was prepared using the entire content of a commercial vial with an average of 0.1 g of chloroauric acid. The content of the vial was accurately weighed and dissolved in 10.0 mL of pure water (Millipore Milli-Q). Next, a 5 % citrate aqueous stock solution (0.17 M) was prepared using trisodium citrate. The accurate molarities of the gold salt and sodium citrate solutions were calculated. An accurately measured quantity of the gold salt solution (calculated based on the desired concentration of gold) was then transferred to a 100-mL volumetric flask with a micropipette (Gilson). The concentration of gold chloride solution was varied from 0.3 to 2 mM. All 100 mL of the chloroauric acid solution was then transferred to a three-neck round bottom flask equipped with a stir bar. Next, a micropipette was used to accurately transfer a portion of the 5 % (0.17 M) sodium citrate solution (that was calculated from the desired molar ratio of sodium citrate to gold salt) to a separate vial. The molar ratios of citrate to gold(III) ranged from 2:1 to 18:1. The vial was then set aside for later use. The three-neck round bottom flask containing both the gold salt solution and a stir bar was equipped with a condenser and placed in a hot oil bath. The stirring speed was increased until a vortex was noticed. When the reflux started, the citrate solution from the vial was quickly poured into the round bottom flask. Then, the reaction was allowed to run for no less than 20 min, but no more than 30 min. In other words, the reaction was allowed to run until a deep ruby red color was observed; otherwise, the reaction was stopped after 30 min. The reaction was observed to go to completion by one of two visual pathways: the gold chloride solution went either (1) from yellow to black to ruby (for low Ct/Au ratios) or (2) from yellow to pale pink to ruby (for high Ct/Au ratios). The hue and intensity of the final ruby color of the particle solution depended on the initial gold salt concentration and on the Ct/Au ratio.

DLS measurements

Samples from the obtained GNP solutions were analyzed by DLS spectroscopy to quantify the average hydrodynamic diameter (Zave) and PDI. DLS measurements were performed with a Malvern Zetasizer Nano ZS (Malvern, Southborough, MA) equipped with a 633-nm He–Ne laser and operating at an angle of 173°. The software used to collect and analyze the data was the Dispersion Technology Software version 5.02 from Malvern. The GNP solutions were stored securely in a hood. These stored solutions have been monitored by DLS over a period of up to 3 months, with an average of four DLS measurements for each stored solution. All the DLS measurements have been then averaged for each individual GNP solution, and the resulting Zave and PDI have been recorded.

Model

The model used for predictions of the GNPs sizes was the model of Kumar et al. [24], taking into consideration the role of coagulation during the synthesis of citrate-stabilized GNPs. For the lower range of [Au3+] studied here (0.3 to 0.6 mM), the original model (published in 2007) was first used to obtain predictions. Then, in order to better correlate with the experimental data, the expression of the surface potential in the original model was modified by changing the prefactor in this expression: the value 90 was replaced by 95 and 100, respectively and two new sets of predictions were obtained for the GNPs sizes.

Results and discussion

To date, the previous studies on the formation of GNPs based on the Turkevich–Frens method have mostly involved lower initial concentrations of gold salts (≤0.25 mM). The use of higher concentrations of gold salts has received little attention and their effect on the size of the formed GNPs has not been systematically investigated. Herein, we report the study on the formation of GNPs, starting with a series of gold salt concentrations ranging from 0.3 to 2 mM and using Ct/Au molar ratios ranging from 2:1 to 18:1 for each of these concentrations. DLS spectroscopy has been used to measure the hydrodynamic diameter (HD) and the PDI of each prepared GNP solution.

Effect of the initial gold salt concentration on the GNP size distribution

Figures 1 and 2 present the trends of the PDI of the obtained GNPs with respect to the Ct/Au ratio for different concentrations of gold salt. In the case of starting gold chloride solutions of 0.3 and 0.6 mM, the PDI of the formed GNPs decreases as Ct/Au is increased from 2:1 to 4:1 and remains low (between 0.02 and 0.1) for higher Ct/Au ratios (up to 17:1) (Fig. 1). However, the 0.8 mM gold salt solutions lead to GNPs with increasing PDI for Ct/Au ratios higher than 13:1 (Fig. 1). Also, when using more concentrated gold chloride solutions (up to 2 mM), the resulting GNPs present a low PDI for a range of citrate/gold(III) ratios that shrinks as the concentration of gold salt increases (Fig. 2). For instance, the 0.8 mM gold chloride solution forms monodisperse GNPs (PDI < 0.1) [25, 26] for a range of Ct/Au ratios from 4:1 to 13:1, whereas only a very narrow range of Ct/Au ratios (5:1 to 6:1) produces monodisperse GNPs when starting with 2.0 mM gold chloride solutions (Table 1). From these data, we can conclude that, depending on the starting concentration of gold salt, a wider or narrower range of Ct/Au ratios allows for the formation of monodisperse GNPs. This way, by choosing the appropriate Ct/Au ratios, it is possible to generate concentrated solutions of monodisperse GNPs. Also, it can be noted that an initial gold chloride concentration of 0.6 mM results in the formation of the most monodisperse GNPs (with PDIs down to 0.03) for the widest range of citrate/gold(III) ratios (from 3.5:1 and up) (Table 1).

Fig. 1
figure 1

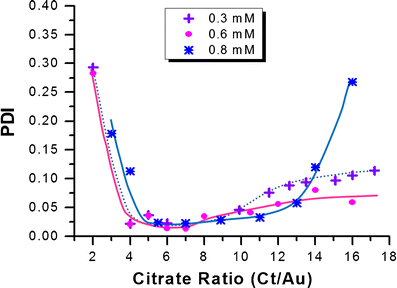

GNP polydispersity vs citrate ratio for gold chloride concentrations ≤ 0.8 mM. The lines are guides for the eye

Fig. 2
figure 2

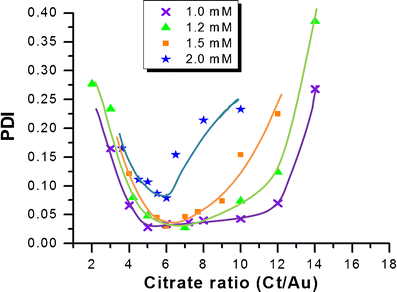

GNP polydispersity vs citrate ratio for gold chloride concentrations > 0.8 mM. The lines are guides for the eye

Table 1 Ranges of Ct/Au ratios that can be used to form monodisperse GNPs at different [Au3+]

Effect of the initial gold salt concentration on the GNP diameter

When varying the initial gold chloride concentration, we find that the size evolution of the formed GNPs follows different trends (as a function of the Ct/Au ratios) for gold salt concentrations in the range below 0.8 mM (Fig. 3) and in the range above 0.8 mM (Fig. 4).

Fig. 3
figure 3

GNP size vs citrate ratio for gold chloride concentrations ≤ 0.8 mM. The lines are guides for the eye

Fig. 4
figure 4

GNP size vs citrate ratio for gold chloride concentrations > 0.8 mM. The lines are guides for the eye

The GNPs synthesized from 0.3 and 0.6 mM gold salt solutions display large hydrodynamic diameters (HD was around 32 and 27 nm, respectively) when a Ct/Au ratio of 2:1 is used (Fig. 3). The GNPs then rapidly decrease in size and reach a minimum diameter for Ct/Au ratios of 4:1 and 5:1, for 0.3 and 0.6 mM gold salt solution, respectively, and slowly increase back in size for higher ratios of citrate to gold, finally leveling off at high Ct/Au ratios (>14:1). A similar behavior of the size evolution as a function of Ct/Au ratio has already been reported by Ji et al. for gold chloride solutions of 0.25 mM [5]. Although the evolution of the GNP sizes follows similar trends for 0.3 and 0.6 mM gold salt solutions, the GNPs obtained from 0.6 mM gold salt solutions present smaller diameters than when using 0.3 mM gold salt solutions, for the same Ct/Au ratios. This size difference is even more pronounced when reaching the plateau at higher Ct/Au ratios. For instance, the HD trend of GNPs prepared from 0.3 mM gold salt solutions levels off at diameters of around 26 nm, while it levels off at diameters of around 18 nm when starting with 0.6 mM gold chloride solutions. Likewise, 0.3 mM gold salt solutions lead to GNPs with sizes reaching a plateau of around 26 nm, which is lower than the plateau reported for GNPs from 0.25 mM gold chloride solutions (HD > 30 nm, Peng’s data [5]). These results indicate that, for the gold salt concentration range below 0.8 mM, higher concentrations of gold salt lead to a plateau with smaller GNP sizes. The size plateaus at large Ct/Au ratios for low [Au+3] because, for low gold salt concentrations (below 0.8 mM), the total electrolyte concentration is still low enough at high Ct/Au ratios, so that there is no occurrence of coagulation which would lead to size increase. Also, for [Au3+] < 0.8 mM, the pH has a major effect on the GNP formation (vide supra), and Ji et al. [5] have shown that the stabilization of pH at high Ct/Au ratios is associated to the plateau observed at these same ratios.

The size evolution found for GNPs prepared from 0.8 mM gold salt solutions is intermediate between the trends observed with 0.3 and 0.6 mM gold(III) solutions and the trends displayed with Au3+ solutions of 1 mM and over. Indeed, 0.8 mM gold salt solutions form smaller GNPs than with those of 0.6 mM but only for 4 < Ct/Au ratio < 13. Also, the minimum size is reached for a Ct/Au ratio of around 5:1–6:1, then increases very slowly until Ct/Au ratios of around 11:1, as it was going to reach a plateau, but instead a sudden increase in HD is observed for Ct/Au ratios > 13:1 (Fig. 3).

Figure 4 displays the HD of the GNPs formed from 1–2 mM gold chloride solutions as a function of the Ct/Au ratios used. Similar to the case of lower [Au3+], the sizes of GNPs formed from 1–2 mM gold salt solutions first decrease as the Ct/Au ratio is increased, reaching a minimum size at a ratio of around 6:1. However, the diameter range of the GNPs produced from gold salt solutions of 1 mM up to 2 mM does not level off at high Ct/Au ratios, but instead shows a continuous increase (Fig. 4). Furthermore, the plot slopes of the decrease and then the increase in the GNP size (as Ct/Au ratio increases) are becoming steeper as the concentrations of gold chloride increases, leading to larger GNPs from concentrated gold salt solutions at Ct/Au ratios of 4:1 or 10:1. Also, the minimum HD obtained from 1, 1.2, and 1.5 mM HAuCl4 solutions remained around 13.5–14 nm (as well as from 0.8 mM HAuCl4), but it slightly increases to about 15 nm when 2 mM gold salt solution is used.

In order to assess the reproducibility of the size trends observed when varying Ct/Au ratios, we used initial gold salt solutions of 1.5 mM as a representative example. We performed three gold nanoparticles syntheses in triplicates, using Ct/Au ratios of 4:1, 6:1, and 10:1. The resulting sizes were plotted in Figure S1 of the Electronic supplementary material (ESM), along with their respective error bars. Good reproducibility was obtained, even at this high gold salt concentration. Although the presence of few aggregates could be detected by DLS for some of the experiments, filtration with 0.22 μm filters eliminated any trace of aggregation.

To help visualize the difference in the GNP sizes obtained using same Ct/Au ratios but different gold(III) concentrations, Figs. 5 and 6 present the HD of GNPs formed using different Ct/Au ratios as a function of [Au3+]. As shown in Fig. 5, when the Ct/Au ratio is increased from 2:1 up to 5:1, a general decrease of the GNP size is observed across the range of gold chloride concentrations studied here (except at 0.3 mM HAuCl4, for which GNP sizes start increasing back for a Ct/Au ratio of 5:1, since the minimum size is observed for a ratio of 4:1 at this concentration). For further increase of the Ct/Au ratio from 6:1 to 14:1, the GNP size increases back for most of the concentrations, although this increase is minimal for gold concentrations below 0.8 mM (Fig. 6).

Fig. 5
figure 5

GNP size vs gold(III) concentration for 2 ≤ Ct/Au < 6. The lines are guides for the eye

Fig. 6
figure 6

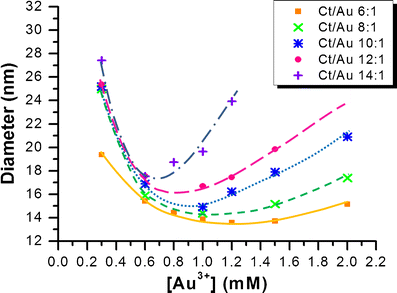

GNP size vs gold(III) concentration for Ct/Au ≥ 6. The lines are guides for the eye

On the other hand, for the same Ct/Au ratio, different initial gold chloride concentrations give GNPs of different sizes (Figs. 5 and 6). For instance, for a Ct/Au ratio of 10:1, 0.3 mM gold salt solutions produce GNPs of around 25 nm, while the sizes of GNPs formed with 0.6, 1.2, and 2 mM HAuCl4 solutions are about 17, 16, and 20 nm, respectively. These results correlate to some of the data reported by Kimling et al. [6] in which they find that gold salt concentrations above 0.8 mM lead to a size increase of the formed GNPs (in their case, when using Ct/Au ratios mostly up to 2:1). We also observe this tendency of size increase at higher Ct/Au ratios when the gold salt concentrations increase over 0.8 mM, but this increase in GNP size is minimal at Ct/Au ratios around 6:1 and is enhanced as the Ct/Au ratios move away from 6:1.

Effect of pH

The pH of the reacting mixture (gold salt + citrate) has an important role in the formation of the gold nanoparticles, as discovered by Ji et al. [5]. They reported that initial solutions with different Ct/Au ratios displayed different pH values, which affected the reaction mechanism of the nanoparticles formation. It was found that pH ≥ 6.5 led to more monodisperse gold nanoparticles through a reaction mechanism which did not involve aggregates as intermediates (unlike those found in Frens’ method). These studies were done with [Au3+] = 0.25 mM using Ct/Au ratios of 0.7:1 to 28:1, corresponding to a pH range of 3.7 to 7.7, respectively. By comparison, our studies were performed with Ct/Au ratios of 2:1 to 14:1 which corresponds to a pH range of 4.1 to 6.8, respectively (different concentrations led to small variations in pH, Table S10 of the ESM). Our results with [Au3+] = 0.3 mM (Fig. 3) show a comparable size trend vs Ct/Au than observed by Ji et al. [5] (i.e., size decrease followed by size increase and level off). This similarity is expected since the gold(III) concentration of 0.3 mM is very close to Ji et al. conditions (0.25 mM) [5]. The size trend we obtained for [Au3+] = 0.6 mM also presents a size decrease followed by a size increase (Fig. 3), but the increase is minimal and the size quickly levels off at high Ct/Au ratios. With regards to the polydispersity, the low PDI values that we observe at high Ct/Au ratios (i.e., high pH) for [Au3+] = 0.3 and 0.6 mM (Fig. 1) are in accordance with the findings of Ji et al. [5], which showed that higher pH (>6.5) led to more monodisperse nanoparticles. However, the GNPs that we obtained for gold(III) concentrations over 0.6 mM did not display anymore low PDI at high Ct/Au ratios (Figs. 1 and 2), even though the pH of the solutions at these high ratios were over 6.5 (Table S10 of the ESM). This seems to indicate that, at high gold(III) concentrations and high Ct/Au ratios, the total electrolyte concentration counterbalances the effect of the pH and favors agglomeration. Further studies are needed to investigate this hypothesis.

Modeling

The model of Kumar et al. [24] was used to predict the sizes of GNPs obtained from initial gold chloride solutions of 0.3 to 2 mM, respectively. One should note that the complex nature of the GNP synthesis process, as brought out in the recent experimental findings [24], including those of the present work, and poor quantitative understanding of electrical interactions at high electrolyte concentration brings limitations to the model. In view of these complexities, the model is used only to obtain a physical insight into the synthetic process for the expanded set of experimental conditions. When the original model is used with no further modifications, only the predicted sizes of GNPs from 0.3 mM initial gold(III) solutions show some qualitative agreement with the experimental data, although displaying a lower asymptotic behavior than in the experimental trend observed. In order to better predict the sizes of GNPs from initial [Au3+] > 0.3 mM, the expression of the surface potential in the original model was altered. Indeed, Zukoski’s data [27] have shown that when citrate concentrations are increased, the measured electrophoretic mobilities suggest larger zeta potentials.

As shown in Fig. 7, an increase in zeta potential (with respect to the original value) by 11 % in the model of Kumar et al. [24] leads to an improvement in the predictions of the GNP sizes. Indeed, the residuals (Fig. S2 of the ESM) are overall smaller for the predictions using a zeta potential increase of 11 % than for the ones using a zeta potential increase of only 5.5 %, especially in the case of [Au3+] = 0.6 and 0.8 mM. The small differences of 2 to 5 nm can actually be explained by the fact that the model predicts core sizes of the GNPs while the experimental data correspond to HDs, which are always few nanometers larger than the core size. For the 0.6 mM data set, both the slow increase in size at high Ct/Au ratio and the smaller diameters (compared to the 0.3 mM data set) are well captured. The increase in size of GNPs from 0.8 mM over the ones from 0.6 mM at high Ct/Au ratios is also correctly predicted. The predictions for GNP sizes from 0.3 mM initial [Au3+] could not be improved by modifying the surface potential: this can be explained by the fact that, at this low electrolyte concentration, particles are stabilized against coagulation through double layer repulsion and an increase in zeta potential does not promote further stabilization.

Fig. 7
figure 7

Comparisons of experimental data and simulations for the sizes of GNPs from 0.3, 0.6, and 0.8 mM initial [Au3+]. a Predictions obtained using the model of Kumar et al. [24] without modifications; b Predictions obtained using the model of Kumar et al. [24] in which the zeta potential was increased by 11 % for GNPs from 0.6 and 0.8 mM [Au3+]; c Experimental data. The lines are guides for the eye

Figure 8 shows a comparison of model predictions (for surface potential increased by 11 %) with the experimental data for initial [Au3+] ranging from 1 to 2 mM. The figure shows that the model accurately describes the trends found experimentally: the slope of the data set increases as the initial [Au3+] increases, and all the trends display a minimum approximately around the same Ct/Au ratio. The minimum size of GNPs from 2 mM gold(III) solutions being larger than the minima observed for GNPs from 1, 1.2, and 1.5 mM gold salt solutions is also well captured. The large differences in predicted sizes vs experimental data at high Ct/Au ratios are attributed to the limitations of the model at high electrolyte concentration. Briefly, in our model, the calculation of stability factor for DLVO theory at high electrolyte concentration and in presence of a host of ionic species in the system is based on a semi-empirical approach validated for the low concentrations used in the original Turkevich protocol. The model is therefore used here to qualitatively understand the experimental observations made in the present work under expanded set of experimental conditions.

Fig. 8
figure 8

Comparisons of experimental data and simulations for the sizes of GNPs from 1, 1.2, 1.5, and 2 mM initial [Au3+]. a Predictions obtained using the model of Kumar et al. [24] in which the zeta potential was increased by 11 % for all initial [Au3+]; b Experimental data. The lines are guides for the eye

Relationship between the evolution of GNP sizes and their respective PDI

Interestingly, for each initial concentration of gold chloride solution, the evolution of the GNP diameter as a function of Ct/Au ratio follows a similar trend as to the evolution of its PDI. Consequently, for gold(III) solutions below 0.8 mM, the largest monodisperse GNPs (PDI < 0.1) [25, 26, 28] have a polydispersity curve that reaches a plateau at high Ct/Au ratios. For instance, the largest HD that can be obtained from 0.3 and 0.6 mM gold(III) solutions in a monodisperse manner are about 27 and 18 nm, respectively. However, for initial HAuCl4 concentrations above 0.8 mM, the increase in the particle size at higher Ct/Au ratios is associated with an increase in PDI. When drawing an imaginary line at PDI of 0.1 in Fig. 2, the PDI curve is intercepted twice for a given initial gold(III) concentration: the corresponding values of Ct/Au ratios can be used in Fig. 4 to determine the maximum monodisperse sizes from this concentration. The increase in PDI at higher gold salt concentrations and higher Ct/Au ratios is most probably due to the increase in ionic strength which contributes to a higher propensity of the nanoparticles for agglomeration.

The sizes and size distributions of GNPs were also measured by TEM to verify the trends observed by DLS. Samples of GNPs with initial gold(III) concentrations of 0.3, 0.6, 1.2, and 2 mM were selected. For each of these concentrations, TEM images were taken for Ct/Au ratios of 4:1, 6:1, and 10:1. The mean sizes and size distributions were measured for each of the 12 samples (Fig. 9) and compared with the values observed by DLS. As expected, the diameters measured by TEM were consistently smaller than the HD measured by DLS (in solution). However, the general trends in sizes and size distributions found from the TEM data correlated well with those observed by DLS. For instance, samples with Ct/Au ratios of 6:1 gave the narrowest standard deviations for gold(III) concentrations of 0.3 and 0.6 mM (6.8 and 7.4 %, respectively). Also, a larger mean size was measured for GNPs from 0.3 mM gold salt solutions (15.4 nm) than for GNPs from 0.6 mM gold salt solutions (12.0 nm). Furthermore, the GNPs from 2 mM gold salt solutions and Ct/Au ratio of 10:1 showed the largest standard deviation (24.7 %) out of all the samples studied by TEM, which matches with the highest PDI observed by DLS for this sample.

Fig. 9
figure 9

TEM images of GNPs obtained from starting [Au3+] of 0.3, 0.6, 1.2, and 2 mM and using Ct/Au ratios of 4:1, 6:1, and 10:1. The scale bars represent 20 nm

Conclusion

By extending the conditions of the Turkevich–Frens method, it has been found that two groups of gold chloride concentrations present two different behaviors as a function of the Ct/Au ratios. Gold salt solutions below 0.8 mM lead to the formation of highly monodisperse GNPs for Ct/Au ratio over 4:1. The size of the formed GNPs presents a minimum at Ct/Au ratios around 4:1–5:1 and saturates at high ratios (>10:1). However, gold salt solutions over 0.8 mM lead to the formation of monodisperse GNPs (PDI < 0.1) [25, 26, 28] only for a certain range of Ct/Au ratios, which becomes narrower as the concentration of gold(III) increases. Also, the size of these GNPs presents a minimum at specific Ct/Au ratios, but increases unboundedly at high ratios, accompanied by an increase of the corresponding PDI. It can be concluded that the increase in ionic strength induced by the high concentration of gold salt has a significant impact on both the size and size distribution of the formed GNPs, especially for HAuCl4 solutions over 0.8 mM. The model of Kumar et al. [24], initially tested against the experimental data obtained for the original Turkevich protocol using 0.3 mM initial gold chloride concentration, is tested for the expanded protocol conditions. The model captures the experimental observations for the expanded operational range (concentration ranging from 0.3 to 2.0 mM) quite well. The model also brings out the sensitive dependence of particle synthesis process to small variations in zeta potential of particles.
