Genome-wide association study to identify genomic regions influencing spontaneous fertility in maize haploids


Efficient production and use of doubled haploid lines can greatly accelerate genetic gains in maize breeding programs. One of the critical steps in standard doubled haploid line production is doubling the haploid genome using toxic and costly mitosis-inhibiting chemicals to achieve fertility in haploids. Alternatively, fertility may be spontaneously restored by natural chromosomal doubling, although generally at a rate too low for practical applications in most germplasm. This is the first large-scale genome-wise association study to analyze spontaneous chromosome doubling in haploids derived from tropical maize inbred lines. Induction crosses between tropicalized haploid inducers and 400 inbred lines were made, and the resulting haploid plants were assessed for haploid male fertility which refers to pollen production and haploid fertility which refers to seed production upon self-fertilization. A small number of genotypes were highly fertile and these fertility traits were highly heritable. Agronomic traits like plant height, ear height and tassel branch number were positively correlated with fertility traits. In contrast, haploid induction rate of the source germplasm and plant aspect were not correlated to fertility traits. Several genomic regions and candidate genes were identified that may control spontaneous fertility restoration. Overall, the study revealed the presence of large variation for both haploid male fertility and haploid fertility which can be potentially exploited for improving the efficiency of doubled haploid derivation in tropical maize germplasm.


Haploids have become very important in maize breeding as a source of completely homozygous inbred lines, referred to as doubled haploid (DH) lines. Use of DH lines in maize breeding increases the genetic gain by shortening the breeding cycle time, enables cost savings and increases the efficiency and precision of selection (Liu et al. 2016; Prasanna 2012; Xu et al. 2017). Haploids are generated in vivo in maize by pollinating the source germplasm with pollen from maternal haploid inducers (Chaikam 2012). The resulting seeds/seedlings are sorted based on various markers (Chaikam et al. 2016; Chase and Nanda 1965; Melchinger et al. 2014), and the selected haploid seed (D0 seed) is generally used in DH production. Due to misclassification or inhibition of markers used for classification of induction cross seed, the resulting D0 seed usually includes false positive (hybrid) seed, which are later removed in the DH nursery based on their phenotype (Mahuku 2012; Prigge and Melchinger 2012). The true haploids in the DH nursery may be chimeras containing homozygous diploid cells but are still referred to as haploids because of predominance of haploid cells and tissues. DH lines are produced by self-pollinating the fertile haploid plants (Chaikam and Mahuku 2012; Prigge and Melchinger 2012).

In general, haploid plants are expected to be completely sterile as meiotic cell divisions cannot proceed normally in the haploid sporocytes, resulting in non-formation of the male and female gametophytes and gametic cells (Chaikam and Mahuku 2012). Maize breeding programs generally rely on artificial chromosome doubling protocols involving mitotic inhibitor chemicals for achieving fertility in haploid plants (Chaikam and Mahuku 2012; Prigge and Melchinger 2012). In the literature, haploid fertility (HF) generally refers to production of at least one seed from a haploid plant upon self-fertilization (Kleiber et al. 2012). HF comprises haploid male fertility (HMF) and haploid female fertility (HFF) (Ren et al. 2017). The objective of artificial chromosomal doubling protocols is to achieve genome duplication in the shoot apical meristem that gives rise to male and female inflorescences, thereby restoring the fertility in haploid plants. Most of the current genome doubling protocols are based on the antimitotic chemical colchicine (Chaikam and Mahuku 2012; Chalyk 2000; Gayen et al. 1994; Liu et al. 2016; Prigge and Melchinger 2012) which disrupts normal function of the mitotic spindle by binding to the microtubule subunit protein tubulin and preventing microtubule polymerization (Sackett and Varma 1993; Taylor 1965). This temporarily arrests the cells in metaphase, delays the centromere division and migration of sister chromatids to opposite poles, which brings all chromosomes into the same nuclei after centromere division, and ultimately leads to a cell with duplicated chromosomes (Levan 1938). The effect of colchicine on the spindle is reversible; therefore, whenever the colchicine effect is reduced or nil, normal mitosis will continue in the cells (Levan 1938).

Colchicine, even though a very effective chromosomal doubling agent, is toxic to humans (Finkelstein et al. 2010). In addition, colchicine is also hazardous to the environment, and hence needs to be disposed properly after use (Melchinger et al. 2016). Colchicine is an expensive chemical, and the establishment of facilities for large-scale germination of haploid seeds, treatment of haploid seedlings with colchicine, recovery of D0 seedlings, colchicine waste storage and disposal, further increase the expenses. In addition, artificial chromosome doubling involves several labor-intensive steps such as germination, chromosomal doubling treatment and transplanting of haploids. Moreover, there is a risk of losing considerable proportion of haploids after colchicine treatment. Recently, research has been undertaken for developing chromosome doubling protocols based on less toxic mitotic herbicides (Melchinger et al. 2016) and nitrous oxide gas (Kato and Geiger 2002; Molenaar et al. 2018). However, these less toxic alternatives still need suitable facilities and labor requirements, similar to colchicine treatment.

A possible alternative for artificial chromosomal doubling in haploid plants is to rely on spontaneous chromosome doubling, where both the male and female reproductive organs produce fertile gametes without application of any artificial chromosomal doubling agents. Studies have indicated that some haploids naturally exhibit a certain degree of HMF and HFF and this fertility was ascribed to sectors of cells in reproductive organs with spontaneously doubled chromosomes (Chase 1949; Ma et al. 2018). Since a high proportion of untreated haploid plants (~ 97–100%) showed seed set on ears that were pollinated with pollen from normal diploid plants (Chalyk 1994; Geiger et al. 2006), it is believed that HFF is not a limitation for production of DH lines. However, these studies also indicated that most haploid plants are male sterile (Chalyk 1994; Geiger et al. 2006). Hence, HMF is generally considered as a limiting factor in production of DH lines (Chalyk 1994; Kleiber et al. 2012; Ren et al. 2017; Wu et al. 2017). Recent studies based on broader germplasm and large number of haploid plants indicated that HMF is genotype dependent (Geiger and Schönleben 2011; Kleiber et al. 2012; Ma et al. 2018; Wu et al. 2017). HMF is also higher under favorable conditions like greenhouses (Kleiber et al. 2012) and can vary greatly from few anthers producing pollen to complete tassel fertility. However, on average, the rate of spontaneous HF is about 20-fold less than HF due to artificial doubling. Furthermore, spontaneously doubled haploid plants produce less seed than artificially doubled haploid plants (Kleiber et al. 2012).

Considering the challenges in artificial chromosomal doubling, improved natural HF can enhance the efficiency of DH lines production with significant reduction in costs involved in germination, seedling care, chromosomal doubling and transplanting. Hence, identifying genotypes with high spontaneous genome duplication rates in elite germplasm, and identifying the genomic regions contributing favorably to HMF and HF is important in maize breeding programs.

A recent study on HMF indicated that it is controlled by two or more major genes with additive effects (Wu et al. 2017). Using bi-parental mapping populations constituting parents with low and high HMF, four quantitative trait loci (QTL) affecting the HMF were identified and a major QTL was fine-mapped (Ren et al. 2017). However, there were no publications so far on the genetic architecture of HF. The objectives of this study are to (1) investigate the available genetic variation for HMF and HF in a large set of elite tropical maize breeding lines, (2) identify the elite tropical inbred lines with high rates of natural HMF and HF, and (3) to identify the genomic regions influencing HMF and HF using GWAS.

Materials and methods

Genetic materials and haploid induction

A panel of 400 inbred lines were used in this study to generate haploid seeds and to study spontaneous haploid fertility. This panel included 188 CIMMYT inbred lines that were part of the Drought Tolerant Maize for Africa (DTMA) association mapping panel, and the rest were CIMMYT Maize Lines (CMLs) adapted to tropics/subtropics across Latin America, sub-Saharan Africa and Asia. Haploid induction and evaluation of haploid fertility traits were carried out in 2 years. Haploid induction crosses were produced at Agua Fria experimental station in Mexico (20.26°N, 97.38°W; ~ 110 m elevation). Inbred lines were grown in two replications with each plot consisting of two rows of 4.5 m with 19 plants/row. Two tropicalized haploid inducers, TAIL8 and TAIL9 were used as a pollen parents for haploid induction crosses (Chaikam et al. 2016). Haploid inducers were stagger-planted four times at a five-day interval to make enough pollen available for the inbreds from different maturity groups. All plants from the source germplasm (inbred lines) were pollinated with bulked pollen from the inducers. Ears from each of the induced inbred lines were harvested at physiological maturity.

Experimental design and trait assessment

Seeds from induction crosses were planted in two years at CIMMYT’s Agua Fria experimental station to identify haploids and to assess the fertility traits. Even though the haploid inducers used in this study are equipped with R1-nj marker for haploid seed identification, it was not used for separation of haploid and diploid seeds, as the expression of the Navajo phenotype conditioned by R1-nj could be potentially inhibited in a significant proportion of tropical inbreds (Chaikam et al. 2015). All the seeds lines resulting from the induction crosses were evaluated in replicated trials in an alpha-lattice design and for both the inducers 15% of the entries were common. Field was prepared into beds spaced at 75 cm and separated by furrows. Unsorted seeds from induction crosses were planted in two rows at both sides of the bed with 10 cm of inter-row space. For each entry, a minimum of 1000 seeds resulting from the induction cross were used for planting. Three to four weeks after planting, each survived plant was assessed for plant vigor, leaf erectness, and paleness of leaves to differentiate haploids from the diploids. Haploid plants typically show poor vigor, erect leaves and pale leaves compared to the diploids (Chaikam et al. 2016; Melchinger et al. 2013) (Supplementary Fig S1). From the total number of survived plants, the number of haploids and number of diploids were recorded for each entry. All the diploid plants were removed from the field and the surviving haploid plants were grown under good agronomic management. Any plant, whose ploidy could not be definitively established at this stage was left in the field till anthesis, by which stage the plant characteristics becomes more obvious to differentiate haploids from diploids. We have also recorded other agronomic traits like plant height, ear height, and number of tassel branches as an average of 10 haploid plants for each entry in each replication, as described earlier by Chaikam et al. (2016). Plant aspect was visually scored on a scale of 1–5 where score 1 indicates uniform plants with agronomically desirable traits, while score 5 indicates non-uniform plants with agronomically non-desirable traits.

The ear of each haploid plant was covered with a shoot bag before the emergence of silks. HMF was assessed based on anther emergence and pollen shedding. At anthesis stage, each haploid plant was visually assessed for anther emergence. Tassels with emerged anthers were bagged with white wax coated glassine bags early in the morning. Two to three hours later, the tassels were shaken, and pollen was collected into glassine bags. Presence of pollen in the glassine bags was visually assessed. Plants with extruded anthers and visible pollen grains were self-pollinated thrice on three consecutive days. All the pollinated ears were harvested manually and assessed visually for seed set. None of the ears harvested showed R1-nj marker expression indicating that the ears were derived from true haploids. The number of haploid plants with seeds was counted for each entry in each replication.

Phenotypic data analysis

The inbreds with more than 25 haploids per replication was included for further data analysis. This reduced the final number of inbreds used in the analysis to 315. Haploid induction rate (HIR) was calculated as the proportion of total number of haploids in the total number of survived plants and expressed in percentage. Non-germinated seed and seedlings/plants that died before evaluation of ploidy status were not considered in HIR determination. HMF was calculated as a proportion of the total number of pollen-producing haploid plants from the total number of haploid plants per plot and expressed in percentage. HF was calculated by dividing the total number of seed-producing haploids from the total number of haploid plants per plot and expressed in percentage. Analyses of phenotypic data revealed normality in the distribution of residuals for all traits except for HMF and HF, where data was skewed more towards zero. Therefore, HMF and HF data were transformed by applying a logit-transformation.

Analysis of variance for each trait was carried out using the PROC MIXED procedure with restricted maximum likelihood (REML) option in SAS 9.2 (SAS Institute 2010). Variance components across environments were determined by following linear mixed model:

$$ {\text{Y}}_{\text{ijko}} =\upmu + {\text{G}}_{\text{i}} + {\text{E}}_{\text{j}} + {\text{GE}}_{\text{ij}} + {\text{I}}_{\text{k}} + {\text{r}}_{\text{l}} + {\text{b}}_{\text{ol}} + {\text{e}}_{\text{ijklo}} , $$

where Yijklo is the observed phenotype in the jth environment at lth replication of the oth incomplete block for the haploid from the cross of the ith genotype with the kth inducer. μ is an intercept term, rl is the effect of the lth replication, bol is the effect of the oth incomplete block in the lth replication, Gi is the genetic effect of the ith genotype, Ej is the effect of the jth environment, and eijklo is the experimental error. Firstly, the replication, inducer and genotype effects were taken as fixed and genotype x environment interactions (GxE) and incomplete block effect as random to obtain Best linear unbiased estimates (BLUEs) for each line. Secondly, the effects of genotype, GxE and incomplete blocks were treated as random to estimate their variances and the residual error variance (σ 2G , σ 2GxE , σ 2b , and σ 2e , respectively). Heritability (h2) for each trait was calculated as h2 = σ 2G /(σ 2G  + (σ 2GxE/E ) + (σ 2e /Exr)) where E and r refers to the number of environments and replications, respectively. Phenotypic correlations among traits were calculated using R (R Core Team 2018).

Genotyping and quality control

DNA of all inbred lines planted in the haploid induction nurseries was extracted from the leaf samples of 3–4 week-old seedlings using the standard CIMMYT laboratory protocol (CIMMYT 2001). Genotyping was carried out using the Genotyping-by-Sequencing (GBS) platform (Elshire et al. 2011) at the Institute for Genomic Diversity, Cornell University, Ithaca, USA following the procedure described by Elshire et al. (2011). Briefly, genomic DNA was digested with the restriction enzyme ApeKI. GBS libraries were constructed in 96-plex and sequenced on Illumina HiSeq 2000 (Elshire et al. 2011). Single nucleotide polymorphism (SNP) calling was performed using the TASSEL (Trait Analysis by aSSociation Evolution and Linkage) GBS Pipeline, and a GBS 2.7 TOPM (tags on physical map) file was used to anchor reads to the Maize B73 RefGen_v2 reference genome (Glaubitz et al. 2014). For quality screening, SNPs which were either monomorphic, had a call rate < 0.09, heterozygosity of > 0.05, or had a minor allele frequency (MAF) of < 0.05 were discarded from the analysis. After these quality checks, 214,520 high quality SNPs were retained for GWAS. For principal component analysis (PCA) and kinship matrix, high quality SNPs MAF ≥ 0.05 were used, whereas for analysis of linkage disequilibrium (LD) between adjacent markers, SNPs were filtered for MAF ≥ 0.30.

PCA, Kinship and LD analysis

Two-dimensional plot of the first two principal components (PC) was drawn to visualize the possible population stratification among the inbred lines. A kinship matrix was also computed from identity-by-state (IBS) distances matrix (as executed in TASSEL). The extent of genome-wide LD was based on pairwise r2 values between adjacent SNPs among the high-quality SNPs and physical distances between these SNPs (Remington et al. 2001). Genome-wide LD across 36,158 SNPs was investigated. Nonlinear models with r2 as dependent variable and physical distances as independent variable were fitted into the genome-wide and chromosome-wise LD data using the ‘nlin’ function in R (R core team 2014). Average pairwise distances in which LD decayed at r2 = 0.2; r2 = 0.1 values were then calculated based on the model given by Remington et al. (2001).


GWAS was conducted by regressing BLUEs of inbred lines on marker genotypes by using mixed linear model (MLM) (Yu et al. 2006) which accounts for population structure and kinship, in TASSEL (Bradbury et al. 2007), version 5.2.24. As population structure can result in spurious associations, it was considered by using the first five PCs which together contributed > 14% of the total variation. A vector of random effects with covariance structure given by the kinship matrix was used to account for the degree of relatedness. The MLM was run with the optimum level of compression. Genome-wide scans for marker–trait associations were conducted to detect main-effect QTL. The genome-wide threshold for marker-trait associations was set at P < 0.05 using the Bonferroni-Holm procedure (Zhang et al. 2010). The 50 bp source sequences of the significantly associated SNPs were used to perform BLAST searches against the ‘B73’ RefGen_v2 ( Within the local LD block including associated SNPs, the filtered genes in MaizeGDB ( containing directly or adjacent to each associated SNP were considered as possible candidate genes for HMF and/or HF.

Genomic prediction (GP) was performed by Ridge Regression-Best Linear Unbiased Prediction (rrBLUP) employing the R package ‘rrBLUP’ with five-fold cross-validation (Endelman 2011). From the GBS data, a sub-set of 4580 SNPs distributed uniformly across genome, with no missing values, and minor allele frequency > 0.05 were used for GP in the present panel. The prediction accuracy was estimated as the correlation coefficient between genomic estimated breeding values (GEBVs) and the observed phenotypes divided by the square root of the heritability (Dekkers 2007). The sampling of training and validation sets was repeated 100 times.


Analyses of phenotypic data revealed normality in the distribution of residuals for all agronomic traits except for HMF and HF, where data was skewed more towards zero. Therefore, HMF and HF data were transformed by applying a logit-transformation. After the estimation of variance components and BLUEs, the BLUEs data were back transformed and used for further analyses. HMF and HF were assessed in a final set of 315 inbred lines which revealed large genetic variation for both traits (Table 1 and Supplementary Fig S2). Across all the lines, HMF was averaged at 15.65% and ranged from 0.61 to 77.6%, whereas HF ranged from 0.40 to 70.01% with a mean of 5.55%. ANOVA revealed significant genotypic and GxE variances for HMF, whereas only genotypic variances were significant for HF. Heritabilities were high for both HMF and HF. In addition, all the agronomic traits measured on haploids also showed significant genotypic variances with high heritability. Among the 315 lines evaluated for HMF and HF, 11 lines with > 50% HMF and > 10% HF were identified as promising sources for spontaneous haploid fertility (Table 2). The line DTMA-159 showed the highest HMF (77%) and HF (70%), followed by DTMA-59 which showed 63.9% HMF and 53.6% HF (Table 2).

Table 1 Mean, range, and components of variance for haploid male fertility and related traits for maize inbred line association mapping panel
Table 2 List of maize inbred lines with high levels of spontaneous haploid male fertility (HMF) and haploid fertility (HF)

HMF was significantly correlated with plant height, ear height and number of tassel branches (Table 3). However, plant aspect showed no significant correlation with HMF. As expected, HMF was significantly correlated with HF. Like HMF, HF was significantly correlated with plant height, ear height and number of tassel branches, but no significant correlation was observed with plant aspect. Both HMF and HF were not significantly correlated with HIR of the inbred lines. Plant aspect is significantly and negatively correlated with tassel branches, plant height, and ear height. Number of tassel branches is significantly correlated with both plant height and ear height.

Table 3 Genetic correlations among different traits evaluated in the panel

A total of 955,690 SNP markers were obtained from the GBS platform. SNPs were initially filtered to remove SNPs with missing rate > 10%, SNPs with minor allele frequency (MAF) < 5% and heterogeneity > 5%, resulting in 214,520 markers used for GWAS analyses, these genotypic data are available in CIMMYT’s data repository: Per chromosome, the average marker heterogeneity was approximately 0.037, the proportion of missing values was close to 0.05, and the minor allele frequency (MAF) was around 0.21, respectively (Supplementary Fig S3).

The genome-wide LD decay was plotted as LD (r2) between adjacent pairs of markers versus distance in kb which showed that average LD decay was 27.31 kb at r2 = 0.1 at and 9.48 kb at r2 = 0.2 for the panel (Fig. 1A). PCA using 214,521 SNPs (MAF ≥ 0.05) revealed moderate population structure in the association panel. The first three PCs explained about 10% of the total variance. PC1 and PC2 explained 5.2% and 3.1% of variation (Fig. 1B) and partially separated the tropical/sub-tropical lines.

Fig. 1
figure 1

A Linkage disequilibrium (LD) plot representing the average genome-wide LD decay in the panel with genome-wide markers. The values on the Y-axis represents the squared correlation coefficient r2 and the X-axis represents the physical distance in kilobase (kb). B Principal components plot illustrating the population structure based on the first two principal components

Fig. 2
figure 2

Manhattan plots based on the association scans for HMF and HF. The red horizontal line indicates the significance threshold. Quantile–quantile plots based on observed versus expected − log10(P values) are shown. (Color figure online)

Genome-wide association mapping results for both HMF and HF are presented in Tables 4 and 5 and in Manhattan plots (Fig. 2). Quantile–quantile plots of P values comparing the uniform distribution of the expected − log10 p value to the observed − log10 p value for HMF and HF traits are shown in Fig. 2. For HMF, we detected eight significant markers–trait associations (Table 4). These significantly associated SNPs individually explained 12 to 15% of the total phenotypic variance and together explained 34% of the total phenotypic variance for HMF. Among these eight significantly associated SNPs, S10_136007575 and S10_118961684 on chromosome 10 appear to be the most important SNPs for HMF. For HF, a set of 11 significant SNPs distributed across six different chromosomes were identified which individually explained 10 to 14% of the total phenotypic variance (Table 5). S5_15547005 and S5_15547052 on chromosome 5 and S3_189463573 on chromosome 3 were found to be the most significantly associated SNPs for HF. Comparison of the significant SNPs for the two traits revealed one consistent genomic region on chromosome 3, at around 189 Mb. We used the B73 maize genome reference sequence to identify putative candidate genes based on the SNPs significant association with HMF and HF (Tables 4, 5). From the AM panel, a set of putative candidate genes were identified; based on their functions, these can be grouped as cell development and transcription regulation related genes. Comparison of a set of 20 lines with the highest HMF (> 45%) and HF (> 15%) against the same number of lines, which had low HMF and HF in the panel, revealed a pattern of increase in the favorable allele for the selected HMF and HF-associated SNPs. Genome-wide prediction with five-fold cross validation was applied on the BLUEs of HMF and HF within association mapping panel. For HMF, the prediction accuracy was 0.53, whereas for HF prediction accuracy was 0.37 (Fig. 3).

Table 4 Physical positions of SNPs significantly associated with HMF, and the predicted function or homology of candidate genes
Table 5 Physical positions of SNPs significantly associated with HF, and the predicted function or homology of candidate genes
Fig. 3
figure 3

Genome-wide prediction for HMF and HF within association mapping panel based on five-fold cross-validation


Variation for HMF and HF in tropical/subtropical inbred lines

Efficiency of maize in DH line production process can be greatly enhanced and the cost of DH line production may be reduced substantially if spontaneous HMF and HF could be increased and introduced into a wide array of breeding germplasm. However, there were very few systematic studies that identified germplasm with high spontaneous HMF and HF for potential use in tropical maize breeding programs. Studying HMF and HF in a large number of germplasm entries is cumbersome as several resource-intensive steps are involved, including haploid induction in a broad-based germplasm, accurate identification of sufficient number of haploids, and large field trials to assess HMF and HF. The present study is the first systematic study of HMF and HF in tropical maize germplasm, including identification of promising sources for HF, and genomic regions influencing the trait.

This study revealed that maternal haploids from ~ 75% of the tropical/subtropical inbred lines generally demonstrate poor spontaneous chromosome doubling, with less than 5% HF. Using artificial chromosomal doubling methods, it is common to achieve overall HF rates > 10% (Melchinger et al. 2016). Reliance on spontaneous genome doubling for DH line production in germplasm with low HMF and HF warrants production and identification of a significantly larger number of haploids. In addition, large numbers of haploids must to be grown and monitored in comparison to artificial chromosome doubling protocols. This significantly increases the costs of DH line production from such germplasm, especially in locations where the cost of labor is high. Hence, it may not be currently pragmatic to depend on spontaneous chromosome doubling for DH line production in a substantial proportion of tropical/subtropical maize germplasm. Interestingly, in this study we found 11 promising inbred lines with > 50% HMF and > 10% HF which could be potentially used as sources for improving these traits. Three lines (DTMA-159, DTMA-59, and CML364) were found particularly promising, showing > 50% HMF and ~ 50% HF. The results corroborate previous observations that germplasm with high rates of spontaneous chromosome doubling exist in elite maize germplasm, and that it may not be necessary to look for high haploid fertility in poorly adapted genetic resources (Geiger and Schönleben 2011; Kleiber et al. 2012).

In addition, significant genetic variances and high heritabilities were observed for both HMF and HF in tropical/subtropical germplasm used in this study, similar to what was observed in temperate maize germplasm (Geiger and Schönleben 2011; Kleiber et al. 2012; Wu et al. 2017). Genotype x environment interaction variance was significant for HMF indicating the role of non-additive genetic effects in the expression of HMF. Similar significant environment effects were also reported for HMF (Ma et al. 2018). Higher heritabilities indicate the amenability of these traits for improvement in breeding germplasm (Geiger and Schönleben 2011; Kleiber et al. 2012). Previous studies showed that HMF could be increased significantly with recurrent selection in temperate maize germplasm (Cai et al. 2017; Zabirova et al. 1993). Hence, the inbred lines with high HMF and HF identified in this study could be further improved and can be used as trait donors for introgression into other elite germplasm, thereby reducing reliance on artificial chromosome doubling and increasing the efficiency of DH line development in maize breeding programs.

This study also revealed significant correlations between haploid fertility traits with other agronomic traits. Significantly positive correlations were observed for fertility traits with plant height, ear height and number of tassel branches. A previous study using haploids from tropical maize landraces, OPVs and single crosses also reported significant correlations between plant height, ear height and HF (Kleiber et al. 2012). It was also observed that fertility in haploids derived from elite lines was higher compared to non-elite lines, and elite maize crosses compared to landraces (Kleiber et al. 2012). Together, these observations indicate that genotypes with vigorous haploids may have higher potential for spontaneous chromosome duplication. HMF and HF are tightly correlated as HMF is critical for HF. HIR is not correlated with haploid fertility and is most likely governed by independent set of genes, as was also indicated in previous studies (Barret et al. 2008; Ma et al. 2018; Prigge et al. 2012; Ren et al. 2017).

Genetic architecture of HMF and HF

The genetic architecture of HMF has been reported in two biparental population-based QTL studies and one on testcross population-based GWAS (Ma et al. 2018; Ren et al. 2017; Yang et al. 2019). Studies using biparental populations focused particularly on temperate germplasm whereas the recent association mapping study based on large number of diverse lines, including both tropical and temperate germplasm, revealed some consistent genomic regions for HMF (Ma et al. 2018). In this study we evaluated HMF and HF on haploids produced from tropical/subtropical inbred lines.

For HMF, the most significant association found on chromosome 10 (SNP S10_118961684) was consistent with earlier GWAS study on testcross populations (Ma et al. 2018). Yang et al. (2019) reported qHMF3c in a biparental population and Ren et al. (2017) observed qhmf2 on bin 3.06 which are in consistent with the two SNPs S3_189360457 and S3_189360457 identified in the current study. These consistently identified genomic regions on chromosomes 3 and 10 are potential sources for favorable alleles of HMF. Additional significant markers identified in this study on chromosome 1, 3, 4, 5, and 10 seem to be novel and were not found in the previous QTL or association mapping studies. Overall, HMF is a complex trait controlled by a few major effect QTL (Ren et al. 2017; Yang et al. 2019) and many minor effect QTL. A few QTL detected in this study are consistent across genetic backgrounds and a few are specific to the current study can be used as potential sources for improving HMF in diverse breeding materials by rapid-cycle recurrent selection particularly for consistent major effect QTL.

The full potential of spontaneous chromosome doubling will be realized only when the germplasm with high HMF also results in high HF. Hence it is also important to understand the genetic architecture of HF. This is the first study in temperate or tropical maize germplasm reporting the genetic architecture of HF. Marker S5_15547005 on chromosome 5 was most significantly associated SNP with HF, explaining 12% of phenotypic variation. Comparison of QTL for HMF and HF revealed colocations of QTL from previous studies (Ma et al. 2018; Ren et al. 2017; Yang et al. 2019). Significant SNP on chromosome 1 (S1_281591014) was co-located with previously reported HMF QTL qhmf1 which positioned between 286 and 296 Mb (Ren et al. 2017). The position of the significant marker S1_281591014 was also within the interval of the QTL flanked by umc1222 and bnlg1007 SSRs reported for HMF by Yang et al. (2019).

The QTL qhmf2 reported by Ren et al. (2017) ranged between 136 and 198 Mb on chromosome 3. We found one significant marker S3_189463573 for HF in the same region and this region was also reported by association studies as an important genomic region for HMF (Ma et al. 2018). Another QTL qhmf4 is reported on chromosome 6 which is also fine mapped to 800 kb region (Ren et al. 2017). Even though we were not able to find any markers in this region for HMF, we found two SNPs for HF (S6_142099026 and S6_164263295) overlapping with the genomic region which supports the relevance of these markers for HMF and for HF. This high correlation between HMF and HF (r = 0.77, P < 0.01) and high co-localization of QTL for HF and HMF warrants further research to understand whether both traits are controlled by same genes or different genes and their interactions which pave the way for developing lines improved for both HMF and HF. Overall, HF is a complex polygenic trait governed by many moderate effect QTL.

GWAS revealed a set of putative candidate genes identified on chromosome 1, 3, 4, 5 and 10 for HMF; these were primarily involved in cell development or cell-to-cell transport (Table 4). One of the genes (GRMZM2G478417) is annotated as being involved in pollen mother cell meiosis and may play a role on the restoration of HMF. Another SNP (S4_223079313) present within the gene (GRMZM2G041530) is involved in GDSL-like lipase/acylhydrolase activity which has a role in seed development. For HF, three significant SNPs were found in the gene GRMZM2G094535 located at 150 Mbp in chromosome 2, but at present the gene function is unknown. Further, two SNPs at 15 Mbp in chromosome 5 are within the gene GRMZM2G112149 which is associated with 5-methyltetrahydropteroyltriglutamate-homocysteine S-methyltransferase activity. We failed to link the function of this gene with HF but it has a putative role in drought tolerance (Wang et al. 2016).

Genomic predictions revealed moderate accuracy for HMF and HF which supported their quantitative nature. Compared to HMF, HF seems to be more complex as it showed lower prediction accuracy. This lower prediction accuracy is also possibly due to missing of all favorable alleles for HF in most of the lines in the present panel, as evident by > 40% of lines in the panel showing < 1% of HF. Interestingly, for both the traits, we found only 2 to 3% of the lines carrying most of the favorable alleles. The most significant markers which are also consistent with previous studies could act as potential sources for introgression into other elite lines lacking the trait.

Probable mechanism of spontaneous genome doubling and restoration of fertility in maize haploids

Even though mechanisms of spontaneous chromosomal doubling are not yet fully understood, similar mechanisms may be responsible for both artificial and spontaneous chromosomal doubling. Meiotic restitution is one of the mechanisms that can result in incomplete meiotic cell division, thereby leading to unreduced male gametes (Adams and Wendel 2005; Liu et al. 2018; Mason and Pires 2015). In maize haploids, Shamina and Shatskaya (2011) reported two different mechanisms for meiotic restitution in pollen mother cells. One mechanism involves spindle deformation leading to asymmetric incomplete cytokinesis, and the second mechanism results from inability to form the daughter cell membranes resulting in a cell with two nuclei. Gayen and Sarkar (1995, 1996) observed extensive cytomixis in colchicine-treated maize haploids, where intercellular migration of nuclei happened, and cells formed into two to six cell clusters. In such haploids with extensive cytomixis, 15- to 20-fold higher pollen fertility was observed. It is possible that cytomixis can happen during restoration of natural fertility in haploids. The mechanism(s) behind spontaneous chromosomal doubling needs to be further explored.


Artificial chromosomal doubling protocols requires significant financial resources for establishing and operating facilities for germination, recovery of seedlings, chemical treatments and waste disposal. In addition, all these steps demand significant human resources. These challenges limit the adoption of DH technology by small maize breeding programs especially in the developing world. Enhancing the natural fertility of haploids in breeding germplasm will make direct planting of haploids in the fields using planting equipment possible, resulting in great reductions in resources required for the chromosomal doubling process. In addition, higher levels of fertility in haploids allows phenotypic and molecular marker-based selection approaches to be implemented at the haploid stage.


  • Adams KL, Wendel JF (2005) Polyploidy and genome evolution in plants. Curr Opin Plant Biol 8:135–141.

    CAS  Article  PubMed  Google Scholar

  • Barret P, Brinkmann M, Beckert M (2008) A major locus expressed in the male gametophyte with incomplete penetrance is responsible for in situ gynogenesis in maize. Theor Appl Genet 117:581–594.

    CAS  Article  PubMed  Google Scholar

  • Bradbury PJ, Zhang Z, Kroon DE, Casstevens TM, Ramdoss Y, Buckler ES (2007) TASSEL: software for association mapping of complex traits in diverse samples. Bioinformatics 23:2633–2635.

    CAS  Article  PubMed  Google Scholar

  • Cai Z, Xu G, Jun R, Dai Y, Yu M, Li S et al (2017) High spontaneous male-fertility-restorer frequency in a maize recurrent selection experiment. Maize Genet Coop News1 91:1–10

    Google Scholar

  • Chaikam V (2012) In vivo maternal haploid induction in maize. In: Prasanna BM, Chaikam V, Mahuku G (eds) Doubled haploid technology in maize breeding: theory and practice. CIMMYT, Mexico, D.F, pp 14–19

    Google Scholar

  • Chaikam V, Mahuku G (2012) Chromosome doubling of maternal haploids. In: Prasanna BM, Chaikam V, Mahuku G (eds) Doubled haploid technology in maize breeding: theory and practice. CIMMYT, Mexico, D.F, pp 24–29

    Google Scholar

  • Chaikam V, Nair SK, Babu R, Martinez L, Tejomurtula J, Boddupalli PM (2015) Analysis of effectiveness of R1-nj anthocyanin marker for in vivo haploid identification in maize and molecular markers for predicting the inhibition of R1-nj expression. Theor Appl Genet 128:159–171.

    CAS  Article  PubMed  Google Scholar

  • Chaikam V, Martinez L, Melchinger AE, Schipprack W, Boddupalli PM (2016) Development and validation of red root marker-based haploid inducers in maize. Crop Sci 56:1678–1688.

    CAS  Article  Google Scholar

  • Chalyk ST (1994) Properties of maternal haploid maize plants and potential application to maize breeding. Euphytica 79:13–18.

    Article  Google Scholar

  • Chalyk ST (2000) Obtaining fertile pollen in maize maternal haploids. Maize Genet Coop Newsl 74:17–18

    Google Scholar

  • Chase SS (1949) Spontaneous doubling of the chromosome complement in monoploid sporophytes of maize. Proc Iowa Acad Sci 56:113–115

    Google Scholar

  • Chase SS, Nanda DK (1965) Screening for monoploids of maize by use of a purple embryo marker. Maize Genet Coop News Lett 39:59–60

    Google Scholar

  • CIMMYT (2001) Laboratory protocols: CIMMYT applied molecular genetics laboratory protocols. CIMMYT, Mexico, D.F.

    Google Scholar

  • Dekkers JCM (2007) Prediction of response to marker-assisted and genomic selection using selection index theory. J Anim Breed Genet 124(6):331–341.

    CAS  Article  PubMed  Google Scholar

  • Elshire RJ, Glaubitz JC, Sun Q, Poland JA, Kawamoto K, Buckler ES et al (2011) A robust, simple genotyping-by-sequencing (GBS) approach for high diversity species. PLoS ONE 6:e19379.

    CAS  Article  PubMed  PubMed Central  Google Scholar

  • Endelman JB (2011) Ridge regression and other kernels for genomic selection with R package rrBLUP. Plant Genome 4:250–255

    Article  Google Scholar

  • Finkelstein Y, Aks SE, Hutson JR, Juurlink DN, Nguyen P, Dubnov-Raz G et al (2010) Colchicine poisoning: the dark side of an ancient drug. Clin Toxicol 48:407–414

    CAS  Article  Google Scholar

  • Gayen P, Sarkar KR (1995) Cytomixis in monoploids. Maize Genet Coop Newsl 69:107

    Google Scholar

  • Gayen P, Sarkar KR (1996) Cytomixis in maize haploids. Indian J Genet Plant Breed 56:79–85

    Google Scholar

  • Gayen P, Madan JK, Kumar R, Sarkar KR (1994) Chromosome doubling in haploids through colchicine. Maize Genet Coop Newsl 68:65

    Google Scholar

  • Geiger HH, Schönleben M (2011) Incidence of male fertility in haploid elite dent maize germplasm. Maize Genet Coop Newsl 85:22–32

    Google Scholar

  • Geiger HH, Braun MD, Gordillo GA, Koch S, Jesse J, Krutzfeldt BAE (2006) Variation for female fertility among haploid maize lines. Maize Genet Coop Newsl 80:28

    Google Scholar

  • Glaubitz JC, Casstevens TM, Lu F, Harriman J, Elshire RJ, Sun Q et al (2014) TASSEL-GBS: a high capacity genotyping by sequencing analysis pipeline. PLoS ONE 9:e90346

    Article  Google Scholar

  • Kato A, Geiger HH (2002) Chromosome doubling of haploid maize seedlings using nitrous oxide gas at the flower primordial stage. Plant Breed 121:370–377

    Article  Google Scholar

  • Kleiber D, Prigge V, Melchinger AE, Burkard F, San Vicente F, Palomino G et al (2012) Haploid fertility in temperate and tropical maize germplasm. Crop Sci 52:623–630

    Article  Google Scholar

  • Levan A (1938) The effect of colchicine on root mitoses in Allium. Hereditas 24:471–486

    Article  Google Scholar

  • Liu Z, Wang Y, Ren J, Mei M, Frei UK, Trampe B et al (2016) Maize doubled haploids. Plant Breed Rev 40:123–166

    Article  Google Scholar

  • Liu B, De Storme N, Geelen D (2018) Cold-induced male meiotic restitution in Arabidopsis thaliana is not mediated by GA-DELLA signalling. Front Plant Sci 9:91

    Article  Google Scholar

  • Ma H, Li G, Würschum T, Zhang Y, Zheng D, Yang X et al (2018) Genome-wide association study of haploid male fertility in maize (Zea mays L.). Front Plant Sci 9:974

    Article  Google Scholar

  • Mahuku G (2012) Putative DH seedlings: from the lab to the field. In: Prasanna BM, Chaikam V, Mahuku G (eds) Doubled haploid technology in maize breeding: theory and practice. CIMMYT, Mexico, D.F, pp 30–38

    Google Scholar

  • Mason AS, Pires JC (2015) Unreduced gametes: meiotic mishap or evolutionary mechanism? Trends Genet 31:5–10

    CAS  Article  Google Scholar

  • Melchinger AE, Schipprack W, Würschum T, Chen S, Technow F (2013) Rapid and accurate identification of in vivo-induced haploid seeds based on oil content in maize. Sci Rep 3:2129.

    Article  PubMed  PubMed Central  Google Scholar

  • Melchinger AE, Schipprack W, Friedrich UH, Mirdita V (2014) In vivo haploid induction in maize: identification of haploid seeds by their oil content. Crop Sci 54:1497–1504.

    Article  Google Scholar

  • Melchinger AE, Molenaar W, Mirdita V, Schipprack W (2016) Colchicine alternatives for chromosome doubling in maize haploids for doubled haploid production. Crop Sci 56:1–11

    Article  Google Scholar

  • Molenaar WS, Schipprack W, Melchinger AE (2018) Nitrous oxide-induced chromosome doubling of maize haploids. Crop Sci 58:650–659

    Article  Google Scholar

  • Prasanna BM (2012) Doubled Haploid technology in maize breeding:an overview. In: Prasanna BM, Chaikam V, Mahuku G (eds) Doubled haploid technology in maize breeding: theory and practice. CIMMYT, Mexico, D.F, pp 1–8

    Google Scholar

  • Prigge V, Melchinger AE (2012) Production of haploids and doubled haploids in maize. In: Loyola-Vargas VM, Ochoa-Alejo N (eds) Plant cell culture protocols. Springer, Dordrecht, pp 161–172

    Chapter  Google Scholar

  • Prigge V, Xu X, Li L, Babu R, Chen S, Atlin GN et al (2012) New insights into the genetics of in vivo induction of maternal haploids, the backbone of doubled haploid technology in maize. Genetics 190:781–793.

    CAS  Article  PubMed  PubMed Central  Google Scholar

  • R Core Team (2014) R: a language and environment for statistical computing. R Foundation for Statistical Computing, Austria

    Google Scholar

  • R Core Team (2018) R: a language and environment for statistical computing. R Foundation for Statistical Computing, Austria

    Google Scholar

  • Remington DL, Thornsberry JM, Matsuoka Y, Wilson LM, Whitt SR, Doebley J et al (2001) Structure of linkage disequilibrium and phenotypic associations in the maize genome. Proc Natl Acad Sci 98:11479–11484.

    CAS  Article  PubMed  Google Scholar

  • Ren J, Wu P, Tian X, Lübberstedt T, Chen S (2017) QTL mapping for haploid male fertility by a segregation distortion method and fine mapping of a key QTL qhmf4 in maize. Theor Appl Genet 130:1349–1359.

    CAS  Article  PubMed  Google Scholar

  • Sackett DL, Varma JK (1993) Molecular mechanism of colchicine action: induced local unfolding of beta.-tubulin. Biochemistry 32:13560–13565

    CAS  Article  Google Scholar

  • Shamina NV, Shatskaya OA (2011) Two novel meiotic restitution mechanisms in haploid maize (Zea mays L.). Russ J Gene 47:438

    CAS  Article  Google Scholar

  • Taylor EW (1965) The mechanism of colchicine inhibition of mitosis. J Cell Biol 25:145–160

    CAS  Article  Google Scholar

  • Wang X, Cai X, Xu C, Wang Q, Dai S (2016) Drought-responsive mechanisms in plant leaves revealed by proteomics. Int J Mol Sci 17:1706

    Article  Google Scholar

  • Wu P, Ren J, Tian X, Lübberstedt T, Li W, Li G et al (2017) New insights into the genetics of haploid male fertility in maize. Crop Sci 57:637–647.

    Article  Google Scholar

  • Xu Y, Li P, Zou C, Lu Y, Xie C, Zhang X et al (2017) Enhancing genetic gain in the era of molecular breeding. J Exp Bot 68:2641–2666.

    CAS  Article  PubMed  Google Scholar

  • Yang J, Qu Y, Chen Q, Tang J, Lübberstedt T et al (2019) Genetic dissection of haploid male fertility in maize (Zea mays L.). Plant Breed 138:258–265.

    CAS  Article  Google Scholar

  • Yu J, Pressoir G, Briggs WH, Bi IV, Yamasaki M, Doebley JF et al (2006) A unified mixed-model method for association mapping that accounts for multiple levels of relatedness. Nat Genet 38:203.

    CAS  Article  PubMed  Google Scholar

  • Zabirova ER, Shatskaya OA, Shcherbak VS (1993) Line 613/2 as a source of a high frequency of spontaneous diploidization in corn. Maize Genet Coop Newsl 67:67

    Google Scholar

  • Zhang Z, Ersoz E, Lai CQ, Todhunter RJ, Tiwari HK, Gore MA et al (2010) Mixed linear model approach adapted for genome-wide association studies. Nat Genet 42:355.

    CAS  Article  PubMed  PubMed Central  Google Scholar

Download references


The authors thank Raman Babu for supporting with the experimental design, Leocadio Martinez and Luis Antonio Lopez for assistance in supervising the field experiments and data collection, Hindu Vemuri for support with preparation of figures, Rafael Venado and Guadalupe Berber for the support with the sample collection and DNA extraction. The authors are also grateful to the CIMMYT germplasm bank for providing the seed of maize lines used in the study, and the CIMMYT molecular breeding team in Mexico for providing the seed of DTMA lines.


The work was supported by Bill and Melinda Gates foundation (BMGF) through the project “A Doubled Haploid Facility for Strengthening Maize Breeding Programs in Africa” (OPP1028335), and by BMGF and U.S. Agency for International Development (USAID) through the project “Stress tolerant Maize for Africa (STMA)” (OPP1134248). Additional support came from CGIAR Research Program on Maize (MAIZE), MasAgro-Maize project funded by the Secretariat of Agriculture, Livestock, Rural Development, Fisheries and Food (SAGARPA), Govt. of Mexico, and Limagrain. MAIZE receives W1&W2 support from the Governments of Australia, Belgium, Canada, China, France, India, Japan, Korea, Mexico, Netherlands, New Zealand, Norway, Sweden, Switzerland, U.K., U.S., and the World Bank.

Author information

Authors and Affiliations



VC and PMB designed the experiments. VC coordinated the field experiments and data collection. SKN coordinated the genotyping. MG and SKN analyzed the data. VC, MG and SKN wrote the manuscript. AEM and PMB edited the manuscript.

Corresponding author

Correspondence to Prasanna M. Boddupalli.

Ethics declarations

Conflict of interest

The authors declare that they have no conflict of interest

Ethical approval

The experiments comply with the current laws of the country in which they were performed.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Electronic supplementary material

Below is the link to the electronic supplementary material.

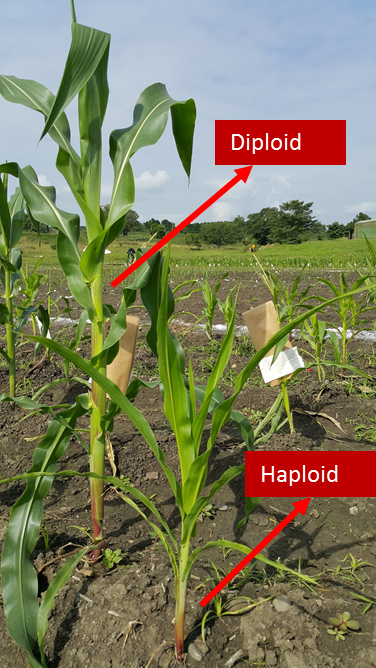

Haploid/diploid identification based on plant characteristics. Haploid and F1 plants (diploids) derived from the induction cross of the same inbred were shown at 28 days after planting (JPEG 336 kb)

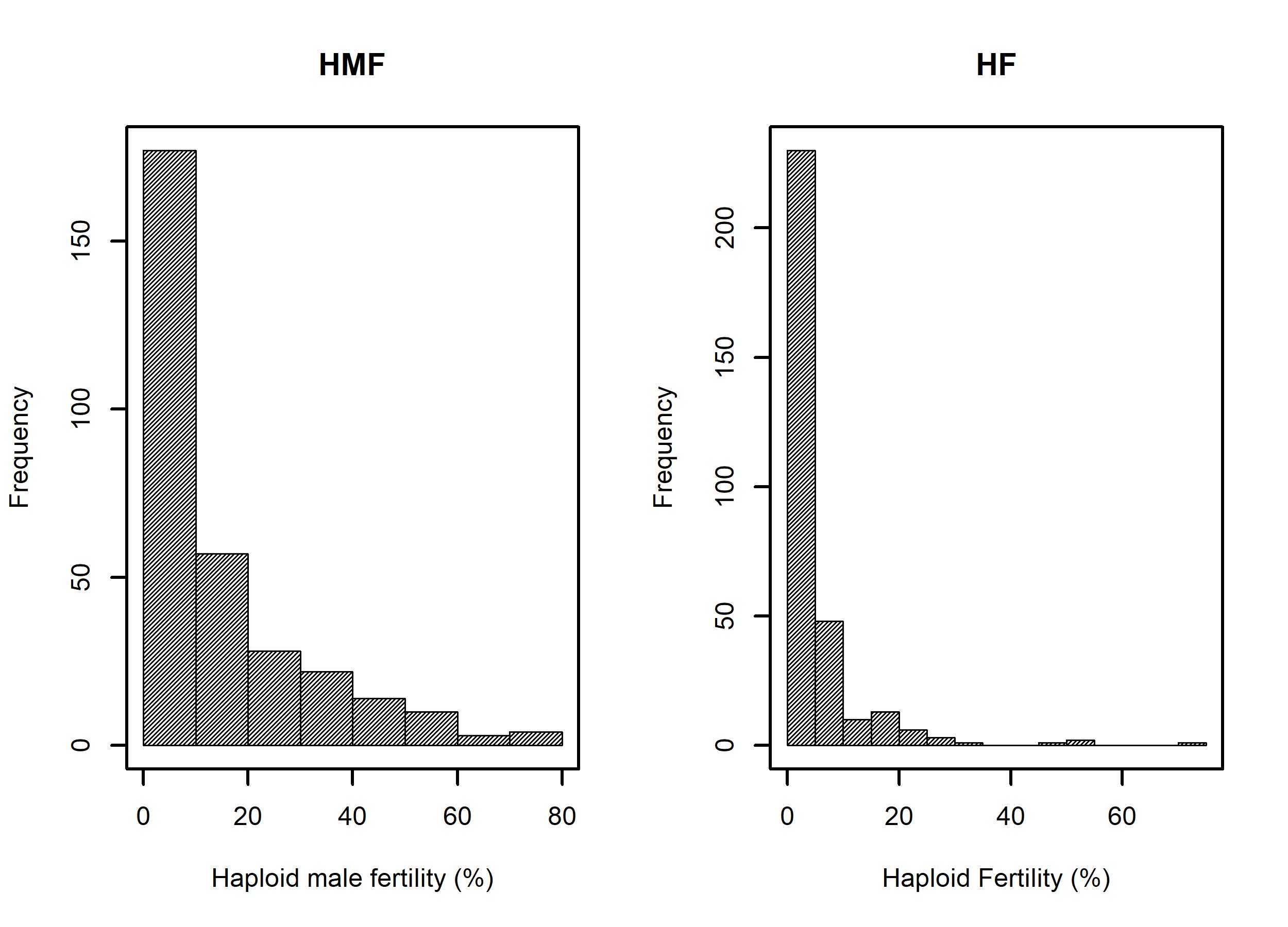

Distribution of phenotypic performance of tropical inbred lines in association panel for haploid male fertility and haploid fertility across environments (JPEG 316 kb)

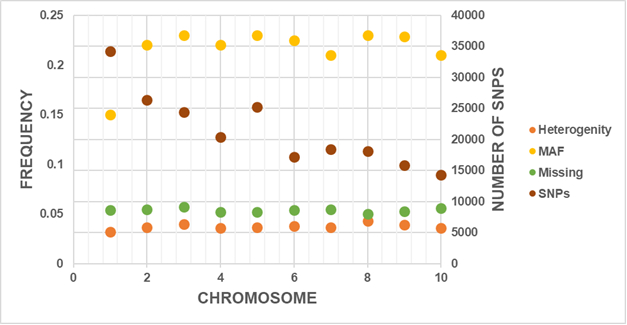

Summary of the heterogeneity, minor allele frequency (MAF) and proportion of missing SNPs of 214,520 selected SNPs. Chromosome assignments are indicated. The heterogeneity, MAF, and percentage of missing value are shown in left on y-axis, and the number of markers for each chromosome was shown in right on y-axis (JPEG 70 kb)
