The success of islet transplantation over the last decade suggests that diabetes can be cured by a replenishment of deficient beta cells [1, 2]. However, according to the transplantation protocol of Edmonton, the transplanted islets into each patient should be isolated from two to three pancreatic donors, exceeding ten thousand islet equivalent (IEQ)/kg [3]. As a result, a widespread use of islet transplantation is severely limited by the shortage of donor organs. Stem cells have the capacity of self-renewal and the potential of differentiating into various cell types, making them an ideal candidate to address this issue.

Although the possibility of generating insulin-producing cells routinely from both human embryo stem cells (ESC) and human induced pluripotent stem (iPS) cells is quite encouraging, significant challenges still remain [4]. Lumelsky [5] and Assady [6] found that islet-like cells could be generated in vitro by differentiation of ESC under conditions resembling those of physiological development for pancreatic beta cell development. However, insulin secretion by these cells was low and lacked a full response to glucose. Clinically, applying ESC-derived cells in treatment presents more challenges including the risk of cancer formation, functional deficiency of such cells and controversial ethical issues. Deriving insulin-releasing cells from iPS cells poses similar problems. Although several small molecules were able to efficiently induce iPS cells into insulin-producing cells, only about 10% of the cells became productive [7].

Human adult stem cells derived from various tissues were also explored for generating insulin-producing cells. Kadam et al. expanded mesenchymal stromal cells from human umbilical cord and placenta, and differentiated them into functional islets in vitro[8]. Chandra et al. [9] reported that islet-like cell aggregates derived from stem cells in human adipose tissue ameliorated experimental diabetes in mice. However, the extent of endocrine cell formation and insulin secretory function were insufficient to become clinically applicable [10].

It has been demonstrated that stem cells are available in pancreatic ducts and islets, with the capability of differentiating into pancreatic exocrine and endocrine cells [11, 12], and the number of pancreatic stem cells increased upon partial pancreatectomy or destructive immune response [13]. Thus, it is possible that pancreatic stem cells might be promoted to differentiate into functional islet endocrine cells under in vitro culture conditions [14].

It is known that pancreatic stem cells differentiating toward endocrine cells express pancreatic duodenal homeobox-1(PDX-1) and neurogenin 3. Bonner-Weir et al. [15] showed that human pancreatic duct cells could be expanded and differentiated into glucose responsive islet tissue in vitro given ITS (insulin, transferrin, selenium), nicotinamide and keratinocyte growth factor. Ramiya et al. [14] isolated murine pancreatic ductal epithelial cells into culture, and induced them into functional islets containing alpha, beta and delta cells. These resulting islets showed temporal changes in mRNA transcripts for islet cell-associated differentiation markers, responded to glucose challenge in vitro and reversed insulin-dependent diabetes after being implanted into non-obese diabetic mice.

While pancreatic stem cells isolated from adult pancreas have low proliferative capability [16], fetal pancreatic cells have shown stronger proliferative potential in vitro, even those obtained during the second or third trimester [17]. Moreover, human fetal pancreatic progenitor cells also have the capability of differentiating into insulin-producing cells in vitro[1820]. In the present study, we demonstrate that pancreatic stem cells isolated from human fetal pancreas have the capacity not only to expand and differentiate extensively into islet endocrine cell in vitro but also to correct high blood glucose efficiently in diabetic animals.


Isolation, purification and identification of human pancreatic progenitor cells

The present study was approved by the Clinical Research Ethics Committee of China-Japan Friendship Hospital and conducted according to the principles of the Declaration of Helsinki. Five human fetal pancreases at the 10th to 12th gestational week were obtained from abortion patients in China-Japan Friendship Hospital, in which one was a spontaneous abortion due to low progesterone level and the other four were intended abortions according to the mothers’ choice. All the tissues were obtained following medical ethics and all with patient informed consent.

Pancreas tissues at the 10th to 12th gestational week were confirmed to be abundant with islet-like structures which were CD133 positive but insulin negative by immunohistochemistry staining. The pancreatic tissues were digested with XI collagenase (Sigma, Shanghai, China), and the islet-like structures extracted were suspended in (D)MEM/F12 (Sigma) in a 35-mm cell culture dish. After slowly hand-shaking the dish, the islet-like structures would move to the middle of the dish and were picked up using a pipette under a stereomicroscope (Nikon, Beijing, China). The islet-like structures were resuspended and cultured in a 37°C, 5% CO2 incubator in (D)MEM/F12 medium containing 5% fetal calf serum for stem cell, 40 μg/L leukemia inhibitor factor (LIF), 10 μg/L basic fibroblast growth factor (bFGF), 10 μg/L epidermal growth factor (EGF), 105 U/L penicillin and 100 mg/L streptomycin [5] Adherent cells that grew from the islet-like structures after 24 hours were trypsinized for passage with 0.1% trypsin/0.1% ethylenediaminetetraacetic acid (EDTA) solution at confluence. The propagated cells were saved for further study. The control human islets were isolated from a section of pancreas after pancreatectomy from a patient with a pancreatic tumor, as previously described [21].

RT-PCR was employed to detect the following markers for proliferated stem cells: Oct4, ATP-binding cassette superfamily G member 2 (ABCG2), stem cell factor (SCF), CD133, carbonic anhydrase II (CAII), cytokeratin 19 (CK19), PDX-1 and neurogenin 3. The expression of PDX-1 and Neurogenin 3 (Ngn3) was also confirmed by immunofluorescence staining using goat anti-human PDX-1 antibody (Abcam, Cambridge, MA, USA) and rabbit anti-human Ngn3 antibody (Abcam). After two, five and ten passages, cells were collected to measure the expression levels of smooth muscle actin (SMA), vimentin, stem cell markers (Oct4, PDX-1 and CA II) and mature cell markers (insulin and glucagon) by real-time PCR.

Induced differentiation of human pancreatic progenitor cells

Human fetal pancreatic progenitor cells were induced in M199 medium containing 15% fetal bovine serum (FBS), 10 mmol/L nicotinamide, 30 ng/ml all-trans retinoic acid and 42 ng/ml glucagon-like peptide-1 (gift of Shanghai Huayi Bio-Lab Co. Ltd) for four weeks. The medium was replaced every three days and 50 ng/ml activin A was added to the medium in the last week. The flowchart of the differentiation protocol is as follow (Nico, nicotinamide; RA, all-trans retinoic acid):

Formation of islet-like structures

After four weeks of directed differentiation, the cells were harvested and aggregated in suspension culture under special conditions. In brief, the cells were resuspended in M199 containing 20% FBS, 1.5 mmol/L Ca2+, 1 mmol/L ATP, 2 mmol/L glutamine, 2 μg/ml laminin, 5 μg/ml Type IV collagen and 3 μg/ml fibronectin. The mixture was transferred to a nontreated flask or siliconized centrifugal tubes and placed into a 37°C, 5% CO2 incubator. Gentle agitation was applied every eight hours. After a 24-hour incubation, small cell aggregations formed and were harvested by centrifugation at 1,200 rpm for eight minutes. The morphology of islet-like structures was examined under a stereomicroscope.

Immunofluorescent staining

The islets differentiated from progenitor cells were selected manually, embedded in optimal cutting temperature (OCT) compound and prepared into frozen sections. The expressions of insulin and glucagon were examined and compared with adult islets as control. The frozen sections were then fixed for one minute with alcohol (95%), washed three times with PBS solution and blocked for 30 minutes at room temperature with 0.1% BSA/PBS. Then anti-insulin and anti-glucagon antibodies (Sigma) were incubated overnight, respectively, with the cells at 4°C. After the sections were rinsed three times with PBS solution, Alex488-labeled secondary antibody (Invitrogen Inc, Grand Island, NK, USA) was added and incubated with the cells for another 30 minutes. A fluorescent microscope was used to observe the results.

Transmission electron microscopy

Adult islets and differentiated cells were collected by centrifugation and washed with PBS, then fixed with 2.5% glutaraldehyde for 30 minutes at room temperature. Cells were washed, post-fixed, dehydrated and embedded with Epon 812 (Electron Microscopy Sciences, Beijing, China). The sections were examined under a JEM-1010 electron microscope (JEOL Inc, Tokyo, Japan). Five fields were examined for each sample.

Real-time PCR

Total RNA was extracted from cells 0, 3 and 4 weeks post differentiation and from islet-like structures 4 weeks post differentiation using a RNEasy Mini kit (Qiagen Inc, Hilden, Germany). A total of 1 μg RNA was used for reverse transcription using omniscript reverse transcriptase (Qiagen). Real-time PCR was performed on an Applied Biosystems instrument (ABI 7500 system), using SYBR Green PCR Master Mix (ABI Inc, Foster city, CA, USA) and 40 reaction cycles. Markers for pancreatic stem cells, endocrine, exocrine and mesenchymal cells were measured at different time points of expansion and differentiation At the end of each reaction, melting-curve analysis was performed to confirm the absence of primer dimers. The expression levels of genes of interest were normalized to the expression level of GAPDH. Data were analyzed using the 2- Δ Ct method. The pancreatic stem cell markers (CAII, PDX-1, Neurogenin 3; endocrine markers: insulin, glucagon, GLUT1, GLUT2 and VDCC), as well as exocrine markers (HES-1 and amylase) were evaluated during differentiation. The mesenchymal markers SMA and vimentin were evaluated during pancreatic stem cell expansion. The gene-specific primer sequences are shown in additional file (see Additional file 1).

Insulin release assay by ELISA

After pre-incubation with Krebs-Ringer buffer at 37°C for 90 minutes, the progenitor cell-derived islets (100 IEQs/ml) were incubated with Krebs-Ringer buffer containing 2.5 mM glucose or 25 mM glucose at 37°C for different durations. Conditioned medium was then collected, centrifuged and assayed for insulin content by an ELISA kit (Linco Inc, St Charles, MO, USA).

Animal experiments

Diabetic animal models

The animal study was approved by the Animal Ethics Committee of China-Japan Friendship Hospital. Twelve male nude BALB/c mice, four- to six-weeks-old, were purchased from Vital River Laboratories (quality certificate: SCXK (Beijing) 20060009)–. All animals were housed in the specific pathogen free (SPF) facility of the Institute of Clinical Research at our hospital. The diabetic model was induced in the mice by an intraperitoneal injection of streptozocin (200 mg/kg body weight; Sigma, St. Louis, MO, USA) freshly dissolved in citrate buffer (pH 4.5). Blood samples were taken from the tail vein of the animals under non-fasting conditions (8:00 A.M.; standard laboratory diet ad libitum overnight) and examined for blood sugar level using a glucometer (Onetouch®Ultra Easy™, Johnson & Johnson, Shanghai, China). Only animals exhibiting blood glucose concentrations >20 mM in three consecutive measurements were employed in the study. They were assigned randomly into a control group and a progenitor cell-derived islet group (n = 6 each).

Transplantation of differentiated islet-like structures

To evaluate the function of progenitor cell-derived islet-like structures, they were transplanted under the capsule of the left kidney of diabetic mice. Blood glucose was measured regularly after transplantation. When euglycemia was maintained for one week, the left kidney with transplants was excised surgically and examined by immunohistochemistry for human C-peptide and human mitochondrion antigen as described below. Blood glucose was monitored regularly after surgery.

Histological examination

In order to verify further the functionality of human pancreatic progenitor cell-derived beta cells in vivo, the animals were sacrificed at the end of experiment. Left murine kidneys were embedded in paraffin. Then murine kidneys were immunostained for human C-peptide (mouse anti-human C-peptide, Chemicon, Temecula, CA, USA) and human mitochondrion antigen (mouse anti-human mitochondrion, Millipore, Billerica, MA, USA) to confirm the survival and functionality of transplanted human islet-like structures.

Statistical analysis

The analysis was conducted with SPSS11.0 software and the data were expressed as mean ± SD. The t test was uesed for comparison between two groups and one way analysis of variance (ANOVA) for comparisons among multiple groups. P <0.05 and P <0.01 denoted statistical significance.


Isolation, purification and identification of pancreatic progenitor cells

Between 10 to 12 weeks post conception, the pancreas contained many tubular structures within a loose mesenchymal stroma. These tubular structures consisted of epithelial cells which were CD133 positive (Figure 1A) but insulin negative (Figure 1B), indicating progenitor cells. After digestion with XI collagenase, the mesenchymal tissue was destroyed and islet-like structures were harvested (Figure 1C). The progenitor-containing clusters adhered after 24 hours and the progenitor cells began expanding (Figure 1D). These cells exhibited monolayer growth and proliferated quickly in medium containing bFGF, EGF and LIF, and confluent cells were epithelial-like (Figure 1D).

Figure 1
figure 1

Isolation of progenitor cells from human fetal pancreatic tissue. (A and B) The histological feature of human fetal pancreas at the 11th gestational week was immunochemistry stained for CD133 (A) and insulin (B). (C) Islet-like structures isolated from human fetal pancreas. (D) Progenitor cells grew out from the islet-like structures after 24 hours of culture. The progenitor cells exhibited epithelial-like morphology.

The results of RT-PCR showed that human fetal pancreatic progenitor cells expressed stem cell markers (Oct4, ABCG2, SCF and CD133), pancreatic ductal cells markers (CAII and CK19) and pancreatic endocrine markers (PDX-1 and Ngn 3) (Figure 2A). Two important stem cell markers related to pancreatic development, PDX-1 and Ngn 3, were also verified by immunofluorescence staining (Figure 2B).

Figure 2
figure 2

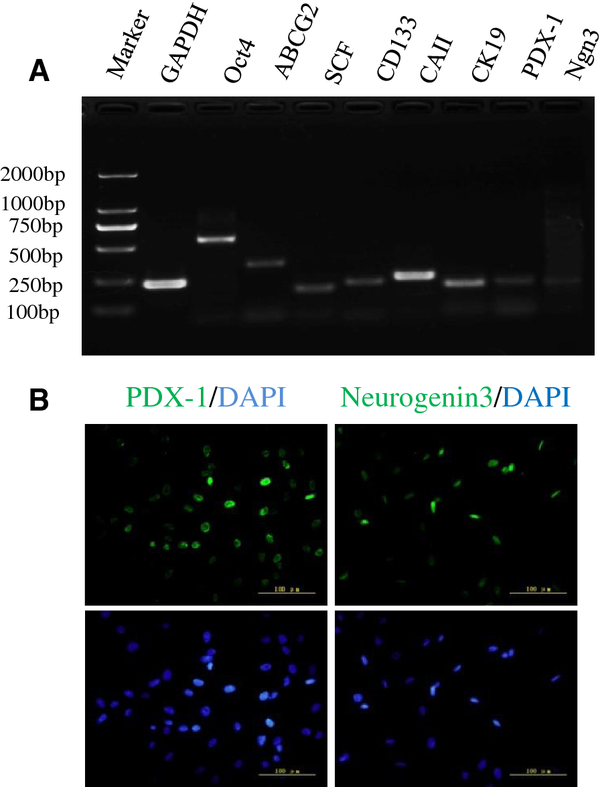

Identification of human pancreatic progenitor cells. (A) RT-PCR result for stem cell markers expressed on human fetal pancreatic progenitor cells. A total of five fetal samples was studied, and this image was from one sample from the 11th week of gestation. All the experiments were repeated three times. (B) Immunofluorescence staining for endocrine progenitor cell markers, PDX-1 and Ngn3, in human fetal pancreatic progenitor cells.

To confirm the expansion of pancreatic progenitor cells rather than mesenchymal cells, the cells from the second, fifth and tenth passages were measured for expressions of SMA, vimentin and stem cells markers. The results showed that stem cell markers Oct4, CAII and PDX-1 did not fluctuate during expansion. SMA and vimentin could be detected at passage two and the expression levels were maintained during expansion (see Additional file 2) but insulin and glucagon were not detectable in these cells.

Differentiation of pancreatic progenitor cells

To evaluate the differentiation of pancreatic progenitor cells, several important stem cell markers and mature endocrine cell markers were measured after differentiation. The results of real-time PCR (Table 1) showed that PDX-1 and neurogenin 3 were up-regulated during differentiation. Insulin and glucagon expression became detectable after a three-week induction period and were significantly enhanced at Week 4, especially in islet-like structures. GLUT1 was expressed in pancreatic stem cells and increased during differentiation. VDCC, another mature marker of β cells, could not be detected in pancreatic stem cells until week 3 of induction and became further up-regulated at Week 4, especially in islet-like structures. In addition, the exocrine markers of HES-1 and amylase were also detectable, but their expression levels did not fluctuate significantly before or after differentiation (Table 1).

Table 1 Quantitative analysis of various gene transcripts during differentiation

Formation of islet-like structures in vitro

After four weeks of induction, the cells started exhibiting fibroblast-like morphology (Figure 3A). Upon suspension with extracellular matrix, islet-like structures formed in the culture (Figure 3B). Unlike native human islets with insulin-positive cells found in the center and glucagon-positive cells at the periphery (Figure 3C), these islet-like cell clusters had alpha and beta cells scattered about (Figure 3D).

Figure 3
figure 3

Differentiation of pancreatic progenitor cells and formation of islet-like structures. (A) The endocrine cells differentiated from human fetal pancreatic progenitor cells, ×200. (B) Islet-like structure formed by the differentiated cells, ×100. (C) Native islet immunofluorescence stained for insulin (red) and glucagon (green), DAPI used for nuclei staining (blue), ×400. (D) Progenitor cell-derived islet immunofluorescence stained for insulin (red) and glucagon (green), DAPI used for nuclei staining (blue), ×400. DAPI, 4',6-diamidino-2-phenylindole.

Insulin-releasing function of differentiated cells in vitro

To evaluate the insulin-releasing function of differentiated cells, we first examined the insulin secretory granules by transmission electron microscopy and immunfluorescence staining. Both experiments confirmed the existence of insulin secretory granules although much fewer than can be seen in native islets (Figure 4A). Then, insulin secretion of differentiated cells in response to glucose stimulation was tested by ELISA. The results showed that the response to 25 mM glucose stimulation seemed quite robust (Figure 4B) with insulin gradually increasing over 24 hours (Figure 4C).

Figure 4
figure 4

Evaluation of insulin secretory function of differentiated cells in vitro . (A) Detection of insulin secretory granules. Insulin granules in the differentiated cells were detected by transmission electron microscopy (middle panel), with adult islet beta cells as positive control (left panel); the insulin distribution in differentiated cells was granular by immunofluorescence staining (right panel). (B) Insulin release in differentiated cells and islet-like structures upon glucose stimulation. (C) The time-effect relationship of insulin release in the response of differentiated cells to glucose. All the experiments were repeated three times, and the results are presented as means ± SD.

Functions of differentiated cells in vivo

To examine their function in vivo, we transplanted the differentiated islet-like structures under the left kidney capsule of diabetic mice. The blood glucose level in the differentiated islets group decreased significantly compared to the diabetic group two days after transplantation (P <0.05) and stayed below 10 mM. There was no significant difference in the blood glucose level between the differentiated islets group and the control group two days after transplantation. Hyperglycemia returned (over 20 mM) after left nephrectomy along with transplanted islet-like structures (Figure 5A). Human C-peptide-positive cells and human mitochondrion antigen-positive cells were found under the capsule of the left kidney (Figure 5B), which demonstrated the function and survival of the graft.

Figure 5
figure 5

Long-term evaluation of glycemia in diabetic animals after transplantation with islets derived from human fetal pancreas progenitor cells. (A) Glycemia in diabetic nude mice after transplantation with progenitor cell differentiated islets. Normal mice comprise the control group. N = 6 in each group. *P <0.05 (progenitor cells group versus diabetes group). (B) Evaluation of the survival of grafted islets by immunohistochemistry staining for human C-peptide and human mitochondrion antigen.

This evidence suggests that the islet-like structures derived from human fetal pancreatic progenitor cell can survive and function in vivo.


Pancreatic β cell dysfunction and/or loss of pancreatic β cell mass are key pathogenic factors for diabetes mellitus. Although a preferred therapeutic strategy, islet transplantation has been impeded by limited supply. Therefore, interest in generating insulin-producing cells efficiently became inevitable. Our study shows that human fetal pancreatic progenitor cells can be expanded extensively and differentiated into pancreatic endocrinal cells and islet-like structures in vitro. After transplantation of such structures into diabetic animals, euglycemia can be successfully restored and maintained.

It has been reported that LIF, important for self-renewal, can maintain stem cells in an undifferentiated stage [22] and bFGF plays a crucial role in cell proliferation and differentiation during embryonic development [12]. Therefore, we expanded human fetal pancreatic progenitor cells in vitro using culture medium containing LIF and bFGF. Our study shows that human fetal pancreatic progenitor cells exhibit a strong proliferation capability in this culture medium. The number of these cells from one single human fetal pancreas could be expanded to 1 × 1010.

During expansion, mesenchymal cell markers of SMA and vimentin became positive at passage two and stayed at the same level during the entire period. Due to the high expression of stem cell marker in these cells, EMT was suspected. Human pancreatic progenitors were reported to transform into mesenchymal-like cells through EMT in a growth-promoting medium. Upon reversal of EMT, these cells could form islet-like aggregates of hormone-producing cells [17, 23].

Similar to adult pancreatic stem cells, human fetal pancreatic progenitor cells expressed PDX-1 and neurogenin-3. As a marker related to islet differentiation, PDX-1 was expressed during differentiation into endocrine cells [15, 24]. Other studies indicated that embryonic stem cells differentiating into insulin-producing cells were also nestin positive [5]. As a poly(ADP-ribose) synthetase inhibitor, nicotinamide promotes cell differentiation and the expressions of insulin and C peptide [25]. Thus, it has been widely used in studies of stem cells differentiating into the pancreatic endocrine lineage. Glucagon-like peptide-1, all-trans retinoic acid and activin A also have been demonstrated to be effective in inducing embryonic stem cell transformation into insulin-producing cells [26]. After induction of human fetal pancreatic progenitor cells with nicotinamide, glucagon-like peptide-1, all-trans retinoic acid and activin A, the expression of mature endocrine cell markers, such as insulin, glucagon, GLUT2 and VDCC, increased extensively and became further up-regulated in islet-like structures.

It was found that islet-like structures formed when differentiated endocrine cells were cultured in suspension with medium containing extracellular matrix molecules, such as laminin, collagen IV and fibronectin. The extracellular matrix molecules mediated adherence between β cells and contributed to proliferation and differentiation into insulin-producing cell [27]. They could also enhance islets survival, insulin expression and release in response to glucose [2830].

The insulin-releasing response to glucose (25 mM) was found in differentiated cells and it was even stronger in differentiated islet-like structures. Our previous study showed that alpha-cell loss from islets impaired insulin secretion in vitro and in vivo[31]. In the present study, immunofluorescent staining revealed that islet-like structures contained both alpha and beta cells. However, the distribution of alpha cells in the islet-like structures was different from that in native islets.

It is known that insulin-producing cells derived from human embryonic stem cells or human pancreatic islet progenitor cells could correct hyperglycemia in diabetic mice [32, 33]. In the present study, differentiated islet-like structures derived from human fetal pancreatic progenitor cells could release insulin upon in vitro stimulation with glucose and corrected hyperglycemia in diabetic animals in vivo. Furthermore, histological examination revealed that the grafted islet-like structures were of human origin and immune-positive for human C-peptide.


With an excellent capacity for proliferation, human fetal pancreatic progenitor cells may be induced to differentiate into insulin-producing cells and form islet-like structures in vitro. Capable of secreting insulin to reduce hyperglycemia after transplantation in diabetic animals, the resulting islets might become a potential source for islets transplantation in treatment for diabetes.
