Although Pichia pastoris is a relatively simple eukaryotic organism it can perform many posttranslational modifications such as glycosylation, disulfide bond formation, and proteolytic processing [1]. Therefore, Pichia serves as an interesting alternative to other (more difficult to handle) fungal secretory expression systems that are used to produce lignocellulolytic enzymes and other eukaryotic proteins which typically require post-translational modifications for correct folding, stability and activity. The recalcitrant and complex nature of lignocellulosics [2] affords the application of complex enzyme mixtures for efficient hydrolysis of these renewable sources. Consequently, for a sustainable production of fuels, chemical building blocks, and functional macromolecules from plant biomass a multitude of different enzymes is needed. To produce all these enzymes and variants thereof, production strains which can be handled and engineered in a simple way need to be generated. Therefore, being a well- described and widely applied expression host [3]P. pastoris was the first choice for the heterologous expression of the selected target proteins. Furthermore, in contrast to many other eukaryotic expression systems P. pastoris secretes no endogenous lignocellulolytic enzymes in significant amounts [4]. Therefore, recombinant Pichia strains can provide almost pure heterologous enzyme preparations without the need of extensive and costly downstream processing. In addition, simple media requirements and relative easy handling in bioreactors enable inexpensive large-scale cultivations of Pichia[5]. All these characteristic features of Pichia contribute to its high potential for cost reduction during the production of lignocellulolytic enzymes, particularly for application studies when only low- and medium-scale enzyme productions are required.

However, even though Pichia pastoris is a good host for the expression of heterologous proteins [3] there is still space for improvements on transcriptional [6, 7] and (post-) translational level [8, 9]. In this work we exemplify the impact of gene optimization on the overall expression level of lignocellulolytic enzymes in Pichia pastoris. Most genomes are heterogeneous in codon usage [10] and, accordingly, the codon bias of small subsets of genes may differ clearly from the average codon usage of the genome. To optimize protein coding sequences for enhanced protein expression in Pichia pastoris we use an in-house developed biased codon usage table [11]. This codon usage is biased towards the codons of selected, highly expressed [12, 13] endogenous and heterologous genes when the AOX1 promoter and methanol were used for induction in Pichia pastoris. In addition to gene optimization, enzyme expression can be influenced on a transcriptional level by varying copy numbers of the integrated expression cassettes and by the choice of the promoter. So far the wildtype AOX1 promoter (P(AOX1)) and, to a certain extent, the GAP promoter (P(GAP)) were mostly used for heterologous protein production in Pichia pastoris[3]. However, since the P(GAP) is strong and constitutive it is not a good choice for production of physiologically problematic or cytotoxic proteins [14]. In contrast, the P(AOX1) is even stronger but also tightly regulated. Nonetheless, for some heterologous proteins the high transcript level generated by P(AOX1) can overload the cellular post-translational machinery, resulting in misfolded, unprocessed, or mislocalized proteins that can trigger a complex cellular response known as the unfolded protein response [15, 16]. To overcome these disadvantages of the wild-type GAP and AOX1 promoter a library of promoters based on the wild-type P(AOX1) was previously generated [6]. The distinct properties of these novel promoters regulate the transcript level of target mRNA in response to the available carbon source level and type and concomitantly achieve a fine-tuned protein expression in Pichia pastoris.

The aim of the present study was to show the functional expression of lignocellulolytic enzymes in Pichia pastoris at high quantities and investigating the effect of gene optimization and of alternate promoters on the expression level of these enzymes. Our expression studies highlight basic principles for designing suitable expression constructs and for successful strain development for different cellulolytic enzymes. For this study Trichoderma reesei cellobiohydrolase 1 and 2 (Tr CBH1 and Tr CBH2) and beta-mannanase (Tr bMan), and Thermomyces lanuginosus xylanase A (Tl XynA) were chosen as target enzymes.

Results and discussion

The goal of this study was to evaluate the potential of Pichia pastoris to express lignocellulolytic enzymes. In particular, we improved the expression of selected (hemi-) cellulases by codon optimization of the target genes, investigated the effect of promoter choice, and characterized the performance of selected producer strains in small-scale bioreactors. This characterization also included the effects of multi-copy integration on the productivity for the selected target enzymes.

To investigate the effect of different methods for codon optimization three different gene variants of Trichoderma reesei cellobiohydrolase 2 (Tr CBH2) were employed; the native gene variant (Tr CBH2-wt), a gene variant with optimized codon pairs by a commercial supplier (Tr CBH2-CP) and an in-house-optimized variant (Tr CBH2-HM). For the in-house design a codon usage table [17] derived from genes which are highly expressed in Pichia pastoris in methanol containing media was used.

The effects of gene optimization and promoter type were characterized by comparing activity landscapes of different strains (Figure 1). For this purpose P. pastoris strains were cultivated in 96 deep-well plates according to [18] and subsequently screened for lignocellulolytic activities using a reducing sugar assay that was recently adapted to high-throughput [19]. Owing to the low standard deviation of this assay, the detected changes in the activity landscapes mainly reflect actual changes in the expression level [19]. These differences can either be due to the number of integrated expression cassettes or caused by specific effects of the individual gene variants. Figure 1 shows enzyme activity landscapes of Tr CBH2-wt and the two differently optimized Tr CBH2 gene variants which have all been separately incorporated into the same expression vector and host. Stable integration of expression cassettes into the Pichia pastoris genome is generally based on homologous recombination but can also be an effect of non-homologous end-joining (NHEJ). Depending on the length, type and structure of the homologous flanking regions, untargeted (random) genome integration mediated by NHEJ becomes prevalent over locus-specific targeting (own observation for our vector system). Therefore, expression levels may be influenced not only by the number of integrated gene copies [20] but also by the integration locus which influences the transcript levels of the integrated genes. Our results demonstrate a clear effect of gene optimization on expression level. This is corroborated by the fact that our interpretation of expression level does not rely on a single observation but is averaged over a whole activity landscape of many individual transformants (Figure 1). This could be substantiated by reliably proving low copy numbers among differently optimized genes, in order to get a decent comparability of the influence. The 2-fold increase in expression level of Tr CBH2-HM compared to Tr CBH2-wt suggests a more efficient transcription and/or translation of this variant in P. pastoris. Contrary to this, the gene optimized by the commercial service using codon pair optimization, Tr CBH2-CP, showed a 2-fold lower expression level than Tr CBH2-wt. B eing originally designed to assist co-translational protein folding [21] of multi-domain proteins we expected the optimization based on codon pair signaling to show improved expression for the two-domain enzyme Tr CBH2. However, as we observed the opposite effect for Tr CBH2-CP we speculate that the bottleneck of Tr CBH2 expression is rather on transcriptional level than on the posttranslational level of protein folding. Summarizing, the optimized gene variant Tr CBH2-HM was superior to all other variants under the tested methanol-inducing conditions. This suggests that preferring codons with a high codon adaptation index (CAI) for highly expressed proteins under methanol inducing conditions is a good choice for Tr CBH2.

Figure 1
figure 1

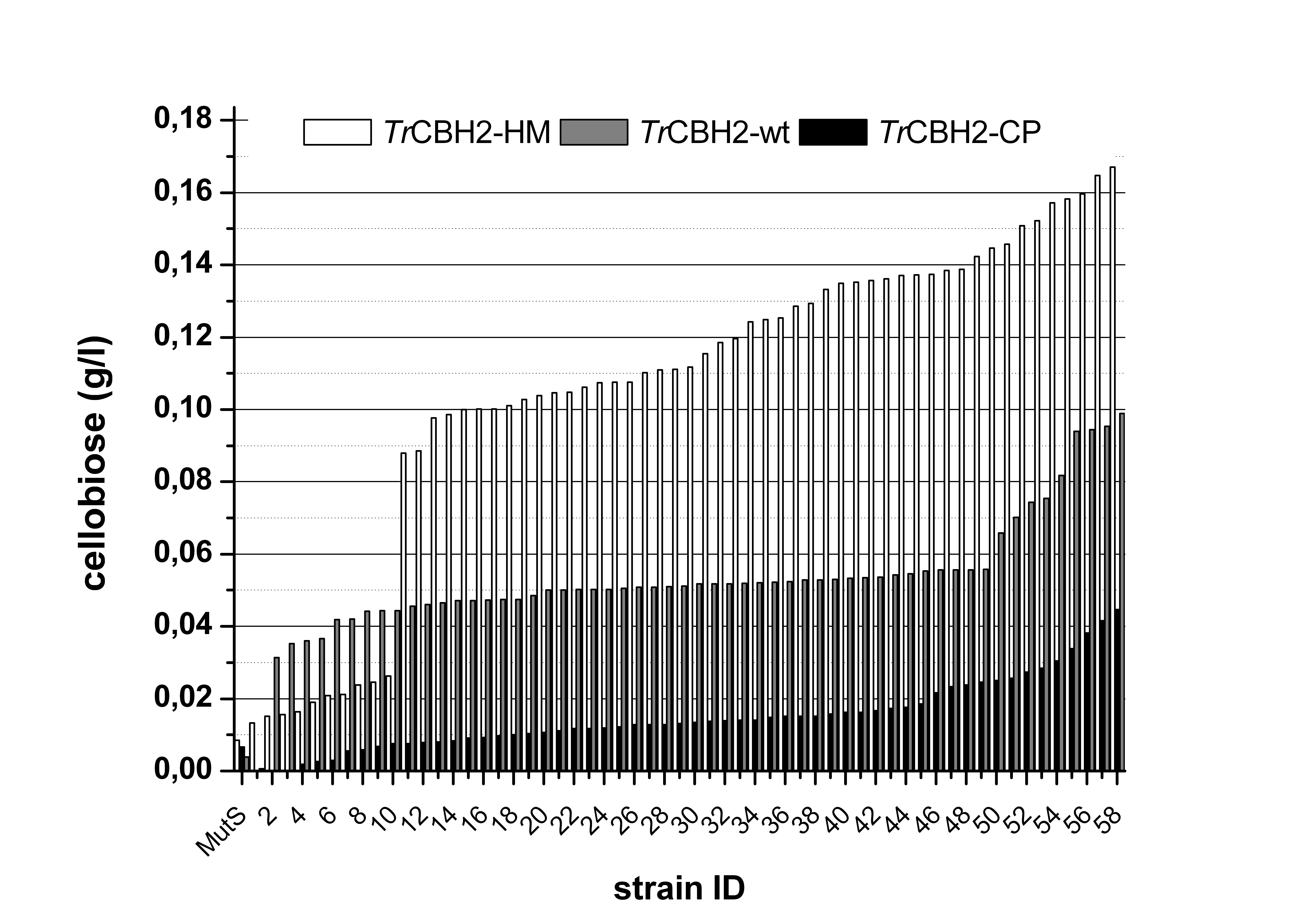

Activity landscapes of individual P. pastoris transformants expressing three different Tr CBH2 variants controlled by P(AOX1). Codon pair optimized sequence in black (CP), wt sequence in grey, high CAI codons for methanol induced gene expression in white (HM) [11]. Released cellobiose concentration is represented in bars. The untransformed strain P. pastoris CBS7435 MutS was used as negative control

Especially for secreted proteins the level of expression strongly depends on the number of integrated expression cassettes. Therefore, often the production efficiency of a strain can be predicted by quantifying the number of genome-integrated expression cassettes (copy number, CN) [15, 20, 22, 23]. In P. pastoris an initial (linear) positive correlation between copy number and productivity that stagnates at a defined upper limit can be observed [20, 22]. Furthermore, in some cases also a loss of productivity above a certain number of integrated copies has been described [15, 23]. In fact, high mRNA-levels caused by strong promoters or by high numbers of the expression cassettes can overload the folding and secretion machinery of the host. Depending on the protein this can entail an accumulation of unfolded proteins which triggers dedicated signaling pathways, commonly known as the unfolded protein response [24]. For comparative studies it is, therefore, essential to characterize the strains with regard to their copy numbers. Doing so will also allow the separation of promoter and/or copy number related effects on expression levels.

To determine the individual expression levels of Tr CBH2 expressing P. pastoris strains under bioreactor conditions we selected suitable strains based on initial micro-scale screenings in 96 deep-well plates and by quantitative gene copy number determination using qRT-PCR. Gene expression was driven either by the wild- type promoters P(AOX1) and P(GAP) or by synthetic promoter variants. These synthetic promoter variants are part of a newly generated promoter library based on P(AOX1) which was designed to fine-tune protein expression in Pichia pastoris[6]. With regard to their particular regulatory features two of these synthetic promoters were chosen to be tested in this study, namely P(En) and P(De). In the original publication by Hartner et al.[6] P(En) showed similar low expression of the reporter protein green fluorescent protein (GFP) under derepressed conditions but increased expression up to 166%, when compared to the wild-type promoter P(AOX1) on single copy level after 0 h and 72 h of methanol induction, respectively. P(De) showed more than 4-fold higher GFP fluorescence intensity under derepressed conditions but decreased expression down to 55%, if compared to the wild-type promoter P(AOX1) on single copy level after 0 h and 72 h of methanol induction, respectively. Even though, GFP expression driven by P(De) resulted in decreased protein production it was shown that this promoter was favorable for difficult to secrete proteins such as horseradish peroxidase (HRP). The overall productivity in fed-batch cultivations of HRP expression driven by P(De) was significantly higher than compared to the overall productivity of HRP expression driven by P(AOX1) [6]. In Figure 2A the time-courses of protein concentrations in the supernatants during fed-batch cultivations of Tr CBH2 are compared. Figure 2A shows that the strain P(De)-Tr CBH2-CP-CN25 ± 7 which harbors about 25 expression cassettes achieved around 4 g/l of Tr CBH2. This is comparable to the expression of P(De)-Tr CBH2-HM-CN7 ± 1 which is optimized using our in-house HM method. It can also be seen from Figure 2B that our in-house gene optimization method HM outperforms that of the commercial supplier (compare also Figures 1 and 3B). Although different promoters were used the expression of P(De)-Tr CBH2-CP-CN25 ± 7 and P(AOX1)-Tr CBH2-CP-CN7 ± 1 normalized to the same level suggesting that a linear correlation of expression independent of promoter type up to a CN of 25 exists for the CP optimization. Based on these data and on data from literature [20, 22] we observed two properties for Tr CBH2 expression. Firstly, using the AOX1 promoter variant P(De) we observed a positive initial (linear) correlation up to at least 7 copies between copy number and productivity. Secondly, gene optimization with our in-house method results in higher expression level at low copy numbers.

Figure 2
figure 2

Time-course of protein concentration during fed-batch cultivations. Gene sequences were optimized either by codon pair optimization (CP) [21] or by applying the high CAI codons for methanol induced genes (HM) [11]. Copy numbers (CN) are specified in the legend. Panel A: Expression of differently codon optimized Tr CBH2 variants under the control of P(AOX1), P(GAP) or the synthetic promoter P(De) [6]. HM optimized variants (closed symbol), CP optimized variants (open symbol). Panel B: Time-course of Tr CBH2 expression normalized to copy number. Legend labeling see panel A. Panel C: Expression of Tr bMan (open symbol) and Tl XynA (closed symbol) under the control of P(En) [6]. For virtual gels of the protein yields during the fermentation runs please refer to Additional file 1 and the raw data can be found in Additional file 2

Figure 3
figure 3

Comparison of Tr CBH2 gene/ promoter variants normalized to gene copy numbers (CN). Panel A: Protein concentration of Tr CBH2 fed-batch cultivations normalized by CN after 90 h of induction. Panel B: Relative ratios of the expression levels of the different gene optimization variants (HM/CP) under the control of P(AOX1) (white bar) and P(De) (black bar). Panel C: Relative ratios of the normalized expression levels of the different methanol inducible promoters (P(AOX1)/P(De)) expressing either Tr CBH2-CP (black bars) or Tr CBH2-HM (white bar) after 90 h of induction. Please refer to Additional file 2 for the raw data and Results and discussion section for more detailed information

As observed in the micro-scale screening (Figure 1) Tr CBH2-HM led to a higher expression level than Tr CBH2-CP (Figure 3) also in fed-batch cultivations. This effect was even more pronounced for the expression regulated by P(AOX1) with a 5-fold improvement of Tr CBH2-HM over Tr CBH2-CP (Figure 3B). In contrast, for the P(De)-Tr CBH2 variants we only observed a 3-fold improvement (Figure 3B) which can be explained by the lower promoter strength of P(De) as described previously [6]. In addition, the relative ratios of the different gene optimization variants (Figure 3B) and the relative ratios of the different gene promoter variants (Figure 3C) allow also a better comparison between the methanol inducible promoters P(AOX1) and P(De). (Figure 3C) shows that the strong methanol-inducible P(AOX1) increases expression of Tr CBH2-HM around 1.7-fold compared to expression under the control of P(De). For Tr CBH2-CP expression under the control of different promoters only a 1.2-fold improvement can be seen (Figure 3C). These results clearly indicate for Tr CBH2 expression that the codon optimization which is based on the codon bias of highly transcribed genes under methanol-inducing conditions gives even higher expression when a strong methanol-inducible promoter is employed.

After 90 h of induction the single copy expression level of P(De)-Tr CBH2-HM-CN1 is approximately 0.43 g/l (Figure 2B) whereas a higher single copy expression level of about 0.930 g/l (normalized to CN) can be calculated for P(AOX1)-Tr CBH2-HM-CN3. Based on these data, P(AOX1) gives an around 2-fold higher expression level than P(De). Although the strain P(De)-Tr CBH2-HM-CN7 ± 1 performed best under the tested MeOH-inducing conditions our results, based on the normalized data, indicate that strong methanol-inducible promoters such as P(AOX1) or the even stronger methanol-inducible P(En) [6] can further increase the expression of Tr CBH2. To verify this hypothesis on fermenter scale we decided to screen for higher copy number strains expressing Tr CBH2 under the control of P(AOX1) and P(En). As seen in Figure 4/A the selected strains with increased copy numbers P(AOX1)-Tr CBH2-HM-CN5 ± 1 and P(En)-Tr CBH2-HM-CN6 ± 1 indeed produced significantly more protein over the whole induction period than the best strain of the first fermentation P(De)-Tr CBH2-HM-CN7 ± 1. Within the first 70 h of induction the productivity of P(En)-Tr CBH2-HM-CN6 ± 1 was higher than the productivity of P(AOX1)-Tr CBH2-HM-CN5 ± 1. This confirms the results of the previously reported GFP expression experiments [6] using an improved synthetic AOX1 promoter variant. The final protein yield of both strains was comparable at around 6 g/l. Summarizing, using strong methanol inducible promoters in combination with high copy numbers of genes that are optimized to a high CAI for highly expressed proteins under methanol induction can further increase the yield of Tr CBH2. Moreover, we showed that pre-selection of strains using micro-scale screenings and further strain characterization using qRT-PCR for copy number determination is a useful tool to reduce bioreactor cultivations to a reasonable number.

Figure 4
figure 4

Time-course of protein concentration during fed-batch cultivations. Gene sequences were optimized by applying the high CAI codons for methanol induced genes (HM) [11]. Copy numbers (CN) are specified in the legend. Dotted lines indicate previously obtained results (compare Figure 2). Panel A: Tr CBH2 expression under the control of P(AOX1) or the synthetic promoters P(En) or P(De) [6]. Panel B: Tr bMan expression under the control of P(De) and P(En). For a visual representation of the protein yields during the fermentation runs please refer to the virtual gels presented in Additional file 1 and the raw data can be found in Additional file 2

Although Trichoderma reesei typically can produce more than 100 g/l of cellulases [25], individual enzymes such as Tr CBH2 are expressed in much lower quantities (10-15%) [26]. Table 1 gives an overview of published expression yields and activities of the different lignocellulolytic enzymes in different host systems. So far, Miettinen-Oinonen et al. achieved the highest protein concentration of 0.7 g/l Tr CBH2 in T. reesei strains cultivated in shake flasks [27] which is around 9-fold less than compared to our highest cellobiohydrolase concentration in Pichia pastoris bioreactor cultures. For other heterologous host systems such as S. cerevisiae[28] and S. pombe[29] even lower Tr CBH2 concentrations in the range of 0.1 g/l have been reported. Regarding the specific activities of Tr CBH2, we obtained 3.04 U/mg on Avicel, 5.30 U/mg on PASC and 1.51 U/mg on CMC whereas 2.52 U/mg on PASC and 0.09 U/mg on CMC have been reported for the S. pombe system [29].

Table 1 Protein yields and enzymatic activities of expressed lignocellulolytic enzymes

To evaluate P. pastoris’s capability for expressing various other lignocellulolytic enzymes we also expressed xylanase A from Thermomyces lanuginosus (Tl XynA), beta-mannase from Trichoderma reesei (Tr bMan) and cellobiohydrolase 1 from Trichoderma reesei (Tr CBH1). All genes were optimized using the in-house codon usage table and subsequently cloned downstream of the synthetic promoter P(En) [6]. Tr bMan was also cloned downstream of the constitutive P(GAP) promoter. For Tl XynA only the strong promoter P(En) was selected to push its already proven high expression in Pichia pastoris with the native AOX1 promoter [34]. Similar to the experiments for Tr CBH2 high-throughput deep-well plate screenings were performed with the adapted pHBAH-assay and the CNs were determined by qRT-PCR. Five Tr bMan P(En) strains harboring 1, 4, 6 ± 1, 16 ± 4 and 39 ± 9 copies, one single copy strain under the control of P(GAP) and three Tl XynA P(En) strains with 6 ± 1, 10 ± 3, and 18 ± 4 copies were fed-batch cultivated. Although we successfully expressed Tr CBH1 in the micro-scale screening bioreactor fermentations yielded similar low protein concentrations for heterologously protein expression in the range of a few mg per liter as previously reported in literature [28, 35, 36]. Therefore, those strains were not characterized in more detail for this paper.

Although the initial micro-scale screening revealed expression of Tr bMan under the control of P(AOX1) and P(GAP) over a broad range of CNs only the single copy strain of Tr bMan P(En) successfully produced Tr bMan in the bioreactor (Figure 2). All other P(En) regulated strains with more than one copy had major growth problems shortly after induction resulting in attenuated growth (data not shown) when grown under our standard cultivation conditions. In contrast, the P(En)-Tr bMan-HM-CN1 strain showed normal growth after recovering from an initial cessation of growth post methanol-induction (data not shown). Under constitutive expression of Tr bMan using P(GAP) the growth rate was slowed down and no Tr bMan was produced even though just a single expression cassette was integrated into the Pichia genome (data not shown). This could be a further example of the potentially cyto-toxic effects [14] of constitutive heterologous protein expression with P(GAP) in P. pastoris. In addition, Tr bMan seems to be generally difficult to express in yeasts under constitutive promoters. As an example, Tr bMan was only produced at a level of 0.150 mg/l in Saccharomyces cerevisiae[30] under the control of the constitutive phosphoglycerate kinase (PGK) promoter. Our experiments revealed that the molecular weight ratio of glycosylated and deglycosylated Tr bMan was about 4 (determined by capillary electrophoresis, data not shown). Therefore, hyper-glycosylation of Tr bMan in P. pastoris might be another problem for expression.

To test if a weaker methanol-inducible promoter can increase the productivity we also tested the synthetic promoter P(De) for Tr bMan. As seen in Figure 4B, over the whole induction period the strain P(De)-Tr bMan-HM-CN5 ± 1 achieved significantly more protein than compared to P(En)-Tr bMan-HM-CN1 (Figure 4B). As previously seen in deep well experiments [6] P(De) has a weak onset of expression during the glucose depletion-derepression phase which could also be presumed for bioreactor cultivations. Based on that, we further assume that a weaker onset leads to a better adaptation of the Pichia system for the production of Tr bMan. In addition, it was recently shown that expression under the control of P(De) can result in positive effects on cell physiology compared to expression under the control of P(AOX1) [37]. Consequently, P(De)-Tr bMan-HM-CN5 ± 1 was capable of producing 1.142 g/l of protein (Figure 4B) devoid of any directly observable growth problems during fermentation (data not shown). The obtained yield of 1.142 g/l of Tr bMan is ~7600-fold higher than the so far highest reported heterologous yield of 0.150 mg/l expressed in Saccharomyces cerevisiae[30] (Table 1). The activity of Tr bMan expressed in our study was 109 U/ml using locust bean gum as substrate. This was similar to the results of Stalbrand et al. [30] who obtained ~86 U/ml in Trichoderma reesei shake flask cultures. However, T. reesei shake flask cultivations performed by Hagglund et al. [31] showed an activity of 1.8 U/ml. This value is about 60 times less than compared to our results. Comparing heterologously expressed Tr bMan our obtained activity of 109 U/ml is approximately 11000-fold higher than the 0.01 U/ml expressed in S. cerevisiae[30]. Regarding the specific activities for Tr bMan, we achieved 95.4 U/mg compared to 66.7 U/mg for Tr bMan expressed in S. cerevisiae[30] (see Table 1) which usually shows an even higher tendency for hyper mannosylations that could limit the activity of Tr bMan.

For the fourth target, Tl XynA, fed-batch bioreactor cultivation of Pichia strains regulated by P(En) and harboring 6 or 10 integrated expression cassettes produced around 1 g/l whereas one strain with 18 integrated expression cassettes showed a reduced protein concentration of 0.25 g/l (Figure 2). As mentioned before, such negative correlation at higher copy numbers and productivity had already been described in literature for other proteins expressed in Pichia[15, 23].

Our yield of 1.2 g/l Tl XynA represents a 5 to 8-fold increase in yield compared to earlier expression studies in Pichia pastoris by Damaso et. al.[32] and Gaffney et. al.[33], respectively. Compared to T. lanuginosus shake flask cultures we achieved about 4 times more protein than reported before in [32] (Table 1). Our obtained specific activity of 115.00 U/mg was similar to the specific activities of 113.56 U/mg and 271.62 U/mg that were obtained by Pichia pastoris, [33] and [32] respectively. The specific activity of homologously expressed Tl XynA of 327.8 U/mg [32] was approximately 3-fold higher than compared to our obtained values. The comparison to homologously expressed Tl XynA indicates that the enzyme produced in P. pastoris showed lower specific activity although total volumetric yields were higher.

Generally, we speculate that the variation in specific activities of all enzymes could predominantly be attributed to the different glycosylation pattern that is produced by P. pastoris[38]. This phenomenon has already been described in literature e.g. by Macauly-Patrick[14].

Unfortunately, there are only limited bioreactor cultivations reported for Tr CBH2, Tr bMan, and Tl XynA, therefore, above made direct comparison of bioreactor results to published shake flask expression experiments are biased. However, we can still conclude that homologous expression yielded the highest specific activities but not necessarily the highest total protein yields. Although P. pastoris is an excellent host for achieving high protein concentrations heterologous expression can also influence the activity of the expressed enzymes. Nevertheless, comparing the calculated specific activities from Table 1 there is a general trend that the specific activities of the enzymes produced by P. pastoris are in the range or even higher than the specific activities of the same enzymes expressed in other heterologous hosts. This makes Pichia a good compromise for the expression of high quantities of enzymes with relatively high specific activities. Furthermore, it also shows the possible relevance of host strain glyco-engineering for industrial enzyme production as it already has for the production of biologically active pharmaceutical proteins.


We have successfully constructed P. pastoris strains capable of producing maximum protein concentrations of 1.142 g/l Tr bMan, 6.55 g/l Tr CBH2, and 1.2 g/l Tl XynA in fed-batch bioreactor cultivations. Moreover, we showed that suitable codon optimization of the target genes helps to increase heterologous protein production by P. pastoris, thus providing a simple way of increasing heterologous protein production for individual enzymes.

Furthermore, we emphasize the importance of transcript level optimization by alternative promoters and gene dosage (numbers of integrated gene copies) for expression optimization. This was particularly evident for the functional expression of Tr bMan. The strong constitutive and methanol inducible promoters P(GAP) and, P(AOX1) respectively, secreted no or less protein than the weaker synthetic promoter P(De).

Basically there are three classes of genes (A,B,C) with varying dependence of yields of active proteins in relation to copy numbers: For class A genes an increase in copy number to more than 10 copies has a positive effect on protein expression, as seen in the case of Tr CBH2. For class B genes the yield of active protein increases within the number of integrated copies up to a copy number of 2–10 and decreases with higher copy numbers, as seen in the case of Tl XynA. Finally, class C genes where yields of active protein get worse with increasing copy numbers, as seen in the case of Tr bMan. However, these effects definitely depend on the strength of the employed promoter as well as the gene encoding the respective target protein.

Our conclusions are based on a better understanding of promoter and/or copy number-related effects. Codon-optimized genes together with optimized promoters and numbers of integrated expression cassettes allowed us to develop P. pastoris strains producing high levels of lignocellulolytic enzymes. In combination with the high specific activities compared to the same enzymes expressed in other hosts, Pichia seems to be a good choice for the heterologous expression of individual lignocellulolytic enzymes.
