Exploring the neutrinoless double beta decay in the inverted neutrino hierarchy with bolometric detectors

Abstract

Neutrinoless double beta decay ($0\nu \beta \beta$) is one of the most sensitive probes for physics beyond the Standard Model, providing unique information on the nature of neutrinos. In this paper we review the status and outlook for bolometric $0\nu \beta \beta$ decay searches. We summarize recent advances in background suppression demonstrated using bolometers with simultaneous readout of heat and light signals. We simulate several configurations of a future CUORE-like bolometer array which would utilize these improvements and present the sensitivity reach of a hypothetical next-generation bolometric $0\nu \beta \beta$ experiment. We demonstrate that a bolometric experiment with the isotope mass of about 1 ton is capable of reaching the sensitivity to the effective Majorana neutrino mass ($|m_{ee}|$) of order 10–20 meV, thus completely exploring the so-called inverted neutrino mass hierarchy region. We highlight the main challenges and identify priorities for an R&D program addressing them.

1 Introduction

Neutrino oscillation experiments have provided compelling experimental evidence that neutrinos are massive and exhibit flavor mixing, but the absolute mass scale and the quantum nature of these particles (that is, if they are Dirac or Majorana fermions) remain unknown.

In the standard framework of three-neutrino oscillations, the square mass differences $\varDelta m^{2}_{12}~$and $|\varDelta m^{2}_{23}|$ measured by neutrino oscillation experiments leave open three different possibilities for the ordering of the neutrino masses: normal hierarchy (NH), with $m_1<m_2 \ll m_3$, inverted hierarchy (IH), with $m_3 \ll m_1<m_2$ and degenerate hierarchy (DH), with $m_1 \simeq m_2 \simeq m_3$. However, oscillation experiments are not able to measure two fundamental properties of the neutrino: its nature (i.e. its quantum field structure) and its absolute mass. The most promising known way to investigate the Dirac-or-Majorana type of the neutrino is neutrinoless double beta decay ($0\nu \beta \beta$). If the neutrino is indeed found to be Majorana, then one can simultaneously achieve constraints on the absolute mass scale. Observation of $0\nu \beta \beta$ process would demonstrate unambiguously that lepton number is not strictly conserved. Such a discovery would lend corroborating evidence to the leptogenesis hypothesis as a mechanism for generating matter-antimatter asymmetry in the Universe.

Currently operating $0\nu \beta \beta$ experiments probe effective Majorana masses in the DH region. Several ambitious projects have been proposed with sensitivity in the IH region. Such experiments are very challenging, as they require significant detector masses and very low background levels. In this paper we discuss a ton-scale bolometric $0\nu \beta \beta$ experiment based on simultaneous readout of both heat and light signals. This powerful technique offers superior background suppression, and the ability to investigate different $0\nu \beta \beta$ candidate nuclei in large detector arrays. We present results of simulations focusing on the background levels that can be reached in specific experimental configurations and discuss their discovery potential and the ultimate sensitivity.

2 Neutrinoless double beta decay

The transition in which an even-even nucleus (A, Z) decays into its (A, Z+2) isobar can be observed for isotopes whose single beta decay is forbidden. In the Standard Model (SM) this process is allowed with the simultaneous emission of 2 electrons and 2 anti-neutrinos ($2\nu \beta \beta$), and it has been observed experimentally in more than ten isotopes with half-lives of the order of $10^{18}{-}10^{21}$ y [1].

There are various hypothesized mechanisms for $0\nu \beta \beta$ [2, 3], all of them requiring physics beyond the Standard Model (SM). In the standard interpretation, the $0\nu \beta \beta$ decay is mediated by the virtual exchange of massive Majorana neutrinos. On the other hand, there exist a number of other proposed lepton number violating mechanisms that can contribute to the $0\nu \beta \beta$ rate. A selection of possible models can be found in [4, 5].

Since the discovery of neutrino mass, the mechanism of virtual exchange of massive Majorana neutrinos has received increased attention. This mechanism relates the $0\nu \beta \beta$ decay half-life to important neutrino physics parameters which, in turn, help formulate detection strategies. The $0\nu \beta \beta$ decay rate is proportional to the square of the so-called effective Majorana mass $|m_{ee}|$:

$$\begin{aligned} \frac{1}{T_{1/2}^{0\nu }} = \frac{|m_{ee}|^2}{m_e^2} F^{0\nu }_N = \frac{|m_{ee}|^2}{m_e^2} G^{0\nu }\vert M^{0\nu }\vert ^2. \end{aligned}$$

(1)

The quantity $|m_{ee}|$ is defined in terms of the three neutrino masses and the elements of the Pontecorvo–Maki–Nakagawa–Sakata (PMNS) matrix [6], as follows:

$$\begin{aligned} |m_{ee}|=\left| \sum _k U_{ek}^2 m_k\right| . \end{aligned}$$

(2)

In Eq. (1), $T^{0\nu }_{1/2}$ is the decay half life, $m_e$ is the electron mass, $G^{0\nu }$ is the two-body phase-space factor, and $M^{0\nu }$ is the $0\nu \beta \beta$ nuclear matrix element (NME). The product $F^{0\nu }_N = G^{0\nu } |M^{0\nu }|^2$ is referred to as the nuclear factor of merit. While $G^{0\nu }$ can be calculated with reasonable accuracy, the NME value is strongly dependent on the nuclear model used for its evaluation. This problem, which is discussed in more detail in Sect. 2.2, adds considerable uncertainties in the calculation of $|m_{ee}|$ from experimental measurements or limits on the half-life.

Given the present experimental results on the parameters governing neutrino oscillations and in the framework of three-neutrino oscillations, the expected allowed ranges for $|m_{ee}|$ as a function of the lightest neutrino mass are depicted in Fig. 1. For the inverted hierarchy scenario, the range of the possible values for the effective Majorana mass is [2, 3, 7]:

$$\begin{aligned} 10 \lesssim |m_{ee}| \lesssim 50~\hbox {meV}. \end{aligned}$$

(3)

One has to note, however, that the inclusion of light sterile neutrinos and other exotic modifications of the three-neutrino oscillation scenario can change the expectations dramatically, see [8].

One of the priorities in neutrino physics is the experimental determination of the neutrino mass hierarchy. Neutrino oscillation experiments (accelerator-driven long-baseline experiments, measurements at reactors, as well as high-statistics studies of atmospheric neutrinos) and cosmological constraints on the sum of neutrino masses have the potential to resolve the ordering of neutrino mass states in the next decade or two [9]. Thus, searches for $0\nu \beta \beta$ decays with the sensitivity to completely explore the inverted hierarchy region are both relevant and timely. Given the spread in the values of the nuclear matrix elements (Sect. 2.2), achieving this goal requires that the next-generation experiments aim at a sensitivity well below $|m_{ee}|<20$ meV.

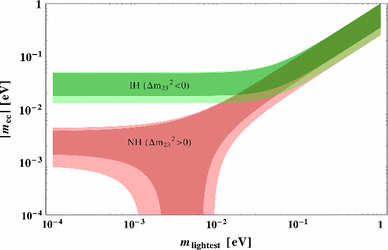

Fig. 1

Majorana neutrino mass as a function of the lightest neutrino mass in the normal hierarchy ($\varDelta m^2_{23}>0$) and in the inverted hierarchy ($\varDelta m^2_{23}<0$) scenarios. The shaded areas correspond to the 3$\sigma$ regions due to error propagation. Figure from [7]

2.1 Experimental sensitivity

Experimentally, neutrinoless double beta decay searches rely on the measurement of the two emitted electrons. In the so-called homogeneous approach (source = detector, Sect. 2.3) one detects the two electrons in the same detector volume. The summed kinetic energy of the two electrons and nuclear recoil is equal to the Q-value of the $0\nu \beta \beta$ transition, which is energetically dominated by the electrons. The signal would thus appear as a peak at the energy of the Q-value. Existing limits constrain $0\nu \beta \beta$ decay, if it occurs at all, to be extremely rare.

Observing potential $0\nu \beta \beta$ counts is hindered by background events in the signal region of interest (ROI). If a $0\nu \beta \beta$ peak is observed in the measured energy spectrum, the half-life can be evaluated as:

$$\begin{aligned} T^{0\nu }_{1/2} = \ln 2\, T \varepsilon \,N_{\beta \beta }/N_\mathrm{{peak}}, \end{aligned}$$

(4)

where $T$ is the measuring time, $\varepsilon$ is the detection efficiency, $N_{\beta \beta }$ is the number of $\beta \beta$ source nuclei under observation, and $N_\mathrm{{peak}}$ is the number of observed $0\nu \beta \beta$ decays.

If no peak is detected, the sensitivity of a given $0\nu \beta \beta$ experiment is usually expressed in term of the detector sensitivity $\widehat{T^{0\nu }_{1/2}}$ at $n_{\sigma }$ (we use hatted quantities to indicate sensitivities instead of true values), defined as the half-life corresponding to the signal that could be emulated by a background fluctuation of a chosen significance level, expressed in numbers of Gaussian standard deviations ($n_{\sigma }$). In the limit of large background in the ROI, the detector sensitivity is defined as follows:

$$\begin{aligned} \widehat{T^{0\nu }_{1/2}} (n_\sigma ) = \frac{\ln (2)}{n_\sigma } \frac{N_A a\eta \varepsilon }{W} f(\varDelta E) \sqrt{ \frac{MT }{B\varDelta E}}, \end{aligned}$$

(5)

where $\eta$ is the stoichiometric coefficient of the $\beta \beta$ candidate; $a$ is the $\beta \beta$ candidate isotopic abundance; $N_A$ is Avogadro’s number; $W$ is the molecular weight of the active mass; $B$ is the background per unit of mass, time and energy; $M$ is the detector mass; $T$ is the live time; $\varDelta$E is the ROI energy window (typically FWHM energy resolution); $\varepsilon$ is the detector efficiency; and $f(\varDelta E)$ is the fraction of signal events that fall in an energy window $\varDelta E$ around the Q-value.

Finally, $\widehat{T^{0\nu }_{1/2}}$ from Eq. (5), along with $F^{0\nu }_N$ from Eq. (1), is translated into an effective Majorana mass sensitivity¹:

$$\begin{aligned} |m_{ee}| \propto \frac{m_e}{(\widehat{T^{0\nu }_{1/2}} F^{0\nu }_N)^{1/2}} \end{aligned}$$

(6)

which, again referring to Eq. (5), highlights the slow dependence (fourth root) of $|m_{ee}|$ on the experimental parameters $M$, $T$, $B$, and $\varDelta E$ in the limit of large background.

Equation (5) holds if the number of background counts is large enough that its distribution can be considered to be Gaussian. In the so-called zero background limit, when the expected number of background counts is small, one should use Poisson statistics and the corresponding formula for the sensitivity at a given credibility level (c.l.) is:

$$\begin{aligned} {\widehat{T^{0\nu }}_{1/2}} \,\hbox {(c.l.)} = -\frac{\ln (2)}{\ln (1-\frac{\hbox {c.l.}}{100})} \frac{N_Aa\eta \varepsilon }{W} \cdot M \cdot T \cdot f(\varDelta E). \end{aligned}$$

(7)

2.2 Nuclear matrix element

It is clear from Eq. (1) that the evaluation of the nuclear matrix element is needed in order to either: (1) extract the value of $|m_{ee}|$ from the experimentally measured $0\nu \beta \beta$ decay rate or (2) convert an upper limit on the $0\nu \beta \beta$ decay rate to an upper limit on $|m_{ee}|$. Any uncertainty in the calculated values of $M^{0\nu }$ will correspond to a significant uncertainty on $|m_{ee}|$. Moreover, knowledge of the NME is required both when planning new experiments and also when comparing the results of experiments that use different nuclei.

The calculation of $M^{0\nu }$ requires an accurate nuclear model. Since all $0\nu \beta \beta$ candidate nuclei are relatively heavy, the corresponding many body problem cannot be solved without approximations. Figure 2 presents a summary of calculated $F^{0\nu }_N$ results for many different $0\nu \beta \beta$ candidates based on recent publications. For each isotope, the available results from the following nuclear models have been considered: Quasi Particle Random Phase Approximation (QRPA) [10–12], Interacting Shell Model (ISM) [13], microscopic Interacting Boson Model (IBM-2) [14], Projected Hartree–Fock–Bogoliubov model (PHFB) [15] and Generating Coordinate Method (GCM) [16]. Values for $G^{0\nu }$ were taken from [17].

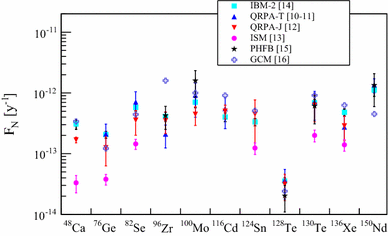

Fig. 2

Nuclear factor of merit values calculated for different most recent theoretical models and for many different $0\nu \beta \beta$ candidates. The bars represent the spread of the models

2.3 State of the art

A variety of detection techniques are used in $0\nu \beta \beta$ experiments. In the so-called homogeneous experiments the active volume of the detector contains the double beta decaying isotope (source = detector) and, in case a decay occurs, the sum energy of the two emitted electrons is detected. Homogeneous experiments can be based on solid (bolometers, semiconductors, or scintillators), liquid (TPC: Time Projection Chamber or scintillators), and gaseous (TPC) devices. In tracking experiments the double beta emitting isotope is contained in thin foils surrounded by tracking detectors. With this approach the emitted electrons can be identified and tracked separately. In some cases, like the proposed NEXT experiment [18], a homogeneous detector can also be operated as a tracking device.

No experimental evidence for neutrinoless double beta decay has been observed so far. After the publication of the last official results of the thirteen-year-long Heidelberg-Moscow $^{76}$Ge experiment [19], a part of the collaboration reanalyzed the full data set of 71.7 kg $\times$ y exposure and claimed a 4.2 $\sigma$ observed signal for $0\nu \beta \beta$ in $^{76}$Ge, with $T^{0\nu }_{1/2}=1.19\times 10^{25}$ y [20]. Since its first appearance, the claim has been strongly criticized by the double beta decay community because of the assumptions made in the background evaluation procedure [21–23]. Regardless of its credibility, double beta decay experiments have taken this results as a kind of benchmark.

Experimental half-life lower limits have been obtained in the past years by several experiments, now concluded: $^{76}$Ge [19, 24], $^{82}$Se [25, 26], $^{100}$Mo [25, 26] and $^{130}$Te [27].

In the last few years, new running $0\nu \beta \beta$ experiments have reported their half-life lower limits. In July 2013, the GERDA collaboration published its first result on the neutrinoless double beta decay of $^{76}$Ge [28]. They observed no signal and set a lower limit $T^{0\nu }_{1/2} > 2.1\times 10^{25}$ y (90 % C.L.). The combination with the results from previous $^{76}$Ge experiments yields $T^{0\nu }_{1/2} > 3.0\times 10^{25}$ y (90 % C.L.). At the same time, the experiments KamLAND-Zen [29] and EXO [30] both reported half-life lower limits on the $0\nu \beta \beta$ decay of $^{136}$Xe of $1.9\times 10^{25}$ y at 90 % C.L. and $1.6\times 10^{25}$ y at 90 % C.L. (recently reduced to $1.1\times 10^{25}$ y at 90 % C.L. [31]) respectively. The combined analysis [29] of KamLAND-Zen and EXO results yields a half-life lower limit $T^{0\nu }_{1/2} > 3.4\times 10^{25}$ y (90 % C.L.) that, for a representative range of available matrix elements calculations, excludes the $^{76}$Ge claim at more than 97.5 % confidence level.

Contemporary efforts are focused on so-called second generation experiments (CUORE [32], SuperNEMO [33], nEXO [34], NEXT [18], LUCIFER [35], GERDA II [36], SNO+ [37], for a full list see [38, 39]) with the goal of approaching the IH region at $|m_{ee}| \le 50$ meV, while considerable R&D is devoted to new techniques which could contribute to the full exclusion of the IH mass region ($|m_{ee}| \le 10$ meV).

3 A strategy for the future: bolometers

The realization of an experiment with a reasonable discovery potential down to the smallest $|m_{ee}|$ values is an incredible challenge in which detector technology plays a key role.

The most promising isotopes (see Table 1) are those that show a high nuclear factor of merit.² However, even for these, the expected event rate from $0\nu \beta \beta$ decay for a Majorana mass of 10 meV, is as low as 0.1 to 1 counts per year using a metric ton of source material (cnts/y/ton$_\mathrm{{iso}}$). Under these conditions, the exposure required to record even a few $0\nu \beta \beta$ decays is of the order of 1 to 10 (y $\cdot$ ton$_\mathrm{{iso}}$). Moreover, to reach a reasonable signal-to-background ratio in the energy region $\varDelta$E of approximately a FWHM around the Q-value, a background counting rate lower than 0.01 cnts/keV/y/ton$_\mathrm{{iso}}$ is needed for high resolution detectors ($\varDelta$E $\sim$10 keV) or lower than 0.001 cnts/keV/y/ton$_\mathrm{{iso}}$ for low resolution detectors ($\varDelta$E $\sim$100 keV). At these low rates the intrinsic background from $2\nu \beta \beta$ decay can compromise the sensitivity of an experiment. For a given $T^{0\nu }_{1/2}$, the ratio between the number of $2\nu \beta \beta$ and $0\nu \beta \beta$ decays in the energy region of interest for $0\nu \beta \beta$ can be evaluated on the basis of the measured $T^{2\nu }_{1/2}$. As shown in Table 1, detectors with good energy resolution ($\varDelta$E $\sim$ 10 keV) have a $2\nu \beta \beta$ to $0\nu \beta \beta$ event rate ratio well below one. This is a very strong motivation for next generation experiments to exploit high resolution detectors if possible.

Table 1 Properties of the most commonly studied $0\nu \beta \beta$ candidates: Q-value, isotopic abundance, and $T^{2\nu }_{1/2}$ half-life (average values from [47]). R$_{0\nu }^{|m_{ee}|=10~\hbox {meV}}$ is the range of $0\nu \beta \beta$ count rates expected in an energy window of a FHWM around the Q-value, for a Majorana mass of 10 meV, corresponding to the largest and smallest NME values among those of Fig. 2. The ratio of signal counts in an energy window of a FHWM around the Q-value for a Gaussian distributed-signal is $f(\varDelta E = \mathrm{FWHM}) = 0.76$. In the last column we report the $2\nu \beta \beta$ event rate around the Q-value, calculated by integrating the last 10 keV below the end point of the $2\nu \beta \beta$ spectrum. All rates are expressed in counts per year per ton of $0\nu \beta \beta$ emitting isotope

The impact of environmental $\gamma$ radiation on the background counting rate of a $\beta \beta$ experiment is an important consideration. The most appealing isotopes to study are those with a Q-value above most of the natural $\gamma$-ray spectrum. The $^{208}$Tl line at 2.615 MeV is the most energetic $\gamma$ peak visible in environmental background spectra; above this line there are only extremely rare $\gamma$ rays (e.g. the very rare gamma lines of $^{214}$Bi) or gamma emission stimulated by n capture. Therefore, isotopes with Q-values greater than 2.6 MeV are more desirable from this perspective.

Another important consideration is the natural isotopic abundance of the $0\nu \beta \beta$ candidate of interest (the parameter $a$ in Eq. (5)) and the isotopic enrichment cost. In Table 1, the natural abundances of the most common $0\nu \beta \beta$ nuclei are listed. Enrichment of detectors is limited by cost and technical feasibility. For example, in the case of $^{48}$Ca and $^{150}$Nd, the standard high-volume enrichment techniques are difficult at present. However, it is feasible to enrich all the other isotopes listed in Table 1 (see Refs. [41–44]). Among these isotopes, cost of enrichment for $^{130}$Te and $^{136}$Xe is relatively modest, but is more significant for others.

Cryogenic bolometers [45, 46] have been used for many years as particle detectors to study rare events such as $0\nu \beta \beta$   and dark matter. They are solid state devices, kept at a temperature of $\sim$10 mK, where a particle’s kinetic energy is converted into lattice vibrations of the absorber material, generating a temperature rise ($\varDelta T$). Such low temperature is necessary since the heat capacity of an insulating crystal varies as C $\propto T^3$. The $\varDelta T$ (about 0.1 mK for 1 MeV of deposited energy in a 750 g crystal) is measured by a thermometer (e.g. a semiconductor thermistor) affixed to the surface of the absorber, that converts the temperature rise into an electric pulse.

The advantages of the bolometric technique in the field of $0\nu \beta \beta$ have not been completely exploited. In particular, bolometers offer a wide choice of possible absorber materials while also being able to achieve an energy resolution competitive with that of Ge diodes (e.g. on the order of 5 keV FWHM at 3 MeV). The freedom in the choice of the absorber provides an opportunity for consistent methodology over a wide range of possible $\beta \beta$ isotope candidates without the limitations usually imposed by the experimental technique (e.g. as seen with the semiconductor detectors).

As a consequence, with bolometers it is possible to maximize the sensitivity in Eq. (5) (or Eq. (7)) through the optimization of all its terms, something that is seldom achievable with other kinds of detectors. In particular:

• 1. Bolometers can maximize efficiency and fiducial mass because they are solid state detectors; the large scale (${\sim }0.2$ ton$_\mathrm{{iso}}$) in a bolometric experiment is being tested by the CUORE [32] experiment currently under construction;

• 2. The energy resolution is among the best ever measured for massive solid state detectors, ensuring negligible background from $2\nu \beta \beta$ spectrum tail;

• 3. The isotopic abundance can be maximized through enrichment (except for $^{48}$Ca and $^{150}$Nd with present technology);

• 4. As discussed later in this paper, the background can be minimized with a choice of the isotope and by employing active rejection techniques.

The CUORE experiment represents the most advanced stage in the use of bolometers for $0\nu \beta \beta$ searches. CUORE will consist of an array of $\sim$1000 crystals for a total mass of $\sim$1 ton of TeO$_2$ and $\sim$200 kg of $^{130}$Te. It is expected to be taking data at Laboratori Nazionali del Gran Sasso (LNGS) in 2015. The sensitivity of CUORE will depend on the background level, with the target near 50 meV [48]. In the future CUORE may lead the way toward a few-ton scale experiment capable of either exploring the entire IH region, or making a precision measurement of $T_{1/2}^{0\nu }$.

3.1 Scintillating bolometers

In the previous section we enumerated the many advantages of using bolometers for $0\nu \beta \beta$ searches. Among those, we mentioned the possibility to actively reject radioactive background via particle identification; this is possible employing scintillating bolometers.

Scintillating bolometers, used already both for $0\nu \beta \beta$ [49, 50] and for dark matter [51, 52] searches, provide a mechanism to distinguish $\alpha$ interactions (which are part of the background only) from $\beta /\gamma$ interactions (which can be a part of both the background and signal).

A scintillating bolometer functions by operating a scintillating crystal as a cryogenic bolometer (as described above) and coupling it to a light detector, as shown in Fig. 3. Similar to other large-mass bolometers, the best energy resolution is achieved at extremely low temperatures ($\sim$10 mK).

Fig. 3

Operating principle of a scintillating bolometer. The release of energy inside a scintillating crystal follows two channels: light production and thermal excitation

When a particle traverses the scintillating crystal and interacts with the lattice, a large fraction of the energy is transferred into the crystal as heat, raising the internal energy, thus inducing the already mentioned temperature rise. A small fraction of the deposited energy produces scintillation light that propagates as photons out of the crystal. These are then detected by a separate light detector facing the crystal. The light detectors used so far for scintillating bolometers are bolometers themselves and consist of germanium or silicon wafers, kept at the same temperature as the main bolometer. Scintillation photons deposit heat into the wafer and induce a temperature rise, which is then measured by a second thermistor.

The signals registered by the two thermistors are conventionally named heat (the one generated in the main bolometer) and light (the one induced in the light detector). Although they have the same nature (temperature rises), they originate from different processes.

An interesting feature of scintillating bolometers is that the ratio between the light and heat signals depends on the particle mass and charge. Indeed, while the thermal response of a bolometer has only a slight dependence on the particle type,³ the light emission from a scintillator changes significantly with ionization energy density. Particles like $\beta$s and $\gamma$s have similar light emission (referred to as the light yield, i.e. the fraction of particle energy emitted in photons), which is typically different from the light emission induced by $\alpha$ particles or neutrons. Consequently, the coincident measurement of the heat and light signals allows particle discrimination. If the scintillating crystal contains a $\beta \beta$ candidate, the $0\nu \beta \beta$ signal (i.e. the energy deposition produced by the two electrons emitted after the decay) can be distinguished from an $\alpha$ signal [49, 50], leaving only $\beta$s and $\gamma$s to give sizable contribution to the background.

Scintillating bolometers containing Ca, Mo, Cd, and Se have been successfully tested, coupled to a thin Ge wafer operated as a bolometer for the light readout [50, 55–60]. At present scintillating crystals that look most promising for a large scale $0\nu \beta \beta$ experiment are ZnSe, CdWO$_4$, and ZnMoO$_4$.

A recent discovery in the field of scintillating bolometers [61] opens up a new analytical technique to increase the background rejection power. When the bolometer is a scintillator, the heat signal presents a different time-dependent shape according to the amount of energy that flows into non-radiative processes of the light channel [62]. This allows discrimination of $\alpha$s from the $\beta /\gamma$ particle populations without the light readout. The ability to recognize the interacting particle from the different pulse shapes of the thermal signal was demonstrated both for ZnMoO$_4$ (see details in references [59–61]) and for ZnSe crystals [55], while in CdWO$_4$ only small evidence of this feature was observed.

The sensitivity to pulse shape is currently limited by the readout bandwidth of the Neutron Transmutation Doped (NTD) sensors. This can likely be improved with low-impedance sensors, e.g. Transition Edge Sensors (TES) [63].

3.2 TeO$_2$ bolometers with Cherenkov light readout

According to the present understanding of TeO$_2$ crystals, they do not scintillate at bolometric temperatures ($\sim$10 mK). However, the many advantages offered by this material in terms of bolometric performance and the high natural isotopic abundance of $^{130}$Te with respect to other candidate nuclei have provided a strong motivation to pursue another, extremely challenging, option: the readout of the Cherenkov light. According to [64], TeO$_2$ crystals have suitable optical properties to act as Cherenkov radiators, with a threshold for Cherenkov light emission of about 50 keV for electrons and about 400 MeV for $\alpha$ particles. Given the typical energies of $\alpha$ particles emitted in radioactive decays (3–10 MeV), they are below threshold for Cherenkov light emission. This provides, at least in principle, the possibility of tagging $\beta /\gamma$ interactions and rejecting the $\alpha$ ones based on the measurement of Cherenkov light. Cherenkov light emitted by electrons has only recently been observed in a TeO$_2$ bolometer [53, 65] while coupled to the same kind of light detector used for scintillating bolometers.

The $\alpha$ background rejection capability of this technique is not yet comparable with the one obtained with scintillating bolometers. Nevertheless, the results are encouraging and have inspired further R&D in an effort to increase the $\alpha$ vs. $\beta /\gamma$ separation. This could be done through the optimization of the light collection and the reduction of the noise in the light detector or using a new light detector concept (TES [63] or Luke effect [66] enhanced bolometers, MKIDs [67], integrated thermistor, etc.).

3.3 Results on $\alpha$ background discrimination power

The ability of a scintillating bolometer, or of a bolometer with Cherenkov light readout, to separate $\alpha$ events from $\beta$s and $\gamma$s is demonstrated in Fig. 4 where we have collected the most recent results obtained with ZnSe, CdWO$_4$, ZnMoO$_4$, and TeO$_2$.

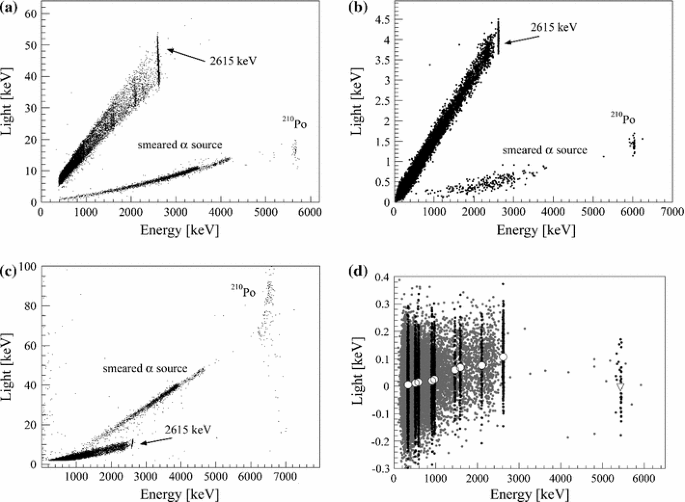

Fig. 4

Light vs. heat scatter plots of recently tested bolometers. The different nature of the light signal should be noted. CdWO$_4$ (a), ZnMoO$_4$ (b), and ZnSe (c) are scintillating bolometers where the light signal is given by the scintillation induced by particle interactions. TeO$_2$ (d) does not scintillate, however Cherenkov light is produced by $\beta /\gamma$ interactions (circles) and not by $\alpha$ ones (triangles). Pictures are adapted with authors’ consensus from the following papers: [56] (a), [59] (b), [55] (c) and [65] (d)

The bolometers were operated with very similar configurations in a low temperature dilution refrigerator installed underground in Hall C of Laboratori Nazionali del Gran Sasso (LNGS). The $\alpha$ vs. $\beta /\gamma$ rejection factor was determined by exposing the bolometers to a $^{232}$Th calibration $\gamma$ source and to a degraded $\alpha$ source. The experimental details regarding each bolometer are described in [50, 55–60, 65]. As can be seen in Fig. 4a–c, CdWO$_4$ and ZnMoO$_4$ show similar features. Although they have different light yields, the two classes of particle populations ($\alpha$ and $\beta /\gamma$) are clearly identified. The same is true for ZnSe except the $\alpha$ band lies above the $\gamma$ one. Figure 4d shows the light versus heat scatter plot recorded in a TeO$_2$ crystal with Cherenkov light readout. The points belonging to calibration peaks are marked in black and the average light for each peak is shown, both for $\alpha$ peaks (triangles) and for $\beta / \gamma$ peaks (circles). The Cherenkov light yield for $\alpha$ peaks is compatible with zero, as it should be.

A summary of results concerning the $\alpha$ vs $\beta /\gamma$ discrimination power (DP) is given in Table 2.

We define DP as follows:

$$\begin{aligned} DP =\frac{|\mu _{\beta /\gamma }-\mu _{\alpha }|}{\sqrt{\sigma _{\beta /\gamma }^2+ \sigma _{\alpha }^2}} \end{aligned}$$

(8)

where $\mu _i$ is the average value of the distribution of the discriminating parameter for one of the two $i\in \{\beta /\gamma , \alpha \}$ particle populations and $\sigma _i$ is the associated width. The discriminating parameter can be the light/heat ratio, a pulse shape variable, or the amplitude of the Cherenkov light signal, according to the given $\alpha$ discriminating technique.

Table 2 Summary of the $\alpha$ vs. $\beta /\gamma$ discrimination power (DP, see Eq. (8)) obtained for several scintillating bolometers and for TeO$_2$ bolometers. Results for three techniques are shown: the double readout of the heat and the scintillation light, the pulse shape analysis, and the readout of the Cherenkov light. All results were obtained at the 2615 keV $^{208}$Tl line. For the Cherenkov light readout, the values of the discrimination power reported here are lower than the separations calculated in [53] and [65] due to a different definition of DP

3.4 Energy resolution

In Table 3 we report the energy resolutions obtained with the scintillating bolometers tested so far as well as the results for the TeO$_2$ crystals. The values in the fourth column (FWHM$_{\theta }$), for scintillating crystals, correspond to an improved energy resolution obtained after correcting for the energy correlation (or anti-correlation) between the heat and light signals (details in [54] and [56]).

It is interesting to note the excellent energy resolution obtained by the ZnMoO$_4$ crystals. In fact, for this crystal, the correction for the energy correlation between the heat and light signals was not applied. This feature opens the possibility of an experiment with discrimination using pulse shape analysis alone, without the need for light detectors to improve the energy resolution.

The resolution quoted for TeO$_2$ crystals was obtained, as explained in [68], as the mean value of the resolutions observed in 5$\times$5$\times$5 cm$^3$ CUORE crystals tested in cryogenic runs at LNGS [68] in a series of routine tests on the quality of the provided crystals. For the other crystal results reported in Table 3, one should take into consideration that they were obtained on test crystals operating under suboptimal noise conditions in a setup not specifically optimized for energy resolution. Therefore, in the following discussion, we will make the reasonable assumption that the scintillating crystals, with the optimized thermal design and working conditions, will be able to reach an energy resolution of 5 keV as measured for the 5$\times$5$\times$5 cm$^3$ TeO$_2$ crystals.

Table 3 Energy resolution evaluated at 2615 keV for large mass scintillating bolometers tested so far and for TeO$_2$. Resolutions after correcting for the energy correlation (or anti-correlation) between the heat and light signals are reported as FWHM$_{\theta }$

4 The inverted hierarchy explorer

The aim of this study is to define the criteria and the constraints for a next generation bolometric experiment able to test the inverted hierarchy region of the neutrino mass spectrum and to assess the sensitivity of such an experiment. In the following we will refer to this experiment as the Inverted Hierarchy Explorer (IHE).

We will consider as possible choices for the IHE detectors the scintillating bolometers already tested and mentioned above (ZnMoO$_4$, CdWO$_4$, and ZnSe) and TeO$_2$ bolometers with Cherenkov light readout.

For each candidate bolometer, we will assume a 90 % isotopic enrichment in the $\beta \beta$ emitting isotope.

For this discussion, we will assume the IHE experiment will operate underground at LNGS using an experimental setup similar to the one presently under construction for the CUORE experiment. Figure 5 shows the main elements of the experimental apparatus:

• $\underline{\hbox {The detector:}}$ 988 bolometers, each with a volume of 125 cm$^3$ (5$\times$5$\times$5 cm$^3$), arranged in a close-packed array held by a copper structure. The detectors are arranged in planes of 4 crystals each, with PTFE spacers that secure crystals to the copper frames. Light detectors consisting of Ge or Si ultrapure wafer of about 300 $\mu$m thickness and 10 cm diameter cover each plane. The scintillating crystals are wrapped in a reflecting foil to improve the light collection efficiency.

• $\underline{\hbox {The cryostat:}}$ a low temperature refrigerator made of few nested cylindrical copper thermal shields. The detector is located inside the inner cylinder. A 10 cm-thick copper vessel shields the bolometers from the radioactivity of the cryostat itself. A 30 cm-thick lead disk, placed just above the detector, provides supplementary shielding against the radioactivity of the various components of the refrigerator located above the detector: the dilution unit, the pumping lines, and the cabling system. These upper components cannot be produced with the same radiopurity required for the thermal shields.

• $\underline{\hbox {The external shields:}}$ positioned outside the refrigerator, a 30 cm thick lead shield and a 20 cm thick borated polyethylene shield are used to absorb $\gamma$s and neutrons.

The main characteristics of the IHE for the different $\beta \beta$ candidates are reported in Table 4.

Table 4 IHE characteristics for the different $\beta \beta$ candidates. For each isotope we quote the type of scintillating crystal, the total mass of a 988 5$\times$5$\times$5 cm$^3$ crystal array, the number of $\beta \beta$ candidates, the number of decays in 5 years (N$_{0\nu \beta \beta }$) for the most and the least favourable values of F$_N$ among those discussed in Sect. 2.2 for $|m_{ee}|$ = 50 meV and $|m_{ee}|$ = 10 meV. We assume a 90 % isotopic enrichment in the $\beta \beta$ emitting isotope. In the last column we list the 5 year sensitivity at 90 % CL under the zero background hypothesis (see Eq. (7))

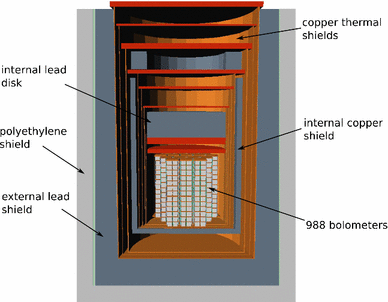

Fig. 5

Drawing of the IHE geometry, as implemented in the MC simulation: 988 bolometers (5$\times$5$\times$5 cm$^3$ each) arranged in a close-packed array held by a copper structure, a low temperature refrigerator made of a few nested copper thermal shields, a 10 cm thick internal copper vessel shield, a 30 cm thick lead disk placed just above the detector, a 30 cm thick external lead shield, and a 20 cm thick borated polyethylene shield

4.1 Background

The energy ROI for background evaluation is one FWHM (5 keV) wide and centered at the $0\nu \beta \beta$ Q-value (between 2.528 and 3.035 MeV depending on the isotope). In this region we expect background contributions from the following sources:

• Environmental $\mu$s, neutrons, and $\gamma$s;

• $^{238}$U and $^{232}$Th in setup elements far from the detectors, contributing only through the $\gamma$ emissions of their daughters $^{214}$Bi and $^{208}$Tl;

• $^{238}$U and $^{232}$Th in setup elements close to the detectors, contributing both with their own and their daughters’ $\alpha$, $\beta$ and $\gamma$ emissions;

• $2\nu \beta \beta$ and its pile-up in the detectors. This particular kind of background deserves to be mentioned separately since, for a given enrichment, energy, and time resolution, it is irreducible.

For the intensities of these sources we used either measured values or upper limits, and point out where further developments are needed in order to reach the desired background level. It should be stressed here that, given the high radiopurity of the selected materials, the sensitivity of the measurement technique plays a crucial role. For example, bulk contamination limits for $^{238}$U and $^{232}$Th have been obtained with high purity Ge detectors or neutron activation analysis. In the cases where no evidence of contamination was found in the measured samples, the ultimate limit on the background resides in the sensitivity limits of the measuring technique. CUORE itself will provide an high-sensitivity bolometric determination of the radioactive contamination in common detector materials.

Another source of background that should be considered when searching for rare events is the activation of the detector’s material and of other materials constituting the experimental setup by sea-level cosmic-ray neutrons. This process, known as cosmogenic activation, can produce long-lived radioisotopes whose subsequent decay can contribute to the background in the ROI. This contribution depends on the amount of isotope produced, that is on the neutron cross section for the given material and on the exposure time at sea level. Among the isotopes produced by cosmogenic activation, only the ones with a Q-value higher that the Q-value of the neutrinoless double beta decay would contribute to the background in the ROI, so isotopes with higher $0\nu \beta \beta$ Q-value are favored in this respect. The exposure time is also a crucial issue that depends on the history of crystal production. The evaluation of the background induced by cosmogenic activation relies on many complex aspects and it is outside the scope of this paper.

To study the effect of the listed background sources on the background of our experiment, we used a GEANT4-based [69] Monte Carlo simulation. The simulation includes the propagation of $\mu$, neutron, $\gamma$, $\beta$, and $\alpha$ particles as well as heavy ions (nuclear recoil after $\alpha$ particle emission). The Livermore physics list is particularly well suited for low energy studies and so it is used here for the generation of nuclear decays or nuclear decay chains. The simulation accurately reflects the technical details of the detector geometry, the cryostat, and the internal and external shields. Given their extreme radiopurity and the small thickness, the light detectors and the reflective sheet are not expected to give a sizeable contribution to the background and for this reason they are not included in the simulated geometry.

In order to study different contributions to the ROI, all the detector elements introduced in the code can serve as a radioactive source with the bulk and surface contamination independently simulated. In addition, the molecular compound corresponding to the bolometers can be changed in order to study the background expected for the four different detectors.

The results presented in the following sections, unless otherwise specified, are obtained assuming an $\alpha$ rejection efficiency of 99.9 % and an equal signal selection efficiency. We do not reject mixed events like the $\beta$+$\alpha$ events produced in the fast decay of the Bi-Po sequence; due to the slow response of bolometers, events likes these are recorded as single events and their energy deposits are summed.

Moreover, we assume the detectors operate in anticoincidence. This configuration selects only events where the energy is deposited in a single crystal, as would be the case for a $0\nu \beta \beta$ event. Detailed simulations have shown that the $0\nu \beta \beta$ containment efficiency of a 5$\times$5$\times$5 cm$^3$ crystal depends on the crystal compound and varies from 76 % for ZnSe to 87.4 % for TeO$_2$. Due to the small thickness, the presence of the light detector and reflecting sheet would introduce only minor changes (of the order of few percent) in the anticoincidence efficiency. We neglect these effects at the present level of accuracy.

4.1.1 Environmental background

The environmental background at LNGS consists of cosmic ray $\mu$s, neutrons, and $\gamma$s (see for example [70, 71] and references therein). The $\gamma$s and neutrons are due to two sources: (1) the natural radioactivity of the rock in the laboratory walls and (2) muon interactions in the rock, materials surrounding the detector, and in the detector itself. The expected background contributions for a CUORE-like experiment, as reported in [71], in a ROI of 5 keV around the Q-value are:

• $\mu$s: $\sim$ $5\times 10^{-1}$ cnts/ton/y;

• neutrons: $\sim$ $5\times 10^{-2}$ cnts/ton/y;

• $\gamma$s: $< 2$ cnts/ton/y (90 % CL). This limit was extracted from an analysis of simulated events with the anticoincidence selection relaxed due to the low statistics of the simulation.

Further reduction of the environmental background can be obtained by implementing a muon veto and by using thicker lead and polyethylene shields. In the following we will assume that this contribution can be reduced to negligible levels regardless of the target background counting rate of the experiment.

4.1.2 Radioactive contamination: far sources

We define as far elements all the parts of the experimental setup contributing only $\gamma$s that come from the $^{232}$Th and $^{238}$U decay chains. Because of the different Q-values, we distinguish between two cases: (1) TeO$_2$ crystals, for which both $^{232}$Th and $^{238}$U emissions are relevant, and (2) the other three crystals, for which only $^{238}$U contribution is relevant for the background. In fact, for the $^{232}$Th decay chain, the only gamma contribution above 2615 keV is given by the summing of this line with other gammas emitted in cascade. The probability of such a summing becomes negligible as the distance of the source from the crystal increases.⁴ For the background of the scintillating bolometers we always report the worst result among the three crystals.

The limits on the $^{238}$U and $^{232}$Th contaminations used for the simulation of far elements have been measured in materials selected for the CUORE experiment. They are reported in Table 5 together with the resulting background limits from simulations.

Table 5 Background rate induced in a ROI of 5 keV at $0\nu \beta \beta$ by radioactive contamination in several setup elements for an IHE experiment based on TeO$_2$ crystals or on scintillating bolometers. In the latter case we report the worst result among those obtained for CdWO$_4$, ZnSe, and ZnMoO$_4$. Far sources correspond to cryostat elements and shields while Near sources correspond to the detector mechanical structure. The contamination limits for stainless steel were measured in commercially available samples [72]. The contamination limits for copper and lead were measured by the authors in specially selected copper (well suited for low temperature applications) and in specially selected lead. Limits are reported at 90 % CL

4.1.3 Radioactive contamination: near sources - bulk

The total amount of material in close vicinity to the crystals, that is everything located inside the internal shield that surrounds the detector array ($\sim$20 cm distance from the outer crystals) is dominated by the copper in the mechanical structure. The resulting bulk background is reported in Table 5.

Table 6 summarizes the crystal bulk contamination results obtained in dedicated underground tests where the crystals were operated as bolometers. The contamination limits for TeO$_2$ have been measured in a random sample of crystals produced for the CUORE experiment, which followed very strict radiopurity protocols. The upper limits for the other, scintillating, bolometers were obtained with prototypes grown without rigorous attention to material selection.

Table 6 Crystal bulk contamination levels and the corresponding background counting rate in the ROI (without rejection by delayed coincidence, see text). Here the background is dominated by $\beta$/$\gamma$ events. Limits are reported at 90 % CL

The dominant contribution to the background per unit source intensity simulated is from $\beta /\gamma$ emissions of $^{208}$Tl, $^{214}$Bi , and $^{210}$Pb. Further background reduction with respect to the values reported in Table 6 can be obtained by exploiting the technique of delayed coincidences. For example, $^{208}$Tl $\beta$-decays with a Q-value of 5 MeV and a half-life of 3 minutes. The background induced by this isotope can be rejected with the use of a delayed coincidence between the $^{208}$Tl signal and the $\alpha$ emitted by its precursor, $^{212}$Bi (E$_{\alpha }$ = 6 MeV). The choice of the coincidence window width is a compromise between the background reduction factor (F$_\mathrm{{B}}$) and the resulting dead-time (T$_\mathrm{{dead}}$). For $^{232}$Th contamination of $8\times 10^{-6}$ Bq/kg (the worst case reported in Table 6), the compromise sets F$_\mathrm{{B}}$ $\sim$ 3 and T$_\mathrm{{dead}}$ $\sim$ 10 %. With one order of magnitude lower contamination, which may be possible with a dedicated material purification campaign, we obtain F$_\mathrm{{B}}$ $\sim$ 20 and T$_\mathrm{{dead}}$ $\sim$ 3 %.

Also, $^{214}$Bi $\beta$-decays with a branching ratio of 99.98 % to $^{214}$Po, which in turn $\alpha$-decays with a very short half-life (163 $\mu$s) and a Q-value of 7.8 MeV. Bolometer signals develop over about 2 seconds, therefore the chain $^{214}$Bi $\rightarrow ^{214}$Po$\rightarrow ^{210}$Pb gives rise to a pile-up event that is easily rejected. In this case, the energy released by the two decays adds together and generates a continuous background whose lower limit is the Q-value of the $^{214}$Po $\alpha$ decay. This is already taken into account in the simulation. In the remaining 0.02 % of the cases, $^{214}$Bi $\alpha$-decays to $^{210}$Tl, which is a $\beta$ emitter with a Q-value of 5.4 MeV and a half-life of 1.3 minutes. The background induced by this $\beta$ emitter can be rejected with the use of a delayed coincidence between the $^{210}$Tl signal and the $^{214}$Bi signal.

As an additional remark about this kind of background we discuss the contribution of $^{113}$Cd in CdWO$_4$ crystals. This $\beta$-decaying isotope (Q-value = 316 keV) is responsible for the high natural activity of CdWO$_4$ crystals ($\sim$0.5 Bq/kg in natural CdWO$_4$) and could contribute to the ROI counting rate through spurious pile-up events. However, isotopic enrichment in the $\beta \beta$ candidate $^{116}$Cd will deplete $^{113}$Cd reducing the pile-up-induced background. Enrichment in this case will also decrease the rate of (n,$\gamma$) reactions on $^{113}$Cd, whose neutron cross section is extremely high ($\sigma \sim 20000$ b).

Finally, bulk contaminations in the light detectors can be neglected because Ge and Si wafers, whose masses are only on the order of a few grams, are generally characterized by a high intrinsic radiopurity. Also, events occurring within the light detectors can be easily tagged and rejected. For example, given the typical energies of $\alpha$ and $\beta$ decays, the energy deposition in the light detector will be much higher than the ones typically produced by scintillation light. Moreover, a direct particle event within the light detector can also be easily rejected by pulse shape analysis.

4.1.4 Radioactive contamination in near elements: surface

It is often observed, particularly in the most radiopure materials, that surface contamination exceeds the contamination coming from the bulk. This is generally due to the external mechanical and/or chemical treatment of the materials or because the materials are exposed to contaminated air. When considering elements that are close to the bolometers, these contaminants can be problematic in limiting sensitivity. For example, in the Cuoricino experiment a large fraction of the counting rate in the ROI was attributed to surface contamination on the detector materials [27]; this surface background source will most probably be the one limiting CUORE sensitivity [32, 73]. The $\alpha$ rejection capability of scintillating bolometers is particularly effective in reducing this background source. Figure 6 illustrates the effect of $\alpha$ background rejection for $^{238}$U (top) and $^{232}$Th (bottom) contaminations on TeO$_2$ crystal surfaces and copper surfaces.

Fig. 6

Effect of $\alpha$ background rejection for $^{238}$U (top) and $^{232}$Th (bottom) contaminations on TeO$_2$ crystal surfaces and copper surfaces. The spectra have been obtained simulating a surface contamination with an exponential depth profile and the mean depth of 5 $\mu$m. Solid histograms correspond to the total simulated background contribution from the given source (crystal or copper) while in the dashed histograms the $\alpha$ contribution is rejected

The impact of surface contamination on the background depends critically on the contaminant ($^{238}$U , $^{232}$Th , $^{210}$Pb) and on the depth of the contaminated layer. Both are generally difficult to measure [68, 70, 74, 75]. Therefore, we assume a reasonable set of values based on our past experience with bolometers. The results reported in Table 7 are obtained assuming, for both the crystals and the copper in contact with them, a surface contamination with an exponential depth profile and the mean depth of 5 $\mu$m.⁵ The measured activities (or limits) of the various contaminants are also reported. For crystal surfaces, the activity limits were measured in TeO$_2$ bolometers [68] and no evidence for surface contamination was found. The extreme radiopurity of the surfaces has been achieved with a dedicated protocol of polishing and cleaning that can be reasonably applied (and most probably improved) to CdWO$_4$  ZnSe, and ZnMoO$_4$ as well.

For the copper surface contamination, we refer to the results obtained in [76] for the CUORE-0 experiment, a single CUORE-like tower and a technical prototype of CUORE, operated at LNGS since March 2013. Only indirect evidence of surface contamination was found.⁶ We use the same procedure as in [77] to convert the measured rate into a quantitative limit on the surface contamination, that is we assume that the entire rate measured in [76] is due to each species of impurity on the copper surface ($^{238}$U or $^{232}$Th or $^{210}$Pb) in turn. Therefore, the derived surface contamination values are conservative and set mutually exclusive upper limits.

We recall that the background rates shown in Table 7 are obtained assuming a 99.9 % rejection of $\alpha$-induced counts and an anticoincidence cut among the detectors. Surface contaminations in the light detectors are not considered because they would give rise to coincident events, which are easily tagged and rejected.

Table 7 Upper limits (90 % CL) on surface contamination of crystals and copper with the corresponding upper limit on the induced $0\nu \beta \beta$ counting rate in a ROI of 5 keV. A 99.9 % rejection of $\alpha$-induced counts and anticoincidence cuts among the detectors have been applied

4.1.5 $2\nu \beta \beta$ induced background

The background sources described above (external sources or radioactive contaminants in the setup) could theoretically be reduced to zero, even though the technical challenges would be substantial. However there is a background source for any $0\nu \beta \beta$ search that is always present: the $2\nu \beta \beta$ decay of the candidate isotope itself.

The end point of the $2\nu \beta \beta$ spectrum can contribute substantially to the background in the ROI as the energy resolution of the experiment becomes larger. However, as already shown in Table 1, in detectors with good energy resolutions like bolometers, the ratio of $2\nu \beta \beta$ to $0\nu \beta \beta$ event rate, assuming $|m_{ee}|$ in the IH region, is negligible.

On the other hand, a drawback in the use of bolometers comes from their slow response time. Accidental pile-up of $2\nu \beta \beta$ events can produce a contribution to background in the ROI at a detectible level, thus limiting the sensitivity of an experiment [57, 78]. Two events produced in the same detector by two random $2\nu \beta \beta$ decays within a time window smaller than the typical time response of the detector can produce a signal that mimics a $0\nu \beta \beta$ decay.

In order to study the effects of $2\nu \beta \beta$ pile-up in bolometric detectors in detail, we used a software tool developed for the CUORE experiment [79] that simulates signal pulses and noise samples of TeO$_2$ bolometers, including the effects generated by operating temperature drifts, nonlinearities, and pile-up. The signal shape is reproduced by means of a thermal model [80] with a pulse amplitude randomly extracted from a theoretical $2\nu \beta \beta$ spectrum [81]. The pulse is then superimposed on a noise baseline, sampled according to measured noise power spectra of real TeO$_2$ detectors. The pile-up rate is artificially increased so that two $2\nu \beta \beta$ pulses always pile-up within a time window between 0 and 100 ms. The simulated pile-up pulses are then processed as real data.

The analysis shows that standard pulse shape analysis cuts, already developed for CUORE, give a pile-up rejection efficiency of 100 % down to $\varDelta$T = 5 ms and, for the best performing channel, down to $\varDelta$T = 1 ms. In Table 8 we summarize the $2\nu \beta \beta$ pile-up-induced background for the four $\beta \beta$ candidates considered in this paper. The results for scintillating crystals are an extrapolation of what was obtained for TeO$_2$ crystals using the simulation framework described above. The pile-up rate is evaluated for 90 % enrichment, a 5$\times$5$\times$5 cm$^3$ crystal, and for a minimum pulse separation time of $\varDelta$T = 1 ms.

Table 8 $2\nu \beta \beta$ pile-up induced background in a 5 keV ROI for experiments based on the four $\beta \beta$ candidates discussed in this work. The pile-up rate is evaluated for a 90 % enrichment, a 5$\times$5$\times$5 cm$^3$ crystal and for a minimum pulse separation time $\varDelta$T = 1 ms, using the heat-channel pulse only

Further improvement could be obtained by exploiting the faster time response of light detectors; the pulse rise time of bolometric light detectors is already a factor $\sim$5 smaller than the rise time in the larger bolometric crystals. For example, the case of $^{100}$Mo, which is the most problematic among the isotopes in Table 8, given the relatively small T$_{1/2}^{2\nu }$, has been extensively studied in [78]. There, it is shown that the pile-up discrimination on light signals can reduce the background induced by $2\nu \beta \beta$ in $^{100}$Mo to well below 1 cnts/ton/y.

In principle a pile-up can occur not only among two $2\nu \beta \beta$ decays but also among two radioactive background pulses or among a $2\nu \beta \beta$ decay and a radioactive decay. Both these additional contributions can result in spurious pulses in the ROI. While the $2\nu \beta \beta$ pile-up rate, given the isotope and the crystal, is irreducible, the pile-up rate from background and background plus $2\nu \beta \beta$ depends on the radioactive background rate and can therefore be limited to a certain extent. Our estimations show that, assuming a radioactive background rate of 0.14 mHz (CUORE estimate), the resulting pile-up background in the ROI from radioactive sources and radioactive sources plus $2\nu \beta \beta$ is negligible for all isotopes but for Tellurium, where the contribution is of the same order of magnitude than the $2\nu \beta \beta$ pile-up. However, considering the additional background reduction foreseen for the IHE with respect to CUORE, we conclude that the only source of pile-up background in the ROI that has to be taken into account for a future generation bolometric experiment like the IHE is the $2\nu \beta \beta$ decay, as considered in this work.

4.2 Background budget

Here, we summarize the results that are described in previous sections and reported in Tables 5, 6, and 7; the tentative background budget of the IHE is shown in Fig. 7. The different background contributions are grouped according to the material where the contamination is located. Upper limits for $^{238}$U and $^{232}$Th for the same material were summed up in order to give the most conservative result, except for copper surface contamination (see Table 7) where the upper limits for different isotopes were not summed since they are mutually exclusive. In this case, the highest upper limit was taken. For the materials where both the bulk and surface contaminations contribute to the background in the ROI, the two components are indicated. Black bars refer to TeO$_2$ crystals while grey bars refer to scintillating crystals. For the latter, we indicate the worst result among those available. $2\nu \beta \beta$ pile-up-induced background is not included in the budget of Fig. 7.

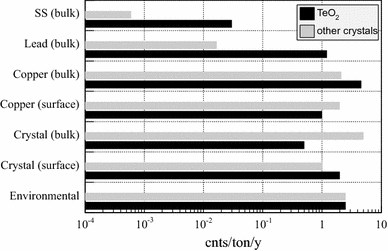

Fig. 7

IHE background budget. All reported values are conservative upper limits. Black bars refer to TeO$_2$ crystals while grey bars refer to other crystals. $2\nu \beta \beta$ pile-up-induced background is not included. SS stands for stainless steel

As indicated previously, all reported background values are conservative upper limits which reflect the state-of-the-art of the ongoing R&D including: scintillating bolometers, material cleaning techniques, and methods for measuring such low levels of radioactive contamination. Low level radioactivity measurements in particular are becoming more and more challenging as the radiopurity of the materials increases. It is reasonable to expect that all the reported limits will improve in the near future. CUORE-0 initial performance [76] has already demonstrated a factor of 6 improvement in the background rate in the $\alpha$ continuum region compared to Cuoricino. This is due to more rigorous copper surface treatment, improved crystal production and treatment protocols, as well as more stringent assembly procedures. CUORE-0 further data and CUORE itself will provide valuable measurements of the radiopurity ultimately achieved with state of the art materials cleaning techniques.

In order to draw a conclusion on what could be the ultimate background reach of a IHE bolometric experiment, we make the aggressive assumption that using a muon active veto and a neutron shield, applying to the scintillating crystals the same (or even more stringent) protocols of material selection and crystals production and polishing used for TeO$_2$ crystals, using delayed coincidences to tag $\beta /\gamma$ bulk emissions, and understanding the nature of surface contaminations, a background index of 0.5 cnts/ton/y, or even 0.1 cnts/ton/y could be optimistically achieved. In the following we will discuss the discovery potential of an IHE bolometric experiment under both assumptions.

4.3 Discovery potential

In the following discussion, we will refer to the definition of sensitivity and discovery potential given in Ref. [48] for the CUORE experiment.

In order to claim $0\nu \beta \beta$ discovery, the exposure of the experiment (e.g. measured in ton$\cdot$y) should be large enough to generate a statistically significant number of signal events above the background. When a signal is observed in the presence of a finite background, there is always some probability that the observation is due to a background fluctuation. The convention for discovery is that any candidate signal be greater than 5$\sigma$ above the background, corresponding to a probability of $\alpha = 2.87 \times 10^{-7}$ that the observation is merely a fluctuation consistent with the expected background. In this case the finite-background Gaussian-regime discovery potential is defined by Eq. (5) with $n_{\sigma } =5$.

For extremely low background levels, such as those considered for the IHE in this work, the Gaussian regime no longer holds and it is more appropriate to assume a Poisson distribution of the background counts. Following [48], the Poisson-regime calculation of the background-fluctuation sensitivity is given by the formula:

$$\begin{aligned} P(\widehat{S}(\varDelta E) + B(\varDelta E),B(\varDelta E)) = \alpha , \end{aligned}$$

(9)

where $\widehat{S}(\varDelta E)$ and $B(\varDelta E)$ are the expected number of signal and background events in an energy region $\varDelta E$ around the Q-value, which is in our case 5 keV. The quantity $\widehat{S}(\varDelta E)$ is defined as:

$$\begin{aligned} \widehat{S}(\varDelta E) = \widehat{S}_0 f(\varDelta E), \end{aligned}$$

(10)

where $\widehat{S}_0$ is the mean signal and $f(\varDelta E)$ is the fraction of signal events that fall in an energy window $\varDelta E$ around the Q-value. Equation 9 means that the Poisson integrated probability that the background distribution alone will cause a given experiment to observe a total number of counts larger than $\widehat{S}(\varDelta E) + B(\varDelta E)$ is lower that $\alpha$.

The Poisson finite-background discovery potential can be defined as the $0\nu \beta \beta$ half-life that would give rise to the mean signal $\widehat{S}_0$ found from Eq. (9) for $\alpha = 2.87 \times 10^{-7}$ and the appropriate value of $B(\varDelta E)$.

In the true zero-background case, the observation of a single event would be enough to claim discovery. However, it is still necessary to quantitatively set the criteria to see that one event. A conservative choice is to require $\widehat{S}(\varDelta E)$ be high enough so that the Poisson-regime probability to observe at least one event is higher than 90 %. This corresponds to $\widehat{S}(\varDelta E) = 2.3$. Therefore we can set the two criteria for discovery potential as:

• 1. $P(\widehat{S}(\varDelta E) + B(\varDelta E),B(\varDelta E))\le 2.87 \times 10^{-7}$

• 2. $\widehat{S}(\varDelta E) \ge 2.3$

For a sufficiently small number of background counts, the requirement for the expected observation to be inconsistent with the background (criterion 1) becomes less stringent than the requirement for the experiment to be reasonably likely to observe any signal event at all (criterion 2).

To discuss the discovery potential of the IHE, we defined it as a CUORE-like (988 5$\times$5$\times$5 cm$^3$ crystals) double beta experiment using bolometer technology based on the four $0\nu \beta \beta$ candidates discussed in this work. Further assumptions are: 90 % enrichment in the candidate isotope, $\varDelta E$ = 5 keV, and a 5 y exposure time. For the background, in order to discuss both the projections of Sect. 4.2, we set it:

• as a first step, to either 0.5 cnts/ton/y or to the value of the 2$\nu \beta \beta$ pile-up-induced background for $\varDelta T$ = 1 ms (see Table 8), whichever is bigger;

• as a second step, to either 0.1 cnts/ton/y or to the value of the 2$\nu \beta \beta$ pile-up-induced background for $\varDelta T$ = 1 ms (see Table 8), whichever is bigger;

In Tables 9 and 10 we report the maximum observable value of the $0\nu \beta \beta$ half life ($T^{0\nu }_{1/2\,D}$) and the minimum observable value of the Majorana neutrino mass ($|m_{ee}|_D$), according to the given definition of discovery potential, of the IHE. The subscript $D$ stands for discovery and the two values of $|m_{ee}|$ correspond to the most and the least favorable choice of the nuclear factor of merit. For the sake of completeness and to ease the comparison with future experiments that quote sensitivity instead of discovery potential, we report in the table also the expected sensitivity in 5 years ($T^{0\nu }_{1/2\,S}$) and the corresponding range of Majorana neutrino mass ($|m_{ee}|_S$). The subscript $S$ stands for sensitivity. The sensitivity is calculated as follows:

• using the 1.64$\sigma$ (90 % C.L.) background fluctuation Poisson method described in Ref. [48], when the number of background counts in the ROI is $>1$;

• using the zero-background approximation of Eq. 7, when the number of background counts in the ROI is $< 1$ and the zero-background condition applies.

To explore the potential of future experiments, we can speculate on the possibility of completely eliminating the background coming from radioactivity and leaving only the intrinsic contribution of $2\nu \beta \beta$. Given the high energy resolution of bolometers, the background from the tail of the $2\nu \beta \beta$ decay is negligible. The ultimate contribution would then be the $2\nu \beta \beta$ pile-up for $\varDelta T$ = 1 ms whose rate expressed in cnts/ton/y in a 5 keV energy window is listed in Table 8.

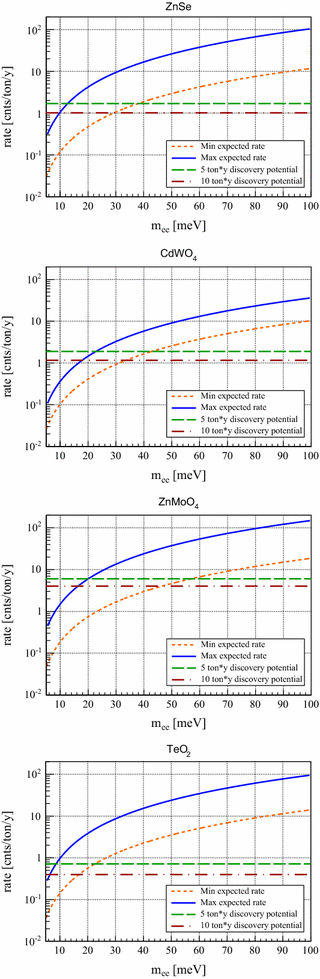

In Fig. 8 we plot for each candidate isotope, the predicted $0\nu \beta \beta$ rate vs. the Majorana neutrino mass ($|m_{ee}|$) for the most favorable (blue) and least favorable (orange) values of $F_{N}$ presented in Fig. 2. The green and red horizontal lines represent the observable rate defined according to our discovery criteria, for an exposure of 5 ton$\cdot$y and 10 ton$\cdot$y respectively. The values of $|m_{ee}|$ where each horizontal line intersects the curves are the minimum observable value (for the given exposure) of the Majorana neutrino mass for the most and the least favorable choice of the nuclear factor of merit.

Fig. 8

Discovery potential (see text) of future double beta experiments with bolometers based on the four $0\nu \beta \beta$ candidates discussed in this work. We assume that the only contribution to the background comes from the irreducible $2\nu \beta \beta$ pile-up. A summary of these results is given in Table 11

A summary of the results presented in the plots of Fig. 8 is given in Table 11. For each candidate isotope we report the maximum observable value of the $0\nu \beta \beta$ half life ($T^{0\nu }_{1/2\,D}$) and the minimum observable Majorana mass ($|m_{ee}|_D$) for the most and least optimistic choice of the nuclear matrix elements for the cases of both a 5 ton$\cdot$y and 10 ton$\cdot$y exposure. As we did for Tables 9 and 10 we report in Table 11 also the expected sensitivity ($T^{0\nu }_{1/2\,S}$) and the corresponding range of Majorana neutrino mass. We have added a subscript $S$ to distinguish the values of the Majorana neutrino masses calculated from sensitivity ($|m_{ee}|_S$) and those derived from discovery potential ($|m_{ee}|_D$).

Table 9 Maximum observable value of the $0\nu \beta \beta$ half life ($T^{0\nu }_{1/2\,D}$) and minimum observable value of the Majorana neutrino mass ($|m_{ee}|_D$) of the IHE, defined as a CUORE-like (988 5$\times$5$\times$5 cm$^3$ crystals) double beta experiment with bolometers based on the four $0\nu \beta \beta$ candidates discussed in this work. The assumptions are: 90 % enrichment in the candidate isotope; $\varDelta E$ = 5 keV; 5 y exposure time; background equal to the maximum value between 0.5 cnts/ton/y and the 2$\nu \beta \beta$ pile-up-induced background for $\varDelta T$ = 1 ms (Table 8). The two values of $|m_{ee}|_D$ correspond to the most and the least favorable choice of the nuclear factor of merit. The last two columns reports the 1.64$\sigma$ (90 % C.L.) sensitivity in 5 years (see text for an explanation on how the sensitivity is calculated) and the corresponding range of Majorana neutrino mass. We have added a subscript $S$ to distinguish the values of the Majorana neutrino masses calculated from sensitivity ($|m_{ee}|_S$) and those derived from discovery potential ($|m_{ee}|_D$)

Table 10 Same as Table 9 except for the background assumptions. The background here is equal to the maximum value between 0.1 cnts/ton/y and the 2$\nu \beta \beta$ pile-up-induced background for $\varDelta T$ = 1 ms (Table 8). The values for ZnMoO$_4$ do not change from Table 9. This is because for $^{100}$Mo the biggest contribution to the background comes from $2\nu \beta \beta$ pile-up (1.5 cnts/ton/y) and not from radioactivity

Table 11 Maximum observable value of the $0\nu \beta \beta$ half life ($T^{0\nu }_{1/2\,D}$) and minimum observable value of the Majorana neutrino mass ($|m_{ee}|_D$) of a future double beta experiment with bolometers based on the four $0\nu \beta \beta$ candidates discussed in this work. The assumptions are: 90 % enrichment in the candidate isotope; $\varDelta E$ = 5 keV; 5 y or 10 y exposure time; background equal to the 2$\nu \beta \beta$ pile-up-induced background for $\varDelta T$ = 1 ms (Table 8). The two values of $|m_{ee}|$ correspond to the most and the least favorable choice of the nuclear factor of merit. The last two columns reports the 1.64$\sigma$ (90 % C.L.) sensitivity in 5 years (see text for an explanation on how the sensitivity is calculated) and the corresponding range of Majorana neutrino mass. We have added a subscript $S$ to distinguish the values of the Majorana neutrino masses calculated from sensitivity ($|m_{ee}|_S$) and those derived from discovery potential ($|m_{ee}|_D$)

Considering the variations due to different definitions of the discovery potential (there is always a certain degree of freedom in this choice, as discussed in [48]) we can conclude that the experimental technique based on $\alpha$-discriminating bolometers grown from enriched material may lead to the investigation of a large fraction of the IH region. Some cases, such as TeO$_2$ with Cherenkov light readout or ZnSe with 10 years exposure, may lead to complete IH exploration. However, given the strong impact of NME uncertainties on $|m_{ee}|$ limits, future developments in the calculations of NME might change the situation considerably.

Experimental goals discussed above require tremendous effort towards background reduction. Of particular concern is the understanding and control of surface contamination on the various detector materials. To contribute to this effort, the feasibility of high efficiency $\alpha$-discrimination in TeO$_2$ bolometers using Cherenkov light readout should be demonstrated; if possible, both Cherenkov and scintillating bolometer techniques should be scaled to a large size experiment. Light detector performance, such as energy- and time-resolution as well as light collection efficiency, should also be improved. All these items are already the subject of an intense R&D and new results will be available soon. Lastly, economics of the isotopic enrichment, feasible for all the candidate isotopes described in this work, needs to be understood.

5 Conclusions

Currently operating and near-term $0\nu \beta \beta$ experiments will not be able to explore a large portion of the IH region. Limiting factors are the relatively small isotope masses and/or the large background counting rates. Future plans in this field will require the use of high energy- and time-resolution detectors to deal with the intrinsic background induced by $2\nu \beta \beta$ decay.

In this paper, we have studied the possibility of a particular type of bolometer: those that are able to discriminate $\alpha$-induced backgrounds from $\beta /\gamma$ backgrounds. These high resolution devices not only efficiently reject $2\nu \beta \beta$ background, but their $\alpha$-rejection capability also makes them much less sensitive to the surface contamination that presently dominates the background in experiments based on cryogenic bolometers like CUORE.

Assuming that the sensitivity is limited only by the undiscriminated pile-up of $2\nu \beta \beta$ events, we have demonstrated that the use of $\alpha$-discriminating bolometers, grown from enriched material, can lead to a feasible future experiment having a $0\nu \beta \beta$ discovery potential in the IH region. We have also addressed areas where the strongest effort will be required in order to improve the performances of such detectors. We conclude that complete coverage of the IH region is possible with a large array of low-background bolometric detectors. Achieving this goal requires significant isotopic mass of order of 1 ton, and nearly zero background rates in the $0\nu \beta \beta$ region of interest. Active background rejection techniques, such as pulse shape discrimination or detection of scintillation or Cherenkov light, offer a promising way to suppress the most dominant $\alpha$ backgrounds. The ultimate sensitivity of such detectors may be limited by the accidental pile-up between multiple $2\nu \beta \beta$ events in the same crystal. Capability of rejecting such pile-up events in the bolometric detectors needs to be demonstrated.
