Introduction

Nanoparticles provide a connection between molecular structure and bulk materials. When nanoparticles strategically deployed in the base fluids, the ensuing nanofluids have been verified to achieve remarkable enhancement in the properties of thermal conductivity, as introduced by Choi [8]. This has made nanofluids attractive in various areas of recent technology incorporating heat exchangers [15], aerospace cooling systems [20], and energy systems [17]. The two most common approaches to investigate the phenomena of heat and mass transfer characteristics are either the Tiwari and Das model [26] (which only requires momentum and energy equations and incorporates nanoparticle effects via a volume fraction parameter only) and the Buongiorno non-homogeneous model [6] (which introduces a separate equation for the nanoparticle concentration). Several researchers worked on these models including Hatami et al. [14], Goyal and Bhargava [12], Hamad et al. [13].

The natural convection exerts a significant influence on the heat and mass transfer analysis in the problems of nanofluids. In most of the fluid flow processes, transport phenomena occur due to the combined effect of heat and mass transfer. This is because of buoyancy effects arising from density variation, which is due to variation in temperature and/or concentration of particles. The classical problem, which involves natural convective flow of a regular fluid over a vertical plate, was first investigated theoretically by Pohlhausen [22]. Thereafter, Bejan [5] incorporated the effect of Prandtl number on boundary layers in natural convective fluid flow problems. An extension of the classical problem [22] to incorporate the effect of heat and mass transfer was investigated by Khair and Bejan [16]. Later, Aziz and Khan [4] numerically investigated the free convective boundary layer flow of a nanofluid over a vertical plate. Their analysis showed that the flow pattern, heat and mass transfer analysis strongly influenced by the pertinent parameters.

Lately, the problems of free convection fluid flow over a plate for different values of inclination angle were frequently encountered in engineering devices such as solar water heaters and inclination/acceleration sensors. Most of the researchers [1, 3, 7] observed that fluid flow through the medium was favoured in case of an inclined plate as inclination to the vertical reduces the drag force. A generalized formulation was explained by Ali et al. [2] for the combined effect of chemical reaction and radiation on MHD free convective flow of viscous fluid over an inclined plate. They found that the flow features not only depend on the magnitude of inclination but also on the distance from the leading edge. Later, Narahari et al. [19] has studied the effect of free convective flow of a nanofluid over an isothermal inclined plate and observed that the thickness of the momentum boundary layer decreases with an increase in angle of inclination whereas the temperature and nanoparticle volume fraction increase with increasing inclination angle.

The study of flow analysis and heat transfer under the influence of an applied magnetic field is considered a significant research topic due to its numerous scientific, industrial and biological applications such as crystal growth, cooling of metallic plates, production of magnetorheostatic materials known as smart fluids, metal casting and liquid metal cooling blankets for fusion reactors. The rate of heat transfer can be controlled by MHD flow in electrically conducting fluid and hence desired cooling effect can be achieved. The different types of thermal boundary conditions were used by Sathiyamoorthy and Chamkha [23] to study steady state, laminar, 2D natural convective flow in the presence of an inclined magnetic field in a square enclosure filled with liquid Gallium. Recently, Goyal and Bhargava [9] numerically investigated the MHD viscoelastic nanofluid flow past a stretching sheet with heat source/sink and partial slip. It was observed from the study that modified Nusselt number is directly proportional to Brownian motion and thermophoretic parameters and indirectly proportional to all other parameters.

As, the study of a convectively heated inclined plate plays an important role in many processes such as manufacturing of tetrapacks, glass fibres, plastic and rubber sheets, solidification of casting. An efficient manufacturing of such materials incorporates various physical phenomena including the implementation of magnetohydrodynamics (MHD), thermal and mass diffusion effects at nanoscale level. To improve the interpretation of the inter-disciplinary transport phenomena in such type of systems, a robust approach is provided with the help of mathematical model. Hence, motivated by this, the present study focused to develop a mathematical model for natural convective boundary layer flow of a nanofluid past a convectively heated inclined plate in the presence of Magnetic field.

The Buongiorno nanofluid model approach [6] is used which emphasizes the Brownian motion and thermophoresis effects. This approach also introduces a separate equation for nano-particle species diffusion. By using the suitable similarity transformation for velocity, temperature and nanoparticle concentration, the equations governing for flow, heat and mass transfer were transformed to a set of ordinary differential equations. The resulting equations subjected to the boundary conditions were solved numerically using conventional finite element method (FEM). The numerical investigation is carried out for different thermophysical parameters, namely: the magnetic parameter, buoyancy-ratio parameter, convective heat parameter, Prandtl number, nanofluid Lewis number, Brownian motion parameter, and thermophoresis parameter. The obtained results are validated by comparing with work of other authors that has reported in literature. The rates of heat and nano-mass transfer were computed and were shown in both tabular and graphical formats.

Problem Formulation

Governing Equations and Boundary Conditions

The flow of fluid was assumed to be steady, incompressible, two-dimensional and laminar with constant physical properties. The semi-infinite plate was inclined at an acute angle \(\displaystyle {\delta }\) to the vertical axis. With \(\displaystyle {x}\)-axis measured along the plate, a magnetic field of uniform strength \(\displaystyle {B_o}\) was applied in the \(\displaystyle {y}\)-direction (normal to the flow direction). The gravitational acceleration \(\displaystyle {g_e}\) was acting downward. In addition, the buoyancy effects were included in momentum transfer with the usual Boussinesq approximation. It was also assumed that the lower side of the plate was heated by convection through a hot fluid at temperature \(\displaystyle {T_f}\) and with coefficient of heat transfer \(\displaystyle {h_f}\). It was assumed that both the nanoparticles and the base fluid are in thermal equilibrium. In the vicinity of the plate, three different types of boundary layers (momentum, thermal and nanoparticle volume fraction) were formed. The physical configuration of the problem is shown in Fig. 1.

Fig. 1
figure 1

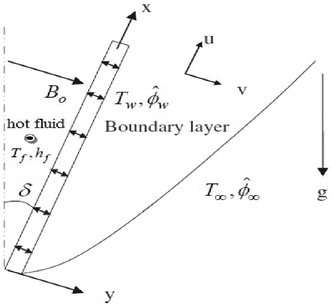

Physical model and co-ordinate system

Full size image

Upon incorporating the main assumptions into the conservation equations for mass, momentum, thermal energy and nanoparticle species, the dimensional set of governing equations is written as:

$$\begin{aligned} \frac{\partial u}{\partial x}+\frac{\partial v}{\partial y}= & {} 0 \end{aligned}$$
(1)
$$\begin{aligned} \rho _f\bigg (u\frac{\partial u}{\partial x}+v\frac{\partial u}{\partial y}\bigg )= & {} \mu \frac{\partial ^2 u}{\partial y^2}-\sigma _{nf} B_o^2 u + [(1-\hat{\phi }_\infty )\rho _{f_\infty }\beta g_e (T-T_\infty )\nonumber \\&-\, (\rho _p-\rho _{f_\infty } )g_e (\hat{\phi }-\hat{\phi }_\infty ))]\cos \delta \end{aligned}$$
(2)
$$\begin{aligned} u\frac{\partial T}{\partial x}+v\frac{\partial T}{\partial y}= & {} \alpha _m\frac{\partial ^2 T}{\partial y^2}+\tau \bigg [D_B\frac{\partial {\hat{\phi }}}{\partial y}\frac{\partial T}{\partial y}+\frac{D_T}{T_\infty }\bigg (\frac{\partial T}{\partial y}\bigg )^2\bigg ] \end{aligned}$$
(3)
$$\begin{aligned} u\frac{\partial \hat{\phi }}{\partial x}+v\frac{\partial \hat{\phi }}{\partial y}= & {} D_B\frac{\partial ^2 \hat{\phi }}{\partial y^2}+\frac{D_T}{T_\infty }\frac{\partial ^2 T}{\partial y^2} \end{aligned}$$
(4)

where u and v are the velocity components parallel and perpendicular to the plate, respectively, \(B_o\) is uniform magnetic field strength, \(\hat{\phi }\) is the local solid volume fraction of the nanoparticles, \(\beta \) is volumetric thermal expansion coefficient of the base fluid, \(D_B\) is the Brownian diffusion coefficient, \(D_T\) is the thermophoretic diffusion coefficient, and T is the local temperature.

Continuity, momentum, thermal energy, and nanoparticle species equations for nanofluid are represented by Eqs. (1)–(4), respectively. The terms (from left to right) in the right side of Eq. (2) represent the stress component due to viscosity, the convective acceleration and the force due to the magnetic field. The first and second terms in the square bracket in (2) represent the positive (upward) buoyancy term due to the thermal expansion of the base fluid and the negative (downward) buoyancy term due to the variation in densities of the nanoparticles and the base fluid, respectively. The terms in the left hand side of Eq. (3) are the convection terms due to temperature. On the other hand, the terms on right side (left to right) represent the heat enthalpy, diffusion of thermal energy due to Brownian diffusion and thermophoretic effect. A similar interpretation could be given to the terms on the right hand side of Eq. (4).

The boundary conditions may be written as

$$\begin{aligned} u=0,~v=0,~\hat{\phi }= & {} \hat{\phi }_w,~-k\frac{\partial T}{\partial y}=h_f(T_f-T)~~ at ~~ y=0 \end{aligned}$$
(5)
$$\begin{aligned} u=0,~v=0,~\hat{\phi }= & {} \hat{\phi }_\infty ,\quad T=T_\infty ~~ as ~~ y\rightarrow \infty \end{aligned}$$
(6)

Similarity Transformations

By introducing the stream function \(\displaystyle {\psi }\), with \(\displaystyle {u=\partial \psi /\partial y}\) and \(\displaystyle {v=-\partial \psi /\partial x}\), the system of Eqs. (1)–(4) reduces to

$$\begin{aligned}&0=\mu \frac{\partial ^3 \psi }{\partial y^3}-\rho _f\bigg (\frac{\partial \psi }{\partial y} \frac{\partial ^2 \psi }{\partial x\partial y}-\frac{\partial \psi }{\partial x}\frac{\partial ^2 \psi }{\partial y^2}\bigg )-\sigma _{nf} B_o^2 \frac{\partial \psi }{\partial y} + [(1-\hat{\phi }_\infty )\rho _{f_\infty }\beta g_e\nonumber \\&\quad (T-T_\infty )-(\rho _p-\rho _{f_\infty } g_e (\hat{\phi }-\hat{\phi }_\infty ))]\cos \delta \end{aligned}$$
(7)
$$\begin{aligned}&\frac{\partial \psi }{\partial y}\frac{\partial T}{\partial x}-\frac{\partial \psi }{\partial x}\frac{\partial T}{\partial y}=\alpha _m\frac{\partial ^2 T}{\partial y^2}+\tau \bigg [D_B\frac{\partial \hat{\phi }}{\partial y}\frac{\partial T}{\partial y}+\frac{D_T}{T_\infty }\bigg (\frac{\partial T}{\partial y}\bigg )^2\bigg ] \end{aligned}$$
(8)
$$\begin{aligned}&\frac{\partial \psi }{\partial y}\frac{\partial \hat{\phi }}{\partial x}-\frac{\partial \psi }{\partial x}\frac{\partial \hat{\phi }}{\partial y}=D_B\frac{\partial ^2 \hat{\phi }}{\partial y^2}+\frac{D_T}{T_\infty }\frac{\partial ^2 T}{\partial y^2} \end{aligned}$$
(9)

The following similarity transformation are used in order to non-dimensionlize the system of differential Eqs. (1)–(4):

$$\begin{aligned} \eta =\frac{y}{x}Ra_x^{1/4},~ \psi =\alpha _m Ra_x^{1/4}f(\eta ), ~\theta (\eta )=\frac{T-T_\infty }{T_f-T_\infty },~ \phi (\eta )=\frac{\hat{\phi }-\hat{\phi }_\infty }{\hat{\phi }_w-\hat{\phi }_\infty } \end{aligned}$$
(10)

with the local Rayleigh number is defined as

$$\begin{aligned} Ra_x=\frac{(1-\hat{\phi }_\infty ) \beta g_e (T_f-T_\infty ) x^3}{\nu \alpha _m} \end{aligned}$$
(11)

Now

$$\begin{aligned} \dfrac{\partial \eta }{\partial x}= & {} -\frac{1}{4} \frac{y}{x^2}Ra_x^{1/4},\nonumber \\ \dfrac{\partial \eta }{\partial y}= & {} \frac{1}{x}Ra_x^{1/4}, \end{aligned}$$
(12)
$$\begin{aligned} u= & {} \frac{\partial \psi }{\partial y}=\alpha _mRa_x^{1/4}\frac{\partial f}{\partial \eta }\frac{\partial \eta }{\partial y}=\frac{\alpha _m}{x} Ra_x^{1/2}f'(\eta ),\nonumber \\ v= & {} -\frac{\partial \psi }{\partial x}=-\alpha _m\bigg (Ra_x^{1/4}\frac{\partial f}{\partial \eta }\frac{\partial \eta }{\partial x}+ \frac{1}{4}Ra_x^{-3/4}\frac{3Ra_x}{x} \bigg )\nonumber \\= & {} \frac{y}{4x^2}\alpha _m Ra_x^{1/2}f'(\eta )-\frac{3}{4x}\alpha _m Ra_x^{1/4}f(\eta ),\nonumber \\ \frac{\partial u}{\partial x}= & {} \frac{1}{2}\frac{\alpha _m}{x^2}Ra_x^{1/2}f'(\eta ) -\frac{y}{4x^2}\frac{\alpha _m}{x}Ra_x^{3/4}f''(\eta ),\nonumber \\ \frac{\partial u}{\partial y}= & {} \frac{\alpha _m}{x}Ra_x^{3/4} \frac{\partial f'}{\partial \eta }\frac{\partial \eta }{\partial y} =\frac{\alpha _m}{x^2}Ra_x^{3/4}f''(\eta ),\nonumber \\ \frac{\partial ^2 u}{\partial y^2}= & {} \frac{\alpha _m}{x^2} Ra_x^{3/4}\frac{\partial f''}{\partial \eta }\frac{\partial \eta }{\partial y} =\frac{\alpha _m}{x^3}Ra_x f'''(\eta ). \end{aligned}$$
(13)

Substituting (12), (13) in Eq. (1), we have

$$\begin{aligned}&\frac{\alpha _m}{x}Ra_x^{1/2}f'\bigg (\frac{\alpha _m}{2x^2} Ra_x^{1/2}f'-\frac{\alpha _m}{4x}\frac{y}{x^2}Ra_x^{3/4}f''\bigg )\nonumber \\&\qquad -\bigg (-\frac{y}{4x^2}\alpha _mRa_x^{1/2}f'+\frac{3}{4} \frac{\alpha _m}{x}Ra_x^{1/4}f\bigg )\frac{\alpha _m}{x^2}Ra_x^{3/4}f''\nonumber \\&\quad =\frac{\mu }{\rho _f}\frac{\alpha _m}{x^3}Ra_xf''' -\frac{\sigma _{nf} B_o^2}{\rho _f}\frac{\alpha _m}{x}Ra_x^{1/2}f'\nonumber \\&\qquad +\,\frac{1}{\rho _f}\bigg ((1-\hat{\phi }_\infty ) \rho _{f_\infty }\beta g_e (T_f-T_\infty )\theta -(\rho _f-\rho _{f_\infty }) g_e (\hat{\phi }_w-\hat{\phi }_{\infty })\phi ))\bigg )\cos \delta \qquad \quad \end{aligned}$$
(14)

With simple calculations, the above equation can be written as:

$$\begin{aligned}&\frac{\alpha _m}{2x^3}Ra_xf'^2-\frac{3\alpha _m^2}{x^3}Ra_xff'' =\frac{\mu }{\rho _f}\frac{\alpha _m}{x^3}Ra_xf''' +\frac{(1-\hat{\phi }_\infty )\rho _{f_\infty }\beta g_e (T_f-T_\infty )}{\rho _f}\nonumber \\&\quad \bigg (\theta -\frac{(\rho _f-\rho _{f_\infty })g (\rho _f-\rho _{f_\infty })}{(1-\hat{\phi }_\infty ) \rho _{f_\infty }\beta g_e (T_f-T_\infty )}\bigg ) \cos \delta -\frac{\sigma _{nf} B_o^2}{\rho _f}\frac{\alpha _m}{x}Ra_x^{1/2}f' \nonumber \\&\quad \Rightarrow \frac{\alpha _m^2}{4x^3}\bigg (2f'^2-3ff''\bigg ) =\frac{\mu }{\rho _f}\frac{\alpha _m}{x^3}Ra_xf''' +\frac{(1-\hat{\phi }_\infty )\rho _{f_\infty }\beta g (T_f-T_\infty )}{\rho _f}\nonumber \\&\quad \quad \bigg (\theta -Nr\phi \bigg )\cos \delta -\frac{\sigma B_o^2}{\rho _f}\frac{\alpha _m}{x}Ra_x^{1/2}f', \end{aligned}$$
(15)

which implies that

$$\begin{aligned} f'''+\frac{\alpha _m}{4\mu }\rho _f\bigg (3ff''-2f'^2\bigg ) +\bigg (\theta -Nr\phi \bigg )\cos \delta -\frac{\sigma B_o^2x^3}{\mu Ra_x^{1/2}}f'= & {} 0\nonumber \\ \Rightarrow f'''+\frac{1}{4Pr}\bigg (3ff''-2f'^2\bigg ) +\bigg (\theta -Nr\phi \bigg )\cos \delta -Mf'= & {} 0, \end{aligned}$$
(16)

where prime denote differentiation with respect to \(\displaystyle {\eta }\) and the parameters \(\displaystyle {Pr}\) (Prandtl number), \(\displaystyle {Nr}\) (Buoyancy-ratio parameter) and \(\displaystyle {M}\) (magnetic parameter) appearing in Eq. (15) are defined as:

$$\begin{aligned} Pr=\frac{\mu }{\alpha _m},~~Nr=\frac{(\rho _p-\rho _f)(\hat{\phi }_w-\hat{\phi }_\infty )}{\rho _f \beta (1-\hat{\phi }_w)(T_f-T_\infty )},~~ M=\frac{\sigma _{nf} B_o^2x^3}{\mu Ra_x^{1/2}} \end{aligned}$$
(17)

In order to non-dimensionlize the energy equation (3), the following terms are computed as:

$$\begin{aligned} \frac{\partial T}{\partial y}= & {} (T_f-T_{\infty })\frac{\partial \theta }{\partial \eta }\frac{\partial \eta }{\partial y} =\frac{(T_f-T_{\infty })}{x}Ra_x^{1/4}\theta '(\eta ),\nonumber \\ \frac{\partial ^2 T}{\partial y^2}= & {} \frac{\partial }{\partial y}\bigg (\frac{(T_f-T_{\infty })}{x}Ra_x^{1/4} \theta '(\eta )\bigg )=\frac{(T_f-T_{\infty })}{x}Ra_x^{1/4} \frac{\partial ^2 \theta }{\partial \eta ^2}\frac{\partial \eta }{\partial y}\nonumber \\= & {} \frac{(T_f-T_{\infty })}{x^2}Ra_x^{1/2}\theta ''(\eta ),\nonumber \\ \frac{\partial T}{\partial x}= & {} (T_f-T_{\infty })\frac{\partial \theta }{\partial \eta } \frac{\partial \eta }{\partial x}=-\frac{y}{4x^2} (T_f-T_{\infty })Ra_x^{1/4} \theta '(\eta ), \end{aligned}$$
(18)

and

$$\begin{aligned} \frac{\partial \hat{\phi }}{\partial y}= & {} (\hat{\phi }_w-\hat{\phi }_{\infty })\frac{\partial \phi }{\partial \eta }\frac{\partial \eta }{\partial y}=\frac{(\hat{\phi }_w-\hat{\phi }_{\infty })}{x}Ra_x^{1/4}\phi '(\eta ),\nonumber \\ \frac{\partial ^2 \hat{\phi }}{\partial y^2}= & {} \frac{\partial }{\partial y}\bigg (\frac{(\hat{\phi }_w -\hat{\phi }_{\infty })}{x}Ra_x^{1/4}\phi '(\eta )\bigg ) =\frac{(\hat{\phi }_w-\hat{\phi }_{\infty })}{x}Ra_x^{1/4} \frac{\partial ^2 \phi }{\partial \eta ^2}\frac{\partial \eta }{\partial y}\nonumber \\= & {} \frac{(\hat{\phi }_w-\hat{\phi }_{\infty })}{x^2} Ra_x^{1/2}\phi ''(\eta ),\nonumber \\ \frac{\partial \hat{\phi }}{\partial x}= & {} (\hat{\phi }_w -\hat{\phi }_{\infty })\frac{\partial \phi }{\partial \eta } \frac{\partial \eta }{\partial x}=-\frac{y}{4x^2}(\hat{\phi }_w -\hat{\phi }_{\infty })Ra_x^{1/4} \phi '(\eta ). \end{aligned}$$
(19)

Now substituting these values from Eqs. (12), (13), (18) and (19) in (3), we obtain

$$\begin{aligned}&-\frac{\alpha _m}{x}Ra_x^{1/2}f'(\eta )\frac{y}{4x^2} (T_f-T_{\infty })Ra_x^{1/4}\theta '(\eta )\nonumber \\&\quad -\bigg (-\frac{y}{4x^2}\alpha _m Ra_x^{1/2}f'(\eta )+\frac{3}{4x}\alpha _m f(\eta ) Ra_x^{1/4}\bigg )\nonumber \\&\quad \times \, \frac{(T_f-T_\infty )}{x}Ra_x^{1/4}\theta '(\eta ) =\alpha _m\frac{(T_f-T_\infty )}{x^2}Ra_x^{1/2}\theta ''(\eta )\nonumber \\&\quad +\,\tau \bigg (D_B \frac{(\hat{\phi }_w-\hat{\phi }_\infty )}{x} \frac{(T_f-T_\infty )}{x}Ra_x^{1/2}\theta '\phi '+\frac{D_T}{T_\infty }\frac{(T_f-T_\infty )^2}{x^2}\theta '^2 \bigg ), \end{aligned}$$
(20)
$$\begin{aligned}&\Rightarrow -\frac{\alpha _m}{4}\frac{y}{x^3}(T_f-T_{\infty }) Ra_x^{3/4}f'\theta '+\frac{1}{4}\frac{\alpha _m}{x}\frac{y}{x^2} (T_f-T_{\infty })Ra_x^{3/4}f'\theta '\nonumber \\&\quad -\frac{3}{4x^2}\alpha _m (T_f-T_{\infty })Ra_x^{1/2}f\theta ' =\frac{\alpha _m}{x^2}(T_f-T_{\infty })Ra_x^{1/2}\theta '' \nonumber \\&\quad +\bigg (\frac{D_B}{x^2}(\hat{\phi }_w-\hat{\phi }_\infty )(T_f-T_\infty ) Ra_x^{1/2}\theta '\phi '+\frac{D_T}{T_\infty }\frac{(T_f-T_\infty )^2}{x^2}\theta '^2\bigg ) \end{aligned}$$
(21)

Leading to:

$$\begin{aligned}&-\frac{3}{4}\alpha _mf\theta '=\alpha _m\theta ''+\tau \bigg (D_B(\hat{\phi }_w-\hat{\phi }_\infty )\theta '\phi ' +\frac{D_T}{T_\infty }(T_f-T_\infty )\theta '^2\bigg ), \end{aligned}$$
(22)
$$\begin{aligned}&\Rightarrow \theta ''+\frac{3}{4}f\theta '+\frac{\tau }{\alpha _m}D_B(\hat{\phi }_w-\hat{\phi }_\infty )\theta ' \phi '+\tau \frac{D_T}{T_\infty }\frac{(T_f-T_{\infty })}{\alpha _m} \theta '^2=0, \end{aligned}$$
(23)
$$\begin{aligned}&\Rightarrow \theta ''+\frac{3}{4}f\theta '+ Nb\theta ' \phi ' + Nt \theta '^2=0 \end{aligned}$$
(24)

where \(\displaystyle {Nb}\) (Brownian motion parameter) and \(\displaystyle {Nt}\) (thermophoresis parameter) appearing in equation (24) are defined as:

$$\begin{aligned} Nb=\frac{\tau D_B (\hat{\phi }_w-\hat{\phi }_\infty )}{\alpha _m},~~~~~Nt=\frac{\tau D_T (T_f-T_{\infty })}{T_\infty \alpha _m} \end{aligned}$$
(25)

Now substituting the values from Eqs. (12), (13), (18) and (19) in the nanoparticle concentration equation (3), we get

$$\begin{aligned}&-\frac{\alpha _m}{x}Ra_x^{1/2}f'\frac{y}{4x^2}Ra_x^{1/4}\phi ' -\bigg (-\frac{y}{4x^2}\alpha _mRa_x^{1/2}f'+\frac{3}{4x}\alpha _m Ra_x^{1/4}f\bigg )\nonumber \\&\quad \frac{(\hat{\phi }_w-\hat{\phi }_{\infty })}{x} Ra_x^{1/4}\phi ' =\frac{D_B(\hat{\phi }_w-\hat{\phi }_{\infty })}{x^2}Ra_x^{1/2} \phi ''+\frac{D_T}{T_\infty } \frac{(T_f-T_\infty )}{x^2}Ra_x^{1/2}\theta '' \end{aligned}$$
(26)
$$\begin{aligned}&-\frac{3}{4x^2}\alpha _mRa_x^{1/2}(\hat{\phi }_w -\hat{\phi }_{\infty })f\phi '\nonumber \\&\quad =\frac{D_B}{x^2}(\hat{\phi }_w-\hat{\phi }_{\infty }) Ra_x^{1/2}\phi ''+\frac{D_T}{T_\infty }\frac{(T_f-T_\infty )}{x^2}Ra_x^{1/2}\theta '' \end{aligned}$$
(27)

or

$$\begin{aligned}&-\frac{3}{4}\alpha _m f\phi '=D_B\phi ''+\frac{D_T}{T_|infty}\frac{(T_f-T_\infty )}{(\hat{\phi }_w-\hat{\phi }_{\infty })}\theta '', \end{aligned}$$
(28)
$$\begin{aligned}&\Rightarrow \phi ''+\frac{1}{D_B}\frac{D_T}{T_|infty} \frac{(T_f-T_\infty )}{(\hat{\phi }_w-\hat{\phi }_{\infty })}\theta '', \end{aligned}$$
(29)
$$\begin{aligned}&\quad \Rightarrow \phi ''+\frac{Nt}{Nb}\theta ''+\frac{3}{4}Lnf\phi '=0 \end{aligned}$$
(30)

where \(\displaystyle {Ln}\) (nanofluid Lewis number) is defined by \(\displaystyle {Ln=\frac{\alpha _m}{D_B}}\).

Finally, the following system of non-dimensionlize is obtained as

$$\begin{aligned}&f'''+\frac{1}{4 Pr}(3f f''-2f'^2)+(\theta -Nr \phi )\cos \delta -M f'=0 \end{aligned}$$
(31)
$$\begin{aligned}&\theta ''+\frac{3}{4}f\theta '+Nb \theta ' \phi ' + Nt\theta '^2=0 \end{aligned}$$
(32)
$$\begin{aligned}&\phi ''+\frac{Nt}{Nb}\theta ''+\frac{3}{4}Ln f \phi '=0 \end{aligned}$$
(33)

subject to the following boundary conditions:

$$\begin{aligned} f(\eta )= & {} 0,~f'(\eta )=0,~\theta '(\eta )=-Nc[1-\theta (\eta )],~\phi (\eta )=1,~~~~ \text{ at } ~~~~\eta =0 \end{aligned}$$
(34)
$$\begin{aligned} f'(\eta )= & {} 0,~\theta (\eta )=0,~\phi (\eta )=0,~~~~ \text{ as } ~~~~\eta \rightarrow \infty \end{aligned}$$
(35)

where \(\displaystyle {Nc}\) (convective heating parameter) appearing in boundary condition (35) is defined as:

$$\begin{aligned} Nc=\frac{h_f x^{1/4}}{k}\bigg [\frac{\nu \alpha _m}{(1-\hat{\phi }_\infty )g_e \beta (T_f-T_\infty )}\bigg ]^{1/4} \end{aligned}$$
(36)

Nusselt and Sherwood number evaluation

The understanding of heat and mass transfer at the wall plays an important role in estimating the performance of several microfluidic/ nanofluidic/ thermal devices. The related information with the variation in the properties of wall yields information which may lead to a change in the design with an improvement in the performance and efficiency of the devices. Thus the heat and mass transfer rates are the important characteristics that need to be computed [25]. These quantities, local Nusselt number \(\displaystyle {Nu_x}\) and the local nanofluid Sherwood number \(\displaystyle {Sh_{x,n}}\), can be written as:

$$\begin{aligned} Nu_x=\frac{x q_w}{k(T_f-T_\infty )},~Sh_{x,n}=\frac{x q_{np}}{D_B(\hat{\phi }_w-\hat{\phi }_\infty )}, \end{aligned}$$
(37)

where \(\displaystyle {q_w}\) and \(\displaystyle {q_{np}}\) are the wall heat and nano mass fluxes, respectively.

The modified Nusselt number \(\displaystyle {Nur}\) and modified nanoparticle Sherwood number \(\displaystyle {Shrn}\) can be introduced and represented as follows:

$$\begin{aligned} Nur=Ra_x^{1/4}Nu_x=-\theta '(0),~Shrn=Ra_x^{1/4}Sh_{x,n}=-\phi '(0), \end{aligned}$$
(38)

Numerical Solution with Finite Element Solution

In this section, the effects of important parameters on flow analysis and on heat and mass transfer characteristics are discussed in the form of numerical solution of Eqs. (31)–(33). It’s very difficult to find the analytical solution of Eqs. (31)–(33). Hence, the conventional finite element method (FEM), which is a numerical approach, is used as it is the most adaptive and popular method for solving differential equations. The basic step of FEM requires the division of the whole domain into smaller, non-overlapping sub-domains in order to solve the flow physics within the domain geometry. This results in the generation of a grid of elements overlaying the whole domain geometry. It is an enormously useful method (in terms of both resolving material nonlinearity and complex geometrical) and has received significant attention in nonlinear problems involving heat transfer [3, 10], nanofluid mechanics [11], membrane structural mechanics [12], biological systems [13], electrical systems [19], and many others. The non-linear coupled differential equations (31)–(33) subject to the boundary conditions (34), (35) have been solved using Finite element method (FEM). By assuming

$$\begin{aligned} f'=h \end{aligned}$$
(39)

The system of Eqs. (31)-(33) can be reduced into a pair of lower order equations as follows:

$$\begin{aligned}&h''+\frac{1}{4Pr}(3fh'-2h^2)+(\theta -Nr \phi )\cos \delta -Mh=0 \end{aligned}$$
(40)
$$\begin{aligned}&\theta ''+\frac{3}{4}f\theta '+Nb \phi ' \theta ' +Nt (\theta ')^2=0 \end{aligned}$$
(41)
$$\begin{aligned}&\phi ''+\frac{Nt}{Nb}\theta ''+\frac{3}{4} Ln f \phi '=0 \end{aligned}$$
(42)

The corresponding boundary conditions now become;

$$\begin{aligned} f(0)= & {} 0,~h(0)=0,~\phi (0)=1,~\theta '(0)=-Nc[1-\theta (0)]~~~~as~~~~\eta =0 \end{aligned}$$
(43)
$$\begin{aligned} h(\infty )= & {} 0,~\theta (\infty )=0,~\phi (\infty )=0~~~~as~~~~\eta \rightarrow \infty \end{aligned}$$
(44)

Variational Formulation

The variational form associated with Eqs. (40)–(42) over a typical linear element \(\displaystyle {(\eta _e,\eta _{e+1})}\) is given by

$$\begin{aligned}&\int _{\eta _e}^ {\eta _{e+1}} W_1\{f'-h\}d\eta =0 \end{aligned}$$
(45)
$$\begin{aligned}&\int _{\eta _e}^ {\eta _{e+1}} W_2\bigg \{h''+\frac{1}{4Pr}(3fh'-2h^2)+(\theta -Nr \phi )\cos \delta -Mh\bigg \}d\eta =0 \end{aligned}$$
(46)
$$\begin{aligned}&\int _{\eta _e}^ {\eta _{e+1}} W_3\bigg \{\theta ''+\frac{3}{4}f\theta '+Nb \phi ' \theta ' +Nt (\theta ')^2\bigg \}d\eta =0 \end{aligned}$$
(47)
$$\begin{aligned}&\int _{\eta _e}^ {\eta _{e+1}} W_4\bigg \{\phi ''+\frac{Nt}{Nb}\theta ''+\frac{3}{4} Ln f \phi '\bigg \}d\eta =0 \end{aligned}$$
(48)

where \(\displaystyle {W_1,W_2,W_3}\) and \(\displaystyle {W_4}\) are arbitrary test function and may be viewed as the variation in \(\displaystyle {f,~h,~\theta }\) and \(\displaystyle {\phi }\), respectively.

Finite Element Formulation

Let the domain be divided into linear elements \(\displaystyle {(\Omega _e)}\). The finite element model can be obtained from Eqs. (45–48) by substituting the approximations of the form

$$\begin{aligned} \Theta =\sum _{i=1}^2 \Theta _j \psi _j \end{aligned}$$

where, \(\displaystyle {\Theta }\) stands for either \(\displaystyle {f,~h,~\theta ,}\) or \(\displaystyle {\phi }\). So,

$$\begin{aligned} f=\sum _{j=1}^2 f_j \psi _j,~ h=\sum _{j=1}^2 h_j \psi _j, ~\theta =\sum _{j=1}^2 \theta _j \psi _j, ~\phi =\sum _{j=1}^2 \phi _j \psi _j \end{aligned}$$
(49)

with \(\displaystyle {W_1=W_2=W_3=W_4=\psi _j,~(j=1,2)}\) where \(\displaystyle {\psi _j}\) are the linear interpolation functions for a linear element \(\displaystyle {\Omega _e}\).

The finite element model of the equations thus formed, is given by:

$$\begin{aligned} \begin{bmatrix} [K^{11}]&[K^{12}]&[K^{13}]&[K^{14}] \\ [K^{21}]&[K^{22}]&[K^{23}]&[K^{24}] \\ [K^{31}]&[K^{32}]&[K^{33}]&[K^{34}] \\ [K^{41}]&[K^{42}]&[K^{43}]&[K^{44}] \\ \end{bmatrix} \begin{bmatrix} \{f\} \\ \{h\} \\ \{\theta \} \\ \{\phi \} \\ \end{bmatrix}= \begin{bmatrix} \{b^1\} \\ \{b^2\} \\ \{b^3\} \\ \{b^4\} \\ \end{bmatrix} \end{aligned}$$

where \(\displaystyle {[K^{mn}]}\) and \(\displaystyle {[b^{mn}] ~(m,n=1,2,3,4)}\) are the matrices of order \(2\times 2\) and \(2\times 1\) respectively and therefore each element matrix is of order \(8\times 8\). These matrices are defined as follows:

$$\begin{aligned} K_{ij}^{11}= & {} \int _{\eta _e}^{\eta _{e+1}}\psi _i \frac{\partial \psi _j }{\partial \eta } d\eta ,~~ K_{ij}^{12}=-\int _{\eta _e}^{\eta _{e+1}}\psi _i\psi _j d\eta ,~~K_{ij}^{13}=K_{ij}^{14}=0,\nonumber \\ K_{ij}^{22}= & {} -\int _{\eta _e}^{\eta _{e+1}}\frac{\partial \psi _i}{\partial \eta }\frac{\partial \psi _j}{\partial \eta }d\eta -\frac{1}{2Pr}\int _{\eta _e}^{\eta _{e+1}} \psi _i\bar{h}\psi _jd\eta -M\int _{\eta _e}^{\eta _{e+1}}\psi _i\psi _jd\eta ,\nonumber \\ K_{ij}^{21}= & {} \frac{3}{4Pr}\int _{\eta _e}^{\eta _{e+1}} \psi _i\bar{h'}\psi _jd\eta ,~~K_{ij}^{23}=\cos \delta \int _{\eta _e}^{\eta _{e+1}}\psi _i\psi _jd\eta ,\nonumber \\ K_{ij}^{24}= & {} -Nr \cos \delta \int _{\eta _e}^{\eta _{e+1}}\psi _i\psi _jd\eta , K_{ij}^{31}=\frac{3}{4}\int _{\eta _e}^{\eta _{e+1}}\psi _i \bar{\theta '}\psi _jd\eta ,~~K_{ij}^{32}=0,\nonumber \\ K_{ij}^{33}= & {} -\int _{\eta _e}^{\eta _{e+1}}\frac{\partial \psi _i}{\partial \eta }\frac{\partial \psi _j}{\partial \eta }d\eta +Nt \int _{\eta _e}^{\eta _{e+1}}\psi _i\bar{\theta '} \frac{\partial \psi _i}{\partial \eta }d\eta ,\nonumber \\ K_{ij}^{34}= & {} Nb\int _{\eta _e}^{\eta _{e+1}}\psi _i\bar{\theta '} \frac{\partial \psi _i}{\partial \eta }d\eta ,~~K_{ij}^{42}=0, ~~K_{ij}^{41}=\frac{3}{4}Ln\int _{\eta _e}^{\eta _{e+1}}\psi _i \bar{\phi '}\frac{\partial \psi _i}{\partial \eta }d\eta ,\nonumber \\ K_{ij}^{43}= & {} -\frac{Nt}{Nb}\int _{\eta _e}^{\eta _{e+1}} \frac{\partial \psi _i}{\partial \eta }\frac{\partial \psi _j}{\partial \eta }d\eta ,~~K_{ij}^{44}=-\int _{\eta _e}^{\eta _{e+1}} \frac{\partial \psi _i}{\partial \eta }\frac{\partial \psi _j}{\partial \eta }d\eta , \end{aligned}$$
(50)

where

$$\begin{aligned} \overline{h}=\sum _{i=1}^2\overline{h_i}\psi _i,~~ \overline{h'}=\sum _{i=1}^2\overline{h_i}\frac{\partial \psi _i}{\partial \eta },~~\overline{\theta '}=\sum _{i=1}^2\overline{\theta _i}\frac{\partial \psi _i}{\partial \eta },~~\overline{\phi '}=\sum _{i=1}^2\overline{\phi _i}\frac{\partial \psi _i}{\partial \eta } \end{aligned}$$
(51)

The computational domain is discretized with uniformly distributed 2000 linear elements. The length of the boundary layer region i.e. \(\displaystyle {\eta _\infty }\) is chosen as 14. Results were obtained even for large values of \(\displaystyle {\eta _\infty }\), but after \(\displaystyle {\eta _\infty =14}\), no appreciable effect on results was observed. Therefore, the boundary layer thickness is chosen as 14. At every node four functions \(\displaystyle {f,~f',~\theta }\) and \(\displaystyle {\phi }\) are to be calculated; hence after assembly of the element equations, we obtain a system of 8004 non-linear equations.

Table 1 Comparison of Nur of regular fluid for various values of Pr with \(Ln=10\), \(Nb=Nt=Nr=10^{-5}\), \(M=0\)
Full size table
Table 2 Comparison of results for Nur and Shrn when \(Nt=0.1\), \(Nc=10\), \(Ln=10\), \(M=0,\) \(\delta =0\)
Full size table
Table 3 Errors and rate of convergence for the finite element method (FEM)
Full size table

Owing to the nonlinearity of the system an iterative scheme has been used to solve it iteratively. The system of equations is linearized by incorporating known functions \(\displaystyle {\bar{f},~\bar{f'},~\bar{\theta },~\bar{\phi }}\) which are calculated using the approximate values of variables \(\displaystyle {f,~f',~\theta ,~\phi }\) at node \(\displaystyle {i}\) on previous iteration, as given in Eq. (50). The whole system is solved by using a Gaussian elimination method and the whole procedure is executed in MATLAB. This gives a new set of values of unknowns \(\displaystyle {f,~f',~\theta ,~\phi }\) and the process continues until the required accuracy of \(\displaystyle {1\times 10 ^{-5}}\) is achieved.

Validation of the Numerical Procedure

For validation purpose, results were compared with previously reported results in the literature. The results for the regular fluid at different values of \(\displaystyle {Pr}\) were compared with those reported by Bejan [5], Kuznetsov and Nield [17] and Narahari et al. [19], has been captured in Table 1. Closer correlation has been achieved as compared to results computed by [5, 17, 19]. On the other hand, Table 2 shows the excellent correlation between the current FEM computation and the earlier results of Aziz and Khan [4] on the modified Nusselt and nanoparticle Sherwood number under the influence of the various parameters such as \(\displaystyle {Nb,~Nr,~Pr}\).

Double Mesh Principle

To estimate the error and compute the rate of convergence in the computed numerical solution, the double mesh principle was used [18, 21, 24]. As the exact solution of the problem was unknown, and therefore to approximate the pointwise errors \(\displaystyle {|(\tilde{\Theta }-\Theta )(\eta _i)|}\); \(\displaystyle {i=0,1,2,\ldots N}\), we have used variant of double mesh principle, where \(\displaystyle {\Theta (\eta )}\) and \(\displaystyle {\tilde{\Theta }(\eta )}\) denote the numerical solutions of the system of ODE’s (39)–(42) at the two consecutive different mesh. A numerical solution \(\displaystyle {\Theta (\eta )}\) to \(\displaystyle {\tilde{\Theta }(\eta )}\) is calculated which was given by FEM on the mesh \(\displaystyle {\{\hat{\eta }_i\}}\) that contained the mesh points \(\displaystyle {\eta _i}\) of the original mesh and their midpoints (i.e. \(\displaystyle {\hat{\eta }_{2i}=\eta _i, i=0,1,\ldots , N}, \displaystyle {\hat{\eta }_{2i+1}=\frac{\eta _i+\eta _{i+1}}{2}}, \displaystyle {i=0,1,\ldots , N-1}\)). Then at the mesh points, \(\displaystyle {\eta _i, i=0,1,\ldots ,N}\), the maximum error is computed as:

$$\begin{aligned} E_N=\max _{0\le i\le N}|\Theta (\eta _i)-\tilde{\Theta }(\eta _i)| \end{aligned}$$
(52)

From these estimates of the errors, the corresponding order of convergence has been obtained, which is defined as:

$$\begin{aligned} r^N=\log _2\frac{E_N}{E_{2N}} \end{aligned}$$
(53)

From Table 3, it is concluded that at each step, i.e after each refinement, approximate error corresponding to each function is reducing. Hence, the approximated solution of the current problem is approaching the exact solution. Also, an increment in the convergence rate is observed at each step, which shows that the computed numerical solution is rapidly converging on the exact solution.

Computations and Discussion

Numerical computations have been carried out for different values of the parameters involved, namely, \(\displaystyle {M}\), \(\displaystyle {Nr}\), \(\displaystyle {Nc}\), \(\displaystyle {Pr}\), \(\displaystyle {Ln}\), \(\displaystyle {Nb}\), \(\displaystyle {Nt}\) that describe the flow characteristics, heat and mass transfer and the results are reported in terms of graphs and tables. In Figs. 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18 and 19, we generally utilize the following data (unless otherwise stated): \(\displaystyle {Pr=5}\), \(\displaystyle {Nb=Nr=Nc=0.5}\), \(\displaystyle {Nt=0.3}\),  \(\displaystyle {Ln=10}\), \(\displaystyle {M=1}\), \(\displaystyle {\delta =\pi /4}\).

Fig. 2
figure 2

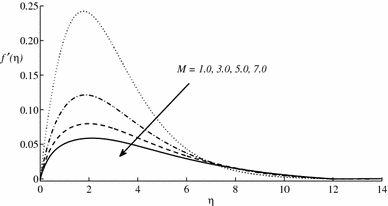

Effect of magnetic field parameter on velocity profile \(f'(\eta )\)

Full size image
Fig. 3
figure 3

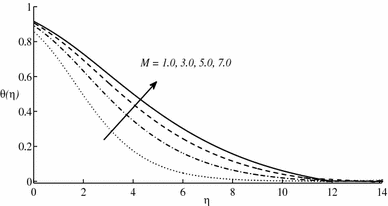

Effect of magnetic field parameter on temperature profile \(\theta (\eta )\)

Full size image
Fig. 4
figure 4

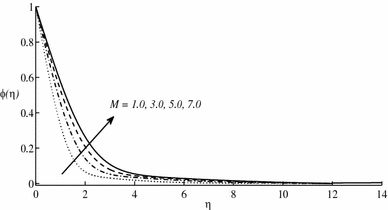

Effect of magnetic field parameter on nanoparticle volume fraction profile \(\phi (\eta )\)

Full size image
Fig. 5
figure 5

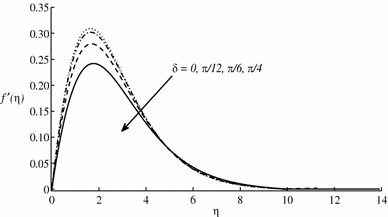

Effect of angle of inclination on velocity profile \(f'(\eta )\)

Full size image

Table 4 indicates dependency of the modified Nusselt number \(\displaystyle {Nur}\) and modified nanoparticle Sherwood number \(\displaystyle {Shrn}\) over changes in the Prandtl number \(\displaystyle {Pr}\), the Brownian motion parameter \(\displaystyle {Nb}\) and the buoyancy parameter \(\displaystyle {Nr}\) when the rest of the parameters are fixed. The modified Nusselt and nanoparticle Sherwood numbers increase with an increase in the Prandtl number \(\displaystyle {Pr}\). For a fixed \(\displaystyle {Pr}\), both \(\displaystyle {Nur}\) and \(\displaystyle {Shrn}\) decrease as \(\displaystyle {Nb}\) and \(\displaystyle {Nr}\) increase. Table 5 shows the changes in the magnetic field parameter \(\displaystyle {M}\), the thermophoretic parameter \(\displaystyle {Nt}\), and the angle of inclination \(\displaystyle {\delta }\) affect the modified Nusselt number and the modified nanofluid Sherwood number. It is noticed that the performance of heat and nanoparticle mass transfer of the plate decrease as the magnetic field strength ,\(\displaystyle {M}\), and angle of inclination ,\(\displaystyle {\delta }\), are gradually enlarged. In the same table, the corresponding heat and nanoparticle mass transfer are also represented for different values of \(\displaystyle {Nt}\). The effect of the nanofluid Lewis number on the the modified Nusselt number and the modified nanoparticle Sherwood number is shown in Table 6. As the nanofluid Lewis number increases, the modified Nusselt number decreases slightly but there is a substantial increase in the modified nanoparticle Sherwood number. Tables 4, 5 and 6 provide information about the heat and mass transfer characteristics of the flow in a form convenient for research and engineering calculations.

Fig. 6
figure 6

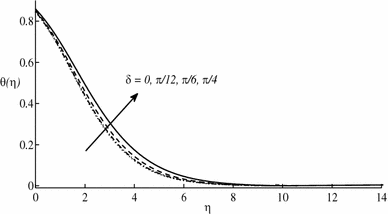

Effect of angle of inclination on temperature profile \(\theta (\eta )\)

Full size image
Fig. 7
figure 7

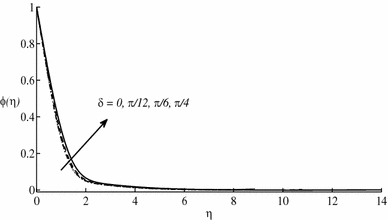

Effect of angle of inclination on nanoparticle volume fraction profile \(\phi (\eta )\)

Full size image
Fig. 8
figure 8

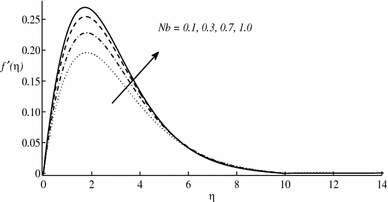

Effect of Brownian motion parameter on velocity profile \(f'(\eta )\)

Full size image
Fig. 9
figure 9

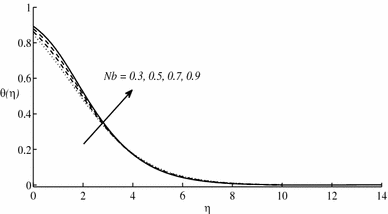

Effect of Brownian motion parameter on temperature profile \(\theta (\eta )\)

Full size image
Fig. 10
figure 10

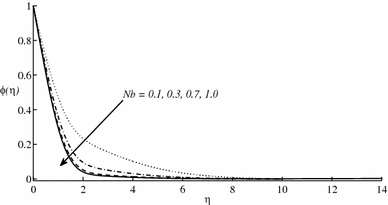

Effect of Brownian motion parameter on nanoparticle volume fraction profile \(\phi (\eta )\)

Full size image
Fig. 11
figure 11

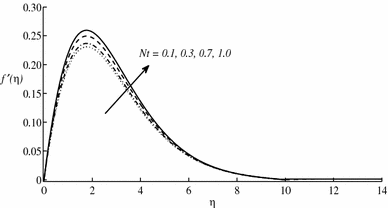

Effect of thermophoresis parameter on velocity profile \(f'(\eta )\)

Full size image

Figures  2, 3, and 4 elucidate the variations of the functions \(\displaystyle {f'(\eta ),~\theta (\eta )}\) and \(\displaystyle {\phi (\eta )}\) under the influence of the magnetic field parameter \(\displaystyle {M}\). It is clearly observed that the velocity of the fluid decreases, whereas the temperature increases, with increasing strength of magnetic field. As the application of a transverse magnetic field will result a resistive/drag force, known as Lorentz force, which tends to resist fluid flow and as a result this force prevents the development of momentum and decelerates the flow. Against the action of magnetic field, the additional work done in dragging the nanofluid is expressed as thermal energy. This heats the nanofluid and increases temperature. Consequently, the presence of a magnetic field attenuates the thickness of momentum boundary layer and augments the thickness of thermal boundary layer. Moreover, the warming of the boundary layer also helps in nanoparticle diffusion due to which a rise in nanoparticle volume fraction \(\displaystyle {\phi (\eta )}\) can be observed, as shown in Fig. 4.

Fig. 12
figure 12

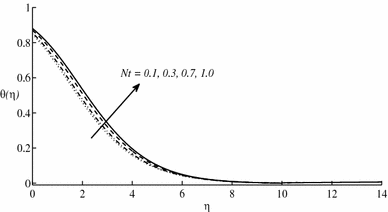

Effect of thermophoresis parameter on temperature profile \(\theta (\eta )\)

Full size image
Fig. 13
figure 13

Effect of thermophoresis parameter on nanoparticle volume fraction profile \(\phi (\eta )\)

Full size image
Fig. 14
figure 14

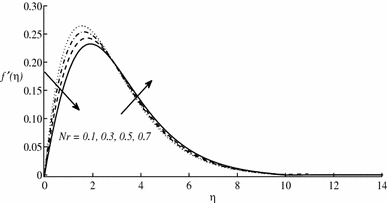

Effect of buoyancy ratio parameter on velocity profile \(f'(\eta )\)

Full size image
Fig. 15
figure 15

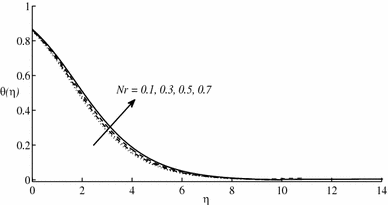

Effect of buoyancy ratio parameter on temperature profile \(\theta (\eta )\)

Full size image
Fig. 16
figure 16

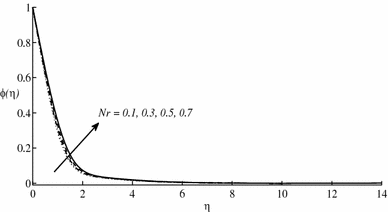

Effect of buoyancy ratio parameter on nanoparticle volume fraction profile \(\phi (\eta )\)

Full size image
Fig. 17
figure 17

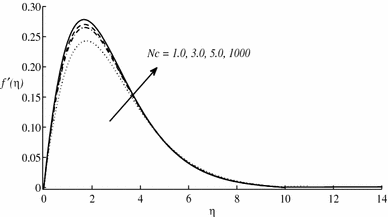

Effect of convective heating parameter on velocity profile \(f'(\eta )\)

Full size image

In Figs. 5, 6 and 7, the influence of the plate inclination from the vertical, \(\displaystyle {\delta }\), ranging from 0 to \(\displaystyle {\pi /4}\), on the velocity \(\displaystyle {f'(\eta )}\), temperature \(\displaystyle {\theta (\eta )}\) and nanoparticle volume fraction \(\displaystyle {\phi (\eta )}\) profiles are depicted, respectively. It is observed from Fig. 5 that within the hydrodynamic boundary layer, the velocity of the fluid is diminished with an augmentation of inclination angle. This is because to the plate’s alignment via the thermal buoyancy term, \(\displaystyle {g[-(\rho _p-\rho _{f_\infty })(\hat{\phi }-\hat{\phi }_\infty )+(1-\hat{\phi }_\infty )\rho _{f_\infty } \beta (T-T_\infty )]\cos \delta }\), which is arising in the momentum equation (2). As the value of \(\displaystyle {\delta }\) increases, the corresponding value of \(\displaystyle {\cos \delta }\) decreases. This causes the buoyancy effect to be vanished with increasing the plate inclination. Consequently, the driving force to the fluid attenuates, resulting in decrease of velocity of the fluid. A similar type of trend has been found by Alam et al. [1] in case of velocity profile. On the other hand, a depletion in buoyancy effect will enhance thermal and species (nanoparticle) diffusion, which is shown in Figs. 6 and 7.

Brownian motion is the haphazard motion of nanoparticles inside the base fluid due to of the continuous collision of nanoparticle with the molecules of base fluid. This motion of the particles is described by parameter \(\displaystyle {Nb}\), known as Brownian motion coefficient. Figures 8, 9 and 10 illustrate the effect of \(\displaystyle {Nb}\) on velocity \(\displaystyle {f'(\eta )}\), temperature \(\displaystyle {\theta (\eta )}\) and concentration \(\displaystyle {\phi (\eta )}\) profiles. With an increase in \(\displaystyle {Nb}\), the randomness of the nanoparticles increased and as a result, nanoparticles move more chaotically, causing more collisions in the system and vice versa. This increase in number of collisions and velocity result an increase in heat transfer properties, and thus, the value of temperature increases. Simultaneously, the increase in \(\displaystyle {Nb}\) has an adverse effect on the concentration of nanoparticles along the wall. The nanoparticles start moving away from the boundary into the fluid by increasing the random motion of nanoparticles which causing a decrease in the value of concentration of nanoparticles along the wall.

The phenomenon of diffusion of particles, in the presence of temperature gradient, is known as thermophoresis. The variation of velocity \(\displaystyle {f'(\eta )}\), temperature \(\displaystyle {\theta (\eta )}\) and nanoparticle concentration \(\displaystyle {\phi (\eta )}\) for various values of \(\displaystyle {Nt}\) is depicted in Figs. 11, 12 and 13. Augmentation in the value of \(\displaystyle {Nt}\) causes temperature gradient which results in escalating the force (thermophoretic) between nanoparticles. This force is responsible for more fluid being heated and elevates the temperature. The same effect is observed in the case of nanoparticle concentration by strengthening the effect of thermophoresis \(\displaystyle {Nt}\), as shown in Fig. 13.

Fig. 18
figure 18

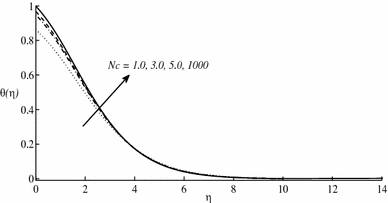

Effect of convective heating parameter on temperature profile \(\theta (\eta )\)

Full size image
Fig. 19
figure 19

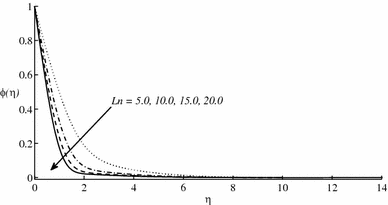

Effect of nanofluid Lewis parameter on nanoparticle volume fraction profile \(\phi (\eta )\)

Full size image
Table 4 Variation of Nur and Shrn for Pr,  Nb and Nr for \(\delta =\pi /4\), \(Nc=10\), \(Nt=0.5\), \(M=0.1\), \(Ln=10\)
Full size table
Table 5 Variation of Nur and Shrn for M, Nt and \(\delta \) for \(Nc=10\), \(Pr=5.0\), \(Nb=Nr=0.5\), \(Ln=10\)
Full size table

The buoyancy-ratio parameter \(\displaystyle {Nr}\) is defined as the ratio of the variation of the fluid density (due to the variation of the concentration) to the variation of the density of the nanofluid (due to the variation of temperature). Figures 14, 15 and 16 present the behavior of buoyancy ratio parameter \(\displaystyle {Nr}\) on the velocity \(\displaystyle {f'(\eta )}\), temperature \(\displaystyle {\theta (\eta )}\) and nanoparticle volume fraction \(\phi (\eta )\) profiles. It is observed from these figures that an increase in the Buoyancy-ratio parameter increases the magnitude of the dimensionless temperature and nanoparticle concentration while decreases the magnitude of the dimensionless velocity of the nanofluid.

Figures 17 and 18 display the effect of the convective heating parameter \(\displaystyle {Nc}\) on velocity \(\displaystyle {f'(\eta )}\) and temperature \(\displaystyle {\theta (\eta )}\) profiles. It is noted that velocity and the temperature of the fluid increase with an increase in \(\displaystyle {Nc}\). Figure 19 depicts that the nanofluid Lewis number significantly affects the concentration of nanoparticles \(\displaystyle {\phi (\eta )}\). For a base fluid of certain thermal diffusivity \(\displaystyle {\alpha _m}\), a higher Lewis implies a lower Brownian diffusion coefficient \(\displaystyle {D_B}\) (as \(Ln=\alpha _m/D_B\)) which must result in a shorter penetration depth for the concentration boundary layer. This is exactly what Fig. 19 represents.

Table 6 Variation of Nur and Shrn for Ln, Nt and Nr for \(\delta =\pi /4\), \(Nc=10\), \(Nb=0.5\), \(M=0.1\), \(Pr=5.0\)
Full size table

Conclusion

A combined similarity-numerical approach is used to study the natural convective boundary layer flow of a nanofluid past a convectively heated inclined plate in the presence of magnetic field, using a model in which Brownian motion and thermophoresis are accounted for. By use of appropriate similarity transformation, the essential partial differential equations with the corresponding boundary conditions are numerically tackled using Galerkin-finite element method (FEM). The impact of the pertinent parameters upon the flow, temperature, nanoparticle-concentration, modified Nusselt and Sherwood numbers are represented in tabular as well as in graphical form. The use of a convective boundary condition instead of a constant temperature or a constant heat flux makes this approach novel. The computational analysis leads to the following conclusions:

  1. 1.

    Amplifying the strength of magnetic field \(\displaystyle {M}\) attenuates the thickness of the momentum boundary layer and expands the thermal and nano-volume fraction boundary layer. The application of an external magnetic field produces Lorentz drag force which retards the fluid motion. By customizing the external magnetic field, the transfer of heat can be controlled. In the field of ’smart’ cooling devices, widespread growth is based on this idea.

  2. 2.

    With an augmentation in the magnetic parameter \(\displaystyle {M}\), the magnitude of heat and nano-mass transfer rates decrease as a consequence of intensified Lorentz drag force.

  3. 3.

    Strengthening the thermophoresis \(\displaystyle {Nt}\) and Brownian motion \(\displaystyle {Nb}\) parameters, the rate of heat and nano-mass transfer decrease for an increase in the value of magnetic field parameter \(\displaystyle {M}\). The heat and mass transfer rates can be altered by taking different combinations of base fluid and nanoparticles. This idea can be implemented for numerous industrial applications involving inclined/vertical plates (production of glass fibres, plastic products, tetrapacks etc.) in adjusting the heat transfer rates.

  4. 4.

    With the mounting values of an angle of inclination \(\displaystyle {\delta }\), the width of the momentum boundary layer decays whereas the reverse effect occurs for temperature and concentration boundary layers.

  5. 5.

    The use of a convective boundary condition instead of a constant temperature or a constant heat flux makes this approach novel. As, the convective heating parameter \(\displaystyle {Nc}\) enhances the rate of heat transfer at the surface of the plate. This effect finds application in case of heat exchangers where the convection in the fluid past the solid surface influenced the conduction in the solid surface.

  6. 6.

    The excellent accuracy of the computed FEM results was shown with the help of double mesh principle.

However, the present study has been focused on the steady-state situation, time-dependent flow of nanofluid over the plate will be addressed in the future investigations. Also the present two-phase model might be extended for turbulent nanofluid flow problem with the inclusion of other slip mechanism viz. diffusiophoresis, inertia and drag force.
