Introduction

Shengli Oilfield, discovered in 1961, is mainly located in the Shandong province in Northeast China. The field is divided into 11 smaller fields, namely Shengcai, Dongxin, Xianhe, Gudao, Gudong etc. The annual field production peaked at 33.55 million tons in 1991. Now the production declines to around 27 million tons per year in 2012, while the overall water cut at Shengli Oilfield has reached 95 %.

Several decades ago, the company management realized the field has to rely on enhanced oil recovery (EOR) methods to battle decline and prolong the field’s productivity. Moreover, China’s thirst for energy has pressurized the company to seek feasible technologies that enhance oil production.

At Shengli field, EOR field pilot with polymer injection was first initiated in 1990. Continuous efforts resulted in great successes. Currently, EOR methods contribute to around 3 million tons of oil production annually at Shengli field, weighing around 11 % of the total oil output at the field. Till November 2012, polymer flooding and surfactant-polymer (SP) flooding methods have contributed to more than 22 million tons of oil production accumulatively, among which polymer flooding achieved the majority of 17 million tons of output. Some unique field cases are described in the following section.

Materials and methods

The mechanisms of polymer flood have been described in several books (Green and Willhite 1998; Sheng 2010), therefore not repeated here. The most widely used polymer for EOR projects is partially hydrolyzed polyacrylamide (HPAM) due to low cost and good solubility in water. Its molecular structure is given in Fig. 1.

Fig. 1
figure 1

Molecular structure of HPAM

Full size image

The properties of injected polymer play an important role in the success of polymer flood projects. The chosen polymer must satisfy a few requirements, including good solubility in water and good injectivity. Moreover, polymer solution must maintain a relatively high viscosity under the influences of temperature, shearing, water salinity, and hardness.

Based on experiences at Shengli Company, HPAM products must go through series of screening tests before being deployed in the field. Sample tests and criteria are given in Table 1. For this example, the temperature of the target reservoir was 70 °C, and the formation water salinity was around 10,000 mg/L. Accordingly, the screening tests were conducted under such conditions.

Table 1 Specifications of HPAM for tertiary recovery
Full size table

The criteria in Table 1 are explained as follows. (1) The degree of hydrolysis should be <25 %. High degree of hydrolysis will lead to high adsorption of HPAM in porous rock. (2) The HPAM solution must have good filterability to ensure good injectivity. Standard filterability test was conducted at 0.2 MPa constant pressures on a 0.22 μm nucleopore filter membrane. (3) HPAM powder should be able to quickly dissolve in base water and form a uniform solution. (4) HPAM solution must maintain good stability and viscosity under the influences of shearing, heating, water salinity, and hardness.

Recent research on improving the performance of polymer flood focuses on two aspects. The challenging reservoir conditions, such as high temperature and high salinity drove researchers to improve the performance of polymers. KYPAM is a modified HPAM product. Its Chinese name indicates good stability in high salinity. Indeed, this comb shaped polymer showed much higher viscosity than HPAM products under higher salinity (Luo et al. 2004). KYPAM has achieved successful field applications in Daqing and Shengli fields (Li 2004).

On the other hand, surfactant flood enhances oil recovery by reducing interfacial tension. Combining polymer flood and surfactant flood can result in even better recovery (Wang et al. 2009; Sheng 2010). The primary surfactant used for SP flood is Shengli petroleum sulfonate (SLPS) which contains 31.4 % active ingredient. To achieve ultra-low oil–water interfacial tension under different reservoir conditions, SLPS is often mixed with a variety of complementary surfactants of different types and structures (Wang 2007). The technical requirements of surfactants for tertiary recovery are listed in Table 2.

Table 2 Specification of surfactant for tertiary recovery
Full size table

Operation of polymer flood is very similar to water flood. It does not require modification to the current water flood facilities. At Shengli field, the polymer is first mixed with fresh water to a concentration of 5,000 ppm, then diluted to the designed polymer concentration and injected.

Field results

Since 1990, polymer flood and SP flood have been applied in a few field pilots and expanded field tests. In this section, several typical field cases carried out at Gudao and Gudong fields are reviewed. These two fields contain heavy oil, while application of polymer flood in heavy oilfield is a particularly challenging topic (Wassmuth et al. 2009; Morel et al. 2010). Very few such field trials have been carried out (Gao 2010). More than 60 units/blocks at Shengli field received polymer injection. Some unique field cases are described here.

Gudao field cases

The Gudao field is an unconsolidated sandstone reservoir buried at 1,230 m underground. The field was put on production in 1975. The reservoir parameters are listed in Table 3. Till 2008, the oil recovery was only 16.5 % after water flood, while the overall water cut has reached 97 %. The low secondary recovery was due to the high oil viscosity. The viscosity of injected water was much lower than that of crude oil. As a result, water flood could not mobilize the viscous crude oil. Actually even for polymer flood, the viscosity of polymer solution is much lower than the crude oil viscosity, which presents a major challenge for effective displacement. Nevertheless, the reservoir temperature and salinity are low, which is ideal for polymer flooding.

Table 3 Typical reservoir parameters for Gudao field
Full size table

At Gudao field’s ZYQ unit, a polymer pilot was executed in 1992 (Sun et al. 2002). The original oil in place (OOIP) of the unit was 1,650 thousand tons. After polymer injection was started, the oil production rate increased steadily from 120 ton/day in 1992 to 330 ton/day in 1997, as seen in Fig. 2. At the mean time, the water cut declined from 90 to 68 %. Routine water flood followed injection of polymer solution. Oil production started to decline in 1998, after the oil bank was produced. Polymer injection recovered 181 thousand tons of tertiary oil. After this successful pilot, polymer flood was extended to several units in the Gudao field.

Fig. 2
figure 2

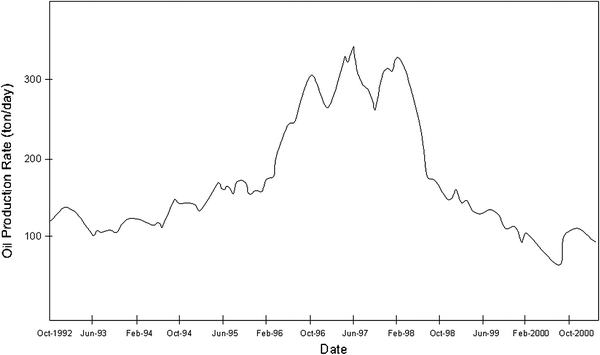

Production history of Gudao ZYQ unit

Full size image

At Gudao field’s ZENZ unit, a polymer pilot was implemented since 1998 (Sun et al. 2002). The OOIP of the unit was 11,850 thousand tons. After polymer injection was started, the oil production rate increased continuously from 420 ton/day in 1998 to 1,000 ton/day in 1999. At the mean time, the water cut declined from 95 to 82 %. Polymer injection recovered 490 thousand tons of extra oil production. The effect of polymer injection maintained for more than 2 years, as seen in Fig. 3.

Fig. 3
figure 3

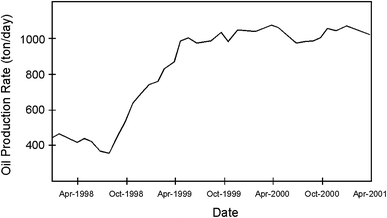

Production history of Gudao ZENZ unit

Full size image

At Gudao field’s ZEB unit, polymer injection started in late 2005. The OOIP of the unit is 15,900 thousand tons. The unit employs 56 injectors and 79 producers. Till the end of 2012, 0.59 PV of polymer fluid has been injected. After polymer injection, the unit’s production rate increased continuously and peaked at 820 ton/day in 2010, as presented in Fig. 4. The water cut dropped from 95 to 88 %. The cumulative tertiary oil production and tertiary recovery were 853 thousand tons and 5.4 %, respectively.

Fig. 4
figure 4

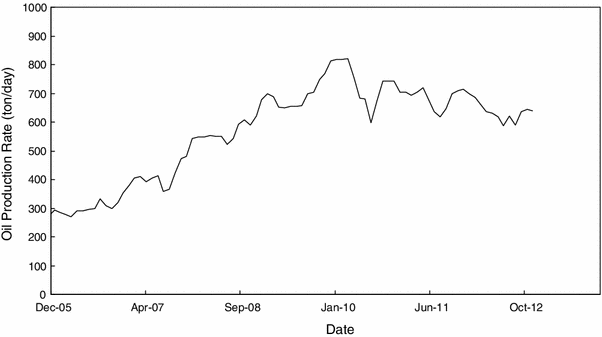

Production history of Gudao ZEB unit

Full size image

At Gudao field’s Dong unit, a polymer-surfactant flooding project was initiated in mid 2008. The OOIP of the unit was 14,670 thousand tons. The unit is produced from 84 production wells. Till the end of 2012, 0.4 PV of polymer solution has been injected through 55 injection wells. The injected polymer concentration was kept at 2,000 ppm, which resulted in a polymer viscosity of 25–35 cP at injector wellhead. The oil production rate increased steadily from 187 to 872 ton/day, while the water cut decreased from 97 to 84 %. The production trend is given in Fig. 5. So far, the total incremental oil production exceeded 0.5 million tons, equivalent to 3.7 % of oil recovery. After polymer flood, water flood is designed to resume in 2015.

Fig. 5
figure 5

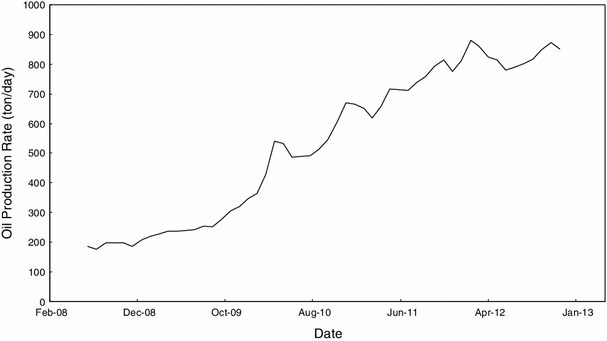

Production history of Gudao Dong unit

Full size image

Gudong field pilots

Gudong field is an unconsolidated sandstone reservoir that contains heavy oil. The field was first put into production in 1986. The detailed reservoir data is given in Table 4 (Wang and Zeng 2008). The reservoir oil was rather heavy, but the reservoir temperature and water salinity were relatively low. Polymer flood may be a feasible technique for this field.

Table 4 Typical reservoir parameters for Gudong field
Full size table

In 1992, the first alkali surfactant polymer (ASP) flood was piloted at Gudong. The secondary recovery before the pilot was already as high as 54 %, but ASP flood increased the final recovery to 67.4 %. However, severe scale problem occurred and ASP flood was later abandoned. After lab tests and field trials, SP flood proved suitable for Gudong field.

At Gudong’s No. 8 unit, polymer flood was implemented in 1998. The oil production rate before the polymer treatment was at 400 ton/day. Since the injection started, the oil rate climbed continuously to 900 ton/day in 2000, while the water cut reduced from 92 to 79 %. The production data is given in Fig. 6.

Fig. 6
figure 6

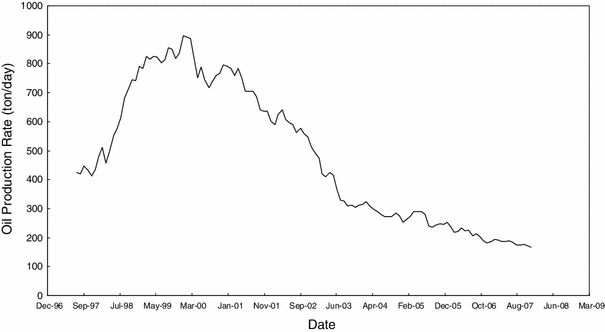

Production history of Gudong No. 8 unit

Full size image

At Gudong’s QQX unit, SP flood was started in 2004 and completed in 2008 (Wang et al. 2010). Some important field data is given in Table 5. In 2004, after 0.12 PV of surfactant and polymer solution was injected, the oil rate started to increase and the water cut began to decline. Till 2006, 14 out of 16 production wells showed increase in oil rates. The daily oil rate increased from 35 to 195.7 ton, while the water cut declined to 86 %. Till 2007, all production wells in the unit saw increase in oil rates.

Table 5 Basic information of Gudong QQX unit
Full size table

At Gudong field’s 34 unit, SP flood was initiated in late 2006. Till December 2012, 0.6 PV of polymer fluid has been injected. The oil rate increased from 390 to 1,169 ton/day, while the water cut dropped from 95.7 to 87.2 %, as seen in Fig. 7. Till the end of 2012, the cumulative tertiary oil production stood at 1,163 thousand tons, while the tertiary recovery reached 5.5 % OOIP.

Fig. 7
figure 7

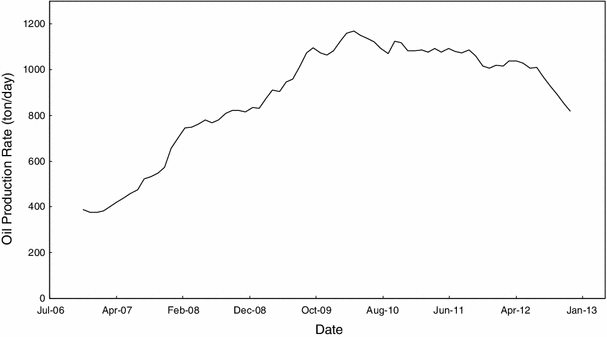

Production history of Gudong 34 unit

Full size image

Shengtuo field pilot

Shengtuo field came online in 1964. Water flood began in 1967. Polymer flood project at Shengtuo field is particularly challenging because of high oil viscosity, high reservoir temperature and high salinity of formation water. Moreover, the salinity of injected water was also high because of lack of fresh water. The detailed reservoir parameters can be found in Table 6. Before polymer flood was initiated in 2002, the oil recovery was 31 % OOIP, while the water cut was as high as 95 % (Li 2004).

Table 6 Typical reservoir parameters for Shengtuo field
Full size table

At Shengtuo’s No. 1 unit, polymer injection was started in March 2002. Considering the unfavorable reservoir conditions, KYPAM was selected as the polymer product. The injection process was designed to take three phases. The first phase was to inject a slug with high polymer concentration (1,800 mg/L), and the polymer concentration was reduced to 1,400 and 1,000 mg/L in the second and third phase, respectively. The polymer viscosity at injection wellhead ranged from 30 to 50 cP during most of the operation time.

The oil rate responded positively to polymer injection, as seen in Fig. 8. At the mean time, water cut decreased to 82 %. At Shengtuo’s SEQ12 unit, SP flood was implemented from early 2009. The oil rate climbed steadily from 20 to 70 ton/day, while the water cut declined from 98 to 92 %. This project is expected to complete in late 2013.

Fig. 8
figure 8

Production history of Shengtuo No. 1 unit

Full size image

Discussion

Many factors determine the success of polymer flood projects. First, injected polymer solution must maintain a high viscosity to mobilize the crude oil inside reservoir. Second, reservoir heterogeneity has negative impact on sweep efficiency. Third, constant field monitoring and accurate field implementation are crucial.

Above all, polymer flood should be conducted when the reservoir oil saturation is still high. At Gudong field, polymer flood resulted in very different performance for two blocks with similar reservoir parameters. The tertiary oil recovery was 8.6 % for the reservoir with higher oil saturation. However the tertiary recovery was only 4.4 % for the other block (Zhang et al. 2001). The effect of polymer injection is more pronounced for the block with high oil saturation.

Polymer viscosity

The properties of injected polymer play an important role in the success of polymer flood projects. The polymer must satisfy a few requirements, including good solubility in water and good injectivity. Besides, polymer viscosity has been recognized as the major factor that influences the tertiary recovery. If polymer viscosity is low, sweep efficiency will be reduced and oil recovery will be compromised (Gao 2013).

This issue has been studied for decades. It was learnt that divalent ions, monovalent ions, shearing, high temperature, oxygen, and certain bacteria all have negative impacts on polymer viscosity (Mungan 1972; Maerker 1975; Ward and Martin 1981; Lee et al. 2009). Therefore, the quality of base water and formation water deserves much attention. At Shengli field, the earlier polymer flood projects targeted reservoirs with low salinity. As mentioned in previous sections, the formation water salinity at Gudao and Gudong field was well below 10,000 mg/L. The more recent polymer project has to face water salinity that exceeded 20,000 mg/L. Future polymer flood projects have to face the challenges of harsh reservoir conditions.

At Shengtuo field, polymer was mixed with produced water to save fresh water resources. The salinity of fresh water was 680 mg/L, while that for the produced water was as high as 12,000 mg/L. It was observed that the polymer viscosity at injection wellhead dropped from 46 to 24 cP (Li 2004). This case demonstrated the significance of water quality.

At Chengdong field, HPAM solution was prepared with produced waste water to reduce cost from water treatment. From 2004 to 2005, the polymer solution maintained a viscosity around 20 cP, but quickly declined to 1–5 cP in 2006 after waste water was introduced. After water analysis, it was found that the concentration of Ca2+, Mg2+, K+ and Na+ ions in the base water remained stable, however the concentration of Fe2+ ions and H2S increased significantly. Further lab tests showed that when Fe2+ concentration increases from 0 to 4 mg/L, the polymer viscosity dropped from more than 200 cP to less than 50 cP. A microbe strain T. Thiooxidans was introduced into the waste water to reduce the harmful ions and H2S. After treatment, the polymer viscosity stabilized at around 25 cP (Wang et al. 2012).

Based on the field experiences at Shengli field, the recommended polymer concentration is 1,500 to 2,000 ppm to achieve good polymer viscosity. Second, the injection rate should be significantly lower than that for routine water flooding. This will reduce the effect of shearing and to help forming oil bank. Third, the injected polymer volume was often between 0.4 and 0.6 PV to achieve good sweep efficiency. For SP flood, petroleum sulfonate alone could not achieve ultra-low interfacial tension. Therefore, sulfonate was often combined with nonionic surfactants. Typical recipe was 0.3–0.45 % of sulfonate plus 0.1–0.15 % of nonionic surfactants.

Reservoir heterogeneity

If high-permeability streaks exist in reservoir, the injected polymer solution will channel through these zones. As a result, the polymer fluid will not effectively sweep oil. A polymer flood was carried out at Gudong field’s No. 7 unit from 1994 to 1997. The water cut declined from 95 to 90 %, and the daily oil output increased from 250 to 575 ton. The tertiary recovery was 5.75 % (Jiang and Zhao 2001).

This result was however lower than expectation, because many high-permeability streaks exist in this block. Some production wells produced fluid whose polymer concentration was close to the injected polymer fluid. This clearly shows that polymer channeling occurs between the production and injection wells. Some wells had to be shut into retard channeling. Moreover, gel treatments were conducted to modify the conformance.

Project implementation

Close monitoring and accurate implementation play an important role in the successes of polymer projects. Polymer viscosity and concentration should be constantly monitored. For a polymer project at Gudao field, the polymer viscosity at injector wellhead showed abnormal oscillations. This issue was investigated and it was found that the fluid dilution operations did not abide by the standard procedures. Polymer concentration at the production wells also deserves much attention. If the produced polymer concentration is very low, certain factors may have caused the polymer fluid to degrade or divert. Otherwise, if the polymer concentration is very high, there probably exist high-permeability zones in the reservoir.

It is also worth mentioning that based on experiences at Shengli field, close well spacing is beneficial for polymer projects. The well spacing at Shengli is only 100–150 m. The close well spacing is helpful for efficient monitoring and prompts adjustments in case the project design needs to be modified.

Conclusion

At Shengli field, the declining oil production and high water cut motivated trials of polymer flood. Since 1992, more than 60 field trials of polymer flooding and SP flooding techniques were applied at Shengli field and very positive results were achieved. Most polymer injection projects saw obvious increases in oil production rate, decreases in water cut, and improved oil recovery. The positive effects often lasted several years.

Based on field experiences, the major challenge facing polymer flood is loss of polymer viscosity under reservoir conditions, especially high water salinity and hardness. Future research will focus on developing more resilient polymers and understanding the flow of polymer in porous media.
