Common formation mechanism of basin of attraction for bipedal walking models by saddle hyperbolicity and hybrid dynamics

  • Ippei Obayashi
  • Shinya Aoi
  • Kazuo Tsuchiya
  • Hiroshi Kokubu
Open Access
Original Paper Area 1

Abstract

In this paper, we investigate the mathematical structures and mechanisms of bipedal walking from a dynamical viewpoint. Especially, we focus on the basin of attraction since it determines the stability of bipedal walking. We treat two similar but different bipedal walking models (passive and active dynamic walking models) and examine common mathematical structure between these models. We find that the saddle hyperbolicity and hybrid system play important roles for the shape of the basin of attraction in both models, which are quite common for more general bipedal models and important for understanding the stability mechanism of bipedal walking.

Keywords

Dynamical system Bipedal walking Basin of attraction  Hyperbolicity Hybrid system

Mathematics Subject Classification

37N25 Dynamical systems in biology 34K34 Hybrid systems

1 Introduction

In this paper, we study bipedal walking using the mathematical models. Especially, we focus on the basin of attraction of stable walking. In a bipedal walking model, a limit cycle corresponds to stable walking and the size and shape of the basin of attraction of the limit cycle determine the robustness of walking for various noises and disturbances. The study for the stability of walking will contribute to designing a biped robot and walking support system, as well as to understanding human walking.

The study using a mathematical model often has a question as to whether the result of analysis using the model is essential for the phenomenon or model specific. One method to answer this question is to compare various models and to find a common mechanism, which may suggest an essential feature of the phenomenon beyond mathematical models. In this paper, we compare two models (passive and active dynamic walking models) and search for a common mechanism of formation of the basin of attraction of their stable walking.

The passive dynamic walking was proposed by McGeer [10], which walks down a shallow slope without any actuator or controller. To investigate the linear stability, the simplest walking model was introduced by Garcia et al. [6] and the basin of attraction was computed by Schwab and Wisse [16] (we use this model as a passive dynamic walking model). They showed that the basin of attraction is very small and thin, and it has a fractal-like shape. However, why the basin of attraction has such a shape remains as an open question. In [13], we introduced some new ideas about a mechanism of forming the shape of basin of attraction and showed that the saddle hyperbolicity of the upright equilibrium point plays an important role to form the basin of attraction.

In this paper, in addition to the passive dynamic walking model, we take an active dynamic walking model. Different from the passive dynamic walking model, it walks on even ground using an actuator controlled by a phase oscillator, which is inspired by central pattern generator [2, 17]. This paper shows that the basic formation mechanism of basin of attraction of the passive dynamic walking model in [13] is common to that of the active dynamic walking model, despite such differences in their models.

On the study of bipedal walking, the following two facts are important:
  • Bipedal walking is a typical hybrid system due to foot contact and foot off

  • The center of mass of the human body moves like an inverted pendulum (the inverted pendulum mechanism [9, 14])

Modeling bipedal walking should reflect these facts. More specifically, during human walking, there are two states called the single support phase and the double support phase. On the single support phase, one leg (called stance leg) supports the body and the other leg (called swing leg) swings from back to front. When the swing leg contacts the ground, the state switches to the double support phase, where the both legs supports the body. The former stance leg lifts off the ground and the state switches to the single support phase again. Physical condition between the single and double support phases is quite different and these states are dominated by different equations of motion. This means that the dynamical system of bipedal walking is a hybrid system.

When we observe human walking more closely, we find that the stance leg is almost straight, and it rotates around the foot contact point like an inverted pendulum. Therefore, the center of mass is at its highest position during the midstance phase and at its lowest position during the double support phase. In contrast, the locomotion speed is lowest during the midstance phase and highest during the double support phase. This means that humans produce efficient walking through the pendular exchange of potential and kinetic energy while conserving mechanical energy [3, 4, 5]. This is called the inverted pendulum mechanism [9, 14], and inverted pendulums have been widely used as the simplest model for the movement of the center of mass, when investigating the underlying mechanism in human walking [1, 7, 8, 11, 12].

In the present study, we aim to clarify the mechanism that determines the geometric characteristics of the basin of attraction for our bipedal walking models by considering the theory of dynamical systems and focusing on the saddle point or the saddle periodic orbit that is inherent in the governing dynamics related to the inverted pendulum. We show that the basin of attraction is quite thin, and that its reason is common between these two models. In  [13], we showed that the saddle property (hyperbolicity) of the upright equilibrium point and the \(\lambda \)-lemma, one of the most basic properties of the hyperbolicity of dynamical systems, are important for the thin basin of attraction in the passive dynamic walking model.

In this paper, we show that the saddle-center periodic orbit of the active dynamic walking model plays a similar role. Indeed, we show that the basic formation mechanism of the basin of attraction is common between the two models, although the detailed structure is rather different. We have already shown that Poincaré sections and center-stable/center-unstable manifolds play important roles for such a shape to be formed by the passive dynamic walking model [13]. In this paper, a similar formation mechanism is also found in the active dynamic walking model.

Because the saddle property is embedded in general locomotor systems (that are not limited to our models), our results may contribute not only to elucidating the stability mechanism in our bipedal walking models, but also to improving the understanding of the stability mechanism in human walking and thus to producing design principles for the control of biped robots and walking-support systems.

2 Model

In this paper, we use a simple compass-type bipedal walking model (Fig. 1). This model has two legs (rigid links), each having the length l, that are connected by a frictionless hip joint. Let the angle of the stance leg with respect to the slope normal be \(\theta _1\), and the angle between the stance leg and the swing leg be \(\theta _2\). The mass is located only at the hip and the feet; the hip mass is M and the foot mass is m. g is the acceleration due to gravity. This model walks on a slope of angle \(\gamma \) and is controlled by the input torque u at the hip.
Fig. 1

Bipedal walking model. The passive dynamic walking model walks on a slope (\(\gamma > 0\)) without any input torque (\(u=0\)), while the active dynamic walking model walks walks on even plane (\(\gamma = 0\)) with input torque (\(u \not = 0\))

In this model, the typical walking behavior is as follows. A new step starts when both feet are on the slope, just after the swing leg makes contact with the slope. The front leg is the stance leg, and the other leg is the swing leg. The stance foot is fixed on the slope, and the stance leg rotates freely without friction. The stance and swing legs move as a double pendulum. The swing leg swings forward, and the swing foot contacts the slope. In this model, the collision is assumed to be fully inelastic (no slip, no-bound). The swing leg immediately becomes the new stance leg, and vice versa (double support duration is infinitesimal).

The passive dynamic walking model describes walking down the slope (\(\gamma > 0\)) without any torque (\(u=0\)) by balancing the energy dissipation due to foot contact with the energy generation due to the gravitational potential energy. In contrast, the active dynamic walking model walks on even ground (\(\gamma =0\)) controlled by the input torque (\(u \not =0\)).

We note that since the legs are rigid links, the swing leg collides with the slope when the stance leg is nearly vertical. We can avoid this foot scuffing by adding complications to the model, such as passive knees. However, for simplicity, we ignore the foot scuffing and allow the leg to pass through the slope in our models.

2.1 Equations of motion for the single support phase

The configuration of the mechanical model is described by two variables \((\theta _1, \theta _2)\). The equations of motion are given by a Lagrangian equation:
$$\begin{aligned}&\begin{bmatrix} Ml^2+2ml^2(1-\cos \theta _2)&ml^2(-1+\cos \theta _2) \\ ml^2(-1+\cos \theta _2)&ml^2 \\ \end{bmatrix} \begin{bmatrix} \ddot{\theta }_1 \\ \ddot{\theta }_2 \end{bmatrix} \nonumber \\&\qquad + \begin{bmatrix} ml^2(2\dot{\theta }_1 - \dot{\theta }_2)\sin \theta _2 \\ -ml^2\dot{\theta }_1^2\sin \theta _2 \end{bmatrix} + \begin{bmatrix} -gMl\sin (\theta _1-\gamma ) \nonumber \\ 0 \end{bmatrix} \\&\qquad + \begin{bmatrix} gml[\sin (\theta _1-\gamma ) + \sin (\theta _2-\theta _1 + \gamma )] \\ gml\sin (\theta _2 - \theta _1 + \gamma ) \end{bmatrix} \nonumber \\&\quad = \begin{bmatrix} 0 \\ u \end{bmatrix}. \end{aligned}$$
For the passive dynamic walking model, we take the torque \(u=0\). For the active dynamic walking model, we use a phase oscillator for generating a torque, whose phase is \(\phi \), to control the model. The oscillator phase follows the dynamics
$$\begin{aligned} \dot{\phi } = \omega \end{aligned}$$
where \(\omega \) is the frequency and we simply determine the input torque u by
$$\begin{aligned} u = A \cos \phi \end{aligned}$$
where A is the amplitude.

In the passive dynamic walking model, the phase space is four dimensional with variables \((\theta _1, \theta _2, \dot{\theta }_1, \dot{\theta }_2)\). On the other hand, in the active dynamic walking model the phase space is five dimensional with \((\theta _1, \theta _2, \dot{\theta }_1, \dot{\theta }_2, \phi )\).

After appropriate rescaling, we have the following non-dimensionalized equations.
$$\begin{aligned}&\begin{bmatrix} 1+2\beta (1-\cos \theta _2)&\beta (-1+\cos \theta _2) \\ -1+\cos \theta _2&1 \end{bmatrix} \begin{bmatrix} \ddot{\theta }_1 \\ \ddot{\theta }_2 \end{bmatrix} + \begin{bmatrix} \beta (2\dot{\theta }_1 - \dot{\theta }_2)\sin \theta _2 \\ -\dot{\theta }_1^2\sin \theta _2 \end{bmatrix} \nonumber \\&\qquad + \begin{bmatrix} -\sin (\theta _1 - \gamma ) + \beta [\sin (\theta _1 - \gamma ) + \sin (\theta _2-\theta _1 + \gamma )] \\ \sin (\theta _2 - \theta _1+ \gamma ) \end{bmatrix} \nonumber \\&= \begin{bmatrix} 0 \\ A_0 \cos \phi \end{bmatrix} \nonumber \\ \dot{\phi }&= \omega _0 \end{aligned}$$
(1)
where \(\beta = m{/}M\), \(A_0 = A{/}(Ml^2\beta )\), and \(\omega _0 = \omega \sqrt{l {/} g}\) (\(A_0 =0\) for the passive dynamic walking model).

2.2 Foot contact

The swing foot contacts the slope when the following conditions are satisfied:
$$\begin{aligned} 2 \theta _1 - \theta _2&= 0 \end{aligned}$$
(2)
$$\begin{aligned} \theta _1&< 0 \end{aligned}$$
(3)
$$\begin{aligned} 2\dot{\theta }_1 - \dot{\theta }_2&< 0. \end{aligned}$$
(4)
Conditions (3) and (4) are used to ignore the foot scuffing when the swing leg moves forward.
We assume that foot contact is a fully inelastic collision (no-slip, no-bound) and that the stance foot lifts off the slope as soon as the swing foot hits the slope. The relationship between the state just before foot contact \((\theta _1^-, \theta _2^-)\) and the state just after foot contact \((\theta _1^+, \theta _2^+)\) is as follows:
$$\begin{aligned} \theta _1^+&= -\theta _1^- \nonumber \\ \theta _2^+&= -\theta _2^-. \end{aligned}$$
(5)
Due to the collision, the angular velocities discontinuously change just at the moment of foot contact. We assume that the stance leg does not interact with the slope when it lifts off and that the input torque does not work at the instant. From these assumptions, the conservation of angular momentum yields the following relationships:
$$\begin{aligned} \dot{\theta }_1^+&= \frac{2\dot{\theta }_1^- \cos \theta _2^-}{2+\beta (1-\cos 2\theta _2^-)} \\ \dot{\theta }_2^+&= \frac{2\cos \theta _2^-(1- \cos \theta _2^-)\dot{\theta }_1^-}{2+\beta (1-\cos 2\theta _2^-)}. \end{aligned}$$
Since the roles of the legs are swapped at the collision so that \(\theta _2\) varies as (5), we change the oscillator phase: \(\phi ^+ = \phi ^- - \pi \) so that \(u^+ = -u^-\).
When we use \(2\theta _1^- - \theta _2^- = 0\) from (2), we have
$$\begin{aligned} \begin{bmatrix} \theta _1^+ \\ \theta _2^+ \\ \dot{\theta }_1^+ \\ \dot{\theta }_2^+ \\ \phi ^+ \end{bmatrix} = \begin{bmatrix} -\theta _1^- \\ -2\theta _1^- \\ \frac{2\dot{\theta }_1^-\cos 2\theta _1^-}{2+\beta (1-\cos 4\theta _1^-)} \\ \frac{2\cos 2\theta _1^-(1-\cos 2\theta _1^-) \dot{\theta }_1^-}{2+\beta (1-\cos 4\theta _1^-)} \\ \phi ^- - \pi \end{bmatrix}. \end{aligned}$$
(6)
Note that the state just after foot contact depends only on \((\theta _1^-, \dot{\theta }_1^-, \phi ^-)\) and is independent of \((\theta _2^-, \dot{\theta }_2^-)\). From the fact, in the passive dynamic walking model, the state just after foot contact forms a two-dimensional submanifold in the four-dimensional phase space since \(\phi \) is ignored. In the active dynamic walking model, the state just after foot contact forms a three-dimensional submanifold in the five-dimensional phase space.

2.3 Structure of phase space by hybrid dynamics

The models are hybrid systems composed of the continuous dynamics during the single support phase and the discontinuous dynamics at foot contact. The hybrid dynamics determines the structure of the phase space, as shown in Fig. 2a. H is the section of foot contact defined by the conditions (2)–(4). T is the jump in the phase space from the state just before foot contact to the state just after foot contact, defined by the relationship (6). Therefore, the image of T, T(H), is the region representing all states just after foot contact and a new step starts from T(H). U is the map from the start of a step to the foot contact. In other words, U is the map from T(H) to H, defined by the equations of motion (1). The Poincaré map S is defined by \(S = T \circ U:T(H) \rightarrow T(H)\) on the Poincaré section T(H). This Poincaré map represents one gait cycle, and an attractor of the Poincaré map represents stable walking.

Note that the structures of the phase spaces of the passive and active dynamic walking models are quite similar, but the number of dimensions is different. In the passive dynamic walking model, the phase space is four dimensional, the section is three dimensional, and T(H) is two dimensional. On the other hand, in the active dynamic walking model, the phase space is five dimensional, the section is four dimensional, and T(H) is three dimensional.
Fig. 2

Structure of the phase space. a Foot contact condition (section) H bounded by two conditions (orange lines), the jump by foot contact T, the state just after foot contact event T(H), the map from T(H) to H by the equations of motion for the swing phase U, and the Poincaré map S defined by \(S = T \circ U\) on the Poincaré section T(H). b Domain D (red region) bounded by the backward orbits of two boundaries of H by the equations of motion for the swing phase (red lines)

To investigate the basin of attraction, the domain of T is important. The map S is not defined for all T(H), since the model may fall down from some initial conditions. We define the domain, D, by the collection of initial conditions on which the model takes at least one step. In other words, if \(x \not \in D\), the orbit from x does not reach the section H, and the model falls down. D is in T(H) and bounded, as shown in Fig. 2b. H has two boundaries (orange lines) defined by \(\theta _1=0\) and \(2\dot{\theta }_1 - \dot{\theta }_2=0\) from the conditions (3) and (4), and the backward flows of these boundaries by the equations of motion (1) determine the boundaries of D (red lines).

We also consider the sequence of inverse images of D, \(S^{-n}(D)\ (n=1,2,\ldots )\). The region \(S^{-n}(D)\) indicates the collections of initial conditions on which the model takes at least \(n+1\) steps. The sequence approximates the basin of attraction, and we investigate the mechanism by which the shape of the basin of attraction is formed from the geometric structure of these inverse images.

In the following sections, we numerically compute \(D, S^{-1}(D), S^{-2}(D), \ldots \). Numerical computation of the region D is rather straightforward. We take many initial points in T(H), numerically integrate the equations of motion from these initial points and check whether the orbit can take one step or falls down. We use fall down threshold at \(\theta _1 = \pm \pi /2\). T(H) is two dimensional and parameterized by two variable \(\theta _1, \dot{\theta }_1\) in the passive dynamic dynamic walking model, and T(H) is three dimensional and parameterized by three variable \(\theta _1, \dot{\theta }_1, \phi \) in the active dynamic dynamic walking model. Therefore we use these variables to compute and show the numerical results. We can compute \(S^{-1}(D), S^{-2}(D), \ldots \) in a similar way. Because \(S^{-n}(D)\) for sufficiently large n is considered to be a sharp approximation of the basin of attraction, we compute \(S^{-n}(D)\) for \(n=50\) and \(n=200\) and take them as the basin of attraction if the two numerical results are same1.

In this paper, we choose the following parameters to analyze the models. In the passive dynamic walking model, we use \(A_0 = 0, \beta = 0, \gamma = 0.011\), where we consider a limit case in which the foot mass is much smaller than the hip mass as in [6]. With this parameter, the corresponding Poincaré map has a unique attracting fixed point at \((\theta _1, \dot{\theta }_1) \approx (0.214, -0.212)\) on the Poincaré section. In the active dynamic walking model, we use \(A_0 = -0.29135, \beta = 0.15, \gamma = 0, \omega _0 = 1.1191\). We use these parameters so that the corresponding Poincaré map has a unique attracting fixed point at \((\theta _1, \dot{\theta }_1, \phi ) \approx (0.144, -0.179, 0.0535)\) on the Poincaré section. More complicated cases for the passive dynamic walking model (for example, the Poincaré map has a chaotic attractor) were analyzed in the paper [13].

2.4 Center-stable and center-unstable manifolds

The equations of motion (1) for the passive dynamic walking model have an equilibrium point \((\theta _1, \dot{\theta }_1, \theta _2, \dot{\theta }_2) = (\gamma , 0, 0, 0)\), where the legs remain upright. The equilibrium point is deeply related to the geometric structure of the basin of attraction, as explained in Sect. 3. The eigenvalues of the linearized equations of motion at the equilibrium point are \(\pm 1\) and \(\pm i\), and the equilibrium point is a saddle-center with one stable direction, one unstable direction, and two neutral directions.

The equations of motion (1) for the active dynamic walking model (at the selected parameters) have a \(2\pi /\omega _0\)-periodic orbit2. We can find this periodic orbit by the Newton method. The time-\(2\pi {/}\omega _0\) map of the equations of motion from \(\phi = 0\) to \(2\pi \) can be considered as a map from \({\mathbb {R}}^4\) to itself, which has a saddle-center fixed point at \((\theta _1, \dot{\theta }_1, \theta _2, \dot{\theta }_2) \sim (-0.041, 0.000, 0.891 , 0.000)\). The eigenvalues of the linearized matrix of the map are approximately \(316.8, 0.003157, 0.4021 \pm 0.9156i\): one is greater than 1, another is positive and less than 1, and the other two are complex conjugate and on the unit circle, which shows that the periodic orbit is of the saddle-center type.

The equilibrium point for the passive dynamic walking model and the periodic orbit for the active dynamic walking model have a codimension one center-stable manifold (\(W^{cs}\)) and a codimension one center-unstable manifold (\(W^{cu}\)). Fig. 3a, b show these structures.
Fig. 3

Phase diagram of the passive (a) and active (b) dynamic walking models. The passive dynamic walking model has a saddle-center equilibrium point (open dot in a) and the active dynamic walking model has a saddle-center periodic orbit (black arrow in b). a The center-stable and center-unstable manifolds of the equilibrium point are represented by the green and blue curves, and b the center-stable and center-unstable manifolds of the periodic orbit are represented by the green and blue surfaces. b Some orbits on the center-stable and center-unstable manifolds are drawn by the green and blue arrows. The red arrowsa, b represent stable walking (attracting periodic orbit). The curved and straight red arrows represent U (motion in single support phase) and T (jump at foot contact), respectively

3 Basin of attraction in passive dynamic walking model

In this section, we briefly summarize results on the passive dynamic walking model given in [13] for comparison with the active dynamic walking model.

3.1 Geometric characteristics

Figure 4a shows the domain D and the basin of attraction B on T(H). Both D and B are very thin in the space of \((\theta _1, \dot{\theta }_1)\). Fig. 4b is a zoom-in view. To clearly see the geometrical details, we use \(\theta _1 + \dot{\theta }_1\) and \(\theta _1 - \dot{\theta }_1\) for the axis in Fig. 4c. The intersection of the center-stable manifold \(W^{cs}\) and T(H) is shown by a green line in Fig. 4b, c. We showed that D had the following properties:
  • D is a long, thin region in \((\theta _1, \dot{\theta }_1)\)-space;

  • Two boundary curves of D are almost parallel, and one of them is very close to \(W^{cs}\).

We also showed the following properties for B:
  • B is located inside D and is thinner than D;

  • B is V-shaped;

  • There are fractal-like slits in B and a stripe pattern in the cusp of the V-shaped region.

To investigate how these geometric characteristics of B are generated from D, we calculated the inverse images of D, \(S^{-n}(D) \ (n=1,2,\ldots )\). Figure 5 shows D, \(S^{-1}(D)\), and \(S^{-2}(D)\), which showed the following:
  • \(S^{-1}(D)\) is contained in D and is V-shaped;

  • \(S^{-2}(D)\) is located inside \(S^{-1}(D)\), is V-shaped, and has a slit.

Fig. 4

Geometric characteristics of the basin of attraction for the passive dynamic walking model. a Domain D and basin of attraction B on \((\theta _1, \dot{\theta }_1)\). b Magnified view (blue box in a). cRotated view using \(\theta _1 + \dot{\theta }_1\) and \(\theta _1 - \dot{\theta }_1\) for the axes

Fig. 5

Domain D and inverse images \(S^{-1}(D)\) and \(S^{-2}(D)\)

3.2 The formation mechanism of thin domain

The domain D is very thin, as shown in Fig. 4a. This fact is related to the so-called “\(\lambda \)-lemma”, one of the most important theorems in the theory of dynamical systems. From this theorem, we can say the following (see the textbook by Robinson [15] for the exact statement of the theorem and its proof):
  • A region intersecting the unstable manifold of a saddle equilibrium point moves toward the stable manifold of the saddle under the backward flow (time-reversal of the flow);

  • When the region comes close to the stable manifold under the backward flow, the region becomes thinner due to the hyperbolicity of the dynamics near the saddle.

Figure 6 illustrates how a region X moves and is deformed into thinner regions Y and Z under the backward flow. Because the equilibrium point of our model is a saddle-center and not a saddle equilibrium point, we cannot apply this theorem directly. However, a region intersecting the center unstable manifold near the equilibrium point moves close to the center stable manifold under the backward flow of the equations of motions in a way similar to Fig. 6 in the stable and unstable directions. As shown in Fig. 2b, D is obtained by the intersection of T(H) and the backward orbit whose initial point is in H. Therefore, D becomes thin along the center stable manifold, as shown in Figs. 4A, B, and 6. This explains why the domain is very thin.
Fig. 6

\(\lambda \)-lemma. Region X moves and is deformed to thinner regions Y and Z by the backward flow. In our model, the foot contact section H and domain D correspond to the regions X and Z, respectively

3.3 The formation mechanism of V-shaped region and slits

Since the sequence of the inverse images \(S^{-n}(D)\ (n=1,2,\ldots )\) converges to the basin of attraction, it is important to clarify how the geometric structure of the inverse images is formed, and hence the shape of the basin of attraction. In particular, we show why the inverse images are V-shaped and why they have slits and stripe patterns.

First, \(S^{-1}(D)\) is V-shaped in the thin region D, as shown in Fig. 5. The formation of this shape is explained as follows (Fig. 7a, b). D is a thin region along the center stable manifold, as described in Sect. 3.2. Since \(S=T\circ U\), we have \(S^{-1}(D) = U^{-1}(T^{-1}(D))\), where \(T^{-1}(D)\) is contained in H (green region in Fig. 7a). Since D is a thin strip, \(T^{-1}(D)\) is also a thin strip. Since \(U^{-1}\) is given by the backward flow of the equations of motion, \(T^{-1}(D)\) is strongly expanded along the direction of the stable manifold and strongly contracted along the direction of the unstable manifold by \(U^{-1}\), as shown in Fig. 6. In addition, the flow of \(\theta _1(t)\) becomes slow near the equilibrium point due to the saddle hyperbolicity and this causes nonuniform expansion by \(U^{-1}\) near \(W^{cu}\). Therefore, \(S^{-1}(D)\) becomes V-shaped, as shown in Fig. 7b.

We can also explain why the inverse image \(S^{-2}(D)\) has a slit in the same way (Fig. 7c, d). We can also give a similar explanation for the stripe pattern, which is formed by the repeated expansion of nested regions.

This explains how the slits and stripe patterns in the basin of attraction are formed. The relative positions of \(T^{-1}(D)\) and the center unstable manifold and the hyperbolicity near the saddle determine the geometric characteristics of the basin of attraction.
Fig. 7

This figure illustrates how the inverse images of the domain are V-shaped and have slits. a\(T^{-1}(D)\) is obtained by the inverse image of D and becomes a thin region in H. b\(T^{-1}(D)\) is moved and deformed by the backward flow to \(S^{-1}(D)=U^{-1}(T^{-1}(D))\). c\(T^{-1}(S^{-1}(D))\) is obtained by the inverse image of \(S^{-1}(D)\). d\(T^{-1}(S^{-1}(D))\) is moved and deformed by the backward flow to \(S^{-2}(D)=U^{-1}(T^{-1}(S^{-1}(D)))\)

4 Basin of attraction in active dynamic walking model

In this section, we investigate the basin of attraction for the active dynamic walking model in comparison with the passive dynamic walking model. We will see the same mechanisms as in Sect. 3 for this model.

4.1 Geometric characteristics

Figure 8 shows the two dimensional slices of the basin of attraction and the domain of the Poincaré map at \(\phi = -0.342\) and 0.0535 (in 3D space with coordinate variables \(\theta _1, \dot{\theta }_1\), and \(\phi \)) and their rotated views. The domain is thin in the three dimensional space along the center-stable manifold of the saddle-center periodic orbit in the figure. This fact is common to the passive dynamic walking model. On the other hand, the basin of attraction in the active dynamic walking model has a horn-like shape, and the shape is quite different from the passive dynamic walking model. Furthermore, these two slices of the basin of attraction have different shapes. The slice at \(\phi = -0.342\) (Fig. 8a, c) looks like two horns without a head. On the other hand, the slice at \(\phi = 0.0535\) (Fig. 8b, d) looks like two horns with an animal head. These two structures coexist in the same phase space.
Fig. 8

2D slices of the basin of attraction and the domain for the active dynamic walking model at \(\phi = -0.342\) (a), and \(\phi = 0.0535\) (b) and the rotated views of a (c) and b (d). An attracting fixed point exists on the slice at \(\phi = 0.0535\)

To investigate these structures, we calculate the inverse images of D, \(S^{-n}(D) \ (n=1,2,\ldots )\) as in Sect. 3. Figure 9a, b shows D, \(S^{-1}(D)\), and \(S^{-2}(D)\) at \(\phi = -0.342\) and 0.0535. These two figures are quite different from that of the passive dynamic walking model, and these two figures are different with each other.
Fig. 9

Domain D and inverse images \(S^{-1}(D)\) and \(S^{-2}(D)\) for the active dynamic walking model on the slices at \(\phi = -0.342\) (a) and 0.0535 (b)

4.2 The formation mechanism of the basin of attraction

The thin domain in the active dynamic walking model is caused by the same reason as the passive dynamic walking model. The region H deforms to the thin region by the time-backward flow of the equations of motion because of the contraction and expansion properties of the saddle-center periodic orbit, as shown in Fig. 6.

Figures 10 and 11 explain why the basin of attraction looks like horns. When \(T^{-1}(D)\) intersects with the center unstable manifold like Figs. 10a and 11a, the green regions cannot leave the center unstable manifold since the manifold is invariant under the equations of motion. As a result, the regions are deformed as in Figs. 10b and 11b. In addition, these figures also explain why Fig. 8a, b have different shapes. The difference of the relative position between \(W^{cu}\) and \(T^{-1}(D)\) induces the difference between these two figures. Figures 10c, d and 11c, d explain \(S^{-2}(D)\) of these two slices. The repeated application of this mechanism forms the “horn-like” shape of the basin of attraction. These two types of structures (and also other types of structures) coexist in the three dimensional space T(H).
Fig. 10

Formation mechanism of Fig. 9a

These arguments show that the two different walking models share the common formation mechanism of the basin of attraction studied in this paper.
Fig. 11

Formation mechanism of Fig. 9b

4.3 Transition between “two horns without head” and “two horns with head”

When the slicing position changes from \(\phi = -0.342\) to \(\phi = 0.0535\), the slice of the basin of attraction changes from “two horns without head” to “two horns with head”. Figure 12a, b show the slices of the basin of attraction at \(\phi = -0.0780\) and \(\phi = -0.0720\). Between these two slices, the horn-like region merges and the geometric structure changes drastically.
Fig. 12

2D slices of the basin of attraction and the domain at \(\phi = -0.0780\) (a) and \(\phi = -0.0720\) (b)

As mentioned in Sect. 4.2, the difference between Fig. 8c and d can be explained by the geometric change of \(S^{-1}(D)\). Therefore, we focus on the geometric change of \(S^{-1}(D)\) when the slicing position changes. Figure 13 shows the change of \(S^{-1}(D)\) when the slicing position changes gradually. From these figures, we observe that two horns approach each other from Fig. 13a and b, two horns are merged between Fig. 13b, c, and \(S^{-1}(D)\) becomes larger from Fig. 13c, d.
Fig. 13

2D slices of D and \(S^{-1}(D)\) at \(\phi = -0.321\) (a), \(\phi = -0.255\) (b), \(\phi = -0.249\) (c), and \(\phi = -0.177\) (d)

The change of the shape of \(S^{-1}(D)\) comes from the transition from Fig. 10a to Fig. 11a. Between Fig. 13b and c, the boundary of \(S^{-1}(D)\) becomes tangent to the center unstable manifold, and the shape changes drastically. \(S^{-2}(D), S^{-3}(D),\ldots \) also change similarly as the slicing position changes, and finally the shape of the basin of attraction changes drastically as in Fig. 12a, b.

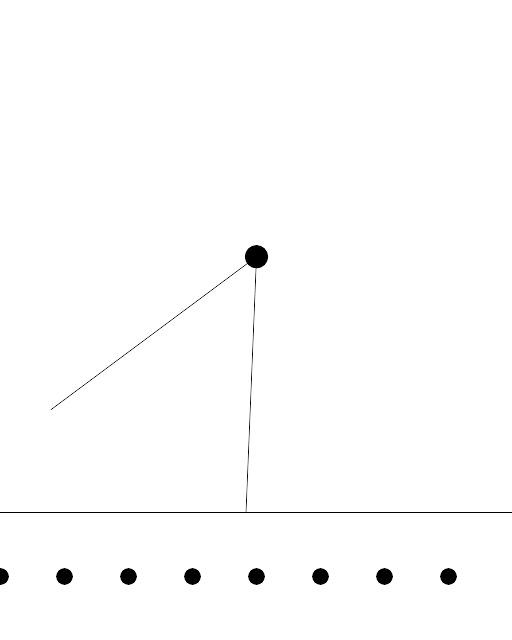

We created a movie 3 about the structural changes of D, \(S^{-n}(D)\) for \(n=1,\ldots ,5\) and the basin of attraction. You can see the details of the change of the shapes of these regions from the movie.

5 Conclusion and future works

In the present study, we clarified the formation mechanism of the basin of attraction for two bipedal walking models by focusing on the intrinsic hyperbolicity in the governing dynamics and based on the viewpoint of the theory of dynamical systems. We showed that the formation mechanism of the basin of attraction for the passive dynamic walking model in [13] is not specific to that model, but is applicable also to the active dynamic walking model studied in this paper.

The thin basin of attraction of the passive dynamic walking model is closely related to the one-dimensional instability of the upright equilibrium. The thin basin of attraction of the active dynamic walking model is also closely related to the one-dimensional instability of the periodic orbit. In these models, there is a codimension one center-stable manifold. For the both models, the one-dimensional instability comes from the saddle hyperbolicity of an inverted pendulum. Although the present study focuses on these two models, our analysis strongly suggests that the results are not specific to them, but are widely applicable to more general bipedal walking models due to the intrinsic saddle hyperbolicity of bipedal walking.

The detailed structures of the basin of attraction are, however, rather different between the passive and active dynamic walking models. We showed that the difference came from the relative position of the center-unstable manifold and \(T^{-1}(S^{-n}(D))\ (n=0,1,\ldots )\). The formation mechanism of basin of attraction by the relative position of the center-unstable manifold and inverse images can explain various types of shapes of basin of attraction. Furthermore, we can use the mechanism to deform the basin of attraction by regulating the relative position of those objects under additional controllers and support systems. Therefore, the present study will hopefully contribute to improving the understanding of the stability mechanism in human walking and to producing design principles for the control of biped robots and walking support systems. This will be a subject of our future work.
