Abstract
The San Ramón Fault is an active west-vergent thrust fault system located along the eastern border of the city of Santiago, at the foot of the main Andes Cordillera. This is a kilometric crustal-scale structure recently recognized that represents a potential source for geological hazards. In this work, we provide new seismological evidences and strong ground-motion modeling from hypothetic kinematic rupture scenarios, to improve seismic hazard assessment in the Metropolitan area of Central Chile. Firstly, we focused on the study of crustal seismicity that we relate to brittle deformation associated with different seismogenic fringes in the main Andes in front of Santiago. We used a classical hypocentral location technique with an improved 1D crustal velocity model, to relocate crustal seismicity recorded between 2000 and 2011 by the National Seismological Service, University of Chile. This analysis includes waveform modeling of seismic events from local broadband stations deployed in the main Andean range, such as San José de Maipo, El Yeso, Las Melosas and Farellones. We selected events located near the stations, whose hypocenters were localized under the recording sites, with angles of incidence at the receiver <5° and S–P travel times <2 s. Our results evidence that seismic activity clustered around 10 km depth under San José de Maipo and Farellones stations. Because of their identical waveforms, such events are interpreted like repeating earthquakes or multiplets and therefore providing first evidence for seismic tectonic activity consistent with the crustal-scale structural model proposed for the San Ramón Fault system in the area (Armijo et al. in Tectonics 29(2):TC2007, 2010). We also analyzed the ground-motion variability generated by an M w 6.9 earthquake rupture scenario by using a kinematic fractal k −2 composite source model. The main goal was to model broadband strong ground motion in the near-fault region and to analyze the variability of ground-motion parameters computed at various receivers. Several kinematic rupture scenarios were computed by changing physical source parameters. The study focused on statistical analysis of horizontal peak ground acceleration (PGAH) and ground velocity (PGVH). We compared the numerically predicted ground-motion parameters with empirical ground-motion predictive relationships from Kanno et al. (Bull Seismol Soc Am 96:879–897, 2006). In general, the synthetic PGAH and PGVH are in good agreement with the ones empirically predicted at various source distances. However, the mean PGAH at intermediate and large distances attenuates faster than the empirical mean curve. The largest mean values for both, PGAH and PGVH, were observed near the SW corner within the area of the fault plane projected to the surface, which coincides rather well with published hanging-wall effects suggesting that ground motions are amplified there.
Similar content being viewed by others
Avoid common mistakes on your manuscript.
1 Introduction
Chile is located on the tectonic convergent contact between the Nazca and South American plates, where large tsunamigenic subduction earthquakes occur, like the M w 8.8 Maule earthquake in 2010 (Madariaga et al. 2010; Lay et al. 2010; Vigny et al. 2011), and the largest event recorded is M w 9.5 Valdivia earthquake in 1960 (Plafker and Savage 1970; Astiz and Kanamori 1986; Cifuentes 1989; Barrientos et al. 1992; Vita-Finzi and Mann 1994; Lomnitz 2004). Almost all the cities in the Chilean country have experienced a mega- or large-thrust earthquake in the last century. In addition to that, seismic hazard is also associated with large inland intermediate-depth earthquakes like the M s 8.3 Chillán earthquake in 1939 (Campos and Kausel 1990), less recorded shallow crustal events which have occurred mainly along the main Andes Cordillera (M w 6.3 Las Melosas earthquake in 1958, Alvarado et al. 2009; Sepulveda et al. 2008; Legrand et al. 2007; M w 6.3 Aroma earthquake in 2001, Farías et al. 2010; M w 6.5 Curicó earthquake in 2004) and large magnitude aftershocks like those following the 2010 Maule earthquake which occurred near Pichilemu in March 11th, 2010 (Farías et al. 2011; Ryder et al. 2012). Reliable assessment and mitigation of seismic hazards along active tectonic zones like the Chilean subduction margin are therefore challenging problems with clear economic and societal implications.
Understanding crustal seismicity in the Andes of Central Chile is a main issue regarding seismic hazard assessment of the city of Santiago. The recently reported San Ramón Fault, a Quaternary active kilometric-scale west-vergent thrust fault system located at the foot of the West Andean Thrust (Armijo et al. 2010), represents a conceptual change regarding the seismic hazard assessment in the region, until now almost exclusively focused on subduction mega-thrust earthquakes. Although previous studies focused on probabilistic seismic hazard assessment in the Metropolitan Region of Chile (Leyton et al. 2010), it is necessary to improve seismotectonics characterization related to the seismically active character of this fault, as well as its potential impact on the Santiago Metropolitan area given different deterministic seismic rupture scenarios.
Deterministic seismic hazard assessment can be supported from the identification of geologically active structures, whose previous activity can or cannot be evidenced in the usually reduced historic instrumental record (Convertito et al. 2006; Cultrera et al. 2010; Raghu Kanth and Dash 2010). The San Ramón Fault has been recently identified like a geologically active fault which can produces large magnitude crustal earthquakes, in the range of M w 6.9–7.4 (Armijo et al. 2010). Precise location and determination of focal mechanisms of associated seismicity can be particularly useful to improve knowledge on potential seismic activity of this structure.
First-order predicting ground-motion parameters given different earthquake scenarios can be achieved through the development of empirical relationships that relate a specific characteristic of the ground motion with few parameters, such as magnitude and distance to the seismic source (e.g., Sabetta and Pugliese 1987; Ambraseys et al. 1996; Abrahamson and Silva 1997; Boore et al. 1997; Kanno et al. 2006). To obtain these empirical relationships is difficult in zones characterized by moderate seismicity rates and limited seismological records.
Like an alternative strategy, it is possible to compute synthetic broadband accelerograms from a deterministic approach using earthquake rupture source models combined with seismic wave propagation numerical schemes (e.g., Berge et al. 1998; Bernard et al. 1996; Mai and Beroza 2003; Ruiz et al. 2007). Recorded accelerograms are naturally complex because of the high-frequency content, which depends on site effects as well as on path and seismic source effects which can affect ground-motion variability too. As a result, near-fault stations can exhibit very different spectral and temporal seismic records.
Here, we performed a detailed analysis of seismic events reported by the SSN (National Seismological Service of the University of Chile) in order to establish their potential link with recent crustal-scale tectonic structures. Also, we present results from first-order ground-motion predictions for an M w 6.9 earthquake rupturing the San Ramón Fault, using the methodology proposed by Ruiz et al. (2011), which is based on a kinematic fractal k −2 earthquake rupture source model. We simulated broadband strong ground motion in the near-fault region for several different seismic rupture scenarios, to focus on source effects and kinematic rupture complexity. We statistically analyzed and compared ground-motion parameters predicted by empirical attenuation laws (Kanno et al. 2006), with the ones obtained numerically in this work for different earthquake rupture scenarios.
2 The San Ramón Fault system
Along Central Chile, the Nazca plate subducts beneath the South American plate at a rate of 6.8 cm/year (Demets et al. 1994; Vigny et al. 2009). The main Andes Cordillera in this region is mostly constituted by Mesozoic to Cenozoic volcanic and sedimentary rocks together with Cenozoic intrusives (Thiele 1980; Charrier et al. 2002, 2005; Farías et al. 2010; Armijo et al. 2010). The San Ramón Fault is an N–S fault system located at the eastern border of the city of Santiago at the foot of the mountain front associated with the continental-scale West Andean Thrust (Armijo et al. 2010), where the San Ramón hill range reaches 3,249 m a.s.l. At Cenozoic timescale, the San Ramón Fault is a part of a crustal-scale reverse west-vergent ramp fault system, which resulted in the abrupt relief change that separates the central depression of Santiago valley (mean altitude of 500–550 m a.s.l.), with respect to the main Andes Cordillera (Armijo et al. 2010; Rauld 2011).
The structural system is constituted by fault segments in the order of 10–15 km length, and the associated transfer zones properly characterized between the Maipo and Mapocho rivers (Armijo et al. 2010; Rauld 2011), which most probably continues to the north and to the south of the known area (Fig. 1). According to crustal-scale structural model deduced from detailed geological mapping, the San Ramón Fault system rooths the crust dipping 36°–62°E until 10–12 km depth, where a major overthrust dipping 4°–5°E is located (Armijo et al. 2010; Rauld 2011). Conspicuous ca. 4–200 m height fault scarps systematically located along the fault trace disrupt the surface all along the piedmont at the eastern border of Santiago valley, providing evidence for Quaternary manifestations of fault activity. Together with the geometry and structure of the fault, this suggests slip rate in the order of ~0.4 mm/year (Armijo et al. 2010). These results support the geologically active character of this fault system, along which large magnitude earthquakes in the range of M w 6.9–7.4 could be potentially expected (Armijo et al. 2010).
3 Seismological survey results
3.1 Analysis of the seismicity
Reliable database with hypocentral locations is paramount for a coherent study on crustal seismicity, to assess the potential seismic activity of faults.
3.1.1 Crustal velocity model
It is broadly known that typical problems associated with the hypocentral location of local and regional earthquakes are the imprecision in the calculated arrival times of seismic waves, an inadequate velocity model and the consequent instabilities of inverse methods. Because the epicentral distances are usually greater than the distances between seismic stations, the hypocentral parameters cannot be precisely determined, resulting in a strong dependency between the timing and focal depth of seismic events, which complicates the later interpretation regarding how the spatial distribution of the seismicity is structured.
In this study, we first analyzed velocity models previously proposed for the study zone (Barrientos et al. 2004; Pardo 2012 personal communication), to generate a new and improved crustal velocity model for the studied region that allows for a better determination of the focal parameters of the cordilleran crustal seismicity.
A database with 669 events was chosen and used to invert a 1D velocity structure model. Seismic crustal events were selected to build up a database based on the following criteria: hypocentral depth ranging from 0 to 30 km, epicenter located between 32.5°–34.5°S and 69.5°–71.5°W, events recorded by a minimum of 12 SSN-network seismic stations, date of occurrence between 2000 and 2011 and a minimum of approximately 20 readings of P- and S-wave phases, with residual less than 0.5 s.
To invert a 1D velocity model, we used the technique developed by Kissling et al. (1995) and implemented on the Velest program. This code simultaneously allows for the relocalization of hypocenters and the adjustment of a 1D velocity model by an iterative process and by means of the inversion of seismic wave arrival times, using a nonlinear ray tracing methodology. The final velocity model is a stack of homogeneous layers defined by seismic wave velocities and travel-time station corrections. To solve the problem, the theory of seismic ray trajectory (ray tracing) from the source to the receiver is applied to calculate the direct ray, the refracted one and optionally the reflected ray that result from the velocity model. The inverse problem is thus solved using a damped least-square algorithm, because the seismic wave travel-time inversion is nonlinear, the solution is obtained by an iterative scheme.
The crustal velocity model obtained is shown in Fig. 2. It basically consists of three layers, where the seismic waves are faster in the first layer compared to the velocity model used by the SSN. The Moho discontinuity is located around 47 km depth and the V p -to-V s ratio found is 1.75.
3.1.2 Seismotectonic analysis

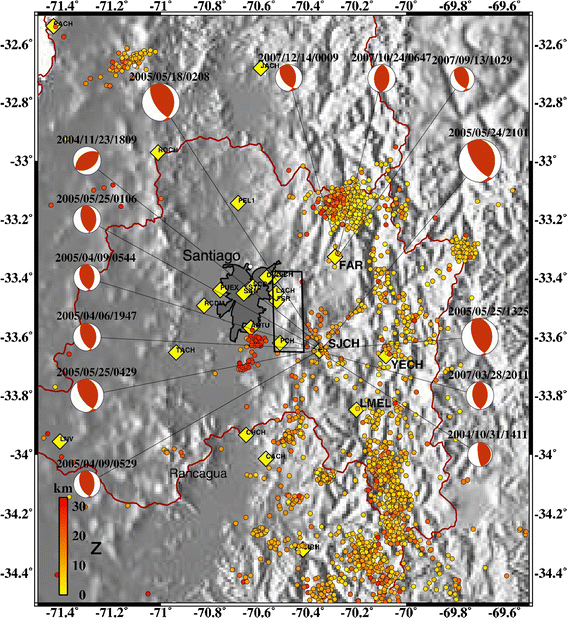

We selected 2,770 crustal seismic events (depth <30 km) from the SSN database, which were relocated using the 1D velocity model obtained in this study. Figure 3 shows the spatial distribution of the seismicity for the studied zone. Besides a heterogeneous pattern distribution, one can observe a quite delimited clustered seismicity. In particular, several seismic events were located nearby or directly beneath some seismological stations which are located in the cordilleran zone. Among these receivers, one can list broadband stations, such as San José de Maipo (SJCH), Las Melosas (LMEL), El Yeso (YECH) and Farellones (FAR).
The crustal seismicity is spatially organized in approximate N–S direction, along two parallel strips (Fig. 3). Type A strip is located between 70.6° and 70.8°W and has events similar to each other in terms of waveforms, S–P travel times and their focal mechanisms, as will be shown later. A second type B strip is located from 70.4° to 70.0°W and has instead events with a great diversity in terms of waveforms, high scatter in S–P travel times and their focal mechanisms. Furthermore, we find that the N–S band of seismicity near the Santiago basin, or type A, is well defined with a width <15 km along the E-W direction, focal depths around ~10–15 km with little dispersion and epicenters having a distribution approximately parallel to the fault trace of the San Ramón Fault; the type B band, also of predominantly N–S direction and located within the Principal Cordillera, has a greater dispersion along the E-W direction and a range of variation of focal depths between 0 and 10 km, with a higher concentration of events in the southern end (34°S). This study confirms independently, conclusions pointed out by Barrientos et al. (2004) and Charrier et al. (2005), that most of the seismic activity is located near the Chile-Argentina boundary, which is aligned with the El Fierro Fault system. Between the type A and B strips (70.45° and 70.55°W), one can observe a sparse seismicity as shown in Fig. 3.
As mentioned before, several seismic events are located nearby and directly beneath some seismological stations installed in the cordilleran zone. In order to validate—or calibrate and verify—the hypocentral location (latitude, longitude and depth) of this shallow crustal seismicity, a detailed waveform analysis was performed by doing both, particle motion as well as an analysis of S–P travel times for each one of the events located under the stations.
The waveforms analysis, by calculating P-wave particle motion, confirms the quality of the hypocentral relocation results obtained with VELEST. This is because both are verified, epicentral coordinates and depth of these events, which allow us to verify the quality of the 1D velocity crustal model. Specifically, the P-wave particle motion analysis allowed the accurate calculation of the angles of incidence, i, at the station, allowing then to check that the hypocenters are located just below the station. The angle of incidence obtained varies around values, i < 5°. It further shows that the seismicity near Santiago, under SJCH and FAR stations, is characterized by similar waveforms and S–P travel times of around 1.2 s.
An example of observed ground velocity waveforms (Z, E–W and N–S components) for events located under SJCH station is shown in Fig. 4a. Notice that the P waveforms (Z component) have the same signature, with only minor differences in their amplitudes. The E–W component also confirms that these events have similar signatures and waveforms between the P-wave and the S-wave window; in addition, the comparison of seismic wave arrival times also shows that the S–P travel times have little fluctuation among events. The comparison of N–S component recording confirms that these events generated practically the same waveform at the station for the three components. The seismic activity mentioned above is concentrated around 9–13 km depth (8 of 13 events are located around 9 km depth) for the cluster under SJCH and focal depth around 9 km for the cluster under FAR station.
Two clusters of seismicity are located underneath LMEL and YECH broadband stations. These events generated different waveforms and they are characterized by more scattered S–P travel times, which is quite consistent with their focal depth fluctuations between 6 and 13 km. An example of velocity waveforms (three components, Z, E–W, N–S) for events located underneath YECH station is displayed in Fig. 4b. Despite the great diversity in their waveforms and S–P travel times, one can notice that few records have the same waveform, which can be observed from the three components of velocity recordings.
According to this new observational evidence and taking into account that the waveforms of seismic events under SJCH and FAR stations are similar to each other (i.e., they all have the same waveform signature, which are the “so-called” multiplets in the literature), one can conclude and confirm tectonic seismic activity in the fault zone at a depth of about 10 km. This result is consistent with the detachment zone inferred from the structural model proposed for the San Ramón Fault (Armijo et al. 2010), resulting that the observed seismicity at the detachment level can be associated with a single source of brittle deformation.
Forward modeling was done to compute the complete displacement seismic wave field in a layered medium for a buried point source and a given focal mechanism, using the AXITRA code (Coutant 1990) implemented following Bouchon’s (1981) method. Calculations of synthetic seismograms allowed us to perform simultaneous adjustments of synthetic and observed waveforms for the three components, by matching the polarity and amplitude of the P- and S-waves (East and North component). Different focal mechanisms and magnitudes were tested by comparing manually the waveforms fitting. Because the recorded events are small in magnitude and station coverage is scarce, the waveform modeling adjustment was simply done at a single station. As initial guessed solution, and considering the results described previously, it was assumed a focal mechanism consistent with the geometry of the fault plane at the detachment level proposed by Armijo et al. (2010). Then, a systematic exploration of focal mechanism parameter was done by tuning strike, dip and rake angles, but keeping these values within a broad range consistent with the fault plane geometry assumed from the proposed detachment level (Armijo et al. 2010).

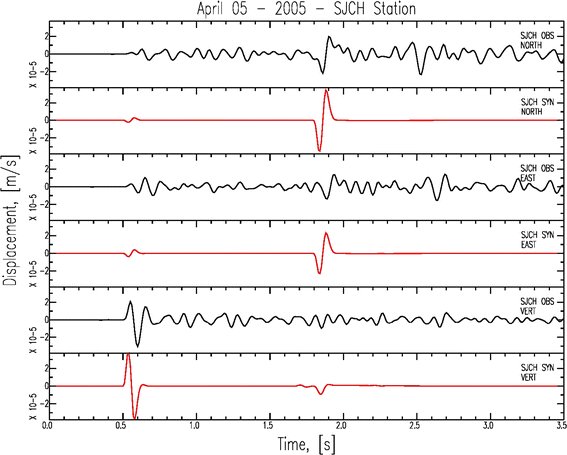

Figure 5 shows an example of velocity waveforms fitting for a seismic event located under and registered at SJCH station, occurred in 2005. Synthetic seismograms are compared to the observed ones bandpass filtered between 0.5 and 5 Hz for this analysis.
On the lights of the results obtained from waveform modeling, one can conclude that the seismic events associated with SJCH and FAR stations are located at an average depth of 9–10 km, essentially having the same focal mechanism, characterized by an N–S reverse fault with a dip between 30° and 40°, a rake of about 100°–120° and an S–P travel time of 1.2 s with little dispersion (Fig. 6). Figure 3 resumes the whole set of focal mechanisms obtained in the study region. Additionally, earthquakes located under LMEL and YECH stations present greater dispersion of epicenters and focal depths that we relate with diffuse deformation zones, which agrees rather well with more complex seismicity pattern along the Principal Andes Cordillera. Also, these events are characterized by large variability on their waveforms and diversity of focal mechanisms that we associate with the brittle deformation zone proposed for this area.

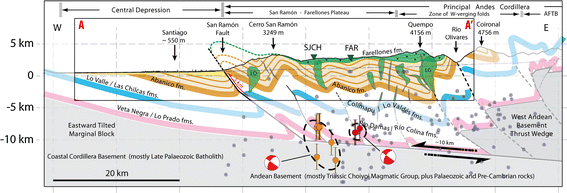

Considering the tectonic model proposed by Armijo et al. (2010), it is possible to explain not only the distribution of seismicity observed at depth, but also to connect coherently the different types of focal mechanisms retrieved for the events studied—under the frame of this tectonic model—in order to explain the detachment zone at a proposed level of about 10 km depth for the San Ramón Fault.
Contrarily, it is difficult to associate the observed local shallow seismicity under the optic of an east vergent-dominant lithospheric scale fault responsible for the structure of the west Andes Cordillera (Farías et al. 2010). Therefore, to set earthquake rupture scenarios, we preferred the continental-scale West Andean Thrust (Armijo et al. 2010), in which the San Ramón fault participates playing a major role in building the mountain front at the western border of the main Andes Cordillera of Central Chile, like a tectonic framework consistent with the seismological observations shown and discussed in this work.
As a first conclusion, we propose that the San Ramón Fault is not only a geologically active fault, but also it presents seismicity that can be associated with this structure at depth, resulting in a seismically active fault too. This is a primary element to be considered in any study on seismic hazard assessment for the entire Metropolitan area and in particular for the city of Santiago.
4 Kinematic earthquake rupture scenarios for an M w 6.9 in the San Ramón Fault
This section focuses on the study of the variability of ground-motion parameters computed numerically by simulating several kinematic earthquake rupture scenarios in the San Ramón Fault. The estimate of ground-motion parameters allows to measure and interpret the amplitude, duration and characteristic periods of seismic ground motion at some specific locations. We simulated broadband strong ground motion in the near-fault region for several different seismic rupture scenarios for an M w 6.9 in the San Ramón Fault, which is the minimum from the largest magnitude range (6.9–7.4) estimated for potential large earthquake ruptures from previous geological studies (Armijo et al. 2010; Rauld 2011). The modeling focuses on source effects radiated by a complex stochastic kinematic fractal k −2 composite seismic source. The proposed scenarios are defined by changing some critical source parameters, such as rise-time, rupture velocity, rupture initiation point and heterogeneous slip distribution, to better understand their influence on the simulated ground motions in the vicinity of the San Ramón Fault.
The earthquake magnitude M w 6.9 chosen in this study—to compute earthquake rupture scenarios—is consistent with the proposed magnitude range, belonging to a conservative margin, within the middle-upper range, which has served as a criterion to establish this magnitude. It is important to point out that the simulated earthquake rupture in this study does not break the free surface; if it did, we could expect magnitudes greater than 6.9, which may reaches the proposed maximum magnitude M w 7.4 from geological studies; so, making a potential earthquake scenario on the San Ramón Fault rupturing along the total known length and width, as well as breaking the free surface. Thus, we decided to model a more conservative earthquake at this level, and to increase rupture complexities in further studies that would permit us to simulate the maximum possible event for the San Ramón fault.
4.1 Strong ground-motion simulation methodology: kinematic fractal k −2 source model
It is well known that the complexity of the rupture process of the seismic source is the main responsible of dominating the ground motions in the near-fault region. The spatial variability of seismic ground motions is given by the fact that it is controlled by the combination of three effects, the so-called, source, path and local site effects. In this study, the target region is located nearby and right over the fault zone, allowing us to concentrate on source effects, before to include site effects (e.g., Pilz et al. 2011).
At close distances comparable with few fault lengths, the finite-source effects such as rupture directivity effects, hanging-wall/foot-wall effects, low-frequency pulses, radiation-pattern effects, etc., as well as, slip heterogeneities and spatial variations on rupture velocity, strongly control the complexity of wave radiation from the seismic source and the intensity of ground motions. Among these finite-source effects, the rupture directivity, which changes according to the angle between the receiver and rupture propagation direction, strongly controls the ground motions. It is observed when the rupture front propagates toward the site, increasing the amplitudes of the ground motion, shortening the apparent source duration and concentrating the seismic energy in a short time window. The rupture directivity effect has been analyzed since the earliest kinematic models proposed by Haskell (1964) and Ben-Menahem (1961), the latter author introduced the rupture directivity coefficient, C d. Directivity effect has been observed from strong-motion recordings in the 1992 M w 7.3 Landers, California earthquake (e.g., Cotton and Campillo 1995; Wald and Heaton 1994; Aochi and Fukuyama 2002), in the 1999 M w 7.6 Chi–Chi, Taiwan, earthquake (e.g., Oglesby and Day 2001) and in the 1994 M w 6.7, Northridge earthquake (e.g., Wald et al. 1996).
In order to model broadband strong ground motion in the near-fault region, we follow the approach proposed by Ruiz et al. (2011). It is based on a composite source description where subevents are generated using a fractal distribution of sizes and, by summation, produce spatially heterogeneous k −2 slip distributions. Subevents are distributed uniformly random over the whole fault plane. Each elementary source is described as a crack-type slip model growing circularly from a nucleation point, which is triggered when the macro-scale rupture front (starting from the hypocenter) reaches it. In the rupture process, a scale-dependent nucleation region is introduced at the subevent scale, in order to control the rupture directivity effect at high frequencies. It is done through the setting of R c and h parameters, that both control the extension of the nucleation region in which is located the nucleation point. It does that for smaller sources the nucleation point is randomly chosen within the crack, so, disorganizing the rupture directivity at small scales. For instance, if h = 0, the nucleation region collapses to a point and the rupture at the subevent scale propagates in average following the same direction as the macro-scale rupture front. Instead, for h = 1, the nucleation region covers the whole area of the subevents (with sizes R < R c ), therefore, the small-scale rupture direction is totally disorganized.
For simplicity, a constant rupture velocity is assumed at large and small scales. Each subevent is set up with a scale-dependent rise-time, assuming a boxcar source–time function, hence filtering out its own high-frequency radiation. The resulting slip-velocity function from adding up all the subevents that contributes to a fault-point has a shape similar to the ones obtained from dynamic earthquake rupture model. In addition, the total kinematic rupture process behaves as a propagating slip pulse because of the scale-dependent rise-time defined on the model. Synthetic ground motions are computed by convolving the resulting slip-velocity function at each point on the fault with the respective numerical Green’s function.
It has been shown that, in the far-field approximation, the acceleration spectrum follows the ω 2 model with amplitudes controlled by a frequency-dependent directivity effect. As discussed in Ruiz et al. (2011), by introducing a size-dependent nucleation region at all scales (h > 0), it will reduce directivity effects. We expect that this will be also the case for the rupture scenarios analyzed in this work. We decided to keep h = 0, to simplify the statistical analysis and to focus on other finite-source effects and source parameters, as shown later.
4.2 Fault setting and source model parameters

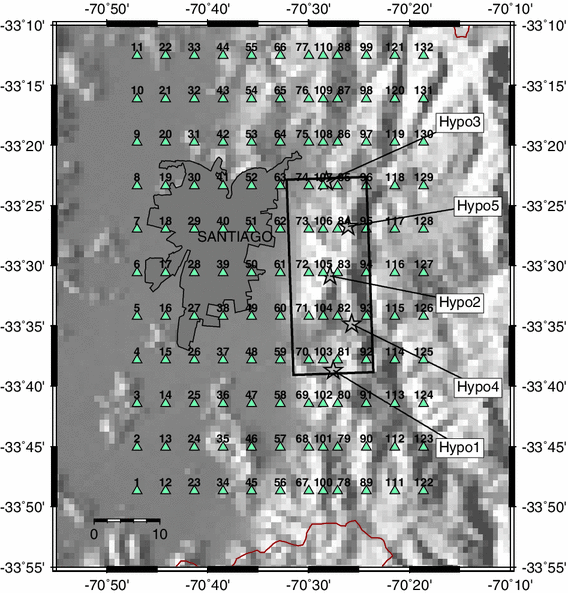

The location and rupturing fault dimensions were defined according to the crustal-scale structural model and potential large earthquakes from the fault (Armijo et al. 2010). Synthetic ground motions were computed for an M w 6.9 earthquake on the inverse San Ramón Fault, setup with a focal mechanism equal to 358°/40°/113° (strike/dip/rake). A single rectangular fault plane of dimensions, L × W = 30 × 16 km2, was defined and the fault top was buried at 1.0 km depth.
The 1D velocity model obtained in this study was used, but slightly modified in the kinematic rupture scenarios to propagate seismic waves. Because we focus mainly on source effects radiated by a complex kinematic rupture model, in this work, we neglected site amplifications due to local site/soil or basin/topographic effects, for instance. However, in the ground-motion simulations, a low-velocity layer was inserted at the top of the 1D velocity model retrieved with VELEST. The thickness and V s were set as 500 m and 1,040 m/s, respectively. The thin top layer attempts to capture in a simple way the low velocity wave propagation of the sedimentary basin at the City of Santiago. A direct evaluation of an approximate formula relating V s and depth (Pilz et al. 2011) gives V s ~ 1,177 m/s estimated at 250 m depth, then this value is in the order of the one used in our simulations.
The complete seismic wave field of Green’s functions was computed up to 10 Hz using the AXITRA code (Coutant 1990), which is based on the discrete wave number (DWN) method (Bouchon and Aki 1977; Bouchon 1981). Green’s functions are unfiltered and numerically valid up to 10 Hz, under the validity hypothesis of the DWN method and the assumption of a constant Q-factor to model intrinsic attenuation (Kjartansson 1979). The receivers are evenly distributed at the surface (with a grid spacing of about 4 km), covering over and around the fault, spreading out over the whole Santiago Metropolitan area (Fig. 7). The fault plane was discretized on an uniform grid spacing defined by N x = 512, and N y = 128, subfaults along strike and along dip, respectively.

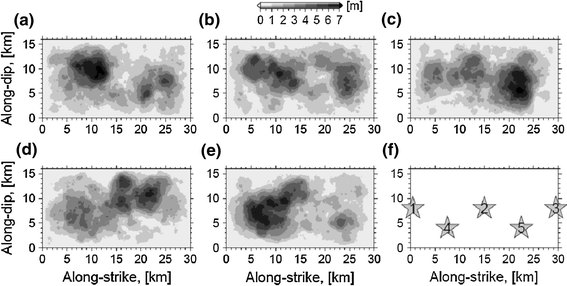

Several different kinematic rupture scenarios were defined by varying physical rupture source parameters, such as the hypocenter location on the fault, rupture velocity (V r ), final slip distribution and rise-time (R p ). Five random heterogeneous fractal k −2 slip distributions are used (Fig. 8a–e) and were generated assuming a constant stress drop for all subevents (Δσ d = 9 MPa). Slip is computed following the fractal composite k −2 source model scheme (Ruiz et al. 2011). We consider five hypocenter locations (Fig. 8f), which are intended to span purely unilateral, bilateral and up-dip ruptures. The V r -to-V s ratio is set up to 0.7, 0.8 and 0.9, while the maximum rise-time, τ max, defined through the R p parameter, τ max = a R p /V r , is set up according to R p = 0.1W and 0.2W, the R c parameter is kept so that R c = R p . Let us recall here that the rise-time is scale-dependent, where a = 2 and R p define the radius beyond which the rise-time is constant (τ max). For all these parameter combinations, we simulate strong ground motion to estimate synthetic ground-motion parameters, such as PGA and PGV.
4.3 Kinematic rupture scenario analysis
In the following subsections, we present the results obtained from numerical simulation and the analysis focuses on the variability of ground-motion parameters. The simulated parameters are also compared against empirical ground-motion prediction equations by Kanno et al. (2006). These equations calibrated for PGA, PGV and response spectra were obtained using strong-motion recordings from K-NET and KIK-NET databases, including recordings of earthquakes from the USA and Turkey in order to enlarge the database for shallower events (depth <30 km). This attenuation law is chosen because it provides several empirical curves (PGA, PGV and response spectra) using only a minimum set of parameters, such as AVS30 (shear-wave velocity averaged over the first 30 m of depth), magnitude and source distance. For all next sections, the empirical curves were computed using AVS30 = 1,040 m/s, after the V s value of the inserted thin layer at the top.
In this study, the observational constraint we used is that no synthetic source model based on a realistic distribution of rupture scenarios and source-station geometries should generate standard deviation (SD) on strong-motion parameters larger than the empirical ones.
4.3.1 Effect of variability of the hypocenter location

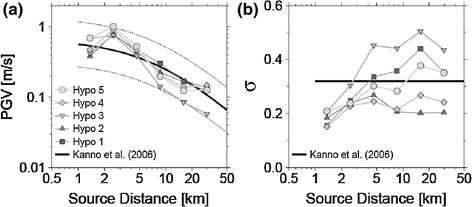

Figure 9 shows the effect on ground-motion parameters, the horizontal PGV (PGVH), when changing the hypocenter location. These values were estimated for each hypocenter using the entire set of source parameters defined in the rupture scenario simulations, i.e., V r -to-V s ratio equal to 0.7, 0.8 and 0.9, and R p fixed to equal 0.1W and 0.2W.
The synthetic PGVH mean values (Fig. 9a) as well as its SDs associated with each hypocenter (Fig. 9b) are shown as a function of the source distance. The mean and SD were estimated for each hypocenter by bin of source distance. Both numerical results are compared against the PGV empirical mean curve (±SD) and the empirical SD value proposed by Kanno et al. (2006).
In general, there is a good agreement between synthetic and empirical values, in both cases, for the whole range of distances considered. Hypocenter 3, which corresponds to an N–S rupture along the San Ramón Fault (a purely forward rupture directivity) the numerical mean values underestimate the empirical mean ones, but stay within the margin of desired dispersion. For all hypocenter locations, one can observe at a distance of around 2 km, a significant increase in the mean PGVH value with respect to the empirical mean curve that could be related to a directivity effect.
Figure 9b shows the numerical PGVH SD variability with source distance. It is observed that at short distances (R < 5 km) all synthetic values keep below the empirical level, in general, having a small amount of scatter. This, however, does not hold true for hypocenter 3, that displays larger values for R > 3 km. On the other hand, at larger distances from the source (R > 5 km), simulations related to unilateral rupture propagation, such as hypocenter 1 (S–N rupture) and hypocenter 3 (N–S rupture), present an increasing in their SD values. On the contrary, hypocenter 2 (bilateral rupture), hypocenter 4 (up-dip S–N rupture) and hypocenter 5 (N–S up-dip rupture) have SD which are less or comparable to the empirical ones.

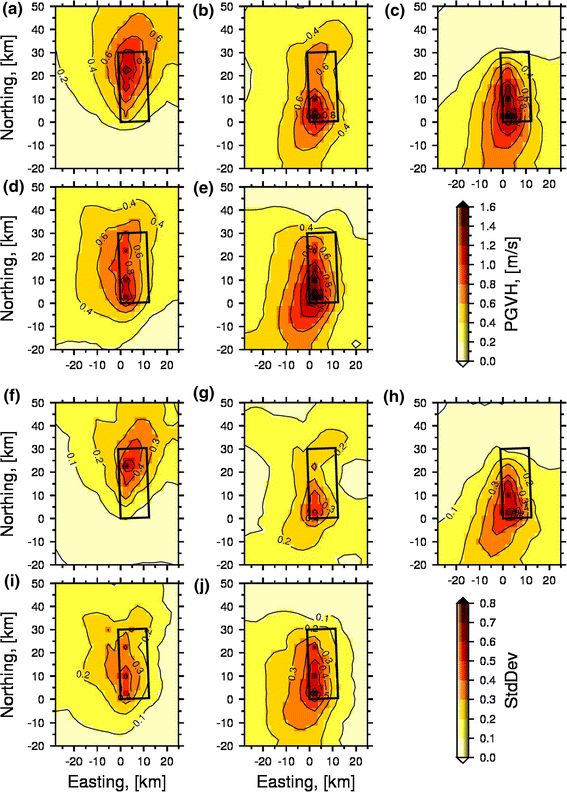

Figure 10 presents isocontour maps for the simulated mean PGVH (Fig. 10a–e) and their corresponding SD (Fig. 10f–j) associated with each of the five hypocenter locations. The spatial distribution highlights clearly a strong effect of the rupture directivity toward the south, by increasing the amplitudes in the case of an N–S and N–S up-dip ruptures propagation (Fig. 10c, e). Similar effect is observed toward the north in a case of an S–N and S–N up-dip ruptures (Fig. 10a, d). The purely bilateral rupture (Fig. 10b) does not exhibit any particular strong effect associated with the directivity; one can observe a more symmetrical and uniform isocontours.
There is observed a common pattern in all the hypocenter location results, except in the one corresponding to a unilateral S–N rupture (hypocenter 1, Fig. 10a), and it is observed near the SW area of fault plane projected onto the surface and corresponds to the maximum mean PGVH modeled reaching values of about 1.4 m/s (Fig. 10b–e). This amplification effect could be related to the slip direction onto the fault plane, notice that the slip vector has a small dextral component along strike.
This systematic observation coincides with the fact that the largest PGVH values are localized in the hanging wall of the San Ramón Fault (Fig. 10b–e). Based on empirical observations, recent studies have proposed that peak ground motions from thrust earthquakes can be 20–30 % larger than from strike-slip earthquakes. It has also been shown that the hanging wall systematically exhibits amplified near-field ground motion in comparison to the footwall (e.g., the 1971 San Fernando earthquake, the 1980 El Asnam, Algeria earthquake and the 1994 Northridge earthquake; Chang et al. 2004).
The SD isocontour maps (Fig. 10f–j) show the same spatial behavior discussed previously (i.e., the effects of the rupture directivity and the maximum deviation values located in the SW area over the fault). The largest SD of about 0.6 is observed in Fig. 10h, that corresponds to an N–S unilateral rupture that coincides with the prior discussion, where unilateral ruptures introduce largest uncertainties on ground-motion parameters.

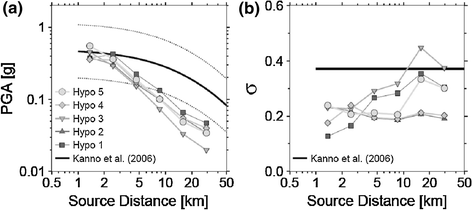

Figure 11 shows the variability on the horizontal PGA (PGAH) when changing the hypocenter location. The synthetic mean PGAH value (Fig. 11a) as well as their SD estimates associated with each hypocenter (Fig. 11b) is shown as a function of the source distance. These values were estimated for each hypocenter using the complete set of parameters defined in the scenarios, i.e., V r -to-V s ratio equal to 0.7, 0.8 and 0.9, and R p equal to 0.1W and 0.2W. The results are compared against the PGA empirical mean curve (±SD) proposed by Kanno et al. (2006).
The simulated mean PGAHs are, in general, in good agreement with the empirical values at close distances from the source, R < 4 km, for all hypocenter locations. Simulated mean values gradually decrease with distance, where the average synthetic values fall below the empirical mean curve minus SD for distances greater than 10 km; at larger distances, the numerical predictions attenuate, on average, faster than the empirical ones. This can be attributed to the fact that the high-frequency content of synthetic Green’s functions computed in this study simplifies seismic wave propagation in a real medium. Path effects, such as, scattering, high-frequency seismic wave attenuation, for instance, strongly control the high-frequency content radiated from the source and then affect PGA values.
Figure 11b shows a comparison between the PGAH SD estimated as a function of the source distance for all five hypocenters. The simulated SD values are systematically lower than the empirical deviation for the whole range of distances. However, this does not hold true for hypocenter 3 (N–S rupture), because at a distance of about 20 km the simulated SD overestimates the empirical deviation. Overall, the results are coherent with the observational constraint we assumed that says that none synthetic source model based on a realistic distribution of rupture scenarios, fault geometry and receiver distribution should not generate SD of ground-motion parameters larger than the empirical ones.

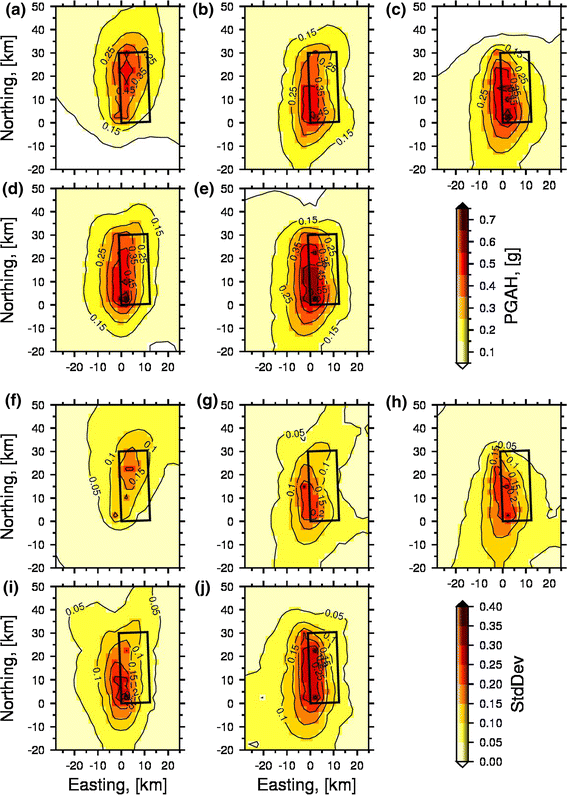

Figure 12 presents isocontour maps for the simulated mean PGAH values (Fig. 12a–e) and their SDs (Fig. 12f–j) associated with each hypocenter location. The effect of rupture directivity is significantly lower than in the previous case (PGVH), exhibiting a more symmetrical-like spatial pattern, so the directivity effect is controlled at high frequencies as one can see in these simulations. Let us recall that this has been shown in the fractal k −2 composite source model (Ruiz et al. 2011), pointing out that the rupture process breaks the directivity at small scales, that is to say, at the scale of subevents. A common pattern in all hypocentral location, except the one corresponding to a unilateral S–N rupture (hypocenter 1, Fig. 12a), is observed in the vicinity near the SW corner of the San Ramón Fault plane projected onto the surface, and it corresponds to the maximum mean PGAH value modeled reaching a peak of about 0.7 g. Similar to PGVH case, maximum simulated mean values of PGAH are located in the hanging wall of the Ramón Fault (Fig. 12a–e), but also large mean values are observed off the fault plane projected to the surface, thereby covering areas near the fault trace.
The SD isocontour maps (Fig. 12f–j) show a more heterogeneous spatial distribution, and the maximum simulated SDs estimated for each hypocenter location do not always coincide with the area located near the SW corner of fault plane projected onto the surface. The maximum SD is observed in Fig. 12j, corresponding to the 3/4 bilateral rupture reaching a peak value of about 0.3 g.
4.3.2 Effect of the rupture velocity

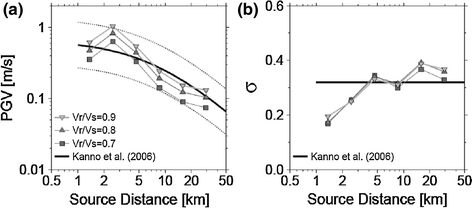

Figure 13 shows the effect on ground-motion parameters (PGVH) when varying the rupture velocity (V r /V s = 0.7, 0.8 and 0.9). The synthetic mean PGVH values as well as their SDs, associated with each V r -to-V s ratio, are shown as a function of the source distance.
In this statistical analysis, a subset of source parameters explored in the simulation is chosen, that is to say, selecting hypocenter 2, 4 and 5, and R p = 0.1W and 0.2W. In this case, purely unilateral ruptures are not included in the statistics, it is assumed (i.e., hypocenter 1 and 3) that they are not such usual rupture behavior, and from a statistical point of view they may bias the analysis; on the other hand, predominantly unilateral-like ruptures are taken into account (hypocenter 4 and 5).
Figure 13a shows the simulated mean PGVH values estimated by bin of source distance for each V r -to-V s ratio and compared against the empirical curves proposed by Kanno et al. (2006). The results show a good agreement between the modeled and empirical values. When increasing the V r -to-V s ratio, the simulated mean values increase for all distances. At a distance of 2–3 km, there is also observed a significant increase in the mean PGVH for all V r -to-V s ratios that could be related to the directivity effect.
Figure 13b shows the comparison between the simulated PGVH SD estimated for each V r -to-V s ratio, as a function of the source distance. The modeled SD falls below the empirical value for all source distances up to 10–15 km, and beyond this distance, there is a slight increase in the synthetic value. Notice that the simulated SD values do not depend on the V r -to-V s ratio.

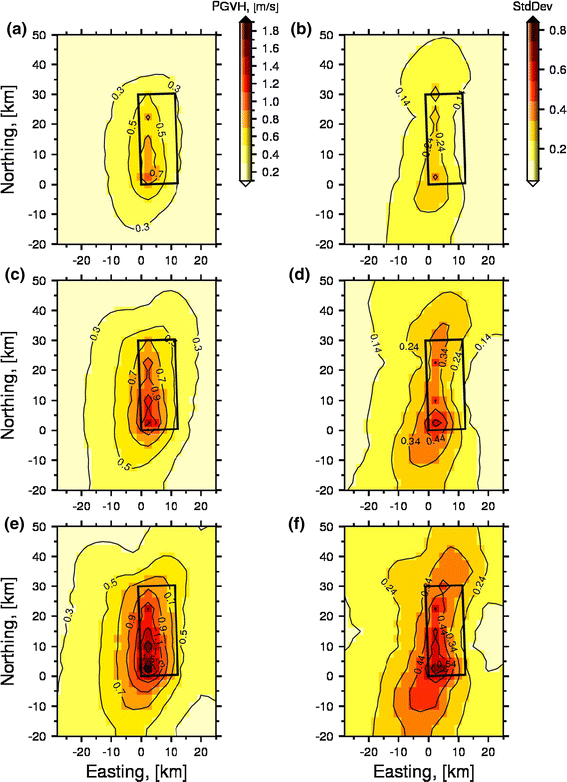

Figure 14 displays the isocontour maps of the simulated mean PGVH (Fig. 14a, c, e) and their corresponding SDs (Fig. 14b, d, f) associated with each V r -to-V s ratio explored. A common pattern is observed near the SW corner of the fault plane projected onto the surface (Fig. 14a, c, e) and corresponds to the maximum modeled PGVH values that increases slightly when increasing the rupture velocity. That is to say, with a higher V r -to-V s ratio, a higher mean PGVH is obtained, in this case the maximum peak reached is about 1.6 m/s for V r /V s = 0.9. A relatively homogeneous symmetrical spatial distribution is observed, exhibiting isocontours elongated approximately along the N–S direction and where the directivity effect is smoothed out.
The SD isocontour maps (Fig. 14b, d, f) show maximum synthetic deviation values near the SW corner of the fault plane projected onto the surface in all the three V r -to-V s ratios. The maximum SD value is about 0.8 (Fig. 14f) for a rupture velocity of V r = 0.9V s . Isocontour lines are elongated along strike, and asymmetrical lobes are observed at the north and south ends of the fault. Notice that this map representation shows this asymmetrical distribution on the mean PGVH, which is hidden when estimating simulated SD by bin of source distance.

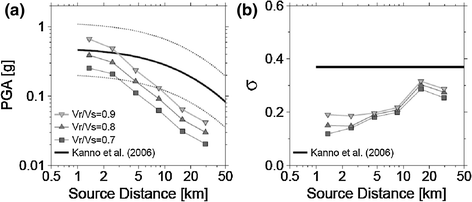

Figure 15 shows the effect on simulated PGAH when varying the V r -to-V s ratio. The synthetic mean PGAH values (Fig. 15a) as well as their SDs estimated (Fig. 15b) for each rupture velocity are shown as a function of the source distance, and compared with the empirical attenuation law proposed by Kanno et al. (2006).
The synthetic mean PGAH (Fig. 15a) attenuates with distance faster that the empirical mean curve at short distances from the source the simulated mean values stay within the empirical mean (± SD) range. At distances greater than about 4 km, the simulated mean values become smaller than the empirical range, it can be mainly attributed to the effect of wave propagation at high frequencies more than deficiencies of high-frequency radiation emitted from the source. When increasing the V r -to-V s ratio, there is an increasing in the mean PGAH values. On the other hand, Fig. 15b shows that the simulated SD falls below the empirical value for the whole range of distances and for the three V r -to-V s ratios. At each bin of distance, there is observed a little scatter of synthetic SD estimates among different V r -to-V s ratio values.

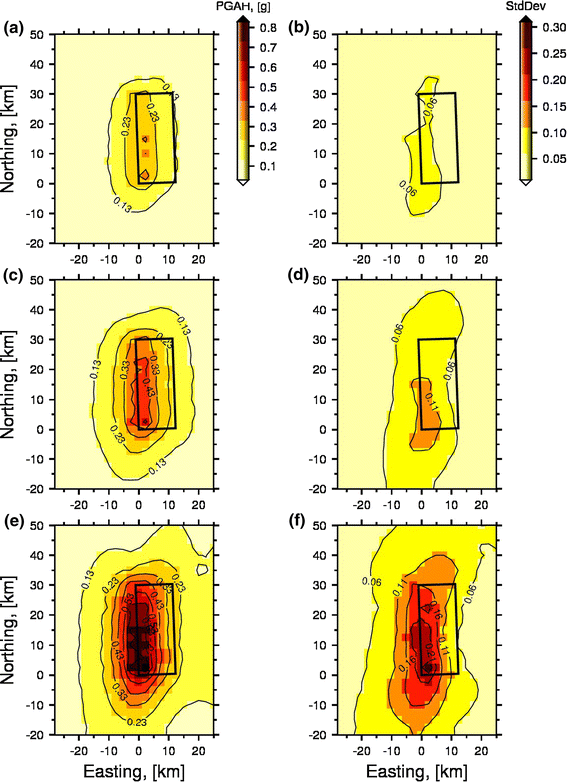

Figure 16 presents isocontour maps for the simulated mean PGAH (Fig. 16a, c, e) and their SD estimates (Fig. 16b, d, f) associated with each V r -to-V s ratio. The maximum mean PGAH values are located in the SW area over the fault plane projected to the surface; however, large values are also distributed off the fault plane projection area (Fig. 16a, c, e). The synthetic mean PGAH increases when increasing the rupture velocity; the largest simulated maximum mean value is about 0.8 g. A relatively symmetrical spatial distribution is observed, where PGAH isocontour lines elongate along the N–S direction, so there is none strong directivity effect. In the case of the SD isocontour maps (Fig. 16b, d, f), the maximum deviations are located near the SW area over the fault. A maximum SD of about 0.3 is observed (Fig. 16f) for a rupture velocity equal to 0.9V s . Isocontour lines are elongated N–S, and lobes appear at the north and south ends of the fault.
4.3.3 Effect of the maximum rise-time, τ max

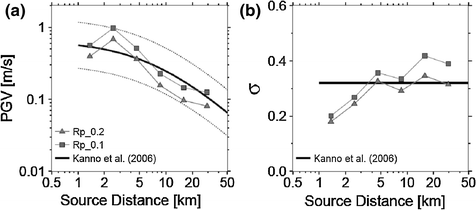

Figure 17 shows the effect on ground-motion parameters (PGVH) when varying the maximum rise-time, τ max. In this analysis, notice that following the τ max definition, it is more sensitive to R p than V r -to-V s ratio variations. Therefore, in this section, the statistical analysis focuses on τ max through R p values, defined as being equal to 0.1W and 0.2W.
The synthetic mean PGVH values (Fig. 17a) as well as their SDs (Fig. 17b) are shown as a function of the source distance, and compared against empirical attenuation laws (Kanno et al. 2006). These values were estimated for each R p value by choosing a subset of parameters defined in the simulation (i.e., hypocenter location 2, 4 and 5, and all V r -to-V s ratios). As in the previous subsection, purely unilateral ruptures (i.e., hypocenter 1 and 3) are not included in the statistics.
Figure 17a shows the mean PGVH values estimated by bin of source distances for R p = 0.1W and R p = 0.2W. An increasing in R p decreases the simulated mean PGVH over the whole range of distances. In general, the synthetic mean curves are in good agreement with the empirical mean curve for all source distances. The simulated SD (Fig. 17 b) is smaller than the empirical value, for distances less than 4 km. In the case of R p = 0.1W, there is observed a slight overestimation of the empirical value for distances larger than 4 km, instead, for R p = 0.2W, simulated SD is smaller or roughly equal to the empirical value.

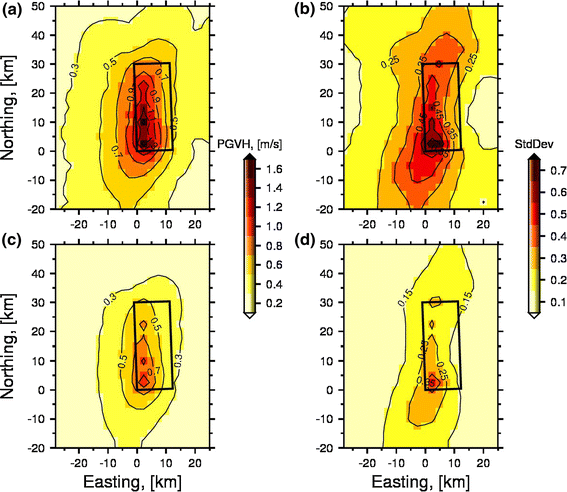

Figure 18 presents isocontour maps for the simulated mean PGVH (Fig. 18a, c) and their SD estimates (Fig. 18b, d) associated with the maximum rise-time analyzed through R p . A common spatial pattern, similar to the ones shown in previous scenarios analyzed, is observed near the SW area over the fault plane (Fig. 18a, c) and corresponds to the maximum mean PGVH values modeled. Simulated mean PGVH increases in the case R p = 0.1W with respect to R p = 0.2W, and has a maximum value of about 1.6 m/s. The directivity has a minor effect in the spatial distribution of mean PGVH; isocontour lines are elongated along strike and have a symmetrical-like shape. The SD PGVH isocontour maps (Fig. 18b, d) also depict maximum deviations near the SW corner over the fault plane. Isocontour lines are elongated along strike but present asymmetrical shapes, and at the north and south fault ends appear lobes-like shapes.
Figure 19a shows the mean PGAH values and their associated SDs (Fig. 19b) estimated for each R p parameter and plotted as a function of source distance. These simulated values are compared against empirical curves proposed by Kanno et al. (2006). As shown in Fig. 19a, at close distances from the source (R < 3 km), the simulated mean PGAH is in agreement with the mean empirical value, however, at larger distances the simulated values attenuate faster than empirical values. Instead, the simulated SD PGAH values are systematically below the empirical SD for all distances (Fig. 19b).

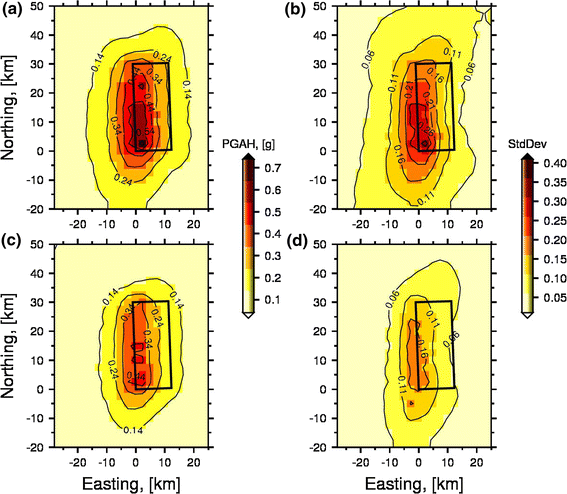

Figure 20a and c presents isocontour maps for the simulated mean PGAH and their SD estimates (Fig. 20b, d) computed for each R p value. The maximum mean PGAH values in each case (Fig. 20a, c) are located within the SW corner over the fault plane, but also large PGAH values are reached off the fault plane projection onto the surface and distributed along the strike and toward the fault trace. The latter observation is seen in both modeled cases, but is more evident when R p = 0.1W. Simulated mean PGAH isocontour lines are elongated along strike and exhibit a symmetrical shape where none strong directivity effect is observed. The SD PGAH isocontour maps (Fig. 20b, d) present spatial distribution which is also N–S orientated, in the case of R p = 0.1W (Fig. 20b), the maximum SD is reached near the SW area over the fault plane, however, this pattern does not appear when R p = 0.2W.
5 Discussion
We have documented seismological and tectonic evidences related to the San Ramón Fault System that have strong implications for any seismic hazard assessment and risk study for the Santiago Metropolitan area. The analyzed regional seismic catalog shows that the spatial distribution of the crustal seismicity is organized in an approximately N–S direction, along two parallel strips. The western strip is well organized, homogenous and located directly on the first western front of the main Andes Cordillera, while the eastern strip is wider and more diffuse in terms of the spatial distribution and exhibits more shallow earthquakes with a greater concentration of events in the southern end (which in turn is located on the second topographic step determined by summit heights). Between both strips, disperse seismicity is observed with none clear pattern.
Several seismic events are located nearby or directly underneath some broadband seismological stations installed in the cordilleran region, among these, SJCH, FAR, LMEL, and YECH stations. From P-wave particle motion and S–P travel-time analysis done for each one of the events located underneath the stations, it was observed that the seismicity near Santiago and right under SJCH is clusterized around 9–13 km depth (8 of 13 events) and around 9 km depth at FAR. However, under YECH, the seismicity pattern is more dispersed and varies between 6 and 13 km depth, and between 9 and 13 km depth under LMEL station.
Analysis performed on seismic waveform recordings for events located under the stations evidences similar signatures in their waveforms for events under SJCH and FAR, which is not as obvious as for events located under YECH and LMEL stations. The great and impressive waveform similarity observed for events located under SJCH and FAR stations indicates that brittle deformation is occurring there, that may be associated with a single type of seismic source rupture process. This reveals a common focal mechanism and the occurrence of events radiating exactly the same waveforms (the so-called “multiplets” or repeating earthquakes). Therefore, we associate this seismicity with the tectonic activity of the San Ramón Fault system at the west-vergent ramp that characterizes the fault geometry at about 9–10 km depth, according to the structural model proposed by Armijo et al. (2010). Even if these events are localized in a specific fault zone, small events were triggered there, so one can say from a seismological point of view, we are facing a seismically active fault. In that sense, the location and focal mechanisms of the seismicity reported here are similar to that observed from other thrust fault systems along convergent margins (Kao and Chen 2000; Rau et al. 2007).
Additionally, a point-source forward waveform modeling was made to search for a focal mechanism solution for a set of small earthquakes. It allowed us to verify the fault mechanism proposed by modeling the complete seismic wave field, and checking the fitting between synthetic and observed waveforms (P- and S-waves), for events located under some stations. Including P-wave particle motion analysis, it can be concluded that seismic events associated with SJCH and FAR stations are located at a depth of 9 km, having basically the same focal mechanism (a reverse faulting running in an N–S direction with a dip between 30° and 40°, a rake of 100°–120°, and S–P travel times of 1.2 s with very little dispersion). These observations agree in a coherent manner with the mechanical and geometrical features of the tectonic model proposed for this fault system (Armijo et al. 2010). The dispersion of epicenters and focal depths observed for events located under LMEL and YECH can be interpreted like the result of diffuse deformation in the Principal Cordillera and the variability of the waveforms to the diversity of focal mechanisms associated with brittle deformation in this zone.
We focused on characterizing the ground-motion variability in the vicinity of the San Ramón Fault by modeling several kinematic rupture scenarios for an M w 6.9 earthquake by using a kinematic fractal k −2 composite source model. The main goal was to examine the variability of ground-motion parameter and finite-source effects in the near-fault region, when changing physical kinematic source parameters. We compared numerically predicted ground-motion parameters with empirical predictive relationships proposed by Kanno et al. (2006). The statistical analysis focused on horizontal peak ground accelerations and velocities.
The mean PGVH simulated for different source parameters are, in general, in good agreement with the empirical mean values for all source distances; however, for some parameters and at large distances a slight underestimating was observed, which always keeps within the range of dispersion. In all modeled scenarios, an increase in the mean PGVH value is observed around 2 km of distance that can be associated with a directivity effect. A common spatial pattern (except in the hypocenter 1 case) is observed near the SW corner over the fault plane and corresponds to the maximum mean values of PGVH simulated that can be related to an effect of the slip direction on the fault which has a small component along strike.
Regarding the simulated SDs of PGVH for all modeled scenarios, we observed that the synthetic values at close distances are lower than the empirical SD. This tendency is modified, for instance, when considering different hypocenter locations, because those hypocenters that generate purely unilateral ruptures, the simulated mean PGVH slightly overestimates the empirical SD value at intermediate and large distances. Similar behavior occurs with the modeled SD values when varying the rupture velocity or the R p parameter, but in these cases, the overestimation is associated with greater source distances than for the prior cases.
With respect to PGAH statistical analysis, at close distances (less than 4 km) the simulated mean PGAH agrees with the empirical mean values. At greater distances, the simulated mean PGAH attenuates faster than the empirical curve, which can be related, for instance, to the effects of oversimplification of wave propagation at high frequencies. A common spatial pattern in all statistical analysis (except for hypocenter 1, purely unilateral S–N rupture) is that the maximum PGAH values are reached over the SW corner of the fault, effect that can be related to the fact that the slip direction over the fault has a small component along strike.
The synthetic PGAH SDs for all scenarios modeled fall systematically below the empirical SD value, which is always desirable when simulating ground-motion parameters. In particular, it is important in the scope of broadband strong ground-motion modeling because each new factor added to the modeling, such as site effect or path effect, could increase the uncertainties of the predicted ground-motion parameter.
In particular, including additional spatially heterogeneous rupture parameters, such as rupture velocity, stress drop, will introduce more variability/scatter on predicted ground-motion parameters and then increase SDs, but not necessarily a large increase on mean PGA at large distances when a statistical analysis is done. As initially stated, we focused on some specific source effects, then avoiding to explore additional effects on ground motions when including heterogeneities on other rupture source parameters. Certainly, it may be tested and properly included in further applications, and some work has been done under this perspective (e.g., Pulido et al. 2004; Pulido and Dalguer 2009 Graves and Pitarka 2010; Mena et al. 2010). Under the same perspective, in a recent work based on the same fractal kinematic k −2 source model, where the constant stress-drop hypothesis at all scales was released, Ruiz et al. (2013) shown that the high frequency is greatly enhanced by combining both: (1) a larger average stress-drop value at small scales compared to the average values of larger subevents and (2) empirical Green’s functions.
Based on the kinematic rupture scenarios simulated in this study, the maximum PGVH and PGAH values obtained in the different models coincide with the fact that these are always on the hanging wall of the San Ramón Fault, which is rather coherent with results from Chang et al. (2004). The overall results obtained here from kinematic rupture scenarios given an M w 6.9 earthquake in the San Ramón Fault support the kinematic composite fractal k −2 source model like a tool for ground-motion parameter prediction in the near-fault region. This is particularly true in the case of the simulated SDs.
It is possible that faults breaking or rupturing close to the free surface produce seismic wave radiation that differ at the receivers, i.e., the high frequencies radiated from the most shallower areas differ from those located at deeper fault zones, which indicates that it is necessary to include some restrictions in the model. These differences can rise from complexities on the rupture process or on the radiated seismic wave. It is important to assess whether the deeper/shallower part of the fault, or the detachment ramp, will generate high-frequency waveforms. A large magnitude earthquake (around M w 7.4) could be expected from a potential seismic event with surface rupture in the San Ramón Fault (Armijo et al. 2010), and thus a large magnitude scenario should be modeled. Additionally, further work must to be done in order to include more complexity into the fault geometry, for instance. A rupture breaking the free surface is another important element to keep in mind in order to improve future kinematic rupture scenarios for the target region. Indeed, further improvements of broadband strong ground motions should include local site/soil effects and basin/topographic effects. The latter can be incorporated through the propagation of low-frequency three-dimensional seismic waves, as done for instance in the Santiago basin (Pilz et al. 2011), or similarly in other areas, like Los Angeles basin in southern California, highly exposed to potential seismic hazard too (e.g., Olsen 2000; Mena et al. 2010; Graves and Pitarka 2010).
6 Concluding remarks
We have shown seismological and tectonic evidences related to the San Ramón Fault System that have undoubtedly strong implications for any seismic hazard assessment and risk study for the Santiago Metropolitan area.
Via a point-source forward waveform modeling, we verified the focal mechanisms proposed for a set of small earthquakes clustered under some stations, by checking the fitting between synthetic and observed waveforms (both P- and S-waves). Clustered seismic events associated with SJCH and FAR stations are located at a depth of 9–10 km, having similar focal mechanisms (reverse faulting running in an N–S direction, dip in the range 30°–40°, rake between 100° and 120°, and S–P travel times of 1.2 s with little scatter). These events agree coherently with the structure and kinematics of the San Ramón Fault at crustal scale, proposed by Armijo et al. (2010). Events located under LMEL and YECH exhibit larger dispersion in the location of epicenters and focal depths that we interpret as diffuse deformation associated with the Principal Andes Cordillera. The waveforms variability agrees with the diversity of focal mechanisms, that we associate with brittle deformation.
The observed seismic activity clustered at about 10 km depth provides first evidence to support the seismically active character of the San Ramón Fault, implying a high-potential seismic hazard for the city of Santiago. Monitoring seismicity near this fault system will help to improve further seismic hazard assessment analysis in the region.
Results from kinematic rupture scenarios for an M w 6.9 earthquake in the San Ramón Fault show that the maximum PGVH and PGAH mean values obtained from different rupture models always fall on the hanging wall of the structure, with expected maximum mean values in the order of 0.7–0.8 g, which is consistent with hanging-wall effects observed in previous studies (e.g., Chang et al. 2004). Modeling near-fault broadband strong ground motions, in particular, in the vicinity of active faults are always critic to finite-source effects that are rather well simulated with the kinematic fractal k −2 source model (Ruiz et al. 2011) used in this study. Directivity plays also an important role on ground-motion variability; our simulations suggest that small dextral component in the dominantly inverse San Ramón fault seems to have an effect on the mean PGAH and PGVH model results.
