1 Introduction
The global structure of realistic combinatorial fitness landscapes is still little understood, yet it clearly impacts the performance of heuristic search methods. A way of characterising a landscape global structure under a given neighbourhood operator is by considering the distribution of its local optima. Boese et al. (1994) conjectured that the search space of travelling salesman instances under 2exchange moves has a ‘globally convex’ or ‘bigvalley’ structure, in which local optima are clustered around one central global optimum. This globally convex structure has subsequently been observed in other combinatorial fitness landscapes such as the NK model (Kauffman and Levin 1987), graph bipartitioning (Merz and Freisleben 1998), and flowshop scheduling (Reeves 1999). Under this view, there are many local optima but they are easy to escape from, with the coarse level gradient leading to the global optimum. This hypothesis has become generally accepted and has inspired the design of local search heuristics referring to a similar principle with different names: adaptive multistarts, largestep Markov chain, softrestarts, chained local search and iterated local search. The notion of a bigvalley is related to the notion of a ‘funnel’ structure from the study of energy landscapes in theoretical chemistry, as discussed further in Sect. 2.2.
However, recent studies on TSP landscapes have revealed a more complex picture (Hains et al. 2011; Ochoa and Veerapen 2016b). The bigvalley seems to decompose into several subvalleys or multiple funnels. This helps to explain why certain iterated local search heuristics can quickly find highquality solutions, but fail to consistently find the global optimum in cases where the global optimum is known. A similar multifunnel structure has been observed on some continuous optimisation problems (Locatelli 2005; Lunacek and Whitley 2006; Lunacek et al. 2008), where its impact on search difficulty has been established. In particular, landscapes with more than one funnel, where the global optimum is located in a deep, narrow funnel are significantly harder. The literature on characterising the multifunnel structure of combinatorial landscapes is mostly lacking. This is partly due to the lack of adequate tools to study their complexity. We propose using local optima networks to analyse and visualise the global structure of combinatorial fitness landscapes. Local optima networks compress the whole search space into a graph, where nodes are local optima and edges are transitions among them with a given search operator (Tomassini et al. 2008; Verel et al. 2011). The model emphasises the number, distribution and most importantly, the connectivity pattern of local optima. Modelling landscapes as networks introduces a new set of metrics to analyse fitness landscapes and, interestingly, the possibility of visualising them.
This article complements and extends our recent work on local optima network analysis of TSP fitness landscapes (Ochoa and Veerapen 2016a, b). Our previous work considered only a handful of instances of size up to 700 cities, and deliberately excluded degenerate instances (i.e. instances featuring neutrality). The sampling process was less intensive, and the characterisation of funnels incomplete. The main contributions of this article are:

1.
An intensive sampling procedure, which allows the extraction of local optima networks for larger TSP instances (of up to 1500 or so cities) of different types, including both random and structured realworld instances (city instances and drilling problems).

2.
An empirical characterisation and modelling of funnel floors, which requires both the identification of sink nodes, and the incorporation of higherlevel plateaunodes to model instances with neutrality.

3.
A rigorous empirical characterisation of funnel basins, using the notion of monotonic sequences from theoretical chemistry (Berry and Kunz 1995).

4.
Enhanced visualisation of the multifunnel structure, including 3D plots, alternative graph layouts, and the incorporation of colour, nodes sizes and edge widths, to reflect relevant aspects of the search process.

5.
A correlation study identifying connections between heuristic search performance and the global structure of the studied TSP instances.
The remainder of this article is organised as follows. The next section gives relevant background on TSP solvers and the notion of ‘funnel’. Section 3 defines the local optima network model considered. Section 4 describes the proposed empirical methodology, including the procedures and conceptual tools for extracting the network data, detecting the funnel floors and calculating the funnel basins. It also describes the TSP instances studied. Section 5 overviews our results including an analysis and visualisation of local optima networks, a more traditional fitnessdistance analysis, a study of the impact of the sampling parameters and a correlation study between heuristic search performance and global landscape metrics. Finally, Sect. 6 summarises our main findings and suggests directions of future work.
2 Background and related work
2.1 TSP solvers
This section describes the TSP solvers used in our study both for comparison purposes and as part of the sampling procedure implemented.
2.1.1 Concorde
Concorde is currently the bestperforming exact TSP solver (Applegate et al. 2007, 2003a). It has been used to solve the largest nontrivial TSP instances (of up to 85,900 cities) for which provably optimal solutions are known. Concorde is based on a complex Branch and Cut algorithm that uses a multitude of heuristic mechanisms to achieve good performance on a wide range of TSP instances. For example, it carries out a limited number of iterations of the Chained Lin–Kernighan heuristic (described below) during the initial stages of its computation to determine an initial upper bound to the objective value. Additionally, an exact mixed integer program solver is used to compute and refine the lower bound by solving a relaxed linear program of the problem.
2.1.2 The chained Lin–Kernighan heuristic
The Lin–Kernighan (LK) algorithm (Lin and Kernighan 1973) is a powerful and wellknown heuristic for finding approximate solutions to the TSP. For about two decades, it was the best local search method, and nowadays it is a key component of many stateoftheart TSP solvers. LKsearch is based on the idea of kexchanges: take the current tour and remove k different links from it, which are then reconnected in a new way to achieve a legal tour. Figure 1a illustrates a 2exchange move. A tour is considered to be ‘kopt’ if no kexchange exists which decreases its length. LKsearch applies 2, 3 and higherorder kexchanges. The order of a change is not predetermined, rather k is increased until a stopping criterion is met. Thus many kinds of kexchanges and all 3exchanges are included. There are many ways to choose the stopping condition and the best implementations are rather involved. We use the implementation available in the Concorde software package (Applegate et al. 2003a), which uses do not look bits and candidate lists.
The overall tourfinding strategy using LKsearch was, previously, to repeatedly start the basic LK routine from different starting points keeping the best solution found. This practice ended in the 1990s with the seminal work of Martin et al. (1992), who proposed the alternative of kicking (perturbing slightly) the LK tour and reapplying the algorithm. If a better tour is produced, the old LK tour is discarded and the new one kept. Otherwise, the search continues with the old tour and kicks it again. This simple yet powerful strategy is nowadays known as iterated local search. It was named Chained Lin–Kernighan (ChainedLK) by Applegate et al. (2003b), who also provided an improved implementation to solve large TSP instances. The kick or escape operator in ChainedLK is a type of 4exchange (depicted in Fig. 1b), named doublebridge by Martin et al. (1992). It consists of two 2exchanges, each of which is a ‘bridge’ as it takes a legal, connected tour into two disconnected parts. The combination of both bridges must then be chosen in order to produce a legal final tour.
2.2 The notion of funnel

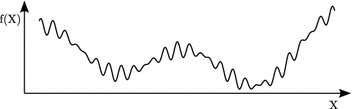

The intuition behind the concept of a ‘funnel’ is captured by Fig. 2 where two funnels are depicted as two groups of local optima which are close in configuration space within a group, but wellseparated between groups.
The term ‘funnel’ was introduced in the protein folding community to describe “a region of configuration space that can be described in terms of a set of downhill pathways that converge on a single lowenergy structure or a set of closelyrelated lowenergy structures” (Doye et al. 1999). It has been suggested that the energy landscape of proteins is characterised by a single deep funnel, a feature that underpins their ability to fold to their native state. In contrast, some shorter polymer chains (polypeptides) that misfold are expected to have other funnels that can act as traps. Approaches to elucidate the global landscape structure have led to the concept of disconnectivity graphs (Becker and Karplus 1997; Doye et al. 1999; Wales 2005), also known as barrier trees (Flamm et al. 2002). In the context of energy landscapes, Berry and Kunz (1995) first introduced the term monotonic sequence to describe a sequence of local minima where the energy of minima is always decreasing. The set of monotonic sequences that lead to a particular minimum was termed ‘basin’; in this sense a ‘basin’ is analogous to a protein folding ‘funnel’. The collection of local optima associated to a funnel has also been termed ‘superbasin’ in the literature introducing disconnectivity graphs (Becker and Karplus 1997).
Energy landscapes in theoretical chemistry and fitness landscapes in optimisation are conceptually related, as has been already observed by Stadler (2002). This relationship is particularly close for continuous optimisation. Locatelli (2005) studied the sources of difficulty in continuous optimisation and finds that it is not strictly related to the number of local optima, but to how chaotic their positions are. Lunacek and Whitley (2006) propose a metric, dispersion, that quantifies the proximity of the best regions in the search space. A high dispersion metric indicates the presence of multiple funnels. In a follow up work, Lunacek et al. (2008) studied abstract landscapes with two funnels and find that evolutionary algorithms mostly fail when the global optimum is located in a proportionally smaller funnel. Recent work on exploratory landscape analysis of continuous search spaces reveals that multimodality and global structure are among the most important highlevel properties that help differentiate between problem classes (Bischl et al. 2012; Kerschke et al. 2015).
The literature is much more scarce for discrete search spaces. The notion of a bigvalley discussed in the introduction is clearly related to the notion of a single funnel structure, and fitness distance scatter plots and correlation metrics are a standard tool in landscape analysis. Other approaches to understanding the global structure of combinatorial landscapes have been applied to small and simplified problems. Barrier trees have been applied to discrete optimisation problems where the notions of local optima, basins and saddle points are clearly defined, for instance in the context of spinglasses (Hordijk et al. 2003). Flamm et al. (2002) have extended these definitions so that barrier trees can be constructed for highly degenerate problems (i.e landscapes with neutrality). They present empirical results for binary strings of up to length 10. Hallam and PrugelBennett (2005) construct barrier trees for MAXSAT problems with up to 40 variables using branchandbound to find only the best local optima in the space.
Daolio et al. (2011) studied the community structure of local optima networks on two classes of instances of the quadratic assignment problem. The two problem classes give rise to different configuration spaces, with the socalled reallike instances revealing a modular structure. The approach is based on a full enumeration of local optima. Therefore, instances of size up to 10 were analysed. In a follow up work with a datadriven approach, the modularity of instances up to size 32 was studied (Iclanzan et al. 2014). This work, however, did not relate the community structure to the notion of funnels. Herrmann et al. (2016) recently established a connection between groupings (communities) in local optima networks and the notion of funnels. They extracted the networks of NK landscapes of length 20 and various levels of epistasis, and applied a community detection algorithm. Results confirm that landscapes consist of several clusters and the number of clusters increases with the epistasis level. A higher number of clusters, and a larger size of the cluster containing the global optimum were found to lead to a higher search difficulty.
3 The local optima network model
This section describes the local optima network model used in our study. We start by defining the notion of fitness landscapes, and follow by formalising the notions of nodes and edges of the network model.
A fitness landscape (Stadler 2002) is a triplet (S, N, f) where S is a set of potential solutions i.e. a search space; \(N : S \longrightarrow 2^S\), a neighbourhood structure, is a function that assigns to every \(s \in S\) a set of neighbours N(s), and \(f : S \longrightarrow R\) is an objective function (also called fitness function) that can be pictured as the height of the corresponding solutions.
The search space of a TSP instance of size m is the set of permutations of the m cities. The objective function f is given by the length of the tour, which is to be minimised. In order to model TSP fitness landscapes, we adapted the local optima network model with escape edges (Verel et al. 2012). To construct these networks, we need to define their nodes and edges. The definitions are related to the search operators being modelled, specifically, the local search heuristic and escape operators. Our study considers those within the Chained Lin–Kernighan algorithm, namely, the Lin–Kernighan local search heuristic and the doublebridge escape move (described in Sect. 2.1.2).
Local optima A local optimum, which in the TSP is a minimum, is a solution \(s^{*}\) such that \(\forall s \in N(s^{*})\), \(f(s^{*}) \le f(s)\). Notice that the inequality is not strict, in order to allow the treatment of the neutral landscape case.
The neighbourhood N is imposed by LKsearch, which considers variable values of k. The local optimality criterion is, therefore, rather stringent. Only a small proportion of all possible solutions are LKoptimal. The set of local optima, which corresponds to the set of nodes in the network model, is denoted by L and its cardinality by n.
Escape edges Edges are directed and based on the doublebridge operator. There is an escape edge from local optimum x to local optimum y, if y can be obtained after applying a doublebridge kick to y followed by LKSearch. Edges are weighted with estimated transition probabilities between the connected nodes. These probabilities are estimated by the sampling process. Specifically, edge weights are integers indicating the number of times an edge was visited during the sampling process (described in Sect. 4.1). The set of escape edges is denoted by E.
Local optima network (LON) A local optima network is a graph \(\textit{LON} = (L,E)\) where nodes are the local optima L, and edges E are the escape edges. Edges are directed and weighted. Weights indicate transition probabilities.
4 Empirical methodology
Our approach extracts and analyses local optima networks of TSP instances of realistic sizes and different types. The objective is to map and characterise the landscapes’ global structure. Clearly, a full enumeration of the local optima for TSP instances of nontrivial size becomes unmanageable. Therefore, networks are constructed from a sample of highquality local optima in the search space. This section starts by describing our sampling methodology and procedure for constructing the LONs. Thereafter, we describe the approach for characterising the funnel structures, which requires both detecting the funnel floors, and computing their basins.
4.1 Sampling the network data
To extract the network data, we considered the ChainedLK implementation of Concorde (see Algorithm 1). Instead of discarding the search history, we store, in L, every new improving LK local optima found during the search process. We also create and store, in E, a directed edge between the starting and ending optima after a doublebridge followed by LK. Edges only go from a node with higher cost to a node of equal or lower cost, in order to store the monotonic sequences and thus identify funnels (see Sect. 4.2). We keep count of the number of times an edge is visited, this number is stored as the edge’s weight.
A thousand independent runs of ChainedLK are executed for each TSP instance. We consider two initialisation mechanisms, one producing better initial solutions than the other, in order to have a broader picture of the search space. Half of the runs use the QuickBorůvka method, the default initialisation for Concorde’s ChainedLK, which is based on the minimumweight spanning tree algorithm of Borůvka (Applegate et al. 2003b). The other half starts from a random solution. The default kicking procedure in Concorde’s ChainedLK is used: the edges involved in the doublebridge are selected using random walks along connected vertices. Each ChainedLK run continues until at least 10,000 consecutive iterations are performed without finding an improving solution. The network is thereafter created by the combination of the unique nodes and edges produced by this sampling process.
4.2 Identifying funnel structures
The challenge is to devise an approach for identifying funnel structures, for different types of TSP instances, once the local optima networks have been extracted. Our approach adapts the notion of monotonic sequences from theoretical chemistry (Berry and Kunz 1995). We consider a monotonic sequence as a sequence of local optima where the evaluation of solutions is nondeteriorating. The collection of monotonic sequences leading to the same lowest minimum correspond to the socalled ‘monotonic sequence basins’ (Wales 2005). These structures have also been called ‘superbasins’ in the theoretical chemistry literature (Becker and Karplus 1997). We choose here to call them ‘funnel basins’ or simply ‘funnels’ borrowing from the protein folding literature. We can distinguish the primary funnel, as the one involving monotonic sequences that terminate at the global optimum. The primary funnel is separated from other neighbouring secondary funnels by transition states laying on a socalled ‘primary divide’ (Berry and Kunz 1995). Above such a divide, it is possible for a local optima to belong to more than one funnel thorough different monotonic sequences.
Our approach requires us to empirically locate the lowest cost minima which potentially lie at the bottom funnels, and thereafter compute each funnel basin. These procedures are described below.
4.2.1 Identifying the funnel floors
Hains et al. (2011) considered funnel floors (or funnel bottoms) as those solutions empirically found after considerable search effort. Specifically, for each TSP instance, ChainedLK was run until at least 10,000 iterations without finding an improving tour, and this procedure was repeated 1000 times from different starting solutions. However, runs were considered separately and the intermediate local optima and transitions among them discarded, therefore, the number of funnel floors was overestimated.
We propose a refinement of this approach to more accurately estimate the number of funnels. We keep a similar computational effort, but store all the different local optima visited across the 1000 runs, and combine them into a single local optima network. This allows us to merge local optima transitions found across different runs. We name the solutions found at the end of each run (i.e. 10,000 consecutive iterations without an improvement) as attractors rather than as funnel bottoms. Our local optima network data shows two interesting features. First, solutions attracting the search process are not always single solutions, but are often part of connected local optima plateaus. Second, attractor nodes are not always at the bottom of funnels: a single run is trapped in an attractor, but when combining the 1000 runs into a single LON, many attractors show escape paths to solutions with lower evaluation. Therefore, in order to refine the process of detecting the conjectured funnel floors, we propose constructing a subnetwork from the LON, where nodes are the attractors: the Attractor Network (AN). Once this network is constructed for a given instance, we detect its sinks, i.e. nodes without outgoing edges. We consider these sinks as the solutions at the bottom of funnels, which produced a reduced number of funnels for the studied instances as compared to previous work (Hains et al. 2011; Ochoa and Veerapen 2016b). We overview below the notation and procedures used to detect the number of funnel floors.

Attractor nodes are empirically determined as those local optima at which ChainedLK stalls after a large search effort (10,000 consecutive iterations without finding an improving solution in our implementation). The set of attractor nodes is denoted by A, and its cardinality by a.

A sink node, is an attractor node without outgoing edges to other attractor nodes of lower evaluation. Sink nodes are conjectured to be at the bottom of a funnel structure. The set of sink nodes is denoted by S and its cardinality by s.

A plateau node, is a higherlevel node compressing a group of local optima with the same objective function value belonging to a connected component according to the escape edges defined in Sect. 3. Plateau nodes can also be characterised as attractors or sinks.

Attractorplateau nodes are calculated by compressing connected attractor nodes at the same objective function level. The set of attractorplateau nodes is denoted by \(A_p\), and its cardinality by \(a_p\).

A sinkplateau node, is an attractorplateau node without outgoing edges to other attractorplateau nodes. The set of sinkplateau nodes is denoted by \(S_p\) and its cardinality by \(s_p\).
Our previous local optima network models of TSP landscapes (Ochoa and Veerapen 2016b) involved a less extensive sampling and did not consider plateau nodes. However, the study of a more varied set of instances revealed neutrality (i.e. different solutions with the same objective function value) on the landscapes of most structured instances, especially those of drilling problems. The random instances do not show neutrality, but many of the city instances and a large proportion of the drilling problems do reveal plateaus that can be extensive. It was, therefore, necessary to include plateau nodes, and to define two auxiliary network models (described below) in order to algorithmically detect the sink nodes, and thus funnel floors.

Attractor Network (AN), the subgraph \(AN = (A, E_a)\) of LON where nodes are the attractors A, and edges \(E_a \subseteq E\) are the escape edges connecting them.

Attractorplateau Network (\(AN_p\)), the graph \(AN_p = (A_p, E_p)\) formed by contracting the nodes and edges of the Attractors network AN.

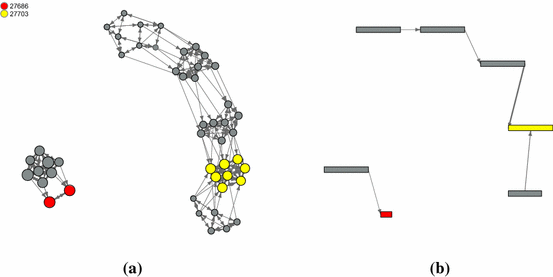

Figure 3 illustrates the attractor and attractorplateau networks for the wellstudied TSPLIB instance att532 (more details in Table 1), which consists of the 532 largest cities of the USA and considers pseudoEuclidean distances between them. The procedure by Hains et al. (2011), estimated four funnels for this instance. Our analysis, instead, suggests that it has only two funnels, whose sinks are represented in red and yellow in Fig. 3. As the figure indicates, there are 48 attractor nodes (a), which are compressed into 7 plateauattractor nodes (b). Not all the 7 plateauattractor nodes are funnel floors, as most of them have outgoing edges to other nodes. Instead only two of them, the sinks coloured in yellow and red in plot (b), are conjectured to be at the bottom of funnels. The whole sampled local optima network for this instance, including nodes within \(1 \%\) in evaluation from the global optimum cost, is visualised in Fig. 5a.
4.2.2 Identifying the funnel basins
Once the funnel sinks are detected, we can proceed to identify the funnel basins (see Algorithm 2). This is done by finding all the local optima in the network which are reachable from each funnel sink (sinkplateau for the instances with neutrality). BreadthFirstSearch is used for this purpose. The set of unique solutions in the combined paths to a given funnel sink corresponds to the funnel basin. The cardinality of this set corresponds to the funnel size. Notice that the membership of a solution to a funnel might be overlapping, that is, a solution may belong to more than one funnel, in that there are paths from that solution to more than one funnel sink. The relative size of the primary funnel (or any other secondary funnel) is calculated as its size divided by the total number of local optima.
As described above, funnel sinks are nodes without outgoing edges in the attractor network, which is a subgraph of the sampled local optima network (LON). When considering the whole LON, outgoing edges might exist between suboptimal sinks and local optima with lower evaluation, which are not sinks themselves, but belong to a different basin. In consequence, before identifying the funnel basins for each suboptimal sink, we remove all its outgoing edges. This is done by the function disconnectSinks(LON, S) in Algorithm 2.
4.3 Instances
Table 1 summarises the TSP instances studied. We consider 20 instances of moderate size (in the range of 500 to 1500 or so cities) and different types. The first 10 instances are randomly generated using the DIMACS generator.^{Footnote 1} Half of these are composed of uniformly distributed cities (prefixed by ‘E’), while in the other half, the cities are clustered (indicated by a ‘C’). The suffix number ‘.x’ in the instance name indicates, as per DIMACS convention, a seed of \(x + {10,000}\). These synthetic instances are part of a larger set of 200 instances that we generated, with the number of cities being uniformly selected in the range [400, 1600]. These are used in Sect. 5.6 for a correlation study between landscape metric and heuristic search performance.
The bottom 10 instances in Table 1 are wellknown instances from TSPLIB (Reinelt 1991). A popular way of constructing TSP instances is to choose a set of actual cities and define the cost of travel between any two cities as the distance between them. The first 5 TSPLIB instances are constructed in such a way. The last 5 arise from the task of drilling holes in printed circuit boards. The types of edge weights are as follows. EUC2D refers to the Euclidean distance of points in a 2D plane rounded to the nearest integer. ATT refers to a pseudoEuclidean distance where the sum of the squares is divided by 10 and the square root of this value is then rounded to an integer. GEO refers to the integer geographical distance computed from latitude and longitude coordinates on the surface of a sphere representing an idealised Earth.
The third column in Table 1 reports the success rate of the 1000 ChainedLK runs used for extracting the network data. By success rate, we mean the ratio of runs that found at least one global optimum. The last two columns give information on the solving difficulty of each instance. Specifically, we report the mean run time and the mean number of branchandbound nodes required by Concorde (interfaced with IBM ILOG CPLEX 12.6 as its mixed integer solver) to solve the instances to optimality on a 3.4 GHz Intel Core i73770 CPU across 10 runs. Although Concorde is an exact solver, the means are computed since it uses ChainedLK to generate initial solutions. Therefore, times include the ChainedLK time to compute initial solutions. This leads to different execution times and branchandbound trees. A number of branchandbound (B&B) nodes equal to 1 indicates that the lower and upper bounds found in the initial stages of the Concorde solving process match, and thus no actual tree was explored.
5 Results
The results and analysis are reported in the following six subsections. We start by reporting general statistics of the sampled local optima networks across the instance set. Section 5.2 concentrates on features characterising the landscapes’ global structure. Section 5.3 visualises the local optima network of some selected instances. Thereafter, Sect. 5.4 provides a more classic fitness landscapes analysis. We finish with a study of the effects of sampling parameters on the landscape metrics (Sect. 5.5), and a correlation study between landscape metrics and heuristic search performance (Sect. 5.6).
5.1 General network metrics
Table 2 reports basic statistics of the sampled local optima networks, including the number of unique global optima go, the number of different local optima n, the number of unique objective function evaluations \( evals \), and the relationship between these two values \(n/ evals \) as an indication of the amount of neutrality in the landscape. The table also reports the number of connected components c, the proportion of nodes in the network from where there is a path to a global optimum \(p_{go}\); and the average \(\bar{l_{go}}\) and maximum \(l_{go}\) path length from any node in the network to a global optimum. The last two columns report the average \(\bar{d}\) and maximum \(d^{max}\) instrength (i.e. incoming weighted degree, where the weight of an edge is the number of times it was traversed during sampling) of nodes in the networks.
Results show that, as expected, the number of global optima and the average and maximum path length to a global optimum generally increase with the number of cities for each instance class. There are, however, striking differences among the classes. The randomly generated instances always show a single global optimum and each local optima has a different objective function value (as indicated by columns \( evals \) and \(n/ evals \)). This is not the case for the structured instances, where several global optima are generally the norm. Indeed global optima seem to be located in large plateaus (of several thousands of nodes) for some of the drilling instances. The high amount of neutrality is also revealed by the smaller number of objective function levels as compared to the number of optima, with the ratio being as large as several hundreds or thousands. This is probably because several pairwise distances between cities are the same, and some of these distances are rather small. Therefore, several city orderings will have the same evaluation. The structured instances also show longer path lengths to a global optimum, which can be in part explained by high amount of neutrality.
The average instrength, \(\bar{d}\), is usually quite low since most nodes are visited only once. Higher values indicate either that multiple runs find the same nodes or that there is cycling between nodes of equivalent evaluation. This cycling is also why \(d^{max}\) is quite high for some instances.
A surprising consequence of sampling and modelling the local optima networks for the very neutral instances such as u1060 and fl1577, is that the number of connected components (c in Table 2) equals the number of runs in the sampling process (1000). This means that each run traverses a different set of solutions, in other words, there are no shared local optima among the runs, even though many runs reach the same objective function values. We suspect that these instances contain such large plateaus, that runs (starting from different initial points) explore completely different parts of them. For example, the number of different global optima found by our sampling process on instance u1060 is 163,569. The metric \(n/ evals \) in Table 2, gives an estimate of the average size of plateaus for each instance, which can be as large as several hundred.
5.2 Funnel metrics
Table 3 reports metrics describing the global structure of the random instances. We report the proportions of: solutions in the primary funnel (i.e the funnel containing the global optimum) \(f_{go}\), solutions in the largest funnel (which can be the primary funnel) \(f_{lg}\), and solutions belonging to more than one funnel \(f_{ov}\). The table also reports the number of attractors a and funnel sinks s. The proportion of the instrength (i.e. the weighted indegree) of global optimum sinks to the instrength of all sinks, \(d_{go}\), is given and the ChainedLK success rate from Table 1 is reproduced in the last column for comparison purposes.
Results suggest that the number of funnels generally increases, and the size of the primary funnel decreases, with increases to the number of cities on both instance classes. The random uniform instances (prefixed with ‘E’), show a larger number of funnels and a smaller primary funnel, when compared to the clustered instances (prefixed with ‘C’). These metrics change faster with the instance size on the uniform instances, specially the number of funnels. The proportion of solutions in more than one funnel is also larger for the uniform instances, which is expected given the larger number of funnels. By virtue of its definition, the relative instrength of globally optimal sinks is closely related to success rate, but it is not exactly the same, as can be observed from the table.
Table 4 reports global metrics for the structured instances. Since these instances contain neutrality, the attractorplateaus networks (\(AN_p\)) are constructed in order to identify the plateausink nodes, and thus the number of funnels. Results suggest that the number of funnels is less correlated to the instance size as it is the case for the random instances. Since some of the instances here exhibit several primary funnels, note that \(f_{go}\) represents the relative size of largest of those funnels. Other instance features seem to influence the landscape global structure. The number of funnels on the structured instances is somewhere in between that of the uniform and the clustered random instances (see Table 3). The uniform random instances show the largest number of funnels in the studied set.
For the instances with high levels of neutrality, i.e. nrw1379 and the drilling problems except u574 and rat783, it was not possible to assess whether the attractor local optima at a given objective function level fully connected into a single plateau or groups of plateaus sharing the same objective function value. The plateaus are potentially very large, with the sampling process not guaranteeing their full exploration. Alternatively there may be multiple plateaus for a single objective function level. We therefore used two different methods to estimate bounds for the different metrics. The first method approximates the plateaus by assuming that they are indeed connected. With this approach, instances such as d1291 and fl1577, reveal a relatively small number of funnels despite their large number of different local optima. The second method does not assume that there is a single plateau for each objective function level, instead it considers all connected nodes sharing the same evaluation as different plateaus. This leads to 1000 such plateaus, the same as the number of runs, for instances u1060 and fl1577. Further discussion of this issue, through the analysis of distances between solutions, is presented in Sect. 5.4. Note that for these two instances, \(f_{go}\) and \(f_{lg}\) have very small ranges and are thus summarised by a single value.
A thorough study of these highly neutral instances may require additional sampling efforts and additional analysis to characterise the extent of the plateaus. We leave that for future work. Nevertheless, the global structure in terms of the number of funnels does not seem to differ significantly from that of the city instances or clustered random instances, if we assume that plateaus are indeed connected. We argue that search difficulty on very neutral landscapes relates not only to the multifunnel structure, but also to the size and location of the plateaus. A large plateau at the global optimum level may reflect an easy to search instance, while a large suboptimal plateau may act as a trap that is difficult to escape from.
5.3 Network visualisation
One of the advantages of modelling a system as a network, is the possibility of visualising it. This is one of the strengths of the proposed approach, as it allows a more accessible way of grasping the complexities of landscapes global structure.
Software for analysing and visualising networks is currently available in various languages and environments. Here we use the R statistical language together with the igraph package (Csardi and Nepusz 2006). Layout algorithms are at the core of network visualisation, they assign vertices to positions in a metric space. Forcedirected methods model the pairwise attraction and repulsion of vertices, and are known to reflect the community structure or modularity of a network (Noack 2009). We, therefore, use them in order to visually characterise the landscapes’ multifunnel structure. Funnels can be visually identified as modules in the network. As our model indicates, nodes are LKsearch local optima and edges represent escape transitions according to doublebridge moves. We decorated them to reflect features relevant to search dynamic. The size of nodes is proportional to their incoming strength (weighted incoming degree), therefore, it reflects the extent to which nodes attract the search dynamics. The colour of nodes reflects their funnel membership. We used the heat colours palette, a sequential colour scheme skewed to the reds and yellows. Red identifies the global optima, and the yellow colour gradient reflects an increase in cost. The edges’ widths are proportional to their weight, which indicates the frequency of transitions. That is, the most frequently visited edges are thicker. We present both 2D and 3D images. In Ochoa and Veerapen (2016a), we proposed a 3D visualisation where the x and y coordinates are, as usual, determined by a graph layout algorithm; the innovation is to use the objective function as the z coordinate. This provides a clearer representation of the funnel sink and basin concepts, bringing an almost tangible aspect to the landscape and funnel metaphors. The global optimum can be identified in the 3D plots as the node with the lowest z coordinate.
In order to have manageable images, we plotted the networks corresponding to the subset of local optima within 0.1 or \(0.05 \%\) in evaluation from the global optimum. We also removed selfloops for improved visibility. Figures 4 and 5 illustrate local optima networks for selected random and structured instances, respectively.
The plots in Figs. 4a, b illustrate how the number of funnels rapidly increases with the number of cities for the uniform random instances. Instance E1243.85 features 76 and 19 funnels for solutions within 0.1 and \(0.05 \%\) in evaluation from the global optimum, while instance E755.73, have 4 and 2, respectively. The size of the funnel containing the global optimum is much smaller for E1243.85 as compared with the smaller uniform instance E755.73 and the clustered instance of the same size C1243.85. Indeed, instances E755.73 (Fig. 4a) and C1243.85 (Fig. 4b) have a similar ChainedLK success rate despite their difference in size, which indicates the importance of global structure in search difficulty. Both instances feature a large secondary funnel coloured in orange, which acts as a strong attractor of the search process as indicated by the size of its funnel sink.
Figure 5 illustrates the local optima networks for solutions within \(0.1 \%\) in objective function value from the optimal solution for 2 city instances att532 and pr1002, and one drilling problem u574. Instances att532 (Fig. 5a) and u574 (Fig. 5c) have a similar CLK success rate and also a similar global structure for solutions within \(0.1 \%\) in evaluation from the global optimum cost. They both feature two funnels visualised in red (the primary funnel) and yellow (the secondary funnel). In att532 the two funnels are overlapping, whereas in u574 they are separated (for solutions within 0.1 \(\%\) in evaluation, but they may overlap at higher solution costs). An important difference between the random (Fig. 4) and the structured instances (Fig. 5) is that the latter show neutrality. This is reflected by the number of global optima (a single one for all the studied random instances), and 2 and 4 for att532 and u574, respectively. The neutrality can also be appreciated at higher solution costs on the 3D plots for att534 and u574, where several solutions are located at the same objective function level.
The global structure of city instance pr1002 (Fig. 5b) is strikingly different. It clearly has a large primary funnel sink visualised in red, which reflects the high CLK success rate (0.67) of this instance. There are however 3 secondary funnels whose sink solutions have an evaluation 80 units higher than the optimum (visualised in orange and yellow). It is important to note that these 3 nodes do not form a plateau despite having the same objective function values, they are not connected with doublebridge moves according to our sample. These 3 funnels have several connections to other solutions in the primary funnel, although they do not connect directly to the primary funnel sink. Therefore, they are separate funnels according to our empirical definition. The visual depiction however, seems to reflect that they belong to the primary funnel, which suggests that there might be hierarchies of funnel structures.
For some of the studied instances, each sampling run visits a different set of solutions. This leads to as many connected components as there are runs, as is the case for instances u1060 and fl1577. Furthermore, each component consists of a long chain of nodes with some small loops when plateaus are explored. The previously used network visualisation provides relatively little information for such cases. Figure 6 presents an alternative visualisation for instances where different runs do not share any common solutions. Blue dots represent single solutions. Red lines represent consecutive solutions in a plateau, i.e. the solutions have the same cost, and the length of the line is proportional to the number of solutions in the plateau. Each run is displayed as one column of dots and lines since there is no overlap between the solutions found in different runs.
Figure 6 specifically shows the top 25 largest components, i.e. runs, containing the 25 largest plateaus. A marked difference can be observed in the distribution of solutions and plateaus between the two instances. For u1060, there is usually a single plateau at the end of the run that is very close to the global optimum. The latter is not actually reached for the top 25 runs with largest plateaus. For fl1577, runs usually encounter a number of different plateaus, manage to escape from them, and finally get stuck in a nonoptimal plateau. The globally optimal value is reached in only 3 out of 25 runs. The fact that u1060 has fewer plateaus to escape than fl1577 provides an explanation for its higher success rate in finding a global optimum out of 1000 runs. The visualisation provides a straightforward view of the distribution of plateaus.
A question that remains is whether all the plateaus with equal evaluation found across the different runs are actually a single very large plateau. We attempt to answer this by analysing the distance between solutions in Sect. 5.4.
5.4 Distance analysis
In addition to visualising and analysing the networks, it is also useful to examine the landscapes using the pairwise distances between nodes. We consider the bond distance in particular, which is defined as the difference in the number of common edges, or bonds, between two solutions. It corresponds to the number of edges within a solution minus the number of edges that are in common between the two solutions considered.
Bond distance heatmaps can be useful to quickly assess how close pairs of solutions are to each other. Figure 7 displays the pairwise bond distance between sink nodes or nodes within sinkplateaus for the six instances visualised in Figs. 4 and 5. The objective function of each node is displayed on the vertical axis. The plot is mirrored along the diagonal. For E1243.85 and pr1002, only the ten best local optima are considered and, in both cases, these nodes are sink nodes and are not part of a plateau. For the other four instances, there are ten or fewer nodes to consider. The colour gradient allows us to clearly distinguish the two plateaus within instances att532 and u574. The bond distance within these plateaus is lower than 15 units and generally only in single digits, showing that the solutions are very similar, as expected.
When considering highly neutral instances, like u1060 and fl1577, where each run produced a new connected component, an important question is whether the different plateaus found at the same objective function value are actually part of some very large plateau or if they are an artefact of the stochasticity of the sampling method.
Figure 8 attempts to provide some insight by visualising the distribution of pairwise bond distances between sinkplateau nodes sharing the same evaluation. In practice, because each sinkplateau contains several hundred nodes, we choose the node with the highest density as the representative of a given sinkplateau. Ties are broken randomly. Each representative node is then compared to the other representative nodes that share the same evaluation. The plot has bond distance as xaxis, frequency of occurrence as yaxis and the objective value of each node pair is colourcoded as shown in the legend.
For the two instances, the distributions appear multimodal with one major peak. This was confirmed using Hartigan’s Dip test (Hartigan and Hartigan 1985; Maechler 2016) which rejected the null hypothesis of unimodality (p value \({<}2.2\times 10^{16}\)). The smallest bond distance found for u1060 is 17, while it is 42 for fl1577. The largest bond distances are 193 and 199 for u1060 and fl1577, respectively. The distances are fairly large, meaning that it is not easy to move between plateaus sharing the same evaluation. Still, for u1060, the smaller distances may indicate that these is a roundabout way to bridge the disconnected plateaus. For fl1577, the larger distances indicate it is unlikely that the presence of multiple sinkplateaus is purely the result of the sampling process. However, we cannot conclusively confirm that the sinkplateaus found are actually separate either. There might be some pathways between sinkplateaus with the same evaluation if plateaus were explored for more than 10,000 iterations.
5.5 Effects of sampling methodology
In this subsection we investigate the influence of the stopping criterion and of the number of runs on the networks and their metrics. In a sense, these parameters affect the “depth” and “width” of the sampled networks.
We first consider the impact of using fewer than 10,000 consecutive iterations without improvement as the stopping criterion, and whether this threshold is sufficient for the different metrics to converge. For 18 of the 20 instances, we generate networks for 1000 to 10,000 iterations without improvement, with steps of 1000. The instances left out are those with high neutrality, u1060 and fl1577, for which 1000 runs are not enough to find common solutions between runs. For these instances, a new sampling methodology that considers the extensive neutrality needs to be devised, but this is left as future work.
For each (metric, instance) couple, values outside the [0, 1] range are normalised and, for each stalling iteration increment, the average is computed across the instances. Results are presented in Fig. 9 where each line joins the average values across instances for each metric. The success rate is highlighted by the red line. Some of the curves are markedly nonmonotonic. This is an artefact of using independent subsets of runs for each stalling threshold. In addition, the normalisation exacerbates the differences between those subsets.
As can be observed, on average the different metrics have approximately converged when 10,000 nonimproving iterations are used as stopping criterion. For many metrics the majority of the change in values occurs before the 5000 iterations mark. For a few (a, \(a_p\) and \(s_p\)), this happens later, around the 9000 iterations mark. The two weighted degree metrics (\(\bar{d}\) and \(d^{max}\)) naturally do not converge since more connections between already discovered nodes appear, especially in sink plateaus. Overall, these findings suggest that the stopping criterion is appropriate and the sampled landscapes would not differ greatly with a higher threshold.
We repeated a similar experiment for the number of runs with values from 100 to 1000 with steps of 100. The stopping criterion is fixed to 1000. Normalisation was performed where necessary as described earlier. We discarded a few data points for which no global optimum was found since several of our metrics take the global optima into account. Results are presented in Fig. 10.
In this scenario, the metrics fall within two broad categories: ones that are relatively constant and those whose value increases. The latter are metrics that depend on the size of the sample: for instance, the number of local optima and unique evaluations, the instrength, and the maximum length of a path to a global optimum. The number of clusters and of attractor and sink plateaus also increases on average across the instances. However, when looking at instances individually, they have converged by 1000 runs for smaller instances such as att532. Let us note that the number of global optima remains more or less constant, except for those instances that have a lot of them.
Metrics that maintain relatively constant values are those describing properties of the sampled network with respect to the whole: the proportion of nodes for which there is a path to a global optimum, the average length of such a path, the relative sizes of funnels and the relative instrength of global optimum sinks. On the whole, these metrics might seem preferable since they do not depend on the number of runs. Nevertheless, metrics where convergence with respect to the number of runs is unlikely may still be useful and some arbitrary number of runs should be chosen, probably related to the available computing budget.
5.6 Correlation study
In order to obtain more general insights into how different landscape features affect search difficulty, we conduct a correlation study of the different metrics studied in this paper with respect to the success rate across 1000 runs. To assess the relative quality of local optima network and global structure metrics as estimators of success, we also include 64 features based on TSP instance characteristics. These include features that describe the edge cost distribution, cluster characteristics and minimum spanning trees (MSTs). They are computed using the tspmeta R package (Mersmann et al. 2013).
Pearson correlations are calculated across two separate sets of instances: 100 uniform and 100 clustered instances. For the sake of clarity, only the top 5 positively and negatively correlated features are presented in Table 5.
We found both instance and network structure features that strongly correlate with ChainedLK success rate. The features showing the strongest correlations differ between both sets of instances. On clustered instances, a higher number of structural features show a strong correlation while the opposite is observed on uniform instances. However, on the two instance sets, the average path length to a global optimum, \(\bar{l_{go}}\), is strongly correlated to success. Also, \(d_{go}\), the normalised incoming strength of globaloptimum sinks and its complement, \(d_{ngo}\), the incoming strength of nonglobally optimum sinks show strong correlations. This is because suboptimal sinks act as traps to the search process, from where ChainedLK search cannot escape with its perturbation operator. For clustered instances, several of the top correlations are related to neutrality (n, \( evals \), \(n/ evals \)).
When considering all network structure metrics discussed previously in this paper, almost all of them produced correlation values below \(0.4\) or above 0.4. The features with low correlation values for clustered instances are the number of connected components (c), the proportion of solutions in more than one funnel (\(f_{ov}\)) and the mean and maximum instrength (\(\bar{d}\) and \(d^{max}\)). In contrast, for uniform instances, the \(d^{max}\) shows a strong correlation (0.74) and it is only \(f_{ov}\) that exhibits a low correlation value with success. Overall, this suggests that the metrics studied reflect the search dynamics of ChainedLK.
6 Conclusions
Revealing what makes a combinatorial problem hard remains an open challenge. In this quest, understanding the global structure of the underlying landscapes is essential. There are few attempts in the literature to analyse, let alone visualise, the global structure of combinatorial landscapes. This is due in part to the lack of adequate tools to study their complexity. Local optima networks help to fill this gap. In our sample of TSP problem instances, we found evidence of multiple funnels, instead of a single bigvalley as previously believed, in TSP landscapes of moderate size (500 to over 1500 cities). Good local optima decompose into multiple valleys of different depths, each channelling the search process to a separate low cost solution or group of solutions. We also found evidence of high amounts of neutrality or extensive plateaus at the local optima network level in several of the structured instances (i.e. city and drilling problems).
Our datadriven approach models realistic landscapes as networks, empirically characterises the notion of funnels according to notions from theoretical chemistry, and proposes novel 2D and 3D network visualisations. This brings new quantitative and visual insights into landscapes’ global structure. The 3D plots provide a concrete and intuitive illustration of the fitness landscape and funnel metaphors. The depiction of edges incoming strength as node sizes, visually reveals the strong attractors of the search process. We also propose alternative visualisation tools for analysing very neutral, and conduct a distance analysis. Finally, we conduct a correlation study between ChainedLK success rate and both landscape and TSP instance features.
We found significant differences among the studied instance classes. Randomly generated instances have a single global optimum and reveal null or very small neutrality. On the other hand, structured instances from the TSPLIB generally have more than one different global optima, with some instances featuring a large global optimum plateau. This is probably because there are many pairwise city distances with the same value. Within the same instance class, the number of funnels generally increases, while the size of the funnel containing the global optima generally decreases with the size of the instance. However, the instance class strongly influences the global structure. The random uniform instances revealed a much larger number of funnels as compared with the other instances studied, which explains why these instances are generally harder to solve with heuristic search methods.
Our correlation study reveals that ChainedLK success is strongly correlated to several landscape structural features. On clustered instances a higher number of structural features show high correlations, as compared to the uniform instances where a large number of instance features show strong correlations. For both instance types, however, the features showing the strongest correlation are the incoming weighed degree of the global optimal sink and its complement, the incoming weighed degree of the suboptimal sinks. This confirms the importance of landscapes global structure in explaining search difficulty: suboptimal sinks act as traps to the search process, from where ChainedLK cannot escape with its perturbation operator.
The impact of neutrality on search difficulty is harder to assess, and this will motivate future work with additional sampling mechanisms to explore the extent of local optima plateaus. Preliminary experiments adding a stronger perturbation to ChainedLK proved to help in smoothing the funnel structure, that is, reducing the number of funnels and making the global optima more reachable (Ochoa and Veerapen 2016a). Future work will expand this study, explore the role of crossover operators in landscapes with multiple funnels, and apply the methodology to other combinatorial optimisation problems.
