The optimisation of nonsmooth, nonconvex functions without access to gradients is a particularly challenging problem that is frequently encountered, for example in model parameter optimisation problems. Bilevel optimisation of parameters is a standard setting in areas such as variational regularisation problems and supervised machine learning. We present efficient and robust derivativefree methods called randomised Itoh–Abe methods. These are generalisations of the Itoh–Abe discrete gradient method, a wellknown scheme from geometric integration, which has previously only been considered in the smooth setting. We demonstrate that the method and its favourable energy dissipation properties are well defined in the nonsmooth setting. Furthermore, we prove that whenever the objective function is locally Lipschitz continuous, the iterates almost surely converge to a connected set of Clarke stationary points. We present an implementation of the methods, and apply it to various test problems. The numerical results indicate that the randomised Itoh–Abe methods can be superior to stateoftheart derivativefree optimisation methods in solving nonsmooth problems while still remaining competitive in terms of efficiency.
Similar content being viewed by others
Avoid common mistakes on your manuscript.
1 Introduction
We consider the unconstrained optimisation problem
where the objective function \(V\) is locally Lipschitz continuous, bounded below and coercive—the latter meaning that \(\left\{ {x \in {\mathbb {R}}^n \; : \; V(x) \le M}\right\} \) is compact for all \(M \in {\mathbb {R}}\). The function may be nonconvex and nonsmooth, and we assume no knowledge besides point evaluations \(x \mapsto V(x)\). To solve (1.1), we present randomised Itoh–Abe methods, a generalisation of the Itoh–Abe discrete gradient method. The latter is a derivativefree optimisation scheme^{Footnote 1} that has previously only been considered for differentiable functions.
Discrete gradient methods, a tool from geometric numerical integration, are optimisation schemes that inherit the energy dissipation of continuous gradient flow. The iterates of the methods monotonically decrease the objective function for all time steps, and Grimm et al. [33] recently provided a convergence theory for solving (1.1) in the continuously differentiable setting. We extend the concepts and results of their work and show that the Itoh–Abe discrete gradient method can be applied in the nonsmooth case, and, furthermore, that the favourable dissipativity property of the methods extends to this setting. Furthermore, we prove that for locally Lipschitz continuous functions the iterates converge to a set of stationary points, defined in the Clarke subdifferential framework.
1.1 Gradient Flow and the Discrete Gradient Method
For a differentiable function \(V:{\mathbb {R}}^n \rightarrow {\mathbb {R}}\), gradient flow is the ODE system defined by
where the dot represents differentiation with respect to time. By applying the chain rule, we compute
where \(\Vert x\Vert \) denotes the 2norm \(\sqrt{\langle x,x \rangle }\). This implies that gradient flow is inherently an energy dissipative system.
In the field of geometric numerical integration, one studies methods for numerically solving ODEs while also preserving structures of the continuous system—see [35, 52] for an introduction. Discrete gradient methods can be applied to the firstorder gradient systems to preserve energy conservation laws, dissipation laws, as well as Lyapunov functions [30, 40, 53, 65]. They are defined as follows:
Definition 1.1
Let \(V: {\mathbb {R}}^n \rightarrow {\mathbb {R}}\) be continuously differentiable. A discrete gradient is a continuous mapping \({\overline{\nabla }} V: {\mathbb {R}}^n \times {\mathbb {R}}^n \rightarrow {\mathbb {R}}^n\) that satisfies the two following properties:
We now introduce the discrete gradient method for optimisation. For \(x^0 \in {\mathbb {R}}^n\) and time steps \(\tau _k > 0\), \(k \in {\mathbb {N}}\), we solve
We apply the above mean value property to derive that the iterates decrease \(V\).
Note that the decrease holds for all time steps \(\tau _k > 0\), and that (1.5) can be seen as a discrete analogue of the dissipative structure of gradient flow (1.3), replacing derivatives by finite differences.
Grimm et al. [33] proved that for coercive, continuously differentiable functions, the iterates of (1.4) converge to a set of stationary points, provided that there are strictly positive constants \(\tau _{\min }, \tau _{\max }\) such that \(\tau _k \in [\tau _{\min }, \tau _{\max }]\) for all \(k \in {\mathbb {N}}\).
1.1.1 Itoh–Abe Methods
The Itoh–Abe discrete gradient [40] (also known as coordinate increment discrete gradient)^{Footnote 2} is defined for differentiable functions \(V\) as:
where \([{\overline{\nabla }} V(x,y)]_i := [\nabla V(y_1, \ldots , y_i, x_{i+1},\ldots ,x_n)]_i\) if \(y_i = x_i\). Solving an iterate of the discrete gradient method (1.4) with the Itoh–Abe discrete gradient is equivalent to successively solving \(n\) scalar equations of the form:
or \(x^{k+1}_i = x^k_i\) in the cases where \([\nabla V (x^{k+1}_1, \ldots , x^{k+1}_{i1}, x^k_{i},\ldots ,x^k_n)]_i = 0\), i.e. when there is directional stationarity.
To make this scheme meaningful for nondifferentiable \(V\), we only need to adapt the criteria of directional stationarity, as the scheme is otherwise derivativefree. For this we use Clarke directional stationarity, Definition 2.7. We proceed to describe an extension of the Itoh–Abe discrete gradient method for nonsmooth functions.
We generalise the Itoh–Abe discrete gradient method to randomised Itoh–Abe methods accordingly. Let \((d^k)_{k \in {\mathbb {N}}} \subset S^{n1}\) be a sequence of directions of descent, where \(S^{n1}\) denotes the unit sphere \(\left\{ {x \in {\mathbb {R}}^n \; : \; \Vert x\Vert = 1}\right\} \). The directions can be drawn from a random distribution or chosen deterministically. At the \(k\text {th}\) step, we update
For notational brevity, we write \(d V(x,y) := (V(x)V(y)/\Vert xy\Vert \) when \(x\ne y\) and \(d V(x,x) := 0\).
We formalise this method in Algorithm 1. Note that the two conditions in (1.6) are not mutually exclusive, but at least one will hold (Lemma 3.1). We assume throughout the paper that the time steps \((\tau _k)_{k \in {\mathbb {N}}}\) are bounded between two strictly positive constants \(\tau _{\min } < \tau _{\max }\), which can take arbitrary values.
Observe that if \((d^k)_{k\in {\mathbb {N}}}\) cycle through the standard coordinates \((e^i)_{i=1}^n\) with the rule \(d^k = e^{[k {{\,\mathrm{mod}\,}}n] + 1}\), then computing \(n\) steps of (1.6) corresponds to one step of (1.4) with the Itoh–Abe discrete gradient. Furthermore, the dissipation properties (1.5) can be rewritten as:
Consequently, the dissipative structure of the Itoh–Abe methods is well defined in a derivativefree setting.
Ehrhardt et al. [24] studied discrete gradient methods in the smooth setting, asserting linear convergence rates for functions that satisfy the Polyak–Łojasiewicz inequality [42]. Benning et al. [7] propose a Bregman Itoh–Abe optimisation scheme by applying the Itoh–Abe discrete gradient to the inverse scale space flow, enabling one to speed up convergence by promoting structural priors such as sparsity. Celledoni et al. [15] extend the Itoh–Abe discrete gradient method to optimisation on Riemannian manifolds. Furthermore, the application of Itoh–Abe discrete gradient methods to smooth optimisation problems is well documented and includes convex variational regularisation problems for image analysis [33], nonconvex image inpainting problems with Euler’s elastica regularisation [66], for which it outperformed gradientbased schemes, and the popular Gauss–Seidel method and successiveoverrelaxation (SOR) methods for solving linear systems [55]. Pathiraja and Reich [60] apply discrete gradient methods to gradient flow systems with applications to computational Bayesian inference, observing rapid convergence of the scheme applied to Fokker–Planck dynamics.
1.2 Bilevel Optimisation and Blackbox Problems
An important application for developing derivativefree solvers is model parameter optimisation problems. The setting for this class of problems is as follows. A model depends on some tunable parameters \(\alpha \in {\mathbb {R}}^n\), so that for a given parameter choice \(\alpha \), the model returns an output \(u_\alpha \). There is a cost function \(\varPhi \), which assigns to output \(u_\alpha \) a numerical score \(\varPhi (u_\alpha ) \in {\mathbb {R}}\), which we want to minimise. The associated model parameter optimisation problem becomes
A wellknown example of such problems is supervised machine learning.
In this paper, we consider one instance of such problems in image analysis, namely bilevel optimisation of variational regularisation problems. Here, the model is given by a variational regularisation problem for image denoising
where \(f^\delta \) is a noisy image and \(R_\alpha (\cdot ) \equiv R(\cdot ,\alpha )\) is a regularisation function that depends on a regularisation parameter \(\alpha \). For training data with desired reconstruction \(u^\dagger \), we consider a scoring function \(\varPhi \) that estimates the discrepancy between \(u^\dagger \) and the reconstruction \(u_\alpha \). To ensure that \(\alpha \mapsto u_\alpha \) is a welldefined mapping, we assume that the variational problem is strictly convex for all admissible parameters \(\alpha \). This would follow, e.g. from convexity of \(R_\alpha \). In Sect. 6.2, we apply Itoh–Abe methods to solve these problems.
Bilevel optimisation problems, and model parameter optimisation problems in general, pose several challenges. They are often nonconvex and nonsmooth, due to the nonsmoothness and nonlinearity of \(\alpha \mapsto u_\alpha \). Furthermore, the model simulation \(\alpha \mapsto u_\alpha \) is an algorithmic process for which gradients or subgradients cannot easily be estimated. Such problems are termed blackbox optimisation problems, as one only has access to point evaluations of the function. It is therefore of great interest to develop efficient and robust derivativefree methods for such optimisation problems.
There is a rich literature on bilevel optimisation for variational regularisation problems in image analysis, c.f., e.g. [13, 22, 45, 58]. Furthermore, model parameter optimisation problems appear in many other applications. These include optimising for the management of water resources [28], approximation of a transmembrane protein structure in computational biology [31], image registration in medical imaging [59], the building of wind farms [23], and solar energy utilisation in architectural design [41], to name a few.
1.3 Related Literature on Nonsmooth, Nonconvex Optimisation
Although nonsmooth, nonconvex problems are known for their difficulty compared to convex problems, a rich optimisation theory has grown since the 1970s. As the focus of this paper is derivativefree optimisation, we will compare the methods’ convergence properties and performance to other derivativefree solvers. For recent reviews on derivativefree optimisation, we refer the reader to Audet and Hare [3] and Larson et al. [46].
While there is a myriad of derivativefree solvers, few provide convergence guarantees for nonsmooth, nonconvex functions. Audet and Dennis Jr [2] introduced the mesh adaptive direct search (MADS) method for constrained optimisation, with provable convergence guarantees to stationary points for nonsmooth, nonconvex functions. Direct search methods evaluate the function at a finite polling set, compare the evaluations, and update the polling set accordingly. Such methods only consider the ordering of evaluations, rather than the numerical differences. A significant portion of derivativefree methods is direct search methods, and the most well known of these is the Nelder–Mead method (also known as the downhill simplex method) [56].
Alternatively, modelbased methods that build a local quadratic model based on evaluations are welldocumented [14, 63, 64]. While such methods tend to work well in practice, they are normally designed only for smooth functions, so their performance on nonsmooth functions is not guaranteed.
Fasano et al. [27] formulate a derivativefree line search method termed DFN and analyse its convergence properties for nonsmooth functions for the Clarke subdifferential, in the constrained setting. Building on the DFN algorithm, Liuzzi and Truemper [50] formulate a derivativefree method that is a hybrid between DFN and MADS. There are similarities between the DFN scheme in [27] and our approach to Itoh–Abe methods, both in the implementation of the derivativefree scheme and in their theoretical analysis. For example, both schemes implement line search schemes which are robust to nonsmoothness in similar ways, and in both cases, Clarke stationarity is proven, given sufficient density assumptions for the sequence of directions \((d^k)_{k\in {\mathbb {N}}}\) on the unit sphere.
With these similarities in mind, we highlight some ways in which this work differs from [27]. A central motivation for this work is the extension of discrete gradient methods, as an established concept in geometric numerical integration, to nondifferentiable systems, in particular for solving optimisation problems. The realisation and particular implementation of the discrete gradient scheme in Sect. 5 is in this sense secondary.^{Footnote 3} Moreover, this builds on previous research into discrete gradients methods in optimisation, including [24] where convergence rates are established for smooth problems, and [7] where the Itoh–Abe methods are generalised to Bregman methods, e.g. for faster, sparse optimisation.
In comparing the theoretical analyses, we also remark that the theorems in Sect. 3.2 are stronger, as they establish convergence to stationary points for directions \((d^k)_{k \in {\mathbb {N}}}\) chosen both determinstically and stochastically, through cyclical density and probabilistic arguments, respectively, while the corresponding result in [27, Proposition 2.7] assumes the density of a subsequence \((d^{k_j})_{j\in {\mathbb {N}}}\). However, we believe that it should be possible to extend our novel arguments in Sect. 3.2 to DFN.
We mention the random search scheme, given by
where \(\beta _k > 0\), \(\tau _k >0\), and \((d^k)_{k\in {\mathbb {N}}}\) are independent, random draws from a probability distribution. This explicit scheme was proposed by Polyak [62] and later studied by Nesterov [57] for derivativefree optimisation of nonsmooth, convex functions. In [57], convergence rates are obtained for \({\mathbb {E}}(V(x^k))  \min V\), based on analysis of the Gaussian smoothing function \(V_\beta (x^k) := {\mathbb {E}}_{d^k} V(x^k+\beta d^k)\), i.e. the expectation with respect to \(d^k\), where the directions \((d^k)_{k\in {\mathbb {N}}}\) are drawn from a Gaussian distribution. We remark that the randomised Itoh–Abe method (1.6) corresponds to (1.8) with an additional, implicit coupling between \(\tau _k\) and \(\beta _k\) as described in (1.6). However, in contrast to the stochastic analysis in [57], the optimality analysis for the randomised Itoh–Abe methods in Sect. 3.2 is based on the deterministic estimates (1.7), inherited by the structure preservation of the discrete gradient methods. Whether a similar analysis could be applied to obtain convergence rates for randomised Itoh–Abe methods in the nonsmooth setting is beyond the scope of this paper, and is left as a future topic of inquiry.
Amongst the challenges that nonconvexity poses in optimisation, a central one is that \(V\) is not bounded below by its firstorder approximation, and, on a related note, the concept of a subdifferential becomes significantly more complicated in this setting (see Sect. 2 for details on generalised subdifferentials). While the main focus of [57] is convex optimisation, in Sect. 7 the authors derive complexity estimates for nonconvex problems with respect to the norm of the gradient of the Gaussian smoothing \(V_\mu \). As is expected, the complexity estimate is significantly affected by nonconvexity, and it is not shown whether these estimates for \(V_\mu \) can be extended to the nonsmooth function \(V\) or its subgradients. In contrast, while the analysis for the Itoh–Abe methods in Sect. 3.2 holds for nonsmooth, nonconvex functions, it is not clear whether the analysis could be notably simplified by assuming convexity of \(V\).
While our focus is on derivativefree methods, we also mention some popular methods for nonsmooth, nonconvex optimisation that use gradient or subgradient information. Central in nonsmooth optimisation are bundle methods, where a subgradient [19] is required at each iterate to construct a linear approximation to the objective function—see [43] for an introduction. A close alternative to bundle methods are gradient sampling methods (see [12] for a recent review by Burke et al.), where the descent direction is determined by sampling gradients in a neighbourhood of the current iterate. Curtis and Que [21] formulated a hybrid method between the gradient sampling scheme of [20] and the wellknown quasiNewton method BFGS adapted for nonsmooth problems [49]. These methods have convergence guarantees in the Clarke subdifferential framework, under the assumption that the objective function is differentiable in an open, dense set. Last, we mention a derivativefree scheme based on gradient sampling methods, proposed by Kiwiel [44], where gradients are replaced by Gupal’s estimates of gradients of the Steklov averages of the objective function. This method has convergence guarantees in the Clarke subdifferential framework, but has a high computational cost in terms of function evaluations per iterate.
1.4 Contributions
In this paper, we formulate randomised Itoh–Abe methods for nonsmooth functions. We prove that the method always admits a solution, and that the iterates converge to a set of Clarke stationary points, for any locally Lipschitz continuous function, and both for deterministic and randomly chosen search directions. Consequently, the scope of discrete gradient methods for optimisation is significantly broadened, and we conclude that the dissipativity properties of gradient flow can be preserved even beyond differentiability. Ultimately, this provides a new robust, and versatile optimisation scheme for nonsmooth, nonconvex functions.
The theoretical convergence analysis for the Itoh–Abe methods is thorough and foundational, and we provide examples that demonstrate that the conditions of the convergence theorem are not just sufficient, but necessary. Furthermore, the statements and proofs are sufficiently general so that they can be adapted to other schemes, such as the aforementioned DFO method, thus enhancing the theory of these methods as well.
We show that the method works well in practice, by solving bilevel optimisation problems for variational regularisation problems, as well as solving benchmark problems such as Rosenbrock functions.
The rest of the paper is structured as follows. Sect. 2 provides a background on the Clarke subdifferential for nonsmooth, nonconvex analysis. In Sect. 3, the main theoretical results of the paper are presented, namely existence and optimality results in the stochastic and deterministic setting. In Sect. 4, we briefly discuss the Itoh–Abe discrete gradient for general coordinate systems. In Sects. 5 and 6, the numerical implementation is described and results from example problems are presented. A conclusion is given in Sect. 7.
2 Nonconvex Optimisation
In this section, we introduce the Clarke subdifferential framework [19], the most popular framework for nonsmooth, nonconvex optimality analysis, due to its nice analytical properties. It generalises the gradient of a differentiable function, as well as the subdifferential [26] of a convex function, hence the term Clarke subdifferential. Francis H. Clarke introduced the framework in his doctoral thesis in 1973 [18], in which he used the term generalised gradients.
2.1 The Clarke Subdifferential
Throughout the rest of the paper, for \(\varepsilon > 0\) and \(x \in {\mathbb {R}}^n\), we denote by \(B_\varepsilon (x)\) the open ball \(\{y \in {\mathbb {R}}^n \; : \; \Vert y  x\Vert < \varepsilon \}\).
Definition 2.1
\(V\) is Lipschitz of rank \(L\) near \(x\) if there exists \(\varepsilon > 0\) such that for all \(y, z \in B_\varepsilon (x)\), one has
\(V\) is locally Lipschitz continuous if the above property holds for all \(x \in {\mathbb {R}}^n\).
Definition 2.2
For a function \(V\) that is Lipschitz continuous near \(x\) and for a vector \(d \in {\mathbb {R}}^n\), the Clarke directional derivative is given by
Definition 2.3
Let \(V\) be locally Lipschitz and \(x \in {\mathbb {R}}^n\). The Clarke subdifferential of \(V\) at \(x\) is given by
An element of \(\partial V(x)\) is called a Clarke subgradient.
The subdifferential \(\partial V\) is well defined for locally Lipschitz functions, coincides with the standard subdifferential for convex functions [19, Proposition 2.2.7], and coincides with the derivative at points of strict differentiability [19, Proposition 2.2.4]. It can equivalently be characterised as [19, Theorem 2.5.1]
where \({\mathscr {D}}(V)\) is the set of differentiable points of \(V\), and \({{\,\mathrm{co}\,}}\) denotes the convex hull of the set. We additionally state two useful results, both of which can be found in Chapter 2 of [19].
Proposition 2.4
Suppose \(V\) is locally Lipschitz continuous. Then,

(i)
\(\partial V(x)\) is nonempty, convex, and compact, and if \(V\) is Lipschitz of rank \(L\) near \(x\), then \(\partial V(x) \subseteq B_L(0)\).

(ii)
\(\partial V(x)\) is outer semicontinuous \(at x\): For all \(\varepsilon > 0\), there exists \(\delta > 0\) such that
$$\begin{aligned} \partial V(y) \subset \partial V(x) + B_\varepsilon (0), \quad \hbox { for all } y \in x + B_\delta (0). \end{aligned}$$
There are alternative frameworks for generalising differentiability to nonsmooth, nonconvex functions. For example, the Michel–Penot subdifferential [54] coincides with the Gâteaux derivative when this exists, unlike the Clarke subdifferential, which is larger and only coincides with strict derivatives [29]. However, the outer semicontinuity of the Clarke subdifferential makes it in most cases the preferred framework for analysis. See [8] by Borwein and Zhu for a survey of various subdifferentials, published on the 25th birthday of the Clarke subdifferential.
2.1.1 Discrete Gradients Versus Subgradients
By definition, when \(V\) is continuously differentiable, any discrete gradient \({\overline{\nabla }} V(x,y)\) converges to the gradient \(\nabla V(x)\) as \(y \rightarrow x\). However, for nondifferentiable \(V\), discrete gradients do not necessarily approximate a subgradient or even an \(\varepsilon \)approximate subgradient.^{Footnote 4} This is demonstrated by the following example.
Example 2.5
Let \(V(x_1, x_2) := \sqrt{x_1^2 + x_2^2}\), and set \(x^k = [\tfrac{1}{k}, 0]^\mathrm{T}\) and \(y^k = [0, \tfrac{1}{k}]^\mathrm{T}\). Then, for all \(k\), the Itoh–Abe discrete gradient is
Thus, \(x^k \rightarrow [0,0]^\mathrm{T}\), \(y^k \rightarrow [0,0]^\mathrm{T}\) and \({\overline{\nabla }} V(x^k, y^k) \rightarrow [1,1]^\mathrm{T}\). However, \([1,1]^\mathrm{T}\) is not in \(\partial V(0,0) = B_1(0,0)\). In fact, for all \(\varepsilon > 0\), we have \([1,1]^\mathrm{T} \notin \partial _\varepsilon V(0,0)\).
2.1.2 Clarke Stationary Points
Definition 2.6
\(x^* \in {\mathbb {R}}^n\) is a Clarke stationary point of \(V\) if \(0 \in \partial V(x^*)\).
For our purposes, we also define Clarke directional stationarity.
Definition 2.7
(Directional Clarke stationarity) For a direction \(d \in {\mathbb {R}}^n {\setminus } \left\{ {0}\right\} \), we say that \(V\) is Clarke directionally stationary at \(x^*\) along \(d\) if
Remark 2.8
A point \(x^*\) is Clarke stationary if and only if \(V\) is Clarke directionally stationary at \(x^*\) along \(d\) for all \(d \in S^{n1}\).
Any local maxima and minima are stationary. If \(V\) is convex, then stationary points coincide with the global minima. For more general classes of functions, the concept of Clarke stationary points also reduces to convex firstorder optimality conditions.
Definition 2.9
[61] A locally Lipschitz continuous function \(V\) is pseudoconvex if for all \(x, y \in {\mathbb {R}}^n\),
If \(V\) is pseudoconvex, then any Clarke stationary point is a global minimum [4]. Clarke [19] also introduced the notion of regularity.
Definition 2.10
A function \(V\) is regular at \(x\) if the directional derivative
exists and equals \(V^o(x; d)\) for each \(d \in {\mathbb {R}}^n\). If this holds for all \(x\), we say that \(V\) is regular.
For a regular function, a point is Clarke stationary if and only if the directional derivative is nonnegative in all directions. For example, convex functions are regular, and strict differentiability at a point implies regularity at a point. However, for nonregular functions, \(x^*\) can simultaneously be Clarke stationary and have negative directional derivatives in a neighbourhood of directions.
3 The Discrete Gradient Method for Nonsmooth Optimisation
In this section, we present the main theoretical results for the randomised Itoh–Abe methods. In particular, in Lemma 3.1, we prove that the discrete gradient update (1.6) admits a solution for all \(\tau _k>0\). We also prove under minimal assumptions on \(V\) and \((d^k)_{k\in {\mathbb {N}}}\) that the iterates converge to a connected set of Clarke stationary points, both in a stochastic and deterministic setting.
3.1 Existence Result
Lemma 3.1
Suppose \(V\) is a locally Lipschitz continuous function bounded below, and that \(x \in {\mathbb {R}}^n\), \(d \in S^{n1}\), and \(\tau > 0\). Then, one of the following statements hold.

(i)
There is a \(\beta \ne 0\) that solves (1.6), i.e. that satisfies \(\tfrac{V(x + \tau \beta d)  V(x)}{\tau \beta } = \beta \).

(ii)
\(V\) is Clarke directionally stationary at \(x\) along \(d\).
Proof
Suppose the second statement does not hold. Then, there is \(\varepsilon > 0\) such that
so assume without loss of generality that \(V^o(x; d) <  \varepsilon \). By definition of \(V^o\), there is \(\delta > 0\) such that for all \(\beta \in (0, \delta )\),
Choosing \(\beta _1 = \min \{\delta /2, \varepsilon /2\}\), we obtain
On the other hand, as \(V\) is bounded below, there is \(M <0\) such that \(V(x+\tau \beta d)  V(x) > M\) for all \(\beta \in {\mathbb {R}}\). Setting \(\beta _2 = \sqrt{M/\tau }\), we derive
Note that the above inequality holds for all \(\beta \ge \beta _2\), so we have \(\beta _1 < \beta _2\). Since the mapping \(\beta \mapsto \frac{V(x + \tau \beta d)  V(x)}{\tau \beta ^2}\) is continuous for \(\beta \in (0, \infty )\), we conclude by the intermediate value theorem [70, Theorem 4.23] that there is \(\beta \in (\beta _1, \beta _2)\) that solves the discrete gradient equation:
\(\square \)
The following lemma, which is an adaptation of [33, Theorem 1] for the nonsmooth setting, summarises some useful properties of the methods.
Lemma 3.2
Suppose that \(V\) is continuous, bounded from below and coercive, and let \((x^k)_{k\in {\mathbb {N}}}\) be the iterates produced by (1.6). Then, the following properties hold.

(i)
\(V(x^{k+1}) \le V(x^k)\).

(ii)
\(\lim _{k \rightarrow \infty } d V(x^k, x^{k+1}) = 0\).

(iii)
\(\lim _{k \rightarrow \infty } \Vert x^k  x^{k+1}\Vert = 0\).

(iv)
\((x^k)_{k\in {\mathbb {N}}}\) has an accumulation point \(x^*\).
Proof
Property (i) follows from the equation \(V(x^{k+1})  V(x^k) =  \tau _k \beta _k^2\).
Next we show properties (ii) and (iii). Since \(V\) is bounded below and \((V(x^k))_{k \in {\mathbb {N}}}\) is nonincreasing, \(V(x^k) \rightarrow V^*\) for some limit \(V^*\). Therefore, by (1.7)
Similarly, by (1.7)
We conclude that
which shows properties (ii) and (iii).
Last, we show (iv). Since \((V(x^k))_{k \in {\mathbb {N}}}\) is a nonincreasing sequence, the iterates \((x^k)_{k \in {\mathbb {N}}}\) belong to the set \(\left\{ x \in {\mathbb {R}}^n \; : \; V(x) \le V(x^0)\right\} \). Therefore, by coercivity of \(V\), the iterates \((x^k)_{k \in {\mathbb {N}}}\) are bounded and admit an accumulation point. \(\square \)
We denote by \(S\) the limit set of \((x^k)_{k\in {\mathbb {N}}}\), which is the set of accumulation points,
By the above lemma, \(S\) is nonempty. We now prove further properties of the limit set.
Lemma 3.3
With the same assumption for \(V\) as in Lemma 3.2, the limit set \(S\) is compact, connected and has empty interior. Furthermore, \(V\) is constant on \(S\).
Proof
Boundedness of \(S\) follows from coercivity of \(V\) combined with the fact that \(S\) is a subset of \(\{x \in {\mathbb {R}}^n \; : \; V(x) \le V(x^0)\}\). Since any accumulation point of \(S\) is also an accumulation point of \((x^k)_{k \in {\mathbb {N}}}\), \(S\) is closed. Hence, \(S\) is compact.
We prove connectedness by contradiction. Suppose \(S\) is disconnected. Since \(S\) is closed, this is equivalent to there being disjoint, closed, nonempty sets \(S_1\), \(S_2\) such that \(S = S_1 \cup S_2\). Choose \(\varepsilon > 0\) such that \(\Vert xy\Vert \ge \varepsilon \) for all \(x \in S_1\), \(y \in S_2\), and define the nonempty, closed set \(S_3 = \{x \in {\mathbb {R}}^n \; : \; \Vert x  y\Vert \ge \varepsilon /3 \hbox { for all } y \in S\}\). As \(\Vert x^k  x^{k+1}\Vert \rightarrow 0\), there is \(K \in {\mathbb {N}}\) such that \(\Vert x^k  x^{k+1}\Vert < \varepsilon /3\) for all \(k \ge K\). It follows that if \(x^k \in S_1 + B_{\varepsilon /3}(0)\) and \(x^{j} \in S_2 + B_{\varepsilon /3}(0)\) for \(j \ge k \ge K\), then there is \(l \in (k,j)\) such that \(x^{l} \in S_3\). As \((x^k)_{k\in {\mathbb {N}}}\) has accumulation points in \(S_1\) and \(S_2\), it thus follows that it also has a subsequence in \(S_3\). As \((x^k)_{k\in {\mathbb {N}}}\) is a bounded sequence and \(S_3\) is closed, this subsequence admits a convergent subsequence with limit in \(S_3\). This contradicts the assumption that all accumulation points of \((x^k)_{k\in {\mathbb {N}}}\) are in \(S_1 \cup S_2\).
To show that \(V\) is constant on \(S\), we simply note that \((V(x^k))_{k \in {\mathbb {N}}}\) is a nonincreasing sequence and \(V(x^*) = \lim _{k \rightarrow \infty } V(x^k)\) for all \(x^* \in S\), from which the result follows.
Finally, we show by contradiction that \(S\) has empty interior. Suppose \(S\) contains an open ball \(B_\varepsilon (x)\) in \({\mathbb {R}}^n\). Then, as \(\Vert x^{k+1}  x^k\Vert \rightarrow 0\), there is a \(j \in {\mathbb {N}}\) such that \(x^j \in B_\varepsilon (x)\). However, as \(V\) is constant on \(S\), \(V(x^j) = \min _{k\in {\mathbb {N}}} V(x^k)\). Since \((V(x^k))_{k\in {\mathbb {N}}}\) is a nonincreasing sequence and \(\Vert x^{k}  x^{k+1}\Vert ^2 = \tau _k (V(x^k)  V(x^{k+1}))\), it follows that \(x^k = x^j\) for all \(k \ge j\). Therefore, \(S = \{x^j\}\), which contradicts the assumption that \(S\) has nonempty interior. \(\square \)
3.2 Optimality Result
We now proceed to the main result of this paper, namely that all points in the limit set \(S\) are Clarke stationary. We consider the stochastic case and the deterministic case separately.
In the stochastic case, we assume that the directions \((d^k)_{k\in {\mathbb {N}}}\) are randomly, independently drawn, and that the probability density of \(\varXi \) has support almost everywhere in \(S^{n1}\). It is straightforward to extend the proof to the case where \((d^{nk+1}, \ldots , d^{n(k+1)})\) are drawn as an orthonormal system under the assumptions that the directions \((d^{nk+j})_{k \in {\mathbb {N}}}\) are independently drawn from \(S^{n1}\) for \(j = 1, \ldots , n\), and that the support of the density of the corresponding marginal distribution is dense in \(S^{n1}\).
We define \(X\) to be the set of nonstationary points,
Theorem 3.4
With the same assumption for \(V\) as in Lemma 3.2, let \((x^k)_{k\in {\mathbb {N}}}\) solve (1.6) where \((d^k)_{k\in {\mathbb {N}}}\) are independently drawn from the random distribution \(\varXi \), and suppose that the density of \(\varXi \) has almost everywhere support in \(S^{n1}\). Then, every accumulation point of \((x^k)_{k\in {\mathbb {N}}}\) is almost surely Clarke stationary.
Proof
We will construct a countable collection of open sets \((B_j)_{j \in {\mathbb {N}}}\), such that \(X \subset \bigcup _{j \in {\mathbb {N}}} B_j\) and so that for all \(j \in {\mathbb {N}}\) we have \({\mathbb {P}}(S \cap B_j \ne \varnothing ) = 0\). Then, the result follows from countable additivity of probability measures.
We first show that for every \(x \in X\), there is \(d \in S^{n1}\), \(\varepsilon > 0\), and \(\delta > 0\) such that
To show this, note that if \(x \in X\), then by definition there is \(d \in S^{n1}\), \(\varepsilon > 0\) such that
Therefore, there is \(\eta > 0\) such that for all \(\lambda \in (0, \eta )\) and all \(y \in B_\eta (x)\), we have
As \(V\) is Lipschitz continuous around \(B_\eta (x)\), the mapping
is also locally Lipschitz continuous (of the same rank). It follows that there exists \(\delta \in (0, \eta )\) such that for all \(y \in B_{\delta }(x)\), all \(e \in B_\delta (d)\cap S^{n1}\), and all \(\lambda \in (0, \delta )\), we have
This concludes the first step.
Next, for each \(m \in {\mathbb {N}}\), we define the set
Clearly,
For each \(m \in {\mathbb {N}}\), let \((y^{(i,m)})_{i \in {\mathbb {N}}}\) be a dense sequence in \(X_m\), which exists because \({\mathbb {Q}}^n\) is both countable and dense in \({\mathbb {R}}^n\). We define \(Y_i^{(m)} = B_{\delta }(y^{(i,m)})\), where \(\delta = \tfrac{1}{m+1}\). Therefore,
Since a countable union of countable sets is countable, we conclude with the following statement. There exists sequences \((y^i)_{i \in {\mathbb {N}}} \subset {\mathbb {R}}^n\), \((\varepsilon _i)_{i \in {\mathbb {N}}} \subset (0,\infty )\), \((\delta _i)_{i \in {\mathbb {N}}} \subset (0,\infty )\), and \(({\tilde{d}}^i)_{i \in {\mathbb {N}}} \subset S^{n1}\), such that for all \(z \in B_{\delta _i}(y^i) =: B_i\), all \(e \in B_{\delta _i}({\tilde{d}}^i) \cap S^{n1} =: D_i\), and all \(\lambda \in (0, \delta _i)\), we have
and such that
Finally, we want to show that for each \(i \in {\mathbb {N}}\), \({\mathbb {P}}(S \cap B_i \ne \varnothing )=0\). For this, we fix \(i\) and set \(m := \min _{x \in B_i}V(x)\), \(M := \max _{x \in B_i}V(x)\), and \(\mu := \min \{\varepsilon _i^2 \tau _{\min }, \tfrac{\delta _i^2}{\tau _{\max } }\}>0\). We first show for any \(k \in {\mathbb {N}}\) that
To show this, we write \(x^{k+1} = x^k \lambda d^k\) for some \(\lambda \in {\mathbb {R}}\), and consider separately the cases \(\lambda  < \delta _i\) and \(\lambda  \ge \delta _i\). In the first case, it follows from (3.4) that \(\lambda \in (0,\delta _i)\), and furthermore that
However, by (1.7), we also have
and, combining these equations, we get
This in return implies
Otherwise, if \(\lambda  > \delta _i\), then by (1.7)
Thus, (3.6) holds.
Next, choose \(K \in {\mathbb {N}}\) such that \(K \mu > Mm\), and suppose that there are \(K+1\) indices \(k_1, \ldots k_{K+1}\) such that \(x^{k_j} \in B_i\) and \(d^{k_j} \in D_i\) for \(j = 1, \ldots , K+1\). Then, using (3.6) and the fact that \((V(x^k))_{k\in {\mathbb {N}}}\) is a nonincreasing sequence, we have
which is a contradiction. Thus, for there to be a subsequence of \((x^k)_{k\in {\mathbb {N}}}\) in \(B_i\), there can be no more than \(K\) instances where \(x^k \in B_i\) and \(d^k\) is drawn in \(D_i\). Since \((d^k)_{k\in {\mathbb {N}}}\) are independent draws, the probability of this is 0, as we rigorously demonstrate in the next paragraph.
For \(j =1,2,\ldots \), denote by \(E_j \in {\mathbb {N}}\cup \{+\infty \}\) the index \(k\) for which \(x^k\) is the \(j\)th iterate of \((x^k)_{k\in {\mathbb {N}}}\) in \(B_i\), where we set \(E_j = +\infty \) if there are fewer than \(j\) elements of \((x^k)_{k\in {\mathbb {N}}}\) in \(B_i\). Next, we construct a sequence of random variables \((f^j)_{j \in {\mathbb {N}}}\), where if \(E_j \in {\mathbb {N}}\) we set \(f^j := d^{E_j}\), and otherwise \(f^j\) is an independent draw from \(\varXi \). It follows that \((f^j)_{j\in {\mathbb {N}}}\) is a sequence of independent draws from \(\varXi \). Finally, for \(j= 1, 2,\ldots \), set \(F_j := 1\) if \(f^j \in D_i\) and 0 otherwise, and define \(G_j := \sum _{k=1}^j F_j\). We observe that
where the latter equality holds because \((F_j)_{j=1}^\infty \) is a sequence of independent events with \({\mathbb {P}}(F_j = 1) ={\mathbb {P}}_\varXi (d \in D_i) > 0\). This concludes the proof. \(\square \)
3.2.1 Deterministic Case
We now cover the deterministic case, in which \((d^k)_{k\in {\mathbb {N}}}\) is required to be cyclically dense.
Definition 3.5
A sequence \((d^k)_{k \in {\mathbb {N}}} \subset U\) is cyclically dense in \(U\) if for each \(\varepsilon > 0\) there is \(N \in {\mathbb {N}}\) so that for all \(k \in {\mathbb {N}}\), the set \(\left\{ {d^{k}, \ldots , d^{k+N1}}\right\} \) forms an \(\varepsilon \)cover of \(U\),
In Appendix A, we show that randomly drawn sequences are almost surely not cyclically dense, hence the separate treatment of stochastic and deterministic schemes.
Many constructions of dense sequences are also cyclically dense. We provide an example of such a sequence on the unit interval \([0,1]\).
Example 3.6
Let \(\sigma \in (0,1)\) be an irrational number and define the sequence \((\lambda _k)_{k \in {\mathbb {N}}}\) in \([0,1]\) by
where \(\left\lfloor {\sigma k}\right\rfloor \) denotes the largest integer less than or equal to \(\sigma k\).
To see that \((\lambda _k)_{k \in {\mathbb {N}}}\) is cyclically dense in \([0,1]\), set \(\varepsilon > 0\) and note by sequential compactness of \([0,1]\) that there is \(k, r \in {\mathbb {N}}\) such that \(\lambda _{k}  \lambda _{k+r} < \varepsilon \). We can write \(\delta = \lambda _{k+r}  \lambda _{k}\), where we know that \(\delta \ne 0\), as no value can be repeated in the sequence due to \(\sigma \) being irrational. By modular arithmetic, we have for any \(l \in {\mathbb {N}}\),
In other words, the subsequence \((\lambda _{k+rl})_{l \in {\mathbb {N}}}\) moves in increments of \(\delta \in (\varepsilon , \varepsilon )\) on \([0,1]\). Setting \(N = r \left\lceil {\tfrac{1}{\delta }}\right\rceil + k\), where \(\left\lceil {1/\delta }\right\rceil \) denotes the smallest integer greater than or equal to \(1/\delta \), it is clear that for any \(j \in {\mathbb {N}}\), the set \(\{\lambda _{j}, \lambda _{j+1}, \ldots , \lambda _{j+N1}\}\) forms an \(\varepsilon \)cover of \([0,1]\).
One could naturally extend this construction to higher dimensions \([0,1]^n\), by choosing \(n\) irrational numbers such that the ratio of any two of these numbers is also irrational.
Theorem 3.7
Let \((x^k)_{k\in {\mathbb {N}}}\) solve (1.6), where \((d^k)_{k \in {\mathbb {N}}}\) are cyclically dense. Then, all accumulation points \(x^* \in S\) satisfy \(0 \in \partial V(x^*)\).
Proof
We consider the setup in the proof to Theorem 3.4, where \(X\) is the set of nonstationary points (3.1) and is covered by a countable collection of open balls (3.5),
We will show that an accumulation point \(x^* \in S\) cannot belong to the ball \(B_{\delta _i}(y^i)\), from which it follows that \(S\) is a subset of the set of stationary points. For contradiction, suppose that there is a subsequence \((x^{k_j})_{j \in {\mathbb {N}}} \rightarrow x^* \in B_{\delta _i}(y^i)\). By Lemma 3.2 (iii), since \(\Vert x^k  x^{k+1}\Vert \rightarrow 0\) as \(k \rightarrow \infty \), we deduce that for any \(N \in {\mathbb {N}}\), there is \(j \in {\mathbb {N}}\) such that
Then, by cyclical density, we can choose \(N\) such that the corresponding directions \(\{ d^{k_j}, d^{k_j+1}, \ldots , d^{k_j+N1} \}\) form a \(\delta _i\)cover of \(S^{n1}\). Therefore, there exists \(x^{k} \in B_{\delta _i}(y^i)\) and \(d^k \in B_{\delta _i}(e^i)\), so we can argue as in Theorem 3.4, that
where \(\mu = \min \left\{ {\varepsilon _i^2 \tau _{\min }, \tfrac{\delta _i^2}{\tau _{\max } }}\right\} \). If \((x^{k_j})_{j \in {\mathbb {N}}}\) had a limit in \(B_{\delta _i}(y^i)\), this would happen arbitrarily many times, which is a contradiction. This concludes the proof. \(\square \)
3.3 Necessity of Search Density and Lipschitz Continuity
In what follows, we examine the necessity of some of the assumptions made in the convergence theorems.
It is well known that for nonsmooth problems, it is necessary to employ a set of directions \((d^k)_{k \in {\mathbb {N}}}\) larger than the set of basis coordinates \(\{e^1,\ldots , e^n\}\). For example, consider the function \(V(x,y) = \max \left\{ {x,y}\right\} \) and the starting point \(x^0 = [1,1]^\mathrm{T}\). With the standard Itoh–Abe discrete gradient method, the iterates would remain at \(x^0\), even though this point is nonstationary.
Furthermore, the following example demonstrates that it is necessary for the set of directions \((\pm d^k)_{k \in {\mathbb {N}}}\) to be dense on \(S^{n1}\).
Example 3.8
We suppose \(V: {\mathbb {R}}^2 \rightarrow {\mathbb {R}}\) is defined by \(V(x_1,x_2) = x_1 + N y_2\) for some \(N \in {\mathbb {N}}\), and set \(x^0 = [1,0]^\mathrm{T}\). For \(\theta \in [\pi /2, \pi /2]\), let \(d = [\cos \theta , \sin \theta ]^\mathrm{T}\). Then, \(d\) is a direction of descent if and only if \(\theta \in (\arctan (1/N), \arctan (1/N))\). This interval can be made arbitrarily small by choosing \(N\) to be sufficiently large. Therefore, for an Itoh–Abe method to descend from \(x^0\) for arbitrary functions, either the directions \((d^k)_{k \in {\mathbb {N}}}\) (or \((d^k)_{k\in {\mathbb {N}}}\)) need to include a convergent subsequence to the direction \([1,0]^\mathrm{T}\). As this direction is arbitrary, we deduce that \((\pm d^k)_{k \in {\mathbb {N}}}\) must be dense.
Theorem 3.4 also assumes that \(V\) is locally Lipschitz continuous. We briefly discuss why this assumption is necessary, and provide an example to show that for functions that are merely continuous, the theorem no longer holds.
By Clarke [19, Proposition 2.1.1. (b)], the mapping \((y, d) \mapsto V^o(y; d)\) is upper semicontinuous for \(y\) near \(x\), due to local Lipschitz continuity of \(V\) near \(x\). That is,
This property is crucial for the convergence analysis of Itoh–Abe methods, as it implies that for a subsequence \((x^{k_j})_{j\in {\mathbb {N}}}\) such that \(x^{k_j} \rightarrow x^*\) and \(d^{k_j} \rightarrow d^*\), we have
Without local Lipschitz continuity, it is possible to have
In this case, there is no guarantee that the limit \(x^*\) is Clarke stationary. We demonstrate this with an example.
Example 3.9
We first fix the iterates \((x^k)_{k\in {\mathbb {N}}} \subset {\mathbb {R}}^2\) and \((d^k)_{ k\in {\mathbb {N}}} \subset S^1\), and construct the function \(V:{\mathbb {R}}^2 \rightarrow {\mathbb {R}}\) subsequently. Let \((d^k)_{k \in {\mathbb {N}}}\) be a cyclically dense sequence in \(S^{1}\) and assume without loss of generality that \([0, 1]^\mathrm{T} \notin (d^k)_{k \in {\mathbb {N}}}\). Replacing \(d^k\) with \(d^k\) does not change the step in (1.6), so we assume that \(d^k_1 < 0\) for all \(k\). We set \(x^0 = [0,0]^\mathrm{T}\) and define \((x^k)_{k\in {\mathbb {N}}}\) to be
Note that since \(d^k_1 < 0\) for all \(k\), \(x^{k+1}_1 > x^k_1\) for all \(k\), so none of the iterates coincide. Furthermore, the sequence \((x^k)_{k\in {\mathbb {N}}}\) has a unique limit, which we denote by \(x^*\).
Next, we define a piecewise affine path \(\rho : {\mathbb {R}}\rightarrow {\mathbb {R}}\) accordingly. If \(r < x^0_1\), set \(\rho (r) := x^0_2\), and if \(r > x^*_1\), set \(\rho (r) := x^*_2\). Otherwise, \(r \in [x^0_1,x^*_1]\) and there are unique \(\lambda \in [0,1]\) and \(k \in {\mathbb {N}}\) such that \(r = \lambda x^k_1 + (1\lambda ) x^{k+1}_1\). In this case, we set \(\rho (r) := \lambda x^k_2 + (1\lambda ) x^{k+1}_2 = x^k_2 + (rx^k_1) d^k_2/d^k_1\).
We then define \(V: {\mathbb {R}}^2 \rightarrow {\mathbb {R}}\) accordingly. On \((x^k)_{k \in {\mathbb {N}}}\), we set
If \(r = \lambda x^k_1 + (1\lambda ) x^{k+1}_1\) for some \(\lambda \in [0,1]\) and \(k \in {\mathbb {N}}\), set
Otherwise, if \(r < x^0_1\), set \(V(r, \rho (r)) := V(x^0)\), and if \(r > x^*_1\), then set \(V(r,\rho (r)) := V(x^*)\). Finally, for each \([r, x_2]^\mathrm{T} \in {\mathbb {R}}^2\), define \(V(r, x_2) := V(r,\rho (r))  (x_2  \rho (r))\).
One can verify that this constitutes a welldefined, continuous function on \({\mathbb {R}}^2\). Furthermore, the iterates \((x^k)_{k\in {\mathbb {N}}}\) satisfy (1.6) with \(\tau _k = 1\). Finally, observe that for all \(x \in {\mathbb {R}}^2\), we have \(V^o(x; [0,1]^\mathrm{T}) = 1\). Therefore, \(x^*\) is not a stationary point of \(V\).
One may observe directly for this function that \(V^o(\cdot ; \cdot )\) is not upper semicontinuous, and hence that \(V\) is not locally Lipschitz continuous at \(x^*\). Namely, passing to a subsequence \((d^{k_j})_{j\in {\mathbb {N}}}\) such that \(d^{k_j} \rightarrow [0,1]^\mathrm{T}\), we conclude from the above construction that \(\limsup _{j\rightarrow \infty } V^o(x^{k_j}; d^{k_j}) \ge 0\), while \(V^o(x^*; [0,1]^\mathrm{T}) = 1\).
3.4 Nonsmooth, Nonconvex Functions with Further Regularity
For a large class of nonsmooth optimisation problems (convex and nonconvex), the objective function is sufficiently regular so that the standard Itoh–Abe discrete gradient method is also guaranteed to converge to Clarke stationary points. These are functions \(V\) for which \(x^* \in {\mathbb {R}}^n\) is Clarke stationary if and only if \(V^o(x^*; \pm e^i) \ge 0\) for \(i = 1, \ldots , n\). One may, for example, consider functions of the form:
where \(E\) is a continuously differentiable function that may be nonconvex and \(\Vert x\Vert _1\) denotes \(x_1 + \cdots + x_n\), and \(\lambda > 0\). See, for example, Proposition 2.3.3 and the subsequent corollary in [19], combined with the fact that the nonsmooth component of \(V\), i.e. \(\Vert \cdot \Vert _1\), separates into \(n\) coordinatewise scalar functions. This implies that the Clarke subdifferential is given by
where denotes the Cartesian product and
Since this paper is chiefly concerned with the blackbox setting where no particular structure of \(V\) is assumed, we do not include an analysis of the convergence properties of the standard Itoh–Abe discrete gradient method for functions of the above form. However, we point out that for problems where Clarke stationarity is equivalent to Clarke directional stationarity along the standard coordinates, one can easily adapt Theorem 3.4 to prove that the iterates converge to a set of Clarke stationary points when the directions \((d^k)_{k \in {\mathbb {N}}}\) are drawn from the standard coordinates \((e^i)_{i=1}^n\).
Furthermore, one could drop the requirement that \(V\) is locally Lipschitz continuous, and replace \(\Vert x\Vert _1\) with \(\Vert x\Vert _p^p\), where \(p \in (0,1)\), and \(\Vert x\Vert _p^p = x_1^p + \cdots + x_n^p\). This too is beyond the scope of this paper.
4 Rotated Itoh–Abe Discrete Gradients
We briefly discuss a randomised Itoh–Abe method that retains the Itoh–Abe discrete gradient structure, by ensuring that the directions \((d^{kn+1}, d^{kn+2}, \ldots , d^{k(n+1)})\) are orthonormal for all \(k\). For this, we consider each block of \(n\) directions to be independently drawn from a random distribution on the set of orthogonal transformations on \({\mathbb {R}}^n\), denoted by \({O}(n)\).
Definition 4.1
The orthogonal group of dimension \(n\), \({O}(n)\), is the set of orthogonal matrices in \({\mathbb {R}}^n\), i.e. matrices \(R\) which satisfy \(R^{1} = R^\mathrm{T}\). Equivalently, \(R\) maps one orthonormal basis of \({\mathbb {R}}^n\) to another.
Each element of \({O}(n)\) corresponds to a rotated Itoh–Abe discrete gradient.
Definition 4.2
(Rotated Itoh–Abe discrete gradient) For \(R \in {O}(n)\), denote by \((e^i)_{i =1}^n\) and \((f^i)_{i =1}^n\) two orthonormal bases such that \(Rf^i = e^i\). For continuously differentiable functions \(V\), the rotated Itoh–Abe discrete gradient, denoted by \({\overline{\nabla }}_R V\), is given by
where
It is straightforward to check that it is a discrete gradient, as defined for continuously differentiable functions.
Proposition 4.3
If \(V: {\mathbb {R}}^n \rightarrow {\mathbb {R}}\) is continuously differentiable, then \({\overline{\nabla }}_R V\) is a discrete gradient.
Proof
For any \(x, y \in {\mathbb {R}}^n\), \(x \ne y\),
The convergence property \(\lim _{y \rightarrow x} {\overline{\nabla }}_R V(x,y) = \nabla V(x)\) follows directly from continuous differentiability of \(V\). \(\square \)
Thus, we can implement schemes that are formally discrete gradient methods and also fulfil the convergence theorems in Sect. 3.
5 Numerical Implementation
We consider three ways of choosing \((d^k)_{k \in {\mathbb {N}}}\).

1.
Standard Itoh–Abe method The directions cycle through the standard coordinates, with the rule \(d^k = e^{[k {{\,\mathrm{mod}\,}}n] + 1}\). Performing \(n\) steps of this method is equivalent to one step with the standard Itoh–Abe discrete gradient method.

2.
Random pursuit Itoh–Abe method The directions are independently drawn from a random distribution \(\varXi \) on \(S^{n1}\). We assume that the density of \(\varXi \) has support almost everywhere.

3.
Rotated Itoh–Abe method For each \(k \in {\mathbb {N}}\), the block of \(n\) consecutive directions \((d^{kn+1}, d^{kn+2}, \ldots , d^{(k+1)n})\) is drawn from a random distribution on \({O}(n)\), so that the directions form an orthonormal basis. We assume that each draw from \({O}(n)\) is independent.
We formalise an implementation of randomised Itoh–Abe methods with two algorithms, an inner and an outer one. Algorithm 3 is the inner algorithm and returns \(x^{k+1}\), given \(x^k\), \(d^k\), and time step bounds \(\tau _{\min }, \tau _{\max }\). Algorithm 2 is the outer algorithm, which calls the inner algorithm for each iterate \(x^{k}\), and provides a stopping rule for the methods. The stopping rule in Algorithm 2 takes two positive integers \(K\) and \(M\) as parameters, such that the algorithm stops either after \(K\) iterations, or when the iterates have not sufficiently decreased \(V\) in the last \(M\) iterations. We typically set \(M \approx n\), \(n\) being the dimension of the domain. The exception to this is when the function \(V\) is expected to be highly irregular or nonsmooth, in which case we choose a larger \(M\), as directions are generally prone to yield insufficient decrease. This stopping rule can be replaced by any other heuristic.
Algorithm 3 is a tailormade scalar solver for (1.6) that balances the tradeoff between decreasing \(\beta \mapsto V(x^k + \beta d^k)\) as much as possible within the time step constraints \(\tau _{\min }, \tau _{\max }\) and using minimal function evaluations. Rather than solving for a given \(\tau _k\), it ensures that there exists some \(\tau _k \in [\tau _{\min }, \tau _{\max }]\) that matches the output \(x^{k+1}\). The algorithm uses a preliminary time step \({\overline{\tau }} \in [\tau _{\min }, \tau _{\max }]\), which we set to \({\overline{\tau }} = \sqrt{\tau _{\min } \tau _{\max }}\). This method is particularly suitable when \(\tau _{\min } \ll \tau _{\max }\), and it can be replaced by any other scalar root solver. The algorithm calls the functions interpolationStep and backtrackingFunction, whose algorithms can be found in Appendix.
As the algorithm does not use a fixed time step, it is notationally convenient to make \(\beta _k\) include \(\tau _k\), so that the update becomes \(x^{k+1} = x^k + \beta _k d^k\) where \(\beta _k /\tau _k\) solves (1.6). With this in mind, we define an admissible output \(x^{k+1} = x^k + \beta d^k\) of Algorithm 3 as follows, for a specified tolerance \(\varepsilon > 0\) and time step bounds \(\tau _{\min } < \tau _{\max }\):
The Python code is available at https://github.com/esriis/itohabe_optimisation.
6 Examples
In this section, we use the randomised Itoh–Abe methods to solve several nonsmooth, nonconvex problems. In Sect. 6.1, we consider some wellknown optimisation challenges developed by Rosenbrock and Nesterov. In Sect. 6.2, we solve bilevel optimisation of parameters in variational regularisation problems.^{Footnote 5}
We compare our method to stateoftheart derivativefree optimisation methods PyBOBYQA [14, 64] and the LTMADS solver provided by NOMAD [2, 47, 48]. For purposes of comparing results across solvers for these problems, we do not measure objective function value against iterates, but against function evaluations.
6.1 Rosenbrock Functions
We consider the wellknown Rosenbrock function [68]
Its global minimiser \([1,1]^\mathrm{T}\) is located in a narrow, curved valley, which is challenging for the iterates to navigate. We compare the three variants of the Itoh–Abe method, for which we set the algorithm parameters \(\varepsilon = 10^{5}\), \(\tau _{\min } = 10^{4}\), \(\tau _{\max } = 10^2\), \(\eta = 10^{9}\), and \(M = 30\). See Fig. 1 for the numerical results. All three methods converge to the global minimiser, which shows that the Itoh–Abe methods are robust. Unsurprisingly, the random pursuit method and the rotated Itoh–Abe method, which descend in varying directions, perform significantly better than the standard Itoh–Abe method.
We additionally consider a nonsmooth variant of (6.1), termed Nesterov’s (second) nonsmooth Chebyshev–Rosenbrock function [34],
In this case too, the global minimiser \([1,1]^\mathrm{T}\) is located along a narrow path. Furthermore, there is a nonminimising, stationary point at \([0, 1]^\mathrm{T}\), which is nonregular, i.e. it has negative directional derivatives.
We also compare the three Itoh–Abe methods for this example, and set the algorithm parameters \(\varepsilon = 10^{10}\), \(\tau _{\min } = 10^{4}\), \(\tau _{\max } = 10^2\), \(\eta = 10^{16}\), and \(M = 100\). See Fig. 2 for the results from this. As can be seen, the standard Itoh–Abe discrete gradient method is not suitable for the irregular paths and nonsmooth kinks of the objective function, and stagnates early on. The two randomised Itoh–Abe methods perform better, as they descend in varying directions. For the remaining 2D problems in this paper, we will consider the rotated Itoh–Abe method, although we could just as well have used the random pursuit method. For higherdimensional problems, we recommend the random pursuit method.

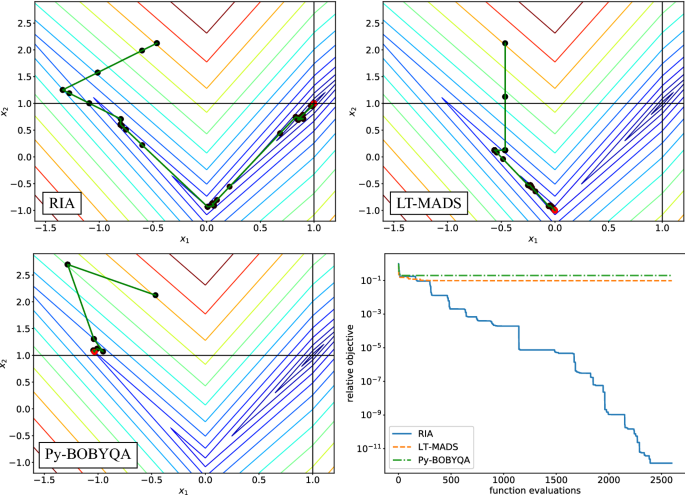

We compare the performance of the randomised Itoh–Abe (RIA) method to PyBOBYQA and LTMADS for Nesterov’s nonsmooth Chebyshev–Rosenbrock function. We set the parameters of the Itoh–Abe method to \(\varepsilon = 10^{10}\), \(\tau _{\min } = 10^{4}\), \(\tau _{\max } = 10^2\), \(\eta = 10^{16}\), and \(M = 100\), the parameters of PyBOBYQA to \(\hbox {rhobeg} = 2\), \(\hbox {rhoend} = 10^{16}\) and \(\hbox {npt} = (n+1)(n+2)/2\), and the parameters of LTMADS to \(\hbox {DIRECTION}\_\hbox {TYPE} = \hbox {LT } 2N\) and \(\hbox {MIN}\_\hbox {MESH}\_\hbox {SIZE} = 10^{13}\). See Figs. 3 and 4 for the numerical results for two different starting points. In the first case, the Itoh–Abe method successfully converges to the global minimiser, the LTMADS method locates the nonminimising stationary point at \([0, 1]^\mathrm{T}\), while the PyBOBYQA iterates stagnate at a kink, reflecting the fact that the method is not designed for nonsmooth functions. In the second case, both the Itoh–Abe method and LTMADS locate the minimiser, while the PyBOBYQA iterates stagnate at a kink.
6.2 Bilevel Parameter Learning in Image Analysis
In this subsection, we consider the Itoh–Abe method for solving bilevel optimisation problems for the learning of parameters of variational imaging problems. We restrict our focus to denoising problems, although the same method could be applied to any inverse problem. We first consider onedimensional bilevel problems with wavelet and TV denoising, and twodimensional problems with TGV denoising. In the TGV case, we compare the randomised Itoh–Abe method to the PyBOBYQA and LTMADS methods. Throughout this section, we set \(M = n\), where \(n= 1, 2\).
6.2.1 Setup for Variational Regularisation Problem
Consider an image \(u^\dagger \in L^2(\varOmega )\), for some domain \(\varOmega \subset {\mathbb {R}}^2\), and a noisy image
To recover a clean image from the noisy one, we consider a parametrised family of regularisers:
and solve the variational regularisation problem
The first term in (6.3), the data fidelity term, ensures that the reconstruction approximates \(f^\delta \). The regulariser term serves to denoise the reconstruction, by promoting favourable features such as smooth regions and sharp edges. The parameters \(\alpha \) determine how heavily to regularise, and sometimes adjust other features of the regulariser. See [6, 39, 71] for an overview of variational regularisation methods.
We list some common regularisers in image analysis. Total variation (TV) [11, 69] is given by the function \(R_\alpha (u) := \alpha {{\,\mathrm{TV}\,}}(u)\), where \(\alpha \in (0, \infty )\), and
This is one of the most common regularisers for image denoising. See Fig. 5 for an example of denoising with TV regularisation. We also consider its secondorder generalisation, total generalised variation [9, 10], \(R_\alpha (u) = {{\,\mathrm{TGV}\,}}_\alpha ^2(u)\), where \(\alpha = [\alpha _1, \alpha _2]^\mathrm{T} \in (0, \infty )^2\) and
For a linear, bounded operator \(W:L^2(\varOmega ) \rightarrow \ell ^2\), the basis pursuit regulariser
promotes sparsity of the image \(u\) in the dictionary of \(W\).

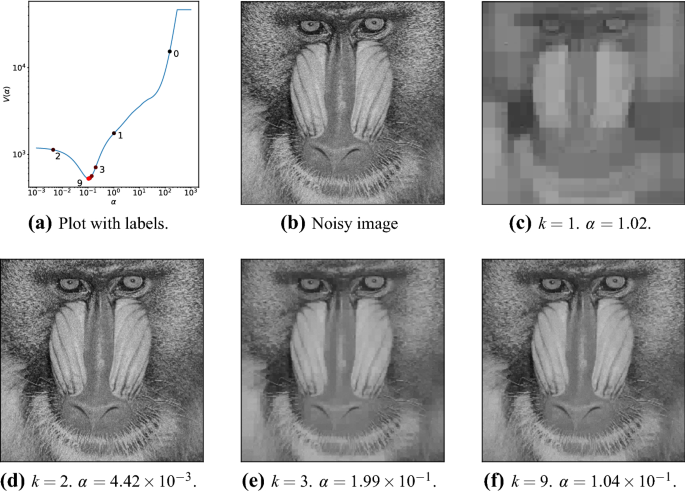

As illustrated in Fig. 5, the quality of the reconstruction is sensitive to \(\alpha \). If \(\alpha \) is too low, the reconstruction is too noisy, while if \(\alpha \) is too high, too much detail is removed. As it is generally not possible to ascertain the optimal choice of \(\alpha \) a priori, a significant amount of time and effort is spent on parameter tuning. It is therefore of interest to improve our understanding of optimal parameter choices. One approach is to learn suitable parameters from training data. This requires a desired reconstruction \(u^\dagger \), noisy data \(f^\delta \), and a scoring function \(\varPhi : L^2(\varOmega ) \rightarrow {\mathbb {R}}\) that measures the error between \(u^\dagger \) and the reconstruction \(u_\alpha \). The bilevel optimisation problem is given by
In our case, we have strong convexity in the data fidelity term, which implies that \(u_\alpha \) is unique for each \(\alpha \in (0, \infty )^n\). We can therefore define a mapping
The bilevel problem (6.4) is difficult to tackle, both analytically as well as numerically. In most cases, the lower level problem (6.3) does not have a closed form formulation. Instead, a reconstruction \(u_\alpha \) is approximated numerically with an algorithm^{Footnote 6}. Therefore, one typically does not have access to gradient or subgradient information^{Footnote 7} for the mappings \(\alpha \mapsto u_\alpha \). Furthermore, the bilevel mapping \(\alpha \mapsto \varPhi (u_\alpha )\) is often nonsmooth and nonconvex. Therefore, numerically solving (6.4) amounts to solving a nonsmooth, nonconvex function in a blackbox setting. We consider the application of the Itoh–Abe method for these problems.
For the numerical experiments in this paper, we reparametrise \(V(\alpha )\) as \(V(\exp (\alpha ))\), where the exponential operator is applied elementwise on the parameters. There are two reasons for doing so. The first reason is that this paper is concerned with unconstrained optimisation, and this parametrisation allows us to optimise on \({\mathbb {R}}^n\) instead of \((0, \infty )^n\). The second reason is that \(\exp (\alpha )\) has been found to be a preferable scaling for purposes of numerical optimisation.
For the numerical implementation, we discretise the domain \(\varOmega \) and represent the image \(u\) as a vector in some Euclidean space \({\mathbb {R}}^m\).
6.2.2 Wavelet Denoising
We consider the wavelet denoising problem
where \(W\) is the Haar wavelet transform. In particular, \(W\) is an orthogonal matrix, which implies that the regularisation problem has the unique solution
where \(T_\alpha \) is the shrinkage operator defined by
We first optimise \(\alpha \) for the scoring function
We set the parameters of the Itoh–Abe method to \(\varepsilon = 10^{4}\), \(\tau _{\min } = 10^{1}\), \(\tau _{\max } = 10\), and \(\eta = 10^{1}\). See Fig. 6 for the numerical results.
We also optimise \(\alpha \) with respect to the scoring function \(\varPhi (u) := 1  {{\,\mathrm{SSIM}\,}}(u, u^\dagger )\), where \({{\,\mathrm{SSIM}\,}}: {\mathbb {R}}^m \times {\mathbb {R}}^m \rightarrow {\mathbb {R}}\) is the structural similarity function [72] defined for two images \(u\) and \(v\) as
Here, \(\mu _u\) is the mean intensity of \(u\), \(\sigma _u\) is the unbiased estimate of the standard deviation of \(u\), and \(\sigma _{uv}\) is the correlation coefficient between \(u\) and \(v\):
The constants \(c > 0\) and \(C>0\) are small parameters which provide stability to the measure and are set to 0.01 and 0.03, respectively. We set the parameters of the Itoh–Abe method to \(\varepsilon = 10^{4}\), \(\tau _{\min } = 10^{3}\), \(\tau _{\max } = 10^3\), and \(\eta = 10^{2}\). See Fig. 7 for the numerical results.
6.2.3 Total Variation Denoising
We consider the TV denoising problem

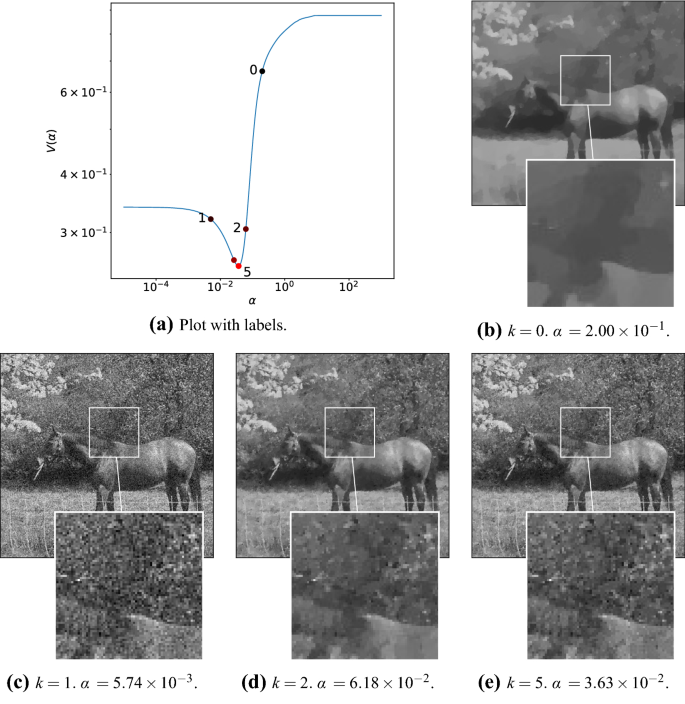

with the SSIM scoring function. We solve the above denoising problem using 300 iterations of the PDHG method [16]. We set the parameters of the Itoh–Abe method to \(\varepsilon = 10^{4}\), \(\tau _{\min } = 10^{5}\), \(\tau _{\max } = 9 \times 10^{4}\), and \(\eta = 10^{5}\). See Fig. 8 for the numerical results.

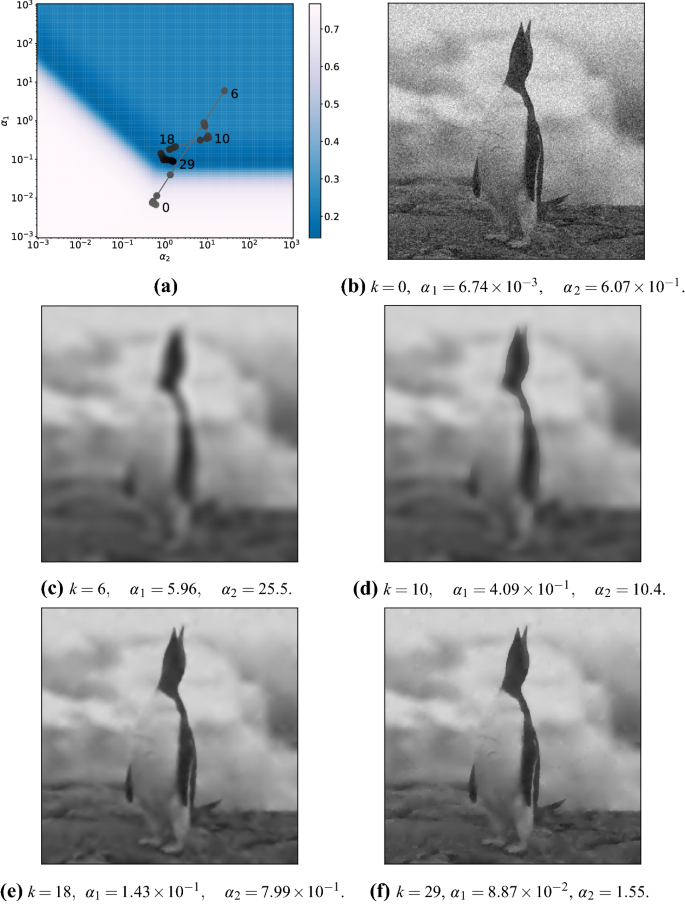

6.2.4 Total Generalised Variation Regularisation
We now consider the secondorder total generalised variation (TGV) regulariser for denoising, \(R_{\alpha _1,\alpha _2}(u) = {{\,\mathrm{TGV}\,}}_{\alpha _1,\alpha _2}^2(u)\), with the scoring function \(\varPhi (u) := 1  {{\,\mathrm{SSIM}\,}}(u, u^\dagger )\). Like for TV denoising, we solve the denoising problem using the PDHG method. We set the parameters of the randomised Itoh–Abe (RIA) method to \(\varepsilon = 10^{1}\), \(\tau _{\min } = 10^{3}\), \(\tau _{\max } = 10^5\), and \(\eta = 10^{20}\). See Fig. 9 for the numerical results.

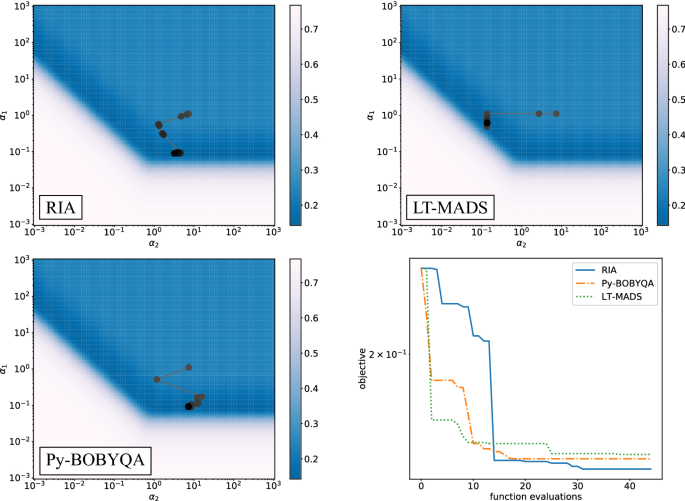

We compare these results to the results from the PyBOBYQA and LTMADS solvers. We set the parameters of PyBOBYQA to \(\hbox {rhobeg} = 2\), \(\hbox {rhoend} = 10^{10}\) and \(\hbox {npt} = 2(n+1)\) and the parameters of LTMADS to \(\hbox {DIRECTION}\_\hbox {TYPE} = \hbox {LT } 2N\). See the results for two different starting points in Figs. 10 and 11. We note that the objective function is approximately stationary across a range of values, which leads to the different points of convergence, and different limiting values of the objective function for different methods. We see that the methods are all of comparable efficiency, although the Itoh–Abe method is slower initially. The Itoh–Abe method seems to be the most efficient, once it is within a neighbourhood of the minimiser.
6.3 Continuity and Boundedness Properties of Bilevel Problems
For the theoretical analysis in this paper, we assume that the objective function \(V\) is locally Lipschitz continuous, bounded below, and coercive. In what follows, we briefly discuss whether bilevel problems of the form (6.4) will satisfy these properties.
We first consider the assumption that \(V\) is bounded below. Since \(V(\alpha ) = \varPhi (u_\alpha )\), this holds if \(\varPhi \) is bounded below, as is the case for \(\varPhi (u) = \Vert uu^\dagger \Vert ^2/2\) and \(1  {{\,\mathrm{SSIM}\,}}(u, u^\dagger )\) [72].
Coercivity does not hold for bilevel problems in general. This is because while the parameter domain \({\mathbb {R}}^n\) or \((0,\infty )^n\) is unbounded, the image in \({\mathbb {R}}^m\), \(\{u_\alpha \in {\mathbb {R}}^m : \alpha \in {\mathbb {R}}^n\}\), is often bounded (one may verify this, for example, for \(u_\alpha = \mathop {\mathrm{arg\,min}}\nolimits _{u \in {\mathbb {R}}} (u1)^2/2 + \alpha u\), \(\alpha > 0\)), leading to \(V(\alpha )\) flattening out as \(\Vert \alpha \Vert \) grows. However, for noncoercive objective functions, if the iterates of the Itoh–Abe method \((x^k)_{k\in {\mathbb {N}}}\) admit an accumulation point, then it is straightforward to verify that the results from Theorems 3.4 and 3.7 still hold. Alternatively, one can impose coercivity by including regularisation of the parameters in the scoring function.
Third, we consider local Lipschitz continuity of bilevel problems. A sufficient condition for this is that both the scoring function \(\varPhi \) and the solution mapping \(\alpha \mapsto u_\alpha \) are locally Lipschitz continuous. Local Lipschitz continuity of the scoring functions follows from continuous differentiability of \(\Vert \cdot \Vert ^2/2\) and \({{\,\mathrm{SSIM}\,}}\), which can be verified directly. Local Lipschitz continuity of the solution mapping \(\alpha \mapsto u_\alpha \) for general bilevel problems is beyond the scope of this paper, but we demonstrate it for a class of bilevel problems and afterwards mention some previous works that address this issue.
We consider bilevel problems where for \(\alpha > 0\)
where \(R\) is a convex, proper function that is Lipschitz continuous of rank \(L > 0\). For \(\beta> \alpha > 0\), there exist unique subgradients \(p_\alpha \in \partial R(u_\alpha )\) and \(p_\beta \in \partial R(u_\beta )\) such that
Then, we compute
where the first and second inequalities follow from convexity and Lipschitz continuity of \(R\), respectively, see [19, Propositions 2.2.9, 2.1.2]. Thus, we obtain \(\Vert u_\alpha  u_\beta \Vert \le L \beta  \alpha  \). This demonstrates local Lipschitz continuity for several of the bilevel problems we consider, including \(TV\) and wavelet denoising in Sects. 6.2.3 and 6.2.2.
We did not consider continuity properties of \(\alpha \mapsto u_\alpha \) for more general regularisation problems. However, we refer the reader to the strong regularity condition formulated by Robinson [67], which can be used to show local Lipschitz continuity of solution mappings, for example, as was done by Hintermüller and Wu [38] for blind deconvolution problems.
7 Conclusion
In this paper, we have shown that the randomised Itoh–Abe methods are efficient and robust schemes for solving unconstrained, nonsmooth, nonconvex problems without the use of gradients or subgradients. Furthermore, the favourable rates of dissipativity that the discrete gradient method inherits from the gradient flow system extend to the nonsmooth case. We show, under minimal assumptions on the objective function, that the methods admit a solution that is computationally tractable, and the iterates converge to a connected set of Clarke stationary points. Through examples, the assumptions are also shown to be necessary.
The methods are shown to be robust and versatile optimisation schemes. It locates the global minimisers of the Rosenbrock function and a variant of Nesterov’s nonsmooth Chebyshev–Rosenbrock functions. The efficiency of the Itoh–Abe discrete gradient method has already been demonstrated elsewhere for smooth problems [33, 55, 66] and sparse optimisation [7]. We also consider its application to bilevel learning problems and compare its performance to the derivativefree PyBOBYQA and LTMADS methods.
Future work will be dedicated to adapting the randomised Itoh–Abe methods for constrained optimisation problems, establishing convergence of the iterates of the method for KurdykaŁojasiewicz functions [1], and further analysing the Lipschitz continuity properties of bilevel optimisation for variational regularisation problems.
Notes
Not to be confused with another derivativefree method with the same name proposed by Bagirov et al. [5], which uses a different concept of a discrete gradient.
There are infinitely many discrete gradients, each with a corresponding discrete gradient method. See [33] for further examples.
For convex functions, \(p \in {\mathbb {R}}^n\) is an \(\varepsilon \)approximate subgradient if, for all \(y \in {\mathbb {R}}^n\), it is the case that \(V(y) \ge V(x) + \langle p, yx \rangle  \varepsilon \) [37].
Test images are taken from the Berkeley database [51]. Available online: https://www2.eecs.berkeley.edu/Research/Projects/CS/vision/bsds/BSDS300/html/dataset/images.html.
Accounting for inexact functions evaluations in the algorithm is beyond the scope of this paper. However, for bilevel learning, this issue was recently addressed by Ehrhardt and Roberts [25].
While automatic differentiation [32] can be useful for these purposes, it is in many cases not applicable to iterative algorithms that involve nonsmooth terms or for which the number of iterations cannot be predetermined. See [57] for further discussion of why derivativefree optimisation schemes are still needed.
References
Attouch, H., Bolte, J., Redont, P., Soubeyran, A.: Proximal alternating minimization and projection methods for nonconvex problems: An approach based on the KurdykaŁsojasiewicz inequality. Math. Oper. Res. 35(2), 438–457 (2010)
Audet, C., Dennis Jr, J.E.: Mesh adaptive direct search algorithms for constrained optimization. SIAM J. Optim. 17(1), 188–217 (2006)
Audet, C., Hare, W.: DerivativeFree and Blackbox Optimization, 1st edn. Springer Series in Operations Research and Financial Engineering. Springer International Publishing, Cham, Switzerland (2017)
Aussel, D.: Subdifferential properties of quasiconvex and pseudoconvex functions: unified approach. J. Optim. Theory. Appl. 97(1), 29–45 (1998)
Bagirov, A.M., Karasözen, B., Sezer, M.: Discrete gradient method: derivativefree method for nonsmooth optimization. J. Optim. Theory. Appl. 137(2), 317–334 (2008)
Benning, M., Burger, M.: Modern regularization methods for inverse problems. Acta Numer. 27, 1–111 (2018)
Benning, M., Riis, E.S., Schönlieb, C.B.: Bregman Itoh–Abe methods for sparse optimisation. J. Math. Imaging Vision (2020). https://doi.org/10.1007/s1085102000944x
Borwein, J.M., Zhu, Q.J.: A survey of subdifferential calculus with applications. Nonlinear Ana. Theory Methods Appl. 38(6), 687–773 (1999)
Bredies, K., Holler, M.: A TGVbased framework for variational image decompression, zooming, and reconstruction. part I: Analytics. SIAM J. Imag. Sci. 8(4), 2814–2850 (2015)
Bredies, K., Kunisch, K., Pock, T.: Total generalized variation. SIAM J. Imag. Sci. 3(3), 492–526 (2010)
Burger, M., Osher, S.: A guide to the TV zoo. In: M. Burger, S. Osher (eds.) Level Set and PDE Based Reconstruction Methods in Imaging: Cetraro, Italy 2008, pp. 1–70. Springer International Publishing, Cham (2013)
Burke, J.V., Curtis, F.E., Lewis, A.S., Overton, M.L., Simões, L.E.: Gradient sampling methods for nonsmooth optimization. In: A.M. Bagirov, M. Gaudioso, N. Karmitsa, M.M. Mäkelä, S. Taheri (eds.) Numerical Nonsmooth Optimization: State of the Art Algorithms, pp. 201–225. Springer International Publishing, Cham (2020)
Calatroni, L., Chung, C., De Los Reyes, J.C., Schönlieb, C.B., Valkonen, T.: Bilevel approaches for learning of variational imaging models arXiv:1505.02120 (2015)
Cartis, C., Fiala, J., Marteau, B., Roberts, L.: Improving the flexibility and robustness of modelbased derivativefree optimization solvers. ACM Trans. Math. Software 45(3), 1–41 (2019)
Celledoni, E., Eidnes, S., Owren, B., Ringholm, T.: Dissipative numerical schemes on riemannian manifolds with applications to gradient flows. SIAM J. Sci. Comput. 40(6), A3789–A3806 (2018)
Chambolle, A., Pock, T.: A firstorder primaldual algorithm for convex problems with applications to imaging. J. Math. Imaging Vision 40(1), 120–145 (2011)
Chung, K.: A Course in Probability Theory, 3rd edn. Academic Press, San Diego (2001)
Clarke, F.H.: Necessary conditions for nonsmooth problems in optimal control and the calculus of variations. Ph.D. thesis, University of Washington (1973)
Clarke, F.H.: Optimization and Nonsmooth Analysis, 1st edn. Classics in Applied Mathematics. SIAM, Philadelphia (1990)
Curtis, F.E., Que, X.: An adaptive gradient sampling algorithm for nonsmooth optimization. Optim. Methods Softw. 28(6), 1302–1324 (2013)
Curtis, F.E., Que, X.: A quasiNewton algorithm for nonconvex, nonsmooth optimization with global convergence guarantees. Math. Program. Comput. 7(4), 399–428 (2015)
De los Reyes, J.C., Schönlieb, C.B., Valkonen, T.: Bilevel parameter learning for higherorder total variation regularisation models. J. Math. Imaging Vision 57(1), 1–25 (2017)
DuPont, B., Cagan, J.: A hybrid extended pattern search/genetic algorithm for multistage wind farm optimization. Optim. Eng. 17(1), 77–103 (2016)
Ehrhardt, M.J., Riis, E.S., Ringholm, T., Schönlieb, C.B.: A geometric integration approach to smooth optimisation: Foundations of the discrete gradient method arXiv:1805.06444 (2018)
Ehrhardt, M.J., Roberts, L.: Inexact derivativefree optimization for bilevel learning. J. Math. Imaging. Vis. 63, 580–600 (2021)
Ekeland, I., Téman, R.: Convex Analysis and Variational Problems, 1st edn. SIAM, Philadelphia, PA, USA (1999)
Fasano, G., Liuzzi, G., Lucidi, S., Rinaldi, F.: A linesearchbased derivativefree approach for nonsmooth constrained optimization. SIAM J. Optim. 24(3), 959–992 (2014)
Fowler, K.R., Reese, J.P., Kees, C.E., Dennis Jr, J., Kelley, C.T., Miller, C.T., Audet, C., Booker, A.J., Couture, G., Darwin, R.W., et al.: Comparison of derivativefree optimization methods for groundwater supply and hydraulic capture community problems. Adv. Water Resour. 31(5), 743–757 (2008)
Giles, J.R.: A survey of Clarke’s subdifferential and the differentiability of locally Lipschitz functions. In: A. Eberhard, R. Hill, D. Ralph, B.M. Glover (eds.) Progress in Optimization: Contributions from Australasia, pp. 3–26. Springer US, Boston, MA (1999)
Gonzalez, O.: Time integration and discrete Hamiltonian systems. J. Nonlinear Sci. 6(5), 449–467 (1996)
Gray, G.A., Kolda, T.G., Sale, K., Young, M.M.: Optimizing an empirical scoring function for transmembrane protein structure determination. INFORMS J. Comput. 16(4), 406–418 (2004)
Griewank, A., Walther, A.: Evaluating Derivatives: Principles and Techniques of Algorithmic Differentiation, 2nd edn. Society for Industrial and Applied Mathematics, Philadelphia (2008)
Grimm, V., McLachlan, R.I., McLaren, D.I., Quispel, G.R.W., Schönlieb, C.B.: Discrete gradient methods for solving variational image regularisation models. J. Phys. A: Math. Theor. 50(29) (2017). https://doi.org/10.1088/17518121/aa747c
Gürbüzbalaban, M., Overton, M.L.: On Nesterov’s nonsmooth Chebyshev–Rosenbrock functions. Nonlinear Anal. Theory Methods Appl. 75(3), 1282–1289 (2012)
Hairer, E., Lubich, C., Wanner, G.: Geometric numerical integration: structurepreserving algorithms for ordinary differential equations, vol. 31, 2nd edn. Springer Science & Business Media, Berlin (2006)
Heath, M.T.: Scientific Computing: An Introductory Survey, 1st edn. McGrawHill, New York (2002)
Hintermüller, M.: A proximal bundle method based on approximate subgradients. Comput. Optim. Appl. 20(3), 245–266 (2001)
Hintermüller, M., Wu, T.: Bilevel optimization for calibrating point spread functions in blind deconvolution. Inverse Prob. Imaging 9(4), 1139–1169 (2015)
Ito, K., Jin, B.: Inverse Problems: Tikhonov Theory And Algorithms, 1st edn. Series On Applied Mathematics. World Scientific Publishing Company, Singapore (2014)
Itoh, T., Abe, K.: Hamiltonianconserving discrete canonical equations based on variational difference quotients. J. Comput. Phys. 76(1), 85–102 (1988)
Kämpf, J.H., Robinson, D.: Optimisation of building form for solar energy utilisation using constrained evolutionary algorithms. Energy Build. 42(6), 807–814 (2010)
Karimi, H., Nutini, J., Schmidt, M.: Linear convergence of gradient and proximalgradient methods under the Polyak–Łojasiewicz condition. In: P. Frasconi, N. Landwehr, G. Manco, J. Vreeken (eds.) Joint European Conference on Machine Learning and Knowledge Discovery in Databases, pp. 795–811. Springer, Springer International Publishing, Cham (2016)
Kiwiel, K.C.: Methods of descent for nondifferentiable optimization, vol. 1133, 1st edn. Springer, Berlin (1985)
Kiwiel, K.C.: A nonderivative version of the gradient sampling algorithm for nonsmooth nonconvex optimization. SIAM J. Optim. 20(4), 1983–1994 (2010)
Kunisch, K., Pock, T.: A bilevel optimization approach for parameter learning in variational models. SIAM J. Imag. Sci. 6(2), 938–983 (2013)
Larson, J., Menickelly, M., Wild, S.M.: Derivativefree optimization methods. Acta Numer. 28, 287–404 (2019)
Le Digabel, S.: Algorithm 909: NOMAD: Nonlinear optimization with the MADS algorithm. ACM Trans. Math. Software 37(4), 1–15 (2011)
Le Digabel, S., Tribes, C., Audet, C.: NOMAD user guide. technical report g200937. Tech. rep., Les cahiers du GERAD (2009)
Lewis, A.S., Overton, M.L.: Nonsmooth optimization via quasiNewton methods. Math. Program. 141, 135–163 (2013)
Liuzzi, G., Truemper, K.: Parallelized hybrid optimization methods for nonsmooth problems using NOMAD and linesearch. Comput. Appl. Math. 37, 3172–3207 (2018)
Martin, D., Fowlkes, C., Tal, D., Malik, J.: A database of human segmented natural images and its application to evaluating segmentation algorithms and measuring ecological statistics. In: Proceedings of the 8th International Conference on Computer Vision, vol. 2, pp. 416–423. IEEE (2001)
McLachlan, R.I., Quispel, G.R.W.: Six lectures on the geometric integration of ODEs, p. 155–210. London Mathematical Society Lecture Note Series. Cambridge University Press, Cambridge (2001)
McLachlan, R.I., Quispel, G.R.W., Robidoux, N.: Geometric integration using discrete gradients. Philos. Trans. A Math. Phys. Eng. Sci. 357(1754), 1021–1045 (1999)
Michel, P., Penot, J.P.: Calcul sousdifférentiel pour des fonctions lipschitziennes et non lipschitziennes. C. R. Acad. Sci. Paris 298, 269–272 (1984)
Miyatake, Y., Sogabe, T., Zhang, S.L.: On the equivalence between SORtype methods for linear systems and the discrete gradient methods for gradient systems. J. Comput. Appl. Math. 342, 58–69 (2018)
Nelder, J.A., Mead, R.: A simplex method for function minimization. Comput. J. 7(4), 308–313 (1965)
Nesterov, Y., Spokoiny, V.: Random gradientfree minimization of convex functions. Found. Comput. Math. 17(2), 527–566 (2017)
Ochs, P., Ranftl, R., Brox, T., Pock, T.: Bilevel optimization with nonsmooth lower level problems. In: J.F. Aujol, M. Nikolova, N. Papadakis (eds.) Scale Space and Variational Methods in Computer Vision, pp. 654–665. Springer International Publishing, Cham (2015)
Oeuvray, R., Bierlaire, M.: A new derivativefree algorithm for the medical image registration problem. Int. J. Model. Simul. 27(2), 115–124 (2007)
Pathiraja, S., Reich, S.: Discrete gradients for computational Bayesian inference. J. Comput. Dyn. 6(2), 385–400 (2019)
Penot, J.P., Quang, P.H.: Generalized convexity of functions and generalized monotonicity of setvalued maps. J. Optim. Theory. Appl. 92(2), 343–356 (1997)
Polyak, B.T.: Introduction to Optimization, 1st edn. Optimization Software, Inc., New York (1987)
Powell, M.J.D.: The NEWUOA software for unconstrained optimization without derivatives. In: G. Di Pillo, M. Roma (eds.) LargeScale Nonlinear Optimization, 1st edn., pp. 255–297. Springer US, Boston, MA (2006)
Powell, M.J.D.: The BOBYQA algorithm for bound constrained optimization without derivatives. Tech. rep., University of Cambridge (2009)
Quispel, G.R.W., Turner, G.S.: Discrete gradient methods for solving ODEs numerically while preserving a first integral. J. Phys. A: Math. Gen. 29(13), 341–349 (1996)
Ringholm, T., Lazic, J., Schonlieb, C.B.: Variational image regularization with Euler’s elastica using a discrete gradient scheme. SIAM J. Imaging Sci. 11(4), 2665–2691 (2018)
Robinson, S.M.: Strongly regular generalized equations. Math. Oper. Res. 5(1), 43–62 (1980)
Rosenbrock, H.H.: An automatic method for finding the greatest or least value of a function. Comput. J. 3(3), 175–184 (1960)
Rudin, L.I., Osher, S., Fatemi, E.: Nonlinear total variation based noise removal algorithms. Physica D 60(14), 259–268 (1992)
Rudin, W.: Principles of Mathematical Analysis, 3rd edn. International series in pure and applied mathematics. McGrawHill, New York (1976)
Scherzer, O., Grasmair, M., Grossauer, H., Haltmeier, M., Lenzen, F.: Variational Methods in Imaging, 1st edn. Applied Mathematical Sciences. Springer, New York (2008)
Wang, Z., Bovik, A.C., Sheikh, H.R., Simoncelli, E.P.: Image quality assessment: from error visibility to structural similarity. IEEE Trans. Image Process. 13(4), 600–612 (2004)
Acknowledgements
The authors give thanks to Lindon Roberts for helpful discussions and for providing code for PyBOBYQA, to Antonin Chambolle for helpful discussions, and to the reviewers for useful feedback.
Author information
Authors and Affiliations
Corresponding author
Additional information
Communicated by Arieh Iserles.
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
All authors acknowledges support from the European Union Horizon 2020 research and innovation programmes under the Marie SkłodowskaCurie Grant Agreement No. 691070. ESR, MJE, and CBS acknowledges support from the Cantab Capital Institute for the Mathematics of Information. ESR acknowledges support from London Mathematical Society. MJE and CBS acknowledges support from Leverhulme Trust project “Breaking the nonconvexity barrier”, EPSRC Grant “EP/M00483X/1”, and EPSRC centre “EP/N014588/1”. GRWQ acknowledges support from the Australian Research Council and is grateful to the Mittag–Leffler Institute for a productive stay. Moreover, CBS acknowledges support from the RISE project NoMADS and the Alan Turing Institute. MJE acknowledges support from the EPSRC (EP/S026045/1) and the Faraday Institution (EP/T007745/1)
Appendices
Appendix A Probability Theory
In what follows, we show that a sequence \((d^k)_{k\in {\mathbb {N}}} \subset S^{n1}\) of independent draws from a probability distribution \(\varXi \) is almost surely not cyclically dense. This is a simple consequence of the second Borel–Cantelli lemma [17, Theorem 4.2.4].
Proposition A.1
Let \((d^k)_{k\in {\mathbb {N}}} \subset S^{n1}\) be a sequence of independent draws from \(\varXi \) on \(S^{n1}\). Then, \((d^k)_{k\in {\mathbb {N}}}\) is almost surely not cyclically dense.
Proof
For \(\varepsilon >0\), \(d^* \in S^{n1}\), choose a set \(U \subset S^{n1}\) such that \(p := {\mathbb {P}}_\varXi (d \in U) \in (0,1)\) and \(B_\varepsilon (d^*) \cap U = \varnothing \). For \(k \in {\mathbb {N}}\), set \(A_k = 1\) if \(d^k \in U\) and \(A_k =0\) otherwise. Then, \((A_k)_{k\in {\mathbb {N}}}\) is a sequence of independent Bernoulli trials with success probability \(p\).
We set \(k_0 = 0\) and define recursively \(k_{i+1}\) as the largest integer such that \(k_{i+1}  k_i \le \log _{1/p}(i)\) for \(i \in {\mathbb {N}}\). Denote by \(E_i\) the event that \(A_j = 1\) for all \(k_i \le j < k_{i+1}\). Then, \((E_i)_{i\in {\mathbb {N}}}\) is a sequence of independent events, and \({\mathbb {P}}(E_i) = p^{k_{i+1}k_i} \ge 1/i\). Thus, \(\sum _{i\in {\mathbb {N}}} {\mathbb {P}}(E_i) = +\infty \), so by the second Borel–Cantelli lemma [17, Theorem 4.2.4], almost surely infinitely many of the events \(E_i\) occur.
Note that \(k_{i+1}  k_i \rightarrow \infty \) as \(i \rightarrow \infty \), since \(\log _{1/p}(i) \rightarrow \infty \). Hence, if infinitely many of the events \(E_i\) occur, then the sequence \((d^k)_{k\in {\mathbb {N}}}\) contains strings of consecutive draws of arbitrary length which do not intersect with \(S^{n1} {\setminus } U \supset B_\varepsilon (d^*) \cap S^{n1}\). This violates the conditions for cyclical density. Hence, \((d^k)_{k\in {\mathbb {N}}}\) is almost surely not cyclically dense. \(\square \)
Appendix B Algorithms for Inner Solver
In this section, we provide full details on the approach to solving the Itoh–Abe discrete gradient equation (1.6). We furthermore ascertain that this algorithm terminates in a finite number of steps, and outputs a solution to (5.1).
In what follows, we prove several statements about Algorithms 4 and 6.
Proposition B.1
Algorithms 4 and 6 terminate after a finite number of steps.
Proof
We first prove this for Algorithm 4. The only loop statement in this algorithm is the line segment 4–10. For this loop to go on indefinitely, the difference quotients
with \(c = f(\varepsilon ){\overline{\tau }}/\varepsilon > 0\), would need to be nonincreasing with respect to \(j \in {\mathbb {N}}\), due to the condition in Algorithm 5, line 2. This and the fact that \(c/\sigma ^j \rightarrow \infty \) as \(j \rightarrow \infty \) imply that \(f(c/\sigma ^j) \rightarrow  \infty \), hence violating the assumption that \(V\) and \(f\) are bounded below. Thus, Algorithm 4 terminates in a finite number of steps.
We prove the same for Algorithm 6. In this algorithm, there are three loop statements, starting at lines 6, 11, and 21, respectively. The first and third loops are guaranteed to terminate, as otherwise we would have \(\beta ^*  \beta _* \rightarrow 0\), violating the criteria that \(\beta ^*  \beta _* > \varepsilon \). The second loop will terminate as a consequence of \(V\) (and thus \(f\)) being bounded below.
Finally, we verify that Algorithm 3 indeed solves (5.1).
Proposition B.2
For input \(x\) and \(d\), the output of Algorithm 3, \(x + \beta d\), is a solution to the Itoh–Abe scalar equation as defined in (5.1).
Proof
We prove this on a casebycase basis.
The first case is that Algorithm 3 finds in line 4 that \(V\) is directionally stationary at \(x\) along \(d\) up to \(\varepsilon \)tolerance, and sets \(\beta = 0\). If \(V\) is indeed directionally stationary at \(x\) along \(d\), then clearly output \(x\) satisfies (5.1). Otherwise, then without loss of generality, we can assume that \(V^o(x; d) < 0\), and by arguing as in the proof to Lemma 3.1, there exists \(\beta \in (0,\varepsilon )\) such that \(V(x+\beta d)  V(x) <  \beta ^2/\tau _{\min }\). This together with the inequality \(V(x+\varepsilon d)  V(x) \ge  \varepsilon ^2/\tau _{\min }\) and the intermediate value theorem implies that there exists \({\tilde{\beta }} \in (\beta ,\varepsilon )\) such that \({\tilde{\beta }}/\tau _{\min }\) solves (1.6) for the time step \(\tau _{\min }\). It would follow that \(x\) satisfies (5.1).
The next cases are in Algorithm 6, lines 3, 16, and 18. In each of these cases, it follows by definition that the output \(x+\beta d\) solves (5.1).
The final case is Algorithm 6, line 30, via line 27, as the outcome of the while loop starting at line 21. If, at the termination of the loop, the first condition fails, meaning that \(f(\beta )/\beta ^2 \in [1/\tau _{\max },1/\tau _{\min }]\), then trivially the output \(x+\beta d\) solves (5.1). Otherwise, if the second condition fails, then \(\beta ^*\beta _* \le \varepsilon \), and by the bounds \(f(\beta ^*)/{\beta ^*}^2 < 1/\tau _{\max }\) and \(f(\beta _*)/\beta _*^2 > 1/\tau _{\min }\), the continuity of \(\beta \mapsto f(\beta )/\beta ^2\), and the intermediate value theorem [70, Theorem 4.23], for an arbitrary \(\tau \in [\tau _{\min },\tau _{\max }]\), there is \({\tilde{\beta }} \in [\beta _*,\beta ^*]\) such that \({\tilde{\beta }}/\tau \) solves (1.6) for \(\tau \). Furthermore, since \(\beta \in (\beta _*, \beta ^*)\), we have \(\beta  {\tilde{\beta }} < \varepsilon \) and thus \(x + \beta d\) solves (5.1). This concludes the proof. \(\square \)
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Riis, E.S., Ehrhardt, M.J., Quispel, G.R.W. et al. A Geometric Integration Approach to Nonsmooth, Nonconvex Optimisation. Found Comput Math 22, 1351–1394 (2022). https://doi.org/10.1007/s10208020094892
Received:
Revised:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s10208020094892
Keywords
 Geometric numerical integration
 Discrete gradient methods
 Derivativefree optimisation
 Nonconvex optimisation
 Nonsmooth optimisation
 Clarke subdifferential
 Bilevel optimisation
