Abstract
A series of 6′-chloro-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione derivatives have been synthesized from isatoic anhydride and 3-(R2-amino)-1,4,2-benzodithiazine 1,1-dioxides. Some synthetic limitations are discussed on the basis of quantum chemical calculations performed by use of the Hartree–Fock method.

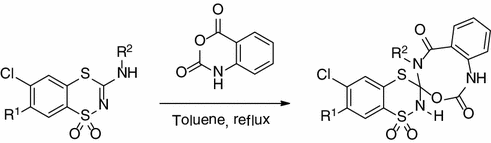

Graphical Abstract
![](http://media.springernature.com/lw685/springer-static/image/art%3A10.1007%2Fs00706-013-1010-y/MediaObjects/706_2013_1010_Figa_HTML.gif)
Similar content being viewed by others
Avoid common mistakes on your manuscript.
Introduction

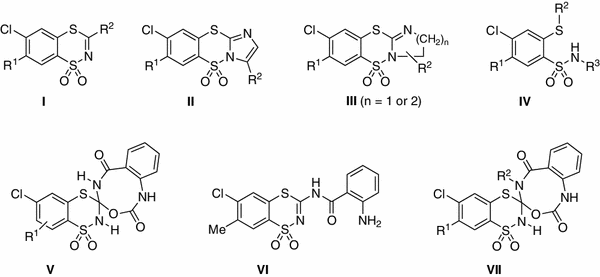

Compounds containing the 1,1-dioxo-1,4,2-benzodithiazine ring system were synthesized in our laboratories in 1984 and have attracted much attention for several years because of their wide range of biological activity. It has been demonstrated that many 6-chloro-1,4,2-benzodithiazine derivatives (Fig. 1, type I) have low acute toxicity to mice and rats and, depending on their structure, act as potential radio-protective [1, 2], diuretic [1–5], or cholagogue [5] agents. It has also been shown that some 6-chloro-1,1-dioxo-1,4,2-benzodithiazines have remarkable antitumor activity (Fig. 1, types I [6–8] and II [9, 10]) or anti-HIV activity (Fig. 1, types I [11, 12], II [9], and III [13]).
Furthermore, 6-chloro-3-methylthio-1,4,2-benzodithiazine 1,1-dioxides have attracted our investigative attention because of their suitability for chemical transformation into otherwise not readily obtained 4-chloro-2-mercaptobenzenesulfonamide derivatives of type IV (Fig. 1). These compounds have remarkable structure-dependent antitumor activity [14–26], anti-HIV activity [14–17, 27–30], antibacterial activity [31], or strong inhibitory activity of human carbonic anhydrase (CA) isozymes I, II, IX, and XII [32–34]. Some of the compounds have been reported to be novel HIV-1 integrase inhibitors (MBSAs) [8, 11–13].
Recently, we have reported the synthesis and some chemical properties of 6′-chloro-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione derivatives of type V (Fig. 1) [35]. More recently the compound V (R1 = 7′-Me) and its potential metabolite VI [35] have been tested in vitro at the National Cancer Institute (Bethesda MD, USA) at a single dose (10 μM) in the full NCI 60-cell lines panel. The most susceptible were lung cancer cells (HOP-92) and melanoma (MALME-3 M) carcinoma cell lines whose growth was inhibited by 34 and 28 % by compounds of type V (R1 = 7′-Me) and VI, respectively. In this work, the possibility of using reaction of 3-amino-6-chloro-1,4,2-benzodithiazine 1,1-dioxide derivatives with isatoic anhydride for synthesis of novel series of spiro compounds of type VII (Fig. 1) with potential biological activity or as useful starting materials for further chemical transformation has been investigated.
Synthesis of nitrogen-containing heterocyclic systems from isatoic anhydrides has been reported in the literature since 1981 [36, 37]. This work covers both direct transformation of the anhydrides into such heterocyclic systems, and processes leading initially to formation of anthranilic acid derivatives which are then transformed into the heterocyclic compounds in one or several stages. It is important that such transformations result in the formation of new five and six-membered heterocyclic systems. Furthermore, regioselective three-component reaction of isatoic anhydride, primary amines, and isatins to spirooxindole derivatives has also been reported [38].
Results and discussion
Chemistry

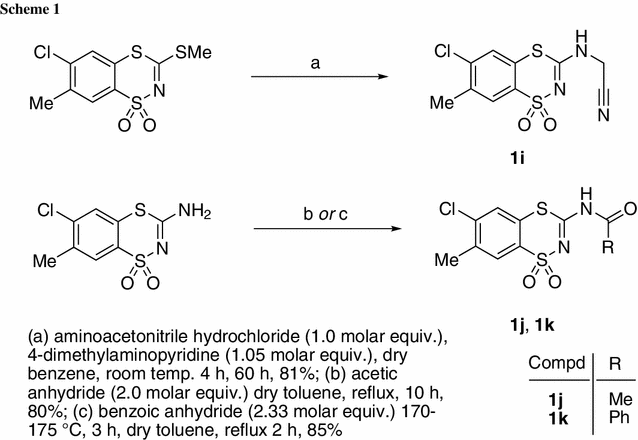

Previously described methods were used for synthesis of 3-amino-6-chloro-1,4,2-benzodithiazine derivatives 1a-1e [3], 1f, 1g [27], 1h [39], 1l–1p [9], 1r [40], 1s, and 1t [41]. Similar methods were used to prepare the new starting benzodithiazines 1i, 1j, and 1k (Scheme 1).
![scheme 1](http://media.springernature.com/lw685/springer-static/image/art%3A10.1007%2Fs00706-013-1010-y/MediaObjects/706_2013_1010_Sch1_HTML.gif)
·

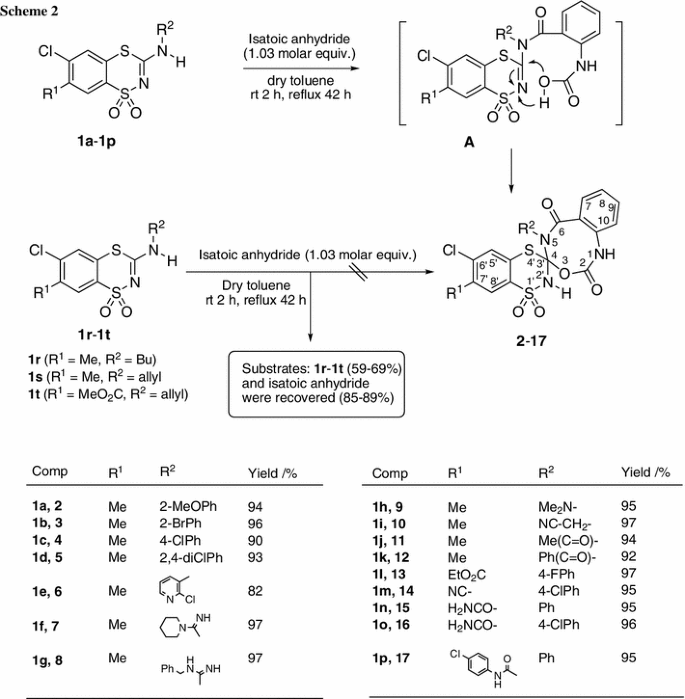

As shown in Scheme 2, synthesis of the target 6′-chloro-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione derivatives 2–17 was achieved in good to excellent yield (81–97 %) by a convenient procedure starting from isatoic anhydride and benzodithiazines 1a–1p. However, reaction with benzodithiazines 1r, 1s, and 1t failed. In these instances the substrates, only, were recovered from the resulting reaction mixture, i.e. isatoic anhydride (85–89 %) and the corresponding 3-aminobenzodithiazines 1r (69 %), 1 s (59 %), or 1t (69 %).
![scheme 2](http://media.springernature.com/lw685/springer-static/image/art%3A10.1007%2Fs00706-013-1010-y/MediaObjects/706_2013_1010_Sch2_HTML.gif)
·
It is supposed that reaction of isatoic anhydride with benzodithiazines 1a–1t depends on the electronic effect of their substituents R2. Thus, only 3-aminobenzodithiazines 1r–1t, bearing substituents R2 with electron-donating effects were unsuitable for formation of intermediate compounds of type A (Scheme 2) and further conversion to the desired spiro compounds of type 2–17 by cycloaddition reaction. Trying to understand and to explain this phenomenon we also undertook studies using ab-initio calculations for molecules 1a–1t (in toluene), by use of the Hartree–Fock method.
The structures of the new compounds were confirmed by elemental analysis and by IR and NMR spectroscopy; the results are given in the “Experimental” section. Inspection of the 13C NMR spectra of spiro-cyclic compounds 2–17 revealed the characteristic signals of the spiro carbon atom (C-4,3′) in the upfield region δ = 110.27–110.95 ppm, and the presence of two carbonyl groups at positions 2 and 6 of the benzo[d][1,3,7]oxadiazocine ring was indicated by characteristic signals in the regions 153.58–160.57 and 160.00–166.32 ppm, respectively. The 1H NMR spectra contained characteristic signals in the regions δ = 7.02–7.19 (d, J = 7.9–8.3 Hz) for H-10, 7.24–7.28 (t, J = 7.1–8.1 Hz) for H-9, 7.56–7.75 (t, J = 7.1–8.3 Hz) for H-8, 7.83–7.99 (d, J = 7.1–9.0 Hz) or 7.91 (dd, J ortho = 7.9, J meta = 1.2 Hz) for H-7, 8.10–12.95 as singlet for H-1, 8.10–11.82 (s) for H-2′, 7.38–8.37 (s) for H-5′, and 7.24 (s) for H-8′. The IR spectra of compounds 2–17 contained strong absorption bands of the two carbonyl C=O groups in the regions 1,720–1,730 and 1,765 cm−1.
Molecular modeling studies
Quantum chemical calculations were performed by use of Spartan 08 software [42] to study the molecular geometry and electronic structure of 6-chloro-7-R1-3-(R2-amino)-1,4,2-benzodithiazine 1,1-dioxides 1a–1t. The full optimized geometries of compounds 1a–1t in toluene were calculated by use of the ab-initio restricted Hartree–Fock (RHF) method with the 6-31G* polarization basis set. The calculated relative tautomer energies with the Boltzmann distribution term equal to unity confirm experimental results that 3-(R2-amino)-1,4,2-benzodithiazine is a low-energy tautomer, more stable than the 3-(R2-imino)-1,4,2-benzodithiazine isomer.
The electrostatic atomic charges of the starting 3-aminobenzodithiazines 1a–1t (Table 1) and electrostatic potential surface maps (Fig. 2), as affected by their R2 substituents, provide information about the reactivity of the molecules in reactions with electrophiles.
The relative reactivity can be judged from the values of the atomic charges calculated for the nucleophilic centers of the compounds. Thus, the higher negative electrostatic charges found on the nitrogen atom of the amine groups of compounds 1a–1p explained the different chemical behavior of 3-aminobenzodithiazines 1s–1t in reactions with isatoic anhydride (Table 1).

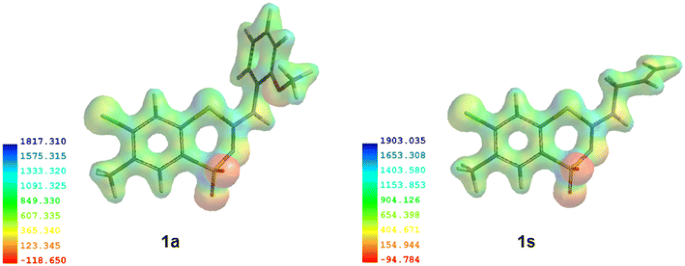

The plots of electrostatic potential as maps in Fig. 2 show the electron charge density of representative compounds 1a and 1s. Compound 1a has a region of high negative charge on the N atom whereas compound 1s has less negative charge on this nitrogen atom, which explains its low reactivity.
Conclusion
We have developed a method for preparation of new series of 6′-chloro-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione derivatives 2–17 by reaction of isatoic anhydride with 3-(R2-amino)-6-chloro-1,4,2-benzodithiazine 1,1-dioxide derivatives bearing R2 substituents of diverse electronic nature. For substrates 1a–1t geometry optimization was performed, by use of Spartan 08 software and the ab-initio restricted Hartree–Fock (RHF) method at the 6-31G* level. Theoretical studies enabled explanation of the different chemical behavior of 3-aminobenzodithiazines toward isatoic anhydride. The unreactive substrates 1r–1t were characterized by less negative charge and greater electrostatic potential on the nitrogen atom of the amine group than the reactive compounds 1a–1p. Further structural modification and biological evaluation of these compounds are in progress and will be reported elsewhere.
Experimental
The instrumentation and conditions used were: melting points Büchi 535 apparatus; IR spectra: KBr pellets, 400–4,000 cm−1, Perkin Elmer 1600 FT-IR spectrophotometer; 1H NMR and 13C NMR: Varian Gemini 200 apparatus at 200 and 50 MHz, respectively; spectra were recorded in dimethyl sulfoxide-d 6 (DMSO-d 6); chemical shifts are expressed as δ values relative to Me4Si as standard; coupling constants (J) are given in hertz; multiplicity in 1H NMR is reported as singlet (s), broad singlet (br s), doublet (d), doublet of doublets (dd), triplet (t), quartet (q), and multiplet (m). The results of elemental analysis for C, H, and N were in agreement with calculated values within ±0.3 %. Thin-layer chromatography (TLC) was performed on Merck silica gel 60F254 plates and visualized by UV illumination. The starting 6-chloro-7-methyl-3-methylthio-1,4,2-benzodithiazine 1,1-dioxide and 3-amino-6-chloro-7-methyl-1,4,2-benzodithiazine 1,1-dioxide were obtained by use of previously described procedures [2, 43].
2-(6-Chloro-7-methyl-1,4,2-benzodithiazin-3-ylamino)acetonitrile 1,1-dioxide (1i, C10H8ClN3O2S2)
A mixture of 5.88 g 6-chloro-7-methyl-3-methylthio-1,4,2-benzodithiazin 1,1-dioxide (0.02 mol), 1.85 g aminoacetonitrile hydrochloride (0.02 mol), and 2.56 g 4-dimethylaminopyridine (0.021 mol) in 50 cm3 dry benzene was stirred at room temperature for 4 h, followed by reflux until evolution of CH3SH had ceased (55–60 h) (CAUTION: because of high toxicity, CH3SH should be trapped in aqueous NaOH solution). The solvent was evaporated under reduced pressure to give an oily residue and 70 cm3 water was added, with stirring. The resulting suspension (pH ~7.8) was acidified to pH 2 by addition of 1 % hydrochloric acid. After stirring at room temperature for 6 h, the crude product was collected by filtration, washed with water (6 × 5 cm3), dried, and purified by recrystallization from 40 cm3 glacial acetic acid. Yield: 4.9 g (81 %); m.p.: 228–229 °C; R f = 0.76 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,340 (NH), 2,255 (C≡N), 1,560 (C=N), 1,345, 1,315, 1,165 (SO2) cm−1; 1H NMR: δ = 2.43 (s, 3H, CH3), 4.52 (s, 2H, CH2), 7.96 (s, 1H, H-5), 8.03 (s, 1H, H-8), 10.34 (s, 1H, NH) ppm; 13C NMR: δ = 19.58, 30.88, 116.28, 126.88, 127.25, 128.47, 130.87, 137.63, 137.94, 163.83 ppm.
3-Acetylamino-6-chloro-7-methyl-1,4,2-benzodithiazine 1,1-dioxide (1j, C10H9ClN2O3S2)
A mixture of 5.25 g 3-amino-6-chloro-7-methyl-1,4,2-benzodithiazine 1,1-dioxide (0.02 mol) and 4.10 g acetic anhydride (0.04 mol) in 50 cm3 dry toluene was stirred under reflux for 10 h. After cooling to room temperature, the precipitate was collected by filtration, washed successively with toluene (3 × 5 cm3), methanol (2 × 5 cm3), and acetonitrile (3 × 5 cm3), and dried. Yield: 4.9 g (80 %); m.p.: 264–265 °C; R f = 0.74 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,220, 3,190 (NH), 1,710 (C=O), 1,555 (C=N), 1,345, 1,310, 1,160 (SO2) cm−1; 1H NMR: δ = 2.19 (s, 3H, CH3), 2.40 (s, 3H, CH3C=O), 8.00 (s, 1H, H-5), 8.06 (s, 1H, H-8), 12.15 (s, 1H, NH) ppm; 13C NMR: δ = 19.60, 23.95, 126.52, 128.42, 129.00, 129.35, 138.06, 138.91, 163.41, 172.27 ppm.
3-Benzoylamino-6-chloro-7-methyl-1,4,2-benzodithiazine 1,1-dioxide (1k, C15H11ClN2O3S2)
A mixture of 3.94 g 3-amino-6-chloro-7-methyl-1,4,2-benzodithiazine 1,1-dioxide (0.015 mol) and 7.92 g benzoic anhydride (0.035 mol) was stirred at 170–175 °C for 3 h. After cooling to 105 °C, 60 cm3 dry toluene was added to the reaction mixture. The resulting suspension was further stirred under reflux for 2 h. After cooling to room temperature and standing overnight, the precipitate was collected by filtration, washed with toluene (3 × 5 cm3) and ethanol (3 × 5 cm3), and dried. Yield: 4.7 g (85 %); m.p.: 279–280 °C; IR (KBr): \( \bar{\nu } \) = 3,260 (NH), 1,695 (C=O), 1,565 (C=N), 1,345, 1,305, 1,170 (SO2) cm−1; 1H NMR: δ = 2.46 (s, 3H, CH3), 7.58 (t, J = 7.8 Hz, 2H, H-3 and H-5, PhC=O), 7.70 (t, J = 7.3 Hz, 1H, H-4, PhC=O), 8.02 (d, J = 7.8 Hz, 2H, H-2 and H-6, PhC=O), 8.05 (s, 1H, H-5 benzodithiazine), 8.08 (s, 1H, H-8 benzodithiazine), 12.90 (s, 1H, NH) ppm; 13C NMR: δ = 19.56, 126.55, 128.47, 128.94, 129.20, 129.40, 129.64, 131.29, 134.07, 138.12, 138.96, 165.11, 168.46 ppm.
General procedure for the preparation of spiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione derivatives 2–17
A mixture of 0.84 g isatoic anhydride (5.15 mmol) and the corresponding 6-chloro-7-R1-3-(R2-amino)-1,4,2-benzodithiazine 1,1-dioxide 1a–1p (5 mmol) in dry toluene (15 cm3 for 1 g benzodithiazine) was stirred at room temperature for 2 h, followed by reflux for 42 h. After cooling to room temperature, the precipitate was collected by filtration, and washed successively with toluene (3 × 4 cm3), methanol (5 × 3 cm3), and petroleum ether (3 × 3 cm3). In this manner, the following spiro compounds were obtained (analogous reactions with 3-(R2-amino)-1,4,2-benzodithiazine 1,1-dioxide 1r, 1s, and 1t, bearing R2-substituents with strong or weak electron-donating effect, failed).
6′-Chloro-5-(2-methoxyphenyl)-7′-methyl-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione (2, C23H18ClN3O6S2)
Starting from 1.85 g 6-chloro-7-methyl-3-(2-methoxyphenylamino)-1,4,2-benzodithiazine 1,1-dioxide (1a), the title compound 2 was obtained. Yield: 2.5 g (94 %); m.p.: 200–201 °C (dec.); TLC: R f = 0.95 (CHCl3–MeOH 16:3); IR (KBr): \( \bar{\nu } \) = 3,315, 3,240, 3,175 (NH), 1,765, 1,730 (C=O), 1,340, 1,310, 1,155 (SO2) cm−1; 1H NMR: δ = 2.42 (s, 3H, CH3), 3.82 (s, 3H, CH3O), 7.02 (d, J = 8.1 Hz, 1H, H-10), 7.15–7.24 (m, 2H, arom), 7.28–7.41 (m, 3H, arom), 7.74 (t, J = 7.6 Hz, 1H, H-8), 7.89 (d, J = 7.6 Hz, 1H, H-7), 7.93 (s, 1H, H-5′), 7.99 (s, 1H, H-8′), 11.06 (br s, 1H, NH), 11.70 (br s, 1H, NH) ppm; 13C NMR: δ = 19.56, 56.08, 110.53, 112.76, 115.59, 120.83, 123.77, 124.00, 126.70, 126.90, 127.85, 127.92, 128.41, 128.92, 129.20, 131.14, 137.19, 137.39, 137.71, 141.66, 147.36, 153.58, 160.14 ppm.
5-(2-Bromophenyl)-6′-chloro-7′-methyl-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione (3, C22H15BrClN3O5S2)
Starting from 2.09 g 3-(2-bromophenylamino)-6-chloro-7-methyl-1,4,2-benzodithiazine 1,1-dioxide (1b), the title compound 3 was obtained. Yield: 2.8 g (96 %); m.p.: 222–223 °C (dec.); TLC: R f = 0.78 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,245, 3,185 (NH), 1,765, 1,725 (C=O), 1,365, 1,330, 1,155 (SO2) cm−1; 1H NMR: δ = 2.13 (s, 3H, CH3), 7.15 (d, J = 8.2 Hz, 1H, H-10), 7.24 (t, J = 8.1 Hz, 1H, H-9), 7.36–7.39 (m, 1H, arom), 7.46–7.52 (m, 2H, arom), 7.68–7.71 (m, 1H, arom), 7.74 (t, J = 7.8 Hz, 1H, H-8), 7.91 (dd, J ortho = 7.9 Hz, J meta = 1.2 Hz, 1H, H-7), 7.97 (s, 1H, H-5′), 8.00 (s, 1H, H-8′), 11.46 (s, 1H, NH), 11.73 (s, 1H, NH) ppm; 13C NMR: δ = 19.58, 110.53, 115.59, 123.78, 126.80, 127.52, 128.54, 129.11, 129.20, 129.79, 130.00, 130.16, 130.41, 130.87, 133.59, 137.20, 137.55, 137.95, 141.66, 147.36, 158.00, 160.14 ppm.
6′-Chloro-5-(4-chlorophenyl)-7′-methyl-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione (4, C22H15Cl2N3O5S2)
Starting from 1.87 g 6-chloro-3-(4-chlorophenylamino)-7-methyl-1,4,2-benzodithiazine 1,1-dioxide (1c), the title compound 4 was obtained. Yield: 2.4 g (90 %); m.p.: 296–297 °C (dec.); TLC: R f = 0.76 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,270, 3,200, 3,125 (NH), 1,765, 1,725 (C=O), 1,315, 1,290, 1,145 (SO2) cm−1; 1H NMR: δ = 2.44 (s, 3H, CH3), 7.15 (d, J = 8.1 Hz, 1H, H-10), 7.28 (t, J = 7.6 Hz, 1H, H-9), 7.50 (d, J = 8.8 Hz, 2H, 4-ClPh), 7.66 (d, J = 8.8 Hz, 2H, 4-ClPh), 7.73 (t, J = 8.3 Hz, 1H, H-8), 7.91 (d, J = 7.0 Hz, 1H, H-7), 7.99 (s, 1H, H-5′), 8.04 (s, 1H, H-8′), 11.63 (s, 1H, NH), 11.66 (s, 1H, NH) ppm; 13C NMR: δ = 19.34, 110.27, 115.34, 123.35, 123.52, 126.63, 127.53, 128.30, 128.94, 129.09, 129.67, 130.47, 136.60, 136.94, 137.40, 137.69, 141.41, 147.10, 159.88, 160.69 ppm.
6′-Chloro-5-(2,4-dichlorophenyl)-7′-methyl-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione (5, C22H14Cl3N3O5S2)
Starting from 2.04 g 6-chloro-3-(2,4-dichlorophenylamino)-7-methyl-1,4,2-benzodithiazine 1,1-dioxide (1d), the title compound 5 was obtained. Yield: 2.6 g (93 %); m.p.: 213–214 °C (dec.); TLC: R f = 0.77 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,335, 3,240, 3,175 (NH), 1,765, 1,730 (C=O), 1,365, 1,325, 1,165 (SO2) cm−1; 1H NMR: δ = 2.43 (s, 3H, CH3), 7.19 (d, J = 8.1 Hz, 1H, H-10), 7.24 (t, J = 7.1 Hz, 1H, H-9), 7.56 (s, 2H, H-5 and H-6, 2,4-diClPh), 7.73 (t, J = 7.1 Hz, 1H, H-8), 7.83 (s, 1H, H-3, 2,4-diClPh), 7.91 (d, J = 7.1 Hz, 1H, H-7), 7.99 (s, 1H, H-5′), 8.01 (s, 1H, H-8′), 11.50 (s, 1H, NH), 11.73 (s, 1H, NH) ppm; 13C NMR: δ = 19.58, 110.53, 115.59, 123.79, 126.86, 128.41, 128.56, 128.64, 129.20, 130.00, 130.50, 130.75, 133.01, 133.11, 133.18, 137.20, 137.63, 138.04, 141.66, 147.36, 160.02, 163.68 ppm.
6′-Chloro-5-(2-chloro-3-pyridinyl)-7′-methyl-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione (6, C21H14Cl2N4O5S2)
Starting from 1.87 g 6-chloro-3-(2-chloro-3-pyridinylamino)-7-methyl-1,4,2-benzodithiazine 1,1-dioxide (1e), the title compound 6 was obtained. Yield: 2.2 g (82 %); m.p.: 218–219 °C (dec.); TLC: R f = 0.71 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,285, 3,215, 3,175 (NH), 1,765, 1,730 (C=O), 1,620 (C=N), 1,365, 1,155 (SO2) cm−1; 1H NMR: δ = 2.43 (s, 3H, CH3), 7.15 (d, J = 7.9 Hz, 1H, H-10), 7.24 (t, J = 7.5 Hz, 1H, H-9), 7.58 (t, J = 5.8 Hz, 1H, H-5, 3-pyridinyl), 7.73 (t, J = 7.3 Hz, 1H, H-8), 7.90 (d, J = 7.5 Hz, 1H, H-7), 7.92–8.20 (m, 3H, H-4 and H-6, 3-pyridinyl, and H-5′), 8.44 (s, 1H, H-8′), 11.62 (s, 1H, NH), 11.73 (s, 1H, NH) ppm; 13C NMR: δ = 19.59, 110.51, 115.59, 123.77, 124.29, 126.89, 127.36, 128.57, 129.19, 130.66, 131.15, 137.19, 137.70, 138.11, 138.48, 141.66, 141.06, 147.36, 149.01, 160.13, 163.76 ppm.
6′-Chloro-5-[imino(piperidin-1-yl)methyl]-7′-methyl-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione (7, C22H22ClN5O5S2)
Starting from 1.64 g 6-chloro-7-methyl-3-(piperidine-1-carboximidamino)-1,4,2-benzodithiazine 1,1-dioxide (1f), the title compound 7 was obtained. Yield: 2.6 g (97 %); m.p.: 211–212 °C (dec.); TLC: R f = 0.75 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,370, 3,280, 3,210 (NH), 1,765, 1,725 (C=O), 1,620 (C=N), 1,360, 1,345, 1,155 (SO2) cm−1; 1H NMR: δ = 1.58 (br s, 6H, piperidine), 2.39 (s, 3H, CH3), 3.51 (br s, 4H, piperidine), 7.15 (d, J = 8.0 Hz, 1H, H-10), 7.25 (t, J = 8.0 Hz, 1H, H-9), 7.69 (s, 1H, H-5′), 7.73 (t, J = 8.1 Hz, 1H, H-8), 7.89 (s, 1H, H-8′), 7.93 (d, J = 8.0 Hz, 1H, H-7), 8.22 (br s, 2H, NH), 11.73 (s, 1H, C=NH) ppm; 13C NMR: δ = 19.50, 23.64, 25.51, 45.94, 110.53, 115.60, 123.77, 126.28, 127.23, 129.20, 131.09, 131.31, 133.10, 135.97, 136.78, 137.20, 141.67, 147.36, 157.20, 164.77 ppm.
5-(N-Benzylcarbamimidoyl)-6′-chloro-7′-methyl-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione (8, C24H20ClN5O5S2)
Starting from 1.98 g 3-(3-benzylguanidino)-6-chloro-7-methyl-1,4,2-benzodithiazine 1,1-dioxide (1 g), the title compound 8 was obtained. Yield: 2.7 g (97 %); m.p.: 194–195 °C (dec.); TLC: R f = 0.74 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,425, 3,340, 3,285, 3,180 (NH and C=NH), 1,765, 1,730 (C=O), 1,620 (C=N), 1,360, 1,330, 1,140 (SO2) cm−1; 1H NMR: δ = 2.40 (s, 3H, CH3), 4.42 (s, 2H, PhCH2NH), 7.15 (d, J = 8.3 Hz, 1H, H-10), 7.24 (t, J = 7.6 Hz, 1H, H-9), 7.30 (s, 5H, Ph), 7.38 (s, 1H, H-5′), 7.71 (t, J = 7.6 Hz, 1H, H-8), 7.74 (s, 1H, H-8′), 7.90 (d, J = 7.6 Hz, 1H, H-7), 8.10 (br s, 1H, NH), 8.35 (br s, 1H, NH), 8.87 (t, J = 6.0 Hz, 1H, PhCH2NH), 11.73 (s, 1H, C=NH) ppm; 13C NMR: δ = 19.52, 44.49, 110.53, 115.60, 123.77, 126.35, 127.28, 127.35, 127.47, 127.64, 127.74, 128.79, 129.20, 130.89, 131.15, 136.16, 136.96, 137.19, 141.67, 147.36, 158.42, 160.00 ppm.
6′-Chloro-5-(dimethylamino)-7′-methyl-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione (9, C18H17ClN4O5S2)
Starting from 1.53 g 6-chloro-7-methyl-3-(2,2-dimethylhydrazino)-1,4,2-benzodithiazine 1,1-dioxide (1h), the title compound 9 was obtained. Yield: 2.2 g (95 %); m.p.: 207–208 °C (dec.); TLC: R f = 0.70 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,240, 3,170 (NH), 1,765, 1,725 (C=O), 1,360, 1,315, 1,160 (SO2) cm−1; 1H NMR: δ = 2.40 (s, 3H, CH3), 2.60 (s, 6H, CH3–N–CH3), 7.15 (d, J = 8.3 Hz, 1H, H-10), 7.26 (t, J = 7.3 Hz, 1H, H-9), 7.73 (t, J = 7.3 Hz, 1H, H-8), 7.83 (d, J = 7.4 Hz, 1H, H-7), 7.88 (s, 1H, H-5′), 7.94 (s, 1H, H-8′), 10.98 (br s, 1H, NH), 11.62 (br s, 1H, NH) ppm; 13C NMR: δ = 19.52, 46.68, 110.52, 115.59, 123.77, 126.40, 128.36, 129.04, 129.20, 130.63, 137.11, 137.19, 137.33, 141.66, 147.35, 160.01, 166.63 ppm.
6′-Chloro-7′-methyl-1′,1′,2,6-tetraoxo-1,2-dihydrospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-5(6H)-acetonitrile (10, C18H13ClN4O5S2)
Starting from 1.51 g 2-(6-chloro-7-methyl-1,4,2-benzodithiazin-3-ylamino)acetonitrile 1,1-dioxide (1i), the title compound 10 was obtained. Yield: 2.3 g (97 %); m.p.: 194–195 °C (dec.); TLC: R f = 0.70 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,345, 3,240, 3,175 (NH), 2,245 (C≡N), 1,765, 1,725 (C=O), 1,365, 1,320, 1,165 (SO2) cm−1; 1H NMR: δ = 2.43 (s, 3H, CH3), 4.51 (s, 2H, N≡C–CH2N), 7.14 (d, J = 8.1 Hz, 1H, H-10), 7.20 (t, J = 8.0 Hz, 1H, H-9), 7.74 (t, J = 8.1 Hz, 1H, H-8), 7.91 (dd, J meta = 1.2 Hz, J ortho = 7.9 Hz, 1H, H-7), 7.95 (s, 1H, H-5′), 8.02 (s, 1H, H-8′), 10.32 (br s, 1H, NH), 11.72 (br s, 1H, NH) ppm; 13C NMR: δ = 19.58, 30.90, 110.53, 115.59, 116.29, 123.77, 126.89, 127.27, 128.48, 129.20, 130.90, 137.20, 137.64, 137.95, 141.66, 147.36, 160.01, 163.82 ppm.
5-Acetyl-6′-chloro-7′-methyl-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione (11, C18H14ClN3O6S2)
Starting from 1.52 g 3-(acetylamino)-6-chloro-7-methyl-1,4,2-benzodithiazine 1,1-dioxide (1j), the title compound 11 was obtained. Yield: 2.2 g (94 %); m.p.: 210–211 °C (dec.); TLC: R f = 0.70 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,225, 3,185 (NH), 1,765, 1,730, 1,685 (C=O), 1,365, 1,310, 1,165 (SO2) cm−1; 1H NMR: δ = 2.18 (s, 3H, CH3), 2.44 (s, 3H, CH3C=O), 7.14 (d, J = 8.1 Hz, 1H, H-10), 7.24 (t, J = 7.5 Hz, 1H, H-9), 7.73 (t, J = 7.7 Hz, 1H, H-8), 7.90 (d, J = 7.7 Hz, 1H, H-7), 8.02 (s, 1H, H-5′), 8.04 (s, 1H, H-8′), 11.72 (s, 1H, NH), 12.48 (s, 1H, NH) ppm; 13C NMR: δ = 19.60, 23.97, 110.51, 115.59, 123.77, 126.53, 128.42, 129.02, 129.19, 129.39, 137.18, 138.06, 138.91, 141.66, 147.35, 160.02, 163.40, 172.29 ppm.
5-Benzoyl-6′-chloro-7′-methyl-1′,1′-dioxospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-2,6(1H,5H)dione (12, C23H16ClN3O6S2)
Starting from 1.83 g 3-(benzoylamino)-6-chloro-7-methyl-1,4,2-benzodithiazine 1,1-dioxide (1k), the title compound 12 was obtained. Yield: 2.4 g (92 %); m.p.: 230–232 °C (dec.); TLC: R f = 0.77 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,240, 3,180 (NH), 1,765, 1,730, 1,695 (C=O), 1,365, 1,170 (SO2) cm−1; 1H NMR: δ = 2.46 (s, 3H, CH3), 7.14 (d, J = 8.1 Hz, 1H, H-10), 7.24 (t, J = 7.5 Hz, 1H, H-9), 7.56 (t, J = 7.4 Hz, 1H, H-8), 7.66–7.77 (m, 3H, H-3, H-4 and H-5, PhC=O), 7.91 (d, J = 7.8 Hz, 1H, H-7), 8.02 (d, J = 7.6 Hz, 2H, H-2 and H-6, PhC=O), 8.02 (s, 1H, H-5′), 8.07 (s, 1H, H-8′), 11.73 (s, 1H, NH), 12.95 (s, 1H, NH) ppm; 13C NMR: δ = 19.64, 110.53, 115.59, 123.77, 126.56, 128.48, 128.95, 129.20, 129.41, 129.66, 131.32, 134.07, 137.19, 138.12, 141.66, 147.36, 160.02, 165.11, 168.49 ppm.
Ethyl 6′-chloro-5-(4-fluorophenyl)-1′,1′,2,6-tetraoxo-1,2,5,6-tetrahydrospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-7′-carboxylate (13, C24H17ClFN3O7S2)
Starting from 2.07 g ethyl 6-chloro-3-(4-fluorophenylamino)-1,1-dioxo-1,4,2-benzodithiazine-7-carboxylate (1l), the title compound 13 was obtained. Yield: 2.8 g (97 %); m.p.: 216–217 °C (dec.); TLC: R f = 0.71 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,270, 3,265, 3,225 (NH), 1,765, 1,725, 1,685 (C=O), 1,365, 1,325, 1,170, 1,155 (SO2) cm−1; 1H NMR: δ = 1.34 (t, J = 7.1 Hz, 3H, CH3CH2O), 4.37 (q, J = 7.1 Hz, 2H, CH3CH2O), 7.15 (d, J = 8.1 Hz, 1H, H-10), 7.24 (t, J = 7.9 Hz, 1H, H-9), 7.33 (d, J = 8.9 Hz, 2H, H-2 and H-6 of 4-FPh), 7.62–7.68 (m, 2H, H-3 and H-5 of 4-FPh), 7.70 (t, J = 8.1 Hz, 1H, H-8), 7.91 (dd, J meta = 1.2 Hz, J ortho = 7.9 Hz, 1H, H-7), 8.02 (s, 1H, H-5′), 8.35 (s, 1H, H-8′), 11.61 (s, 1H, NH), 11.72 (s, 1H, NH) ppm; 13C NMR: δ = 14.21, 62.38, 110.53, 115.59, 116.01, 116.46, 123.77, 124.39, 124.57, 126.94, 129.20, 130.54, 130.81, 130.88, 134.31, 135.82, 137.19, 141.67, 147.36, 160.00, 160.17, 163.34 ppm.
6′-Chloro-5-(4-chlorophenyl)- 1′,1′,2,6-tetraoxo-1,2,5,6-tetrahydrospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-7′-carbonitrile (14, C22H12Cl2N4O5S2)
Starting from 1.92 g 6-chloro-3-(4-chlorophenylamino)-1,1-dioxo-1,4,2-benzodithiazine-7-carbonitrile (1m), the title compound 14 was obtained. Yield: 2.8 g (95 %); m.p.: 219–220 °C (dec.); TLC: R f = 0.64 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,275, 3,195, 3,125 (NH), 2,238 (C≡N), 1,765, 1,725 (C=O), 1,360, 1,320, 1,150 (SO2) cm−1; 1H NMR: δ = 7.14 (d, J = 8.1 Hz, 1H, H-10), 7.24 (t, J = 7.6 Hz, 1H, H-9), 7.62 (d, J = 8.7 Hz, 2H, 4-ClPh), 7.65 (d, J = 8.7 Hz, 2H, 4-ClPh), 7.73 (t, J = 7.7 Hz, 1H, H-8), 7.90 (d, J = 7.6 Hz, 1H, H-7), 8.37 (s, 1H, H-5′), 8.60 (s, 1H, H-8′), 11.72 (s, 1H, NH), 11.87 (s, 1H, NH) ppm; 13C NMR: δ = 110.81, 112.97, 114.84, 115.58, 123.77, 123.93, 129.19, 129.43, 130.01, 130.22, 130.31, 130.71, 131.33, 136.71, 137.19, 138.93, 141.65, 147.34, 159.01, 160.15 ppm.
6′-Chloro-1′,1′,2,6-tetraoxo-5-phenyl-1,2,5,6-tetrahydrospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-7′-carboxamide (15, C22H15ClN4O6S2)
Starting from 1.84 g 6-chloro-1,1-dioxo-3-phenylamino-1,4,2-benzodithiazine-7-carboxamide (1n), the title compound 15 was obtained. Yield: 2.5 g (95 %); m.p.: 282–283 °C (dec.); TLC: R f = 0.54 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,435, 3,325, 3,255, 3,200, 3,140 (NH2, NH), 1,765, 1,725, 1,675 (C=O), 1,365, 1,330, 1,140 (SO2) cm−1; 1H NMR: δ = 7.15 (d, J = 8.1 Hz, 1H, H-10), 7.24 (t, J = 7.4 Hz, 1H, H-9), 7.45 (t, J = 7.5 Hz, 1H, H-8), 7.61 (s, 2H, O=C–NH2), 7.65–7.77 (m, 3H, H-3, H-4, H-5 of Ph), 7.87 (d, J = 6.6 Hz, 2H, H-2 and H-6 of Ph), 7.95 (d, J = 8.2 Hz, 1H, H-7), 8.11 (s, 1H, H-5′), 8.16 (s, 1H, H-8′), 11.58 (s, 1H, NH), 11.72 (s, 1H, NH) ppm; 13C NMR: δ = 110.53, 115.60, 122.19, 122.26, 122.44, 123.77, 124.49, 126.34, 129.20, 129.47, 129.71, 130.71, 131.51, 134.03, 137.20, 137.62, 141.66, 147.36, 160.00, 166.32 ppm.
6′-Chloro-5-(4-chlorophenyl)-1′,1′,2,6-tetraoxo-1,2,5,6-tetrahydrospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-7′-carboxamide (16, C22H14Cl2N4O6S2)
Starting from 2.01 g 6-chloro-3-(4-chlorophenylamino)-1,1-dioxo-1,4,2-benzodithiazine-7-carboxamide (1o), the title compound 16 was obtained. Yield: 2.7 g (96 %); m.p.: 286–287 °C (dec.); TLC: R f = 0.54 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,455, 3,355 (O=C–NH2), 3,315, 3,190 (NH), 1,765, 1,730, 1,660 (C=O), 1,365, 1,315, 1,165 (SO2) cm−1; 1H NMR: δ = 7.15 (d, J = 8.2 Hz, 1H, H-10), 7.24 (t, J = 7.5 Hz, 1H, H-9), 7.52 (d, J = 8.8 Hz, 2H, H-3 and H-5 of 4-ClPh), 7.67 (d, J = 8.8 Hz, 2H, H-2 and H-6 of 4-ClPh), 7.73 (t, J = 8.2 Hz, 1H, H-8), 7.87 (s, 2H, O=C–NH2), 7.95 (d, J = 9.0 Hz, 1H, H-7), 8.12 (s, 1H, H-5′), 8.17 (s, 1H, H-8′), 11.62 (s, 1H, NH), 11.74 (s, 1H, NH) ppm; 13C NMR: δ = 110.53, 115.60, 123.68, 123.77, 124.55, 129.20, 129.29, 129.41, 129.73, 130.00, 130.55, 131.43, 134.11, 136.66, 137.19, 137.68, 141.66, 147.36, 160.05, 166.28 ppm.
6′-Chloro-N-(4-chlorophenyl)-1′,1′,2,6-tetraoxo-5-phenyl-1,2,5,6-tetrahydrospiro[4H-benzo[d][1,3,7]oxadiazocine-4,3′(2′H)-[1,4,2]benzodithiazine]-7′-carboxamide (17, C28H18Cl2N4O6S2)
Starting from 2.40 g 6-chloro-N-(4-chlorophenyl)-1,1-dioxo-3-(phenylamino)-1,4,2-benzodithiazine-7-carboxamide (1p), the title compound 17 was obtained. Yield: 3.1 g (95 %); m.p.: 278–279 °C (dec.); TLC: R f = 0.64 (benzene–EtOH 4:1); IR (KBr): \( \bar{\nu } \) = 3,285, 3,280, 3,205, 3,140 (NH), 1,765, 1,730, 1,675 (C=O), 1,360, 1,310, 1,145 (SO2) cm−1; 1H NMR: δ = 7.13 (d, J = 8.3 Hz, 1H, H-10), 7.21–7.24 (m, 2H, arom), 7.41–7.45 (m, 5H, arom), 7.63–7.72 (m, 5H, arom), 7.89 (d, J = 7.8 Hz, 1H, H-7), 8.19 (s, 1H, H-8′), 10.83 (s, 1H, NH), 11.59 (s, 1H, NH), 11.71 (s, 1H, NH) ppm; 13C NMR: δ = 110.95, 116.01, 122.08, 122.61, 124.19, 125.44, 126.73, 128.52, 129.48, 129.62, 129.72, 129.88, 130.17, 131.28, 132.66, 134.71, 137.41, 137.61, 138.15, 142.08, 147.79, 160.57, 160.99, 163.42 ppm.
References
Brzozowski Z, Sławiński J (1984) Acta Polon Pharm 41:5
Brzozowski Z, Sławiński J (1984) Acta Polon Pharm 41:133
Brzozowski Z, Sławiński J, Angielski S, Szczepańska-Konkel M (1985) Acta Polon Pharm 42:313
Brzozowski Z, Sławiński J, Gajewski F, Angielski S, Hoppe A (1985) Acta Polon Pharm 42:413
Brzozowski Z, Sławiński J, Janiec W, Cegła M, Śliwiński L, Sedlak I (1992) Acta Polon Pharm Drug Res 49:75
Brzozowski Z, Sączewski F, Gdaniec M (2003) Bioorg Med Chem 11:3673
Brzozowski Z, Sączewski F, Gdaniec M (2003) Eur J Med Chem 38:991
Brzozowski Z, Sączewski F, Neamati N (2006) Bioorg Med Chem 14:2985
Brzozowski Z, Sączewski F, Sławiński J, Bednarski PJ, Grünert R, Gdaniec M (2007) Bioorg Med Chem 15:2560
Brzozowski Z, Sączewski F (2002) J Med Chem 45:430
Brzozowski Z, Sączewski F, Sanchez T, Kuo CL, Gdaniec M, Neamati N (2004) Bioorg Med Chem 12:3663
Brzozowski Z, Sączewski F, Sławiński J, Sanchez T, Neamati N (2009) Eur J Med Chem 44:190
Brzozowski Z, Sączewski F, Neamati N (2006) Bioorg Med Chem 16:5298
Brzozowski Z (1995) Acta Polon Pharm Drug Res 52:287
Brzozowski Z (1996) Acta Polon Pharm Drug Res 53:269
Brzozowski Z (1997) Acta Polon Pharm Drug Res 54:293
Brzozowski Z (1998) Acta Polon Pharm Drug Res 55:375
Brzozowski Z, Sączewski F (2002) Eur J Med Chem 37:285
Sławiński J (2004) Eur J Med Chem 39:179
Sławiński J, Gdaniec M (2005) Eur J Med Chem 40:377
Sławiński J, Brzozowski Z (2006) Eur J Med Chem 41:1180
Brzozowski Z, Sączewski F, Sławiński J (2007) Eur J Med Chem 42:1218
Sławiński J, Brożewicz K, Fruziński A, Główka ML (2011) Heterocycles 83:1093
Brożewicz K, Sławiński J (2012) Monatsh Chem 143:975
Brożewicz K, Sławiński J (2012) Eur J Med Chem 55:384
Sławiński J, Żołnowska B, Orlewska Cz, Chojnacki J (2012) Monatsh Chem 143:1705
Brzozowski Z (1995) Acta Polon Pharm Drug Res 52:91
Brzozowski Z (1998) Acta Polon Pharm Drug Res 55:49
Brzozowski Z (1998) Acta Polon Pharm Drug Res 55:473
Brzozowski Z, Sączewski F (2007) J Heterocycl Chem 44:261
Sławiński J, Żołnowska B, Pirska D, Kędzia A, Kwapisz E (2013) J Enzym Inhib Med Chem 28:41
Sączewski F, Sławiński J, Kornicka A, Brzozowski Z, Pomarnacka E, Innocenti A, Scozzafava A, Supuran CT (2006) Bioorg Med Chem Lett 16:4846
Sączewski F, Innocenti A, Brzozowski Z, Sławiński J, Pomarnacka E, Kornicka A, Scozzafava A, Supuran CT (2006) J Enzym Inhib Med Chem 21:563
Sączewski F, Innocenti A, Sławiński J, Kornicka A, Brzozowski Z, Pomarnacka E, Scozzafava A, Temperini C, Supuran CT (2008) Bioorg Med Chem 16:3933
Brzozowski Z, Sławiński J (2013) J Heterocycl Chem (in press)
Shvekhgeimer MGA (2001) Chem Heterocycl Compd 37:385
Kappe T, Stadlbauer W (1981) Isatoic anhydrides and their use in heterocyclic chemistry. In: advances in heterocyclic chemistry, vol 28. Academic Press, London, p 231
Mohammadi AA, Dabiri M, Qaraat H (2009) Tetrahedron 65:3804
Brzozowski Z (1997) Acta Polon Pharm Drug Res 54:49
Brzozowski Z, Sławiński J (1985) Acta Polon Pharm 42:319
Brzozowski Z, Sączewski F, Gdaniec M (2002) Eur J Med Chem 37:285
SPARTAN Wavefunction Inc, Irvine
Sławiński J (2001) Polish J Chem 75:1309
