There is consensus that cancer cells are antigenic since they express tumor-associated antigens that are recognized by autologous T cells. Several lines of evidence suggest that T cells are the main effectors in the immunological response against cancer cells [12]. Importantly, many T cell antigens are known to elicit spontaneous reactivity. More than 200 class I-restricted cytotoxic T-lymphocyte (CTL) peptide epitopes have been characterized, from highly diverse groups of proteins, e.g., Muc-1, telomerase, the MAGE proteins, NY-ESO-1, and p53, etc. [20]. Due to the phenomenon of “immune escape”, in which antigen-negative cancer cells avoid immune recognition, strategies have been developed that conceptually focus on minimizing the risk of immune escape, by specifically targeting proteins that are important for the function, survival and growth of cancer cells [30]. Thus, it is well established that molecular events lead to the general cancer traits, e.g., the capacity to uncontrolled growth (abnormal cell cycle regulation), resistance to death (apoptosis resistance), the potential to migrate and grow at distant sites (metastasis), the capacity to induce new blood vessels (attract endothelial cells), and also the mechanisms involved in suppression of the immune system by cancer cells (secretion of immune-suppressive mediators), etc. [14]. The proteins or protein patterns responsible for these characteristics of cancer cells represent ideally suited target structures for therapeutic intervention, including immunological targeting. Importantly, these traits—molecular mechanisms aside—are essential characteristics of all life-threatening cancers, and therapies based on targeting of these characteristics molecularly are therefore broadly applicable to most if not all cancers. Several proteins responsible for or associated with these cancer traits have been characterized, which are targets for immunological recognition e.g., cell division (telomerase [31], survivin [4]), resistance to apoptosis (survivin, Bcl-2, Bcl-X(L), and Mcl-1 [1]), and tumor development (Cyp1B1 [18]). Recently, heparanase, a protein with metastasis promoting potential was described to be a target for T cells in cancer patients [29]. Generally, these targets represent broadly applicable vaccination targets in therapeutic vaccinations against cancer. Moreover, although vaccination against these proteins or groups of proteins is in itself a promising new approach to fight cancer, the combination with additional therapy could create a number of synergistic effects.

Rho GTPases affect several aspects of growth control, and cytoskeletal organization in response to extracellular factors [32]. Three Rho family members exist in humans; RhoA, B and C, which are highly homologous but with extensive heterogeneity in the C-terminal of the sequence. Although RhoB and RhoC were characterized at the same time as RhoA, they have received less attention because of their extensive homology to RhoA and because over-expression studies indicated that, like RhoA, they induced stress fibers in cells. More recent data suggests a more differential role in that RhoC has been shown to play an important role in metastasizing cancer cells [11]. Thus, several lines of evidence demonstrate a high expression of RhoC in cancer cells, and that the metastatic potential of cancer cells depends on expression of RhoC. Selective increased expression of RhoC has been described in metastatic cancers. Microarray analysis has shown that expression of RhoC is progressively increased as tumors become more aggressively metastatic and RhoC expression promotes metastasis [23, 33]. It has been demonstrated that loss of RhoC does not affect tumor development but decreases tumor cell motility and metastatic cell survival leading to a drastic inhibition of metastasis [13]. Interestingly, RhoC has not been found mutated in cancers, indicating that upregulated expression is sufficient to contribute to metastasis. In the present study, we examined whether RhoC is a target for cytotoxic T cells in patients with metastatic cancer.

Materials and methods


Peripheral blood lymphocytes (PBL) from HLA-A3+ cancer patients or peripheral blood mononuclear cells (PBMC) from healthy controls were obtained from the University Hospital Herlev, Denmark. The cancer patients included all had histological proven metastastic melanoma or renal cell carcinoma in progression. Generally, they were in a late disease stage with no further standard treatment options available. Cells were cryopreserved in FCS with 10% DMSO. Tissue typing was conducted at the Department of Clinical Immunology, The State Hospital, Copenhagen, Denmark. Informed consent was obtained from the patients before any of these measures.

RT-PCR for the detection of RhoC transcripts

RNA was extracted using the Purescript Isolation Kit (Gentra Systems Inc. MN, USA). In brief, 2–5 μg of RNA were used in the synthesis of cDNA using the SuperScript II reverse transcriptase in a total volume of 50 μl 1× buffer (Gibco-BRL, Life Technologies Inc., Gaithersburg, MD, USA) containing 10 mM DTT. The RT reactions were primed with a mixture of oligo-dT and random hexamers, and incubations were performed at 37°C for 30 min, 42°C for 30 min, and 72°C for 5 min. Amplification was carried out with primers specific for RhoC (anti-sense: RhoC: 5′-cggggctagaaaacaatgc-3′) together with a common sense primer (5′-ttttccatcgacagccctg-3′). The size of the products is 477 bases. The following cancer cell lines were analyzed: the melanoma cell lines Est007 (FM3), Est027 (FM82), Est030 (FM9) (from the IPD-ESTDAB database, available at [22]), the head and neck cancer cell line CRL2095, the breast cancer cell line BT20, and the colon cancer cell line HT29 (from ATCC, available at

Assembly assay for peptide binding to MHC class I molecules

The binding affinity of the synthetic peptides (Genscript, Scotch Plains, USA) to HLA-A3 molecules was measured by means of the assembly assay as previously described [8]. Briefly, T2–A3 cells were incubated in methionine-free RPMI 1640 (Gibco BRL, Paisley, UK) with 10% dialysed FCS. Subsequently, cells were metabolically labeled with 50 μ Ci 35S-methionine (Amersham, Birkeroed, Denmark). Cell nuclei were removed by ultracentrifugation. Stably folded HLA molecules were immune-precipitated using the HLA class I-specific, conformation-dependent mAb W6/32. A-Sepharose beads were added to collect the folded MHC complexes and separated by isoelectric focusing gel electrophoresis. MHC heavy chains were quantified using the ImageGauge Phosphorimager program (FUJI Photo Film). The intensity of the band is directly related to the amount of peptide-bound class I MHC complex recovered during the assay. Subsequently, the extent of stabilization of HLA-A3 is directly related to the binding affinity of the added peptide.

Interferon-γ (IFN-γ) ELISPOT assay

The ELISPOT assay was used to quantify peptide epitope-specific IFN-γ releasing effector cells as described previously [5]. To extend the sensitivity of the ELISPOT assay, PBMCs were peptide stimulated (10 µM) once in vitro. Next day, 40U/ml IL-2 (PeproTech, London, UK) was added. After 7 days, the cells were tested for reactivity. Briefly, nitrocellulose bottomed 96-well plates (MultiScreen MAIP N45; Millipore, Glostrup, Denmark) were coated with anti-IFN-γ Ab (1-D1 K; Mabtech, Nacka, Sweden). The wells were washed, blocked by X-vivo medium and the effector cells were added at different cell concentrations, with or without 10 μM peptide (Rho1L2: RLGLQVRKNK; Rho1: RAGLQVRKNK) together with 104 T2–A3 cells. The plates were incubated overnight. The following day, medium was discarded and the wells were washed prior to addition of biotinylated secondary Ab (7-B6-1-Biotin; Mabtech, Nacka, Sweden). The plates were incubated at room temperature (RT) for 2 h, washed, and avidin–enzyme conjugate (AP-Avidin; Calbiochem/Invitrogen Life Technologies) was added to each well. Plates were incubated at RT for 1 h and the enzyme substrate NBT/BCIP (Invitrogen Life Technologies) was added to each well and incubated at RT for 5–10 min. The reaction was terminated with tap-water upon the emergency of dark purple spots. The spots were counted using the ImmunoSpot® Series 2.0 Analyzer (CTL Analyzers, LLC, Cleveland, USA) and the peptide-specific CTL frequency could be calculated from the numbers of spot-forming cells. The number of antigen-specific spots was calculated by subtracting the mean number of spots of the control wells from the mean number of spots in the positive wells; responses with a P value <0.05 (Student’s t test for unpaired samples) were considered as positive. The definition is in respect with the CIMT Monitoring Panel inter-laboratory testing project ( [10].

Dendritic cells

Dendritic cells (DC) were generated from PBMC by adherence on culture dishes at 37°C/5% CO2 for 60 min in RPMI-1640 enriched with 10% human AB serum. Adherent monocytes were cultured in RPMI-1640 supplemented with 10% human AB serum in the presence of IL-4 (250 U/ml) and GM–CSF (1,000 U/ml) (Leucomax, Shering Plough, Farum, Denmark) for 6 days. DC were matured by addition of IL-1β (10 ng/ml), IL-6 (10 ng/ml), TNF-α (10 ng/ml) (CellGenix, Freiburg, Germany), and PGE2 (1 μg/ml) (Pfizer, Brussels, Belgium).

Establishment of antigen-specific T cell cultures and clones

PBL from an untreated 65-year-old melanoma (MM) patient with multiple liver metastases, left pleural tumor, effusion, and osteolytic bone metastases were used for analyses. He had not received any treatment for his disease. PBL were stimulated with irradiated (20 Gy) autologous Rho1L2-loaded DC (PBL:DC ratio = 3 × 106:3 × 105). The following day IL-7 (5 ng/ml) and IL-12 (10 ng/ml) (PeproTech, London, UK) were added. Stimulation of the cultures were carried out every 10 days with Rho1L2-loaded irradiated autologous DC (2×) followed by Rho1L2-loaded irradiated autologous PBL (3×). One hundred and twenty U/ml IL-2 (PeproTech, London, UK) was added after each stimulation. Growing cultures were tested for specificity for Rho1L2.

PBL from a specific culture were cloned by limiting dilution in the presence of cloning mix containing 106/ml irradiated (20 Gy) lymphocytes from three healthy donors in X-vivo with 5% heat-inactivated human serum, 25 mM HEPES buffer (GibcoBRL, Paisley, UK), and 120 U/ml IL-2 (PeproTech, London, UK). The plates were incubated at 37°C/5% CO2. Every 3–4 days 50 μl fresh media were added containing 120 µM/ml IL-2. Growing clones were expanded using cloning mix cells (5 × 104 cells/well) and IL-2. After expansion the clones were tested for specificity and cytotoxic potential in a standard 51Cr-release assay.

Cytotoxicity assay

Conventional 51Cr-release assays for CTL-mediated cytotoxicity were carried out as described elsewhere [2]. Target cells were T2–A3 cells, the HLA-A3+ breast cancer cell line BT-20, the HLA-A3+ colon cancer cell line HT-29, the HLA-A3+ head and neck cancer cell line CRL-2095 (all available at the American Type Culture Collection (ATCC)), the HLA-A3+ melanoma cell line FM9, the HLA-A3- melanoma cell line FM82, and the HLA-A3+ melanoma cell line FM3 [15], with or without added HLA specific mAb W6/32 [7] (2 μg/100 μl [27]) or the HLA-A3 specific antibody GAPA3 [28].


HLA-A3 binding peptides from RhoC

RhoC mainly differs from RhoA and RhoB in the C-terminal part of the sequence. Hence, this 20 amino acid region was scrutinized for putative HLA epitopes using the main HLA-specific anchor residues [6]. We identified a possible HLA-A3-restricted peptide Rho1 (RAGLQVRKNK). However, as Alanine is a poor anchor amino acid in position 2 this peptide was only expected to bind to HLA-A3 with low affinity. As many of the established T cell epitopes presented by cancer cells such as the melanoma antigens gp100 and MART-1 have relatively low binding affinities to the respective HLA class I molecules, it is common practice to generate heteroclitic peptides from such low-affinity epitopes by substitution of amino acids at specific positions, i.e., the anchor positions, which are crucial for the binding of the peptide to the HLA molecule [21, 26]. Consequently, we included a modified counterpart Rho1L2 (RLGLQVRKNK) in our studies, in which position 2 was modified from Alanine to Leucine. The two peptides were synthesized and examined for binding to HLA-A3 by comparison with the HLA-A3 high affinity positive control epitope from Influenza NP265–273 (ILRGSVAHK) by the assembly assay (data not shown). The modified Rho1L2 peptide bound with intermediate affinity (C50-value ≈ 4 μm), whereas the native peptide Rho1 only bound very weakly to HLA-A3 (C50-value > 40 μm) compared to a positive control peptide from Influenza NP265–273 (C50-value ≈ 0.5 μm).

Spontaneous T cell responses towards RhoC

We scrutinized PBL from HLA-A3+ MM and renal cell carcinoma (RCC) patients for the presence of specific T cell responses against the modified Rho1L2 (RLGLQVRKNK) peptide by means of the IFN-γ ELISPOT secretion assay. As depicted in Fig. 1, specific T cell responses were present among PBL of three out of ten MM patients. However, we could not detect a response against the very weak HLA-A3-binding native peptide in these patients (data not shown). Likewise, no responses were detected in either RCC patients or healthy controls (HD) against either Rho1L2 or Rho1.

Fig. 1
figure 1

HLA-A3 restricted T-cell responses against Rho1L2 as measured by IFN-γ ELISPOT The average number of peptide specific IFN-γ spots formed in response to Rho1L2 among 5 × 105 in vitro stimulated PBMC from five HLA-A3+ healthy donors (HD), PBL from ten renal cell carcinoma patients (RCC), and ten melanoma patients (MM). Measurements were made in triplicates

T cell antigen specificity and Rho1/Rho1L2 cross-reactivity

Having identified patients hosting responses against the Rho1L2 peptide, we used PBL from these cancer patients to generate CTL bulk cultures against this peptide in vitro. Subsequently, we in vitro stimulated PBL from such a patient with Rho1L2-pulsed autologous DC. After five in vitro restimulations, the peptide specificity was tested in standard 51Cr release assays using T2–A3 cells without peptide or loaded with Rho1 (10 μM) or Rho1L2 (10 μM) as target cells (Fig. 2a). This assay revealed that the bulk cultures lysed both T2–A3 cells pulsed with Rho1L2 and Rho1 efficiently, whereas no cytotoxicity was observed against unpulsed T2–A3 cells.

Fig. 2
figure 2

T cell antigen specificity and cross reactivity. a Cytotoxicity by 51Cr-release assay of a bulk culture stimulated with Rho1L2-loaded autologous DC/autologous PBL. Specific lysis of T2-A3 cells with no peptide or pulsed with Rho1L2 (10 μM) or Rho1 (10 μM). E:T ratio = 60:1, 30:1. b Specificity of a T cell clone (clone 9) assayed by 51Cr-release assay. Lysis of T2-A3 cells with no peptide, pulsed with Rho1L2 (10 μM), Rho1 (10 μM) and of Rho1L2-pulsed T2–A3 cells with addition of the HLA-class I specific antibody W6/32 or HLA-A3 specific antibody GAP A3 at different E:T ratios (9:1; 3:1; 1:1; 0,3:1). All measurements were made in duplicates. Error bars indicate the standard deviation

Next, CTL clones were established from the specific T cell cultures by limiting dilution. After a short expansion step, the specificity of the growing clones was analyzed in standard 51Cr release assays. Four RhoC-specific T cell clones were generated, and one of these was selected for further expansion as it had the highest growth rate (# clone 9). Clone 9 effectively lysed T2-A3 cells pulsed with both the modified Rho1L2 and the native Rho1 peptide underlining that Rho1L2 specific T cells cross react with the native analog peptide (Fig. 2b). To examine the HLA restriction of clone 9, we tested the effect of blocking HLA-class I by addition of the HLA specific mAb W6/32 and the HLA-A3 specific mAb GAP A3. Lysis could be completely blocked by incubation of the target cells with both antibodies (Fig. 2b).

Capacity of RhoC-specific T cells to kill tumor cells

We examined RhoC expression in cancer cells of different origin by RT-PCR. All cancer cell lines examined expressed RhoC (Fig. 3). Next, we examined the Rho1L2/Rho1 specific bulk cultures capacity to kill RhoC+ melanoma cells. To this end, the HLA-A3+ FM3 melanoma cells were killed with high efficacy in a HLA-restricted matter as lysis could be completely blocked by incubation of FM3 target cells with W6/32 (Fig. 4a).

Fig. 3
figure 3

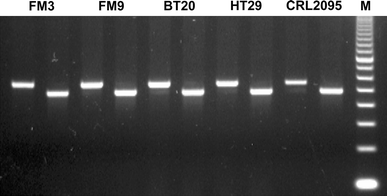

PCR products electrophoresed in agarose gel and stained with EtBr. The image represents five different cancer cell lines, all being positive for RhoC. For each cancer cell line the left band represents GAPDH and the right band represents RhoC

Fig. 4
figure 4

Functional capacity of RhoC-specific T cells. a Cytotoxicity of a bulk culture stimulated with Rho1L2-loaded autologous DC/autologous PBL. Specific lysis of the HLA-A3+ melanoma cell line FM3 without and with the addition of the HLA-class I specific antibody W6/32. E:T ratio = 60:1, 40:1. b Lysis by a Rho1L2-specific clone (clone 9) of the HLA-A3+ melanoma cell line FM3, cell lysis with addition of unlabeled T2-A3 cells pulsed with Rho1L2 (10 μM) or no peptide (inhibitor to target ratio = 20:1), and cell lysis of the HLA-A3+ melanoma cell line FM9 and the HLA-A3- melanoma cell line FM82. Measurements were made in duplicates for all E:T ratios. c Repetition of the experiments shown in b) (without inclusion of FM9). d Lysis by a Rho1L2-specific clone of the HLA-A3+ breast cancer cell line BT-20, colon cancer cell line HT-29 and head and neck cancer cell line CRL-2095. All measurements were made in duplicates. Error bars indicate the standard deviation

Likewise clone 9 generated from the specific bulk culture was able to kill FM3 melanoma cells (Fig. 4b). A second experiment confirmed the aforementioned results (Fig. 4c). The addition of cold (unlabeled) T2-A3 cells pulsed with the Rho1L2 (10 μM) peptide completely abrogated the killing of FM3 melanoma cells (Fig. 4b, c). Moreover, the RhoC-specific CTL clone was able to lyse the HLA-A3+ melanoma cancer cell line FM9. As an additional control, we used the HLA-A3- melanoma cell line FM82 as target cells. No cytotoxicity was observed against this cell line.

As the expression of RhoC in metastatic cancer has been described in cancers of different origin we further examined the RhoC specific CTL clone capacity to kill other cancer cells than melanoma (Fig. 4d). Subsequently, the HLA-A3+ breast cancer cell line BT-20, the HLA-A3+ head and neck cancer cell line CRL-2095 and the HLA-A3+ colon cell line HT-29 were used as target cells. The RhoC-specific CTL clone lysed all HLA-A3+ cell lines, although the colon cell line HT-29 only to a limited extent.


RhoC has been identified as an especially important player in metastasis [11, 13], and its expression correlates with metastatic spread of various types of carcinomas [16, 17]. Ideal targets for immunotherapy are gene products silenced in normal tissues but over-expressed in cancer cells, and directly involved in tumor cell survival and progression. Metastasis is the culmination of neoplastic progression. The important role of a given protein in the process of metastasizing implies that immune escape by down regulation or loss of expression of this protein would reduce the morbidity and mortality of cancer. These characteristics highlight RhoC as a very attractive target for immunotherapy of cancer. Furthermore, since selective increased expression of RhoC has been described in metastatic cancers, the introduction of T cell tolerance against RhoC might be less problematic compared to tumor antigens, which are expressed in the primary tumor at high levels.

To sustain the hypothesis of RhoC as a broadly expressed T cell target we initially followed a ‘reverse immunology’ approach. We scanned the C-terminal region of the RhoC protein for the presence of HLA-A3 peptide binding motifs and used these to search for specific T cell responses in cancer patients. To this end, we were able to detect spontaneous HLA-A3-restricted CTL responses against a modified RhoC peptide epitope by means of ELISPOT in PBL from melanoma patients. No responses against this modified epitope were detected in any healthy controls. However, we could not detect a response in the ELISPOT against the native low-affinity binding peptide in PBL from neither cancer patients nor healthy controls. It has previously been described that it is possible to measure spontaneous T cell responses against modified peptides in PBL of cancer patients by the ELISPOT without detectable responses against the native analogs. This is largely due to technical reasons, e.g., stabilization of sufficient amounts of class I molecules on the surface of the T2 cells [3, 9]. A better place to look for specific T cells would be in the inflammatory infiltrate of the tumor or in the bone marrow. With regard to the latter, Sommerfeldt and colleagues show very strong T cell responses against heparanase in the bone marrow of cancer patients [29].

The use of modified peptides with improved HLA binding affinities has previously been demonstrated to be suitable for induction of CTL responses [25]. It is, however, still critical to establish that Rho1L2-specific CTL also react against the native Rho1 peptide. Hence, a critical issue in the reverse immunology strategy for CD8 T cell target antigen identification is clearly to demonstrate that the peptide is processed and naturally presented on the surface of tumor cells. In order to do so we in vitro stimulated PBL from a responding patient with the Rho1L2 peptide and showed that the resulting culture was able to kill not only target cells pulsed with the modified peptide, but in addition both target cells pulsed with the native peptide and melanoma cells. To further clarify this point, we cloned RhoC-specific T cells and examined the specificity and immunogenicity of such CD8 T cells. The Rho1L2 specific clone not only killed target cells pulsed with the modified peptide Rho1L2 but in addition recognized the native Rho1 peptide in an antigen specific and HLA-A3-restricted manner. Furthermore, it effectively killed cancer cell lines of different origin in a HLA-restricted manner. Consequently, the presentation of the Rho1 peptide in context of HLA-A3 molecules on the tumor cells is necessary for the efficient lysis of target cells. The killing of tumor cells of different origin underlines the universal characteristics of RhoC. The HLA-A3 restriction of the clone was confirmed using monoclonal antibodies and cold target cells (peptide pulsed T2-A3 cells), which completely abrogated killing of tumor cells. Any potential correlation between CTL lysis and RhoC expression would be extremely revealing especially since microarray analysis has shown that expression of RhoC in vivo is progressively increased as tumors become more aggressively metastatic. We could, however, not detect a direct correlation between RhoC expression and lysis as the RhoC expression in the cell line HT-29 (which is relatively poorly killed by the RhoC-specific T cells) is as high as in any of the other lines. In this regard, it should be noted that many factors contribute to the killing (or lack of killing) of target cells by cytotoxic T cells, including T cell avidity, expression of HLA on the surface of the target cells as well as inhibitory and/or activating co-receptors.

RhoA, RhoB, and RhoC are highly homogeneous sharing 85% amino acid sequence. As we wanted to examine the T cell reactivity against RhoC we examined the C-terminal region of RhoC as this region completely differs from RhoA and RhoB (no homology). However, this region only includes around 20 amino acids, which implies that it might not include peptide epitopes restricted to all class I and/or II alleles. Naturally, there might be other regions of RhoC from which there are derived peptides that are recognized by T cells. Such T cells might, however, in addition recognize RhoA and RhoB derived peptides. Consequently, a potential anti-cancer response directed against such peptides could lead to a response against the non-relevant proteins RhoA and especially RhoB. However, although the main concern in anti-cancer immune therapy is severe autoimmunity, it only represents one side of the story. Another important aspect is the fact that a T cell response against peptides from other regions of RhoC would be opposed by mechanisms regulating and suppressing immunity against RhoA and RhoB. Thus, T cell tolerance caused by cross-reactivity with RhoA and RhoB could reduce the anti-cancer response.

Harnessing of the immune system for the battle against cancer has been the focus of tremendous research efforts over the past two decades. Multiple means to achieve this goal have been investigated, including adoptive transfer of anti-tumor-reactive T cells, and systemic or localized administration of immune modulating cytokines. Clinical vaccination trials using tumor-associated antigen-derived peptides are presently ongoing and although most cancer patients included in current vaccination trials are end-stage patients, vaccination has repeatedly been shown to be capable of induction of anti-tumor CTL responses [19, 24]. Still, the clinical benefit for the treated patients is only marginal. We believe that induction of powerful T cell responses against RhoC, e.g., by therapeutic vaccination, may offer a new mean to target metastatic cancer cells. This would be particularly attractive after surgery of the primary tumor as selective increased expression of RhoC has been described in metastatic cancers. Naturally this needs to be verified, e.g., by the use of animal studies, to determine vaccination time, dose and indication(s) before moving into the clinic.
