Knee Surgery, Sports Traumatology, Arthroscopy

, Volume 25, Issue 4, pp 1316–1327 | Cite as

Tunnel widening in single- versus double-bundle anterior cruciate ligament reconstructed knees

  • Cathrine Aga
  • Katharine J. Wilson
  • Steinar Johansen
  • Grant Dornan
  • Robert F. La Prade
  • Lars Engebretsen
Open Access
Knee

Abstract

Purpose

The consequence of tunnel widening after ACL reconstructions is foremost of importance in case of revision surgery. Tunnel expansion leads to bone loss close to the joint, and additional surgery with bone grafting prior to revision surgery might be necessary. The purpose of the study was to measure widening of the tunnels in single-bundle (SB) and double-bundle (DB) ACL reconstructed knees during the first year after surgery, detected by a novel, semi-automated 3D CT imaging modality. Our hypothesis was that there would be a difference between the initial tunnel size and the size measured one year post-operatively due to the tunnel widening process. Further, the purpose was to evaluate whether there were any differences in the amount of tunnel widening between the two surgical techniques.

Methods

Twenty patients who underwent DB ACL reconstruction, and 22 patients who underwent SB ACL reconstruction, performed a CT scan of the bony tunnels, during their first days after surgery and one year post-operatively. The CT scans were transformed into 3D CT reconstructions, and the tunnels were measured with the “best-fit cylinder” method, measurements at the level of tunnel aperture and 10.0 mm from the joint line.

Results

All tunnels in the DB and SB ACL reconstructed knees exhibited widening during the first year after the operation (p < 0.001). The SB femoral tunnels showed more widening compared to the DB femoral AM tunnels (1.4 ± 0.9 vs. 0.5 ± 0.6 mm) (p < 0.001), and the SB tibial tunnels widened more compared to the DB tibial PL tunnels (1.0 ± 1.0 vs. 0.5 ± 0.6) (p < 0.043).

Conclusion

All tunnels widened during the first year after the ACL reconstruction with a larger amount of widening in the SB tunnels compared to the DB femoral AM tunnels and the DB tibial PL tunnels. This is the first study to detect tunnel widening in DB reconstructed knees through a semi-automated 3D CT imaging modality.

Level of evidence

Prospective cohort study, Level III.

Keywords

Tunnel widening Anterior cruciate ligament ACL reconstruction Double bundle CT 3D CT Revision

Introduction

Anterior cruciate ligament (ACL) reconstruction tunnel widening tends to occur as an early post-operative finding [23], and there is a wide acceptance that the aetiology behind the enlargement includes both biological and mechanical factors [4, 8]. In the majority of the studies done, no correlation between bone tunnel enlargement and clinical outcomes of the patients has been found [4, 9, 11, 31], although there are also studies where a higher amount of widening has been correlated with increased anteroposterior laxity as measured by the Lachman test and rotational laxity as measured by the pivot shift test [10].

Enlargement of the reamed tunnels in anterior cruciate ligament reconstructed knees can be of significant importance in the case of revision surgery. With more than 120,000 ACL reconstructions performed each year in the USA [19], and with an existing five-year revision rate between 2 and 5 % [2, 16, 22], post-operative ACL reconstruction tunnel widening affects many patients. It consequently may lead to the need for additional surgery with bone grafting.

Various degrees of tunnel widening in ACL reconstructed knees have been reported. Femoral tunnels are known to enlarge between 3 and 45 %; on the tibial side, enlargement from 11 to 45 % has been described [9, 10]. Surgical factors associated with tunnel widening are many: the choice of graft [4, 12, 24, 31], fixation technique and the different fixation devices are all known to have an influence on the phenomenon [6, 15, 20]. It is not clear whether the surgical technique influences tunnel widening. Some articles have studied the widening in knees operated with the double-bundle (DB) ACL reconstruction technique [1, 13, 27], but only a few have compared them to widening in single-bundle (SB) reconstructed patients [1, 10, 11]. Two studies have concluded that there was less widening in the DB operated knees compared to SB, and one study could not find any difference between the two techniques [1, 10, 11].

The DB ACL reconstruction technique is known as a technically demanding procedure with a theoretical higher risk of failure and perioperative complications compared to the SB technique. A complication known with this procedure is the convergence of the two tunnels resulting in tunnel “communication”. This may result in a SB graft tunnel appearance at the femoral or tibial aperture sites [27]. Communication can happen due to the surgical procedure itself, or due to the tunnel widening in the post-operative period [7]. Femoral and tibial reconstruction aimers have been devised to prevent this from happening intra-operatively, but post-operative widening of the tunnels may still occur.

The primary objective of this study was to measure the amount of tunnel enlargement in DB ACL reconstructed knees, detected with a novel semi-automated three-dimensional (3D) computed tomography (CT) measuring method. Our hypothesis was that there would be a difference between the initial tunnel size and the size measured 1 year post-operatively due to the tunnel widening process. Secondary objectives were to measure tunnel widening in SB ACL reconstructed knees and to compare them with the enlargement found in the tunnels of DB ACL reconstructed knees, by using the same 3D CT modality. The last purpose of the study was to detect whether there was any existing tunnel communication at the femoral or tibial side at the time of operation or acquired at 1-year follow-up.

Materials and methods

During the inclusion period from 2012 until 2014, a prospective cohort of 56 patients out of a total of 120 patients that originally were included in a randomised controlled trial (RCT) comparing the DB and SB surgical techniques (Clinical trials number: NCT01033188), were asked to join the study. Forty-two (20 DB and 22 SB) of the 56 patients were available for the final analysis. The remaining patients were withdrawn either due to logistical issues (n = 8) or they did not want to participate due to the additional exposure to radiation (n = 1), two patients were lost for follow-up (n = 2), and three patients were excluded because of technical errors of the CT scans after image transferring (n = 3).

Included patients were between 18 and 40 years with a complete ACL rupture verified by clinical findings, MRI and arthroscopy. Also, they had completed a minimum of 2 months of rehabilitation prior to the operation, and the minimal size of each created hamstring graft bundle was 5.0 mm for the PL bundle and 6.0 mm in diameter for the AM bundle. Exclusion criteria were: previous ACL reconstruction of the affected or contralateral knee, additional injury to other ligaments of the knee which required surgery, meniscal injury leaving less than 50 % of the menisci intact or signs on X-ray of established osteoarthritis (Kellgren–Lawrence grade 3 and 4). If the hamstring tendon grafts were too small and could not obtain a minimal graft diameter of 5.0 mm for the PL bundle graft and 6.0 mm for the AM bundle graft, then the patients were excluded and a randomisation was not performed. The reason for excluding patients with small hamstring grafts, large menisci resections or with established osteoarthritis was because those findings are known to influence long-term outcome of ACL reconstructed knees.

Surgical technique

The same surgeon (SJ) performed the surgical procedure in all of the included patients. The surgical technique consisted of supine patient positioning on the operating table with the establishment of the regular anterior arthroscopic portals and an accessory anteromedial portal. The ACL tear was confirmed by visualisation and by probing the ACL remnants, and a further debridement of the residual ACL stump and footprints was done. Additional surgery of meniscal or chondral injuries was performed if necessary. The femoral and tibial ACL insertion sites were visualised, and surrounding native soft tissue and bony landmarks were used to define the proximal and distal ACL footprints [33].

Graft harvesting

An incision was made over the pes anserinus insertion site. The semitendinosus and gracilis tendons were identified and harvested and then doubled or tripled according to their length and thicknesses. The ends of each graft were whipstitched with a non-absorbable suture.

Single-bundle ACL reconstruction technique (Fig. 1a)

The ACL femoral tunnel was drilled through an accessory anteromedial portal. The centre of the femoral footprint was identified, with the aim to have the tunnel covering both parts of the anteromedial (AM) and posterolateral (PL) bundle attachment sites. With the knee in hyperflexion, reaming of the femoral tunnel was performed with a femoral drill. With a tibial guide, the centre of the tibial tunnel was identified and drilled with a tibia drill sized according to the distal graft size [33]. The graft was passed, and femoral fixation was performed with a suspension device (Endobutton CL, Smith & Nephew, Inc., MA, USA). The tibial fixation was then performed with a non-absorbable interference screw (Biosure PK, Smith & Nephew, Inc., MA, USA).
Fig. 1

a Single-bundle ACL reconstructed knee in a 3D CT model with one tunnel on each side of the joint. b Double-bundle ACL reconstructed knee in a 3D CT model with 2 tunnels in the femur AM (green) and femur PL (yellow) and two tunnels in the tibia AM (fuchsia) and tibia PL (cyan)

Double-bundle ACL reconstruction technique (Fig. 1b)

For the DB technique, first the centre of the AM and then the centre of the PL bundle were marked with a Steadman awl through the anteromedial portal. The AM tunnel was drilled first with the knee in a hyperflexed position, and then, the PL tunnel was drilled in sequence, using a DB femoral aimer (Acufex Pinpoint, Smith & Nephew, Inc., MA, USA). At the tibial side, first a tibial aimer was used to drill the AM tunnel, and subsequently, the double-bundle tibial aimer (Acufex Pinpoint, Smith & Nephew, Inc., MA, USA) was used for the PL tunnel. The drill sizes and length of the tunnels were chosen according to the graft sizes. Graft fixation on the femoral side was achieved with a suspension device (Endobutton CL, Smith & Nephew, Inc., MA, USA) for each tunnel. For distal fixation, first the AM bundle was fixed at 70–90° of flexion; then, the PL bundle was fixed with the knee in extension. Both grafts were distally fixated with an interference screw (Biosure PK, Smith & Nephew, Inc., MA, USA).

Notchplasty was not routinely performed and was only realised if any graft impingement existed. Before closure, local anaesthetic was injected in the knee and in the surrounding tissues. The incisions were closed with sutures, and a compression bandage was applied before the tourniquet was loosened.

Immediate free motion and active full weight bearing were allowed from day one. If the menisci were sutured, additional restrictions with 6 weeks of crutches and partial weight bearing were achieved. The physiotherapy included closed chain and isotonic exercises. Running was allowed when muscle strength was adequate, and the patients were advised to wait at least 9 months before return to any pivoting activity. A brace was only applied in three of the patients because of simultaneous medial collateral ligament perforation in order to simplify the meniscal surgery.

Imaging

The performed software technique for tunnel measurements and the methodology for measuring the tunnels have previously been described in detail [5, 24].

The examination was performed with a 16-row CT scanner (Phillips Brilliance CT 16-slice, Eindhoven, Netherlands) at Oslo University Hospital, Oslo, Norway. The scan consisted of a minimum of 50 image slices, with the following parameters: 1.5 mm slice thickness, 512 × 512 resolution, 120 kVp, 250 mA.

The patients were positioned supine in the scanner with their knee in extension. A continuous scan from the top of the patella down to the tibial metaphysis was performed. Coronal reconstructions were performed to a level parallel to a line joining the posterior femoral condyles; sagittal reconstructions were performed to a level parallel to the outer rim of the femoral condyle. The data were further made anonymous and transferred to the research server of the Steadman Philippon Research Institute, Vail, USA.

Image processing

All CT images were imported into an image processing software program (Mimics®, Materialise, Leuven, Belgium). The bone tunnels were manually segmented first in the axial plane, and then, adjustments were made in the coronal and sagittal planes [24]. A threshold tool was used to create an initial segmentation of each tunnel, and then, manual corrections were made with a stylus pen on a slice-by-slice basis. Each tunnel was reconstructed based on the segmentations and then exported to a 3D modelling software for further analysis (3matic®, Materialise, Leuven, Belgium). All segmentations and measurements were performed by the same rater (CA). To measure the inter-rater reliability, 2 additional raters (KW and BC) performed the same segmentation process.

Measurements of tunnel widening (Figs. 2, 3)

The ends of each tunnel were adjusted to isolate the area of the tunnel where the graft was located and to exclude the suspension device loop. If the tibial screw protruded off to the side of the tibial tunnel on a diagonal, then a line was drawn along the tunnel wall from proximal towards the distal aperture, and the protruding tip of the screw was filtered out. Best-fit cylinder measurements (Fig. 3): A cylinder was fit to the tunnel using a best-fit algorithm within the software, and the diameter and cross-sectional area of the cylinder were recorded [5, 24]. They were compared to the measurements at 1-year follow-up, and the percentage widening was determined.
Fig. 2

a Double-bundle ACL operated knee in a 3D model with the 4 segmented tunnels: femur AM tunnel (green), femur PL tunnel (yellow), tibia AM tunnel (fuchsia) and tibia PL tunnel (cyan). b The tibia AM tunnel extracted and imported to the 3D-matic software. c Measurements of best-fit cylinder (yellow); aperture measurements and 10 mm from joint line measurements (dotted lines)

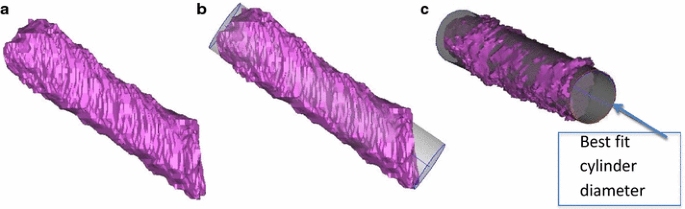

Fig. 3

Best-fit cylinder method: The 3D model of the segmented tunnels was exported to the 3D-matic software (a). A best-fit cylinder was generated semi-automatically by the software (b), and the cylinder diameter was measured (c) [5]

Aperture and 10.0 mm level measurements (Fig. 2): The diameter and cross-sectional area at the tunnel aperture and at a distance of 10.0 mm from the aperture at both sides of the joint was measured. The axis of the best-fit cylinder was used to measure the 10.0 mm distance from the aperture. A best-fit circle was then created at the tunnel aperture and at the 10.0 mm distance, and the diameter and cross-sectional area of the circle were recorded at both levels. The diameter and cross-sectional area were compared to the measurements at 1-year follow-up, and the percentage widening was determined.

Tunnel communication

Communication between tunnels was defined as missing a separating cortical ridge between the two tunnels at the level of the joint line. The distance to the cortical ridge in the affected knees was defined.

Prior to inclusion, all patients signed an informed consent form. All imaging data were made anonymous before the release of scans from Oslo University Hospital. The Research Committee of Imaging at Oslo University Hospital and the Regional Committee for Medical and Health Research Ethics in Norway, approved for the study to be done. Institutional review board approval: ID no 6.2009.234.

To assess measurement reliability, the single measures, absolute agreement definition of the intra-class correlation coefficient (ICC) was calculated with a two-way random effects model. Nonparametric bootstrap confidence intervals were calculated for each ICC measurement. Inter-rater reliability was calculated from 15 randomly chosen subjects (46 tunnels) that were each measured by three observers (CA, KW, BC). The intra-rater reliability was measured based on two rounds of measurement by one investigator (CA), separated by 1 week, for all 15 subjects (46 tunnels). All further tunnel widening analysis was conducted with the first set of measurements of the primary investigator (CA) who was not blinded for the outcome of the patients. The two other observers (KW and BC) were blinded for the patients’ outcome.

Statistical analysis

An a priori power analysis was performed only for the DB operated knees. Assuming alpha to be 0.05 and a standard deviation of 0.74 mm [28], 20 patients were found to be sufficient to detect a difference of 0.5 mm widening with 80 % statistical power [21].

Paired samples t-tests were used to compare the tunnel measurements from 0 to 1-year follow-up in each technique group. Additionally, widening was compared between SB and DB groups using Welch’s two-sample t-tests. The chosen level of significance was 0.05. All statistical analyses were performed using the statistical computing software R (R Core Team, Vienna, Austria), including the packages psy and boot.

Results

Forty-two cases of primary ACL reconstructed knees were included for analysis. Descriptive data are listed in Table 1. The correlation between the three different observers (inter-rater reliability) was 0.829, 95 % confidence interval (CI) 0.732–0.897. The ICC of repeated measurements of one observer (intra-rater reliability) was 0.963, 95 % CI 0.855–0.988.
Table 1

Descriptions of the DB and SB operated patients



DB (n = 20)

SB (n = 22)

Age (years)

25.5 [19, 37]

26 [18, 39]

Gender (M/F)

16/4

15/7

Side (L/R)

10/10

12/10

OP till CT1 (days)

0.5 [0, 3]

0.5 [0, 12]

CT1 till CT 2 (days)

366 [333, 460]

367 [337, 767]

Data presented as median [minimum, maximum] or counts

Difference between initial tunnel size and the size measured one year post-operatively (Table 2)

Every type of SB or DB drilled tunnel exhibited widening from the operation to 1 year post-operatively, except for the DB femoral AM tunnel at the 10.0 mm from joint line level (p < 0.05). Results regarding diameter widening of each tunnel are listed in Table 2. Percentage widening of the best-fit cylinders was 7 % (95 % CI = [3, 11]) in the femoral AM tunnel, 14 % (95 % CI = [7, 22]) widening in the femoral PL tunnel, 8 % (95 % CI = [3, 11]) in the tibial AM tunnel and 7 % (95 % CI = [3, 10]) in the tibial PL tunnel. In the SB operated knees, the tunnel/cylinder size widened 17 % (95 % CI = [12, 22]) on the femur side and 10 % (95 % CI = [5, 14]) on the tibia side during the first year after the reconstruction (Table 2).
Table 2

Results, tunnel widening Year 0–Year 1



Year 0 mm ± SD

Year 1 mm ± SD

Widening Year1–Year0 mm (CI)

Widening Year1–Year0 % (CI)

p value

Cylinder measurements

SB (n = 24)

Femur

8.3 ± 0.6

9.6 ± 1.0

1.4 [1.0, 1.8]

17 [12, 22]

<0.001



Tibia

10.0 ± 1.0

11.0 ± 1.2

1.0 [0.5, 1.4]

10 [5, 14]

<0.001

DB (n = 20)

Femur AM

7.1 ± 0.7

7.6 ± 0.7

0.5 [0.2, 0.8]

7 [3, 11]

<0.001



Femur PL

5.8 ± 0.4

6.6 ± 1.0

0.8 [0.4, 1.3]

14 [7, 22]

<0.001



Tibia AM

9.1 ± 0.8

9.8 ± 1.1

0.7 [0.3, 1.0]

8 [3, 11]

<0.001



Tibia PL

7.0 ± 0.6

7.5 ± 0.8

0.5 [0.2, 0.7]

7 [3, 10]

<0.001

Aperture measurements

SB (n = 24)

Femur

8.4 ± 0.6

10.1 ± 1.1

1.7 [1.2, 2.2]

20 [14, 26]

<0.001



Tibia

9.5 ± 1.0

10.4 ± 1.3

0.9 [0.5, 1.4]

9 [5, 15]

<0.001

DB (n = 20)

Femur AM

7.3 ± 0.7

7.9 ± 0.9

0.7 [0.4, 1.0]

10 [5, 14]

<0.001



Femur PL

5.9 ± 0.4

7.4 ± 1.3

1.5 [0.9, 2.1]

25 [15, 36]

<0.001



Tibia AM

8.3 ± 0.8

9.2 ± 1.2

0.9 [0.3, 1.5]

11 [4, 18]

0.005



Tibia PL

6.3 ± 0.6

7.0 ± 1.0

0.7 [0.2, 1.2]

11 [3, 19]

0.004

10 mm measurements

SB (n = 24)

Femur

8.3 ± 0.6

9.6 ± 1.4

1.3 [0.7, 2.0]

16 [8, 24]

<0.001



Tibia

10.1 ± 1.2

11.3 ± 1.4

1.2 [0.7, 1.7]

12 [7, 17]

<0.001

DB (n = 20)

Femur AM

7.1 ± 0.6

7.4 ± 0.8

0.3 [-0.1, 0.6]

4 [−1, 8]

ns



Femur PL

5.8 ± 0.5

6.5 ± 0.8

0.7 [0.3, 1.1]

12 [5, 19]

0.002



Tibia AM

9.0 ± 0.9

10.0 ± 1.3

1.0 [0.5, 1.4]

11 [6, 16]

<0.001



Tibia PL

6.7 ± 0.9

7.2 ± 1.1

0.5 [0.1, 1.0]

7 [1, 15]

0.030

Comparison of tunnel widening for DB versus SB ACL reconstructed knees (Table 3)

There was more widening in the femoral SB tunnel than in the femoral DB AM tunnel when comparing the diameter of the best-fit cylinder. On the tibial side, a significant difference between the tibial SB tunnel and the tibial DB PL tunnel was detected (p < 0.05) (Table 3).
Table 3

Group comparison of SB and DB

Tunnel

SB wideninga

Tunnel

DB wideninga

p-value

Best-fit cylinder measurementsa



 SB femur

1.4 ± 0.9

AM femur

0.5 ± 0.6

<0.001



PL femur

0.8 ± 1.0

ns

 SB tibia

1.0 ± 1.0

AM tibia

0.7 ± 0.8

ns



PL tibia

0.5 ± 0.6

0.043

Aperture measurementsa



 SB femur

1.7 ± 1.1

AM femur

0.7 ± 0.6

<0.001



PL femur

1.5 ± 1.3

ns

 SB tibia

0.9 ± 1.0

AM tibia

0.9 ± 1.3

ns



PL tibia

0.7 ± 1.0

ns

10 mm measurementsa



 SB femur

1.3 ± 1.4

AM femur

0.3 ± 0.8

0.004



PL femur

0.7 ± 0.8

ns

 SB tibia

1.2 ± 1.1

AM tibia

1.0 ± 1.0

ns



PL tibia

0.5 ± 1.0

0.037

aData presented as mean diameter (mm) ± SD

Comparing the tunnel widening at aperture in SB to DB operated knees, the only tunnel that showed significant difference in widening 1 year after the operation was the femoral SB tunnel compared to the DB femoral AM tunnel. All other tunnels did not reveal any difference at this level (Table 3). At 10.0 mm from the joint line level, a larger amount of widening was found in the SB femoral tunnel than the DB femoral AM tunnel. On the tibial side, more widening was detected in the SB tunnel compared to the DB PL tunnel (Table 3).

One DB operated knee was identified with communicating tunnels at the first post-operative day. Four additionally DB operated knees were identified with a loss of a separating cortical bridge at 1-year follow-up. Three of the subjects had tunnel communication on the femoral side and two on the tibial side. The distance from the joint line to the cortical bridge was between 2.7 and 15.2 mm.

Discussion

The most important finding of this study was that a difference in the amount of widening between the tunnels in DB and SB reconstructed knees was found. In two out of three tunnel measurement methods, there was less widening in the DB femoral AM tunnels than in the SB femoral tunnels and in the DB tibial PL tunnels than the SB tibial tunnels.

Another important finding was that this study confirmed the phenomenon of tunnel widening during the first year after the operation, both in DB and in SB reconstructed knees. These findings are consistent with the literature, although the amount of tunnel widening in this study (7–25 %) was less impressive than previously described (Table 4) [13, 27, 29]. The most prominent widening in DB reconstructed knees was found in the DB femoral PL tunnels (12–25 % depending on measurement method).
Table 4

Tunnel widening, literature search

Author

Published

Outcome

Patients (n)

FU (months)

Imaging

Level of measurement

Widening and clinical outcome**

Results

% Enlargement Femur

% Enlargement Tibia

L´Insalata et al.

1997

BPTB vs HT

30/30

13/9

X-ray

Widest point

Not studied

HT > BPTB

HT

30.2*

HT

25.5*



BPTB

NA

BPTB

14.4*

Clatworthy et al.

1999

BPTB vs HT

35/38

12

X-ray

10 mm distal to joint line

No corr

HT > BPTB

HT

40

HT

30.3



BPTB

NA

BPTB

NA

Jansson et al.

1999

HT

14

24

X-ray MRI

Not specified

Not studied

MRI findings

HT

33

HT

23

Webster et al.

2001

BPTB vs HT

28/33

24

X-ray

Widest part

No corr

HT > BPTB

HT

47.4*

HT

24.1*



BPTB

15.6*

BPTB

NA

Zysk et al.

2004

BPTB vs HT

7/6

9.5

X-ray

Widest point

Not studied

No diff HT/BPTB

HT

NA

HT

26.7



BPTB



BPTB

29.9

Fauno et al.

2005

HT

87

12

X-ray

10 mm distal to joint line

Not studied

Extracortical fixation > Joint aperture fixation

HT

NA

HT

NA

Iorio et al.

2007

HT

23

1 day + 10

CT

Aperture, middle point

No corr

Widening femur and tibia

HT

3

HT

11

Järvelä et al.

2008

DB vs SB

32/21

27

MRI

20 mm distal to joint line

Corr to KT1000 and pivot

SB > DB on tibia

DBAM

54

DBAM

39



DBPL

42

DBPL

43



SB

45

SB

45

Silva et al.

2010

DB

40

1 day + 3

MRI

Aperture, widest point

Not studied

Widening most midsection, Femoral AM most

DBAM

35*

NA




DBPL

30*



Siebold et al.

2010

DB

24

2 day + 7

MRI

10 mm distal to joint line

Not studied

Widening all tunnels, Femoral PL the most,

DBAM

33.6

DBAM

20.5



DBPL

46.5

DBPL

38

Kawaguchi et al.

2011

DB vs SB

97/72

24

X-ray

Aperture

No corr

SB > DB

DBAM

7.1*

NA




DBPL

0.4*




SB

15.5



Sabat et al.

2011

HT

34

6

CT

Aperture, midway, suspension point

Not studied

Endobutton > Transfix fixation

HT

38.4*

NA



Lee et al.

2012

DB

40

26.7

MRI

Aperture, mid, exit

Not studied

PL the most Aperture most

DBAM

25.4

DBAM

32.8



DBPL

30.8

DBPL

44.5

Choi et al.

2013

HT

171

24

X-ray

Proximal, middle, distal

No correlation

EB loop length did not correlate with widening

HT

50.7*

HT

46.4*

Achtnich et al.

2013

DB vs SB

21/24

8

MRI

20 mm from joint line

Not studied

No SB/DB diff

DBAM

41

DBAM

40.6



DBPL

40

DBPL

43.5



SB

38.3

SB

40

Robbrecht et al.

2014

Autograft vs Allograft

25/10

12

3D-CT

Best-fit cylinder

Not studied

Allografts > Autografts

Auto

36.7

Auto

35.8



Allo

53

Allo

47.7

Tajima et al.

2014

DB

51

24

X-ray

Aperture

Not studied

Widening independent of immobilisation period

DBAM

15.2

NA




DBPL

14.5



NS not significant

* Largest tunnel diameter, if more than one views (AP or lateral) or measurement point (aperture, midway, exit) was recorded

** Correlation between enlargement of the tunnels and clinical outcome

This is the first study to use a semi-automated 3D CT measuring modality to detect tunnel size changes in DB operated knees. The ICC scores showed an excellent intra-rater and inter-rater reliability [0.963, (95 % CI 0.855–0.988) and 0.829 (95 % CI 0.732–0.897)] making this method reliable and preferable for future studies on tunnel widening. Robbrecht et al. [24] recently published a study with the same measurement method in SB operated knees. They used the best-fit cylinder modality to detect tunnel widening and also reported a high reproducibility with the intra-observer ICC in the femoral tunnels at 0.973 (95 % CI 0.922–0.991) and the inter-observer ICC at 0.992 (95 % CI 0.982–0.996). In the tibial tunnels, the intra-observer ICC was 0.955 (95 % CI 0.875–0.985) and the combined inter-observer ICC was 0.970 (95 % CI 0.987–0.91).

The phenomenon of tunnel widening was found in almost all the measurement modalities (Table 2), although various and often higher degrees of widening in ACL reconstructed knees have previously been described (Table 4). The results of those papers differ substantially (0.4–56 %), as do the modality of imaging, method of measurement, location of measurement along the tunnel and when and what to measure [1, 13, 27]. This has not been consistent when looking at previously described papers (Table 4).

When it comes to the modality of imaging bone tunnels, CT is known to be superior in its reliability. Marchant et al. [17] compared tunnel widening measured on two-dimensional (2D) CT image slices to plain radiography and 2D magnetic resonance imaging and concluded that 2D CT images provided the best inter- and intra-observer reliability and should be used for further evaluation of bone tunnels in patients with tunnel widening [17]. In the current study, 2D CT scans were exported into a 3D model. The benefit of this method was that the tunnels could be extracted after segmentation and the measurements could be calculated semi-automatically using the software. The measurements were also independent of the angulation of the knee at examination. But even though a semi-automated measurement of the tunnels is beneficial, measurement errors due to the manual segmentation technique with this method are still existent and should not be underestimated.

In this study, a post-operative CT scan measuring the tunnel size at time zero and a second CT scan after 1 year were performed. This ensured measuring the real enlargement created only by the post-operative process of the tunnel widening. These results might therefore also be less impressive, though more realistic, compared to studies that did not control for this pre-existent widening at time zero. Iorio et al. [9] looked at widening of single-bundle hamstring tendon grafts. They had one CT scan acquired after the first day of operation and the second one after 10 months. Their results showed 3 % widening of the femoral tunnel and 11 % widening of the tibial tunnel, which is less than other studies but similar to what was found in the present study (Table 2).

Additional measurements were made at the tunnel aperture and 10.0 mm from the joint line on both the femoral and tibial side. Measuring at those two different levels seems of importance in order to detect widening in different parts of the tunnel and to measure where the mechanical and biological forces might have the largest influence on the graft. When comparing the two levels, the results revealed a larger widening at the aperture than 10.0 mm from the joint line for almost all of the tunnels. This is consistent with the previously described literature and has been explained by the windshield wiper effect with graft motion and stress deviation inside the tunnel [25]. The best-fit cylinder measurement method eliminates these irregularities and detects an average widening of the entire tunnel, independent of the different shapes created by the widening.

Multiple studies have been done to compare the DB and the SB reconstruction procedure, and some have found improved knee stability and less graft ruptures with the use of the DB surgical technique [14, 32], though other studies do not have these findings [3, 30]. Our study revealed detectable differences in tunnel widening between the two reconstruction techniques. The femoral AM tunnel and the tibial PL tunnel in DB reconstructed knees had less widening compared to the SB reconstructed knees. Three studies have previously compared widening in DB with SB reconstructed knees. Järvelä et al. [10] looked at 32 DB and 21 SB with MRI 27 months after reconstruction. They reported 39–54 % widening in DB operated knees and a significantly higher degree of widening in SB compared to DB operated knees. The measurements were done 20 mm from the joint line and were compared to the initial drill size. They also found a correlation between clinical laxity and the amount of tunnel widening. Kawaguchi looked at 97 DB and 72 SB operated knees with radiography at 24 months [11]. They only measured at aperture and only at the femoral side and found more widening in SB than DB knees. The widening was only 0.4–7.1 % in DB knees and 15 % in SB operated knees. Achtnich et al. [1] described a widening of the tunnels in both groups, but no significant difference between the widening in the DB and the SB group. The detected widening was between 38 and 44 %. Considering the different results and conclusions in those three studies, both the use of different modalities and methods to detect the widening and the different sample sizes between the studies should be considered. With small study samples like in the studies of Achtnich, Järvelä and the current study, there is a possibility of a statistical type two failure.

Siebold et al. [27] used MRI scans 2 days after the operation and after 7 months and looked at widening in only DB operated knees 10 mm from the joint line on both sides of the joint. They found 20–46 % widening of the tunnels. In their study, the widening was largest around the PL bundle, theorised to be due to the higher non-isometric function of the graft in this position. This is in accordance with the results in this study where the DB femoral PL tunnels had 14 % widening compared to 7 % in the femoral AM tunnels. Both their use of extracortical fixation on both the tibia and the femur and the measurement with MRI instead of CT might influence the results in this study. Considering that two different fixation techniques were used in this study, with an extracortical fixation device at the femoral side and an interference screw fixation at the tibial side, this could influence the results. Tunnel widening is known to increase by extracortical fixation of the graft, compared to fixation close to the joint line [6]. The femoral SB tunnels and the femoral DB PL tunnels had a higher amount of widening compared to their respective tibial side tunnels in the present study (Table 2).

Five of the DB reconstructed knees (20 %) experienced communication at the tunnel aperture 1 year after the operation; 3 on the femoral side; and 2 on the tibial side. Siebold et al. [27] found communication intra-operatively in 4 % of the tunnels, increasing to 23 % after 7 months. It is uncertain to what extent the convergence of the tunnels influences knee function. By creating an anatomic reconstruction of the ACL, a high coverage of the native footprint is desirable [18]. This has been demonstrated to be easier to achieve by the DB technique, and communication of the tunnels at aperture would not influence this. Also the separate directions and tension forces of the two grafts are still ensured, even if the grafts do remain close to each other at the aperture sites.

At revision surgery, the extent of tunnel widening makes an impact. Although the revision rate of DB reconstructed knees is low [3], DB reconstructed knees may be more vulnerable for widening because of the additional bone loss created by the two tunnels on each side of the joint. Thus, tunnel widening might further complicate revision surgery for those knees. The tunnel widening of DB reconstructed knees in this study was between 0.3 and 1.5 mm depending on which tunnel and where the measurements were made. The largest widening was found at the tunnel aperture measurements (1.5 mm). Using the best-fit cylinder method, the largest amount of widening detected was less than 1 mm (0.5–0.8 mm) and thus may not be of importance for the clinical outcome or for the revision procedure.

The main limitation of this study was that it is still uncertain whether these findings affect the patients knee function or if those findings of widening are clinical relevant, because the clinical findings of the patients are yet not available for analysis. Most previous studies did not find any correlation between knee stability and the clinical and subjective outcomes for the patients (Table 4) [4, 9, 11, 31]. Only one study has shown a correlation between widening and knee laxity as measured by KT-1000 on the rotational stability measured by the pivot shift test, with a higher laxity in the patients that were affected of tunnel widening [10]. In a review by Saccomanno et al. [26], five Level 1 or Level 2 studies containing 317 patients were compared. They looked at the clinical and functional outcome of different fixation devices on the femoral side and concluded that the amount of tunnel widening was not found to affect the clinical results.

Other limitations of the present study were the lack of power when looking at the difference between the SB and DB operated knees, because the study sample size only was done to detect a widening in the DB operated knees. Three other studies have looked at the difference between these two techniques [1, 11, 29]. Two of those studies had the same sample size as this study, but to ensure to not overlook any further differences between the two techniques, the groups should have been enlarged. Also, the present study’s results cannot be generalised to other DB reconstructed knees with different graft fixation techniques, other devices or settings. Suspensory devices are known to result in higher amount of tunnel widening than grafts fixated closer to the joint line. As this study has the same fixation technique in both the DB and SB groups, one would suggest that the detected differences would not be influenced, although the amount of widening could be influenced as previously described. Also, a selection and information bias might have occurred, because some of the patients did not want to participate in the study and other patients for different reasons (pain, logistical matters) were not able to obtain the CT scan during the first 2 days after surgery. Finely, no laxity tests were available for analysis at present time. It is therefore not possible to determine whether the reported significant tunnel enlargement could affect knee laxity in our cohort of patients. These results will be available after we have completed the two-year follow-up of all the participants in the trial (Clinical trials number: NCT01033188).

The clinical consequence of tunnel widening is first of all of importance in case of revision surgery. Tunnel expansion leads to bone loss close to the joint, and as a consequence to that, additional bone grafting might be necessary before the final revision can be allowed. The extent of tunnel widening is further important in ACL deficient knees reconstructed with the double-bundle technique, because the doubled set of tunnels created with this technique makes them vulnerable for further bone loss.

Conclusion

In the present study, a higher amount of tunnel widening was found in the SB reconstructed knees compared to two of the four tunnels in the DB reconstructed knees. Further, it was confirmed that widening occurs in all of the tunnels during the first year after surgery. The detected widening was 0.5–1.5 mm in DB operated knees and 0.9–1.7 mm in SB operated knees and was less than previously described. Finally, the novel semi-automated 3D CT method for measuring tunnel widening demonstrated an excellent intra-rater and inter-rater agreement.

Notes

Acknowledgments

We would like to aknowledge Bernardo Crespo MD, for his support with the measurements in this study, and we would also like to thank the Radiologic department of Oslo University Hospital for their help with collection and transferring of the data. Cathrine Aga has received research grants from Smith & Nephew and South-Eastern Norway Regional Health Authority for this study. Robert F LaPrade is a consultant for and receives royalties from Arthrex, Ossur and Smith & Nephew. Lars Engebretsen is a consultant for Arthrex and Smith & Nephew. Smith & Nephew provided donation of surgical supplies for this study.

References

  1. 1.
    Achtnich A, Stiepani H, Forkel P, Metzlaff S, Hanninen EL, Petersen W (2013) Tunnel widening after anatomic double-bundle and mid-position single-bundle anterior cruciate ligament reconstruction. Arthroscopy 29(9):1514–1524CrossRefPubMedGoogle Scholar
  2. 2.
    Ahlden M, Samuelsson K, Sernert N, Forssblad M, Karlsson J, Kartus J (2012) The Swedish National anterior cruciate ligament register: a report on baseline variables and outcomes of surgery for almost 18,000 patients. Am J Sports Med 40(10):2230–2235CrossRefPubMedGoogle Scholar
  3. 3.
    Bjornsson H, Andernord D, Desai N, Norrby O, Forssblad M, Petzold M, Karlsson J, Samuelsson K (2015) No difference in revision rates between single- and double-bundle anterior cruciate ligament reconstruction: a comparative study of 16,791 patients from the Swedish national knee ligament register. Arthroscopy 31(4):659–664CrossRefPubMedGoogle Scholar
  4. 4.
    Clatworthy MG, Annear P, Bulow JU, Bartlett RJ (1999) Tunnel widening in anterior cruciate ligament reconstruction: a prospective evaluation of hamstring and patella tendon grafts. Knee Surg Sports Traumatol Arthrosc 7(3):138–145CrossRefPubMedGoogle Scholar
  5. 5.
    Crespo B, Aga C, Wilson K, Pomeroy S, LaPrade R, Engebretsen L, Wijdicks C (2014) Measurements of bone tunnel size in anterior cruciate ligament reconstruction: 2D versus 3D computed tomography model. J Exp Orthop 1(1):2CrossRefPubMedPubMedCentralGoogle Scholar
  6. 6.
    Fauno P, Kaalund S (2005) Tunnel widening after hamstring anterior cruciate ligament reconstruction is influenced by the type of graft fixation used: a prospective randomized study. Arthroscopy 21(11):1337–1341CrossRefPubMedGoogle Scholar
  7. 7.
    Hantes ME, Liantsis AK, Basdekis GK, Karantanas AH, Christel P, Malizos KN (2010) Evaluation of the bone bridge between the bone tunnels after anatomic double-bundle anterior cruciate ligament reconstruction: a multidetector computed tomography study. Am J Sports Med 38(8):1618–1625CrossRefPubMedGoogle Scholar
  8. 8.
    Hoher J, Moller HD, Fu FH (1998) Bone tunnel enlargement after anterior cruciate ligament reconstruction: fact or fiction? Knee Surg Sports Traumatol Arthrosc 6(4):231–240CrossRefPubMedGoogle Scholar
  9. 9.
    Iorio R, Vadala A, Argento G, Di Sanzo V, Ferretti A (2007) Bone tunnel enlargement after ACL reconstruction using autologous hamstring tendons: a CT study. Int Orthop 31(1):49–55CrossRefPubMedGoogle Scholar
  10. 10.
    Jarvela T, Moisala AS, Paakkala T, Paakkala A (2008) Tunnel enlargement after double-bundle anterior cruciate ligament reconstruction: a prospective, randomized study. Arthroscopy 24(12):1349–1357CrossRefPubMedGoogle Scholar
  11. 11.
    Kawaguchi Y, Kondo E, Kitamura N, Kai S, Inoue M, Yasuda K (2011) Comparisons of femoral tunnel enlargement in 169 patients between single-bundle and anatomic double-bundle anterior cruciate ligament reconstructions with hamstring tendon grafts. Knee Surg Sports Traumatol Arthrosc 19(8):1249–1257CrossRefPubMedGoogle Scholar
  12. 12.
    L’Insalata JC, Klatt B, Fu FH, Harner CD (1997) Tunnel expansion following anterior cruciate ligament reconstruction: a comparison of hamstring and patellar tendon autografts. Knee Surg Sports Traumatol Arthrosc 5(4):234–238CrossRefPubMedGoogle Scholar
  13. 13.
    Lee YS, Lee SW, Nam SW, Oh WS, Sim JA, Kwak JH, Lee BK (2012) Analysis of tunnel widening after double-bundle ACL reconstruction. Knee Surg Sports Traumatol Arthrosc 20(11):2243–2250CrossRefPubMedGoogle Scholar
  14. 14.
    Li X, Xu CP, Song JQ, Jiang N, Yu B (2013) Single-bundle versus double-bundle anterior cruciate ligament reconstruction: an up-to-date meta-analysis. Int Orthop 37(2):213–226CrossRefPubMedGoogle Scholar
  15. 15.
    Lind M, Feller J, Webster KE (2009) Bone tunnel widening after anterior cruciate ligament reconstruction using EndoButton or EndoButton continuous loop. Arthroscopy 25(11):1275–1280CrossRefPubMedGoogle Scholar
  16. 16.
    Maletis GB, Inacio MC, Funahashi TT (2015) Risk factors associated with revision and contralateral anterior cruciate ligament reconstructions in the Kaiser Permanente ACLR registry. Am J Sports Med 43(3):641–647CrossRefPubMedGoogle Scholar
  17. 17.
    Marchant MH Jr, Willimon SC, Vinson E, Pietrobon R, Garrett WE, Higgins LD (2010) Comparison of plain radiography, computed tomography, and magnetic resonance imaging in the evaluation of bone tunnel widening after anterior cruciate ligament reconstruction. Knee Surg Sports Traumatol Arthrosc 18(8):1059–1064CrossRefPubMedGoogle Scholar
  18. 18.
    Middleton KK, Muller B, Araujo PH, Fujimaki Y, Rabuck SJ, Irrgang JJ, Tashman S, Fu FH (2014) Is the native ACL insertion site “completely restored” using an individualized approach to single-bundle ACL-R? Knee Surg Sports Traumatol Arthrosc 23(8):2145–2150CrossRefPubMedGoogle Scholar
  19. 19.
    Mott HW (1983) Semitendinosus anatomic reconstruction for cruciate ligament insufficiency. Clin Orthop Relat Res 172:90–92Google Scholar
  20. 20.
    Myers P, Logan M, Stokes A, Boyd K, Watts M (2008) Bioabsorbable versus titanium interference screws with hamstring autograft in anterior cruciate ligament reconstruction: a prospective randomized trial with 2-year follow-up. Arthroscopy 24(7):817–823CrossRefPubMedGoogle Scholar
  21. 21.
    Nebelung W, Becker R, Merkel M, Ropke M (1998) Bone tunnel enlargement after anterior cruciate ligament reconstruction with semitendinosus tendon using Endobutton fixation on the femoral side. Arthroscopy 14(8):810–815CrossRefPubMedGoogle Scholar
  22. 22.
    Persson A, Fjeldsgaard K, Gjertsen JE, Kjellsen AB, Engebretsen L, Hole RM, Fevang JM (2014) Increased risk of revision with hamstring tendon grafts compared with patellar tendon grafts after anterior cruciate ligament reconstruction: a study of 12,643 patients from the Norwegian Cruciate Ligament Registry, 2004–2012. Am J Sports Med 42(2):285–291CrossRefPubMedGoogle Scholar
  23. 23.
    Peyrache MD, Djian P, Christel P, Witvoet J (1996) Tibial tunnel enlargement after anterior cruciate ligament reconstruction by autogenous bone-patellar tendon-bone graft. Knee Surg Sports Traumatol Arthrosc 4(1):2–8CrossRefPubMedGoogle Scholar
  24. 24.
    Robbrecht C, Claes S, Cromheecke M, Mahieu P, Kakavelakis K, Victor J, Bellemans J, Verdonk P (2014) Reliability of a semi-automated 3D-CT measuring method for tunnel diameters after anterior cruciate ligament reconstruction: A comparison between soft-tissue single-bundle allograft versus autograft. Knee 21(5):926–931CrossRefPubMedGoogle Scholar
  25. 25.
    Rodeo SA, Kawamura S, Kim HJ, Dynybil C, Ying L (2006) Tendon healing in a bone tunnel differs at the tunnel entrance versus the tunnel exit: an effect of graft-tunnel motion? Am J Sports Med 34(11):1790–1800CrossRefPubMedGoogle Scholar
  26. 26.
    Saccomanno MF, Shin JJ, Mascarenhas R, Haro M, Verma NN, Cole BJ, Bach BR Jr (2014) Clinical and functional outcomes after anterior cruciate ligament reconstruction using cortical button fixation versus transfemoral suspensory fixation: a systematic review of randomized controlled trials. Arthroscopy 30(11):1491–1498CrossRefPubMedGoogle Scholar
  27. 27.
    Siebold R, Cafaltzis K (2010) Differentiation between intraoperative and postoperative bone tunnel widening and communication in double-bundle anterior cruciate ligament reconstruction: a prospective study. Arthroscopy 26(8):1066–1073CrossRefPubMedGoogle Scholar
  28. 28.
    Siebold R, Dehler C, Ellert T (2008) Prospective randomized comparison of double-bundle versus single-bundle anterior cruciate ligament reconstruction. Arthroscopy 24(2):137–145CrossRefPubMedGoogle Scholar
  29. 29.
    Silva A, Sampaio R, Pinto E (2010) Femoral tunnel enlargement after anatomic ACL reconstruction: a biological problem? Knee Surg Sports Traumatol Arthrosc 18(9):1189–1194CrossRefPubMedGoogle Scholar
  30. 30.
    Suomalainen P, Jarvela T, Paakkala A, Kannus P, Jarvinen M (2012) Double-bundle versus single-bundle anterior cruciate ligament reconstruction: a prospective randomized study with 5-year results. Am J Sports Med 40(7):1511–1518CrossRefPubMedGoogle Scholar
  31. 31.
    Webster KE, Feller JA, Hameister KA (2001) Bone tunnel enlargement following anterior cruciate ligament reconstruction: a randomised comparison of hamstring and patellar tendon grafts with 2-year follow-up. Knee Surg Sports Traumatol Arthrosc 9(2):86–91CrossRefPubMedGoogle Scholar
  32. 32.
    Xu Y, Ao YF, Wang JQ, Cui GQ (2014) Prospective randomized comparison of anatomic single- and double-bundle anterior cruciate ligament reconstruction. Knee Surg Sports Traumatol Arthrosc 22(2):308–316CrossRefPubMedGoogle Scholar
  33. 33.
    Ziegler CG, Pietrini SD, Westerhaus BD, Anderson CJ, Wijdicks CA, Johansen S, Engebretsen L, LaPrade RF (2011) Arthroscopically pertinent landmarks for tunnel positioning in single-bundle and double-bundle anterior cruciate ligament reconstructions. Am J Sports Med 39(4):743–752CrossRefPubMedGoogle Scholar

Copyright information

© The Author(s) 2016

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors and Affiliations

  • Cathrine Aga
    • 1
    • 2
    • 3
  • Katharine J. Wilson
    • 4
  • Steinar Johansen
    • 5
  • Grant Dornan
    • 4
  • Robert F. La Prade
    • 4
  • Lars Engebretsen
    • 2
    • 3
  1. 1.Martina Hansens HospitalSandvikaNorway
  2. 2.Orthopaedic Department Oslo University Hospital, Faculty of MedicineUniversity of OsloOsloNorway
  3. 3.Oslo Sports Trauma Research CenterOsloNorway
  4. 4.The Steadman ClinicSteadman Philippon Research InstituteVailUSA
  5. 5.Lovisenberg Diakonale HospitalOsloNorway

Personalised recommendations
