Infrared Solar Physics

Open Access
Review Article

DOI: 10.12942/lrsp-2014-2

Cite this article as:
Penn, M.J. Living Rev. Solar Phys. (2014) 11: 2. doi:10.12942/lrsp-2014-2


The infrared solar spectrum contains a wealth of physical data about our Sun, and is explored using modern detectors and technology with new ground-based solar telescopes. The scientific motivation behind exploring these wavelengths is presented, along with a brief look at the rich history of observations here. Several avenues of solar physics research exploiting and benefiting from observations at infrared wavelengths from roughly 1000 nm to 12 400 nm are discussed, and the instrument and detector technology driving this research is briefly summarized. Finally, goals for future work at infrared wavelengths are presented in conjunction with ground and space-based observations.


Solar magnetic fields Solar atmosphere Detectors

1 Introduction

“Why does anyone still observe the Sun using visible wavelengths of light?” a colleague recently asked of me. Certainly night-time astronomers have been exploiting the infrared spectrum for many years to address critical science questions in that field. The spatial resolution, flux, and background problems are even more extreme at night than they are for observations of the Sun. Infrared detector and instrument technology is clearly robust, and the scientific advantages are important. So then why is not the majority of solar data, particularly ground-based solar data, taken in the infrared spectrum? The best answer I could conceive was simply that of tradition. Solar observations have been made in visible wavelengths for hundreds if not thousands of years, and many of those observations have produced breakthrough science. But one thing is certain: the Sun is still stubbornly keeping secrets from us. The goal of this review is to clearly show how we can attack those outstanding questions in solar physics by looking through the window provided by the infrared spectrum.

From the discovery of infrared radiation by William Hershel (Herschel, 1800) infrared referred to light with a wavelength too long to be detected by the human eye. As the human eye is replaced in astronomy by a plethora of different types of detectors, this definition falters, and we must look for other ways to define the infrared spectrum. One technique which is often used (Jefferies, 1994) simply defines the infrared spectrum as three decades of wavelength, from a wavelength of 1000 nm to a wavelength of 1 mm. On the short wavelength side, this definition roughly agrees with a detector-based definition. Silicon detectors are sensitive to visible wavelengths, and drop to very little sensitivity at a wavelength around 1000 nm. On the long wavelength end, this definition includes some of the sub-mm or terahertz radation (usually 0.1 to 1 mm). For the purposes of this review paper, these three decades of wavelength will be used to define infrared radiation.

Since the visible spectrum covers a wavelength range of only a factor of two, and the infrared spectrum covers a factor of 1000, it is useful to sub-divide the infrared spectrum into smaller wavelength ranges. Table 1 shows a list of commonly used names for the different parts of the infrared spectrum. While this nomenclature is often used, it is not strictly defined for the three regions of Near-IR, Mid-IR, and Far-IR, and one should expect to see the terms used only loosely especially in fields outside of astronomy. Table 1 also includes lists of the corresponding wavenumber and frequency intervals for these bands, again only approximately computed due to the informal nature of the definitions. The last column shows the temperatures corresponding to black body radiation curves with peaks at the wavelength boundaries, computed using Wien’s displacement law, where T = 2897/λmax in degrees Kelvin when the wavelength is written in microns. Recalling the fact that solar telescopes and their associated optics operate near room temperature of 300 K, the meaning for the term thermal IR becomes clear: at wavelengths from about 4000 nm and longer, photon flux emitted from background sources can dominate even solar photon flux. Measurements at these wavelengths become background dominated, and clever observational techniques must often be used.
Table 1:

Informal Infrared Nomenclature.


Wavelength [nm]

Wavenumber [cm−1]

Frequency [GHz]

Temperature [K]

Near IR


14 300–2000

428 000–60 000



5000–25 000


60 000–12 000



25 000–106


12 000–300


Instead of using these labels, a simple division of the infrared spectrum by factors of ten is appealing. In the first decade of wavelengths (1000 to 10000 nm) the spectrum is explored using array detectors which are similar to those used at visible wavelengths. In the longest wavelength decade (from 0.1 to 1 mm) measurements are often made using heterodyne receivers or radiation waveguides which resemble radio detectors. Here I will focus on results in the first decade of the infrared wavelength range, from about 1000 to 10 000 nm including just a few notable exceptions outside of this range. Studies of the Sun at longer wavelengths have been reviewed by Deming et al. (1991b) and new exciting results continue to be made, especially by Kaufmann et al. (2013); but these wavelengths will be left for future discussion.

Within this smaller wavelength range, it is useful to consider both atmospheric transmission and detectors again. Figure 1 from Hinkle et al. (2003) shows a diagram of the Earth’s atmospheric transmission. There are several clear wavelength regions where a high percentage of light is transmitted to the surface of the Earth, and there are several blocked wavelength regions where light is very effectively absorbed by the Earth’s atmosphere. In astronomy, these atmospheric transmission windows were exploited for stellar photometry, and the early work of stellar astronomers, (especially Johnson, 1962) established the nomenclature for the infrared wavelength bands in the 1000 to 5000 nm range known as J, H, K, L, and M. The central wavelengths of these bands are roughly 1300, 1600, 2200, 3600, and 5000 nm. and the names are often used to describe infrared solar spectral observations.
Figure 1:

Atmospheric transmission from 560 to 21000 nm as measured from the McMath-Pierce facility at Kitt Peak. The molecules which are responsible for the various absorption bands are marked. Image reproduced with permission from Hinkle et al. (2003), copyright by AAS.

Finally, it is useful to briefly discuss the detectors used for study in the Near-IR region. In order to detect a photon with a reasonable level of efficiency, a detector pixel needs to be roughly the size of the photon wavelength or larger. At these wavelengths, array detectors with pixel sizes of order 10 or 100 microns (just as for visible wavelengths) can be used as efficient detectors. Silicon array detectors, including both CMOS and CCD cameras, have a quantum efficiency which drops to near zero at roughly 1100 nm, as the silicon substrate becomes transparent to longer wavelength photons.

Infrared detectors are highly desirable items for many industrial purposes, and so the technology is changing constantly. Several reviews of the applications of these new arrays to astronomy have been published and make useful resources (for two examples, see Wynn-Williams and Becklin, 1987; Rieke, 2007). In general, arrays which use new technology strive for high efficiency within the wavelength range of interest, as well as high uniformity of response with a low dark current. Ease-of-use and expense are also factors which enter into the development process. At the current date, infrared observations at different wavelengths are regularly made with a handful of different types of detectors. These include arrays with detectors of HgCdTe (roughly 1000–2200 nm), InGaAs (roughly 1000–1800 nm), InSb (1000–5000 nm), Si:X doped silicon arrays (2000–30000 nm), Ge:X doped germanium arrays (28 000–20 0000 nm), and PtSi diode arrays Ge bolometer arrays. There are many new detector technologies under development, and solar physics research is often the first place that these new technologies can achieve scientific results. The quantum well infrared photodetector (QWIP) cameras offer a new and inexpensive route for measuring infrared photons, and are currently being tested at the NSO McMath-Pierce Solar Facility (McM-P).

2 Science and Instrumentation Considerations for Infrared Solar Observations

There are several advantages which can be realized by observing the Sun at infrared wavelengths compared to observations at shorter wavelengths. These advantages concern the behavior of the Earth’s atmosphere and the telescope, as well as the physics of atoms and solar radiative transfer. While these factors play an important role in studies of the solar disk, they can be absolutely critical for studies of the faint solar corona. To be fair, there are also disadvantages to observing at infrared wavelengths, and these will also be discussed below. Borrowing from Harvey and Hall (1971), presented below is a discussion of the advantages and disadvantages of making observations of the Sun at infrared wavelengths.

2.1 Instrument advantages in the infrared

2.1.1 Better atmospheric seeing

It has been known for a long time that seeing improves at longer wavelengths, and early work at infrared wavelengths suggested that atmospheric seeing was so minimal that many telescopes were seen to achieve their diffraction limit (Turon and Léna, 1970). Most modern ground-based solar observations do not settle for seeing limitations imposed by the atmosphere. New progress in the field of adaptive optics has resulted in superb image quality for images of the solar surface. Image stability is also key for spectroscopic and polarimetric studies of the Sun, especially when scanning the solar image is required to build a map of the solar surface.

Adaptive optics (AO) correction techniques have been discussed in many places and a good reference is the Living Reviews article by Rimmele and Marino (2011). The general aim of an AO system is to correct the effects of atmospheric turbulence on the wavefront measured by the telescope so that the total optical transfer function (OTF) of the telescope and the atmosphere approaches the OTF of the diffraction limit of the telescope. The wavefront distortions introduced by changing atmospheric refraction depend on the wavelength of the light observed. A quantity known as the Fried parameter r0 is used to characterize the atmospheric distortions integrated through the atmosphere. Early work from Karo and Schneiderman (1978) with stellar sources (and even earlier lab work) showed that the Fried parameter increase with wavelength as r0 ≈ λ6/5.

This enters into the performance of an AO system in two ways. First the angular extent over which an image can be corrected by an AO system (also known as the isoplanatic patch) increases as r0 increases, and so at infrared wavelengths an AO system can correct a larger area of the solar image than at visible wavelengths.

The second advantage comes from a physical description of the Fried parameter; it represents a typical atmospheric size-scale with little distortion; a region of the atmosphere across which diffractive changes of the incident wavefront are minimal. The time-scale associated with the image distortions is given by the Fried parameter divided by the atmospheric wind speed (which moves the distortions across the telescope’s line of sight) TAOr0/υatm. So for larger Fried parameter values, the time scale is larger, and the image changes more slowly. This means that AO system can work more slowly, and this is the second way in which AO correction is easier at longer wavelengths.

2.1.2 Less atmospheric scattering

Atmospheric scattered light has been studied for many years. The scattering at visible wavelengths in a clear sky was explained well by Lord Rayleigh (J. Strutt) as early as 1871 (Strutt, 1871) with single scattering from molecules in the atmosphere. Approximate solutions of electromagnetic scattering from particles smaller than the wavelength of light show a dependence on wavelength which varies as λ−4. Thus blue light is highly scattered, while red and infrared light is scattered less and transmitted more. Early infrared observations (Knestrick et al., 1962) confirmed that while the amount of infrared scattering was much smaller than visible scattering, the wavelength dependence was flatter (see Figure 2). At infrared wavelengths the particle size is closer to the wavelength of the radiation, and so the Rayleigh approximation does not work.

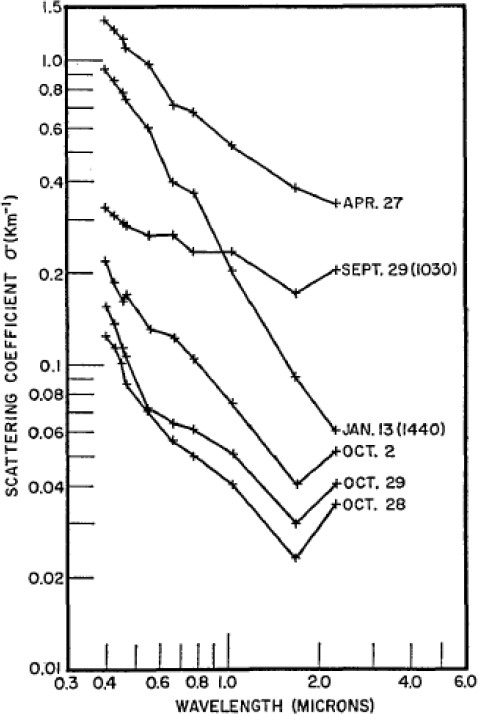

Figure 2:

Atmospheric scattered light as a function of wavelength from sea level measurements over water, taken in 1959–1960. Corrections for water vapor and methane absorption were made. The wavelength behavior of the scattering changes on different days, presumably depending on the particulates present during the testing. These particular measurements show at best a λ−1.7 change, but at other times are nearly flat. Image reproduced with permission from Knestrick et al. (1962), copyright by OSA.

At infrared wavelengths, the Mie solution to the scattering problem must be used. Mie scattering solutions can be computed using a variety of scattering source sizes, and can represent different types of atmospheric particulates. Results of such calculations show only a small decrease with wavelength, and also show more complex wavelength behavior, determined by the molecules found in the scattering sources (Whittet et al., 1987).

2.1.3 Less instrumental scattering

Scattered light is present in all telescopes, reflecting and refracting. In the simplest model, a manufactured mirror will have small-scale deviations from the ideal shape. The root mean square of this deviation is known as the surface roughness, σ, and in the best case the surface roughness is small compared to the wavelength of light. Bennet and Porteus (1961) show that the diffuse reflection from such a surface will vary as (σ/λ)2, and Harvey et al. (2012) define the total integrated scatter (TIS) as the ratio of the diffuse reflectance to the specular reflectance, which also varies as TIS ≈ (σ/λ)2. Harvey et al. (2012) also point out that it is important to use the relevent spatial scale of the surface roughness (generally the surface deviations on length scales of less than 1 mm) for these calculations. While deviations on larger spatial scales (sometimes known as figure errors) also contribute to scattering, and a more complete discussion of scattering is provided by calculating the bidirectional reflectance-distribution function (Nicodemus, 1970), the wavelength dependence of the BRDF is encapsulated in the TIS. So as observations move from visible to infrared wavelengths, the scattered light which disturbs those measurements decreases sharply.

For mirrors which are not perfectly clean, the situation becomes more complicated. As might be expected from the discussion of atmospheric scattering, the telescope scattering at infrared wavelengths is limited by scattering from dust contamination rather than from diffuse reflection caused by surface roughness. Surface contamination of the mirror by dust particles can be examined with Mie scattering solutions, but models of mirror BRDF at 10 600 nm reproduce the measured BRDF values only to a factor of 5 (Spyak and Wolfe, 1992a). So while moving from 1150 nm to 10 600 nm wavelength, the total scattering from an ideal mirror should decrease by a factor of 100, real measurements and also predictions from dust scattering models show that the actual scattering decreases by only a factor of about 20 (Spyak and Wolfe, 1992b). Scattering from dust on mirror surfaces is the dominant source at infrared wavelengths, and while the total scatter does decrease with wavelength, it decreases about a factor of 5 more slowly than surface roughness arguments alone would predict.

What scattered light has been observed at real solar telescopes? Staveland (1970) reports a wavelength dependence in the combined telescopic and atmospheric scatter, which drops faster than λ−1 but not as steep as λ−4. Work at the McM-P telescope by Johnson (1972) provides total scattered light observations at the limb of the Sun from about 1000 nm to 20 000 nm. The data show a drop of only a factor of two from 1000 nm to 5000 nm, and then rather uniform scattered light at wavelengths towards 20000 nm. This work also provides a numerical fit of TIS = 0.026 + 0.06(1 + λ/1000nm)e−λ/1000 nm, but this 40 year-old work should be re-examined with modern instrumentation.

2.1.4 Smaller instrumental polarization

A telescope introduces polarization to change the input polarization of light it recieves in ways which mix the different states, sometimes making it difficult to retrieve the original polarized signal. This process has been studies in great detail, and the parameter used to measure this change is the Mueller matrix. The Mueller matrix acts on the input polarization to produce the measured polarization state output by the telescope, which is given by: \({\vec S}_{\rm out} = M{\vec S}_{\rm in}\). Here \({\vec S} = [I, Q, U, V]\) represents the intensity of the four Stokes components of polarized light. In an ideal system the Mueller matrix is fully diagonal, and in the best case with no instrumental polarization it is equal to the identity matrix.

In a telescope with many optical elements, the total Mueller matrix can be constructed by multiplying the matrices from the individual elements. Balasubramaniam et al. (1985) specify the Mueller matrix for a reflection off of a single mirror as:
$$M = \left({\matrix{{1 + {X^2}} \hfill & {1 - {X^2}} \hfill & 0 \hfill & 0 \hfill \cr {1 - {X^2}} \hfill & {1 + {X^2}} \hfill & 0 \hfill & 0 \hfill \cr 0 \hfill & 0 \hfill & {2X\cos (\tau)} \hfill & {2X\sin (\tau)} \hfill \cr 0 \hfill & 0 \hfill & {- 2X\sin (\tau)} \hfill & {2X\cos (\tau)} \hfill \cr}} \right),$$
where the terms X and tan(τ) are dependent upon the angle of incidence, and the real (n) and imaginary (k) components of the index of refraction. For values of X approaching 1.0 and τ approaching zero, the Mueller matrix becomes diagonal and instrumental polarization effects are reduced. This occurs for increasing values of either n or k.

Aluminum is often used as a mirror surface, and the index of refraction of aluminum has been measured through a large wavelength range. In the infrared spectrum, the value of k increases, and for values of wavelength greater than about 1250 nm, the value of n also increases (Rakić, 1995). An aluminum mirror introduces less instrumental polarization through the infrared spectrum.

While many infrared telescopes and instruments use all-reflecting optical systems, some telescopes also use transmissive optics in the infrared. Additionally, as metal coatings on mirrors are exposed to the air, metal oxide layers build up which also act as transmission elements in the optical system. With these added complications, do real telescopes also show a decreasing instrumental polarization at infrared wavelengths? Socas-Navarro et al. (2011) made measurements of the Mueller matrix of the NSO/DST (which includes transmissive optics) as a function of wavelength from 470 nm to 1413 nm. The infrared coverage is not large, but clear trends can be seen from 1000 to 1413 nm in their analysis. All the off-diagonal terms in the matrix decrease in value and in some cases are already very close to zero at 1413 nm (see Figure 3). At the all-reflecting NSO/McM-P facility, studies at 12 000 nm show that the off-diagonal terms in the telescope matrix were expected to be at the level of about 1% or less, (Deming et al., 1991a) and measured to have an upper limit of 4% (Hewagama, 1991).
Figure 3:

A schematic representation of the wavelength variation of the Mueller matrix of the DST. In each box the wavelength dependence of the value of the matrix element is plotted from 400–1600 nm. What is important to note is that the off-diagonal elements, which represent the polarization cross-talk, approach a value of 0 as the wavelength increases. Image reproduced with permission from Socas-Navarro et al. (2011), copyright by ESO.

2.2 Instrument disadvantages in the infrared

2.2.1 Larger diffraction limit

At longer wavelengths, a given telescope will have less spatial resolution. The diffraction limit of a telescope represents the ability to resolve small objects, or to distinguish two closely space objects. The diffraction limit is often defined as the distance between the central peak and the first minimum of the Airy pattern resulting from diffraction by a telescope’s primary aperture. With a diameter of D the angular separation in radians is given by θ = 1.22λ/D but this is often simplified as just θ = λ/D. To compute the diffraction limit in arcseconds when λ is in units of nm and D is in units of mm, we find θ ≈ 0.2λ/D.

2.2.2 Increased background levels

According to Wien’s displacement law, a black body with a temperature of 300 K will have its continuum emission peak at a wavelength of 9656 nm, but at wavelengths shorter than that value, such a body will emit a large amount of radiation. Starting at wavelengths of about 3000 nm, room temperature telescopes and feed optics glow and this emission provides a background value against which a target object must be measured. This increasing background level is the other key disadvantage of observing the Sun at infrared wavelengths.

Cryogenic cooling is used to minimize this thermal background. Infrared arrays are cooled to much lower temperatures than visible cameras are cooled. Often several feed optics upstream of the infrared array are cooled, and of particular importance is the cooling of a narrowband filter. Interference filters or, in some cases, diffraction gratings are used to limit the spectral range of flux incident on the infrared array in order to avoid thermal contamination. To be effective, these filters must themselves be cooled to cryogenic temperatures, usually at or below the temperature of liquid nitrogen (77 K). Such cooling efforts then required evacuated dewars to house the cold detectors and optics.

Even with excellent cooling, some infrared observations are still subject to high levels of background contamination. Such observations fall into the realm of background-limited observations, in a similar way that ground-based observations of the solar corona at infrared and even shorter wavelengths are background-limited (Penn et al., 2004b). In an effort to accurately measure the large background and subtract it, a variety observational methods have been developed, including chopping between on-target and off-target.

2.2.3 Atmospheric and transmissive optics absorption

Absorption bands from the Earth’s atmosphere in the solar spectrum are not limited to infrared wavelengths; there are several in the visible spectrum, and the ultraviolet and some radio and sub-mm wavelengths are also impacted. Larger swaths of the infrared solar spectrum are not visible from the surface of the Earth, and so this is a disadvantage when compared to the visible spectrum.

Finally, some well-known optical materials do not transmit some infrared wavelengths. For example, telescopes with transmissive optical elements made from the commonly used BK7 crown glass have an wavelength cutoff at about 2500 nm; fused silica lenses have a wavelength cutoff at about 2300 nm. This issue is no longer a large difficulty, as transmissive lenses made from CaF2 or MgF2 are readily available and transmit up to about 6000 nm, and other optical materials are available for wavelengths longer than this.

2.3 Scientific advantages in the infrared

2.3.1 Increased Zeeman resolution

The wavelength splitting of atomic sublevels in the presence of a magnetic field increases as geff λ2 increases, where geff is the effective Landé g-factor for the electron transitions forming a particular spectral line. The Landé g-factor is usually calculated with atomic models that couple total orbital angular momentum and total spin angular momentum first (known as Russell-Saunders or LS coupling) and the work of Beckers (1969) provides values of geff for many lines. While many lines have values of geff between 1.0 and 3.0, there are spectral lines seen from the Sun which can have larger values (Harvey, 1973a).

The Doppler broadening of spectral lines due to macro and micro-turbulent velocities on the Sun increases linearly as λ increases. Magnetic field measurements measure a shift in the components of a spectral line, and this shift is most easily measured if it is large relative to the observed line width (see Figure 4). So the ratio of the Zeeman splitting divided by the spectral line width gives us a measure of the magnetic resolution of a spectral line, and that value is geff λ. In order to make observations with the highest possible magnetic sensitivity, lines with large values of geff λ are sought in the solar spectrum, and while some spectral lines can be found with increasing values of geff (for example, selecting a different line may change the magnetic sensitivity by a factor of 4) it is usually more advantageous to increase the wavelength of the observations (changing from 500 nm to 5000 nm can increase the magnetic sensitivity by a factor of 10). Ideally spectral lines with inherently large geff and with long wavelengths are the best for making sensitive magnetic measurements.
Figure 4:

The benefit of making magnetic field Zeeman observations in the infrared is shown in this figure. On the left is a plot showing the separation of the Stokes V peaks for various Voigt profiles at a magnetic field of 1 kG for a visible line and an IR line. On the right is a plot showing the value of the Stokes V amplitude. The Zeeman splitting of the 1565 nm IR line is fully resolved at this magnetic field strength, and the weak field approximation does not need to be used to interpret the spectra. Image reproduced with permission from Stenflo et al. (1987), copyright by ESO.

Table 2 lists the magnetic sensitivies of some spectral lines with their respective magnetic sensitivies.
Table 2:

Magnetic Sensitivity of Spectral Lines



Wavelength [nm]




Fe I




Fe I




Fe I




Ti I




Fe I




Fe I



11625 ?

Mg I





Ca I




Mg I




Ca I





[Fe XIV]








[Si X]




2.3.2 Large number of molecular rotation-vibration lines

Due to the structure of the several common molecules, the energy difference between rotation-vibration states of the molecule produces spectral lines which are found at infrared wavelengths. While the energies involved in these transitions are only completely described by a quantum mechanical treatment of the molecule, a simple classical physics analysis gives some insight about why this occurs. Setting the molecular rotational energy equal to the thermal energy of the solar plasma gives us \(I {\omega} \ (mr^{2}) {\omega_{\rm char}^{2}} \ kT\). Using T = 6000 K and order of magnitude masses for an oxygen atom and distances found in a water molecule, we can compute the rotational frequency to be ω ≈ 104 GHz. This corresponds to a wavelength of about 25 microns, and this is one way to consider why the solar IR spectrum contains many molecular transitions. On the Sun molecules exist in only the coolest regions but are destroyed by dissociation in all other regions. In this way, molecular spectral lines provide unique ways to probe cool regions around sunspots and near the temperature minimum region of the quiet solar atmosphere. Also of note is that molecular transitions have a range of Zeeman sensitivities and, thus, provide a unique probe into the solar magnetic fields in this cool plasma. Molecular spectral lines also provide a convenient way to measure atomic isotopes, as the subtle nuclear mass changes can result in larger wavelength shifts for molecular lines than atomic lines.

2.3.3 Ability to probe different heights in the solar atmopshere using continuum radiation

From 1000 to 10 000 nm, the height of formation of the solar continuum emission varies from roughly z = −40 km to z = 140 km. While the dominant form of continuum opacity at visible wavelengths is caused by H-minus bound-free transitions, at infrared wavelengths longer than about 1600 nm the dominant process changes to H-minus free-free opacity. The transition between the two processes allows photons to escape most easily from the solar plasma, and because of this we can view the deepest layers of the solar photosphere with observations of the continuum at 1600 nm. According to the VAL models (Vernazza et al., 1976) photons at 1600 nm originate from about 40 km below the level at which photons at 500 nm escape. While this may seem like a small height difference, due to the photosphere’s which large density gradient there are changes in the solar magnetic fields which can be seen across this height change. Thus, spectral lines in the IR probe deeper regions where the magnetic fields are stronger than the regions measured by spectral lines at visible wavelengths. Over the range of heights probed by the infrared continuum, the solar convective granulation undergoes a radical change, reversing the intensity contrast completely. At the lowest layers probed by the infrared continuum, the center of granules are bright and the intergranular lanes are dark, whereas in the upper layers the reverse is true (Leenaarts and Wedemeyer-Böhm, 2005; Cheung et al., 2007). The height change of the infrared continuum thus provides a critical probe of the vertical structure of solar granulation.

At wavelengths longward of 1600 nm, the H-minus free-free continuum opacity increases and photons which we observe originate at higher levels in the solar atmosphere. At wavelengths near 1600 nm the τ =1 level moves up through the solar atmosphere about 25 m per nm of wavelength, but at wavelengths near 10 000 nm the change decreases to about 15 m per nm. We can generate approximate fits predicted by various models using the log10 of the reciprocal of the wavelength. The approximate height of the τ = 1 level (in units of km) according to the VAL model is z = −776 − 227 log10(1/λ) (see Figure 5), and from another calculation by Gezari et al. (1999) z = −1049 − 303 log10(1/λ), where λ is in units of nm. Each of these approximations is valid only at wavelengths between about 2000 nm to 20 000 nm.
Figure 5:

The height of formation of the infrared continuum radiation is shown in this figure. The continuum radiation is formed at the deepest level in the Sun at 1600 nm, and then the continuum formation height increases with increasing wavelength in the infrared spectrum. The bottom plot shows that the dominant source of opacity is from Hydrogen free-free transitions. See also Fontenla et al. (2006) for more recent work. Image reproduced with permission from Vernazza et al. (1976), copyright by AAS.

2.4 Scientific disadvantages in the infrared

2.4.1 Fewer solar photons

The solar spectral intensity closely follows a black-body curve with an effective temperature between about 5800 K and 4300 K (Boreiko and Clark, 1987) although this varies with spatial position on the solar surface. At this temperature the peak of the black-body curve is in the visible spectrum and so the Sun radiates fewer photons in the infrared spectrum than it does at visible wavelengths. For wavelengths much longer than the peak of the black-body spectrum, the Rayleigh-Jeans law can be used to express the number of photons per second, per unit surface area, per solid angle, and per wavelength bin emitted by a black-body. The wavelength form for this Law is Bλ(T) = 2ckT4. In order to maintain a constant spectral resolving power given by R = λ/Δλ, one must increase the wavelength bin size Δλ as λ increases, to achieve the same velocity and Doppler broadening sensitivity. But even with the ability to bin in wavelength more, the number of IR photons available to observe the Sun at the same effective Doppler resolution changes as λ−3. Since the signal to noise of a particular measurement varies as the square-root of the number of photons which are measured, the signal to noise of a given spectrum decreases due to fewer solar photons as λ−3/2 at infrared wavelengths compared to visible wavelengths.

2.4.2 Fewer atomic absorptions

The energy range of photons for the infrared spectrum as we defined in Section 1, spans about 1 eV to 10−3 eV. In order to form absorption lines at these low photon energies, the energy difference between the atomic levels must be small. Such small energy differences are usually found in upper levels (with large total quantum number n) of most atoms. The level populations of these high n states are usually quite low in solar plasma, so there are few opportunities for atoms to absorb infrared light. The infrared solar spectrum contains fewer atomic absorption lines than shorter wavelength regimes, and they are usually weaker. Some exceptions exist, such as spectral lines formed by electrons cascading through these upper levels after recombination of electrons, but, in general, atomic absorption lines decrease in their predominance as the wavelength increases. One advantage of this is that with fewer lines the infrared spectrum contains cleaner line profiles, free from the blending seen at shorter wavelengths.

3 Key Science using Solar Infrared Observations

Infrared solar physics has enjoyed contributions from a large number of excellent experimental scientists. Several reviews and status updates of the field have been made and published, i.e., Rabin et al. (1994), Kuhn and Penn (1995), and Lin (2009). While reading John Jefferies’ introduction to the 1992 IAU Symposium (Jefferies, 1994), it is inspirational to see how much real progress has been made over the past 20 years. The initial magnetic field measurements with an infrared array detector observing the highly advantageous Fe I 1564.8 nm spectral line were being made at the time of that meeting (Rabin, 1994), and now they are routine (Jaeggli et al., 2010). Observations of the solar corona, including the potential for magnetic field measurements, were just being discussed (Kumar and Davila, 1994), and now coronal magnetic field measurements are made using the favorable 1074.7 nm emission line on a regular basis (Tomczyk et al., 2008). Perhaps most importantly, as the initial scientific results started to be realized at infrared wavelengths, discussions had started about the scientific need for a large, unobstructed-aperture infrared optimized solar telescope (Livingston, 1994). Now, as the all-reflecting 4-m Advanced Technology Solar Telescope (recently renamed the Daniel K. Inouye Solar Telescope, or DKIST) is under construction on Haleakala (Keil et al., 2001), we are looking forward to a new era where we can use several known tools in the infrared spectrum, and where we can also anticipate fundamentally new discoveries in this wavelength range.

3.1 IR solar spectral tools

The IR solar disk spectrum has been mapped; two important references are the series of quiet Sun and sunspot spectral atlases taken with the FTS at the McM-P telescope (Wallace et al., 1996) and the NASA ATMOS mission spectral atlas (Farmer and Norton, 1989b). The ground-based spectra contain useful information about telluric absorption lines where the lines are relatively weak, but where they are strong the ground data cannot observe the solar spectrum; here the space atlas must be used. The ground-based spectra are available online1. Modern sources for lists of atomic absorption lines must be used for IR wavelengths, since the historical line lists from Roland stop at about 720 nm. A comprehensive source is that from Kurucz (2009) and the database2 of these lines. Another very useful list3 of theoretical wavelengths was compiled by van Hoof at the University of Kentucky. Other sources are available and provide useful reference in special cases: the NIST Atomic Spectra Database4, the CHIANTI database5, and for molecular species, the HITRAN database6 (Rothman et al., 2013). A sequence of three papers are available where the authors examine the infrared solar spectrum and discuss interesting unblended lines useful for magnetic field measurements from 1490 to 1800 nm (Solanki et al., 1990), survey the quiet Sun lines which are unblended with atmospheric absorption from 1000 to 1800 nm (Ramsauer et al., 1995a), and survey the Stokes I, Q, and V profiles in a plage and a sunspot umbra from 1050 to 2500 nm (Rüedi et al., 1995a). An online database for the unblended 1000 to 1800 nm line list is also available (Ramsauer et al., 1995b).

The following sections discuss five of the key solar science items being explored using various diagnostics in the IR solar spectrum, plus a selection of other topics where some interesting work has been done. This list is by no means complete, and will certainly change with time. A brief discussion of the telescopes and instruments which are used to observed this spectral region is presented, and then the key science addressed by the diagnostics is discussed.

3.2 The impact of CO 4666 nm observations on solar models

3.2.1 Telescopes, instruments, and detectors

The fundamental CO absorption lines near 4666 nm have been observed from the ground at the McM-P telescope (Hall et al., 1972), and have been seen in space data taken during the NASA Space Shuttle ATMOS mission (Farmer and Norton, 1989b). Instrumentation has involved warm spectrographs including the FTS, (Ayres and Testerman, 1981) and cryogenically cooled spectrographs including Phoenix (Ayres, 1998). Detectors have evolved from single bolometers (Hall et al., 1972) to 10242 InSb array cameras (Penn et al., 2011).

3.2.2 Early work

There is an excellent discussion of the history of CO observations of the Sun provided by Ayres (1998). In summary, the discovery that the lines in the fundamental band of CO absorption were so strong (Hall et al., 1972; Ayres and Testerman, 1981) meant that there was a large amount of cool gas present in the quiet Sun. At the same height as this cool gas, chromospheric Ca II and Mg II emission line intensities require the plasma to be at higher temperatures (Ayres and Linsky, 1976). To explain this apparent contradiction, a major shift was required in both solar (Ayres, 1981) and stellar (Wiedemann et al., 1994) atmospheric models (see Figure 6). Static radiative cooling by the strong CO lines was proposed to be an important part of the atmospheric energy balance at high altitudes (Ayres, 1981), but recent detailed modeling of the hydrodynamics and non-equilibrium molecular chemistry in these low chromosphere layers suggests instead a highly dynamic situation in which strong adiabatic cooling and shock wave heating play key roles (Wedemeyer-Böhm and Steffen, 2007). Nevertheless, the numerical treatment of the hydrodynamics is still in an experimental state, and whether radiative effects or dynamics is the dominant force in creating cool regions in the low chromosphere remains an open question. This issue can be addressed by high-resolution measurements of the mid-IR CO bands by the DKIST, or by high-resolution sub-mm continuum imaging from ALMA (Wedemeyer-Böhm et al., 2007).
Figure 6:

This figure shows the types of changes needed in the solar atmosphere models in order to bring the CO observations into agreement with other chromospheric measurements. The diagram on the left shows an early simple atmospheric model, and the diagram on the right shows the updated model after the discovery of strong CO lines and dynamic shock waves in the chromosphere. Image reproduced with permission from Ayres (2002), copyright by AAS.

3.2.3 Height of formation

It has been 20 years since the discovery of CO emission at the solar limb (Solanki et al., 1994). Direct measurements of the height of formation of limb emission from an eclipse (Clark et al., 1995) suggest a geometric height of formation at the limb of 450 km above the τ500 = 1 limb layer. Direct measurements from the McM-P telescope show heights are different for various lines, ranging from 400 km (Uitenbroek et al., 1994) to 480 km (Ayres and Rabin, 1996) (see Figure 7); some observations even show CO emission extending to heights of 1000 km (Ayres, 2002). Helioseismic oscillations measurement of the I-V phase difference in the CO lines (Penn et al., 2011) shows a changing height between 425 and 560 km moving from the center of the solar disk to μ = 0.5 The dynamical model of CO formation from Asensio Ramos et al. (2003) agrees with the observations by finding an upper limit of 700 km for the CO bulk of the CO formation. More recent models from Wedemeyer-Böhm et al. (2005) suggest a geometric formation height near 200 km, presumably where the molecular density peaks (Ayres et al., 2013). In general, CO in the solar atmosphere probes a range of heights from the upper photosphere to the middle chromosphere, with the weaker CO lines (such as those at 2300 nm) probing the lower layers, and the strongest lines having a double-peaked contribution function which also probe the low chromosphere (Ayres et al., 2006).

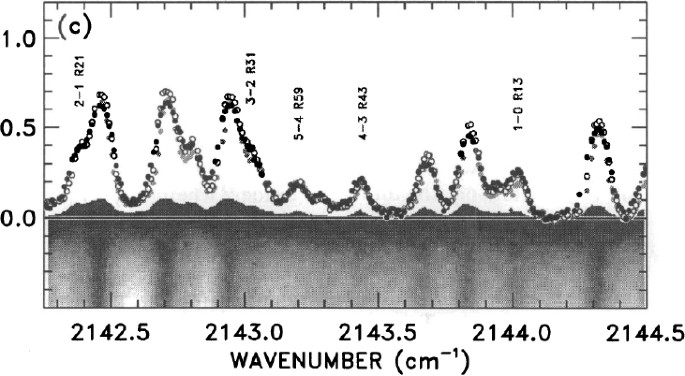

Figure 7:

The limb extensions in arcseconds of several CO lines near 4666 nm are shown in this plot. Image reproduced with permission from Ayres and Rabin (1996), copyright by AAS.

3.2.4 Spatial structure and flows

The spatial structure of cold clouds of CO gas has been investigated, but only through spectroheliograms which have low spatial and temporal resolution. Early observations of Ayres and Rabin (1996) suggested that the solar atmosphere consisted mostly of cool material forming CO molecules which were punctuated by hotter regions associated with magnetic field concentrations. Observations from Uitenbroek (2000) using the McM-P facility and the NIM instrument showed granulation sized regions of CO structure, and regions of the internetwork (correlating with magnetic field concentrations) which lack significant CO line absorption. Unpublished high-resolution images and movies taken by at the McM-P also show granulation-sized CO absorption regions and evidence for loop-like structure.

The CO atmosphere is a highly dynamic system, with time dependent models of the quiet Sun showing significant changes during over less than one minute of time (Wedemeyer-Böhm et al., 2005). Dynamical events around sunspots and solar active regions have been observed. Uitenbroek et al. (1994) showed that the CO lines reveal the inverse Evershed flow in sunspot penumbra, with a flow pattern moving from the quiet Sun back into the umbra. The same inverse flow was seen in the strong CO lines by Clark et al. (2004) and this flow pattern showed a different morphology than shown by the penumbral continuum intensity fibrils. Clark et al. (2004) also noted that the weaker CO lines showed a normal, radially outward Evershed flow. Highly sheared flows in the solar plasma near sunspots were seen by Penn and Schad (2012) in the decay phase of a large X-class flare in 2011.

3.2.5 Helioseismology using CO lines at 4666 nm

Some of the earliest observations of the CO line showed large intensity oscillations in the line core. With a single element InSb detector and a warm slit spectrograph at the McM-P, Noyes and Hall (1972) showed that the oscillations at a single position on the Sun had a roughly 5 minute period with amplitudes of several percent in the line core intensity. The work had a cadence of 1 second and a duration of about 1000 seconds. That early work also claimed that the line formed in the high photosphere where the plasma was nearly adiabatic, and the temperature and velocity oscillations were 90 degrees out of phase, although specific measurements were not made. Observations from the FTS at the McM-P (Ayres and Brault, 1990) with 40 minutes durations and with 15 second cadence showed both Doppler velocity oscillations and line core intensity oscillations at several pointings on the solar disk. The phase difference between the velocity and the intensity oscillations was measured to be between 40 and 70 degrees, rather far from the assumed 90 degree adiabatic value. The application of these phase differences for probing the solar atmosphere were pointed out. Using a single slit position, but with a 2562 InSb array detector, Uitenbroek et al. (1994) made observations with 8.6 second cadence during a 36 minutes period in the quiet Sun. Oscillations were seen in both line center intensity and Doppler velocity, but the line center intensity showed primarily 3-minute oscillations while the Doppler velocity showed the typical 5-minute period. Observations in a sunspot by Solanki et al. (1996a) also showed different peaks in the power spectra for CO intensity versus the CO Doppler velocity. These observations were made with a slit spectrograph and a single-element detector, with 32 second cadence and 64 minute duration. Time sequences from this study in the quiet Sun and in plages showed primarily 5-minute periods, except for intensity oscillations near the solar limb which showed mostly 3-minute period oscillations. The phase differences between intensity and velocity were also examined in these different structures and compared with phases seen in other spectral lines. Most recently, full-disk Doppler and intensity measurements were made using the McM-P and the NAC detector (Penn et al., 2011). The full solar disk was scanned at 50 second cadence for 133 minutes with effectively rectangular pixels about 4 × 12 arcseconds. Three strong CO lines were observed and the spectral lines were fit. Diagnostic diagrams were made for velocity and intensity, and the phase and the coherence between the two. As shown in Figure 8 the diagnostic diagrams show ridges which are aligned with the known global p-mode frequencies, show strong coherence in these ridges, and show a shift from the expected 90-degree adiabatic phase difference. The phase shift is used to compute a value for the atmospheric radiative relaxation frequency. Using the center-to-limb variation of the phase, and comparing to far-IR continuum observations from Kopp et al. (1992) a height of formation for the lines is also derived.
Figure 8:

Diagnostic l-ν diagrams for full disk oscillations observed with the Doppler shifts and depths of CO 4666 nm lines. The CO oscillations show the same power ridges as the global p-mode oscillations, but show an I–V phase which is different from the expected adiabatic phase shift and which allows an investigation of the dynamics of the solar atmosphere. Image reproduced with permission from Penn et al. (2011), copyright by AAS.

3.3 The Fe I 1564.83 nm line: sunspots, flux tubes, and the solar cycle

3.3.1 Telescopes, instruments, and detectors

The Zeeman splitting displayed by the magnetically sensitive Fe I 1565 nm absorption line is large (see Figure 9), and observations of the line were started at the McM-P telescope at Kitt Peak (Harvey and Hall, 1975), but since this wavelength is transmitted through most refractive optics, further observations have been made at many telescopes, especially the NSO Dunn Solar Telescope (DST) at Sunspot, the KIS Vacuum Tower Telescope (VTT) at Tenerife, and the NJIT New Solar Telescope (NST) at Big Bear. Instrumentation used to make spectroscopic and spectropolarimetric observations of this line started with single element PbS detector on the main spectrograph at the McM-P (Hall and Noyes, 1969) or used a cooled InSb diode detector on the FTS at the McM-P (Stenflo et al., 1987). But the instruments used to study this line have evolved from these single-element systems. Instruments using grating spectropolarimeters with arrays include the NIM (Rabin et al., 1992), the TIP (Mártinez Pillet et al., 1999), and the NAC (Plymate and Penn, 2007). Imaging Fabry-Perot spectropolarimeters include the NIM-2 (Rabin et al., 1996) and IRIM (Cao et al., 2004). And, finally, a new facility-class instrument at the NSO/DST is the FIRS instrument, a multi-slit grating spectropolarimeter with a 1024 × 1024 HgCdTe detector (Jaeggli et al., 2010).
Figure 9:

A figure showing the polarization spectra of a sunspot. The spectrograph slit crossed a sunspot umbra, and the Zeeman spitting in Stokes I, Q, U, and V are shown in this figure, with the continuum intensity removed from the Stokes I panel. The 1565 nm g = 3 line is shown at the center of each panel, and other atomic and molecular lines are identified in each spectrum. Image reproduced with permission from Penn et al. (2004a), copyright by AAS.

3.3.2 Early work

The first observations of the magnetically sensitive Fe I 1565 nm absorption line in sunspots appeared in Harvey and Hall (1975), and the first observations of non-spot magnetic fields between 1200 and 1700 G are shown and briefly discussed in Harvey (1977). A more detailed analysis of the full Stokes (I, Q, U, and V) profiles from this line taken at several points on the solar surface was first done by Stenflo et al. (1987). The FTS spectra in this work clearly show the spectral line is fully split for magnetic fields of about 1000 G and greater, where the Zeeman displacement of the σ components is greater than the Doppler width of the line. Here it is emphasized that the fully resolved splitting shown by the 1565 nm Fe I g = 3 line reveals the magnetic field strength B, rather than the spatially averaged magnetic flux ϕ. This work also shows that this line probes stronger magnetic fields than absorption lines in the visible spectrum, because the height of formation of the line is lower and magnetic fields on the Sun strengthen with decreasing height. Later work in Solanki et al. (1992b) (which is part of a highly informative 15 paper series on IR solar spectroscopy and spectropolarimetry) showed that the 1565 nm line could be used in conjunction with the nearby Fe I line to measure magnetic fields as weak as 100 G.

3.3.3 Quiet Sun magnetic fields

Measurements of Rüedi et al. (1992) probe magnetic fields outside of sunspots in active region plages. Here field strengths from about 400 to 1700 G were measured, and this provided strong evidence against the idea that all of the Sun’s magnetic field was concentrated into flux tubes of about 1 kG in strength. Maps of the solar surface at higher spatial resolution were produced by Lin (1995) using this spectral line at both the DST and BBSO 26-inch Vacuum Telescope. Histograms of the magnetic field strength showed two components to solar magnetic field: first, active region spots and plage showed a distribution of magnetic field strengths ranging from about 2500 G down to about 300 G with an average of about 1400 G, and then quiet Sun regions showed magnetic field strengths ranging from about 2000 G down to about 200 G, but with an average of only 500 G. It was proposed that the smaller field strength regions were internetwork fields and had a fundamentally different origin from the active region fields. More recent work using the amplitudes of the 1565 nm line (combined with the well-known visible line at 630 nm) has lowered the strength of the internetwork field by more than an order of magnitude to about 20 G (Khomenko et al., 2005). The behavior of these weaker fields in the solar plasma at the photosphere was examined by Solanki et al. (1996b), who found evidence for a more vertical arrangement of fields occuring at 1500 G, and ascribed that to the process of convective collapse. This behavior has also been seen in more recent work which has combined the IR line with the visible 630 nm line (Domínguez Cerdeña et al., 2006).

3.3.4 Sunspot magnetic fields

Exploiting the ability of the 1565 nm line to measure the true magnetic field strength in sunspots, McPherson et al. (1992) mapped the changes of magnetic field and plasma velocities across a sunspot. Kopp and Rabin (1992) measured the relationship between B and intensity (plasma temperature) in several sunspots. This data showed a rough agreement with the expected BT2 variation expected from a horizontal magnetostatic argument (Martínez Pillet and Vázquez, 1990) and visible observations. Subsequent work (Solanki et al., 1993) confirmed this and measured horizontal gradients of the magnetic field strength and inclination across a sunspot. Magnetic observations of many spots (Livingston, 2002) showed that the relationship between the magnetic field and continuum intensity at one spatial position in the center of many sunspots followed the same relationship as different spatial positions within one sunspot. A comparison between many infrared and visible measurements (Penn et al., 2003c) showed that the scatter between the results from the visible and IR data was reduced when the temperature and magnetic differences between the heights of formation were taken into account. However, much more recent work has shown that the simple hydrostatic models cannot account for the behavior seen in many of the darkest parts of sunspot umbrae, where the formation of molecules in the cool solar plasma changes the pressure balance and, thus, the relationship between magnetic field and temperature (Jaeggli et al., 2012).

The analysis techniques used to understand spectropolarimetric data have advanced considerably, and for some time the analysis of visible and IR data followed separate paths, with the analysis of the IR data lagging the visible data by a year or two. Milne-Eddington models were used to invert 1565 nm sunspot observations in Solanki et al. (1992a) and then atmospheric gradients were included in the analysis first done by Bellot Rubio et al. (2000), and later by Mathew et al. (2003) where the spectropolarimetric wavelength response function of both the atomic Fe lines and the molecular OH lines were used to measure the magnetic fields (see Figure 10). Analysis of both visible and IR data (taken of the same sunspot but with different telescopes and instruments) have been done using wavelength response functions (Cabrera Solana et al., 2006).
Figure 10:

Fits to the Stokes spectra for the 1565 nm Fe line pair. Here the Fe and OH lines are both fit using response functions computed for each line. Image reproduced with permission from Mathew et al. (2003), copyright by ESO.

Early work done by Livingston to measure the magnetic fields in many sunspots using 1565 nm data showed a temporal decrease in the magnetic fields between two years of data (Livingston, 2002). Subsequent work showed that the decrease seemed linear over several years and independent of solar cycle (Penn and Livingston, 2006) and that extrapolations of the trend, combined with the lower limit of 1500 G sunspot magnetic field strengths, might lead to a lack of sunspots for solar Cycles 24 and 25. Comparison of over 3000 sunspot observations with radio observations at 21 cm confirmed the initial observations (Livingston et al., 2012) although results from 99 sunspot observations at 1565 nm, combined with magnetic measurements from other spectral lines, do not show a temporal decrease (Rezaei et al., 2012). While Cycle 24 has currently only shown about one-half of the sunspots seen in Cycle 23, the result remains controversial.

3.3.5 Helioseismology using Fe I 1565 nm

While some early work discussed making helioseimic observations in the continuum at 1600 nm near the wavelength of this line (Li et al., 1994), there seems to be only one research effort in this category which has been published. Bellot Rubio et al. (2000) use the 1565 nm geff = 3.0 line and two others to measure velocity and magnetic field oscillations in a sunspot umbra. Using a SIR inversion procedure, the authors invert the Stokes profiles for 6 pixels and examine a time sequence of 22 minutes with a cadence of about 5 seconds. Velocity observations are seen in the data with amplitudes on the order of 100 m/s, and changes in the magnetic field are seen with amplitudes of up to ± 50 gauss. The phase difference between the velocity and the magnetic field oscillations is measured to be 105 ± 30 degrees. The authors point out that if there are significant gas density changes in the umbral atmosphere which produce a vertical displacement of the line-forming region, then the fact that sunspots have a vertical gradient in the magnetic field suggests that the magnetic field is not changing during the observations, but rather the spectral line probes regions of different magnetic field strength at different times. The phase difference expected for this scenario is 90 degrees, and the measurement error of these data are consistent with this interpretation.

3.4 He I spectral line at 1083 nm

3.4.1 Telescopes, instruments, and detectors

The He I absorption line at 1083 nm lies well within the transmission range of common refracting optics, and at the long wavelength edge of the sensitivity of silicon-based CCD detectors. Thus, many telescope, instrument, and detector combinations have been used to observe this spectral feature, and below is an incomplete list of just a few. The discovery of the He I 1083 nm absorption line on the disk of the Sun was made at the Mt. Wilson Observatory using film (Babcock and Babcock, 1934) and then the line was also observed with the Mount Wilson 60-foot tower and an ITT FW-167 infrared image converter tube (Zirin and Howard, 1966). Full disk observations, capturing the above-limb emission, were done synoptically for many years with silicon-based detectors at the KPVT (see Livingston et al., 1976; Jones et al., 1992), and those observations are continued by SOLIS VSM and FDP (Keller et al., 2003) (see Figure 11), which again use silicon detectors. With a tunable Lyot filter based on liquid-crystal retarders, the CHIP instrument provides full-disk line observations of 1083 nm with rapid cadence (MacQueen et al., 1998). At the McM-P, spectropolarimetric observations of this line were first done using a spectrograph with polarization optics and silicon photodiodes (Harvey and Hall, 1971). Infrared array detectors (256 × 256 HgCdTe) were used with a slit spectrograph and liquid crystal polarization optics with simultaneous dual-beam feeds at the DST (Penn and Kuhn, 1995), and work there continues with the 1024 × 1024 HgCdTe detector in the FIRS instrument (Schad et al., 2013). Full-disk vector magnetic measurements using He I 1083 nm have been taken at the NOAJ Solar Flare Telescope since about 2010 (Hanaoka et al., 2011). Using ferroelectric liquid crystals, the ProMag instrument observes He 1083 nm line profiles again using a dual-beam feed and a slit spectrograph at the JESF (Elmore et al., 2008).
Figure 11:

A full disk spectroheliogram in He I 1083 nm from the NSO/VSM instrument; solar north is up. The image shows polar coronal holes as regions of less absorption, and a low latitude coronal hole in the northern hemisphere. Dark absorption accompanies active regions, and the quiet Sun shows less absorption, but reveals the internetwork pattern. Limb prominences and limb emission are seen as bright regions off the solar limb, and a dark filament is visible on the disk in the northern hemisphere. Credits: NSO/AURA/NSF.

While it is accessible from a variety of telescopes and detectors, accurate spectral analysis of the He I 1083 nm line is challenging. The absorption line is normally very weak, reaching depths of only a few percent of the continuum intensity in the quiet Sun, but it can become very dark in filaments or solar active regions, increasing its absorption ten-fold. The line is blended with the red wing of the nearby strong Si I 1082.7 nm photospheric line, and several telluric absorption lines populate this spectral region. Finally, the Doppler shifts seen in the line often reveal multiple components, sometimes at high velocities. Thus, for analysis and scientific reasons, it is best to observe a large spectral region surrounding the line center (Malanushenko and Jones, 2004).

3.4.2 Early work

While the element of Helium was discovered using its yellow line in the visible spectrum at a solar eclipse by Janssen (1869), studies of the infrared spectral line began only after film was regularly used. Early spectra and spectroheliograms (Richardson and Minkowski, 1939) revealed line emission in a solar flare near disk center, as well as in an erupting prominence at the limb. Spectra from McMath-Hulbert Observatory in Michigan (Mohler and Goldberg, 1956) showed that the line had a large width corresponding to a kinetic temperature of 50 000 K and, thus, it likely originated in hot regions of the solar chromosphere. Athay and Johnson (1960) did a careful examination of the physical conditions involved in the excitation of the He I 1083 nm line (and other lines) by including both radiative and collisional excitation mechanisms, and explained previously observed disk emission in the line with high temperatures and large electron densities. Spectroheliograms from Zirin and Howard (1966) showed that the disk absorption seemed to follow the Ca II and Hα network, and those regions were thought to support the high temperatures needed to form the line. The high temperature was confirmed with the analysis of several visible lines from orthohelium (Hirayama, 1971) and combined with the lack of He emission from coronal holes (Zirin, 1975) found support for the photo-ionization and recombination process (PR) of line formation for the 1083 nm line, originally suggested in the work of Goldberg (1939). Early CCD observations of He 1083 nm structures revealed Doppler velocities in the line, but also showed small structures of about 1 arcsecond of size, and the formation of such structures would be difficult if PR were the only line formation mechanism (Lites et al., 1985). A “mixed formation mechanism” for the line formation of He I 1083 nm was proposed by Andretta and Jones (1997) where a combination of collisional excitation and the PR mechanism instigate the line formation, and recent models (Centeno et al., 2009) support this idea today.

3.4.3 Height of formation

Many observations of the height of formation of the visible He I D3 emission shell have been made, and the average of these measurements is 1.45 Mm with a standard deviation of 0.25 Mm (Penn and Jones, 1996). However, there are fewer measurements of the He I 1083 nm emission shell height. Early data from Giovanelli and Hall (1977) show the emission maximum at 1.6 Mm above the limb, while Schmidt et al. (1994) show peak formation at a height of 2.4 Mm above the limb. Using two different telescopes, Penn and Jones (1996) measure the emission shell to be at 1.74 ± 0.05 Mm with the DST and 2.11 ± 0.12 Mm with the KPVT. Most recently, Muglach and Schmidt (2001) show measurements of both He I D3 and 1083 nm limb emission, which are consistent to within about 100 km of one another, and range from 1100 to 1800 km in height above the solar limb.

3.4.4 Ground-based observations of coronal holes

The He I 1083 nm line provides a useful ground-based method for studying coronal features on the disk of the Sun. By comparing Skylab X-ray telescope observations with He I 1083 nm spectroheliograms, Harvey et al. (1975) found that the coronal holes seen in the X-ray data also displayed a lack of He I 1083 nm absorption against the disk of the Sun. Sheeley Jr (1980) used KPVT 1083 observations to show that the polar coronal holes contracted in size when the solar polar magnetic field changed sign near sunspot maximum, and then Webb et al. (1984) observed the polar coronal holes reform after the polar field reversed. Harvey and Recely (2002) present a more thorough study of the evolution of the polar coronal holes using 11 years of He I 1083 nm data to observe changes during solar Cycles 22 and 23. Not only polar coronal holes, but also low-latitude transient coronal holes (often associated with solar flares and now known as coronal dimmings), have been observed using He I 1083 nm observations initially by Harvey and Recely (1984), and more recently using higher-cadence CHIP observations in de Toma et al. (2005). The position of coronal structures known as X-ray bright points (XBP) are closely correlated with regions of stronger He I 1083 nm absorption (Golub et al., 1989), but while dark absorption regions on the disk do not identify all the XBPs, the strongest XBPs have the darkest He I 1083 nm absorption, and even the faintest XBPs correspond to regions of weakly enhanced disk absorption.

3.4.5 Quiescent prominences

A set of four papers by Tandberg-Hanssen and colleagues investigated quiescent prominences using the infrared lines from He I. Line profile shapes and intensity ratios between the two resolved components of the line were studied by Tandberg-Hanssen (1962) and the authors concluded that the prominences showed regions which were optically thick in this line. A He I line at 2058 nm was observed in prominences simultaneously with 1083 nm by Streete et al. (1973) and the authors concluded that, based on the fact that 2058 nm was more than 100 times fainter than 1083 nm (instead of about 50 times fainter), LTE conditions were not present in the prominence and the incident radiation field played a large role in determining the level populations, which was also verified by Streete and Tandberg-Hanssen (1974). In the last of the series, Heasley et al. (1975) make a more rigorous analysis of the intensity ratio between the components of the 1083 nm line and determine a hydrogen density value of about 1010 cm−3. More prominences were observed and analyzed by Landman (1976). In addition to He I 1083, Chang and Deming (1996) observed much fainter emission from He I lines at 1278 and 1700 nm using the FTS instrument at the McM-P. Using both space-based and ground-based instrument, Stellmacher et al. (2003) investigate prominence emission using many lines, including He I 1083 nm. Again, the authors find that parts of prominences are optically thick (with τ = 2.0 for one prominence) and deduce an excitation temperature of only 3750 K in this line.

3.4.6 Solar flares

While emission from solar flares in He I 1083 nm was seen early, the slow cadence of many observations made it difficult to observe in detail. Observations by Harvey and Recely (1984) of a large two-ribbon M4.0-class flare showed two dark He I 1083 nm ribbon structures which lasted more than 60 hours. Observations in the decay phase of a C9.7-class flare by Penn and Kuhn (1995) showed line center emission at 1.3 times the level of the continuum emission, and downflows in the active region filament of 30–60 km/s. Zeeman splitting in the emission kernal revealed a magnetic field of 735 gauss, which then dropped to 622 gauss at the same spatial position after the emission faded. Limb emission during a large solar flare of X20-class was observed on 16 Aug 1989 (see You and Oertel, 1992; You et al., 2004). The line profiles were extremely broadened, were best fit with a gaussian large half-width of 0.42 nm, and showed multiple narrow absorption components against this wide spectral emission. Similar behavior was seen in a limb flare from 11 Jan 2002 (Li and You, 2009), which was also observed by a variety of space instruments. Ding et al. (2005) suggest that He I 1083 nm is a powerful diagnostic of non-thermal effects in flares. A flare-associated erupting active region filament was observed near disk center using He I 1083 nm during a joint run with SOHO/CDS (Penn, 2000). The He I 1083 nm profiles show multiple components, with a seemingly undisturbed solar chromosphere at the rest wavelength, and an erupting filament with a 200–300 km/s blueshift which moves transversly across the field-of-view. The CDS line profiles also show two spectral components, which allows easy line ratios to be computed without needing to subtract a background. Computing the column depth of the filament using the EUV lines gives a value of (4.8 ± 2.5) × 1017 cm−2. Very bright emission at a level of 2.5 times the continuum intensity was observed in He 1083 nm during an X1.8-class flare using the NAC instrument at the McM-P (Penn, 2006) (see Figure 12). Strong downflows with amplitudes of 100 km/s were seen during the flare decay phase. Dark absorption with a very large line width was observed with full Stokes polarimetry during a C2.0-class flare by Sasso et al. (2011). By fitting up to five different velocity components to the line profiles, some with redshifts as high as 100 km/s, they find magnetic field strengths in the range of 100–250 G in the active region filament.
Figure 12:

A plot of flare emission seen in the He I 1083 nm line. The bottom spectrum shows very strong absorption in an active region filament, the central spectrum shows strong active region absorption, and the top spectrum shows emission in a flare kernel. In all cases both He I line components are seen. Image reproduced with permission from Penn and Kuhn (1995), copyright by AAS.

3.4.7 Magnetic measurements

Some of the earliest He I 1083 nm measurement included spectropolarimetric data. Harvey and Hall (1971) measured the line-of-sight component of the magnetic field using the He I line and a nearby line from Si I (formed in the photosphere). The He I magnetograms showed a magnetic field which was more diffuse and appeared more extended around an active region than the photospheric magnetic field. The He I magnetic measurements showed a reduced flux compared to the Si I data, and the authors concluded that the magnetic field at the He I height was more horizontal. Infrared array detectors were used to measure magnetic fields in both spectral lines by Penn and Kuhn (1995) around an active region, and the measurements again showed a weaker magnetic field in He than in Si. A linear relationship between the two gave BHe = 0.84 ± 0.01BSi, and using a formation height difference of 2000 km, the authors compute a logarithmic vertical gradient δ ln B/δz = (8.7 ± 0.6) × 10−5 km−1. They also noted that the photospheric magnetic field appears more bipolar than the He I field, with some pixels showing very different magnetic fields in the two lines. Observations of a sunspot by Rüedi et al. (1995b) also showed evidence for a vertical magnetic gradient which changed depending on the field strength, as the measured vertical gradient in an umbra (about 0.5 G/km) was more than twice that measured in the penumbra (about 0.2 G/km).

As the on-disk counterpart to off-limb prominences, filaments are highly visible in He I 1083 nm, showing increased absorption. In a filament region, Lin et al. (1998) made full Stokes spectropolarimetric observations of He I 1083 nm. By using a classical model for the polarization of the scattered radiation field, they developed expressions for the filament’s magnetic field in terms of the measured Stokes values. Mapping the field showed that the axial component of the magnetic field changed sign across the filament, which was consistent with having the filament embedded in a tilted magnetic loop system. The model failed to explain some of the observations however, especially the apparent reversal of the Stokes parameters between the red and the blue components of the He I 1083 nm triplet.

Measuring the vector chromospheric magnetic field has been a long-standing goal of those doing spectropolarimetry with the He I 1083 nm line, and recent efforts have shown that this goal may be achieved soon (Solanki et al., 2006). Observations of an emerging flux region using full Stokes spectropolarimetry show a set of rising magnetic loops, and also reveal that non-linear force-free extrapolations of the photospheric field (measured simultaneously with Si I) provide the closest fit to the observed chromospheric loops (see Solanki et al., 2003; Wiegelmann et al., 2005). These inversions included a simple implementation of the Hanle effect, and later work has used Milne-Eddington inversions and the Paschen-Back effect (Sasso et al., 2006).

A more complete theorectical framework for interpreting spectropolarimetric observations of He I 1083 nm was presented by Trujillo Bueno and Asensio Ramos (2007). Their work addresses atomic-level polarization, and discusses potential modifications to the anisotropy of the local radiation field. Based this framework, Lagg et al. (2009) produced the HELIX+ analysis package, and examined the polarization along chromospheric fibrils. They found the local magnetic field was nearly aligned with the fibrils, and recent work from Schad et al. (2013) using a version of the HAZEL code developed by Asensio Ramos et al. (2008) found a tighter alignment of the magnetic field direction with superpenumbral fibrils (aligned within ± 10 degrees). Finally, recent work by Schad et al. (2012) measured the magnetic field at coronal heights using a downflowing He I event (see Figure 13).
Figure 13:

A composite spectrum of a strong He I 1083 nm downflow. At every pixel, the normal spectral line at the rest wavelength is seen along with a highly red-shifted second spectral line. The Stokes IQUV spectra are taken from along a curved path following a coronal condensation event. The upper panels show the measurements, while the lower panels show the resulting fitted spectra from the analysis, with the telluric and weak photospheric lines removed. The magnetic field measured in this event varies with height from approximately 100 G at 50 Mm to over 1000 G at 10 Mm and below. Image reproduced with permission from Schad (2013), copyright by the author.

3.4.8 Helioseismology using He I 1083 nm

Oscillations in the He I 1083 nm line have been used to examine the dynamics of the chromosphere. Lites (1986) examined the behavior of the He I line and the Ca II K line simultaneously above a sunspot umbra. One set of observations used a 42-second cadence for about 25 minutes, and the second set used 5-second cadence for 50 minutes. Oscillation power at 5 mHz dominated the observations, and the oscillation waveforms showed irregular shapes which were suggested to be evidence for shock formation. No phase relationship between the two lines could be determined. In several solar filaments, Yi et al. (1991) made maps of the Doppler velocity with a cadence of 140 seconds, spanning 140 to 210 minutes of time. They found several oscillation periods between 5 and 15 minutes, and noted that there was a long delay between Doppler shifts and intensity variations of about one period. Fleck et al. (1994) observed velocity and intensity oscillations in the quiet Sun with 24-second cadence during 90 minutes. They found both 5-minute and 3-minute oscillation periods in the velocity signal, but no power peaks in the intensity measurements. The coherence between the intensity and velocity was high through about 4 mHz, and at those frequencies a phase shift near 210 degrees was measured, well off from the adiabatic shift of 90 degrees (see Figure 14). Oscillations near the north pole of the Sun were observed by Penn and Allen (1997) and the He 1083 nm line showed mostly radial oscillations with a small 22 m/s horizontal component. In that work no oscillations were seen in the off-limb emission, although Muglach and Schmidt (2001) did report oscillations in the emission shell as observed with both He D3 and 1083 nm. In Centeno et al. (2006) the authors observe oscillations in a facular region and a sunspot umbra; an analysis of the phase diagrams between the velocity in the photosphere (using Si I) and higher (using He I) showed propagating waves in both features, and computed radiative cooling times and height differences in both objects.

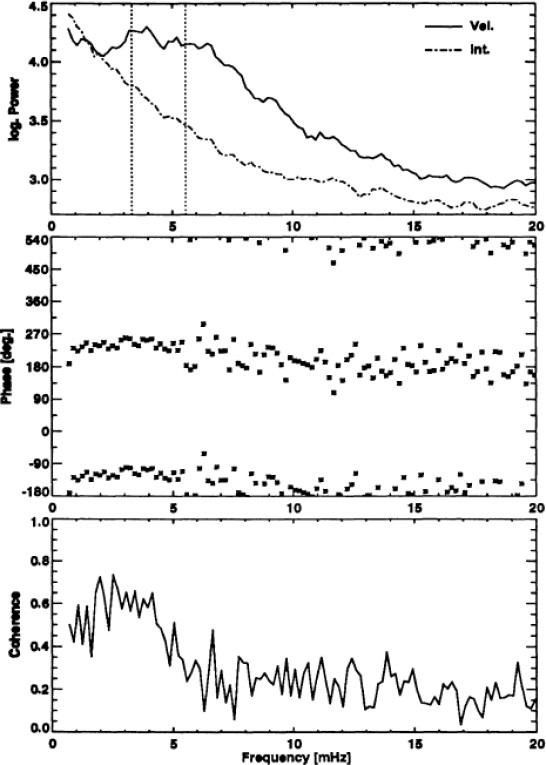

Figure 14:

Oscillations observations in He I 1083 nm. Both velocity and intensity oscillations were seen, but power peaks are only visible in the velocity signal. The coherence is high at low frequencies, but the phase shift is very different from the adiabatic value of 90 degrees. Image reproduced with permission from Fleck et al. (1994), copyright by IAU.

3.5 Mg I Emission at 12318 nm: the most sensitive magnetic probe

3.5.1 Telescopes, instruments, and detectors

Observations of this region of the spectrum are challenging due to the low solar flux and the high backgrounds from the atmosphere and telescope. The McM-P telescope is where the majority of the observations of this line have been made; exceptions include of early observations from the South Pole and Boulder, CO, and eclipse observations from the NASA IRTF on Mauna Kea during the 1991 total eclipse, and from the Apache Point ARC 3.5-m telescope during the 1994 partial eclipse. Detector technology used to observe this line has ranged from single element arsenic-doped silicon photodiode in early work (Brault and Noyes, 1983) to modern imaging Stokes spectropolarimetry using the Celeste instrument, currently equiped with a 128 × 128 array of arsenic doped silicon BIB detectors (McCabe et al., 2003).

3.5.2 Early work

Chang (1994) provides a discussion of the history of the study of the Mg I emission line at 12 318 nm. To briefly summarize: the first observations of emission from Mg I at 12 000 nm was by Goldman et al. (1980), although the first published observations can be seen in Murcray et al. (1981). After observations from the McM-P telescope by Brault and Noyes (1983) and from space data from the ATMOS program Farmer and Norton (1989a), the lines were identified as high-l Rydberg transitions by Chang and Noyes (1983). The narrow emission line sits atop a broad spectral absorption feature (i.e., see Figure 1 of Deming et al., 1988).

3.5.3 Height of formation

While Chang and Noyes (1983) predicted that the line was formed in the low chromosphere, work by Lemke and Holweger (1987) using NLTE calculations suggested that the line originated in the upper photosphere. Measurements from Zirin and Popp (1989) at the McM-P suggested that the formation height was above the temperature minimum in the low chromosphere. The formation height mystery continued until eclipse measurements from Deming et al. (1992) and Deming et al. (1998) showed that the emission originated below the temperature minimum in the upper photosphere. Subsequent modeling with plane-parallel atmosphere and NLTE effects (see Carlsson et al., 1992) agreed with the upper photospheric formation height, and predicted that the line formation occurred at roughly log τ500 = −3.5, corresponding to z = 400 km.

3.5.4 Magnetic field measurements

The earliest measurements of the Mg I line profiles revealed split emission profiles in sunspots, which suggested that Zeeman splitting was being observed. Laboratory measurements by Lemoine et al. (1988) showed that the transition had a Landé geff = 1.0. Since the magnetic sensitivity of a spectral line varies as the product of geff λ, this line is the most magnetically sensitive line currently known in the solar spectrum.

Exploitation of the very favorable Zeeman sensitivity of this line began with the work of Chang and Noyes (1983); progress on the use of the spectral line is presented in a series of papers from Deming and coworkers. Deming et al. (1988) measured quiet Sun p-mode oscillations using the line, found Zeeman splitting in the line profiles through a sunspot indicating magnetic fields of between 850 and 1400 gauss, and measured an inverse Evershed flow in the penumbra of a sunspot. Hewagama et al. (1993) made the first full-Stokes measurements of a sunspot magnetic field using this spectral line. In this work they emphasized that the broadening of the Zeeman-shifted σ emission line components was due to a distribution of magnetic fields within their spatial pixels rather than from Doppler broadening. (This was confirmed with a polarized line profile synthesis done by Bruls et al., 1995.) The third paper in the sequence (Moran et al., 2000) provided simultaneous measurements at 1565 nm and 12 318 nm in sunspots and plage, and showed that the vertical gradients of the magnetic field varied between these different solar structures (see Figure 15). Finally, Jennings et al. (2002) produced maps of the vector magnetic fields around an active region and observed a solar flare. By using the spectral line to measure the distribution of magnetic fields (rather than assigning a single-value as with some magnetogram analysis, see Figure 16), the magnetic energy involved in the flaring regions was larger than the X-ray luminosity of the flare. More recently the vector field properties of a solar active region have been explored in Moran et al. (2007).
Figure 15:

Simultaneous spectra from a sunspot umbra showing the Mg I 12318 nm (top) and the Fe I 1565 nm (bottom) lines. The larger splitting of the Mg I line components is clearly visible, and the width of the Zeeman shifted components reveals a large range in the magnetic field strengths seen at this spatial position. Image reproduced with permission from Moran et al. (2000), copyright by AAS.

Figure 16:

Maps of the magnetic field strength in a magnetically complex active region. The Zeeman shifted sigma components of the line are sliced at different wavelength positions corresponding to the magnetic field values listed in each sub-image. Magnetic fields of various strengths are seen to occur in the same spatial pixels, while the stronger magnetic fields are limited to the umbral regions. Image reproduced with permission from Jennings et al. (2002), copyright by AAS.

3.5.5 Helioseismology using Mg I 12318 nm

It seems that currently only one study of solar oscillations has been published using this line. Deming et al. (1988) measure quiet Sun p-mode oscillations using the line. With two quiet Sun time sequences of about 120 minutes and 90-second cadence, the authors measured solar velocity oscillations at disk center with single-point apertures of 2.3 and 4.6 arcseconds. The power spectrum clearly showed peaks near 5-minute periods, but little power at 3 minutes. The average period was measured to be 276 seconds, and the rms velocity amplitude was in the range of 500 m/s. All three of these features led the authors to conclude that the line originated from atmospheric heights of between 300–475 km, and so concluded that the line was from the upper photosphere and not chromospheric in origin. No intensity oscillations were seen in the emission lines above an amplitude corresponding to a temperature fluctuation of about 7 K, which is surprising given the observations of oscillations of lines formed at similar heights.

3.6 Coronal measurements

3.6.1 Telescopes, instruments, and detectors

Infrared observations of the corona are made from both eclipse experiments and from ground-based coronagraphs. Eclipse experiments are often specially designed, but have included a range of experiments from simple reflecting telescopes with spectrographs and IR array detectors (Kuhn et al., 1996) to aircraft equipped with gyroscopic-stabilized telescopes, spectrographs, and infrared detectors which fly through the path of totality (i.e., Münch et al., 1967; Kuhn et al., 1999). Several ground-based coronagraphs have been used to observe the solar corona at infrared wavelengths including the Pic du Midi and Climax coronagraphs, (Firor and Zirin, 1962) the ESF, (Penn and Kuhn, 1994a) COMP, (Tomczyk et al., 2008), and Solar-C. (Lin et al., 2004). Taking advantage of the fact that both atmospheric and telescopic scattered light are reduced at infrared wavelengths, observations of coronal emission lines have also been made from the non-coronagraphic all-reflecting McM-P telescope (Judge et al., 2002).

3.6.2 Early work

Infrared coronal physics has a long history. Quickly summarizing the excellent review by Malville (1967), the 1075 and 1080 nm emission lines from [Fe XIII] were first observed by Lyot in 1936 from the Pic du Midi coronagraph, and then were properly identified in the solar coronal spectrum as ions of iron by Edlen in 1942. Using an infrared sensitive high-voltage photomultiplier tube, observations of Fe XIII 10747 were from Climax coronagraph by Firor and Zirin (1962). Subsequent observations using a cooled photomultiplier tube during the May 1965 total eclipse (Eddy and Malville, 1967) showed for the first time strong linear polarization signal in the 1075 nm line.

The theory of polarization for many coronal emission lines was discussed in Hyder (1965), where the 1075/1080 nm [Fe XIII] line pair was shown to be an excellent choice for making magnetic field observations of the corona. A thorough discussion of the ability of the lines to measure the coronal magnetic field was given by House (1977). Initial observations of the coronal magnetic field of a limb sunspot using the the linear polarization of the 1075 nm line were reported in Querfeld and Elmore (1976), and subsequent work at the ESF by this group using cooled GaAsSb heterojunction photo-diodes provided maps of the coronal emission line polarization at many heights during many observing days (i.e., Querfeld and Smartt, 1984; Arnaud and Newkirk Jr, 1987).

Other infrared emission lines from the corona were predicted to be seen by Münch (1966) at longer wavelengths, including 1431 nm [Si X], 2047 nm [Al IX], 3032 nm [Mg VIII], and 3859 nm [Si IX]. Observations of the 1431 nm line were reported by Mangus and Stockhausen (1966), and later observations from Münch et al. (1967) using a PbS also measured the 3032 nm line. Eclipse observations (Olsen et al., 1971) using a 1 mm diameter InSb detector produced a more complete survey of emission lines from roughly 1000 to 3000 nm. Two low temperature lines (H I 1876 nm and He I 1083 nm) were observed, along with 9 high temperature lines and two unidentified emission lines. The measured wavelengths for the [Al IX] (2744–2749 nm) and the [Mg VIII] (3016–3021 nm) differed from previous predictions and observations. Recently, more work has been done to compute the wavelengths and intensities of infrared coronal emission lines, and a series of papers describing this work begins with Judge (1998). Using a model for a coronal loop structure, this work predicts many new useful lines to observe and confirms some of the calculations from early authors. Brage et al. (2000) point out that in particular, the [Si IX] line at 3935 nm promises to be an important diagnostic of the coronal magnetic field. Table 3 lists several coronal emission lines with wavelengths adapated from Judge (1998).
Table 3:

Infrared Coronal Lines


Wavelength [nm]





Si X
















In addition to diagnosing the polarization of these emission lines, ratios of the emission from these lines can provide insight into the physical parameters of the coronal plasma. The line ratio of the two [Fe XIII] emission lines was computed to be sensitive to the local coronal electron density, and the analysis presented in Flower and Pineau des Forets (1973) facilitates this conversion. Early measurements of these emission lines (Byard and Kissell, 1971) from eclipse data from 1966 showed that the electron density from these two lines was related to the electron density computed with the continuum intensity. Observations from Mauna Kea during the 1991 total solar eclipse with a 61-cm telescope (Penn et al., 1994) provided calibrated images in both lines and nearby continuum. The line ratio was calculated and mapped in a variety of structures in a 180 × 270 arcsecond field of view (see Figure 17), and resulted in lower line ratio values for a given continuum brightness than seen in the earlier eclipse data (Byard and Kissell, 1971).
Figure 17:

A map of the ratio of emission from the two infrared [Fe XIII] lines near 1075 nm from the 1991 eclipse. The line ratio is sensitive to the local coronal electron density and reveals structures in the hot plasma near a cool prominence, seen in the lower right of this figure. Image reproduced with permission from Penn et al. (1994), copyright by AAS.

3.6.3 Search for thermal emission from interplanetary dust

Infrared observations are used to explore dust in interstellar regions, and the idea of observing interplanetary dust near the Sun was examined by Peterson (1963). A review of previous eclipse experiments prompted Peterson to suggest that thermal emission from dust might be visible as a ring of infrared light around the Sun. Here the idea is that meteoric or cometary dust which gradually spirals into the Sun would reach a distance (and temperature) where it would sublimate. The region closer to the Sun would be dust free, and so thermal emission observed from this dust would gradually increase towards the Sun and then disappear at this sublimation radius. During an eclipse, observers at the Earth would be able to map this thermal emission. Dust with different chemical composition would be expected to sublimate at different solar distances, and so in principal a set of thermal emission rings might be observed near the Sun.

Observations of thermal excess were seen during an eclipse experiment and also with observations from a stratospheric balloon-borne coronagraph flight at a wavelength of 2200 nm (MacQueen, 1968). In both experiments, a single element PbS detector was used to scan the solar corona. During the eclipse experiment, an excess emisison bump was seen between 3.8 and 4.1 R and during the balloon flight, excess IR emission was observed between 3.9 and 4.2 R, as well as between 8.5 and 9.5 R. Emission at a radial distance of about 4 R was also seen at a wavelength of 10 000 nm in a famous airborne eclipse experiement in 1973 (Lena et al., 1974). The instrumentation for this experiement was a liquid-Helium cooled Ge-bolometer (Beckman et al., 1973), and again the solar corona was scanned with this single element detector. Not only was an IR excess detected at 4 R, but many peaks were seen between 3–17 R. A low-resolution spectrum of the emission was also taken between 8000 and 13 000 nm, showing a few peaks from which the authors concluded that the dust was composed of silicates.

With great anticipation, imaging IR detectors were used in several experiments from Mauna Kea during the 1991 eclipse (Lamy et al., 1992; Hodapp et al., 1992). Here intensity and polarization measurements were taken between 1000 and 2500 nm, and in all cases the IR intensity away from the Sun dropped smoothly with radius; no rings were seen at all. A follow-up observation from the 1998 eclipse covering the same spectral bands again showed no dust (Ohgaito et al., 2002), and no recent observations have been made. One idea is that earlier observations likely saw temporary dust enhancement deposited by a sun grazing comet.

3.6.4 Coronal IR spectroscopy

Exploration of the coronal spectrum using modern IR array detectors started with some work from the JESF using a HgCdTe 256 × 26 array. Penn and Kuhn (1994a,b) present observations of the 1075 nm and 1431 nm lines. A new detection of [S IX] emission at 1252 nm the 1994 solar eclipse was done by Kuhn et al. (1996), and the 1431 nm [Si X] 1075 and 1080 nm [Fe XIII] and 1083 nm He I lines were also observed. Unfortunately, no other spectral lines were seen from about 1000 to 1500 nm (excluding wavelengths of strong atmospheric absorption, see Figure 18). Further observations of He I 1083 nm emission from the corona were done using a coronagraph at the Mees solar observatory by Kuhn et al. (2007). Initially the source of these cold neutral Helium atoms was thought to be the local interstellar wind, but subsequent work (Moise et al., 2010) has shown that the measurements are more consistent with ionized helium becoming neutral and scattering solar photons. Finally, new observations of the longer wavelength [Si IX] line predicted by Münch (1966) have revealed the emission at a new wavelength of 3934 nm. Although the line was likely detected in an airborne eclipse experiment during the 1998 eclipse (Kuhn et al., 1999), ground-based observations using the non-coronagraphic McM-P telescope (Judge et al., 2002) have provided the only observed spectrum of this line so far, and produced an accurate central wavelength measurement (see Figure 19).
Figure 18:

The coronal spectrum from 1000 to 1500 nm of the 1994 eclipse. The left panel shows the raw counts, and the right panel is normalized to the disk center solar intensity. Lines are seen at 1075, 1080, 1083, 1251, and 1431 nm. Image reproduced with permission from Kuhn et al. (1996), copyright by AAS.

Figure 19:

A spectrum of the 3934 nm [Si IX] coronal emission. The top panel shows the observed coronal spectrum with the emission line fit with a Gaussian line profile; the middle panel shows the coronal spectrum and a disk spectrum for reference; and the bottom panel shows a graph approximating the expected Stokes V profile for this line. Image reproduced with permission from Judge et al. (2002), copyright by AAS.

3.6.5 Coronal magnetic field measurements using 1075 nm [Fe XIII]

The circular polarization of the infrared spectral line of [Fe XIII] was examined by Kuhn (1995) using the JESF 40 cm coronagraph and a 1282 HgCdTe array detector. The measurements were made in a dual-beam system where the Stokes I+V and I–V spectra were recorded simultaneously. An upper limit of 40 gauss was determined for the magnetic field strength. Subsequent work at the JESF by Lin et al. (2000) measured all four Stokes states and made a first order correction for the telescopic induced polarization cross-talk. The resulting Stokes V profile was fit with a magnetic field strength of 33 gauss. Using a fiber-fed spectrograph on a 0.5-m reflecting coronagraph at the Mees Solar Observatory on Haleakala, Lin et al. (2004) measured all four Stokes states and again corrected for telescopic induced polarization. Maps of the linear polarization were produced using Stokes Q and U, and then a map of the magnetic field strength was made from the splitting measurements done with the Stokes V profiles. In the coronal area observed, above a limb active region, magnetic fields of about 4 gauss were observed (see Figure 20).
Figure 20:

The coronal magnetic field variation with height in the corona over an active region at the solar limb. Measurements are shown (with error bars) as the solid line, and the polarity of the observed magnetic field is seen to vary. Expected magnetic field values from an extrapolation of the active region fields are shown with the points. Image reproduced with permission from Lin et al. (2004), copyright by AAS.

The linear polarization signals from this coronal emission line are several times larger than the circular polarization. Using the Stokes Q and U the COMP instrument has been used with forward models (Ba̧k-Stȩślicka et al., 2013) to explain the linear polarizations observed around coronal voids with a model of a magnetic flux rope. Since the signal to noise of this data is becoming very good now, and improving the data is likely to occur with the DKIST telescope, a full tomographic inversion may be used in the future to measure the magnetic field strength and topology in many coronal structures. Work in this direction has been demonstrated recently by Kramar et al. (2013). And finally, the classical theory regarding the measurement of magnetic fields using the polarization of coronal emission lines was recently updated (Lin and Casini, 2000), and a good review of work using observations of coronal emission line polarization to determine the coronal magnetic field can be found in Judge et al. (2013).

3.6.6 Helioseismology using IR coronal lines

Many new techniques to probe the structure of the solar corona using waves have been developed recently, and infrared observations have provided an important tool. Using the Doppler shift of the [Fe XIIII] 1075 nm spectral line, Tomczyk et al. (2007) found evidence for wave oscillations in many large-scale coronal structures. The COMP observations have 4.5 arcsec pixels, and measure from about 1.05 to 1.35 R across a segment of about one-quarter of the solar corona. The observations have a cadence of 29 seconds, and while some sequences run for over 9 hours, the published analysis from this work usually include 2 or 3 continuous hours of the best data. The instrument measures all four Stokes parameters at three wavelength positions bracketing the rest wavelength of the 1075 nm spectral line.

Doppler oscillations with a rms velocity of about 300 m/s are found in the velocity observations with periods near 5 minutes. Early work did not find any oscillations in line width, although they have been seen recently (Threlfall et al., 2013). No intensity oscillations have been observed at the level of 3 × 10−3, although observations with SDO/AIA instruments cotemporal with COMP observations have seen oscillations in the line intensity (Threlfall et al., 2013).

The waves have been found to move along the coronal loops, (presumably along the magnetic field lines) and were first thought to be Alfvén waves, but may instead be magneto-acoustic kink waves. With phases speeds greater than 500 km/s, these waves are thought to carry on the order of 100 erg cm−2 s−1, and show more outgoing power than ingoing power (see Figure 21), indicating that the wave energy must be damped in the loops on the time scale of a few oscillation periods. The energy estimated to be carried by the observed waves is many orders of magnitude less than the value canonically quoted to produce coronal heating, but the authors suggest that currently unseen small-scale waves may carry more energy (Tomczyk and McIntosh, 2009).
Figure 21:

A map of the outgoing and ingoing power seen in 5-minute period coronal waves for a section of the corona. The oscillations are measured with the [Fe XIII] 1075 nm Doppler shift, and the waves are classified as outgoing and ingoing using their propagation direction. The outgoing waves are measured to have more power than the ingoing waves. Image reproduced with permission from Tomczyk and McIntosh (2009), copyright by AAS.

3.7 Miscellaneous

There are many other areas of solar physics research which have employed infrared detectors. Topics of recent interest include impulsive phase continuum brightening during flares at 10 000 nm (Kaufmann et al., 2013) and long-term infrared solar irradiance variations (Harder et al., 2009; Pagaran et al., 2011). Research in these areas will be discussed in future updates to this review. Some additional research areas are discussed in more detail below, but the topics discussed in this section are in no way a complete survey.

3.7.1 Granulation at different heights

Models of solar granulation (Cheung et al., 2007) predict that the contrast of the solar convective flow will reverse sign at heights as low as z = 130 km. Such reversal has been observed in visible spectral lines which form at roughly z = 350 km (Leenaarts and Wedemeyer-Böhm, 2005) Observations in the CO absorption lines near 4666 nm have been made and show an inverse granulation pattern (Uitenbroek et al., 1994) but the uniqueness of IR diagnostics lies in continuum observations. Continuum emission observed at infrared wavelengths from 1000 to 10 000 nm probes heights in the solar atmosphere from about z = −40 km to z = 140 km, and longer wavelengths can probe above these heights. The radiative transfer involved with continuum is simple compared to that in spectral lines, and so the infrared continuum provides powerful diagnostics for studying the upper layers of solar convection.

Turon and Léna (1973) used an infrared linear array to scan across the solar surface, and mapped sunspots and granulation at 1650 nm. Using the NSO McM-P Main telescope, they produced images of sunspots showing penumbral structure, and images of the quiet Sun with structures near the size of solar granulation. Scanning the solar surface over 2-dimensions with a single element PbS photometer Koutchmy and Lebecq (1986) found intensity fluctuations comparable to the size of granulation at a wavelength of 1750 nm. These observations, and imaging observations using an IR vidicon also in that work suggested that granulation at these wavelengths showed rapid evolution with a timescale of only 3.25 minutes as opposed to 6 minutes seen in visible data (Koutchmy, 1989, 1994). This difference was not seen by Keil et al. (1994) who used an IR array (128 × 128 HgCdTe) to simultaneous observe granulation at 1640 nm while a CCD observed at 558 nm. The Keil et al. (1994) work actually showed evidence for slightly longer-lived features in the infrared dat a as compared to the visible data.

Observations of solar granulation at wavelengths longer than 2000 nm are limited. Observations at McM-P using 1200, 1600, 2200 and 4666 nm channels (see Figure 22) show a surprisingly large contrast at 2200 nm and a low contrast but normal granulation pattern using the 4666 nm continuum (Penn, 2008). Measurements at 4800, 12 400, and 18 000 nm from Gezari et al. (1999) show rapid time fluctuations at the longer wavelengths, suggestive of the dynamics of internetwork regions associated with reverse granulation. The short duration of these observations and the lack of simultaneous visible data strongly suggest that the observations should be repeated.
Figure 22:

Images of solar granulation in the infrared J, H, K bands. In each case a sequence of short exposure images was processed using the Multi-Object Multi-Frame Blind Deconvolution (MOMFBD) reconstruction algorithm. In some images artifacts from the reconstruction are visible. The images are not from the same regions of the Sun and are taken at different times under different seeing conditions. The axes are marked in units of arcseconds. Comparison of the contrasts at these wavelengths shows larger than expected contrast in the K-band images. Image reproduced with permission from Penn (2008), copyright by AGU.

3.7.2 Spectropolarimetry with molecular lines

Molecular lines dominate some regions of the infrared and spectropolarimetric observations of molecular lines have been made. Early observations using the vertical spectrograph at the Mc-Math/Pierce telescope showed that CN lines near 1100 nm displayed Stokes V profiles which were reversed from the profiles seen in atomic lines and showed sigma components with unequal depths (Harvey, 1973b). Later, FTS observations of OH spectral lines at 1541 nm showed Stokes V profiles which were also reversed (see Figure 23 and Harvey, 1985; and more recently Rüedi et al., 1995a). New calculations of the Zeeman effect in diatomic molecules have explained the effectively negative Landé-g factor for some OH molecular transitions, which produced the reversed profiles (Berdyugina and Solanki, 2001). CN lines in this spectral region also displayed odd Stokes profiles; in this case the linear polarization signals were anti-symmetric about the rest wavelength. A new theory about the Paschen-Back effect in these molecular lines was needed and developed by Asensio Ramos et al. (2005) to explain the observed profiles. The spectropolarimetric observations of OH lines near 1565 nm were inverted along with the Fe I lines there to obtain the magnetic field in a sunspot (Mathew et al., 2003). Observations at sunspot umbra using the 1006 nm absorption lines of FeH also show rather strong Stokes V profiles. Recent efforts to model the circular polarization of these lines has met with mixed results; the model does a good job for the 1006 nm profiles, but fails for other FeH lines observed near 990 nm (Afram et al., 2007).

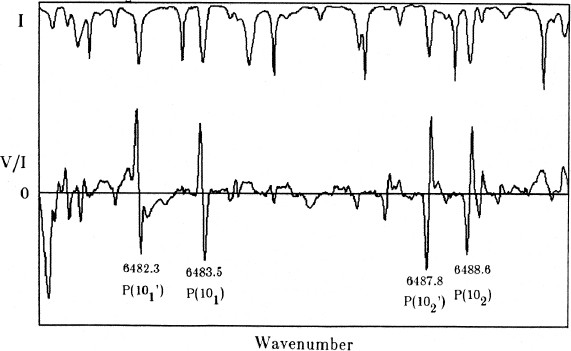

Figure 23:

The Zeeman Stokes V splitting patterns for several molecular lines. Although the molecular lines measure the same magnetic field, the properties of the particular lines produce positive and negative polarity Stokes V profiles. Image reproduced with permission from Harvey (1985), copyright by NASA.

3.7.3 Hyperfine splitting of Mn I 1526 nm

Asensio Ramos et al. (2007) identified a line from Mn I at 1526.2 nm which originates from an atomic transition that is very sensitive to the Paschen-Back effect for hyperfine structure (see Figure 24) Weak magnetic fields on the order of a few hundred gauss or less can produce Zeeman splitting which is significant compared to the Doppler width of this line in the solar spectrum. This type of observation has the advantage over Stokes V observations that opposite polarities of magnetic fields which may be spatially unresolved do not produce cancelling signals. Observations of this line were made in quiet Sun regions, and a magnetic field of about 250 G was determined. Simulations of the line produced with photospheric models show that an 80 G field will reproduce the observed quiet Sun line profile seen in the FTS spectrum (Asensio Ramos, 2009).

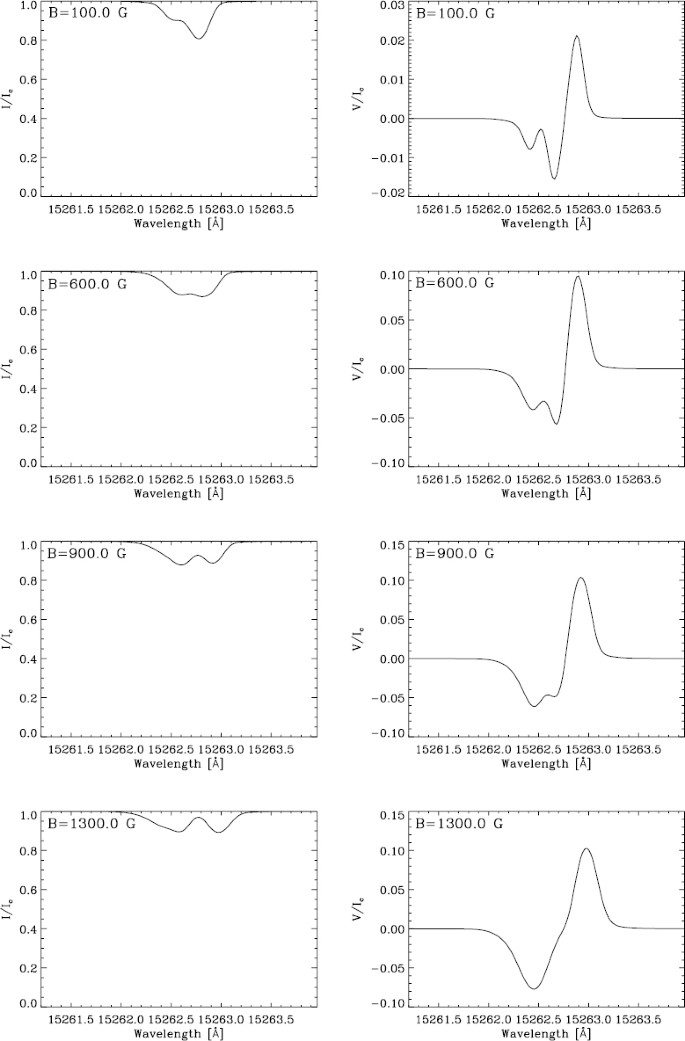

Figure 24:

The Stokes profiles for the 1526 nm Mn I absorption line for various magnetic field strengths are shown in this figure. For magnetic fields less than about 1000 G, the two spectral components in the Mn I line show different strengths, and then for fields at higher values the spectral components more apart in wavelength. The special hyperfine structure involved in this line provides a uniquely sensitive measurement of the solar magnetic field. Image reproduced with permission from Asensio Ramos et al. (2007), copyright by AAS.

3.7.4 Ti I lines near 2200 nm

Identified in solar spectral atlases and mentioned in the line list of Rüedi et al. (1995a), a group of several Ti I absorption lines near 2200 nm are excellent probes of the cool plasma in and around sunspot umbrae. Observations of several of the Ti I lines near 2200 nm were made by Rüedi et al. (1998). Several point observations using the FTS and one dimensional cuts through a sunspot using the NIM instrument measured the intensity and Stokes V spectral behavior of the lines through the sunspot umbra, penumbra, and then the quiet Sun. The equivalent width of the lines are strongest in the coolest parts of the umbrae, and then the line virtually disappears in the quiet Sun. Radiative transfer calculations done in this work showed that in the lowest temperature regions the formation of TiO molecules becomes an important factor, and may reduce the line strength. A normal Evershed outflow was observed using these lines by Rüedi et al. (1999). The flow was seen to be nearly horizontal across the solar surface, and the Zeeman splitting of the line suggested a low field strength of 500–900 gauss. Two dimensional maps of a sunspot were made using the 2231 nm line by Penn et al. (2003b), and magnetic fields up to 3300 gauss were observed (see Figure 25). The continuum at 2230 nm was used to compute the temperature of the solar plasma, and then the equivalent width of the line was compared with temperature. The measurements agreed with the observations of Rüedi et al. (1998). Penn et al. (2003a) used the Stokes V spectra from the 2231 nm Ti I absorption line to map the azimuthal variation of the penumbral magnetic field and the Evershed outflow. High values of the Evershed outflow of 6 km/s were seen (consistent with the outflow speeds from a 1564 nm CN line and an unidentified molecular line at 2232.2 nm) and the penumbral magnetic field was measured to be 1400 G.
Figure 25:

Stokes V spectral profiles of a Ti I line at 2231 nm. The two Zeeman split components are completely resolved in the sunspot umbra, and the line does not form in the high temperatures of the solar photosphere. With a magnetic sensitivity larger than the Fe I 1565 nm spectral line, this line is uniquely suited for probing the magnetic fields in sunspot umbrae. Image reproduced with permission from Penn et al. (2003b), copyright by Springer.

4 Future Prospects for Infrared Solar Observations

As we have seen in the previous section, our understanding of the Sun has been profoundly shaped by observations made in the infrared spectrum. Spectropolarimetry of IR lines with high magnetic sensitivity clearly demonstrated that kilo-gauss flux tubes were not the building blocks of the Sun’s photospheric magnetism, and instead a variety of magnetic field strengths exist there. Infrared molecular spectroscopy revolutionized our understanding of the temperature structure and the dynamics of the solar atmosphere from the upper photosphere to the lower chromosphere. And now IR spectropolarimetry of both hot and cold lines from the solar corona provide a new window into the critical magnetic processes which drive flares and cause the space weather around the Earth.

More work remains ahead. While IR observations have already changed our physical understanding of the Sun in important ways, at the current time the behavior of our Sun presents us with many problems. The strange trends seen in the current sunspot Cycle 24 and the difficulty with making accurate predictions of the solar magnetic dynamo loom large as of this writing. The exact heating mechanism for the solar corona remains elusive. The evolution of magnetic fields in the chromosphere and the corona, especially the conditions which generate solar flares and coronal mass ejections, is a key problem with a direct connection to spaceweather here at Earth. Having enjoyed the advancements from the past 20 years of work in this field, we must recognize that for continued advancement in the next two decades, we have to continue in the tradition of the original experimentalists. While some infrared observations have become a new comfort zone for solar physics, the hard work of observing new wavelengths must be done. New technology must be used to develop new instrumentation to allow those windows to be opened, and these instruments must be used by careful observers to explore the questions posed by our Sun.

4.1 New telescopes and new instruments

We are at an exciting time in the history of infrared solar physics research with the development of new instruments and new telescopes. At the recently built NST a cooled-grating spectrograph spectropolarimeter is planned to come on-line soon, the Cyra instrument (Cao et al., 2010). Cyra will have dual-beam polarimetric capability from 1000 to 5000 nm, and the cryogenic spectrograph will give much lower background signals for studies from 3000 to 5000 nm. The 1.5-m GREGOR solar telescope at the Observatorio del Teide on Tenerife is home to the GRIS instrument (Schmidt et al., 2012; Collados et al., 2012), which is designed to perform spectroscopy from 1000–2300 nm and spectropolarimetry from 1000–1800 nm. Initial intensity spectra from GRIS show excellent image quality can be obtained with the system, and this promises that future polarimetric data from the instrument will be scientifically very interesting.

A new 4-m all-reflecting IR optimized telescope at the NSO was proposed by Livingston (1994); currently under construction, the 4-m DKIST telescope will deliver 3 times the spatial resolution of the McM-P or the NST facilities. The telescope and the AO system is designed to achieve 0.08 arcsecond resolution at 1565 nm. The infrared instruments planned for the DKIST, the Cryo-NIRSP, and the DL-NIRSP (Lin, 2003; Rimmele et al., 2005) will provide unprecedented observations from 1000 to 5000 nm, on the solar disk, at the limb, and into the solar corona. With these instruments, the DKIST will deliver all of the scientific and technical advantages of observing in the IR solar spectrum at the highest spatial resolution we can now achieve from the ground.

Building on work done by the COMP instrument, Gallagher et al. (2012) have proposed a large coronagraph for the COSMO project which will examine the coronal magnetic fields of the Sun using the polarization of the 1075 nm [Fe XIII] spectral lines. This instrument would operate in a more synoptic manner than would the DKIST Cryo-NIRSP, and it would have a larger field-of-view.

4.1.1 Simultaneous wavelengths and polarizations

Spectropolarimetric observations analyze the spatial distribution of solar radiation across wavelength and polarization state, and the result is that the measured intensity is a function of four variables I(x, y, λ, p). The solar radiation varies inherently as structures change on the Sun, and also as the Earth’s atmosphere alters the incoming wavefronts of sunlight, and so ideally all four of these parameters would be sampled simultaneously. Unfortunately detectors are only 2d, and so modern solar instrumentation divides these four variables in different ways and samples them across short intervals of time. As detector sizes become larger though, it becomes possible to limit the area of the Sun which is observed and to measure more variables simultaneously. Using a slit spectrograph fed with a 64 × 32 array of fiber optics, the SPIES instrument Lin and Jaeggli (2012) simultaneously measures I(x, y, λ) using a 2048 × 2048 array detector. Preliminary results have been shown for spectropolarimetry of 1083 and 1565 nm. Nearly simultaneous I(x, y, λ) measurements are possible with quantum well infrared photodetector (QWIP) cameras as changing the bias voltage applied to the array can alter the wavelength response (Li et al., 2002). Dual beam systems measuring orthogonal polarization are common in solar physics now, and coupled with a slit spectrograph and they minimize the problems caused when atmospheric distortion changes between polarimetric measurements. However, a quad-beam polarimetric system to measure linear I, Q, U Stokes vectors simultaneously has been used for comet observations (Geyer et al., 1996) and, more recently, it has been coupled with a large format array (Kawabata et al., 2008). With the introduction of circular polarization analysis as is currently done with optimal chopping techniques, one may truly measure I(x,λ,p) simultaneously. Stokes measurements at the pixel level using QWIP detectors has been discussed by Serna Jr (2002); one may envision sampling I(x, y,p) simultaneously with a device like this. While the problem of sampling the solar intensity in all of the desired ways is not a unique problem to infrared observations, the unique capabilities of some IR detectors may facilitate a solution in the IR spectrum sooner than at shorter wavelengths.

4.2 What is the wavelength of the next key line?

We currently know that the Mg I 12 318 nm line is the most sensitive probe of the solar magnetic field. However, with a value for geff = 1.0 the wavelength of the line is the key in determining its magnetic sensitivity. A line at a shorter wavelength which was found to have a significantly larger geff value would supercede the Mg I line.

4.2.1 Spectropolarimetry near 4000 nm

A set of weak lines at 4135 nm have been observed recently and are a key target for the Cyra instrument. The lines are weak and have a strong dependence on temperature; they almost completely disappear at the low temperatures of a sunspot umbra. Some of the lines are currently not well-understood, and one shows some very large Zeeman splitting according to Clark (2005) and as seen in more recent data taken at the McM-P (see Figure 26). While the line may be absent from sunspots and active regions, it has the potential to provide critical diagnostics for the weak magnetic fields of the quiet Sun.

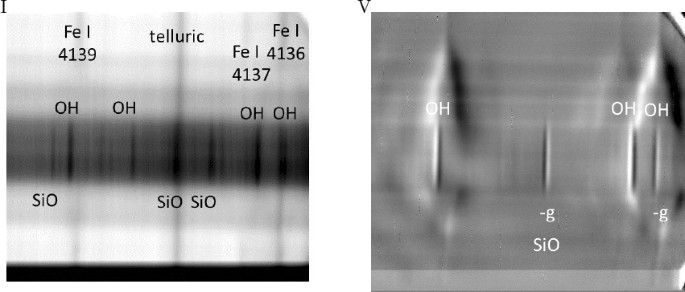

Figure 26:

Stokes I and V profiles for several atomic and molecular lines near 4135 nm from NAC data taken at the McM-P telescope. Credits: NSO/AURA/NSF.

4.2.2 Mostly unexplored: 5000–10 000 nm

Until the DKIST comes on-line, the NST and McM-P are the two telescopes that can explore this region of the spectrum, with the McM-P having the advantage of being at a drier site. The Celeste instrument (McCabe et al., 2003) currently represents the only cooled-grating instrument dedicated to solar use at these wavelengths, though other instruments may have abilities here. For use on warm spectrographs, a camera system which functions at these wavelengths is the Si:Ga array detector used by Gezari et al. (1992) and employed for solar observations by Gezari et al. (1999). This array is nominally sensitive from 5000 to 18000 nm. Newer camera systems which can be used in this wavelength range include QWIP cameras, which were used for astronomical imaging by Ressler et al. (2001) and have been fabricated in large formats of 1024 × 1024 (Jhabvala et al., 2004). This particular array is sensitive from 8400 to 9000 nm, although during fabrication the wavelength response of the array can be modified.

4.3 Spectropolarimetry of molecules

Because the IR spectrum is dominated by spectral lines from molecules, a full understanding of the magnetic sensitivity of molecules is imperative if this part of the solar spectrum is to be fully exploited. While the development of some spectropolarimetric diagnostics has been mentioned already, a more thorough review is presented in Berdyugina (2011). An entire session of the Solar Polarization Workshop 4 (Casini and Lites, 2006) was devoted to a description of the state of the art in molecular line spectropolarimetry, and especially interesting work was presented by Trujillo Bueno et al. (2006) and Asensio Ramos (2006). Observations must be done in order to push the development of these theories, and so recent efforts for spectropolarimeters to explore the 1000 to 5000 nm region will provide important results, and efforts beyond 5000 nm are needed as well.

4.4 Space-based solar IR instrumentation

With the exception of only one option for the upcoming Japanese Aerospace Exploration Agency mission to be an infrared spectropolarimeter, prospects for infrared space-based solar observations are surprisingly lacking, although past proposals for space-based solar IR missions have been made, including the SIRE mission (Deming et al., 1991c). This oversight needs to be corrected. While the spatial resolution of a space-based solar telescope operating in the IR is less than if it operated at shorter wavelengths, the magnetic sensitivity such an instrument gains opens new realms of possible science. Night-time astronomy has long exploited the advantages offered in the infrared spectrum through a variety of space missions from IRAS to WISE, from Spitzer to Herschel, and now to the upcoming JWST. Clearly the technology is available to develop cutting-edge solar physics missions to observe the Sun from space in the infrared spectrum. The recent excellent results from the Hinode spacecraft (i.e., Lites et al., 2008) clearly show that a new solar mission with three times the magnetic sensitivity of Hinode would be revolutionary.


It is humbling to review the work that dedicated scientists have done on this subject, and it is a joy to be able to work in the same field with these insightful researchers. Many discussions with many people have helped to improve this paper, and an incomplete list of colleagues who have helped me follows below. Tom Ayres reviewed much of the discussion of the CO lines and provided crucial help on a first draft of that section. Jack Harvey provided many insightful comments on the entire paper, and important pointers to early work done in this field. Tilak Hewagama was kind enough to provide a copy of his dissertation containing measurements of the McMath-Pierce polarization at 12 318 nm. Don Jennings reviewed the discussion of the Mg I 12 318 nm line and provided comments. Harrison Jones provided a critical review and key suggestions for improving the section about He I 1083 nm. Jeff Kuhn reinforced the importance of molecular transitions and provided a summary of the 1991 eclipse experiments. Claude Plymate provided suggestions overall and specific comments on the CO section. Referee comments by D. M. Rabin and a second anonymous referee improved the content and the flow of this paper.

Copyright information

© The Author(s) 2014

Authors and Affiliations

  1. 1.National Solar ObservatoryTucsonUSA

Personalised recommendations
