Introduction

Titanium dioxide and zinc oxide are used as white pigments for cosmetic applications [1]. These oxides are known to be photocatalytically active; therefore, cosmetics containing these pigments cause decomposition of a certain amount of sebum on the skin under ultraviolet radiation in sunlight. To repress this effect, several kinds of technical processes have been investigated and implemented. One such technique involves the use of composite particles with silicon oxide [2]. However, particulate materials such as silicon oxide are too hard for use on the human face. Instead, soft materials are required for use as white facial pigments. Microfine oxide particles are reportedly absorbed through the skin [3], highlighting the need for novel white pigments that are not absorbed by skin.

Phosphates have been used as ceramic materials, catalysts, fluorescent materials, dielectric substances, metal-surface treatments, detergents, food additives, in fuel cells, as pigments, and so on [4, 5]. Phosphate materials are recognized to have high biocompatibility and are therefore expected to be useful as white pigments in cosmetics. White pigments that are not photocatalytically active are required for skin protection during cosmetic use. Furthermore, the moisture retention of the materials used in cosmetics is also important for preventing dry skin.

Phosphates are transformed to other forms of phosphates by hydrolysis and dehydration reactions at elevated temperatures [6, 7]. Polyphosphate is included in the group of condensed phosphates. Polyphosphate has a chain structure in which the PO4 unit shares two oxygen atoms. Formation of these condensed phosphates is affected by the phosphorus/cation ratio, heating temperature, time, atmosphere, and so on [8–10]. Therefore, it is difficult to obtain a high yield of condensed phosphates. The properties of condensed phosphates differ from those of orthophosphates, and condensed phosphates can therefore be used as novel functional materials [11].

The particle shape and the size distribution of phosphates are important parameters for cosmetic pigment application. Spherical, homogenous particles are expected to spread well on the skin. However, overly small particles are unsuitable because the pigments may enter the pores of the skin. Generally, pigments with sub-micrometer dimensions are used in cosmetic applications. In earlier studies [12–14], we prepared titanium and zinc phosphate pigments with no catalytic activity. In this study, zinc phosphate, as a novel white pigment, is prepared from zinc nitrate and various phosphate sources, including phosphoric acid, sodium di-hydrogen phosphate, di-sodium hydrogen phosphate, sodium pyrophosphate, and sodium triphosphate. Because pyrophosphate and triphosphate were obtained as sodium salts, sodium di-hydrogen phosphate and di-sodium hydrogen phosphate were also evaluated as phosphate sources. The respective chemical compositions, powder properties, photocatalytic activity, color phases, moisture retention, smoothness of the obtained precipitates, and thermal products were studied for application of the developed pigments in cosmetics.

Experimental

In the course of our studies (unpublished data), it was found that commercial grade sodium pyrophosphate and sodium triphosphate contained a certain degree of orthophosphates. Therefore, in this study, sodium pyrophosphate and sodium triphosphate were synthesized from sodium di-hydrogen phosphate and di-sodium hydrogen phosphate. Sodium pyrophosphate, Na4P2O7, was synthesized by heating di-sodium hydrogen phosphate (Na2HPO4) at 400 °C for 5 h [15]. Sodium triphosphate (Na5P3O10) was synthesized by heating a mixture of di-sodium hydrogen phosphate (Na2HPO4) and sodium di-hydrogen phosphate (NaH2PO4) with a Na2HPO4/NaH2PO4 ratio of 2/1 at 400 °C for 5 h [16]. These condensed phosphates were formed according to the following equations:

$$ 2{\text{Na}}_{2} {\text{HPO}}_{4} \to {\text{ Na}}_{4} {\text{P}}_{2} {\text{O}}_{7} + {\text{ H}}_{2} {\text{O}} $$
(1)
$$ 2{\text{Na}}_{2} {\text{HPO}}_{4} + {\text{ NaH}}_{2} {\text{PO}}_{4} \to {\text{ Na}}_{5} {\text{P}}_{3} {\text{O}}_{10} + \, 2{\text{H}}_{2} {\text{O}} $$
(2)

Zinc nitrate solution (0.1 mol L−1) was mixed with phosphoric acid, sodium di-hydrogen phosphate, or di-sodium hydrogen phosphate solution (0.1 mol L−1) in a molar ratio of Zn/P = 3/2 at room temperature for more than 1 h. This mixing ratio was determined based on the chemical composition of zinc orthophosphate, Zn3(PO4)2. Similarly, a 0.1 mol L−1 zinc nitrate solution was mixed with a 0.1 mol L−1 sodium pyrophosphate solution or sodium triphosphate solution in a molar ratio of Zn/P = 1/1 and 5/6, respectively. These mixing ratios were determined from the chemical composition of zinc pyrophosphate, Zn2P2O7, and zinc triphosphate, Zn5(P3O10)2, respectively. The mixed solutions were adjusted to pH 7.0 with ammonia solution or nitric acid. The precipitates were then filtered off, washed with water, and dried at room temperature over 3 days [14]. All chemicals were of commercial purity and were acquired from Wako Chemical Industries Ltd. (Osaka Japan) and used without further purification. The utilized conditions are summarized in Table 1.

Table 1 Zn/P ratios of precipitates and smoothness of samples prepared from various phosphate sources
Full size table

A part of the precipitates was dissolved in hydrochloric acid solution. The ratios of phosphorus to zinc in the precipitates were also calculated based on inductively coupled plasma (ICP) analysis of these solutions using an SPS1500VR apparatus from Seiko Instruments, Inc. The crystalline phase compositions of these materials were analyzed using X-ray diffraction (XRD; MiniFlex; Rigaku Corp.) with monochromated Cu-Kα radiation.

The shapes and sizes of the particles comprising the precipitates were estimated from the scanning electron microscopy (SEM; instrument: JGM-5510LV; JEOL Ltd.) images and particle size distributions. The particle size distributions of these materials were measured using a centrifugal precipitation particle size distribution analysis system (SA-CP3L, Shimadzu Corp.).

The cosmetic properties of the developed precipitates were estimated by analysis of the photocatalytic activity, color phase, moisture retention, and smoothness. The photocatalytic activity of the samples was assessed from the decomposition of methylene blue using 365 nm irradiation [17–19]. A 0.01 g portion of the sample was placed in 4 mL of methylene blue solution (1.0 × 10−5 mol L−1) and this solution was then irradiated. The decrease in the absorption at about 660 nm was monitored over the course of 120 min. The color of the phosphate pigments was estimated using ultraviolet–visible (UV–Vis) reflectance spectra acquired with a UV2100, Shimadzu Corporation instrument (reference compound: BaSO4). The moisture retention of the samples was evaluated by mixing 0.3 g of each sample with 0.1 g of water, and the weight loss was then evaluated at 50 °C (MS-70 Moisture Analyzer, A and D Instruments Co. Ltd.). The same weight loss over a longer time indicated high water retention of the samples. The particle smoothness was measured on artificial leather based on KES-SE objective evaluation of the surface friction (Kato Tech Co., Ltd.). The sample powders were spread onto the leather (load of sample: ca. 50 mg), and a sensor was then run over the powders (scan speed: 1 mm/s, area scanned: 3 cm2). The terms MIU and MMD, respectively, represent the slipping resistance (µ, average value in a distance of 20 mm) and roughness of the powders (fluctuation of average frictional coefficient). The values of MIU and MMD are dimensionless because these values are related to the coefficient of friction and scattering, respectively. The dispersions of the MIU and MMD values were 0.03 and 0.002 for triplicate measurements, respectively.

Results and discussion

Chemical composition and powder properties of zinc phosphates

Table 1 shows the Zn/P ratios of the samples prepared with various phosphate sources. The samples prepared from H3PO4, NaH2PO4, and Na2HPO4 had a Zn/P ratio of about 1.5, which corresponds to zinc orthophosphate, Zn3(PO4)2. The samples prepared from Na4P2O7 and Na5P3O10 had Zn/P ratios of 0.91 and 0.83, respectively. These ratios correspond to the 1/1 and 5/6 ratios of zinc pyrophosphate, Zn2P2O7, and zinc triphosphate, Zn5(P3O10)2, respectively.

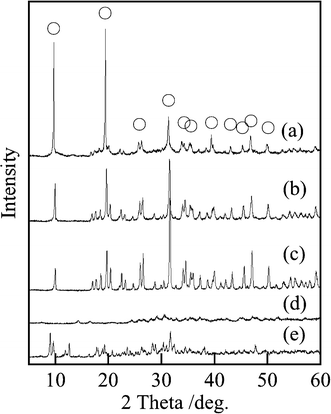

Figure 1 shows the XRD patterns of the samples prepared with various phosphate sources. Peaks of zinc phosphate tetrahydrate, Zn3(PO4)2·4H2O, were observed in the XRD patterns of the samples prepared with H3PO4, NaH2PO4, and Na2HPO4 [20]. Because the intensity of the zinc phosphate tetrahydrate peak for the sample prepared from H3PO4 differed from that of the samples prepared from NaH2PO4 and Na2HPO4, it is deduced that the sodium cation influenced the crystallinity of zinc phosphate tetrahydrate. On the other hand, unknown peaks were detected in the XRD patterns of the samples prepared with Na4P2O7 and Na5P3O10; these peaks could not be assigned due to the limited availability of data on condensed zinc phosphates. From the ICP and XRD data, H3PO4, NaH2PO4, and Na2HPO4 yielded Zn3(PO4)2·4H2O as the main component, whereas Zn2P2O7 was obtained with Na4P2O7, and Zn5(P3O10)2 was obtained with Na5P3O10.

Fig. 1
figure 1

XRD patterns of samples prepared from various phosphate sources: a H3PO4, b NaH2PO4, c Na2HPO4, d Na4P2O7, and e Na5P3O10, ○: Zn3(PO4)2·4H2O

Full size image

Spherical morphology of the particles is desirable for cosmetic applications. Figure 2 shows representative SEM images of the samples prepared with various phosphate sources. The samples prepared with H3PO4, NaH2PO4, and Na2HPO4 had some particles with flat surfaces. In contrast, large spherical particles were observed in the samples prepared with Na4P2O7 and Na5P3O10.

Fig. 2
figure 2

SEM images of samples prepared from various phosphate sources: a H3PO4, b NaH2PO4, c Na2HPO4, d Na4P2O7, and e Na5P3O10

Full size image

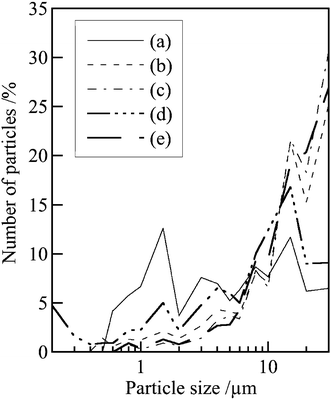

Small and homogeneous particles are suitable for cosmetic applications. However, overly small particles have a major shortcoming in that they enter the pores of the skin [3]. Generally, pigments with sub-micrometer dimensions are used in cosmetics. The standard size of white pigment particles used in cosmetics is difficult to determine because the size of the pores in skin is affected by factors such as age, gender, and climate. Furthermore, overly large particles are inappropriate for cosmetic purposes owing to cracking of their coating on the skin. It is therefore important to control the particle sizes of the pigment. Figure 3 shows the particle size distribution of the samples prepared with various phosphate sources. All samples prepared in this study had a large amount of particles with dimensions of over 10 µm. The sample prepared from Na4P2O7 had a small particle size as indicated in the SEM image (Fig. 2d); however, large particle sizes were observed in the particle size distribution analysis (Fig. 3d). This sample possibly underwent aggregation during the particle size distribution measurement. Generally, a smaller particle size was observed in the particle size distribution analysis of the sample powders than in the SEM image because the powders were dispersed in solution for the particle size distribution measurement. It is unclear why the particle size of the sample prepared from Na4P2O7 was larger than that observed in the SEM image. The particle size distributions of the other samples corresponded to those from the SEM images. Particles with sub-micrometer dimensions were not obtained by changing the phosphate source.

Fig. 3
figure 3

Particle size distribution of samples prepared from various phosphate sources: a H3PO4, b NaH2PO4, c Na2HPO4, d Na4P2O7, and e Na5P3O10

Full size image

Cosmetic properties of zinc phosphates

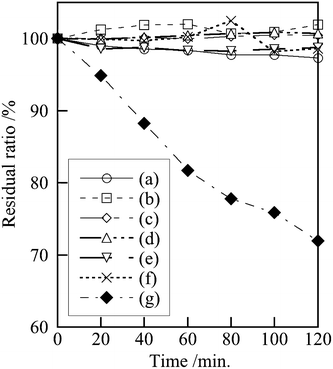

Figure 4 summarizes the respective photocatalytic activities of the samples prepared with various phosphate sources. Zinc oxide, which is widely used as a white pigment in cosmetics, was evaluated for comparison with zinc phosphate [1]. Methylene blue decomposed under UV irradiation in the presence of zinc oxide (Fig. 4g). On the other hand, the various zinc phosphates, which are mild materials that can protect the sebum on the skin, had little photocatalytic activity irrespective of the phosphate source (Fig. 4b, f).

Fig. 4
figure 4

Photocatalytic activity of samples prepared from various phosphate sources: a blank, b H3PO4, c NaH2PO4, d Na2HPO4, e Na4P2O7, f Na5P3O10, and g ZnO

Full size image

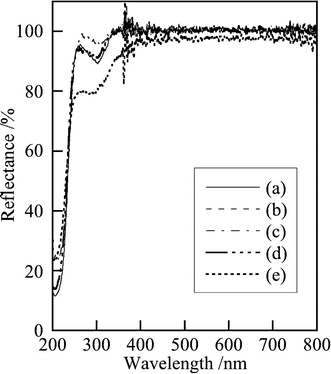

Figure 5 shows the UV–Vis reflectance spectra of the zinc phosphates prepared with various phosphate sources. All samples prepared in this study exhibited high reflectance within the range of visible light, irrespective of the phosphate source. Therefore, the obtained samples were white powders. The prepared samples exhibited relatively high reflectance in the range of 250–400 nm. The sample prepared with Na5P3O10 exhibited lower reflectance in this range relative to the other samples.

Fig. 5
figure 5

UV–Vis reflectance of samples prepared from various phosphate sources: a H3PO4, b NaH2PO4, c Na2HPO4, d Na4P2O7, and e Na5P3O10

Full size image

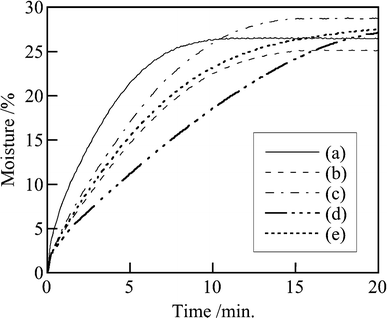

Moisture helps to prevent itchiness and damage to the skin. Pigments used in cosmetics should ideally retain the moisture on the skin. Figure 6 shows the moisture retention of the samples prepared with various phosphate sources. At a given retention time, a smaller weight loss indicates high moisture retention of the phosphate pigments. For example, at 5 min, the sample prepared with H3PO4 underwent 21.6 % weight loss (Fig. 6a), whereas the sample prepared with Na4P2O7 underwent 15.6 % weight loss (Fig. 6d). The samples prepared with Na4P2O7 had higher water retention capacity than the sample prepared with H3PO4.

Fig. 6
figure 6

Water retention of samples prepared from various phosphate sources: a H3PO4, b NaH2PO4, c Na2HPO4, d Na4P2O7, and e Na5P3O10

Full size image

As described above, pigments with a high level of smoothness spread well across the skin, and powder smoothness is the another important factor for cosmetic applications [21]. Table 1 shows the smoothness of the samples prepared with various phosphate sources. Generally, for cosmetic application, the MIU and MMD values should ideally be less than 0.6 and smaller than 0.04, respectively. All samples prepared in this study had sufficiently small MIU and MMD values. Small MIU and MMD values were obtained for the samples prepared with Na4P2O7 and Na5P3O10. These results are related to the spherical morphology observed in the SEM images.

Conclusion

Various zinc phosphates were prepared with Zn(NO3)2 and H3PO4, NaH2PO4, Na2HPO4, Na4P2O7, or Na5P3O10 solution. ICP and XRD analyses indicate that H3PO4, NaH2PO4, and Na2HPO4 yielded Zn3(PO4)2·4H2O as the main product, whereas Zn2P2O7 was obtained with Na4P2O7, and Zn5(P3O10)2 was obtained with Na5P3O10. The samples prepared with Na4P2O7 and Na5P3O10 comprised large spherical particles. The obtained zinc phosphates exhibit relatively low photocatalytic activity, and thus should not exert deleterious effects on sebum on the skin. This property is important for cosmetic pigments. All samples prepared in this study exhibit high reflectance within the range of visible light, irrespective of the phosphate source. The samples prepared with Na4P2O7 had higher water retention than the other samples. The sample prepared with Na4P2O7 and Na5P3O10 had low slipping resistance and roughness. Overall, the phosphate source influenced the powder properties of the zinc phosphate white pigment.
