Scaffolding problem-based learning with CSCL tools
- First Online:
- Cite this article as:
- Lu, J., Lajoie, S.P. & Wiseman, J. Computer Supported Learning (2010) 5: 283. doi:10.1007/s11412-010-9092-6
- 2.5k Downloads
Small-group medical problem-based learning (PBL) was a pioneering form of collaborative learning at the university level. It has traditionally been delivered in face-to-face text-based format. With the advancement of computer technology and progress in CSCL, educational researchers are now exploring how to design digitally-implemented scaffolding tools to facilitate medical PBL. The “deteriorating patient” (DP) role play was created as a medical simulation that extends traditional PBL and can be implemented digitally. We present a case study of classroom usage of the DP role play that examines teacher scaffolding of PBL under two conditions: using a traditional whiteboard (TW) and using an interactive whiteboard (IW). The introduction of the IW technology changed the way that the teacher scaffolded the learning. The IW showed the teacher all the information shared within the various subgroups of a class, broadening the basis for informed classroom scaffolding. The visual records of IW usage demonstrated what students understood and reduced the need to structure the task. This allowed more time for engaging students in challenging situations by increasing the complexity of the problem. Although appropriate scaffolding is still based on the teacher’s domain knowledge and pedagogy experience, technology can help by expanding the scaffolding choices that an instructor can make in a medical training context.
KeywordsScaffolding Role play PBL Medical education Content analysis CSCL CSCL tools Argumentation tools Visualization tools
Computer-supported collaborative learning (CSCL) environments support collaborative learning by providing visualization and argumentation tools. CSCL tools are used in a variety of domains, such as science (Baker et al. 2001; Baker and Lund 1997; Diehl 2000; Hoadley and Linn 2000; Suthers et al. 2001), mathematics (Baker et al. 1997; Vahey et al. 2000), and writing (Feltovich et al. 1995; Lingnau et al. 2003; Neuwirth and Wojahn 1996). This study examines the use of CSCL in the context of a problem-based learning (PBL) activity in medicine.
PBL is an instructional approach used in medicine where “real-life” cases are presented and students are required to define the problem, create hypotheses, gather and analyze data, and evaluate or justify solutions collaboratively (Barrow 1986; Barrow and Tamblyn 1980; Hmelo-Silver and Barrows 2006). A major goal of the PBL approach in medicine is to train practitioners to function cooperatively in real-world problem-solving situations during their medical careers (Koschmann et al. 1996). Efforts to enhance the effectiveness of PBL activities has led to various innovations (Rendas et al. 1999). This case study examines two such innovations, one is the introduction of a role-play activity, called the “Deteriorating Patient” (DP) (Wiseman and Snell 2008). The second innovation is the introduction of CSCL tools into the PBL activity to facilitate collective problem solving.
This paper describes the nature of scaffolding of collaborative problem solving under two conditions: with technological support and without. In particular, we describe how technology enhances the collaborative problem-solving situation by providing a mechanism for diversified scaffolding support using the DP PBL activity. Such scaffolding goes beyond teacher tutoring. We respond to Pea’s (2004) call for using mixed designs for documenting the effectiveness of both human and technology-based scaffolding on learning.
After presenting the theoretical framework grounding this study, we describe the educational context of DP role plays. The methods of analysis are then described in a manner that integrates perspectives on scaffolding, discourse analysis, information technology, and problem solving. The results of the case study elucidate the scaffolding strategies used under the two conditions: with and without support of technology. We conclude by relating the research findings to the theories grounding this study.
In this section, we review the literature on CSCL tools, PBL, and scaffolding as they are foundational to this research.
CSCL environments typically provide tools that support visualization and argumentation during collaborative problem solving. Visualization tools support collaborative problem solving, allowing learners to construct representations jointly (Roschelle and Teasley 1995) by providing external mental processes in the form of concept maps (Stoyanova and Kommers 2002), diagrams (van Boxtel and Veerman 2001), and text (Hoadley and Linn 2000). Visualizations can foster abstract conceptual understanding by illustrating the relationships between data and evidence (Suthers and Hundhausen 2001) and possibly inducing higher-level discourse through consensus building (Fischer et al. 2002).
Argumentation tools facilitate structured interaction and argumentation representation. Argumentation tools structure interactions by orienting participants with respect to subject matter by supporting greater coherence in discussions, increasing focus on topics, and consequently reducing off-task talking (Hron et al. 2000). Structuring can be achieved through communication acts (Baker 2003), sentence openers (Baker and Lund 1997; Hirsch et al. 2004), posting notes and making comments (Fischer et al. 2002; Scardamalia and Bereiter 1996), or representing multiple opinions that scaffold students to express their own opinions and integrate the opinions of others (Hoadley and Linn 2000). Visual representations of arguments can serve as external frames for constructing knowledge and solving problems (Hron and Friedrich 2003). They can encourage explicit exploration and negotiation, thus improving the effectiveness of knowledge construction.
In the next session, we introduce PBL and explore how CSCL tools can be integrated into PBL to scaffold learning and teaching.
Researchers in medical education have argued that problem solving, effective communication, and social skills should be taught together (Barrow 1994; Koschmann et al. 1996; Patel et al. 1991; Schmidt et al. 1996) and PBL was developed to meet these educational goals. PBL activities challenge learners to integrate their declarative medical knowledge and clinical skills while solving “real-life” medical cases that require them to communicate and work collaboratively in small groups (Barrow 1988). PBL facilitators use various strategies to support reasoning, problem solving, self-directed learning, and collaboration skills (Hmelo-Silver and Barrows 2006; Hmelo-Silver et al. 2007).
However, Hoffmann and Ritchie (1997) have argued that PBL activities have three limitations: (a) they lack flexibility in that they are largely text based and consequently learners must rely on information given in the text rather than ask for clarifications beyond preset limits, which is possible in interactive situations; (b) they lack sufficient contextualization and, thus, it is difficult for students to relate PBL scenarios to the real-world situations they purport to represent, and (c) they tend to target cognitive skills rather than affective skills issues (i.e., anxiety about their own problem-solving capabilities, learning to communicate with distraught patients and relatives, etc.).
The DP role-play activity was created to address the limitations of the PBL activities described above by providing students with an interactive, contextualized environment, where both cognitive and affective considerations are met. Teaching medical emergencies demands the design of learning activities that provide students with opportunities to practice dealing with authentic medical emergencies in realistic contexts. The DP activity provides students with a dynamic interactive role-play activity that has the structure of a PBL in that students get to hypothesize and test their solutions. However, instead of reading about a case, the students are role-playing a case where they must manage a deteriorating patient by acting as physicians. The teacher simulates the medical emergency by acting as the patient as well as the duty nurse. The teacher scaffolds students in the context of the emergency. The students view this as an authentic situation where they must manage both their decision making as well as their anxiety about handling the emergency.
Koschmann et al. (1996) described several principles of CSCL environments that could address the limitations of PBL: multiplicity, activeness, authenticity, and articulation. Multiplicity is based on the concept that knowledge is complex, dynamic, context-sensitive, and interactively related. Thus, multiple perspectives, representations, and strategies should be promoted with the support of CSCL tools such as visualization tools. Medical PBL cases can be approached from different perspectives, such as basic biomedical medicine, diagnosis, or treatment in CSCL contexts. In addition, collaboration requires activeness and articulation of ideas where students using the PBL method must articulate their actions before group actions are taken. Argumentation tools that are supported with technology can support articulation and decision making within groups.
In this study, we examine the manner in which the teacher scaffolds learning with and without the support of CSCL tools. The next section examines the role of scaffolding.
Scaffolding is a pedagogical process whereby more-knowledgeable others help learners perform tasks they cannot do by themselves (Wood et al. 1976; Wood and Middleton, 1975). Scaffolding enables learners to realize their potential by providing assistance when needed and removing or fading it as learning occurs (Collins et al. 1989; Lajoie 2005; Pea 2004).
In the context of PBL activities, facilitators monitor the problem-solving activities of learners who are expected to develop proper mind-sets, engage with problems, and manage problem-solving processes. Researchers have identified various scaffolding strategies for helping learners overcome conceptual and procedural hurdles (Hmelo-Silver and Barrows 2006; Lajoie et al. 2001; Quintana et al. 2004; Reiser 2004). Scaffolding can take many forms. We discuss scaffolding as an element of pedagogical competence, as well as technological support.
Pedagogical competence involves three kinds of knowledge: domain knowledge or subject matter expertise, pedagogical knowledge or knowledge of how to teach, and curriculum knowledge which involves knowledge of how to structure the content knowledge (Shulman 1986). The ability to adapt scaffolding strategies to individual differences varies according to levels of pedagogical competence (Berliner 1988; Graesser et al. 1997; Lepper et al. 1997). Effective teaching involves adapting instruction to individual differences (Cronbach and Snow 1977). Expert teachers use a variety of scaffolding techniques to achieve their instructional goals and they tend to be more student centered, allowing students more control of classroom discourse.
Research has shown that effective PBL teachers provide scaffolds that provide metacognitive guidance about what to think about in the context of the activity as well as scaffolds that promote better collaborations by asking questions pertaining to the construction of explanations. For instance, teachers may ask for explanations in order to make student knowledge more public, to help them see the limitations of their understandings and reasoning (Gilkison 2003; Hmelo 2003). Facilitators may also restate student information to help students’ reflect on what they have said or to further explain when necessary (Hmelo-Silver and Barrows 2006). Good facilitators withdraw or fade scaffolding as students demonstrate understanding.
Reiser (2004) argues that scaffolding can be effective when teachers chose to either decrease or increase task complexity. Decreasing task complexity can be accomplished by structuring the task in a manner that directs students’ attention to the appropriate task components or guides them in their solution processes. For example, in PBL activities, the teacher can reduce task complexity and cognitive load by writing the problem-solving processes on a whiteboard in a structured format, such as a problem list of patient issues, thereby reducing the complexity of the problem space (Barrow and Tamblyn 1980). On the other hand, an instructor may find that learners need more challenges to stretch their current abilities and choose to scaffold learners by increasing the task complexity. Increasing task complexity to challenge learners has been referred to as problematizing. In medical simulations, students become more cognitively and emotionally involved when the patient’s vital signs are dynamically updated on the whiteboard. Learners become increasingly accomplished problem solvers given structure and guidance from teachers who scaffold them through coaching, task structuring, and hints (Quintana et al. 2004). On the other hand, learners need to be challenged once they have mastered a certain level of performance, and, thus, scaffolding may involve increasing the task complexity by intensifying the type of patient problems that students will need to address in the real world.
In addition to teacher’s deliberately scaffolding learners in the context of problem solving, peers may also scaffold each other in collaborative-learning situations. Furthermore, there are a variety of approaches to designing technology rich learning environments to scaffold learning in complex situations, including the design of CSCL tools to support scaffolding by computers or human tutors (Jonassen and Reeves 1996; Lajoie 2000; Lajoie and Derry 1993; Salomon et al. 1991). As stated earlier, technology can scaffold learning by providing tools to build and externalize representations and discourse that pertain to the joint construction of knowledge. Prior research has demonstrated how computer scaffolding can free up teacher and tutor time for more advanced cognitive scaffolding (Lajoie 2005). Intelligent tutoring systems are designed to scaffold learning by providing adaptive feedback to individual learners dynamically based on updating the learner model in the context actions that they take while problem solving. Learner models help the computer determine what to scaffold, when to scaffold, and when to fade assistance (Lajoie 2005; Pea 2004).
The current case study investigates differences that emerge in a teacher’s scaffolding of collaborative problem solving under two instructional conditions: one without technology using a traditional whiteboard (TW) and one with technology using electronic interactive whiteboards (IWs). It was hypothesized that the teacher would vary his scaffolding under the two conditions. The study explored the relationship between human tutoring and technology in the DP activity.
The instructional context for this case study is the DP activity that was designed by Dr. Jeffrey Wiseman to prepare third-year medical students in internal medicine for their rotation in emergency medicine (Wiseman and Snell 2008). As described earlier, this DP activity has some of the same functions of a PBL activity but goes beyond traditional PBL situations in that it is interactive, contextualized, and intersects cognitive and affective concerns in the context of managing a deteriorating patient in a collaborative setting.
DP role plays simulate the medical emergencies that students will encounter in hospital wards and emergency rooms. In DP role plays, students play the roles of “on call” student, junior, and senior residents who must deal with a patient whose medical condition suddenly begins to deteriorate. The teacher plays two roles (beyond that of being the teacher), one as the duty nurse and one as the patient. The students work collaboratively as the physician who must figure out how to stabilize the patient before the patient dies. As the problem progresses, the patient’s signs and symptoms grow increasingly life threatening. Students are forced to make quick decisions based on the patient’s deteriorating condition.
In each DP role-play scenario, the teacher first explains how the activity works in terms of the various roles that are played, and then the students and the teacher engage in the DP activity, solving the problem by playing their respective roles. While solving the problem, the teacher presents the patient case and asks for a student volunteer to start dealing with the patient’s deteriorating condition. Students ask the nurse questions about the patient’s medical situation, such as vital signs, breathing, circulation, and other important factors in an emergency medicine. On the one hand, student questioning is guided by the “ABCDEF” emergency algorithm where A stands for Airways, B for Breathing, C for circulation, Central Nervous System and Cervical Spine, D for drugs, E for Environment and Endo-metabolism, and F for fever (Cooper et al. 2006). On the other hand, student questioning is also guided by feedback from the duty nurse’s reports on the patient’s vital sign status, requested lab results, and the patient’s physical appearance. When the student runs into difficulty, the teacher prompts him or her to call for help from the junior resident whose role is assigned to another student volunteer. When the “junior resident” reaches an impasse, s/he calls the “senior resident” who is played by a third student volunteer. In this way, the activity simulates the manner in which real medical emergencies typically unfold.
DP role plays were originally designed to allow individual students to take turns treating the DP. However, due to time limitations, only about half the students in a class were able to participate in each one-hour role play. Other students could only sit and watch their classmates. This case study introduced two changes to the DP role-play activity. The first change was introducing collaboration. Students would work in small groups of two or three rather than individually. In this way, students would have the benefit of collaboration in managing a medical emergency and all students would participate rather than observe the activity. The second change was the introduction of technology to support collaboration. This case study examines the type of teacher scaffolding provided to students under two conditions: collaborative problem solving with and without technological support. The scenario was the same under both conditions. Differences in the two conditions are discussed below.
Two conditions using the DP activity were examined in this study: Traditional Whiteboard (TW) and Interactive Whiteboard conditions (IW). Under both conditions, students were divided into three subgroups in order to play one of the three roles: student, junior resident, or senior resident. Each subgroup took turns interacting with the teacher so that everyone got a chance to work on solving the problem. In the TW condition, subgroups had access to a traditional front-of-the-class whiteboard where the teacher documented the medical emergency and the students’ actions taken in response to changes in the “patient.” In the IW condition, subgroups had technological support. More specifically, groups had networked laptops linked to an interactive whiteboard where they could access what the teacher wrote on the traditional whiteboard as well as add their own annotations to the patient chart, and share their arguments, hints, and suggestions with students in their own and in the other two subgroups. The teacher is an expert medical educator with 30 years of clinical and teaching experience who was blinded to the research questions of this study.
Two groups of third-year medical students doing their rotation in the Department of Internal Medicine in a large urban teaching hospital volunteered to participate in this study. All the volunteers were receiving the same clinical training in the same teaching hospital. Given the entry requirements for their program of study, it can be assumed that differences in background knowledge would be minimal. The students participated in DP role plays at the beginning and at the end of their two-month rotation. For the purpose of this study, data from cases at the beginning of the rotation were collected. Audio/video data of the DP PBL role-play discourse were transcribed and analyzed.

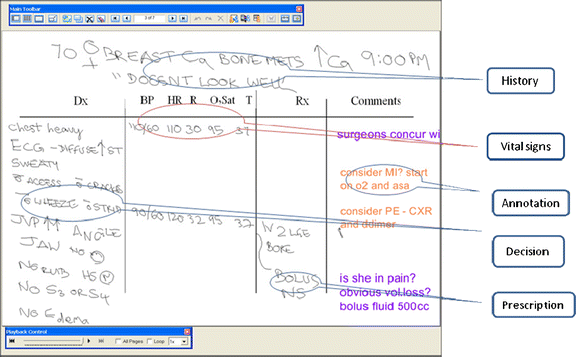

This study used a wireless interactive whiteboard with Bluetooth technology. A receiver is connected via Bluetooth to a computer acting as a server which, in turn, was connected to a wireless router enabling three wireless laptops to operate on a local network. Each of the three IW subgroups had a laptop which they use to communicate with the other subgroups via interactive whiteboard software. The interactive whiteboard electronically captures notes and images that are written on the traditional whiteboard in real time into its software “meeting application,” and can simultaneously appear on the three subgroup laptops. CSCL tools were designed and integrated into the interactive whiteboard to support collaborative problem solving. The tools support shared visualization and collaborative argumentation. These tools are described below.
Shared visualization tools
Collaborative argumentation tools
Collaborative argumentation tools allow observing students to play an active role by annotating, commenting on, and suggesting alternatives to decisions of role playing on-call students. These tools allow observers to participate and to scaffold collaborative decision making by promoting the discussion of various proposed actions and plans. Students are encouraged to give all kinds of comments, either clinical suggestions, such as “listen to the lungs” or biomedical interpretation, such as “relevance of prednisone.” It is hoped that, in so doing, the tools can help learners construct connections between biomedical and clinical knowledge which will further enhance the ability of students to acquire higher cognitive and metacognitive skills.
DP role plays were videotaped and transcribed. Transcriptions of DP role plays were divided into two parts corresponding to the early and late phases of the activity to better serve the data analysis (will be further elaborated in the results section). Qualitative and content analysis methods were used to identify and explain both the scaffolding strategies and the discourse patterns used in both conditions. Both top-down and bottom-up analyses were used to code the scaffolding data. Top-down analyses were based on previous scaffolding research (Hmelo-Silver and Barrows 2006; Pea 2004; Reiser 2004) but new codes emerged as well.
During DP role plays, students were encouraged to make fast and accurate decisions and to communicate their knowledge, decisions, and actions to the next student taking on the role of “resident.” The teacher’s strategies for helping students achieve these goals depended on the role that he was playing. As duty nurse, he provided students with information about the patient by responding to their questions about the patient, by reporting the results of their patient management actions, and by creating new situations (either improving or deteriorating the patient) to foster student reflection. As instructor, the teacher monitored group dynamics in order to ensure that the rules of the role play and of emergency medicine were adhered to, and that students were working collaboratively.

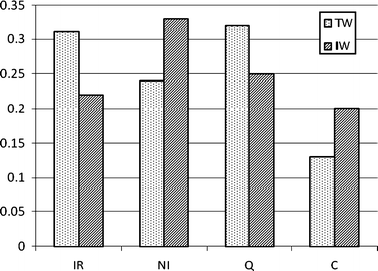

Discourse functions of the teacher discourse
Provide information to questions asked by students
Student: What is the EKG like?
N: And EKG shows sinus tachycardia, and no change from previous, shows some old Q waves, and these inferior waves
Provide new information, explanation or justification not asked for by the student
N: And at this point, the patient is quite somnolent,
Yes/No questions or WH-questions
N: 35%, by mask?
Repeat or confirm
N: What vitals are you interested in?
Scaffolding strategies, which we emphasized here in this paper as the teacher either decreased task complexity (by structuring the task) or increased the task complexity (by creating new challenges) for students, are described below.
What scaffolding strategies and discourse patterns does the teacher display during the DP role plays under the two conditions?
If there are scaffolding and discourse differences in the two conditions, can they be explained by the role of technology?
In this section, we identify and compare discourse patterns, functions, and scaffolding strategies that the teacher used during DP role plays under the two conditions, with (TW) and without (IW) technological support.
L: Portable chest X-ray.
Nurse: OK, while you are waiting for the portable chest X-ray, the nurse tells you the blood pressure is now 80 over 40, heart rate is now 138 per minute, respiratory rate is 32 per minute and Oxygen saturation is 94 percent and the temperature is 38, and the patient looks sleepy.
L had asked for a portable chest X-ray based on the patient’s medical history of pneumonia. The teacher responds to L’s request by deteriorating the patient’s blood pressure, heart rate, respiratory rate, Oxygen saturation, temperature, and mental state. This was his way of telling them that doing an X-ray right at that time was not a good idea. The teacher increased the complexity of the situation to push L to seek a more effective way of helping the patient.
The nature and extent of teacher scaffolding differed by condition in terms of whether the teacher increased or decreased task complexities. The teacher decreased the task complexity for the TW group because they were struggling to understand the situation and increased the task complexity for the technology group to further challenge their problem-solving abilities which were facilitated and improved by technology (Lu and Lajoie 2008).

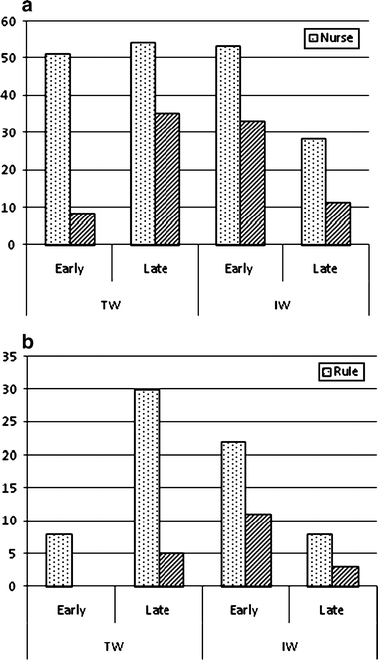

The teacher also varied his roles in the two conditions, with respect to the frequency of when he spoke as a nurse or as an instructor. In order to examine the teacher’s roles in the discourse as to when and why he used the nurse and instructor discourse in the two conditions, we divided the DP role play into two stages, an early and late stage in the activity. Students spend more time asking questions in the early stage of problem solving that pertain to the ABCDEF emergency algorithm. They asked fewer questions in the later stage and communication was more about managing the patient’s deteriorating medical condition. In general, the teacher spent more time decreasing the task complexity in the early stage to help students construct the problem space whereas the teacher could increase the task complexity to extend students’ problem-solving capacity in the later stage. The later stage is more challenging for students given their lack of expertise which may limit their focus on issues salient to specific situations.
The teacher spoke as instructor in order to manage group dynamics and to provide domain knowledge. In the early stage, the teacher helped students attain a good understanding of the problem by playing the role of the nurse, providing patient information and sometimes elaborated on the information provided by students. Occasionally, as instructor, he managed the group dynamic to keep students on track. Thus, the instructor used his domain knowledge and pedagogical competence to scaffold the groups. Scaffolding techniques in the early stage included specifying role-play rules (Instructor), creating the problem space by providing the required information (nurse) and managing the role-play dynamics (Instructor).
This case study examined the roles of human and computer scaffolding in a role-play medical emergency. We characterize scaffolding in the context of a role play-based PBL, the DP, and explore how scaffolding strategies are presented by a teacher in this role play and how scaffolding is supported through visual artifacts provided through technology. By providing a visual record of their activities, the technology structured students by helping them visualize a dynamically emerging joint problem space which facilitated collaboration and argumentation and, thus, the teacher needed to spend less time providing cognitive assistance (Pea 2004).
Scaffolding plays a role in many learning activities including PBL activities (Hmelo-Silver et al. 2007; Nussbaum 2002; Palincsar 1986). However, its function is determined by the limitations on PBL activities identified by Hoffmann and Ritchie (1997). The DP role play overcame the limitations of traditional PBL by making the activities interactive, contextualized, and including both cognitive and affective dimensions to patient management. Given the dynamic nature of the DP activity, the teacher was free to adapt his scaffolding strategies based on the demands on the learners.
The two most common scaffolding strategies used in the problem-solving phase involved either decreasing or increasing task complexity. The teacher decreased the task complexity by structuring the task, providing both domain specific and non-domain specific guidance. Domain-specific guidance included case-related information and the domain-general guidance pertained to peripheral information about rules of the hospital hierarchy and the management of group collaboration. Structuring non-domain specific activities is important in medical education because specialists often collaborate on patient cases. Such specialists interact within the hospital hierarchy. The teacher increased task complexity (challenging the student) in the later phases of problem solving. For example, the teacher might direct the groups attention toward an issue that needs resolution, trigger an affective component that could create interest in advancing understanding, or establish a sense of dissonance or curiosity, or more generally, engage students by increasing the challenge (Reiser 2004). The teacher deteriorated the patient’s vital signs, created unexpected situations, and forced students to use their domain knowledge to interpret the patient’s medical condition.
Scaffolding with technology
Whiteboards are CSCL tools. They help learners build joint problem spaces and allow them to refer to the problem-solving history (Barrow 2000; Hmelo-Silver 2004). Interactive whiteboards provided both visualization and argumentation tools which supported goal setting, help seeking, time management, and planning (Dabbagh and Kitsantas 2005). Students using interactive whiteboards demonstrated more adaptive problem-solving behavior than those using only traditional whiteboards (Lu and Lajoie 2008). Interactive whiteboards mediated the teacher’s scaffolding by increasing class participation. In the IW group condition, the teacher created his scaffolding strategies based on what was recorded and shared using this technology by all subgroups, broadening the basis for classroom scaffolding. Moreover, the nurse talked less in the IW group than in the TW group. As to discourse patterns, in the IW group, the nurse tended to create more new situations and to increase the problem complexity, while in the TW group the nurse tended to engage in more task structuring by asking verification and clarification questions and by providing students with required information. This is consistent with our earlier findings (Lu and Lajoie 2008), concluding that students using IW tended to engage in more adaptive problem-solving behavior. The findings imply that as the teaching environment became more complex so did the teacher’s role in scaffolding.
This case study examined how a medical teacher scaffolded collaborative medical problem solving by using various strategies while playing different roles with the support of technology. The study suggests that scaffolding is most effective when teachers possess both domain knowledge and pedagogy experience, scaffold students’ cognitive needs in the authentic medical context, and employ technology design in accordance with basic principles of learning. Visualization and argumentation tools can be designed in CSCL environments to facilitate students’ problem solving by promoting collaboration and shared understanding. Such tools also mediate the teachers scaffolding by freeing up their time to extend student abilities with greater challenges based on the shared problem- solving space of the group rather than scaffold the rules of the activity.
