Introduction

Sepsis-associated acute kidney injury (SA-AKI) is a challenging condition with serious short- and long-term consequences [1] and lack of effective treatments [2]. The phase 2 ‘STOP-AKI’ trial evaluated the potential of ilofotase alfa (human recombinant alkaline phosphatase) in 301 SA-AKI patients, showing long-term renal function improvements and significantly reduced mortality [3]. Subsequently, the phase 3 global ‘REVIVAL’ trial, with 28-day all-cause mortality as the primary endpoint, was discontinued early due to futility [4, 5]. However, ilofotase alfa did show therapeutic efficacy on the main secondary endpoint, Major Adverse Kidney Event up to day 90 (MAKE90) [4, 5]. This is consistent with findings obtained in two earlier studies using bovine alkaline phosphatase [6, 7], and with the STOP-AKI study results [3]. In addition, patients enrolled in REVIVAL who had pre-existent renal impairment, e.g., chronic kidney disease (CKD), showed more therapeutic efficacy of ilofotase alfa, illustrating the potential of a personalized treatment approach [5]. Clinical phenotyping is a machine learning-based approach which has been shown to identify more homogeneous subgroups within diverse patient populations [8, 9]. As such, it may resolve patient heterogeneity and provide opportunities for personalized treatment approaches.

In the present study, we aimed to identify a clinical phenotype associated with ilofotase alfa's therapeutic efficacy in patients enrolled in the REVIVAL trial. This approach yields insight into the therapeutic potential of this novel treatment in more homogeneous patient groups and may aid more precise patient selection for future trials.

Materials and methods

Patients

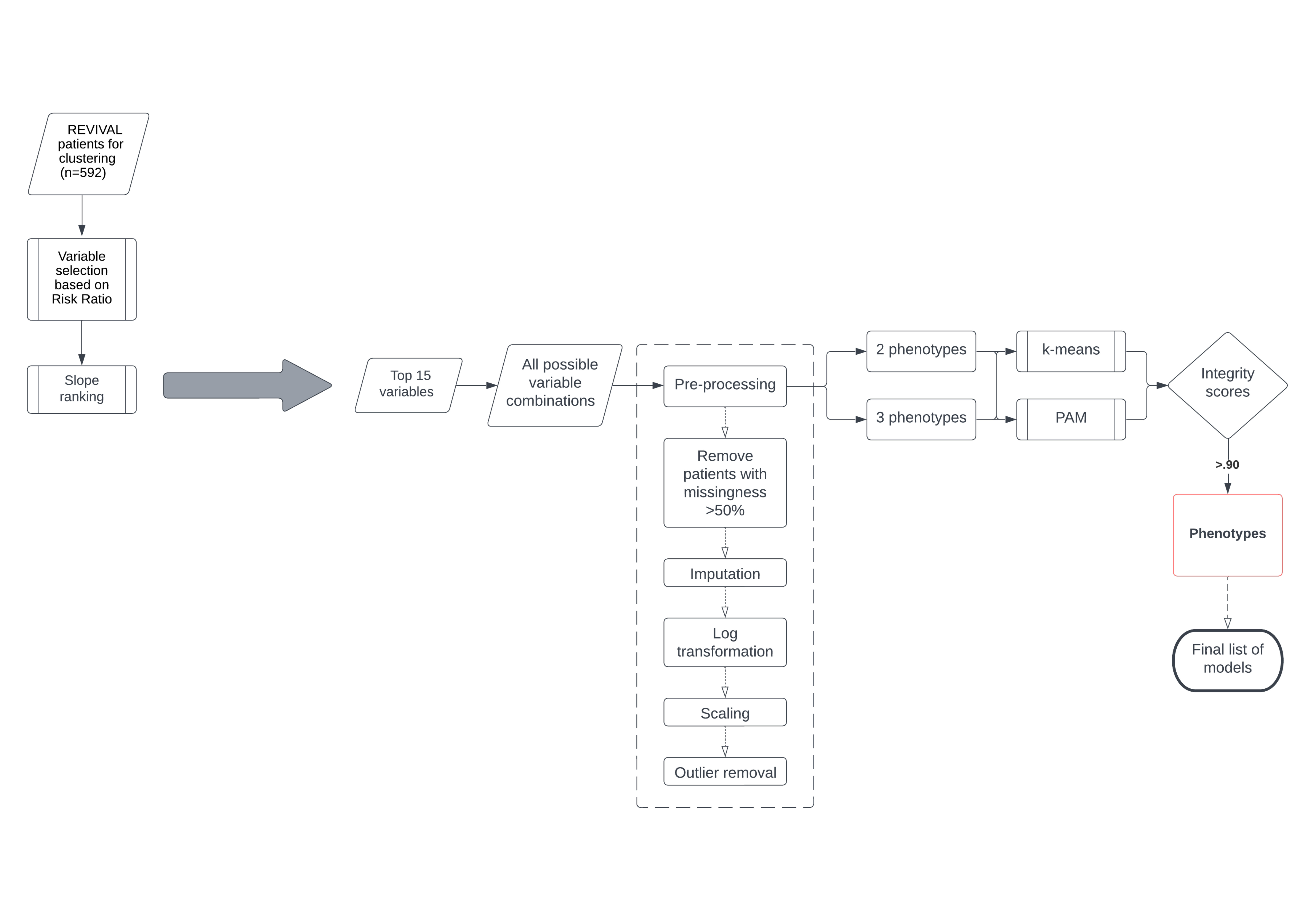

We performed a post-hoc analysis on patients enrolled in the phase 3 REVIVAL trial studying the effects of ilofotase alfa in patients with SA-AKI. In total, 650 patients were enrolled into the trial of whom 329 received 1.6 mg/kg ilofotase alfa and 319 received placebo. The study protocol, detailing all in- and exclusion criteria and procedures, as well as the overall results of the trial were previously published [4, 5]. For the current analysis, patients with confirmed COVID-19 (n = 33), or those who had received renal replacement therapy prior to study drug administration (n = 23) were excluded, leaving 592 patients for further analyses. The ensuing workflow is graphically depicted in Additional file 2: Fig. S1 and detailed below.

Variable selection

MAKE90 was defined as mortality through day 90, or an estimated glomerular filtration rate (eGFR) drop of > 25% at day 90 compared to pre-AKI value, or any RRT events through day 28 or RRT status at day 90. Forty-four numeric variables measured at study inclusion (immediately before study drug administration) were used as input for the variable selection algorithm. To select predicting variables for the therapeutic efficacy of ilofotase alfa, the baseline measurements of all variables were first categorized into quartiles. For each quartile a risk ratio was calculated using the formula:

$${\mathrm{Risk\, Ratio}}= \frac{{\text{CI}}_{\rm e}}{{\text{CI}}_{\rm u}}$$

Here, Cle is the cumulative incidence of the exposed group (ilofotase alfa) and Clu the cumulative incidence of the unexposed group (placebo). Consequently, the selected parameters are enriched for a potential relationship with the therapeutic efficacy of the compound (although chance variation may also play a role), thereby optimizing the feature selection. If the risk ratios for a variable demonstrated a consistent increase or decrease (indicating a beneficial effect) in at least three consecutive quartiles, this implied a degree of therapeutic efficacy, and therefore the variable advanced to the next step. This selection process yielded 32 variables (Additional file 3: Table S1). Next, we gaged the effect size of the effect of the selected variables by calculating the slope of the sequential increase or decrease in risk ratio using linear regression models. For variables that showed a consistent increase or decrease in all four consecutive quartiles, we calculated two separate slopes (one from the first to third quartile and another from the second to fourth). Subsequently, slopes were ranked by steepness, with steeper slopes implying more pronounced therapeutic efficacy, and the 15 highest ranked variables were used for the subsequent clustering analysis (see next section).

Model selection

Models for all possible variable combinations were constructed using consensus clustering (ConsensusClusteringPlus package) for k-means and Partition Around Medoids (PAM) [10]. Patients with more than 50% missing data in one or more of the variables used in each model were excluded prior to clustering. For each model, missing data were imputed using the missRanger package, which employs a chained random forest approach [11, 12], and log-transformation, scaling, and centering were applied. Finally, the Bonferroni Outlier Test was used to identify and remove outlier patients in each model.

To assess each model’s robustness and quality, we employed the package’s cluster-consensus score [13]. Only models with a score > 0.90 for both phenotypes were retained. In retained models, differences in the incidence of MAKE90 events between the ilofotase alfa and placebo group over time were determined for each phenotype using log-rank tests. Models were included in the final selection if at least one phenotype showed a significant difference in MAKE90 events. From this list, the model that illustrated the strongest separation in the phenotype displaying a significant benefit for the patient group that had received treatment with ilofotase alfa was chosen for further analysis.

Statistical analysis

Data are presented as median [interquartile range] or number (%). Differences in patient characteristics and outcomes between the phenotypes or between ilofotase alfa- and placebo-treated patients were tested using Mann–Whitney U tests and Chi-squared tests. All analyses were performed in R 3.6.3.

Results

After removal of 22 patients with outlier values, 570 patients remained available for analysis, of which 358 (63%) were male, age was 70 [62–76] years, BMI was 28.2 [24.7–33.3], and APACHE II score was 23 [18–28] (Additional file 4: Table S2).

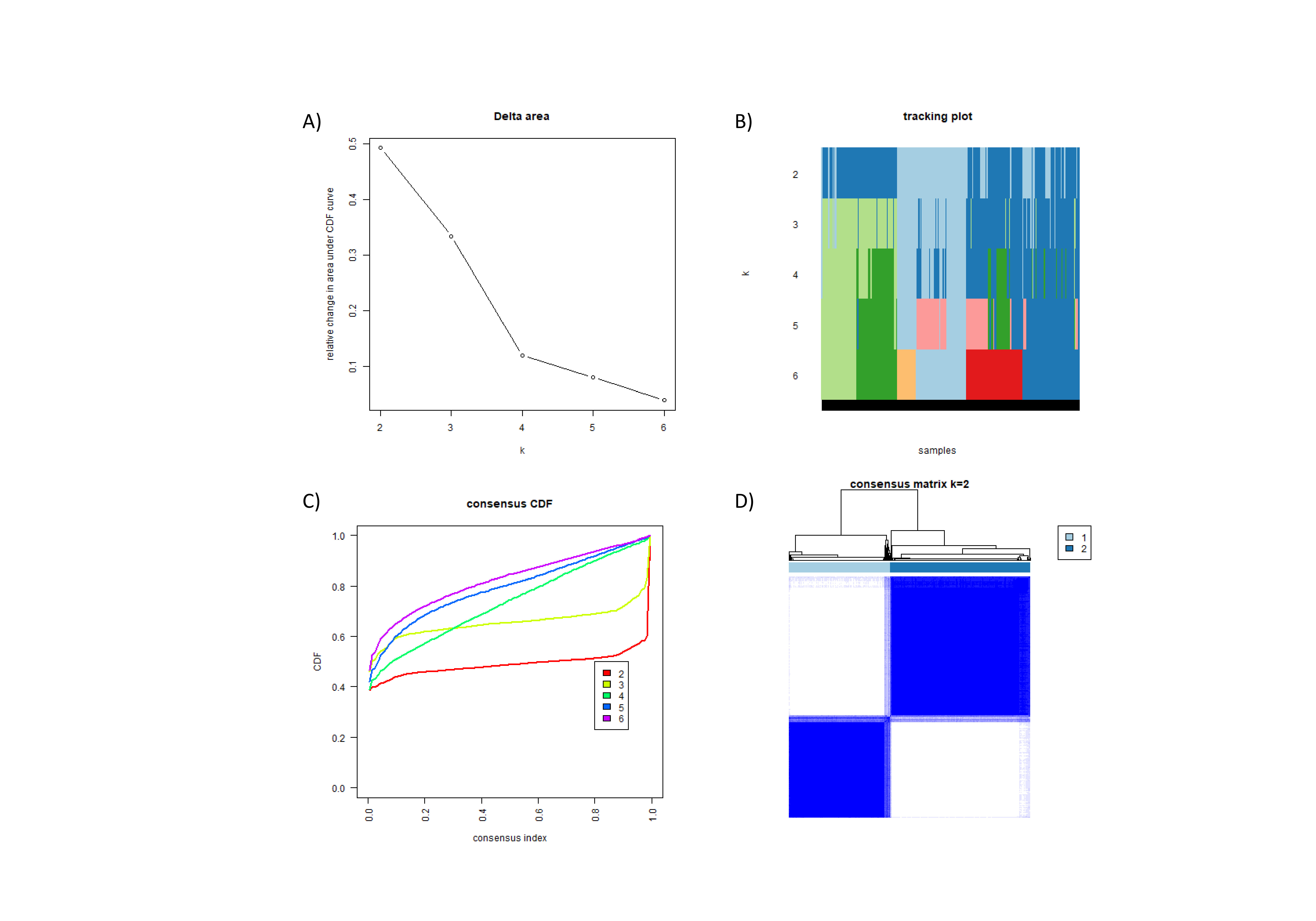

The model yielding the optimal fit consisted of k-means clustering with 2 phenotypes, including the variables APACHE II score, bicarbonate, hematocrit, and lactate (Table 1, Additional file 5: Fig. S2). Phenotype 1 (n = 330, 58%) comprised patients who were less severely ill, indicated by significantly lower APACHE II and mSOFA disease severity scores and lactate, as well as higher eGFR and PaO2/FiO2 ratios (Table 1, Additional file 4: Table S2, Fig. 1A, B). Reciprocally, phenotype 2 (n = 240, 42%) included patients with more severe disease and corresponding laboratory derangements. It should be noted that these phenotypes are based on variables present at inclusion, and therefore on pre-existing kidney function. There were no differences in CKD (assessed by pre-AKI eGFR) between the two phenotypes (Additional file 4: Table S2).

Fig. 1
figure 1

Phenotype characteristics and outcomes. A Distribution of the two identified phenotypes, B Standardized mean difference (SMD) of all clustering variables per phenotype, illustrating how far each variable for that group is removed from the mean of the entire cohort, C Cumulative 90-day incidence of MAKE events for the two phenotypes. D Cumulative 90-day incidence of MAKE events for ilofotase alfa- and placebo-treated patients within the two phenotypes. p values were calculated by log-rank tests

Full size image
Table 1 Patient characteristics and outcomes of the different phenotypes and treatment groups
Full size table

Overall, patients with phenotype 1 demonstrated a statistically significantly lower chance for a MAKE90 event than those with phenotype 2 (21% and 34%, respectively, log-rank p < 0.001, Fig. 1C).

For both phenotypes, the proportion of patients who received treatment with ilofotase alfa and those who received placebo was virtually equal, and their characteristics were comparable (Table 1). Patients exhibiting the more critically ill phenotype 2 showed a notable benefit from ilofotase alfa treatment, with a MAKE90 event incidence of 68% compared to 54% in the placebo group (log-rank p = 0.01, Fig. 1D). This advantage was predominantly driven by the receipt of RRT (34% vs 48% for the placebo group, p = 0.04, Table 1). Conversely, patients with phenotype 1 did not show a benefit from ilofotase alfa treatment (MAKE90: 49% vs. 46%, log-rank p = 0.54).

Discussion

In this study, distinct clinical phenotypes related to a renal endpoint and the therapeutic efficacy of a novel drug were identified. Patients with phenotype 2, displaying more severe disease and corresponding metabolic and respiratory impairment, were at the highest risk for a MAKE90 event and displayed a clear benefit from treatment with ilofotase alfa. For this phenotype, ilofotase alfa treatment was associated with a 14% decrease in MAKE90 events, an effect size greater than the 8% decrease previously reported in the undifferentiated patient population [5].

These results emphasize the potential value of clinical phenotyping on baseline characteristics in increasing the chances to detect a therapeutic effect. Such an approach may facilitate personalized medicine, particularly for complex conditions like sepsis and AKI. Directly related to the present study, our findings can inform the design of future trials investigating ilofotase alfa in patients with SA-AKI.

Three limitations deserve attention. First, due to the strict inclusion- and exclusion criteria, clinical trials such as the REVIVAL study include less variation than is observed in normal clinical practice. Therefore, phenotyping may lead to more pronounced differentiation when used in routine healthcare. Second, implementing our findings to patient selection for trials requires a shift away from traditional in- and exclusion criteria. The artificial intelligence and machine learning methods employed pose challenges in terms of creating understandable and usable models for healthcare staff. Lastly, being an exploratory study, further external validation would be required to ensure robustness of the identified phenotypes. Unfortunately, this was currently not feasible, as ilofotase alfa is a new compound that has thus far been studied in only a single phase 3 trial. The dose-finding phase 2 STOP-AKI study population has several limitations, such as an even smaller group of patients treated with the therapeutic dose of ilofotase alfa and high missingness in clustering variables [3].

In conclusion, our study underscores the potential of data-driven patient phenotyping in complex conditions such as SA-AKI. Identification of patient subgroups could facilitate the design of targeted and therefore more efficient clinical trials, inform therapeutic decision-making, and ultimately foster improved patient outcomes.
