PHD-finger domain protein 5A functions as a novel oncoprotein in lung adenocarcinoma
- 637 Downloads
PHD-finger domain protein 5A (PHF5A) is a highly conserved small transcriptional regulator also involved in pre-mRNA splicing; however, its biological functions and molecular mechanisms in non-small cell lung cancer (NSCLC) have not yet been investigated. The purpose of this study was to determine the functional relevance and therapeutic potential of PHF5A in lung adenocarcinoma (LAC).
The expression of PHF5A in LAC tissues and adjacent non-tumor (ANT) tissues was investigated using immunohistochemistry of a tissue microarray, qRT-PCR, western blot and bioinformatics. The function of PHF5A was determined using several in vitro assays and also in vivo assay by lentiviral vector-mediated PHF5A depletion in LAC cell lines.
PHF5A was highly upregulated in LAC tissues compared with the ANT counterparts, and closely associated with tumor progression and poor patient prognosis. These results were further confirmed by findings of the TCGA database. Moreover, functional studies demonstrated that PHF5A knockdown not only resulted in reduced cell proliferation, increased cell apoptosis, and cell cycle arrest, but also suppressed migration and invasion in LAC cells. PHF5A silencing was also found to inhibit LAC tumor growth in nude mice. Microarray and bioinformatics analyses revealed that PHF5A depletion led to dysregulation of multiple tumor signaling pathways; selected factors in key signaling pathways were verified in vitro.
The data suggest for the first time that PHF5A is an oncoprotein that contributes to LAC progression by regulating multiple signaling pathways, and may constitute a prognostic factor and potential new therapeutic target in NSCLC.
KeywordsLung adenocarcinoma PHF5A Prognostic biomarker Proliferation Tumor invasion
DNA damage inducible transcript 3
Hematoxylin and eosin
Insulin-like growth factor-1
Insulin-like growth factor binding protein 3
Ingenuity pathway analysis
Non-small cell lung cancer
PHD-finger domain protein 5a
Phosphatidylinositol 3 kinase
Short hairpin RNA
S-phase kinase associated protein 2
The Cancer Genome Atlas
Lung cancer is the most common malignancy worldwide, with morbidity and mortality ranking first among all cancers . About 80% to 85% of clinical lung cancer cases are non-small cell lung cancer (NSCLC), with adenocarcinoma being the most common histological type . For locally advanced, recurrent, or metastatic NSCLC that cannot be fully resected, current major therapeutic strategies include palliative chemotherapy and targeted therapy combined with or without radiotherapy. However, prognosis in such patients is generally not satisfactory, with an overall 5-year survival rate still hovering around 15% . Therefore, it is urgent to explore the mechanisms that regulate tumor pathogenesis and identify novel potential therapeutic targets.
PHD-finger domain protein 5a (Phf5a), a member of the superfamily of PHD-finger genes, encodes a protein of 110 amino acids with the PHD zinc finger domain . The PHF5A protein is expressed ubiquitously in the nucleus of eukaryotes from yeasts to humans, in a highly conserved manner during evolution. PHF5A in rats acts as an important small transcription factor or cofactor, through binding to the promoter of the connexin43 gene, to increase its expression in response to estrogen induction . Subsequently, PHF5A is characterized as an important component of the splicing factor SF3b complex , thereby directly participating in protein-protein interactions or regulating downstream genes through the RNA splicing pathway [6, 7, 8]. Previous studies have shown that PHF5A not only plays an important role in the processes of chromatin remodeling [4, 9], morphological development of tissues and organs , and maintenance of stem cell pluripotency [10, 11], but is also involved in the regulation of the cell cycle  as well as cell growth and differentiation [4, 11, 13].
Assessing the association of PHF5A with tumors, Falck et al.  found that PHF5A expression in endometrial adenocarcinoma was increased compared with that of benign samples. In addition, Hubert et al.  demonstrated a novel requirement for PHF5A in glioblastoma stem cell initiation and maintenance, by showing that PHF5A knockdown disrupted splicing of multiple essential genes and induced cell cycle arrest and loss of viability. These findings suggested that PHF5A could play a role in tumor development as a general transcription regulator for different genes. However, the molecular and biological functions of Phf5a in lung cancer, particularly lung adenocarcinoma (LAC), remain unknown. This study, for the first time, assessed the role and molecular mechanism of Phf5a in LAC cell proliferation, apoptosis, and invasion. Our findings are expected to reveal novel biomarkers and therapeutic targets, providing a new avenue for the treatment of NSCLC.
A total of 70 pairs of primary lung cancer and the corresponding adjacent non-tumor (ANT) samples were collected from patients undergoing surgical resection in the First Affiliated Hospital of Bengbu Medical College (Bengbu, China), between January 2012 and June 2013. The patients received no treatment preoperatively, and were confirmed to have lung adenocarcinoma (LAC) pathologically. Detailed clinicopathological data were recorded, including patient′s age and gender, tumor size, tumor histological grade, lymph node metastasis and clinical stage. Tumor histological grade assessments were based on the 2011 IASLC/ATS/ERS multidisciplinary classification of LAC. Tumor clinical stages were classified according to the 7th edition of the AJCC cancer staging manual . Three additional pairs of matched LAC/ANT lung tissue samples for qRT-qPCR, Western blot, and IHC were obtained from surgical patients in October 2017 in our institution. ANT lung tissues were taken from the tissue ≥5 cm away from the tumor in LAC patients. Approval was obtained from the medical ethics committee of our institute, and written informed consent was provided by all patients. The specimens were immediately snap frozen in liquid nitrogen and stored at − 80 °C until use.
LAC tissue microarray (TMA) construction and immunohistochemistry (IHC)
LAC TMAs containing 70 pairs of matched LAC/ANT lung samples were constructed at Shanghai Outdo Biotech Co., Ltd (Shanghai, China). Rabbit polyclonal anti-human PHF5A antibodies (1:50, Proteintech, China) were used for immunohistochemistry according to a two-step protocol. PHF5A staining was detected mainly in the nucleus. The intensity of positive signals was scored as: 1, negative (no staining); 2, weak (light yellow); 3, moderate (yellowish brown); 4, strong (brown). The extent of positivity was scored based on the percentage of positive cells: 0, <5%; 1, 5%~ 25%; 2, 26%~ 50%; 3, 51%~ 75%; 4, >75%. The staining index (SI) was determined as the final score by multiplying the above scores, yielding a range from 0 to 16. Then, the median SI value of 8 was selected as cut off, and samples with SI ≥ 8 and SI < 8 were assigned to the high and low expression groups, respectively.
Cell lines and cell culture
The human LAC cell lines H1299 and H1975 were obtained from the Chinese Academy of Sciences (Shanghai, China), and authenticated using short tandem repeat (STR) loci by Shanghai GeneChem Co., Ltd. (Shanghai, China). Cells were cultured in RPMI 1640 (Thermo Fisher Scientific, USA) supplemented with 10% fetal bovine serum (FBS, HyClone, USA), 100 U/ml penicillin (Gibco, USA), and 100 μg/ml streptomycin (Gibco, USA) at 37 °C in a humidified atmosphere containing 5% CO2.
shRNA cloning and lentiviral transfection
Lentiviral vectors were purchased from Shanghai GeneChem Co., Ltd. (Shanghai, China). The short hairpin RNA (shRNA) sequence targeting PHF5A (shPHF5A) was 5′- ATCGGAAGACTGTGTGAAA -3′, as confirmed by sequencing. A non-silencing shRNA sequence was used as the negative control (NC) (target sequence 5′- TTCTCCGAACGTGTCACGT -3′) (shCtrl). The cells were seeded into a 6-well plate (~ 5 × 104 cells per well) and incubated at 37 °C with 5% CO2 until ~ 40% confluence before transfection. Lipofectamine™ 2000 (Invitrogen, USA) was used for transfection, strictly according to the manufacturer′s instructions.
Western blot and qRT-PCR
Western blot and qRT-PCR were performed as described in our previous study . Primary antibodies for Western blot were: PHF5A (1:500; Invitrogen); IGFBP3 (1:500; Abcam); PIK3CB (1:500; CST); AKT2 (1:500; Abcam); DDIT3 (1:200; Abcam); Skp2 (1:500; Abcam); P53 (1:1000; CST); GAPDH (1:2000; Santa Cruz Biotechnology). The primers used for qRT-PCR are listed in Additional file 1: Table S1. Gene and protein expression levels were normalized to those of the internal control GAPDH.
Plate analysis with the adherent cell cytometry system Celigo™
This assay for rapid quantification of cellular fluorescence was performed as described previously . In brief, the transfected cells were trypsin-digested, resuspended, and seeded into 96-well plates at a density of 2000 cells/well for 5 consecutive days. Plates were analyzed on a Celigo image cytometer (Nexcelom, USA), equipped with bright field and fluorescent channels. The green fluorescence tagged shRNA GFP was used to quantify cellular shRNA uptake.
Colony formation assays
In the logarithmic growth phase, H1299 and H1975 cells were trypsinized, counted, seeded into 6-well plates at 600 cells/well, and cultured for 10~ 14 days at 37 °C in 5% CO2. After three washes with PBS, the cells were fixed with methanol and stained with 0.1% crystal violet. The colonies were then washed, photographed, and counted.
Apoptosis was assessed by Annexin V-based flow cytometry as we previously described  with slight modifications. Briefly, transfected cells were harvested, washed with cold PBS, and resuspended in 200 μl binding buffer containing 10 μl Annexin V-APC (eBioscience, USA). After incubation in the dark for 10 min at room temperature, the stained cells were analyzed by flow cytometry (Millipore, USA).
Cell cycle assays
Lentivirus-transfected cells cultured in 6-cm dishes were cultured to 80% confluence, trypsinized, washed, and fixed with 70% ice-cold ethanol at 4 °C for 1 h. Then, the fixed cells were treated with ribonuclease (Fermentas, USA) for 20 min at 37 °C, and stained with 40 μg/ml propidium iodide (PI) (Sigma-Aldrich, USA). Cellular DNA content was determined by quantitative flow cytometry on a FACSCalibur flow cytometer (BD Biosciences, USA). The percentages of cells in different growth phases (G0/G1, S and G2/M) were analyzed by the CellQuest software (BD Biosciences, USA).
Animal studies, H&E staining, and IHC
All animal experiments were performed according to institutional guidelines. For xenograft assays, H1299 cells (1 × 107) were resuspended in 200 μl serum-free RPMI 1640 and Matrigel (BD Biosciences; 1:1), and implanted subcutaneously into the flanks of 4-week old BALB/c nu/nu female nude mice. The mice were monitored every 3 days; tumor length and width measurements were performed with calipers, and tumor volumes were derived as length×width2 × 0.5 (mm3). At 30 days, tumors were detected by an IVIS imaging system, excised, weighted, and paraffin-embedded following necropsy. Serial 5.0 μm sections were obtained and assessed by IHC using anti-PHF5A and anti-Ki67 antibodies (Proteintech). The proliferation index was determined as the proportion of Ki67-positive cells.
Wound-healing and transwell invasion assays
Wound-healing and transwell invasion assays were performed to determine the migration and invasion capabilities of tumor cells, respectively, as described previously .
Microarray gene expression and bioinformatics analysis
Total RNA from H1299 cells after transfection with control or PHF5A-targeting shRNAs was isolated with TRIzol Reagent (Invitrogen, Carlsbad, CA, USA). Then, NanoDrop 2000 (Thermo Fisher Scientific Inc., DE, USA) and Agilent Bioanalyzer 2100 (Agilent Technologies Inc., Santa Clara, CA, USA) were used to assess RNA integrity. Biotin-labeled amplified RNA (aRNA) was generated with GeneChip 3′IVT Express Kit (Affymetrix Inc., Santa Clara, CA, USA) and purified. After fragmentation, the aRNA was hybridized onto Affymetrix GeneChip 133 Plus 2.0 Arrays (Affymetrix Inc., Santa Clara, CA, USA). The chips were then stained with phycoerythrin and washed on a GeneChip Fluidics Station 450. Microarray signals were scanned on an Affymetrix GeneChip Scanner 3000 and analyzed with the Affymetrix GeneChip Command Console™ 1.1 software. Finally, the image signals were transformed into digital information and analyzed with the SAM software. Ingenuity pathway analysis (IPA) was performed for the tentative exploration of protein networks of PHF5A in lung cancer cells with the IPA Software (Ingenuity Systems, Redwood City, CA, USA). Differentially expressed genes between the shPHF5A and shCtrl groups with corrected p < 0.05 and |Z-score| > 2.0 were considered to be significantly differentially expressed.
Statistical tests for data analysis included the Chi-square test, Fisher’s exact test, Mann-Whitney U test, Spearman’s correlation test, Log-rank test, Gehan-Breslow-Wilcoxon test, and paired/unpaired Student’s t tests. Data represent mean ± SD. P < 0.05 was considered statistically significant.
PHF5A overexpression is correlated with LAC progression and poor prognosis
Relationship between PHF5A expression and clinicopathological parameters of 70 lung adenocarcinoma samples
χ 2 value
Tumor size (cm)
Lymph node metastasis
Analysis of RNA-sequencing datasets of paired LAC/ANT lung tissues from The Cancer Genome Atlas (TCGA) demonstrated that Phf5a expression was correlated with T stage (P = 0.034) and N stage (P = 0.014) in patients with LAC (Fig. 1g-h, Additional file 3: Tables S2 and Additional file 4: Table S3). Kaplan-Meier survival analysis of TCGA data also revealed that higher expression of Phf5a was correlated with shorter overall survival (Fig. 1i). Collectively, these findings consistently suggested that PHF5A overexpression might be related to tumor development, and could serve as a new diagnostic and prognostic indicator in LAC.
PHF5A knockdown inhibits cell growth in vitro
PHF5A knockdown inhibits tumorigenicity in vivo
PHF5A knockdown suppresses invasion and migration in LAC cells in vitro
PHF5A-regulated downstream genes in LAC cells

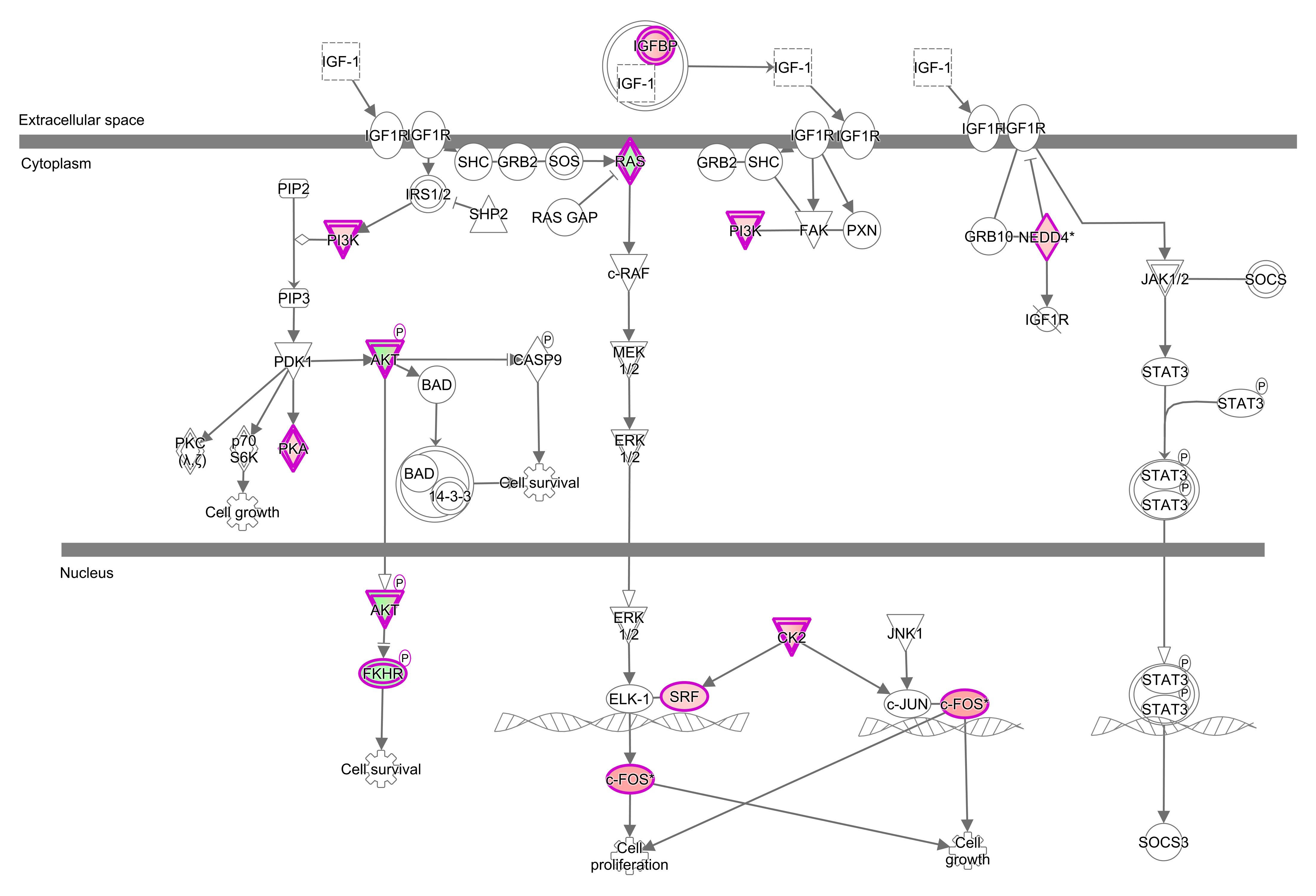

According to IPA-based results, key molecules (IGFBP3, PIK3CB, and AKT2) in IGF-1 signaling, as well as representative cell apoptosis/cycle regulatory factors (DDIT3, Skp2 and P53) were assessed for verification. Selected differentially expressed genes from the microarray results were shown in Fig. 7d. qRT-PCR and Western blot demonstrated that the expression levels of IGFBP3, DDIT3, and P53 were significantly increased, while PIK3CB, AKT2, and Skp2 showed decreased amounts, in PHF5A knockdown cells in comparison with control cells (Fig. 7e-f). These findings showed that the expression patterns of these downstream factors were consistent with microarray results after PHF5A depletion. Combining bioinformatics results and subsequent experimental data, the inter-relationships and pathways of PHF5A with cancer associated genes were constructed (Fig. 7g).
The present study demonstrated a novel oncogenic role for PHF5A in lung tumorigenesis and explored the underlying mechanisms. IHC revealed that PHF5A was significantly upregulated in LAC tissues and closely related to tumor progression and poor prognosis in LAC patients. Loss-of-function studies in vitro showed PHF5A knockdown dramatically inhibited LAC cell proliferation and colony formation, induced cell apoptosis, caused cell arrest in the S and (or) G2/M phase, and suppressed migration and invasion abilities. These findings emphasize the role of PHF5A as an oncoprotein in promoting LAC carcinogenesis and progression via multiple signaling pathways.
PHF5A was originally considered a chromatin-associated protein [4, 9]. For example, it was shown that the Phf5a gene is expressed ubiquitously in prenatal and postnatal murine tissues, with its encoded protein localized in the nucleus in a non-homogenous pattern . Meanwhile, PHF5A is essential for morphogenetic development in C. elegans, with the Phf5a gene exhibiting a tissue- and stage-specific pattern of expression . Furthermore, evidence suggests that PHF5A binds to the promoter region of the gene connexin43, an important constitute of connexin gene family encoding gap junction protein , thereby increasing its expression in response to estrogen induction . Therefore, it was suggested that PHF5A could play a very complex role as a general transcription regulator for different genes. This notion was further supported by characterizing PHF5A as a new subunit of the PHF5A/SAP14b spliceosome associated protein, a component of the pre-mRNA spliceosomal complex splicing factor SF3b . Consequently, as an important component of the RNA processing machinery, PHF5A has been demonstrated to have the ability to interact with splicing factors or alter the splicing process and its coordination of gene expression [7, 8]. Recently, this protein was further found to be essential for the maintenance of pluripotency and cellular reprogramming by directing the transcriptional program ; it is also specifically required for normal exon recognition in glioblastoma stem cells to maintain cell expansion and viability . Thus, it was proposed that the PHF5A protein could play a general role in both basic and essential cellular functions, including cancer development.
This study supported the above hypothesis by showing that PHF5A was highly expressed in human LAC tissues, and positively associated with tumor size, lymph node metastasis and clinical stage, and eventually unfavorable prognosis from clinical data. These results were further evidenced by TCGA data. Consistent with these findings, Falck et al.  found that Phf5a gene expression was significantly increased in endometrial cancer compared with the human benign endometrial tissue, suggesting that expression changes of this gene may be involved in endometrial cancer development. Therefore, we consider that PHF5A may be a potentially highly aggressive and unfavorable prognostic biomarker in LAC. Expectedly, PHF5A knockdown in LAC cells not only decreased tumor growth, but also significantly arrested cell cycle progression, conforming with the defined roles of PHF5A in yeasts described in previous reports [4, 12]. Moreover, we also confirmed a decreased tumor growth in vivo and a suppressed cell invasion and migration capacity in vitro by PHF5A depletion. Thus, we conclude that PHF5A promotes LAC tumorigenesis both in vitro and in vivo.
To explore the possible molecular mechanisms underlying the tumorigenic effects of PHF5A, whole-genome Affymetrix GeneChip analysis was used to screen differentially expressed genes between control and PHF5A-knockdown H1299 cells. Assessment of PHF5A function enrichment was performed with IPA bioinformatics tools; the two classifications of “Cancer” and “Cell cycle” were significant. This was consistent with previous findings [13, 14] and the above experimental data, indicating that PHF5A regulates the cell cycle to participate in tumor development. IGFBP3, PIK3CB, AKT, DDIT3, Skp2, and P53 were subsequently retrieved by the pathway enrichment analysis. At the transcription level, IGFBP3, DDIT3, and P53 were markedly upregulated after PHF5A silencing, while PI3K, AKT2, and Skp2 were downregulated. Subsequently, changes in protein expression levels of these genes were confirmed by Western blot.
Insulin like growth factors (IGFs) constitute an important class of mitogens that activate receptor tyrosine kinases by binding to their receptor IGF-1R, and initiate the downstream PI3K/AKT signaling pathway to induce tumor development [20, 21]. IGFBP3 inhibits the biological effects of IGF-1 by competitive binding to IGF and blocking its downstream signal transduction . In addition, through an IGF-1/IGF-1R-independent pathway, IGFBP3 also regulates cell proliferation, apoptosis, cell cycle, and intracellular metabolism [23, 24]. DDIT3, a transcription factor, is involved in the regulation of multiple genes induced by endoplasmic reticulum stress, e.g. increasing BBC3 and BID expression levels [25, 26] and downregulating the anti-apoptotic factor Bcl-2  to induce apoptosis. The F-box protein family member Skp2 can recognize specific protein substrates such as P21, P27, P53, and cyclins, and controls the degradation of these proteins by ubiquitination, thereby affecting cell cycle progression, cell proliferation, apoptosis, and invasion [28, 29]. Indeed, drugs targeting F-box proteins are promising in the treatment and prevention of human cancers, including lung cancer [29, 30].
PI3K/AKT signaling is not only an indirect downstream effector of the IGF-1/IGFBP3 pathway , but also an important upstream regulator of Skp2 [31, 32, 33]. It was reported that PI3K/AKT signaling controls the binding of the transcription factor E2F1 to the Skp2 gene promoter and regulates Skp2 at the transcriptional level in pancreatic ductal adenocarcinoma cells . Meantime, Skp2 regulation at both translational and post-translational levels in breast and cervical cancers via this signaling pathway was also observed [32, 33]. Therefore, PHF5A depletion-associated Skp2 down-regulation in the present study might be related to the inactivation of PI3K/AKT2 pathway. Meanwhile, Skp2 downregulation could result in decreased degradation of P53, a target protein for Skp2 ubiquitination, eventually leading to reduced cell proliferation, invasiveness, and tumor progression. Collectively, these results were in line with the prominent role of IGFBP3 as a tumor suppressor , and also revealed broad regulatory effects of PHF5A on cellular functions through multiple signaling pathways. Due to the well-characterized role of PHF5A as both a splicing factor and a transcriptional regulator, it is not surprising that the effectors of the pathways affected may undergo different changes at the transcriptional level after PHF5A silencing. Thus, we speculated that the biological effects of PHF5A in LAC cells may represent the combined activities of its downstream effectors resulting from interactions among these signaling pathways.
In conclusion, the current study demonstrated for the first time the important role of the PHD family member and pre-mRNA processing factor PHF5A in LAC tumorigenesis. This function may be related to the regulation of key factors in multiple signaling pathways. The current findings provide new insights into the potential mechanisms underlying the pathogenesis of lung cancer, and may help develop PHD-finger protein inhibitors with promising therapeutic potential.
PHF5A overexpression is associated with progression and poor survival in human lung adenocarcinoma (LAC).
PHF5A knockdown in LAC suppresses cell proliferation and invasion.
PHF5A regulates multiple signaling pathways in LAC, including IGF-1.
PHF5A may constitute an oncoprotein and a target for LAC diagnosis and therapy.
We thank Biochemical & Medical Engineering Research Center of Anhui Province and Scientific Research Platform of Bengbu Medical College for instruments supporting.
Availability of data and material
All data generated or analyzed during this study are available from the corresponding authors on reasonable request.
This work was supported by the National Natural Science Foundation of China (No. 81402514), and the Outstanding Young Talents Program in Higher Education Institutions of Anhui Province (No. gxfx2017066).
YY and JZ performed the main experiments, analyzed the data and drafted the manuscript. TTZ, JL, YML, YZ and LJX participated in performing the experiments. RW, FS and YRO participated in data analysis and interpretation. YY and QW contributed to the conception of this study and participated in its design and coordination. All authors have read and approved the final manuscript.
All animal experiments were performed according to national guidelines and approved by the Animal Care and Use Ethics Committee of Bengbu Medical College (Bengbu, China). Approval for clinical sample collection was obtained from the medical ethics committee of our institute, and written informed consent was provided by all patients.
