Introduction

Chitin is a structural aminopolysaccharide that and is found in the cell walls of yeast, fungi, protists and diatoms as well forms the exoskeletons of broad variety of invertebrates including sponges, worms, mollusks and, especially, arthropods species. It has a wide range of uses in fields such as cosmetics, pharmacy, medicine, bioengineering, biological materials science, agriculture, textiles and environmental engineering based upon its nontoxic, ecofriendly, biocompability and biodegradability characteristics [1]-[5]. Commercially, chitin is obtained from processing the outer skeleton of Crustacea such as shrimp, crab, prawn and crayfish after they have been consumed as food [6],[7]. Recently, there has been a need for new chitin sources in line with the discovery of new usage areas for chitin and its derivatives in areas such as biotechnology and extreme biomimetics [8]-[10]. Some studies have considered the utilization of fungi, insects and corals as alternative chitin sources [11]-[13]. In recent studies, it has been determined that there are insect shells within bat guano and accordingly there is chitin in the bat guano [14],[15]. In the current study, the ability to use bat guano as an alternative chitin source was investigated for the first time by means of determining the chitin characteristics within the excreta belonging to bat species that feed on insects.

According to data from the General Directorate of Mineral Research and Exploration in Turkey, there are approximately 40000 caves in Turkey, but only 1250 of those have been discovered and explored [16]. The aforementioned number of caves is only for Turkey. The number of caves across the world will be much greater. As is well known, caves are living spaces for bats and the excreta of these bats has been accumulating for many years and has therefore reached a high level. For instance, in the study conducted by Sikazwe and Waele [17] in Chipongwe and Kapongo caves in Zambia, 1218 and 2822 tons, respectively, of bat guano stocks were estimated. If bat guano is a viable source of chitin, the fact that there is a plentiful supply is a significant advantage.

Bats generally feed on terrestrial arthropods, and the external body parts of all these animals are formed from chitin. The guano within caves of insectivore bats can be utilized as a chitin source. Since bat guano is composed of a good many organic substances it is quite rich in carbon and nitrogen, and can be used in agriculture [18].

The bat guano used during this study belongs to Rhinolophus hipposideros (Bechstein, 1800). R. hipposideros, also known as the Horseshoe bat, is a bat species that is common throughout Turkey and feeds on insects. Its range is within Southeastern Asia, South and Central Europe and East Africa [19]. It feeds especially on mosquitoes, dragonflies (Odanata) and spiders [20].

The aim of this study is to examine the nature of bat guano and determine if it is a practical source of chitin, which has not been done previously. Chitosan is the product obtained from chitin. The chitin contents of bat’s dry guano and the chitin’s chitosan productivity will be determined. Moreover, the isolated chitin and synthesized chitosan will be characterized by means of FTIR, TGA, XRD, ESEM and elemental analyses, and their purity will be investigated.

Materials and methods

Sample collection

Bat guano samples were obtained from Karacamal Cave (Balçıkhisar Town, Şuhut, Afyon, Turkey) in the inner western Anatolia region of Turkey on 11.11.2013. The GPS coordinates of the cave are 38° 23' N, 30° 28' E, and the altitude is 1465 m. It was determined that the bat species within this cave is R. hipposideros (Lesser horseshoe bat). Pictures of cave, bat guano and bat species were shown in Figure 1.

Figure 1
figure 1

Karacamal cave. (a: entrance, b: bat guano in the cave and c: Rhinolophus hipposideros living in the cave).

Full size image

Chitin extraction

Bat guano samples were dried at 60°C in a drying oven for a week in the laboratory. Afterwards, 10 g of the dried sample were weighed on precision scales and refluxed in 4 M HCl solution for 24 hours at 50°C. Afterwards, it was filtered through 1 μm filter paper and distilled water was added until the pH became neutral. Then, the sample was refluxed in 4 M NaOH solution for 24 hours at 140°C. Next, the refluxed sample was washed with distilled water and filtered via 1 μm filter paper (S & H Labware) until the pH became neutral. Later, samples were once again washed with distilled water and passed through a 1 μm filter paper before blending them with chloroform, methanol and pure water for elemination of pigments, lipids and decolourisation in the ratio of 1:2:4 for 4 hours until the pH became neutral. Finally, the rest of the sample was dried within a drying oven at 60°C for 48 hours, and then weighed to determine the chitin contents of the bat guano.

Chitin extraction procedure was done four times to determine % chitin content.

Chitosan production

From the dried chitin, 1 g was refluxed within 60% NaOH solution for 4 hours at 150°C. Later, it was washed with distilled water and filtered through 1 μm filter paper until the pH became neutral, and then it was dried at 60°C for 48 hours. The dry sample was weighted and the amount of chitosan produced from the bat guano was determined.

Fourier transform infrared spectroscopy (FTIR)

Fourier transform infrared (FTIR) spectroscopy was used to identify the chitin formation from the bat guano and the chitosan synthesized from the chitin. Moreover, from an examination of the FTIR bands the form of the chitin can be determined (α, β and γ). In this study, 5 mg samples of the chitin and chitosan from the bat guano were analyzed with a Perkin–Elmer FTIR spectrometer at 4000–625 cm−1.

Thermogravimetric analysis (TGA)

During thermogravimetric analysis (TGA) 3 mg samples of the chitin and chitosan obtained from the bat guano were weighed and a warm-up operation was conducted from 25°C to 650°C by increasing the temperature by 10°C every minute. During this operation, the decomposition temperatures of the chitin and chitosan were noted and the thermal stability was deduced. With this analysis, the temperatures at which maximum decomposition of the chitin and chitosan occurred were identified, while the water content, total decomposed mass and ash content were also determined. For these analyses, an EXSTAR S11 7300 machine was used.

X-ray crystallography (XRD)

The X-ray crystallography (XRD) analysis determined whether chitin and chitosan were acquired or not, and the calculation of the crystalline index (CrI) values was carried out. The XRD analysis was conducted utilizing a Rigaku D max 2000 machine at 40 kV, 30 mA and with a 2θ scan angle from 5° to 45°. The CrI value was calculated according to the following formula:

CrI 110 = I 110 ‐ I am / I 110 ×100
(1)

I110 = the highest intensity at 2θ 20°.

Iam = the amorphous diffraction intensity at 2θ 13°.

Elemental analysis (EA)

A Thermo Flash 2000 machine was utilized to determine the C, N and H contents of the chitin and chitosan obtained from bat guano. The degree of acetylation (DA) of the chitin and degree of deacetylation (DD) of the chitosan were calculated using the formula below:

DAorDD= C / N ‐ 5.14 / 1.72 ×100
(2)

Environmental scanning electron microscopy (ESEM)

A Quanta 200 FEG Environmental Scanning Electron Microscope (ESEM) was used to determine the surface morphology of the chitin and chitosan obtained from bat guano. To enable clear pictures of the samples to be taken during the ESEM analysis a gold coating process was carried out with a Gatan Precision Etching Coating System before filming.

Results and discussion

Chitin content and chitosan yield of bat guano

The chitin content in the bat’s (R. hipposideros) dry guano was observed to be 28% by weight. The chitosan productivity of this chitin was determined to be 79%. The chitosan yield of dry bat guano was found to be about 22%. In recent studies, 15–25% chitin has been isolated from the dried exoskeleton of Crustacea such as prawn, shrimp, crab and lobster [21]–[23]. It is noted that the chitin contents of the total body structure dry weight of insects including Agabus bipustulatus, Anax imperator, Bombyx mori, Holotrichia parallela, Hydrophilus piceus, Notonecta glauca, Ranatra linearis and silkworm chrysalides ranges from 10% to 20% among the different species [13],[24]–[26]. Alternatively, it was presented by Sajomsang and Gonil [27] that 36% of cicada sloughs were chitin. In this study it was found that the chitin content of bat guano was higher than the insect species investigated previously and the shell structures of Crustacea including prawn, shrimp, crab and lobster. However, bat guano had a slightly lower chitin content than cicada sloughs. Similarly, it was found that krill and Artemia cyst structures have high chitin contents, like the bat guano [28],[29]. Nevertheless, bat guano will be a more prominent source compared with krill and Artemia cyst structures thanks to the natural stocks and easy collection.

In this study, the greater proportion of chitin within bat guano in comparison to the shell structures of Crustacea such as crab, prawn and shrimp will provide an economic advantage. Moreover, upon the collection of the organic and inorganic substances from bat guano with HCl and NaOH, uses for the remaining guano can be researched. Another opinion is to begin chitin isolation following the isolation and use of other organic and inorganic substances within the excreta in the order of their importance. Removing these substances will provide an advantage economically by increasing the chitin content of the bat guano’s dry weight.

Mammals are represented by 5146 species, and approximately 20% of these species are bat species. Among the mammalians, bats have 1116 species followed by the rodentia consisting of 2277 species [30]. Turkey has the greatest variety of bats within the European and Mediterranean regions, which has been determined as 37 species [31]. All except for one species feed on insects, and some bat species are specialized to feed on certain insect groups [32]. Since the guano of insectivorous bats is diversified according to the insect species, the chitin rates obtained from guano belonging to various bat species and the physicochemical features of the obtained chitin will be diverse. Furthermore, the insect variety that the bat consumes as food within its ecosystem will also influence the physicochemical features of the chitin. In this study the isolated chitin was collected from guano belonging to just one bat species. In following studies the chitin contents in the guano of the same or disparate bat species from different environments will be presented along with discrepancies that can be used as a means of characterization of these chitins. Within this study, the utilization of bat guano as a chitin source was conducted for the first time and significant results were observed.

High concentration of HCl and NaOH and long reflux period were required to obtain high quality chitin. Lower concentrations and shorter time were tested but some minerals and protein residues could not be removed efficiently. And also, we found that these are optimum conditions for chitin isolation from the bat guano.

FTIR

The chitin FTIR spectrum obtained from bat guano is presented in Figure 2. One of the most significant techniques used in the differentiation of the α and β forms is the FTIR spectrum. When observing chitin’s FTIR spectrum with the α form, the Amide I band gives two bands at 1660 and 1620 cm−1[33],[34]. For chitin in the β form, just one band is given at 1620 cm−1 due to the intermolecular hydrogen bonds [35]. In this study the availability of two bands at 1656 and 1622 cm−1 for the chitin obtained from the bat guano is an indicator of the fact that the chitin is in the α form. More detailed information is included in Table 1.

Figure 2
figure 2

FTIR spectra of chitin and chitosan (a. chitin from bat guano, b. commercial chitin, c. chitosan from bat guano and d. commercial chitosan).

Full size image
Table 1 FTIR bands of chitin samples isolated from bat guano and commercial chitin
Full size table

The FTIR spectrum of the chitosan obtained from the bat guano is shown in Figure 2, and there are two characteristic bands present. These are as follows: ν(C = O) in the NHCOCH3 group (Amide I band) band at 1650 cm−1 and ν(NH2) in the NHCOCH3 group (Amide II band) band at 1590 cm−1[36],[37]. For the chitosan obtained from bat guano, the availability of two bands at 1656 cm−1 and 1590 cm−1 demonstrates its formation. Other significant bands are presented in Table 2.

Table 2 FTIR bands of chitosan samples obtained from bat guano and commercial chitosan
Full size table

In addition, the FTIR spectrum results for the chitin and chitosan from bat guano and the FTIR spectrum results for commercial chitin and chitosan purchased from Sigma Aldrich were compared and it was observed that the results showed considerable similarity.

TGA

For the chitin and chitosan obtained from the bat guano, the mass loss was observed in two stages (Figure 3). In the first stage, mass loss rates of 4% and 8% for chitin and chitosan were observed respectively, and this loss was due to water evaporation within the structure. In the second stage, mass loss rates of 79% and 62% for the chitin and chitosan were observed respectively (Figure 3). The mass loss observed at this stage was due to the decomposition of the chitin and chitosan molecules. It was observed that the total ash content was 17% for chitin and 30% for chitosan. The temperature (DTGmax) at which the greatest decomposition was observed was 389°C for chitin and 295°C for chitosan.

Figure 3
figure 3

Thermogravimetric analysis of chitin and chitosan obtained from bat guano (a. chitin and b. chitosan).

Full size image

When the results of TGA analyses of chitin and chitosan are considered from previous studies, the mass loss was observed at two stages, which is the same as in the current study [25],[26],[29],[34]. Nevertheless, when we consider the results in the former studies, it was found that the thermal stability of chitin is higher than chitosan [25]. In this study, it was also observed that the thermal stability of the chitin isolated from the bat guano is higher than that of chitosan. The DTGmax values of the alpha chitin isolated from other organisms such as crab, shrimp or insects are around 380°C, and for chitosan it is 300°C [25]-[27]. The DTGmax values observed for chitin and chitosan in this study also show similarity with former studies. These results show us that the chitin and chitosan isolated from bat guano are in accordance with the results observed in previous studies.

XRD

The XRD analysis of chitin isolated from bat guano revealed peaks at 9.32, 12.84, 19.42, 21.06, 23.38 and 26.64°. The strongest peak was at 19.42 ° and this was followed by the one at 9.32° (Figure 4). The XRD peaks of the chitin isolated from the bat guano show considerable similarity with the alpha chitins isolated from organisms such as insects, fungi, crab, shrimp, krill, Gammarus and crustacean resting eggs in previous studies [11],[13],[21],[24],[38]-[40]. The characteristic bands for alpha chitin are two sharp peaks of approximately 9 and 19° and then four weak peaks of 13, 21, 23 and 26° on average. The two sharp peaks observed for chitosan synthesized from bat guano chitin were at 10.58 and 20.72°. Two peaks located at 10 and 20° on average have been observed from chitosans isolated from organisms such as shrimp, crab and insects, which is similar to the chitosan obtained from the bat guano in this study [41],[42].

Figure 4
figure 4

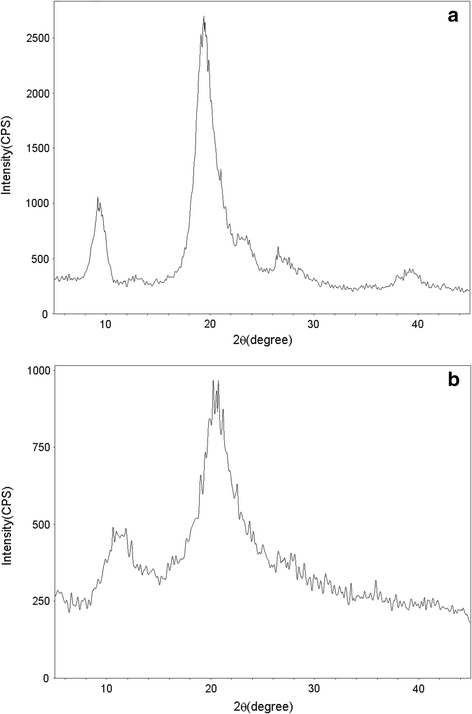

XRD patterns of chitin and chitosan obtained from bat guano (a. chitin and b. chitosan).

Full size image

The CrI value of the bat guano chitin was calculated as 85.49%. While the CrI values of chitins isolated from organisms such as crab and insects in former studies were observed to be between 54 and 91% [13],[26]. Moreover, it was observed that chitins isolated from fungi and resting eggs have quite low CrI values [11]. The CrI value of chitin isolated from bat guano in this study shows similarity to the chitins isolated from insects and crabs in former studies. In this result, it was observed that the bat guano in this study belongs to R. hipposideros and this species feeds on insects. In addition, it was observed that the external skeleton of the insects could not be digested and was therefore excreted.

The CrI value of the chitosan from the bat guano was calculated as 58.51%. This value is quite low when compared with the Crl value of the chitin. This is due to the stability of the chitin being decreased as a result of deacetylation, and accordingly its crystallinity value is scaled down. The lower Crl value of the chitosan in comparison to the chitin is an indicator that the chitosan is formed form the bat guano chitin. In the study conducted by Abdou et al. [21] it was noted that the Crl values of the chitosans obtained from cuttlefish, squid pens, shrimp and crab shells ranged between 36 and 71%. The Crl value of the chitosan from the bat guano is moderate in comparison to the values obtained from other living creatures.

Elemental analysis

It was observed that the chitin isolated from the bat guano contained C, N and H at the rates of 47.52, 6.47 and 6.53% respectively. The N value of completely acetylated chitin was determined to be 6.89% [38], and the value in this study was close to this rate. The N content of chitin in other studies was observed between 2.96 and 6.8% [11],[13],[26],[38]. As this value is close to 6.89%, it demonstrates the chitin’s purity. The DA value of the chitin was calculated and set as 128%. The DA value of completely acetylated chitin is 100% [27]. In this study the value observed is greater than 100%, which demonstrates that remnants of inorganic materials have not been completely removed from the chitin. It has been observed that the DA values of chitins isolated from various organisms in previous studies were much greater than 100%. As in these previous studies, it demonstrates that there are remnants of inorganic materials within the chitin structure.

The C, N and H values of chitosan from the bat guano account for 45.2, 7.30 and 7.02% respectively. The higher N value for the chitosan in comparison to the N value of the chitin demonstrates that the chitin is deacetylated and there is chitosan formation. According to the elemental analysis results, the DD value of the chitosan was calculated as 61%. A DD value that is close to 100% demonstrates that the purity of the chitosan is high. It can be stated that the DD value of the chitosan obtained in this study is at a medium to low rate. In follow up studies, the incubation period in the NaOH solution could be prolonged during the process of chitosan synthesis from chitin, so chitosan with a higher DD value can be obtained.

ESEM

When the ESEM images of the surface morphologies of the chitin and chitosan extracted from the bat guano were observed, they could easily be differentiated from one another. It was observed that the surface of the chitin consisted of nanofibres (Figure 5). These nanofibers were nested and demonstrated a complex distribution in which they were attached to one another. The surface of the chitosan was smoother and the nanofibers were thin with a fractured appearance. The chitins upon both the chitin and chitosan were attached to one another, and therefore the width of the nanofibers could not be measured.

Figure 5
figure 5

SEM pictures of chitin and chitosan produced from bat guano (a, b, c, d. chitin and e, f. chitosan).

Full size image

In previous studies, it was observed that the surface of the chitin was formed from three different types in general. The first of these types has the outside surface formed form nanofibers and nanopores [22],[40],[43]. The second has the surface with only nanofibers, without nanopores [11],[26],[44]. The third one has the surface with both nanofibers and nanopores together [29],[39]. In this study, the chitin and chitosan obtained from the bat guano have surface morphologies that are formed from only nanofibers, and are accordingly the second type. In the study conducted by Kaya et al. [26], all the chitins and chitosans obtained from five insect species were formed from only nanofibers. In this study, it is as expected that the surfaces of the chitin and chitosan are formed from only nanofibers as the chitin in the bat guano comes from insect shells.

Conclusion

Chitin and chitosan are biomaterials that can be produced from bat guano and are more economically valuable than the guano that they come from. Bat guano consists of high levels of chitin and chitosan. To utilize this chitin and chitosan effectively, they were characterized with FTIR, TGA, XRD, SEM and elemental analysis methods. Another significant feature of this study was the fact that it was determined that the bats could not digest the chitin and they removed it via excretion. When we take into account the fact that there are probably 100 million tons of bat guano available across the world, it could be a significant source of chitin and its derivatives.
