Introduction

Osteoporosis is a systemic bone metabolism disorder characterized by low bone density and the deterioration of microarchitecture, resulting in reduced bone strength and an elevated risk of fractures [1,2,3,4]. The disruption of homeostasis between bone formation and bone resorption is the primary cause of osteoporosis, which is exacerbated by the rapid growth of aging populations worldwide [5, 6]. The conventional management of bone osteoporosis typically involves systemic drug administration and hormonal therapy but is limited by multiple adverse effects (e.g., varying degrees of liver and kidney damage, and gastrointestinal adverse reactions) [7]. Hence, there is an urgent need to explore new therapeutic strategies for the efficient treatment of osteoporosis. Over the past decades, more and more researchers have suggested that aging and more than 100 chronic degenerative diseases (such as atherosclerosis, diabetes, and neurodegenerative disorders) are associated with oxidative stress, which results from an imbalance between the production of free radicals and body’s antioxidative defense system [8,9,10,11,12,13]. It’s worth noting that oxidative stress plays a momentous role in osteoporosis [14,15,16,17,18,19]. Excessive generation of reactive oxygen species (ROS) including hydroxyl radicals (·OH), hydrogen peroxide (H2O2), and superoxide (O2·‑) have been reported to accumulate in mitochondria [20, 21]. The dysfunction of mitochondria due to oxidative stress causes osteoblast apoptosis, which prominently impedes osteogenesis [22,23,24,25]. Therefore, the development of novel antioxidants that reprogram mitochondrial function and prevent apoptosis has the potential to promote osteoblast osteogenic differentiation as a treatment strategy for osteoporosis.

Fruits and vegetables are rich sources of antioxidants, which play a key role in scavenging free radicals and maintaining the body’s homeostasis [26,27,28,29]. However, the clinical application of natural antioxidants is limited because of their small molecular weight, low yield, complex purification process, instability, and poor bioavailability [30,31,32,33]. Recently, nanovesicles derived from plants have drawn much attention as potential therapeutic candidates, on account of their abundant resources, low immunological risk, and biosafety profiles [34,35,36,37,38,39,40,41,42]. Up till now, some nanovesicles containing various bioactives (including proteins, lipids, mRNA, and microRNA) have been extracted from fruit and vegetables, such as grapes, lemon, and grapefruit for treating cancer and inflammation [43,44,45,46,47]. More importantly, these nanovesicles also contain a range of antioxidant agents, such as flavonoids and polyphenols, which could be shielded by the lipid bilayer membrane from rapid oxidation and degradation [43, 48]. In consequence, nanovesicles derived from plants are expected to become a new generation of nanoantioxidants, regulating osteoblast cell fate and reversing osteoporosis.

Life experience has demonstrated that carrots are rich in carotenoids, vitamins, and other nutrients, which have been isolated to alleviate oxidative stress but constrained by high dose requirements, and nonspecific targeting in vivo [49]. Nanovesicles derived from carrots have been isolated as novel antioxidants to regulate cardiomyoblasts and neuroblastoma cells [50]. However, it has not been reported whether carrot-derived nanovesicles, considered a new generation of antioxidants, can reverse osteoporosis by influencing the fate of osteoblasts. Herein, we selected an extrusion approach to obtain nanovesicles from carrots containing various bioactive substances (e.g., proteins, lipids, organic oxygen compounds, and organic acids). These carrot-derived nanoantioxidants (CNs) displayed excellent stability, good biocompatibility, and outstanding oxidation resistance (Scheme 1). As anticipated, multifunctional CNs as novel nanoantioxidants could triumphantly overcome cell membrane barriers and reduce ROS, thereby inhibiting apoptosis for osteoblast proliferation and osteogenic differentiation in vitro. Thanks to the non-continuous bone marrow capillaries characterized by substantial gaps between endothelial cells and canaliculi channels within osteon structure, our nanoantioxidants could passively target and accumulate into bone tissue under the acidic microenvironment [51,52,53]. Last but not least, these tailor-made CNs could ameliorate oxidative stress, restore mitochondrial function, reduce osteoblast apoptosis, and promote bone reconstruction with excellent biosafety for efficient treatment of postmenopausal osteoporosis via the mitogen-activated protein kinase (MAPK) signaling pathway. This work presented the first demonstration of nanovesicles derived from carrots as novel nanoantioxidants to realize the long-awaited osteogenesis, contributing to the exploration of a brand-new idea for reversing osteoporosis.

Scheme 1.
scheme 1

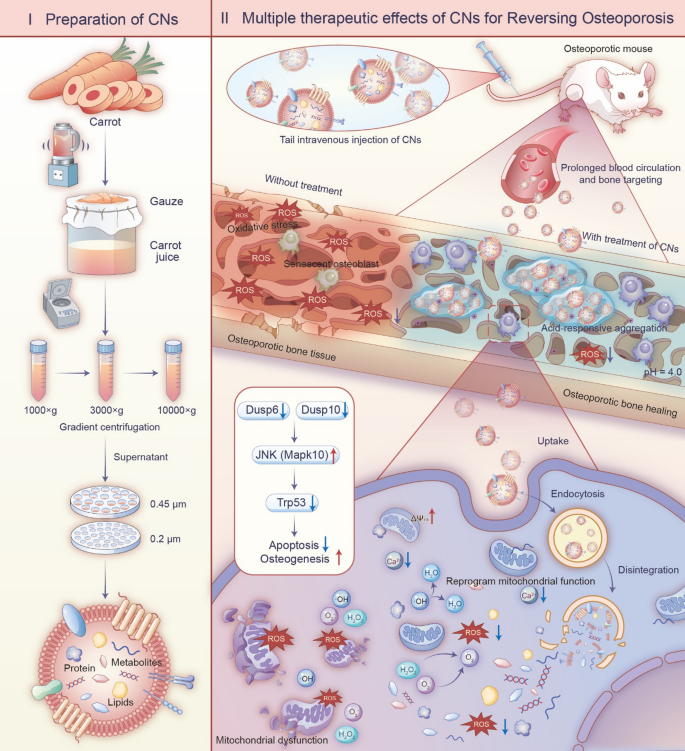

Schematic representation of carrot-derived nanoantioxidants, including preparation of CNs, passive targeting and accumulation in bone tissue acidic microenvironment, reducing oxidative stress, reprogramming of osteoblast mitochondrial function, and promotion of osteogenic differentiation, ultimately contributing to the reversal of osteoporosis

Full size image

Materials and methods

Materials

Erucamide (Eru), fructose (Fru), and quinic acid (QA) were purchased from Aladdin Biotechnology Co., Ltd (Shanghai, China). Chlorpromazine was supplied by Macklin Biotechnology Co., Ltd (Shanghai, China). Cytochalasin D and amiloride were purchased from Good Laboratory Practice Bioscience Technology (GLPBIO, USA). 2,7-dichlorofluorescein diacetate (DCFH-DA), β-cyclodextrin, BCIP/NBT Alkaline Phosphatase (ALP) Color Development Kit, Hydrogen Peroxide Assay Kit, Reactive Oxygen Species Assay Kit, Calcium Colorimetric Assay Kit, and 3, 3′-dioctadecyloxacarbocyanine perchlorate (DiO) fluorescent dye and Mitochondria Tracker Red Chloromethyl-X-rosamine (Mito Tracker CMXRos) dye were obtained from Beyotime Biotechnology Co., Ltd (Shanghai, China). Exosome Fluorescent Labeling Dye (DiR) was purchased from Umibio (Shanghai, China). AlamarBlue™ HS Cell Viability Reagent was purchased from Thermo Fisher Scientific (USA). BCA Protein Assay Kit, Hoechst 33342 stain solution, Alizarin Red S (ARS) Solution (0.2%, pH 8.3), Dihydroethidium (DHE) fluorescence probe, and ·OH Scavenging Capacity Assay Kit were purchased from Solarbio Science & Technology Co., Ltd (Beijing, China). The Seahorse XF Cell Mitochondria Stress Test Kit was purchased from Agilent Technologies, Inc. (Santa Clara, CA). The Superoxide dismutase (SOD) Assay Kit was purchased from Nanjing Jiancheng Bioengineering Institute (Nanjing, China). Glyceryl monostearate (GMS) and the Total Antioxidant Activity (T-AOC) Assay Kit were purchased from Shanghai Yuanye Bio-Technology Co., Ltd (Shanghai, China). Annexin V-FITC Apoptosis Detection Kit was purchased from Dojindo Molecular Technologies, Inc. (Kumamoto, Japan). Terminal deoxynucleotidyl transferase 2-deoxyuridine 5-triphosphate nick end labeling (TUNEL) Apoptosis Detection Kit and Mitochondrial Membrane Potential Assay Kit were purchased from Abbkine Scientific Co., Ltd (Wuhan. China). M5 HiPer Total RNA Extraction Reagent, M5 Super quantitative Polymerase Chain Reaction (qPCR) Kit with gDNA remover, and 2 × Realtime RCR Supermix (SYBRgreen, with anti-Taq) were obtained from Mei5 Biotechnology Co., Ltd (Beijing, China). Dulbecco′s modified eagle medium (DMEM) and fetal bovine serum (FBS) were purchased from Gibco (USA). 4% paraformaldehyde solution, hematoxylin and eosin (H&E) staining solution, and horseradish peroxidase (HRP)-conjugated secondary antibody were purchased from Servicebio Biotechnology Co., Ltd (Beijing, China). Masson trichrome staining solution was purchased from BOMEI Biotechnology Co., Ltd (Hefei, China). The antibody of Dual specificity phosphatase 10 (Dusp10) was obtained from BIOSS Biotechnology Co., Ltd (Beijing, China). Jun N-terminal kinases (JNK) Polyclonal antibody was obtained from Sanying Biotechnology Co., Ltd (Wuhan, China).

Isolation and characterization of CNs

Carrot was purchased from the local vegetable market. Firstly, the carrots were washed with distilled water and peeled. Then, 50 g of carrot cubes were mixed with 75 mL ice-cold phosphate buffer solution (PBS) and squeezed by a high-speed blender to obtain juice. The juice was centrifuged at 1000 × g for 20 min and 3000 × g for 20 min to remove large fibers. The obtained supernatant was further centrifuged at 10,000 × g for 40 min at 4 °C and then extruded through the 0.45 and 0.2 μm Millipore filter membrane successively. The concentration of CNs was determined by detecting the protein concentration using a BCA protein quantification assay kit. The size distribution and zeta potential of CNs were measured by dynamic light scattering (DLS) analysis using a Zetasizer Nano-Zs (Malvern Instruments, UK). The morphology of CNs was determined by transmission electron microscopic (TEM, JEOL JEM-2100Plus, 200 kV). The particle size and concentration of CNs were analyzed via nanoparticle tracking analysis (NTA) with the Zetaview-PMX120-Z (Particle Metrix, Meerbusch, Germany) and corresponding software Zeta View (Version 8.05.14 SP7).

Stability evaluation of CNs

To evaluate the physiological stability of CNs under different conditions, the CNs were dispersed in PBS buffer at varying pH levels (pH 7.4 and 4.0) and incubated at 37 °C. Subsequently, the size distribution and zeta potential were detected using DLS at different time points. Besides, in order to test the storage stability of CNs at different temperatures, CNs were dispersed in PBS (pH 7.4) and stored separately at 4, − 20, and − 80℃ for the measurement of the zeta potential, size distribution, and protein content every week. The protein content of the CNs prepared from different batches of carrots by the same method in the above was quantified using the BCA assay kit to detect batch stability of CNs. Measurements of CNs in different groups were taken in triplicate, and the results were averaged.

Preparation and characterization of carrot-derived exosomes (CEs)

CEs were prepared by ultracentrifugation method. Briefly, the carrot juice was centrifuged at 1000 × g for 20 min, 3000 × g for 20 min, and 10,000 × g for 40 min in succession, and extruded through the 0.45 and 0.2 μm filter membrane. The supernatant was centrifuged at 150,000 × g for 2 h to collect CEs pellet by PBS. The size distribution and zeta potential of CEs were measured by DLS and the protein content of CEs was determined by BCA protein quantification assay kit. The total antioxidant capacity of CNs and CEs at the same mass concentration were measured by the 2, 2’-casino-bis (3-ethylbenzthiazoline-6-sulfonic acid) diammonium salt (ABTS·+) method described below.

Quantitative proteomics

Proteomic analysis was conducted by Shanghai Zhongke New Life Biotechnology Co., Ltd. The proteins were separated on 4–20% sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE) gel at a constant voltage of 180 V for 45 min. Protein bands were visualized using Coomassie Blue R-250 staining. The peptides from each sample were analyzed by a TIMSTOF mass spectrometer (Bruker) connected to an Evosep One system liquid chromatography (Denmark) in the data-independent acquisition (DIA) mode. Protein subcellular localization was predicted by the multi-class SVM classification system CELLO (http://cello.life.nctu.edu.tw/). Gene Ontology (GO) terms were mapped, and sequences were annotated using the software program Blast2GO. The studied proteins were blasted against the online Kyoto encyclopedia of genes and genomes (KEGG) database (https://www.genome.jp/kegg/) to retrieve their KEGG orthology identifications and were subsequently mapped to pathways in KEGG.

High-resolution untargeted metabolomics

UHPLC-Q-TOF-MS (ultrahigh-performance liquid chromatography equipped with quadrupole time-of-flight mass spectrometry) was used to detect metabolites in CNs. After slowly thawing the samples at 4 ℃, the appropriate amount of samples was added to a pre-cooled solution of methanol, acetonitrile, and water (2:2:1, v/v). The mixture was then vortexed, subjected to low-temperature ultrasound for 30 min, and left to stand at − 20℃ for 10 min. After centrifugation at 14,000 × g and 4 ℃ for 20 min, the supernatant was collected and dried under vacuum. During mass spectrometry, 100 μL acetonitrile solution (acetonitrile: water = 1:1, v/v) was added to redissolve, vortex, and centrifuge at 14,000 × g at 4 ℃ for 15 min. The supernatant was sampled for analysis. Analyses were performed using a UHPLC (1290 Infinity LC, Agilent) coupled to a quadrupole time-of-flight (AB Sciex Triple TOF 6600).

Preparation of mimic CNs (MCNs)

MCNs were prepared using the membrane-sonication method. According to the results of the metabolomic analysis, the four main components were selected. Glyceryl monostearate, erucamide, and quinic acid for CNs equivalent were dissolved collectively in chloroform/absolute ethanol solutions (1:1, v/v). After the solvent evaporated, the fructose was dissolved in PBS to resuspend the dried film layer. The MCNs were then obtained by sonication using an ultrasonic crusher. When GMS, Eru, QA, and Fru were treated as a single component, their content was equal to that of each component in the MCNs. Detailed data is shown in Additional file 1: Table S1.

·OH scavenging capacity of CNs

To determine the ·OH scavenging capacity of CNs, an ·OH scavenging capacity assay kit was used. According to the operation instructions, the [Fe(phen)3]2+/H2O2 system generated ·OH, and the scavenging capacity of the CNs for ·OH was reflected by the degree of the absorbance decline rate at 536 nm. The absorbance (OD values) at 536 nm was measured by an enzyme-labeled instrument, the calculation formula is ·OH scavenging rate (%) = (Asample − Acontrol)/(Ablank − Acontrol) × 100%.

SOD-like catalytic activity

The SOD-like catalytic activity of CNs was tested using a SOD assay kit according to the protocol. The working solution was added to CNs with different concentrations (50, 100, 200, 400, 800, and 1600 μg/mL, protein concentration), and followed by thorough mixing and water bath at 37 °C for 40 min. Then the absorbance value was measured at 550 nm using UV–Vis (UV1800PC, Jinghua Co., Ltd. Shanghai, China) after adding chromophore and standing at room temperature for 10 min. Meanwhile, the color changes of different samples were recorded by the camera. The SOD-like activity of the sample was expressed by the inhibition ratio relative to the blank control.

Catalase (CAT)-like catalytic activity

The H2O2 scavenging effect of the CNs was detected using a hydrogen peroxide detection kit. All samples were incubated with H2O2 (50 mM) at room temperature, and the concentration of the remaining H2O2 was calculated at different time intervals (10 and 60 min) following the provided protocol.

Oxygen (O2) generation was observed in a 1 mL test tube. Disperse 200 μL different concentrations of CNs to 800 μL 10 mM H2O2 solution to observe the amounts of bubbles after 1, 5, and 10 min. The generated O2 was recorded by a digital camera and quantitatively tested with a dissolved oxygen meter (JPB-607A, Leici).

The total antioxidant activity of the CNs

The total antioxidant activity of the CNs was investigated by ABTS·+ assay. According to the protocols, samples of different concentrations were mixed with pre-prepared ABTS·+ working solution for 6 min at room temperature. After that, the resultant mixture was detected by UV − Vis absorbance spectroscopy. Meanwhile, pictures were taken to record the change of the colors after the reaction. The formula is the free radical scavenging rate (%) = (Ablank − Asample)/Ablank × 100.

Cell uptake and internalization mechanism of CNs in vitro

CNs were labeled with the fluorescent dye DiO (D-CNs). Briefly, D-CNs were prepared by mixing 1 mg/mL of DiO dye with a 4 mg/mL CNs solution at a volume ratio of 1:5, followed by incubation at 37 °C for 30 min. The suspension was then purified using dialysis to remove any free DiO dye. The amount of labeled fluorescent dye was quantified using a fluorescent microplate reader (MD SpectraMax M5, USA, Ex: 484 nm, Em: 501 nm).

For cellular uptake studies, MC3T3-E1 cells were seeded in 6-well plates (5 × 105 cells per well) with 2 mL of DMEM to study the cellular uptake efficiency of CNs. After treatment with 200 μg/mL D-CNs and equal fluorescent concentrations of single DiO dye, the cells were collected at predesigned time points (0, 2, 4, 8 h) and analyzed with confocal laser scanning microscopy (CLSM, Leica SP8, Germany) and flow cytometer (Beckman Coulter, USA).

To study the mechanism of CNs internalization, after being seeded in 6-well plates for 24 h, MC3T3-E1 cells were pretreated with different endocytosis inhibitors including 28 μM chlorpromazine (clathrin endocytosis inhibitor), 100 μM β-cyclodextrin (caveolin endocytosis inhibitor), 0.01 μM cytochalasin D (actin-dependent endocytosis inhibitors) and 10 μM amiloride (giant pinocytosis specific inhibitor) for 30 min, and D-CNs (200 μg/mL) were added to different groups for additional 4 h of incubation. Cells were collected and analyzed using flow cytometry.

Cell cultures and construction of oxidative stress cell model

MC3T3-E1 cells were cultured at 37 °C and 5% CO2 atmosphere in a DMEM culture medium containing 10% FBS and 1% P/S antibiotic solution. After reaching confluence, the cells were treated with the FBS-free medium containing different concentrations of H2O2 (0.25, 0.5, 0.75, 1 mM) for 3 h, 6 h, and 24 h. According to the cell survival rate, 1 mM was finally selected as the model concentration.

Intracellular ROS determination

The level of intracellular ROS was tested using the fluorescent probe DCFH-DA in the ROS detection kit. MC3T3-E1 cells in 6-well culture plates were incubated with 200 μg/mL CNs for 24 h before treatment with 1 mM H2O2 for 6 h. Then, the cells were washed with PBS twice, and serum-free culture medium was incubated with 2 μM DCFH-DA at 37 ℃ for 30 min. The cells were washed with PBS twice to eliminate the unlabeled DCFH-DA. The relative levels of fluorescence intensity were characterized by flow cytometry and CLSM.

Alkaline phosphatase staining and alizarin red S staining

For the alkaline phosphatase expression assay, cells were cultured in 6-well plates at a density of 1 × 105 cells per well. After incubation with DMEM medium containing different concentrations of CNs (50, 100, 200, and 400 μg/mL) for 24 h, the H2O2 group and H₂O₂ + CNs group were treated with 1 mM H2O2 for 6 h. After 3 days, cells were fixed using paraformaldehyde (4%) and stained with a BCIP/NBT alkaline phosphatase color development kit. We performed the staining following the manufacturer’s protocol and images were captured using a DM500 microscope (Leica, Germany) and semi-quantified via ImageJ software.

To study the mineralization level, MC3T3-E1 cells were seeded into 6-well plates at the density of 1 × 105 cells per well and cultured in DMEM supplemented with varying concentrations of CNs (50, 100, 200, and 400 μg/mL) and stimulated with H2O2 to assess mineralization. After 5 days, then the cells were fixed with a 4% paraformaldehyde solution, washed with PBS, and stained with ARS solution. Images were recorded by a DM500 microscope and semi-quantified via ImageJ software.

Assessment of mitochondrial function

Mitochondrial membrane potential was assessed using the dye 5, 5′, 6, 6′-Tetrachloro-1, 1′, 3, 3′-tetraethyl-imidacarbocyanine iodide (JC-1) and visualized using a fluorescence microscope (Leica, Germany). MC3T3-E1 cells were seeded at the density of 3 × 105 cells per well in 6-well plates and allowed to adhere overnight. After all of the treatments, the cells were stained with a working solution prepared by JC-1 stain (100 ×) for 20 min at 37 °C. After incubation, the supernatant was removed and washed twice with PBS. Fluorescence images were scanned using a fluorescence microscope, and the fluorescence intensity was quantified with ImageJ software. The protocol involves opening the image, extracting a single channel, adjusting the threshold, selecting the appropriate region, and then checking the ‘dark background’ option to measure the mean gray value. The ratio of red and green fluorescence was counted and normalized.

For observing the morphology of mitochondria, MC3T3-E1 cells were seeded at the density of 1 × 106 cells/well in a 6-well culture plate and cultured overnight. After all of the treatments, Bio-TEM was performed according to the following procedure. Cells were fixed with 2.5% glutaraldehyde for 12 h. After being dehydrated and dried, cells were cut into ultrathin sections (70–90 nm). After being stained with uranyl acetate and lead citrate for 10 min, sections were dried and performed using a TEM microscope (Hitachi, HT7800).

Functional Mitochondrial morphology was evaluated using the MitoTracker Red CMXRos dye according to the manufacturer’s instructions. Briefly, MC3T3-E1 cells were seeded in confocal dishes at a density of 1 × 105 cells per well and treated with 200 μg/mL CNs for 24 h before being stimulated with 1 mM H2O2 for 6 h. The cells were then incubated in a serum-free medium containing 200 nM of the probe in the dark at 37 ℃ for 20 min. The cells were subsequently washed twice in PBS and the nuclei were stained with Hoechst 33342 at 10 μg/mL for 20 min. Images were acquired with CLSM.

MC3T3-E1 cells were seeded in XF24 cell culture microplates (Agilent). Cellular oxygen consumption was measured with a Seahorse XFe24 Analyzer (Agilent). When the confluence of cells reached about 50%, the cells were treated with 200 μg/mL CNs or DMEM medium for 24 h and then stimulated with H2O2 for 6 h. After the basal readings, 1.5 mM oligomycin, 1 mM Carbonyl Cyanide 4-(Trifluoromethoxy) phenylhydrazone (FCCP) and 0.5 mM rotenone/antimycin A were injected in sequence. Data were collected and analyzed using Seahorse Wave Desktop software. The data normalization of oxygen consumption measurements was performed using the cell number at the end of the experiments, and mitochondrial respiration was expressed as oxygen consumption rate (OCR, pmol/min/cells).

Apoptosis assay

The apoptosis of MC3T3-E1 cells was tested using the Annexin V-FITC apoptosis detection kit. Different treated cell suspensions were collected according to the method provided in the instructions. Cell suspensions (1 × 106 cells /mL) were incubated with 5 µL Annexin V-FITC and 10 µL Propidium Iodide (PI) staining solution. After incubation for 15 min at room temperature in the dark, 400 µL 1 × Annexin V binding buffer was added to the cell suspensions. Then cells were analyzed using a flow cytometer and data were analyzed using FlowJo software.

TUNEL assay was performed according to the protocol to detect cell apoptosis. After different treatments, the medium was removed and the cells were fixed with 50 µL 4% paraformaldehyde for 30 min at room temperature. The fixative was removed and washed three times with PBS for 5 min per well. Afterward, each well was added 0.3% Triton X-100 and incubated for 30 min at room temperature. Finally, after the transparent agent was removed, cells were washed with bovine serum albumin (BSA) working solution 3 times and imaged under fluorescence microscopy.

The determination of Caspase-3 activity was detected by the Caspase-3 activity analysis kit (colorimetric method). After all of the treatments, cells were collected and resuspended in a working cell lysis buffer. The lysate was incubated for 15 min on ice, and centrifuged on 15,000 × g at 4 ℃ for 15 min. Enzyme activity was measured according to the manufacturer’s instructions. In simple terms, samples and working liquid were mixed and incubated at 37 ℃ for one hour, enzyme standard instrument was used to detect 405 nm absorbance values.

Transcriptome sequencing

RNA sequencing was used to detect differential gene expression in the control, H2O2, and H2O2 + CNs groups. MC3T3-E1 cells in the culture dish were incubated with DMEM medium containing 200 μg/mL CNs for 24 h before treatment with 1 mM H2O2 for 6 h. Total RNA was extracted from the MC3T3-E1 cells using Trizol reagent according to the manufacturer’s instructions (Invitrogen, USA). After washing twice with PBS, 1 mL of Trizol reagent was added to a precipitate of 5 × 106 cells, and the cells were repeatedly whipped until no cell clumps remained. RNA samples were assessed based on the A260/A280 absorbance ratio with a Nanodrop ND-2000 system (Thermo Scientific, USA), and the RIN of the RNA was determined by an Agilent Bioanalyzer 4150 system (Agilent Technologies, CA, USA). Three replicate samples were taken from each group and detailed data for each sample are shown in Additional file 1: Table S2. Transcriptome sequencing was performed with an Illumina NovaSeq 6000/MGISEQ-T7 instrument and the data were analyzed using the Illumina/BGI platform. Differentially expressed genes (DEGs) analysis was conducted using the DESeq2 (http://bioconductor.org/packages/release/bioc/html/DESeq2.html). Gene expression changes with fold change > 2 and p-value < 0.05 were considered significant. KEGG pathway enrichment and GO function enrichment analysis were utilized by using the clusterProfiler R software package. When p < 0.05, it is considered that the GO or KEGG function is significantly enriched. Finally, the results were visualized through the Bio-cloud platform (https://bio-cloud.aptbiotech.com/project).

Measurement of intracellular calcium concentration

According to the manufacturer’s instructions, a calcium colorimetric assay kit was used to measure calcium concentration. Briefly, the MC3T3-E1 cells were cultivated in a 6-well plate and treated with 200 μg/mL CNs under conditions of H2O2 stimulation, then washed with PBS and lysed with lysis buffer. After centrifugation, the cell lysate solution was collected and mixed with the working color solution. The mixtures were then incubated at room temperature for 10 min to detect the absorbance at 575 nm using a microplate reader. To normalize the amount of calcium, protein concentrations were measured using a BCA protein assay kit.

qPCR analysis

For qPCR analysis, MC3T3-E1 cells were cultured in different treatment groups. The control group was cultured using DMEM medium, the H2O2 group was treated only with H2O2 for 6 h, and the H2O2 + CNs group was treated with 200 μg/mL CNs followed by H2O2 stimulation for 6 h. Total RNA was collected using an M5 Hiper Universal Plus RNA Mini Kit. Subsequently, cDNA was synthesized using a cDNA transcription kit. Amplification reactions were performed using 3 μL of cDNA template, 0.5 μL of primer, 6 μL of distilled deionized water, and 10 μL of SYBR Green in a StepOne Plus PCR machine for 50 cycles. The sequences of the primers used are provided in Additional file 1: Table S3. The starting quantities of the samples were determined using the 2−ΔΔT methods and normalized to the internal reference gene GAPDH. The data presented for each group represent the fold-change in relative mRNA expression levels of target genes, normalized to the control group.

Pharmacokinetic profile

All animal experiments were approved by the Ethics Committee Second Hospital of Shanxi Medical University with the approval number (DW2023040). To study the pharmacokinetic profile, C57BL/6J mice (about 8 weeks old) were purchased from SPF Experimental Animal Company (Beijing, China). The mice were administered with D-CNs (1 mg/mL) via tail vein injection. At given times (0.25, 0.5, 2, 4, 8, 12, 24 h), the blood was collected from the mouse eyes and centrifuged at 3000 × g at 4 °C for 10 min to obtain the supernatant plasma. The content of D-CNs was measured by a fluorescent microplate reader. Pharmacokinetic software (DAS 3.0) was used to analyze data.

In vivo imaging and biodistribution

Three groups of ovariectomized (OVX) mice (n = 3) were treated with PBS, DiR, and DiR-loaded CNs (DiR-CNs). CNs were labeled with DiR as provided by the manufacturer, 100 μL of DiR dye working solution was added to 1 mL of the CNs suspension and vortexed to mix, then incubated at 37 °C for 30 min, and unlabeled dye was removed by dialysis to obtain DiR-CNs. After injection for 24 h, the mice were anesthetized and the whole body fluorescence signals (Ex: 747 nm, Em: 780 nm) were recorded using a small animal in vivo fluorescence imaging system (PerkinElmer IVIS Lumina LT III, USA). The major organs, including the heart, liver, spleen, lungs, kidney, femur, and tibia tissues, were carefully excised to detect the distribution of CNs using living image analysis software (Caliper Life Sciences, Inc., USA).

OVX-induced osteoporotic mouse model and osteoporosis treatment in vivo

8-week-old female C57BL/6J mice underwent bilateral ovariectomy to induce osteoporosis. Both ovaries were carefully removed, ensuring that no ovarian tissue remained. The mice were housed in a specific pathogen-free (SPF) environment and referred to as OVX mice. Mice in which only adipose tissue adjacent to the ovary was removed served as the sham group. One week after the surgery, once their wounds had healed, the mice were divided into four groups, each consisting of five mice. The experimental groups were as follows: a sham-operated group (Sham), which received PBS treatment via tail vein injection every 3 days; a model group consisting of ovariectomized (OVX) mice treated with PBS via tail vein injection every 3 days; OVX mice treated with CNs at a dose of 2.5 mg/kg via tail vein injection every 3 days (OVX + CNs); and OVX mice treated with 17β-estradiol (E2) at a dose of 0.5 mg/kg via tail vein injection every 3 days (OVX + E2). After the whole treatment period, mice were sacrificed after 8 weeks. The femurs were collected and fixed in 4% neutral paraformaldehyde for 24 h. Tissues were scanned and analyzed with micro-computed tomography (Micro-CT, BrukermicroCT, Kontich, Belgium) using the following scanning conditions: source voltage 55 kV; source current 200 μA; AI 0.25 mm filter; pixel size 6 μm; rotation step 0.3 degree. The images were then reconstructed with NRecon software (BrukermicroCT, Kontich, Belgium) using the following settings: ring artefactor rection, 5; smoothing, 3; beam hardening correction, 30%. Bone volume fraction (BV/TV), trabecular thickness (Tb. Th), trabecular number (Tb. N), trabecular spacing (Tb. Sp), and bone mineral density (BMD) were analyzed by the program CTAn (BrukermicroCT, Kontich, Belgium). BV/TV represents the ratio of bone volume to total tissue volume, providing a direct measure of changes in bone mass. BMD reflects the mineral content within the bone tissue of the selected region. Tb. N indicates the average number of intersections between bone and non-bone tissue per millimeter within the region of interest. Tb. Th represents the average thickness of the trabecular bone. Tb. Sp refers to the average distance between the bone trabeculae, representing the width of the medullary cavity.

The femurs and tissue were collected, fixed in 4% paraformaldehyde, and transferred to 10% ethylene diamine tetraacetic acid (EDTA) solution for decalcification for 4 weeks. They were sequentially dehydrated, embedded in paraffin, sectioned (5 μm thick), and subjected to H&E staining and Masson staining.

For immunohistochemistry analysis, block the sections first for 0.5 h with 5% BSA at room temperature and then incubate them overnight at 4 °C with the corresponding primary antibodies: JNK and Dusp10. Subsequently, the slices were incubated with the corresponding secondary antibody at 37 °C for 30 min and then treated with DAB chromogenic solution for 15 min. For immunofluorescence analysis, put the slices neatly on a wet box, draw a circle around the tissue with a histochemical pen circle, add the prepared DHE antibody diluent, and then place the wet box in an oven at 37 ℃ for 30 min, wash with PBS three times, and then seal the slides using an anti-fluorescence quenching sealer. Finally, image acquisition of the sections was performed using a micro camera system (BA400Digital), and the positive area analyses were performed by ImageJ software.

In vivo safety evaluation

After completing the entire treatment period, the mice were euthanized. The serum samples were collected to measure the levels of alanine transaminase (ALT), aspartate aminotransferase (AST), blood urea nitrogen (BUN), creatinine (CREA), inorganic ionic calcium (Ca), and phosphorus (P). The whole blood sample was collected for a routine blood test. Tissues including heart, liver, spleen, lung, and kidney were used for H&E staining.

Statistical analysis

Data were assessed for homogeneity of variances using Levene’s test before statistical analysis in SPSS 26.0. For multiple comparisons, a one-way analysis of variance (ANOVA) was performed, followed by the Tukey post-hoc test when variances were homogeneous and the Tamhane post-hoc test when variances were unequal. For two-group comparisons, a two-tailed Student’s t-test was conducted using GraphPad Prism 9.5 software. This approach applies to both in vitro and in vivo data, except for transcriptome sequencing, for which statistical methods are detailed in the corresponding legend. All data were presented as mean ± standard deviation (s.d.), with *p < 0.05, **p < 0.01, and ***p < 0.001 considered statistically significant, and NS indicating no significance.

Results and discussion

Isolation and characterization of carrot-derived nanoantioxidants

First, nanovesicles were obtained from carrot juice through a simple extrusion approach [54]. Based on TEM examination (Fig. 1A, Additional file 1: Fig. S1), CNs had round structures and characteristic lipid bilayers. As displayed in Fig. 1B, CNs had an average size of 137.8 nm, which well agreed with the TEM result. These CNs had a zeta potential of − 16.5 mV (Fig. 1C). Meanwhile, NTA analysis determined a particle size of 128.7 nm and a particle concentration of 5.5 × 109 particles/mL (Fig. 1D). Besides, these nanovesicles had steady nanostructures under normal physiological conditions (pH 7.4). However, upon exposure to acidic conditions mimicking the osteoporotic microenvironment (pH 4.0), CNs undergo a transformation into larger particles. This change occurs due to alterations in surface charge (from − 16.5 mV to − 6.9 mV) driven by electrostatic interactions, which may potentially enhance their retention within bone tissue (Fig. 1E, Additional file 1: Fig. S2). It was noted that different batches of CNs had consistent protein concentrations (~ 4.5 mg/mL, Additional file 1: Fig. S3). In addition, CNs stored at different temperatures (4, − 20, and – 80 ℃) for 2 weeks maintained stable nanostructures, surface charges, and protein content (Additional file 1: Fig. S4-S6). Carrot-derived exosomes were isolated using density gradient ultracentrifugation [36, 55]. Compared to CEs, CNs exhibited approximately a 113.2-fold increase in protein concentration. (Additional file 1: Fig. S7A-S7C). The SDS-PAGE analysis revealed that the proteins from CNs were primarily distributed within the molecular weight range of 10–100 kDa (Additional file 1: Fig. S8). We made use of proteomic analysis to study the protein components in detail. A total of 2684 proteins were identified and quantified in the CNs. Subcellular distribution predictions classified these proteins as follows: 1,196 cytoplasmic proteins, 659 chloroplast proteins, 557 nuclear proteins, 434 mitochondrial proteins, 383 extracellular proteins, 251 plasma membrane proteins, and 49 lysosomal proteins (Fig. 1F). The KEGG enrichment analysis revealed that the most enriched pathways were associated with ribosome function and glycolysis (Additional file 1: Fig. S9). The GO enrichment analysis indicated that the predominant enriched molecular functions were catalytic activity and antioxidant activity (Additional file 1: Fig. S10) [56, 57]. A non-targeted metabolomics analysis was conducted to examine the metabolite composition of CNs, identifying a total of 286 metabolites, which were categorized into 11 superclasses. (Additional file 1: Fig. S11). As shown in Fig. 1G of the quantitative proportions of metabolites, lipids (50.2%) and organic oxygen compounds (31.6%) were enriched in CNs, where fatty acyls (86.2% of total lipids), and carbohydrates (97.5% of total organic oxygen compounds) were detected, respectively (Fig. 1H, Additional file 1: Fig. S12). Therefore, nanovesicles derived from carrots were successfully extracted with stable membrane structures and multiple active ingredients for potential biological application.

Fig. 1
figure 1

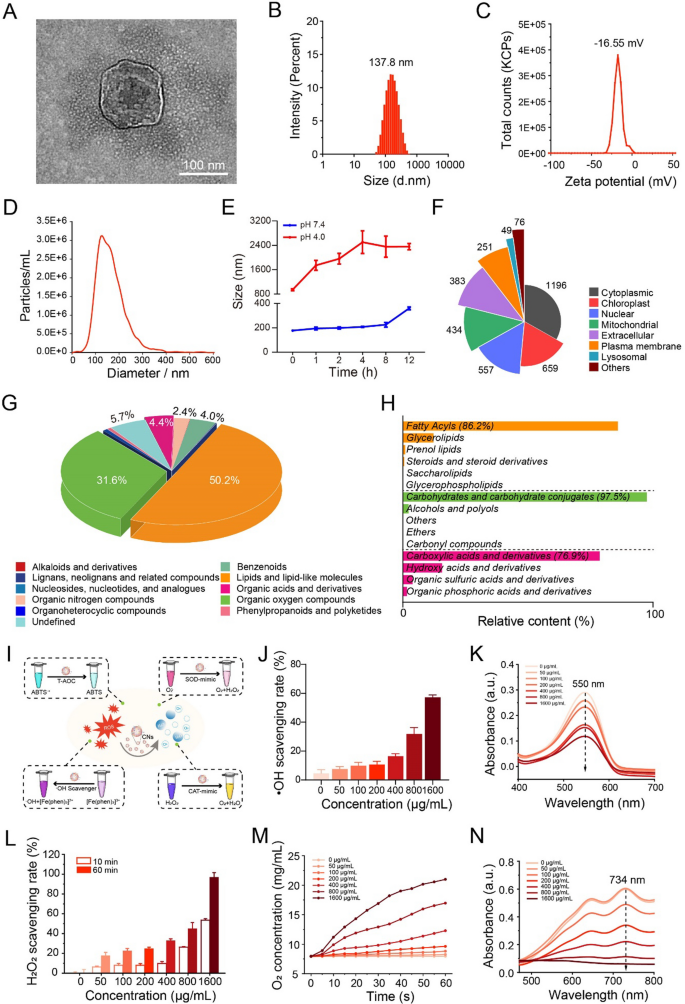

Characterization and ROS scavenging effectiveness of the CNs. A TEM showing the morphological features of CNs. Scar bar: 100 nm. B Size distribution and C zeta potential of CNs. D The particle size and concentration of CNs were analyzed by NTA. E Stability of CNs under different pH conditions by measuring the size change at different times (n = 3). F Subcellular localization of CNs proteins. G Pie chart of the proportion of the content of identified superclass metabolites of CNs in each chemical category. H Distribution of subclass metabolites of the top three superclass metabolites in content. I Schematic illustration of antioxidative activities of CNs. J ·OH scavenging rate of different concentration CNs (n = 3). K UV–Vis absorption spectra showed SOD-like activity of CNs at different concentrations. L The decomposition of H2O2 (50 mM) reacted with various concentrations of CNs was detected at 10 and 60 min (n = 3). M O2 generated in H2O2 (2 mM) solution of CNs in 1 min was detected by the dissolved oxygen measurement instrument. N UV–Vis absorption spectra showed the total antioxidation activity of CNs at different concentrations by the ABTS·+ assay. All data were presented as mean ±s.d.

Full size image

Recent studies have shown that excessive generation of ROS leads to decreased osteoblast activity and even apoptosis [14, 58] (Fig. 1I). First, we tested the ·OH scavenging capacity of CNs through the Fenton reaction. As displayed in Fig. 1J, the ·OH scavenging rate of CNs increased significantly, reaching up to 57.2% as the concentration increased to 1600 μg/mL, demonstrating a great ·OH eliminating capacity. SOD, an intracellular enzyme, plays a pivotal role in the antioxidant process by converting O2·‑ into H2O2 and O2. Hence, the SOD-like activity of CNs was measured using a T-SOD assay kit based on the hydroxylamine method. Optical images showed that the purplish-red color gradually disappeared with the increase in CNs concentration (Additional file 1: Fig. S13). UV–Vis spectra results indicated that the absorbance value at 550 nm weakened from 0.29 to 0.12 a.u. after treatment with various concentrations of CNs, which was ascribed to the strong O2·‑ scavenging ability mimicking SOD enzyme (Fig. 1K, Additional file 1: Fig. S14). Subsequently, we determined the CAT-like capacity which could decompose H2O2 into H2O and O2. As shown in Fig. 1L, CNs demonstrated significant scavenging efficiency on H2O2. At a concentration of 1600 μg/mL, approximately 96.9% of H2O2 was eliminated after 60 min. It was observed that a greater number of bubbles were produced in the test tube treated with CNs compared to the untreated control group (Additional file 1: Fig. S15). After incubation with 1600 μg/mL CNs, the generation of O2 fleetly reached 21.0 mg/mL in the 60 s (Fig. 1M), indicating a strong CAT-mimic activity. To further study their antioxidant performance, the total ROS-eliminating ability was tested using the ABTS·+ radical assay. The characteristic absorption peaks of ABTS·+ at 734 nm significantly decreased after treatment with various concentrations of CNs (Fig. 1N, Additional file 1: Fig. S16-S18). Furthermore, CNs exhibited a stronger antioxidant capacity compared to CEs (Additional file 1: Fig. S7D). In summary, the results above demonstrated that CNs displayed a variety of enzyme-mimic activities and possessed exceptional antioxidant capacities.

CNs restore osteoblast activity in the osteoporotic microenvironment

Once the ROS-eliminating activity was confirmed, we turned to investigate whether CNs could induce osteoblast proliferation and facilitate osteogenesis in vitro. As shown in Fig. 2A, CNs could distinctly promote MC3T3-E1 cell proliferation at various concentrations ranging from 0 to 400 μg/mL. Particularly, the cell viability increased to 3.3 times after treatment with 400 μg/mL CNs from day 1 to day 5. To further investigate cellular uptake efficiency, CNs were labeled with DiO, a commercial fluorescent dye known for its strong membrane affinity. CLSM images showed that the DiO-labeled CNs primarily adhered to the cell membrane during the first 1 to 4 h, and were internalized into the cytoplasm after 8 h of exposure (Fig. 2B). Flow cytometry quantitative results demonstrated that D-CNs provided strong cellular uptake efficiency with 99.6% positive cells after incubation for 8 h (Fig. 2C, D). However, free DiO dye exhibited higher cellular uptake efficiency compared to D-CNs. This difference may be attributed to the membrane-affinity properties of DiO, which allows it to bind to the cell membrane more rapidly than D-CNs (Additional file 1: Fig. S19, S20). To disclose the mechanism of internalization, endocytosis pathways of MC3T3-E1 cells were blocked using various inhibitors. As shown in Fig. 2E and F, the positive cell decreased to 54.3% after exposure to chlorpromazine (clathrin endocytosis inhibitor). However, there was no influence on the internalization of D-CNs in the presence of β-cyclodextrin (caveolin endocytosis inhibitor), amiloride (giant pinocytosis specific inhibitor), and cytochalasin D (actin-dependent endocytosis inhibitors) [59, 60]. Hence, the cellular uptake of CNs mainly relied on the clathrin endocytosis pathway. Then, MC3T3-E1 cells were treated with H2O2 to induce oxidative stress, simulating the detrimental microenvironment characteristic of osteoporosis. Cell viability decreased in a concentration-dependent and time-dependent manner. The survival rate of cells stimulated with 1 mM H2O2 for 6 h was 53.1%, which was used for subsequent studies (Additional file 1: Fig. S21-S23). After treatment with 200 and 400 μg/mL CNs for 24 h, cell viability was raised to 78.5% and 82.8% respectively, manifesting that CNs competently protected the cells from ROS destruction (Fig. 2G). ROS levels in MC3T3-E1 cells were seriously elevated after pretreatment with 1 mM H2O2 compared to the control group assessed using a DCFH-DA fluorescent detector. However, after the cells were treated with CNs, there was a noticeable decrease in green fluorescence signals and a reduction in the number of positively stained cells (13.9%), indicating the strong ROS-eliminating capacity in vitro (Fig. 2H). Next, we turned to access the osteogenic differentiation abilities in the osteoporotic microenvironment (Additional file 1: Fig. S24-S27). ALP staining images demonstrated that CNs effectively rescued MC3T3-E1 cells from a high oxidative stress environment and reprogrammed osteoblasts with the highest ALP expression observed at concentrations above 200 μg/mL (Fig. 2I, J). In addition, the calcium mineral deposition stained with Alizarin red S was lower in the H2O2 pretreatment group compared to the control group. However, there was a significantly higher amount of calcium mineral deposition observed after incubation with 200 μg/mL CNs. Moreover, this value increased 8.2-fold over time, suggesting that CNs can reprogram osteoblasts into osteogenic differentiated cells even under conditions of intense oxidative stress (Fig. 2I, K). Furthermore, the mRNA levels of osteogenic markers, including alkaline phosphatase (ALP), runt-related transcription factor 2 (Runx2), osteopontin (OPN), and osteocalcin (OCN), were up-regulated by 1.58, 1.72, 2.12, and 1.42 times in the H2O2 + CNs group respectively, which efficiently counteracted the oxidative stress effect of H2O2 (Fig. 2L–O)[61]. In consequence, CNs demonstrated potential as nanoantioxidants that could significantly reduce ROS generation and alleviate oxidative stress, thereby promoting osteogenic differentiation in the osteoporotic microenvironment.

Fig. 2
figure 2

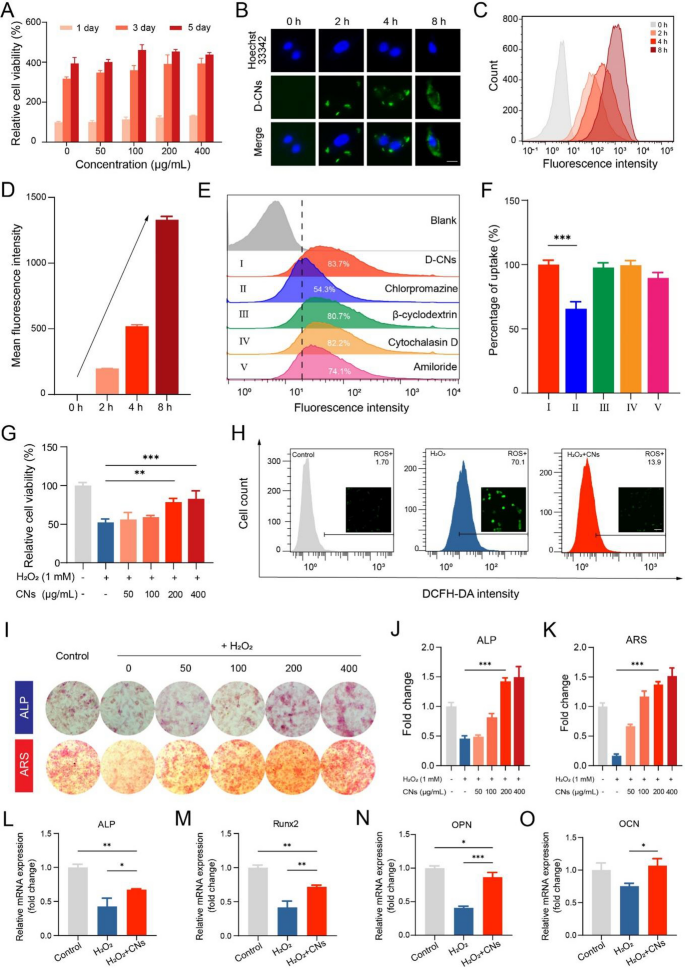

CNs reduce oxidative stress and promote osteogenic differentiation. A Cell viability of MC3T3-E1 cells treated with different concentrations of CNs over 5 days (n = 3). B CLSM images for observing cellular uptake of D-CNs at different times. Blue fluorescence represents cell nuclei stained by Hochest 33342, green fluorescence represents DiO-labeled CNs. Scar bar: 30 μm. C Flow cytometry images and D mean fluorescence intensity of D-CNs at different times for detecting cellular uptake (n = 3). E Flow cytometry images and F quantitative analysis of the D-CNs internalization after pretreatment with different inhibitors (n = 3. ***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). G Cell viability of MC3T3-E1 cells vs different concentrations of CNs under the condition of oxidative stress, 1 mM H2O2 stimulates cells 6 h to build an oxidative stress model (n = 3. **p < 0.01, ***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). H Flow cytometry images and CLSM images of intracellular ROS in MC3T3-E1 under different treatment conditions stained by DCFH-DA. Scar bar: 100 μm. I ALP and ARS staining images of MC3T3-E1 cells after incubation with different concentration CNs under H2O2 stimulation. J Semi-quantitative statistics of ALP expression positive area of MC3T3-E1 cells on day 3 after treatment with CNs under conditions of oxidative stress (n = 3. ***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tamhane post-hoc test). K Semi-quantitative of mineralized nodules of MC3T3-E1 cells on day 5 after treatment with CNs under conditions of oxidative stress (n = 3. ***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tamhane post-hoc test). L–O qPCR analysis for mRNA levels of osteogenic markers including ALP (L), Runx2 (M), OPN (N), and OCN (O, n = 3. *p < 0.05, **p < 0.01,***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). All data were presented as mean ± s.d.

Full size image

Since mitochondria are closely associated with oxidative stress and apoptosis, we next investigated their impact on cellular biological functions. First of all, the mitochondrial membrane potential (ΔΨm) of MC3T3-E1 cells, a critical indicator of mitochondrial function, was evaluated using the cationic dye JC-1, which could form aggregates (red fluorescence) in mitochondria with high ΔΨm levels but shift to a monomer (green fluorescence) in the cytosol when the mitochondria were damaged. As shown in CLSM images and quantitative results, the red/green ratio declined to 52.7% in the H2O2 group compared to the control group, testifying serious mitochondrial damage and cell apoptosis. Nevertheless, there was a significant increase in the red/green ratio (85.8%) after exposure to 200 μg/mL CNs for 24 h, implying an apparent protection against oxidative stress (Fig. 3A, C, Additional file 1: Fig. S28-S30). Bio-TEM images showed that mitochondrial membrane density increased and mitochondrial cristae decreased or even vanished upon H2O2 stimulation, which was significantly restored after CNs treatment (Fig. 3B, D). We turned to visualize the dynamic changes of the mitochondria by confocal microscopy after MitoTracker staining. As shown in Fig. 3E, the mitochondria in the H₂O₂ group exhibited shrinkage and a reduced area. However, treatment with CNs significantly restored the mitochondrial morphology, suggesting a recovery of mitochondrial integrity and function. Next, we assessed mitochondrial functionality by measuring the oxygen consumption rate (pmol/min/cells) using Seahorse technology. After treatment with 1 mM H2O2, basal respiration, mitochondrial-linked ATP production, and maximal respiration, were significantly reduced compared to the control group. The addition of 200 μg/mL CNs enhanced basal respiration, maximal respiration, and mitochondrial-linked ATP production, indicating that CNs could effectively restore mitochondrial functionality (Fig. 3F, G). Meanwhile, the activity of pro-apoptotic Caspase-3 was raised 5.1-fold once pretreatment with 1 mM H2O2 compared to the control group. As expected, the treatment of 200 μg/mL CNs dramatically down-regulated the activity of Caspase-3 (Fig. 3H). Since excess ROS plays a critical role in apoptosis, TUNEL staining images revealed that oxidative stress induced by H2O2 significantly triggered apoptosis in MC3T3-E1 cells. In contrast, the CNs group exhibited minimal apoptosis, as indicated by a weak red fluorescence signal (Fig. 3I). Besides, we used flow cytometry to investigate the fate of MC3T3-E1 cells following treatment with CNs. Pretreatment with H2O2 resulted in 7.2% late apoptotic cells and 4.5% necrotic cells. However, CNs significantly protected MC3T3-E1 cells from apoptosis, resulting in a low proportion of apoptotic (5.0%) and necrotic (2.7%) cells (Fig. 3J, K). The qPCR results also demonstrated that H2O2 increased the mRNA levels of the pro-apoptotic gene BCL2-associated X (Bax) and inhibited the expression of the anti-apoptotic gene B-cell lymphoma-2 (Bcl-2) compared to the control group (Fig. 3L). Taken together, CNs could successfully protect osteoblast cells from apoptosis thanks to their powerful antioxidant capacity.

Fig. 3
figure 3

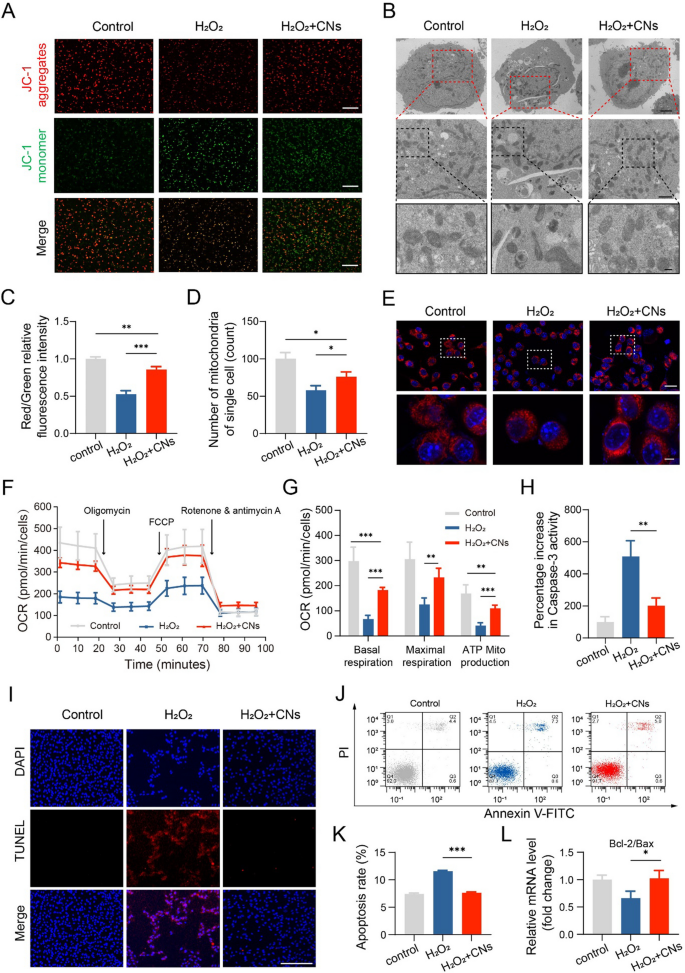

CNs improve osteoblast function in the osteoporotic microenvironment. A Representative fluorescent images under different treatment conditions detected by JC-1 staining (n = 3). Scar bar: 200 μm. B Representative images of mitochondrial morphology under Bio-TEM (n = 3). Scar bar (from top to bottom): 2 μm, 1 μm, 20 nm. C Semi-quantitative analysis of ΔΨm under different treatment conditions detected by JC-1 staining (n = 3. **p < 0.01, ***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). D Semi-quantitative analysis of mitochondria number (n = 3. *p < 0.05. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). E Representative images for Mitotracker Red CMXRos staining. Scar bar (from top to bottom): 25 μm, 5 μm. F Seahorse analysis and G Basal respiration, ATP-linked respiration, and maximal respiration on MC3T3-E1 cells treatment with H2O2 or H2O2 + CNs (n = 5. **p < 0.01, ***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). H The activity of Caspase-3 after treatment in different groups (n = 3. **p < 0.01. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). I Representative fluorescent images of TUNEL staining under different treatment conditions. Scar bar: 200 μm. J Flow cytometry apoptosis analysis and K quantitative analysis of apoptosis rate of different groups (n = 3. ***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). L qPCR analysis for mRNA levels of Bcl-2/Bax characterizes the degree of cell apoptosis (n = 3. *p < 0.05. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). All data were presented as mean ± s.d.

Full size image

To explore the combined effects of lipid and organic oxygen compounds derived from CNs, large unilamellar vesicles as mimicking CNs (MCNs) composed of GMS, Eru, Fru, and QA were prepared using the membrane-sonication method (Fig. 4A) [62]. The concentrations of GMS, Eru, Fru, and QA in MCNs align with the contents observed in CNs (Additional file 1: Table S1). As shown by the DLS results in Fig. 4B and C, MCNs had an average size of 267.2 nm and a negative surface charge of − 22.8 mV, similar to the nanostructures of CNs. Next, we proceeded to test the total ROS elimination ability using the ABTS·+ assay. Single compounds, such as GMS, Eru, Fru, and QA, exhibited a very weak antioxidant capacity, as they were able to eliminate less than 10% of ABTS·+ radicals. When these compounds were prepared into MCNs, the clearance rate was significantly increased to 13.0%. As anticipated, our CNs exhibited the highest clearance rate of 70.1%, illustrating the synergistic effect of many kinds of compounds (Fig. 4D). In addition, we also disclose their biocompatibility with MC3T3-E1 cells under high oxidative stress that mimics the microenvironment of osteoporosis (Fig. 4E). Individual GMS and Eru molecules exhibited significant cytotoxicity towards MC3T3-E1 cells over a 24-h treatment period, which may be attributed to their hydrophobic nature and their ability to disrupt cell membranes. However, both MCNs and CNs demonstrated exceptional compatibility, with cell viability significantly increased compared with the H2O2 group, which indicated that multicomponent synergies and nanoparticulate effects enhanced cell compatibility. MCNs had moderate effects on ROS elimination and restoration of mitochondrial functions (Fig. 4F, G, Additional file 1: Fig. S31, S32). ALP staining image results revealed that individual Fru and QA molecules had minimal impact on ALP expression. In contrast, the MCNs group exhibited moderate ALP expression levels, while the CNs group demonstrated the highest ALP expression, attributable to the synergistic effects of multiple components (Fig. 4H, Additional file 1: Fig. S33). In addition, the degree of mineralization, as shown in Fig. 4I, followed this order: CNs > MCNs > QA > Fru (Additional file 1: Fig. S34, S35). As a result, CNs possessed excellent abilities to eliminate oxidative stress, restore osteoblast activity, and promote osteogenic differentiation through the synergistic effects of multiple active components.

Fig. 4
figure 4

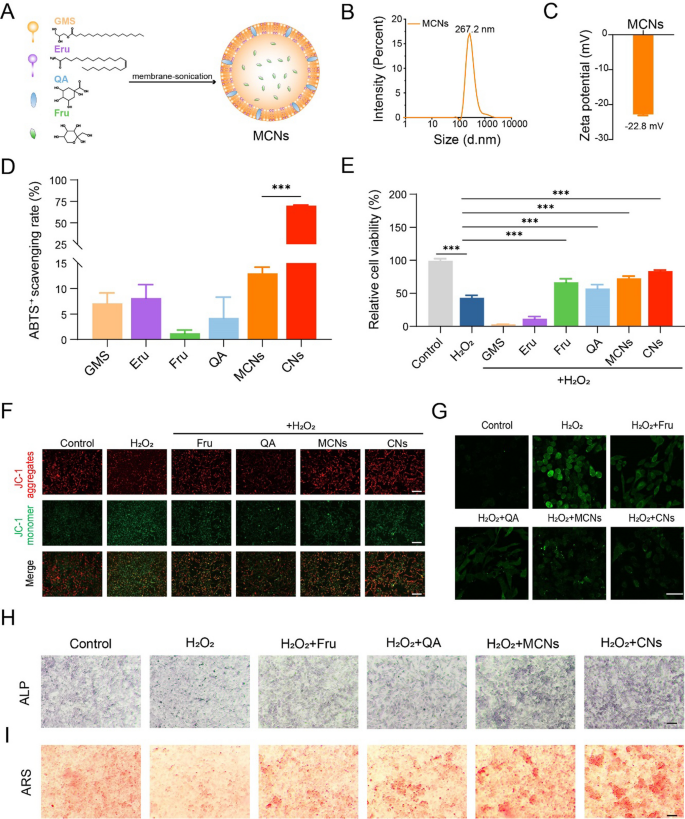

Characterization and bioactivity evaluation of MCNs. A Schematic illustration of the synthesis of MCNs. B Size distribution and C zeta potential of MCNs (n = 3). D ABTS·+ radical scavenging capacity of GMS, Eru, Fru, QA, MCNs, and CNs (n = 3. ***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). E Cell viability of MC3T3-E1 cells after treatment with different groups for 24 h under the condition of oxidative stress (n = 3. ***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). F Representative fluorescent images under different treatment conditions detected by JC-1 staining. Scar bar: 200 μm. G CLSM images of intracellular ROS in MC3T3-E1 cells under different treatment conditions stained by DCFH-DA. Scar bar: 50 μm. H ALP staining images and I ARS staining images of MC3T3-E1 cells after incubation with different groups with H2O2 stimulation. Scar bar: 100 μm. All data were presented as mean ± s.d.

Full size image

RNA sequencing to analyze the cellular signaling mechanisms of CNs alleviate oxidative stress and restore osteoblast activity.

Next, we employed transcriptome RNA sequencing to elucidate the cellular signaling mechanisms by which CNs alleviate oxidative stress and restore osteoblast activity. As shown in Fig. 5A and B, a total of 4482 DEGs were identified between the H2O2 and control groups, with 2684 upregulated genes and 1798 downregulated genes. In the H2O2 + CNs group compared to the H2O2 group, 563 genes were upregulated and 260 genes were downregulated. Then, the results of the GO functional enrichment analysis indicated that DEGs between H2O2 and control groups were predominantly enriched in processes related to cell differentiation, cell communication, biological regulation, and MAP kinase phosphatase activity (Fig. 5C, Additional file 1: Table. S4). Besides, the KEGG analysis showed that these genes were primarily associated with MAPK and calcium signaling pathways, which play important roles in oxidative stress response and bone regeneration (Fig. 5D). After treatment with CNs, GO analysis revealed that the DEGs between H2O2 + CNs and H2O2 groups were mainly associated with cell development, cell communication, calcium ion binding, and ion channel activity (Fig. 5E, Additional file 1: Table. S5), while KEGG results suggested that the calcium signaling pathway may play a crucial part in regulating oxidative stress and accelerating osteogenic differentiation (Fig. 5F, Additional file 1: Fig.S36, S37, and Table. S6). After normalizing to the control group, heat maps of DEGs associated with calcium and MAPK signaling pathways were generated to reveal the expression intensities. Many genes in the calcium signaling pathway (Fig. 5G), such as ATPase, Ca + + transporting, plasma membrane (Atp2b), 5-hydroxytryptamine receptor 2A (Htr2a), and 5-hydroxytryptamine receptor 5A (Htr5a), were significantly down-regulated in the H2O2 group. However, treatment with CNs effectively reversed this downregulation. Recent studies have shown that high oxidative stress conditions can disrupt calcium homeostasis and induce apoptosis through the calcium signaling pathway [19, 63]. Therefore, we next examined intracellular calcium concentrations via a calcium colorimetric assay kit. Intracellular calcium concentrations increased significantly by 6.7 times following exposure to 1 mM H2O2, in comparison to the control group. However, the administration of 200 μg/mL CNs could reduce the intracellular calcium concentration (Fig. 5I). For the MAPK signaling pathway, oxidative stress in the H2O2 group induced the upregulation of dual specificity phosphatase 6 (Dusp6), Dusp10, and transformation-related protein 53 (Trp53) and promoted the downregulation of mitogen-activated protein kinase 10 (Mapk10). Nevertheless, CNs could protect cells from the harmful effects of oxidative stress on the MAPK signaling pathway, resulting in similar gene expression profiles between the CNs-treated and control groups (Fig. 5H). qPCR results found that stimulation of MC3T3-E1 cells with H2O2 led to upregulation of Dusp6 (4.1 fold), Dusp10 (40.5 fold), and Trp53 (2.1 fold), while the Mapk10 was downregulated to 28.8%. However, there were weaker expression changes in the above genes following the treatment of CNs, which well agreed with RNA sequencing results (Fig. 5J). In conclusion, CNs could reverse the influence of oxidative stress on calcium and MAPK signaling pathways, rebalance calcium homeostasis, and enhance osteoblast viability.

Fig. 5
figure 5

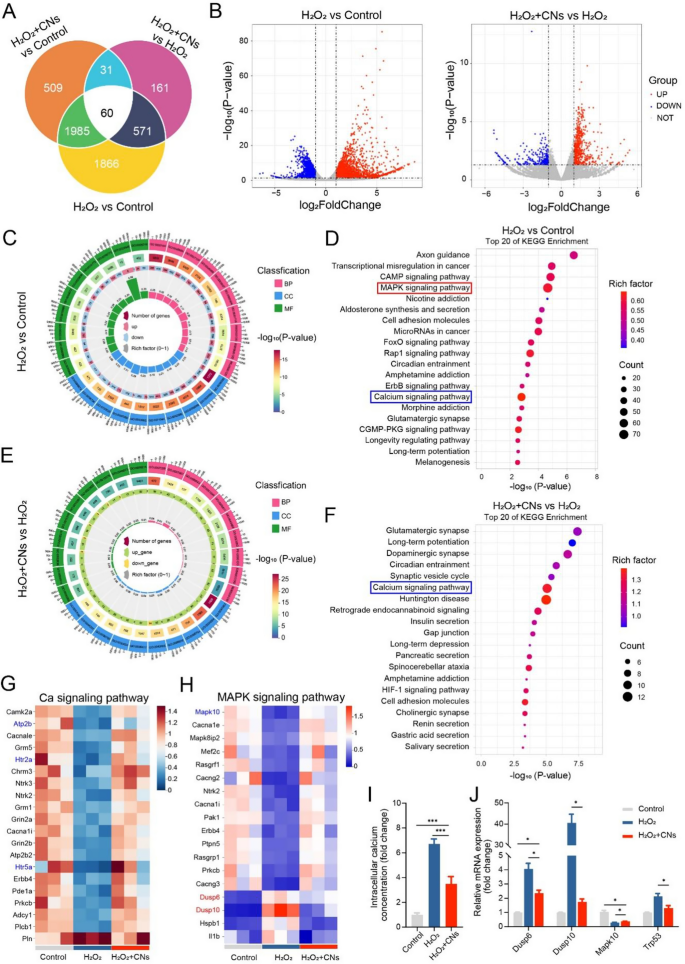

Cellular signaling mechanisms of CNs alleviate oxidative stress and restore osteoblast activity. A Venn plot showing differential gene expression among groups. B Volcano map of DEGs about H2O2 vs control, H2O2 + CNs vs H2O2. C GO circle enrich diagram and D KEGG enrichment bubble diagram of DEGs and pathways between H2O2 and control. E GO and F KEGG enrichment analysis of DEGs and pathways between H2O2 + CNs and H2O2 (BP: Biological Process; CC: Cell Component; MF: Molecular Function). The ID information of the GO term is reported in detail in supplementary Table S4 and S5 in the Additional file 1. G Differential gene expression profiles of calcium signaling pathway and H MAPK signaling pathway among three groups (n = 3). I Intracellular calcium concentrations of MC3T3-E1 cells with different treatments normalized relatively to protein concentrations per well (n = 3. ***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). J qPCR analysis for mRNA levels of Dusp6, Dusp10, Mapk10, and Trp53 (n = 3. *p < 0.05. Statistical significance was calculated by one-way ANOVA, followed by the Tamhane post-hoc test). All data were presented as mean ± s.d.

Full size image

In vivo osteoporosis reversal

After confirming their robust antioxidant capacity and satisfactory osteogenic differentiation effects in vitro, we proceeded to thoroughly assess the in vivo performance of CNs. We established the OVX model by surgically removing both ovaries from C57BL/6J mice for subsequent studies[64, 65]. To visually investigate their in vivo fate, CNs were labeled with fluorescent dye DiO. After intravenous injection of D-CNs into the OVX model, the plasma drug concentration versus time profiles were shown in Additional file 1: Fig. S38 and S39, and the pharmacokinetic parameters were listed in Additional file 1: Table S7. CNs exhibited a long half-life period (t1/2β, 37.2 h), with an area under the curve (AUC0−∞) of 31.8 mg L−1 h. DiR, a commercially available near-infrared fluorescent probe known for its powerful membrane affinity. The in vivo distribution of DiR-CNs was visualized using a fluorescence imaging system. As shown in Fig. 6A, the DiR-CNs group exhibited progressively stronger fluorescence in bone tissues over the 24-h treatment period. In contrast, the individual DiR molecules group displayed only a very weak fluorescence signal after up to 24 h of treatment. Quantitative analysis revealed that the fluorescence intensity at the femur and tibia sites in the DiR-CNs group was 19.6-fold higher compared to the DiR group (Fig. 6B). These results fully suggested that CNs could passively target osteoporotic bone tissues due to the presence of noncontinuous bone marrow capillaries. Upon exposure to acidic osteoporotic microenvironment (pH 4.0), CNs undergo a transformation into larger particles. This change occurs due to alterations in surface charge driven by electrostatic interactions, which may potentially enhancing their retention within bone tissue. Next, we evaluated the in vivo antioxidant properties and bone regeneration effects in the OVX mouse model. As shown in Fig. 6C, CNs were intravenously injected once every 3 days for 8 weeks. 17β-estradiol, a commonly used clinical osteoporosis drug, was selected as a positive control group for in vivo study. After 8 weeks, bone tissues were collected and stained for ROS using a DHE fluorescence probe. The ROS fluorescence intensity was higher in the OVX model group compared to the sham group, indicating enhanced oxidative stress in the microenvironment associated with osteoporosis. After treatment with 2.5 mg/kg CNs, the ROS level significantly decreased compared to the OVX group, which was consistent with previous results (Additional file 1: Fig. S40, S41). After confirming strong antioxidant capacity, we proceeded to observe bone regeneration using micro-CT and 3D reconstruction (Fig. 6D). Cross-sectional 2D images and 3D reconstruction images displayed severe bone loss in the OVX mice. However, better connectivity and organized architecture of the trabecular bone were observed after CNs treatment, resembling the results seen in the E2-positive group. In the quantitative results (Fig. 6E–I), the CNs group exhibited values of BV/TV (%), BMD (g cm−3), Tb. N (mm−1), Tb. Th (mm), and Tb. Sp (mm) of 7.0%, 0.16 g cm−3, 1.37 mm−1, 0.05 mm, and 0.29 mm, respectively. Moreover, no significant difference was observed between the CNs group and the sham group. Nevertheless, the OVX model group demonstrated lower values of BV/TV (3.6%), BMD (0.11 g cm−3), Tb. N (0.87 mm−1), and Tb. Th (0.04 mm), as well as a higher value of Tb.Sp (0.36 mm). Meanwhile, the serum concentration ratio of bone formation-related marker calcium to phosphorus (Ca/P) also showed the same trend between the different groups (Fig. 6J). Notably, CNs have shown enormous potential as nanoantioxidants in terms of bone tissue retention and reversing osteoporosis.

Fig. 6
figure 6

In vivo distribution and promotion of osteogenesis in ovariectomized mice by tail vein injection of CNs. A Living fluorescence imaging of C57BL/6J mice’s whole body and various tissues, including heart, liver, spleen, lung, kidney, and bone, after intravenous injection of PBS, DiR, and DiR-CNs for 24 h. B DiR dye intensity was measured using the Living Image software (n = 3, ***p < 0.001. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). C Schematic diagram of the establishment of animal models and treatment procedure. D Representative images of 3D micro-CT images of the structure of metaphyseal trabecular bone in the distal femur showing bone loss in OVX mice and regaining of bone mass by treatment with 2.5 mg/kg CNs. The areas magnified displayed the cross-section in 2D vision and partial bone volume in 3D vision, respectively. E–I Quantification of BV/TV (%), BMD (g cm−3), Tb. N (mm−1), Tb. Th (mm), and Tb. Sp (mm, n = 3. *p < 0.05, **p < 0.01, NS, not significant. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). J The serum concentration ratio of bone formation-related marker calcium to phosphorus in different groups (n = 3. *p < 0.05, NS, not significant. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). All data were presented as mean ± s.d.

Full size image

To investigate the impact of CNs on bone metabolism, femoral tissues underwent detailed analysis using H&E staining as well as Masson staining. As shown in Fig. 7A, thin and loosely arranged microarchitectures were observed in the OVX model. As anticipated, the femoral tissues exhibited increased density and compactness following the CNs treatment regimen. Furthermore, Masson trichrome staining revealed a prominent osteoid matrix and decreased presence of lipid droplets in the CNs group (Fig. 7B). After the treatment period of 8 weeks, the administration of CNs resulted in a significant decrease in Dusp10-positive cells, showing a 2.5-fold reduction compared to the OVX group (Fig. 7C, D). More importantly, the number of JNK-positive cells was significantly increased compared to the OVX group (Fig. 7E, F). These results suggested that CNs counteracted bone loss in osteoporosis by regulating the microenvironment through the MAPK signaling pathway.

Fig. 7
figure 7

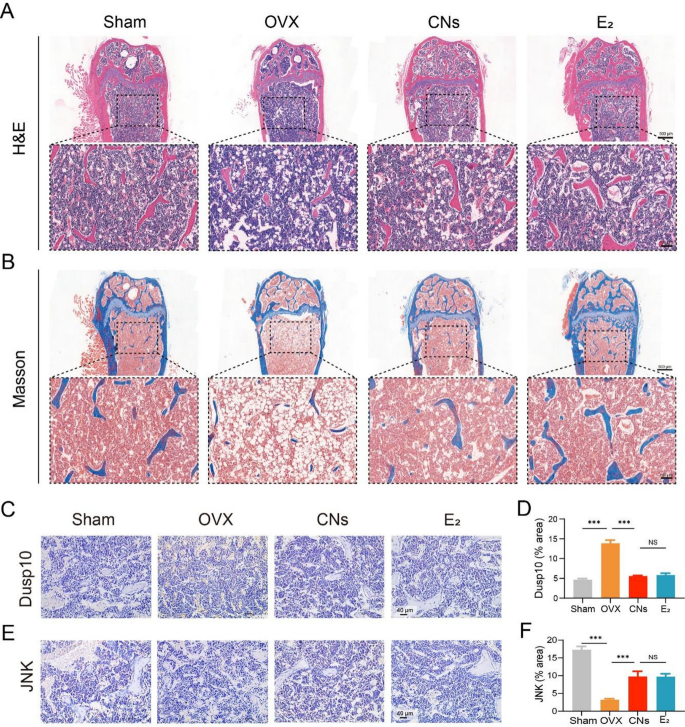

Histological and immunohistochemical analysis. Representative images of (A) H&E and (B) Masson staining images of decalcified femoral sections. Scar bar: 500, 100 μm. Immunohistochemical images of decalcified femoral sections for (C) Dusp10 and (E) JNK protein in different groups. Scar bar: 40 μm. Semi-quantitative analysis of positively stained areas of (D) Dusp10 and (F) JNK in different groups (n = 3, ***p < 0.001. NS, not significant. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). All data were presented as mean ± s.d.

Full size image

Last but not least, we thoroughly evaluated the biosafety of CNs, as excellent biocompatibility is crucial for their application in translational medicine. As shown in Fig. 8A–D, the body weights increased from 18.2 to 24.0 g after treatment with 2.5 mg/kg of CNs. The results of the in vivo blood routine examination revealed that all key hematological parameters in the mice showed negligible changes (Fig. 8E). There were no significant fluctuations in liver functional indexes (ALT and AST) and kidney functional indicators (BUN and CREA) between the CNs-treated group and the sham group (Fig. 8F–I). H&E staining images disclosed that CNs had no significant effect on the major organs, including the heart, liver, spleen, lung, and kidney (Fig. 8J). In consequence, nanovesicles derived from carrots possessed good biocompatibility, offering huge potential in the treatment of osteoporosis and other biomedical applications.

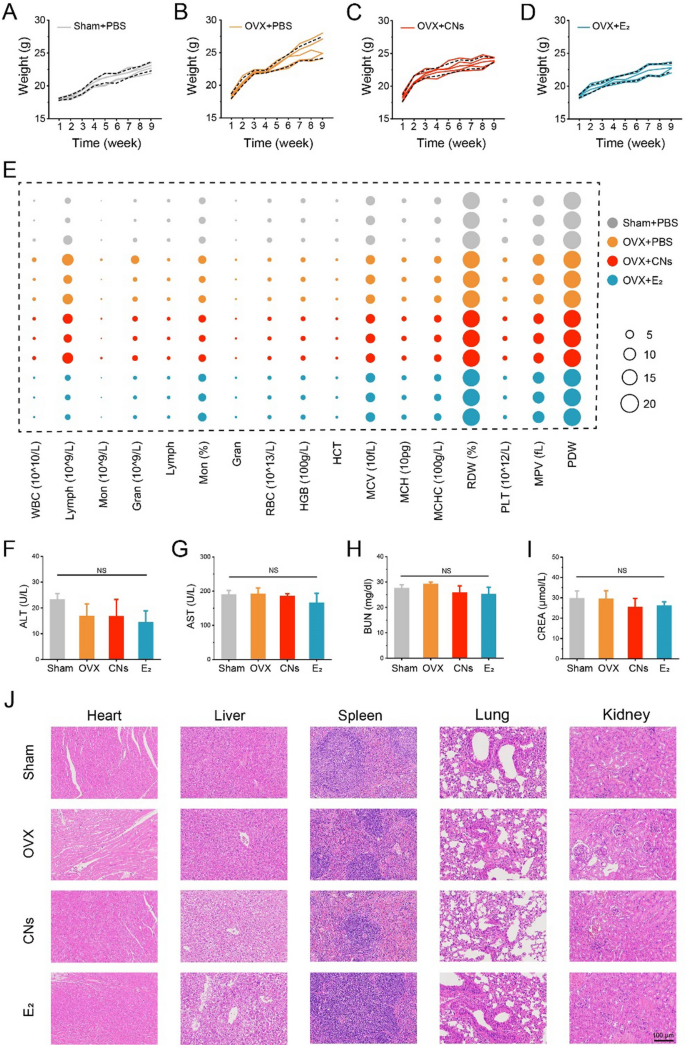

Fig. 8
figure 8

In vivo safety evaluation. A–D Body weight of mice in different treatment groups over 8 weeks (n = 5). E Routine blood tests of mice from different treatment groups 8 weeks after surgery (n = 3). F–I ALT, AST, BUN, and CREA of mice from different treatment groups (n = 3. NS, not significant. Statistical significance was calculated by one-way ANOVA, followed by the Tukey post-hoc test). J Histological images of the heart, liver, spleen, lung, and kidney of mice from different groups at 8 weeks postoperatively. Scar bar: 100 μm. All data were presented as mean ± s.d.

Full size image

Conclusion

In summary, we successfully constructed nanovesicles derived from carrots as a novel type of nanoantioxidants to modulate the oxidative stress microenvironment, thereby aiding in the reversal of bone rarefaction. Nanovesicles were obtained with well-defined bilayer membrane structures, enriched with active ingredients. Nanovesicles demonstrated excellent dispersion under normal physiological conditions with significant stealth ability. However, at pH 4.0 mimicking an acidic osteoporotic microenvironment, they aggregated into larger particles, enhancing their retention within osteoporotic bone tissue. The nanovesicles effectively scavenged ROS and relieved oxidative stress, therapy restoring the mitochondrial function and osteogenic differentiation of osteoblast in vitro. Furthermore, nanovesicles could passively target and aggregate in bone tissue after an extended period in the bloodstream, which could help alleviate oxidative stress and reverse bone loss in vivo. Next, we aim to conduct an in-depth study comparing the efficacy and safety of these nanovesicles with existing treatments, such as bisphosphonates, estrogen, and calcium. This work presents the first demonstration of nanovesicles derived from carrots as innovative nanoantioxidants with the potential to promote osteogenesis, offering significant promise for clinical applications in osteoporosis treatment.
