Amaryllidaceae alkaloids (AAs) are a large group of plant-specialized metabolites displaying an array of biological and pharmacological properties. Previous investigations on AA biosynthesis have revealed that all AAs share a common precursor, norbelladine, presumably synthesized by an enzyme catalyzing a Mannich reaction involving the condensation of tyramine and 3,4-dihydroxybenzaldehyde. Similar reactions have been reported. Specifically, norcoclaurine synthase (NCS) which catalyzes the condensation of dopamine and 4-hydroxyphenylacetaldehyde as the first step in benzylisoquinoline alkaloid biosynthesis.
With the availability of wild daffodil (Narcissus pseudonarcissus) database, a transcriptome-mining search was performed for NCS orthologs. A candidate gene sequence was identified and named norbelladine synthase (NBS). NpNBS encodes for a small protein of 19 kDa with an anticipated pI of 5.5. Phylogenetic analysis showed that NpNBS belongs to a unique clade of PR10/Bet v1 proteins and shared 41% amino acid identity to opium poppy NCS1. Expression of NpNBS cDNA in Escherichia coli produced a recombinant enzyme able to condense tyramine and 3,4-DHBA into norbelladine as determined by high-resolution tandem mass spectrometry.
Here, we describe a novel enzyme catalyzing the first committed step of AA biosynthesis, which will facilitate the establishment of metabolic engineering and synthetic biology platforms for the production of AAs.
The Amaryllidaceae alkaloids (AAs) are a group of naturally synthesized molecules with more than 600 renowned complex structures . They are pharmacologically active compounds that are classified under three different groups of C-C phenol coupling namely para-para’, ortho-para’ and para-ortho’ . An outsized variety of pharmacologically active AAs have been identified with the bioactive properties including the acetylcholine esterase inhibitor galanthamine, anti-tumor activity of lycorine and the cytotoxic haemanthamine [3,4,5]. AAs are obtained chiefly from the extracts of plants from Galanthus, Leucojum and Narcissus species, as their complicated structures do not enable cost-effective high-yield organic synthesis . Though AAs display a large range of pharmaceutical applications, only galanthamine is accessible in markets as an Alzheimer’s treatment drug because of its ability to stabilize behavioral symptoms in the course of six months treatment in comparison to chemically synthesized acetylcholinesterase inhibiting drugs, donepezil and rivastigmine .
Previous investigations on the biosynthesis of AAs in planta have revealed that all AAs are made from the common metabolic intermediate, norbelladine (Fig. 1) [8,9,10,11,12,13,14]. For example, radiolabeled studies showed that deuterium labelled 4’-O-methylnorbelladine was incorporated in all three different groups of AAs . To date, only three AAs biosynthetic genes have been identified including the norbelladine 4’-O-methyltransferases (N4OMT), encoding N4OMT enzyme catalyzing norbelladine methylation at 4′ position to form 4’-O-methylnorbelladine , CYP96T1, encoding a cytochrome P450 enzyme which catalyzes the synthesis of (S,R)-noroxomaritidine  and noroxomaritidine reductase (NR) encoding the enzyme that catalyzes the formation of oxomaritinamine . However, to this date, the enzyme catalyzing the first committed step leading to norbelladine synthesis has not been identified.
It has been proposed that norbelladine is formed by the condensation of tyramine and 3,4-dihydroxybenzaldehyde (3,4-DHBA) via a Mannich reaction . The involvement of the Mannich reaction has been proposed in many biosynthetic pathways, especially for alkaloids. For example, norcoclaurine synthase (NCS), catalyzing the first committed step in benzylisoquinoline alkaloids formation, condenses the two precursors molecules; dopamine and 4-hydroxyphenylacetaldehyde to form norcoclaurine . Since the AA biosynthetic pathway shares analogy with the benzylisoquinoline alkaloid biosynthesis, we proposed that a NCS ortholog in Amaryllidaceae may be a candidate that is capable of catalyzing the formation of norbelladine.
Hence for this study, we applied BLAST searches for candidate sequences orthologous to NCS in our previously generated de novo transcriptome from wild daffodil (Narcissus pseudonarcissus) . The NCS orthologous sequence identified named norbelladine synthase (NBS) was isolated, cloned in an expression vector and transformed into E. coli. Following heterologous expression and purification, NBS recombinant protein was used for enzyme assay and LC-MS/MS analysis of the product showed that NBS has the ability to convert 3,4-DHBA and tyramine to norbelladine. Thus, we report on the first characterization of norbelladine synthase, the enzyme which catalyzes the first committed step in AAs biosynthesis.
Candidate gene identification
RNA from N. pseudonarcissus ‘King Alfred’ bulb was isolated and corresponding cDNA was used for Illumina sequencing, which provided a deep transcriptome database to search for expressed genes encoding enzymes involved in AA biosynthesis . To identify orthologous sequence to NCS in N. pseudonarcissus transcriptome, we performed BLASTx sequence similarity searches with NCS from Thalictrum flavum, Papaver somniferum, Argenome mexicana, Eschscholzia californica, Chelidonium majus and Coptis japonica. Three resulting orthologous full-length transcripts were obtained (TR17354|c0_g1_i1, TR17354|c0_g1_i2 and TR17354|c0_g1_i3) consisting of 593, 575 and 583 bp with corresponding open reading frames of 492, 480 and 483 bp, respectively. Their E-value to NCS ranges between 1e− 20 to 4e− 20. The three transcripts were 97% identical, though small differences were observed towards the 3’end (Additional file 1). The candidate displaying the longest predicted ORF of 492 bp was named N. pseudonarcissus Norbelladine Synthase (NpNBS) and was used for subsequent functional analysis. The ORF encoded protein consisted of 163 amino acids with an anticipated molecular weight of 19 kDa and a theoretical pI of 5.5. BLAST and motif scan analyses revealed the presence of conserved Bet v1 and Pathogenesis-Related (PR-10) protein domain. The PR-10/Bet v1 allergen proteins do not possess NCS activity although they share similarity to NCS protein. Thus, NpNBS, similarly to NCS, belongs to the PR-10/Bet v1 protein family.

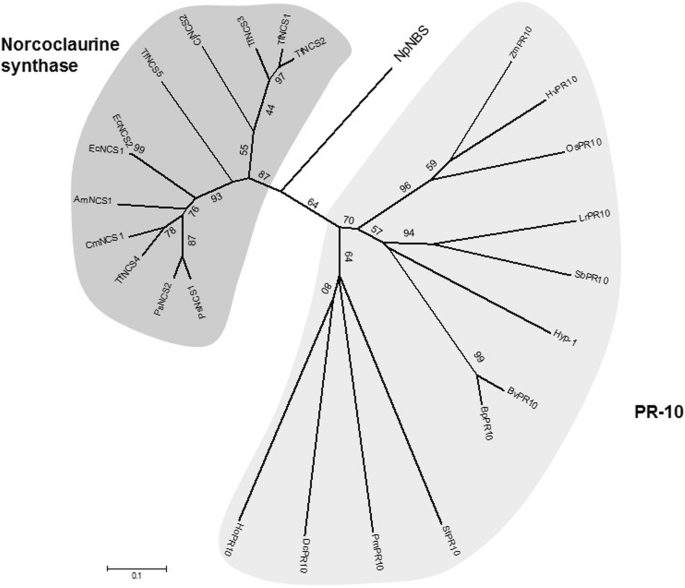

To investigate the evolutionary history of NpNBS and its relationship with PR-10/Bet v1 proteins, a phylogenetic tree was constructed with the predicted amino acid sequence of NpNBS. Although all proteins are members of the PR-10 protein family, the phylogenetic tree was clearly divided into two main clusters: the PR-10 and the Norcoclaurine synthases (Fig. 2; Additional file 2). This type of clustering was reported previously . Notably, NpNBS shares higher homology with proteins from the NBS cluster including 38% amino acid sequence identity with Thalictrum flavum TfNCS1/2 and 41% with Papaver somniferum PsNCS1/2. NpNBS displayed comparatively lower identity to proteins of the PR-10 cluster including 19% identity to Betula verrucosa BvPR10 and only 7% to Hyacinthus orientalis HoPR10. Although NpNBS sequence is located the edge of the PR-10/NCS cluster, it is more closely related with the NCS group since it showed higher homology with TfNCS (Fig. 2). Altogether the results suggest that NBS, NCS and PR-10 evolved as distinctive genes over time.

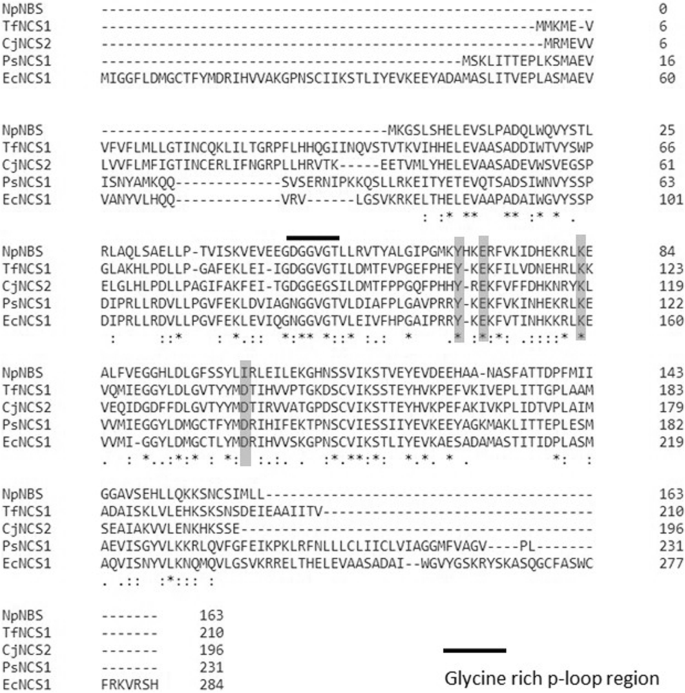

To identify regions of similarity that may be important for defining functional and structural relationships, multiple sequences alignment were performed using NpNBS and the NCS amino acid sequences from various plant species (Fig. 3). Thus, EcNCS1, PsNCS1, CjNCS2 (formely CjPR10A) and TfNCS1 genes shared over 38% identity in amino acid sequences with each other, while they showed the same identity (38%) with NpNBS. The alignment also showed the presence of NCS conserved catalytic residues Tyr108, Glu110, Lys122 and Asp141 (Fig. 3). The residues were renamed as Tyr68, Glu71, Lys83, according to their position in NpNBS protein sequence. However, the NCS Asp141 was not found in NpNBS sequence and was replaced by an isoleucine residue. All amino acid sequences contained a phosphate-binding loop (P-loop) glycine-rich region (Fig. 3). The glycine-rich loop is the conserved ligand-binding domain of Bet v1 protein family . Subcellular localization of the NpNBS amino acid sequence was predicted using several programs, including SignalP4.1 and WoLF PSORT, and the result indicated the absence of signal peptides. In addition, localization predictor program (PSLpred) identified NpNBS as a cytosolic protein. Altogether, the data suggest that NpNBS proteins are localized in cytoplasm.
The study of NpNBS expression profile in different tissues of N. pseudonarcissus ‘King Alfred’ by reverse transcription quantitative PCR (RT-qPCR) revealed high expression of NpNBS in bulbs compared to roots, stems, leaves and flowers (Fig. 4). The normalized ddCT expression of NpNBS in other tissues was detected below 60, whereas its expression in bulbs was approximately 1500 folds higher. High expression of NpNBS relates to the higher AAs content in bulbs of N. pseudonarcisssus ‘King Alfred’ .
NpNBS gene cloning and heterologous expression
To produce recombinant NpNBS, a full-length NpNBS cDNA was PCR amplified from N. pseudonarcissus. The amplified product of NpNBS shows a band of 566 bp on the 1% agarose electrophoresis gel (Fig. 5a). NpNBS was gel purified, cloned into the pET301 expression vector with a C-terminal 6x-His tag, transformed into E. coli competent cells and the positive colonies were selected on LB supplemented with ampicillin and chloramphenicol. Colony PCR confirmed the presence of positive colonies (Fig. 5b) which were induced with IPTG at 37 °C and protein fractions were extracted. SDS-PAGE analysis was performed with different fractions obtained during NpNBS protein purification process which show bands of different sizes, suggesting the presence of numerous bacterial cell proteins in fractions from the crude (Cr), lysate (L1 and L2) and wash buffer (W1 and W2). An apparent molecular mass of 19 kDa in elution buffer 1 (E1) was observed, which was absent in non-induced protein (NI) (Fig. 5c). Western blot analysis was performed using 6x His-tag monoclonal antibody. A His-tag NpNBS crude (Cr) and purified extracts (E1) isolated from transformed bacterial cell culture grown at 37 °C showed the expected protein at molecular weight of 19 kDa. No protein expression was observed in cultures without IPTG (NI) (Fig. 5d). The results showed successful production of recombinant NpNBS from IPTG-induced bacterial cell culture.
NpNBS enzyme assay
For the biosynthesis of all AAs, the precursor norbelladine is made from a the condensation of tyramine and 3,4-DHBA which forms the imine norcraugsodine followed by its reduction to norbelladine . It is not clear if norbelladine formation is one stepwise reaction catalyzed by a single enzyme or two separate reactions (condensation and reduction) catalyzed by different enzymes. To confirm NpNBS protein function, enzyme assays were carried out with purified NpNBS recombinant protein. The resulting assay product was subjected to LC-MS analysis using a Positive Electrospray Ionization mode (+ESI). The QqQ dual +ESI source conditions were optimized using freshly synthesized alkaloid standards, norbelladine and norcraugsodine (Additional file 3) to obtain a high sensitivity. The MS/MS parameters such as capillary voltage, spray voltage and skimmer voltage were enhanced to maximize the ionization in the source and sensitivity to identify and characterize all possible fragmentation products. With standards, we observed predicted major mass spectral fragments for the nobelladine m/z 260 [M + H]+ and norcraugsodine m/z 258 [M + H] +, both at 5.5 min (Additional file 3). Fragmentation of norbelladine molecular ion m/z 260 [M + H]+ yielded ion fragments of m/z 159, 138, 123 and 121 (Additional file 3). The ion fragment m/z 138 was obtained by the elimination of the 4-ethylphenol moiety (122 Da) whereas m/z 121 was produced by loss of tyramine. Precisely for norbelladine, the transition [M + H]+ of 260 → 138 was selected for the qualifier ion fragment and the transition [M + H]+ of 260 → 121 was used as the quantifier ion (Additional file 3). Similar MS/MS ion fragments spectra were reported for norbelladine suggesting a good fragmentation of our standard .
Enzyme assays with NpNBS yielded a peak at 5.5 min on LC-MS which was the same retention time as those of the norbelladine and norcraugsodine standards. The +ESI-MS/MS analysis of the NpNBS enzyme assay product showed the presence of the qualifier and quantifier ion fragments of norbelladine (Fig. 6). The level of product was detected in the NpNBS assay pH 4 and at lower levels at pH 7. Norcraugsodine molecular ion and fragment ions were not detected in the assay. It should be noted that a very low background reaction was observed in control assay/non-induced protein assay (i.e. when the two substrates were in contact without NpNBS) suggesting a low level of non-enzymatic condensation. However, these levels were 1000 times lower than those measured in presence of NpNBS. NpNBS enzyme assay product shows that NpNBS catalyzes the condensation reaction between tyramine and 3,4 DHBA to produce norbelladine. Thus, the in vitro enzyme assay demonstrated ability of norbelladine synthase activity of NpNBS with a preference at pH 4.
The formation of norbelladine is a crucial step in the formation of Amaryllidaceae alkaloids. In this study, we identified the enzyme norbelladine synthase in wild daffodil (N. pseudonarcissus) responsible for the condensation of tyramine with 3,4-dihydroxybenzaldehyde (3,4-DHBA) to form norbelladine. NpNBS contains conserved Bet v1 domain and thus is a member of the Bet v1/PR10 protein family. The PR-10 family universally exist in plants of monocots and dicots group [23,24,25]. Apart from the PR-10 family, recently Bet v1 have shown an extended low level similarity with three more protein families; major latex and ripening-related proteins, norcoclaurine synthase proteins, and cytokinin-binding proteins from legumes . Several studies have also demonstrated that members of the Bet v1/PR-10, specifically of the NCS group, have a crucial role in alkaloid production [27, 28]. For example, PsNCS from opium poppy shares significant amino acid identity with PR-10 and Bet v1 protein and NCS has a major role in benzylisoquinoline alkaloid biosynthesis. Indeed, Virus-Induced Gene Silencing (VIGS) of PsNCS1 and PsNCS2 transcripts resulted in a 75 to 82% decrease of main alkaloids in opium poppy latex compared to control .
NCS catalyzes the condensation of dopamine with 4-hydroxyphenylacetaldehyde to yield (S)-norcoclaurine, the central precursor of benzylisoquinoline alkaloids. NpNBS was identified from transcriptome data search using NCS sequence homology. The high level of NpNBS expression in bulbs correlates with elevated content (and diversity) of AAs compared to other plant parts suggesting the importance of NpNBS in AA metabolism. Interestingly, UPLC-QTOF-MS detected 4-hydroxybenzaldehyde, the pathway precursor to 3,4-DHBA the co-substrate for NpNBS, only in underground tissues such as bulb and roots . NpNBS shared 41% amino acid sequence identity with P. somniferum NCS1 and NCS2 but lacked the signal peptide that could be involved in subcellular localization. Furthermore, motif searches predicted that NpNBS is a cytosolic protein and is not associated with a subcellular compartment such as endoplasmic reticulum, mitochondria or peroxisomes. The observed catalytic activity of NpNBS confirmed its role in AA biosynthesis. The shorter N-terminal region of NpNBS, 41 amino acid less compared to TfNCS (Fig. 3), and the absence of the signal peptide in the sequence did not affect its activity suggesting that it is not required. These results are consistent with studies conducted on TfNCS which reported that a signal peptide had no role in the catalytic activity of an enzyme. Samanani et al. (2004)  studied the activity of TfNCS protein encoding truncation of first 10 and 29 N-terminal amino acids which resulted in formation of (S)-norcoclaurine. Both recombinant proteins displayed enzymatic activity . In addition, a study conducted on four N-terminally truncated variants of CjNCS of 10, 19, 29 and 42 amino acids residues revealed an increasing fold of enzymatic activity. For example, CjNCS-Δ19 displayed 10-fold (0.30 U/mL) and CjNCS-Δ29 had shown 40-fold (1.20 U/mL) higher activity compared to full length CjNCS (0.03 U/mL) . Recently, Li et al. (2016) reported on the isolation and characterization of NCS variants from several alkaloid-producing plant species. They found that in some case, NCS orthologs possess two, three or four repeated catalytic domains and their presence was found to be proportional with increase in catalytic efficiency .
NpNBS enzyme catalyzes norbelladine synthesis by a condensation process between amine and aldehyde. Among the proposed catalytic residues, the Glu71 was detected with + 1 histidine shift in NpNBS which might affect the interaction with catalytic and hinder the cyclization process. Moreover, NpNBS abilty to form norbelladine in the absence of Asp141 catalytic residues suggests that Asp141 residue is not responsible for basic catalysis and might be involved in imparting electrostatic stabilization . The NpNBS enzyme displays higher activity at pH 4 indicating that the reaction may prefer an acidic environment. Similarly, pH of 6.2 has been reported for optimum acitivity of PsNCS .
The high expression of NpNBS in bulbs is supported by its high FPKM value obtained in the transcriptome . NpNBS was reported among the top expressed genes, comprising 16.12% of the N. pseudonarcissus ‘King Alfred’ transcriptome. NpNBS high expression was consistent with the expression of NpN4OMT in bulbs, which supported the abundant occurrence of AAs in bulb indicating that bulb is an important site for enzyme localization and AAs biosynthesis . Moreover, Kilgore et al. 2014, also presented a similar correlation between high expression and read count of N4OMT with abundant galanthamine accumulation in bulb tissues . Therefore, based on the expression data, we conclude that NpNBS has a crucial role in AAs metabolism. A similar high TfNCS expression and enzymatic activity was reported in underground rhizome and root tissues compared to other parts, suggesting tissue-specific localization of NCS enzyme .
The rapid progress in the discovery of AAs biosynthesis pathway genes along with newly characterized NpNBS enzyme is useful for reconstituting a short synthetic AAs biosynthesis pathway in yeasts or microbes that will allow feasible and high-scale production of targeted medicinally important Amaryllidaceae alkaloids which are gaining interest for their new pharmaceutical applications, including an Alzheimer’s treatment drug, galanthamine [33, 34]. The applied strategy could be implemented in characterization of genes from any class of specialized metabolites as our discovery shows the utility of the designed workflow.
Although the origin of alkaloid biosynthesis is not always clear, the key genes involved in these pathway are gradually being isolated. For example, norcoclaurine synthase couples dopamine and 4-hydroxyphenylacetaldehyde as the first committed step in benzylisoquinoline alkaloid biosynthesis [19, 21]. Another example is strictosidine synthase, which catalyzes the first specific step in monoterpenoid indole alkaloid biosynthesis . NpNBS could offer a new perspective for studies on the diversity and evolution of alkaloid biosynthesis. The condensation of tyramine and 3,4-DHBA is central to the biosynthesis of myriad AAs in plants. We demonstrated that the enzyme responsible for this reaction is a member of the PR10/Bet v1 family of proteins. Further work on NpNBS will include attempts to determine the optimum pH and temperature and to probe the scope of alternate substrates in the reaction. The use of this enzyme in biotechnological microbial platforms will provide an attractive alternative to the production of AAs, including several pharmacologically important compounds such as galanthamine and lycorine.
Plant tissue and chemicals
Wild daffodil (Narcissus pseudonarcissus ‘King Alfred’) bulbs were purchased from Fraser’s Thimble farms (BC, Canada). Bulbs were planted in the field in Trois-Rivieres (Québec, Canada) during the month of October and were not harvested until flowering stage in early May. Different tissues such as bulbs, roots, stems, leaves and flowers were collected separately, flash frozen in liquid nitrogen and stored at − 80 °C. Ampicillin, HPLC grade acetonitrile, agarose, methanol, 6x His-tag epitope tag antibody and monosodium phosphate were purchased from Fisher Scientific (Janssen Pharmaceuticalaan, Geel, Belgium). 3, 4-dihydroxybenzaldehyde (3,4-DHBA) were obtained from Acros organic (New Jersey, USA). Tyramine and chloramphenicol were bought from Sigma-Aldrich (MO, USA). Taq DNA polymerase was purchased from gene direx. Sodium chloride (NaCl), isopropyl β-D-1-thiogalactopyranoside (IPTG), and imidazole were bought from Fisher Bioreagents/scientific (New Jersey, USA). The SensiFAST SYBER Lo-Rox kit for reverse transcription-quantitative PCR was obtained from Bioline (London, U.K). The Gateway cloning kit was purchased from Invitrogen (CA, USA). Ni-NTA his-tag affinity columns were purchased from Qiagen (Germany), plasmid miniprep kit acquired from Geneaid (Taipei, Taiwan). Mini-protean TGX stain-free precast gels, 4x-Laemmli buffer, 10–250 kD precision plus kaleidoscope prestained protein standard ladder and clarity western ECL substrate were was obtained from Bio-rad (USA) and kanamycin was purchased from Bioshop (Burlington, ON, Canada).
RNA extraction, Illumina sequencing and transcriptome assembly
The transcriptome was generated in a previously published study by Singh and Desgagné-Penix, 2017 . Briefly, total RNA from bulbs of N. pseudonarcissus ‘King Alfred’ was extracted using the Cetyltrimethylammonium bromide method, converted to cDNA and sequenced using Illumina HiSeq 2000 PE. The raw pair reads were trimmed, cleaned, normalized, and assembled into a transcriptome . Of 73,081,603 raw paired reads, a total of 10,523,999 surviving paired reads after normalization were assembled into 195,347 transcripts. The sequences were deposited in the National Center for Biotechnology Information Sequence Read Archive (https://www.ncbi.nlm.nih.gov/sra/?term=SRR5788585) under the accession number SRR5788585.
Candidate gene identification
The sequence for norbelladine synthase was deposited to GenBank and the GenBank accession number for the nucleotide sequence is MG948545.
Phylogenetic tree and protein alignment
Sequences listed in Additional file 2 were aligned using CLUSTAL W in MEGA 6 software with default parameters. The evolutionary history was inferred using the Neighbor-Joining method using the branch lengths contained in the inferred tree . Divergence times for all branching points in the topology were calculated with the RelTime method . Phylogenetic analysis was conducted on MEGA 6 . Protein sequence of NpNBS was aligned with norcoclaurine synthase sequences from Coptis japonica (CjNCS2), Papaver somniferum (PsNCS1), Eschscholzia californica (EcNCS1) and Thalictrum flavum (TfNCS1) using Clustal omega. NpNBS sequence was analyzed for signal peptide using Signal-BLAST (http://sigpep.services.came.sbg.ac.at/signalblast.html) and PSLpred (http://crdd.osdd.net/raghava/pslpred). Motif scan search for NpNBS, PsNCS1, BtPR10 and CjNCS sequences was performed using myhits (http://myhits.isb-sib.ch/cgi-bin/motif_scan).
Reverse transcription-quantitative PCR (RT-qPCR)
N. pseudonarcissus cDNA for bulbs, roots, stems, leaves, and flowers was generated from 1 to 2 μg of RNA using the Qiagen omniscript RT kit according to manufacturer’s protocol (QIAGEN, Germany). The experiment was performed in triplicate. A total reaction volume of 20 μL containing 1x SensiFAST SYBR Lo-ROX mix, 200 μM of each forward and reverse primers (Additional file 4) and cDNA sample was used for RT-qPCR analysis. Histone was used as internal reference gene. Real-time quantitative PCR was performed on CFX Connect RT-qPCR System from Bio-rad (USA). PCR conditions for amplification were 95 °C for 3 mins, 95 °C for 10 s, annealing temperature 52 °C for 30 s for 40 cycles. This was followed by dissociation step (as provided by software) - 95 °C for 10 s, 65 °C for 5 s and 95 °C for 5 s. The amplification efficiency was determined at 92% and a melting curve analysis confirmed NpNBS PCR product specificity. Norbelladine synthase relative expression values were determined by comparative 2-ΔΔCt method and were scaled to lowest ddCq value by dividing ddCq of a sample with a minimum ddCq value identified among the samples .
PCR and cloning
The open reading frame (ORF) of full length NpNBS was amplified from N. pseudonarcissus bulbs cDNA with 200 μM dNTPs, 1.25 unit Taq DNA polymerase in 50 μL reaction and 0.2 μM forward and reverse gateway primers (Additional file 4). PCR program parameters: 3 mins 94° 1 cycle, 30 s 94°, 45 s 52°, 1 min 72° for 30 cycles, 5 min 72 °C 1 cycle. A Gateway cloning technology was used to clone NpNBS according to manufacturer’s protocol. The gateway-adapted attP-flanked pDONR 221 vector with kanamycin resistance gene was used for BP recombinase reaction (catalyzed by BP clonase enzyme) to generate an attL-flanked entry clones with attB-flanked NpNBS DNA fragment. These entry clones were transformed into E. coli DH10β competent cells and positive clones were obtained on a kanamycin selection plate. Chloramphenicol was used for counterselection of positive clones. These clones were further used to perform a LR recombination reaction between an attL-containing entry clone and attR-containing pET301/CT-DEST destination vector (150 ng/μL) with a histidine tags and T7 promoter, lac operator and attB recombination site while C-terminal contain 6x His-tag, T7 reverse priming site and T7 terminator. Positively transformed E. coli DH10β competent cells were selected from ampicillin-Luria-Bertani (LB) media plates incubated overnight at 37 °C. The positive colonies were obtained using 100 μg/mL ampicillin and confirmed by sequencing.
The above extracted plasmid were transformed into E. coli Rosetta™ (DE3) pLysS host strain for protein expression using the heat shock transformation protocol . Transformed cells were placed onto Luria-Bertani (LB) media with ampicillin and chloramphenicol selection plates overnight at 37 °C. A single colony was picked and grown overnight at 37 °C at 200 rpm in 7 mL LB broth containing ampicillin (100 μg/mL) and chloramphenicol (34 μg/mL). The overnight grown pre-culture was diluted 1:100 in fresh LB broth containing ampicillin (100 μg/mL) and chloramphenicol (34 μg/mL) and grown at 200 rpm at 37 °C to an A600nm between 0.5–0.8. Isopropyl-β-D-thiogalactopyranoside (IPTG) was added to a final concentration of 0.9 mM to induce protein expression. The culture was incubated for 8 h at 37 °C at 200 rpm. The supernatant and pellet of the IPTG-induced bacterial culture were separated by centrifugation at 9032 x g for 15 min and stored at − 80 °C. E. coli crude cell pellet were used to purify NpNBS protein. Non-induced protein (not treated with IPTG) was also collected from bacterial pellet.
Protein purification and Western blotting
Protein purification was performed by resuspending cell pellet, obtained from IPTG induced E. coli Rosetta (DE3)pLys cell cultures, in 10 mg/mL lysozyme and lysis buffer containing 50 mM NaH2PO4, 300 mM NaCl and 10 mM imidazole pH 8 and incubated on ice for 30 min. After sonication and centrifugation at 10,000 x g for 20 min at 4 °C, supernatant containing the 6x His-tagged protein was collected (Lysate 1), which was loaded on pre-equilibrated nickel affinity spin columns from Qiagen (Germany) and centrifuged at 900 x g for 5 min. Clear lysate (Lysate 2) was collected and saved for SDS-PAGE analysis. Nickel affinity columns were washed twice with 600 μL wash buffer containing 50 mM sodium phosphate monobasic (NaH2PO4), 300 mM sodium chloride (NaCl) and 20 mM imidazole pH 8 by centrifugation at 900 x g for 2 min and flow thorough were saved as wash 1 and wash 2 for SDS-PAGEanalysis. At last, protein was eluted twice (elution 1 and 2) each time in 300 μL elution buffer with 50 mM NaH2PO4, 300 mM NaCl and 300 mM imidazole pH 8 by centrifugation at 900 x g for 2 min and eluate was collected. Protein quantification was done according to Bradford assay . Five different BSA concentrations (5,10,15, 20, 25 and 50 μg) were prepared and absorbance (mean of three) was determined at 595 nm. A graph was plotted with above BSA concentrations at x-axis and their absorbances at y-axis respectively, which gave a linear equation of standard curve (y = 0.112x + 0.0357) and extinction coefficient (R2 = 0.999). The NBS protein concentration (x) was calculated using above equation by replacing y with NBS absorbance recorded at 595 nm. Protein was resolved on 15% Mini-protean TGX stain-free precast gels. Gels were transferred on nitrocellulose membrane, equilibrated with TBS buffer (20 mM Tris, 150 mM NaCl pH 7.5) for 15 min on a rotatory shaker, followed by blocking of membrane for 1 h. with Tris-buffered saline (TBS) containing tween 20 (TBST) and 1% bovine serum albumin (BSA). Nitrocellulose membrane was incubated overnight at 4 °C in TBST with 1% BSA containing 6x-His epitope tag antibody in 1:1000 dilution. After primary antibody incubation, membrane washed five times each for five minutes in TBST buffer and incubated for 1 h. in TBST containing 2.5% dry milk and goat anti-mouse horse radish peroxidase (GAM)-HRP conjugate in 1: 20,000 dilution. Immunoblot was washed six times for 5 min each in TBST buffer and developed using clarity Western ECL substrate from Bio-rad (USA).
Nuclear magnetic resonance spectroscopy and mass spectrometry
Proton and carbon NMR spectra were recorded on a Varian 200 MHz NMR apparatus. Chemicals shifts (δ) are recorded in parts per million (ppm). Coupling constant are expressed in Hz. Samples were dissolved in DMSO-d6 for data acquisition (δ 2.49 ppm for 1H NMR and 39.95 ppm for 13C NMR) using TMS as internal standard (δ 0.00 ppm). Multiplicities were described by the following abbreviations: s for singlet, d for doublet, dd for doublet of doublets, t for triplet and m for multiplet. Mass spectral data was obtained from NanoQAM (Université du Québec à Montréal) using a Time-of-Flight LC/MS (LC/MS-TOF), Agilent Technologie, LC 1200 Series/6210 TOF-LCMS with electrospray ionization and positive mode (ESI+).
Norbelladine was synthesized using a previously published protocol with modifications . A summary of the method is described below along with the result of the NMR spectral data (Additional file 5).
Step A: Synthesis of the imine norcraugsodine
An equimolar quantity of 3,4-dihydroxybenzaldehyde (251.6 mg, 1.82 mmol) and tyramine (249.8 mg, 1.82 mmol) were added as powders to a flask containing dichloromethane (7 mL). The solution was stirred gently for 6 h at room temperature to give the imine intermediate. The solvent was evaporated under reduced pressure with a rotatory evaporator and then, with a mechanical pump to remove solvent residue and water. The product obtained was sufficiently pure to be used as such in the next step. Crude yield, 99%; yellow solid.
1H NMR (200 MHz, DMSO-d6) δ: 7.98 (1H, s, CH imine), 7.15 (1H, d, J = 2.0 Hz, CH-Ar), 6.99 (2 H, d, J = 8.6 Hz, 2 x CH-Ar), 6.90 (1 H, dd, J1 = 2 Hz and J2 = 8.2 Hz, CH-Ar), 6.65 (1 H, d, J = 8.6 Hz, CH-Ar), 6.63 (2 H, d, J = 8.6 Hz, 2 x CH-Ar), 3.63 (2H, t, J = 7.2 Hz, CH=NCH2CH2), 2.73 (2H, t, J = 7.4 Hz, CH=NCH2CH2); 13C NMR (200 MHz, DMSO-d6) δ: 160.85, 155.90, 149.49, 146.08, 130.46, 130.12, 127.76, 121.88, 115.77, 115.42, 113.85, 62.41, 36.76; ESI+ HRMS: (M + H)+calculated for C15H16NO3 = 258.1125; found = 258.1078.
Step B: Synthesis of norbelladine
The imine norcraugsodine (50.6 mg, 0.98 mmol) was dissolved in methanol (5 mL) and was hydrogenated to the amine norbelladine using 30 mol% palladium on carbon (Pd/C 10%) under a H2 atmosphere. The hydrogen was bubbled three times (t = 0, 30 and 60 min) during the hydrogenation process. The mixture is agitated for a total of 2 h and then filtered on a silica gel to remove the Pd/C and impurities. Methanol was evaporated under reduced pressure with a rotatory evaporator and then, with a mechanical pump to give norbelladine. The product is a brownish solid. Yield: 98%.
1H NMR (200 MHz, DMSO-d6) δ: 6.94 (2 H, d, J = 8.6 Hz, CH-Ar), 6.63 (4 H, m, 4 x CH-Ar), 6.52 (1H, dd, J1 = 1.7 Hz and J2 = 7.7 Hz, CH-Ar), 3.49 (2H, s, Ar-CH2-NH), 2.58 (4 H, m, NH-CH2CH2-Ar); 13C NMR (200 MHz, DMSO-d6) δ: 155.8, 145.4, 144.3, 132.1, 130.9, 129.8, 119.2, 116.0, 115.6, 115.5, 53.1, 51.1, 35.4; ESI+ HRMS: (M + H)+ calculated for C15H18NO3 = 260.1281; found = 260.1182.
The screening assays contained 10 μg of purified protein, 10 μM tyramine, 300 μM 3,4-DHBA, 100 mM Tris buffer in a total volume of 90 μL. The assay was incubated at 37 °C for 2 h followed by termination using 3 μL of 20% trichloroacetic acid (TCA). Negative control includes non-induced proteins from E. coli (0.0 mM IPTG) whereas negative control assays include purified NpNBS protein boiled at 95 °C for 15 min.
The analysis of the enzymatic product of NBS was performed on a Waters 2690 high performance liquid chromatograph coupled to a Micromass Quattro LC mass spectrometer using a Kinetex C18 column (150 mm long × 4,6 mm inside diameter, 5 μM particle size). Samples were subjected to positive-mode electrospray ionization (ESI[+]) liquid chromatography -tandem mass spectrometry (MS/MS) for reaction product characterization, including collision-induced dissociation (CID) fragmentation analysis. Ten microlitres of each sample was injected onto the column and compounds were eluted at a flow rate of 0.25 mL/min using ammonium acetate 10 mM, pH 5.0 (solvent A) and acetonitrile 100% (solvent B). The LC program started with 40% solvent B, a gradient began at 0 min to 98% at 7 min, 98% at 9 min, 40% at 10 min, and 40% at 11 min. The total run time was 12 min per sample. Analytes were detected using a triple-quadrupole mass analyzer operating in positive ion mode (ESI+). For MS/MS analyses, norbelladine and norcraugsodine standards were characterized by the isolation of the parent mass in Q1, the specific fractionation of the parent molecules in a collision cell at a selected energy in q, and finally the scan of the characteristic ions fragments in Q2. The conditions of the MS/MS section were set to acquire in positive ion mode as follows: desolvation gas flow rate 708 L/hr., desolvation gaz temperature 400 °C, source temperature 120 °C, capillary voltage 1000 V, cone voltage 15 V, scan mass range from 100 to 265 + ESI and collision energy of 0–30 V. MassLynx software from Waters was used for data acquisition and processing.
Synthesized standard norbelladine (m/z 260) was analyzed using MS mode where the first two quadrupoles were set to radio frequency (RF) only and the third quadrupole scanned the mass range of 253–265 m/z. The obtained mass-to-charge (m/z) value and retention time were used to develop subsequent collision-induced dissociation (CID) experiments. Fragmentation spectrum was obtained using daughter mode at optimized collision energy (15 V) and the third quadrupole scanned the mass range of 50–275 m/z. Norbelladine eluted at 5.5 min with five significant [M + H]+ in daughter ion mode (260, 159, 138, 123, 121). Abundant fragment 138 m/z (using cone voltage 20 V and collision energy 10ev), 123 m/z (cone voltage 15 V and collision energy 20 eV) and 121 m/z (cone voltage 15 V and collision energy 20 eV) were optimized for qualifier and quantifier analysis in multi reaction monitoring mode (MRM) based on their signal intensity at an applied voltage (collision energy). MRM was used to measure the intensity of selected fragments to mark them as qualifier and quantifier ion. Norcraugsodine was also eluted at the similar retention time as norbelladine (5.5 min) with two significant [M + H]+ in daughter ion mode (258, 257 and 121). The fragment ion m/z 121 was detected in both standards and considered as the quantitative ion for analysis. CID fragmentation spectra for standards are available in Additional file 3. Qualitative ions for norbelladine and norcraugsodine were m/z 138 and m/z 157 respectively for validation. The MRM method thus developed was subsequently used to analyze the enzymatic essay samples. Quantification of standards and enzyme assay were performed using integration function of m/z 121 (quantifier daughter ion) on MassLynx software to obtain area under the chromatogram peak. Quantification of norbelladine in the enzyme essay sample was achieved by using the standard curve of norbelladine which has a linear equation of y = 31,264x + 2879 and a correlation coefficient (R2) of 0.999. Solutions of concentration between 0 and 10 ppm of norbelladine were prepared and each of them have been injected in triplicate in the LC-MS using the optimized MRM method for the quantitative daughter ion of norbelladine. The area under the chromatographic peaks for each solution was obtained by using the integration function of MassLynx software. The enzyme assay product was confirmed by comparison of LC-ESI-MS/MS data to standards.
mass to charge ratio
multiple reaction monitoringl
Pathogenesis Related protein-10
Jin Z, Xu X-H. Amaryllidaceae Alkaloids. In: Ramawat KG, Mérillon J-M, editors. Natural products. Berlin Heidelberg: Springer; 2013. p. 479–522.
Singh A, Desgagné-Penix I. Biosynthesis of the Amaryllidaceae alkaloids. Plant Sci Today. 2014;1(3):114–20.
Hotchandani T, Desgagne-Penix I. Heterocyclic Amaryllidaceae alkaloids: biosynthesis and pharmacological applications. Curr Top Med Chem. 2017;17(4):418–27.
He M, Qu C, Gao O, Hu X, Hong X. Biological and pharmacological activities of amaryllidaceae alkaloids. RSC Adv. 2015;5(21):16562–74.
Li L, Dai H-J, Ye M, Wang S-L, Xiao X-J, Zheng J, Chen H-Y, Luo Y-h, Liu J. Lycorine induces cell-cycle arrest in the G0/G1 phase in K562 cells via HDAC inhibition. Cancer Cell Int. 2012;12(1):49.
Saliba S, Ptak A, Laurain-Mattar D. 4′-O-Methylnorbelladine feeding enhances galanthamine and lycorine production by Leucojum aestivum L. shoot cultures. Eng Life Sci. 2015;15(6):640–5.
Prvulovic D, Hampel H, Pantel J. Galantamine for Alzheimer's disease. Expert Opin Drug Metab Toxicol. 2010;6(3):345–54.
Barton D, Cohen T. Festschrift A. Stoll. Basel: Birkhiiuser; 1957. p. 117.
Battersby A, Fales H, Wildman W. Biosynthesis in the Amaryllidaceae. Tyrosine and norbelladine as precursors of haemanthamine. J Am Chem Soc. 1961;83(19):4098–9.
Eichhorn J, Takada T, Kita Y, Zenk MH. Biosynthesis of the amaryllidaceae alkaloid Galanthaminefn2. Phytochemistry. 1998;49(4):1037–47.
Tahchy AE, Boisbrun M, Ptak A, Dupire F, Chrétien F, Henry M, Chapleur Y, Laurain-Mattar D. New method for the study of Amaryllidaceae alkaloid biosynthesis using biotransformation of deuterium-labeled precursor in tissue cultures. Acta Biochim Pol. 2010;57(1):75.
El Tahchy A, Ptak A, Boisbrun M, Barre E, Guillou C, Fo D, Fo C, Henry M, Chapleur Y, Laurain-Mattar D. Kinetic study of the rearrangement of deuterium-labeled 4′-O-methylnorbelladine in Leucojum aestivum shoot cultures by mass spectrometry. Influence of precursor feeding on Amaryllidaceae alkaloid accumulation. J Nat Prod. 2011;74(11):2356–61.
Grisebach H. Comparative biosynthetic pathways in higher plants. Pure Appl Chem. 1973;34(3–4):487–514.
Barton D, Kirby G, Taylor J, Thomas G. 866. Phenol oxidation and biosynthesis. Part VI. The biogenesis of amaryllidaceae alkaloids. J Chem Soc. 1963:4545–58.
Kilgore MB, Augustin MM, Starks CM, O’Neil-Johnson M, May GD, Crow JA, Kutchan TM. Cloning and characterization of a norbelladine 4′-O-methyltransferase involved in the biosynthesis of the Alzheimer’s drug galanthamine in Narcissus sp. aff. Pseudonarcissus. PLoS One. 2014;9(7):e103223.
Kilgore MB, Augustin MM, May GD, Crow JA, Kutchan TM. CYP96T1 of Narcissus sp. aff. Pseudonarcissus catalyzes formation of the Para-Para'CC phenol couple in the Amaryllidaceae alkaloids. Front Plant Sci. 2016;7:225.
Kilgore MB, Holland CK, Jez JM, Kutchan TM. Identification of a noroxomaritidine reductase with Amaryllidaceae alkaloid biosynthesis related activities. J Biol Chem. 2016;291(32):16740–52.
Singh A, Desgagné-Penix I: Chapter 3 : Biosynthesis of Amaryllidaceae alkaloids: A biochemical outlook. In: Alkaloids: Biosynthesis, Biological Roles and Health benefits.: Nova Science Publishers, NY, USA; 2015.
Samanani N, Liscombe DK, Facchini PJ. Molecular cloning and characterization of norcoclaurine synthase, an enzyme catalyzing the first committed step in benzylisoquinoline alkaloid biosynthesis. Plant J. 2004;40(2):302–13.
Singh A, Desgagné-Penix I. Transcriptome and metabolome profiling of Narcissus pseudonarcissus ‘king Alfred’reveal components of Amaryllidaceae alkaloid metabolism. Sci Rep. 2017;7(1):17356.
Lee EJ, Facchini P. Norcoclaurine synthase is a member of the pathogenesis-related 10/bet v1 protein family. Plant Cell. 2010;22(10):3489–503.
Fernandes H, Michalska K, Sikorski M, Jaskolski M. Structural and functional aspects of PR-10 proteins. FEBS J. 2013;280(5):1169–99.
Wen J, Vanek-Krebitz M, Hoffmann-Sommergruber K, Scheiner O, Breiteneder H. The potential ofBetv1Homologues, a nuclear multigene family, as phylogenetic markers in flowering plants. Mol Phylogenet Evol. 1997;8(3):317–33.
Wang C-S, Huang J-C, Hu J-H. Characterization of two subclasses of PR-10 transcripts in lily anthers and induction of their genes through separate signal transduction pathways. Plant Mol Biol. 1999;40(5):807–14.
Yu X, Ekramoddoullah AK, Misra S. Characterization of pin m III cDNA in western white pine. Tree Physiol. 2000;20(10):663–71.
Radauer C, Breiteneder H. Evolutionary biology of plant food allergens. J Allergy Clin Immunol. 2007;120(3):518–25.
Samanani N, Park S-U, Facchini PJ. Cell type–specific localization of transcripts encoding nine consecutive enzymes involved in protoberberine alkaloid biosynthesis. Plant Cell. 2005;17(3):915–26.
Zulak KG, Cornish A, Daskalchuk TE, Deyholos MK, Goodenowe DB, Gordon PM, Klassen D, Pelcher LE, Sensen CW, Facchini PJ. Gene transcript and metabolite profiling of elicitor-induced opium poppy cell cultures reveals the coordinate regulation of primary and secondary metabolism. Planta. 2007;225(5):1085–106.
Nishihachijo M, Hirai Y, Kawano S, Nishiyama A, Minami H, Katayama T, Yasohara Y, Sato F, Kumagai H. Asymmetric synthesis of tetrahydroisoquinolines by enzymatic Pictet–Spengler reaction. Biosci Biotechnol Biochem. 2014;78(4):701–7.
Li J, Lee EJ, Chang L, Facchini PJ. Genes encoding norcoclaurine synthase occur as tandem fusions in the Papaveraceae. Sci Rep. 2016;6:39256.
Lichman BR, Gershater MC, Lamming ED, Pesnot T, Sula A, Keep NH, Hailes HC, Ward JM. ‘Dopamine-first’mechanism enables the rational engineering of the norcoclaurine synthase aldehyde activity profile. FEBS J. 2015;282(6):1137–51.
Samanani N, Facchini PJ. Isolation and partial characterization of norcoclaurine synthase, the first committed step in benzylisoquinoline alkaloid biosynthesis, from opium poppy. Planta. 2001;213(6):898–906.
Heinrich M, Lee Teoh H. Galanthamine from snowdrop--the development of a modern drug against Alzheimer's disease from local Caucasian knowledge. J Ethnopharmacol. 2004;92(2–3):147–62.
Barik J, Dajas-Bailador F, Wonnacott S. Cellular responses to nicotinic receptor activation are decreased after prolonged exposure to galantamine in human neuroblastoma cells. Br J Pharmacol. 2005;145(8):1084–92.
Kutchan TM. Strictosidine: from alkaloid to enzyme to gene. Phytochemistry. 1993;32(3):493–506.
Saitou N, Nei M. The neighbor-joining method: a new method for reconstructing phylogenetic trees. Mol Biol Evol. 1987;4(4):406–25.
Tamura K, Battistuzzi FU, Billing-Ross P, Murillo O, Filipski A, Kumar S. Estimating divergence times in large molecular phylogenies. Proc Natl Acad Sci. 2012;109(47):19333–8.
Tamura K, Stecher G, Peterson D, Filipski A, Kumar S. MEGA6: molecular evolutionary genetics analysis version 6.0. Mol Biol Evol. 2013;30(12):2725–9.
Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2(−Delta Delta C(T)) method. Methods. 2001;25(4):402–8.
Chan W-T, Verma CS, Lane DP, Gan SK-E. A comparison and optimization of methods and factors affecting the transformation of Escherichia coli. Biosci Rep. 2013;33(6):e00086.
Bradford MM. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal Biochem. 1976;72(1–2):248–54.
Park JB. Synthesis and characterization of norbelladine, a precursor of Amaryllidaceae alkaloid, as an anti-inflammatory/anti-COX compound. Bioorg Med Chem Lett. 2014;24(23):5381–4.
Nei M, Kumar S. Molecular evolution and phylogenetics. New York: Oxford university press; 2000.
We thank Professors Hugo Germain, Céline Van Themsche and Charles Goulet for helpful discussion and revision of the manuscript. We also thank Professor André Lajeunesse for his helpful comments and suggestions to optimize the LC-MS/MS detection method.
This work was supported by the Natural Sciences and Engineering Research Council of Canada (NSERC) award number RGPIN 05294–2014 (Discovery) to IDP. This work was also supported by the NSERC award number EQPEQ 472990–2015 (Research tools and instruments) for the acquisition of the HPLC-PDA and the qPCR. Authors declare that none of the funding bodies have any role in the design of the study and collection, analysis, and interpretation of data as well as in writing the manuscript.
Availability of data and materials
All the data pertaining to the present study has been included in table and/or figure form in the present manuscript and authors are pleased to share analyzed/raw data and plant materials upon reasonable request. All raw sequence reads have been deposited in NCBI Sequence Read Archive (https://www.ncbi.nlm.nih.gov/sra/?term=SRR5788585). The sequence for Norbelladine Synthase GenBank accession number for the nucleotide sequence is MG948545.
Ethics approval and consent to participate
Consent for publication
The present manuscript does not contain potentially-identifying information of patients/participants needed of consent for publication.
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Three orthologs of NBS obtained from the N. pseudonarcissus transcriptome. (DOCX 81 kb)
Sequences for NCS and PR-10 used in phylogenetic analysis (DOCX 18 kb)
Fragmentation spectra obtained from LC-MS/MS analysis of standards norbelladine and norcraugsodine followed by a table listing the parameters used for LC-MS/MS analysis. (DOCX 76 kb)
List of primer sequences used in this study. (DOCX 12 kb)
Proton and carbon NMR spectral data of newly synthesized norcraugsodine and norbelladine. (DOCX 17385 kb)
