Ankylosing spondylitis (AS) is a chronic inflammatory rheumatic disease predominantly affecting the sacroiliac joints and the vertebral column. The disease often leads to the formation of spinal syndesmophytes and impaired back mobility, especially in male patients. Patients with AS have, in comparison with the general population, an increased risk of developing osteoporosis and fractures, especially vertebral fractures, but also other fractures, including hip fractures [16]. Male sex, old age, long disease duration, elevated inflammatory parameters, advanced chronic AS-related changes in the spine, and poor back mobility have been identified as risk factors for osteoporosis and vertebral fractures [713]. The mechanisms behind inflammation, new-bone formation and osteoporosis in AS are incompletely understood.

Measurements of lumbar area bone mineral density (aBMD) with dual-energy x-ray absorptiometry (DXA) in the anteroposterior (AP) projection are unreliable in AS, because of the spinal osteoproliferation [1315]. Furthermore, prospective studies of the general population have shown that aBMD identifies only 20% of men who will later sustain a fracture [16, 17]. Bone strength depends partly on bone mineral content, but also on the bone geometry and microarchitecture of cortical and trabecular bone [1820]. Quantitative computed tomography (QCT) has the advantage of assessing volumetric BMD (vBMD) in the lumbar spine in cortical and trabecular bone separately, without including areas of hyperostosis in the measurements [15].

The development of high-resolution peripheral quantitative computed tomography (HRpQCT) has enabled us to study bone in great detail, without the need of biopsies. Although several studies exist on osteoporosis in AS, the knowledge of the bone microarchitecture in the disease is still sparse. The evolving technique of HRpQCT offers new possibilities to study further the intricate association between new bone formation and osteoporosis in AS and also to follow up the effects of treatment for osteoporosis and inflammation on bone tissue. This is, to our best knowledge, the first study on bone microarchitecture in AS with HRpQCT.

The aims of the present study were to (a) study peripheral vBMD in AS patients in comparison with healthy controls, (b) compare vBMD of trabecular and cortical bone in the axial and peripheral skeleton, (c) explore the relation between bone microarchitecture and presence of vertebral fractures and syndesmophytes, and (d) compare lumbar BMD measured with QCT and DXA in the AP and lateral projections.



In total, 69 male AS patients who had been included in a larger study on osteoporosis in the west of Sweden were randomized in an age-adjusted algorithm also to take part in the current study on HRpQCT and QCT. All AS patients registered at the Rheumatology Clinic at Sahlgrenska University Hospital in Gothenburg, and the Rheumatology Clinics at Borås and Alingsås county hospitals had been invited to take part in the initial study. The inclusion of the 204 patients in the initial study has been described in detail [13]. In summary, all included patients met the modified New York criteria for AS [21] .Exclusion criteria were psoriasis, inflammatory bowel disease, dementia, and difficulties in understanding Swedish. Written informed consent was obtained from all patients. The study was approved by the Regional Ethical Review Board in Gothenburg and carried out in accordance with the Helsinki declaration.

Healthy controls

The HRpQCT results regarding trabecular and cortical vBMD of the AS patients were compared with the results of a control group consisting of 68 healthy individuals measured with the same type of XtremeCT at the Mayo Clinic in Rochester, Olmsted County, Minnesota, USA. The healthy controls were matched for age, height, weight, and race. No control could be found for the youngest patient, who thus was excluded from these calculations.

High-resolution peripheral quantitative computed tomography

Bone microarchitecture was examined by using an HRpQCT device (XtremeCT; Scanco Medical AG, Brüttisellen, Switzerland) in the nondominant ultradistal radius and tibia. The patient’s forearm and leg were immobilized in especially designed carbon-fiber shells (Scanco Medical) to prevent movement during the procedure.

The quality of the measurements was assessed by using a 5-point scale recommended by the manufacturer (1, excellent; 2, good; 3, acceptable; 4, unacceptable; 5, poor). Only examinations with quality grades 1 through 3 were included in the study, whereas grades 4and 5 were excluded, mostly because of motion artefacts. Totally 12 examinations of the radius had to be repeated because of to movement artifacts. Seven patients had measurements of the ultradistal radius with unacceptable quality and were thus excluded, whereas all tibia measurements were included.

The volumes of interest (VOIs), 9-mm sections of radius and tibia, were examined in 110 parallel slices (voxel size, 82 μm), generating a 3D representation of the bone. The first CT slices started 9.5 mm and 22.5 mm proximal to a reference line manually placed at the center of the end plate of the distal radius and tibia, respectively, and continued proximally.

The VOIs were automatically separated into a trabecular and a cortical region. With previously described data-extracting procedures, the following parameters for the trabecular and cortical bone were obtained: trabecular volumetric BMD (DTrab; mg/cm3), trabecular bone volume/total volume (BV/TV; %), trabecular number (TbN; per mm), trabecular thickness (TbTh; μm), trabecular separation or spacing (TbSp; μm), cortical volumetric BMD (DCort; mg/cm3), cortical bone cross-sectional area (CortCSA; mm2), cortical periosteal circumference (CortPm; mm), and cortical thickness (CortTh; μm) [2226]. DTrab, DCort, TbN, CortCSA, and CortPm were measured directly, and the other parameters were derived.

The coefficients of variation (CVs) for repeated measurements by using the XtremeCT apparatus in Gothenburg ranged between 0.3% and 3.9% of the radius and from 0.1% to 1.6% of the tibia. The same device, software, and operator were used throughout the study.

The software Autocontouring and Eval Crtx 6× software, provided by Scanco Incorporated in the manufacturer’s Image Processing Language (IPL) software (μCT Evaluation Program v6; Scanco Medical AG, Brüttisellen, Switzerland) was used to assess cortical bone microstructure of the ultradistal radius and tibia. The cortical compartment in the VOI was detected automatically by identifying the endosteal and periosteal contours. All void voxels within the cortical compartment were identified, and the images were digitally superimposed, generating a refined cortical compartment region in the VOI. The Haversian canals were distinguished from artefacts because of surface roughness, transcortical foramens, or erosions. With this method, cortical porosity (CtPo; %) and mean cortical pore diameter (CtPoDiam; μm) were obtained [22, 23, 25]. The CVs for porosity were 15.9% at the radius and 5.5% at the tibia, and the CVs for mean cortical pore diameter were 6.0% at the radius and 3.9% at the tibia.

The healthy control group was assessed with the same type of XtremeCT at the Mayo Clinic in Rochester. A scan phantom for the vBMD measurements was sent from Gothenburg to Rochester for cross-calibration of the XtremeCT devices. Linear regression between the phantom measurements in Gothenburg and Rochester generated a formula

X × 0.995 + 1.148

by which the values from Rochester were subsequently adjusted. The phantom was not designed for cross-calibration of microarchitectural parameters; hence those parameters could not be compared in the patients and controls.

Quantitative computed tomography

Lumbar volumetric BMD was measured in the vertebrae L1 through L4 by using a QCT scanner (Siemens Somatom Sensation 16 with application Syngo Osteo CT; Siemens AG, Munich, Germany). Volumetric BMD (vBMD; mg/cm3) was assessed separately in the cortical and the trabecular bone in 10-mm-thick slices of each vertebra. All patients were scanned together with a water- and bone-equivalent calibration phantom placed below the patients along with an interpositioned gel pad to prevent artefacts and air gaps. The BMD results of the patients were compared with the reference population database of the CT scanner software, including 135 male and 139 female European subjects, 20 through 80 years of age.

Dual-energy x-ray absorptiometry

BMD was measured with DXA (Hologic Discovery A; Hologic Inc., Bedford, MA, USA) in the nondominant forearm (total radius, radius 1/3) and hip (total hip, femoral neck) and in the lumbar spine (in AP L1 through L4 and lateral L2 through L4 projection) with estimation of lumbar vBMD.


Lateral radiographs of the spinal column were taken to study the presence of vertebral fractures in the thoracic and lumbar spine by using the Genant score, which scores vertebrae on visual inspection as normal, mildly, moderately, or severely deformed (grades 0 to 3) [27]. All vertebral fractures (Genant score, 1 through 3) were included in the calculations. The presence of chronic AS changes in the cervical and lumbar spine was assessed by using the modified Stoke Ankylosing Spondylitis Spine Score (mSASSS) [28] .The score grades the anterior vertebral corners with 0 through 3 points each (0, normal; 1, erosion, sclerosis, or squaring; 2, syndesmophyte; or 3, bridging syndesmophyte). The scoring scale ranges from 0 to 72.

Statistical analysis

Statistical analyses were performed by using PASW Statistics 18.0 (SPSS Inc., IBM, Chicago, IL, USA). Descriptive statistics are presented as median and range and/or mean and standard deviation (SD). The Mann–Whitney U test, t test, or the χ2 test was used to compare variables as appropriate. Correlations were calculated by using the Spearman correlation (rs). Logistic regressions with a forward conditional method were run with the presence of a syndesmophyte (yes/no) and vertebral fracture (yes/no) as the binary outcome. All tests were two-tailed, and P < 0.05 was considered statistically significant.



In total, 69 male AS patients were included in the study. The characteristics of the patients are presented in Table 1.

Table 1 Characteristics of 69 male patients with ankylosing spondylitis in western Sweden

vBMD measured with HRpQCT in the AS patients compared with the healthy controls

The AS patients had, in comparison with the controls, significantly lower vBMD in cortical bone of the ultradistal radius (P = 0.007) and in trabecular bone of the ultradistal tibia (P = 0.033) (Table 2). The AS patients also had lower weight and body mass index (BMI) than the controls, but the differences did not reach a level of significance. Weight and BMI were, however, not correlated with trabecular or cortical vBMD in the ultradistal radius or tibia. (Correlation coefficients ranged from -0.082 to 0.100, and P values ranged from 0.245 to 0.853).

Table 2 Comparison of the demographics and HRpQCT parameters in the AS patients and healthy age-matched controls

Correlation between spinal vBMD measured with QCT and peripheral bone microarchitecture measured with HRpQCT

Strong correlations were found between trabecular vBMD in the lumbar spine, ultradistal radius (rS = 0.762; P < 0.001) and tibia (rS = 0.712; P < 0.001), but the cortical vBMD of the spine and peripheral skeleton were not significantly correlated (Figure 1 and Table 3). Low-lumbar trabecular vBMD was also significantly correlated with parameters indicating poor bone microarchitecture, such as thinner trabeculae, lower trabecular number, thinner cortex, lower cortical vBMD, and increased cortical porosity (Figure 2 and Table 3). The results thus indicated a link between trabecular bone loss in the axial and peripheral skeleton in AS.

Figure 1
figure 1

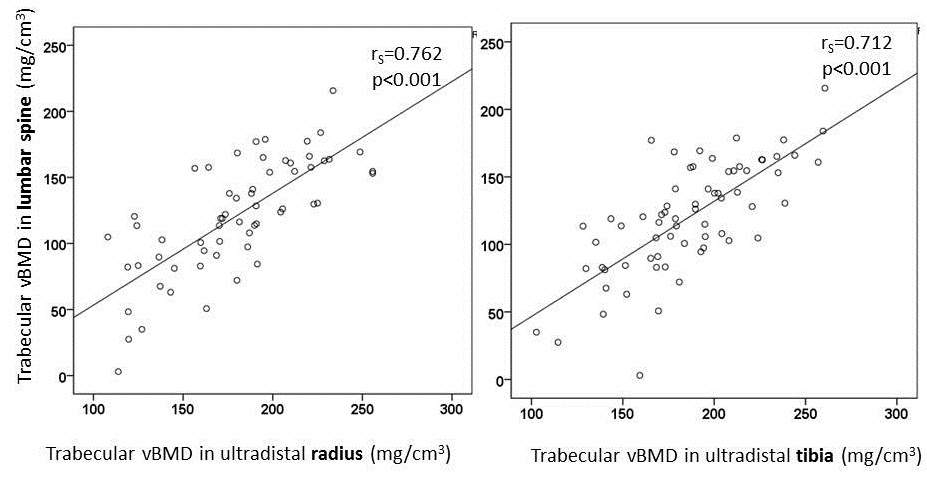

The correlations between trabecular volumetric BMD in the lumbar spine, ultradistal radius, and tibia.

Table 3 The correlation (Spearman rho) between the HRpQCT parameters, age, lumbar QCT, and mSASSS in the AS patients
Figure 2
figure 2

HRpQCT images of ultradistal radius and tibia. (A) 3D representation of ultradistal tibia. AS patient with normal BMD. (B) 3D representation of ultradistal radius. AS patient with osteoporosis. (C) 2D representation of ultradistal tibia. AS patient with normal BMD. (D) 2D representation of ultradistal tibia. AS patients with lumbar osteoporosis. Note the low trabecular number and thickness, high trabecular separation, and low cortical thickness.

Trabecular and cortical vBMD were significantly correlated in the ultradistal radius (rS = 0.466; P < 0.001) and tibia (rS = 0.308; P < 0.010), but the correlation did not reach the level of significance (rS = 0.230; P = 0.061) in the lumbar spine.

Vertebral fractures in relation to bone mineral density and peripheral bone microarchitecture

Vertebral fractures were diagnosed in eight (12%) patients, the youngest patient being 31, and the oldest, 71 years old. Twelve vertebral fractures with Genant score grade 1 and two with grade 2 were diagnosed in the study group. Age, disease duration, and mSASSS score were not significantly different between patients with or without a vertebral fracture.

Each patient with a vertebral fracture was compared with two age-matched AS controls from the same cohort (Table 4). The patients with a vertebral fracture had significantly lower cortical lumbar vBMD measured with QCT compared with the age-matched nonfractured patients. The following DXA parameters were also significantly lower in the patients with a vertebral fracture: AP and lateral lumbar BMD, lumbar vBMD, and BMD of the hip (femoral neck and total hip).

Table 4 BMD and microarchitectural parameters in AS patients with a vertebral fracture compared with age-matched AS patients without a vertebral fracture

No significant difference in BMD was found in the forearm measured by DXA between the groups. When measured with HRpQCT, the patients with a vertebral fracture, however, displayed significantly lower trabecular and cortical vBMD in the ultradistal radius and, in addition, lower trabecular thickness, cortical thickness, and cross-sectional area in both the ultradistal radius and tibia, thus indicating deteriorated peripheral bone microarchitecture in the fractured patients in comparison with the age-matched AS controls. The greatest differences between the fractured and nonfractured patients were found in cortical thickness and cortical cross-sectional area (Table 4).

Multiple logistic regression was run with vertebral fracture as binary outcome. In the first model, in which age, mSASSS, and trabecular and cortical lumbar vBMD were entered as covariates, decreasing cortical lumbar vBMD (B = -0.023; P = 0.015; OR, 0.977; 95% CI, 0.959 to 0.996), and increasing mSASSS (B = 0.042; P = 0.049; OR, 1.04; 95% CI, 1.0003 to 1.087) were independently associated with the presence of a vertebral fracture.

In the second model, in which the HRpQCT parameters were directly measured and not derived (DTrab, DCort, TbN, CortCSA, and CortPm) were additionally entered, only decreasing cortical cross-sectional area of the tibia (B = -0.063; P = 0.008; OR, 0.939; 95% CI, 0.897 to 0.984) remained significantly associated with the presence of a vertebral fracture.

Syndesmophyte formation in relation to spinal vBMD measured with QCT and peripheral bone microarchitecture

Increasing mSASSS correlated significantly with increasing age (rS = 0.546; P < 0.001) and decreasing trabecular vBMD in the lumbar spine (rS = -0.620; P < 0.001). In addition, mSASSS correlated with increasing cortical porosity and decreasing trabecular thickness and vBMD of trabecular and cortical bone in the periphery (Table 3).

In 39 patients, radiographs of the cervical and lumbar spines revealed at least one syndesmophyte or bridging syndesmophyte, whereas nine patients had a disease restricted to the sacroiliac joints (mSASSS = 0), and 21 patients had only the presence of erosions, sclerosis, or squaring at the vertebral corners.

The patients with at least one syndesmophyte had, in comparison with patients without syndesmophytes, significantly older age (54 ± 12 versus 42 ± 15 years; P = 0.001), thinner trabeculae in the ultradistal radius (0.071 ± 0.016 versus 0.085 ± 0.014, P < 0.001) and tibia (0.072 ± 0.013 versus 0.081 ± 0.008; P = 0.001) and lower trabecular vBMD in the lumbar spine (100 ± 36 versus146 ± 33; P < 0.001), ultradistal radius (171 ± 42 versus 196 ± 29; P = 0.013) and tibia (175 ± 37 versus 205 ± 27; P < 0.001).

In a multiple logistic regression model with the presence of at least one syndesmophyte as the binary outcome and adjusting for age, decreasing lumbar trabecular vBMD (B = -0.058; P < 0.001; OR = 0.943; 95% CI, 0.917 to 0.970), but increasing lumbar cortical vBMD (B = 0.019; P = 0.016; OR, 1.019; 95% CI, 1.004 to 1.035) remained independently associated with syndesmophyte formation. None of the HRpQCT parameters was significantly associated with presence of syndesmophytes after adjusting for age in logistic regression. Covariates in the regression model were age, trabecular and cortical lumbar vBMD, and the HRpQCT parameters, which were directly measured and not derived (DTrab, DCort, TbN, CortCSA, and CortPm).

Comparisons of BMD measured with QCT and with DXA in AP and lateral projections in the lumbar spine

QCT revealed significantly more cases with T score ≤2.5 SD (n = 26; 38%) and T score ≤1.0 SD (n = 21; 30%) than AP DXA, showing considerably less osteoporosis (n = 4; 6%) and osteopenia (n = 13; 19%; P < 0.001). No reference database values were available for lateral lumbar DXA and DXA vBMD lumbar spine.

The patients with at least one syndesmophyte had significantly reduced Z scores of lumbar vBMD measured with QCT (mean Z score, -0.624 ± 1.186; P = 0.003), whereas AP lumbar DXA showed no significant reduction of the Z scores of lumbar BMD in patients with or without syndesmophytes, thus indicating that the QCT results were less affected by syndesmophyte formation than was the AP lumbar DXA.

Correlation analyses between lumbar QCT and lumbar DXA demonstrated that QCT trabecular vBMD had the strongest correlation with DXA vBMD (rS = 0.636; P < 0.001) followed by lateral BMD (rS = 0.537; P < 0.001) and AP BMD (rS = 0.380; P = 0.002). QCT cortical vBMD correlated with DXA in the following way: lateral BMD (rS = 0.595; P < 0.001), AP BMD (rS = 0.541; P = 0.002) and vBMD (rS = 0.431; P < 0.001).


In the present study, we used new imaging techniques, peripheral HRpQCT and lumbar QCT, to investigate the relation between osteoporosis, osteoproliferation, and fractures in the spine and morphology and bone density in the peripheral skeleton.

When measured with HRpQCT, the patients with AS had lower vBMD in the peripheral skeleton than did healthy controls; the AS patients had significantly lower vBMD in the cortical bone of the radius and the trabecular bone of the tibia. The controls were slightly heavier than the AS patients, but it seems unlikely that this would explain the difference, because vBMD in ultradistal radius and tibia were not correlated with weight or BMI.

The HRpQCT measurements of the radius from seven patients had to be excluded for motion artefacts. Absolute immobilization of the limb is required during the procedure, but in a few patients, an optimal positioning was difficult to obtain, because of stiffness of the spine or joints.

It was previously argued that osteoporosis in AS affects mainly the axial skeleton [12, 29, 30]. The current study indicates, nevertheless, that axial and peripheral trabecular bone loss are connected in AS. Spinal and peripheral trabecular vBMD were strongly correlated. Decreasing lumbar vBMD measured with QCT was, in addition, associated with deteriorated peripheral bone microarchitecture, such as thinner trabeculae, higher trabecular separation, and reduced cortical thickness. This may explain the increased frequency of hip and peripheral fractures observed in an earlier study on Swedish AS patients [5].

A plausible reason for the coupling of trabecular bone loss in the axial and peripheral skeleton is that general inflammation in AS with systemic elevation of cytokines, such as TNF-α, IL-1, and IL-6, affects osteoclasts and osteoblasts in all bone tissue. Trabecular bone loss in the vertebral bodies may, in addition, be enhanced by local inflammation and alterations of loading due to syndesmophytes and ankylosis.

In 1997, a study on 14 men with AS showed that cancellous bone volume from iliac crest biopsies correlated well with lumbar spine BMD measured with QCT, but not with DXA. The trabecular thickness in the biopsies of the AS patients was found to be lower than the reference values reported in the literature [31]. In contrast, another study reported no correlation between vBMD measured in the forearm with peripheral QCT (pQCT) and QCT values of the lumbar spine, and pQCT revealed only a few cases of osteopenia and osteoporosis. However, the patients were younger than in the present study (mean, 40 versus 49 years), and both sexes were included [7]. HRpQCT and pQCT assess different aspects of bone quality, which may also explain the discrepancy between the studies; HRpQCT measures predominantly trabecular bone in greater detail and in a more distal part of the radius and tibia, whereas pQCT gives a better evaluation of cortical bone.

Trabecular number was not associated with lumbar vBMD or age in the present study. Similarly, studies on age-related changes in the general population have shown decreased trabecular thickness, but preserved trabecular number in men, in contrast to loss of trabecular number and increased trabecular separation in women [32, 33].

The current study also shows that AS patients with vertebral fractures have worse bone microarchitecture and lower vBMD in both the axial and peripheral skeleton than do age-matched AS controls. In this aspect, the situation in AS seems comparable to that in postmenopausal women and men aged older than 50 years, where vertebral fractures also have been shown to be associated with poor peripheral bone microarchitecture [3436]. We identified cortical thinning and low cross-sectional area in the peripheral skeleton as factors strongly associated with vertebral fractures. Interestingly, another study on 920 men from the general population aged older than 50 also indicated that low cortical thickness and low cortical density in both the ultradistal radius and tibia were associated with vertebral fractures [34].

We found that the presence of syndesmophytes was associated with lower trabecular vBMD but increasing cortical vBMD in the lumbar spine. The increasing cortical vBMD was presumably reflecting pathologic new-bone formation in the cortex of the vertebral bodies. Our findings are supported by an earlier study also reporting decreasing trabecular but increasing cortical vBMD in the lumbar spine measured with QCT in AS patients in advancing stages of ankylosis [37]. The pathologic new-bone formation in the spine was, however, not coupled with any signs of hyperostosis in the peripheral microarchitecture. In contrast, it was associated with lower peripheral trabecular density and thinner trabeculae. The findings support the concept of osteoproliferation as being a local anabolic bone response to inflammation, mechanical stress, or microdamage, but not a systemic process in AS.

In the present study, lateral lumbar BMD and estimated vBMD by DXA correlated well with QCT measures of both cortical and trabecular BMD. QCT was more sensitive than AP DXA in revealing reduced BMD in the lumbar spine. We recently published data showing that lateral DXA scanning with estimation of vBMD in comparison with AP DXA is more sensitive in detecting reduced BMD, less affected by the pathologic new-bone formation in the spine, and better associated with vertebral fractures [13]. QCT has hitherto been considered to be the preferred method for measuring lumbar BMD in AS, but radiation doses and availability are, however, problems of QCT. We propose that lateral lumbar DXA with estimation of vBMD may be a valuable alternative for the assessment of lumbar BMD in AS.

The lack of a Swedish control group for the HRpQCT measurements is a limitation of the study. The healthy controls were, however, matched for age, height, weight, and BMI, and Olmsted county in Minnesota has a high proportion of inhabitants of Scandinavian descent. Other limitations are the relatively small reference population for lumbar QCT and the absence of a reference-population database for men regarding lateral lumbar DXA.


The HRpQCT measurements revealed lower vBMD in the ultradistal radius and tibia in the AS patients compared with the healthy controls. Low-lumbar vBMD, vertebral fractures, and chronic AS-related changes in the spine were associated with lower vBMD and worse bone microarchitecture in the peripheral skeleton. The results indicate that osteoporosis in AS is a general process affecting both the central and the peripheral skeleton, whereas pathologic new-bone formation is localized.
