Background

Flavonoids are a group of specialized plant metabolites that play critical roles in plant reproduction, defense from abiotic and biotic stress and are of growing interest as health-promoting compounds in human and animal diets [1–3]. As pigments, they have also figured into numerous seminal biological discoveries including Mendel’s elucidation of the laws of genetics, McClintock’s discovery of mobile genetic elements, and more recently the phenomenon of cosuppression, or RNA interference, in Petunia hybrida (reviewed in [4, 5]). The flavonoid pathway continues to serve as an important experimental system in a variety of plant species, with studies ranging from understanding complex transcriptional control to biochemical structure-function relationships, intra- and intercellular transport, and the subcellular organization of pathways as multi-enzyme complexes [6–9]. Still, many questions remain about the specific biological targets of flavonoids in plants and animals [1, 10], while engineering the production of specific flavonoids in plants and microorganisms is still far from straight-forward [11, 12].

Mutations within genes in the flavonoid biosynthetic pathway of Arabidopsis were described as early as 1971, easily identified by the transparent testa (tt) phenotype of the mutant seed coat [13] (Figure 1 and Table 1). Large-scale mutant screens carried out by Maarten Koornneef, initially aimed at characterizing the effects of fast-neutron and X-rays, identified many more flavonoid biosynthetic and regulatory genes [14, 15]. Several other mutants were subsequently identified by Koornneef and others, almost all which have now been cloned and characterized [2]. While this represented an extremely useful toolset, these EMS and fast neutron induced mutations were isolated in a variety of ecotypes, primarily Landsberg but also several others, complicating the analysis of differences between mutants. While differences between ecotypes are sometimes minimal, morphological differences between ecotypes can be easily identified by eye, and research indicates that there are important differences between these backgrounds [16–18]. Here we describe the confirmation and preliminary characterization of mutant alleles for genes encoding flavonoid enzymes in Arabidopsis ecotype Columbia-0 (Col-0) that are available as part of the SALK collection of T-DNA insertion lines [19]. These lines represent a useful set of tools for analyzing the organization of flavonoid biosynthetic enzymes and their end products, as well the cellular, physiological and ecological roles of flavonoids. We also present a compilation of mutant alleles for flavonoid structural gene that have been described in the literature to date in a variety of different ecotypes.

Figure 1
figure 1

Seed coat color phenotype of confirmed homozygous T-DNA lines with insertions disrupting genes involved in flavonoid biosynthesis. From top center, clockwise seeds are: Col-0 WT, tt4-13, tt5-3, tt5-2, tt6-3, tt7-5, tt11-11, and ban-4.

Full size image
Table 1 Summary of enzyme-encoding tt alleles described to date
Full size table

Findings

Confirmation of homozygous tt alleles

T-DNA insertion lines in ecotype Col-0 were obtained from the Arabidopsis Biological Resource Center (ABRC, Columbus, OH) for genes encoding six of the eight enzymes of the central flavonoid pathway: chalcone synthase (CHS, SALK_020583), chalcone isomerase (CHI, SALK_034145 and CS300857 from the GABI-Kat project), flavanone 3-hydroxylase (F3H, SALK_113904), flavonoid 3′-hydroxylase (F3′H, SALK_053394), anthocyanidin synthase (ANS, SALK_073183), and anthocyanidin reductase (ANR, SALK_040250). These lines were assigned allele numbers based on the previously-published alleles for each locus (Table 1). Note that a mutant allele for dihydroflavonol reductase (DFR) was recently identified in the Col-0 background that was not included in this study; no stable mutant allele has yet been identified in this ecotype for flavonol synthase 1 (FLS1).

DNA was isolated from leaves of each T-DNA line to screen for lines homozygous for each insertion. The ability to produce a PCR product from Col-0 wild-type plants using primers that span the T-DNA insertion site (Figure 2) was used to identify the presence of an intact gene. The absence of an amplicon using the same primers for T-DNA lines indicates that the insertion is present, while products generated using one T-DNA-specific and one gene-specific primer indicate the presence of a T-DNA insertion in the gene of interest. The results illustrated in Figure 3 identify each line as containing a homozygous T-DNA insertion in the gene of interest, most within the respective open reading frames, with the exception of alleles of CHI (SALK_034145) and FLSI (AJ588535), which contain insertions within the promoters, and CHI (CS300857) and ANR (SALK_040250) with insertion in introns. It should be noted that these lines may contain additional T-DNA insertions at other sites of the genome; it has not yet been determined whether that is the case for any of the lines described here.

Figure 2
figure 2

Schematic of homozygous T-DNA insertion lines. Boxes indicate exons, solid lines indicate introns and 5′ leader sequence, and dashed lines indicate genomic sequence. Insertion sites are indicated by black triangles. The arrows above the insertion indicate the direction of the T-DNA left-border primer sequence used for mapping the insertion sites. The fls1 line is described in Owens et al. [45]. Genes are chalcone synthase (CHS), chalcone isomerase (CHI), flavanone 3 hydroxylase (F3H), flavonoid 3′ hydroxylase (F3′H), flavonol synthase (FLS1), anthocyanidin synthase (ANS), and anthocyanidin reductase (ANR).

Full size image
Figure 3
figure 3

PCR confirmation of homozygous insertion lines for described tt alleles. T-DNA insertions were confirmed using T-DNA and gene-specific primers, while intact genes were confirmed using two gene-specific primers spanning the mapped T-DNA insertion site. Homozygous lines are indicated by the presence of a T-DNA insertion but not an intact gene.

Full size image

End product and pigmentation analyses of tt alleles

Hydrolyzed flavonol extracts were analyzed by Ultra Performance Liquid Chromatography (UPLC) to provide phenotypic evidence of the gene disruptions identified by PCR. Five of the lines, tt4-13, tt5-2, tt5-3, tt6-3 and fls1-3, had no detectable levels of kaempferol or quercetin, the two major flavonol aglycones found in Arabidopsis (Figure 4). All five alleles affect enzymes upstream of flavonol production in the flavonoid biosynthetic pathway. As in previous analyses of the tt7-1 allele in the Landsberg (Ler) background, which lacks the F3′H enzyme, tt7-5 in Col-0 also accumulated high levels of kaempferol but no detectable quercetin [46]. This is consistent with the catalytic role of F3′H in converting dihydrokaempferol to dihydroquercetin. The tt11-11 and ban-4 mutants contain insertions in the ANS and ANR genes, respectively. Both lines accumulated flavonols at levels comparable to wild type but displayed other phenotypes characteristic of defects in the respective genes. The tt11-11 seeds exhibited an intermediate tt phenotype (Figure 1), but adult plants were devoid of red pigmentation, consistent with an absence of anthocyanins, while ban-4 exhibited a red seed coat in immature seeds and a darker black seed coat in fully desiccated seeds, as described previously for ban-1[41].

Figure 4
figure 4

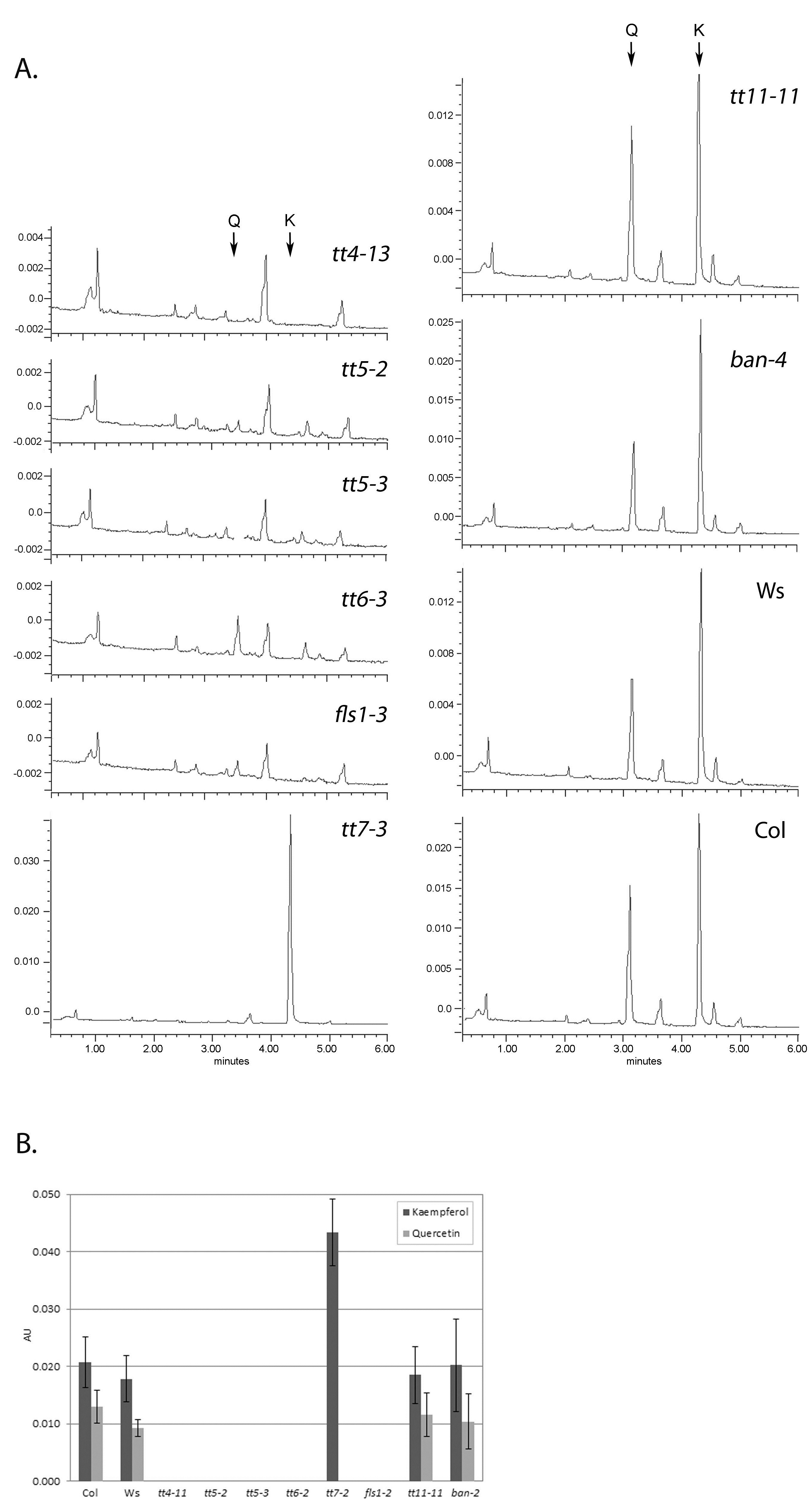

UPLC analysis of flavonol aglycone profiles in T-DNA insertion lines. A) UPLC traces of hydrolyzed extracts prepared from 5-day-old seedlings, with arrows indicating the retention times of the flavonols, quercetin (Q) and kaempferol (K). B) Comparison of kaempferol and quercetin levels determined from integrated peak areas.

Full size image

Conclusions

The flavonoid mutants described in this report represent a useful toolset for the study of many aspects of plant metabolism, cell biology, and physiology. The flavonoid pathway provides a unique model system for studying metabolic pathways as it has been well-characterized in a variety of model organisms and is essential for a wide range of cellular and physiological processes. Mutations for genes encoding many of the enzymes now exist in a uniform genetic background. While this communication focuses on flavonoid biosynthetic enzymes, mutant alleles exist for genes involved in mediating other aspects of flavonoid metabolism, including transcriptional regulation of gene expression and modification and cellular transport of pathway end products [47, 48].

The flavonoid enzymes disrupted by T-DNA insertions have been hypothesized to participate in metabolic channeling via protein-protein interactions [7, 49]. These mutations, all within the same genetic background, could greatly enhance our understanding of the regulation and dynamics of this channeling, which has broad reaching implications across metabolic research areas. The CHS mutant allele, tt4-13, has already been used by our group and others to further probe the involvement of this pathway in modulating the distribution of auxin and ethylene within Arabidopsis seedling roots [7, 29, 36, 50], to characterize the distribution of flux among branch pathways of flavonoid metabolism [45], and to identify molecules that promote pollen fertilization in Arabidopsis[51]. The CHI allele, tt5-3, has been used in a metabolic profiling analysis of the response to UV light [52], whereas tt5-2 was used to demonstrate a requirement for this CHI gene, among flavonoid genes, for flavonol synthesis in pollen [30]. The flavanone 3-hydroxylase mutant, tt6-3, has been used to characterize the biochemical activities of Arabidopsis F3H and Sorghum FNS [33, 53], while the flavonoid 3′-hydroxylase line, tt7-5, was used by our group in the auxin-ethylene study [36], and tt11-11, was already used several years ago to show that TDS4 is allelic to tt18 (now renamed tt11 per the findings of [38]) and encodes LDOX/ANS. The F3H and LDOX lines, tt6-3 and tt11-11, have been used to demonstrate the utility of a novel metabolic profiling method for intact seed [54].

The collection of tt mutants presented here represent a means to several ends. As our understanding of the roles flavonoid compounds play in human health evolve, so too may our need to develop new crop lines to deliver increased amounts of these compounds in our diet. In addition, the flavonoid pigmentation compounds are of great horticultural importance. For these two reasons alone a thorough understanding of the dynamic metabolic processes involved in flavonoid production is important, but there are broader benefits to many areas of cellular and plant biology.

Methods

Analysis of flavonol profiles

Arabidopsis (Columbia ecotype) wild-type and transgenic seeds were surface-sterilized as described previously [25]. Approximately 5 mg of seeds were dispersed on agar plates containing Murashige and Skoog salts with 1% sucrose and incubated 2 d in the dark at 4°C. The seeds were then grown on the surface of the agar medium under continuous white light (100 μE m-2 s-1) at 21°C as previously described [55]. Flavonols were extracted from frozen tissue by grinding 20 seedlings in 200 μl 1% acetic acid in 80% methanol and incubating overnight at 4°C. The samples were clarified by centrifugation twice at 13,000 rpm, 4°C for 15 min each time. The samples were hydrolyzed as described in Burbulis et al. [21], followed by the addition of an equal volume of 100% methanol and centrifugation as before.

Flavonols in wild-type and transgenic seedlings were profiled using a Waters Acquity UPLC system with a UPLC phenyl C18 column (2.1 mm x 100 mm, Waters) and a linear elution gradient from 100% solvent A (0.1% formic acid in water) to 40% solvent B (0.1% formic acid in acetonitrile) over 13 min at 4°C, modified from Yonekura-Sakakibara [56]. Chromatograms were collected at 320 nm and 365 nm.

Confirmation of knockouts by T-DNA insertion

Lines for each tt allele in Col-0 were ordered from the Arabidopsis Biological Resource Center (ABRC; The Ohio State University) and bred to homozygosity from a segregating population. The mapped locations of each T-DNA insertion were created using the T-DNA flanking sequence identified via the ABRC sequence viewer (Figure 2). To confirm that each line was homozygous, genomic DNA was extracted from one large leaf from each plant according to Edwards et al. [57] with slight modifications. Genomic DNA from Col-0 wild-type plants of approximately the same age was also extracted in the same manner to serve as a control template. Extracted genomic DNA was resuspended overnight in 100 μl ddH2O. PCR was performed using 1 to 2 μl of each sample with the primers listed in Table 2 in a total volume of 10–20 μl. PCR products were analyzed by agarose gel electrophoresis. Seeds for the tt5-3, tt7-5, and tt11-11 homozygous lines have been deposited with the ABRC; homozygous lines are available at the ABRC for the other four lines through the SALK Confirmed T-DNA Project.

Table 2 Primers used for confirmation of homozygous lines
Full size table
