A surface plasmon resonance (SPR) scheme is proposed in which the local phase modulations of the coupled plasmons can interfere and yield phase-sensitive intensity modulations in the measured signal. The result is an increased traceability of the SPR shifts for biosensing applications. The main system limitation is the propagation distance of the coupled plasmon modes. This aspect is therefore studied for thin film microstructures operating in the visible and near-infrared spectral regions. The surface roughness of the substrate layer is examined for different dielectrics and deposition methods. The Au layer, on which the plasmonic modes are propagating and the biosensing occurs, is also examined. The surface roughness and dielectric values for various deposition rates of very thin Au films are measured. We also investigate an interferometric SPR setup where, due to the power flux transfer between plasmon modes, the specific choice of grating coupler can either decrease or increase the plasmon propagation length.
Surface plasmon resonance (SPR) is a prominent method widely used for the last two decades  in research of label-free characterization and sensing of biological agents, such as viruses and bacteria . To expand the detection capability of SPR, a novel self-referenced interferometric scheme has been proposed to integrate with the SPR architectures. The proposed approach introduces a phase-based signal measurement that complements the classical intensity-based SPR measurement. Multiplexing of those signals leads to an increase precision in the general SPR tracking and thus results in an increased sensitivity of the device.
One of the main limitations of this technique is its reliance on the propagation distance of the coupled SPs (ΛSP), as the efficiency of SPR interferometry is directly related to ΛSP. For applications in biosensing, this represents an important constraint since SPs are coupled at visible (VIS) or near-infrared (NIR) energies (E SP) on very thin, typically less than 45 nm, metallic films. Moreover, one side of the metal is necessarily exposed to the probed media, making biosensing SPR interfaces asymmetric. Under those conditions, the long range SPs (LRSPs) cannot be employed. Therefore, we address the fundamental variables influencing SP propagations. The primary aspect is the nanofabrication itself, where the thin films surface roughness is examined for different materials and deposition methods. In addition to the geometry, the dielectric values of the metallic layers are examined as a function of their deposition rates. Finally, a specific configuration of gratings for the SPR interferometry is presented, in which the SPs can couple with an additional SP mode to result in increased propagation distances.

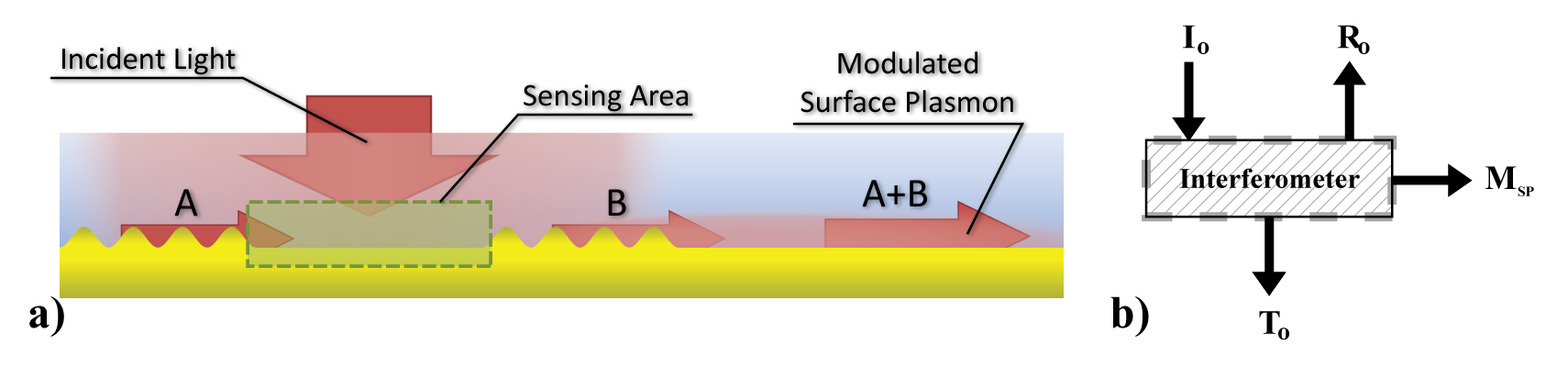

The basic principle of the SPR interferometry is schematised in Figure 1, where a single coherent beam is used to excite SP modes through spatially localized finite gratings distributed evenly on the metal-dielectric architecture. Those SP modes propagate outwards of the finite grating regions into the cavity regions, where they are phase delayed by an overlying biomolecular environment, before they interfere with the neighbouring SP modes. In a reflection-based SPR experiment, modulations in the reflection (R o) deliver the information about the SPs interference. In the case of transmission-based SPR, where the illumination source is embedded in the device , the transmission (T o) would be monitored.

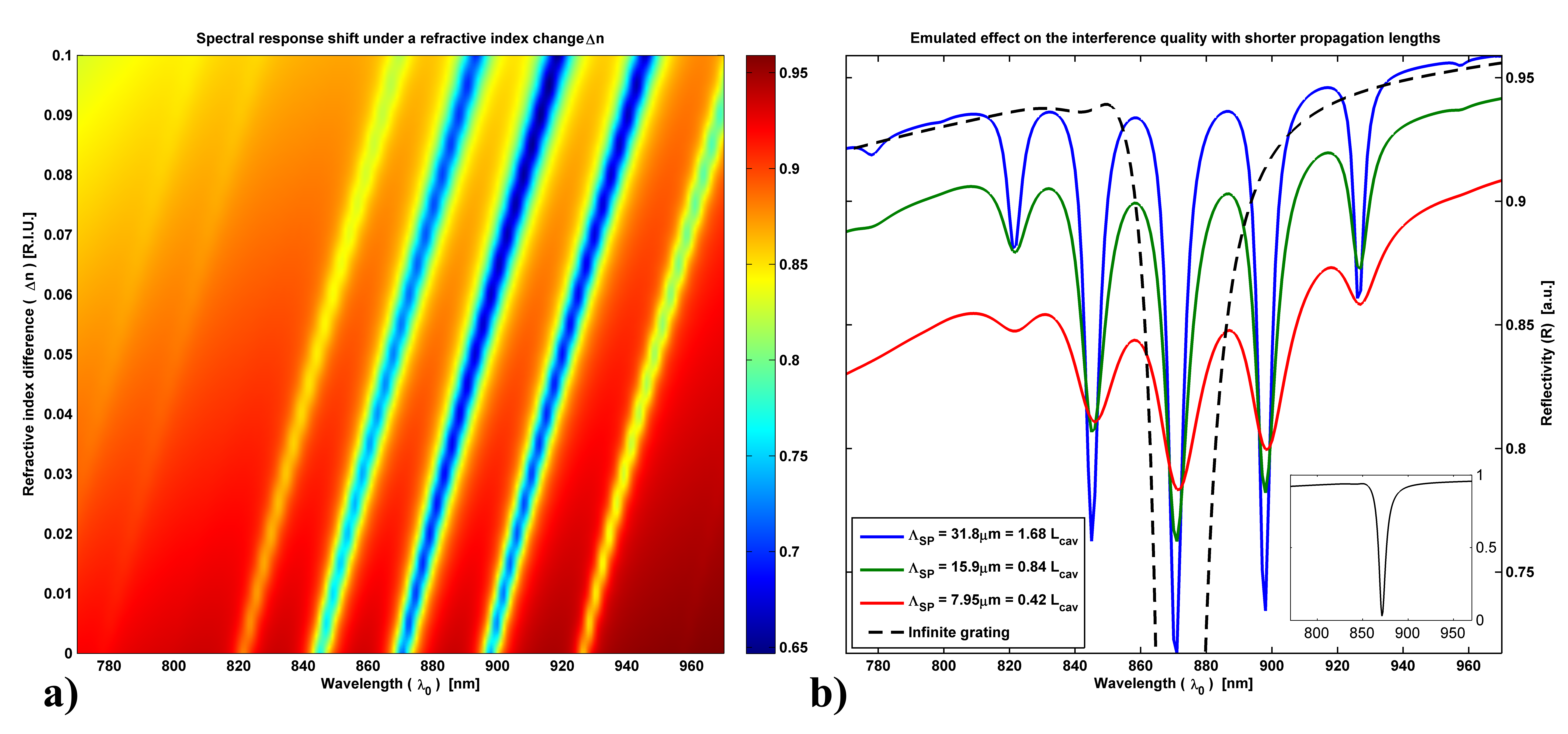

To demonstrate the ability of the SPR interferometric architecture to produce a multiplexed signal, finite element method (FEM) simulations were carried out using COMSOL Multiphysics™ v3.5a software in conjunction with Matlab®, expanding from the results reported in  by increasing the number of finite gratings. The resulting multiple interference increases the measured signal's quality factor. The results presented in Figure 2 were simulated for a semi-infinite flat interface of Au and air, with a regular array of finite gratings, evenly separated and illuminated as in Figure 1. The 20-nm high sinusoidal gratings have a periodicity of P G = 805 nm, are 8.57 μm in length (10⋅λSP at 1.4251 eV) and are spaced by 18.85 μm (22⋅λSP at 1.4251 eV), where λSP denotes the wavelength of the SPs. The incident light ranges from 1.28 to 1.61 eV (λo = 770 to 970 nm) and is normally incident to the surface. Figure 2a illustrates the dependence of the reflected (R o) SPR interferometric signal on the changes in the refractive index of a 250-nm thick layer deposited atop of the investigated microstructure. In this figure, the number of traceable SPR intensity minima is multiplied by the interferences fringes. By the central limit theorem in statistical theory , the precision of the absolute SPR shift is increased by N 1/2, where N denotes the number of interference fringes. The number of interference fringes is directly proportional to the cavity's optical length bounded by ΛSP. The fringes measurability (intensity vs. background) is also a function of ΛSP. This is shown in Figure 2b, where the impact of ΛSP on the interference signal quality is depicted. As presented, the propagation length has a severe impact on signal quality for a specific architecture, as a shorter propagation length leads to a larger difference in amplitude between two SP modes interfering. This difference reduces the interferometric signal's amplitude in relation to the background reference, resulting in a reduced S/N ratio. To make use of the SPR interferometry for biosensing, the SPs propagation distance should be as long as possible.
LRSPs have already been studied extensively . Though they present advantageous properties for integrated plasmonics, self-coherent LRSPs are by nature incompatible with biosensing applications: they are either entrapped in dielectrics layers, supported by thick bulk substrates, or have low energies in the IR. Given the decreasing slope in ε of biochemical materials versus energy , the sensitivity of SPR is strongly diminished for IR. Therefore, more traditional means have to be considered when trying to increase the propagation lengths of SPs while taking into account practical issues for biosensing, such as an open metallic surface, thin-films and SPR at VIS-NIR energies (higher energies damaging the samples while lower energies present poor sensitivities). The first and most practical aspect to consider is the nanofabrication itself.
Nanofabrication and roughness
The SPs propagation distances are limited by thermal losses in the metal at a given energy E SP(ω). Additional losses will occur through radiations in thin films, illustrated by a larger SPs complex wave vectors due to coupling to the other interface (known as Fano modes) . The surface roughness is also known to play a very important role in the limitation of the SPs propagation distances, as the corrugation will diffract a fraction of the SPs light flux. Indeed, the mean free path of the SPs wave has been found to be inversely proportional to the square of the surface roughness height, for a given SP energy and fixed metal dielectric (the complete formulation is available in ). The fabrication of SPR devices to be employed in the VIS-NIR range of energies has become possible in the last decades due to the improved fabrication methods at the nanoscale. Nonetheless, the surface roughness of the films and nanostructures now has a larger impact on SPs modulated signals, as the geometrical structures have sizes comparable to the inherent roughness of the employed fabrication methods. For example, in Figure 1 the grating has a line height of 20 nm, but the grain size of e-beam evaporated Au is around 6 nm. The most straightforward way of increasing the SPs propagation length for SPR interferometry is to reduce the surface roughness to a minimum during the fabrication process of the architectures. In many SPR experiments, a dielectric layer has to be fabricated on the top of a functional substrate such as a semiconductor. This is the case for transmission-based experiments  or for reflection-based experiments in which active components are involved and where one side of the metal film is bounded by a deposited dielectric [10–12].

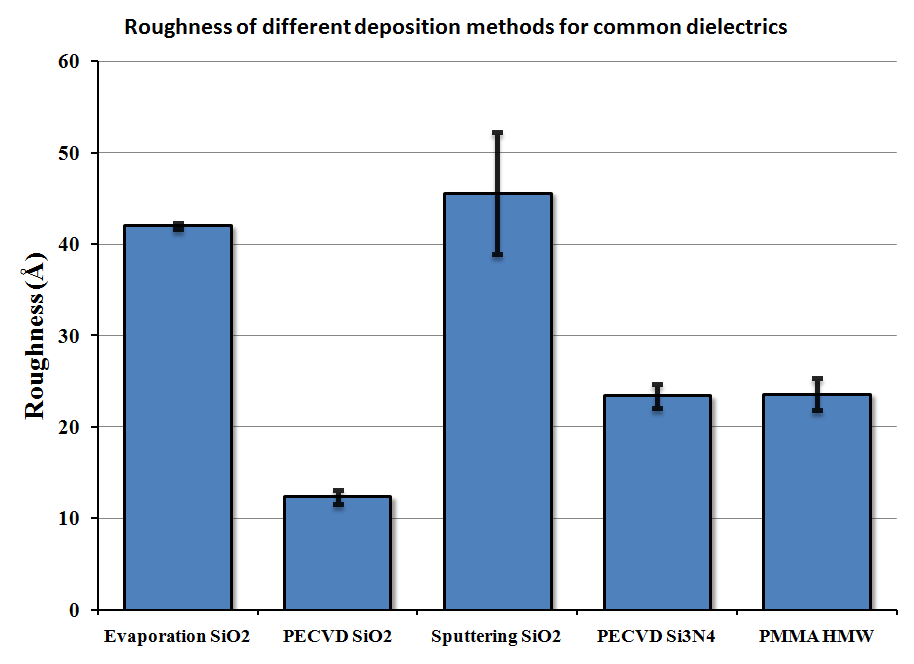

To reduce the roughness, we analysed different materials and deposition techniques. The substrate layer on which the metallic layer is going to be deposited is the first concern, as its roughness will directly impact the quality of the subsequent thin films. All the films studied were deposited on Si substrate, whose surface roughness is below 8 Å under AFM. Figure 3 presents the surface roughness, measured by ellipsometry, for three dielectrics commonly employed in nanofabrication . SiO2 is initially studied, for which three different fabrication methods were explored: e-beam evaporation, plasma sputtering and plasma-enhanced chemical vapour deposition (PECVD). Si3N4 is a good candidate, due to its relatively large dielectric constant, and was deposited through PECVD. The spin coating of a common electro resist, polymethyl methacrylate (PMMA), is also presented. On average, 300 nm of SiO2 or Si3N4 and 150 nm of PMMA were deposited atop Si substrates. Figure 3 shows that SiO2 deposited through PECVD is the best candidate for thin films in the present case, with a consistent surface roughness of 12.3 ± 0.8 Å. The energy-dependent dielectric values for the resulting layers have been measured by ellipsometry and are presented elsewhere . SEM and AFM measurements were also carried, concurred with the presented results, but are not exposed here for clarity.

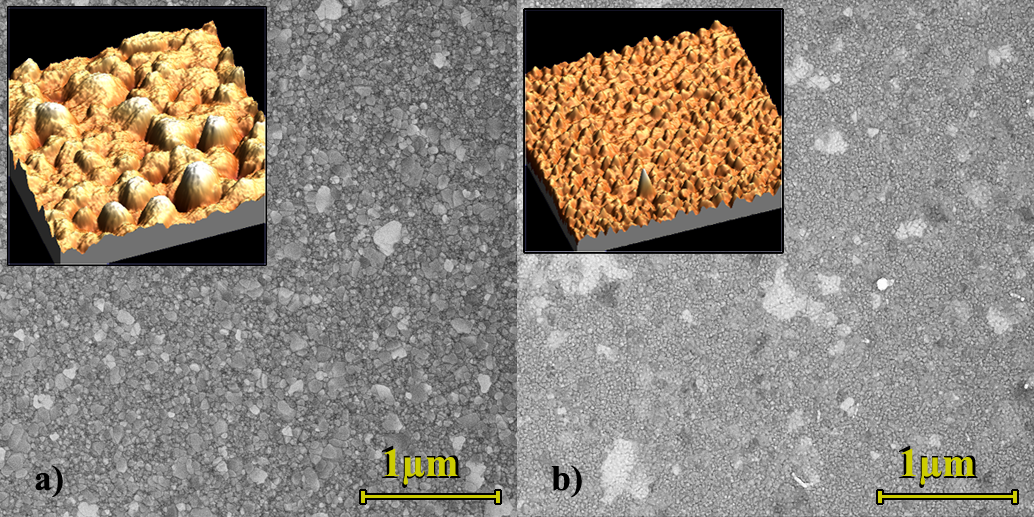

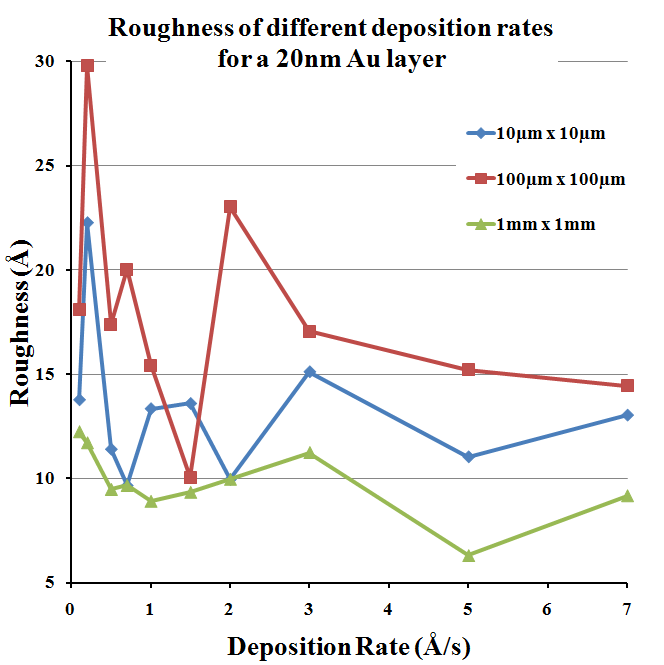

The successive layers for Figure 1 structure consist in a continuous thin film of Au atop of which a grating region is constructed for the SPs coupling. Again, the surface roughness of Au is studied, this time only for the e-beam evaporation technique (using a BOC Edwards evaporator model Auto 306) for various deposition rates. The target thickness for the Au layers is 20 nm. Figure 4 presents the surface roughness for the various deposition rates . In depth SEM analyses have shown that for small deposition rates (≤1 Å/s), Au nanodroplets tend to cool down and form 100-200 nm wide clusters, thus yielding a relatively high surface roughness. On the other hand, for large deposition rates (>3 Å/s), the Au grains remain small (approximately 6 nm) and are very compact on the surface. However, very large Au pieces, up to about 1 μm2, are found in this case on the surface. Examples of these two behaviours are presented in Figure 5. As shown in Figure 4, a middle value for the deposition rate, at around 1 Å/s, presents tradeoffs of the two regimes and seems to be the ideal case for deposition of low-roughness Au films. Au-plated quartz substrates commercially available have been measured to have a roughness around 40 Å, making them less suited for long range SPs experiments or to achieve narrow SPR peaks. To conclude on surface roughness, we can estimate that our worst case would consists of sputtered SiO2 with a 0.2 Å/s deposition rate, yielding a 55 Å surface roughness while the best case scenario, made of a PECVD SiO2 layer with a Au layer evaporated at 1.5 Å/s, would yield a surface roughness of 15 Å. From these numbers, we can estimate that at a given energy, the contribution of surface roughness to SPs loss in scattering is reduced by a factor of 13 × . Well-known smoothing methods, such as thermal annealing, are generally incompatible with thin film technology. Indeed, heating thin Au films (<50 nm) increases the formation of larger clusters, grains or flakes [14–16], which can be useful for some applications , but not for planar SPR where propagating SPs would scatter. Therefore, ab initio precautions have to be taken to generate very thin and flat metallic layers.

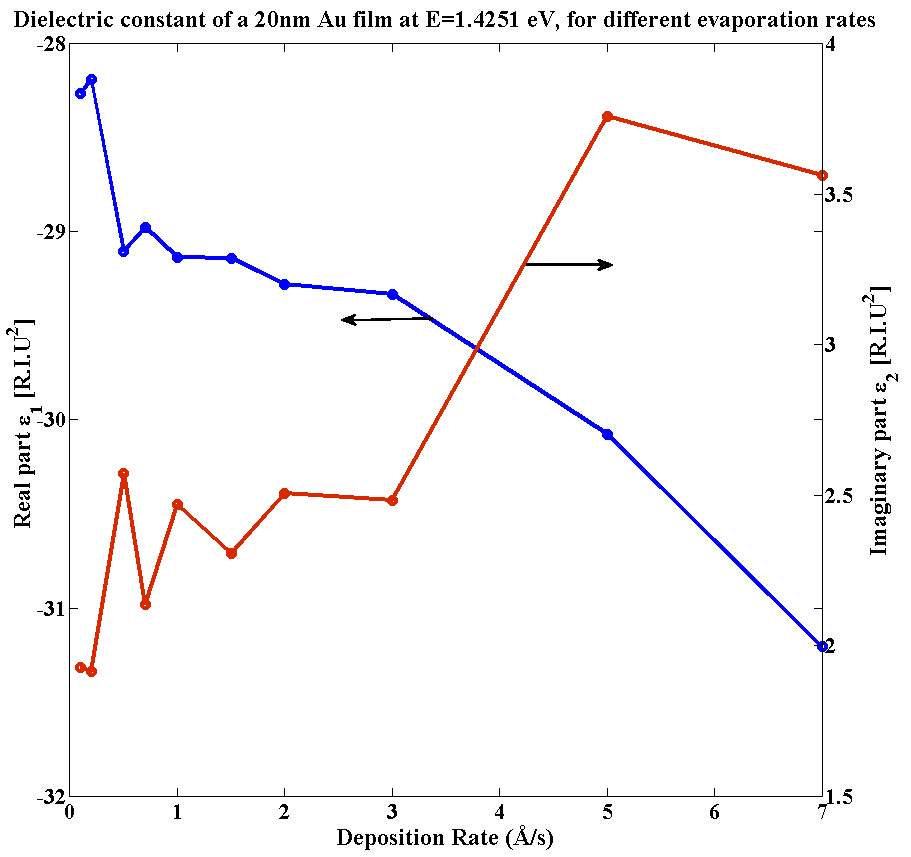

Another fabrication aspect to take into account is the value of the dielectric constants of the films, especially those of the metal layer. These values were measured for various energies by ellipsometry for the thin Au films deposited at various rates. The results for E = 1.4271 eV are presented in Figure 6. As one can observe, both real and imaginary parts of the dielectric constant, ε Au, are increasing with the deposition rate. This can be understood by analysing the AFM and SEM results showing that the film density increases with the deposition rate: thus, a higher value of the effective dielectric constant approaching that of the bulk material.

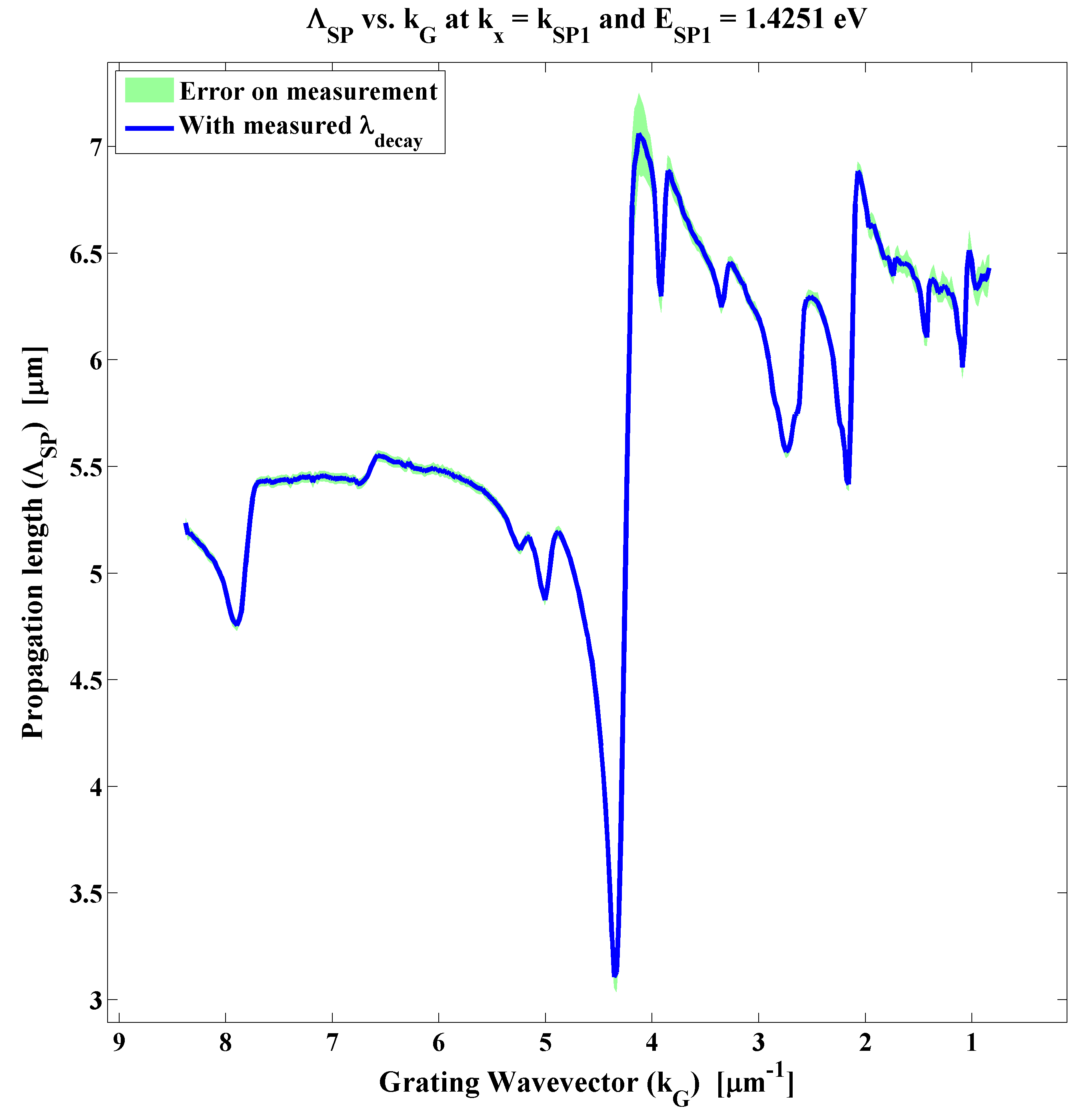

To estimate the propagation lengths of the surface plasmon modes, we have factored in our simulations the measured experimental dielectric properties of the metallic substrate as well as the underlying structure. A finite incident beam is employed to excite the SP mode within a specific region; the propagating mode's EM field intensity decay is observed outside of that region and fitted with a decay model using non-linear regression, to extract the mean free path ΛSP. To isolate the effect of the dielectrics values, the thin films are considered to have perfectly flat surfaces on both sides. The SPs propagations for these simulations are therefore limited by losses to radiations coupling (to Fano modes) and by electron dampening (thermal loss), but there is no scattering into free space. The increase in experimentally measured dielectric values of the thin films, real and imaginary, induce an overall increase of the SP propagation lengths. The ΛSP on the flat 20 nm layer can increase from 4.69 ± 0.02 μm for the 0.5 Å/s layer (with ε Au = -29.1032 + 2.5736i) to 5.22 ± 0.02 μm for the 7 Å/s (with ε Au = -31.2071 + 3.5632i), a 10% increase. The film with a larger dielectric constant, despite having greater thermal losses to electron damping, results in a better SP mode confinement. This effect would be comparable to increasing the film thickness, reducing the radiation leaks through coupling to the other interface, lowering the SP wave vector and increasing the propagation lengths.
Surface plasmon mode coupling

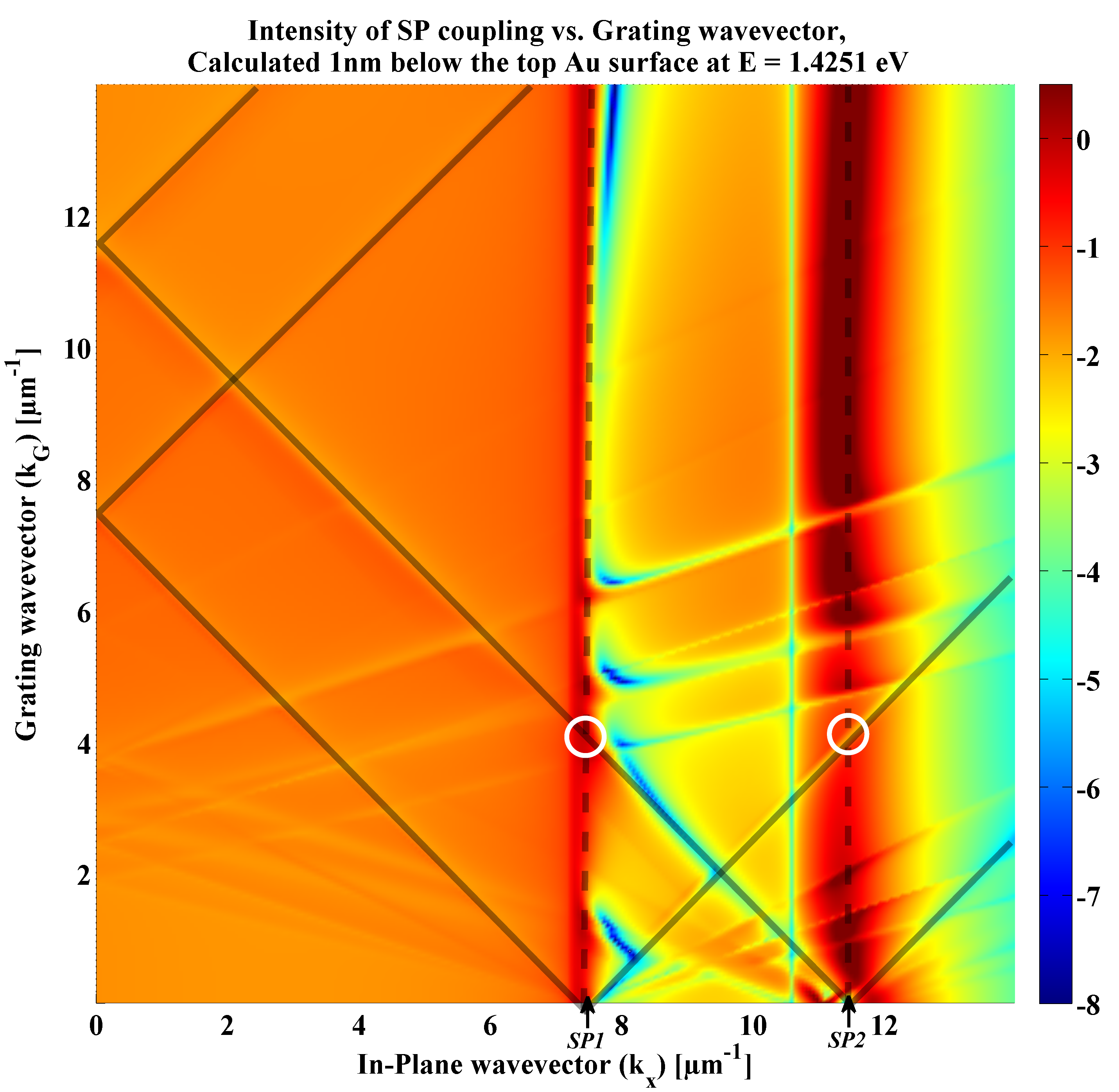

In addition to the fabrication methods, specific designs of the interferometric architecture can help to increase propagation lengths. As detailed widely in literature, SP modes can be coupled on both interfaces of thin film architectures, i.e. on the surface and below the metal [8, 17]. Simultaneously, coupling both SP modes, SP1 atop the thin film and SP2 under, opens a plethora of luminous flux exchange phenomena . When coupling SPR through a grating, as in Figure 1, several coupling events can occur between SP1 and SP2, as a function of the chosen grating periodicity, P G. Figure 7 presents the EM-field intensity distribution, calculated 1 nm below the metal layer, as a function of the in-plane wavevector k x and the grating wavevector k G = 2π/P G. The intensity shown is only for the 0th diffraction order of the grating, i.e. simple transmission, for clarity. The lines illustrate the effects of the grating's diffraction on the 0th order intensity distribution. At the SP wavevectors k SP1 and k SP2, the peaks and drops in intensity correspond to various SPs flux exchange. Anti-parallel coupling phenomena arise when forward (+) and backward (-) propagating SPs are coupling. Thus, SP1+ can couple with SP1- at k G = 2|k SP1|/n, SP2+ with SP2- at k G = 2|k SP2|/n and SP1+/- with SP2-/+ at k G = (|k SP1| + |k SP2|)/n, where n is the diffraction order. More interesting are the parallel coupling between SP1 and SP2 travelling in the same directions, which occurs when k G = ΔSP/n, with ΔSP = |k SP1| - |k SP2|. The parallel coupling between SP1 and SP2, through the first diffraction order n = 1, is of specific interest as it increases the propagation distance of the SPs on the surface. The propagation distance of SP1 for various k G is presented in Figure 8, where an increase by a factor of 1.5 can be achieved when k G = ΔSP. The SP1 and SP2 modes can optically pump each other and thus combine in a hybrid guided mode, which have been studied in the literature . The sensing response still comes from the reflected (or transmitted) incident light, which is modulated by the phase shift induced by the cavity. Therefore in Figure 1, the incoming light ray can directly inject SPs at k SP1, which in turn can couple through the grating with SP2 by k SP2 = k SP1 + ΔSP. The resulting guided SP mode is propagating on both interfaces and does so much further. This specific selection of grating can then be employed for SPR interferometry and increase its sensitivity.
The presented SPR interferometry method is a relatively straightforward way of enhancing the sensitivity of classical intensity-based SPR biochemical sensing, by introducing SPs phase modulations in the measurements. The number of traceable SPR peaks is multiplied by the SPs interference and tracking those multiplied SPR peaks enable a better resolution on the absolute value of surficial SPR shift. The main limitation of the method is its dependence on the SPs propagation distance ΛSP.
We have therefore examined the principal factors influencing ΛSP in experimental setup for biosensing, which simply consists of a thin film Au layer atop a dielectric, measured in the VIS or NIR regions. The results can apply to various architectures, including Kretschmann-Raether setups.
The initial focus was on surface roughness, playing an important role in thin film SP propagation. We found that a careful optimization of the fabrication process can reduce the SP loss due to quasi-random diffractions by a factor of 13 ×. The resulting films have dielectric values dependent on their deposition rates, which obviously plays a role in the SP wave confinement, and thus its ΛSP. Finally, it was shown that the periodicity of the selected grating can have important impacts, negative and positive, on ΛSP. Various SP modes (or more precisely Fano modes) can be coupled in parallel and anti-parallel behaviours. The specific parallel coupling between SP1 and SP2 through the first diffraction order of the grating has been found to increase the propagation lengths by a factor of 1.5 in the SPR interferometer, enhancing the sensitivity of the method even further.
By carefully addressing the presented aspects, we conclude that SPR interferometry is experimentally feasible and has the potential to increase SPR sensitivity by a factor proportional to the SPs propagation distances, ΛSP.
atomic force microscopy
finite element method
long range SPs
plasma-enhanced chemical vapour deposition
surface plasmon resonance
Cooper MA: Label-Free Biosensors-Techniques and Applications. Cambridge: Cambridge University Press; 2009.
Lepage D, Jiménez A, Carrier D, Beauvais J, Dubowski JJ: Hyperspectral imaging of diffracted surface plasmons. Opt Express 2010, 18: 27327–27335. 10.1364/OE.18.027327
Carrier D, Dubowski JJ: Demonstration of a Novel Surface Plasmon Based Interferometer with COMSOL. 6th Annual Comsol Conference; Boston 2010. Retrieve on " ", under Peer-reviewed conference proceedings http://www.dubowski.ca/publications Retrieve on "", under Peer-reviewed conference proceedings
Rice J: Mathematical Statistics and Data Analysis. 2nd edition. Duxbury Press, Belmont, CA; 1995.
Berini P: Long-range surface plasmon polaritons. Adv Opt Photon 2009, 1: 484–588. 10.1364/AOP.1.000484
Arwin H: Optical properties of thin layers of bovine serum albumin, g-globulin, and hemoglobin. Appl Spectrosc 1986, 40: 313–318. 10.1366/0003702864509204
Burke JJ, Stegeman GI, Tamir T: Surface-polariton-like waves guided by thin, lossy metal films. Phys Rev B 1986, 33: 5186. 10.1103/PhysRevB.33.5186
Mills DL: Attenuation of surface polaritons by surface roughness. Phys Rev B 1975, 12: 4036. 10.1103/PhysRevB.12.4036
Bolger PM, Dickson W, Krasavin AV, Liebscher L, Hickey SG, Skryabin DV, Zayats AV: Amplified spontaneous emission of surface plasmon polaritons and limitations on the increase of their propagation length. Opt Lett 2010, 35: 1197–1199. 10.1364/OL.35.001197
Miller D: Device requirements for optical interconnects to silicon chips. Proc IEEE 2009, 97: 1166–1185.
Vakil A, Engheta N: One-atom-thick ir metamaterials and transformation optics using graphene.2011. [http://arxiv.org/abs/1101.3585] 16 Feb 2011
Jimenez A, Lepage D, Beauvais J, Dubowski JJ: Quality of surfaces in the fabrication of monolithic integrated light source SPR system for bio-sensing purposes. Microelectron Eng 2010, in press.
De Los Santos VL, Lee D, Seo J, Leon FL, Bustamante DA, Suzuki S, Majima Y, Mitrelias T, Ionescu A, Barnes CHW: Crystallization and surface morphology of Au/SiO 2 thin films following furnace and flame annealing. Surf Sci 2009, 603: 2978–2985. 10.1016/j.susc.2009.08.011
Nogues C, Wanunu M: A rapid approach to reproducible, atomically flat gold films on mica. Surf Sci 2004, 573: L383-L389. 10.1016/j.susc.2004.10.019
Sung JH, Kim BS, Choi CH, Lee MW, Lee SG, Park SG, Lee EH, Beom-Hoan O: Enhanced luminescence of GaN-based light-emitting diode with a localized surface plasmon resonance. Microelectron Eng 2009, 86: 1120–1123. 10.1016/j.mee.2009.01.009
Lepage D, Dubowski JJ: Surface plasmon effects induced by uncollimated emission of semiconductor microstructures. Opt Express 2009, 17: 10411–10418. 10.1364/OE.17.010411
The authors acknowledge the financial contribution from the Natural Science and Engineering Research Council of Canada (NSERC Strategic grant STPGP 350501-07) and the Canada Research Chair in Quantum Semiconductors Program. The authors also want to thank Etienne Grondin and the CRN2 nanofabrication team for their helpful participation.
The authors declare that they have no competing interests.
DL carried out the main conception and design of the SPR architectures, participated in the analysis and interpretation of data, did the calculations for plasmon mode coupling and drafted the manuscript. DC carried the COMSOL simulations and participated in the analysis and interpretation of data. AJ designed the experiments and carried the nanofabrication of the samples. JB and JJD have given final approval of the version to be published. All authors read and approved the final manuscript
