Background

Cyanobacteria possess several cytochrome P450s (P450s), but only a few reports exist regarding their catalytic functions [1–3]. P450 CYP110 is a prominent family found in heterocyst-forming cyanobacteria including nitrogen-fixing genera Nostoc and Anabaena. CYP110 genes are widely distributed in such cyanobacterial strains [1], e.g., Nostoc (also referred to as Anabaena) sp. strain PCC 7120 possesses five CYP110 genes [classified as CYP110A1 (alr1450), CYP110B1 (all3746), CYP110C1 (alr4686), CYP110D1 (alr4766), and CYP110E1 (alr4833)] in addition to one P450 gene of another family (CYP284A1) (Figure 1) [4]. The P450NS gene (CYP110C1) is positioned adjacent to the NS1 gene encoding germacrene A synthase (alr4685) [2]. The encoded protein (CYP110C1) was recently confirmed to convert germacrene A to a hydroxylated sesquiterpene (1,2,3,5,6,7,8,8a-octahydro-6-isopropenyl-4,8a-dimethylnaphth-1-ol) [3]. CYP110A1 is the first reported cyanobacterial P450 gene, which was present in a conserved 11.25-kb episomal element (the nifD element), and the encoded protein (CYP110A1) was hypothesized to be a fatty acid ω-hydroxylase, based on its substrate binding profile and amino acid sequence similarities to P450BM3 (CYP102A1) of Bacillus megaterium and the mammalian P450 family 4 fatty acid ω-hydroxylase [1, 5].

Figure 1
figure 1

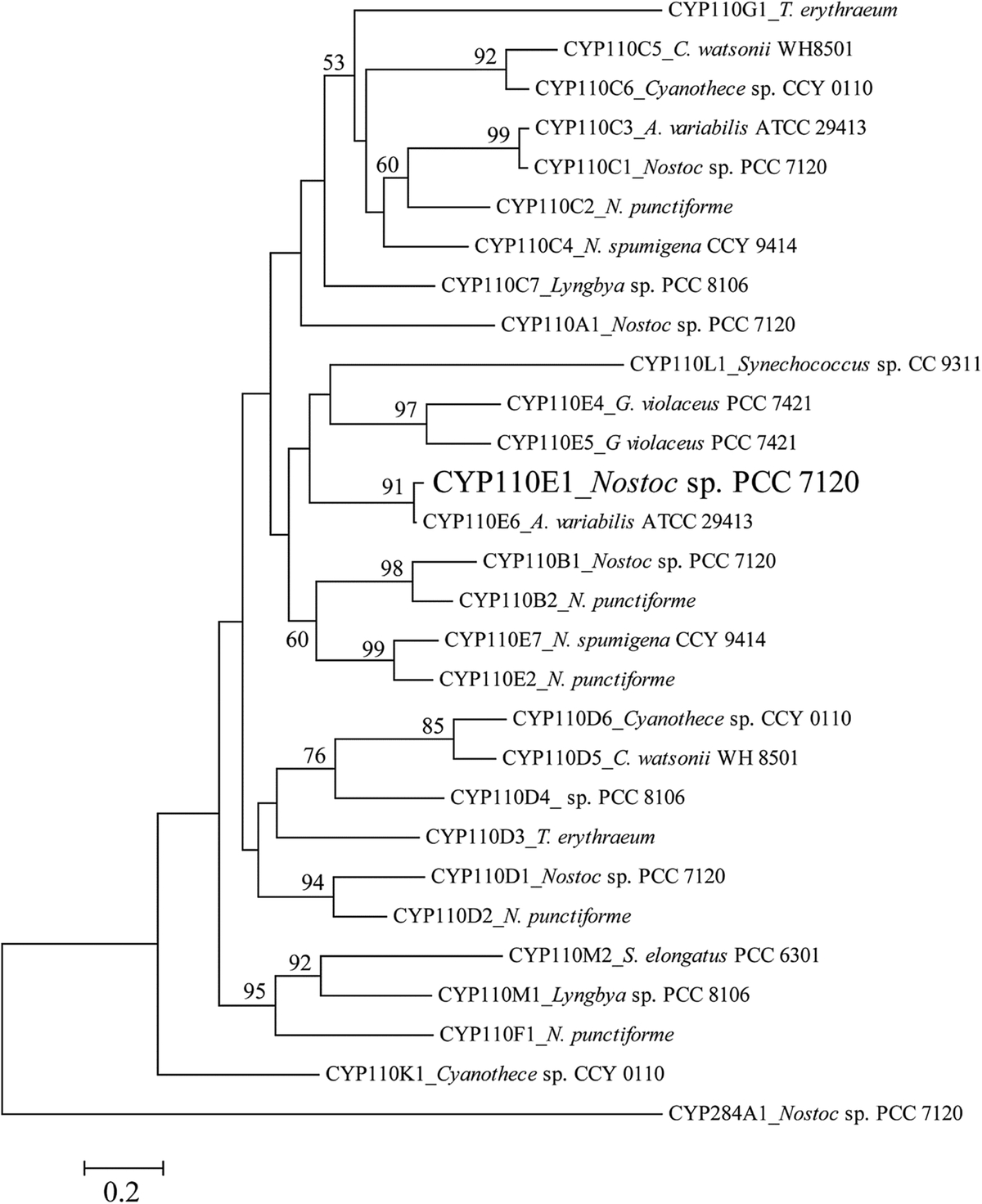

Phylogenetic positions of cyanobacterial CYP110 family using 27 CYP110 proteins derived from 11 cyanobacteria, whose amino acid sequences are shown in CyanoBase. The accession numbers in parentheses show those of respective P450 proteins. CYP110E1 is shown in boldface. The phylogenetic tree was constructed using the neighbor-joining method. The number shown next to each node indicates the percentage bootstrap value of 1,000 replicates (only 50% and higher are cited). The scale bar indicates a genetic distance of 0.02 (Knuc).

Full size image

In order to function as terminal monooxygenases, P450s must be associated with one or two additional proteins (or protein domains) to transfer two electrons from NAD(P)H to the heme domain of the P450 protein [6, 7]. The vast majority of bacterial P450s need a FAD-containing ferredoxin reductase to receive electrons from NAD(P)H, and a ferredoxin (small iron-sulfur protein) to receive them from ferredoxin reductase, which subsequently reduces P450 itself [class I system; Additional file 1 Figure S1a[7]. P450RhF (CYP116B2) derived from Rhodococcus sp. NCIMB 9784 was discovered to be a self-sufficient P450 protein, in which the P450 domain is C-terminally fused to a reductase domain (here called RhFRed) [8]. RhFRed contained an FMN-binding ferredoxin reductase subdomain to receive electrons from NAD(P)H and a [2Fe-2S] ferredoxin subdomain [9]. A short linker region of 16 amino acids existed between P450 and RhFRed [8]. The redox chain of P450RhF resembles that of the class I system [Additional file 1 Figure S1c. Thus, vector pRED was constructed for the functional expression of bacterial P450 (class I) genes in Escherichia coli, using the linker sequence and RhFRed domain sequence [( Additional file 1Figure S2[10]. This vector has been demonstrated to be useful for functional expression of the P450cam gene (CYP101A1) [10, 11], P450bzo gene (CYP203A) [10], P450balk gene (CYP153A13a) [12, 13], other CYP153A genes [14], and P450 PikC gene [15], constituting corresponding self-sufficient P450 monooxygenation enzymes. We elucidate here that the CYP110E1 gene is functionally expressed on pRED in E. coli to synthesize a robust monooxygenase, which shows promiscuous substrate specificity (affinity) for various small molecules.

Results

Screening experiments

Nostoc sp. strain PCC 7120, Nostoc punctiforme PCC 73102, and Anabaena variabilis ATCC 29413 possess six, ten, and four P450s, respectively. We screened the biocatalytic functions of these P450s using 47 small molecules that contain flavonoids, sesquiterpenes, low-molecular-weight drugs, naphthalene derivatives, and other chemicals with benzene rings [ Additional file 1 Figure S3)]. E. coli BL21 (DE3) cells carrying each P450 gene inserted into the pRED vector were co-cultured with the substrates and possible bioconversion products were analyzed by HPLC. Consequently, CYP110E1 of Nostoc PCC 7120 was found to be promiscuous for the substrate range mediating the biotransformation of various small molecules. The CYP110E1 enzyme that is C-terminally fused to RhFRed was confirmed to constitute the active P450 form by CO difference spectral analysis [ Additional file 1Figure S4]. Thus, cells of E. coli BL21 (DE3) carrying plasmid pCYP110E1-Red were used for the following experiments.

Bioconversion of flavanones by E. coli (pCYP110E1-Red)

Naringenin was biotransformed to a product (F-1) with a conversion ratio of 31.5% (Figure 2) through co-cultivation with cells of E. coli (pCYP110E1-Red). F-1 was identified as apigenin (4’,5,7-trihydroxyflavone) by its comparison with an authentic sample on HPLC analysis. Flavanone (RT 18.2 min) was converted to products F-2 (RT 15.9 min; 5.7%) and F-3 (RT 17.2 min; 2.1%), which were identified as 3-hydroxyflavanone and flavone, respectively, by their comparison with authentic samples on HPLC analysis. Figure 3 shows their production rate curves. Since this P450 was thought to biotransform various flavanones, we further examined 6-hydroxyflavanone (RT 15.9 min) and 7-hydroxyflavanone (RT 15.4 min). As a result, these hydroxyflavanones were converted to products F-4 (RT 15.1 min; 12.1%) and F-5 (RT 14.5 min; 1.4%), which were identified as 6-hydroxyflavone and 7-hydroxyflavone, respectively, by their comparison with authentic samples on HPLC analysis.

Figure 2
figure 2

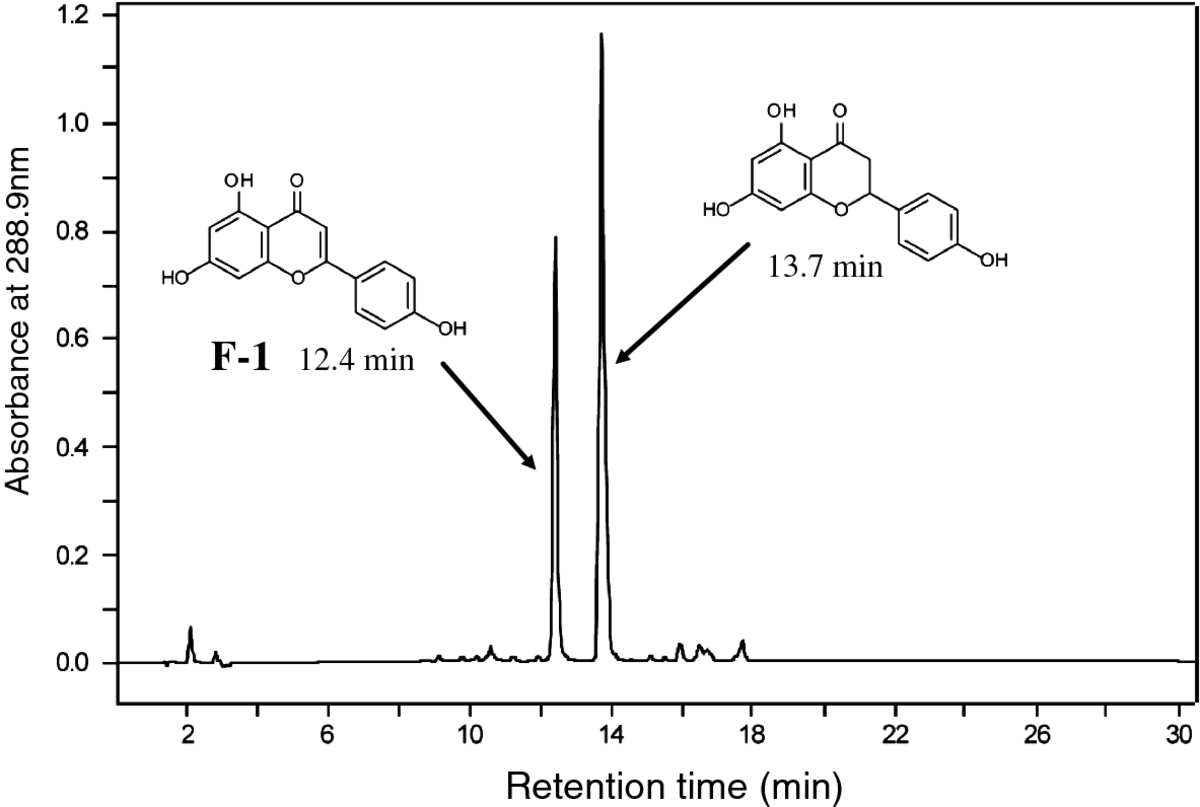

HPLC analysis of the ethylacetate extract of the co-culture of cells of E. coli BL21 (DE3) carrying plasmid pCYP110E1-Red with naringenin. 31.5% of naringenin was converted to F-1, which was identified as apigenin.

Full size image
Figure 3
figure 3

Conversion rate of flavanone to F-2 [3-hydroxyflavanone (♦)] and F-3 [flavone (□)] by E. coli BL21 (DE3) cells carrying pCYP110E1-Red. Error bars indicate the standard deviations obtained for three independent experiments. The conversion ratio (%) was measured by the ratio of peak area (max plot) in HPLC.

Full size image

Bioconversion of a sesquiterpene by E. coli (pCYP110E1-Red)

Only zerumbone among the examined terpenes [ Additional file 1: Figure S3] was biotransformed through co-cultivation with cells of E. coli (pCYP110E1-Red). The crude ethyl acetate (EtOAc) extract (152.0 mg) from this bioconversion mixture (200 ml), subjected to silica gel column chromatography (hexane-EtOAc = 2:1), yielded 5.6 mg (12.7%) of S-1 (fr. 10–12), 3.2 mg (6.8%) of S-2 (fr. 19–26), and 1.5 mg (3.2%) of S-3 (fr. 30–40). These spectroscopic data are shown in Additional file 2.

The molecular formula of S-1 was determined to be C15H24O (zerumbone + 2 H) by HREI-MS. Consistent with its molecular formula, S-1 was proposed to be a product obtained by the reduction of a double bond in the substrate. The reduced double bond was determined to be 2,3Δ by the observation of a doublet methyl signal (δH 1.05, H-12), and the 1H-13C long range coupling from this doublet methyl to the ketone carbon (δC 205.1, C-1). The identity of S-1 was thus determined as (6E,10E)-2,6,9,9-tetramethylcycloundeca-2,6-dien-1-one (Figure 4) [16]. Zerumbone was found to be converted to S-1 with nontransformed E. coli BL21 (DE3) cells (data not shown). It was therefore thought that S-2 and S-3 were the genuine products by CYP110E1-Red.

Figure 4
figure 4

Bioconversion of sesquiterpene zerumbone with E. coli BL21 (DE3) cells carrying pCYP110E1-Red. % indicates conversion ratio measured by the ratio of peak area (max plot) in HPLC. E. coli BL21 (DE3) cells carrying plasmid pFusionF87V that expressed the P450BM3 (F87V) gene [17] were also examined for the ability to biotransform zerumbone, and the result is shown here.

Full size image

The molecular formula of S-2 was determined to be C15H24O2 by HREI-MS. Consistent with its molecular formula and 1H-NMR spectrum, the introduction of an alcoholic OH group in S-1 was proposed. The position of the alcoholic OH group was clarified to be C-13 by the observation of an oxymethylene signal (δH 3.92 and δH 4.02, H-13) and the 1H-13C long range coupling from this oxymethylene to C-5 (δC 35.0), C-6 (δC 140.1), and C-7 (δC 126.0). The identity of S-2 was thus determined as (6Z,10E)-6-hydroxymethyl-2,9,9-trimethylcycloundeca-2-ene-1-one (Figure 4). This product (S-2) was a novel compound according to the CAS database.

The molecular formula of S-3 was determined to be C15H24O2 by HREI-MS. Consistent with its molecular formula and 1H-NMR spectrum, the introduction of an alcoholic OH group in S-1 was proposed. The position of the alcoholic OH group was clarified to be C-8 by the observation of an oxymethylene signal (δH 4.24, H-8) and the 1H-13C long range coupling from H-14 (δH 1.12) and H-15 (δH 1.26) to C-8 (δC 75.5). The identity of S-3 was thus determined as (6E,10E)-8-hydroxy-2,6,9,9-tetramethylcycloundeca-2,6-dien-1-one (Figure 4). This product (S-3) was a novel compound according to the CAS database.

Bioconversion of aryl compounds by E. coli (pCYP110E1-Red)

A variety of aryl compounds, which include naphthalene derivatives and low-molecular-weight drugs, were biotransformed through co-cultivation with cells of E. coli (pCYP110E1-Red). Converted compounds were identified by chromatographic and spectroscopic analyses. Spectroscopic data are shown in Additional file 2.

Compounds converted from 1-methoxynaphthalene

The crude EtOAc extract (156.5 mg) from the bioconversion mixture (200 ml) with 1-methoxynaphthalene and E. coli (pCYP110E1-Red), subjected to silica gel column chromatography (hexane-EtOAc = 6:1), yielded 2.6 mg (7.5%) of A-1 (fr. 13–15), 0.4 mg (1.1%) of A-2 (fr. 19–22), and 0.7 mg (2.0%) of A-3 (fr. 28–35).

The molecular formula of A-1 was determined to be C22H18O4 by HRAPCI-MS. Consistent with its molecular formula and 1H-NMR spectrum, A-1 was proposed to be a secondary product (dimer) obtained by a phenol oxidation coupling reaction of the direct conversion product. The structure of A-1 was determined to be 4,4'-dimethoxy-[2,2'-binaphthalene]-1,1'-diol (Figure 5) by the observation of 1H-13C long range couplings from H-2 (2’) (δ 6.92) to C-1 (1’) (δ 149.3), C-3 (3’) (δ 120.4), and C-4 (4’) (δ 142.1), and 1H vicinal spin network of H-5 (5’) (δ 8.30) – H-6 (6’) (δ 7.54) – H-7 (7’) (δ 7.49) - H-8 (8’) (δ 8.20) [18].

Figure 5
figure 5

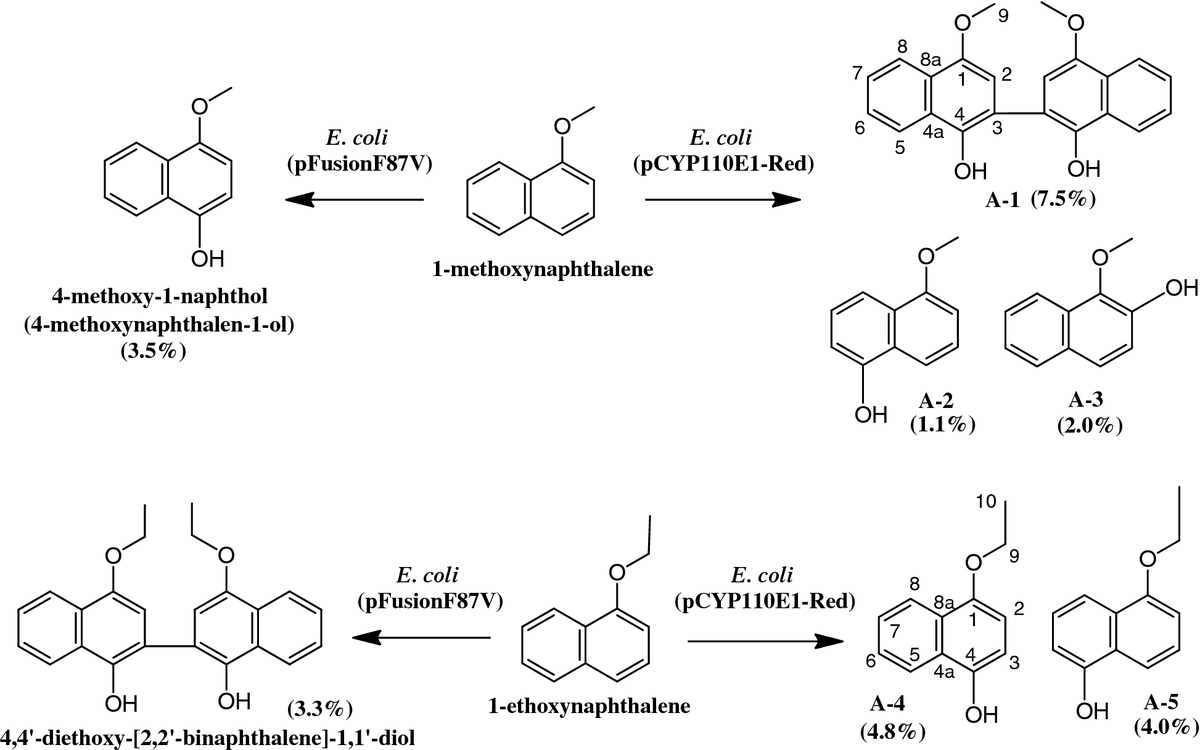

Bioconversion of 1-methoxynaphthalene and 1-ethoxynaphthalene with E. coli BL21 (DE3) cells carrying pCYP110E1-Red. (%) indicates yield (calculated from the weight of a purified product). The result with E. coli BL21 (DE3) cells carrying plasmid pFusionF87V [17] is also shown for comparison.

Full size image

The molecular formula of A-2 was determined to be C11H10O2 by HRAPCI-MS. Consistent with its molecular formula and 1H-NMR spectrum, the introduction of one phenolic OH group in the aromatic ring was proposed. The position of this phenolic OH group was determined to be C-5 by the observation of 1H-1H vicinal spin networks of H-2 (δ 6.84) – H-3 (δ 7.39) – H-4 (δ 7.74) and H-6 (δ 6.84) – H-7 (δ 7.30) – H-8 (δ 7.85), and an NOE observed between H-8 and H-9 (δ 3.99). The identity of A-2 was thus determined to be 5-methoxynaphthalen-1-ol (Figure 5) [17].

The molecular formula of A-3 was determined to be C11H10O2 by HRAPCI-MS. Consistent with its molecular formula and 1H-NMR spectrum, the introduction of one phenolic OH group in the aromatic ring was proposed. The position of this phenolic OH group was determined to be C-2 by the observation of 1H-1H vicinal spin coupling of H-3 (δ 7.23, d, J = 8.5 Hz) and H-4 (δ 7.57, d, J = 8.5 Hz) and 1H-13C long range couplings from H-4 to C-2 (δ 145.4) and C-5 (δ 128.3). The identity of A-3 was thus determined to be 1-methoxynaphthalen-2-ol (Figure 5) [19].

Compounds converted from 1-ethoxynaphthalene

The crude EtOAc extract (89.3 mg) from the bioconversion mixture (200 ml) with 1-ethoxynaphthalene and E. coli (pCYP110E1-Red), subjected to silica gel column chromatography (hexane-EtOAc = 6:1), yielded 1.8 mg (4.8%) of A-4 (fr. 10–12) and 1.5 mg (4.0%) of A-5 (fr. 14–16).

The molecular formula of A-4 was determined to be C12H12O2 by HRAPCI-MS. Consistent with its molecular formula and 1H-NMR spectrum, the introduction of one phenolic OH group in the aromatic ring was proposed. The position of this phenolic OH group was determined to be C-4 by the observation of 1H-1H vicinal spin coupling of H-2 (δ 7.55, d, J = 8.7 Hz) and H-3 (δ 7.23, d, J = 8.7 Hz) and the 1H-13C long range couplings from H-5 (δ 7.78) to C-4 (δ 145.8). The identity of A-4 was thus determined to be 4-ethoxynaphthalen-1-ol (Figure 5) [20].

The molecular formula of A-5 was determined to be C12H12O2 by HRAPCI-MS. Consistent with its molecular formula and 1H-NMR spectrum, the introduction of one phenolic OH group in the aromatic ring was proposed. The position of this phenolic OH group was determined to be C-5 by the observation of 1H-1H vicinal spin networks of H-2 (δ 6.83) – H-3 (δ 7.37) – H-4 (δ 7.71), and H-6 (δ 6.85) – H-7 (δ 7.29) – H-8 (δ 7.89), and the 1H-13C long range couplings from H-3 to C-1 (δ 154.8) and C-4a (δ 125.4) and from H-7 to C-5 (δ 151.2) and C-8a (δ 127.3). The identity of A-5 was thus determined to be 5-ethoxynaphthalen-1-ol (Figure 5) [21].

Compounds converted from 2-methylnaphthalene

The crude EtOAc extract (175.0 mg) from the bioconversion mixture (200 ml) with 2-methylnaphthalene and E. coli (pCYP110E1-Red), subjected to silica gel column chromatography (hexane-EtOAc = 5:1), yielded 1.2 mg (3.8%) of A-6 (fr. 11–13) and 1.5 mg (4.7%) of A-7 (fr. 20–24).

The molecular formula of A-6 was determined to be C11H10O by HRAPCI-MS. Consistent with its molecular formula and 1H-NMR spectrum, the introduction of one phenolic OH group in the aromatic ring was proposed. The position of this phenolic OH group was determined to be C-4 by the observation of two singlet sp2 methines (δ 6.67 and δ 7.22) and the 1H-1H vicinal spin networks of H-5 (δ 8.10) – H-6 (δ 7.40) – H-7 (δ 7.43) - H-8 (δ 7.71). The identity of A-6 was thus determined to be 3-methylnaphthalen-1-ol (Figure 6). A-7 was identified as naphthalene-2-ylmethanol (Figure 6) with HPLC analysis by its comparison with an authentic sample extracted from co-culture with 2-methylnaphthalene and E. coli BL21 cells carrying plasmid pUCRED-Balk, which expressed the CYP153A13a gene [13].

Figure 6
figure 6

Bioconversion of other aryl compounds with E. coli BL21 (DE3) cells carrying pCYP110E1-Red. % and (%) indicate conversion ratio and yield, respectively.

Full size image

Compounds converted from 1,6-dimethylnaphthalene

The crude EtOAc extract (95.7 mg) from the bioconversion mixture (200 ml) with 1,6-dimethylnaphthalene and E. coli (pCYP110E1-Red), subjected to silica gel column chromatography (hexane-EtOAc = 6:1), yielded 1.9 mg (5.5%) of A-8 (fr. 12–15) and 1.0 mg (2.9%) of A-9 (fr. 21–26).

The molecular formula of A-8 was determined to be C12H12O by HRAPCI-MS. Consistent with its molecular formula and 1H-NMR spectrum, the introduction of one phenolic OH group in the aromatic ring was proposed. The position of this phenolic OH group was determined to be C-4 by the observation of 1H-1H vicinal spin couplings of H-2 (δ 7.05, d, J = 7.9 Hz) and H-3 (δ 6.70, d, J = 7.9 Hz), and H-7 (δ 7.37, d, J = 8.6 Hz) and H-8 (δ 7.84, d, J = 8.6 Hz), and 1H-13C long range couplings from H-9 (δ 2.58) to C-1 (δ 126.6), C-2 (δ 125.1), and C-8a (δ 131.7). The identity of A-8 was thus determined to be 4,7-dimethylnaphthalen-1-ol [17]. A-9 was identified as (5-methylnaphthalen-2-yl)methanol (Figure 6) with HPLC analysis by its comparison with an authentic sample extracted from co-culture with 1,6-dimethylnaphthalene and E. coli BL21 (pUCRED-Balk) [13].

A compound converted from 2-bromophenol

The EtOAc extract from the bioconversion mixture (0.5 ml) with 2-bromophenol and E. coli (pCYP110E1-Red) was subjected to HPLC to yield a product (A-10). A-10 was identified as 2-bromobenzene-1,4-diol (Figure 6) with HPLC by its comparison with an authentic sample extracted from co-culture with 2-bromophenol and E. coli BL21 (pUCRED-Balk) [13].

A compound converted from 4-methylbiphenyl

The EtOAc extract from the bioconversion mixture (0.5 ml) with 4-methylbiphenyl and E. coli (pCYP110E1-Red) was subjected to HPLC to yield a product (A-11). A-11 was identified as [1,1’-biphenyl]-4-ylmethanol (Figure 6) with HPLC by its comparison with an authentic sample extracted from co-culture with 4-methylbiphenyl and E. coli BL21 (pUCRED-Balk) [13].

A compound converted from 7-ethoxycoumarine

The EtOAc extract from the bioconversion mixture (0.5 ml) with 7-ethoxycoumarine and E. coli (pCYP110E1-Red) was subjected to HPLC to yield a product (A-12). A-12 was identified as 6-hydroxy-2 H-chromen-2-one (Figure 6) with HPLC by its comparison with an authentic sample.

A compound converted from 2-(p-tolyl)pyridine

The crude EtOAc extract (103.7 mg) from the bioconversion mixture (200 ml) with 2-(p-tolyl)pyridine and E. coli (pCYP110E1-Red), subjected to silica gel column chromatography (CH2Cl2-MeOH = 20:1), yielded 3.1 mg (8.4%) of A-13 (fr. 23–27). The molecular formula of A-13 was determined to be C12H11NO by HREI-MS. The 1H- and 13C-NMR spectra showed the methyl group in the substrate was oxidized to the corresponding primary alcohol. The identity of A-13 was thus determined to be (4-(pyridin-2-yl)phenyl)methanol (Figure 6), which was also produced through co-culture with 2-(p-tolyl)pyridine and E. coli BL21 (pUCRED-Balk) [13].

A compound converted from ibuprofen methylester

The crude EtOAc extract (225.0 mg) from the bioconversion mixture (200 ml) with ibuprofen methylester and E. coli (pCYP110E1-Red), subjected to silica gel column chromatography (hexane-EtOAc = 4:1), yielded 1.1 mg (2.3%) of A-14. The molecular formula of A-14 was determined to be C14H20O3 by HREI-MS. Consistent with its molecular formula and 1H-NMR, the introduction of one alcoholic OH group in the substrate was proposed. The position of this alcoholic OH group was determined to be C-11 because all signals of H-10, H-12, and H-13 were observed to be singlet. The identity of A-14 was thus determined to be methyl 2-(4-(2-hydroxy-2-methylpropyl)phenyl)propanoate (Figure 7) [22].

Figure 7
figure 7

Bioconversion of drugs ibuprofen methylester and flurbiprofen methylester with E. coli BL21 (DE3) cells carrying pCYP110E1-Red. (%) indicates yield. The result with E. coli BL21 cells carrying plasmid pUCRED-Balk that expressed the P450balk gene (CYP153A13a) from an alkane-assimilating marine bacterium Alcanivorax borkumensis[13] is also shown for comparison.

Full size image

Compounds converted from flurbiprofen methylester

The crude EtOAc extract (254.7 mg) from the bioconversion mixture (200 ml) with flurbiprofen methylester and E. coli (pCYP110E1-Red), subjected to silica gel column chromatography (hexane-EtOAc = 4:1), yielded 1.5 mg (2.7%) of A-15 (fr 10–12) and 1.8 mg (3.3%) of A-16 (fr 23–28).

The molecular formula of A-15 was determined to be C16H15FO3 by HREI-MS. Consistent with its molecular formula and 1H-NMR spectrum, the introduction of one alcoholic OH group in the substrate was proposed. The position of this alcoholic OH group was determined to be C-2 because the signal of H-3 (δ 1.80) was observed to be singlet. The identity of A-15 was thus determined to be methyl 2-(2-fluoro-[1,1'-biphenyl]-4-yl)-2-hydroxypropanoate (Figure 7).

The molecular formula of A-16 was determined to be C16H15FO3 by HRAPCI-MS. Consistent with its molecular formula and 1H-NMR spectrum, the introduction of one phenolic OH group in the aromatic ring was proposed. The position of this phenolic OH group was determined to be C-13 because the signals of H-12 and H-14 were observed to be doublet (J = 8.6 Hz) and at high field (δ 6.89). The identity of A-16 was thus determined to be methyl 2-(2-fluoro-4'-hydroxy-[1,1'-biphenyl]-4-yl)propanoate (Figure 7).

Discussion

The phylogenetic analysis (Figure 1) showed that CYP110E1 of Nostoc sp. strain PCC 7120 was located in close proximity to the first branch point in the phylogenetic tree of the CYP110 family, i.e., among 27 CYP110 proteins derived from 11 cyanobacteria, only four P450s, CYP110K1, CYP110D2, CYP110E6, and CYP110D3, were located closer to the first branch point than CYP110E1. In this study, CYP110E1, whose function had been unknown, was found to function as a substrate-promiscuous monooxygenase when it was C-terminally fused to the RhFRed reductase domain of P450RhF (CYP116B2) by the use of the pRED vector. Naringenin was converted directly to apigenin with a significant conversion ratio (31.5%) (Figure 2). Naringenin and apigenin belong to typical flavonoids that can be biosynthesized in higher plants. Artificial flavonoids, flavanone, 6-hydroxyflavanone and 7-hydroxyflavanone, were also converted to the respective flavones, even if with low conversion ratios, i.e., major parts of the substrates remained without being biotransformed even after 48-h co-culture. These results revealed that CYP110E1 functions as a flavone synthase. Such an activity is reported for the first time in prokaryotic P450s. When using flavanone as the substrate, 3-hydroxyflavanone was additionally generated (Figure 3). It may be possible that 3-hydroxyflavanone is the intermediate from flavanone to flavone. However, E. coli (pCYP110E1-Red) did not biotransform 3-hydroxyflavanone when it was added as the substrate (data not shown). It is therefore likely that flavones and 3-hydroxyflavanone were generated independently from flavanone. The higher-plant CYP93B was characterized as P450-type flavone synthase (FSII) and was proposed to convert flavanones to flavones by way of 2-hydroxyflavanones [23, 24]. Such a catalytic route may be the case with CYP110E1.

P450BM3 (also described as P450BM-3 or P450BM3; CYP102A1) derived from Bacillus megaterium, one of the best-characterized prokaryotic P450s, is a natural fusion enzyme composed of a P450 part and a eukaryote-type NADPH-P450 reductase domain Additional file 1: Figure 1d[25–27]. This P450 part is closely related to the CYP110 family [1] and exhibited 24.6% amino acid sequence identity to CYP110E1. P450BM3, whose native substrates are thought to be long-chain fatty acids, has been shown to possess substrate and catalytic promiscuities [28–31]. Specifically, P450BM3 variants incorporating active site mutations that include F87V (or F87A) were found to acquire broader substrate affinity not only for a variety of aryl compounds including substituted naphthalenes [17, 32, 33], but also for the monoterpene α-pinene and the sesquiterpene amorpha-4,11-diene [30, 34]. The P450BM3 variant F87V that was N-terminally fused to an archaeal peptidyl-prolyl cis trans isomerase (PPIase), which was synthesized by the plasmid named pFusionF87V in E. coli cells, was shown to elevate the stability of the P450 protein [17].

Zerumbone, a sesquiterpene contained in the shampoo ginger (Zingiber zerumbet Smith), is a promising chemopreventive agent, since its anti-inflammatory and anti-tumor activities have been investigated [35–38]. E. coli BL21 (DE3) carrying plasmid pCYP110E1-Red was shown to hydroxylate zerumbone to produce two novel compounds (S-2 and S-3) via the endogenous metabolite in E. coli (S-1; Figure 4). On the other hand, E. coli BL21 (DE3) carrying plasmid pFusionF87V was not able to synthesize compound S-3 from zerumbone, although it bioconverted zerumbone to compound S-2 with a higher conversion ratio than that of E. coli (pCYP110E1-Red) (Figure 4). E. coli (pFusionF87V) was able to hydroxylate β-eudesmol (a sesquiterpene contained in edible plants of the Zingiberaceae family) at its C-5 position [17], while E. coli (pCYP110E1-Red) was not able to biotransform β-eudesmol (data not shown). The two prokaryotic P450s, CYP110E1 and P450BM3 (F87V), are likely to have the ability to biotransform some sesquiterpenes of higher-plant origin complementally. CYP109B1 from Bacillus subtilis was also found to possess a wide substrate range for saturated fatty acids, n-alcohol, and some isoprenoids, and convert the sesquiterpene (+)-valencene to (+)-nootkatone, a high added-value compound found in grapefruit juice [39, 40].

E. coli (pCYP110E1-Red) was found to biotransform various aryl compounds. 1-Methoxynaphthalene and 1-ethoxynaphthalene were converted to several hydroxylated compounds (Figure 5). When using 1-methoxynaphthalene as the substrate, an aryl coupling reaction was observed to produce compound A-1. This product is likely to be generated via oxidative aryl coupling through a non-enzymatic dimerization process from 4-methoxynaphthalen-1-ol, which is speculated to be the direct enzyme product. Misawa et al. (2011) showed that these two substrates were biotransformed by E. coli (pFusionF87V) to hydroxylated compounds different from those obtained using E. coli (pCYP110E1-Red) (Figure 5) [17]. In this case, oxidative aryl coupling was observed in the reaction, not from 1-methoxynaphthalene but from 1-ethoxynaphthalene to produce 4,4'-diethoxy-[2,2'-binaphthalene]-1,1'-diol [17]. These findings suggest that the two P450s, CYP110E1 and P450BM3 (F87V), are useful for producing a variety of 1-methoxy and 1-ethoxy naphthalene derivatives, whose naphthalene rings acquire one hydroxyl group without eliminating the methyl or ethyl group. Such an elimination is often likely to occur, e.g., CYP153A13a (P450balk) from Alcanivorax borkumensis SK2, which was found to possess a promiscuous substrate range for aryl compounds and aromatic compounds including alkyl groups, converted 1-methoxy naphthalene to 1-naphthol [12, 13]. Figure 6 shows other aryl compounds biotransformed with E. coli (pCYP110E1-Red). The reactions towards products A-7 A-9 A-10 A-11, and A-13 were observed also in E. coli BL21 (pUCRED-Balk) that expressed the CYP153A13a gene [13]. On the other hand, E. coli (pFusionF87V) converted 2-methylnaphthalene to compounds 2-methyl-1-naphthol and 6-methy-1-naphthol, which are different from those with E. coli (pCYP110E1-Red), while it converted 1,6-dimethylnaphthalene to the same compound A-8[17].

The present study also showed that E. coli (pCYP110E1-Red) biotransformed the methylester forms of non-steroidal anti-inflammatory drugs ibuprofen and flurbiprofen to produce the respective hydroxyl derivatives that are difficult to synthesize chemically (Figure 7). E. coli (pUCRED-Balk) converted ibuprofen methylester to another hydroxyl substituent [13], while it was not able to biotransform flurbiprofen methylester (data not shown). The four drug metabolites produced by recombinant E. coli cells (Figure 7) or their free carboxylate forms, awaiting the determination of the absolute configuration, could be used as standards in studies on the metabolisms of ibuprofen and flurbiprofen with human P450s [41].

Conclusion

The present study revealed that cyanobacterial cytochrome P450 CYP110E1, C-terminally fused to the P450RhF (CYP116B2) RhFRed reductase domain, is promiscuous for substrate and catalytic ranges and is useful for biosynthesizing not only flavones (from flavanones), but also a variety of hydroxyl- small molecules that are difficult to synthesize chemically, which may span pharmaceutical and nutraceutical industries.

Methods

Bacterial strains and genetic manipulation

Three cyanobacterial strains, Nostoc sp. strain PCC 7120, Nostoc punctiforme PCC 73102 (=ATCC 29133), and Anabaena variabilis ATCC 29413 were obtained from Pasteur Culture collection, Paris, and grown autotrophically in BG 11 medium. For the isolation of genomic DNA, cyanobacteria were harvested from the log phase and were immediately treated with lysozyme (10 mg/ml for 1 h). Genomic DNA was then isolated with the GenElute plant genomic DNA kit (Sigma-Aldrich, St. Louis, MO).

E. coli DH5α (ECOS Competent E. coli DH5α; Nippon Gene, Tokyo, Japan) was utilized as the host for DNA manipulations. E. coli BL21 (DE3) (Nippon Gene) was used for the functional expression of each P450 gene, which was inserted into the pRED vector [10]. PCR amplifications were performed using Prime STAR Max Premix DNA polymerase (Takara Bio, Ohtsu, Japan) and a thermal cycler (Applied Biosystems, Foster City, CA). Restriction enzymes and DNA-modifying enzymes were purchased from New England BioLabs (Beverly, CA) or Takara Bio. A Ligation-Convenience Kit (Nippon Gene) was also used. Plasmid DNA was prepared with a QIAprep Miniprep Kit (Qiagen, Hilden, Germany). All recombinant DNA experiments were carried out according to the suppliers’ manuals or Sambrook and Russell (2001) [42].

Nucleotide sequencing and computer analysis

Nucleotide sequences were confirmed with Bigdye terminator cycle sequencing ready reaction kit version 3.1 (Applied Biosystems) and a model 3730 DNA analyzer (Applied Biosystems). Homologous protein sequences in the protein sequence database were retrieved from CyanoBase of Kazusa DNA Research Institute (http://genome.kazusa.or.jp/cyanobase) with the BLAST program [43], and aligned by Clustal W program in Molecular Evolutionary Genetics Analysis (MEGA) software version 5.0 (http://www.megasoftware.net/). A phylogenetic tree was also constructed according to MEGA 5.0.

Construction of plasmids

Cyanobacterial P450 genes were amplified by PCR from genomic DNA of Nostoc sp. PCC 7120, N. punctiforme PCC 73102, or A. variabilis ATCC 29413. All synthetic oligonucleotides used in this work were listed in Table 1. PCR amplification was performed in a 50 μl reaction mixture containing 25 ng of genomic DNA, 25 μl of 2 × the DNA polymerase, 10 μM of each primer, and 5% dimethyl sulfoxide (DMSO). The PCR conditions used were the following: preincubation at 98 °C for 2 min; a total of 5 cycles at 98 °C for 10 sec, 55 °C for 10 sec, and 75 °C for 15 sec; a total of 30 cycles at 98 °C for 10 sec, 62 °C for 5 sec and 75 °C for 15 sec. An amplified 1.4 kb fragment was digested with Nde I and Eco RI or Hin dIII, and ligated into the Nde I-Eco RI or Nde I-Hin dIII site of pRED to construct the desired plasmids. In these plasmids, the stop codons of the respective P450 genes were removed to fuse the N-terminus of RhFRed.

Table 1 List of primers used in this study
Full size table

CO difference spectral analysis

CO difference spectral analysis was done as described [12].

Bioconversion experiments

E. coli BL21 (DE3) carrying each plasmid was grown in an LB medium including ampicillin (Ap; 100 μg/ml) at 37°C with rotary shaking for 3–4 h until the absorbance at OD 600 nm reached approximately 0.8. For screening experiments, 1.5 ml of this preculture was inoculated into 125 ml of an LB medium including Ap (100 μg/ml), 5-aminolevulinic acid hydrochloride (5-ALA; 80 μg/ml), ammonium iron (II) sulfate (0.1 mM), and IPTG (0.1 mM) in a baffled Erlenmeyer flask, and cultured at 20°C for 20 h on a rotary shaker (140 rpm; Kuhner Shaker Lab Therm LT-X, Basel, Switzerland). Cells were collected by centrifugation and resuspended in 25 ml of CV-3 buffer [sodium phosphate buffer (50 mM, pH 7.2) containing 5% glycerol] in a baffled Erlenmeyer flask. Five hundred μl of this cell suspension was added into each well of a 96 well sterile plate (PR-Master Block 2ML; Greiner Bio-One, Frickenhausen, Germany), together with 1 mM (final concentration) of substrate dissolved in dimethyl sulfoxide (DMSO). Bioconversion was performed by cultivation at 25°C for 24 h with 300 rpm using the Kuhner Shaker.

For structural determination of products, large scale cultivation was carry out, by inoculation of 5 ml of the preculture into 500 ml of LB medium including Ap (100 μg/ml), 5-ALA (80 μg/ml), ammonium iron (II) sulfate (0.1 mM), and IPTG (0.1 mM) in a baffled Erlenmeyer flask at 20°C for 20 h with 140 rpm on the Kuhner Shaker. Cells were collected by centrifugation, and resuspended in 100 ml of CV-3 buffer in a baffled Erlenmeyer flask. Each substrate dissolved in DMSO was added at a final concentration of 1 mM to the cell suspension and bioconversion was performed by cultivation at 25°C for 48 h with 180 rpm.

Substrates and authentic samples used in this study were purchased from Tokyo Chemical Industry Co. (Tokyo, Japan), Sigma-Aldrich Co. (St. Louis, MO), or Wako Pure Chemical Industries (Osaka, Japan).

Chemical synthesis of ibuprofen methylester and flurbiprofen methylester

Zero point six mol/l of trimethylsilyldiazomethane in hexane (12.5 ml, 7.5 mmol; Tokyo Chemical Industry) was added, drop by drop on ice, to a solution (33 ml, benzene/methanol = 2/1) containing ibuprofen (1.03 g, 5 mmol; Wako Pure Chemical Industries) or flurbiprofen (1.22 g, 5 mmol; Wako Pure Chemical Industries). The reaction mixtures from ibuprofen and flurbiprofen were stirred at room temperature for 5 h. After concentrated to dryness, the respective residues (1.23 g and 1.53 g) were subjected to column chromatography (I.D. 20 mm × 300 mm) with silica gel IR-60-63/210-w (Daiso Co., Osaka Japan), developed in hexane-ethyl acetate (EtOAc) = 2:1 and hexane-EtOAc = 10:1, to yield 0.79 g of ibuprofen methylester as a colorless oil and 1.27 g of flurbiprofen methylester as a white powder.

Extraction and HPLC analysis of products

Five hundred μl of the reaction mixture liquid was added to 100 μl of saturated sodium chloride solution and 500 μl of EtOAc and shaken for 5 min. After centrifugation, the organic phase was analyzed by high pressure liquid chromatography (HPLC; Waters 2695, Waters Corp., Milford, MA) equipped with an on-line photodiode array detector (Waters 2996). An aliquot of the organic phase (20 μl) was applied to HPLC and separated using an XTerra MS C18 column (I.D. 4.6 mm × 100 mm; Waters), and a flow rate of 1 ml/min was used, with solvent A [5% acetonitrile (CH3CN) in 20 mM phosphoric acid] for 3 min, then a linear gradient from solvent A to solvent B (95% CH3CN in 20 mM phosphoric acid) for 25 min, and finally with solvent B for 15 min, with the maximum absorbance being monitored in the range of 200–500 nm (max plot).

Purification and identification of products

The liquid phase containing the reaction mixture (200 ml; 100 ml x 2) was extracted with EtOAc (200 ml x 2 times). The resultant organic layer was concentrated in vacuo and analyzed by thin-layer chromatography (TLC) on silica gel (E. Merck 60 F-254 0.25-mm silica gel plates). Products were purified by column chromatography on Silica Gel 60 [20 mm (diameter) x 250 mm (length); Merck]. To elucidate the structures of these products, high resolution mass spectral data [HREI-MS (Jeol DX505W; Jeol, Tokyo, Japan) or HRAPCI-MS (Jeol JMS-T100LP)], and nuclear magnetic resonance (NMR) spectral data (400 MHz, Bruker AMX400) were applied.
