Background

The ankle-brachial index (ABI) is a simple, non-invasive measure of subclinical atherosclerosis [1]. Prospective studies have found that those with ABI-defined peripheral arterial disease (PAD) are approximately 1.5 to 2 times more likely to have a clinical CVD event than those without PAD [2–4]. The report of the American Heart Association Prevention Conference V concluded that the ABI provides risk information "over and above that provided by traditional risk factors" and suggested that the test "might be a useful addition to the assessment of CHD risk in selected populations...." [1] Recent guidelines for the Detection, Evaluation and Treatment of High Blood Cholesterol in Adults (Adult Treatment Panel III) recommend that an ABI<0.9 be considered a CHD risk equivalent (10-year CHD risk >20%) [5].

One difficulty in implementing guidelines regarding the ABI is the lack of a standardized threshold level. Moreover, in an apparent paradox, several population-based epidemiologic studies, including the Atherosclerosis Risk in Communities (ARIC) study, have found that women have a lower mean ABI which translates to a higher estimated prevalence of ABI-defined PAD than men, despite having lower prevalences of coronary heart disease [6–11]. Women have less intermittent claudication, with a lower prevalence than men demonstrated in five of six population-based epidemiologic studies of the ABI [6–9, 12, 13], and with a lower incidence in three of four population-based epidemiologic studies [14–17]. Some researchers suggest that gender-specific ABI cutpoints to define PAD might balance the specificity of this diagnosis in women and men [6, 18, 19].

The risk of CHD as a function of the ABI over its entire range has not been well characterized. The ABI has been found to have a graded, inverse association with CVD morbidity and mortality below ABI values considered "normal"[3, 20–22] and to have a U-shaped association with both all-cause and CVD mortality in American Indians [23] and in elderly Americans [24]. A lower incidence of CHD for ABI greater than 1.30 versus ABI 0.90–1.30 was found for African American and white participants of the Atherosclerosis Risk in Communities (ARIC) study [25]. While the association of ABI-defined PAD with CHD risk has been noted for black and white Americans in both the ARIC study [26] and the Cardiovascular Health Study [27], to our knowledge the association of the ABI over its full range with CHD incidence has not been described in these race groups.

We used 13-year follow-up data from the ARIC study to compare the relationship between the ABI and incident CHD between men and women, to estimate the associations between the ABI and incident CHD in African American and white community residents, and to examine the association of the entire range of ABI with incident CHD. Because measurement error may bias these estimates of association, we also explored the effect of ABI measurement error on these estimates.

Methods

Study population

The ARIC study cohort consists of 15,792 45–64-year-old members of randomly selected households in four United States communities: Forsyth County, North Carolina; northwest suburbs of Minneapolis, Minnesota; Washington County, Maryland; and black residents of Jackson, Mississippi. Sampling procedures have been detailed elsewhere [28, 29]. Each field center's Institutional Review Board approved the study, and each participant gave informed consent at each examination. Participants underwent a baseline clinic examination in 1987–1989, were examined three more times at approximately 3-year intervals, and were interviewed annually by telephone. This report includes follow-up through 2001, with a median of 13.1 years follow-up. Individuals of race/ethnicity other than black or white, and black participants at Minneapolis and Washington County (n = 103) were excluded, because numbers are insufficient for analysis. Participants with missing baseline ABI (n = 571) or other covariates (n = 548) were excluded, as were participants with prevalent CHD (n = 687) or unknown baseline CHD status (n = 295), leaving for analysis 10028 white and 3650 black participants.

Ankle-brachial index measurement

During an ultrasound exam, trained and certified sonographers measured ankle and brachial systolic blood pressures with a Dinamap™ 1846 SX automated oscillometric device (Critikon, Inc, Tampa, Florida). They followed a standard protocol, using a contour wrapping technique over the posterior tibial artery at one ankle, selected by the technician to be the right leg if a random number displayed on the computer screen of the work station was even, and the left leg if odd. Two ankle pressure measurements were taken 5 to 8 minutes apart, while the participant was in the prone position before and after undergoing popliteal artery B-mode ultrasound scanning. Measurements of the brachial blood pressures, usually in the right brachial, were subsequently taken approximately every 5 minutes while the participant was in the supine position undergoing ultrasound scanning of the carotid artery. The ABI was then calculated as the average of the two ankle systolic measurements divided by the average of the first two brachial readings. Two participants who had missing ABI because readings that were outside the Dinamap's detection limits (< 30 or > 245 mmHg) were set to missing. To exclude falsely high ABIs due to arterial non-compressibility, 10 values where the ankle pressure was 75 mmHg or more greater than the arm pressure were set to missing; this criterion is reported to have 100% positive predictive value by x-ray for arterial calcification among diabetic patients, although the sensitivity is low [30]. The ABI thus defined ranged from 0.43 to 1.83 in the study population. The reliability coefficient of the ABI based on single ankle and arm oscillometric blood pressure measurements repeated within 1 year apart has been estimated from ARIC data to be 0.61; based on data simulated using ARIC variance estimates, the ratio of the average of two ankle BPs to the average of two arm BPs has a reliability coefficient of approximately 0.70 [31].

Covariates

Anthropometry, a fasting blood sample, and a medical history were taken at the baseline examination. Lipids were assayed at a central laboratory. Low-density lipoprotein (LDL) cholesterol was calculated using the Friedewald formula [32], and high-density lipoprotein (HDL) cholesterol was measured after dextran-magnesium precipitation of non-HDL lipoproteins. Three seated blood pressure measurements were taken using a random-zero sphygmomanometer and the mean of the last two was used for analysis. Hypertension was defined as sitting systolic pressure ≥ 140 mmHg, diastolic pressure ≥ 90 mmHg, or the self-reported use of antihypertensive medication within two weeks prior to the baseline examination. Diabetes mellitus was defined as a fasting glucose level ≥ 7.8 mmol/L (140 mg/dL), a non-fasting level ≥ 11.1 mmol/L (200 mg/dL), self-reported history of diabetes, or the use of hypoglycemic agents. Intermittent claudication was assessed with the Rose questionnaire [33]. Prevalent CHD was defined as electrocardiographic evidence of a prior myocardial infarction, or a self-reported history of a physician-diagnosed heart attack, coronary bypass surgery, or coronary angioplasty. The mean far-wall carotid intima-medial thickness (IMT) was computed from B-mode ultrasound measures at three 1-cm segments of the extra-cranial carotid artery, bilaterally; maximum likelihood techniques were used to estimate the mean if any of the six measures were missing [34].

Ascertainment and validation of incident events

Potential incident CHD events were ascertained by annual telephone participant contacts and by surveys of hospital discharge lists and death certificate data for potential cardiovascular events. Trained ARIC personnel abstracted pertinent data from hospital charts, and copied ECGs for central reading. Out-of-hospital deaths were investigated by means of death certificates, interviews with next of kin, and physician questionnaires, with coroner and autopsy reports used when available. All potential clinical CHD events were validated by the ARIC Morbidity and Mortality Classification Committee using published criteria [28]. Twelve-lead ECGs performed every 3 years at ARIC visits through 1998 were reviewed to detect unrecognized myocardial infarction (MI), which was defined by the appearance of a major Q-wave or a minor Q-wave with ischemic ST-T changes, or an MI by computerized NOVACODE criteria [35], confirmed by side-by-side visual comparison of baseline and follow-up ECGs. Hospitalized MI was classified as definite or probable based on chest pain symptoms, cardiac enzyme or marker levels, and ECG changes. Definite fatal CHD was classified based on chest pain symptoms, underlying cause of death, hospital record information, and medical history. A CHD event was defined as a definite CHD death, a validated definite or probable hospitalized MI, or unrecognized MI.

Statistical analysis

Follow-up time was the time between the first ARIC clinic visit and the first CHD event, or death, last contact date, or December 31, 2001, whichever came first. For an unrecognized MI, the follow-up time was estimated as the midpoint between adjacent visits. Adjusted incidence rates were computed from Poisson regression. Adjusted hazard ratios were computed from Cox regression models. Proportionality of hazards was confirmed by examining Schoenfeld residuals [36]. Continuous covariates were entered as linear terms; nonlinearity was examined using restricted cubic splines [37]. For the ABI, knots for the restricted cubic spline were placed at the 0.05, 0.35, 0.65, and 0.95 ABI quantiles in the overall study population (approximately 0.942, 1.101, 1.193, and 1.346), as recommended [38]. Categorized ABI variables were also examined, including categories commonly used to define peripheral arterial disease (e.g., ABI<0.90). Separate models were constructed for black and white participants, where the covariates' effects were allowed to vary by gender. Analyses were performed using SAS release 8.1 (SAS Institute Inc., Cary, NC). Because regression parameters may be biased when predictors are measured with error [39, 40], adjustment for ABI measurement error in Cox regression models was made using a regression calibration technique [41] and assuming an ABI reliability coefficient of 0.70 [31].

Results

Statistically significant linear associations were found between increasing ABI and gender, race, age, height, smoking status, hypertension, diabetes, HDL- and LDL-cholesterol, and intermittent claudication (Table 1). With increasing ABI, the mean age and LDL-cholesterol, proportions of African Americans and current smokers, and proportions with hypertension, diabetes, and intermittent claudication tended to decrease. HDL-cholesterol and also mean carotid IMT were lower in those with ABI ≤ 0.90. The proportion of men and mean height were higher in those with ABI ≤ 0.80 and also at ABI levels > 1.20.

Table 1 Baseline characteristics of participants without prevalent coronary heart disease by ABI category, the ARIC study, 1987–1989*
Full size table

A total of 686 of the 10028 white participants and 278 of the 3560 African American participants experienced an incident CHD event. In both men and women and in whites and African Americans, CHD incidence was higher for those with ABI-defined PAD than for those without PAD (Table 2), as has been previously reported for ARIC data [26]. White men with PAD, defined as an ABI < 0.90, had an incidence of 21.8 per 1000 person-years, while those without PAD had an incidence of 8.0 per 1000 person-years. Use of multiple ABI categories revealed an increase in CHD incidence with decreasing ABI, from 5.7 per 1000 person-years among white men with an ABI 1.20–1.30 to 24.2 per 1000 person-years for those with an ABI ≤ 0.80. White women with PAD also had a higher CHD incidence (6.9 per 1000 person-years) than those without (3.4 per 1000 person-years). Multiple ABI categories in white women suggested little if any increase in CHD incidence with ABI decreasing from the category 1.20–1.30 (2.3 per 1000 person-years) to 0.80–0.90 (2.9 per1000 person-years), with a notable increase in CHD incidence with an ABI ≤ 0.80 (27.1 1000 person-years). CHD incidence at ABI levels > 1.30 was similar to that estimated for the ABI category 1.20–1.30.

Table 2 Sample size, number of incident CHD events, and age- and field-center adjusted incidence rates (per 1,000 person-years) by gender, race, and ABI level: the ARIC study, 1987–2001*
Full size table

A separate model for African Americans estimated generally higher CHD incidence rates than for whites and similar patterns of increasing CHD risk with decreasing ABI. African American men with PAD, defined as an ABI < 0.90, had a much higher CHD incidence (40.7 per 1000 person-years) than those without PAD (8.9 per 1000 person-years). African American women with PAD had a CHD incidence of 11.4 per1000 person-years, and those without PAD had an incidence of 5.0 per 1000 person-years.

To explore whether gender differences existed in the association of PAD with incident CHD, race-specific hazard ratios (HRs) adjusted for age and field center were estimated from Cox regression models (Table 3). In whites, those with PAD (ABI < 0.90) had twice the hazard of a CHD event than those without, with a HR of 2.81 for men and 2.05 for women; there was no statistically significant effect modification by gender (P = 0.39). In African Americans, the HR was higher for men (4.86) than for women (2.34), with marginally statistically significant effect modification by gender (P = 0.09). As expected, lowering the ABI cutpoint to define PAD to 0.85 for women increased the estimated HR to 3.31 in white women and 2.76 in black women; the statistical significance of the gender difference in HR decreased in both whites (P = 0.69) and blacks (P = 0.22).

Table 3 Age- and field-center-adjusted CHD incidence hazard ratios for various ABI categories from Cox models for white and African American participants: the ARIC study, 1987–2001*
Full size table

In both whites and African Americans, modeling the ABI as ordered categories (Table 3) demonstrated a generally increasing CHD hazard with decreasing ABI category. Effect modification of the association of ABI category with incident CHD by gender was statistically significant in whites (P = 0.05 whites, P = 0.19 blacks), suggesting a gender difference in the shape of the ABI-CHD risk relationship across the spectrum of ABI up to 1.30.

Modeling these associations in whites and blacks (Figure 1) as smooth curves using restricted cubic spline functions of the ABI demonstrate generally monotonic increases in CHD risk with decreasing ABI. Wide confidence intervals at ABI values < 0.8 (data not shown) reflect the degree of uncertainty regarding these functions at ABI values of clinical interest. Men and women did not differ significantly regarding the association of ABI, as a continuous spline function, with incident CHD in either whites (P = 0.22) or African Americans (P = 0.92). Models without the gender-by-ABI interaction showed that the departure from linearity (on the natural log scale) was not statistically significant in either whites (P = 0.12) or blacks (P = 0.92). However, in separate models by sex and race, white women did demonstrate a statistically significant non-log-linear relationship (P = 0.04). The figure suggests that the risk of CHD may fail to decline above ABI values of about 1.2 in this population of white women. Modeled as a continuous, linear effect, a 0.10 lower ABI increased the CHD hazard by 25% in white men, by 20% in white women, by 34% in African American men, and by 32% in African American women (Table 4). Adjustment for traditional cardiovascular disease risk factors, excluding hypertension, decreased these hazard ratios by 5 to 9% across race-sex subgroups. The addition of hypertension among the risk factors additionally reduced the estimated HRs by 2% or less. Race-specific estimates of the HRs for a 0.1-unit increase in the ABI, modeled as a linear term, were increased by about 8% in whites and 14% in blacks after adjustment for ABI measurement error in models without covariate adjustment (Table 4). Adjustment for measurement error increased HRs by approximately the same magnitude in models including age and field center as covariates, but had slightly less effect in models additionally including cardiovascular risk factors.

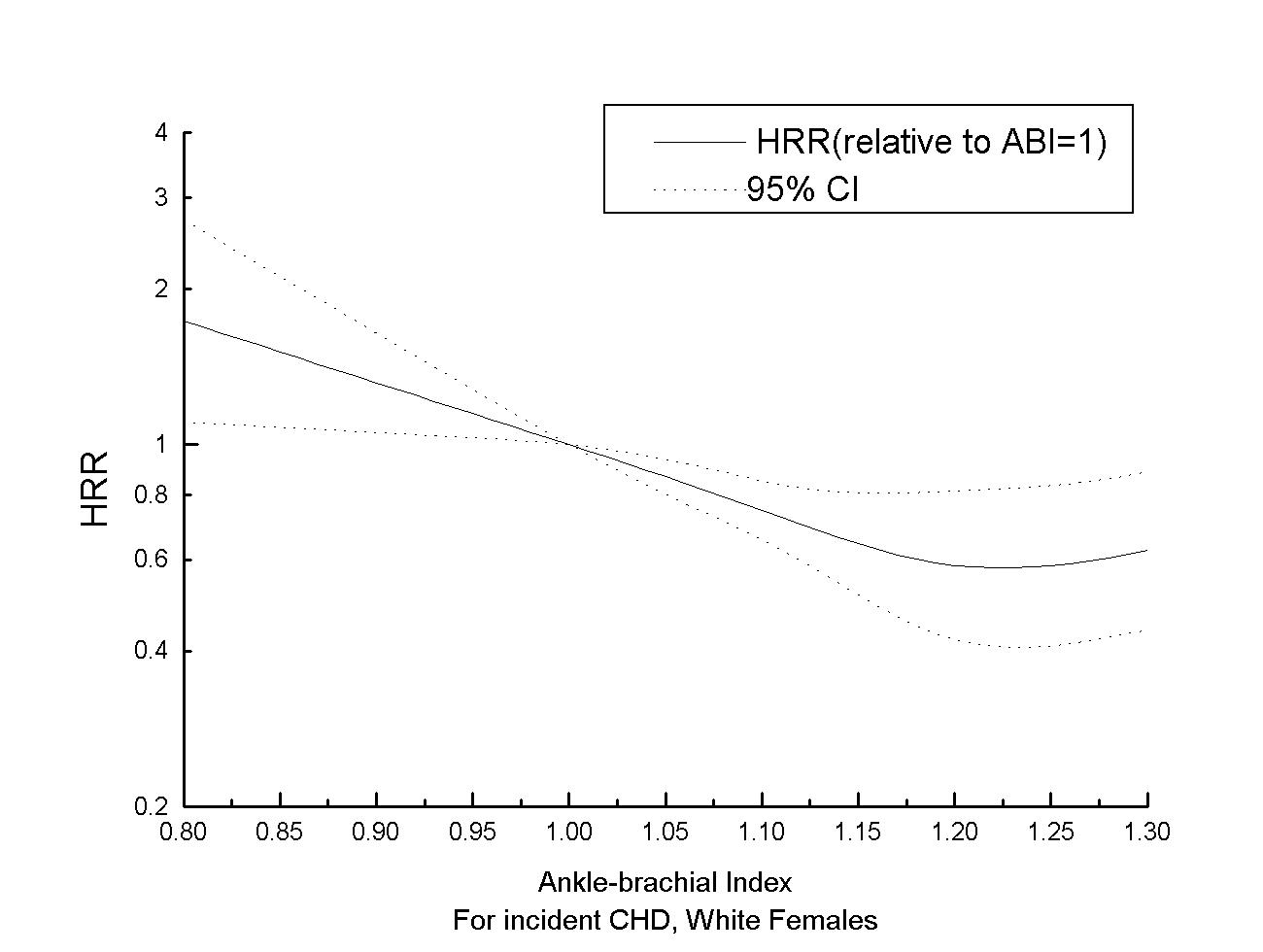

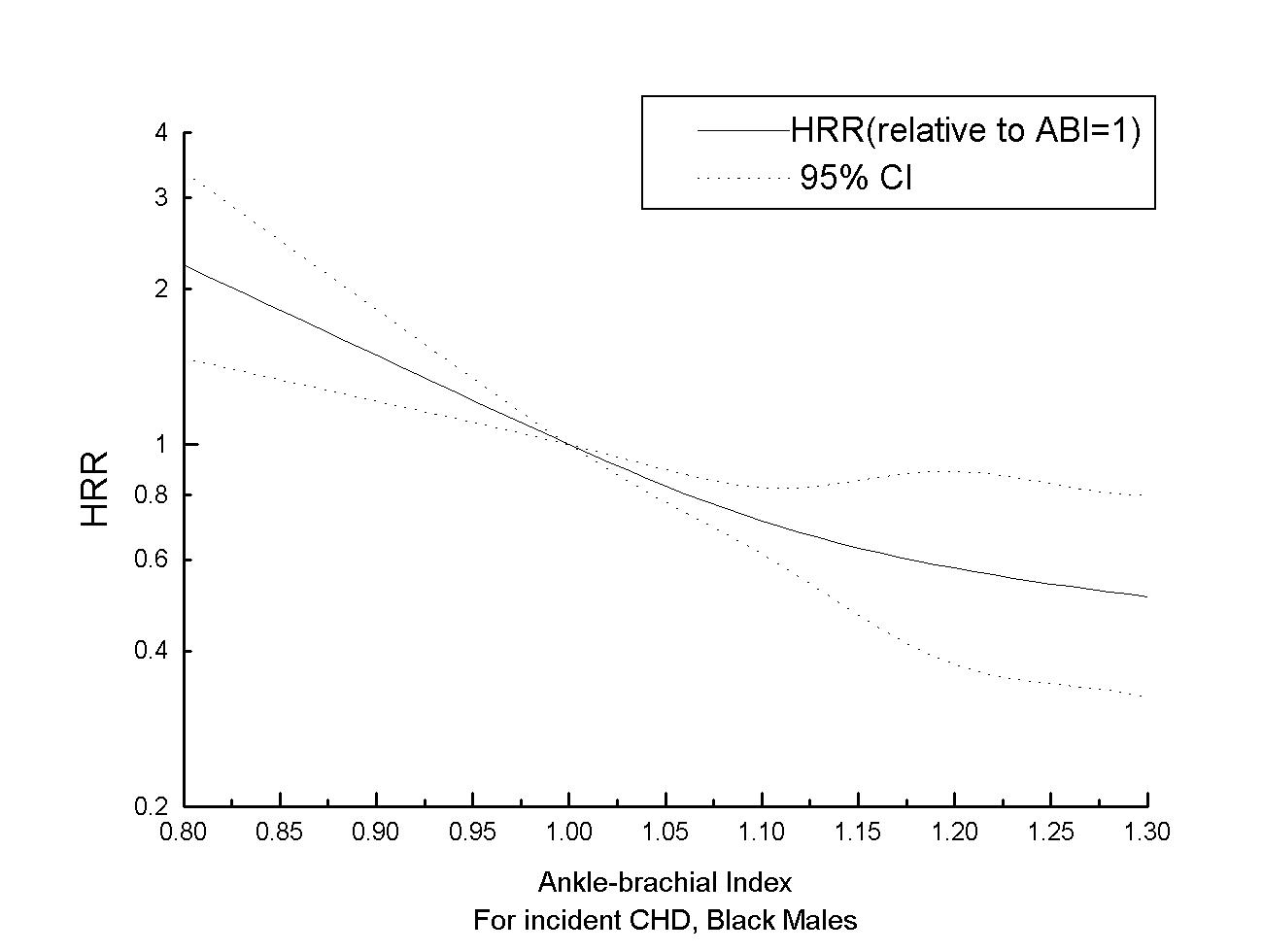

Figure 1
figure 1

Hazard rate ratio (HRR) relative to an ankle-brachial index of 1.0 for incident coronary heart disease (CHD) by gender for white and African American ARIC participants, 1987–2001. White men (A), white women (B), African American men (C), African American women (D)

Full size image
Table 4 CHD hazard ratios estimated from Cox regression for a decrement of 0.10 in ABI modelled as a linear, continuous term: uncorrected and corrected for ABI reliability
Full size table

Discussion

An ABI less than 0.90 is highly sensitive and specific for angiographically-diagnosed PAD and it is now well established that the risk of a clinical cardiovascular disease event is increased in those with ABI-defined PAD. A recent meta-analysis published on behalf of the Ankle Brachial Index Collaboration [42] that included results from six general population studies [4, 21, 43–46] estimated a relative risk of 1.45 (95% confidence interval 1.08–1.93) for fatal or non-fatal CHD associated with an ABI < 0.9. In the ARIC cohort of 10028 white and 3650 black middle-aged Americans, the estimated age- and field center-adjusted HR associated with an ABI < 0.9 for incident CHD was approximately 2 in all gender-race subgroups except African American men. Results of the ARIC study suggest that the risk of incident CHD may be particularly elevated among black men with an ABI ≤ 0.9 [26], for whom the estimated HR was 4.9 (95% CI 2.8–8.5). These results are of note particularly since African Americans have substantially higher prevalences of PAD and borderline ABI than non-African Americans as reported in previous studies [47–52], a pattern also seen in the ARIC population (e.g., Table 2).

In all gender-race subgroups of the ARIC cohort of middle-aged community residents, the ABI had an approximately log-linear association with CHD risk. This means that not only did the average CHD risk increase exponentially at values < 1.0, but that CHD risk continued to decline at ABI values > 1.0. This is in contrast to the U-shaped association with both all-cause and CVD mortality reported among American Indians in the Strong Heart Study [23] and among elderly Medicare recipients in the Cardiovascular Health Study [24]. Characteristics of ARIC study [25] and Strong Heart Study [23] participants with a high ABI and their CVD risk have been described in detail. Unlike Strong Heart Study participants, ARIC participants with an ABI > 1.4 did not have higher levels of CVD risk factors (e.g., older age, hypertension, triglycerides, LDL-cholesterol) than those with "normal" ABI values; in both studies, the prevalence of diabetes was not higher in those with ABI > 1.4 than in those with "normal" ABI values. While the Strong Heart Study included participants 45–74 years old, and the Cardiovascular Health Study included the elderly (≤ 65 years), ARIC participants were 45–64 years old at baseline. The ARIC cohort represents a comparatively healthy, non-institutionalized, middle-aged population with rates of prevalent PAD, diabetes, and renal disease reflective of those in the general population. Thus, a high ABI in the general population should not be considered as a definite marker for increased CVD risk, as noted previously [25].

The CHD risk for both white and African American women in the ARIC study increased notably at ABI levels < 0.8 and < 0.9 for men, but the small number of events introduces considerable uncertainty regarding the shape of the ABI-CHD association at low ABI levels: very few participants in this middle-aged cohort had an ABI<0.9 (n = 381) and, therefore, very few CHD events occurred over 13 years in those with an ABI<0.9 (n = 58). There was some evidence that CHD risk failed to decline at higher ABI levels in white women, but this pattern was not evident in the other race-sex subgroups. The lack of a statistically significant gender difference in the association between the ABI and the CHD hazard may have been due, at least in part, to insufficient power. Further analysis of combined studies such as those undertaken by the Ankle Brachial Index Collaboration may allow further exploration of these potential differing associations.

Data from ARIC and other studies suggest that the average risk of future CHD events increases with decreasing ABI as a continuous, but not linear function. Similar results have been reported for exertional leg pain [53], for the subclinical burden of atherosclerosis in the popliteal and carotid arteries [6], and for carotid artery intima-media thickness, and coronary artery calcium [51]. In the Cardiovascular Health Study cohort of older adults, mortality was higher for ABI values above the conventional cutpoint of 0.90, relative to the referent category of 1.11 to 1.20, with variation by age and gender in this association [24]. The choice of a relevant ABI cutpoint at which risk factor modification and therapy should be instituted to reduce future CHD risk is thus unsettled, but should perhaps be based on models of absolute rather than relative risks of future CHD events. PAD is identified as a CHD risk equivalent by the National Cholesterol Education Program (NCEP) Expert Panel [5] and the ABI is a noninvasive screening tool that can be performed readily in an office setting. It is not clear, however, how much information the ABI adds above and beyond that provided by the traditional risk factors, at cutpoint values that can guide clinical practice. Further research should be directed at quantifying the number of persons who would be identified using the ABI who would not have otherwise been identified with traditional risk factors, and the trade-off in the cost of routine screening, with consideration of relevant cutpoint thresholds.

The variability of the ABI measure was previously reported to be approximately 12 percent [54]. Adjustment of ABI as a continuous value for measurement error (i.e., any lack of repeatability of the measurement protocol used in the ARIC study [31]) increased estimated multivariable-adjusted HRs of incident CHD by 8.6% and 5.3% in white men and women, and by 11.0% and 9.2% in African American men and women, respectively. Thus, measurement error appears to attenuate the CHD HR estimates for a 0.1 decrement in the ABI only modestly. However, categorization of a continuous variable measured with non-differential error can result in differential misclassification when the probability of disease is related to the level of the continuous variable [55]. The possible effect of measurement error on the ABI treated as a dichotomous variable, therefore, should be considered when examining ABI-defined PAD, rather than the ABI as a continuous variable, as a predictor.

Conclusion

African American members of the ARIC cohort had higher prevalences of PAD and greater risk of CHD associated with ABI-defined PAD than did white participants. The risk of CHD increased exponentially with decreasing ABI in African American and white men and women, and the association was similar for men and women in both race groups. Not only did the average CHD risk increase exponentially at values < 1.0 but the risk continued to decline at ABI values > 1.0. Unlike in other cohorts, in ARIC the CHD risk failed to increase at high (>1.3) ABI values. We conclude that at this time high ABI values should not be routinely considered a marker for increased CVD risk in the general population. Further research is needed on the value of the ABI at specific cutpoints for risk stratification in the context of traditional risk factors.
