Abstract
Background
The pagN gene of Salmonella enterica serovar Typhimurium is a PhoP-regulated gene that is up-regulated during growth within macrophages and in vivo in murine models of infection. The PagN protein displays similarity to the Hek and Tia invasins/adhesins of Escherichia coli. Thus far no function has been ascribed to the PagN protein.
Results
Here we show that the outer membrane located PagN protein mediates agglutination of red blood cells and that this can be masked by LPS. When expressed in Escherichia coli the PagN protein supports adhesion to and invasion of mammalian cells in a manner that is dependent on cytoskeletal rearrangements. S. enterica sv Typhimurium pagN mutants display a reduction in adhesion to and invasion of epithelial cells. Finally, we demonstrate that over-expression of PagN in a SPI-1 mutant can partially compensate for the lack of a functional invasasome.
Conclusion
PagN is an outer membrane protein that may contribute to the virulence of S. Typhimurium. This protein is a haemagglutinin and contributes to the adherence to mammalian cells. In addition, PagN can mediate high-level invasion of CHO-K1 cells. Previously,pagN mutants have been shown to be less competitive in vivo and thus this may be due to their lessened ability to interact with mammalian cells. Finally PagN can be added to an ever-growing repertoire of factors that contribute to the pathogenesis of Salmonella.
Similar content being viewed by others
Background
Salmonella enterica serovar Typhimurium infects a wide range of animal hosts and typically causes a self-limiting gastroenteritis [1]. Initial symptoms include nausea and vomiting, which are followed by abdominal pain and diarrhoea. S. Typhimurium adheres to intestinal epithelial cells using a myriad of fimbriae including Type 1 fimbriae [2]. Outer membrane proteins such as the plasmid-encoded Rck [3–5] and the OmpD [6] protein also mediate attachment to epithelial cells. Deletion of either rck or ompD results in decreased invasion of intestinal epithelial cells [5, 6]. Upon adhesion the subsequent uptake of Salmonella into mammalian cells is a complex process that is coordinated by a series of proteins that are encoded within the SPI-1 and SPI-5 pathogenicity islands [1]. The SPI-1 locus encodes a type three secretion system (T3SS), also known as an invasasome, that delivers effector protein including the S almonella outer proteins (Sop) SopE, SopE2, SopB, the secreted protein tyrosine phosphatase SptP, and the S almonella invasion proteins (Sip), SipA and SipC into cells [1]. These effectors have profound effects on the regulation of actin cytoskeletal structure and on mammalian cell membrane plasticity [7]. The net result of injecting these effectors into the host cell is bacterial-promoted endocytosis [7].
The PhoPQ system regulates the transcription of a multitude of virulence genes of Salmonella [8]. This regulatory system is composed of the PhoQ membrane-bound sensor kinase and the PhoP response regulator. In response to specific stimuli, PhoQ modifies the phosphorylation state of the cytoplasmic DNA-binding protein PhoP, increasing its affinity for specific DNA targets [8]. Genes that are PhoP-activated are known as pags (PhoP-activated genes) whilst those that are repressed are known as prgs (PhoP-repressed genes) [8]. Three different cues have been proposed to activate the PhoPQ system inside macrophages: a mild acidic pH, antimicrobial peptides, and low Mg2+ concentration [8]. The pagN gene is a PhoP-activated gene [9]. The pagN ORF was originally identified in a TnphoA random-mutagenesis screen of the S. Typhimurium strain 14082s [9]. In that study bacteria with active phoA gene-fusions that displayed decreased fusion-protein activity on acquisition of the phoP12 allele (which results in a PhoP null phenotype) were identified. Through the use of in vivo expression technology (IVET), Heithoff et al. identified over 100 genes that were specifically expressed during infection of BALB/c mice [10]. These authors showed that pagN (also termed iviVI-A in that study), although not expressed in S. Typhimurium strains grown on typical laboratory medium, was required for survival in BALB/c mice under the conditions of the IVET selection. Subsequently, Conner et al. noted a decrease in competitiveness for a mutant with deletions in the region of pagN/iviVI-A when mixed with its parental strain [11]. Expression of the pagN gene has been shown to respond to pH and Mg2+ concentration in vitro [12]. As with other pags, and in a PhoP-dependent manner, pagN expression was induced in conditions of acidic pH and low Mg2+ concentration. Furthermore, expression of pagN has been demonstrated to be highly up-regulated within cultured RAW264.7 macrophages and Henle-407 enterocytes [12].
Whilst the function of PagN is unknown it does display similarity to known invasins of Escherichia coli. PagN is ~54% similar to the Hek and Tia adhesins/invasins of pathogenic E. coli [13–15]. Based on this homology it is possible that PagN may be an adhesin and/or invasin. Here we show that PagN, when expressed in E. coli, can agglutinate erythrocytes as well as mediate adhesion to and invasion of mammalian cells. Furthermore S. Typhimurium mutants defective in pagN display reduced adhesion to and invasion of mammalian cells. Finally, multi-copy expression of PagN can compensate for the loss of the SPI-1 encoded T3SS.
Results
PagN is a haemagglutinin but not an autoagglutinin
The Hek protein from E. coli K1 strain RS218 agglutinates erythrocytes in a heat-resistant manner [13, 14]. PagN and Hek are ~54% similar, indicating that PagN may also promote erythrocyte agglutination. To test this hypothesis, a microtitre haemagglutination (HA) assay was performed as described in Methods. E. coli K-12 strain XL-1 Blue containing the pagN expression-vector pML1 or the empty vector control, pTrc99a, were incubated with human erythrocytes. The expression of PagN conferred upon recombinant E. coli the ability to agglutinate erythrocytes (Fig. 1A). Using 3% human blood, a bacterial HA titre of 16 was displayed by PagN-expressing E. coli, similar to that of E. coli expressing Hek (data not shown). Hek is a heat-resistant agglutinin; heating Hek-expressing cells to 70°C does not reduce agglutination activity [14]. We sought to determine if PagN was also a heat-resistant agglutinin. Unlike Hek, PagN displayed a decrease in HA titre after heating (Fig. 1B). Thus PagN is a heat-sensitive agglutinin.
Haemagglutination by E. coli or Salmonella expressing PagN. (A) Cultures of E. coli strain XL-1 Blue harboring plasmids pML1 (PagN+) or pTrc99a (PagN-) were induced with IPTG and then mixed with 3% human blood. Overnight cultures of E. coli harboring plasmids pHek6 (Hek+) and pBSKII+ (Hek-) were included as a positive control and vector control respectively. (B) Assays were carried out as described in Methods with cultures being incubated at 37°C or 70°C for 30 min prior to the assay. (C) The effect of LPS on PagN-promoted agglutination. S. Typhimurium strain LT-2 or CH133 harboring either pBSKII+ or pPagN2.3 were grown in MOPS minimal media adjusted to pH 5.8. Haemagglutination assays were performed as described in Methods.
In addition to promoting haemagglutination Hek is also an autoagglutinin [14]. Autoagglutination can be conveniently measured in a kinetic manner by a spectrophotometric assay. Expression of the Hek protein from pHek6 in E. coli XL-1 Blue caused bacteria to settle out of solution at a rate of 0.024 OD600 nm units/min whereas bacteria expressing PagN settled at rate of 0.0035 OD600 nm units/min almost identical to that of the vector control strain. Thus, E. coli expressing PagN did not support autoagglutination.
Next we sought to establish if PagN could support haemagglutination when expressed in multicopy in S. Typhimurium. Plasmid pPagN2.3 was introduced into S. Typhimurium LT-2 and cultured in minimal MOPS medium. Growth in this medium leads to maximal induction of the PhoP-dependent pagN promoter. Expression of PagN was confirmed by SDS-PAGE analysis of outer membrane extracts (data not shown). Surprisingly S. Typhimurium/pPagN2.3 did not mediate agglutination of red blood cells (Fig. 1C). Laboratory strains of E. coli such as K-12 or B completely lack the O antigen component of lipopolysaccharide (LPS) [16]. It has been reported that porins in E. coli are partially obscured by the LPS core and completely blocked by O antigen sugars [17] and indeed in S. Typhimurium the O antigen prevents the outer membrane PgtE protease from interacting with its substrate [18]. S. Typhimurium has a large O antigen, which may serve to mask PagN thus limiting access to its receptor. To investigate this hypothesis, the plasmid pPagN2.3 was transformed into S. Typhimurium strain CH133, a galE mutant. The galE gene encodes the enzyme UDP-galactose 4-epimerase which is the first enzyme catalyzing O antigen biosynthesis. Therefore S. Typhimurium strain CH133 lacks the O antigen component of LPS. Haemagglutination assays using this strain showed that PagN, when over-expressed in a rough strain, was capable of promoting agglutination (Fig. 1C). These data suggest that LPS is capable of 'masking' PagN and preventing functional receptor binding during haemagglutination.
PagN is an adhesin and invasion
Given that PagN has similarity to both the Tia and Hek invasins we determined if PagN could mediate adhesion to and invasion of epithelial cells. E. coli DH5α harboring either pTrc99a or pML1 were induced with IPTG and incubated with CHO-K1 cells. To enumerate the number of invading bacteria, a gentamicin protection assay was performed. Approximately 60% of PagN-expressing bacteria invaded the CHO-K1 cells. Indeed, bacteria that expressed PagN were 27-fold more invasive than bacteria harboring the vector control plasmid (Fig. 2).

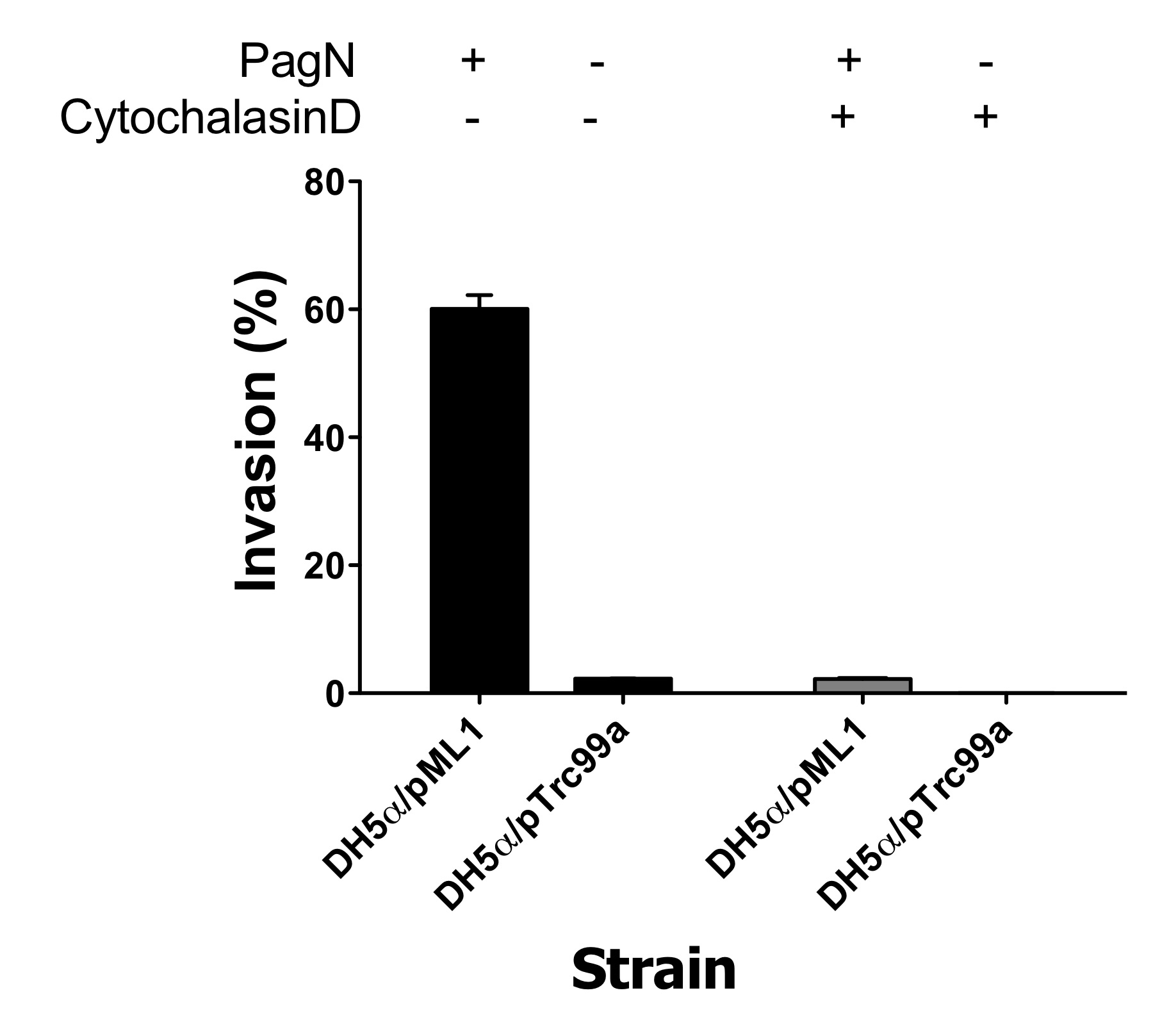

PagN-promoted invasion of epithelial cells requires actin polymerisation. E. coli DH5α harboring either pTrc99a or pML1 were induced with IPTG and incubated with CHO-K1 cells and invasion levels were measured (black bars). To assess the role of actin filament polymerisation in PagN-mediated invasion, confluent CHO-K1 monolayers were pre-incubated with cytochalasin D (1 μg/ml) for 30 min at 37°C before infection with bacteria (grey bars).
Invasion of epithelial cells by bacteria is often accomplished by inducing cytoskeletal rearrangements by manipulating polymerisation of actin. Actin filaments have a fast and slow growing end; cytochalasins inhibit elongation at the fast growing end [19]. Specifically, cytochalasin D affects the polymerisation of actin in two ways: it increases the initial rate but markedly reduces the final extent of the Mg2+-induced polymerization process [19]. To assess the role of actin filament polymerization in PagN-mediated invasion, confluent CHO-K1 monolayers were pre-incubated with cytochalasin D (1 μg/ml) for 30 min at 37°C before infection with bacteria. Cytochalasin D was present throughout the invasion assay. Treatment with this inhibitor lead to a 30-fold reduction in invasion, which was comparable to the level seen with the vector control in the absence of cytochalasin D (Fig. 2).
Whilst CHO-K1 cells provide an accessible and convenient model for studying host-pathogen interactions they do not wholly emulate the human gut; more realistic cell culture models are used to study Salmonella-gut interactions, for example HT-29 intestinal epithelial cells [20]. E. coli strain DH5α containing the pagN expression plasmid pML1 or the vector control pTrc99a were incubated with confluent HT-29 monolayers. Approximately 1% of the bacteria expressing PagN bound to the eukaryotic cells as determined by a cell association assay (Fig. 3). This figure was 6-fold greater than the vector control. Of the bound bacteria that expressed PagN, ~2% had invaded the cell monolayer. No detectable invasion of HT-29 cells by the vector control was observed. Thus, PagN promotes adhesion to HT-29 cells and low level invasion of these cells.

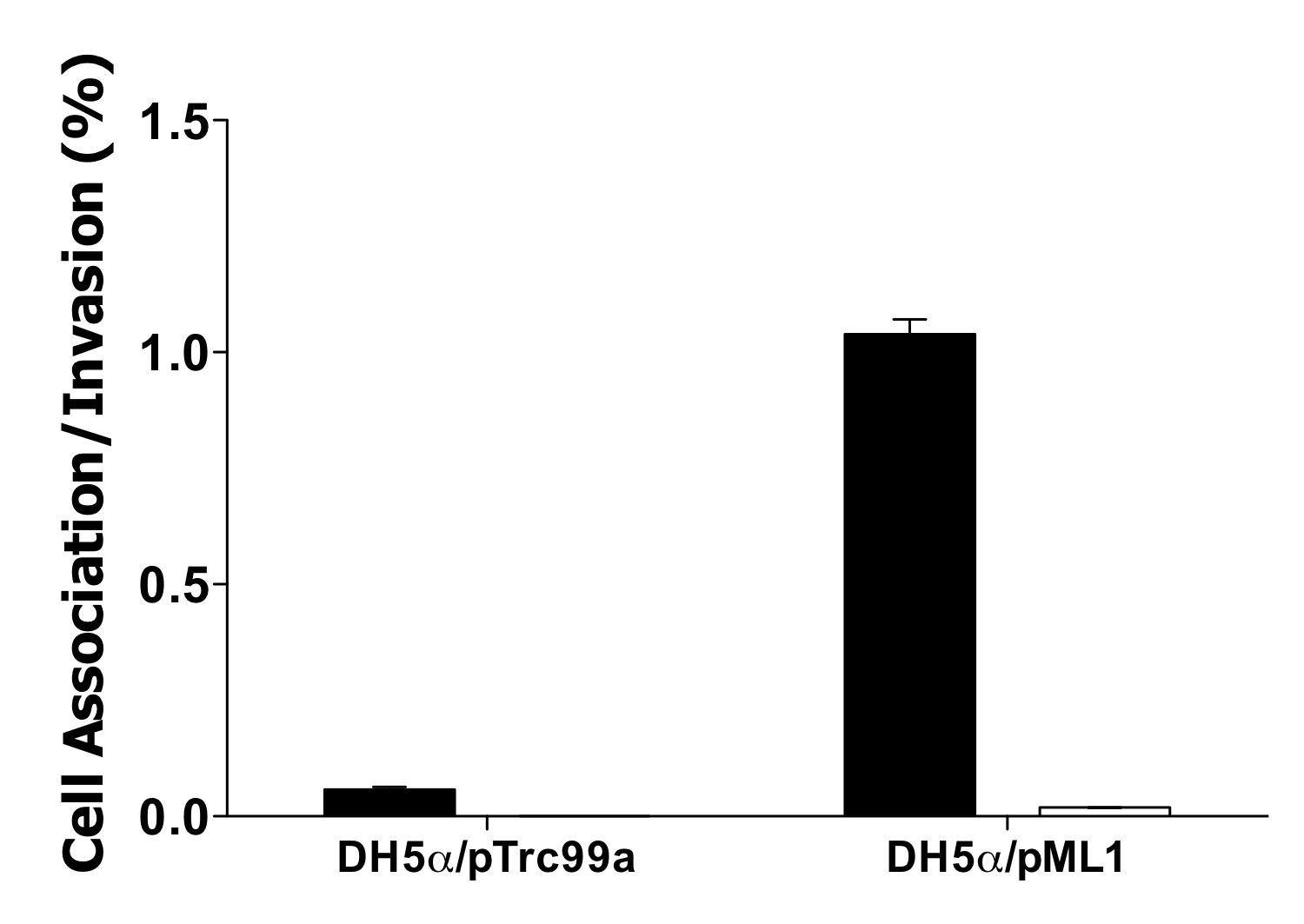

Interaction of E. coli K-12 expressing PagN with HT-29 cells. E. coli DH5α harboring either pTrc99a or pML1 were induced with IPTG and incubated with HT-29 cells and cell association (black bars) and invasion (white bars) levels were measured. Percentage cell association and invasion were calculated as the viable number of bacteria after the assay as compared to the initial input inocula size. The strains tested are indicated. Data represents an average of triplicate wells and standard error bars are shown. Invasion by E. coli harboring the vector plasmid was not detectable in this assay.
PagN contributes to Salmonellaadhesion to and invasion of epithelial cells
A pagN mutant strain ML6 (pagN-) was constructed as described in Methods. This mutant was verified by PCR (Fig. 4A) and the lack of PagN expression in the outer membrane of strain ML6 was verified by immunoblotting (Fig. 4B, lane 2). This mutation could be complemented by expressing PagN from plasmid pML10 (pagN+) (Fig. 4B, lane 4). The lack of PagN had no effect on the growth of S. Typhimurium with both wild-type SL1344 and pagN mutant strain ML6 having doubling times of ~45 min in MM 5.8 minimal media. After overnight culture in this medium these bacteria grew to a similar extent having optical densities of ~1.5 OD600 nm. Some pag gene products such as PagL have been associated with modification of LPS [21]. We thus compared the LPS profiles of SL1344 to ML6 (pagN-) and LT-2 to MLT-2 (pagN-) (Fig. 5). In each case there was no difference between the LPS profile of the wild-type and mutant.
Characterization of pagN mutant strain ML6. (A) Colonies of strains SL1344 and ML6 were boiled and used as a template in a PCR reaction with primers PagNF2 and PagNR2 to amplify the pagN ORF. MW indicates molecular size markers. Lane 1 ML6, lane 2 SL1344. (B) Sarkosyl-extracted outer membrane proteins were electrophoresed through a 15% gel. Proteins were transferred to PVDF membrane and probed with an anti-PagN antibody. The position of PagN is arrowed. When expressed from a multicopy plasmid PagN was found to migrate as a doublet in common with the Hek protein. Lane 1, SL1344; Lane 2, ML6; Lane 3, ML6 with pBR322; Lane 4, ML6 with pML10.
The contribution of PagN to the invasion of CHO-K1 cells by S. Typhimurium strain SL1344 was determined. Invasion promoted by S. Typhimurium strain SL1344 and its pagN mutant derivative, ML6, were tested with non-polarized cells in a standard invasion assay. These data established that wild-type S. Typhimurium strain SL1344 were internalized in significantly greater numbers than the pagN mutant strain ML6. Data from triplicate wells revealed that wild-type levels were reduced from 18.26 ± 2.35% to 9.99 ± 1.37% for a pagN mutant (P < 0.05). The PagN-defective bacteria displayed a consistent ~2-fold reduction in CHO-K1 cell invasion as compared to the wild-type parent.
Adhesion to the HT-29 cell line by S. Typhimurium strain SL1344 and adhesion-defects due to the absence of the PagN protein in strain ML6 were investigated. Standard cell association assays were performed comparing the levels of cell association displayed by wild-type and PagN-defective S. Typhimurium (Fig. 6). Wild-type bacteria were recovered in higher numbers compared to PagN-defective bacteria (0.98 ± 0.093% as compared to 0.48 ± 0.01%). Complementation of the pagN mutation with the pagN-containing multi-copy plasmid pML10 increased cell association to 10-fold greater than that exhibited by wild-type S. Typhimurium.

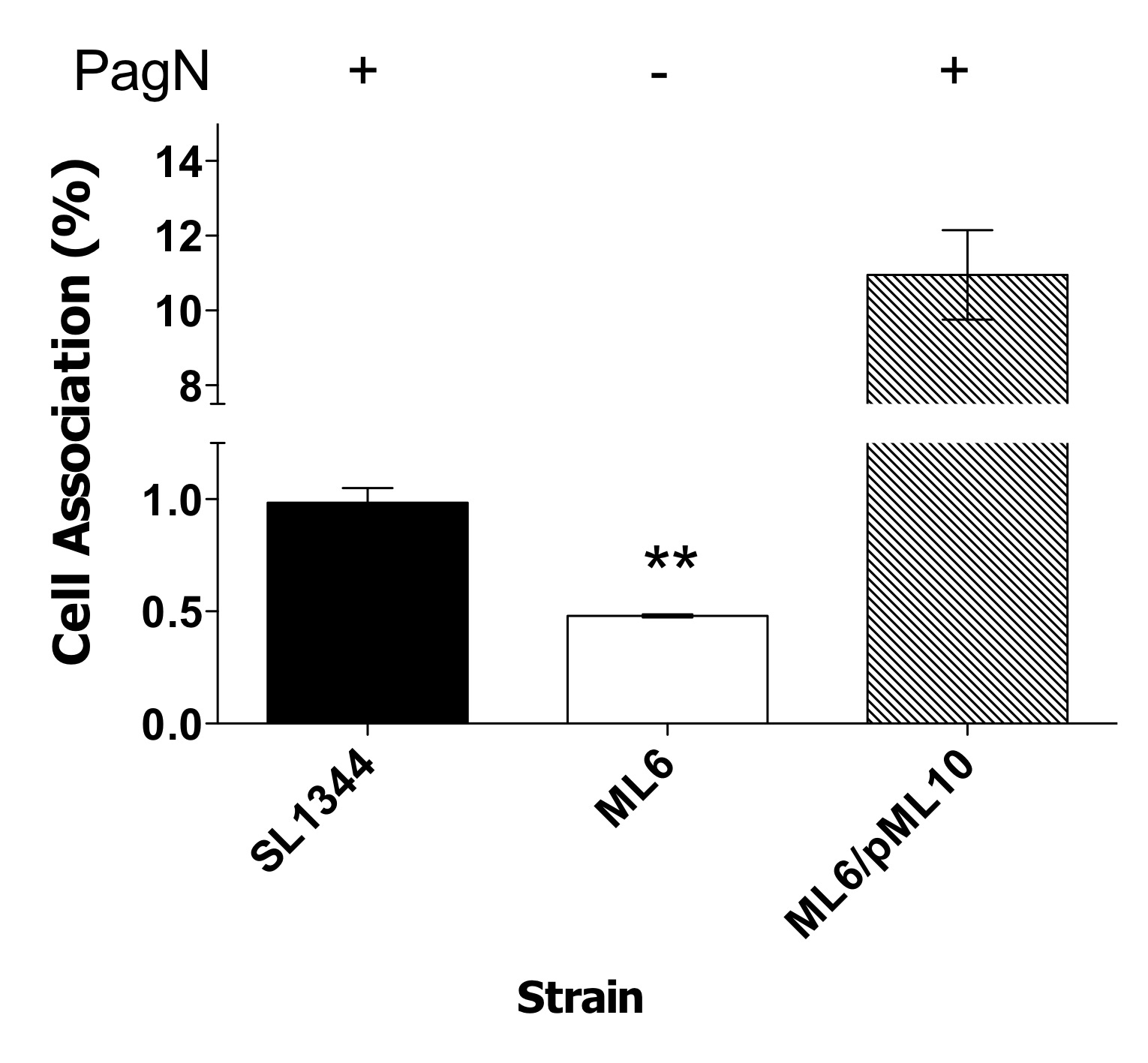

Adhesion of HT-29 cells by S . TyphimuriumSL1344 and a pagN mutant. Cell association levels werecalculated for wild-type S. Typhimurium strain SL1344 andthe pagN mutant, strain ML6. Levels were also calculated for the pagN mutant harbouring the plasmid pML10 (PagN+). Data presented are averages of triplicate wells. ** indicates statistical significance, P < 0.01.
Furthermore, the pagN mutant strain ML6 in comparison to SL1344 displayed a five-fold reduction in invasion of HT-29 cells (Fig. 7). The overall levels of invasion in all cases were low since the bacteria were cultured in MM 5.8 medium. Cultivation in this medium results in maximal expression of PagN but the expression SPI-1 system is greatly reduced [22]. The decrease in invasion due to the loss of PagN could be complemented to wild-type levels with plasmid pML10. The introduction of pML10 into strain ML6 resulted in a 10-fold increase in adhesion over wild-type levels (see above). However, a corresponding 10-fold increase in invasion levels by pML10/ML6 was not observed. This may be due to saturation of the host cell functions that PagN might use to induce invasion. In summation PagN can contribute to adherence and to low level invasion in the two cell lines tested by S. Typhimurium SL1344.

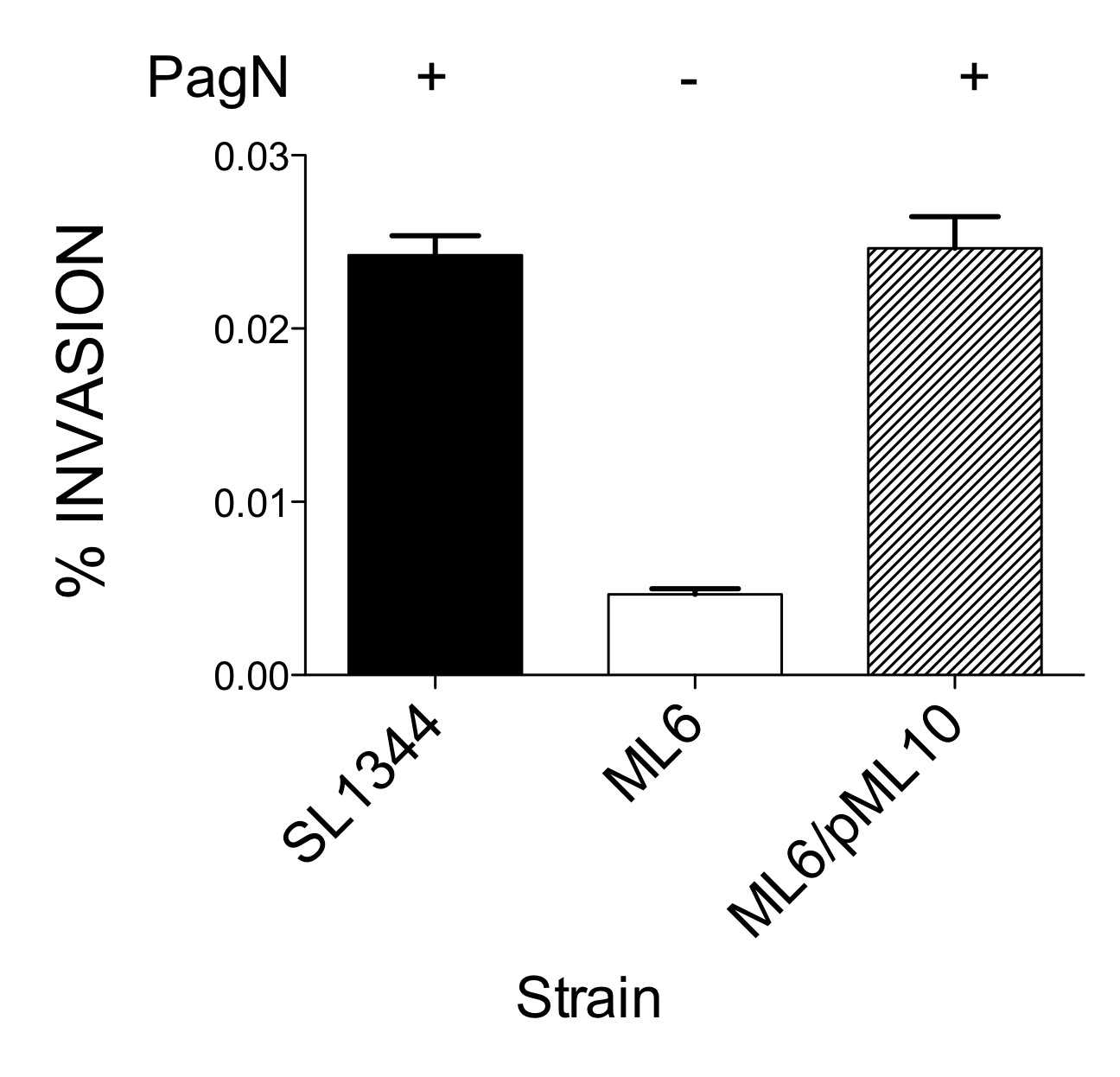

Invasion of HT-29 cells by S . Typhimurium SL1344 and a pagN mutant. Invasion levels were calculated for wild-type S. Typhimurium strain SL1344 and pagN mutant derivative ML6. Levels were also calculated for strain ML6 harboring pML10 (PagN+) or the vector control pBR322. Data represents an average of triplicate wells.
Haemagglutination by Salmonella expressing PagN was only observed in rough strains (see above). This was not the case for adherence to or invasion of mammalian cells since we could observe defects in these phenotypes for pagN mutants in the smooth S. Typhimurium strain SL1344. Nevertheless we examined if a rough strain might facilitate enhanced invasion and/or adhesion by PagN. In these studies we made use of strain CH133 a rough mutant of S. Typhimurium LT-2 (a rough mutant of strain SL1344 was not readily available for these analyses). A pagN rough mutant strain, ML133, displayed approximately a five-fold decrease in cell association which was greater than the defect due to loss of pagN in smooth strains (Fig. 8). The magnitude of the decrease in cell association in pagN rough mutants was similar to that seen for the loss of the SPI-1 encoded T3SS by mutating invA in strain ML4. Moreover, there was no additive effect of deleting both pagN and invA. Intriguingly, loss of both pagN and invA in strain ML3 could be complemented by introducing the PagN multicopy plasmid pPagN2.3. Indeed, the level of cell association for pPagN2.3/ML3 was greater than that of CH133.
Invasion of CHO-K1 cells by rough S . Typhimurium lacking a functional SPI-1-encoded T3SS. Invasion levels were calculated for rough S. Typhimurium strains with a functional T3SS, CH133 (PagN+) and ML133 (PagN-) and strains without a functional T3SS, ML4 (PagN+, InvA-) and ML3 (PagN-, InvA-). Levels were also calculated for ML3 harboring pPagN2.3 or the vector plasmid pBSKII+. Data represents an average of triplicate wells and standard error bars are shown. * indicates statistical significance of P < 0.05.
Discussion
The pagN gene is widely distributed throughout the Salmonella [23] and confers a competitive advantage in vivo [11]. However, the function of PagN is unknown. Deletion of the Salmonella enterica subspecies I-specific centisome 7 genomic island (on which pagN resides) leads to decreased association with human cells [24]. We have observed that the PagN protein is located in the outer membrane of S. Typhimurium. Together with its similarity to the Hek and Tia invasins/adhesins we postulated that it might serve a similar role in S. Typhimurium. When ectopically expressed in E. coli K-12, PagN could mediate haemagglutination in a manner similar to that observed for the Hek protein. In contrast to Hek, PagN is not a heat-resistant agglutinin and does not promote autoagglutination. This suggests that the folding of PagN is sensitive to heating and that this affects its biological activity. Whilst Hek and PagN are similar proteins it is likely that this similarity is restricted to the conserved membrane spanning regions of the proteins. Hek is predicted to have eight membrane-spanning regions and four exposed extracellular loops [13]. A similar arrangement is likely for PagN (Lambert MA and Smith SGJ, in preparation). The second extracellular loop of Hek is absolutely required for autoagglutination [13]. The corresponding sequence in PagN is markedly different with only nine identical residues out of thirty (Fig. 9). Thus it is likely that PagN does not have the requisite sequence for bacterial cell:cell interactions. Furthermore, loop 2 of Hek is absolutely required for haemagglutination [13]. Obviously the amino acid sequence of loop 2 of Hek renders it resistant to heating whereas the corresponding sequence in PagN is different and this may underpin its heat-sensitivity (Fig. 9). Interestingly, the Tia protein is also highly divergent at this sequence location (Fig. 9).
Comparison of loop2 of Hek with the corresponding sequences in PagN and Tia. Loop 2 of Hek was aligned with the corresponding sequences in Tia and PagN using ClustalW. The amino acid numbering is with respect to the sequence of the mature protein in each case. Identical residues are shaded black, whilst semi-conserved are shaded grey.
PagN failed to promote haemagglutination when overexpressed in S. Typhimurium LT2. This inability to promote haemagglutination may be explained by the differences between the LPS of E. coli laboratory strains and S. Typhimurium strain LT2. Laboratory strains of E. coli such as K-12 and B completely lack the O antigen component of LPS [25] whereas S. Typhimurium has a large O antigen containing OAc, Abe, Man, Gal, and Glc. When over-expressed in the rough S. Typhimurium strain CH133, PagN promoted haemagglutination. PagN contains fifteen positively charged amino acids that we predict to be surface-exposed. It is likely that these amino acids might interact with negatively charged LPS thus masking PagN and preventing interactions between the protein and its mammalian target.
Expression of PagN in E. coli resulted in adhesion to and invasion of mammalian cell lines. High levels of invasion promoted by PagN were observed for CHO-K1 cells. Invasion of HT-29 cells by E. coli expressing PagN was much lower. It may be that the receptor for PagN is less abundant in HT-29 cells, expressed by fewer cells or possibly that the receptor is not as accessible in this cell line. Another possibility may be that the bacterial cells do not survive within the environs of HT-29. HT-29 is known to produce antibacterial peptides and these are deleterious for E. coli. HT-29 cells express human beta defensin 1 [26] and also up-regulate expression of LL-37 in response to E. coli [27]. A similar difference in the efficiency of invasion of CHO-K1 cells versus the T84 intestinal epithelial cell line was previously noted for the Hek protein [14].
Mutation of pagN in S. Typhimurium resulted in a decrease in invasion of and adhesion to CHO-K1 and HT-29 cells. Indeed, this defect was more pronounced for rough strains. Though mutation of pagN did not completely abrogate adhesion and invasion the magnitude of the effect is of the same order as that seen for OmpD [6] and Rck proteins [5]. Thus outer membrane proteins such as PagN may play an incremental role in Salmonella interactions with host cells. The pagN gene is activated by PhoP and is maximally expressed intracellularly as observed by gene fusion [11, 12] or microarray analysis [28]. Thus bacteria that exit epithelial cells or macrophages might be expected to have an optimal level of expression and this might facilitate subsequent interactions with mammalian cells that the pathogen encounters. The fact that PagN can functionally substitute for the lack of a functional T3SS may have biological relevance. Within macrophages the SPI-1 T3SS is strongly downregulated [28] and Salmonella that exit such cells may have to rely on PagN to facilitate subsequent interactions with cells until such time as the T3SS is maximally expressed.
The primary sequence of PagN has similarity to the Tia and Hek adhesions/invasins. Both Tia and Hek bind heparin sulphate proteoglycan (HSPG) [13, 29]. Studies are currently in progress to establish if PagN utilizes HSPG for adhesion/invasion.
Conclusion
We have shown that PagN can mediate interactions with mammalian cells when expressed in E. coli and S. Typhimurium. pagN is upregulated in vivo and contributes to the competitiveness of S. Typhimurium. This may be due to the adhesive and invasive characteristics of PagN. PagN in multicopy can complement an invA mutation. PagN may thus prove to be a useful tool for studying Salmonella in the intracellular environment in the absence of the SPI-1 T3SS.
Methods
Bacterial strains, plasmids and culture conditions
All E. coli and S. Typhimurium strains used in this study are described in Table 1. Plasmids are listed in Table 2. E. coli were routinely cultured in Luria (L) broth or on L agar. For optimal expression of the pagN promoter in Salmonella bacteria were grown in MOPS minimal media adjusted to pH 5.8 (MM 5.8). Where appropriate the following antibiotics were added to media: carbenicillin (50 μg/ml), chloramphenicol (10 μg/ml), spectinomycin (100 μg/ml).
Eukaryotic cell lines and growth conditions
All cell lines used were obtained from ATCC (Manassas, VA, U.S.A.). The mammalian cells lines used were HT-29 (ATCC HTB-38) and CHO-K1 (ATCC CCL-61). CHO-K1 cells were grown in a 1:1 mixture of DMEM and Ham's F12 medium supplemented with 10% (v/v) heat inactivated fetal bovine serum (FBS) (Life Technologies) at 37°C in 5% CO2. HT-29 cells were grown in McCoy's medium supplemented with 10% (v/v) FBS.
Recombinant DNA techniques
Plasmid DNA was isolated using the Genelute Plasmid Miniprep kit (Sigma-Aldrich) or the Qiagen Plasmid Midi kit. Restriction endonucleases were purchased from New England Biolabs and used according to the manufacturer's instructions. Standard methods were used for the ligation of DNA fragments and transformation of plasmid DNA [30, 31]. The synthesis of oligonucleotide primers and DNA sequencing was performed by MWG Biotech, Ebersberg.
Cloning of the pagNgene
The pagN ORF from S. Typhimurium strain LT2 and 500 bp of DNA flanking the ORF were amplified by PCR using primers PagNF (5'-AGA TAA TTG CTC GCC ATT CG-3') and PagNR (5'-ATG GAG GGT TCC AGA TCT CC-3'). The purified pagN PCR product was cloned into pBSKII + cloning vector (pBSKII+) cut with EcoRV creating the multi-copy plasmid pPagN2.3. The pPagN2.3 plasmid was sequenced to confirm the DNA sequence of the insert (Table 1). The pagN gene and putative promoter region was excised from pPagN2.3 using PshAI and SacI and the resulting DNA fragment was ligated into vector pBR322. The structure of the resulting plasmid was confirmed by restriction endonuclease digestion and the recombinant was designated pML10 (Table 1).
The pagN ORF was amplified with primers pagNF2 (5'-GCT AGG ATC CCG ATA GTG TTT AAA AGG CG-3') and pagNR2 (5'-GCC TCC ATG GAA AAC TTT GCA GTC TGC-3'). The resultant PCR product was digested with BamHI and ligated into plasmid pBSKII+ digested with BamHI and EcoRV. The resulting plasmid was sequenced to confirm the sequence of the insert and the plasmid was designated pML4. The PagN expression vector pML1 was constructed by excising the pagN ORF from pML4 using NcoI and BamHI. This DNA fragment was cloned into pTrc99a, placing it under the control of the IPTG-inducible Ptrc promoter.
The pagN ORF was amplified by PCR using the primer set pagNF2 and PagNR3 (5'-GCT ATC TAG ACG ATA GTG TTT AAA AGG CG-3') and S. Typhimurium strain LT2 genomic DNA as a template. The PagNR3 primer had an XbaI site incorporated into it, resulting in a unique XbaI site at the 3' end of the pagN ORF. The PCR product was digested with XbaI and BsaBI. The BsaBI site is at nucleotide position 75 of the pagN ORF, corresponding to amino acid residue number 26. Plasmid pMALc-2 (New England Biolabs) was digested with EcoRI and the 5' overhangs were blunted by digestion with Mung Bean Nuclease and was then digested with XbaI. The digested PCR product was cloned downstream, and in frame with the malE gene. The recombinant plasmid was sequenced to confirm the DNA sequence of the insert and named pML7. SDS-PAGE analysis of E. coli XL-1 Blue containing the pML7 plasmid revealed one major inducible protein with an apparent molecular weight of ~65 kDa, corresponding to the predicted size of the MBP-PagN fusion protein. An anti-PagN serum was produced by inoculation of rabbits with the MBP-PagN protein fusion.
Cloning of the invAgene
A 1499-bp fragment of the 2058-bp invA gene of S. Typhimurium strain LT2 was amplified by PCR using the primers invA-allele-F (5'-CAA ACG CTG CAA AAC TTC AG-3') and invA-allele-R (5'-TTG ATT TCC TGA TCG CAC TG-3'). The PCR product was ligated into the pBSKII+ plasmid that had been digested with EcoRV creating the plasmid pInvA
Disruption of the pagN and invAgenes of S. Typhimurium
An interrupted pagN gene was constructed in vitro and transferred to the bacterial chromosomes using an allele-replacement system based on the gene products of the λ phage red operon. The λ-phage redγβα genes were supplied on the temperature sensitive pKOBEGA plasmid under the control of the arabinose-inducible PBAD promoter [32]. A 2.2 kb spectinomycin resistance encoding fragment from the pHP45Ω plasmid was excised using HindIII, blunted using the DNA polymerase I large (Klenow) fragment and ligated into a BsaBI site 233 bp from the start of the pagN ORF in pPagN2.3 yielding plasmid pPagNKO. The disrupted pagN gene from pPagNKO was amplified by PCR and transferred to S. Typhimurium chromosome as previously described [32]. The invA gene of S. Typhimurium strain LT-2 was interrupted in a similar manner. A 2.0 kbp chloramphenicol resistance cassette, excised from pACYC184, was used to interrupt the invA gene of plasmid pInvA, resulting in the plasmid pInvAKO. The disrupted invA gene from pInvAKO was amplified by PCR and transferred to the S. Typhimurium chromosome as described above.
Haemagglutination assays
The ability of bacterial strains to agglutinate erythrocytes was determined using a 3% (v/v) suspension of human blood group A containing 100 mM mannose. Mannose was added to block adhesion by type 1 fimbriae. Bacterial cultures were harvested by centrifugation at 15,800 × g for 1 min and resuspended in PBS to an optical density of 1.0 at 600 nm. The bacteria were then serially 2-fold diluted with PBS in a final volume of 100 μl in a 96-well microtiter plate. An equal volume of the 3% blood suspension was added to each well and the plate was incubated at room temperature for 2 hours or at 4°C overnight to allow un-agglutinated erythrocytes to settle out of suspension. Agglutination was seen as a diffuse carpet of erythrocytes spread over the whole well surface. Non-agglutinated cells were seen as a tight button in the centre of the wells.
Autoagglutination
Overnight cultures were harvested by centrifugation, resuspended in PBS and normalized to an optical density of 8 OD600 nm. Samples were taken from the surface of the cultures at regular intervals to determine the OD600 nm. Assays were performed in duplicate and the rate of autoaggregation was determined by the mean decrease in optical density over time. Rates of autoaggregation were determined using Kaleidagraph software.
Preparation and analysis of whole cell lysates and membrane proteins
Samples enriched for outer-membrane proteins were prepared as previously described [13]. Proteins samples were separated by SDS-PAGE using the method of Laemmli and visualized following staining with coomassie brilliant blue R-250 or were transferred to Immobile-P PVDF membrane (Millipore), processed for western blotting, probed with an anti-MBP-PagN antibody and the blot was developed using the SuperSignal West Pico chemiluminescent HRP substrate (Pierce).
Preparation and analysis of LPS
Overnight cultures (2 ml) of the bacteria to be examined were grown in the presence of appropriate antibiotics. 1.5 ml of each culture was collected by centrifugation at 19,000 × g for 2 min. Bacteria were resuspended in 100 μl of 2× Laemmli buffer [33]. Lysis of resuspended bacteria was achieved by boiling the samples for 10 min at 100°C. Lysed bacteria were cooled on ice for 5 min. All protein present in the sample was digested with 20 μl of Proteinase K (10 mg/ml), leaving the LPS component of the outer membrane intact. Digestion of protein was carried out at 60°C for 1 h. A 1:6 dilution of each sample was prepared in Laemmli buffer. As before samples were stored at -20°C and boiled for 5 min prior to use. LPS samples separated by SDS-PAGE were fixed overnight in fixing solution (25% (v/v) isopropanol, 7% (v/v) acetic acid). Gels were then oxidized for 5 min in oxidation buffer (0.7% (v/v) periodic acid in 2.67% (v/v) fixing solution) and subsequently washed four times for 15 min in dH2O. Gels were then stained for 10 min in freshly prepared staining solution 0.8 M NaOH (0.1 M), 2% NH4OH (v/v), 3% (w/v) AgNO3). Excess stain was washed away with 3 × 10 min washes with dH2O. Gels were subsequently placed in developing solution (0.04% (v/v) formalin, 2% (w/v) Na2CO3). Image development was stopped with 10% (v/v) acetic acid.
Cell association and invasion assays
Cell association and invasion assays were performed as previously described [15]. CHO-K1 cells were seeded into 12 well trays at densities of 3.0 × 104, while HT-9 cells were seeded at a cell density of 2.5 × 105 cells/well. Cells were grown to confluence.
Salmonella strains used in these assays were grown overnight in a MOPS-based minimal media adjusted to pH 5.8. E. coli strain DH5α was grown overnight, and subsequently sub-cultured at a 1:50 dilution in 10 ml. At an OD600 nm of 0.4–0.6, PagN expression was induced with IPTG (1 mM). Bacteria were grown for a further 3 h. Prior to their addition to confluent mammalian cells, bacteria were washed with PBS and diluted 1:500 in warm tissue culture medium containing D (+)-mannose (100 mM). Mammalian cell monolayers were washed once with warm PBS and bacteria-containing medium (1 ml) was added to each well. The infected cells were centrifuged at 600 × g for 5 min to initiate contact between bacteria and the mammalian cells and to synchronize the time of infection. Cells were incubated at 37°C in 5% CO2 for 1 h to allow adhesion to and invasion of the cultured cells. Infected monolayers were washed thrice with warm PBS to remove any non-adherent bacteria. To determine the total number of cell-associated bacteria the monolayer was disrupted by treatment with 0.1% Triton X-100 and the released bacteria were enumerated by spreading serial dilutions on agar plates. To determine the number of intracellular bacteria, a standard gentamicin protection assay was performed. Following the 1 h infection, cells were incubated with medium containing gentamicin (100 μg/ml) for 90 min at 37°C in 5% CO2, washed with PBS, disrupted with 0.1% Triton X-100 and the released bacteria enumerated as before. The total viable counts of the bacterial inocula were also determined and the cell-association or invasion efficiencies were expressed as the percentage of bacteria recovered from triplicate wells. The student t-test was performed where appropriate. Experiments were performed at least three times and data from a typical experiment is presented.
References
Layton AN, Galyov EE: Salmonella-induced enteritis: molecular pathogenesis and therapeutic implications. Expert Rev Mol Med. 2007, 9 (18): 1-17.
Baumler AJ, Tsolis RM, Heffron F: Contribution of fimbrial operons to attachment to and invasion of epithelial cell lines by Salmonella typhimurium. Infect Immun. 1996, 64: 1862-1865.
Heffernan EJ, Harwood J, Fierer J, Guiney D: The Salmonella typhimurium virulence plasmid complement resistance gene rck is homologous to a family of virulence-related outer membrane protein genes, including pagC and ail. J Bacteriol. 1992, 174 (1): 84-91.
Heffernan EJ, Reed S, Hackett J, Fierer J, Roudier C, Guiney D: Mechanism of resistance to complement-mediated killing of bacteria encoded by the Salmonella typhimurium virulence plasmid gene rck. J Clin Invest. 1992, 90 (3): 953-964.
Heffernan EJ, Wu L, Louie J, Okamoto S, Fierer J, Guiney DG: Specificity of the complement resistance and cell association phenotypes encoded by the outer membrane protein genes rck from Salmonella typhimurium and ail from Yersinia enterocolitica. Infect Immun. 1994, 62 (11): 5183-5186.
Hara-Kaonga B, Pistole TG: OmpD but not OmpC is involved in adherence of Salmonella enterica serovar Typhimurium to human cells. Can J Microbiol. 2004, 50 (9): 719-727.
Patel JC, Galan JE: Manipulation of the host actin cytoskeleton by Salmonella – all in the name of entry. Curr Opin Microbiol. 2005, 8 (1): 10-15.
Prost LR, Miller SI: The Salmonellae PhoQ sensor: mechanisms of detection of phagosome signals. Cell Microbiol. 2008, 10 (3): 576-582.
Belden WJ, Miller SI: Further characterization of the PhoP regulon: identification of new PhoP-activated virulence loci. Infect Immun. 1994, 62 (11): 5095-5101.
Heithoff DM, Conner CP, Hanna PC, Julio SM, Hentschel U, Mahan MJ: Bacterial infection as assessed by in vivo gene expression. Proc Natl Acad Sci USA. 1997, 94 (3): 934-939.
Conner CP, Heithoff DM, Julio SM, Sinsheimer RL, Mahan MJ: Differential patterns of acquired virulence genes distinguish Salmonella strains. Proc Natl Acad Sci USA. 1998, 95 (8): 4641-4645.
Heithoff DM, Conner CP, Hentschel U, Govantes F, Hanna PC, Mahan MJ: Coordinate intracellular expression of Salmonella genes induced during infection. J Bacteriol. 1999, 181 (3): 799-807.
Fagan RP, Lambert MA, Smith SG: The hek outer membrane protein of Escherichia coli strain RS218 binds to proteoglycan and utilizes a single extracellular loop for adherence, invasion, and autoaggregation. Infect Immun. 2008, 76 (3): 1135-1142.
Fagan RP, Smith SG: The Hek outer membrane protein of Escherichia coli is an auto-aggregating adhesin and invasin. FEMS Microbiol Lett. 2007, 269 (2): 248-255.
Fleckenstein JM, Kopecko DJ, Warren RL, Elsinghorst EA: Molecular characterization of the tia invasion locus from enterotoxigenic Escherichia coli. Infect Immun. 1996, 64 (6): 2256-2265.
Nikaido H: The Outer Membrane. 1996, Washington, D. C.: ASM Press
Lupi N, Bourgois A, Bernadac A, Laboucarie S, Pages JM: Immunological analysis of porin polymorphism in Escherichia coli B and K-12. Mol Immunol. 1989, 26 (11): 1027-1036.
Kukkonen M, Suomalainen M, Kyllonen P, Lahteenmaki K, Lang H, Virkola R, Helander IM, Holst O, Korhonen TK: Lack of O-antigen is essential for plasminogen activation by Yersinia pestis and Salmonella enterica. Mol Microbiol. 2004, 51 (1): 215-225.
Goddette DW, Frieden C: Actin polymerization. The mechanism of action of cytochalasin D. J Biol Chem. 1986, 261 (34): 15974-15980.
Raffatellu M, Wilson RP, Chessa D, Andrews-Polymenis H, Tran QT, Lawhon S, Khare S, Adams LG, Baumler AJ: SipA, SopA, SopB, SopD, and SopE2 contribute to Salmonella enterica serotype Typhimurium invasion of epithelial cells. Infect Immun. 2005, 73 (1): 146-154.
Trent MS, Pabich W, Raetz CR, Miller SI: A PhoP/PhoQ-induced Lipase (PagL) that catalyzes 3-O-deacylation of lipid A precursors in membranes of Salmonella typhimurium. J Biol Chem. 2001, 276 (12): 9083-9092.
Carroll RK: Virulence gene regulation by nucleoid-associated proteins in Salmonella typhimurium: A role for Fis in Salmonella pathogenicity island 2 gene regulation. Ph.D. 2003, University Of Dublin, Trinity College
Folkesson A, Advani A, Sukupolvi S, Pfeifer JD, Normark S, Lofdahl S: Multiple insertions of fimbrial operons correlate with the evolution of Salmonella serovars responsible for human disease. Mol Microbiol. 1999, 33 (3): 612-622.
Folkesson A, Lofdahl S, Normark S: The Salmonella enterica subspecies I specific centisome 7 genomic island encodes novel protein families present in bacteria living in close contact with eukaryotic cells. Res Microbiol. 2002, 153 (8): 537-545.
Nikaido H: Isolation of outer membranes. Methods Enzymol. 1994, 235: 225-234.
O'Neil DA, Porter EM, Elewaut D, Anderson GM, Eckmann L, Ganz T, Kagnoff MF: Expression and regulation of the human beta-defensins hBD-1 and hBD-2 in intestinal epithelium. J Immunol. 1999, 163 (12): 6718-6724.
Hase K, Eckmann L, Leopard JD, Varki N, Kagnoff MF: Cell differentiation is a key determinant of cathelicidin LL-37/human cationic antimicrobial protein 18 expression by human colon epithelium. Infect Immun. 2002, 70 (2): 953-963.
Eriksson S, Lucchini S, Thompson A, Rhen M, Hinton JC: Unravelling the biology of macrophage infection by gene expression profiling of intracellular Salmonella enterica. Mol Microbiol. 2003, 47 (1): 103-118.
Fleckenstein JM, Holland JT, Hasty DL: Interaction of an outer membrane protein of enterotoxigenic Escherichia coli with cell surface heparan sulfate proteoglycans. Infect Immun. 2002, 70 (3): 1530-1537.
Engler MJ, Richardson CC: The Enzymes. 1982, San Diego: Academic Press, 5:
Dower WJ, Miller JF, Ragsdale CW: High efficiency transformation of E. coli by high voltage electroporation. Nucleic Acids Res. 1988, 16 (13): 6127-6145.
Chaveroche MK, Ghigo JM, d'Enfert C: A rapid method for efficient gene replacement in the filamentous fungus Aspergillus nidulans. Nucleic Acids Res. 2000, 28 (22): E97-
Laemmli UK: Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature. 1970, 227 (5259): 680-685.
Higgins CF, Ames GF: Two periplasmic transport proteins which interact with a common membrane receptor show extensive homology: complete nucleotide sequences. Proc Natl Acad Sci USA. 1981, 78 (10): 6038-6042.
Chang AC, Cohen SN: Construction and characterization of amplifiable multicopy DNA cloning vehicles derived from the P15A cryptic miniplasmid. J Bacteriol. 1978, 134 (3): 1141-1156.
Balbas P, Soberon X, Bolivar F, Rodriguez RL: The plasmid, pBR322. Biotechnology. 1988, 10: 5-41.
Prentki P, Krisch HM: In vitro insertional mutagenesis with a selectable DNA fragment. Gene. 1984, 29 (3): 303-313.
Amann EB, Ochs B, Abel K-J: Tightly regulated tac promoter vectors useful for the expression of fused and unfused proteins in Escherichia coli. Gene. 1988, 69: 301-315.
