Neurogenesis is a complex process that involves the formation of a vast array of neuronal and glial cell types that must be produced in the correct numbers and at appropriate positions. Genetic and molecular studies mainly conducted in Drosophila and vertebrates have shown that genes encoding transcription factors of the basic Helix-Loop-Helix (bHLH) class play pivotal roles in various steps of neurogenesis, including commitment of neural precursors (proneural function), specification of particular neuronal identities, and neuronal differentiation [15]. Most of the genes encoding bHLH transcription factors and which are involved in neural development (hereafter named neural bHLH genes), belong to five of the numerous phylogenetically-defined bHLH families, achaete-scute and four families of atonal-related genes, neurogenin, atonal, olig (oligo), and NeuroD [2, 6]. While some of the neural bHLH genes show strikingly similar functions in Drosophila and vertebrates [2, 3, 7], there are also profound differences between them [1, 4].

First, in vertebrates, genes of the neurogenin family (ngn1, ngn2, and ngn3) are required for the formation of the precursors of many neural cells of both the Peripheral and Central Nervous Systems (PNS and CNS) [810] while their single Drosophila ortholog, tap/biparous, has no proneural role and is expressed in a few differentiating neural cells [11, 12]. In Drosophila, the main proneural bHLH genes for the CNS belong to the achaete-scute family and are also involved, together with atonal family genes, in the formation of the sensory organs [2, 3, 13, 14]. Vertebrate achaete-scute and atonal genes probably also have proneural functions but in a much more limited set of cells, in particular in the CNS [1, 2, 4].

Second, vertebrate proneural genes contribute to the specification of progenitor-cell identity [2, 4, 5]. A clear example of such a function is provided by the dorsal embryonic spinal cord, in which Math1 (atonal family), ngn1, and Mash1 (ascl1; achaete-scute family) are required for the correct specification of discrete dorsoventral progenitor domains that produce distinct types of interneurons [1518]. Mash1 has also been shown to have instructive roles in the specification of noradrenergic, GABAergic, and serotonergic neurons in various positions in the brain and the spinal cord [1922]. Finally, ngn2 has a key role for motor neurons formation in the ventral spinal cord [23, 24]. Such important roles in neuronal specification for proneural bHLH genes in the CNS are not found in Drosophila [1, 4].

Third, bHLH genes that have important functions during vertebrate neurogenesis do not have orthologs in Drosophila. Many vertebrate neurons require the function of genes, which belong to the NeuroD family, for their proper differentiation and survival [2527]. Genes of the olig family (olig1, olig2, and olig3) have key roles in the specification of motor neurons, dorsal interneurons, and oligodendrocytes in the vertebrate CNS [18, 23, 24, 2830]. olig and NeuroD genes do not exist in Drosophila (the gene known in Drosophila as Dm-oli is in fact an ortholog of the vertebrate Beta3 genes) [6, 31].

Given these differences and in order to decipher which aspects of the functions of neural bHLH genes are ancestral to bilaterians and which are derived characters specific to some bilaterian lineages, we have isolated and studied these genes in the polychaete annelid, Platynereis dumerilii, which belongs to a different branch (Trochozoa) of the bilaterians tree than Drosophila (Ecdysozoa) and vertebrates (Deuterostoma) and is therefore evolutionary distant to both these organisms [32]. In addition, Platynereis is considered to have retained some bilaterian ancestral features, making it a useful model for comparative developmental biology [e.g. [3335]]. Here, we report the expression patterns of Platynereis orthologs of the most important neural bHLH genes, including the olig and NeuroD genes not found in Drosophila. Our data suggest that Platynereis bHLH genes have both proneural and neuronal specification functions, in a way more akin to the vertebrate situation than to that of Drosophila. These data indicate that these functions were already established in Urbilateria, the last common ancestor of all bilaterians.


Brief overview of the formation of the Platynereis larval nervous system

Platynereis displays an indirect development which gives rise to a ciliated trochophore larva that subsequently metamorphoses into a juvenile worm [36]. The formation of the Platynereis larval trunk nervous system has been thoroughly described, up to the late trochophore stage (metatrochophore; 48 to 55 hours post fertilization, hpf), using whole-mount in situ hybridization (WMISH) with RNA antisense probes corresponding to Platynereis neuronal differentiation genes, such as elav (Pdu-elav), synaptotagmin (Pdu-syt), Tryptophane Hydroxylase (Pdu-TrpH), and Vesicular Acetylcholine Transporter (Pdu-VAchT) [35]. In order to give an overview of larval neurogenesis, which is important to understand the next parts of this article, we show here some WMISH for these previously characterized genes in 24 hpf to 55 hpf larvae and extend the published description by looking at juvenile worms (72 hpf).

A simple larval nervous system first differentiates during the early (24 hpf) to late trochophore (48 hpf) stages: a few cells expressing Pdu-elav are observed on the ventral side of the 24 hpf and 34 hpf larvae (Figure 1A,B) and these cells give rise to two bilateral anterior groups and one posterior group of Pdu-syt-expressing neurons (Figure 1C). Different neuronal subtypes can be identified, such as serotonergic (identified as cells expressing Pdu-TrpH) and cholinergic (identified as cells expressing Pdu-VAchT; Figure 1D,E). From 48 hpf, a large number of cells enter neural differentiation and express first Pdu-elav (Figure 1F,G) and then Pdu-syt (Figure 1H). These neurons form the ventral nerve cord (VNC) of the 72 hpf juvenile worm (Figure 1I,J). Many of the formed neurons are cholinergic neurons as seen by the massive expression of Pdu-VAchT (Figure 1L) in the VNC, except in its medialmost part where several serotonergic neurons differentiate (expression of Pdu-TrpH; Figure 1K). Outside the VNC, peripheral neurons are also found mainly associated with the appendages (the parapodes; arrows in Figure 1J).

Figure 1
figure 1

Overview of formation the trunk nervous system in Platynereis. Expression of Pdu-elav, Pdu-syt, Pdu-TrpH, and Pdu-VAchT, as determined by WMISH, on a selection of larval stages is shown. All pictures are ImageJ projections and are ventral views (anterior up). The blue dotted lines indicate the position of the prototroch (a ring of ciliated cells involved in the locomotion of the larva) and therefore the separation between the prospective head (up) and trunk (down) regions. The position of the mouth region is indicated either by dotted red lines or a red asterisk, depending on the stage. The formation of the larval neurons is shown in A to E. A few neurons with stereotyped positions differentiate between 24 h to 48 h as seen by the expression of Pdu-elav and Pdu-syt (A-C). A single pair of neurons, located close to the mouth region, is serotonergic as seen by the expression of Pdu-TrpH (D), a few other neurons are cholinergic (as seen by the expression of Pdu-VAchT; E), and the other ones are of unknown identity. F to L depict the formation of the juvenile worm nervous system. See the main text for details. Arrows in J point to peripheral neurons associated with the parapodes. M to O are schematic drawings of the organization of the nervous system of 24 hpf, 48 hpf, and 72 hpf larvae. The neuroectodermal cells are indicated in yellow, the cells expressing Pdu-elav in red, and the Pdu-syt-expressing neurons in blue.

Identification of Platynereis atonal- and achaete-scute-related bHLH genes

By sequence similarity searches on an expressed sequence tag (EST) collection (40,000 ESTs from normalized cDNA libraries of mixed larval stages, corresponding to more than 10,000 unigene clusters) [34], we identified several Platynereis dumerilii bHLH genes among which some show strong sequence similarity to either achaete-scute- or atonal-related genes. The predicted amino acid sequence of the bHLH domains were aligned with those of a sample of metazoan bHLH genes identified in a previous study [31]. Multiple phylogenetic reconstructions show that we identified orthologs of the neurogenin/biparous, achaete-scute/ASCL/ASH, olig, and NeuroD genes (Figures 2 and 3). We named these genes Pdu-Ngn, Pdu-ASH, Pdu-Olig, and Pdu-NeuroD, respectively. For each family, we found a single Platynereis member but we cannot exclude that additional members do exist, although duplicated evolutionary-conserved genes are rare in Platynereis [34]. We also included in our analysis the previously identified atonal ortholog (Pdu-ATH; not found in the EST collection) [35, 37] in order to study Platynereis representatives for all the main families of bHLH genes involved in neural determination and specification in vertebrates and Drosophila [2, 4]. We also identified Beta3 and mist genes in Platynereis (Figure 2), but these genes were not further characterized as their Drosophila and vertebrate orthologs do not have well defined functions in neurogenesis. We used WMISH to monitor the expression of Pdu-Ngn, Pdu-ASH, Pdu-Olig, Pdu-ATH, and Pdu-NeuroD during Platynereis development and focused on possible expressions during trunk nervous system formation for which a good characterization exists [35]. All the genes are also expressed in the head, probably in the brain and/or sensory organs, but these expressions were not further characterized.

Figure 2
figure 2

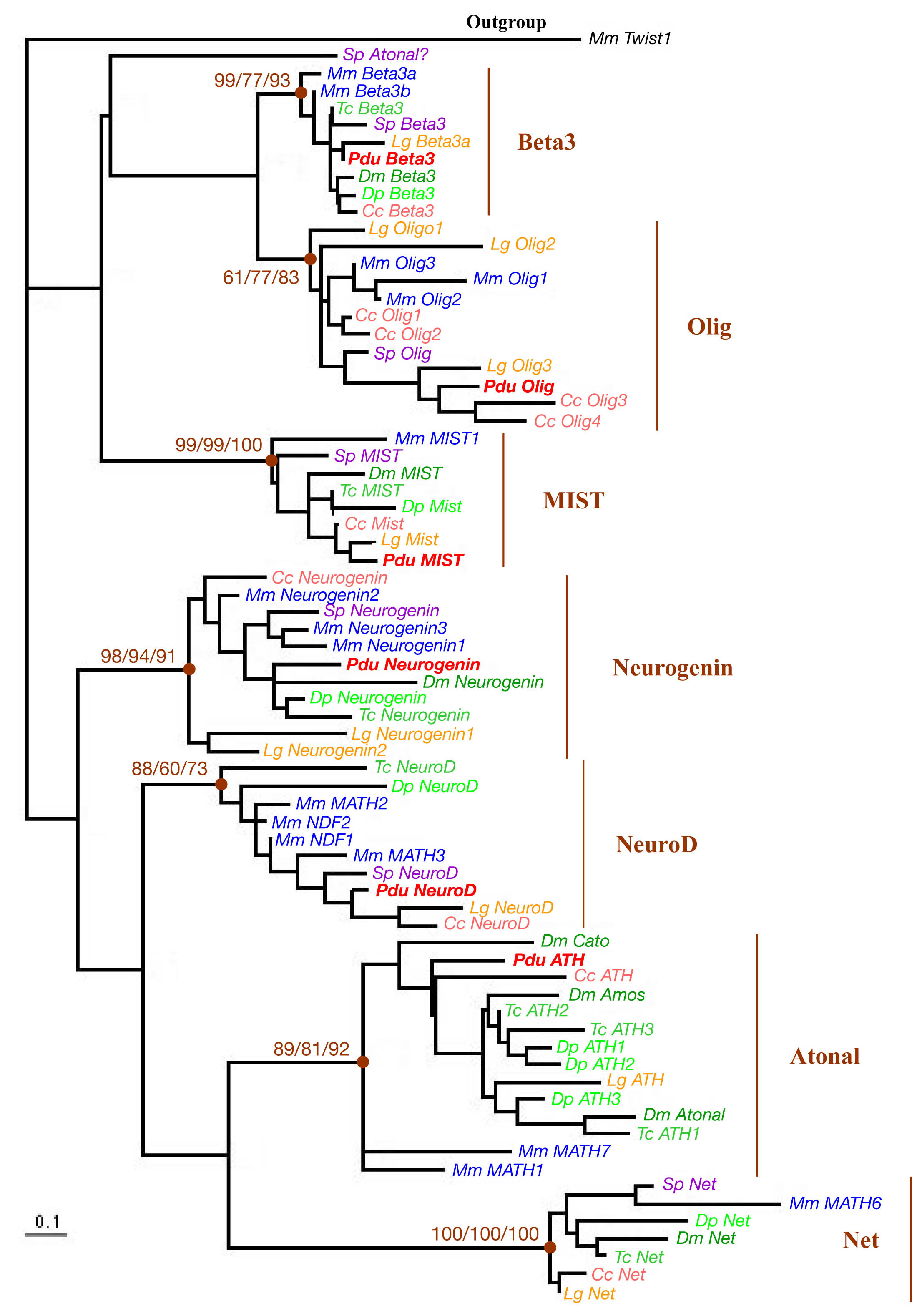

Phylogenetic analysis of the Platynereis atonal -related bHLH genes. The phylogenetic tree has been constructed by Maximum Likelihood (ML) as described in the Methods section. Similar tree topologies were obtained using other phylogenetic reconstruction methods (not shown). The different groups of orthology are indicated (for more details, see [31]). Statistical supports for the internal branches that define these groups are indicated (first number: bootstrap support in Neighbour-joining (NJ) analysis; second number: bootstrap support in ML analysis; third number: posterior probability in Bayesian inference analysis). The tree has been rooted using a non-atonal-related (twist) bHLH gene as outgroup. Platynereis genes are indicated in bold red. Species abbreviations: Cc: Capitella spI (annelid); Dm: Drosophila melanogaster (insect); Dp: Daphnia pulex (crustacean); Lg: Lottia gigantea (mollusk); Mm: Mus musculus (vertebrate); Pdu: Platynereis dumerilii (annelid); Sp: Strongylocentrotus purpuratus (echinoderm); Tc: Tribolium castaneum (insect).

Figure 3
figure 3

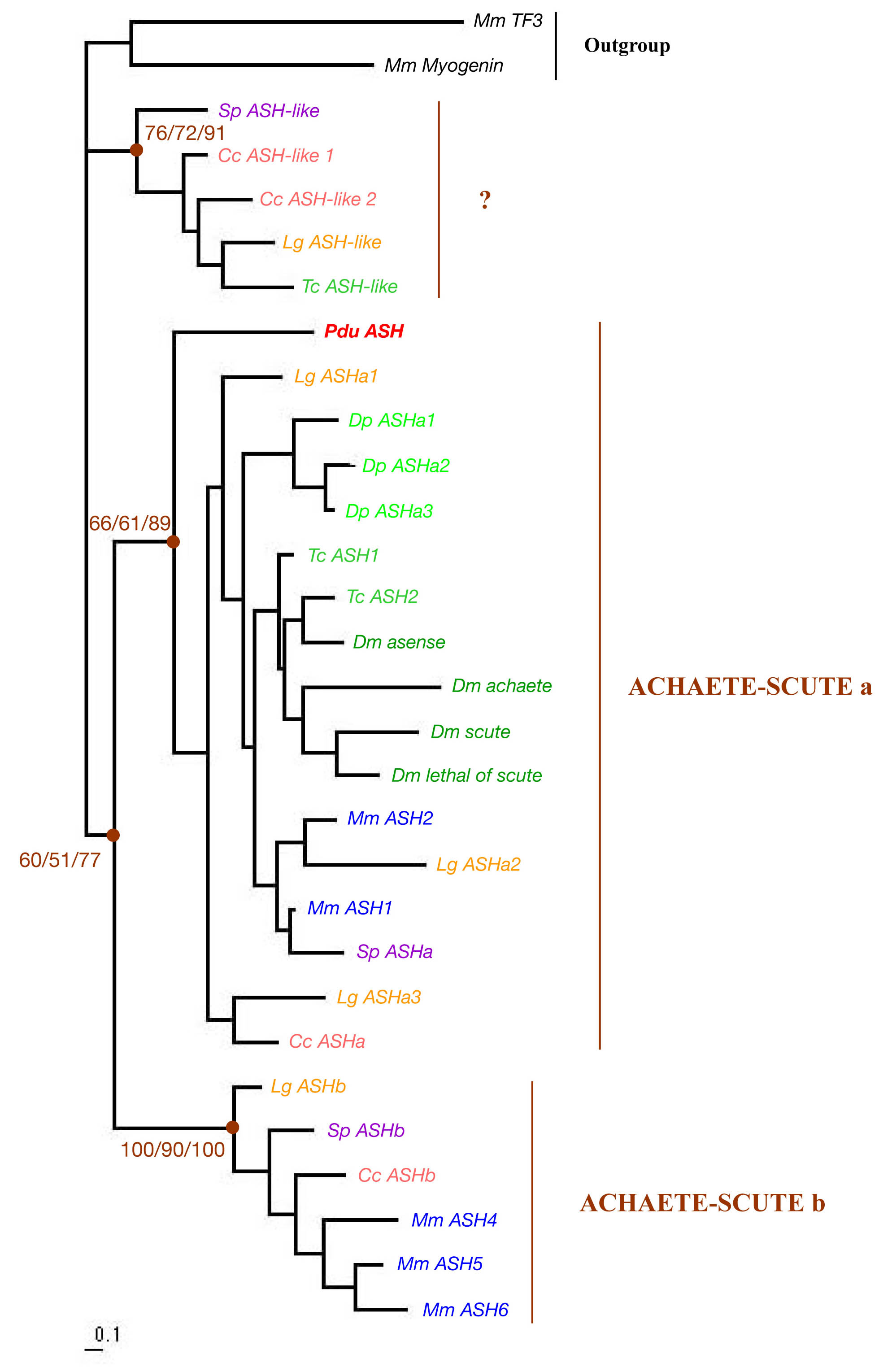

Phylogenetic analysis of the Platynereis achaete-scute -related bHLH gene. The phylogenetic tree has been constructed by Maximum Likelihood (ML) as described in the Methods section. Similar tree topologies are obtained using other phylogenetic reconstruction methods (not shown). Statistical supports for the internal branches that define these groups are indicated (first number: bootstrap support in Neighbour-joining (NJ) analysis; second number: bootstrap support in ML analysis; third number: posterior probability in Bayesian inference analysis). The tree has been rooted using non-achaete-scute bHLH genes as outgroup. The Platynereis gene is indicated in bold red. The "?" indicates a group of divergent achaete-scute-like genes found in some species and that cannot be related to either of the two bilaterian achaete-scute families (see [31] for more details). Species abbreviations are as in Figure 2.

Platynereis atonal- and achaete-scute-related bHLH genes are expressed during trunk nervous system formation

The five bHLH genes are already expressed in 24 hpf larvae. Pdu-NeuroD is expressed in a broad ventral ectodermal domain (Figure 4A) which corresponds to the larval neuroectoderm. This expression domain is similar to that of Platynereis orthologs of bilaterian conserved neuroectodermal genes, such as SoxB (Figure 5A–C and P.K. et al., unpublished). Pdu-Ngn and Pdu-ASH are expressed in a few cells located on the ventral side of the larvae, in particular around the stomodaeal area (Figure 4B,C). This expression nicely prefigures the distribution of differentiating neurons that is observed in slightly later stages (Figure 1B,C), suggesting that the two genes are expressed in precursors of the larval central nervous system. Pdu-ATH and Pdu-Olig are expressed in a few lateral cells we were unable to identify (Figure 4D,E).

Figure 4
figure 4

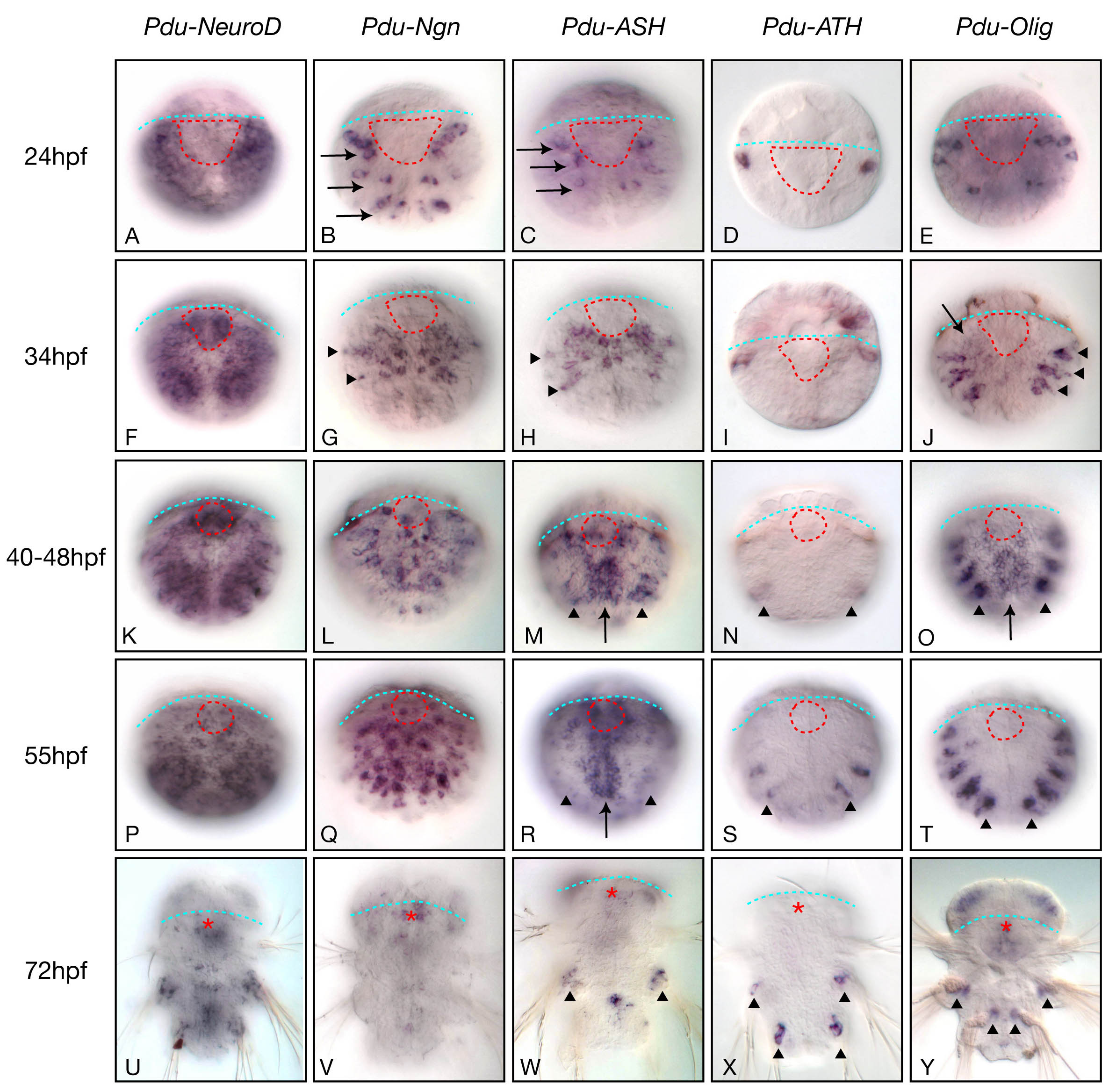

Expression of Platynereis neural bHLH genes during trunk neurogenesis. Expression of Pdu-NeuroD, Pdu-neurogenin (Pdu-Ngn), Pdu-achete-scute (Pdu-ASH), Pdu-Olig, and Pdu-atonal (Pdu-ATH), as determined by WMISH, on a selection of larval stages is shown. Most of the images are ImageJ projections and all images are ventral views (anterior up). Labels are as in Figure 1. See the main text for the detailed descriptions of the expression patterns. In (B) and (C), arrows point to the groups of cells expressing Pdu-Ngn or Pdu-ASH and whose positions correspond to the neurons that will latter differentiate (compare with Figure 1B,C). In (G) and (H), the arrowheads point to putative PNS precursor cells. In (J), the arrow points to a weak medial expression of Pdu-Olig and arrowheads to its more lateral expression domains that form three bilateral small stripes. In (M, N, O, R, S, T), the arrow points to the medial expression and the arrowheads to the more lateral expression domains that lie outside the VNC. In (W-Y), arrowheads point to expressions in cells associated with the parapodes. Labelling associated with the parapodes in (U) is probably background (as seen at higher magnification).

Figure 5
figure 5

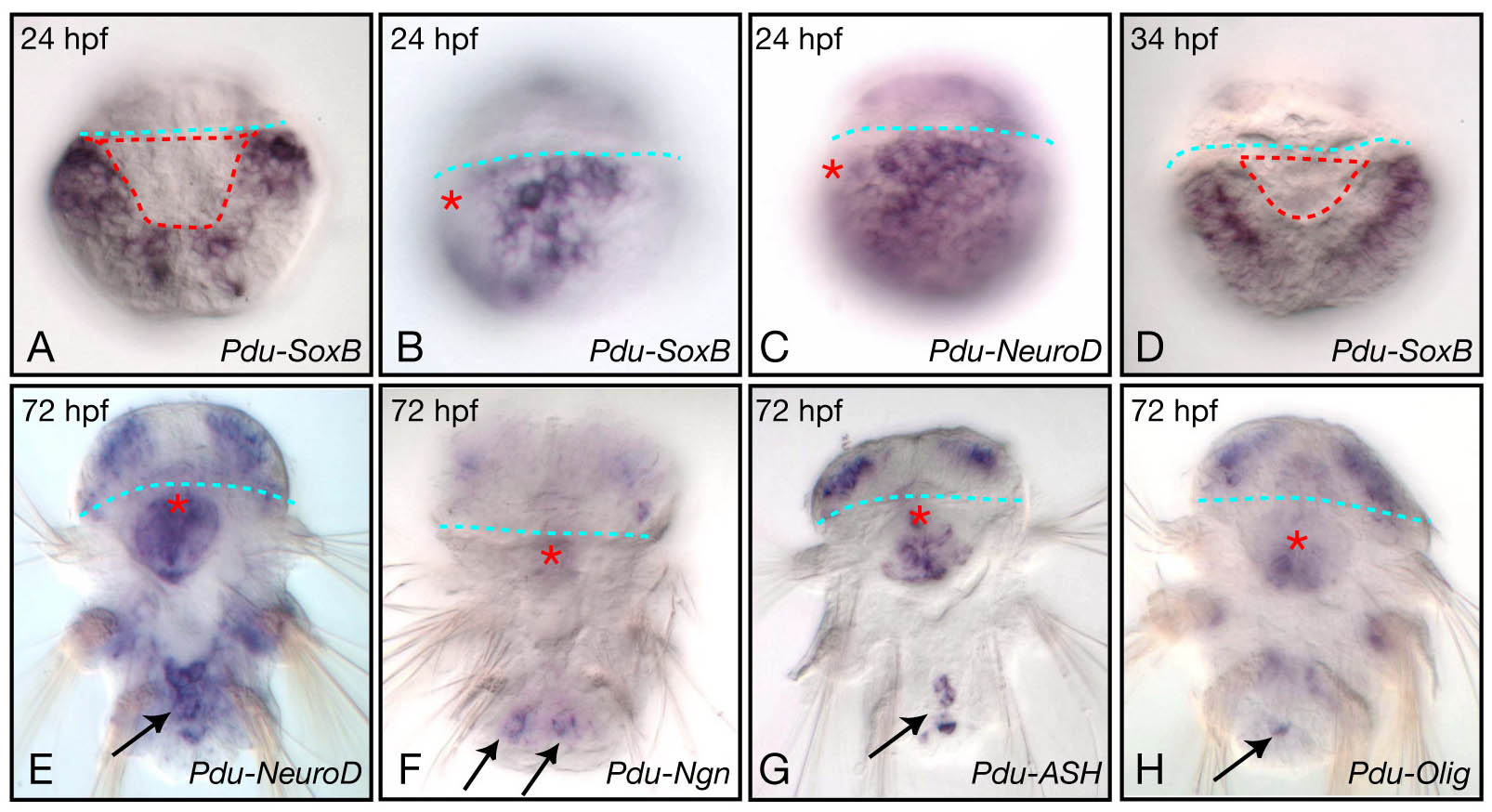

Additional expressions of Platynereis neural genes during trunk neurogenesis. A, D, E-H are ventral views; B, C are lateral views (ventral on the left). Most of the images are ImageJ projections. Labels are as in Figure 1. E-H correspond to more internal views than those of Figure 4U-Y which are superficial views. See the main text for details. Arrows in E-H point to internal cells expressing neural bHLH genes and that may belong to the posterior growth zone [41,42].

In 34 hpf larvae, Pdu-NeuroD is still expressed in a broad ventral ectodermal domain (Figure 4F) which includes the prospective VNC region in which Pdu-Ngn and Pdu-ASH become widely expressed (Figure 4G,H). At this stage, the expression of Pdu-SoxB strongly decreases in the same region (Figure 5D). In vertebrates, the transition from neuroectodermal cells to committed progenitors is linked to the activation of the expression of bHLH proneural genes and a concomitant repression of the expression of SoxB genes [e.g. [2, 38]]. Our data suggest that a similar transition occurs around 34 hpf in the Platynereis larvae. However, at this stage, only very few cells express Pdu-elav (Figure 1B), indicating that the Pdu-Ngn and Pdu-ASH expressing precursors are still not engaged towards differentiation. Both Pdu-Ngn and Pdu-ASH are also expressed in more lateral cells that may correspond to peripheral nervous system precursors (Figure 4G,H). Pdu-ATH and Pdu-Olig continue to be expressed in lateral cells, with Pdu-Olig expressed in three bilateral small stripes (Figure 4I,J).

In 40 hpf to 55 hpf larvae, Pdu-NeuroD continues to be broadly expressed in the ventral ectoderm (Figure 4K,P). Expression of Pdu-NeuroD is restricted to the superficial layer of the ectoderm (not shown). From 40 hpf to 55 hpf larvae, Pdu-Ngn is largely expressed in the whole prospective VNC region as well as in some more lateral cells (Figure 4L,Q). Pdu-Ngn is expressed in a salt and pepper manner, with highly-expressing cells interspersed with weakly-expressing ones. In 40 hpf and 48 hpf larvae, Denes et al. [35] showed that the prospective Platynereis VNC region is multilayered with, from superficial (apical) to more internal (basal), a proliferating progenitor zone (a single layer of BrdU incorporating cells), a post-mitotic progenitor zone (Pdu-elav positive, Pdu-syt negative cells), and a differentiation zone (Pdu-elav positive, Pdu-syt positive cells). To define in which zone(s) of the prospective VNC Pdu-Ngn is expressed, we performed double WMISH [39] for Pdu-Ngn, on one hand, and Pdu-elav or Pdu-syt, on the other hand, and visualized the labellings with confocal microscopy (Figure 6). We found that Pdu-Ngn is mainly expressed in superficial cells in contrast to Pdu-elav and Pdu-syt (Figure 6A,B). We used 3D reconstructions of confocal stacks to perform virtual cross-sections of the VNC region (Figure 6F,H): we found that Pdu-Ngn is expressed in the apicalmost cells of the prospective VNC with very little overlap with Pdu-elav and no overlap with Pdu-syt. We therefore conclude that Pdu-Ngn is expressed in undifferentiated neural precursors and mainly in the proliferating ones.

Figure 6
figure 6

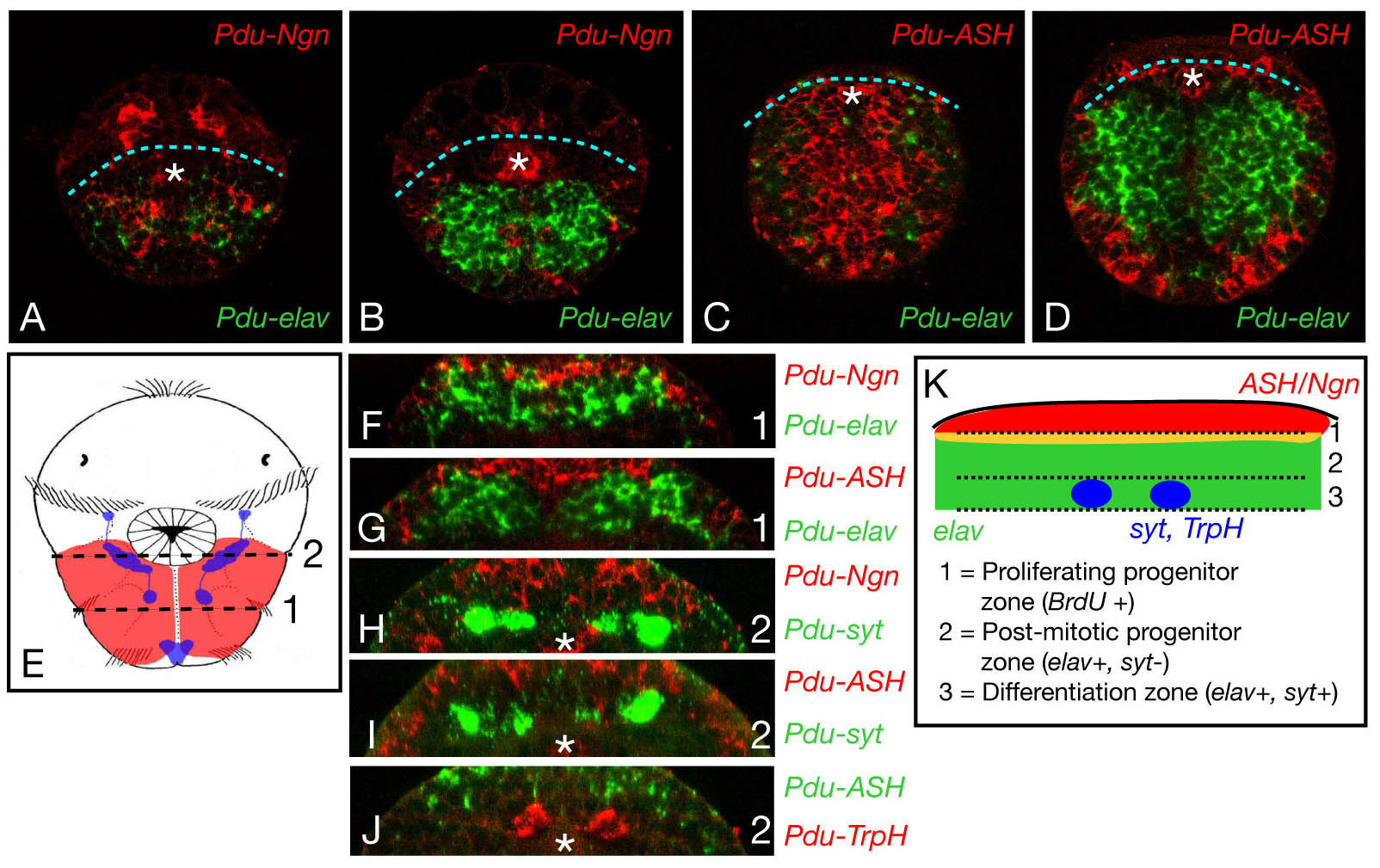

Position of the Pdu-Ngn - and Pdu-ASH -expressing cells with respect to the apicobasal organization of the prospective ventral nerve cord region. Confocal picures of double WMISH are shown. The probes which have been used are indicated on the pictures. A and C are superficial plans, B and D more internal ones. Pdu-Ngn and Pdu-ASH are mainly expressed in superficial cells while Pdu-elav is mainly expressed in more profound cells. F to J are virtual cross-sections, sections have been made at two anteroposterior levels (1 and 2) as indicated on a schematic drawing (E). Apical is up, basal is down. Pdu-Ngn and Pdu-ASH are mainly expressed in the apicalmost layer of cells of the prospective VNC while Pdu-elav, Pdu-syt, and Pdu-TrpH are expressed in more basal cells. Some internal cells also express Pdu-Ngn (H) and Pdu-ASH (not shown) and on some confocal sections we can see rare cells co-expressing Pdu-Ngn or Pdu-ASH and Pdu-elav. Such co-expressions are never observed with Pdu-syt or Pdu-TrpH. The white asterisk indicates an expression in the stomodeum. K summarizes the apicobasal layering of the Platynereis prospective VNC based on the data published by Denes et al. [35] and includes the expression of Pdu-Ngn and Pdu-ASH defined in this study. Apical is up, basal is down. Pdu-elav expression domain is in green, Pdu-ASH and Pdu-Ngn expression domain is in red, and the yellow region indicates the zone of overlap of these expression domains.

Pdu-ASH and Pdu-Olig, at 40 and 48 hpf, are expressed in the medialmost part of the prospective VNC region as well as in more lateral cells (Figure 4M,O). As for Pdu-Ngn, Pdu-ASH and Pdu-Olig are expressed in proliferating progenitors, as determined by double WMISH (Figure 6C,D,G,I and not shown). The expression of Pdu-ASH and Pdu-Olig in the medialmost part of the prospective VNC region is similar to that of the Platynereis NK2.2 gene and corresponds to the region from which serotonergic neurons will emerge (Figure 1K) [35]. We confirmed by double WMISH that the serotonergic neurons (Pdu-TrpH-expressing cells) are located below the Pdu-ASH-expressing precursors (Figure 6J). At 55 hpf, Pdu-ASH shows the same expression pattern than in the previous stages, but Pdu-Olig is no more expressed in the prospective VNC region (Figure 4R,T). In 40 hpf to 55 hpf larvae, Pdu-ATH is only expressed in a few cells located on both sides of the prospective VNC region (Figure 4N,S).

At 72 hpf, the five genes are expressed in more limited sets of cells in the VNC region and in cells associated with the parapodes (Figure 4U–Y). In addition, Pdu-Ngn, Pdu-ASH, Pdu-Olig, and Pdu-NeuroD are expressed in posteriorly-located internal cells (Figure 5E–H) whose position roughly corresponds to that of cells expressing Platynereis hunchback [40] and stem-cells markers, such as Platynereis piwi and vasa [41]. The cells expressing Pdu-Ngn, Pdu-ASH, Pdu-Olig, and Pdu-NeuroD may therefore belong to the posterior subterminal growth zone that will allow the posterior addition of new segments to the existing ones (and the corresponding elongation of the VNC) in a sequential manner throughout most of the life of the animal [41, 42].


Olig and NeuroD genes belong to the ancestral bilaterian toolkit of neural developmental genes

In this article, we report, for the first time, the characterization of several atonal- and achaete-scute-related bHLH genes from a lophotrochozoan species, the annelid Platynereis dumerilii. Our phylogenetic analyses demonstrate that we have identified neurogenin, achaete-scute, olig, and NeuroD orthologs in addition to a previously characterized atonal gene (Figures 2 and 3). neurogenin, achaete-scute, and atonal genes have been found in many diverse species, including Drosophila melanogaster, Caenorhabditis elegans, and several vertebrates, and shown to be involved in neural development in all these species [e.g. [2, 7, 31]]. We found a similar situation in Platynereis as the three genes display specific expressions during neurogenesis (see below for further discussion), confirming their evolutionary-wide implication in neurogenesis in bilaterian animals.

NeuroD genes have been shown to be important neuronal differentiation genes in vertebrates (see introduction). A putative NeuroD gene (named cnd-1 but whose orthology relationship with the vertebrate NeuroD genes is only poorly supported; [43]) has been described in the nematode Caenorhabditis elegans and is involved in several steps of the formation of the motor neurons [44]. NeuroD genes cannot be found in the genomes of Drosophila melanogaster and of the urochordate Ciona intestinalis [6, 45]. Our phylogenomic analysis (Figure 2) indicates that NeuroD genes are in fact widely found in bilaterians and that their absence in Drosophila melanogaster and Ciona intestinalis results from a rather specific loss in these species. We found the Platynereis NeuroD gene to have a broad and early neuroectodermal expression, which is completely different from the neuronal expression of vertebrate NeuroD genes and the neural subtype-specific expression of Caenorhabditis cnd-1. It is therefore difficult to infer from these data any putative ancestral expression or function of NeuroD. More precise inference will await additional data from other species.

Olig genes were thought to be vertebrate-specific genes as they are not found in the Drosophila melanogaster, Caenorhabditis elegans, and Ciona intestinalis genomes [6, 45]. In fact, olig genes are found in several non-vertebrate species (Figure 2). However, we cannot find such genes in any of the sequenced arthropod and nematode genomes [[31], E.S. and M.V., unpublished observations], suggesting that olig genes have been lost quite early during the evolution of these phyla. We found the Platynereis olig gene to be specifically expressed during nervous system formation and that its expression shows similarities to that of vertebrate olig genes (see below). We therefore conclude that olig, together with neurogenin, achaete-scute, atonal, and NeuroD genes belong to the ancestral bilaterian toolkit of neural developmental genes.

Vertebrate-like expression of Platynereis neurogenin suggests a major proneural role and provides insights into the evolution of the proneural function in bilaterians

One striking difference between vertebrate and Drosophila neurogenesis is the differential use of neurogenin genes in these species. Indeed, neurogenin genes are the key proneural genes in the vertebrate CNS while it is not the case for their Drosophila counterpart (see introduction). In Drosophila, and probably more generally in arthropods, the proneural function in the CNS is mainly performed by the achaete-scute genes (see introduction and [46]). These genes have a much more limited proneural functions in vertebrates (see introduction). Given these differences, it is challenging to infer what was the ancestral situation, i.e. what were the main proneural genes acting in Urbilateria, the last common ancestor of all bilaterians. Our data on Platynereis help to answer this question.

We found that Platynereis neurogenin (Pdu-Ngn) has an expression suggestive of a wide proneural function in the developing trunk CNS which is similar to that of the vertebrate neurogenin genes. Indeed, Pdu-Ngn expression arises at early stages of neural development, overlapping that of the neuroectodermal marker SoxB, and preceding the expression of the differentiation marker elav. The expression domain of Pdu-Ngn is large and covers the whole prospective CNS region (ventral part of the trunk ectoderm) as well as more lateral regions which probably correspond to the PNS. Pdu-Ngn is expressed in a salt and pepper manner which is often found for proneural genes as a consequence of lateral inhibition processes (reviewed in [1, 2]). Finally, Pdu-Ngn is expressed in the apicalmost part of the forming CNS, which has been shown to include proliferative neuroectodermal cells and neural precursors [35]. Pdu-Ngn is therefore expressed at the right time, the right place, and the right manner to be the major proneural gene for the formation of the Platynereis trunk nervous system, like its orthologs in vertebrates. This similarity between vertebrates (deuterostomes) and an annelid (a protostome) suggests that the broad proneural function of neurogenin genes is ancestral to bilaterians and has been lost in the evolutionary lineage leading to present-day insects (or even arthropods). This does not necessarily mean that proneural function of achaete-scute genes is a derived character: indeed, such function is found in vertebrates and in arthropods, and the expression of Pdu-ASH is not incompatible with this function, as it is expressed in early stages of VNC formation (although only in a subset of the Pdu-Ngn-expressing cells – an expression that is, to our opinion, more consistent with a role in neural specification). It is therefore conceivable that both neurogenin and achaete-scute were acting as proneural genes in Urbilateria, the former being the predominant one.

Platynereis bHLH genes may have neural specification functions in the CNS – evolution of neural specification in bilaterians

Another striking difference between vertebrates and Drosophila is the differential use of bHLH genes in neural subtype specification in the CNS. In vertebrate, neural bHLH genes such as olig and achaete-scute genes are important to specify many types of neural cells which are produced in the CNS, while it is not the case in the Drosophila CNS (although a single study has suggested that achaete-scute genes may be involved in the specification of a limited set of cells in the CNS [47]; but see [1]). This raises the possibility that the functions of bHLH genes in neural subtype specification may largely represent vertebrate innovations. Alternatively, they could be bilaterian ancestral functions that have been lost in the evolutionary lineage leading to Drosophila. We found that two Platynereis bHLH genes, Pdu-ASH and Pdu-Olig, are expressed in a way suggestive of an involvement in neural specification in the CNS. Both genes are expressed in the medialmost part of the CNS, they are first co-expressed and in a second time, only Pdu-ASH continues to be expressed. Interestingly, these expression profiles coincide with those of vertebrates olig and achaete-scute genes which are also expressed in medial parts of the neural tube (reviewed in [5]). Importantly, this similarity is probably meaningful as the overall organization of the Platynereis CNS bears striking resemblances with that of vertebrates, as seen by the conserved expression domains of many neural patterning and differentiation genes between Platynereis and vertebrates [35]. The cells expressing Pdu-ASH and Pdu-Olig correspond to a domain of the VNC characterized by the co-expression of Platynereis NK2.2 and NK6 genes [35]. In vertebrates, such as mammals, Ascl1/Mash1 is also expressed in a NK2.2/NK6 positive medial domain (p3 domain in the spinal cord and its topological equivalent in the hindbrain, PMNv) and controls the formation of serotonergic neurons from this domain in the hindbrain [21, 22]. Strikingly, serotonergic neurons in Platynereis also emerge from a medial domain of the CNS, corresponding to cells expressing NK2.2 and achaete-scute. We therefore suggest that Pdu-ASH is involved in the specification of serotonergic neurons in Platynereis and that this may represent an ancestral function of achaete-scute genes in bilaterians.

In vertebrates, such as mammals, olig genes have important roles in neural specification. olig2 gene is expressed in the so-called pMN domain of the spinal cord, located slightly more laterally than the p3 domain (see Introduction and [5]). This domain corresponds to a NK6/Pax6-positive domain from which originate Hb9-positive cholinergic motor neurons and oligodendrocytes, the specification of both of these cells types being controled by olig2. This NK6/Pax6-positive domain also exists in Platynereis and, as in vertebrates, Hb9-positive cholinergic neurons emerge from this domain [35]. Pdu-Olig is, however, not expressed in this domain (it is expressed in the more medial NK6/NK2.2-positive domain) and is therefore much probably not involved in motor neurons specification. However its co-expression with Pdu-ASH at some but not all stages of VNC formation, in the NK6/NK2.2-positive domain, suggests it may contribute to the diversification of neural cell types from this domain. We suggest that different neural cell types may form in the prospective Platynereis VNC first from the Pdu-ASH/Pdu-Olig-positive cells and then from the Pdu-ASH-positive (Pdu-Olig-negative) cells. This suggestion is based on the fact that, in vertebrates, different combinations of neural bHLH have been shown to control the formation of different cell types from a single medio-lateral domain [5, 48].

Our data suggest that some neural bHLH genes are involved in neural subtype specification in Platynereis, like in vertebrates, and that this may therefore represent an ancestral feature of bilaterians. In insects, such as Drosophila, the specification functions of neural bHLH genes (and even some genes such as Olig) have been lost. This may be related to the fact that insects have evolved a divergent way to pattern their CNS: while in vertebrates and Platynereis the CNS is subdivided into large domains from which emerge specific neural cell types, insects have shifted to a mainly cell-to-cell-based process in which neuroblasts (even neighbouring ones) will express different combinations of developmental genes that control their identity.


We have identified, for the first time in a lophotrochozoan species, Platynereis dumerilii, orthologs of the most important neural bHLH genes known in vertebrates, including the Olig and NeuroD genes not found in Drosophila. We have performed a detailed analysis of the expression patterns of these Platynereis bHLH genes and we show that all these genes are expressed during neurogenesis. Our analysis suggests that the Platynereis bHLH genes have both proneural and neuronal specification functions, in a way more akin to the vertebrate situation than to that of Drosophila. Our data suggest that these functions are ancestral to bilaterians.


Breeding culture, embryo collection, whole mount in situ hybridization (WMISH), microscopy, and image processing

Animals were obtained from a breeding culture established in Gif-sur-Yvette according to the protocol of Fisher and Dorresteijn [49]. Larvae collection and fixation, as well as WMISH, were done as previously described [39, 50]. In the case of the double WMISH, one of the probes was revealed using tyramide signal amplification (fluorescent dye) and the other using the classical NBT/BCIP reaction. The NBT/BCIP staining was visualized by reflection confocal laser scanning microscopy [39]. Labeled embryos picture Z-stacks were manually taken on a Leica bright-field microscope and Z-projection images were made using ImageJ 1.36b. Confocal pictures were taken on a Leica Sp2 confocal microscope and images were 3D reconstructed with Metamorph.

Isolation of Platynereis bHLH genes and phylogenetic analyses

Platynereis bHLH genes were identified by BLAST searches against an EST collection [34]. The coding sequences of the different genes were amplified using SMART™ RACE cDNA amplification procedures with gene-specific primers (whose sequences are available upon request). PCR-products were TA cloned into the PCR2.1 vector (Invitrogen), sequenced on an ABI automated sequencer, and used as template to produce labeled antisense RNA probes for WMISHs. Accession numbers for the newly cloned genes are FM163169 to FM163172.

Multiple sequence alignments were built using ClustalW [51] using a large set of bHLH domains derived from Simionato et al. [31] in addition to those encoded by the isolated Platynereis genes. Neighbour-joining (NJ) reconstructions were performed with the PAUP 4.0 program using the BioNJ algorithm and 10,000 bootstrap replicates [52, 53]. Maximum likelihood (ML) analyses were performed with PHYML using the Jones, Taylor, Thornton (JTT) model of amino acid substitutions [54] and 150 bootstraps to assess the statistical reliability of the obtained internal branches. Bayesian inference was performed using the Markov chain Monte Carlo method as implemented in the MRBAYES (version 3) package [55]. We used the JTT substitution frequency matrix with among-sites rate variation modelled by means of a discrete γ distribution with four equally probable categories. Two independent Markov chains were run, each containing 2,000,000 Monte Carlo steps. One out of every 250 trees was saved. The trees obtained in the two runs were meshed and the first 25% of the trees were discarded as 'burnin'. Marginal probabilities at each internal branch were taken as a measure of statistical support. All the alignments and the trees are available upon request.
