1 Introduction

The role of division algebras, particularly the octonion algebra, in particle physics has a long history. Theorems by Hurwitz [1] and Zorn [2] guarantee that there are only four normed division algebras, which are also the only four alternative division algebras; the reals \({\mathbb {R}}\), complex numbers \({\mathbb {C}}\), quaternions \({\mathbb {H}}\), and the octonions \({\mathbb {O}}\). The first results relating the octonions to the symmetries of (one generation of) quarks goes back to the 1970s [3, 4]. The hypothesis that octonions might play a role in the description of quark symmetries follows from the observation that \(\mathrm {Aut}({\mathbb {O}})=G_2\) contains the physically important subgroup SU(3), corresponding to the subgroup that holds one of the octonionic imaginary units constant. Octonions also describe geometry in 10 dimensions [5], which have made them useful in supergravity and superstring theories [6,7,8,9]. Recently there has been a revived interest in using the division algebras to attempt to construct a theoretical basis for the observed Standard Model (SM) gauge groups and observed particle spectrum [10,11,12,13,14,15,16,17].

A Witt decomposition of the adjoint algebra of left actions \(({\mathbb {C}}\otimes {\mathbb {O}})_L\cong {\mathbb {C}}\ell (6)\) of \({\mathbb {C}}\otimes {\mathbb {O}}\), generated from all composed left actions of the complex octonions on themselves decomposes \(({\mathbb {C}}\otimes {\mathbb {O}})_L\) into minimal left ideals [18]. The basis states of these ideals were recently shown to transform as a single generation of leptons and quarks under the unbroken unitary symmetries \(SU(3)_c\) and \(U(1)_{em}\) [11]. In a complementary work by [19] it was shown that by considering the right adjoint action of \({\mathbb {C}}\ell (6)\) on the eight minimal left ideals of the algebra, one can also include the spinorial degrees of freedom.Footnote 1 One copy of \({\mathbb {C}}\ell (6)={\mathbb {C}}(8)\) therefore provides the full degrees of freedom for one generation of Dirac spinors. The main result presented here is that if we instead consider a decomposition of \(({\mathbb {C}}\otimes {\mathbb {S}})_L\), where the sedenions \({\mathbb {S}}\) are the next Cayley-Dickson algebra after the octonions, then these earlier results are naturally extended from one single generation to exactly three.

Given that a considerable amount of the SM structure for a single generation of fermions can be realised in terms of the complex octonions \({\mathbb {C}}\otimes {\mathbb {O}}\), and its associated adjoint algebra of left actions \(({\mathbb {C}}\otimes {\mathbb {O}})_L\cong {\mathbb {C}}\ell (6)\), a natural question is how to extend these encouraging results from a single generation to exactly three generations. Although it is possible to represent three generations of fermion states inside a single copy of \({\mathbb {C}}\ell (6)\) [20, 21], in that case the physical states are no longer the basis states of minimal left ideals as for the case of a single generation. A three generation representation in terms of \({\mathbb {C}}\ell (6) \) therefore comes at the cost of giving up the elegant construction of minimal left ideals giving rise to a single generation. Instead, one might therefore look for a larger mathematical structure to describe three generations.

Since describing a single generation requires one copy of the octonions, it seems reasonable to expect a three generation model to require three copies of the octonions. This makes the exceptional Jordan algebra \(J_3({\mathbb {O}})\) a natural candidate. This intriguing mathematical structure and its role in particle physics has recently been explored by various authors [22,23,24].

A different approach is taken here. \({\mathbb {C}}\) and \({\mathbb {O}}\) are both division algebras, and starting from \({\mathbb {R}}\), all the other division algebras can be generated via the Cayley-Dickson process. Given that this process continues beyond the octonions, one may wonder if the next algebra in the sequence, the sedenions \({\mathbb {S}}\), may be a suitable mathematical structure to represent three generations of fermions. This paper confirms that the answer is yes.

Starting with \({\mathbb {C}}\otimes {\mathbb {S}}\) we repeat the initial stages of the construction of [11]. We define a projection operator by choosing a special direction, and use it to obtain a split basis of 14 nilpotent ladder operators, defining two maximal totally isotropic subspaces (MTIS). But instead of using these nilpotents to construct two minimal left ideals of \(({\mathbb {C}}\otimes {\mathbb {S}})_L\), we instead observe that these 14 nilpotents uniquely divide into three sets of ladder operators, in such a way that each set provides a basis for a \({\mathbb {C}}\otimes {\mathbb {O}}\) subalgebra of \({\mathbb {C}}\otimes {\mathbb {S}}\). Our approach therefore gives rise to three copies of the octonions from the sedenions. In this construction one raising operator and one lowering operator is common to all three sets. The shared ladder operators generate a common quaternionic subalgebra \({\mathbb {C}}\otimes {\mathbb {H}}\cong {\mathbb {C}}\ell (2)\). From the three sets of ladder operators we construct six ideals. These ideals transform as three generations of fermions and antifermions under the unbroken gauge symmetry \(SU(3)_c\times U(1)_{em}\).

The next section reviews the construction of one generation of fermions with unbroken \(SU(3)_c\times U(1)_{em}\) gauge symmetry starting from the complex octonions \({\mathbb {C}}\otimes {\mathbb {O}}\). Then in Sect. 3 it is shown that the same construction can be used to describe three generations of leptons in terms of three \({\mathbb {C}}\ell (2)\) subalgebras of \({\mathbb {C}}\ell (6)\), generated from three \({\mathbb {C}}\otimes {\mathbb {H}}\) subalgebras of \({\mathbb {C}}\otimes {\mathbb {O}}\). The main results of the present paper are presented in Sect. 4, where three generations of fermions with unbroken \(SU(3)_c\times U(1)_{em}\) gauge symmetries are constructed from the complex sedenions \({\mathbb {C}}\otimes {\mathbb {S}}\). The generators for these symmetries are constructed in Sect. 5.

2 One generation of fermions as the basis states of the minimal left ideals of \(({\mathbb {C}}\otimes {\mathbb {O}})_L\cong {\mathbb {C}}\ell (6)\)

One of the main observations in [11]Footnote 2 and [19] is that the basis states of the minimal left ideals of \({\mathbb {C}}\ell (6)\) transform as a single generation of leptons and quarks with unbroken \(SU(3)_c\) and \(U(1)_{em}\) gauge symmetries. In [11] the algebra \({\mathbb {C}}\ell (6)\) is identified as the adjoint algebra of left actions \(({\mathbb {C}}\otimes {\mathbb {O}})_L\) whereas in [19] \({\mathbb {C}}\ell (6)\) is taken without any reference to division algebras. In this section the minimal left ideals of \(({\mathbb {C}}\otimes {\mathbb {O}})_L\cong {\mathbb {C}}\ell (6)\) are constructed using the Witt decomposition for \({\mathbb {C}}\ell (6)\). The basis states of these ideals are then shown to transform as a single generation of leptons and quarks with unbroken \(SU(3)_c\) and \(U(1)_{em}\). More details of can be found in sections 4.5 and 6.6 of [11].

Leptons and quarks are Dirac spinors. One way of including the spinorial degrees of freedom is to enlarge the algebra from \({\mathbb {C}}\otimes {\mathbb {O}}\) to \({\mathbb {C}}\otimes {\mathbb {H}}\otimes {\mathbb {O}}\) and to consider both right and left adjoint actions. The approach taken in [11] it to consider the combined left and right adjoint action of \({\mathbb {C}}\otimes {\mathbb {H}}\) which is \({\mathbb {C}}\ell (2)\otimes _{\mathbb {C}}{\mathbb {C}}\ell (2)\cong {\mathbb {C}}\ell (4)\), providing a representation of the Dirac algebra. On the other hand, in [19] all the spinor degrees of freedom are contained in a single copy of \({\mathbb {C}}\ell (6)\). The left actions of \({\mathbb {C}}\ell (6)\) on its eight minimal left ideals generates the unbroken gauge symmetries, whereas the right actions contain the Dirac and isospin symmetries \({\mathbb {C}}\ell (6)\cong {\mathbb {C}}\ell (4)_{\mathrm {Dirac}}\otimes _{{\mathbb {C}}}{\mathbb {C}}\ell (2)_{\text {isospin}}\). Therefore, \({\mathbb {C}}\ell (6)\) is large enough to contain the full degrees of freedom for a single generation of leptons and quarks.

The octonions \({\mathbb {O}}\) are spanned by the identity \(1=e_0\) and seven anti-commuting square roots of minus one \(e_i\) satisfying

$$\begin{aligned} e_ie_j=-\delta _{ij}e_0+\epsilon _{ijk}e_k, \end{aligned}$$


$$\begin{aligned} e_ie_0=e_0e_i=e_i,\;e_0^2=e_0, \end{aligned}$$

and \(\epsilon _{ijk}\) is a completely antisymmetric tensor with value +1 when \(ijk = 124,\;156\),\(\;137\), \(\;235\), \(267,\;346,\;457 \). The multiplication of octonions is shown in Fig. 1. The multiplication structure here follows that of [11], but is not unique. In particular, the Fano plane in the earlier work [3] is based on a different multiplication structure.

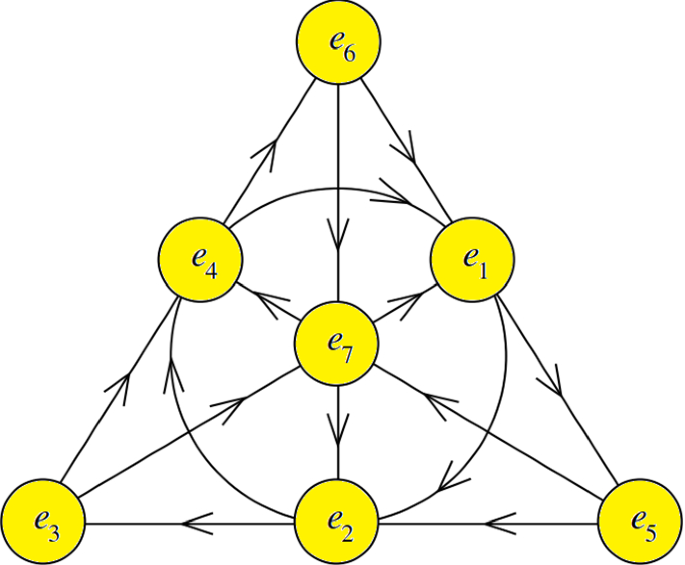

Fig. 1
figure 1

Octonion multiplication represented using a Fano plane

Fig. 2
figure 2

Fano planes of three octonionic subalgebras in the sedenions

Each pair of distinct points lies on a unique line of three points that are cyclically ordered. If \(e_i\), \(e_j\) and \(e_k\) are cyclically ordered in this way then

$$\begin{aligned} e_ie_j=e_k,\qquad e_je_i=-e_k. \end{aligned}$$

Every straight line in the Fano plane of the octonions (taken together with the identity) generates a copy of the quaternions, for example \(\left\{ 1,e_4,e_6,e_3\right\} \). Furthermore \(\left\{ 1,e_1,e_2,e_4\right\} \) also gives a copy of the quaternions, making for a total of seven copies of the quaternions embedded within the octonions.

One starts by choosing a privileged imaginary unit from the standard octonion basis \({e_0,e_1,...,e_7}\) and uses this to resolve the identity into two primitive idempotents. The common choice is \(e_7\), so that

$$\begin{aligned} 1=\rho _+ + \rho _-=\frac{1}{2}(1+ie_7)+\frac{1}{2}(1-ie_7). \end{aligned}$$

Multiplying the standard octonionic basis elements on the left by \(\rho _+\) defines a split basis of nilpotents, and allows one to define the new basis vectors,Footnote 3 along with their conjugates as

$$\begin{aligned} \alpha _1\equiv & {} \frac{1}{2}(-e_5+ie_4),\qquad \alpha _1^{\dagger }\equiv \frac{1}{2}(e_5+ie_4),\nonumber \\ \alpha _2\equiv & {} \frac{1}{2}(-e_3+ie_1),\qquad \alpha _2^{\dagger }\equiv \frac{1}{2}(e_3+ie_1),\nonumber \\ \alpha _3\equiv & {} \frac{1}{2}(-e_6+ie_2)\qquad \alpha _3^{\dagger }\equiv \frac{1}{2}(e_6+ie_2). \end{aligned}$$

The hermitian conjugate simultaneously maps \(i\mapsto -i\) and \(e_i\mapsto -e_i\). The new basis vectors span the two MTIS satisfyingFootnote 4

$$\begin{aligned} \left\{ \alpha _i,\alpha _j \right\} =0,\qquad \left\{ \alpha _i^{\dagger },\alpha _j^{\dagger } \right\} =0,\qquad \left\{ \alpha _i,\alpha _j^{\dagger } \right\} =\delta _{ij}. \end{aligned}$$

Care should be taken here (and later) not to confuse the complex i satisfying \(i^2=-1\), and the index \(i=1,2,3\). If one now considers these basis vector operators as elements of \(({\mathbb {C}}\otimes {\mathbb {O}})_L\cong {\mathbb {C}}\ell (6)\), then one can construct the primitive idempotent \(\omega \omega ^{\dagger }=\alpha _1\alpha _2\alpha _3\alpha _3^{\dagger }\alpha _2^{\dagger }\alpha _1^{\dagger }\). The first minimal left ideal is then given by \(S^u\equiv {\mathbb {C}}\ell (6)\omega \omega ^{\dagger }\). Explicitly:

$$\begin{aligned} S^u\equiv & {} \nu \omega \omega ^{\dagger }\nonumber \\&+{\bar{d}}^r\alpha _1^{\dagger }\omega \omega ^{\dagger } + {\bar{d}}^g\alpha _2^{\dagger }\omega \omega ^{\dagger } + {\bar{d}}^b\alpha _3^{\dagger }\omega \omega ^{\dagger }u^r\alpha _3^{\dagger }\alpha _2^{\dagger }\omega \omega ^{\dagger }\nonumber \\&+ u^g\alpha _1^{\dagger }\alpha _3^{\dagger }\omega \omega ^{\dagger } + u^b\alpha _2^{\dagger }\alpha _1^{\dagger }\omega \omega ^{\dagger }\nonumber \\&+ e^{+}\alpha _3^{\dagger }\alpha _2^{\dagger }\alpha _1^{\dagger }\omega \omega ^{\dagger }, \end{aligned}$$

where \(\nu \), \({\bar{d}}^r\) etc. are suggestively labeled complex coefficients denoting the isospin-up elementary fermions. The conjugate system analogously gives a second linearly independent minimal left ideal of isospin-down elementary fermions:

$$\begin{aligned} S^d\equiv & {} {\bar{\nu }} \omega ^{\dagger }\omega \nonumber \\&+d^r\alpha _1\omega ^{\dagger }\omega + d^g\alpha _2\omega ^{\dagger }\omega + d^b\alpha _3\omega ^{\dagger }\omega {\bar{u}}^r\alpha _3\alpha _2\omega ^{\dagger }\omega \nonumber \\&+ {\bar{u}}^g\alpha _1\alpha _3\omega ^{\dagger }\omega + {\bar{u}}^b\alpha _2\alpha _1\omega ^{\dagger }\omega \nonumber \\&+ e^{-}\alpha _3\alpha _2\alpha _1\omega ^{\dagger }\omega . \end{aligned}$$

One can show that these representations of the minimal left ideals are invariant under the color and electromagnetic symmetries \(SU(3)_c\) and \(U(1)_{em}\), and each of the basis states in the ideals transforms as a specific lepton or quark under these symmetries as indicated by their suggestively labeled complex coefficients.

In terms of the Witt basis ladder operators, the SU(3) generators take the form

$$\begin{aligned} \varLambda _1= & {} -\alpha _2^{\dagger }\alpha _1-\alpha _1^{\dagger }\alpha _2,\qquad \varLambda _2=i\alpha _2^{\dagger }\alpha _1-i\alpha _1^{\dagger }\alpha _2, \nonumber \\ \varLambda _3= & {} \alpha _2^{\dagger }\alpha _2-\alpha _1^{\dagger }\alpha _1,\qquad \varLambda _4=-\alpha _1^{\dagger }\alpha _3-\alpha _3^{\dagger }\alpha _1, \nonumber \\ \varLambda _5= & {} -i\alpha _1^{\dagger }\alpha _3+i\alpha _3^{\dagger }\alpha _1,\;\;\; \varLambda _6=-\alpha _3^{\dagger }\alpha _2-\alpha _2^{\dagger }\alpha _3, \nonumber \\ \varLambda _7= & {} i\alpha _3^{\dagger }\alpha _2-i\alpha _2^{\dagger }\alpha _3,\;\;\nonumber \\ \varLambda _8= & {} \frac{-1}{\sqrt{3}}(\alpha _1^{\dagger }\alpha _1+\alpha _2^{\dagger }\alpha _2-2\alpha _3^{\dagger }\alpha _3). \end{aligned}$$

The U(1) generator can be expressed in terms of the Witt basis ladder operators as

$$\begin{aligned} Q=\frac{1}{3}(\alpha _1^{\dagger }\alpha _1+\alpha _2^{\dagger }\alpha _2+\alpha _3^{\dagger }\alpha _3). \end{aligned}$$

As an illustrative example we consider \([\varLambda _1, u^g]\):

$$\begin{aligned} \left[ \varLambda _1, u^g\right]= & {} \left( -\alpha _2^{\dagger }\alpha _1-\alpha _1^{\dagger }\alpha _2\right) \alpha _1^{\dagger }\alpha _3^{\dagger }\nonumber \\&-\alpha _1^{\dagger }\alpha _3^{\dagger }\left( -\alpha _2^{\dagger }\alpha _1-\alpha _1^{\dagger }\alpha _2\right) , \nonumber \\= & {} -\alpha _2^{\dagger }\alpha _3^{\dagger }\alpha _1\alpha _1^{\dagger }+\alpha _3^{\dagger }\alpha _2^{\dagger }\alpha _1^{\dagger }\alpha _1, \nonumber \\= & {} \alpha _3^{\dagger }\alpha _2^{\dagger }\left( \alpha _1\alpha _1^{\dagger }+\alpha _1^{\dagger }\alpha _1\right) , \nonumber \\= & {} \alpha _3^{\dagger }\alpha _2^{\dagger }=u^r. \end{aligned}$$

3 Three generations of leptons from three minimal left ideals of \(({\mathbb {C}}\otimes {\mathbb {H}})_L\cong {\mathbb {C}}\ell (2)\subset {\mathbb {C}}\ell (6)\)

Instead of defining the MTIS of Eq. (6), one can instead define the six totally isotropic (but not maximal) subspaces

$$\begin{aligned} \left\{ \alpha _i^{\dagger }\right\} ,\; \left\{ \alpha _i\right\} ,\quad i=1,2,3. \end{aligned}$$

Each of these totally isotropic subspaces is a MTIS not of the full \({\mathbb {C}}\ell (6)\), but rather of a \({\mathbb {C}}\ell (2)\) subalgebra of \({\mathbb {C}}\ell (6)\). Note that \({\mathbb {C}}\ell (2)\cong ({\mathbb {C}}\otimes {\mathbb {H}})_L\), and so each \({\mathbb {C}}\ell (2)\) subalgebra is generated from a \({\mathbb {C}}\otimes {\mathbb {H}}\) subalgebra of \({\mathbb {C}}\otimes {\mathbb {O}}\). Associated with these subspaces one can define six primitive idempotents

$$\begin{aligned} \omega _1\omega _1^{\dagger }=\alpha _1\alpha _1^{\dagger },\qquad \omega _2\omega _2^{\dagger }=\alpha _2\alpha _2^{\dagger },\qquad \omega _3\omega _3^{\dagger }=\alpha _3\alpha _3^{\dagger }, \end{aligned}$$

together with their conjugates, and subsequently three ideals

$$\begin{aligned} \nu _{e}\omega _1\omega _1^{\dagger }+ e^+\alpha _1^{\dagger }\omega _1\omega _1^{\dagger }, \nonumber \\ \nu _{\mu }\omega _2\omega _2^{\dagger }+ \mu ^+\alpha _2^{\dagger }\omega _2\omega _2^{\dagger }, \nonumber \\ \nu _{\tau }\omega _3\omega _3^{\dagger }+ \tau ^+\alpha _3^{\dagger }\omega _3\omega _3^{\dagger }, \end{aligned}$$

with their conjugates. Here as before, the suggestively labeled complex coefficients denote the isospin-up leptons. The twelve states of these six ideals transform as three generations of leptons with \(U(1)_{em}\) symmetry. The \(U(1)_{em}\) generator is given byFootnote 5

$$\begin{aligned} Q=\alpha _1\alpha _1^{\dagger }+\alpha _2\alpha _2^{\dagger }+\alpha _3\alpha _3^{\dagger }. \end{aligned}$$

Starting from \(({\mathbb {C}}\otimes {\mathbb {O}})_L\cong {\mathbb {C}}\ell (6)\), one can represent either a single generation of leptons and quarks with unbroken \(SU(3)_c\times U(1)_{em}\) symmetry, or alternatively three generations of leptons with \(U(1)_{em}\) symmetry. The former results from constructing the minimal left ideals of \({\mathbb {C}}\ell (6)\), whereas the latter corresponds to constructing the minimal left ideals of three (in this case independent) \({\mathbb {C}}\ell (2)\) subalgebras of \({\mathbb {C}}\ell (6)\). Choosing a preferred octonionic unit \(e_7\) singles out three natural quaternionic subalgebras of \({\mathbb {O}}\) which contain \(e_7\). These may be identified as describing three generations of leptons.

This same description of three generations of leptons was considered in [28, 29], although there these three generations emerged from a dimensional reduction of an octonionic massless Dirac equation in ten dimensions to four dimensions. This reduction likewise leads to three quaternionic subalgebras, singled out because they contain \(e_7\), each identified as describing a generation of (massive and massless) leptons. In the next section we demonstrate that the same approach for the sedenions singles out three octonionic algebras, each of which describes a generation of leptons and quarks with electrocolour symmetry.

4 From octonions to sedenions: one generation to three generations

The previous section reviewed earlier results that a single generation of fermions with unbroken \(SU(3)_c\times U(1)_{em}\) gauge symmetry can be described starting from \({\mathbb {C}}\otimes {\mathbb {O}}\). Whereas \({\mathbb {C}}\) and \({\mathbb {O}}\) are each individually division algebras, the tensor product \({\mathbb {C}}\otimes {\mathbb {O}}\) is not. Nor is \({\mathbb {C}}\ell (6)\), the adjoint algebra of left actions of \({\mathbb {C}}\otimes {\mathbb {O}}\) on itself. Indeed, the construction of minimal left ideals is very dependent on defining a nilpotent basis of ladder operators. The zero divisors in \({\mathbb {C}}\otimes {\mathbb {O}}\) therefore play an important role.

The division algebras \({\mathbb {C}},{\mathbb {H}},{\mathbb {O}}\) can each be generated via the Cayley-Dickson process. This process however does not terminate with the octonions, but can be used to generate a \(2^n\)-dimensional algebra for any positive integer n. For \(n>3\) however, the Cayley-Dickson algebras are no longer division algebras. However, given the observations above, this should not dissuade us from considering larger Cayley-Dickson algebras.

4.1 The sedenion algebra

The 16-dimensional sedenion algebra is the fifth Cayley-Dickson algebra \({\mathbb {A}}_4={\mathbb {S}}\). The algebra is not a division algebra, and is non-commutative, non-associative, and non-alternative. However it is power-associative and distributive.

One can choose a canonical basis for \({\mathbb {S}}\) to be \(E_{16}=\lbrace e_i\in {\mathbb {S}}\vert i=0,1,...,15\rbrace \) where \(e_0\) is the real unit and \(e_1,...,e_{15}\) are mutually anticommuting imaginary units. In this canonical basis, a general element \(a\in {\mathbb {S}}\) is written as

$$\begin{aligned} A= \sum _{i=0}^{15} a_i e_i= a_0+\sum _{i=1}^{15} a_i e_i,\qquad a_i\in {\mathbb {R}}. \end{aligned}$$

The basis elements satisfy the following multiplication rules

$$\begin{aligned} e_0= & {} 1,\qquad e_0e_i=e_ie_0=e_i, \nonumber \\ e_1^2= & {} e_2^2=...=e_{15}^2=-1, \nonumber \\ e_ie_j= & {} -\delta _{ij}e_0+\gamma ^k_{ij}e_k, \end{aligned}$$

where the real structure constants \(\gamma ^k_{ij}\) are completely antisymmetric. The multiplication table of the sedenion base elements is given in Appendix A. For two sedenions AB, one has

$$\begin{aligned} AB=\left( \sum _{i=0}^{15} a_i e_i \right) \left( \sum _{i=0}^{15} b_j e_i\right)= & {} \sum _{i,j=0}^{15} a_ib_j (e_ie_j), \nonumber \\= & {} \sum _{i,j,k=0}^{15} f_{ij}\gamma ^k_{ij} e_k, \end{aligned}$$

where \(f_{ij}\equiv a_ib_j\). Addition and subtraction is componentwise.

Because the sedenion algebra is not a division algebra, it contains zero divisors. For \({\mathbb {S}}\) these are elements of the form

$$\begin{aligned} (e_a+e_b)\circ (e_c+e_b)=0,\qquad e_a,e_b,e_c,e_d\in {\mathbb {S}}. \end{aligned}$$

There are 84 such zero divisors, and the subspace of zero divisors of unit norm is homeomorphic to \(G_2\) [30].

4.2 Why sedenions?

One appealing reason for considering division algebras in relation to particle symmetries (both spacetime and internal) is that, unlike Lie algebras and Clifford algebras, there are only a finite number of division algebras.Footnote 6 At the same time, each division algebra generates very specific Lie and Clifford algebras. Starting with a division algebra, the physical symmetries are dictated.

Unlike the four division algebras, the sedenions have not been the focus of much study in relation to particle physics, presumably due to the fact that they are not a division algebra and are neither associative nor alternative. Tensor products of division algebras however also contain zero divisors. The constructions of particle symmetries from \({\mathbb {C}}\otimes {\mathbb {O}}\) [11], \({\mathbb {C}}\ell (6)\) [19], and \({\mathbb {T}}={\mathbb {R}}\otimes {\mathbb {C}}\otimes {\mathbb {H}}\otimes {\mathbb {O}}\) [10], all contain zero divisors, and these play an important role. It seems reasonable therefore to continue the Cayley-Dickson algebra into the non-division algebras.

The symmetries of these algebras can be extracted from their automorphism groups. Interestingly, for the sedenions one finds that

$$\begin{aligned} \mathrm {Aut}({\mathbb {S}})=\mathrm {Aut}({\mathbb {O}})\times S_3. \end{aligned}$$

The only difference between the octonions and sedenion automorphism groups is a factor of the permutation group \(S_3\). This permutation group can be constructed from the triality automorphism of \(\mathrm {Spin}(8)\), the spin group of \({\mathbb {C}}\ell (8)\) [32]. This automorphism is of order three. Interestingly then, what Eq. (20) suggests is that the fundamental symmetries of \({\mathbb {S}}\) are the same as those of \({\mathbb {O}}\), although the factor of \(S_3\) suggests we get three copies. This is exactly what we want in order to describe the observed three generations of fermions.

For higher Cayley-Dickson (\(n>3\)) algebras one has

$$\begin{aligned} \mathrm {Aut}({\mathbb {A}}_n)=\mathrm {Aut}({\mathbb {O}})\times (n-3)S_3. \end{aligned}$$

This tells us that the underlying symmetries are \(G_2\), the automorphism group of the octonions. The higher Cayley-Dickson algebras only add additional trialities, and perhaps no new fundamental physics should be expected beyond \({\mathbb {C}}\otimes {\mathbb {S}}\).

4.3 From one generation to three generations

A natural way to extend the intriguing results from Section (2) beyond a single generation of elementary fermions is to consider the complex sedenions \({\mathbb {C}}\otimes {\mathbb {S}}\) instead of complex octonions \({\mathbb {C}}\otimes {\mathbb {O}}\). This larger algebra also generates a larger adjoint algebra of left actions \(({\mathbb {C}}\otimes {\mathbb {S}})_L\). The key point of this paper is to demonstrate:

$$\begin{aligned} {\mathbb {C}}\otimes {\mathbb {O}}\rightarrow & {} {\mathbb {C}}\otimes {\mathbb {S}} \\ ({\mathbb {C}}\otimes {\mathbb {O}})_L\rightarrow & {} ({\mathbb {C}}\otimes {\mathbb {S}})_L \\ \text {1 generation}\rightarrow & {} \text {3 generations}. \end{aligned}$$

As in section (2), we start by choosing \(e_{15}\) as a special imaginary unit from the sedenion basis, mimicking the common choice of \(e_7\) for \({\mathbb {O}}\). One can then define the primitive idempotents

$$\begin{aligned} \rho _+=\frac{1}{2}(1+ie_{15}),\qquad \rho _-=\frac{1}{2}(1-ie_{15}), \end{aligned}$$


$$\begin{aligned} \rho _++\rho _-=1,\qquad \rho _{\pm }^2=\rho _{\pm },\qquad \rho _+\rho _-=0. \end{aligned}$$

We now act with \(\rho _+\) on the sedenion basis elements \(e_i\), and subsequently define a split basis for \({\mathbb {C}}\otimes {\mathbb {S}}\). This gives a set of seven nilpotents \(\eta _k\), \(k=1,2,...,7\) of the form \(\frac{1}{2}(-e_a+ ie_{15-a})\) where \(a\in {5,7,13,1,4,6,12}\), together with seven nilpotent conjugates \(\eta _k^{\dagger }\) of the form \(\frac{1}{2}(e_a+ ie_{15-a})\). Considered as elements of \(({\mathbb {C}}\otimes {\mathbb {S}})_L\), these define two MTIS satisfying

$$\begin{aligned} \left\{ \eta _i^{\dagger },\eta _j^{\dagger }\right\} =\left\{ \eta _i,\eta _j\right\} =0,\qquad \left\{ \eta _i^{\dagger },\eta _j\right\} =\delta _{ij}. \end{aligned}$$

These \(\eta _i^{\dagger }\) and \(\eta _i\) uniquely divide into three sets of ladder operators that do

$$\begin{aligned} \alpha _1^{\dagger }= & {} \frac{1}{2}(e_5+ie_{10}),\; \beta _1^{\dagger }=\frac{1}{2}(e_7+ie_8),\;\nonumber \\ \gamma _1^{\dagger }= & {} \frac{1}{2}(e_{13}+ie_2), \nonumber \\ \alpha _2^{\dagger }= & {} \beta _2^{\dagger }=\gamma _2^{\dagger }=\frac{1}{2}(e_1+ie_{14}), \nonumber \\ \alpha _3^{\dagger }= & {} \frac{1}{2}(e_4+ie_{11}),\; \beta _3^{\dagger }=\frac{1}{2}(e_6+ie_9),\;\nonumber \\ \gamma _3^{\dagger }= & {} \frac{1}{2}(e_{12}+ie_3), \end{aligned}$$

together with

$$\begin{aligned} \alpha _1= & {} \frac{1}{2}(-e_5+ie_{10}),\; \beta _1=\frac{1}{2}(-e_7+ie_8),\;\nonumber \\ \gamma _1= & {} \frac{1}{2}(-e_{13}+ie_2), \nonumber \\ \alpha _2= & {} \beta _2=\gamma _2=\frac{1}{2}(-e_1+ie_{14}), \nonumber \\ \alpha _3= & {} \frac{1}{2}(-e_4+ie_{11}),\; \beta _3=\frac{1}{2}(-e_6+ie_9),\; \nonumber \\ \gamma _3= & {} \frac{1}{2}(-e_{12}+ie_3). \end{aligned}$$

Here, \(\lbrace \alpha _i^{\dagger },\alpha _i\rbrace \), \(\lbrace \beta _i^{\dagger },\beta _i\rbrace \), and \(\lbrace \gamma _i^{\dagger },\gamma _i\rbrace \) each individually form a split basis for \({\mathbb {C}}\otimes {\mathbb {O}}\) and satisfy the anticommutator algebra of fermionic ladder operators exactly as in section (2).Footnote 7 By uniquely we mean that any other division of the seven \(\eta _i^{\dagger }\) and seven \(\eta _i\) into equally sized sets does not result in three \({\mathbb {C}}\otimes {\mathbb {O}}\) subalgebras. Thus, what we find is that the action of the projector \(\rho _+\) on the standard sedenion basis uniquely divides the algebra into three sets of split basis elements for \({\mathbb {C}}\otimes {\mathbb {O}}\). This reflects what happened earlier when considering \({\mathbb {C}}\otimes {\mathbb {O}}\). There, choosing \(e_7\) as the special unit imaginary singles out three quaternionic subalgebras. In [28, 29] these are identified with three generations of leptons. Instead here we have found that selecting \(e_{15}\) as the special unit imaginary singles our three octonionic subalgebras. This allows us to describe three generations of leptons and quarks with unbroken \(SU(3)_c\times U(1)_{em}\) symmetry. These three \({\mathbb {C}}\otimes {\mathbb {O}}\) subalgebras are however not independent. All three subalgebras share a common quaternionic subalgebra spanned by \(\lbrace 1, e_1, e_{14}, e_{15}\rbrace \). The three intersecting octonion subalgebras together with the multiplication rules of their base elements may be represented by the three Fano planes in Fig. 2.

In addition to the standard fermionic ladder operator algebras satisfied by the \(\alpha \)’s, \(\beta \)’s, and \(\gamma \)’s separately, we also have

$$\begin{aligned} \lbrace \alpha _i^{\dagger },\beta _j^\dagger \rbrace= & {} \lbrace \beta _i^{\dagger },\gamma _j^\dagger \rbrace =\lbrace \gamma _i^{\dagger },\alpha _j^\dagger \rbrace =0, \nonumber \\ \lbrace \alpha _i,\beta _j\rbrace= & {} \lbrace \beta _i,\gamma _j\rbrace =\lbrace \gamma _i,\alpha _j\rbrace =0,\nonumber \\ \lbrace \alpha _i^{\dagger },\beta _j\rbrace= & {} \lbrace \beta _i^{\dagger },\gamma _j\rbrace =\lbrace \gamma _i^{\dagger },\alpha _j\rbrace =\delta _{ij}. \end{aligned}$$

From each of the three \({\mathbb {C}}\otimes {\mathbb {O}}\) subalgebras we can now construct an ideal following the procedure or Section 2. These ideals will be minimal left \({\mathbb {C}}\ell (6)\) ideals embedded within the full \(({\mathbb {C}}\otimes {\mathbb {S}})_L\) algebra. Using the first set of ladder operators \(\lbrace \alpha _1^{\dagger },\alpha _2^{\dagger },\alpha _3^{\dagger },\alpha _1,\alpha _2,\alpha _3\rbrace \), we can now construct the first ideal as \(S_1^u={\mathbb {C}}\ell (6)\omega _1\omega _1^{\dagger }\), where \(\omega _1\omega _1^{\dagger }=\alpha _1\alpha _2\alpha _3\alpha _3^{\dagger }\alpha _2^{\dagger }\alpha _1^{\dagger }\) is a \({\mathbb {C}}\ell (6)\) primitive idempotent.

$$\begin{aligned} S_1^u\equiv & {} \nu _e \omega _1\omega _1^{\dagger } \nonumber \\&+{\bar{d}}^r\alpha _1^{\dagger }\omega _1\omega _1^{\dagger } + {\bar{d}}^g\alpha _2^{\dagger }\omega _1\omega _1^{\dagger } + {\bar{d}}^b\alpha _3^{\dagger }\omega _1\omega _1^{\dagger }u^r\alpha _3^{\dagger }\alpha _2^{\dagger }\omega _1\omega _1^{\dagger } \nonumber \\&+ u^g\alpha _1^{\dagger }\alpha _3^{\dagger }\omega _1\omega _1^{\dagger } + u^b\alpha _2^{\dagger }\alpha _1^{\dagger }\omega _1\omega _1^{\dagger } \nonumber \\&+e^{+}\alpha _3^{\dagger }\alpha _2^{\dagger }\alpha _1^{\dagger }\omega _1\omega _1^{\dagger }, \end{aligned}$$

The complex conjugate system gives a second linearly independent \({\mathbb {C}}\ell (6)\) minimal left ideal

$$\begin{aligned} S_1^d\equiv & {} {\bar{\nu }}_e \omega _1^{\dagger }\omega _1 \nonumber \\&+d^r\alpha _1\omega _1^{\dagger }\omega _1 + d^g\alpha _2\omega _1^{\dagger }\omega _1 + d^b\alpha _3\omega _1^{\dagger }\omega _1 {\bar{u}}^r\alpha _3\alpha _2\omega _1^{\dagger }\omega _1\nonumber \\&+ {\bar{u}}^g\alpha _1\alpha _3\omega _1^{\dagger }\omega _1 + {\bar{u}}^b\alpha _2\alpha _1\omega _1^{\dagger }\omega _1 \nonumber \\&+ e^{-}\alpha _3\alpha _2\alpha _1\omega _1^{\dagger }\omega _1. \end{aligned}$$

One can likewise construct the ideals of the other two \({\mathbb {C}}\ell (6)\) subalgebras from the sets of ladder operators \(\lbrace \beta _i^{\dagger },\beta _i\rbrace \) and \(\lbrace \gamma _i^{\dagger }, \gamma _i\rbrace \). In total we find six minimal left ideals which we write as \(\lbrace S_1^u, S_1^d, S_2^u, S_2^d, S_3^u, S_3^d\rbrace \). Whereas \(S_i^u\) and \(S_i^d\) are linearly independent, \(S_i^u\) and \(S_j^u\) are not.

So far we have not commented on the spinorial degrees of freedom. In our construction we have followed [11], making use of only two of the eight ideals of \({\mathbb {C}}\ell (6)\). The full \({\mathbb {C}}\ell (6)\cong {\mathbb {C}}(8)\) algebra however contains eight minimal left ideals. Compactly, for \(i=1,\cdots ,8\) these eight ideals can be written as:

$$\begin{aligned} P_i=S_1^u \triangleleft \{1,\alpha _{23},\alpha _{31},\alpha _{12},\alpha _{123},\alpha _1,\alpha _2,\alpha _3\} \end{aligned}$$

for the first generation, and similarly for the second and third generations with the \(\alpha \)’s replaced by \(\beta \)’s and \(\gamma \)’s respectively. As demonstrated by [19], incorporating all eight of the minimal left ideals allows one to include the spinorial degrees of freedom. In particular, the chiral assignments are as follows:

$$\begin{aligned} P_1=P_{1R_1}, \quad P_2=P_{2R_2},&\quad&P_3=P_{3L_1},\quad P_4=P_{4L_2}, \\ P_5=P_{5L_1},\quad P_6=P_{6L_2},&\quad&P_7=P_{7R_1}, \quad P_8=P_{8R_2}, \end{aligned}$$

where \(P_1=P_{1R_1}\) and \(P_5=P_{5L_1}\) are the two ideals \(S_1^u\) and \(S_1^d\) explicitly considered above and in [11]. All the results from [19] for a single generation generalize to three generations in the current construction.

5 Unbroken \(SU(3)_c\times U(1)_{em}\) gauge symmetries

As for the case of a single generation constructed from \({\mathbb {C}}\otimes {\mathbb {O}}\), the physical states of the three generation extension presented here transform as three generations of SM fermions under \(SU(3)_c\times U(1)_{em}\). Each generation has its own copy of SU(3) and U(1), which we label \(SU^{(i)}(3)\) and \(U^{(i)}(1)\), \(i=1,2,3\).

The \(SU^{(1)}(3)\) generators can be represented in the first \({\mathbb {C}}\ell (6)\subset ({\mathbb {C}}\otimes {\mathbb {S}})_L\) as

$$\begin{aligned} \varLambda _1^{(1)}= & {} -\frac{i}{2}(e_1e_{10}-e_{14}e_5),\; \varLambda _2^{(1)}=\frac{i}{2}(e_{14}e_{10}-e_5e_1), \nonumber \\ \varLambda _3^{(1)}= & {} -\frac{i}{2}(e_5e_{10}-e_1e_{14}),\; \varLambda _4^{(1)}=-\frac{i}{2}(e_5e_{11}-e_{10}e_4), \nonumber \\ \varLambda _5^{(1)}= & {} -\frac{i}{2}(e_{10}e_{11}-e_4e_5),\; \varLambda _6^{(1)}=-\frac{i}{2}(e_4e_{14}-e_{11}e_1), \nonumber \\ \varLambda _7^{(1)}= & {} \frac{i}{2}(e_{11}e_{14}-e_1e_4),\;\nonumber \\ \varLambda _8^{(1)}= & {} \frac{-i}{\sqrt{3}}(e_5e_{10}+e_1e_{14}-2e_4e_{11}). \end{aligned}$$

This can be rewritten in terms of the ladder operators, taking the form

$$\begin{aligned} \varLambda _1^{(1)}= & {} -(\alpha _2^{\dagger }\alpha _1+\alpha _1^{\dagger }\alpha _2),\; \varLambda _2^{(1)}=-i(\alpha _2^{\dagger }\alpha _1-\alpha _1^{\dagger }\alpha _2), \nonumber \\ \varLambda _3^{(1)}= & {} \alpha _2^{\dagger }\alpha _2-\alpha _1^{\dagger }\alpha _1,\; \varLambda _4^{(1)}=-(\alpha _1^{\dagger }\alpha _3+\alpha _3^{\dagger }\alpha _1), \nonumber \\ \varLambda _5^{(1)}= & {} i(\alpha _1^{\dagger }\alpha _3-\alpha _3^{\dagger }\alpha _1),\; \varLambda _6^{(1)}=-(\alpha _3^{\dagger }\alpha _2+\alpha _2^{\dagger }\alpha _3), \nonumber \\ \varLambda _7^{(1)}= & {} -i(\alpha _3^{\dagger }\alpha _2-\alpha _2^{\dagger }\alpha _3),\;\nonumber \\ \varLambda _8^{(1)}= & {} \frac{-1}{\sqrt{3}}(\alpha _1^{\dagger }\alpha _1+\alpha _2^{\dagger }\alpha _2-2\alpha _3^{\dagger }\alpha _3). \end{aligned}$$

The explicit SU(3) generators for the other two generations are given in Appendix B. Under the action of \(SU^{(1)}(3)\), one finds that the ideals \(S_1^{u}\) and \(S_1^{d}\) transform as [3, 11, 26]

$$\begin{aligned} S_1^u \sim {\mathbf {1}}\oplus \bar{{\mathbf {3}}}\oplus {\mathbf {3}}\oplus \bar{\mathbf {1}},\qquad S_1^d\sim \bar{\mathbf {1}}\oplus \mathbf {3}\oplus \bar{\mathbf {3}}\oplus \mathbf {1}. \end{aligned}$$

As two illustrative examples, consider \(\left[ \varLambda _1^{(2)}, s^r\right] \) and \(\left[ Q^{(3)}, {\bar{t}}^b\right] \):

$$\begin{aligned} \left[ \varLambda _1^{(2)},s^r\right]= & {} -(\beta _2^{\dagger }\beta _1+\beta _1^{\dagger }\beta _2)\beta _1 \nonumber \\&+\beta _1(\beta _2^{\dagger }\beta _1+\beta _1^{\dagger }\beta _2), \nonumber \\= & {} \beta _1^{\dagger }\beta _1\beta _2+\beta _1\beta _1^{\dagger }\beta _2, \nonumber \\= & {} (\beta _1^{\dagger }\beta _1+\beta _1\beta _1^{\dagger })\beta _2=\beta _2=s^g, \end{aligned}$$
$$\begin{aligned} \left[ Q^{(3)}, {\bar{t}}^b\right]= & {} \frac{1}{3}(\gamma _1^{\dagger }\gamma _1+\gamma _2^{\dagger }\gamma _2+\gamma _3^{\dagger }\gamma _3)\gamma _2\gamma _1\nonumber \\&-\frac{1}{3}\gamma _2\gamma _1(\gamma _1^{\dagger }\gamma _1+\gamma _2^{\dagger }\gamma _2+\gamma _3^{\dagger }\gamma _3),\nonumber \\= & {} -\frac{1}{3}\gamma _2\gamma _1\gamma _1^{\dagger }\gamma _1+\frac{1}{3}\gamma _1\gamma _2\gamma _2^{\dagger }\gamma _2,\nonumber \\= & {} -\frac{1}{3}\gamma _2\gamma _1(-\gamma _1\gamma _1^{\dagger }+1)+\frac{1}{3}\gamma _1(-\gamma _2^{\dagger }\gamma _2+1)\gamma _2,\nonumber \\= & {} -\frac{2}{3}\gamma _2\gamma _1=-\frac{2}{3}{\bar{t}}^b. \end{aligned}$$

5.1 Mixing between generations

The ladder operators for each generation in our three generation model belong to a Fano plane. Each Fano plane gives the projective geometry of the octonionic projective plane \({\mathbb {O}}P^2\) [5], which is the quantum state space upon which the quantum exceptional Jordan algebra \(J_3({\mathbb {O}})\) acts [33]. One might therefore expect a relationship between the approach presented here, based on \(({\mathbb {C}}\otimes {\mathbb {O}})_L\) and three generation models based on \(J_3({\mathbb {O}})\) [22,23,24].

For the case of three non-intersecting Fano planes, the total state space is given by the tensor product of the three individual state spaces. This would mean that what we called \(\varLambda ^{(1)}_i\) is really \(\varLambda \otimes 1\otimes 1\), and what we called a blue top quark \(t^b\) is really \(1\otimes 1\otimes t^b\). It follows that any inter-generational commutator such as \([\varLambda _i^{(1)},t^b]\) vanishes trivially. In our construction however, the three Fano planes are not truly independent of one another, but actually share a common complex quaternionic line of intersection. This means that the tensor product structure is not perfectly commutative, and this can lead to mixing between generations. For example

$$\begin{aligned} \left[ \varLambda _1^{(2)},\alpha _2^{\dagger }\right] =\beta _1^{\dagger }. \end{aligned}$$

What this curious behaviour corresponds to physically is currently being investigated. One interesting proposal is that the mixing between generations might form a basis for the weak PMNS and CKM mixing matrices.Footnote 8

6 Discussion

The adjoint algebra of left actions of the complex octonions was previously shown to have the right mathematical structure to describe one generation of SM fermions with the unbroken gauge symmetries \(SU(3)_c\times U(1)_{em}\) [11]. In this paper we have extended these results to exactly three generations by instead starting from the complex sedenions. A split basis for this algebra naturally divides fourteen nilpotent ladder operators into three sets, each of which gives a split basis for a complex octonion subalgebra. Each of these subalgebras generates, via the minimal left ideals of their adjoint algebra of left actions, a single generation of fermions.

The minimal left ideals in our case are minimal left ideals of \(({\mathbb {C}}\times {\mathbb {O}})_L\cong {\mathbb {C}}\ell (6)\), but not of the full \(({\mathbb {C}}\otimes {\mathbb {S}})_L\). Our construction therefore generalizes the construction outlined in Section 3, which follows [11], making use of only two of the eight ideals of \({\mathbb {C}}\ell (6)\). As demonstrated by [19], when the remaining six minimal left ideals are considered, one finds that there are exactly enough degrees of freedom to describe three generations of fermions, including the spinorial degrees of freedom.

Instead of defining the minimal left ideals, via the MTIS, of \({\mathbb {C}}\ell (6)\) one can instead divide the split basis for \({\mathbb {C}}\otimes {\mathbb {O}}\) into three split bases for three \({\mathbb {C}}\otimes {\mathbb {H}}\) subalgebras. These three quaternionic subalgebra all contain the special imaginary unit \(e_7\) used to construct the projectors. In earlier works these three quaternionic subalgebras have been identified with three generations of leptons [28]. For the case of \({\mathbb {C}}\otimes {\mathbb {S}}\), instead of constructing the minimal left ideals of \(({\mathbb {C}}\otimes {\mathbb {S}})_L\), we have used the special imaginary unit \(e_{15}\) to define three \({\mathbb {C}}\otimes {\mathbb {O}}\) subalgebras. These three subalgebras share a common \({\mathbb {C}}\otimes {\mathbb {H}}\) algebras.

The sedenions are not a division algebra. Unlike \(\mathbb {R,C,H}\) and \({\mathbb {O}}\) they are not alternative. However the lack of alternativity, like the lack of associativity, does not affect the construction of minimal left ideals. The fermion algebra satisfied by the split basis requires only two basis elements to be multiplied together at any time. In any such calculation, associativity or alternativity play no role. The ideals are constructed from the adjoint algebra of left actions of the algebra on itself and is always associative, alternative, and isomorphic to a Clifford algebra.

The sedenions should not be ruled out as playing a role in particle physics on the basis that they do not constitute a division algebra. Whereas \(\mathbb {R,C,H}\) and \({\mathbb {O}}\) are by themselves division algebras, tensor products such as \({\mathbb {C}}\otimes {\mathbb {H}}\) and \({\mathbb {C}}\otimes {\mathbb {O}}\) are not, and in fact the zero divisors of these algebra play a crucial role in the constructions of left ideals [10, 11, 25]. Because \(\text {Aut}({\mathbb {S}})=\text {Aut}({\mathbb {O}})\times S_3\), the fundamental symmetries of \({\mathbb {S}}\) are the same as those of \({\mathbb {O}}\). The factor of \(S_3\) is generated by the triality automorphism of \(\text {Spin}(8)\). In a future paper the relation between \({\mathbb {S}}\), triality, and \(\text {Spin}(8)\) will be presented in more detail. The combination of the octonion algebra and triality leads naturally to the exceptional Jordan algebra, a 27-dimensional quantum algebra. This should make it possible to relate our work to the exceptional Jordan algebra [23, 24]. Beyond the sedenions, one might not expect new physics. This is because \(\text {Aut}({\mathbb {A}}_n)=\text {Aut}({\mathbb {O}})\times (n-3)S_3\), where \({\mathbb {A}}_n\) is the n-th Cayley-Dickson algebra. The fundamental symmetries remain those of the octonions, with only additional factors of the permutation group \(S_3\) being added.

The three copies of \(({\mathbb {C}}\otimes {\mathbb {O}})_L\cong {\mathbb {C}}\ell (6)\) live inside the larger algebra \(({\mathbb {C}}\otimes {\mathbb {S}})_L\). This larger algebra may make it possible to include additional particle degrees of freedom (e.g spin). This idea is currently being investigated. Finally, the three copies of \(({\mathbb {C}}\otimes {\mathbb {O}})_L\cong {\mathbb {C}}\ell (6)\) are not independent, but share a common \({\mathbb {C}}\ell (2)\) subalgebra. One interesting idea is that this \({\mathbb {C}}\ell (2)\) may form a theoretical basis for the PMNS and CKM matrices that describe neutrino oscillations and quark mixing.
