Robo Advisors (RAs) are perhaps the most important disruptive trend in wealth and asset management today. There is an immense amount of information about RA systems, but still little is known about the core portfolio optimization and asset allocation methods applied within such systems. Thus, to date, there is no comprehensive analysis of the methods used in RAs, their occurrences in these systems, the respective volumes of assets under management (AuM), and the future methodological prospects of the RAs. We analyzed 219 existing RAs worldwide and showed that Modern Portfolio Theory remains the main framework used in RAs. The current trend is to improve and augment this framework rather than applying and developing entirely new approaches. However, we also revealed that the AuM volumes tend to be higher for the systems applying newer and more sophisticated methods. In general, there is a clear gap between the predominant methods applied in RAs and new methodological developments. In the future, as the RA services mature, we can expect that the RAs system will adopt many of the new approaches since they promise good performance and have certain marketing potential.
KeywordsRobo advisory Digital asset management Quantitative methods Asset allocation methods
Currently, Robo Advisors (RAs) are widely recognized as one of the most important disruptive trends in asset and wealth management industry. The terms “Robo-Advise,” “Robo Advisor,” and “Robo Adviser” have become well-known buzzwords, and the growth prospects for such systems are highly promising. Thus, different forecasts predict that RAs will globally manage between $0.8 and $8.1 trillion by 2020, which is 1–10% of the total global assets under management (Statista 2017; BI Intelligence 2017). In 2017, the global assets under management (AuM) by RAs comprised approximately $226 billion, and the number of users exceeded 12 million (Statista 2017).
The reasons for the current success of RAs and the remarkably optimistic forecasts are diverse. In line with previous research by Deloitte (2016a) and BI Intelligence (2017), the main reasons can be condensed to (i) a new generation of clients, (ii) the advantages of RAs over traditional financial advisors, and (iii) the large-scale financial processes such as the concentration of global wealth and the adoption of RAs in Asia.
In recent years, the wealth management industry encountered a new generation of clients who are receptive to digital technologies, are well educated, prefer to have active and ongoing control over their investments, and rely on the information from multiple (mainly online) sources rather than individual financial advisors. This demographic change is supplemented by changes in older generations that are also becoming increasingly technologically receptive, thereby expecting and demanding digital investment services to be comparable to those provided by tech leaders (Deloitte 2016a). For example, according to BI Intelligence research, 49% of high-net-worth individuals worldwide (which includes a very small fraction of young generations) would consider letting an RA to manage at least some portion of their wealth (Business Insider 2017a). Similarly, research performed by MyPrivateBanking (2017) clearly showed an openness among high-net-worth investors toward RA services.
Regarding the advantages over traditional financial advisors, RA services can be offered at much lower costs in comparison with traditional human advisors. At the same time, they can deliver approximately the same returns on investments as traditional advisors. Therefore, RAs are widely advertised to retail clients. In addition, RAs offer various options to control, customize, and construct investment portfolios from multiple devices (smartphones, laptops, etc.). They also have transparent workflow and monitoring systems, require a low or even no minimum investment, and utilize advanced quantitative methods of portfolio management and optimization. Accordingly, some companies publish detailed methodological whitepapers and scientifically justify their investment strategies (Wealthfront 2017; Scalable Capital 2016).
In a nutshell, an RA can be defined as an automated investment platform that uses quantitative algorithms to manage investors’ portfolios and is accessible to clients online. Therefore, the term RA covers a wide range of digital (semi-)automatic investment platforms and services. The general classification of RAs as previously proposed in Deloitte whitepapers (Deloitte 2016a, b) includes four generations. The first- and second-generation RAs comprise online questionnaires and proposals, thereby providing a combination of advice and online access to traditional “manual” asset management services. In contrast, the third and fourth generations of RAs use quantitative methods and algorithms to construct and rebalance the portfolios, thereby performing truly automated portfolio management (the differences between these generations are only the level of automation and methodological advances; for details, see Deloitte (2016a, b). Hence, the third- and fourth-generation RAs are the systems that cover the entire investment/portfolio management process, starting from the selection of the instrument universe and finishing with periodic portfolio rebalancing and appropriate performance reporting.
In the present paper, we consider only third- and fourth-generation RAs for two reasons. First, in our opinion, only these types of RAs can be considered “true” RAs, as only they really perform portfolio management and optimization (although the terminology is always a subject of debate). Second, the present analyses are mainly focused on the underlying quantitative methods and algorithms, and such analyses make little sense for first- and second-generation RAs. Therefore, the term RA in the following text refers to third- and fourth-generation systems.
Information about RAs currently available online is tremendous and truly diverse in terms of the topics covered and the quality of the materials. However, despite this abundance, little is known about the core portfolio optimization and asset allocation methods applied within the RAs. Thus, there is no comprehensive review and no analyses have been done for the current methodological landscape of the RAs. As a result, the methods, their occurrences in RAs, and the respective AuM volumes remain largely unknown. Furthermore, no analyses have been done regarding the future methodological development of RAs.
The aim of the present study was to gather and analyze the freely available information about the asset allocation and portfolio optimization methods applied in existing RAs worldwide. We have investigated the occurrences of the methods, their combinations, and the respective AuM volumes. In addition, we have considered the possible future methodological solutions and trends.
Materials and methods
The present analyses were based on a set of 219 systems that could be considered as RAs. This list was compiled during extensive research performed previously by the authors (unpublished database). We analyzed the web pages of these systems and collected all of the information about the asset allocation and portfolio optimization methods. To ensure the quality, the web pages were analyzed twice by different people. The dataset included RAs from 28 countries, with 30% of the companies located in USA, 20% in Germany, 14% in UK, 9% in Switzerland, and the remaining 27% in other countries. The RAs in the dataset were founded between 1997 and 2017, with the average founding year being 2014 (the most frequent years are: 2016—48%, 2015—16%, 2017—15%, and 2014—14%). The AuM volumes of the analyzed RAs ranged from 1 to 93,000 million USD, with the average and median values being 3,739 and 85 million USD, respectively.
To analyze the frequency of the methods in RAs (i.e., the number of RA systems applying a certain method), we compiled a table in which each RA contributes all of the methods’ names mentioned on its webpage (from one to five terms per RA). The table includes all names and definitions used to describe the RA’s methodology, regardless of specificity or clarity. Thus, the terms “Modern Portfolio Theory” or “Risk Parity” refer to methodological frameworks that may include other methods that are more specific. Other names, such as “Black–Litterman model” or “Fama–French Factor model,” refer to such specific methods. Finally, the terms “Sample Portfolio” and “Constant Portfolio Weights” are defined generally and ambiguously, and therefore, the actual methods applied to derive such portfolios are unclear.
An objective, in-depth analysis of this dataset is challenging due to the fuzzy character of the data. Therefore, we performed two separate analyses. First, we identified the main methodological framework of each RA (or a main approach as given on the companies’ web pages, considering only one term per RA) and counted the frequencies of such frameworks. Second, we counted the occurrences of all the methods irrespective of their generality and definition clarity (from one to five terms per RA). This latter analysis was aimed at describing and visualizing the overall methodological situation in RAs. We visualized the occurrences with a word-cloud graph. This graph shows the words (i.e., methods names) with the font size being proportional to their frequencies (i.e., methods’ occurrences). To make all of the methods visible, the frequencies were log(x + 15)-transformed. The graph was created with the online word-cloud generator Wordart (https://wordart.com/).
To understand the AuMs associated with the applied methods, we collected freely available information on the companies’ AuMs and linked it to the methods applied by the respective companies. This approach can indicate the AuM volumes “managed” by different methods, but the results are only approximate, as the true information on the methods’ AuM is not available. In this analysis, we considered all of the methods’ names to cover the entire methodological landscape. For the US companies, the most recent information on the AuMs was retrieved from the Investment Adviser Public Disclosure Web site (https://www.adviserinfo.sec.gov/). For other companies, the information was collected from the Techfluence database (http://www.techfluence.eu/) as well as the companies’ web pages. In the event that a company provides other investment services in addition to RA, the RA-relevant AuM was retrieved.
The subset of 28 Robo Advisors selected for the analysis of the complete workflow of such systems
The Robo Advisors listed by:
Business Insider (2017b)
Capital journal (Dohms 2017)
TradeKing Advisors Core
Schwab Intelligent Portfolios
TradeKing Advisors Momentum
Workflow and building blocks of Robo Advisors
The typical workflow of an RA includes five main steps or building blocks: (i) asset universe selection, (ii) investor profile identification, (iii) asset allocation/portfolio optimization, (iv) monitoring and rebalancing, and (v) performance review and reporting. These steps, of course, differ in detail among the different systems but share the same general traits.
Our analyses based on the selected 28 RAs (Table 1) show that a typical RA’s workflow can be described as follows: preselection of ETFs, identification of the client’s risk profile and investment goals with online questionnaires, portfolio optimization based on the improved Modern Portfolio Theory approach (Markowitz 1952, 1959), threshold-based rebalancing, and performance monitoring through the web page or a smartphone app.
Summary of the main building blocks of Robo Advisors
Asset universe selection
Investor profile identification
Asset allocation/portfolio optimization
Monitoring and rebalancing
Performance review and reporting
All systems use ETFs with minor exceptions including: Mutual/Actively Managed Funds, Sustainable Funds, ETCs, and Index Funds. Different selection criteria include: expense ratio, total costs, liquidity, replication method, and correlation among the ETFs
Online questionnaires focused on identifying clients’ risk tolerance as well as investment objectives and horizon. Typically, the questions are compiled to understand the objective risk tolerance through information on age, income, savings, previous investment experience, and investment goals
Most of the systems apply the Modern Portfolio Theory approach, supplemented and modified by various methods (e.g., Black–Litterman, VaR and CVaR optimizationa). Notable exceptions include Risk Parity, Full-Scale Optimization and Constant Proportion Portfolio Insurance. A few systems apply constant portfolio weights
Most systems use event/threshold-based rebalancing based on the daily rebalancing check. The triggers are defined as portfolio structure (i.e., weights), returns (drift), and VaR
Some systems use calendar-driven rebalancing. Some also use optimized dividend and cash-flow (re)investment for the rebalancing
Half of the systems provide control and monitoring possibilities through the website only. The half also provide a smartphone app. Some systems send the monthly statements and quarterly reports automatically by e-mail
Asset allocation methods
Our analyses of the 219 RAs showed that information about the asset allocation methods is only available for 73 systems. The other systems either do not provide such information or do not use any asset allocation methods (these are the first- and second-generation RAs that do not perform any portfolio optimization; for details, see the “Introduction” section). Therefore, we considered only these 73 RAs for all of the analyses described here. In these 73 systems, we have found the names of 31 various methods.

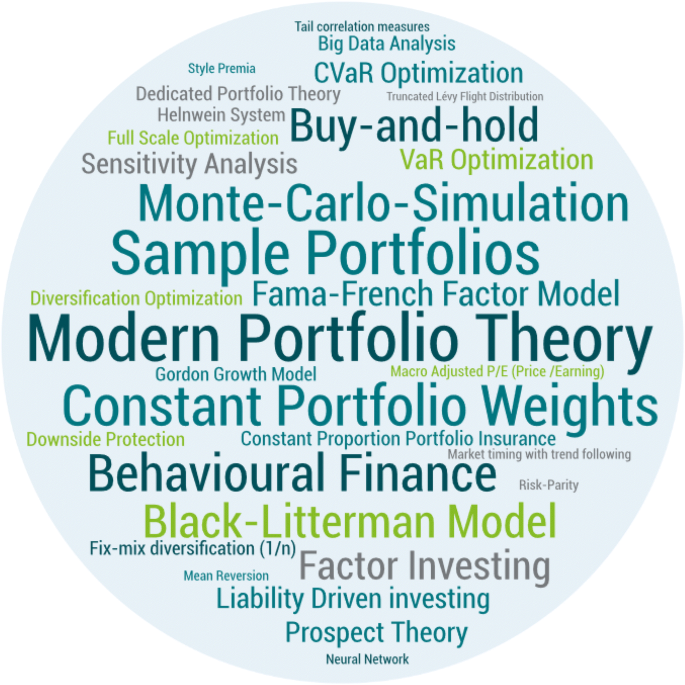

Occurrence of different methodological frameworks within the Robo Advisors analyzed
Modern Portfolio Theory
Constant Portfolio Weights
Constant Proportion Portfolio Insurance
Mean Reversion Trading
In this analysis, relations between the methods and their hierarchy were not considered, as the entire set of the methods’ names was used. Therefore, it has to be mentioned that the Black–Litterman model is used as an additional component within the Modern Portfolio Theory framework. In contrast, Full-Scale Optimization is a methodological framework that is independent of Modern Portfolio Theory.
Our analyses revealed two interesting trends. First, most of the current RAs use Modern Portfolio Theory, and importantly, they tend to improve and augment this framework rather than applying and developing entirely new approaches. Second, the companies using relatively sophisticated methods attract higher AuM volumes despite the fact that these methods are applied less often than the simpler and more generally defined methods. More generally, the overall comparison of the RA methodological landscape with the current state-of-the-art methods shows a clear gap between the methods applied in RAs and newer methods that are widely considered as promising and scientifically justified in the literature.
Multidimensional improvement of Modern Portfolio Theory
It is well known that the Modern Portfolio Theory framework has serious practical problems such as extreme input sensitivity, estimation error maximization, and highly concentrated portfolios (Best and Grauer 1991; Michaud 1989; Idzorek 2005). Therefore, in practice, all components of the original Markowitz Mean–Variance Optimization method (Markowitz 1952, 1959) are modified, substituted, and/or complemented by various methods. We define this trend as “Multidimensional improvement of Modern Portfolio Theory.”
These methods, of course, do not comprise a comprehensive list of the methods that are or can be used to improve the Modern Portfolio Theory framework in general, because these are the methods that are currently used for such purposes in RAs. A typical and well-described example of such multidimensional improvement of Modern Portfolio Theory is the framework applied by Wealthfront Investment (2017), which includes many of the methods mentioned above (the methods are described in a detailed whitepaper published online).
The systems combining the methods mentioned in Fig. 3 may deviate considerably from the original Modern Portfolio Theory framework, and it is, of course, a subject of debate whether such combinations represent new approaches or just modifications to Modern Portfolio Theory. The use of the alternative risk functions such as VaR or CVaR, especially, is frequently considered to be an alternative to the Modern Portfolio Theory rather than an improvement of this framework.
Methods of RAs: future prospects
As mentioned above, our results indicate that, despite being few in number, the companies that use more sophisticated methods attract higher overall AuM volumes (Fig. 2). That also means that there are many small AuM companies on the market offering rather simple and generally defined approaches such as Sample Portfolios and Constant Portfolios Weight.
It is clear that the true methodology behind the various Sample Portfolios systems is unknown to us, and they may actually be rather sophisticated. However, Sample Portfolios RAs have very limited capacity for individualization (i.e., there is no portfolio that is unique to the client). Similarly, RAs using the Constant Portfolios Weight approach may leverage certain complex and well-justified methods used to derive the portfolio weights (which, again, is unknown to us). However, this approach basically offers a single sample portfolio that is rebalanced only to keep the portfolio weights constant.
As described in Introduction, clients investing in RAs are typically receptive to technology and demand both sophisticated as well as individualized digital services and methods. They expect that their investments will be managed with advanced, scientifically justified, modern, and well-implemented methods and technology. This indicates that the sophisticated quantitative methods are and will be used in RAs not only because they promise better performance, but also because they have clear marketing potential. Therefore, some successful RAs publish detailed whitepapers describing and even scientifically justifying their methods (Wealthfront 2017; Scalable Capital 2016; Schwab Wealth Investment Advisory 2017).
Marketing-relevant features of several methods that represent a promising alternative to the Modern Portfolio Theory framework and can be used in Robo Advisors
Risk Parity offers perfect or “perfectionistic” risk diversification since all of the portfolio components have identical risk contributions
Full-Scale Optimization offers customizable, client-specific utility functions and can consider the risk of catastrophic loss
Scenario Optimization can offer defensive portfolios that should perform well during crisis periods
Risk Parity with Skewness Risk
Risk Parity with Skewness Risk has all of the properties of the Risk Parity but also considers the risk of catastrophic loss
Given the mismatch between the current RAs’ methodology and the state-of-the-art methodological developments, together with investors’ expectations, we can expect serious changes in the RA sector. The newer methods, which are more sophisticated and capable of individualization, will be widely introduced in RAs, where they will be applied as vehicles to improve performance and as marketing tools used to attract new investors. The methodological competition among market participants will dramatically increase as RAs’ services mature, and the sector becomes saturated with diverse offers and companies.
The future development and growth of RAs will depend on many factors. The key question for the growth of the entire RA sector is whether and how wealthy investors will invest in RAs. Existing studies show openness among such investors toward RAs, but they would prefer to have some hybrid models that allow certain human control over the investment process (MyPrivateBanking 2017). More generally, hybrid models are now frequently considered to be the next trend in the RA sector, as investors would like to have human control at least during unusual or crisis situations (Business Insider 2017c). Regarding the asset allocation and portfolio optimization methods, we expect that the methodological core of such hybrid systems will be similar to the methods used in “pure,” fully automated RAs. The only expected difference is the introduction of additional components required for both the manual adjustment of the strategies and the inclusion of certain “external” information and analytical opinions/views (similar to the Black–Litterman model already used in existing RAs).
- BI Intelligence. 2017. The robo-advising report: Market forecasts, key growth drivers, and how automated asset management will change the advisory industry. https://www.businessinsider.com.au/the-robo-advising-report-market-forecasts-key-growth-drivers-and-how-automated-asset-management-will-change-the-advisory-industry-2016-6. Accessed 23 Feb 2018.
- Black, F., and R. Litterman. 1990. Asset allocation: Combining investors views with market equilibrium. Fixed income research. Goldman, Sachs & Company.Google Scholar
- Bruder, B., N. Kostyuchyk, and T. Roncalli. 2016. Risk parity portfolios with skewness risk: An application to factor investing and alternative risk premia.Google Scholar
- Business Insider. 2017a. Is Robo Investing better than traditional investing? See the pros and cons. http://www.businessinsider.de/4-reasons-robo-investing-growing-2017-1?r=US&IR=T. Accessed 23 Feb 2018.
- Business Insider. 2017b. Here are the top 15 Robo Advisors making stock portfolio management easy in 2017. http://www.businessinsider.de/best-robo-advisors-2017-1. Accessed 23 Feb 2018.
- Business Insider. 2017c. Robo Advisors vs. human financial advisors: Why not both? https://www.businessinsider.de/hybrid-robo-advisors-will-manage-10-of-all-investable-assets-by-2025-2017-11-21?r=US&IR=T. Accessed 4 May 2018.
- Deloitte. 2016. The expansion of Robo Advisors in wealth management. White Paper.Google Scholar
- Deloitte. 2016. Robo Advisory in wealth management. White Paper.Google Scholar
- Dohms, R. 2017. Gewinnmaschinen. Capital 8: 116–123.Google Scholar
- Idzorek, T. 2005. A step-by-step guide to the Black–Litterman model: Incorporating user-specified confidence levels. Research Paper.Google Scholar
- Markowitz, H. 1952. Portfolio selection. Journal of Finance 7: 77–91.Google Scholar
- Markowitz, H. 1959. Portfolio selection: Efficient diversification of investment. New York: Wiley.Google Scholar
- MyPrivateBanking. 2017. Wealthy clients open to robo-advisors but still want the human touch. http://www.myprivatebanking.com/article/report-affluent-and-wealthy-investors-attitudes-towards-robo-advisors-2017. Accessed 4 May 2018.
- Roncalli, T. 2013. Introduction to risk parity and budgeting, Chapman & Hall/CRC financial mathematics series. Boca Raton: CRC Press.Google Scholar
- Scalable Capital. 2016. The scalable capital investment process. White Paper.Google Scholar
- Schwab Wealth Investment Advisory. 2017. Schwab intelligent portfolios™ asset allocation white paper. https://intelligent.schwab.com/public/intelligent/insights/whitepapers/asset-allocation.html. Accessed 23 Feb 2018.
- Sharpe, W.F. 1964. Capital asset prices: A theory of market equilibrium. Journal of Finance 19: 425–442.Google Scholar
- Statista. 2017. Statistical portal, Robo Advisors. https://www.statista.com/outlook/337/100/robo-advisors/worldwide#marketStudy. Accessed 23 February 2018.
- Wealthfront. 2017. Wealthfront investment methodology white paper. https://research.wealthfront.com/whitepapers/investment-methodology/. Accessed 23 Feb 2018.
