1 Introduction

An injury to the body by any means which is responsible for disruption and loss of continuity of the epithelial layer of skin and damages the underlying layers is termed as wound [1]. Wound heals through a complex and dynamic process of healing which involves many players at cellular and molecular level, primarily cytokines, growth factors and regulatory moieties. For a healthy patient, interleukin IL-1 is released to signal the damage and through homeostasis, body prepares the damaged site to clot the blood and to undergo inflammation which attracts the nutrients, enzymes, leukocytes, macrophages and monocytes to the affected area resulting in excessive exuded production. After the successful inflammation, the new matrix is formed by the aid of granulation tissues, collagen and fibroblasts, in the presence of sufficient oxygen, blood and nutrients [2]. Because of absence of standard conditions, i.e., oxygen, blood, nutrients, growth factors and sensory response, and presence of infectious agents, irregular metabolites and immuno-suppressants, the wound heals without restoring the anatomical and physiological functions. These wounds are unable to pass through inflammatory check-post which prolongs the inflammatory response resulting in jogging in a vicious cycle between inflammation and angiogenesis [3]. The delayed wound healing seems a simple issue but when it posed a burden of 28.1 billion USD in 2019 on economy of single country, it became a major issue of modern world [4].

There are many reasons of transition of simple wound into a chronic wound, i.e., diabetes, burns and other metabolic issues but major reason lies in administration of wounds as the commercially available administration tools (gels, ointments, liquids) are passive drug release systems and their drug release is characterized as uncontrolled and immediate. Because these systems release an uncontrolled amount of drug, there is a possibility of releasing of drug dosage higher than the toxic level or lesser than the effective therapeutic level [5]. The maintenance of drug dosage at effective therapeutic level is very important for efficient wound healing and passing each phase accurately. The maintenance of effective therapeutic level can be achieved when the drug dosage is controlled according to the wound conditions (neither more than toxic level nor less than effective therapeutic level) and when patient or clinicians exactly know how much drug is being delivered at the wound site. Scientists have introduced controlled released systems for that purpose, and some are commercially available like Insulin Pen and Synchromate B. Unfortunately, there is no such device for wound healing purpose.

Micro-reservoir systems have been reported since 1987 where the researchers used segmented polyurethane for as drug reservoirs [6]. There are different types of reservoir systems but all of them are for liquid drugs. The current system is developed using micro-reservoir concept, but it is merged with electronics and it is specifically for powdered drug. In this device, vibrations are combined with electronics to deliver the pulsating dose within seconds when required. The device is prepared in a prepackaged form which will contain the drug for different wound sizes. This drug delivery mechanism was applied with a commercially available antibiotic Cicatrin to analyze the drug delivery behavior, to see the effectiveness of dosage against wound pathogens and to compare with commercially available passive drug delivery systems in animal models.

2 Materials and methodology

2.1 Materials

The initial investigation was done on acrylonitrile butadiene styrene (ABS) which was provided by Smooth-On Inc. PA, USA and linear resonant actuator was provided by Precision Microdrives. ABS (Polyacrylonitrile-Butadiene-Styrene) 3D printing filament, nutrient agar, cicatrin powder and phosphate buffered saline tablets were provided by Sigma-Aldrich.

2.2 Design idea

The smart bandage consists of three components. First component is ABS-based plastic platform, vibration system and pharmaceutically active ingredient. The plastic platform has three enclosed compartments, two of which act as drug reservoirs and one houses the vibratory device. The vibratory device is battery-operated Linear Resonate Actuator (LRA). This device is controlled by microcontroller [7]. The LRA delivers the vibration stimulus to the drug reservoirs upon pressing the switch button. The drug reservoirs are controlled by microcontroller through LRA, and it controls the amount of drug delivery according to our desired levels. Microcontroller is be attached to switch button so that the patient can deliver drug at desired intervals Fig. 1.

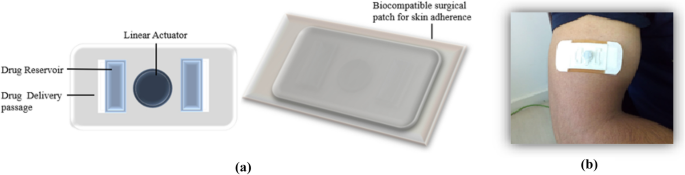

Fig. 1
figure 1

a Conceptual view of device loaded with drugs b Device Prototype

Full size image

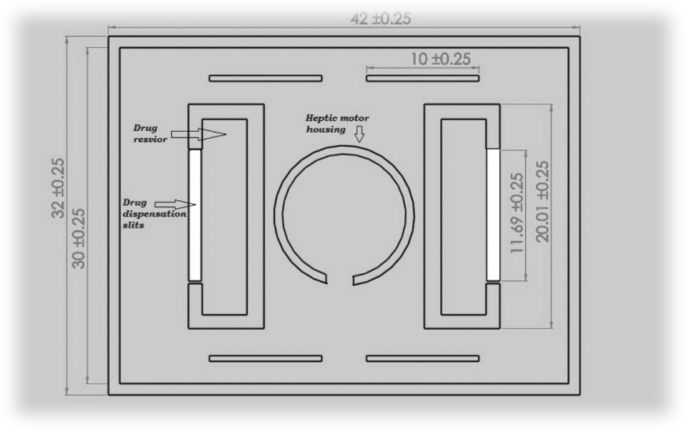

Fig. 2
figure 2

CAD model of device

Full size image

2.3 Prototype development

2.3.1 Design of 3D model

A rectangular shape was selected for the device model. The model was programmed using a 3D solid modeling software (Solidworks2014, Dassault Systems S.A) and saved in a stereolithography (.stl) file. The model was then imported into the 3D printer’s software, and .stl format was converted to G-code for printing Fig. 2.

2.3.2 3D printing process

ABS material was used for 3D printing. According to the CAD designs, device consisted of three parts:

  • A 43 × 30 mm platform

  • A 6 × 5.5 mm haptic motor housing compartment

  • Two 17 × 6 mm drug reservoirs

There were 11 × 3 mm wide drug dispensation slits that were created at the ends of each reservoir for the drug delivery. The final prototype is shown in Fig. 3.

Fig. 3
figure 3

3D printed device and its parts

Full size image

2.3.3 Microcontroller of device

The linear actuator used in this study is a vibration motor which can be driven by supplying a power of 3 V across the terminals. The goal of this study was to achieve the control over the vibrations; therefore, Arduino microcontroller was used. Microcontroller was programmed to switch on after 24 h to deliver drug each day Fig. 4

Fig. 4
figure 4

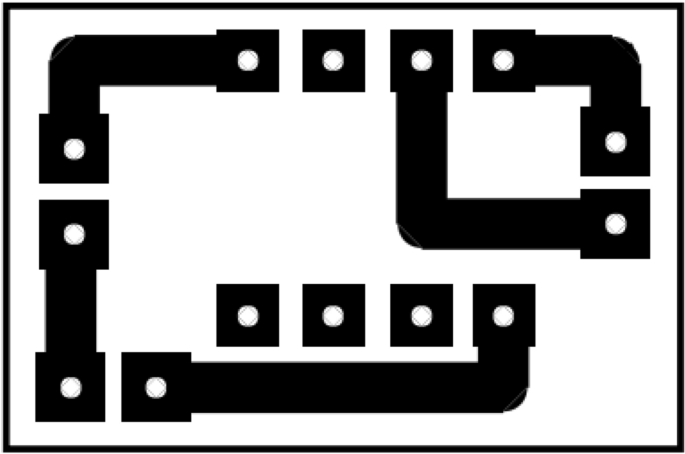

Circuit diagram

Full size image

The Arduino was powered by 3 V regulated external power supply. After the initial testing, a specific voltage was selected and a microcontroller module was generated which stimulated the device for specific time interval with specific vibrational frequency.

2.4 Drug release studies

The pattern of drug release is greatly affected by many factors and constraints, i.e., vibrations frequency, voltage variations, time intervals and drug quantity. The release kinetics of device were analyzed by using diffusion method which is commonly used for transdermal drug delivery systems (TDDS). However, this was a novel study which could not utilize already reported testing beds for drug release studies; therefore, a specialized testing chamber was prepared for its drug release testing. This testing bed was a transparent closed chamber (shown in Fig. 5) which was hollow from inside and had a fixed place to hold dissolution beaker. Above the beaker, the device was mounted in a certain way that the drug fell precisely into the beaker.

Fig. 5
figure 5

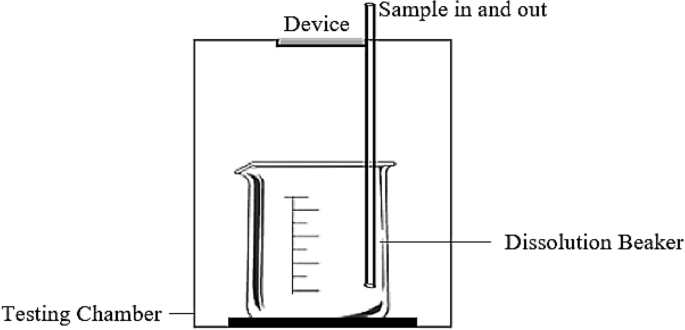

Testing chamber

Full size image

This test comprised of three studies including in vitro dissolution testing, static study and accelerated wound conditions.

2.4.1 In vitro dissolution testing

The dissolution beaker containing 5 mL of PBS (pH = 6.8) was fixed inside the chamber as described in Fig. 5. The device was allowed to release drug for a predetermined interval of time such as 300 ms, 500 ms, 800 ms, 1 s, 1.5 s and 2 s. An aliquot of sample was withdrawn at specific time intervals, and the same amount of sample was replaced with fresh pre-warmed PBS. The absorbance of each sample was measured by UV–Vis spectrophotometry (JASCOV-530, JAPAN) at 390 nm, and concentration was determined through the standard curve. All the studies were performed in triplicates.

2.4.2 Drug release study (Static study)

This device was designed to deliver drug for 5 days which is a recommended time period for topical drug delivery in case of acute wounds. Thus, for each time interval, drug was delivered for five consecutive iterations. This experiment was designed using Danckwert’s theory which states, ‘At the interface, the packet is able to absorb solute according to the laws of diffusion and is then replaced by a new packet of solvent.’ Therefore, drug was delivered into the solvent only for one time, and then, the solvent was replaced by fresh solution for the next dosage, and this process continued until the last drug dosage. The absorbance of each sample was measured by UV–Vis spectrophotometry.

2.4.3 Cumulative drug release study (Dynamic study)

For this study, the same protocol as the static study was used; however, the only difference was that after the drug delivery in PBS, the whole 5 mL solution was not removed rather a little amount (2 mL) of drug was left there as residual drug. The fresh 3 mL solution was added in the beaker and second time drug was prepared. Afterward, UV spectrophotometry was performed on 3 mL solution to evaluate the concentration of drug.

2.5 Microbial study

In order to investigate the effectiveness of dosage regimen against bacteria, pure cultures of bacterial strains including Pseudomonas aeruginosa (P. aeruginosa), Escherichia coli (E. coli), Methicillin-resistant Staphylococcus aureus (MRSA) were obtained from Mycovirus Research Lab, National University of Sciences and Technology (NUST), Islamabad.

In this study, well diffusion method was used to create zone of inhibition. The wells of same size were created on nutrient agar. Bacterial strains were grown on nutrient agar for 24 h. The 100 µL PBS solution containing different amounts of drug was loaded into the wells. The plates were incubated for 36 h at 37 ◦C. The area of zone of inhibition was measured by placing a ruler on the petri plate.

2.6 Mechanical testing

Due to cyclic load during manufacturing, packaging, transportation, clinician and patient handling and wearing, medical devices are expected to be strong enough to withstand all the pressure [8]. For that purpose, tensile, compression and bend test were carried out in universal testing machine following ASTM D638, ASTM D695 and ASTM D790 standards. These tests were performed using Ultimate tensile testing machine.

2.7 Animal study

BALB/c mice were purchased from National Institute of Health (NIH) Islamabad to check the feasibility of device and the effectiveness of the dosage regimen. The approval of ethical committee was obtained prior to the study (the approval letter has been attached at the end of the document).

The mice were divided into three groups and each group contained three mice. First group was negative control group on which no drug was applied, second group was positive control group on which a commercially available drug delivery system (Polyfax) was applied, and the third group was experimental group on which current drug delivery system was applied.

The wounds were created by following the protocol of incision wound model. The hair were shaved from the dorsal region of mice. After injecting the anesthesia, wounds of 10 × 10 mm were created with the help of surgical blade by continuously scratching the skin.

Wounds of negative control group were covered with a simple gauze; wounds of the positive control group were treated with 0.1 g of Polyfax drug delivery system and the wounds of experimental group were covered with our device. The device was prepackaged to deliver for 5 days. After 24 h wounds, the qualitative and quantitative features were extracted and recorded. On second day, fresh dosage of polyfax was applied on positive group, as well as bandage was changed; however, in experiment group, only the electric stimulus was provided to deliver drug from the device. There was no need to change the bandage. The study continued for 5 consecutive days. Figure 6 demonstrates the procedure of in vivo study.

Fig. 6
figure 6

Wound creation steps

Full size image

2.7.1 Qualitative analysis of wound

The observations were made to measure and grade the clinical parameters of the wound including wound color, humidity level, margins and surface, swelling and scar. The wounds were graded for each parameter after the careful observation. The following chart was followed for grading each parameter.

2.7.2 Quantitative analysis of wound

After the wound creation and device application, the diameter of wounds was measured to find out the wound closure rate. The area of wound was quantified with the help of a ruler. The results were recorded and demonstrated in the form of graph [11].

3 Results and discussion

3.1 Release mechanism

The proposed device is developed for controlled delivery of powdered drugs, and its release mechanism depends upon vibration movements of linear actuator. The mechanism is shown in Fig. 7. When the actuator vibrates upon receiving electrical stimulus, it transfers its vibrations to the whole device. The drug inside the reservoir receives these vibrations and starts moving/vibrating inside the reservoir and as a result fells down from the slits. The device gives an immediate response to the electric stimulus which controls the drug release according to the patient requirements.

Fig. 7
figure 7

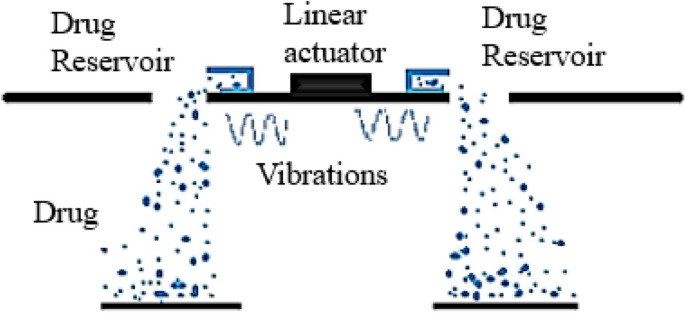

Mechanism of drug release from the device upon actuator vibration (side view)

Full size image

3.2 Drug release studies

The drug release patterns of the device were drawn through this study. A compliance chart of different dosage regimes with respect to time was built which a patient can use to determine his preferred dosing regimen.

3.2.1 In vitro dissolution testing

In vitro dissolution test was performed for six different time intervals of electrical stimulus which were 300 ms, 500 ms, 800 ms, 1 s, 1.5 s and 2 s. The UV absorption of each sample was taken on UV–Vis spectrophotometer, and percentage absorption was calculated with the help of standard curve. The concentration (mg/mL) of each time interval is given in Fig. 8.

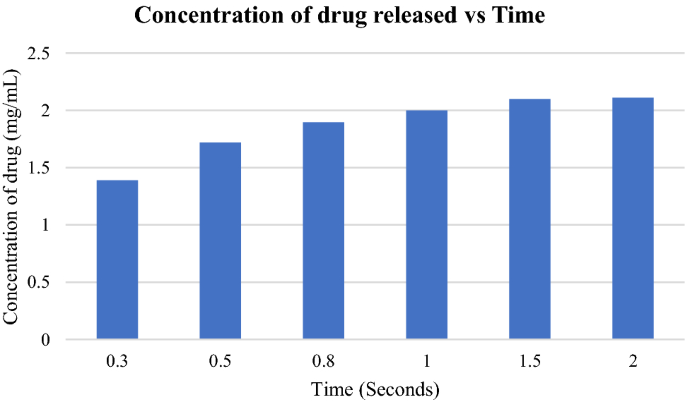

Fig. 8
figure 8

In vitro drug release kinetics

Full size image

3.2.2 Drug release study (Static study)

The purpose of this study was to map out the drug delivery pattern for five consecutive days. The device was stimulated, and drug was delivered into fresh solution. The concentration of each solution was measured through UV–Vis spectrophotometer. The process was repeated for five iterations. The results of this study are given in Fig. 9.

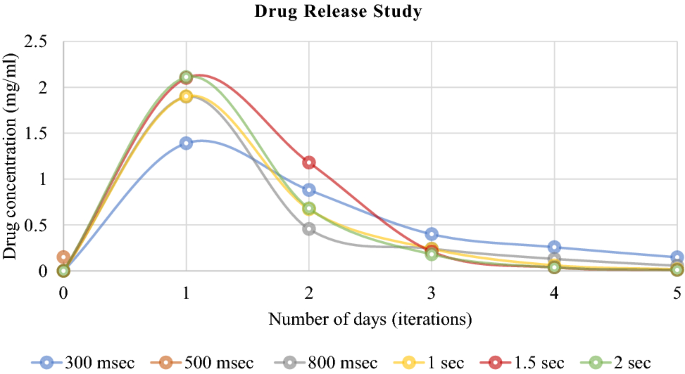

Fig. 9
figure 9

Drug release pattern for five days

Full size image

The graph indicated that the best dosing regimen was at 300 ms. At this time interval, device moderately delivered the drug from day 1 to day 5.

The static study gave us the relationship between time interval and drug delivery in terms of concentration but most of the patients and clinicians talk in terms of weight of drug. So, the weight studies were performed to make the data more user friendly. Other purpose was to validate the static study results Fig. 10.

Fig. 10
figure 10

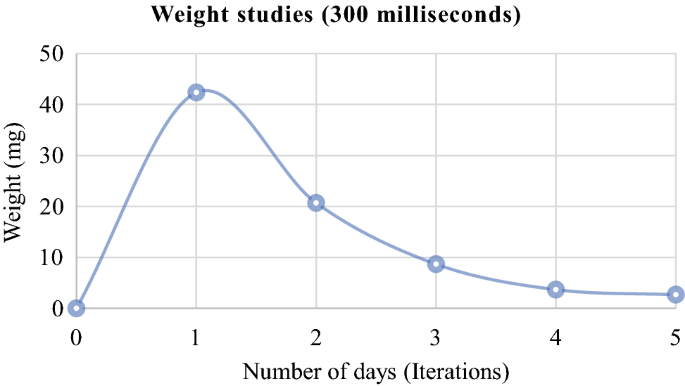

Drug release profile with respect to weight

Full size image

3.2.3 Cumulative drug release study (Dynamic study)

This study was performed to measure the release of the active pharmaceutical from a drug product matrix in a simulated laboratory environment. Figure 11 shows the results of in vitro studies, and it proved that device works better in wound conditions as it releases drug at effective therapeutic level.

Fig. 11
figure 11

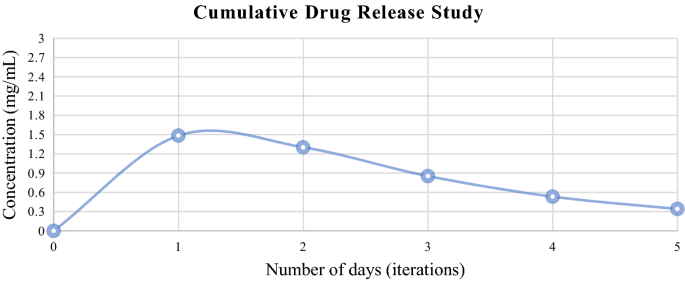

Cumulative drug release profile

Full size image

In physiological conditions, the effect of drug dosage increases because of presence of residual drug on the wound site which gives a cumulative effect.

3.3 Microbial study

The purpose of this study was to evaluate the effect of dosage regimen on the microbes which cause delayed wound healing. The results of microbial study showed that drug is effective enough to create zones of inhibition around 1 cm. The results of E. coli, MRSA and P. aeruginosa are given in the following figures. Zone of inhibition of each microorganism is given in Figs. 12, 13 and 14. These experiments were performed in triplicates.

Fig. 12
figure 12

Zone of inhibition of P. aeruginosa

Full size image
Fig. 13
figure 13

Zone of inhibition of E. coli

Full size image
Fig. 14
figure 14

Zone of inhibition of MRSA

Full size image

3.4 Mechanical Testing

In this study, tensile, compression and bend test were carried out and their results are given in Figs. 15, 16, 17 and 18. Tensile test was carried on both horizontal and vertical axes of device as the device is not a perfect square which makes the device behave differently on both axes and it is proven by the results shown in Figs. 14 and 15. The yield strength for horizontal and vertical axes is 1.93 MPa and 2.69 MPa, respectively, and the ultimate tensile strength is 9.77 MPa and 3.91. Figure 21 shows very small elastic region and a large plastic region which is the reason of high ultimate tensile strength value, but vertical axis went through a small plastic region.

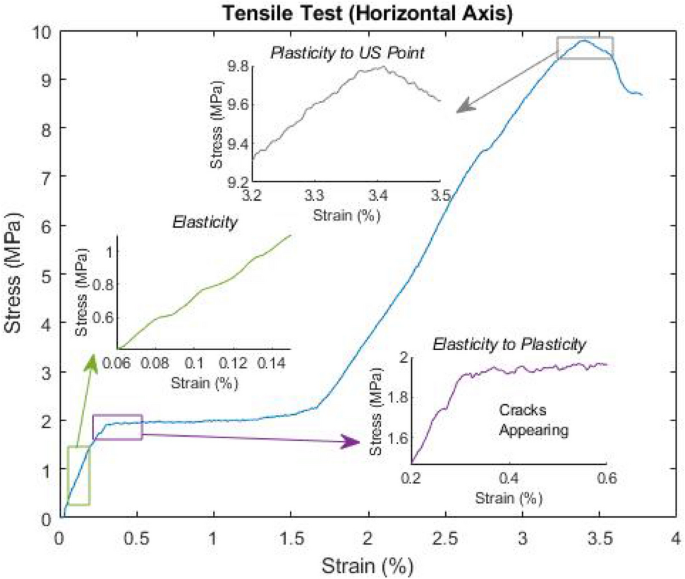

Fig. 15
figure 15

Tensile strength of device in horizontal axis

Full size image

Fig. 16Tensile strength of device in vertical axisFig. 16Tensile strength of device in vertical axisFig. 16Tensile strength of device in vertical axis

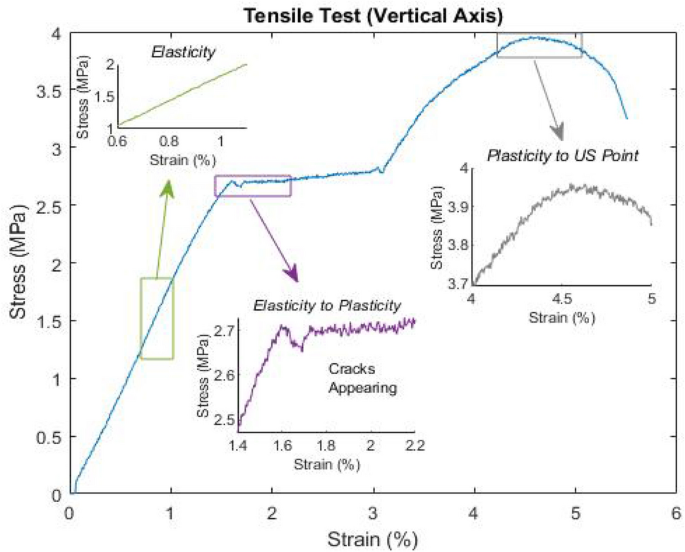

Fig. 16
figure 16

Tensile strength of device in vertical axis

Full size image

Compression test was performed to check the durability of device under load, and Fig. 17 shows that device can endure a load of 43.87 MPa.

Fig. 17
figure 17

Compression test of device

Full size image

The bend test was performed to check the flexibility of device as the device can wrap around the body parts. Figure 18 shows the results of bend test which was carried out in ultimate testing machine.

Fig. 18
figure 18

Bend test of device

Full size image

3.5 Animal study

Animal tests were performed on BALB/c mice, and the results were compared with the commercially available drug delivery system Polyfax.

3.5.1 Qualitative analysis

For qualitative analysis, the animals were divided into four groups, among them, two were experimental group and one was control group. The observations were made, and wounds are graded according to Table 1. The results of qualitative analysis are given in Table 2, and the wound healing is shown in Fig. 19.

Table 1 Clinical parameters for qualitative analysis of wound healing [9, 10]
Full size table
Table 2 Qualitative analysis of wound healing
Full size table
Fig. 19
figure 19

Wound conditions of mice for 5 days

Full size image

The grading of wounds is given in Table 2.

Due to study limitations, the histopathological assessment could not be performed; however, the observation of clinical parameters can give insights to the histopathological events of wound healing. During the study, the wound healing process did not show any clinical or gross sign of intercurrences including edema, erythema or suppuration. The absence of any abnormality during the healing process can be a potential indicator of absence of pathophysiological anomalies [12]. The figures were compared to the wound figures published by [12], and similarities were found in the healed founds as shown in Fig. 20.

Fig. 20
figure 20

a Healed wound from [12] b Healed wound of current study

Full size image

The formation of primary fibrous scar was observed due to gradual maturation of the granulation tissues of the wound site. The fibrous scar formation is an important indicator of normal wound healing. After third day, the re-epithelialization of wounds was observed, and at 5th day, all three groups demonstrated full re-epithelialized wound surface. The re-epithelialized surface is achieved due to good keratinocyte proliferation and migration; therefore, we can claim the delivered dosage is good for normal keratinocyte proliferation and epithelialization.

3.5.2 Quantitative analysis

The diameter of wound was measured each day, and the results demonstrated that the rate of wound healing was similar for the first two days, and after the 3rd day, the healing rate increased exponentially for the wound healing device and the wound completely closed at the 5th day; however, for the polyfax, the rate of healing was lesser than the wound healing device and it could close only 50 percent of wound even though it has more units (100 units) of drugs (polymyxin B sulfate and bacitracin zinc) as compared to Cicatrin (40 units) which contains neomycine and bacitracin zinc Fig. 21.

Fig. 21
figure 21

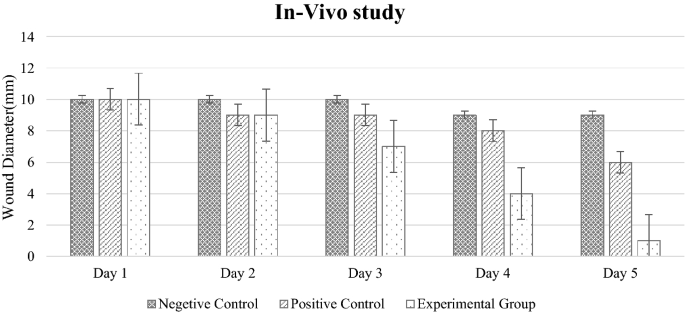

Wound healing rate

Full size image

The reason could be in dose regime strategy as the polyfax releases the same amount of drug despite of the needs of wound and it also contains oils and petroleum minerals to ease the drug delivery. But the wound healing device releases drug according to the patient’s demands; if patient needs more drug, it can release high concentration of drug and if the wound starts healing, it will release lesser amount of drug. So, this control over dosage regime showed accelerated healing and lesser usage of drug.

4 Discussion

This study was aimed to develop and evaluate a novel drug delivery device for controlled and personalized drug delivery for wounds healing applications. The device was designed to inhabit the stimulating device and drug in the reservoirs. The stimulating device was a linear actuator which worked on the basis of haptic technology. This technology uses kinaesthetic communication to provide stimulus; however, this stimulus is provided by either force or vibrations [13]. In this study, the linear actuator used vibrational energy to deliver the drug from reservoirs. The pattern of drug delivery was mapped out and calibration graph was made which helped in personalization of drug regimen for the patients.

The drug release from the reservoirs is dependent upon the frequency of the vibrations, timings of vibrations and the length of time intervals. The goal of this step was to map out the relationship between time interval and concentration of drug in a solution. As the drug was quantified in dissolved form, so it must follow some available models. To design the experiment, different dissolution theories were studied and Danckwerts theory was found fittest for our conditions. This theory states ‘At the interface, the packet is able to absorb solute according to the laws of diffusion and is then replaced by a new packet of solvent.’ Using this theory, the experiment was designed in such a way that the drug was delivered into the solvent only for one time, and for the next drug dose, the solvent was replaced by fresh solution and this process continued until the last drug dosage [14].

Dynamic conditions are the provision of simulated conditions in the laboratory by mimicking the actual wound conditions during drug delivery. In actual scenario, the wound is unable to utilize all of the drug that has been delivered on the first day of wound. As a result, when a specific amount of drug was delivered on second day, the wound not only contained the fresh second dose, but it would also contain the residual drug of previous day. As the drug dose being delivered from the device is different than the actual conditions, the modeling of actual conditions is a necessity to predict the behavior of device.

The role of bacteria in wound healing and wound deterioration has been debated for years but it has been established that some of the bacterial colonies are associated with the wound healing and some are associated with infections. All the skin wounds are colonized with bacteria, but they are only considered infected when the microbial load exceeds from 1 × 106 CFU per gram of tissue mass [15]. So, the drug delivery systems try to be enough efficient to not to let the bacteria grow from certain range. Zones of inhibition of dosage regime of each day were measured to see if the device is releasing drug at effective therapeutic level or not. The well diffusion method was used to create zone of inhibition, and it was measured by placing a ruler on the petri plate. Three different strains, i.e., E. coli, MRSA and P. aeruginosa were used as these are commonly present on the wounds as these bacteria are responsible for many hospital-borne infections and are commonly present on wound; if not controlled at early stages, it can cause infections and enter the wound into vicious non-healing cycle making them chronic wound.

To protect the patients from unforeseen events, medical devices are closely regulated and standardized according to the available international standards. There are well-defined and established standards for each aspect of device, and every device has to pass through it. ASTM standards are used to evaluate the basic properties, i.e., tensile strength, compression and bending ability. Due to application of load during manufacturing, packaging, transportation, clinician and patient handling and wearing, medical devices are expected to enough strong to withstand all of it. For that purpose, tensile, compression and bend test were carried out in universal testing machine following ASTM D638, ASTM D695 and ASTM D790 standards [15]. These tests are necessary to evaluate the component properties of a well-designed medical device.

For wound healing studies, different animal models, i.e., rodents, rats, rabbits, mice and guinea pigs are considered but still a gap remains between the animal and human wound healing. So, the animal models are chosen by keeping the scope of study and hypothesis of the test in mind. The scope of current study was to check the feasibility of device and the effectiveness of the dosage regimen, and this could be done on BALB/c mice as this is the simplest animal model with less anatomical complications and ethical concerns and also there are many similar studies which have been done on mice [16,17,18,19].

Incision wound model was selected for the current study, for wound creation because of the conditions, requirements and suitability of this study. The dose regimen of test device accelerated the wound healing rate exponentially after third day of study but for polyfax, the healing rate increased with a steady speed. Polyfax contains not only active ingredients Polymyxin B sulfate and Bacitracin zinc but also passive ingredients like oils and minerals to facilitate the drug penetration into skin. Consequently, lesser amount of active ingredients will be delivered; however, in the case of test device, cicatrin is delivered which only contains active ingredients. These ingredients help in faster healing of wounds.

The test device was developed and evaluated by many tests and found it effective for wound healing applications. The findings of this study can potentially open a new realm of wound care and replace existing wound care systems and significantly reduce burden of chronic wounds.

5 Limitations

This is study was carried out to develop a new concept in drug delivery systems; therefore, many aspects could not be studied. Another limitation was that the device was only studied in mice which are smaller animals. There is a need to study the device on larger animals before going for human studies.

6 Conclusion

Traditional drug delivery systems are failing to address the wound complications properly, leading them toward chronic realm. To avoid the burden of chronic wound, scientists are developing controlled release systems which can control the rate of drug according to the patient’s needs. The current system provides a practical solution with an iterative design approach which provides drug according to the user’s input and feedback. The effectiveness of the device is validated and proved through in vitro and pre-clinical studies. The current prototype system was developed with a priority of functions and features, and confirmation of feasibility of device. In addition to the wound care management functions provided by the current prototype system, new features and further technical improvements will be made for smarter and better wound care management in the future.

7 Future prospects

There are a few aspects which are planned to explore in future which includes addition of a strap to fix the device making it unable to move, studies on larger animals, i.e., rabbits or guinea pigs and histopathological studies of wounds.
