Abstract
The accessibility of genomic DNA, as a key determinant of gene-related processes, is dependent on the packing density and structural dynamics of chromatin fiber. However, due to the highly dynamic and heterogeneous properties of chromatin fiber, it is technically challenging to study these properties of chromatin. Here, we report a strategy for dissecting the dynamics of chromatin fibers based on single-molecule magnetic tweezers. Using magnetic tweezers, we can manipulate the chromatin fiber and trace its extension during the folding and unfolding process under tension to investigate the dynamic structural transitions at single-molecule level. The highly accurate and reliable in vitro single-molecule strategy provides a new research platform to dissect the structural dynamics of chromatin fiber and its regulation by different epigenetic factors during gene expression.
Similar content being viewed by others
Avoid common mistakes on your manuscript.
Introduction
In eukaryotic cells, genomic DNA is wrapped on histones to form the nucleosome (Richmond and Davey 2003), which is the basic repeating unit of chromatin, and then further folds to condensed chromatin fibers (Bickmore and van Steensel 2013). But the transcription and replication of DNA require the accessibility of DNA double-helix structure by transcription factors and polymerases. The packing density and structural dynamics of chromatin fibers are regulated by many epigenetic factors, including chromatin modifications, histone chaperones, histone variants, chromatin remodelers, and chromatin architectural proteins. For the genomic regions where gene expression are active, a series of epigenetic modifications (Zentner and Henikoff 2013), enzymes (Maier et al. 2000), and transcription factors (Li et al. 2016b; Pavri et al. 2006) assist in unfolding of chromatin fibers to expose DNA, allowing the transcription and replication to proceed. When the transcription or duplication is completed, the chromatin fiber needs to be reassembled (Fleming et al. 2008). Therefore, deciphering the structural dynamics and its epigenetic regulation of chromatin fibers is the basis for understanding the epigenetic regulation of gene-related biological processes including transcription and DNA replication.
Traditional biochemical methods have shown some difficulty in studying the dynamic structural changes of chromatin fibers (Fleming et al. 2008; Georgel et al. 2003). For example, the properties of chromatin fibers obtained in gel electrophoresis and circular dichroism are the sum of a huge number of molecules involved in the reaction; thus it is impossible to characterize the dynamic process of structural changes of chromatin fibers. Although high-resolution imaging techniques, such as X-ray and Cryo-electron microscopy (Cryo-EM), have successfully determined the high-resolution structures of the nucleosome (Luger et al. 1997) and the 30-nm chromatin fiber (Song et al. 2014), these techniques are only suitable for studying static structures and cannot monitor the dynamic structural transitions of the nucleosome and chromatin fibers. Fluorescence resonance transfer (FRET) technique can track the dynamic changes of chromatin structure at single-molecule level (Chen et al. 2016; Fierz et al. 2011; Ngo and Ha 2015). However, in most time, fluorescence probe quenches in a few minutes; thus it is difficult to monitor the structural transitions in such a short-time window.
Single-molecule force spectroscopy is an ideal technique to study the structural change of biological macromolecules, especially the nucleosome and chromatin fibers. By applying different external forces on the single chromatin fiber or mononucleosome, we can manipulate conformational changes of the molecule, which could be monitored by tracking the extension of the chromatin fiber or mononucleosome. We can also deduce the stability and assembly pattern of the chromatin fiber or mononucleosome by analyzing the step size and the transition force of structural intermediates. The main techniques of single-molecular force spectroscopy include atomic force microscopy (AFM; Piontek and Roos 2018), optical tweezers (Neuman and Block 2004), and magnetic tweezers (Gosse and Croquette 2002). AFM captures biological macromolecules by a chemically modified probe and applies a pulling force, but the pulling force is usually very large and it is difficult to ensure only one single-molecule is captured. The optical tweezers require the two ends of molecule binding to two polystyrene beads respectively, and then the optical tweezers grab the polystyrene beads through the optical traps constructed by the laser, and then move the laser to apply the pulling force. Optical tweezers can achieve relatively high resolution (Abbondanzieri et al. 2005; Mahamdeh and Schäffer 2009), but it is difficult to keep constant force when tracking the conformational changes. Besides that, optical tweezers are not suitable for long time measurement, because high-intensity laser may damage the sample (Simpson et al. 1998). The magnetic tweezers connect the two ends of biological macromolecules to surface and paramagnetic bead respectively, and then apply the pulling force with an external magnetic field. Magnetic tweezers can track many biological macromolecules at the same time, but the resolution is slightly lower than optical tweezers. In this paper, we report a strategy to study the structural dynamics of chromatin fibers based on single-molecule magnetic tweezers. We modified the magnetic tweezers by adopting solid-microscope optical system, large-field objective lens, and high-speed sampling CCD camera to improve the time resolution of magnetic tweezers and the number of magnetic beads tracked at the same time. We also developed a home-built control software of magnetic tweezers based on LabVIEW to achieve more advanced bead tracking and data analysis algorithm, which further improves the resolution of magnetic beads position and pulling force. The chromatin fiber labeled with either biotin or digoxigenin at the two ends of DNA was reconstituted in vitro and attached to the modified magnetic tweezers. The extensions of chromatin fibers under different tension were recorded at single-molecule level to trace the dynamic structural transition. This strategy provides a new research platform to dissect the structural dynamics of chromatin fiber and its regulation by different chromatin factors.
Experimental Section
Preparation of chromatin fibers
Recombinant histones and DNA templates of 24 tandem 177 bp repeats of the 601 sequence (24 × 177 bp) were cloned and purified as previously described (Li et al. 2010). The 24 × 177 bp 601 DNA was subcloned into a modified pWM530 plasmid containing two BseYI sites flanking multiple cloning sites. The pWM530-BseYI-177-24 plasmid was digested by BseYI enzyme, with the 24 × 177 DNA templates purified by gel extraction. The two single-stranded ends of 24 × 177 DNA templates were filled with either dUTP-digoxigenin or dATP-biotin by Klenow reaction at 30 °C for 3 h. Remaining enzymes were removed by phenolic chloroform extraction and ethanol precipitation. For histone purification, pET-histone expression plasmids were transformed into BL21 (DE3) pLysS cells individually and then a single colony each was inoculated from a freshly streaked agar plate into 5 ml of LB medium containing 100 μg/mL ampicillin and 25 μg/mL chloramphenicol. 100 ml overnight culture from optimal clones was inoculated into 5 l LB medium and overexpression of histones were induced at OD600 nm of 0.4–0.6 with 0.5 mmol/L IPTG. After growing for another 3–4 h, cells were harvested by centrifugation and resuspended with buffer A (50 mmol/L Tris–HCl, pH 7.5, 100 mmol/L NaCl, 1 mmol/L EDTA, 1 mmol/L bezamidine). After sonication and centrifugation, the pellets containing inclusion bodies of the corresponding histones were washed three times by buffer A plus 1% Triton X-100 and later washed with buffer A twice to get rid of Triton X-100. Then pellets were dissolved by gently stirring for 1 h at room temperature with buffer B (7 mol/L guanidinium HCl, 20 mmol/L Tris–HCl, pH 7.5, 10 mmol/L DTT). With another centrifugation (23,000 g for 10 min) to remove undissolved pellets, supernatants containing unfolded histones were collected and analyzed by 15% SDS-PAGE.
The respective histone octamers were reconstituted as previously described (Dyer et al. 2004). Equimolar amounts of individual histones in unfolding buffer B (7 mol/L guanidinium HCl, 20 mmol/L Tris–HCl, pH 7.5, 10 mmol/L DTT) were dialyzed into refolding buffer (2 mol/L NaCl, 10 mmol/L Tris–HCl, pH 7.5, 1 mmol/L EDTA, 5 mmol/L 2-mercaptoethanol), and purified through a Superdex S200 column. Chromatin samples were assembled using the salt-dialysis method as previously described (Song et al. 2014). The reconstitution reaction mixture with histone octamers and DNA templates in TEN buffers (10 mmol/L Tris–HCl, pH 8.0, 1 mmol/L EDTA, 2 mol/L NaCl) were dialyzed for 16 h at 4 °C in TEN buffer, which was continuously diluted by slowly pumping in TE buffer (10 mmol/L Tris–HCl, pH 8.0, 1 mmol/L EDTA) to a lower concentration of NaCl from 2 to 0.6 mol/L. For nucleosomal arrays, samples were collected after final dialysis in measurement HE buffer (10 mmol/L HEPES, pH 8.0, 0.1 mmol/L EDTA) for 4 h. For histone H1 incorporation, an equal molar amount of histone H1 (relative to mono-nucleosomes) was added before the final dialysis step and further dialyzed in TE buffer with 0.6 mol/L NaCl for 3 h. The stoichiometry of histone octamer binding to the DNA template was determined by EM investigation (Song et al. 2014).
Stoichiometry of histone octamer to DNA template and histone H1 to nucleosome were evaluated by EM analysis as described previously (Chen et al. 2013). The samples were fixed with 0.4% glutaraldehyde (Fluka) in HE buffer on ice for 30 min. For metal shadowing experiment, chromatin samples were prepared in HE buffer with DNA concentrations of 5 µg/mL. 2 mmol/L spermidine was added into the sample solution to enhance the absorption of chromatin to the grids. Samples were applied to the glow-discharged carbon-coated EM grids and incubated for 2 min and then blotted. Grids were washed stepwise in 20 ml baths of 0%, 25%, 50%, 75%, and 100% ethanol solution for 4 min, each at room temperature, air dried and then shadowed with tungsten at an angle of 10° with rotation. For negative staining studies, chromatin samples were prepared in HE buffer with DNA concentrations of 20 µg/mL. Chromatin samples in fixative solution were incubated on glow-discharged carbon-coated EM grids for 1 min. The excess sample solution was removed using filter papers. The grid was stained in 2% uranylacetate for 2 × 30 s, blotted with filter papers and allowed to air-dry for several minutes. Samples were examined using a FEI Tecnai G2 Spirit 120 kV transmission electron microscope.
Setup of magnetic tweezers
As shown in Fig. 1, the setup of magnetic tweezers is mainly composed of light source (625 nm red LED, THORLABS), two NdFeB magnets with 0.5 mm, flow cell, 60× oil immersed objective (UPLSAPO60XO, NA 1.35, Olympus), and 1280 × 2024 CCD camera (MC1362, Mikrotron). The flow cell consists of a bottom coverslip, a double-sided tap with a rectangular channel (5 × 50 mm2), and an upper coverslip with an inlet and outer at each end. In the flow cell, one end of the chromatin fiber is anchored to the streptavidin coated magnetic beads (M280 Invitrogen Norway), and the other end is anchored to the surface coated with anti-digoxigenin. The two magnets are fixed on a high-resolution translation stage (M-126, PI) and a rotation stage (C-150, PI). The exerted tension (0–100 pN) on chromatin fibers is controlled by tuning the distance of the magnets in z direction (Dammer et al. 1996; Lee et al. 1994; Merkel et al. 1999; Moy et al. 1994; Pincet and Husson 2005). At a given magnet position, the tension exerted on the chromatin samples is constant. The twist can be regulated in the twist-constrained assays by rotating the magnets. The images of beads would go through the objective and then into the CCD camera. The thermal drift is the barrier for the image tracing in a long time up to several hours. In our magnetic tweezers, four Peltier modules are applied to control the sample temperature with the resolution of 0.1 °C.
Coverslip cleaning and surface functionalization
To anchor the digoxin and biotin labeled chromatin fiber on the surface, the bottom coverslip needs to be cleaned and functionalized. Firstly, several pieces of coverslips were put in a staining jar filled with deionized water and detergent, and then the staining jar was placed in an ultrasonic cleaning bath for 30 min. After that, the coverslips were rinsed with deionized water for 5–10 times to remove the detergent. The washing process was repeated using acetone and methanol, respectively to rinse some organic impurities. To functionalize the surface of coverslip, the nitrocellulose solution (0.4%–0.8% w/v) was coated on the surface and heated at 120 °C for 3 min, then the surface could bind with anti-digoxin for tethering chromatin fibers (Cnossen et al. 2014).
To control the thermal drift, furthermore, the diluted polystyrene beads solution was dropped on the surface and heated at ~150 °C for 5 min to melt on the cover-slip surface. The fixed beads were tracked simultaneously and served as the indicator of the drift. We subtracted these drift signals in our LabVIEW software.
Result
Preparation of chromatin fibers
The nucleosomal arrays and chromatin fibers used for the single-molecule magnetic tweezers investigation were reconstituted in vitro by purified histones and DNA template (Fig. 2A, B). The DNA template containing 24 tandem repeats of 177-bp Widom 601 nucleosome positioning sequence (24 × 177 bp) was labeled with either biotin or digoxigenin at the two ends. In the absence of linker histone, the nucleosomal arrays reconstituted on the 24 × 177 bp DNA templates adopted an extended beads-on-a-string conformation, as shown by EM analysis (Fig. 2C). In the presence of H1, the arrays were further condensed into compact chromatin fibers (Fig. 2D).
The chromatin fiber labeled with either biotin or digoxigenin at the two ends was attached to the modified magnetic tweezers. To avoid non-specific binding of chromatin fibers to the surface and magnetic beads, the flow cell requires passivation by incubating with PBS passivation buffer (10 mg/mL BSA, 1 mmol/L EDTA, 10 mmol/L PB, 10 mg/mL Pluronic F127 surfactant (Sigma-Aldrich), 3 mmol/L NaN3, pH 7.8) for 2 h (Fulconis et al. 2006; Koster et al. 2005). To tether the chromatin fiber to the surface of super paramagnetic beads (M280 Invitrogen Norway), the diluted chromatin fiber solution (~10 pmol/L) was first mixed with M280 beads for 30 min at room temperature on the Hula Mixer (ThermoFisher) at 1 turns/min. Secondly, passivation buffer in the flow cell was rinsed by HE buffer (10 mmol/L HEPES, 1 mmol/L EDTA) using a pump (500 μl/min). Thirdly, the mixture of chromatin fibers and magnetic beads was incubated in the flow cell for 10 min to anchor the other end of the chromatin fiber to the surface of the functionalized coverslip. At last, the unbound beads and chromatin fibers in the flow cell were subsequently washed out with 500 μl HE buffer.
To identify the beads that only bind with single chromatin fiber, we pull the beads with a relatively large force (2–3 pN) and rotate the permanent magnets ~50 turns. If the bead binds more than one chromatin fiber, the chromatin fibers would be braided and the distance of the bead to surface would decrease. On the other hand, the beads that only bind single chromatin fiber have no changes in distance to surface, which could be tracked in further stretching experiments.
Tracking the magnetic beads in three-dimensions
In stretching experiments, the extension of chromatin fibers is determined by tracking the three-dimensional (3D) position of the magnetic beads. The positions of a magnetic bead in the horizontal direction (X, Y) can be determined by calculating the center of its diffraction pattern. A common bead tracking method is one-dimensional (1D) cross-correlation algorithm (Gosse and Croquette 2002), but the accuracy is relatively low. Our magnetic tweezers use the quadrant interpolation algorithm developed by Cees Dekker (van Loenhout et al. 2012), which is an improved version of conventional 1D cross-correlation algorithm. In brief, we calculate the estimated center (X0, Y0) of a bead using a center-of-mass computation, which is shown as follow:
where i and j are pixel subscripts of extracted bead image and Iij represents the light intensity of the jth pixel point of the ith line. Based on the estimated center, the image is divided into four quadrants to sample radial profiles at polar coordinates, respectively. When calculating the X position of a bead, the sum of right radial profiles is concatenated with the left profiles, thus creating an intensity profile Ix(r) along the x direction. Ix(r) is cross-correlated with its mirror profile Ix(−r):
where FFT is fast Fourier transform and IFFT is inverse fast Fourier transform, Cxx is resulting cross correlative curve. The X position of bead can be derived from the peak position dr of resulting cross correlative curve Cxx as follow:
where X0 is X coordinate of estimated center, π is circumference rate. By creating the intensity profile along the Y direction, we could calculate the Y position accordingly.

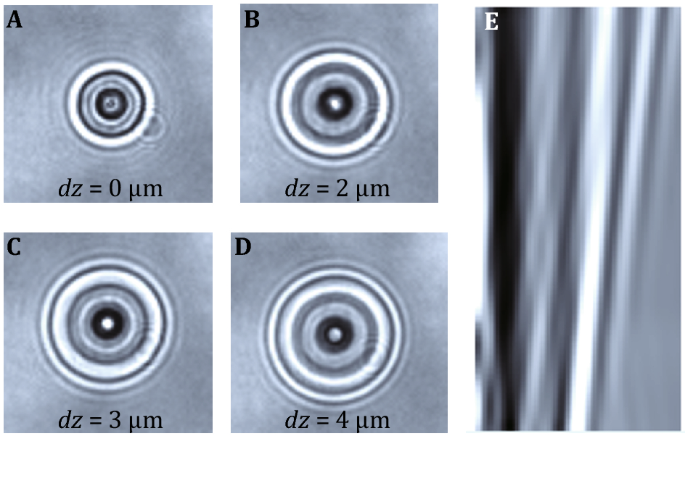

Tracking the bead position in vertical direction (z direction) requires a prerequisite calibration that building a relationship between defocused distance and diffraction pattern of beads (Gosse and Croquette 2002). Firstly, by moving magnets toward flow cell, a relatively large force (~2–3 pN) is applied on beads to reduce the fluctuation of beads. Then the inversed objective is moving at ~100 nm step size, while the CCD is recording the diffraction pattern at every step (Fig. 3A–D). The relationship between diffraction patterns and defocused distance can create a two-dimensional (2D) look-up table (LUT) through bi-linear interpolation (Fig. 3E). To determine the Z position of a given image, the χ2 value of the radial profile I(r) with LUT is calculated:
Thus, the minimum χ2 corresponds to the Z position of the image.
Calculation of applied force
To calculate force applied on samples, a common used method is treating the bead–chromatin system as an inversed pendulum with small displacements in the vicinity equilibrium position (Klaue and Seidel 2009; Strick et al. 1998). In this model, the magnetic bead is attached to a rigid rod with length l, and the force Fmag exerts on it. When the pendulum has a small displacement a, restoring force is giving by \(F_{a} = - \frac{{F_{\text{mag}} }}{l} \times a.\) This equation is equivalent to the rule of a Hookean spring with the spring constant \(k_{a} = \frac{{F_{\text{mag}} }}{l},\) according the equipartition theorem,
where kB is Boltzmann constant and T is temperature. Then we get the force Fmag:
where \(\langle a^{2} \rangle\) is the variance of bead in lateral fluctuation, and l is effective pendulum length, namely the sum of radius of bead and extension of chromatin fiber. Therefore, the applied force can be determined from the lateral fluctuation of the bead (Fig. 4A, B). However, in practice, at forces greater than ~10 pN, the measurement of \(\langle a^{2} \rangle\) in real space appears systematic error because of the finite camera acquisition frequency. Therefore, power spectral density (PSD) analysis is typically used to analyze the in-plane fluctuations.
Considering the viscous drag coefficient γa, the PSD can be expressed:
where f is the frequency and \(f_{\text{c}} = \frac{{k_{a} }}{{2\pi \gamma_{a} }}\) is characteristic cutoff frequency. Due to the limiting of acquisition frequency of camera fs, low-pass filtering and aliasing should be considered (Klaue and Seidel 2009; Lansdorp and Saleh 2012; te Velthuis et al. 2010) as follows,
where τe is the exposure time of the camera. This formula can be used to fit the PSD, obtaining the ka, then the Fmag. In our experiment, we used an improved PSD fitting method developed by Ralf Seidel, which takes into account the exposure time, direction of magnet field and rotation of bead (Daldrop et al. 2015).
To calibrate the force derived from our magnetic tweezers, we stretched a dsDNA with a length of 10 kb, then we derived the applied force from lateral fluctuation of beads and fitted with an extensible WLC model (Odijk 1995):
where z and L are extension and the contour length of molecule, LP is persistence length that characterize the rigidity of molecule, and S is stretch modulus of the molecule. As shown in Fig. 4C, our experiment result agrees well with the WLC model, indicating a good performance of our magnetic tweezers.
Structural dynamics of chromatin fibers revealed by magnetic tweezers
Using our improved magnetic tweezers, we investigated the hierarchical organization and structural dynamics of chromatin fibers reconstituted in vitro in the presence of H1 (Fig. 5A), whose 3D Cryo-EM structures have been resolved recently (Li et al. 2016c; Song et al. 2014). To trace the structural transition, we applied a continuously increasing force on a single chromatin fiber by moving the magnets in z direction at 2 μm/s. The force–extension curve of a chromatin fiber containing H1 is shown by the blue curve, with that of a nucleosomal array without H1 for comparison (Fig. 5B). At force above 5 pN, similar stepwise unfolding events were observed for both extended nucleosomal arrays and compacted chromatin fibers, which correspond to the rupture states of nucleosomes in the chromatin fiber (Bintu et al. 2012; Brower-Toland et al. 2002; Hall et al. 2009). At low-force region (<5 pN), the curve of the chromatin fiber begins to deviate from that of the nucleosomal array at ~1 pN, and a distinct force plateau spanning a range of ~100 nm near 3 pN is clearly identified (Fig. 5B). The structural transition near 3 pN should be attributed to the disruption of nucleosome–nucleosome interactions in the higher-order chromatins, as the nucleosomes remain intact at such low forces.
In order to gain more insights into the nature of structural transition near 3 pN, we performed the force-clamp measurements of chromatin fibers. Interestingly, a reversible folding and unfolding dynamical behavior was observed at 3.5 pN (Fig. 5C), with the obvious transition step size of ~20 nm. The details of the folding and unfolding dynamics of chromatin fiber at 3.5 pN indicate that the structure transition with step of 20 nm is always accomplished within two steps, which corresponds to the two-step disruption of tetra-nucleosome structural unit (Fig. 5D). Importantly, similar dynamic processes can be observed in the chromatin fibers assembled not only on regular tandem repeat of 601 DNA sequence but also on the scrambled (non-repetitive) DNA sequence, suggesting that the existence of tetra-nucleosome units is not dependent on DNA sequence. By using the modified single-molecule magnetic tweezers method, we show that the tetra-nucleosome unit exists as a stable structural intermediate of the 30-nm chromatin fiber and further unfolds to a more extended “beads-on-a-string” conformation by disrupting the nucleosome–nucleosome interactions within tetranucleosomal unit (Fig. 5E) (Li et al. 2016b).
Discussion
In eukaryotic gene activation, the compact chromatin fibers must unfold for transcription and other DNA-related biological processes. Chromatin dynamics is critical to regulate the accessibility of transcription factors via dynamic transitions between the compact chromatin fiber and the more accessible nucleosomal array in vivo (Li et al. 2010; Li and Reinberg 2011). Therefore, it is of great importance to study how the dynamic organization of the chromatin fiber is regulated. However, there are various technical challenges to probe the detailed structure and the dynamics of chromatin fiber using traditional biochemical assays (Vilfan et al. 2009). For example, static conformations obtained by Cryo-EM structural study in vitro cannot provide much detailed information for dynamic processes. As a single-molecule method, magnetic tweezers is a powerful tool to study the dynamic organization of chromatin fibers by tracing the real-time folding and unfolding of single chromatin fiber (Bintu et al. 2012; Brower-Toland et al. 2002; Hall et al. 2009; Kruithof et al. 2009; Meng et al. 2015; Yan et al. 2007).
In this paper, we present a platform for dissecting dynamics of chromatin fibers using single-molecule magnetic tweezers. With more advanced tracking algorithms and higher resolution, we can observe the unfolding details of chromatin fibers and monitor the folding dynamics of chromatin fibers by careful tension adjustment. With magnetic tweezers, we have revealed that tetra-nucleosome unit exists as a stable structural intermediate during the formation of 30-nm chromatin fiber. These results are the complement of traditional biochemical experiments and high-resolution static imaging techniques such as EM, depicting the dynamics of single chromatin fiber, and providing a new perspective for understanding the dynamic organization of chromatin fibers and its regulation by chromatin factors.
Magnetic tweezers are widely used in the study of biological macromolecules because of their simple principle, low cost, high parallelism and single-molecule tracking. In addition to studying the mechanical properties of DNA and its higher-order structures, magnetic tweezers can also be used to study the folding kinetics of various proteins, such as actin (Yuan et al. 2017) and trans-membrane proteins (Min et al. 2015). The constant force measurement, which is easy to be realized by magnetic tweezers, is also suitable for studying the working mechanism of DNA-related enzymes, such as condensin (Eeftens et al. 2017), helicase (Li et al. 2016a; Seol et al. 2016), and polymerase (Maier et al. 2000).
In the last 20 years, the technology and analytical theory of magnetic tweezers have been continuously improved. According to the needs of experiments, a series of improvements on magnetic tweezers have been made. For example, Yan Jie’s group developed the transverse magnetic tweezers, which can greatly improve the force applied by the magnetic beads (Yan et al. 2004). They also developed a non-disturbing buffer exchange technology to replace the buffer environment in the measurement process (Le et al. 2015). In order to improve the resolution of magnetic tweezers, Ralf Seidel et al. used CMOS camera with ultra-high sampling rate and image processing technology base on GPU, improving the resolution of magnetic tweezers to angstrom level (Huhle et al. 2015). On the other hand, Terence R. Strick et al. used single-molecule FRET technology to combine with magnetic tweezers (Graves et al. 2015), which not only can improve the resolution of length change, but also can be used to reveal whether the protein falls off in the process of a structural transformation. Further development of these technologies may provide new platform to solve the hard questions in life science.
References
Abbondanzieri EA, Greenleaf WJ, Shaevitz JW, Landick R, Block SM (2005) Direct observation of base-pair stepping by RNA polymerase. Nature 438:460–465
Bickmore WA, van Steensel B (2013) Genome architecture: domain organization of interphase chromosomes. Cell 152:1270–1284
Bintu L, Ishibashi T, Dangkulwanich M, Wu Y-Y, Lubkowska L, Kashlev M, Bustamante C (2012) Nucleosomal elements that control the topography of the barrier to transcription. Cell 151:738–749
Brower-Toland BD, Smith CL, Yeh RC, Lis JT, Peterson CL, Wang MD (2002) Mechanical disruption of individual nucleosomes reveals a reversible multistage release of DNA. Proc Natl Acad Sci USA 99:1960
Chen P, Zhao J, Wang Y, Wang M, Long H, Liang D, Huang L, Wen Z, Li W, Li X, Feng H, Zhao H, Zhu P, Li M, Wang QF, Li G (2013) H3.3 actively marks enhancers and primes gene transcription via opening higher-ordered chromatin. Genes Dev 27:2109–2124
Chen Y, Tokuda JM, Topping T, Meisburger SP, Pabit SA, Gloss LM, Pollack L (2016) Asymmetric unwrapping of nucleosomal DNA propagates asymmetric opening and dissociation of the histone core. Proc Natl Acad Sci USA. https://doi.org/10.1073/pnas.1611118114
Cnossen JP, Dulin D, Dekker NH (2014) An optimized software framework for real-time, high-throughput tracking of spherical beads. Rev Sci Instrum. https://doi.org/10.1063/1.4898178
Daldrop P, Brutzer H, Huhle A, Kauert DJ, Seidel R (2015) Extending the range for force calibration in magnetic tweezers. Biophys J 108:2550–2561
Dammer U, Hegner M, Anselmetti D, Wagner P, Dreier M, Huber W, Güntherodt HJ (1996) Specific antigen/antibody interactions measured by force microscopy. Biophys J 70:2437–2441
Dyer PN, Edayathumangalam RS, White CL, Bao Y, Chakravarthy S, Muthurajan UM, Luger K (2004) Reconstitution of nucleosome core particles from recombinant histones and DNA. Methods Enzymol 375:23–44
Eeftens JM, Bisht S, Kerssemakers J, Kschonsak M, Haering CH, Dekker C (2017) Real-time detection of condensin-driven DNA compaction reveals a multistep binding mechanism. EMBO J. https://doi.org/10.15252/embj.201797596
Fierz B, Chatterjee C, McGinty RK, Bar-Dagan M, Raleigh DP, Muir TW (2011) Histone H2B ubiquitylation disrupts local and higher-order chromatin compaction. Nat Chem Biol 7:113–119
Fleming AB, Kao C-F, Hillyer C, Pikaart M, Osley M (2008) H2B ubiquitylation plays a role in nucleosome dynamics during transcription elongation. Mol Cell 31:57–66
Fulconis R, Mine J, Bancaud A, Dutreix M, Viovy J-L (2006) Mechanism of RecA-mediated homologous recombination revisited by single molecule nanomanipulation. EMBO J 25:4293–4304
Georgel PT, Horowitz-Scherer RA, Adkins N, Woodcock CL, Wade PA, Hansen JC (2003) Chromatin compaction by human MeCP2. Assembly of novel secondary chromatin structures in the absence of DNA methylation. J Biol Chem 278:32181–32188
Gosse C, Croquette V (2002) Magnetic tweezers: micromanipulation and force measurement at the molecular level. Biophys J 82:3314–3329
Graves ET, Duboc C, Fan J, Stransky F, Leroux-Coyau M, Strick TR (2015) A dynamic DNA–repair complex observed by correlative single-molecule nanomanipulation and fluorescence. Nat Struct Mol Biol 22:452–457
Hall MA, Shundrovsky A, Bai L, Fulbright RM, Lis JT, Wang MD (2009) High-resolution dynamic mapping of histone–DNA interactions in a nucleosome. Nat Struct Mol Biol 16:124
Huhle A, Klaue D, Brutzer H, Daldrop P, Joo S, Otto O, Keyser UF, Seidel R (2015) Camera-based three-dimensional real-time particle tracking at kHz rates and Ångström accuracy. Nat Commun 6:5885
Klaue D, Seidel R (2009) Torsional stiffness of single superparamagnetic microspheres in an external magnetic field. Phys Rev Lett 102:028302
Koster DA, Croquette V, Dekker C, Shuman S, Dekker NH (2005) Friction and torque govern the relaxation of DNA supercoils by eukaryotic topoisomerase IB. Nature 434:671
Kruithof M, Chien F-T, Routh A, Logie C, Rhodes D, van Noort J (2009) Single-molecule force spectroscopy reveals a highly compliant helical folding for the 30-nm chromatin fiber. Nat Struct Mol Biol 16:534
Lansdorp BM, Saleh OA (2012) Power spectrum and Allan variance methods for calibrating single-molecule video-tracking instruments. Rev Sci Instrum 83:025115
Le S, Yao M, Chen J, Efremov AK, Azimi S, Yan J (2015) Disturbance-free rapid solution exchange for magnetic tweezers single-molecule studies. Nucleic Acids Res. https://doi.org/10.1093/nar/gkv554
Lee GU, Kidwell DA, Colton RJ (1994) Sensing discrete streptavidin–biotin interactions with atomic force microscopy. Langmuir 10:354–357
Li G, Reinberg D (2011) Chromatin higher-order structures and gene regulation. Curr Opin Genet Dev 21:175–186
Li G, Margueron R, Hu G, Stokes D, Wang Y-H, Reinberg D (2010) Highly compacted chromatin formed in vitro reflects the dynamics of transcription activation in vivo. Mol Cell 38:41–53
Li JH, Lin WX, Zhang B, Nong DG, Ju HP, Ma JB, Xu CH, Ye FF, Xi XG, Li M, Lu Y, Dou SX (2016a) Pif1 is a force-regulated helicase. Nucleic Acids Res. https://doi.org/10.1093/nar/gkw295
Li W, Chen P, Yu J, Dong L, Liang D, Feng J, Yan J, Wang P-YY, Li Q, Zhang Z, Li M, Li G (2016b) FACT remodels the tetranucleosomal unit of chromatin fibers for gene transcription. Mol Cell 64:120–133
Li X, Liu H, Cheng L (2016c) Symmetry-mismatch reconstruction of genomes and associated proteins within icosahedral viruses using cryo-EM. Biophys Rep 2:25–32
Luger K, Mäder AW, Richmond RK, Sargent DF, Richmond TJ (1997) Crystal structure of the nucleosome core particle at 2.8 Å resolution. Nature 389:251–260
Mahamdeh M, Schäffer E (2009) Optical tweezers with millikelvin precision of temperature-controlled objectives and base-pair resolution. Opt Express 17:17190–17199
Maier B, Bensimon D, Croquette V (2000) Replication by a single DNA polymerase of a stretched single-stranded DNA. Proc Natl Acad Sci USA 97:12002–12007
Meng H, Andresen K, van Noort J (2015) Quantitative analysis of single-molecule force spectroscopy on folded chromatin fibers. Nucleic Acids Res 43:3578–3590
Merkel R, Nassoy P, Leung A, Ritchie K, Evans E (1999) Energy landscapes of receptor–ligand bonds explored with dynamic force spectroscopy. Nature 397:50
Min D, Jefferson RE, Bowie JU, Yoon T-YY (2015) Mapping the energy landscape for second-stage folding of a single membrane protein. Nat Chem Biol. https://doi.org/10.1038/nchembio.1939
Moy VT, Florin EL, Gaub HE (1994) Intermolecular forces and energies between ligands and receptors. Science 266:257
Neuman KC, Block SM (2004) Optical trapping. Rev Sci Instrum 75:2787–2809
Ngo TTM, Ha T (2015) Nucleosomes undergo slow spontaneous gaping. Nucleic Acids Res. https://doi.org/10.1093/nar/gkv276
Odijk T (1995) Stiff chains and filaments under tension. Macromolecules 28:7016–7018
Pavri R, Zhu B, Li G, Trojer P, Mandal S, Shilatifard A, Reinberg D (2006) Histone H2B monoubiquitination functions cooperatively with FACT to regulate elongation by RNA polymerase II. Cell 125:703–717
Pincet F, Husson J (2005) The solution to the streptavidin–biotin paradox: the influence of history on the strength of single molecular bonds. Biophys J 89:4374–4381
Piontek MC, Roos WH (2018) Atomic force microscopy: an introduction. Methods Mol Biol (Clifton NJ) 1665:243–258
Richmond TJ, Davey CA (2003) The structure of DNA in the nucleosome core. Nature 423:145–150
Seol Y, Strub M-PP, Neuman KC (2016) Single molecule measurements of DNA helicase activity with magnetic tweezers and t-test based step-finding analysis. Methods (S Diego Calif) 105:119–127
Simpson NB, McGloin D, Dholakia K, Allen L, Padgett MJ (1998) Optical tweezers with increased axial trapping efficiency. J Mod Opt 45:1943–1949
Song F, Chen P, Sun D, Wang M, Dong L, Liang D, Xu R-MM, Zhu P, Li G (2014) Cryo-EM study of the chromatin fiber reveals a double helix twisted by tetranucleosomal units. Science (NY NY) 344:376–380
Strick TR, Croquette V, Bensimon D (1998) Homologous pairing in stretched supercoiled DNA. Proc Natl Acad Sci USA 95:10579–10583
te Velthuis AJW, Kerssemakers JWJ, Lipfert J, Dekker NH (2010) Quantitative guidelines for force calibration through spectral analysis of magnetic tweezers data. Biophys J 99:1292–1302
van Loenhout MT, Kerssemakers JW, De Vlaminck I, Dekker C (2012) Non-bias-limited tracking of spherical particles, enabling nanometer resolution at low magnification. Biophys J 102:2362–2371
Vilfan ID, Lipfert J, Koster DA, Lemay SG, Dekker NH (2009) Magnetic tweezers for single-molecule experiments. In: Hinterdorfer P, Oijen A (eds) Handbook of single-molecule biophysics. Springer, New York, pp 371–395
Yan J, Skoko D, Marko JF (2004) Near-field-magnetic-tweezer manipulation of single DNA molecules. Phys Rev E 70:011905
Yan J, Maresca TJ, Skoko D, Adams CD, Xiao B, Christensen MO, Heald R, Marko JF (2007) Micromanipulation studies of chromatin fibers in Xenopus egg extracts reveal ATP-dependent chromatin assembly dynamics. Mol Biol Cell 18:464–474
Yuan G, Le S, Yao M, Qian H, Zhou X, Yan J, Chen H (2017) Elasticity of the transition state leading to an unexpected mechanical stabilization of titin immunoglobulin domains. Angew Chem Int Ed 56:5490–5493
Zentner GE, Henikoff S (2013) Regulation of nucleosome dynamics by histone modifications. Nat Struct Mol Biol 20:259–266
