FormalPara Key Summary Points

Prone position improves mortality in patients with acute respiratory distress syndrome (ARDS), though its role in the treatment in critically ill COVID-19 patients remains to be determined.

Prone position has been increasingly used in non-intubated patients with COVID-19, and studies show high tolerance and improvement in oxygenation and lung recruitment.

Published COVID-19 studies describing the use of prone position lacked a description of important clinical outcomes (e.g., mortality, duration of mechanical ventilation).

A trial of prone position should be considered for non-intubated COVID-19 patients with hypoxemic respiratory failure, as long as this does not result in a delay in intubation.

Digital Features

This article is published with digital features, including [list digital features available e.g. a summary slide and video abstract], to facilitate understanding of the article. To view digital features for this article go to https://doi.org/10.6084/m9.figshare.13007978.

Introduction

The coronavirus disease of 2019 (COVID-19) has infected almost 29 million people worldwide, with more than 900,000 deaths (case fatality rate of 3.2%) [1]. Case fatality rates of approximately 50% have been reported among critically ill patients [2]. A significant proportion of patients admitted to the intensive care unit (ICU) had severe hypoxemic respiratory failure requiring mechanical ventilation (MV) [3, 4]. Encouraging data demonstrate that the use of steroids is associated with a reduction in mortality in COVID-19 patients requiring respiratory support [5, 6]. However, supportive care with MV remains the cornerstone of intensive care management in these patients [7, 8]. One of the main adjunctive strategies in patients with acute respiratory distress syndrome (ARDS) who require MV is prone position. Given the benefits of prone position in moderate to severe ARDS [9], the Surviving Sepsis Campaign and World Health Organization (WHO) guidelines [10, 11] recommend prone position for 12–16 h a day for adults and children with severe COVID-19 ARDS.

The main aims of this narrative review are to (1) describe the mechanisms of action and summarize the current evidence for prone position in severe respiratory failure, in particular ARDS; (2) systematically review the current collective experience regarding prone position in critically ill COVID-19 patients; and (3) highlight unique considerations for prone position practices during the COVID-19 pandemic.

Mechanism of Action and Benefit of Prone Position

In ARDS, prone position improves oxygenation through changes in the distribution of alveolar ventilation and blood flow, improved matching of local ventilation and perfusion, and reduction in regions of low ventilation/perfusion ratios (Fig. 1) [12,13,14]. In addition, prone position may reduce the risk of ventilator-induced lung injury (VILI) and promote the complementary benefits of high positive end expiratory pressure (PEEP) [15, 16]. Prone position leads to a decrease in barotrauma and atelectrauma via a few mechanisms: reduction in hyperinflation; mitigation of overdistension of well-ventilated alveoli during the use of PEEP; and reduction in regional shear strain from cyclical opening and closing of small airways [15, 16]. Some advantages of prone position compared with the supine position are shown in Table 1.

Fig. 1
figure 1

Schematic showing the changes in ventilation and perfusion in supine and prone positions. In the supine position, alveoli at the dependent dorsal region are collapsed (flattened ovals) resulting in decreased ventilation due to the compressive forces exerted by the ventral region lung tissues as well as the increased (thicker blue arrows) intra-abdominal pressure transmitted to the diaphragm. Greater pulmonary blood flow (thicker red arrow) and decreased ventilation at the dorsal region led to greater ventilation/perfusion mismatch. In the prone position, without the weight of the compressive forces of the ventral region and decreased intra-abdominal pressure (thinner blue arrows), alveoli at the now non-dependent dorsal region are recruited (bigger circles) and coupled with greater pulmonary blood flow (thicker red arrow) at the dorsal region, there is now better ventilation/perfusion matching thereby resulting in better oxygenation

Full size image
Table 1 Advantages and disadvantages of prone position
Full size table

Early trials [17, 18] showed no mortality benefit with the use of prone position in adults with ARDS but provided valuable information for the targeted application of prone position. This culminated in a landmark PROSEVA randomized controlled trial (RCT) [19], which showed a reduction in 28-day mortality in patient with severe ARDS treated with prone position and lung protective ventilation strategies [16% (38/237) vs. 33% (75/229) in the prone and supine groups, respectively (P < 0.001)]. Following this, three meta-analyses showed a reduction in mortality with the use of prone position [20] particularly in those with early implementation [21], prolonged adaption of at least 12 h [13, 21] and in patients with severe hypoxemia [21] or moderate to severe ARDS [13]. These studies have resulted in a strong recommendation [9] for prone position for more than 12 h per day for adults with severe ARDS. These recommendations are currently echoed in World Health Organization (WHO) [11], Surviving Sepsis [10] guidelines and expert opinion [22] in the management of COVID-19 ARDS.

Systematic Review of Current Use of Prone Position in COVID-19 Patients

In this subsection, we examine the association between the use of prone position and clinical outcomes (e.g., mortality and duration of MV) and physiological changes (e.g., improvement in oxygenation, lung recruitability) that have been reported in patients with COVID-19.

Methods

Search Strategy and Selection Criteria

We included all studies of patients with COVID-19 who received respiratory support with high-flow nasal cannula (HFNC), noninvasive ventilation (NIV) or MV and reported the use of prone position and our primary outcome, mortality. We limited our search to January 1, 2020 (the day after the first cases were reported to WHO) to April 16, 2020. After the search was completed, we became aware of four relevant publications that were published in May and June 2020; these studies were reviewed for eligibility and inclusion. As the search was not repeated after April 16, 2020, we recognize that this may introduce selection bias. We did not use language restrictions, but we excluded articles which were unpublished, had not been peer reviewed, case reports and case series with fewer than 10 patients, expert guidance, commentaries, guidelines and protocols for management. We searched the following major medical databases (PubMed, Scopus and EMBASE) with the following keywords: “SARS-CoV-2” OR “SARS-CoV2” OR “SARSCoV-2” OR “SARSCov2” OR “Coronavirus disease 2019” OR “Novel coronavirus” OR “Novel coronavirus 2019” OR “2019 nCoV” OR “COVID-19” OR “Wuhan coronavirus” OR “Wuhan pneumonia” OR “2019-nCoV” OR “COVID-19” OR “covid19” OR “covid 19”. We used text keywords rather than MeSH and Emtree terms as the indexing of the varied terms to COVID-19 was still in progress at the time. Two authors independently reviewed all abstracts and at least one author reviewed the full text for inclusion. Any disagreements were resolved by consensus with a third reviewer. Articles were selected for full-text review if the abstract contained keywords such as “critically ill”, “intensive care”, “respiratory support” “high flow nasal cannula” “non-invasive ventilation” and “mechanical ventilation”. Covidence Systematic Review Software, Veritas Health Innovation, Melbourne, Australia, was used to identify and remove duplicates (available at http://www.covidence.org). This article is based on previously conducted studies and does not contain any studies with human participants or animals performed by any of the authors.

Data Analysis

At least one of the authors reviewed the full text of eligible articles and extracted data on study design, patient characteristics [e.g., age, number of females, PaO2/FiO2 ratio, oxygenation index (OI), oxygen saturation index (OSI), clinical severity scores including Sequential Organ Failure Assessment (SOFA) and Acute Physiology And Chronic Health Evaluation II (APACHE II) score], interventions (respiratory support, FiO2, ventilator parameters, use of prone position, duration and timing of prone position, extracorporeal membrane oxygenation (ECMO), outcomes (mortality, duration of MV) and adverse events associated with prone position. A priori, provided there were sufficient studies, we planned to perform a meta-analysis to assess the association of prone positioning with improvement in PaO2/FiO2 ratio, duration of MV and mortality.

Results

We retrieved 8675 references (Fig. 2), of which 4236 were duplicates. We identified seven articles [23,24,25,26,27,28,29,30] describing prone position in COVID-19 patients receiving respiratory support with HFNC, NIV or MV (Table 1). Six of seven studies were observational [23,24,25,26,27,28,29], and one was a prospective feasibility study [30]. Six studies [23, 24, 26, 28,29,30] included only adult patients, and five were single-center studies [23, 26, 28,29,30]. Three studies included ICU patients alone [23, 26, 27], three included only non-intubated patients outside the ICU setting [28,29,30] and one study included both ICU and non-ICU patients [24]. Six of seven studies involved a small number of adult patients [23, 24, 26, 28,29,30] (Table 1). Only one study [27] included a large cohort of 1591 patients and included adult and pediatric patients. The included studies were clinically heterogenous, and there was a paucity of description of clinical outcomes in relation to prone position, precluding us from performing a meta-analysis and providing a pooled effect estimate of the impact of the prone position on clinically important outcomes.

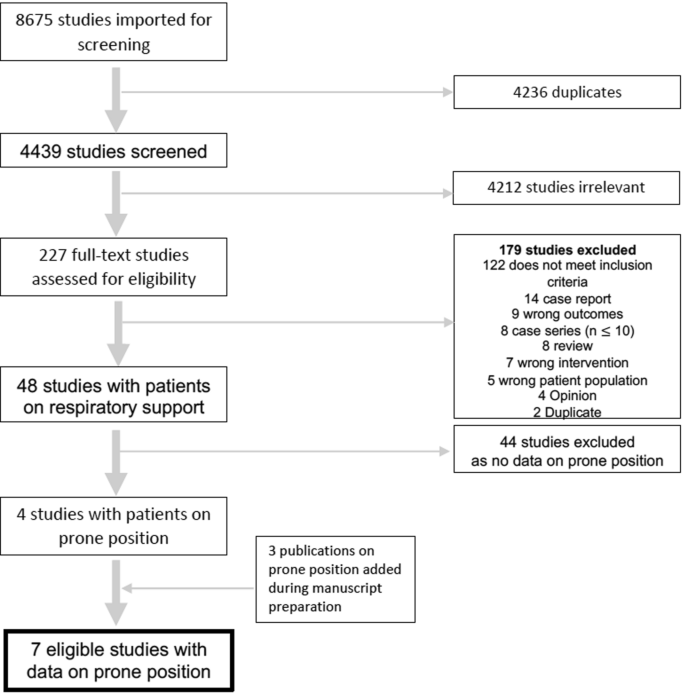

Fig. 2
figure 2

Study selection for systematic review of the prone position in COVID-19 patients

Full size image

Outcomes

Three of seven studies [28,29,30] reported on the tolerability of prone position in awake non-intubated patients, all reporting high tolerance (63–83.9%).

Three studies reported changes in oxygenation with prone position [28,29,30]. In a single center study of 24 awake non-intubated patients with hypoxemic acute respiratory failure [28], 6/24 (25%) patients showed greater than 20% increase in PaO2 (compared with baseline) during prone position. Similarly, in a study of 15 patients with poor response to NIV (PEEP 10 cm H2O and FiO2 of 0.6) all patients showed improvement in SpO2 and PaO2/FiO2 (P < 0.001) with prone position [29]. In a third study of 56 patients on oxygen supplementation or continuous positive airway pressure support, oxygenation substantially improved from supine to prone position (PaO2/FiO2 ratio 180.5 mmHg [SD 76.6] vs. 285.5 mmHg [112.9] in supine and prone positions, respectively; P < 0.0001) [30]. In two studies, improvement in oxygenation was maintained after resupination in half of those who showed improvement with prone position [28, 30] although this change was not significant when compared with oxygenation prior to prone position.

In the one study which assessed lung recruitment, there was an improvement in recruitability in the prone compared with supine position [26]. In 12 mechanically ventilated patients, prone position performed over periods of 24 h when PaO2/FiO2 was persistently lower than 150 mmHg resulted in higher proportion of patients that achieved lung recruitment (13/36 vs. 1/17 in the prone and non-prone groups, respectively, P = 0.02) [26]. The investigators also reported an increase in PaO2/FiO2 ratio though this was not statistically significant (182 ± 140 in prone vs. 120 ± 61 in supine).

Two studies did not report clinical characteristics and outcomes of patients treated specifically with prone position [23, 27]. Only four of seven studies [25, 26, 29, 30] reported mortality in patients treated with prone position. Reported mortality rates ranged from 6.7% to 100% [25, 26, 29, 30]. However, these studies which reported mortality lacked control groups and did not adjust for clinically significant patient characteristics or severity of illness. One study reported no difference in the subsequent need for intubation in patients who responded to prone position compared with those who did not [30]. None of the studies examined prone position with duration of MV. No serious adverse events were reported in any of the included studies [23, 25,26,27,28,29,30].

Discussion

Increasing Use of Prone Position in Awake Non-Intubated Patients

There is an increasing use of prone position in non-intubated patients with and without COVID-19. COVID-19 patients are often treated with NIV or HFNC as the initial modality for respiratory support [23, 31]. The benefits of prone position should theoretically apply to spontaneously breathing, non-intubated patients, with improvement in oxygenation while delaying or even avoiding the need for intubation. Collective evidence and the physiological basis of the prone position in ARDS have encouraged several ICUs to incorporate prone position into their management of non-intubated COVID-19 patients [10, 32]. Indeed, we became aware of four studies that were published after completion of our search that described the use of the prone position in non-intubated COVID-19 patients [28,29,30, 33]. Three of these studies met our inclusion criteria and were included in our systematic review [28,29,30]. The fourth study did not fit the inclusion criteria of our review as patients were on low-flow or non-rebreather mask oxygen therapy alone [33]. In this latter study, 19/25 (76%) patients responded to prone position with improvement in SpO2 > 95% within 1 h [33]. Additionally, patients who showed improvement in SpO2 > 95% with the prone position, showed a lower intubation rate of 37% (n = 7), compared with 83% (n = 5) in those whose SpO2 remained < 95% 1 h after prone position (mean difference in intubation rate was 46%; 95% CI 10–88%) [33].

Studies conducted in non-COVID-19 patients with acute respiratory failure showed similarly promising results, although the effect on important clinical outcomes such as mortality and ventilator-free days remain unexplored [34,35,36]. A retrospective study [34] comparing oxygenation (PaO2/FiO2) pre-, during, and post (6–8 h)-prone position in 15 non-intubated adult patients with non-COVID-19-associated hypoxemic acute respiratory failure showed that oxygenation was significantly higher during prone position, with the same PEEP and FiO2 throughout the duration of the prone position (PaO2/FiO2 124 ± 50 mmHg, 187 ± 72 mmHg, and 140 ± 61 mmHg, during pre-, prone, and post steps, respectively, P < 0.001). However, the oxygenation improvement did not persist after return to the supine position, and this was postulated to be secondary to unstable recruitment of dorsal lung regions. The tolerance rate was high (41/43 prone position procedures, 95%), with no significant adverse effects. In a prospective observational study of 20 patients with non-COVID-19-associated moderate to severe ARDS [35], 11/20 (55%) patients avoided intubation when treated with a short duration of prone position (1.8 h ± 0.7, mean of 2.4 ± 1.5 times/day) combined with NIV and HFNC, compared with the expected intubation rate of 75% in patients with moderate to severe ARDS from prior published studies, although this reduction was not statistically significant and did not meet the predetermined threshold of 40% reduction set by the authors. Of this cohort, eight patients (73%) had moderate and three (27%) had severe ARDS, and the addition of prone position to HFNC and NIV resulted in an increase of 25–35 mmHg in PaO2/FiO2. A few case reports demonstrated similar findings of improved oxygenation in non-intubated patients post-lung transplantation [36, 37].

Adverse effects such as pressure sores and tube obstruction associated with prone position in ventilated patients [13, 38] were not seen in the aforementioned studies in non-intubated patients with the same level of hypoxemia. However, it is important to note that studies on non-intubated patients utilized a much shorter duration of prone position (median 3 h [34], at least 30 min [35]) than that recommended in patients with severe ARDS [9]. While collective prior studies suggest that prone position in non-intubated patients with acute respiratory failure can result in improved oxygenation and reduced need for MV, whether this strongly applies to non-intubated COVID-19 patients remains to be determined, as only four descriptive studies [28,29,30, 33] have been published to date, and further trials in non-intubated prone positioning in COVID-19 patients (NCT04383613, NCT04350723) are under way.

Choosing the Right Patient for Prone Position in COVID-19

Despite limited evidence for prone position in COVID-19, certain radiological features in this disease suggest that prone position may benefit these patients. Radiological features unique to COVID-19 include bilateral multifocal lung involvement with ground-glass opacities, with a predilection for peripheral or posterior lung fields [39] and vascular thickening [40, 41]. As the infection progresses, lung findings progress from unilateral multifocal opacities (in the subclinical stage), rapidly evolving to bilateral diffuse ground-glass opacities (in 1 week) followed by transition to a consolidative pattern by the second week of symptoms [42]. Maximal lung involvement on radiological imaging has been found to peak 10 days from onset of symptoms [43]. Given the predilection for posterior lung lobes and bilateral involvement in COVID-19 pneumonia, prone position may allow recruitment of the diseased posterior lobes and may be potentially beneficial in this viral pneumonia. However, it is important to keep in mind that COVID-19 ARDS presents as a spectrum of clinical phenotypes with varying degrees of lung infiltrates, lung recruitability and compliance, and hence heterogenous respiratory mechanics [44], with some patients more or less likely to respond to prone positioning.

Given this clinical heterogeneity, electrical impedance tomography (EIT), a noninvasive imaging tool that can assess lung recruitment in patients with ARDS, may be a useful technique to guide patient selection for the prone position. Studies on adult populations have shown efficacy of EIT as a bedside tool to evaluate regional ventilation and effectiveness of lung recruitment strategies [45, 46]. However, more research on respiratory mechanics, the utility of EIT and the effect of prone position in COVID-19 patients is needed before definitive management guidelines can be established.

Limitations and Alternatives to Prone Position

It is important to consider the feasibility and practicality of prone position, particularly given the resource constraints of the current pandemic. Absolute contraindications to prone position include unstable spinal or pelvic fractures, open chest or abdomen, central cannulation for extracorporeal membrane oxygenation (ECMO) or ventricular assist devices (Table 2). Relative contraindications include raised intracranial or intraocular pressure, uncontrolled seizures, recent cardiac arrhythmias, precarious central line or ECMO cannula, pregnancy in the second or third trimester, and hemodynamic instability or significant coagulopathy [47, 48]. Systematic reviews have demonstrated a higher incidence of pressure sores, tracheal tube obstruction and dislodgement of thoracostomy tubes with prone position [20, 21]. However, implementation by an experienced team with an adequate number of personnel [19] and the use of standardized protocols can minimize adverse events and occupational injuries to healthcare staff [19, 47, 49]. Additionally, many of the contraindications are unlikely in awake non-intubated patients who may be able to prone and then un-prone themselves either independently or with minimal assistance. Considering the evidence to date, we believe that it is worth investigating the therapeutic benefit of the prone position during the current pandemic, particularly when delivered in a standardized manner with appropriate patient selection and dedicated prone position teams.

Table 2 Included studies that described prone position in patients with COVID-19, clinical characteristics and outcomes of patients
Full size table

Anecdotally, “supine chest compression”, achieved by placing a 2-kg weight on bilateral chest walls with the patient in the supine position, was reported as an alternative to prone position in two adults with severe ARDS in whom prone position could not be performed: one patient with polytrauma and another with maxillofacial injury and head injury [50]. Both patients saw an improvement in PaO2/FiO2 within 6 hours of chest wall compression, without major adverse effects or serious complications. The authors postulated that the impediment of the more compliant ventral chest wall by the chest compression technique would result in redistribution of ventilation in favor of the highly perfused dorsal area, hence increasing the ventilation perfusion ratio, similar to the respiratory mechanics of the prone position.

There is an ongoing clinical trial evaluating the effects of supine chest compression on hemodynamics and respiratory parameters in patients with moderate to severe ARDS [51]. Although evidence is lacking to support its use, supine chest compression might be an interesting alternative to prone position, particularly during the COVID-19 pandemic, as it may not require dedicated manpower or an increase in the use of sedatives and paralysis, and has a potentially lower risk of adverse events such as ventilator disconnection or endotracheal-related events, which may in turn reduce the risk of nosocomial spread of infection. Future clinical studies are needed to evaluate the clinical benefits and adverse effects of supine chest compression in patients with ARDS and also in subgroups such as the pediatric population and COVID-19 patients.

Conclusion

Since the start of the pandemic, prone position has gained importance as an adjunctive treatment modality which may not only improve short-term outcomes but also lessen the burden on healthcare resources by improving oxygenation and hence reducing or delaying the need for intubation. However, our systematic review revealed that there was a paucity of rigorous data on the potential efficacy of the prone position in COVID-19 patients. As such, recommendations for utilizing prone position in COVID-19 patients has been extrapolated from previous ARDS studies. The preliminary collective experience seems to suggest that prone position is associated with improvement in lung recruitability [26] as well as improved oxygenation [28,29,30, 33]. No significant adverse events were reported with the prone position in any of the studies. However, the level of evidence remains low: studies in our review had small sample sizes, were observational in design, and had no comparator groups. As such, there remains a gap in the current evidence for the use of prone position in COVID-19 patients, particularly in non-intubated patients, as well as in relation to clinically significant outcomes such as the need for intubation, mortality and duration of MV. For now, in COVID-19 patients who require MV and meet the criteria for ARDS [52], we recommend the use of prone position as per the Surviving Sepsis Campaign and WHO guidelines [10, 11]. In addition, in our opinion, given the current evidence, a trial of prone position, with close monitoring of clinical parameters, oxygenation and tolerance should be considered for awake, non-intubated COVID-19 patients with hypoxemic respiratory failure, as long as they can be appropriately rescued with intubation and MV if this trial fails, as delay in intubation is in itself associated with increased mortality [53].

COVID-19 disease has resulted in significant and unprecedented demands on healthcare systems around the world. As healthcare systems adapt to the pandemic, it would be an opportune time to design and conduct both high-quality observational studies and RCTs that can elucidate the role of low-cost interventions such as prone positioning, in both intubated and non-intubated patients. At present there are at least 20 registered studies (https://clinicaltrials.gov) which aim to investigate the role of the prone position in COVID-19. An intervention such as this is especially important to investigate, as it is simple, does not require additional costly equipment, and has the potential to help resource-poor facilities to improve clinical outcomes and prevent mortality.
