International Aquatic Research

, Volume 9, Issue 1, pp 53–59 | Cite as

Locus-specific EPIC-PCR primers for four distinct calmodulin genes of the Pacific bluefin tuna Thunnus orientalis (Temminck & Schlegel, 1844)

  • Seinen Chow
  • Nobuaki Suzuki
  • Yoji Nakamura
  • Motoshige Yasuike
  • Kenji Saitoh
  • Takashi Yanagimoto
Open Access
Original Research


Nucleotide sequences of four distinct calmodulin genes (designated as CaM-A to -D) of the Pacific bluefin tuna (Thunnus orientalis) were compared. Nucleotide sequence divergence between the coding regions of four genes ranged from 16.0 to 21.6%, and locus-specific eight primer pairs targeting introns were designed. These primer pairs amplified expected size of fragments in five congeneric tuna species, and utility of these primer pairs was investigated using distant fish species.


Thunnus orientalis Four calmodulin genes Locus-specific primers Cross-species amplification DNA marker


The Pacific bluefin tuna (Thunnus orientalis) is one of the largest bony fish and most commercially valuable species. Because of the overexploitation and the declining stock status, this species has been listed as vulnerable by the IUCN. To date, polymorphic DNA markers developed and used for the Pacific bluefin tuna are microsatellite and mitochondrial DNA (Takagi et al. 1999; Nomura et al. 2014; Yagishita et al. 2014).

Introns rapidly accumulate mutations, which may be used as selectively neutral nuclear genetic marker complementing microsatellite and mitochondrial DNAs. Exon-primed intron-crossing (EPIC) PCR strategy employs conserved exon sequences to design universal primers (Lessa 1992). The efficiency of isolating a single copy of the target nuclear genome may be dependent on the number of paralogs and pseudogenes. Targeting highly conserved single copy of nuclear gene such as ribosomal protein gene has been successful to design universal primers applicable to wide variety of marine animals (Chow and Hazama 1998; Chow and Yanagimoto 2016). Calmodulin (CaM) is one of the most highly conserved molecules. Two to four distinct genes have been detected in vertebrates (Chien and Dawid 1984; Simmen et al. 1985; Nojima and Sokabe 1987; SenGupta et al. 1987; Nojima 1989; Koller et al. 1990; Matsuo et al. 1992; Rhyner et al. 1994; Friedberg and Rhoads 2002), and three to four distinct CaM-encoding cDNAs were reported in fish (Matsuo et al. 1992; Friedberg and Rhoads 2002). Despite considerable amount of nucleotide substitutions between distinct CaM genes, amino acid sequences of the metazoan CaMs are extremely conserved (Yuasa et al. 1999, 2001).

The draft genome sequence of the Pacific bluefin tuna has been reported (Nakamura et al. 2013), in which we detected four distinct CaM genes. In this study, we compared whole structure of these four tuna CaM genes and designed locus-specific primers for EPIC-PCR. We also investigated the utility of these primer pairs in other fish species.

Materials and methods

Fish samples used in this study were derived from our laboratory stock collected by scientific sampling. Matsuo et al. (1992) reported cDNAs of four CaM genes (CaM-A to -D) in medaka Oryzias latipes (DDBJ/EMBL/GenBank accession numbers D10363 to D10366). We used these sequences as in silico probes to detect similar sequences in the draft genome of the Pacific bluefin tuna ( BLAST searches (Altshul et al. 1990) using these probes were performed, and we detected four scaffolds (Ba00000990, Ba00001092, Ba00001784, and Ba00003491) and confirmed these to contain whole CaM genes. CaM gene sequence in one scaffold (Ba00000990) was complete, while partial intron sequences were not determined in the other three scaffolds (Ba00001092, Ba00001784 and Ba00003491). We designed oligo nucleotide primers at flanking regions of these undetermined sequences for PCR. PCR mixtures were preheated at 94 °C for 4 min, followed by 35 amplification cycles (94 °C for 30 s, 55 °C for 30 s, and 72 °C for 50 s), with a final extension at 72 °C for 7 min. PCR products were cloned using TOPO TA Cloning Kit (Invitrogen). Transformed colonies were subjected to colony direct PCR using M13 forward and M13 reverse primers, and PCR products were purified via ExoSAP-IT (GE Healthcare Life Sciences). Nucleotide sequencing reaction was performed using the BigDye Terminator Cycle Sequencing Kit Ver3.1 (Applied Biosystems) with the PCR primers and M13 forward and M13 reverse primers, and the nucleotide sequences were determined with an automated DNA sequencer (ABI PRISM 3730XL Genetic Analyzer) (Applied Biosystems).

Exon sequences of medaka and Pacific bluefin tuna determined were subjected to BLAST search in GenBank to find similar sequences of teleostei. Among sequences shown by BLATS search, those from distant fish taxa but common to medaka and Pacific bluefin tuna were selected. Three species and the sequences selected were barramundi Lates calcarifer (accession no. XM_018694615, XM_018694749, XM_018695169, XM_018702063), mummichog Fundulus heteroclitus (XM_012861547, XM_012862386, XM_012868907, XM_012877456), and mangrove killifish Kryptolebias marmoratus (XM_017404200, XM_017409196, XM_017424744, XM_017426177). Barramundi belongs to Perciformes, while mummichog and mangrove killifish belong to Cyprinodontiformes.

Alignment of exon sequences was performed using ClustalW algorithm implemented in MEGA6 (Tamura et al. 2013), and K2 + G + I was selected as the best fit model. Kimura 2-parameter distance (K2P) between the exon sequences was calculated and phylogenetic tree was constructed using MEGA6.


Nucleotide sequences of the four tuna CaM genes determined in the present study are available in DDBJ/EMBL/GenBank (LC183900 to LC183903). All these CaM genes are consisted of six exons and five introns. Exon sequences of these four genes were identical in length (450 bp), and K2P distances between the exon sequences ranged from 16.0 to 21.6%. All nucleotide substitutions among the sequences were silent. Phylogenetic tree constructed using exon sequence data of medaka, Pacific bluefin tuna, barramundi, mummichog and mangrove killifish is shown in Fig. 1. Four large clades appeared in the tree, and mean K2P ± S.E. within and between these clades ranged from 5.8 ± 0.9 to 13.4 ± 1.7% and from 16.7 ± 2.2 to 23.5 ± 3.0%, respectively. Four tuna CaM genes were designated as A to D according to the affinity with medaka CaM genes. Structures of four tuna CaM genes (A to D) are shown in Fig. 2, and introns of 300 to 1500 bp long were selected for EPIC-PCR (closed areas of horizontal bars). As the 1st exon was three bases long for all genes, the 1st introns were not included for the target. We designed eight locus-specific oligo-primer (20 nt) pairs based on the nucleotide substitutions between exon sequences of the Pacific bluefin tuna (Fig. 3, underlined), using which fish species shown in Table 1 were subjected to PCR amplification under abovementioned condition. Since the size of amplified fragments in all Thunnuns spp. used was the same, the Pacific bluefin tuna (2nd lane) was shown as a representative for all Thunnus spp. In tuna, a single fragment amplification was observed with seven primer pairs (Fig. 4a–c, e–h) and two fragments were observed in one primer pair (Fig. 4d), in which fragment size amplified by seven primer pairs (Fig. 4a–c, e–h) and longer fragment by one primer pair (Fig. 4d) matched well with those predicted from the sequence data (see Fig. 3). We cloned and sequenced the shorter fragment (c.a. 400 bp) amplified by CaM-C: ex3F × ex4R (Fig. 4d). This fragment (376 bp, accession no. LC157866) had a same primer sequence (Fig. 3, CaM-C: ex3F) at both 5′ and 3′ ends and no CaM-like sequence was observed, indicating non-specific amplification.

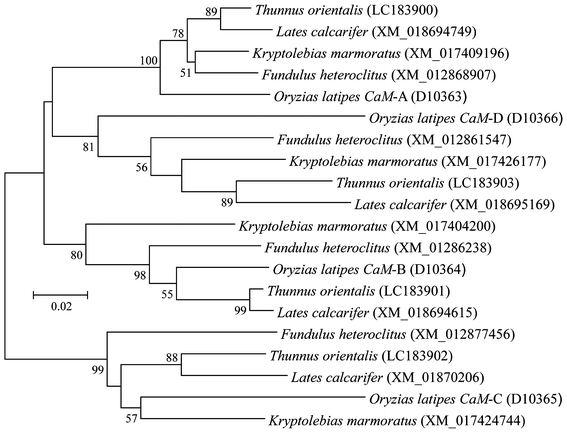

Fig. 1

Unrooted neighbor-joining phylogenetic tree (K2 + G + I) using exon sequences of distinct CaM genes of the Pacific bluefin tuna (Thunnus orientalis), medaka (Oryzias latipes), barramundi (Lates calcarifer), mummichog (Fundulus heteroclitus), and mangrove killifish (Kryptolebias marmoratus). Bootstrap values >50% (out of 1000 replicates) are shown at the nodes. Accession numbers are shown in the parenthesis. Essentially the same tree topology was obtained in maximum likelihood and maximum parsimony trees

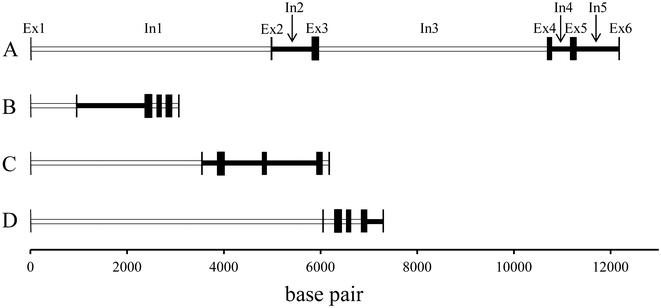

Fig. 2

Genomic structures of four CaM genes (A to D) of the Pacific bluefin tuna. Vertical bars represent exons (Ex), and horizontal bars are introns (In). Introns of 300 to 1500 bp long (black horizontal bars) are chosen as targets for exon-primed intron-crossing PCR

Fig. 3

Alignments of partial exon sequences of four CaM genes (A to D) of the Pacific bluefin tuna, flanking 2nd to 5th introns. Introns are shown by tilde, and number of nucleotides between primer and intron is presented in bracket. Identical nucleotides among genes (A to D) are indicated by asterisk, and nucleotide sequences adopted for designing primers are underlined. Predicted size (bp) of amplified fragment for the Pacific bluefin tuna

Table 1

Bony fish species used in this study


Common name


Catch locality (n: sample size)

Thunnus orientalis

Pacific bluefin tuna


Northwest Pacific (3)

Thunnus thynnus

Atlantic bluefin tuna


Northwest Atlantic (3)

Thunnus maccoyi

Southern bluefin tuna


Southwest Indian Ocean (2)

Thunnus alalunga



Northwest Pacific (2)

Thunnus albacares

Yellowfin tuna


Northwest Pacific (2)

Sardinops melanostictus

Japanese pilchard


Tosa Bay, Japan (1)

Takifugu rubripes

Japanese puffer


Japan Sea (1)

Platichthys stellatus

Starry flounder


Shibetsu, Japan (1)

Sebastolobus macrochir

Broadbanded thornyhead


Northwest Pacific (1)

Anguilla japonica

Japanese eel


Tone River, Japan (1)

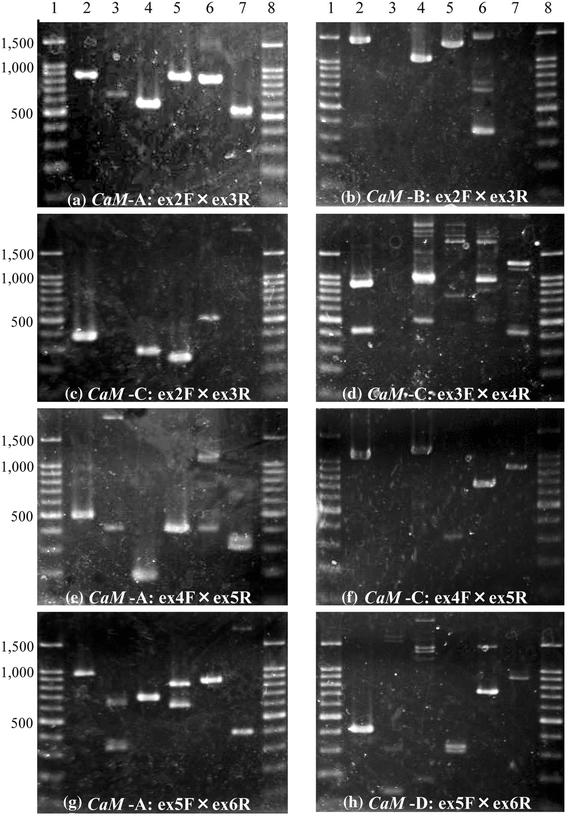

Fig. 4

Agarose gel electrophoresis images of PCR products amplified by eight primer pairs (see Fig. 3). 1st and 8th lanes are molecular marker, and the size (bp) is presented at the left margin. 2nd to 7th lanes are the Pacific bluefin tuna, Japanese pilchard, Japanese puffer, starry flounder, broadbanded thornyhead, and Japanese eel, respectively (see Table 1)

Amplification efficiency varied among the other fish species. No amplicon was observed in four primer pairs (CaM-B: ex2F × ex3R, CaM-C: ex2F × ex3R, CaM-C: ex3F × ex4R, CaM-C: ex4F × ex5R) (Fig. 3) for the Japanese pilchard (3rd lane of Fig. 4b–d, f) and one primer pair (CaM-B: ex2F × ex3R) for the Japanese eel (7th lane of Fig. 4b), while amplicons were obtained in all primer pairs in the other species. Single fragment amplification was obtained in 21 out of 40 occasions (5 species by 8 primer pairs).


One or two CaM-encoding genes have been reported in invertebrates (Hardy et al. 1988; Doyle et al. 1990; Swanson et al. 1990; Côrte-Real et al. 1994; Karabinos and Riemer 1997; Yuasa et al. 1999, 2001). Using locus-specific primers, Côrte-Real et al. (1994) successfully isolated one (CaM-1) of two CaM genes of mussel Mytilus edulis, and length polymorphism found in the 3rd intron was used for population genetic analysis. A high restriction fragment length polymorphism (RFLP) was observed in the CaM intron of the Atlantic bluefin tuna Thunnus thynnus (Nakadate and Chow 2008). Single-nucleotide polymorphism (SNP) found in the 4th intron of swordfish Xiphias gladius was used to investigate population structure (Chow and Takeyama 2000; Chow et al. 2007). Partial exon sequence (200 bp) of the Atlantic bluefin tuna was observed to have higher homology (99% homologous) with that of CaM-A in T. orientalis than with the others (CaM-B, -C and -D) (83–86%). Similarity of exon sequence (105 bp) of the swordfish CaM to medaka CaM-A was suggested previously (Chow and Takeyama 2000). CaM-A of T. orientalis showed much higher homology with the swordfish exon sequence (94% homologous), while CaM-B to D of T. orientalis were much less homologous (83–86%) with the swordfish exon sequence. CaMs of the Atlantic bluefin tuna and swordfish were 94% homologous. These indicate that the primer pair used in these previous studies exclusively amplified homologous intron of CaM-A gene. Locus-specific primer pairs presented in this study are designed based on genome data of the Pacific bluefin tuna. Nevertheless, success rate of amplifying single fragment among distant fish species was relatively high, indicating the possibility to develop a genetic assay to target a specific locus in wide variety of fish taxa.



This work was supported in part by a Grant-in-Aid for Scientific Research on Priority Areas (C) (No. 25450292) from the Ministry of Education, Science, Sports, and Culture of Japan. We thank Takahiro Ohtsuka, Ayako Kondo and Haruka Itoh for their excellent technical assistance.


  1. Altshul SF, Gish W, Miller W, Myers EW, Lipman DJ (1990) Basic local alignment search tool. J Mol Biol 215:403–410CrossRefGoogle Scholar
  2. Chien YH, Dawid IB (1984) Isolation and characterization of calmodulin genes from Xenopus laevis. Mol Cell Biol 4:507–513CrossRefGoogle Scholar
  3. Chow S, Hazama K (1998) Universal PCR primers for S7 ribosomal protein gene introns in fish. Mol Ecol 7:1255–1256Google Scholar
  4. Chow S, Takeyama H (2000) Nuclear and mitochondrial DNA analyses reveal four genetically separated breeding units of the swordfish (Xiphias gladius). J Fish Biol 56:1087–1098CrossRefGoogle Scholar
  5. Chow S, Yanagimoto T (2016) Universal PCR primers for ribosomal protein gene introns of fish. Int Aquat Res 8:29–36CrossRefGoogle Scholar
  6. Chow S, Clarke S, Nakadate M, Okazaki M (2007) Boundary between the north and south Atlantic populations of the swordfish (Xiphias gladius) inferred by a single nucleotide polymorphism at calmodulin gene intron. Mar Biol 152:87–93CrossRefGoogle Scholar
  7. Côrte-Real HBSM, Dixon DR, Holland PWH (1994) Intron-targeted PCR: a new approach to survey neutral DNA polymorphism in bivalve populations. Mar Biol 120:407–413CrossRefGoogle Scholar
  8. Doyle KE, Kovalick GE, Lee F, Beckingham K (1990) Drosophila melanogaster contains a single calmodulin gene: further structure and expression studies. J Mol Evol 213:599–605Google Scholar
  9. Friedberg F, Rhoads AR (2002) Multiple calmodulin genes in fish. Mol Biol Rep 29:377–382CrossRefGoogle Scholar
  10. Hardy DO, Bender PK, Kretsinger RH (1988) Two calmodulin genes are expressed in Arbacia punctulata. An ancient gene duplication is indicated. J Mol Biol 199:223–227CrossRefGoogle Scholar
  11. Karabinos A, Riemer D (1997) The single calmodulin gene of the cephalochordate Branchiostoma. Gene 195:229–233CrossRefGoogle Scholar
  12. Koller M, Schnyder B, Strehler EE (1990) Structural organization of the human CAMIII calmodulin gene. BBA-Gene Struct Expr 1087:180–189CrossRefGoogle Scholar
  13. Lessa EP (1992) Rapid surveying of DNA sequence variation in natural populations. Mol Biol Evol 9:323–330Google Scholar
  14. Matsuo K, Sato K, Ikeshima H, Shimoda K, Takano T (1992) Four synonymous genes encode calmodulin in the teleost fish, medaka (Oryzias latipes): conservation of the multigene one-protein principle. Gene 119:279–281CrossRefGoogle Scholar
  15. Nakadate M, Chow S (2008) Isolation and characterization of single copy nuclear DNA markers in the Atlantic bluefin tuna Thunnus thynnus. Fish Sci 74:1333–1335CrossRefGoogle Scholar
  16. Nakamura Y, Mori K, Saitoh K, Oshima K, Mekuchi M, Sugaya T, Shigenobu Y, Ojima N, Muta S, Fujiwara A, Yasuike M, Oohara I, Hirakawa H, Chowdhury VS, Kobayashi T, Nakajima K, Sano M, Wada T, Tashiro K, Ikeo K, Hattori M, Kuhara S, Gojobori T, Inoue K (2013) Evolutionary changes of multiple visual pigment genes in the complete genome of Pacific Bluefin tuna. Proc Natl Acad Sci USA 110:11061–11066CrossRefGoogle Scholar
  17. Nojima H (1989) Structural organization of multiple rat calmodulin genes. J Mol Biol 208:269–282CrossRefGoogle Scholar
  18. Nojima H, Sokabe H (1987) Structure of a gene for rat calmodulin. J Mol Biol 193:439–444CrossRefGoogle Scholar
  19. Nomura S, Kobayashi T, Agawa Y, Margulies D, Scholey V, Sawada Y, Yagishita N (2014) Genetic population structure of the Pacific bluefin tuna Thunnus orientalis and the yellowfin tuna Thunnus albacares in the North Pacific Ocean. Fish Sci 80:1193–1204CrossRefGoogle Scholar
  20. Rhyner JA, Ottiger M, Wicki R, Greenwood TM, Strehler EE (1994) Structure of the human CALM1 calmodulin gene and identification of two CALM1-related pseudogenes CALM1P1 and CALM1P2. Eur J Biochem 225:71–82CrossRefGoogle Scholar
  21. SenGupta B, Friedberg F, Detera-Wadleigh SD (1987) Molecular analysis of human and rat calmodulin complementary DNA clones: evidence for additional active genes in these species. J Biol Chem 262:16663–16670Google Scholar
  22. Simmen RC, Tanaka T, Ts’ui KF, Putkey JA, Scott MJ, Lai EC, Means AR (1985) The structural organization of the chicken calmodulin gene. J Biol Chem 280:907–912Google Scholar
  23. Swanson ME, Sturner SF, Schwartz JH (1990) Structure and expression of the Aplysia californica calmodulin gene. J Mol Biol 216:545–553CrossRefGoogle Scholar
  24. Takagi M, Okamura T, Chow S, Taniguchi N (1999) PCR primers for microsatellite loci in tuna species of the genus Thunnus and its application for population genetic study. Fish Sci 65:571–576Google Scholar
  25. Tamura K, Stecher G, Peterson D, Filipski A, Kumar S (2013) MEGA6: molecular evolutionary genetics analysis version 6.0. Mol Biol Evol 30:2725–2729CrossRefGoogle Scholar
  26. Yagishita N, Sawada Y, Agawa Y, Kobayashi T (2014) Isolation and characterization of 25 microsatellite loci from the Pacific bluefin tuna Thunnus orientalis. Conserv Genet Resour 6:189–191CrossRefGoogle Scholar
  27. Yuasa HJ, Yamamoto H, Takagi T (1999) The structural organization of the ascidian, Halocynthia roretzi, calmodulin genes: The vicissitude of introns during the evolution of calmodulin genes. Gene 229:163–169CrossRefGoogle Scholar
  28. Yuasa HJ, Yamamoto H, Takagi T (2001) Structural organization of lower marine nonvertebrate calmodulin genes. Gene 279:205–212CrossRefGoogle Scholar
