Diverse approaches to crop diversification in agricultural research. A review

Abstract

Agricultural intensification increased crop productivity but simplified production with lower diversity of cropping systems, higher genetic uniformity, and a higher uniformity of agricultural landscapes. Associated detrimental effects on the environment and biodiversity as well as the resilience and adaptability of cropping systems to climate change are of growing concern. Crop diversification may stabilize productivity of cropping systems and reduce negative environmental impacts and loss of biodiversity, but a shared understanding of crop diversification including approaches towards a more systematic research is lacking. Here, we review the use of ‘crop diversification’ measures in agricultural research. We (i) analyse changes in crop diversification studies over time; (ii) identify diversification practices based on empirical studies; (iii) differentiate their use by country, crop species and experimental setup and (iv) identify target parameters to assess the success of diversification. Our main findings are that (1) less than 5% of the selected studies on crop diversification refer to our search term ‘diversification’; (2) more than half of the studies focused on rice, corn or wheat; (3) 76% of the experiments were conducted in India, USA, Canada, Brazil or China; (4) almost any arable crop was tested on its suitability for diversification; (5) in 72% of the studies on crop diversification, at least one additional agronomic measure was tested and (6) only 45% of the studies analysed agronomic, economic and ecological target variables. Our findings show the high variability of approaches to crop diversification and the lack of a consistent theoretical concept. For better comparability and ability to generalise the results of the different primary studies, we suggest a novel conceptual framework. It consists of five elements, (i) definition of the problem of existing farming practices and the potential need for diversification, (ii) characterisation of the baseline system to be diversified, (iii) definition of the scale and target area, (iv) description of the experimental design and target variables and (v) definition of the expected impacts. Applying this framework will contribute to utilizing the benefits of crop diversification more efficiently.

Contents

• 1. Introduction

• 2. Methodology

• 2.1 Search term strategy

• 2.2 Analysed information

• 3. Global analysis of crop diversification studies

• 3.1 Historical development and scope of the term ‘crop diversification’

• 3.2 Baselines of crop diversification

• 3.3 Countries of crop diversification experiments

• 3.4 Types of crop diversification

• 3.5 Agronomic measures accompanying crop diversification

• 3.6 Target variables of the crop diversification experiments

• 4. The lack of a concept of crop diversification

• 5. Methodological considerations

• 6. Conclusion

• Acknowledgments

• References

Introduction

Agriculture has developed towards intensive but simplified production systems over the last decades, especially in the northern Hemisphere. While this trend significantly increased agricultural productivity, it also had detrimental effects on the cropping systems themselves and on the environment (Tilman et al. 2002). A multitude of driving forces led to lower diversity of cropping systems like, e.g. easy availability of mineral fertilisers and pesticides, concentration of breeding efforts on the economically most important crops and changes in agricultural policies that allow producers to respond more freely to market signals, incentives and technology change (Fausti 2015). These processes supported a higher genetic uniformity within crop species (Kahiluoto et al. 2019), less crop species in rotations (Stein and Steinmann 2018; Barbieri et al. 2017) and higher uniformity within agricultural landscapes (Fig. 1) with large field sizes (Bianchi et al. 2006; Rusch et al. 2016). This development also caused environmental problems such as nitrate pollution of water, eutrophication of ecosystems, climate-relevant emissions of greenhouse gases (Bommarco et al. 2013; Therond et al. 2017; Bowles et al. 2018; Stoate et al. 2009) and an overall loss of habitats and biodiversity (Tscharntke et al. 2012; Kleijn et al. 2012; Buhk et al. 2017; Frison et al. 2011; Therond et al. 2017; Bommarco et al. 2013).

Fig. 1

Aspect of a large field of winter rye in a simplified cropping system in Northern Brandenburg, Germany. Copyright Johannes Hufnagel

Simplification of farming systems and growing environmental problems led to concerns about the future functionality of today’s cropping systems with regard to resilience, adaptability to climate change, multifunctionality of agricultural landscapes, provisioning of ecosystem services and biodiversity (Lichtenberg et al. 2017; Rusch et al. 2016).

Crop diversification can be considered as an attempt to increase the diversity of crops through, e.g. crop rotation, multiple cropping or intercropping (Fig. 2), compared to specialized farming with the aim to improve the productivity, stability and delivery of ecosystem services (Kremen et al. 2012; Garbach et al. 2017; Wezel et al. 2014). It can be one measure to develop more sustainable production systems, develop value-chains for minor crops (Meynard et al. 2018) and contribute to socio-economic benefits (Feliciano 2019). Crop diversification practices can include higher crop diversity (Renard and Tilman 2019), more diverse crop rotations (Reckling et al. 2016), mixed cropping (Bedoussac et al. 2015; Malézieux et al. 2009), cultivation of grain legumes in otherwise cereal dominated systems (Watson et al. 2017), perennial leys or grassland (Haughey et al. 2018; Phelan et al. 2015; Weißhuhn et al. 2017) and regionally adapted varieties or variety mixtures (Yang et al. 2019; Vijaya et al. 2019). Crop diversification and/or additional diversification measures like variation of seeding time or changing cropping patterns have the potential to lead to higher and more stable yields, increase profitability and lead to greater resilience of agro-ecosystems in the long term (Rosa-Schleich et al. 2019; Meynard et al. 2018; Liu et al. 2019; Raseduzzaman and Jensen 2017; Renard and Tilman 2019; Urruty et al. 2016). These practices have the potential to make cropping systems more divers in space, time and genetics. Consequences of diversification are temporal shifts and ranges of phenological stages (relevant for biodiversity and adaptation to climate change), more frequent or continuous soil cover and more diverse management strategies, i.e. ‘tillage’, ‘sowing dates’, ‘fertilization’, ‘irrigation’, ‘harvesting’ and also reducing labour peaks and economic risk.

Fig. 2

Intercropping maize with climbing beans diversifies current crop rotations in Northern Germany. Here, maize serves as a pole for the red-flowering scarlet runner bean (Phaseolus coccineus L. cv Preisgewinner) before both crops are harvested for silage (Fischer et al. 2020). Copyright: Jenny Fischer/Thünen Institute of Organic Farming

Davis et al. (2012) showed that diverse cropping systems provided similar or even higher yields than simplified systems whilst environmental impacts were lower. Renard and Tilman (2019) found that arable crop species diversity at national level is correlated with greater year-to-year stability of the total national harvest of all edible crops. Nevertheless, measures of diversification are rarely implemented because of lack of required investments in machinery, infrastructures and expertise and research evidence (Meynard et al. 2018; Roesch-McNally et al. 2018; Ponisio and Ehrlich 2016; Geels 2011).

A closer look on ‘diversification’ reveals that the term lacks a clear definition and from this reason, it is used in very different meanings. Some authors only use the term to describe diversification by crops, e.g. mixed cropping; others restrict it to diversification by management strategies, e.g. varying seeding time. Some use it for a combination of cropping and management approaches. The same applies for the scale analysed: Investigations are done from on field, farm and landscape level.

The very complex diversification approach of ‘diversified farming systems’ as described, e.g. by Kremen et al. (2012) and Rosa-Schleich et al. (2019), rely on diversification concepts that apply individual steps of crop diversification, e.g. cover crops, and diversification by management strategies, e.g. reduced tillage at the field level, production systems at the farm level (e.g. ‘organic farming’, ‘conservation agriculture’) and selected measures at the landscape level (e.g. ‘structural elements’). In the diversified farming approach, it is not obvious which diversification measures are chosen under what conditions. The choice of the combination of measures seems to rely on diversity concepts and depends on, inter alia, which ecosystem services (ES) are in focus.

As diversification is a relatively new as a concept, many authors may not use the term diversification at all although their main focus is on diversification. An extensive meta-study at global scale analysed the effects of crop diversification on numerous parameters (Beillouin et al. 2019a), and many of the articles evaluated do not use the term diversification. Although the term has recently been shown more frequently in agronomic studies (Hatt et al. 2018; Haro et al. 2018; Kumar et al. 2017; Hondrade et al. 2017), many publications still mention only the tested diversification measure, e.g. intercropping.

In many different contexts, there is no clear separation between the concepts of diversification and ‘diversity’. Although research on crop diversity has increased, it mainly refers to natural and semi-natural systems. In most cases, ecologists analysed the simultaneous occurrence of system diversity with biodiversity (Cardinale et al. 2007; Gross et al. 2014). As a consequence, authors suggest to apply (agro) ecological principles of diversity to agricultural systems to make these more resilient (Wezel et al. 2014; Landis 2017; Altieri et al. 2015; Barot et al. 2017; Therond et al. 2017; Isbell et al. 2017). In many cases, the concept of diversity is seen as equal to the concept of diversification. From an agronomic point of view, that is not the case: while the former deals with biological principles such as genetic diversity, the latter deals with agronomic principles such as crop rotation or mixed cropping that subsequently might lead to higher biodiversity and associated ecosystem services. Diversification is the process that leads to the state of diversity. Depending on the initial situation, the same measure of crop diversification might lead to completely different states of biodiversity or ecosystem services. Although diversification is claimed to be a fundamental solution for many problems of today’s agricultural systems (Renard and Tilman 2019), sufficient quantitative evidence is lacking from long-term studies (Reckling et al. 2019).

In this review, we focus on crop diversification and define it as ‘a process that makes a simplified cropping systems more divers in time and space by adding additional crops’. Crop diversification can lead to greater genetic and/or structural diversity in time and/or space. Common examples for crop diversification are crop rotations, double cropping or intercropping, bee crops, nurse crops or variety mixtures. Diversification by agronomic measures, e.g. tillage, shall not be considered unless it is tested in combination with crop diversification. Our analysis was restricted to crop diversification at the field level. In contrast to many studies, we have taken an agronomic perspective on crop diversification as a basis for this review.

This review aims to elucidate the current use of crop diversification in research and support a common approach to utilize its full potential. We argue that a common understanding of the diversification concept in the context of crop production is needed for enabling the comparison of results and to enhance the empirical evidence of the effects of diversification as a measure to make cropping systems more resilient and to reduce negative impacts on the environment. Generally spoken, our main questions were: Is there a common understanding of crop diversification as a concept within the scientific community of agronomist regarding topic, scope and ‘successful’ application? And do we agree on the methods to test crop diversification in field experiments in order to achieve scientifically sound and transferable results? The objectives of this paper were to (i) review the use of crop ‘diversification measures’ in agricultural research; (ii) describe changes in using the term diversification over the last 40 years; (iii) identify the most common temporal and spatial practices of crop diversification like crop rotation or intercropping based on empirical studies; (iv) differentiate their use by country, crop species and experimental setup and (v) identify target parameters that were analysed.

Methodology

Search term strategy

Since we did not find a classification system of crop diversification, we defined a list of crop diversification measures that consider the most important steps of crop diversification. The search terms used were based on different references (Connor et al. 2011; Wezel et al. 2014; Malézieux et al. 2009; Hole et al. 2005) and focused exclusively on crop diversification (e.g. expansion of crop rotation, implementation of flower strips) at the field scale. The search terms were not exhaustive and overlaps between categories were unavoidable.

The material for the review was selected by searching the Scopus database (www.scopus.com). The relevant search terms were applied to ‘article title’, ‘abstract’ and ‘keywords’. The search was restricted to Source type ‘journals’; to Document types ‘article’, ‘review’ and ‘articles in press’ and to Language ‘English’. The decisive search was done the 18th of June 2018 and included all references available in the Scopus database to this date.

The selection of the literature analysed followed a three-step procedure: (i) searching for publications tagged with different target terms for ‘measures of crop diversification’ using specific terms for each measure and related terms differentiated by temporal and spatial crop diversification (Table 1), (ii) filtering the publications from step 1 that were tagged with diversification or related search terms (Table 2) and (iii) selecting the publications from the remaining sample that documented results from field experiments in arable farming. If the main focus of the experiment was on arable farming publications of adjacent fields like ‘field vegetables’, ‘pastures’ or ‘alley cropping’ were selected too.

Table 1 Measures of crop diversification, its characterisation, list of search terms applied and number of hits by measure of crop diversification (17th of June 2018)

Table 2 Target term ‘Diversification’ and list of search terms applied

The search terms we used for selecting publications on crop diversification (Table 1) are the iterative outcome of more than 30 provisional searches done with the objective to explore and understand the topic area and find the most suitable search terms.

The search for measures of crop diversification resulted in 43,680 hits (step 1), 19,305 for ‘temporal’ and 24,375 for ‘spatial crop diversification’. Selecting those publications that were tagged with diversification (step 2) led to 680 hits, thereof 16 were totally out of focus, 417 treated the topic with a non-experimental view such as meta-analysis, reviews, models, farmer surveys or reported about diversification in adjacent subject areas like aquaculture, pure agroforestry, fruits or forests. The remaining 247 publications reported about field experiments in arable farming. Some of them reported about two or three different measures of crop diversification thus been selected twice or three times by the selection procedure described. For this reason, in the end, the review is based on 193 primary studies.

Analysed information

The subsequent analysis of the selected literature was performed manually extracting information from article titles, keywords and abstracts available in Scopus. When information was lacking or too vague, ‘material and methods’ of the full article was consulted.

Based on the extracted information, the following questions were to be answered:

• 1) How did the number of articles about ‘crop diversification’ develop over time, are there differences between temporal and spatial diversification?

• (2) How did experiments on crop diversification develop over time?

• (3) What was the experimental baseline (‘control’) against which crop diversification was compared to?

• (4) Where (which countries) were experiments on crop diversification executed and what were the main baselines in these countries?

• (5) What measures of crop diversification were analysed experimentally?

• (6) Was crop diversification combined with additional agronomic measures and if so, by which?

• (7) Which target variables were analysed to evaluate the impact of crop diversification?

Global analysis of crop diversification studies

Historical development and scope of the term crop diversification

The number of publications with the focus on crop diversification that use the term diversification increased slowly from far below 10 per year in the 1980s to about 25 in the 2010s and tripled to almost 100 in 2017 (Fig. 3). The share of publications on temporal vs. spatial diversification was similar over the years with an average of 47% and 53%, respectively. Only in years with very few publications (e.g. 1985, 1995), the share varied significantly between 0 and 100% (Fig. 3). The number of experiments on diversification developed more or less parallel to the number of studies on crop diversification in general. There were only 8 years without any studies reporting experiments that tested measures of diversification and referring to the concept of diversification, between 1981 and 1995 (Fig. 3). The share of publications reporting about experiments in years with 10 and more publications varies between 9 and 69% with an average of 44%. Over the whole period, on average, 51% of the experiments focussed on temporal and 49% on spatial diversification. The absolute number of 193 primary studies was surprisingly low compared to the high number of publications selected by our search terms on measures of crop diversification (43,680 hits) and the fact that diversification seems to be a very popular concept (Meynard et al. 2018; Rosa-Schleich et al. 2019; Beillouin et al. 2019a; Renard and Tilman 2019). Beillouin et al. (2019a) found almost 20-fold more primary studies on crop diversification measures with a focus on meta-analysis and different search equations. Even though Beillouin et al. (2019a) analysed additional strategies of diversification such as agroforestry and landscape heterogeneity in many articles, they extracted analysed rotations, intercropping, cover crops etc. without mentioning the concept of diversification explicitly.

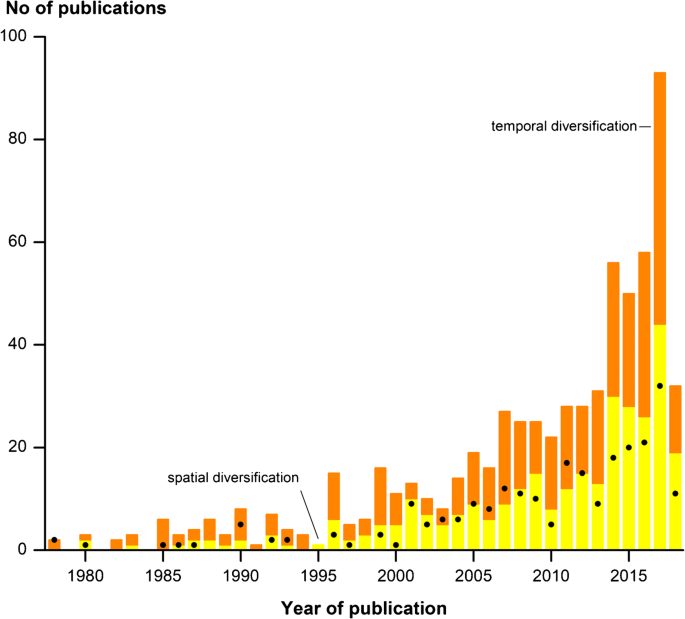

Fig. 3

Number of publications on temporal and spatial crop diversification per year between 1978 and 17th of June 2018 (total n = 664) and number of publications that are based on experimental data (n = 247): black dots: based on experiments

In our analysis, we found that on average, only 1.6% of the publications on common measures of crop diversification we selected in step 1 were tagged with the term diversification with only small differences (0.4–5.1%) between the different categories of crop diversification (Fig. 4). Among the selected categories on crop diversification (Table 1), the most common measures were ‘crop rotation’ (12,693 in total and 240 associated with diversification), ‘intercropping’ (7659 and 141), ‘companion crops’ (6756 and 63), ‘mixed cropping’ (5531 and 106), ‘catch crops’ (4020 and 33), ‘bee plants’ (2803 and 11) and ‘double crops’ (2421 and 32). Less common were the measures ‘alley crops’ (717 and 7), ‘trap crops’ (615 and 9), ‘variety mixtures’ (294 and 15) and ‘relay crops’ (171 and 7). The small number of publications tagged with diversification could be an indication that the concept of diversification is still relatively new in the scientific agricultural community.

Fig. 4

Number of publications based (n = 247) and not based (n = 417) on experiments broken down by ‘measures of crop diversification’. Column of figures on the right: number of publications by search term × 1000 (total n = 43.6 × 1000); in brackets: percentage of publications that are tagged with the term ‘diversification’

In sum, only 193 of the 664 selected publications refer to experiments. The proportion of experiments varies considerably between the different crop diversification strategies and is usually well below 50% (Fig. 4).

Baselines of crop diversification

Here, we define ‘baseline’ as the current cropping practice for a given region that is to be diversified in order to improve the performance of an existing system. In most cases, the baseline is part of an experiment and usually regarded as control treatment. In most publications, the baseline of an experiment is explicitly mentioned (control), but in some cases, we had to deduce the baseline by checking further information provided by an article. In many cases, baseline is a simplification of a complex cropping system. Based on our analysis, we identified three simplified types of baselines (Table 3) which comprise approximately the same proportion of publications: pure stands of single crops (n = 59), continuous cropping of a single crop (n = 58) and simple crop rotations with 2 or maximally 3 crops (n = 76).

Table 3 Type of baselines and their characterisation

Pure stands of arable crops (n = 35) and field vegetables (n = 24) account for the largest types of baselines (Fig. 5). Publications on continuous cropping of a single crop are mainly restricted to wheat, corn or rice while publications on continuous cropping of crops like cotton, soybean or millet play a minor role (Fig. 5). Rotations with two crops are widely represented by rice–wheat (n = 34) or corn–soybean or wheat (n = 21) while ‘wheat and a second crop’ is tested less frequently (n = 6). The group of ‘other simple crop rotations’ (n = 15) is very heterogeneous with various sequences of two to three crops. In experiments with pure stands as baseline, the starting point for experiments is on genetic homogeneity of one field in a single year. In these experiments, mostly, the focus is on spatial diversification and not on crop rotation. The main crops tested in pure stands are arable crops like pulses including soy (n = 19), corn (n = 12) and field vegetables like cabbages (n = 15) in particular broccoli (n = 9) (Table 4). The results show that the starting point for crop diversification experiments is globally restricted to very few crops. In more than 54% of the primary studies, the main focus is on rice, corn or wheat, which, although economically very important, only represent part of the manifold global cropping situations.

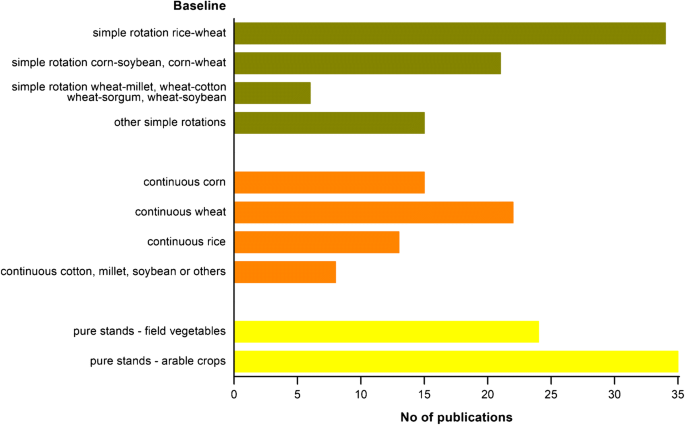

Fig. 5

Number of publications on crop diversification experiments broken down by ‘baselines’ (total n = 193)

Table 4 Number of main crops tested in pure stands of crop diversification experiments broken down for field vegetables and arable crops (Total number exceeds number of publication on pure stands, since in some experiments, more than one main crop is tested)

Countries of crop diversification experiments

Most publications (n = 144) on crop diversification experiments were found in Asia (n = 81) and North America (n = 63) (Table 5), followed by Europe (n = 20), South America (n = 18) and Africa (n = 11). Countries with most studies are India (n = 61), the USA (n = 47), Canada (n = 16), Brazil (n = 13) and China (n = 10). Each of the remaining 25 countries alone plays a minor role—at least as far as the number of publications is concerned (n = 46, all remaining countries together).

Table 5 Number of publications on crop diversification in North and South America, Europe, Africa and Asia with Australia broken down by different baselines (numbers in brackets refer to the respective countries)

According to the analysed literature, experiments with pure stands of arable crops as baselines were mainly carried out in USA, Brazil, India, Finland and China, while those with pure stands of field vegetables were found mainly in the USA, followed by Australia, China and Brazil. Experiments on continuous wheat concentrate in the USA and Canada; very few were carried out in Kazakhstan, China and Australia. In India, 71% of the experiments were dedicated to diversify continuous rice and rice–wheat rotations while crop rotations with corn and soybean or wheat were mainly tested in the USA, some in India, Argentina and China. Most of the diversification experiments on ‘simple crop rotations’ were located in Europe and Canada. It seems that the number and kind of baselines that were to be diversified in experiments reflects very much the simplified cropping situation that is widespread in the respective country or region. It was a surprising result of the review that a relevant number of experiments on crop diversification were conducted only in a few countries and thus agroecological situations. This fact limits the ability to generalise the results of the primary studies.

Types of crop diversification

The vast majority of analysed experiments (90%) were diversified through introducing a ‘new’ crop into the baseline cropping system: either by temporal diversification (n = 102)—expanding continuous cropping of a single crop or a simple crop rotation—or by spatial diversification (n = 71) of a pure stand on a single field through, e.g. intercropping, mixed cropping or companion cropping. The groups of crops used for diversification include the whole range of crop plants like cereals, pulses, fodder legumes, grasses, field vegetables and flowers or a combination of 2 or 3 groups of the latter (Fig. 6).

Fig. 6

Number of publications on crop diversification experiments broken down by baselines and groups of crops used for diversification (total n = 193)

Crop diversification by non-legumes was widespread in experiments of pure stands of field vegetables and arable crops and was still relevant both in continuous corn and wheat and in simple crop rotations (Fig. 6). Both, legumes and non-legumes, were tested to diversify baselines—either alone or both; diversification by pulses and/or fodder legumes alone plays a minor role in crop diversification. The introduction of both non-legumes and pulses is a central diversification step in rice–wheat rotations, in continuous wheat, continuous rice and continuous corn, in simple crop rotations and in pure stands of arable crop. The introduction of both non-legumes and fodder legumes is tested in corn–soybean or wheat rotations, rice–wheat and pure stands of field vegetables, while the introduction of pulses, fodder legumes and non-legumes is widespread in rice–wheat rotations and is of certain importance in continuous corn and continuous wheat and in simple crop rotations (Fig. 6).

Crop diversification by flowers is mainly applied in experiments of field vegetables in pure stands and only sometimes in pure stands of arable crops.

Diversification that was not explicitly based on the introduction of a new crop occurred only in 10% of the experiments, almost exclusively in pure stands of arable crops, some in other simple crop rotations. In these cases, the diversification measures comprise two approaches: replacement of the genetically homogeneous baseline crop by variety mixtures of this crop or mixtures of pure stands of widespread baseline crops of a region on the same field.

Agronomic measures accompanying crop diversification

In the publications analysed, we found the following groups of agronomic measures (Table 6) that were tested additionally to crop diversification or—in some cases—exclusively.

Table 6 Accompanying agronomic measures to crop diversification (groups) or alone

In 22% of the experiments, the introduction of new crops or variety mixtures (Fig. 7a) was not accompanied by diversifying agronomic measures (Fig. 7a). In 71% of the experiments, crop diversification went along with at least one additional agronomic measure like variation of cropping patterns; seeding or harvesting time; weed, pest or fertilizer treatment; soil tillage; irrigation or integration fodder production or animals into arable farming (Fig. 7b). In 58% of these, experiments were tested one, in 33% two and in 9% three diversifying agronomic measures.

Fig. 7

Number of crops and variety mixtures tested without additional measures (a, n = 43) or in combination with at least one additional measure (b, n = 136) broken down by baselines and groups of measures (n = 179). Many publications (n = 136) refer to experiments with at least one accompanying measure to crop diversification. Thus, the number of cases (n = 245) shown in the figure exceeds the number of publications. Experiments with measures ‘others than crop diversification’ are not presented in Fig. 7 (n = 14)

The introduction of only a new crop was most important in rice–wheat, corn–soybean or wheat and continuous wheat and continuous rice, variety mixtures only as single diversification measure were tested in pure stands of arable crops, as additional measure in combination with others in continuous rice and in rice–wheat experiments.

In all baselines, the variation of growing patterns was an agronomic measure to obtain spatial diversification within a field, more importantly in pure stands of arable crops and field vegetables, and to a lower extent in continuous corn and rice. Variation of cropping patterns was implemented by intercropping, e.g. pulses, fodder legumes or vegetables or by establishing spots or borders with flowering plants or herbs (Fig. 7b). Especially in experiments with corn–soybean or wheat and to a lesser extent in experiments with continuous wheat, continuous corn and with pure stands of vegetables, different levels of inputs were tested. The variation of tillage systems was an important issue in continuous wheat, in other simple crop rotations and in rice–wheat. Irrigation was tested in some experiments of rice–wheat, in continuous rice and wheat–millet, cotton etc., but in total irrigation played a minor role as additional measure of diversification. The testing of green manure was an important measure in experiments with rice–wheat, other simple crop rotations, corn–soybean or wheat, continuous corn and in pure stands of vegetables. Only in rice–wheat rotations the introduction of fodder production for animals was an additional and important measure of diversification.

In many publications, it was hard to know if the term diversification is restricted to the introduction of a new crop or if additional agronomic measures are also regarded as part of the diversification approach. Some articles used the term diversification exclusively for the introduction of a new crop (crop diversification); in others, the term diversification also was applied to diversification by additional agronomic measures (‘diversification by measure’).

In fact, in 7% of the experiments, diversification was obtained by only introducing new agronomic measures. This diversification approach was chosen especially for pure stands of arable crops and to a small extent for other simple crop rotations. Especially one diversification measure without crop diversification was tested: the variation of growing patterns, where a new spacing of ‘old’ crops was subject to analysis. Other measures like variation of tillage or cultivation period, irrigation or input management played a minor role in experiments restricted to diversification by agronomic measures.

Target variables of the crop diversification experiments

It was one goal of our review to compile target variables that were used in the analysed primary studies to assess the impact of crop diversification, whereas we did not quantify the impact itself. We found the following groups of target variables listed in Table 7.

Table 7 Groups of target variables and their characterization (examples)

About 10% of the experiments concentrated only on agronomic and or economic target variables, only half of them raising both. Forty-five per cent analysed mainly biotic and abiotic target variables without integrating agronomic or economic aspects (Fig. 8). The remaining 45% of the experiments analysed the impact of crop diversification measures both on agronomic and/or economic target variables and on abiotic and/or biotic variables describing the impact on the production site, e.g. soil and/or the environment, e.g. ground water or food webs (Fig. 9). There was no obvious preference for certain variables as a function of the different baselines—with two exceptions: first, experiments in pure stands of both field vegetables and arable crops focussed very much on food webs (mostly insects), in arable crops additionally on pests, diseases and weeds (Fig. 8); and second, a small share of experiments analysed two or more groups of target variables beside agronomic and economic parameters or even tried to characterize the ‘whole system’ (Fig. 9). This applies both to continuous corn and corn–soybean or wheat baselines and to experiments with ‘continuous rice’ or rice–wheat rotations (Fig. 9); the first ones are mostly located in North America and the second ones in India.

Fig. 8

Number of publications on crop diversification experiments analysing only non-agronomic/non-economic groups of target variables broken down by baselines and groups of target parameters

Fig. 9

Number of publications on crop diversification experiments analysing both agronomic/economic and non-agronomic/economic groups of target variables broken down by ‘baselines’ and groups of target parameters

In any other cases, experiments only focussed on one group of target variables while neglecting others (Figs. 8 and 9). It is difficult to get an idea about the reasons why which parameters in which experiment have been selected. We suppose that the selection of the respective target variables depends very much on the professional focus of the experimenters and the common agreement of a particular scientific school.

The lack of a concept of crop diversification

Though we found thousands of scientific papers on crop diversification like crop rotation or intercropping in the field of agronomy (Table 1), only a fraction of these publications relate to diversification as a concept. Despite our global assessment on the use of crop diversification in the literature, we did not find a theoretical and overarching concept of crop diversification. Hence, the implementation of diversification experiments is not concise concerning the problems to be solved, the baseline situation to allow comparisons, the kind and number of crop diversification measures applied and the target variables analysed.

In many of the analysed publications, authors did not explain explicitly under which circumstances and prerequisites which measures of crop diversification would be most efficient to solve a given problem (problem definition). Our analysis also showed that most articles do not describe explicitly the current farming practice of specialized or non-diversified farming (baseline definition). This information is relevant to allow comparisons with the novel diversified systems. Only a few studies have been repeated at more than one site or even in different agroecological zones which limits the applicability (definition of scale). The design of the experiments is often insufficiently explained to understand why certain measures are tested and why not others (experimental design). Not all of the studies have a clear definition of the target parameters to be analysed (define impact), and only 50% of them raised both agronomic/economic and ecological parameters; it is necessary to evaluate crop diversification both from an agronomic and ecological point of view and to compare it to the baseline. In most cases, the implementation of experiments seems very much driven by practical problems in agriculture of a given country or region We suspect that in these cases, the tested diversification steps were selected by local experts to answer applied problems. In other cases studied, diversification steps are selected by researchers who have set up the experiments for a pressing research question. Hence, such experiments are highly context-specific and based on a broad base of regional experience. They surely may help to solve specific local or regional problems, but it is difficult to compare the different studies and generalise from the results of these studies on diversification. This would be necessary to contribute efficiently to the development of scientifically based and more importantly transferable approaches to crop diversification. In addition, generalisation also is made difficult by the fact that 76% of the experiments were executed in five countries and 56% in only two (USA and India). Furthermore, most of the experiments within a country are restricted to one agroecological zone.

From the range of problems to be addressed by crop diversification studies, we can identify three types of perspectives that motivated the respective studies:

The first one is based on an explicit theoretical concept: e.g. diversification is useful to improve biological pest control (Hooks and Johnson 2001; Haro et al. 2018). This perspective applies for most of the experiments that analyse the possibilities to influence and understand interactions in food webs by crop diversification (‘agroecological perspective’). The second one tries to find alternative or additional agricultural products (Kachroo et al. 2014; Jacob et al. 2016) that might rise and stabilize farmer’s income (e.g. many of the diversification experiments in India—rice–wheat) (‘agro-economic perspective’). The third perspective is driven by the fact that current cropping practices go along with stagnating yields, deterioration of soils, increase of environmental problems, rise of pests, diseases or weed problems following an ‘agronomic-ecological’ perspective (Liebman and Davis 2000; Hati et al. 2013; Sharma et al. 2017). Perspective 1 mostly focusses on furthering the understanding of agroecological principles; most of these studies are made in diversified pure stands and do not consider the effect of preliminary crops. The focus of perspectives 2 and 3 is mostly on stabilizing income, developing new cropping methods and/or to reduce environmental problems.

A well-defined concept of crop diversification is a prerequisite to make results among studies comparable and to avoid arbitrary use of the term diversification. Likewise, Beillouin et al. (2019b) state that ‘most of the meta-analyses studied cannot be considered fully transparent and reproducible’. A defined concept should clarify what is understood by diversification, what types of measures are regarded as diversification, which target parameters are useful to assess the impact of diversification and what the relevant scales of investigation are. The concept of crop diversification should be framed along five elements, following the limitations identified in the analysed literature:

• 1. Problem definition: Describe the reason for diversification and the diversification target

• 2. Baseline definition: Characterise the baseline system to be diversified.

• 3. Scale definition: Describe the target area of diversification: field, farm or landscape and expected interactions, define the system boundary.

• 4. Experimental design: Explain the decisions on diversification treatments, crop choice, mixtures, rotations etc. and the target variables. Ensure comparison with the baseline.

• 5. Define impact: Systematically compare the baseline with diversified systems in absolute and relative terms for defined impact variables to evaluate the effects of the diversification measures. To do that, a minimum set of agronomic, economic and ecological target variables is necessary.

This framework can be a starting point for a guideline which supports experimentalists to answer the main question on diversification. Some studies such as Plaza-Bonilla et al. (2017) provide most of the aspects in our framework in more or less detail. They described the problem of current farming in southwestern France, as the high environmental degradation due to the uncoupling of carbon and N cycles in specialized cropping systems (problem definition). Current farming is represented by a cereal-sunflower rotation without legumes (baseline definition); the analysis is conducted at the rotational level (scale definition) and the experiment explores the diversification effect of grain legumes with and without cover crops (experimental design). To describe the system and its impact sufficiently, both agronomic, e.g. yield, grain protein concentration and ecological variables, e.g. soil water, mineral N-content (Plaza-Bonilla et al. 2018) were quantified and compared with the baseline system (define impact).

Methodological considerations

In contrast to many other studies, we have taken an agronomic perspective on crop diversification as a basis for this review. Our focus was on diversification and not on diversity. That means our scientific question differed considerably to that in diversity studies, e.g. Haro et al. (2018), Buhk et al. (2017) and Wezel et al. (2014). Diversity studies analyse diversity of cropping or natural systems concerning flora and fauna and ask for the main characteristics of these systems. That means most studies on diversity compare different levels of diversity as a result of diversification. They do not analyse the initial situation, the necessary steps and the importance of time to achieve the level of diversity they found. Implicitly, they assume that it is sufficient to establish cropping systems that show the found characteristics of diversity to be sustainable, environmentally friendly or biodiversity supporting though some authors emphasise that the performance of diversification practices is highly context-specific (Rosa-Schleich et al. 2019; Kremen and Miles 2012).

We are well aware that our review shows some important limits; some of them can be explained by the topic itself: since there is no consensus on what crop diversification comprises, it was not possible to compile a complete list of adequate search terms. Hence, we may not have found some measures of crop diversification that have been addressed in other analysis, e.g. Beillouin et al. (2019a). Furthermore, we excluded arbitrarily some diversification measures like ‘agroforestry’ or ‘intergraded crop-livestock systems’. Also, because our analysis is based mainly on information in title, abstract and keywords, considering information of the whole articles might have led to other results at least with regard to quantity. Furthermore, the low percentage of found publications on the topic suggests that probably many agronomic experiments are carried out with ‘diversification in mind’ without labelling them with diversification, e.g. Reckling et al. (2016) and Stein-Bachinger et al. (2015). It is therefore not surprising that other review studies on crop diversification found more experiments, e.g. the almost 20-fold higher number of primary studies in the meta-analysis by Beillouin et al. (2019a). And last but not least, our review is restricted to crop diversification at field level.

Conclusion

Our analysis reveals that so far, there is no theoretically well-founded concept of crop diversification. The current use of the term diversification depends very much on the country, regional current problems caused by agriculture, the focus of the scientific discipline, the particular scientific school and local expert knowledge, and it is restricted to relatively few baselines and agroecological situations.

If crop diversification is to be developed as a tool for improving cropping systems, developing novel value-chains and providing other socio-economic benefits, it is necessary to develop a shared conceptual understanding. Without such concept, the numerous results of the different scientific communities on the topic (diversification) will use different terms for the same thing or same terms for different things (e.g. diversification, diversity, crop rotation, mixed cropping). This will prevent synergetic effects and generalisation of results.

We suggest first steps towards a conceptual framework on crop diversification expletively distinguishing and providing information on (i) problem definition, (ii) baseline definition, (iii) scale definition, (iv) characterisation of the experimental design including a minimum set of target variables and (v) defining the impact systematically to assess and report the effects of the diversification measures.
