Multiple sclerosis (MS) is a chronic neurodegenerative disease with an evident autoimmune background resulting in inflammatory demyelination and axonal and neuronal injury [1]. MS, which was first described in 1868 [2], is one of the most common diseases of the nervous system. It affects people aged 20–40 years worldwide, although it has higher occurrence in women than in men and in those residing in northern than in southern latitudes. Despite its long history and the finding that immune cells rather than exogenous pathogens are responsible for MS development [3], the etiology of MS remains unclear.

Several treatment strategies for MS have been found to be moderately successful [4]. For example, the β-interferons and glatiramer acetate (GA) are disease-modifying therapies with an established history of efficacy and safety in clinical practice [57]. In addition, monoclonal antibodies binding to specific ligands have been found effective; these include natalizumab, which binds to α4 integrins [8]; daclizumab, which binds to CD25 [9]; and alemtuzumab, which binds to CD52 [10]. Natalizumab and alemtuzumab have been approved by the US Food and Drug Administration for the treatment of refractory MS, while daclizumab approval is very likely in the near future. Despite their effectiveness, however, these agents have been associated with serious adverse events (SAEs), significantly restricting their further application [4]. Novel, convenient oral therapies, including fingolimod [11], teriflunomide [12], and dimethyl fumarate [13], have shown efficacy and tolerability and have been approved for the treatment of patients with MS.

However, some patients remain refractory to these agents. This may be due to as yet unknown triggers of MS, together with high heterogeneity of this disease. Therefore, searching for novel, antigen-specific immunotherapeutic treatment options for MS is highly feasible [14]. For example, myelin basic protein (MBP), the structural component of the myelin membrane, is thought to be a primary target of the immune system during MS development [15]. Attempts have been made to induce tolerance toward MBP and its structural constituents [1620], including MBP pulsing of dendritic cells [21]. In our previous studies using a newly designed MBP epitope library, we determined that MBP peptides 46–62, 124–139 and 147–170, but not 83-99, were the most immunodominant in terms of autoantibody responses in patients with MS when compared with healthy individuals and patients with other neurological diseases lacking an autoimmune background [22, 23]. Nasal administration of these MBP peptides suppressed protracted relapsing experimental allergic encephalomyelitis (EAE) in dark Agouti rats [24]. Further, selected immunodominant MBP peptides encapsulated into mannosylated liposomes were reported effective in the treatment of EAE [25]. Mannosylation of these liposomes was found critical for their therapeutic efficiency, as animals that received nonmannosylated peptide-loaded liposomes were unable to recover from the first EAE attack. The most reasonable explanation that was confirmed experimentally suggests that mannosylation of liposomes significantly enhances their uptake by dendritic cells via the CD206 receptor [25], resulting in immune system tolerance towards myelin antigens. The synergistic liposome-mediated effects of coencapsulated MBP peptides reduced overall disease course, resulting in moderate severity of attacks and faster recovery from exacerbations [25]. Preclinical studies showed that administration of the designed formulation, at doses largely exceeding those proposed for humans, did not induce significant AEs in animals. The aim of the present study was to explore the AE profile and tolerability of encapsulated MBP peptides in a cohort of patients with MS. Secondary outcomes were to evaluate the effects of these peptides on the clinical course of MS.


Study Design

This was a phase I, multicenter, open-label, dose-escalating safety, and proof-of-concept study of the oligopeptides MBP46–62, MBP 124–139, and MBP 147–170 coencapsulated in CD206-targeted small monolammelar liposomes (Xemys; Pharmsynthez, St. Petersburg, Russia [25]) in patients with relapsing-remitting (RRMS) or secondary progressive MS with superimposed relapses (SPMS) who failed to achieve sustained responses to first-line disease-modifying therapies (FASEMS). The FASEMS clinical trial schedule is summarized in Fig. 1A. Patients received 6 weekly subcutaneous injections, on the same day each week, of Xemys at doses ascending from 50 μg to 900 μg. After the last injection, patients were followed up for 12 weeks.

Fig. 1
figure 1

(A) Protocol schedule. Timeline showing major clinical and investigational elements of the study. (B) Subject allocation. Summary of screening outcome, treatment allocation, and study completion. Rx = treatment; EDSS = Expanded Disability Status Scale; MRI = magnetic resonance imaging; MS = multiple sclerosis; GA = glatiramer acetate; IVIg = intravenous immunoglobulin

The primary endpoint was the safety of Xemys, as determined by the frequency and severity of adverse events (AEs) and SAEs. To ensure patient safety, the patients were divided into 2 cohorts. Dose-limiting toxicities (DLT) and dose adjustments were assessed in the first cohort; doses in the second cohort were limited to the highest first-cohort dose not associated with DLT. If there were no DLTs in the first cohort, the dosing regimen would remain unaltered in the second cohort.

Secondary clinical endpoints included the number of relapses during the study period and Expanded Disability Status Scale (EDSS) score at the end of the trial. Secondary magnetic resonance imaging (MRI) endpoints included the number of gadolinium-enhancing T1 lesions and the total number of lesions in T2 and fluid-attenuated inversion recovery (FLAIR) sequences. Laboratory endpoints included the concentrations of pro- and anti-inflammatory cytokines. The study was approved by the Russian Ministry of Health, the Central Ethics Commission, and all local ethic committees, and was conducted in full compliance with the Declaration of Helsinki, International Conference on Harmonisation’s Good Clinical Practice, and appropriate local legislation.


Subjects were screened 2 weeks before enrollment into the treatment phase of the study (Fig. 1B). The trial involved patients with RRMS or SPMS with superimposed relapses, defined as previously described [26]. Subjects were included if they were aged 18–55 years, had an EDSS from 3 to 5.5 and a ≥ 1.0 increase during the previous 6 months, and had > 1 relapse during the previous year [27]. Subjects also had to be stable for > 30 days at the time of screening and to have not received treatment with GA or β-interferons for > 30 days at the time of visit 1. Female subjects had to have negative pregnancy tests.

Subjects were excluded if they had primary progressive MS; clinically relevant infection or surgical intervention < 30 days before the screening visit; contraindications to MRI scanning, including hypersensitivity toward gadolinium; a body mass index > 40 kg/m2; or hypersensitivity toward components of a test item (egg phosphatidylcholine, monomannosyl dioleyl glycerol, α-tocopherol, or lactose) or GA. Subjects were also excluded if they had liver decompensation; heart diseases; tuberculosis in anamnesis; significantly abnormal hematological or biochemical parameters; oncological diseases; previous therapy with cladribine, alemtuzumab, rituximab, natalizumab, daclizumab, or intravenous immunoglobulin; treatment with any disease-modifying therapy during the previous 6 months, including cyclophosphamide, mitoxantrone, ciclosporin, mycophenolate mofetil, azathioprine, methotrexate, or plasmapheresis; or had been administered glucocorticoids within the last month at a daily dosage equivalent to > 60 mg of prednisolone.

The study was authorized by the Russian Public Health Ministry #930 (FASEMS-01/01) issued on 28 April 2012. All patients provided written informed consent at enrollment after discussion of the study with investigators including possible alternative treatment options. Details of full medical history and MS pathogenesis were collected.


Lyophilized Xemys consists of equimolar amounts of lyophilized, chemically synthesized MBP peptides 46–62 (GGDRGAPKRGSGKDSHH), 124–139 (GFGYGGRASDYKSAHK), and 147–170 (QGTLSKIFKLGGRDSRSGSPMARR) (total 0.45 mg) encapsulated in small unilamellar liposomes prepared from egg phosphatidylcholine and monomannosyl dioleyl glycerol with the addition of α-tocopherol and lactose (total 125 mg). Each dose was rehydrated in 1.0 ml sterile water immediately before administration. The starting dose, consisting of 0.05-mg peptides, was chosen as the minimum to detect any unpredictable AEs without significant risk to the patients. Patients received weekly subcutaneous injections of Xemys at escalating doses over 6 weeks of 50 μg, 150 μg, 225 μg, 450 μg, 900 μg, and 900 μg, yielding a total dose of 2.675 mg.

Patients were followed-up 1, 4, and 12 weeks after administration of the last dose, corresponding to study weeks 7, 10, and 18, respectively. AEs were monitored by 12-lead electrocardiography, hematology, and laboratory tests, and scored according to the Common Terminology Criteria for Adverse Events version 4.0. Any SAEs deemed “certainly” or “likely” due to the study drug were considered DLTs, with the next lowest dose level considered the maximum tolerated dose. Patients also underwent complete neurological examinations during each study visit. An MS exacerbation was defined as a new worsening of neurological function lasting for > 24 h that was unrelated to other comorbidities.

EDSS was determined at baseline (week 2) and at all follow-up visits. Patients underwent MRI scans, including T1-weighted axial scans with and without gadolinium, proton density axial, T2-weighted axial, T2-weighted sagittal, and FLAIR sequence axial images, at baseline and at follow-up visits at weeks 7, 10, and 18. Scans were performed with Philips, Amsterdam, Netherlands Integra 1.5T, Magnetom Avanto 1.5T, and GE Medical Systems, Milwaukee, WI, USA Signa 1.5T scanners.

Serum samples for cytokine analysis were collected at baseline and during all follow-up visits. The profiles of 17 cytokines and chemokines were determined using a multiplexed fluorescent magnetic bead-based immunoassay (Bio-Rad Laboratories, Berkeley, CA, USA), according to the manufacturer’s instructions. These 17 cytokines and chemokines included interleukin (IL)-1β, IL-2, IL-4, IL-5, IL-6, IL-7, IL-8, IL-10, IL-12 (p70), IL-13, IL-17A, granulocyte colony-stimulating factor, granulocyte macrophage colony-stimulating factor, interferon-γ, monocyte chemoattractant protein-1 (MCP-1/CCL2), macrophage inflammatory protein (MIP-1b/CCL4), and tumor necrosis factor (TNF)-α.

Statistical Analysis

Demographic data, baseline characteristics, safety and tolerability variables, and other parameters under investigation were calculated using descriptive statistics. Safety and tolerability were assessed in patients who received at least 1 dose of the studied substance. AEs were grouped by dose and classified by MedDRA system organ classes and preferred terms, with severity classified by Common Terminology Criteria for Adverse Events version 4.0. Secondary endpoints were analyzed in patients who received at least 1 dose of the studied substance and underwent at least 1 assessment. The normality of the data was determined using Kolmogorov–Smirnov tests; all datasets were non-normally distributed. Changes from baseline in the number of MRI lesions were assessed by analysis of variance. Mann–Whitney t tests were used to compare between-group variables and the Wilcoxon signed rank test for within-group variables. All tests were two sided, and p-values < 0.05 were considered significant. All statistical analyses were performed with SPSS (IBM, Armonk, NY, USA) and GraphPad Prism 6.0 (GraphPad Inc., La Jolla, CA, USA).


Between April 2013 and July 2014, 20 patients with RRMS or SPMS matching all criteria were directly recruited into the trial at 4 clinical centers in the Russian Federation. Baseline characteristics of patients with MS are listed in Table 1. Inclusion and exclusion criteria, as well as the numbers of patients screened and enrolled in the study, are summarized in Fig. 1B. Of the 20 patients, 16 (80%) had RRMS and 4 (20%) had SPMS with relapses. At baseline, 3 (15%) patients had mild disability according to EDSS score (3.0), and 17 (85%) had moderate disability (3.5–5.5) (Table 2). Nineteen patients received all 6 weekly doses of encapsulated MBP peptides (total 2.675 mg) (Fig. 1A). One patient who received all 6 doses of Xemys discontinued from the study after treatment period at week 6 (his own decision); 1 patient received only the first 50-μg dose and chose to discontinue after 1 week (his own decision).

Table 1 Baseline characteristics of patients with multiple sclerosis
Table 2 Multiple sclerosis (MS) anamnesis

As no patient experienced a DLT during treatment, an maximum-tolerated dose was not reached, making it likely to be > 900 μg per week. Eight patients (40%) experienced 16 AEs (Table 3), with 11 events in 5 (25%) patients regarded as related to the Xemys injections. No SAEs, serious drug reactions, or deaths occurred during the study. Of the 16 AEs, 13, in 6 (30%) patients, were regarded as grade 1, and 3 AEs, in 2 (10%) patients, were regarded as grade 2 (Table 4). No AE met the seriousness criteria of International Conference on Harmonisation E6. All drug-related AEs were grade 1 in severity, except for diarrhea, which was grade 2 (Table 5). All AEs resolved without treatment and did not require interruption or discontinuation of the investigational drug.

Table 3 Overview of adverse events (AEs)
Table 4 Adverse events by MedDRA preferred term and by Common Terminology Criteria for Adverse Events (CTCAE) severity grades
Table 5 Adverse events by MedDRA preferred term and relationship to study drug

The most common AE was local reaction at the site of injection, which was observed 8 times in 4 (20%) patients. Most injection site reactions occurred at administration of submaximal (0.45 mg) and maximal (0.9 mg) doses of Xemys; all resolved within 24 h without treatment. Rhinitis occurred twice in 2 patients (10%) each and general weakness twice in 1 (5%) patient. Other AEs occurred only once in single patients. Xemys did not have any effect on laboratory safety tests, vital signs (body temperature, heart rate, respiration rate and blood pressure), results of physical examination, or electrocardiography parameters (heart rate, PR interval, QRS duration, and QT interval). In general, the administered doses of Xemys were considered safe and tolerable.

Patients underwent MRI scans at baseline (week –2) and after treatment, at weeks 7, 10, and 18, using T1-weighted (with and without contrast), T2, and FLAIR regimens. Nineteen patients were evaluated at baseline and week 10, and 18 patients at weeks 7 and 18 (Table 6, Fig. 2A). At baseline, 16 (84%) patients had no active gadolinium-enhancing lesions. By week 7, however, active lesions were detected in 10 (56%) patients, and at last follow-up, 8 (33.7%) patients had active lesions. Although a trend towards an increasing number of gadolinium-enhancing lesions was detected, per subject-specific analysis of MRI results at time of study exit showed that 83% of patients had 0±1 new lesions, with only 3 patients (17%) having > 1 new lesion (Fig. 2B). To assess changes in the number of MRI lesions in comparison with baseline, ANOVA was performed, with the dependent variable being the rank of the number of MRI lesions (Table 7). All datasets were non-normally distributed. Relative to baseline, the increases in the number of active gadolinium-enhancing lesions were statistically significant at weeks 7 and 10 (F = 3.015, p = 0.038), but not at week 18 (p > 0.05). At last follow-up, 16/19 (85%) patients were relapse-free, and EDSS worsened in 21% and improved in 10% of patients. The disease histories, and clinical and MRI outcomes of individual patients are summarized in Table 8.

Table 6 Magnetic resonance imaging (MRI) lesions by visits

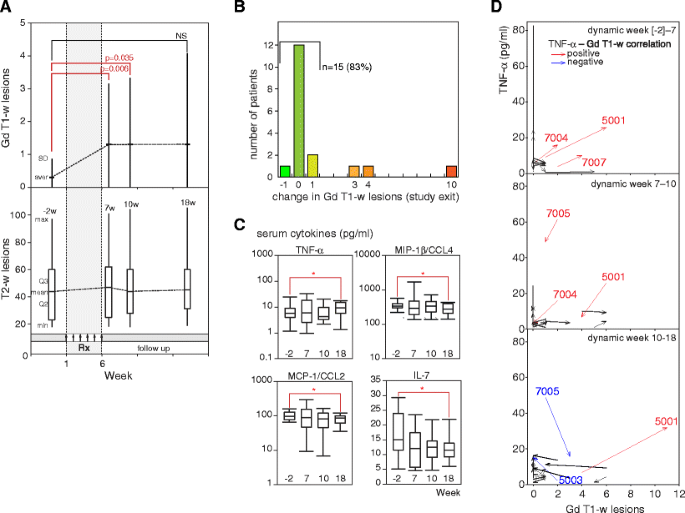

Fig. 2
figure 2

(A) Cumulative change in mean number of new gadolinium-enhancing and T2-weighted (w) lesions. (B) Change in number of gadolinium (Gd)-enhancing lesions at study exit (18 weeks). (C) Concentrations of serum cytokines at screening (–2 weeks), 7, 10, and 18 weeks. The bold lines represent the medians and the boxes represent interquartile ranges. Bars represent 95% confidence intervals. Statistically significant differences (p < 0.05) are indicated. (D) Vector plots showing changes in serum tumor necrosis factor (TNF)-α concentrations and numbers of gadolinium-enhancing lesions in studied patients. Positive and negative correlations between TNF-α level and number of gadolinium-enhancing lesions are shown in red and blue, respectively. Numbers represent patient identifications. Aver = average; Q = quartile; min = minimal value; max = maximal value; MIP = macrophage inflammatory protein; MCP = monocyte chemoattractant protein; IL = interleukin

Table 7 Gadolinium-enhancing T1 magnetic resonance imaging lesions by visits (analysis of variance)
Table 8 Patients' history, magnetic resonance imaging, and clinical outcome measures at study exit

To analyze the immunological consequences of Xemys administration, the concentrations of 17 serum cytokines and chemokines were analyzed at follow-up time points (Fig. 2C). Compared with baseline, MCP-1, MIP-1β, and IL-7 concentrations were significantly lower and TNF-α was significantly higher at study exit (week 18).


This study showed that subcutaneous administration of Xemys was safe and well tolerated in patients with MS who had previously failed to achieve sustained disease control following treatment with GA or β-interferons. The AEs related to Xemys were of mild or moderate severity and occurred mainly after treatment with submaximal and maximal doses of Xemys. These AEs were self-limiting, required no concomitant medication, and did not cause abnormalities in blood tests or other safety measures. Taken together, these findings showed that once-weekly Xemys has a relatively good safety profile.

Patients included in the FASEMS trial have experienced significant disease activity, despite previous first-line disease-modifying treatment. Importantly, 12 weeks after the end of Xemys administration, 7 patients (37%) showed no evidence of disease activity, and 16 (85%) were relapse-free. Although EDSS levels and the numbers of T2-weighted lesions and new gadolinium-enhancing lesions on MRI in comparison with baseline were statistically unchanged at study exit, a statistically significant increase in the number of active gadolinium-enhancing lesions on weeks 7 and 10 in comparison with baseline was detected. Here we emphasize that all patients included in this study had experienced > 1 relapse during the previous year, had progressing EDSS, and at the same time had disease stabilization for at least 30 days before screening. Therefore, the number of contrast-enhancing lesions may have had a natural tendency to increase during the course of the study. The lack of a placebo group reasoned by approved study design did not allow comparative monitoring of disease progression, including the number of gadolinium-enhancing lesions, in the absence of therapeutic intervention. Finally, the statistically significant increase in the number of gadolinium-enhancing lesions was assessed only in a small group of patients who experienced relapse. Thus, the appearance of these lesions was not likely associated with treatment, although this possibility cannot be completely excluded.

Our preliminary data also suggest that there were no consistent trends in serum cytokine profiles. However, the concentrations of MCP-1, MIP-1β, and IL-7 were significantly lower after treatment that at baseline. Immunologically, Xemys administration is thought to restrict monocyte cell trafficking. Although a classical proinflammatory cytokine TNF-α has been previously shown to have potent beneficial effects in autoimmune neurodegeneration [28], reported herein increase in concentration of serum TNF-α in treated patients with MS had likely no protective input. Despite the absence of a distinct link between changes of the number of gadolinium-enhancing lesions and dynamic of serum level of TNF-α, a rather positive correlation was observed (Fig. 2D).

In conclusion, this phase I trial showed that once-weekly subcutaneous Xemys for 6 weeks, at a cumulative dose of 2.675 mg, was safe and well tolerated by patients with RRMS and SPMS. Preclinical and clinical data warrant the further development of Xemys as an antigen-specific disease-modifying therapy for patients with MS.
