Common and distinct regulation of human and mouse brown and beige adipose tissues: a promising therapeutic target for obesity
Obesity, which underlies various metabolic and cardiovascular diseases, is a growing public health challenge for which established therapies are inadequate. Given the current obesity epidemic, there is a pressing need for more novel therapeutic strategies that will help adult individuals to manage their weight. One promising therapeutic intervention for reducing obesity is to enhance energy expenditure. Investigations into human brown fat and the recently discovered beige/brite fat have galvanized intense research efforts during the past decade because of their pivotal roles in energy dissipation. In this review, we summarize the evolution of human brown adipose tissue (hBAT) research and discuss new in vivo methodologies for evaluating energy expenditure in patients. We highlight the differences between human and mouse BAT by integrating and comparing their cellular morphology, function, and gene expression profiles. Although great advances in hBAT biology have been achieved in the past decade, more cellular models are needed to acquire a better understanding of adipose-specific processes and molecular mechanisms. Thus, this review also describes the development of a human brown fat cell line, which could provide promising mechanistic insights into hBAT function, signal transduction, and development. Finally, we focus on the therapeutic potential and current limitations of hBAT as an anti-glycemic, anti-lipidemic, and weight loss-inducing ‘metabolic panacea’.
KEYWORDShuman brown adipose tissue energy metabolism obesity
Throughout human history, cold weather and famine were threats to survival. To ward off these threats, brown adipose tissue (BAT) and white adipose tissue (WAT) were evolutionarily selected. BAT dissipates energy to keep us warm, while WAT stores excess energy to be spent during times of food deficiency. These two complementary fat depots work to maintain energy balance. However, industrialization and technological advancements in developed societies have broken this balance due to an increase in sedentary occupations, overabundance of food, lack of physical activity, and warm shelter, causing obesity rates to skyrocket as more countries move from being undeveloped to developed. As the World Health Organization (WHO) reported in June 2016, worldwide obesity has more than doubled since 1980 (World Health Organization Fact Sheets: Obesity and Overweight, 2016). In 2014, 39% of adults aged 18 years and older were overweight, and 13% of them were obese (World Health Organization Fact Sheets: Obesity and Overweight, 2016). Most of the world’s population lives in countries where a high body mass index kills more people than a low one (World Health Organization Fact Sheets: Obesity and Overweight, 2016). In other words, food shortages have not been as deadly as food surpluses. According to the data, obesity, which is associated with type 2 diabetes, polycystic ovarian syndrome, hypertension, cardiovascular disease, etc., is the major public health challenge of the 21st century (Eckel et al., 2010). Thus, therapeutic approaches that prevent and/or reverse obesity deserve further exploration.
Brown adipocytes, which are rich in mitochondria, are different from white adipocytes because they consume energy more efficiently. Indeed, increased energy expenditure would be expected to reverse and/or prevent obesity (Hall et al., 2011). Given that active BAT with energy dissipation function has been confirmed in a number of human adults (Nedergaard et al., 2007; Cypess et al., 2009; Saito et al., 2009; van Marken Lichtenbelt et al., 2009), research interests into human BAT as a means of controlling obesity by diverting excess fat into heat has greatly intensified and represents a novel therapeutic approach for combatting this deadly, metabolic disease.
THE EVOLUTION OF HUMAN BAT RESEARCH
In 1902, Shinkishi Hatai first reported in a human embryonic development study that BAT is located beneath the sternocleidomastoid and trapezius muscles and runs laterally and parallel to the neck (Hatai, 1902). During human infancy, heat is generated by BAT via non-shivering thermogenesis, which is the main defense our bodies employ against cold environments (Aherne and Hull, 1966). With increasing age, human brown adipose tissue (hBAT) was thought to diminish and ultimately vanish. It was not until his 1972 necropsy study that Heaton found human BAT persists throughout later stages of life, located at specific anatomical locations including around the kidneys, suprarenals and aorta, and in the neck and mediastinum (Heaton, 1972). In the 1980s, Huttunen et al. found that a large proportion of fat cells isolated from the neck contained potent mitochondrial enzymes in adult individuals exposed to cold (Huttunen et al., 1981). No active BAT had been identified in human adults prior to these discoveries because in vivo research into hBAT was severely hampered by a lack of methodologies that could accurately pinpoint its location.
In the mid-1990s, the emergence of positron emission tomography (PET) using the glucose tracer, 2-[18F]-fluoro-D-2-deoxy-D-glucose (FDG), combined with computer tomography (CT) renewed interest in hBAT and its role in energy expenditure (Cypess et al., 2009; Saito et al., 2009; van Marken Lichtenbelt et al., 2009). Just as in malignancy, hyper-metabolic hBAT has a high FDG uptake rate that can be detected by the minimally-invasive PET-CT technique in vivo. More recently, it has been discovered that a significant number of adult humans have active BAT that can be detected by PET-CT (Cypess et al., 2009; Saito et al., 2009; van Marken Lichtenbelt et al., 2009). However, PET-CT is not sensitive to BAT in the thermoneutral state because it depends on tissue glucose utilization (Chen et al., 2013). In recent years, magnetic resonance imaging (MRI) and functional (f)MRI, which detect changes associated with blood flow, have been used to assess hBAT volume and monitor responses to certain stimuli. MRI distinguishes between BAT and WAT according to three physiological criteria: BAT has a higher water-to-fat ratio, a higher density of mitochondria, and more blood vessels than WAT (Chen et al., 2013). According to imaging examinations, the main BAT depots are in the supraclavicular and neck regions with some additional paravertebral, mediastinal, para-aortic, and suprarenal localization (but not the interscapular region) (Nedergaard et al., 2007), which coincide with former anatomical results.
Great advances about hBAT biology have emerged from imaging methods in recent years, and many of the achievements concur with those of murine BAT. Based on a higher FDG uptake, PET-CT scans showed that cold exposure significantly enhances hBAT activation (Saito et al., 2009; van Marken Lichtenbelt et al., 2009). Gender is another key determinant of BAT mass and activity. In general, women contain more BAT than men, while BAT distributions are similar across sexes (Cypess et al., 2009). Moreover, BAT volume and cold-activated FDG uptake are inversely correlated with age, beta-blocker use, body-mass index, body fat, and visceral fat (Nedergaard et al., 2007; Cypess et al., 2009; Saito et al., 2009). Thus, BAT is more abundant in younger and leaner individuals and decreased by long-term beta-blocker use. Altogether, these novel approaches have significantly advanced our understanding about hBAT localization and regulatory function and have provided researchers with the necessary tools to assess BAT’s therapeutic potential in treating human obesity.
MORPHOLOGICAL, FUNCTIONAL, AND GENETIC DIFFERENCES BETWEEN BAT AND WAT IN HUMANS
Differences between brown and white adipocytes
Thyroid, supraclavicular, mediastinal, parathoracical, perirenal
Subcutaneous, mesenteric, retroperitoneal, omental
Numerous, small lipid droplets
Unilocular, large lipid droplets
Blood supply and nerve-fibers
Dissipating energy as heat production
Storing energy as triglycerides
Smith and Roberts (1964)
UCP1, LHX8, and ZIC1,
MPZL2, HOXC9, EBF3, FBXO31, and LEP,
Cypess et al. (2013)
Orava et al. (2011)
Obesity and type 2 diabetes
IS ADULT HUMAN BAT A CLASSICAL BAT OR BEIGE/BRITE ADIPOSE TISSUE?
Two distinct types of UCP1-positive adipocytes have been identified in mice: the classical brown fat cells and brown-like fat cells (also called beige or brite adipocytes) (Ishibashi and Seale, 2010; Seale et al., 2008). Unlike classical brown fat, which is derived from a myf-5 lineage (Seale et al., 2008), beige cells in WAT are derived from a non-myf-5 lineage and share features of both white and brown fat cells, including high expression of white adipocyte-specific markers (e.g. aP2, adipsin, and PPAR-γ) (Ishibashi and Seale, 2010). Adult hBAT, which is dispersed mainly in the supraclavicular, para-aortic, and suprarenal regions and is densely innervated, could be activated by cold through the sympathetic nervous system (Cannon and Nedergaard, 2011; Lowell and Spiegelman, 2000). However, unlike the classical brown adipocytes found in the interscapular regions of rodents and human infants, adult hBAT shares many molecular, histological, and functional characteristics with cold-induced beige fat found in the sWAT of rodents (Wu et al., 2012; Qiu et al., 2014). For example, mouse beige cells express Slc27a1, TMEM26, TBX1, CD40, and CD137 in a beige-selective manner, some of which, such as CD137, TMEM26, and TBX1, are highly expressed in adult hBAT (Wu et al., 2012), indicating that cold-induced hBAT is more closely related to rodent beige fat rather than classical brown fat. Within adult human neck BAT, the gene expression pattern of superficial neck fat resembles that of mouse sWAT, while deep neck fat is more like mouse BAT with high UCP1, PGC1-α, and D2 levels (Qiu et al., 2014). A whole-genome microarray experiment showed that the best molecular markers for grouping human fat cells are: 1) MPZL2, HOXC9, EBF3, FBXO31, and LEP, as WAT markers; 2) TNFRSF9, TMEM26, and SHOX2, as beige/brite markers; and 3) UCP1, LHX8, and ZIC1, as BAT markers (Table 1) (Cypess et al., 2013). Taken together, these studies suggest that cold-induced activation of hBAT primarily involves beige fat recruitment. However, more detailed work is needed to determine whether cold-induced activation of hBAT is mediated mainly by the sympathetic nervous system (SNS) or by alternative activation of the eosinophils-type 2 cytokine-macrophage signaling pathway (Qiu et al., 2014), or both.
DISTINCTION OF HUMAN BAT AND MOUSE BAT
Differences between human and mouse adipocytes
The main BAT depots are in well-defined anatomic sites
A mix of white, classical brown, and recruitable brite adipocytes
Homogeneously composed of brown adipocytes
145 miRNAs are expressed in BAT of both species while expression of at least 250 other miRNAs is exclusive to one species or the other
Guller et al. (2015)
Response to β3 adrenergic agonists
Changes with increasing age
Acutely increase but chronically suppress BAT activity
Substantially suppress BAT activity
MECHANISTIC EFFECTS OF AMBIENT TEMPERATURE ON hBAT

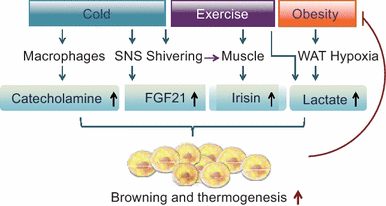

Cold exposure profoundly enhances hBAT perfusion and activity, and improves glucose and fatty acid uptake, thereby supporting cold-induced energy dissipation (Saito et al., 2009; Orava et al., 2011). These observations reveal hBAT as an attractive target for treating and preventing obesity. However, the promoting effect of cold-exposure on energy expenditure is markedly suppressed by fasting-induced insulin resistance (Hanssen et al., 2015). Rodents studies show that the stimulatory effects of cold exposure are emulated by electrical stimulation of sympathetic nerves within BAT and by administration of adrenergic agonists, but abolished by surgical severing of the sympathetic nerves or adrenergic blocker treatment (Shimizu et al., 1991), indicating that cold-exposure stimulates BAT via sympathetic nerves. However, the mechanism by which the SNS regulates hBAT upon cold-exposure is still unknown. Agents that activate the SNS failed to activate BAT in human studies, presumably due to the systemic effects of SNS agonists and minimal BAT responsiveness (Cypess et al., 2012). Epinephrine, a sympathomimetic drug, does not activate hBAT at a dose that leads to broad activation of the SNS (Cypess et al., 2012), suggesting that cold-exposure activates specific sympathetic pathways responsible for hBAT activation. In addition, most known effectors of UCP1-dependent thermogenesis such as certain neuropeptides, leptin, and capsaicin all converge on SNS activation. One of the major drawbacks with using broad sympathetic activation to stimulate thermogenesis however, are the serious-side effects and increased risk for heart attack (Bonet et al., 2013). Although cold exposure profoundly increases plasma concentrations of SNS activation biomarkers like norepinephrine and the secondary messenger, cyclic adenosine monophosphate (cAMP), this effect has been found in humans both with and without cold-activated BAT (Orava et al., 2011). In addition, stimulation of the parasympathetic vagus nerve also increases energy expenditure in human BAT, although the mechanism is unclear (Vijgen et al., 2013). These reports suggest that hBAT stimulation through generalized sympathomimetic drugs is not a viable approach and thus, more extensive analyses in human BAT are needed.
Cold exposure may also alter human physiology by cross-talking with immune cells to release cytokines capable of inducing fat browning. In mice, cold exposure rapidly promoted eosinophil-dependent and interleukin 4 (IL-4)-stimulated alternative activation of adipose macrophages, which secrete catecholamines to induce thermogenic gene expression and/or lipolysis in both BAT and WAT (Qiu et al., 2014; Nguyen et al., 2011). ILC2s can promote the eosinophil/IL-4Rα/alternatively-activated macrophage (AAMac) (Qiu et al., 2014; Liu et al., 2014; Wu et al., 2011). Besides, ILC2s have been shown to promote beiging in an IL33-depend pathway in part via production of enkephalin peptides that elicit beiging (Brestoff et al., 2015). IL-4 stimulation of human monocytes has also been reported to promote alternative activation, catecholamine production, lipolytic activity of adipocytes, and dysregulated ILC2 responses in WAT are a conserved feature of obesity in humans and mice (Brestoff et al., 2015), suggesting these pathways may play the same roles across species (Nguyen et al., 2011). In humans, mild cold exposure increases plasma levels of fibroblast growth factor-21 (FGF-21) (Lee et al., 2013), a hormone that promotes systemic glucose uptake and oxidation. In hBAT, FGF-21 expression positively correlates with UCP1 expression, promotes BAT activity and recruits inducible brown adipocytes via autocrine and/or endocrine mechanisms (Hondares et al., 2014). Future studies aiming to identify secreted factors that promote thermogenesis and/or beiging will undoubtedly advance our understanding about thermogenic regulation and may lead to novel anti-obesity drug treatments.
EFFECTS OF EXERCISE ON hBAT ACTIVITY AND THE UNDERLYING MECHANISMS
REGULATORY FACTORS OF HUMAN BAT
Human brown adipocytes are regulated by many intrinsic factors, including glucocorticoids and bile acids. In the absence of glucocorticoids, brown adipocytes differentiate poorly, particularly during early differentiation. Glucocorticoids induce PPAR-γ and CCAAT/enhancer binding protein-β (C/EBP-β) expression as well as increase PGC1-α and GLUT-4 levels, while reducing the expression of DNA binding-2 inhibitor (Id2) and TNF-α (Ramage et al., 2016; Zilberfarb et al., 2001). Acute treatment of human brown adipocytes with glucocorticoids at physiological concentrations increased basal and adrenergic stimulated respiration and UCP1 expression (Ramage et al., 2016). However, chronic glucocorticoid stimulation also suppressed β-adrenergic thermogenesis in hBAT (Ramage et al., 2016; Barclay et al., 2015), which may underlie glucocorticoid therapy-associated body-weight gain. The bile acid, chenodeoxycholic acid (CDCA), is another steroid molecule that is essential for metabolism and thought to increase human whole-body energy expenditure. In human brown adipocytes, CDCA improves mitochondrial uncoupling and D2 expression via a G protein-coupled receptor TGR5 (G-protein coupled receptor for bile acids)-dependent mechanism (Broeders et al., 2015). As a registered and generally recognized safe drug for humans (Broeders et al., 2015), CDCA is a promising candidate to activate hBAT and counter obesity and its related metabolic diseases. Thus, identification of more endogenous regulatory factors is critically needed to elucidate hBAT biology and the body’s complex responses to regulate energy expenditure.
DEVELOPMENT OF IMMORTALIZED HUMAN BROWN ADIPOCYTES
Despite advances in our understanding of murine BAT, there remain numerous knowledge gaps concerning the biological mechanisms of hBAT. Although thermal imaging and FDG/MRI scans are capable of capturing human BAT activity non-invasively, for in vitro research, human cell lines are still needed to uncover the genetic, pharmacological, and environmental determinants of BAT biological functions. PAZ6, the first available immortalized human BAT cell line (Zilberfarb et al., 1997), has been used to study generic cellular processes and evaluate the expression of adipogenic markers. Differentiated PAZ6 adipocytes express a myriad of brown adipocyte markers including β1, β2, and β3 adrenergic receptors (β-AR), α2A-AR, lipoprotein lipase, hormone sensitive lipase, adipsin, the glucose transporters Glut 1 and Glut 4, leptin, and UCP1 (Zilberfarb et al., 1997). Among these BAT markers, the expression of leptin and GLUT1 is markedly stimulated by hypoxia (Grosfeld et al., 2002), which could be an adaptive mechanism that promotes angiogenesis and increases adipose tissue oxygenation (Grosfeld et al., 2002). While it is widely accepted that the rodent β3-adrenoceptor is essential for regulating fat metabolism, its role in human BAT is still under debate (Arch and Wilson, 1996). According to a saturation binding analysis using PAZ6 adipocytes, the β3-AR appears to be the most abundant β-AR subtype. The selective β3-AR agonist, CGP 12177A, markedly increases cAMP concentration and lipolysis activity in PAZ6 adipocytes (Zilberfarb et al., 1997). Pre-treating PAZ6 adipocytes with norepinephrine however, down-regulates β-AR number and desensitizes β3-AR signaling (Jockers et al., 1998). These results suggest that β3-AR in human brown adipocyte is functionally coupled to lipolysis (Jockers et al., 1998). Thiazolidinediones are a popular class of drugs used to treat type 2 diabetes because of their ability to increase insulin sensitivity by binding to PPAR-γ, which alters the expression of genes involved in glucose and lipid metabolism. PAZ6 cells treated with thiazolidinediones exhibited enhanced brown adipocyte differentiation as demonstrated by increased triglyceride content and adipocyte-specific gene expression, including aP2, PPAR-γ, β3-AR, HSL, and UCP2 (Strobel et al., 1999). Other small molecules thought to promote hBAT function such as dehydroepiandrosterone (DHEA) and retinoic acid (RA) have also been tested in PAZ6 cells. Serum concentrations of DHEA, a steroid sex hormone precursor, inversely correlate with biomarkers of metabolic syndrome, indicating that DHEA may modulate adipose tissue mass and function. DHEA inhibits PAZ6 preadipocyte proliferation by blocking the G1/S or G2/M transition. By contrast, UCP1 mRNA levels are higher in PAZ6 cells differentiated in the presence of DHEA. The inhibitory effect on PAZ6 pre-adipocyte cell cycle progression and the promoting effect on PAZ6 adipocyte gene expression may represent a pro-adipogenic mechanism (Rice et al., 2010). In PAZ6 adipocytes, retinoic acid increases UCP1 gene expression in a PGC1α-dependent way, while the PPARα-specific agonist, WY14643, failed to regulate UCP1 gene expression without RA (Oberkofler et al., 2002). However, the mechanism by which RA regulates hBAT in vivo remains uncertain.
SUMMARY AND FUTURE PERSPECTIVES
The therapeutic potential of hBAT as an anti-glycemic, anti-lipidemic, and weight loss-inducing ‘metabolic panacea’ is postulated by calculations showing that when fully activated, 63 grams of BAT would burn the energy-equivalence of 4.1 kilograms of WAT over the course of a year (Virtanen et al., 2009). Considering its striking capacity for energy dissipation, the findings in hBAT are clinically valuable for guiding future prevention strategies and treatments for obesity, insulin resistance, and other related metabolic diseases (Hall et al., 2011). Increasing human energy expenditure through hBAT by cold-exposure (Cypess et al., 2009; Aherne and Hull, 1966) and exercise (Lee et al., 2013; Hondares et al., 2014) however, would require drastic changes in life style. Considering the discomfort of cold exposure, exercise is likely the preferred approach for enhancing hBAT activity. The increased irisin and lactate concentrations that are induced during exercise have been reported to promote adipocyte browning remodeling and are potential approaches for treating obesity without the exercise (Bostrom et al., 2012; Carriere et al., 2014). Molecules such as FGF-21, natriuretic peptides, and thyroid hormones have also been suggested as potential drugs to counteract obesity and its related metabolic diseases. The thyroid hormone, triiodothyronine (T3), has been shown to profoundly promote mitochondrial biogenesis and UCP1 expression in brown-like fat cells as well as skeletal muscle and brown adipose tissue (Crisan et al., 2008). Another anti-obesity strategy that has not been considered in this review, but warrant serious investigation, includes transforming muscles cells into brown fat. Interestingly, a stationary population of human skeletal muscle cells expressing the CD34 surface protein have been found to differentiate in vitro into genuine brown adipocytes with a high level of UCP1 expression (Crisan et al., 2008), suggesting that human skeletal muscle cells have the potential to transdifferentiate into brown adipocytes. Thus, finding new ways to reprogram skeletal muscle into brown fat represents another novel approach to promote thermogenesis and combat obesity.
Although pharmacological means to treat obesity are possible, supraphysiological concentrations of these medications are associated with severe side effects. In addition, only a few defects in human BAT development and thermogenesis due to gene mutations have been described (Yoneshiro et al., 2005) thus, a better understanding of the physiological processes underlying hBAT is still required before BAT-related therapies can be developed. At present, much of our knowledge about BAT is based on mouse studies and hBAT research is still limited by a number of factors such as access to high-quality, ethically-approved clinical samples, reliable methods for measuring BAT volume and activity, and better ways to stimulate BAT function with minimal adverse effects. One protocol, which collects both MRI and 18F-FDG PET-CT scans, has been reported to give accurate estimates of hBAT imaging volumes (Gifford et al., 2015). In the future, this approach could be used in longitudinal studies to assess therapeutic interventions. In conclusion, we opine that a better understanding of hBAT physiology will lead to new pharmacological targets for treating obesity, and given the current obesity epidemic, more physiological studies of brown adipose tissue in healthy adult individuals are needed to fully characterize its regulatory function and therapeutic potential.
We thank Dr. Hong Ruan for initial English-editing assistance. This work was supported by grants from the National Basic Research Program (973 Program) (No. 2014CB910501), the National Natural Science Foundation of China (Grant No. 81000316), and a grant from the NIH (DK76902).
ANP, atrial natriuretic peptide; BAT, brown adipose tissue; BNP, brain natriuretic peptide; cAMP, cyclic adenosine monophosphate; CDCA, chenodeoxycholic acid; C/EBP-β, CCAAT/enhancer binding protein-β; CT, computer tomography; D2, type 2 iodothyronine deiodinase; DHEA, dehydroepiandrosterone; FDG, 2-[18F]-fluoro-D-2-deoxy-D-glucose; FGF-21, fibroblast growth factor-21; hBAT, human brown adipose tissue; IL-4, interleukin 4; MRI, magnetic resonance imaging; NPs, natriuretic peptides; PET, positron emission tomography; PGC-1α, peroxisome-proliferator-activated receptor g coactivator 1α; PPAR-γ, peroxisome proliferator activated receptor-γ; PRDM16, PR domain containing 16; RA, retinoic acid; SNS, sympathetic nervous system; T3, triiodothyronine; TG, triacylglycerol; WAT, white adipose tissue; WHO, World Health Organization.
COMPLIANCE WITH ETHICS GUIDELINES
No potential conflicts of interest were declared by the authors. This article does not contain any studies with human or animal subjects performed by the any of the authors.
X.L. wrote manuscript, C.C. discussed and edited the manuscript, and F.L. contributed to discussion, reviewing, and editing of the manuscript.
- Eger W (1954) The significance of fatty tissue in obesity. I. On the histology, physiology and pathology of the white and brown fatty tissue. Die Med 20:701–704Google Scholar
- Gifford A, Towse TF, Walker RC, Avison MJ, Welch EB (2015) Human brown adipose tissue depots automatically segmented by positron emission tomography/computed tomography and registered magnetic resonance images. J Vis Exp 96:e52415Google Scholar
- Hatai S (1902) On the presence in human embryos of an interscapular gland corresponding to the so-called hibernating gland of lower mammals. Anat Anz 21:369–373Google Scholar
- World Health Organization Fact Sheets: Obesity and Overweight (2016) (article online). http://www.who.int/mediacentre/factsheets/fs311/en/
- Yoneshiro T, Ogawa T, Okamoto N et al (2005) Impact of UCP1 and beta3AR gene polymorphisms on age-related changes in brown adipose tissue and adiposity in humans. Int J Obes 2013(37):993–998Google Scholar
