Abstract
In oil industry, the reduction of oil production is of major concern as world’s necessity for oil increases. Therefore, developing and applying new techniques to mobilize residual oil left in the reservoir is important. Ultrasound technique is one of the unconventional methods to increase the productivity of oil wells, but in spite of many laboratory experiments on oil mobilization under ultrasound in porous media the precise mechanisms are weakly understood. Therefore, it is vital to perform basic experiments to achieve a good knowledge and deep insight into the mechanisms. To recognize the reason why ultrasound is able to mobilize residual oil left in pores, one must remember why oil droplet is trapped. Residual oil is left in pores because of insisting capillary forces. So, in this paper a mechanism related to capillary forces are developed to clarify the effect of ultrasound on mobilization of residual oil in porous media. In addition, some experiments are conducted with a 2D glass micro-model in which the mobilization of oil is observed using a digital microscope and camera. It was concluded from the result of experiments that the oil mobilization was proportional to ultrasound power and frequency.
Similar content being viewed by others
Avoid common mistakes on your manuscript.
Introduction
After primary and secondary recovery of an oil field, using some conventional-enhanced oil recovery methods such as chemical flooding (surfactant flooding), polymer flooding, gas flooding, steam flooding for improving oil recovery are definitely required. However, these methods are expensive to use, need a wide range of a surface apparatus, generate dangerous environmental results, and have technical limitations. Therefore, some unconventional methods have been recommended with lower application risk. One of these unconventional methods is the application of ultrasound for oil reservoir stimulation. To clarify the effects of ultrasonic waves on oil recovery many laboratory experiments and field observations have been conducted during the past 50 years.
The interest in recovery of oil from oil reservoirs under vibration dates back to 1950s when increased oil production was observed because of cultural noise and earthquakes. The viability of this method to increase oil recovery was first shown by Duhon and Campbell (1965). Chen (1969) and Fairbanks and Chen (1971) showed the effect of ultrasonic waves with the frequency of about 20 kHz and power of 10 W/cm2 on the oil and water flow through porous sandstone and through a capillary. They concluded that, ultrasound enhanced the percolation rate in the case of a porous medium. They also showed that this increase is only slightly due to ultrasonic heating.
Simkin and Surguchev (1991) and Simkin (1993) pointed out that oil droplet size was increased after applying ultrasonic waves. This increase was attributed to coalescence of oil droplets because of Bjerknes forces under ultrasound.
Kostrov and Wooden (2001) presented some possible oil recovery mechanisms as the following: (1) dislodging the oil droplet from the pore wall into the flow of fluid, (2) coalescence of two or more the oil droplets (oil films surrounding the formation grains) into the big one having higher mobility. Their results showed an increase in oil production to about 40% of total oil production.
Amro et al. (2007) conducted some experiments on core samples to show the effect of ultrasonic waves on oil mobilization. They concluded that oil displacement increased after applying ultrasonic waves and relative permeability changed. Furthermore, they concluded that applying ultrasound at residual oil saturation led to higher oil recovery compared to original oil in place.
Beresnev et al. (2005) explained a capillary-related mechanism to describe the mobilization of oil droplet inside porous media after applying ultrasonic waves. They conducted this study at pore scale on a non-wet oil droplet which was trapped at the entry of a pore in a channel, as showed in Fig. 1. As seen, the radius of the left meniscus is greater than the right one (Rleft > Rright). Therefore, an inequality of capillary pressure (ΔP) is generated inside the oil droplet that resisting the external pressure. As the oil droplet move more forward to the throat, the inequality of capillary pressure increases more. When the oil droplet is trapped, the pressure gradient (ΔP) inside it equals to the external pressure gradient (ΔPs). To move the droplets through the throat, ΔPs must be increased (more than ΔP). In this case, the droplet starts to move. This additional pressure can be created by ultrasonic waves (PU). It means that when ΔPs + PU > ΔP then the oil droplet can pass through the throat. In addition, the force generated by ultrasonic wave increases with the increase of ultrasound power.
Based on the above literature, it can be predicted that the oil mobilization enhances with increasing ultrasound power. So, in this study to prove the claim, a comprehensive series of macro-model (Core sample) and micro-model experiments were done to show the effect of ultrasonic waves on oil recovery rate and oil mobilization for different medium wettability (oil wet and water wet), and oil viscosities (15, 100, and 400 cp). In addition, the main parameters of ultrasound sources such as frequency (25 and 40 kHz) and power (1–500 W) were altered.
Experimental setup and procedure
Macro-model experiments
For macro-model experiments, co-current (all sides open to flow) Berea sandstone cores were used with the dimension of 6 × 3 cm (L × D). After saturating of the cores by oil in the vacuum, they were put inside of an imbibition cell filled up with brine. Then, for ultrasonic tests, the cells were placed inside an ultrasonic bath (ultrasonic cleaner) filled up with de-aerated water. We used two ultrasonic generators to produce the vibrational energy at frequencies of 25 and 40 kHz and power of 250 and 500 W, respectively. The schematic diagram of the imbibition experiment apparatus is shown in Fig. 2. The mineral oils used in experiments had various viscosities like 15, 100, and 400 cp. In some of the experiments for investigating the effect of different ultrasonic frequencies on oil recovery, we used the minimum energy output (1 W). The experimental runs are shown in Table 1.
Micro-model experiments

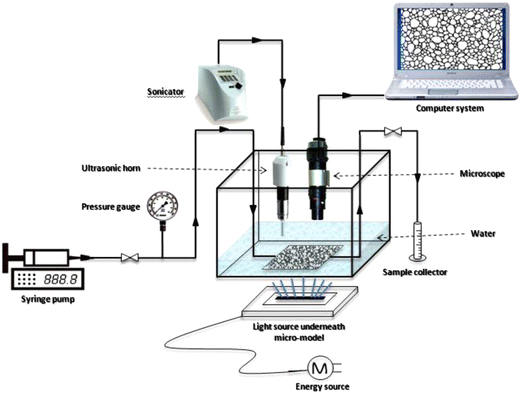

According to Fig. 3, after preparation and fabrication of the 2D glass micro-model, they were connected to the valves to which control the flow in and out of the model. The dimension of micro-model was about 60 × 60 mm (Fig. 4). The pore and throat diameters were 740 and 280 μm, respectively. The unit was immersed into a bath which was filled with water to make a suitable surrounding for propagation of ultrasonic waves.
To run tests, at first, brine (dyed deep blue) with salinity concentration of NaCl = 0.35 wt(%), MgCl2 = 0.25 wt(%), and CaCl2 = 0.10 wt(%) was injected by a KD Scientific syringe pump into the micro-model to saturate the micro-model. Then, for several hours, micro-model was left intact. Afterward, the oil (dyed red) was injected at 1.0 ml/h to move the initial brine. The oil properties are shown in Table 2. The injection was continued until reaching a point in which only the oil was produced at the port. This point could be recognized using microscope and camera at the production port and throughout the micro-model. After recognizing this point the oil injection could be finished. In this stage, a condition of connate water saturation was provided throughout the micro-model. Then brine (dyed pale blue) with the salinity concentration equal to surfactant solution salinity concentration was injected into the micro-models at the injection rate of 0.018 ml/h. It must be noted that, during the injection of brine, ultrasonic waves were also applied. Ultrasonic generator that was placed at the top of the micro-model generated these ultrasonic waves. A stereo microscope, Carl Zeiss Brand, Model Stemi SV 11 was focused at the pore scale. The camera mounted on this microscope monitored the displacement of the oil by water and sent the images to a PC for analyses. For calculating pores and throats area that occupied by the oil, the Image Analyzer Software was used. In these series of experiments, the ultrasound power and frequency for each experiment were different. The experimental runs are shown in Table 3.
Results
Macro-model experiments

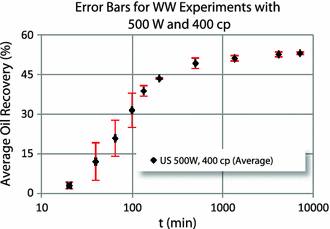

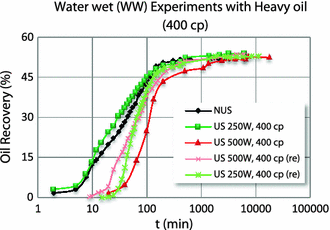

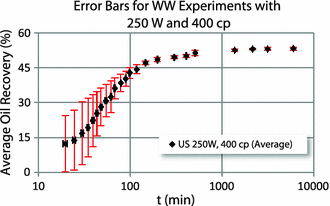

The recovery curves for water-wet experiment Nos. 1–3 with oil viscosity of 400 cp are shown in Fig. 5. It is obvious that there is not any significant change in oil recovery rates due to ultrasonic waves. Therefore, the effect of ultrasonic waves on oil recovery for the experiments with heavy oil (400 cp) is trivial. Experiment Nos. 1 and 2 were performed again for repeatability. Figures 6 and 7 shows the error bars for these two experiments. Error bars showing the data variability and are applied on graphs in a measurement to show the error, or uncertainty. They are used to show that how precise a measurement is, or on the other hand, how far from the reported value the true (error free) value might be. As seen in Figs. 6 and 7, there is an early variation in oil recovery but ultimate recovery is approximately the same for the cases. The small variations at the beginning of the experiments could be ascribed to the alterations in the properties of cores since various cores were used in the experiments from the same geological block.

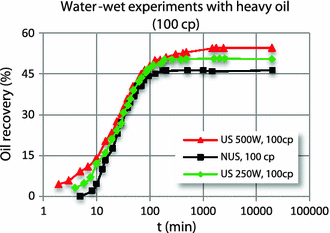

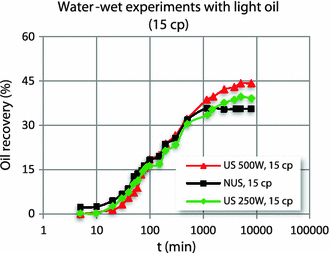

The recovery curves for water-wet experiment Nos. 4–6 with oil viscosity of 100 cp are shown in Fig. 8. It was observed that the ultimate oil recovery increased with increasing the power of the ultrasonic generator. Apparently, there are some possible mechanisms of oil recovery except the one explained in “Introduction” part control the process in these water-wet experiments, as following: (a) changing in interfacial tension (IFT) and wettability that were also mentioned before by Hamida and Babadagli (2007), (b) coalescence of oil droplets by Bjerknes forces that was also observed by Bjerknes (1906), (c) peristaltic movement of brine after applying ultrasound, which was mentioned before by Ganiev et al. (1989). The recovery curves for water-wet experiment Nos. 7–9 with oil viscosity of 15 cp are shown in Fig. 9. As seen, the ultimate oil recovery increased under ultrasound, especially for the tests with power of 500 W. The recovery curves for oil-wet experiment Nos. 10–13 with oil viscosity of 100 and 15 cp are shown in Fig. 10. As seen, the ultrasound has a very considerable effect on oil mobilization and oil recovery rate. In these series of experiments, the ultimate recovery increased more than 100% by ultrasound compared to water-wet cases. The oil recovery mechanisms that may be responsible in these experiments except the one described in Introduction part are IFT changes and peristaltic movement of brine inside the porous media. In oil-wet cases, aqueous phase has more affinity to flow and lesser tendencies to adhere to wall surface of pores or throats. Therefore, peristaltic movement of aqueous phase may smooth the progress of movement of oil through porous media. The coalescence of oil droplet by Bjerknes forces is not an effective mechanism for oil-wet cases because in oil-wet cases the ganglion form of oil droplets does not exist. In addition, it can be seen that the effect of ultrasonic waves on oil recovery is more significant in oil-wet cases with viscosities of 15 cp.

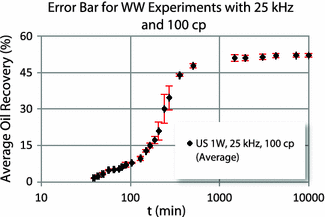

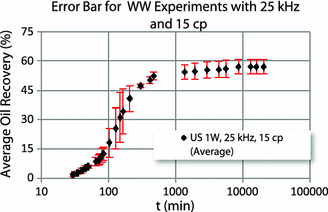

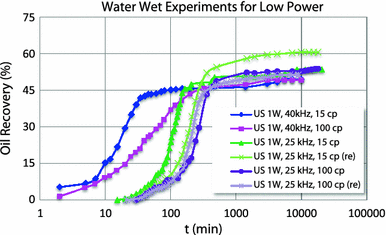

The recovery curves for water-wet experiment Nos. 14–17 with oil viscosity of 100 and 15 cp, low ultrasound power (1 W) and ultrasound frequencies of 25 and 40 kHz are shown in Fig. 11. These experiments were conducted to show the effect of frequency on oil recovery. The results show that for 40 kHz frequencies the recovery rate increases but ultimate recovery for all four tests (40 and 25 kHz) was the same. For repeatability, the experiment Nos. 15 and 17 were repeated. These experiments are shown by (re) in the Fig. 11. Figures 12 and 13 show the error bars for these two experiments. The repeated test No. 17 demonstrates almost the same recovery trend; however, its final recovery shows a few percent alteration compare to the first experiment No. 17. This alteration could be due to a variation in core properties or conditions of the experiments. For experiment No. 15, the repeated curve of recovery has a close match with its first one.
Micro-model experiments

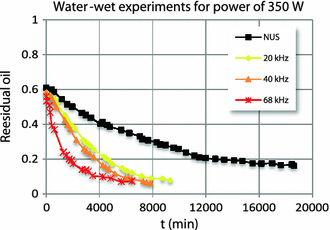

The result of water-wet experiments 1–3 at an ultrasound power of 350 W and different frequencies of 20, 40, and 68 kHz are shown in Fig. 14. This figure shows the residual oil saturation as a function of time. The purpose of doing these experiments was to understand the effect of ultrasonic frequency on oil mobilization. As seen, it is obvious that the oil mobilization in porous media is dependant to ultrasound frequency and residual oil decreased much faster than for the case without vibration (NUS).

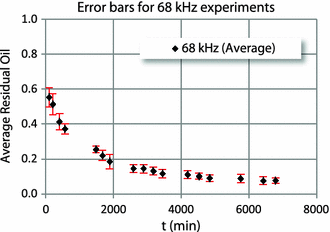

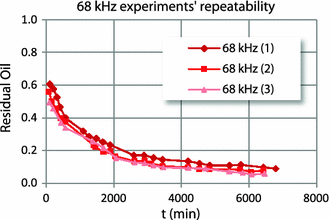

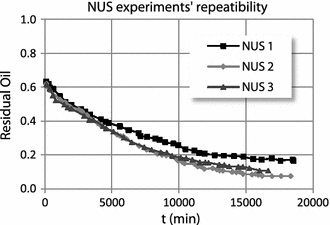

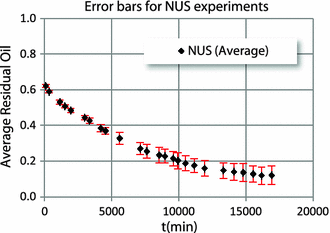

For the repeatability, three experiments of water flood were conducted in the absence of ultrasound (Fig. 15). As seen, the general trends for all the three experiments are analogous, particularly at the first displacement period but they deviate as they come up to the end of process. Figure 16 shows the error bars for the experiments. These deviations are possibly due to statistical variations related to the size of the lattice. Specifically, the preliminary pathways of percolation control the saturation of the residual oil. In addition to these experiments, three other experiments were performed and repeated at ultrasound frequency of 68 kHz and power of 350 W (experiment No. 3) (Fig. 17). Figure 18 shows the error bars for the experiments. As seen, the repeatability for the tests is very good and much better than obtained for the case of NUS. Because the force generated by ultrasound exerted on all sections of the micro-model at the same time and without inequity, the probability of growing pathways of percolation which bypass great flow cell portions (as a result of that causes larger variations from one experiment to another) is reduced.

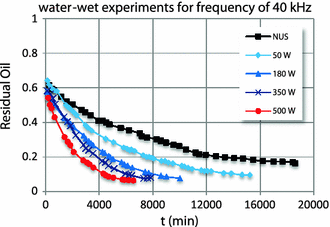

The result of water-wet experiments 4–7 at an ultrasound frequency of 40 kHz and different powers of 50, 180, 350 and 500 W are shown in Fig. 19. This figure shows the residual oil saturation as a function of time. As seen, the mobilization of oil inside porous media is also dependant to ultrasound power. Therefore, for greater powers the residual oil saturation decreased much faster than for the case without vibration (NUS). With respect to Figs. 14 and 19, it was concluded that the predictions summarized in the “Introduction” part, are validated by conducting these series of experiments.
Conclusions
In this study, the macro-model and 2D glass micro-model experiments were performed to prove the predictions of a mechanism of oil mobilization in porous media under ultrasonic waves. The result of the macro-model experiments showed that:
-
the oil recovery increases under ultrasonic waves.
-
The effect of ultrasound on oil recovery in a medium with high oil viscosity is less than the cases with lower viscosities.
-
The effect of ultrasonic waves on oil recovery is more significant in oil-wet cases especially with lower viscosities.
-
The recovery rate for higher frequency is more significant than lower frequency. Nevertheless, the ultimate recovery was almost the same for two cases.
The result of the micro-model experiments showed that:
-
when the frequency increases from 20 to 68 kHz for constant ultrasound power, the oil droplet move faster in the water flood experiments.
-
When the ultrasound power increases from 50 to 500 W for constant ultrasound frequency (40 kHz), the oil droplet move faster in the water flood experiments. So, the residual oil saturation decreases.
In general, the findings of this study show that the rate of oil production is proportional to the ultrasound power and frequency.
References
Amro MM, Al-Mobarky A, Al-Homadhi ES (2007) Improved oil recovery by application of ultrasound waves to waterflooding. In: SPE 105370, presented at the 15th SPE Middle East Oil and Gas Show and Conference held in Bahrain International Exhibition Centre, Kingdom of Bahrain, 11–14 March
Beresnev IA, Vigil D, Li W (2005) Elastic waves push organic fluids from reservoir rock. Geophys Res Lett 32:L13303. doi:10.1029/2005gl023123
Bjerknes VF (1906) Fields of Force. Columbia University Press, New York
Chen WI (1969) Influence of ultrasonic energy upon the rate of flow of liquids through porous media. Chemical Engineering. PhD thesis, West Virginia University, p 141
Duhon RD, Campbell JM (1965) SPE 1316—the effect of ultrasonic energy on flow through porous media. In: Second Annual Eastern Regional Meeting of SPE/AIME, Charleston, WV
Fairbanks HV, Chen WI (1971) Ultrasonic acceleration of liquid flow through porous media. Chem Eng Prog Symp Ser 67:108
Ganiev RF, Ukrainskii LE, Frolov KV (1989) Wave mechanism for the acceleration of a liquid flowing in capillaries and porous media. Sov Phys Doklady 34:267–283
Hamida T, Babadagli T (2007) Fluid-fluid interaction during miscible and immiscible displacement under ultrasonic waves. Eur Phys J B 60:447–462. doi:10.1140/epjb/e2008-00005-5
Kostrov S, Wooden BO (2001) Mechanisms, flied suitability, and case studies for enhancement of oil recovery and production using in situ seismic stimulation. international conference elastic wave effect on fluid in the porous media. In: International symposium on nonlinear acoustics, Moscow
Simkin EM (1993) A possible mechanism of vibroseismic action on an oil-bearing bed. J Eng Phys Thermophys 64(4):355–359
Simkin EM, Surguchev ML (1991) Advanced vibroseismic technique for water flooded reservoir stimulation, mechanism and field tests results. In: The 6th European IOR Symposium, Stavanger, Norway
Acknowledgments
The authors appreciate the Faculty of Petroleum and Renewable Energy Engineering at University Technology Malaysia in Johor Bahru, Malaysia for providing laboratory facilities in completing this work.
