Introduction

Many aquatic ecosystems are polluted globally to an extent that they are no longer fit for their intended use. Pollution of freshwater ecosystems by heavy metals is a global issue because of their lethal effects, persistence, abundance, and toxicity in the aquatic environment (Benzer 2017; Zhang et al. 2017; Addo-Bediako 2020). They are among the common widespread pollutants originating from anthropogenic activities, such as mining, agriculture and industries (Jan et al. 2015). High concentrations of heavy metals in the aquatic environment can be detrimental to the aquatic biota. One of the biggest problems is the potential for bioaccumulation and biomagnification in the bodies of aquatic organisms at concentrations higher than that of their environment. As a result, the concentrations of most metals are often used to provide basic information for the decisions of environmental health risks (Gao and Chen 2012).

Sediments can act as a sink for heavy metals and other detrimental substances and therefore play an important role in maintaining the normal aquatic environments (Yang et al. 2016). However, sediments may pose a risk of secondary water pollution under sediment disturbance and/or changes in the geo-chemistry of sediments and may cause a decline in water quality. High concentrations of heavy metals in the sediment can also lead to bioaccumulation in living organisms through direct absorption or through the food chain (Addo-Bediako et al. 2014). Sediments, in addition to biological monitoring, can therefore be used to provide historical records of water quality of rivers (Arnason and Fletcher 2003).

In South Africa, water quality concerns include sedimentation, salinization, eutrophication, microbial pollution, and acidification because of the unregulated mining activities (Du Plessis 2017). The Spekboom River serves as a source of water to several communities in the catchment. Despite the importance of this river to the communities, little is known about the health status of this river since minimal research has been done. The river is adversely affected by contaminated water due to the constant increase in agricultural, mining and industrial activities in the catchment areas (Van Veelen and Dhemba 2011). The effluents from such activities contain complex mixtures of chemicals, many of which may have deleterious effects on the aquatic system (Hook et al. 2016). In addition, the uncontrolled release of treated and raw sewage in the river catchment has been identified as a major concern. This has raised concern over the potential long-term impact of water pollution on the health of the communities within the river catchment, especially those still reliant on untreated water from the river.

It is therefore important to monitor the Spekboom River to ensure that the levels of ecological integrity are maintained and to be aware of the potential risks that polluted water might have on the aquatic biota and the human communities in the catchment. The objectives of the study were to assess metalloid, arsenic (As) and heavy metals, chromium (Cr), copper (Cu), iron (Fe), manganese (Mn), nickel (Ni), lead (Pb) and zinc (Zn) pollution and to determine potential sources of pollution in the sediments of the Spekboom River. For the purpose of this study, all the chemical elements would be referred to as heavy metals.

Materials and methods

The Spekboom River flows adjacent to Burgersfort Town in the Limpopo Province of South Africa. It originates in the mountains near Lydenburg and flows in a northerly direction to join the Steelpoort River, northwest of Burgersfort. From here, the Steelpoort River flows in a north-easterly direction and converges with the Olifants River in the Drakensberg near Kromellenboog. The area surrounding this river is characterized by human settlements, agricultural and mining activities (Van Veelen and Dhemba 2011). There is overgrazing and cultivation of dryland along the Spekboom River (Van Veelen and Dhemba 2011) which leads to erosion and consequently high silt levels in the river, resulting in degradation of in-stream habitats and loss of aquatic biota. The basin is characterized by long summer but short winter, spring and autumn. The annual average maximum temperature is 24 °C, and the annual average minimum temperature is 11 °C. The average annual rainfall is about 730 mm.

Sediment sampling

Surface sediments were collected from four different sections of the river representing the major activities in the catchment, agriculture, wastewater treatment plant (WWTP), human settlements and urban-mining areas (Fig. 1). Surface sediment samples were collected at a depth of 0–10 cm using a spatula. At each site, five sub-samples were mixed together, forming a composite sample (Bervoets and Blust 2003).

Fig. 1
figure 1

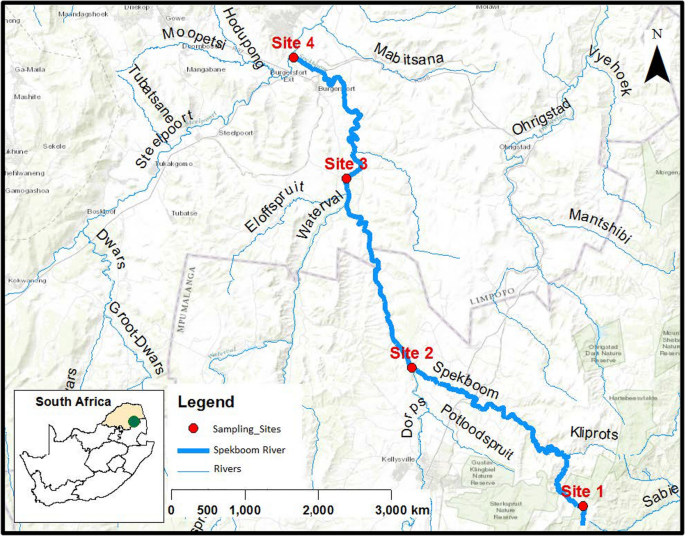

Map showing the sampling sites along the Spekboom River, South Africa

Full size image

At each site, five sub-samples were mixed together, forming a composite sample (Bervoets and Blust (2003). The samples were placed in 10% nitric acid pre-treated polyethylene ziplock bags, transported to the laboratory and were frozen (−20 °C) prior to chemical analysis (UNEP 2005). Sediment samples were analyzed for elements at an accredited (ISO 17,025) chemical laboratory (WATERLAB (PTY) LTD in Pretoria, South Africa. The samples were put in acid-washed polypropylene pre-weighed vials and dried at 60 °C for 24 h. The samples were then sieved through a 2-mm nylon sieve to remove any stones and coarse debris. Then, 0.1 g of each sediment sample was digested with 8 mL of 68% nitric acid (HNO3) and 3 mL of 40% hydrochloric acid (HCl). It was then filtered through a membrane filter and the concentrations of As, Cr, Cu, Fe, Mn, Ni, Pb and Zn were analyzed using inductively coupled plasma–optical emission spectrometry (ICP-OES) (Perkin Elmer, Optima 2100 DV). Concentrations of the metals in the sediments were calculated and expressed as mg/kg dry weight. Analytical accuracy was determined using certified standards (De Bruyn Spectroscopic Solutions 500 MUL20-50STD2) and recoveries were within 10% of certified values. There are no established national sediment quality guidelines in South Africa, hence the results of heavy metals in sediments were compared with the Canadian Interim Sediment Quality Guidelines (ISQG) proposed by the Canadian Sediment Quality Guidelines for the Protection of Aquatic Life (CCME 2012).

Statistical analysis

The mean and standard deviation of the metals/metalloid were determined. Two-way analysis of variance (ANOVA) was done to determine differences for mean metal concentrations among sites and seasons. The occurrence of a linear correlation between analyzed variables was evaluated by Spearman’s correlation coefficient (r). All statistical analyses were done using Statistica (Version 10).

Enrichment factor (EF) method was used to assess the presence and level of pollution in the sediment (Barbieri 2016; Hanif et al. 2016). EF is calculated as:

$${\text{EF}} = \left[ {{\text{C}}_{{\text{x}}} /\left( {{\text{Fe}}} \right)} \right]/\left[ {\left( {{\text{Baseline}}\;{\text{C}}_{{\text{x}}} } \right)/\left( {{\text{Baseline}}\;{\text{Fe}}} \right)} \right]$$

where Cx is the metal concentration (Brady et al. 2014; Gao et al. 2014). The average shale values of metals by Turekian and Wedepohl (1961) was used as background values for heavy metals. The concentration of Fe was used as a reference value for the study. To account for natural heavy metal concentrations, EF is normalized to sediment using Al or Fe content. In this study, Fe was selected while determining EF values. Several authors have successfully used iron (Fe) to normalize heavy metal contaminants (Deely and Fergusson 1994; Bhuiyan et al. 2010). Values of EF were used to assess the pollution of bottom sediment samples into the following classes: (EF < 2) deficiency to minimal enrichment; (2 < EF < 5) moderate enrichment; (5 < EF < 20) significant enrichment; (20 < EF < 40) very high enrichment; and (EF > 40) extremely high enriched (Barbieri 2016).

$${\text{Geo - accumulation}}\;{\text{index(I}}_{{{\text{geo}}}} {\text{)}}$$

The index of geo-accumulation (Igeo) was used to measure the sediment contaminations. It considers both natural geological process and the impact of human activities on heavy metal pollution (Muller 1969).

The value of the geo-accumulation index is calculated by the following equation:

$${\text{I}}_{{{\text{geo}}}} = \log 2\left( {{\text{C}}_{x} /1.5{\text{B}}_{n} } \right)$$

where Cx is the concentration of the examined metal in the sediment, Bn is the geochemical background value of a given metal in the shale (Turekian and Wedepohl 1961) and the factor 1.5 is used to account for the possible variations in the background values. There are seven classes of geo-accumulation index (Muller 1969). The classes range from Class 0 (unpolluted) to Class 6 (extremely polluted); 0 (Igeo ≤ 0) uncontaminated, class 1 (0 < Igeo < 1) uncontaminated to moderately contaminated, class 2 (1 < Igeo < 2) moderately contaminated, class 3 (2 < Igeo < 3) moderately to heavily contaminated, class 4 (3 < Igeo < 4) highly contaminated, class 5 (4 < Igeo < 5) heavily to extremely contaminated, class 6 (Igeo ≥ 5) extremely contaminated (Barbieri, 2016).

Results and discussion

There were variations in the mean concentrations of the heavy metals along the river. The highest mean concentrations of As and Pb were recorded at Site 3, the highest concentrations of Cr, Cu, Fe and Zn were recorded at Site 4, and the highest mean concentration of Mn and Ni were recorded at Site 1 (Table 1 and Fig. 2). The highest mean concentrations of As, Cu and Pb were at S3, the highest concentrations of Cr, Fe and Zn at S4, and the highest concentration of Mn and Ni at S1. The mean concentrations of Cr exceeded the guideline value of 37.3 mg kg−1 and the average shale value of 90 mg/kg also at all sites. The mean Fe concentrations exceeded the average shale value of 47,200 mg/kg at Site 1 and Site 4. The mean concentrations of Mn exceeded the average shale value of 850 mg/kg at Site 1 and Site 4. The mean concentrations of Ni exceeded the background values of 68 mg/kg at all the sites, and the mean Zn concentration exceeded the average shale value at Site 4 (Table 1). There were significant differences in the concentrations of As, Fe and Mn among the sites (Table 2).

Table 1 Mean heavy metal/metalloid concentrations (mg/kg) of the Spekboom River sediment with the CCME reference average shale values
Full size table
Fig. 2
figure 2

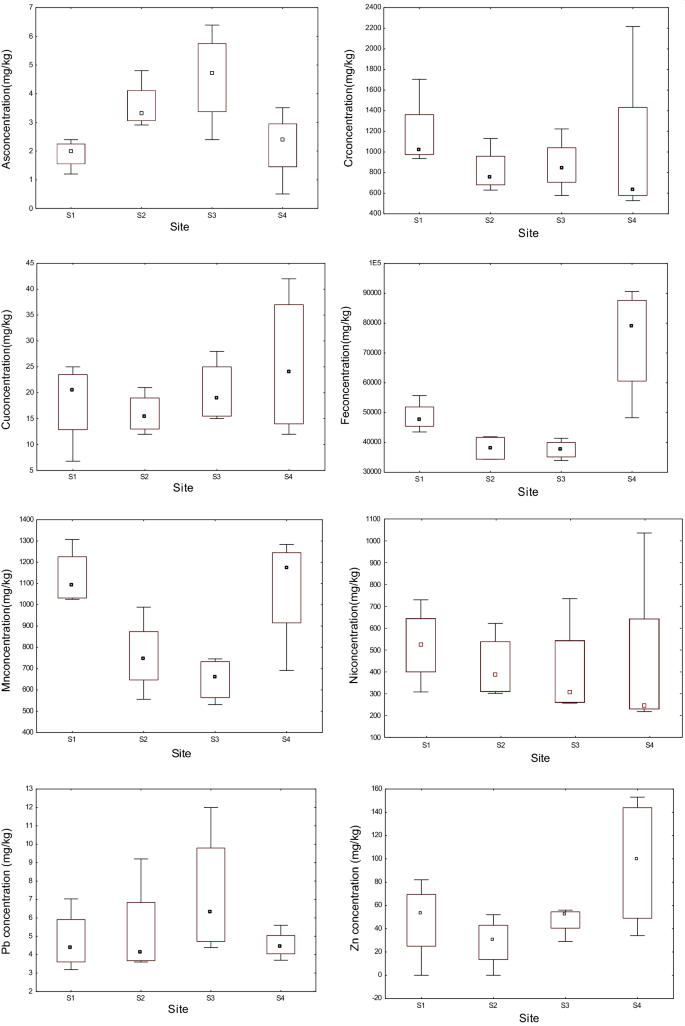

Spatial distribution of concentrations values of some heavy metals in the sediments of Spekboom River. Median, 25th and 75th percentiles are shown in the box; whiskers indicate the maximum and minimum values

Full size image
Table 2 Analysis of variance (ANOVA) of metal/metalloid concentrations among sites and seasons
Full size table

The differences in heavy metal concentrations among the sampling sites are attributed to the different human activities. The highest mean concentrations of Cr, Cu, Fe and Zn were recorded at Site 4. This site is located at the confluence of Spekboom and Steelpoort rivers. The Steelpoort River is reported to be contaminated with heavy metals from mining, agricultural and sewage effluents (Matlou et al. 2017). The highest mean concentrations of Mn and Ni were found in the sediments collected at Site 1, which is mainly surrounded by agricultural activities.

The high concentrations of Cr, Mn and Ni in the river are of concern. The sources of Cr in freshwater ecosystems include agricultural activities, municipal wastes, laundry chemicals, paints, leather, road run off due to tire wear, brake wires, radiators (Dixit and Tiwari, 2008). However, in this study, the main sources of Cr could be from the ferrochrome mining and smelting operations in the area. Studies in the Northwest Province of South Africa also reported high concentration of Cr (above the standard limits) in the Upper Crocodile River (Nde and Mathuthu 2018). Chromium and its salts are used in different products, such as pigments, paints, fungicides and chrome. High concentration of Cr can negatively affect most sensitive invertebrates ((DWAF 1996). In humans, high Cr concentration can cause allergic dermatitis (Scragg 2006).

Manganese is one of the most abundant trace elements in soils, where it occurs as oxides and hydroxides, and in water as small particles. The principal anthropogenic sources are industrial activities, use of fossil fuels and pesticides. Manganese compounds are used in fertilizers, varnish and fungicides and as livestock feeding supplements. In this study, the highest concentration of Mn was recorded at Site 1 and could be from the agricultural activities in the area.

Nickel occurs only at very low levels in the environment and is essential in small doses, but it can be toxic when the maximum tolerable level is exceeded. The Ni contamination in the river is of great concern as it can cause health problems, such as cardiovascular diseases, chest pain, dizziness, dry cough, headache, kidney diseases and nausea in humans (Fashola et al. 2016). Some chemical fertilizers and pesticides are known to contain Ni (Rajmohan and Elango, 2005). In addition, the source of higher Ni concentration at the downstream sites might be from urban and industrial effluents (Li 2014) and combustion of fossil fuels (Pulles et al. 2012).

Seasonally, the highest mean heavy metal concentrations were recorded in winter, except for Cr and Fe where the highest mean concentrations were recorded in autumn and spring, respectively (Fig. 3). The lowest mean concentrations of all the metals were recorded in summer except Ni, with the lowest recorded in autumn. Higher concentrations As, Cr, Fe and Mn found during winter might be due to the low water flow in winter which resulted in the precipitation of these metals in the sediments than the other seasons (Islam et al. 2015). The seasonal distribution pattern of heavy metals obtained revealed variation of heavy metals in the different sites of the river (Fig. 4).

Fig. 3
figure 3

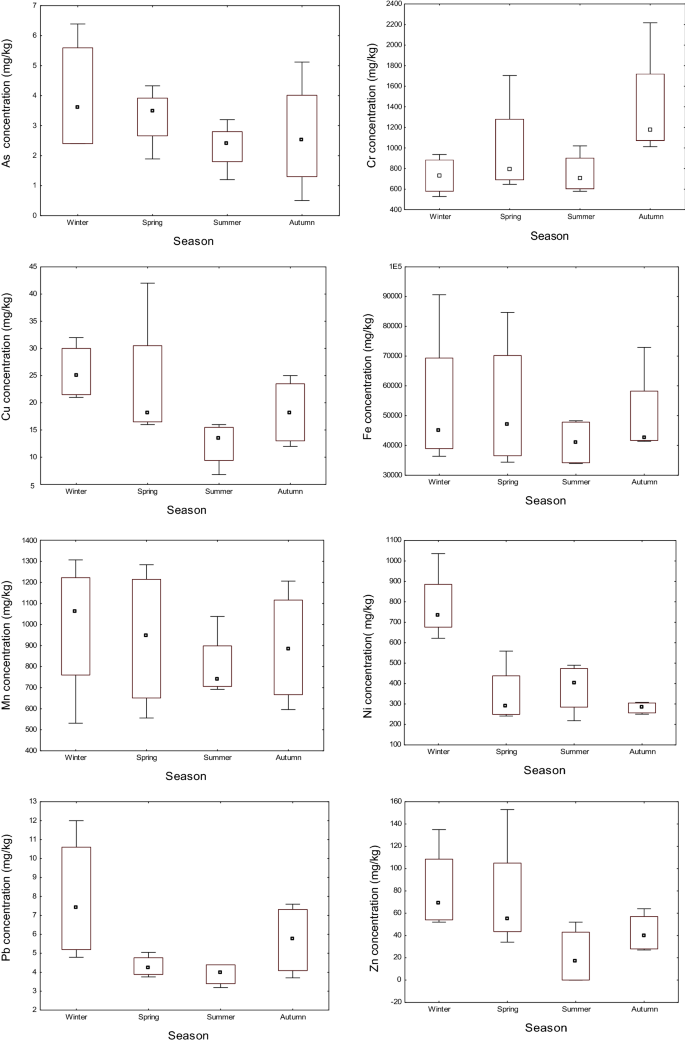

Seasonal distribution of concentrations values of some heavy metals in the sediments of Spekboom River. Median, 25th and 75th percentiles are shown in the box; whiskers indicate the maximum and minimum values

Full size image
Fig. 4
figure 4

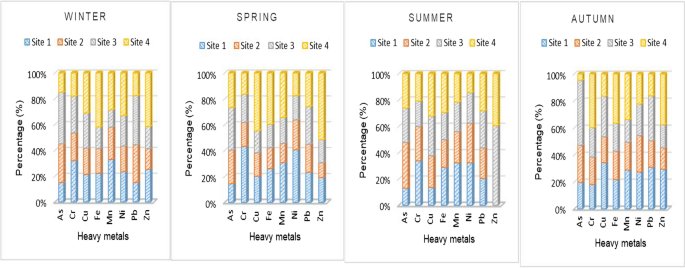

The percentage (%) distribution of heavy metals in the sediments of the Spekboom River at the different seasons

Full size image

The pattern of the correlation coefficient shows strong associations of the following metals in the sediments, As-Pb, Cu-Pb, Pb–Zn, Cu–Zn, Fe-Zn and Mn-Zn (Table 3). Based on the correlation coefficients, Fe showed a strong significant positive correlation with Mn (r = 0.738; p < 0.05), As showed a strong significant positive correlation with Pb (r = 0.612; p < 0.05), and Zn showed strong significant positive correlations with Cu, Fe and Mn (r = 0.612, 0.547 and 0.553, respectively; p < 0.05). These strong relationships among the metals suggest that the metals originated from similar pollution sources as well as similar geochemical characteristics Suresh et al. (2012) and Wang et al. (2015). There was a strong negative correlation between As and Mn (r = 0.553), an indication that they differ in origin and the absence of a correlation among the metals suggests that they are not controlled by a single factor (Sojka et al 2019).

Table 3 Correlation coefficient matrix for metals in sediment samples from Spekboom River (values in bold are significant at p < 0.05)
Full size table

Enrichment factor and geo-accumulation index

The enrichment factor (EF) was applied to assess the possible sources of the metals. The results of the EF are shown in Table 4; As (0.10–0.44), Cr (9.38–12.59), Cu (0.32–0.57), Mn (0.71–1.29), Ni (3.60–7.75), Pb (0.13–0.46) and Zn (0.37–0.57). The EF values of As, Cu, Mn, Pb and Zn were all below 2, thus these heavy metals show deficiency to minimal enrichment in the sediments. The EF value of Cr was between 5 and 20 at all the sites and indicate a significant enrichment in the sediments. The EF value of Ni was between 2 and 5 at Site 4 (deficiency to minimal enrichment) and EF values were between 5 and 20 at Sites 1, 2 and 3 (significant enrichment). The relatively higher EF values of Cr and Ni may be due to human activities occurring in the catchment (Duncan et al. 2018). However, the relatively low EF values of Mn despite the high mean concentrations recorded is an indication that it originates mainly from natural sources (Sojka et al. 2019).

Table 4 Enrichment factor for heavy metal in sediments in the Spekboom River (Highlighted values indicate enrichment)
Full size table

Geo-accumulation index; the calculated Igeo values based on the average shale are presented in Table 5. The Igeo values for As, Cu, Fe, Mn, Pb and Zn were below 1 and fall in class ‘0’, indicating background concentration in all the sites. The Igeo value of Cr falls in class 3 at Site 2 and Site 3, indicating moderately to heavily contaminated, and Cr falls in class 4 at Site 1 and Site 4, indicating highly contaminated. Nickel falls in class 2 at Site 3 and class 3 at Site 1, 2 and 4, indicating moderately to heavily contaminated sediments. The high Igeo values of Cr and Ni showed that these sites received a considerable amount of Cr and Ni contamination (Bing et al. 2019). The high levels of Cr may be due to unregulated chrome mining activities occurring in the catchment (Islam et al. 2015).

Table 5 Geo-accumulation index for heavy metal in sediment of the Spekboom River (values in bold indicate contamination)
Full size table

Conclusion

The concentrations of heavy metals of the Steelpoort River shows that the river sediments are highly contaminated with Cr and Ni but not the other metals and highlights the effect of various anthropogenic activities on the river. The concentrations of Cr and Ni at all the sites were higher than the average shale values, while the concentrations of Fe and Mn were higher than the average shale values at Site 1 and Site 4. Based on the enrichment factor and geo-accumulation index, the sediments are significantly enriched by Cr and Ni and minimal to no enrichment by the other heavy metals. The enrichment of Cr and Ni in the sediments is caused by human activities such as mining, agriculture and WWTP. The spatial distributions of heavy metals in the sediment have identified the sites that are vulnerable and are under threat with specific heavy metals. The contaminated sediments could act as secondary sources of heavy metal pollution to the water body. Some of the heavy metal concentrations have already exceeded the guideline values and there is a need for urgent measures to reduce the level of pollution to avoid negative impact on the aquatic biota and humans.
