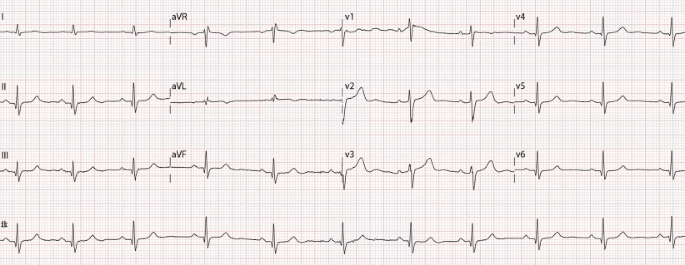

A 51-year-old female presenting with fatigue demonstrated cardiac enlargement on her chest x‑ray. The electrocardiogram was normal (Fig. 1). However, echocardiography suggested asymmetrical hypertrophic cardiomyopathy. Cardiac magnetic resonance (CMR) imaging was performed for further evaluation. The cine images showed a maximum wall thickness of 28 mm at the mid anterolateral segment (Fig. 2a; Supplementary movie 1). Due to the atypical location, additional sequences were acquired. T2-weighted (water) imaging showed a high signal intensity (Fig. 2b), whereas T1-weighted imaging was normal. During first pass perfusion imaging, the hypertrophied myocardium showed instant contrast enhancement (Fig. 2c; Supplementary movie 2), with homogeneous hyperenhancement at late gadolinium-enhancement (Fig. 2d), suggesting cardiac haemangioma. This was confirmed by coronary angiography demonstrating a tumorous blush (Supplementary movie 3). Extra-cardiac tumours were excluded with a fluorine 18 fluorodeoxyglucose positron emission tomography (FDG-PET) scan. Primary cardiac haemangiomas are rare, with an incidence of 2% of all primary cardiac tumours [1]. Most cases present with arrhythmia, which did not occur in our patient. Depending on their location, haemangiomas could interfere with the conduction system. In our patient, however, the ECG was completely normal. Cardiac haemangiomas may regress or proliferate and surgical resection should be considered in case of interference in outflow tract or conduction [2]. Although, echocardiography remains the first technique to evaluate left ventricular hypertrophy, CMR imaging is indispensable for further characterisation and might even identify other diagnoses.
References
Kipfer B, Englberger L, Stauffer E, Carrel T. Rare presentation of cardiac hemangiomas. Ann Thorac Surg. 2000;70(3):977–9.
Eftychiou C, Antoniades L. Cardiac hemangioma in the left ventricle and brief review of the literature. J Cardiovasc Med. 2009;10(7):565–7.
Author information
Authors and Affiliations
Corresponding author
Ethics declarations
Conflict of interest
R.Y. Parbhudayal, C.P. Allaart, R.B. van Loon, L.J. Meijboom, A.C. van Rossum and R. Nijveldt declare that they have no competing interests.
Caption Electronic Supplementary Material
Video 1 = Movie Cine Sax LV
Video 2 = Movie First pass perfusion Sax LV
Video 3 = Coronary angiography
Rights and permissions
Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
About this article
Cite this article
Parbhudayal, R.Y., Allaart, C.P., van Loon, R.B. et al. Don’t judge the myocardium by its cover. Neth Heart J 26, 167–168 (2018). https://doi.org/10.1007/s12471-017-1069-x
