1 Introduction

The Songliao Basin is a Mesozoic–Cenozoic basin located in northeastern China that contains abundant oil and gas resources. Several billion tonnes of oil have been discovered in the basin’s oil fields since exploration began in 1950. However, in addition to the large amount of hydrocarbon gas, a number of CO2 reservoirs, whose CO2 concentrations vary significantly from < 30 to > 98%, have also been accidentally discovered during natural gas exploration over the past two decades (Xu et al. 1995; Sun et al. 2009; Guo et al. 2017a, b). These CO2 reservoirs are located within a narrow strip within the Xujiaweizi Depression, the Changling Depression, and the Wanjinta Depression. However, CO2 accumulation has an extremely heterogeneous horizontal distribution. The difference in the CO2 content of two wells located less than 1 km apart can be as much as 70%. For example, the Changde area in the Xujiaweizi Depression has a complex gas genesis, with both organic gas (methane) and inorganic gas (CO2). Reservoirs with CO2 contents > 84% have been discovered in the volcanic reservoirs, e.g., in wells Fs9 and Fs701 in the Yingcheng Formation in East Changde. Whereas, in wells Fs7 and Fs6, located less than 3 km away, the CO2 content is 15%–40%. This phenomenon has resulted in a great deal of interest in the genesis of CO2 and the reservoir formation process in the Songliao Basin (Yang et al. 2011; Fu and Song 2005; Shao et al. 2000; Qu et al. 2016; Xu et al. 1999; Dai 1996; Du 2005; Guan 1990; Zhang et al. 2009; Li et al. 2006; Guo et al. 2000; Yu et al. 2010; Cao 1996; Rui et al. 2018a, b). Most scholars agree that the CO2 in the Songliao Basin is inorganic and mantle-derived according to the isotopic composition of the CO2. It is generally accepted that mantle fluids, especially basaltic magmas, contain significant amounts of volatiles, such as CO2, H2O, and He. When the temperature decreases as upwelling occurs, the magma will degas, and these volatiles will continuously migrate through fractures and pores, and can be trapped in CO2 reservoirs under the appropriate conditions. This is how mantle-derived CO2 reservoirs form (Yang et al. 2011). However, previous studies have failed to produce a reasonable explanation for the differences in the CO2 contents of reservoirs that are located fairly close together. Several scholars have proposed a self-generating and self-preserving reservoir formation model. They argue that the CO2 in the Songliao Basin is derived from magmas associated with Cretaceous volcanic activity. The CO2 degassed from these magmas due to decreasing temperatures when the magma cooled, and it was stored in situ forming reservoirs (Liu et al. 2005; Tan et al. 2005). According to this theory, there should be widespread CO2 reservoirs in the Songliao Basin wherever Cretaceous volcanic rocks are located. However, the CO2-containing reservoirs have a limited distribution—they are mainly located where faults intersect (Guo et al. 2000; Yu et al. 2010; Zeng et al. 2017). Due to the fact that the density of CO2 is greater than that of hydrocarbon gases, several scholars proposed the “gravitational differentiation” reservoir formation model, which concludes that gravity caused CO2 to accumulate at the bottom of reservoirs and hydrocarbon gases at the top (Lin et al. 2010; Wei et al. 2009). However, there is little difference between the density of CO2 and the densities of methane and ethane. Therefore, whether such a small density difference can lead to such a significant difference in the horizontal distribution of CO2 needs to be investigated further.

In this study, several typical reservoirs in East Changde were selected to investigate the genesis of CO2 using core data gas samples, temperature, pressure, and seismic data. Based on this data, the distribution characteristics of volcanic reservoirs and basement faults are discussed, and a CO2 migration and reservoir formation model for East Changde is explored in order to analyze the factors governing CO2 distribution in the Songliao Basin.

2 Geological setting

The Songliao Basin is the largest Mesozoic–Cenozoic continental basin in northeastern China. It is 750 km long, 330–370 km wide, and covers an area of nearly 255,000 km2, extending from north to south through Heilongjiang Province, Jilin Province, and Liaoning Province (Fig. 1). The Songliao Basin has experienced three phases of evolution, i.e., rift, depression, and structural inversion. It has undergone widespread deposition of Cretaceous–Quaternary strata with a structure characterized by faults at the bottom and depressions at the top. Three structural layers can be identified: a fault-depressed structural layer, a depressed structural layer, and an inverted structural layer. During the past decade, several CO2 reservoirs or CO2-containing reservoirs (fields) have been accidentally discovered during natural gas exploration in the Songliao Basin. Currently, there are multiple high CO2-content reservoirs and gas seepages, such as the CO2 gas seepages in the Five Connected Ponds on the north edge of the basin and the high CO2-content middle-shallow sand-conglomerate reservoirs located in the Wanjinta, Gudian, Qian’an, and Honggang Depressions. A number of CO2 reservoirs and gas spots in the volcanic reservoirs of the Yingcheng Formation were also recently discovered by deep exploration, such as the Fangshen 9 (CO2 content = 84.2%–90.4%), Xushen (CO2 content = 24%), Xushen 10 (CO2 content = 90%), Xushen 19 (CO2 content = 93%), Xushen 28 (CO2 content = 80.7%), and Dashen 2 (CO2 content = 32%) in the Xujiaweizi Depression, East Changde, in the northern part of the Songliao Basin (Lu et al. 2005, 2008; He et al. 2005) (Fig. 1). Thus, it can be concluded that CO2 is widely, but unevenly, distributed in the Songliao Basin. The absence of well-established conditions for industrial utilization and treatment of this CO2 has made it riskier and more difficult to explore and exploit the associated hydrocarbon gases.

Fig. 1
figure 1

Modified from Lu Xuesong (Lu et al. 2009)

Location of the Songliao Basin and the Xujiaweizi Depression.

Full size image

2.1 Structural characteristics

Tectonically, the Changde area is located in the western slope in the Xujiaweizi Depression (Fig. 1). From a regional perspective, the western region is undergoing basement uplift and is split into a northern half and a southern half by the ancient valley running along Chang wells 101–102. Situated in the depression in the eastern part of the basement uplift, the East Changde Gas Field is a syncline structure trending northwest with a depth of up to 4100 m. This syncline is characterized by simple structural features and some topographic highs. The sedimentary strata pinch out to the west above the basement uplift. The East Changde Gas Field is located in the western part of the Xujiaweizi Depression (Figs. 1, 2) where reservoirs are developed in the volcanic reservoir bodies in the Lower Cretaceous Yingcheng Formation.

Fig. 2
figure 2

Structure map of the Yingcheng Formation, East Changde Gas field

Full size image

There is a 2–6 km, NNE-trending fault with a fault displacement of 40–100 m located in the syncline area of the northern part of the East Changde Gas Field. This is a long-lived normal fault that separates the Qingshankou Formation hanging wall and the Shahezi Formation foot wall. A 1–2-km-long, NS-trending fault is located to the south where two primary fault characteristics are observed, i.e., the fault trends are close to that of a depression-controlling fault and the faults are located near a depression-controlling fault. These faults provide channels for gas migration and accumulation, control fracture development of reservoirs, and improve reserve and percolation capabilities of the reservoirs.

2.2 Formation

Gas reservoirs in East Changde are mostly located in the Lower Cretaceous volcanic strata, which is why this study focuses on the Lower Cretaceous strata (Fig. 3). Due to the fact that this area is an uplift structure developed on uplifted basement on the edge of a rift basin, part of the strata in the uplifted area is missing. The uplifted basement is mainly composed of metamorphic rocks and intrusive rocks, e.g., high-resistance phyllite and granite. From bottom to top, the Lower Cretaceous strata consist of the Huoshiling Formation, the Shahezi Formation, the Yingcheng Formation, the Dengloudu Formation, and the Quantou Formation. The Huoshiling Formation is composed of volcanic rocks and siltstone that unconformably overlie the basement and exhibit limited structural development. The locally well-developed Shahezi Formation is mainly composed of low-resistance dark mudstone, argillaceous sandstone, and sandy conglomerate. The Yingcheng Formation is divided into four members from bottom to top. The first member of the Yingcheng Formation, which contains volcanic rock reservoirs, is mainly composed of argillaceous siltstone, mottled sandy conglomerate, and volcanic rocks. The second and third members of the Yingcheng Formation are absent in this region. The compact volcanoclastic rocks of the fourth member of the Yingcheng Formation serve as the cap rocks for this region. The 20–65-m-thick first member of the Denglouku Formation is mainly composed of a set of mottled high-resistance conglomerate and sandy conglomerate stratum with a small amount of coarse sandstone and fine sandstone, which locally unconformably overlies the basement. The 80–120-m-thick second member of the Denglouku Formation is mainly composed of low-resistance dark mudstone, which serves as an effective regional cap rock. The 300–500-m-thick first and second members of the Quantou Formation are composed of coastal, shallow-lake, and fluvial mudstone with argillaceous sandstone and sandstone. These members also serve as regional cap rocks.

Fig. 3
figure 3

Lower Cretaceous strata in East Changde

Full size image

3 Methods

3.1 Analytical methods

A considerable amount of information was used in this study, including core samples, gas samples, and temperature and pressure data. The core samples were used to analyze the petrologic features of the volcanic reservoirs, and together with isotopic analyses of the gas samples, to determine the source of the CO2. Samples collected from different wells were analyzed to determine the characteristics of the volcanic reservoirs and their relationship to the nearby faults by analyzing the data in the context of the seismic, temperature, and pressure data. Based on these analyses, two models for CO2 migration and accumulation are proposed to further describe the factors governing CO2 reservoir distribution in the East Changde Gas Field, and possibly throughout the Songliao Basin.

3.2 Data

The data used for this study includes core samples, gas samples, seismic data, and temperature and pressure data for the reservoirs. See Table 1 for a summary of the data.

Table 1 Summary of data for the gas reservoirs in East Changde
Full size table
  1. 1.

    A total length of 205.9 m of core samples was collected from five wells, and the core samples were all from the first member of the Lower Cretaceous Yingcheng Formation.

  2. 2.

    Eleven gas samples were collected from five wells. Ten liters of gas was sampled from each well and stored in a cylinder under pressure. As shown in Table 1, the depth of each sample is the average depth of the perforation interval.

  3. 3.

    The seismic data, with a dominant frequency of 30 Hz, covered 553 km2 of the Xujiaweizi area. A pre-stacked GR inversion was conducted on the volcanic reservoirs in the Yingcheng Formation, East Changde. Due to their high gamma ray value, which differs significantly from that of the surrounding rocks, we were able to precisely determine the distribution of the volcanic reservoirs in the section.

  4. 4.

    Temperature and pressure data was collected from the logging-while-drilling reports compiled by the China National Petroleum Corporation (CNPC) (Table 1 and Fig. 4).

    Fig. 4
    figure 4

    Variations in reservoir temperature, pressure, and CO2 content with depth in East Changde

    Full size image

3.3 Geochemical analyses

All of the experiments in this study were conducted at the Petroleum Geology Experiment Research Center, Research Institute of Petroleum Exploration and Development, Beijing, China.

  1. 1.

    Whole rock geochemical analyses were conducted on 52 samples from the 5 wells listed in Table 1. Sample preparation involved fusing 0.5 g samples of rock powder with 2.0 g of LiBO2 followed by dissolution in 200 mL of 5% HNO3. Major oxide compositions were determined using inductively coupled plasma emission spectroscopy (ICP-ES). The results are shown in Fig. 5.

    Fig. 5
    figure 5

    Total alkali silica (TAS) diagram of the volcanic rocks of the Yingcheng Formation, Songliao Basin

    Full size image
  2. 2.

    The gas samples were fed into a Thermo Fisher mass spectrometer through the output valve on the pressure-retaining cylinder. He gas was absorbed by an active charcoal trap at 800 °C, and the CO2 gas was cryogenically extracted using liquid nitrogen (Cao 1996). Then, the volume of He and CO2 was measured at room temperature (20 °C) and pressure. The results are shown in Fig. 6.

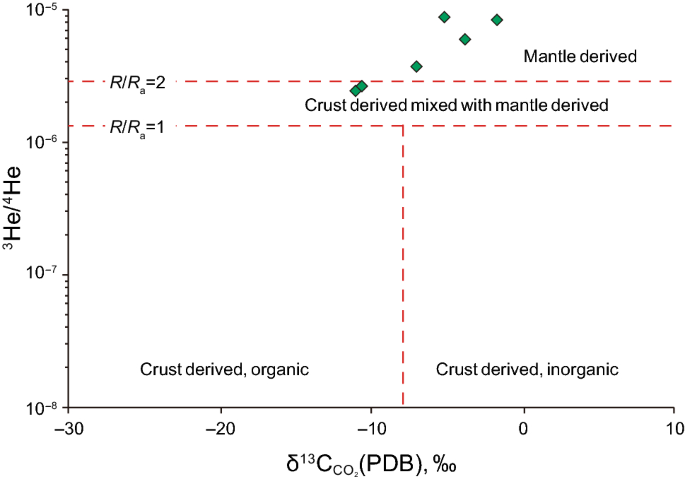

    Fig. 6
    figure 6

    Modified from He et al. (2005)

    Diagram of origin of CO2.

    Full size image
  3. 3.

    The CO2 and He were transferred to an airtight 2 L amber glass bottle. Two to three drops of HgCl2 solution (3.7 g·50 mL−1) were added to the glass bottle in advance to avoid a photochemical reaction. To prevent CO2 loss, 5 mL of NaOH solution was injected into the bottle through the cork to balance the pH (Liu et al. 2005; Tan et al. 2005). δ13C and 3He isotopic analyses of the CO2 and He were conducted using a Thermo Fisher mass spectrometer and the following formula:

    $$\delta^{ 1 3} {\text{C = }}\left[ {\frac{{\left( {{}^{ 1 3}{\text{C/}}{}^{ 1 2}{\text{C}}} \right)_{\text{sample}} }}{{\left( {{}^{ 1 3}{\text{C/}}{}^{ 1 2}{\text{C}}} \right)_{\text{standard}} }} - 1} \right] \times 1000$$

Each measurement comprised of three pulses of references followed by six pulses of sample CO2 or He gas. The parameters used are as follows. The chromatographic column was 30 mm × 0.25 mm; the column temperature was 300 °C; the injection volume was 1 μL; the carrier gas was Ar; the gas flow was 1 mL/min; the split was 10:1; and the mass spectrometry conditions were an EI ion source of 70 eV, a nucleo-cytoplasmic ratio scan range of m/z = 80–700. The precision for both δ13C and 3He is ± 0.1‰. The results are shown in Table 2.

Table 2 Carbon and helium isotopic data for the CO2 reservoirs in East Changde
Full size table

4 Results and discussion

4.1 The origin of CO2 gas

\({}^{ 1 3}{\text{C}}_{{{\text{CO}}_{ 2} }}\), R/Ra (R is the 3He/4He value of the sample; Ra is 3He/4He value of air), and CO2/3He are the commonly used indices for source determination of CO2. The first of which is used to determine whether the gas has an organic or inorganic genesis, while the latter three are used to determine whether the gas is crust- or mantle-derived (Ballentine et al. 2000; Marty et al. 1989; Trull et al. 1993). It is generally agreed that a \({}^{ 1 3}{\text{C}}_{{{\text{CO}}_{ 2} }}\) of > −10‰ indicates an inorganic origin, and R/Ra > 2 and CO2/3He > 2×109 indicate a mantle origin (He et al. 2005). Table 2 shows the helium isotope and CO2 isotopic data for the East Changde samples. Besides, it is important to make clear whether He and CO2 are coupled, otherwise R/Ra would be meaningless. Lu XS (Liu et al. 2016) has done detailed research about CO2 and He gas in Songliao Basin and concluded that they are from the same origin.

As shown in Table 2, the \({}^{ 1 3}{\text{C}}_{{{\text{CO}}_{ 2} }}\) values for Well Fs7 are − 10.07‰ and − 11.51‰, which are slightly less than − 10‰, indicating a combined organic–inorganic genesis, with the inorganic genesis of CO2 being dominant. The \({}^{ 1 3}{\text{C}}_{{{\text{CO}}_{ 2} }}\) from the other four wells were greater than − 8‰, indicating an inorganic genesis. As a result, it is concluded that the CO2 in East Changde has a broad inorganic origin. Helium isotope ratios suggest that the R/Ra value in East Changde is between 2.35 and 3.68 (except for that of Well Fs7), which is much higher than the criterion for mantle-derived genesis, i.e., R/Ra > 2 (Fig. 6). In addition, the CO2/3He ratio of the gas from Well Fs9 is (1.96–1.97) × 109 (close to 2 × 109), which is close to the CO2/3He ratio of primitive magma generated in the upper mantle (Sano et al. 1986). Based on this evidence, we conclude that the CO2 in East Changde is mantle-derived.

Geochemical analysis of the volcanic rocks provided a basis for the further determination of the origin of the CO2. According to the TAS diagram (Fig. 5) of the Yingcheng Formation (Mesozoic) volcanic rocks from the Songliao Basin, the Mesozoic volcanic rocks are mainly silicic and intermediate rocks (rhyolites, dacites, and andesites) and a small amount of mafic rocks formed by crust-derived magma. Detailed studies have shown that silicic and intermediate magmas could not preserve large amount of volatile gases, since these magmas lack large ion lithophile elements (LILEs) and light rare earth elements (LREEs) which are CO2 loving (Mysen et al. 1975); while in East Changde reservoirs, CO2 content is up to 87.2%. This contradiction shows that high CO2-content reservoirs are less likely to be formed by Mesozoic magma degassing. Thus, we conclude that once formed, the Mesozoic volcanic rocks served only as reservoirs, and the CO2 was derived from Cenozoic mantle-derived magmatic activity. Liu et al. (2016) identified a huge Cenozoic heat flow diapir approximately 40 km eastward from East Changde gas reservoirs by analyzing the seismic data acquired over Xujiaweizi Depression. Liu et al. (2016) further concluded that the heat flow diaper has a high impact on the CO2 gas in Changling, Wanjinta and Changde gas reservoirs. The work of Yu (Guo et al. 2017a, b) also shows that Cenozoic magmas are mainly basaltic, and the heat flow diapirs formed by this mantle-derived basaltic magmatic activity during the Himalayan structural evolution contained a large amount of volatiles, such as CO2, which then migrated along the major faults to the Mesozoic volcanic reservoirs where it accumulated. This is the current model for the formation of high CO2-content reservoirs in East Changde.

4.2 Distribution of reservoirs and faults

The distribution of faults and potential reservoirs significantly influences the distribution of CO2 reservoirs. Reservoir continuity is a key factor in studying the distribution of CO2 concentrations. Whether or not the seemingly horizontally interconnecting reservoirs are truly spatially connected largely determines the horizontal distribution of the CO2 concentration. However, basement faults serve as one of the key channels for the migration and accumulation of CO2. Therefore, close attention should be paid to faults, which can connect the various reservoirs, and heat flow diapirs, which can serve as gas sources.

4.2.1 Reservoir distribution in the East Changde Gas Field

In previous studies, the reservoirs intersected by wells Fs9, Fs9-1, Fs701, Fs7, and Fs6 were called the East Changde Gas Reservoir (Huo et al. 1998) and were treated as a uniform reservoir system. Thus, the CO2 contents of the various parts of one reservoir system should be approximately the same. However, the CO2 contents of Wells Fs6 and Fs7 in the East Changde Reservoir are both < 40%, while the CO2 contents of wells Fs701 and Fs9, which are only 2.5 km away from wells Fs6 and Fs7, are > 80% (Fig. 4). This phenomenon sharply contradicts previous research findings.

In this study, comprehensive analysis of seismic, lithofacies, temperature, pressure (Guo et al. 2017a, b; Rui et al. 2017a, b; Wang et al. 2018), and CO2 content data suggests that there should be at least two sets of volcanic reservoirs, i.e., Fs6 and Fs7 are in one reservoir body, and Fs701, Fs9-1, and Fs9 are in the other. The GR inversion data, collected by CNPC (Fig. 7), indicates that the volcanic reservoirs in East Changde are mainly distributed within the Lower Yingcheng Formation (K1yc1). A thin volcanic reservoir is located in the northwestern region of Changde, and it is intersected by wells Fs6 and Fs7. The other reservoir is located in the central-southeastern part of the Xujiaweizi Depression. It is a 50–80-m-thick, large-scale reservoir, and it is intersected by wells Fs701, Fs9-1, and Fs9. These two sets of reservoirs are not interconnected.

Fig. 7
figure 7

Inverted seismic section of the reservoirs in East Changde

Full size image

In addition, the temperature and pressure data as well as the CO2 contents also indirectly verify the conclusions discussed above. As shown in Fig. 6, the temperatures and pressures of the stratum intersected by wells Fs9, Fs9-1, and Fs701 show a consistent positive correlation, suggesting that they share the same temperature–pressure system, whereas wells Fs6 and Fs7 are part of another temperature–pressure system that is not interconnected with the former. In terms of CO2 content, the five wells exhibit significant differences. The CO2 contents of wells Fs9, Fs9-1, and Fs701 are > 80%, whereas those of wells Fs7 and Fs6 are < 40%, i.e., 39.9% and 15.3%, respectively. Figure 4 and Table 1 together indicate that the amount of CO2 within the pore space decreases with the increasing buried depth of our reservoir. Note that there exists a different declined trend of CO2 between Fs6-Fs7 and Fs701-Fs9-Fs901. This phenomenon indicates that there are two separate reservoirs.

4.2.2 Fault distribution within the East Changde Gas Field

The depth of the Moho in the Songliao Basin ranges from 29 to 34 km. The higher CO2-content wells are mainly located in areas where the Moho depth is relatively shallow (less than 32 km; Fig. 8), which indicates a strong connection between the CO2 and the mantle. As indicated by Fig. 8, the migration of CO2 is closely associated with the major basement faults, i.e., the high CO2-content wells are primarily located near basement faults, especially at the intersections of fault zones. Combining with the work of Zhang (Zhang 2003), it is concluded that basement faults are important channels that control the upwelling of CO2. The NS trend of the CO2 distribution (Fig. 8) in the Songliao Basin is mainly controlled by the Sunwu–Shuangliao lithospheric fault zone in the middle of the basin. Upper mantle upwelling resulted in a shallow Moho depth in this area and the formation of major deep faults, which resulted in the production of mantle-derived magma, i.e., the major source of the CO2 that was infused into the lithosphere.

Fig. 8
figure 8

Locations of the high CO2-content wells, the Moho depth, and the basement faults in the Songliao Basin. Note: F1, Nengjiang Fault Belt; F2, Sunwu–Shuangliao Fault Belt; F3, Harbin–Siping Fault Belt; F4, Jiagedaqi–Jixi Fault; F5, Nehe–Suihua Fault; F6, Binzhou Fault; F7, Zhalaite–Jilin Fault; F8, Horqin–Yitong Fault; F9, Tuquan–Siping Fault; F10, Zhalute–Kaiyuan Fault; F11, Nemoerhe Fault; F12, Halamutu Fault; and F13, Xilamulun Fault

Full size image

The fault distribution in East Changde was investigated by means of a seismic section of the Xujiaweizi Depression. This investigation revealed the migration channels responsible for CO2 accumulation. We conclude that a large heat flow diapir developed near wells Xushen 23 and Xushen 21 (Figs. 1, 9b), and the seismic section exhibits extremely chaotic reflection characteristics. This is highly consistent with that of the research conducted by CNPC (Figs. 1, 9a) (Liu et al. 2016). Supplied by mantle-sourced heat flow, this heat flow diapir migrated into the top of the Lower Cretaceous Huoshiling Formation and became an important CO2 source for the Xujiaweizi area. There are three basement faults in the Xujiaweizi Depression, i.e., the West Xu Fault, the Mid Xu Fault, and the East Xu Fault. These faults connect the heat flow diapir, which was generated by magmatic activity, with the Cretaceous volcanic reservoirs. With its small dip angle and large length, the West Xu Fault controls the formation of CO2 reservoirs in East Changde. It is worth noting that the West Xu Fault cuts the volcanic reservoir body in which wells Fs6 and Fs7 are located; however, it does not cut the reservoir body in which wells Fs701 and Fs9 are located.

Fig. 9
figure 9

Heat flow diapirs in Xujiaweizi, a interpretation of the seismic section (15 s) conducted by CNPC; b interpretation of the seismic section across Xujiaweizi). Note: T2, top of the Quantou Formation; T3, top of the Denglouku Formation; T4, top of member 4 of the Yingcheng Formation; T41, top of member 1 of the Yingcheng Formation; T42, top of the Shahezi Formation; T43, top of the Huoshiling Formation; T5, top of the basement; TC-P, top of the Carboniferous-Permian Formation; TD, detachment surface; TK, Conrad discontinuity; TM, Moho surface; the location of CC′ and BB′ is referred to Fig. 1

Full size image

4.3 Migration and accumulation model

The major basement faults and paleo-volcanic conduits that developed during the depositional stage of the Yingcheng Formation serve as channels for the upward migration of mantle-derived inorganic gases. These basement faults also serve as effective channels for organic hydrocarbons. As a result, both the major basement faults and the paleo-volcanic conduits are the major factors that control the migration, accumulation, and amount of organic hydrocarbon gases and mantle-derived inorganic gases in the volcanic rock reservoirs. In East Changde, the CO2 content is > 84% in the reservoir where wells Fs9 and Fs701 are located, but it is as low as 15%–40% in the reservoir where wells Fs7 and Fs6 are located. The distance between these reservoirs is less than 3 km. In addition, Figs. 1 and 9 show that the heat flow diapir is located 40 km away to the east of the two reservoirs, and the migration of CO2 gas is mainly through basement faults and volcanic conduits. Thus, it is not very likely that the difference in the CO2 contents of the two reservoirs is directly caused by the location of the heat flow diapirs. The gas migration channels (faults and/or volcanic conduits) and related gas accumulation modes of the two reservoirs are the factors that control the large differences in the CO2 content of these reservoirs. In summary, there are two models for CO2 accumulation, i.e., the fault-controlled accumulation model and the volcanic conduit-controlled accumulation model (Fig. 10).

Fig. 10
figure 10

Accumulation models for CO2-containing reservoirs in East Changde, a fault-controlled accumulation model; b volcanic conduit-controlled accumulation model)

Full size image

An example of the fault-controlled accumulation model is the volcanic body that is located above the West Xu Basement Fault and which is drilled by wells Fs6 and Fs7 (Fig. 10a). Many detailed studies (Liu et al. 2016) have proven that the volcanic body in the Yingcheng Formation was formed at 117–102 Ma, i.e., Early Cretaceous, including the reservoir body intersected by wells Fs9, Fs9-1, Fs701, Fs7, and Fs6, before the Cenozoic CO2 emission. The West Xu basement fault extends upward along the volcanic conduit, cuts through the volcanic body, and extends upward into the Denglouku Formation. Studies conducted by the CNPC (Liu et al. 2016) in the Songliao Basin indicate that the West Xu Fault was formed in the Carboniferous-Permian, and it was active during the Mesozoic and Cenozoic. In addition, the study conducted by Lu SF (Lu et al. 2017) on the Shahezi Formation shows that the source rocks reached the gas generating stage at 100–80 Ma, when the West Xu Fault was highly active. So a combination of these two conclusions shows that the West Xu Fault was open and active, allowing it to serve as a channel for the migration of the hydrocarbon gas into the volcanic reservoir. By connecting the heat flow diapir body located in the basement rocks, the volcanic conduits, the Lower Cretaceous Shahezi Formation, and the reservoirs, the West Xu Fault allowed mantle-derived CO2 to migrate and accumulate in the gas reservoir located along the West Xu Fault, and in the meantime hydrocarbon gases released from hydrocarbon-derived rocks in the strata of the Shahezi Formation also migrated and accumulated in this gas reservoir (Rui et al. 2017c, d; Cui et al. 2018a, b). This accounts for the coexistence of CO2 and hydrocarbon gases in wells Fs6 and Fs7, which resulted in a CO2 content lower than 40%.

An example of the volcanic conduit-controlled accumulation model is the volcanic rock reservoir intersected by wells Fs701, Fs9-1, and Fs9 (Fig. 10b). This volcanic body was formed by intermediate magma that welled up along another volcanic conduit in the eastern part of the Xujiaweizi area. Lu et al. (2009) studied the structural evolution and characteristics in Xujiaweizi area and concluded that neither the volcanic conduit nor the reservoir body was damaged by later structural events. As a result, mantle-derived CO2 was able to migrate from the heat flow diapir upward along the volcanic conduit and accumulate in the volcanic reservoir. Without a fault to provide a migration path, hydrocarbon gases in the strata of the underlying Shahezi Formation could not accumulate in the reservoir body (Sun et al. 2016; Wang et al. 2017), which resulted in CO2 contents as high as 70%–80% in wells Fs701, Fs9-1, and Fs9.

The two accumulation models mentioned above seem to provide foundations for predicting CO2 content in East Changde. As mentioned above, the horizontal distribution of CO2 content is highly heterogeneous, and we concluded that this heterogeneity could be explained by the accumulation pathways. If the igneous rock reservoirs are cut by basement faults, then the CO2 content would be generally less than 40% because the mixture of hydrocarbon gases. The low CO2 content in the reservoir at the borehole places of Well Fs6 and Fs7 indicate that the basement faults in East Changde are open as the avenue for hydrocarbon migration. If the igneous rock reservoirs connect with a volcanic conduit instead of being cut by basement faults, then the CO2 content would be generally greater than 70%.

5 Conclusions

In this study, the following conclusions have been reached:

  1. 1.

    The CO2 reservoirs in East Changde are actually two sets of disconnected silicic volcanic reservoirs located in the Yingcheng Formation (K1yc1). One set of reservoirs is intersected by wells Fs6 and Fs7, and the other set is intersected by wells Fs701 and Fs9. The gas migration channels (faults or volcanic conduits) and gas accumulation modes of the two well areas (sets of reservoirs) are the factors that control the large differences in the CO2 content of these reservoirs.

  2. 2.

    The CO2 migration and accumulation in East Changde can be accounted for by two models, i.e., a fault-controlled accumulation model and a volcanic conduit-controlled accumulation model. The reservoirs formed by these models vary significantly. In the fault-controlled gas supply model, hydrocarbon gases in the underlying strata migrate and accumulate in the reservoir, which results in lower CO2-content reservoirs. Whereas in the volcanic conduit-controlled accumulation model, CO2 migrates directly from the heat flow diapir to the reservoirs, and the hydrocarbon gases cannot effectively enter, resulting in higher CO2-content reservoirs.
