1 Introduction

According to the determination of China Earthquake Networks Center (2014), the Kangding M S6.3 earthquake occurred at 16:55 pm on November 22th, 2014. A few days later, another earthquake whose magnitude is M S5.8 hit at 23:19 pm on November 25th, 2014. The two earthquakes were about 10 km away from each other. The epicenter of the M S6.3 earthquake was 40 km away from Kangding county (30.3°N, 101.7°E) with depth of 18 km. And the epicentral location of M S5.8 shock was 30.2°N, 101.7°E with focal depth of 16 km (http://www.ceic.ac.cn/speedsearch?time=10). USGS (2014) gave the epicenter of the two earthquakes were 30.340°N, 101.737°E and 30.188°N, 101.762°E, respectively (http://earthquake.usgs.gov/earthquakes). The depths of the two earthquakes they gave are about 9 km. Most of the strong earthquakes on Xianshuihe fault are of main shock-after shock type. However, there were two earthquake swarms including this one on Xianshuihe fault since 1970. The two earthquakes are both located on the Holocene fault named Selaha fault segment which is between Kangding and Qianning regions on the Xianshuihe fault. The consistency in the focal mechanisms of the M S6.3 and M S5.8 earthquakes manifests the particularity of the earthquake swarm.

Since the Wenchuan M S8.0 earthquake in 2008, the seismicity of the southeastern Bayan Har blocks is significant. It is followed by the Yushu M S7.1 earthquake on 14 April 2010, the Lushan M S7.0 earthquake on 20 April 2014, and the Kangding M S6.3 earthquake on 22 November 2014 successively. The Kangding earthquake is also the first strong earthquake above M S6.0 in Xianshuihe fault since Daofu M S6.9 earthquake on 24 January 1981. The active strong earthquakes on the Xianshuihe fault is a noteworthy phenomenon.

The China Earthquake Administrator (CEA) launched the emergency response at the first time after the Kangding earthquake. Many earthquake parameters have been provided by the CEA to analyze the seismic hazard, which are concerned for studying the mechanism of the Kangding earthquake swarm and the seismic hazard on the Xianshuihe fault. We studied on the tectonic setting of Xianshuihe fault and the characteristics of the Kangding sequence. We also discussed the migration of the moderate-strong earthquakes and the Coulomb failure stress change around the Xianshuihe fault to find the seismic hazard on Xianshuihe fault in future.

2 Tectonic setting of Xianshuihe fault and historical earthquakes

The epicenter of the M S6.3 Kangding earthquake on 22 November 2014 is located on the sinistral slip Xianshuihe fault which is in the southeastern margin of the Tibetan plateau. The Xianshuihe fault starts at Garzê in northwest, and crosses Luhuo, Daofu, Qianning, Kangding to Luding region in southeast. The strike of the faults is NW in the north of Kangding and converts to NNW in the south which exhibit slightly curved towards NE (Tang and Huang 1983). The Xianshuihe fault is the boundary fault between the Bayan Har block and the Qiangtang block, with sinistral slip rate of about 12 mm/a (Allen et al. 1991; Xu et al. 2003; Zhang et al. 2003; Gan et al. 2007). Due to the continuous compression from the Indian plate, the crustal motion of the central Tibetan plateau behaves as the high speed eastward extrusion and also causes frequently strong earthquakes. The Bayan Har block, surrounded by the sinistral Eastern Kunlun fault in the north, the sinistral Altyn Tagh fault in the west, the sinistral Manyi-Yushu-Xianshuihe fault in the south, and the thrust Longmenshan fault in the east, is the most active block in Tibetan plateau in recent 20 years (Deng et al. 2010; Cheng et al. 2011a). Since the Manyi M S7.5 earthquake in 1997, all the earthquakes with magnitude larger than M S7.0 in the Chinese mainland, including the Manyi M S7.5 earthquake in 1997, the Hoh Xil M S8.1 earthquake in 2001, the Yutian M S7.3 earthquake in 2008, the Wenchuan M S8.0 earthquake in 2008, the Yushu M S7.1 earthquake in 2010, the Lushan M S7.0 earthquake in 2013, and the M S7.3 Yutian earthquake in 2014, have concentrated on the boundary faults around the Bayan Har block. The focal mechanisms of these earthquakes also show the whole eastward motion of the Bayan Har block, the sinistral slip motion on the eastern Kunlun fault and Manyi-Yushu-Xianshuihe fault, the normal slip on the south end of the Altyn Tagh fault, and the thrust on the Longmenshan fault. And the boundary faults of the Bayan Har block are still able to nurture strong earthquakes in the near future, especially on the fault segments with no recent large earthquakes.

Among the boundary faults of the Bayan Har block, the Xianshuihe faults are the most active one with tens of historical earthquakes larger than M7.0 on its 300 km length (Fig. 1) (Wen 1989, 2000; Wen et al. 2008; Allen et al. 1991; Xu et al. 2003; Cheng et al. 2011a). Since 1700, almost all the segments of the fault have been ruptured by strong earthquakes, including the Luhuo M S7.6 earthquake in 1973, the Renda M7.3 earthquake in 1923, the Daofu M7.0 earthquake in 1904, the Qianning M7.0 earthquake in 1893, the Kangding M7.0 earthquake in 1725, the Kangding M7.5 earthquake in 1955, and the M7.8 Kangding earthquake in 1786, with the 40 km length northern segment of the Selaha fault, not struck by considerable earthquake. The Selaha fault segment is in the section where the Xianshuihe fault is consisted by three fault branches, the Selaha fault, the Yalahe fault, and the Zheduotang fault. The Yalahe fault is stuck by an M6-7 earthquake in 1700, while the southern segment of Selaha fault and the Zheduotang fault was ruptured by the Kangding M7.0 earthquake in 1725 and the Kangding M7.5 earthquake in 1955, respectively (Wen 2000; Wen et al. 2008; Cheng et al. 2011a).

Fig. 1
figure 1

Historical earthquakes on the Xianshuihe fault. Gray lines are the active faults. Gray circles are the historical earthquakes larger than M7. Red lines show the ruptured segments of the historical earthquakes. Beach balls are the focal mechanisms of the recent large earthquakes. GZ-F, the Garze fault; XSH-F, the Xianshuihe fault; LMS-F, the Longmenshan fault; MJ-F, the Minjiang fault

Full size image

From the located epicenter of the earthquakes, the Kangding M S6.3 earthquake on 22 November 2014 was on the northern segment of the Selaha fault, which did not rupture the 40 m length. While Kangding M S5.8 earthquake on 25 November 2014 was on the end portion of the Zheduotang fault. The two recent earthquakes on the adjacent fault branch with distance nearly 10 km and their similar focal mechanisms attract us on studying the characters of the Xianshuihe fault.

3 Characteristics of the Kangding earthquake sequence

According to the results of China Earthquake Networks Center, the scalar seismic moment of the Kangding M S6.3 and M S5.8 earthquakes was 1.14 × 1018 and 2.16 × 1017N m. The strike, dip, and rake of the Kangding M S6.3’s focal mechanism are 145°/78°/−11°, respectively, and the auxiliary nodal plane solution is 237°/79°/−168°. The two nodal planes of the M S5.8 event are 152°/80°/−10° and 244°/80°/−170°, very similar to the mainshock. The two earthquakes are both strike-slip events, reflecting the sinistral dislocation characteristics of the Xianshuihe fault at the tectonic stress field in nearly EW direction.

According to the earthquake catalog provided by Sichuan Regional Seismic Networks, 1026 earthquakes were recorded before 24:00 pm on December 2, 2014. There are 317 earthquakes with M L0.0–0.9, 633 earthquakes with M L1.0–1.9, 67 earthquakes with M L2.0–2.9, and seven earthquakes with M L3.0–3.9; the epicenter distribution is shown in Fig. 2a. As shown in Fig. 2b, the aftershock zone before and after the M S5.8 earthquake both extend along the NW direction. And the length of the M S6.3’s aftershock zone above is about 25 km, while the length of the M S5.8’s is about 14 km. The whole aftershock zone distributes with major axis of around 47 km and the minor axis of around 13 km. It indicates that the two strong earthquakes may be controlled by the same fault branch.

Fig. 2
figure 2

Distribution of the aftershock of the M S6.3 Kangding earthquake. a The aftershock above M L1.0. b the aftershock above M L2.0. The blue circle represents the earthquakes before the M S5.8 earthquake, while the red one represents the aftershocks after the M S5.8 earthquake. The red lines represent the fault branch of Xianshuihe fault. YLH, the Yalahe branch fault; SLH, the Selaha branch fault; ZDT, the Zheduotang branch fault

Full size image

Figure 3 shows that the aftershocks above M L2.0 of the M S6.3 earthquake sequence are not abundant, there are only four earthquakes above M L3.0 occurred between the M S6.3 earthquake and the M S5.8 earthquake, including three earthquakes within 24 h after the main shock. There were no earthquakes above M L2.0 one day before the M S5.8 earthquake. The aftershocks decay gradually after the M S5.8 earthquake. The lack of moderate earthquakes is a significant phenomenon before the strong aftershocks (Wang and Wang 1983). It may be related to the energy accumulating during the quiet period.

Fig. 3
figure 3

The M-t figure of the M S6.3 earthquake sequence above M L2.0

Full size image

The b value of this earthquake swarm is calculated which is important for estimating seismic hazard. The b value of the Kangding M S6.3 is about 0.89 between the M S6.3 earthquake and the M S5.8 earthquake, which is lower than the average b value of the Xianshuihe fault zone 0.99 (from 2000 to 2014) (Fig. 4). It indicates that the stress of the region was still high during this period. When the Kangding M S5.8 earthquake occurred on November 25, the b value rise up to 1.14, indicating the lower stress level in the region and the stress relaxation after the second earthquake is more than the first one.

Fig. 4
figure 4

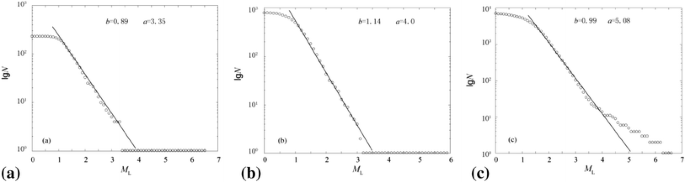

b value in different periods a between the M S5.8 earthquake and the M S6.3 earthquake, b after the M S5.8 earthquake, c average b value on Xianshuihe fault (from 2000 to 2014)

Full size image

The h value is a parameter to describe the decay of the aftershock’s frequency in seismology (Omori 1894; Utsu 1961; Mogi 1962). We used the modified Omori’s formula to study the decay of the aftershocks.

$$n(t) = n_{1} t^{ - h},$$

where \(n(t)\) is the aftershocks’ frequency in the tth day after the mainshock, \(n_{1}\) is the aftershocks’ frequency in the first day after the mainshock, and h is the decay coefficient.

The h values are both greater than 1.0 (Fig. 5) before and after the M S5.8 earthquake. However, the h value after the M S6.3 earthquake (1.55) was greater than the h value after the M S5.8 earthquake (1.31). This shows that the aftershocks of the M S6.3 earthquake decayed more rapidly than the aftershocks of the M S5.8 earthquake.

Fig. 5
figure 5

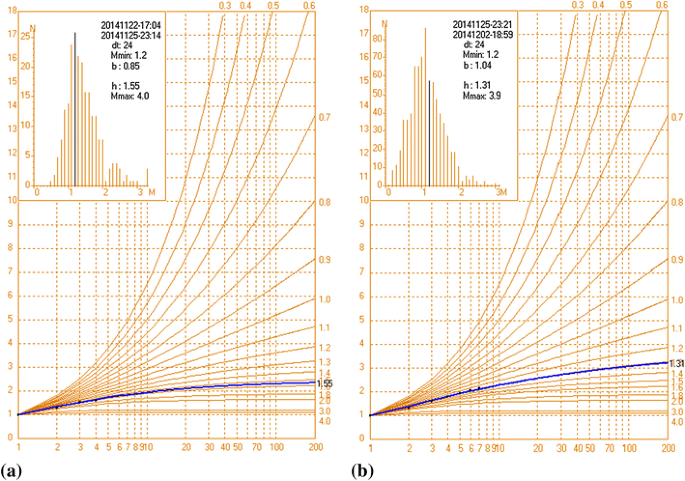

h value in different periods a Before M S5.8 earthquake and after M S6.3 earthquake b After M S5.8 earthquake

Full size image

From Fig. 6, the aftershock zone extended to both sides with length of 25 km in the early few hours after the M S6.3 Kangding earthquake. And the aftershock’s distribution of the main shock is more intensive in northwest than that in southeast. Subsequently, the aftershock’s activity weakened in the northwest before the M S5.8 earthquake. The M S5.8 earthquake occurred when the aftershocks gradually concentrated in southeast. From then on, the aftershock activity is mainly in the vicinity of the M S5.8 earthquake and in the northwestern region of the M S6.3 earthquake. The M S5.8 earthquake and the subsequent aftershocks make the aftershock zone extended to 47 km. During the later period, the aftershock near the main shock was scarce, indicating the vicinity of the M S6.3 earthquake ruptured completely.

Fig. 6
figure 6

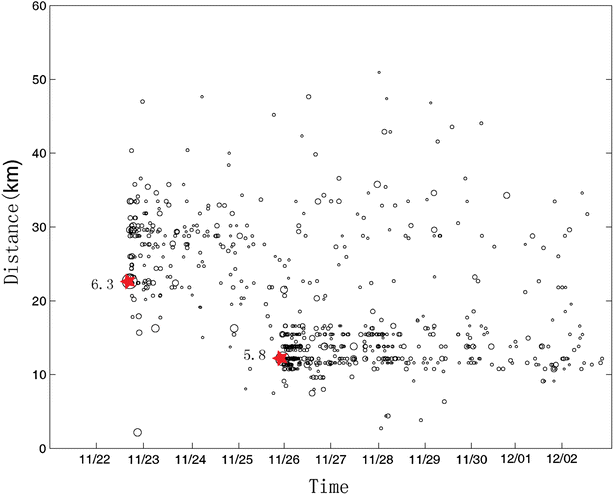

The occurrence times of aftershocks since the M S6.3 Kangding earthquake versus the distances along strike. The small star indicates the M S6.3 and M S5.8 earthquake, respectively (M L ≥1.0)

Full size image

4 Characteristics of historical earthquakes on Xianshuihe fault

Figure 7a shows the occurrence times of earthquakes above M S6.0 on Xianshuihe fault since 1700. It can be seen that the strong earthquakes on Xianshuihe fault occurred frequently since 1893, there were 13 earthquakes above M S6.0 in which 5 earthquakes above M S7.0 and the latest M S7.0 earthquake is the Luhuo M S7.6 earthquake on 6 February 1973.

Fig. 7
figure 7

The seismic activity of strong earthquake on the Xianshuihe fault a The magnitude of the historical earthquake above M S6.0 since 1700 b the occurrence times of the historical earthquakes above M S6.0 versus the along-strike distances since 1893

Full size image

There were no earthquakes above M S6.0 occurred on Xianshuihe fault for 33 years before the November 22, 2014 Kangding M S6.3 earthquake. However, compared with the year 1816 to year 1893, the prolonged quiescence period was not the longest. The seismic activity since 1700 can be divided into two active periods. The first seismic active period was from year 1725 to year 1816. The second seismic active period started from year 1893. Although the 33 years’ quiescence period was not a short time, it was much shorter than the nearly 80 years’ quiescence period between the two active periods. Therefore, we think the occurrence of the Kangding earthquake swarm indicates the adjustment in relative inactive period. It may be relative with the Wenchuan earthquake and Lushan earthquake occurred in Longmenshan fault recently. The new seismic active period on Xianshuihe fault may come in advance.

The Kangding M S6.3 earthquake happened in the southeast of the earthquake gap in the Xianshuihe fault (Han and Huang 1983). Its epicenter is between the 29 August 1893 Daofu M S7.0 earthquake and the 14 April 1955 Kangding M S7.5 earthquake. The earthquake gap is regarded as the area where the great earthquake would happen (Han and Huang 1983; Lin et al. 1986). However, this Kangding earthquake swarm had no impact on the earthquake gap. This swarm may be a signal. The earthquake stress transfer can just encourage the earthquake occurrence, but cannot easily induce fault active.

The Xianshuihe fault can be divided into the southeast and northwest segment by the earthquake gap. The earthquakes above M S6.0 occurred alternately in the southeast and the northwest part of the Xianshuihe fault, as shown in Fig. 7b. In addition, the area of earthquakes tends to extend to both ends of the Xianshuihe fault. The earthquakes above M S6.0 in the southeast were significantly less active than that in the northwest.

We also analyze the modern earthquakes above M L4.0 since 1970. Figure 8 shows that the moderate earthquakes in the westnorthern Xianshuihe fault were very active in the early 1970s. Several months before the M S7.6 Luhuo earthquake in 1973, there was a M S5.0 earthquake swarm near the Kangding region in September 1972. Then, the earthquakes above M L4.0 were scarce from 1974 to 1981. Subsequently, the M S6.9 earthquake hit in Daofu region on 24 January 1981. After that, there were a few earthquakes on Xianshuihe fault until 2000. In particular, there were no earthquakes above M L4.0 on the whole Xianshuihe fault from 1990 to 2000. Since 2000, the moderate earthquakes migrated from northwest to the southeast segment along the Xianshuihe fault until the M S6.3 Kangding earthquake happened. These reflect the alternate activity of the strong and weak earthquakes on the Xianshuihe fault. It also indicates the enhance seismicity on the southeast segment of the Xianshuihe fault. Due to the adjustment of the strong earthquake, it is likely that the major strong earthquakes occur on the southeast segment.

Fig. 8
figure 8

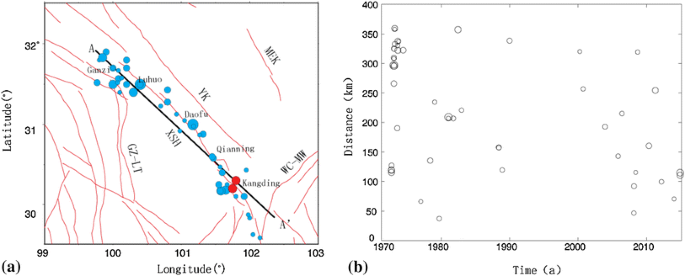

The moderate earthquakes (M L ≥4.0) distribution along Xianshuihe fault a The distribution of the historical earthquakes above M L4.0 since 1970, the blue circles represent the historical earthquakes, the red ones represent the M S6.3 and M S5.8 Kangding earthquakes. The red lines represent the fault in the region. XSH, Xianshuihe fault, GZ-LT, Garzê-Litang fault, WC-MW, Wenchuan-Maowen fault, YK, Yuke fault, MEK, Maerkang fault b The occurrence times of the historical earthquakes above M L4.0 versus the along-strike distances since 1970

Full size image

To sum up, we can speculate that this earthquake swarm occurred in the inactive period and it is related to the Wenchuan earthquake in 2008 and the Lushan earthquake in 2013. The occurrence of this earthquake swarm indicates the seismic activity on Xianshuihe fault may enter into a new active period in future. The risk of the strong earthquake in the southeast is higher than that in the northwest in future.

5 Coulomb failure stress change of the historical earthquakes

The Kangding M S6.3 earthquake in 2014 is the first earthquake larger than M6.0 on the Xianshuihe fault since the Daofu M S6.9 earthquake in 1981. Since 1700, almost all the segments of the Xianshuihe fault have been ruptured by the strong earthquake larger than M7.0 (Wen et al. 2008; Cheng et al. 2011a). Especially since the M71/4 earthquake in 1893, six earthquakes with magnitude larger or near 7.0 ruptured the Xianshuihe fault, among which the M7.0 earthquake in 1904 and M S6.9 earthquake on the same fault segment (Fig. 9a). As to the only two segments without being ruptured since 1893, the segment on the south end of the Xianshuihe fault was stroked by the M7¾ in 1786, with the occurrence interval of more than 360 years (Cheng et al. 2011a), while the other one is the Selaha segment with ~40 km length and not considerable earthquakes since 1700. The M S6.3 Kangding earthquake in 2014 just stroked the Selaha segment, although not ruptured the whole segment. Here, we have calculated the viscoelastic coulomb stress changes (ΔCFS) of the former historical earthquakes since 1893 on the rupture plane of the M S6.3 Kangding earthquake in 2014 using the PSGRN/PSCMP code (Wang et al. 2006). In the calculation, the parameters of the historical earthquakes on the Xianshuihe fault are listed in Table 1. And the receiver fault in the Coulomb stress changes is the rupture segment of the Kangding earthquake, with strike of 145°, dip of 78°, and rake of −11°.

Fig. 9
figure 9

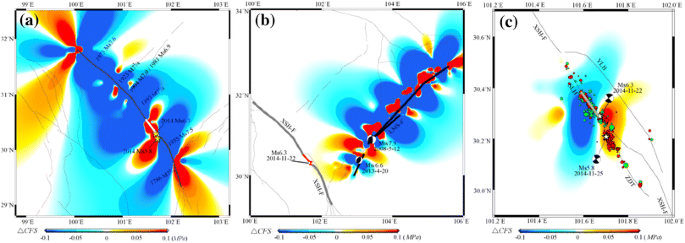

a Calculated viscoelastic coulomb stress changes of the historical earthquakes on the fault plane of the M S6.3 Kangding earthquake. Gray thin lines are the rupture segments of the historical earthquakes since 1893. The white line is the fault segment on the Xianshuihe fault with no rupture events since 1700. Yellow stars show the epicenter of the M S6.3 and M S5.8 recent earthquakes in 2014. b calculated Static coulomb stress changes of the M W 7.9 Wenchuan earthquake and M W6.6 Lushan earthquake on the fault plane of the M S6.3 Kangding earthquake. Black thick lines are the rupture plane of the M W7.9 Wenchuan earthquake and M W6.6 Lushan earthquake. Gray thick lines are the rupture segments of the historical earthquakes since 1893 on the Xianshuihe fault. Red thick line is the fault segment on the Xianshuihe fault with no rupture events since 1700. Focal mechanisms of the earthquakes are from Global CMT catalog. XSH-F, the Xianshuihe fault; LMS-F, the Longmenshan fault. c calculated static coulomb stress changes on the fault plane of the M S5.8 on 25 Nov 2014; Beach balls are the focal mechanisms of the M S6.3 and M S5.8 earthquakes. Gray thick lines is the rupture plane of the M S6.3 earthquake. Green circles are the aftershocks before the M S5.8 occurred, while the red ones are the aftershocks after the M S5.8 occurred. XSH-F, the Xianshuihe fault; YLH, the Yalahe branch fault; SLH, the Selaha branch fault; ZDT, the Zheduotang branch fault

Full size image
Table 1 Parameters of the ruptured event on the Xianshuihe fault since 1893 (modified from Cheng et al. 2011b)
Full size table

We calculated the normal, shear, and coulomb stress changes on rupture segment of the Kangding earthquake from the historical earthquakes listed in Table 1. The Coulomb stress change, ΔCFS, is given by

$$\Delta {\text{CFS}} = \Delta \tau - \mu^{\prime}\Delta \sigma_{n},$$

where \(\Delta \tau\) and \(\Delta \sigma_{n}\) are the shear and normal stress changes on the fault plane; \(\mu^{\prime}\) is the effective friction coefficient, taken to be 0.4 (Stein 1999).

As occurred in the region near the epicenter of the M W7.9 Wenchuan earthquake in 2008 and M W6.6 Lushan earthquake in 2013, the M S6.3 Kangding earthquake in 2014 should be affected by the stress changes from the two former earthquakes. Liu et al. (2014) published the calculation results of the coulomb stress changes, which show that the stress of the Xianshuihe fault has increased after the Wenchuan earthquake and Lushan earthquake, but highly less than the failure stress lower by the historical earthquakes on the Xianshuihe fault, all the segment of which has been ruptured by historical events. Wang et al. (2014) have calculated the coulomb stress changes of the Wenchuan earthquake and the Lushan earthquake, showing that the earthquake potential on the Xianshuihe fault is slightly increased. Hence, we also calculated the ΔCFS of the Wenchuan earthquake and Lushan earthquake on the fault plane of the Kangding M S6.3 earthquake. And we have calculated the ΔCFS of the M S6.3 on the following M S5.8 to illustrate the interactions of the two earthquakes. In our calculation, the parameters of each layer in Table 2 are from Cheng et al. (2014) in the study of nearby Ludian M S6.5 earthquake in 2014. And the coseismic displacements of the rupture fault planes of the M W7.9 Wenchuan earthquake in 2008 and the M W6.6 Lushan earthquake in 2013 are from Wang et al. (2008) and Wang et al. (2013), respectively. While the rupture parameters of the M S6.3 earthquake are from the aftershock distribution data, with length of 12 km, width of 13 km as the depth 5–18 km, the average displacement is about 0.24 m, and the seismic moment is 1.14 × 1018 N m equivalent to an M W6.0 earthquake. Figure 9a shows the viscoelastic ΔCFS of the historical events on the M S6.3 Kangding earthquake. The results show the ΔCFS on the Selaha segment was increased by the historical events with the value on the epicenter (30.3°N, 101.7°E) of about 1.13 MPa, which is great enough to trigger an earthquake. And the ΔCFS on the segment of the M7¼ earthquake ruptured was also increased by the coulomb stress changes after the historical events, the maximum value of 0.45 MPa.

Table 2 Parameters of the crust and mantle used (Cheng et al. 2014)
Full size table

Figure 9b shows the ΔCFS of the M W7.9 Wenchuan earthquake in 2008 and the M W6.6 Lushan earthquake in 2013 on the fault plane M S6.3 Kangding earthquake. The ΔCFS value is about 0.011 MPa at the epicenter of the M S6.3 Kangding earthquake, larger than the threshold of the 0.01 MPa to trigger an earthquake (Stein 1999). And the ΔCFS of the M S6.3 earthquake on the M S5.8 in Fig. 9c shows that the M S5.8 earthquake on the Zheduotang branch fault is triggered by the former M S6.3 earthquake, even the aftershocks of the M S5.8 are in the areas where the ΔCFS increased.

The Selaha branch fault, where the M S6.3 Kangding earthquake occurred, is one of the three branch faults of the Selaha segment on the Xianshuihe fault. The whole slip rate of the segment may distribute on the three branch faults. The energy accumulation on each branch fault is not as fast as that on other segment. This may be the reason why the three branch faults of the Selaha segment have not ruptured entirely since 1893, although promoted by the ΔCFS on the other segments on the Xianshuihe fault with large earthquakes. In our calculation of the viscoelastic ΔCFS, the historical events have a positive impact on the Selaha segment where the M S6.3 Kangding earthquake occurred with the ΔCFS value of about 1.13 MPa. This value is much larger than the one from the Wenchuan earthquake and Lushan earthquake of 0.11 MPa.

We also stated the time process of the ΔCFS in history. Figure 10 shows the ΔCFS on the epicenter of the M S6.3 Kangding earthquake caused by the historical earthquakes since 1893. It is obviously that the M S7.5 earthquake in 1955 played an important role on triggering the M S6.3 Kangding earthquake. The ΔCFS reaches to 0.843 MPa which is much greater than other historical earthquakes nearby. The 12 May 2008 M W7.9 Wenchuan earthquake and the 20 April M W6.6 Lushan earthquake were the most significant earthquakes in Sichuan region recently. They also contributed to the occurrence of the Kangding earthquake. The ΔCFS triggering by the Wenchuan earthquake was only 0.01 MPa. The ΔCFS caused by the Lushan earthquake was much smaller.

Fig. 10
figure 10

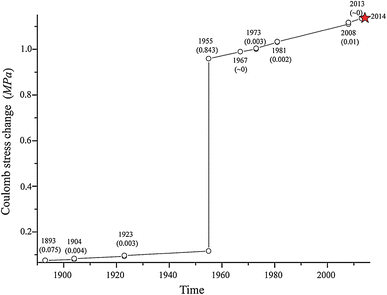

Viscoelastic Coulomb stress changes on the epicenter of the M S6.3 Kangding earthquake in 2014 since 1893

Full size image

6 Discussion and conclusions

There were only two earthquake swarms on Xianshuihe fault since 1970, including this Kangding November, 2014 swarm and the earthquake swarm in 1972. It may be related to the Cenozoic granite which is considered to be fractured and can hardly store up the energy. It is a noteworthy issue for the particularity of the Kangding earthquake swarm. In this article, we have analyzed the tectonic setting of Xianshuihe fault, the focal mechanism, the Kangding earthquake sequence, the migration of the historical earthquakes, and the coulomb failure stress change.

From the distribution and the parameters of the swarm in 2014, the Kangding earthquake sequence extends northwest whose major axis is about 47 km and minor axis is about 13 km. The length of the M S6.3’s aftershock zone is about 25 km, while the length of the M S5.8’s is about 14 km. Before the M S5.8 earthquake occurred, the b value of the sequence is lower than the average of that on Xianshuihe fault. Nevertheless, the b value rises to be higher than the average of that on Xianshuihe fault after the occurrence of the M S5.8 earthquake. The h values in different periods show the aftershocks of the M S6.3 earthquake decayed more rapidly than the aftershocks of the M S5.8 earthquake. The results of the parameters show the lower stress level in the region and the stress relaxation after the second earthquake is more than the first one.

For the migration of the historical earthquakes, the earthquakes above M S6.0 on the Xianshuihe fault occurred frequently since 1893. The Kangding M S6.3 earthquake located on the southeast of the earthquake gap in the Xianshuihe fault. The earthquakes above M S6.0 occurred alternately in the southeast and the northwest part of the Xianshuihe fault. It is the first earthquake above M S6.0 that occurred on Xianshuihe fault since 1981. The earthquake swarm occurred in the inactive period on Xianshuihe fault. This earthquake swarm is related to the Wenchuan earthquake in 2008 and the Lushan earthquake in 2013. Because the enhance seismicity of the moderate-strong earthquakes on the southeast segment, we should focus on the possibility of the major strong earthquake on the area.

As to the swarm in 2014, our coulomb stress change calculation shows that the later M S5.8 earthquake is triggered by the former M S6.3 earthquake, although some errors in the calculation may be caused by the rupture model of the main earthquake, crustal model, and the slip behavior of the received fault. Our results, using the parameters from the aftershock distribution to calculate the coulomb stress changes, may be the most appropriate method to decrease the errors. The earthquake swarm located on the affected zone of the historical earthquakes’ stress triggering since 1893, especially by the Kangding M S7.5 in 1955. We think the Selaha branch fault, where the stable energy accumulation from the fault slip motion and the promotion from historical events on other neighboring segments are able to generate an M S6.3 earthquake but not enough to rupture the entire segment. Using the focal mechanisms of these two earthquakes, our results also show that the M S6.3 earthquake was advanced by the historical earthquakes on the other segments of the Xianshuihe fault and the recent Wenchuan M S8.0 earthquake and Lushan M S7.0 earthquake.

Based on the above analysis, we can draw the conclusions as below:

  1. (1)

    The Kangding M S6.3 and M S5.8 earthquakes occurred in the Selaha segment on the Xianshuihe fault which contains three fault branches. They are both sinistral slip events with NW direction.

  2. (2)

    The stress level may reduce in the region after the M S5.8 earthquake for the rapid release of energy.

  3. (3)

    The occurrence of this earthquake swarm indicates the seismic activity on the Xianshuihe fault may be in a relatively inactive period. The major strong earthquake on the area should be concerned in the future.

  4. (4)

    The stress transfer caused by the historical earthquakes increases the stress accumulation on this segment, and encourages the occurrence of these two earthquakes. The subsequent M S5.8 earthquake was triggered by the M S6.3 earthquake.
