1 Background, aim, and scope

With the publication of Theo Colborn’s scientific best-seller Our stolen future (Colborn et al. 1996), endocrine disruption became a public, political, and scientific issue. Since then, the list of suspected endocrine disrupting chemicals (EDCs) has been steadily growing, and the research in this field has made substantial progress (Hotchkiss et al. 2008). However, the causality between the exposure to EDCs and adverse human health effects is still controversially discussed (Safe 2000, 2005; Sharpe 2003; Waring and Harris 2005) due to the multifactoral etiology of hormone-related diseases, although evidence for causality between exposure to xenohormones and developmental as well as reproductive disorders strengthens (Sharpe 2003).

For instance, in utero exposure to phthalate plasticizers has been shown to be associated with a decreased anogenital distance in male infants indicating undervirilization induced by environmental levels of these endocrine disruptors (Swan et al. 2005). Vice versa, phthalate exposure to girls has claimed to be correlated with an earlier onset of puberty (Colón et al. 2000), an effect that has been experimentally verified in mice in the case of the plastic component bisphenol A as well (Howdeshell et al. 1999). Recently, the debate about endocrine disruption has been heated up by findings that some EDCs may exhibit epigenetic transgenerational effects (Anway et al. 2005).

Though many endocrine disruptors are ubiquitous in the environment and humans are known to be contaminated with a wide range of compounds (Damstra et al. 2002), exact routes of human exposure remain largely unknown (Damstra 2003; Schettler 2006; Sharpe 2003). Apparently there are various sources and pathways of xenohormone uptake: inhalation (i.e., from indoor air), dermal absorption (i.e., from personal care products), and ingestion of food. The contamination of foodstuff by production-related compounds has been documented analytically. Nonylphenols, as degradation products of commercial and industrial surfactants, for example, are identified ubiquitously in a broad variety of nourishments (Guenther et al. 2002).

Another source of xenobiotics in foodstuff is rarely taken into account when dealing with endocrine disruption: substances migrating from packaging material into edibles (Lau and Wong 2000). In order to optimize the properties of packaging materials (i.e., durability, elasticity, color), a variety of additives, such as stabilizers, antioxidants, coupling agents, and pigments, is used in the formulation. Especially additives from plastics (so-called plasticizers) are known to leach out of the packaging and consequently accumulate in the foodstuff (Biles et al. 1998; Casajuana and Lacorte 2003; Fankhauser-Noti et al. 2006; Mcneal et al. 2000; Zygoura et al. 2005). Given the fact that some of these compounds are known EDCs (i.e., bisphenol A, vom Saal and Hughes 2005), we hypothesize that the migration of substances from packaging material into foodstuff may contribute to human exposure with xenohormones.

In the current study, bottled mineral water serves as a model foodstuff because it is a simple matrix and it does not contain endogenous hormones, like for example dairy products. Moreover, consumption of mineral water is increasing worldwide (Montuori et al. 2008). On the German market, mineral water is available in two major sorts of packaging material: glass and PET (PETE, polyethylene terephthalate, resin identification code 1) bottles. Moreover, some brands of mineral water are sold in a packaging called Tetra Pak (Tetra Brick) although only to a minor extent. These paperboard boxes are coated with an inner plastic film and are more commonly used for packing milk and fruit juices.

2 Materials and methods

2.1 Samples

Twenty brands of mineral water (coded as A–O, nine bottled in glass and plastic each, two bottled in Tetra Pak) from different price segments were chosen either because of their high market shares or ratio of glass/PET use in Germany. The samples included mineral water from four producers (A–D) that were obtained both in glass and in PET bottles. For each brand, six mineral water bottles were purchased in local shops and stored under consumer relevant conditions (dark, 4°C before analysis). Mineral water samples were taken from three bottles per brand and tested directly with the yeast estrogen screen (YES) in three independent experiments. A representative subset of four brands of glass bottles and six brands of plastic bottles (brands A–E) was chosen for the reproduction test with Potamopyrgus antipodarum (three bottles per brand).

2.2 Yeast estrogen screen

The yeast strain contains the stably transfected human estrogen receptor alpha (hERα) gene and an expression plasmid containing the reporter gene lacZ encoding β-galactosidase under the control of estrogen response elements (ERE). Upon receptor activation and ERE binding, β-galactosidase is expressed. The β-galactosidase activity is measured as the change in absorbance at 540 nm caused by cleavage of the chromogenic substrate chlorophenol red-β-d-galactopyranoside (CPRG).

Assay procedure and data analysis were conducted as described previously (Routledge and Sumpter 1996; Rutishauser et al. 2004), with several modifications to test water samples directly and to accelerate the sample throughput. Minimal medium was prepared by supplementing ultrapure water with 0.67% w/v yeast nitrogen base without amino acids, 2% w/v d-(+)-glucose, and the appropriate amino acids. Yeast cultures were grown overnight to log-phase.

Seventy-five microliters water sample were added to a 96-well microtiter plate in eight replicates. Preliminary experiments indicated that laboratory tap water was least contaminated and hence served as a negative control (eight replicates on each plate). Fivefold minimal medium was supplemented with 100 µM copper(II)sulfate, 0.67 mg/ml ampicillin, and streptomycin. Twenty-five microliters medium (containing 1% v/v ethanol) were added to each well. A serial dilution of 17β-estradiol in fivefold medium (in 1% v/v ethanol, 3 pM–100 nM final concentration) served as a positive control (eight replicates per concentration in each experiment). Yeast cells from the log-phase culture were diluted 1:5 in fresh minimal medium, and 20 µl of the cell suspension were added to each well. For blank values (eight replicates on one plate) medium was added instead of cells. The microtiter plates were sealed with a gas permeable membrane (Breathe-Easy, Diversified Biotech, Boston, MA, USA) to avoid cross contamination and were incubated for 24 h (30°C, 750 rpm).

Relative cell density was determined by measuring optical density at 595 nm. For β-galactosidase assay, buffer Z was supplemented with 40% w/v CPRG, 0.25% v/v β-mercaptoethanol, and 170 U/ml lyticase. One hundred microliters were added to each well. Optical density at 540 nm was determined in 30-min intervals over a period of 4 h.

Optical densities were corrected according to blank values and relative cell density. For each time of measurement, dose–response relationship for 17β-estradiol was calculated using a four-parameter logistic function (Prism 5.0, GraphPad Software Inc., San Diego, CA, USA). To assure comparability of independent experiments, only those measurements were considered whose half maximal response (EC50) was next to 1 × 10−10 M 17β-estradiol (range, 9 × 10−11 to 2 × 10−10 M) with a correlation coefficient r 2 >0.9.

Estradiol equivalents (EEQ) of the water samples were calculated by inserting the corrected optical densities (corrected OD) in the inversion of the four parameter logistic function (Eq. 1) fitted with the curve parameters obtained from the appropriate positive control. EEQ values of the samples were corrected for background values in the negative control (1.28 ± 0.18 ng/l EEQ, n = 226) and dilution factor (1.6).

$$\log {\text{EEQ}} = \log {\text{EC}}_{50} - \left( {\frac{{\left( {\log \left( {{{\left[ {{\text{top}} - {\text{bottom}}} \right]\;} \mathord{\left/ {\vphantom {{\left[ {{\text{top}} - {\text{bottom}}} \right]\;} {\;\left[ {{\text{corrected}}\;{\text{OD}} - {\text{bottom}}} \right] - 1}}} \right. \kern-\nulldelimiterspace} {\;\left[ {{\text{corrected}}\;{\text{OD}} - {\text{bottom}}} \right] - 1}}} \right)} \right)}}{{{\text{hillslope}}}}} \right)$$

2.3 Reproduction test with Potamopyrgus antipodarum

The test was conducted with the following specifications: All bottles were rinsed three times with ultrapure water and filled with 700 ml defined culturing water (pH 8.0 ± 0.5, conductivity 770 ± 100 µS/cm). One hundred individuals of P. antipodarum (from a laboratory stock consisting exclusively of parthenogenetic females, see Schmitt et al. 2008) were inserted in each bottle. Borosilicate Erlenmeyer flasks with 700 ml culturing water served as a negative solvent control (0.0014% v/v ethanol, n = 3); 17α-ethinylestradiol (EE2, CAS 57-63-6) was used as positive control at a nominal concentration of 25 ng/l (in 0.0014% v/v ethanol, n = 3). The test was conducted under defined conditions (15 ± 1°C, constant aeration, 16/8 h light/dark rhythm, random placement of replicates). P. antipodarum were fed every 4 to 5 days with 0.2 mg TetraPhyll® per replicate. At the same time, all vessels were cleaned. A maximum mortality of 5% was observed at the end of the experiment.

In each replicate, 20 mudsnails were investigated for parthenogenetic production of embryos after 14, 28, and 56 days following a relaxation in 2.5% w/v magnesium chloride as reported previously (Duft et al. 2003b; Jobling et al. 2004). The total number of embryos per female after 56 days exposure proved to be a robust parameter for assessing endocrine disruptive effects in vivo.

2.4 Statistical analysis

Data analysis was performed using GraphPad Prism® 5.0 (GraphPad Software, Inc., San Diego, USA). Nonparametric Mann–Whitney tests (two-tailed) were applied to compare the medians of data sets. In case of YES, data outliners were detected using Grubb’s test (p < 0.05) and excluded. All presented data comprise of mean ± standard error of the mean (SEM).

3 Results

3.1 Yeast estrogen screen

Screening of mineral water samples with the YES revealed a significantly elevated estrogenic activity in 12 of 20 brands (Fig. 1). Results were consistent for the three independent replicates per brand as well as for the three independent experiments performed. Average estrogenic potencies of the individual brands expressed in concentrations equivalent to 17β-estradiol (EEQ) ranged from below quantification limit (seven brands) to a maximum of 75.2 ± 5.95 ng/l EEQ (brand C–P, n = 67). The calculated average estrogenic burden of all samples was 18.0 ± 0.80 ng/l EEQ (n = 1363). Furthermore, we detected a significantly increased hormonal activity in 33% of all mineral water samples bottled in glass (three of nine brands). Compared to that, 78% of the waters from PET bottles (seven of nine brands) and both samples bottled in Tetra Pak were estrogen positive.

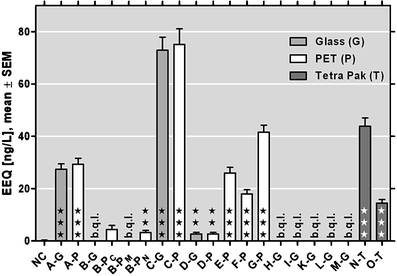

Fig. 1
figure 1

Estrogenic potencies of mineral water expressed as estradiol equivalent concentrations (EEQ) measured with the yeast estrogen screen. Mineral water from three individual bottles of several brands (A–O) were tested in three independent experiments (each sample in eight replicates). Negative control (NC), n = 226; water samples, n = 65 to 75. b.q.l. below quantification limit, double stars p < 0.01 and triple stars p < 0.001 as determined by Mann–Whitney test

To evaluate the influence of the packaging material directly, we analyzed four mineral waters that originated from the same source (A–D) but were bottled in both glass and plastic. Apart from source D, mineral waters purchased in glass bottles were less estrogenic than the corresponding samples in PET bottles (Table 1). Water produced by spring B is available in three different plastic bottles (B-PC/M/N). Estrogenic activity was not detectable in samples taken from glass bottles (B-G) and one sort of PET bottle (B-PM) that is returnable and is cleaned and filled several times. In contrast, the same water is estrogenic when supplied in one-way containers (B-PC/N). The same phenomenon is observed in case of spring D: Again, estrogenic activity in water from multi-use PET bottles (D-P) is not elevated compared to samples from the same bottler purchased in glass packaging (D-G).

Table 1 Properties of the mineral water brands tested in the yeast estrogen screen

3.2 Reproduction test with Potamopyrgus antipodarum

P. antipodarum responds highly sensitively to estrogens: After 56 days of exposure to 25 ng/l ethinylestradiol (positive control), the reproductive output of mudsnails (embryos per female) was more than doubled (211 ± 12.6%) compared to the negative control group (100 ± 11.6%). Culturing of P. antipodarum in water bottles filled with defined culturing water led to a significant increase of reproduction (139.4 ± 13.9% to 222 ± 12.9%) in all PET brands of vessels (Fig. 2). In contrast, embryo production by mudsnails cultured in glass mineral water bottles was slightly but not significantly enhanced (108.11 ± 14.3% to 131.3 ± 14.5%). Reproduction of P. antipodarum bred in two brands of plastic bottles (B-PM and E-P, see Fig. 2) increased only moderately to 140%. Interestingly, we also did not detect estrogenic activity in mineral water from the multi-use PET bottles of brand B (B-PM, see Fig. 1). Vice versa, reproduction of P. antipodarum in brand D PET vessels (D-P, also reusable) increased significantly to 220 ± 12.9% (see Fig. 2), whereas in the YES, the mineral water itself (D-P, see Fig. 1) did not contain higher estrogenicity when compared to the corresponding glass bottles (D-G).

Fig. 2
figure 2

Number of embryos produced by Potamopyrgus antipodarum after a 56-day period of culturing in glass and plastic bottles (three replicates per brand with 20 snails each). Negative control (NC), positive control (EE2), and samples, n = 60. Single star p < 0.05, double star p < 0.01, and triple stars p < 0.001 as determined by Mann–Whitney test

Simultaneously, the estrogenic potency of water samples taken from all bottles was investigated in vitro with the YES. EEQ regularly recorded over the test period were integrated and compared to the number of embryos produced in the same bottles. The resulting correlation (Spearman, p = 0.0075, r s = 0.479, 30 data pairs) indicates that, in bottles with high estrogenic potency in vitro, reproduction of mudsnails was enhanced.

4 Discussion

The presence of endogenous estrogenic compounds in food is well documented in cases concerned with phytoestrogens and steroid hormones (Daxenberger et al. 2001; Fritsche and Steinhart 1999). Furthermore, the contamination of foodstuff with well-known EDCs like bisphenol A, phthalates, and alkylphenols is confirmed analytically (McNeal et al. 2000). Yet, only limited data exists on the total estrogenic burden of edibles, integrating known and unidentified EDCs as well as potential mixture effects. Therefore it seems justifiable to put the estrogenic potencies measured in mineral water in context with endogenous estrogens found in food and beverages.

Hartmann et al. (1998) proposed that dairy products are the main source for steroidal estrogens and calculated a total daily intake of 80–100 ng estrogens per day for adults. Based on our data, a theoretical daily consumption of 3 l mineral water (drinking water required to maintain hydration, Howard and Bartram 2003) would result in a mean total intake of 54 ng EEQ per day. In a worst case scenario (3 l of brand C-P), the total daily intake would increase to 226 ng EEQ per day, exceeding the intake of estrogens naturally found in food (Hartmann et al. 1998) by more than 100%. In a more recent study, Courant et al. (2007) analytically determined concentrations of 23 ng/l 17ß-estradiol in milk. The concentration of natural estrogen in milk is comparable to the mean hormonal potency we measured in 20 brands of mineral water (18 ng/l EEQ) and three times lower than the maximal EEQ detected in one brand of water (75 ng/l EEQ). Therefore, consumption of mineral water results in a human exposure to xenoestrogens with at least the same hormonal potency as steroidal estrogens naturally occurring in food.

Few authors utilized the YES or other in vitro assays to assess the total estrogenicity of beverages or foodstuff. Klinge et al. (2003) detected a maximum 84 ng/l EEQ in red wine. Promberger et al. (2001) calculated 23–41 ng/l EEQ for beer, a result that was confirmed by Takamura-Enya et al. (2003), who detected an estrogenic potency of approximately 30 ng/l EEQ in beer; extracts from soy based food (miso, tofu, and soy sauce) and coffee also contained EEQ in low nanogram per liter range. The range of estrogenic burden we found in several brands of mineral water is comparable to the hormonal activity of wine, beer, and soy products, detected with the same in vitro assay. Again, the distinction is that the abovementioned studies confirmed naturally occurring phytoestrogens as an endogenous source of estrogenicity, whereas mineral water does not contain phytoestrogens.

Using a well-established in vitro assay, we provide first quantitative data on the estrogenic burden of commercially available mineral water. The high abundance (60% of all samples) and potency (mean of 18 ng/l EEQ) of estrogenicity clearly demonstrates that food obviously lacking endogenous estrogens significantly contributes to human exposure with estrogenic compounds. In contrast to estrogens naturally occurring in foodstuff and beverages, the sources of estrogens in water must be exogenous.

From the in vitro data shown in this study, we conclude that there are three sources for the estrogenic contamination of mineral water: First of all, the water may be estrogenic by itself, implying that the untreated groundwater from the spring contains substances with hormonal potency. So far, there is no evidence for the presence of intrinsic estrogenicity in water. Another source of hormonal activity in groundwater may be the reflux of synthetic estrogens like 17α-ethinylestradiol and other pharmaceuticals from wastewater discharge. Although shown for surface water (Cargouet et al. 2004), no clear evidence for the entry of 17α-ethinylestradiol in groundwater is available up to now.

A second source of the estrogenic activity of mineral water is the production process. Especially with regard to the water samples from springs A and C (see Fig. 1), which contained a conspicuously high estrogenic burden independent of the packaging material, a production-related contamination with xenoestrogens seems probable. The presence of several phthalate plasticizers in citrus essential oils, for example, was attributed to new plastic components used in the production (Di Bella et al. 2001). Another source might be residual detergents and disinfectants used for cleaning the filling system. Guenther et al. (2002) detected estrogenic nonylphenols in a broad range of foodstuff and concluded that part of it might originate from nonionic surfactants used in cleaning agents.

As a third source of xenoestrogens in mineral water, we propose the migration of EDCs from the packaging material. The analysis of data according to the packaging material (Fig. 3a) demonstrates that the estrogenic contamination of mineral water bottled in plastic (PET and Tetra Pak) is significantly higher compared to that of water bottled in glass (p < 0.001). This implies an influence of the packaging material: Substances with estrogenic potency leaching from the plastic packaging could contribute to the hormonal burden of mineral water reported in this study. With regard to the four mineral waters that originated from the same source but were purchased in glass and plastic (A–D), the lower estrogenicity of the appropriate glass bottled waters (apart from spring D, see Fig. 1) supports our hypothesis of estrogenic contamination by the plastic packaging. The estrogenic burden of water purchased in Tetra Pak has to be interpreted tentatively since only two brands were examined due to low market shares. Again, higher contamination compared to samples from glass bottles (see Fig. 3 a, p < 0.001) could be attributed to the migration of EDCs from the inner lining of the Tetra Pak packaging, which consists of a polyethylene plastic film.

Fig. 3
figure 3

Estrogenic potencies of mineral water in vitro (a) and reproduction of Potamopyrgus antipodarum (b). Data were pooled according to packaging material. a Estrogenic potencies (EEQ) measured with the yeast estrogen screen. Negative control (NC), n = 226; glass, n = 610; PET, n = 620; Tetra Pak, n = 133. b Number of embryos produced by Potamopyrgus antipodarum after a 56-day period of culturing in glass and plastic bottles. Negative control (NC) and positive control (EE2), n = 60; glass, n = 240; PET, n = 360. Triple stars p < 0.001 as determined by Mann–Whitney test

To exclude the influence of the first two sources of xenoestrogens in mineral water (contamination by spring or production) and to exclusively characterize the estrogenic potency emerging from the packaging material, we conducted a reproduction test with the New Zealand mudsnail P. antipodarum. In this study, the prosobranch snail acts as a sentinel for xenoestrogens. In the current experiment, this is documented by the positive control with the synthetic estrogen 17α-ethinylestradiol (EE2). After 56 days of exposure to 25 ng/l EE2, the reproduction of P. antipodarum, expressed as number of embryos produced per female, was more than doubled compared to control animals (see Fig. 2).

Other studies emphasize that the sensitivity of P. antipodarum is not limited to EE2 but applies for a wider range of EDCs: Jobling et al. (2004) observed effects of EE2, bisphenol A, and octylphenol on P. antipodarum that were very similar to the ones shown in this study. Duft et al. (2003a, b) provide data on xenoestrogens (bisphenol A, octylphenol, and nonylphenol) as well as on the xenoandrogens triphenyltin and tributyltin. Although the mechanism, through which EDCs act on mollusks, is not yet elucidated (Köhler et al. 2007), many gastropod species are known to be susceptible to EDC exposure (Oehlmann et al. 2006; Oehlmann et al. 2007).

In the current experiment, breeding of P. antipodarum in several brands of glass bottles resulted in a slightly enhanced production of embryos compared to the negative control group (see Fig. 2), which consisted of inert Borosilicate glass vessels. Since this difference is not statistically significant, there is little evidence for the occurrence of xenoestrogens migrating from the glass material into the culturing water. In contrast, reproductive patterns of specimens kept in PET bottles changed distinctly during the test period: Females cultured in four brands of plastic bottles produced approximately twice as much embryos compared to the negative control (90–120%, see Fig. 2). Again, analysis of data according to the packaging material reveals a significantly enhanced progeny of P. antipodarum from the PET group compared to specimens from the glass group and negative control (p < 0.001, Fig. 3b). Taking into account that the same culturing water was filled in all vessels at the beginning of the experiment, it is obvious that the observed effects can only be attributed to xenoestrogen leaching from these plastic bottles. Moreover, the compounds released by the PET material were potent to trigger estrogenic effects in vivo similar to those of EE2 at a concentration of 25 ng/l.

A similar observation was made by Howdeshell et al. (2003): Uterine weight of prepubertal female mice housed in cages made of polycarbonate increased by 16% compared to mice from polypropylene cages. Although this estrogenic effect was not statistically significant, it was linked to the exposure to bisphenol A leaching from polycarbonate cages. In contrast to polycarbonates, PET is believed to be free from bisphenol A. Still, Toyo’oka and Oshige (2000) detected 3–10 ng/l bisphenol A in several brands of mineral water from PET bottles but did not confirm its origin. These results were not confirmed by Shao et al. (2005), who could not detect bisphenol A in different beverages from plastic bottles (material not stated) including mineral water. Nonetheless, estrogenic nonylphenols were detected in both studies in concentrations from 16–465 ng/l. The leaching of p-nonylphenol from plastic tubes used in the laboratory was first described by Soto et al. (1991). Because bisphenol A and nonylphenols are ubiquitous, we cannot exclude their presence in mineral water.

The same is true for endocrine-disrupting phthalates: Despite some claims that phthalates are not used in manufacturing PET food packaging (Enneking 2006), Kim et al. (1990) extracted several phthalates from PET water bottles (among them DEHP, DBP, and DEP). The migration of DEHP from PET into mineral water was reported by Biscardi et al. (2003). Casajuana and Lacorte (2003) monitored several phthalates in mineral water and found increased concentrations of DMP, DEP, DBP, and DEHP after storing water in PET bottles for 10 weeks. In a recent study, Montuori et al. (2008) compared mineral waters bottled in glass and PET and detected significantly higher amounts of phthalates (DMP, DEP, DiBP, DBP, and DEHP) in plastic bottled water. The sum of studied compounds was thus 12 times higher in water from PET bottles compared to samples from glass bottles. Taken together, there is good analytical evidence for the migration of certain phthalates from PET food packaging materials, some of them well-known xenoestrogens (Jobling et al. 1995). However, the estrogenicity reported in this study might also arise from unexpected compounds: Shotyk et al. (2006) found antimony in up to 30 times higher concentrations in mineral water from PET compared to glass bottles and confirmed its leaching from PET (Shotyk and Krachler 2007), in whose manufacturing antimony trioxide is used as catalyst. The maximum concentrations detected in mineral water (1–2 µg/l) have been shown to exhibit estrogenic activity in vitro (Choe et al. 2003).

The analytical data from the literature suggest that the observed estrogenic effects reported in this paper cannot be attributed to one of the compounds alone, owing to the fact that individual concentrations are too low to be effective. Since the assays used in this study integrate all xenoestrogens present in the samples, we propose that there are either potent estrogenic mixtures causing the in vitro and in vivo effects (Rajapakse et al. 2002; Silva et al. 2002) or so far unidentified compounds with strong estrogenic potency.

5 Conclusions

Our findings provide first evidence for a broad contamination of mineral water with xenoestrogens, typically in the range of 2–40 ng/l EEQ with maximum values of 75 ng/l EEQ. Consumption of commercially bottled mineral water may therefore contribute to the overall exposure of humans with endocrine disruptors. Moreover, it is probable that this estrogenic contamination originates from plastic food packaging materials because mineral water bottled in PET and Tetra Pak is more estrogenic than water bottled in glass. This gives rise to the assumption that additives such as plasticizers or catalysts migrate from the plastic packaging into the foodstuff. Though yet unidentified, these substances act as functionally active estrogens in vitro on the human estrogen receptor alpha and in vivo in a molluskan model. Therefore, we may have identified just the tip of the iceberg in that plastic packaging may be a major source for xenohormone contamination of many other edibles. Still, this study was not designed to evaluate whether the consumption of plastic packed nourishments comprehends the risk of endocrine disruptive effects in humans. It instead provides an insight into the potential exposure to EDCs due to unexpected sources of contamination.
