Abstract
Metagenomic next-generation sequencing (mNGS) allows the monitoring of microbiota composition of murine colonies employed for scientific purposes in a single test by assessing the composition of gut microbiome and the detection of pathogens from fecal pellets. In this study, we tested the potential use of mNGS for monitoring both microbiota composition and the presence of pathogens through Environmental Health Monitoring, by using exhaust dust collection filters derived from individually ventilated cages (IVC) systems.
mNGS analysis was performed on nucleic acids isolated from filters collecting air from the exhaust of: (1) cages with mice housed in a non-pathogen free facility; (2) animal-free cages with clean chow and bedding from the same facility; (3) cages housing mice from a specific-pathogen free (SPF) facility. mNGS results revealed correspondence between microbiome composition from fecal pellets and filter, including pathogenic bacteria (Helicobacter hepaticus, Helicobacter typhlonius, Chlamydia muridarum, Rodentibacter pneumotropicus, Citrobacter rodentium), intestinal protozoa (Tritrichomonas muris, Spironucleus muris) nematoda (Aspiculuris tetraptera) and eukaryotic parasites (Myocoptes musculinus), present in the colony. Entamoeba muris and Syphacia obvelata were detected in fecal pellets but not in filter. The animal free exhaust dust filter, exposed to clean cages (no mice) placed in the IVC after removal of all mice, exhibited the presence of the same pathogens due to contaminated connecting pipes, confirming the sensitivity of the approach. Conversely, the filter from SPF colony revealed the absence of pathogens.
The current use of exhaust dust collection filters in health surveillance requires multiple molecular tests to identify specific pathogens and does not provide information on the colony microbiome. This work provides the proof-of-principle that assaying exhaust dust collection filters by mNGS for microbiota monitoring of laboratory mice is feasible. In its daily application, results suggest the usefulness of the test in SPF facilities, where pathogenic micro-organisms are expected to be absent. mNGS analysis of exhaust dust collection filters allows the analysis of multiple cages, reducing the number of tests required for pathogen detection and corresponding costs, and avoiding the use of sentinel mice.
Similar content being viewed by others
Avoid common mistakes on your manuscript.
Introduction
Every phase of biomedical research that involves breeding and housing of laboratory animals, requires to operate in conditions that guarantee animals welfare and psychophysical health, in compliance with current regulations. Health monitoring of animals, usually rodents, is necessary in this regard, in order to ensure not only the maintenance of health status but also high ethical and scientific standards (Buchheister and Bleich 2021; Miller and Brielmeier, 2018).
Microbiological control has been traditionally aimed at detecting pathogenic agents, listed in the Federation of European Laboratory Animal Science Associations (FELASA) guidelines, potentially present in the animal colony. To this aim, sentinel animals, exposed to dirty bedding from other cages of the colony, are considered representative of the health status of the whole colony (Compton et al., 2004a; Lipman and Homberger, 2003). Subsequent tests on the sentinels consist mainly of serological and tissue analyses, based on microscopy and culture, usually involving sacrifice of the animal. However, employment of bedding sentinels in health monitoring programs cannot be totally justified on the basis of infectious agent transfer efficiency, which has been shown to be variable and generally insufficient (de Bruin et al., 2016). Moreover, ethical and regulatory reasons require that animals should not be used unless absolutely necessary, in compliance with the 3R (Replacement, Reduction, Refinement) guidelines (WMS and Russel 1959).
An alternative monitoring approach is the microbiological monitoring of the colony directly on colony animals or from particle samples on IVCs rack exhaust dust environmental collection filters, by molecular methods such as PCR or RT-PCR to diagnose bacterial, viral, fungal infections, reducing or completely eliminating the use of sentinels, in compliance with the 3R reduction principle (Korner et al., 2019; Mahabir et al., 2019; Manuel et al., 2017) (Miller and Brielmeier, 2018) (Pettan-Brewer et al., 2020) (Zorn et al., 2017). PCR on nucleic acids extracted from filters has proven to be more sensitive and effective than the use of sentinels for the detection of specific pathogens such as Murine norovirus (MNV) (Zorn et al., 2017), Mouse hepatitis virus (MHV) (O’Connell et al., 2021), Sendai virus (Compton et al., 2004b), Murine Astrovirus (Korner et al., 2019), Pasteurella pneumotropica (Miller et al., 2016), Helicobacter spp. (Mailhiot et al., 2020), Lactate dehydrogenase elevating virus (LDV) (Luchins et al., 2020b), Pneumocystis murina (Miller and Brielmeier, 2018), fur mites (Hanson et al., 2021) (Gerwin et al., 2017) (Korner et al., 2019) Protozoa and pinworm (Kapoor et al., 2017) (Dubelko et al. 2018) (Bauer et al., 2016). This rodent-free approach is ethical reducing animals and animal manipulations. Finally, environmental health-monitoring programs were found to be qualitatively superior (Mailhiot et al., 2020) (Kimie Niimi,2018) and less expensive than sentinel based programs, decreasing also the time spent by the staff on heath-monitoring activities (Luchins et al., 2020a).
PCR has several advantages such as speed, sensitivity, specificity, thanks to primers designed specifically for amplification based on available knowledge, but it is not without limits. The method allows only the microorganisms (usually pathogens) sought to be identified and does not provide information on the composition of the whole animal microbiota, which is essential for the correct development of the host organism, for host health and for response to therapies (Lazar et al., 2018; Lozupone et al., 2012) (Tang et al., 2019) (Kau et al., 2011) (Ley et al., 2006) (Arpaia et al., 2013) (Smith et al., 2013) (Furusawa et al., 2013) (Levy et al., 2017) (Arentsen et al., 2015) (Liu et al., 2019) (Antonini et al., 2019) (Caspani and Swann, 2019) (Fung et al., 2017; Sampson and Mazmanian, 2015) (Sharon et al., 2016) (Vicentini et al., 2021) (Needham et al., 2022; Yu et al., 2019) (Matson et al., 2021) (Pernigoni et al., 2021). Also, for rapidly evolving agents, such as RNA viruses, single nucleotide changes in the primer regions can potentially lead to false negative, as the agent might be present but the target not amplified (Compton, 2020).
An approach that can go beyond the above-mentioned ethical and technical limits and could be used for colony health monitoring is metagenomic next generation sequencing (mNGS). mNGS can provide sequencing of all the nucleic acids present in the sample under analysis, of host and of microbial origin. Unlike NGS methods based on sequencing of 16 S rRNAs, mNGS is not limited to bacterial sequences detection only, but it allows detection of viruses, fungi, and parasites. Moreover, unlike single-strain PCR testing, it allows a comprehensive and quantitative assessment of the sample microbiota (Salipante et al., 2014), enables species and strain identification (Salipante et al., 2015) and discovery of new organisms (Chiu, 2013). The effectiveness of the mNGS approach was demonstrated in a study that aimed to monitor the intestinal microbiota and detect pathogens in murine colonies directly from fecal samples and avoiding sentinels (Scavizzi et al., 2021).
Here we investigated the use of mNGS for microbiota and microbiological monitoring of the colonies through analysis of particles present on environmental collection filters in IVCs racks.
Materials and methods
Mouse strains and housing facility. C57BL/6NTacCnrm (B6N) mice, between 8 and 12 weeks of age were housed and bred in facilities accredited by the Italian Ministry of Health in accordance with the Italian legislation Dlgs. 26/2014 and European directive 63/2010. Analyses of fecal pellets were previously published (Scavizzi et al., 2021). For the SPF facility: mice (n = 5 mice per cage, total 20 cages) were housed in sealsafe greenline rack in individually ventilated cages (Tecniplast, Gazzada, Italy) in positive pressure, under a 12:12 light: dark cycle with 70 air changes per hour (ACH) with autoclaved rodent chow (4RFN and EMMA 23, Mucedola, Settimo Milanese, Milano, Italy) and autoclaved tap water ad libitum and bedding (Scobis one, Mucedola, Settimo Milanese, Milano, Italy). Autoclaved enrichments and nesting material are present in each cage. SPF is a confined environment with dedicated personnel where only breeding colonies are maintained. Materials are autoclaved and personnel enter after a wet shower and a complete change with sterile clothes. All mice were monitored and found negative for the pathogen of the FELASA recommendations list. For the non SPF facility: mice (n = 5 mice per cage, total 11 cages) were housed in individually ventilated cages (Tecniplast, Gazzada, Italy) in positive pressure, under a 12:12 light: dark cycle with 70 air changes per hour (ACH) with rodent chow (Teklad global diet 2018, Envigo, San Pietro al Natisone, Udine, Italy) and tap water ad libitum and bedding (Lignocel Bk 8/15, Envigo, San Pietro al Natisone, Udine, Italy). Autoclaved enrichments (rodent polycarbonate tunnel tubes) and nesting material are present in each cage. Personnel enter after wearing disposable clothes and shoe covers, gloves, surgical masks and bonnets. All non SPF mice were routinely monitored to assess the health status by standard and molecular methods (PCR, mNGS) for the pathogens listed in the FELASA recommendation list and were found positive for the following pathogens: Tritricomonas muris, Entamoeba muris, Spironucleus muris, Syphacia obvelata, Aspiculuris tetraptera, Myocoptes musculinus; Helicobacter spp. Chlamydia muridarum, Streptococcus pyogenes Rodentibacter pneumotropicus, Citrobacter rodentium, Staphylococcus aureus as previously described (Scavizzi et al., 2021). Animal–free control: all cages containing animals were removed from the IVC system in the non SPF room and replaced with clean cages without animals, containing only clean rodent chow (Teklad global diet 2018, Envigo, San Pietro al Natisone, Udine, Italy) and bedding (Lignocel Bk 8/15, Envigo, San Pietro al Natisone, Udine, Italy) and no mice. The IVC rack was not cleaned before introducing the animal free cages.
Exhaust dust (ED) collection filters. Exhaust dust collection filters “Interceptor” are a patented system from Tecniplast (Tecniplast, Gazzada, Italy). The “Interceptor” filter aims to collect air and dust moving from cages to the exhaust filtration area of the air handler unit (AHU). To ensure that most of the particles in the exhaust air came into contact with the filter, the filter was inserted directly at the end of the exhaust air hose, immediately before the exhaust filtration area of the AHU.
An exhaust dust collection filter (TEST filter) was placed at the end of the exhaust air hose, which collects air and dust from 11 individually ventilated cages (IVC) housing mice (n = 5 mice per cage) of a non SPF facility. The remaining cages in the IVC were clean but empty (no bedding, no chow, no mice). Although it has been shown that already after 15 days exhaust air filter analysis gives positive PCR results, when exposed to air dust of infected mice (Miller et al., 2016), an increased exposure time (30 days) was chosen to facilitate identification of the microbial genomes composing the microbiome. After 30 days, the TEST filter was collected, DNA and RNA purified and analyzed by mNGS. Sequence data displayed 2.7 × 106 high-quality filtered reads, of which 64,411 reads (2.4% of total) matched to microorganism genomes.
An exhaust dust collection filter (SPF filter) was placed for 30 days in a SPF IVC system housing 20 ventilated cages (n = 5 mice per cage) and analyzed by mNGS. Sequence data displayed 5 × 106 high-quality filtered reads, of which 87,801 reads (1.8% of total) matched to microorganism genomes.
Purification of nucleic acids. Environmental collection filters (Interceptor, Tecniplast), placed at the end of the exaust air collection tube, in the individually ventilated cages system (IVC) system, were collected, sterilely cut and transferred into a sterile, DNA-free Eppendorf tube. Lysis Buffer (MC501C, Promega) was added and microbial nucleic acids were isolated using the Promega Maxwell® RSC system (AS4500, Promega), following the manufacturer’s instructions. As for the fecal pellets, for non SPF mice: 5 pellets per cage (11 cages) were collected;for SPF mice: 5 pellets per cage (5 cages) were collected. Separated pools were generated from fecal pellets deriving from each cage. DNA/RNA extraction was carried out on each pool/cage separately. As for the clean bedding and chow sample, DNA was purified from a pulverized sample of chow and bedding taken from a microisolator cage (no animals) placed in the non SPF IVC rack for 4 weeks, and was used for library preparation and sequencing (Scavizzi et al., 2021).
Library preparation and sequencing. Nucleic acids from ED filters were used for library preparation and sequencing as previously described (Scavizzi et al., 2021). Briefly, nucleic acids were retro-transcribed to convert RNA to cDNA before library preparation. RNA was retro-transcribed using the following reagents: RevertAid H Minus Reverse Transcriptase (200 U/µL) (EP0451, Thermo Scientific); RNaseOUT™ Recombinant Ribonuclease Inhibitor (10,777,019, Invitrogen); Random Primers (48,190,011, Invitrogen); 10mM dNTP Mix (P/N y02256, Invitrogen), DTT 0.1mM (P/N y00147, Thermo Scientific). After incubation of RNA with Random Primers for 5 min at 70 °C, the remaining reagents were added and cDNA was synthetized at 37 °C for 1 h, followed by a 5 min-incubation at 94 °C.
Libraries were prepared using NEBNext Fast DNA Fragmentation & Library Prep Set for Ion Torrent (New England Biolabs # E6285L). Briefly, 50 ng of DNA were fragmented, end-repaired and Ion Torrent specific-motifs from Ion Xpress Barcode adapters (Thermo Fisher # 4,471,250) were ligated to both ends of DNA fragments. Agencourt AMPure XP magnetic beads (Beckman Coulter #A63881) were used to perform a size-selection, allowing to select 200 bp DNA fragments, that were successively amplified (9 cycles). Finally, libraries were cleaned-up through Agencourt AMPure XP beads and quantified with Agilent High Sensitivity DNA kit (Agilent # 5067 − 4626), using the Bioanalyzer 2100 instrument. No adapter contamination or primer-dimers was detected by Bioanalyzer tracing. Libraries were pooled and subjected to template preparation and sequencing, according to Ion 540™ Kit-OT2 protocol (Thermo Fisher # A27753). Sequencing was performed on an Ion 540 chip (Thermo Fisher #A27765), using the Ion GeneStudio S5 System (Thermo Fisher), which yielded 1 gigabases of high-quality data with an average of 5.9 × 10 6 reads per sample (range: 2,775,874 -9,944,212 reads per sample).
Bioinformatics and statistical analysis. Bioinformatics and statistical analysis were performed as previously described (Scavizzi et al., 2021). Briefly, quality control with FASTQC has been performed and nucleotides with a quality score less than 20 (MAPQ < 20) have been trimmed. Reads shorter than 100 nucleotides were filtered out from raw FASTQ files, using PRINSEQ-lite 0.20.4 (prinseq-lite.pl -min_len 100) (Schmieder and Edwards, 2011). Reads matching the mouse genome were removed using bowtie2 v.2.3.2 (bowtie2 -p 15 -x mm10_reference_genome) (Langmead and Salzberg, 2012) and samtools 1.4 (samtools view -f4 and samtools fastq) (Li et al., 2009). The remaining reads were used to perform taxonomy calling at genus and species levels, using Kraken 2 (kraken2 --db kraken_reference_db --threads 20 --confidence 0.5 --report sample.kreport --report-zero-counts) (Wood and Salzberg, 2014), Bracken (bracken -d kraken_reference_db -i sample.kreport -o sample_species.braken.tmp” -r 150 -l S (also -l G, -l P, -l C, -l F)) (Lu et al., 2017), and a database consisting of all the complete and draft genome sequences in GenBank Release 232 of archaea, bacteria, fungi, protozoa, virus and invertebrate endo- and ecto-parasites of mice (Acantocephala, Annelida, Helminths and Nematoda). Kraken2 was run with default parameters but with a confidence score set to 0.5 to increase the precision. Each classified sequence (read) was attributed to its last known taxon (LKT). Genus and species with zero counts in all the samples were removed. The R programming language (version 3.5.0) was used to assemble in a single table all metagenomic data. Analyses and data plot were performed with Prism version 6.0 (GraphPad Software) unless otherwise stated.
Nucleotide sequences accession number
The data that support the findings of this study are available through the European Nucleotide Archive ENA under accession number PRJEB55812.
Results
Gut microbiome composition of non SPF mice is reliably assessed from exhaust dust collection filters by metagenomic shotgun sequencing

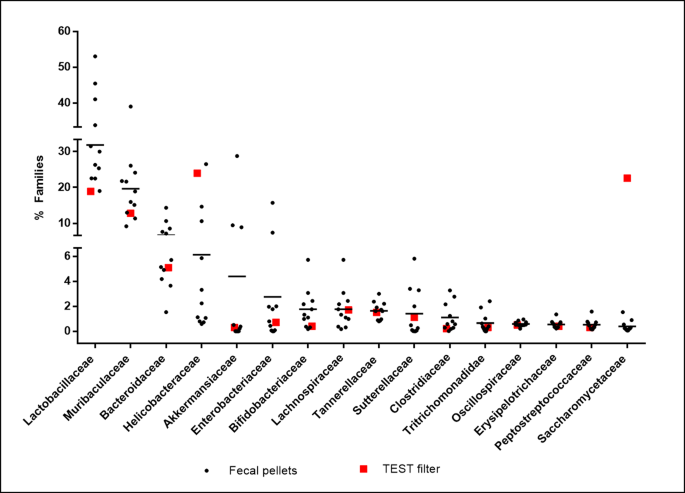

The analysis of microorganism sequencing data revealed the composition of the microbiome present on filter, which was compared to microbiome of fecal pellets collected from the 11 cages present in the same IVC system (Additional file1). The relative abundance of 16 microbial families (with average read counts ≥ 0,2% in both types of samples) was found to be similar on filter and in fecal pellets (Fig. 1).
At the species level, 40 species identified in fecal pellet with a mean read count above 1000, were also correctly identified in the ED filter (ED detection = 100%); among the 31 species identified in fecal pellet with a mean read count range < 1000 and > 200, 23 were also correctly identified in the ED filter (ED detection = 74%); among the 81 species identified in fecal pellet with a mean read count range < 200, 28 were also correctly identified in the ED filter (ED detection = 35%). For species with a mean read count above 1000 there is no statistically significant difference between fecal pellets and filter. For species with a mean read count range < 1000, pellets are statistically more significant than the filter (Table 1).
In total, ED filter analysis made it possible to correctly identify 91 species out of a total of 152 identified in the fecal samples (60%). These results provide the proof of principle that the ED filter allows to trace the composition of the gut microbiome of the mice housed in a IVC system.
Among microorganisms that differ between ED filter and fecal pellets, Saccharomycetaceae family is the most notable: it makes up < 1% of the counts detected in feces, it accounts for almost 23% of the counts detected on the filter. Since NGS analysis can also detect families that are constituents of plant microbiome attributable to the chow and bedding present in the cages, Saccharomycetaceae are therefore identified on the filter due to the dust deposition from these materials. Six additional families (Erwiniaceae, Pseudomonadaceae, Pasteurellaceae, Nectriaceae, Cephalobidae and Moraxellaceae) were identified in the ED collection filter but were not detected in mouse fecal pellets. Also these families are attributable to the chow and bedding present in the cages and whose dust is collected by ED filter (Table 2).
In summary, ED filters can reveal both mice and bedding microbiome composition.
Pathogens are detected from exhaust air dust collection filters by metagenomic shotgun sequencing

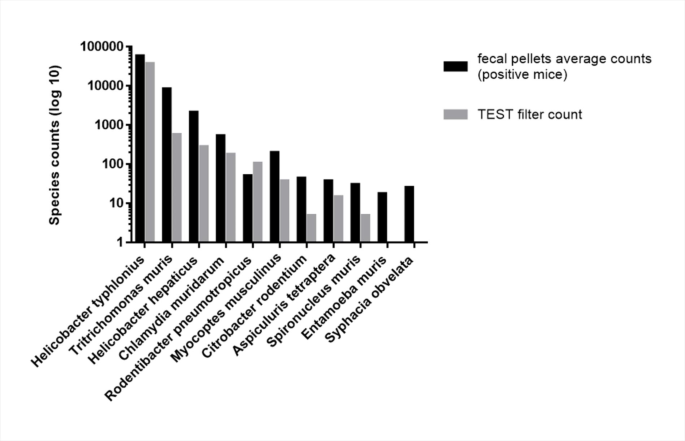

The mNGS analysis of the ED filter revealed the presence of 9 pathogenic species, belonging to bacteria (Helicobacter hepaticus, Helicobacter typhlonius, Chlamydia muridarum, Rodentibacter pneumotropicus, Citrobacter rodentium), intestinal protozoa (Tritrichomonas muris, Spironucleus muris) nematoda (Aspiculuris tetraptera) and eukaryotic parasites (Myocoptes musculinus). mNGS results from the ED filter were in agreement with those obtained directly from the fecal pellets and there are no statistically significant differences between the results of the pellet fecal and filter (p value = 1 according to Fisher Exact test). All the pathogenic species were detected on the air dust collection filter with a couple of exceptions, namely the intestinal protozoa Entamoeba muris and nematoda Syphacia obvelata, which presented an average read count in fecal pellets less than 30, respectively 18 and 26 reads (Table 3 and Fig. 2) and were found in the feces but not in the ED filter.

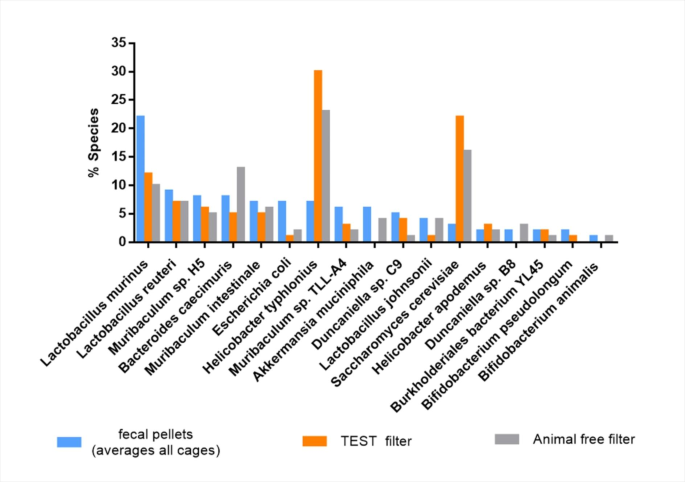

To provide an animal-free control, all cages containing animals were removed from the IVC system and replaced with clean cages without animals, with clean chow and bedding and no mice. A new ED (animal-free filter) was placed for 30 days in the same IVC system and analyzed by mNGS. Sequence data displayed 5 × 106 high-quality filtered reads, of which 287,285 reads (5.7% of total) matched to microorganism genomes.
As expected, the animal-free filter displayed several specific taxa of plant microbiome due to dust derived from chow and bedding. However, all of the species (with average counts in fecal pellets > 10,000) detected in the TEST filter were also present in the animal-free filter, despite the absence of mice, showing that the filter is representative not only of what the rack contains but also of what it contained, likely due to the presence of dust residues from the previous housing cages from contaminated collector tubes of the IVC rack (Fig. 3).
The ability of the filter to detect pathogens present not only in a group of cages, but in the connecting pipes of the IVC system itself, suggests its possible use in health surveillance, especially of SPF facilities, where the presence of pathogenic micro-organisms is excluded a priori. To this end, an environmental filter from a SPF facility (SPF filter) was analyzed, revealingthe absence of pathogens on the filter and confirming what observed by mNGS directly on fecal samples of the SPF mice (Additional file2). No pathogens were found in the filter nor in the fecal pellets, confirming the correct microbiological level /status of the SPF colony.
Regarding the microbiome composition of the SPF mice, the SPF filter correctly identified the 8 families (Muribaculaceae, Lactobacillaceae, Bacteroidaceae, Lachnospiraceae, Bifidobacteriaceae, Erysipelotrichaceae, Oscillospiraceae, Peptostreptococcaceae), that make up 98% of the families identified in fecal pellets and that are present with an average read counts 0,2% both on the filter and in the feces. (Additional file 4).
Discussion
A shotgun metagenomics NGS (mNGS) approach was performed to investigate mouse microbiome and the possible presence of pathogens in enviromental collection filters derived from IVC housing murine colonies. We have previously demonstrated that mNGS technology allows to detect any microorganism present mainly but not only in the gut of mice directly from fecal samples, providing a detailed description of the sample’s commensal microbiota and avoiding the need to carry out multiple tests for the detection of individual pathogens (bacteria, viruses, fungi, and parasites) (Scavizzi et al., 2021). In this previous work it has been shown that technical reproducibility is very high with duplicates showing a correlation coefficient > 99%. The purpose of the present work was to determine the composition of the intestinal microbiota and to identify the presence of pathogens directly from ED filter by mNGS. The present study demonstrates that this goal can be achieved. The dust was analyzed after 30 days of exposure, even though manufacturer indicates 90 days, to have a more rapid indication if this approach would be similarly feasible and accurate. Moreover, it has been shown that already after 15 days, exhaust air filter analysis gives positive PCR results, when exposed to air dust of infected mice (Miller et al., 2016) The dust collected by the ED filter summarized the composition of microbiome assessed directly in fecal pellets, allowing the identification of the most abundant microbial families present in both type of samples with (average read counts ≥ 0,2%). At the species level, 91 species were correctly identified by the ED filter mNGS test, out of a total of 152 identified in the fecal samples. Overall, 60% of species were identified by the ED mNGS test compared to fecal samples, while 40% of species were not identified by the ED mNGS test. However, bedding microbiome composition was additionally identified by the ED mNGS test.
The results provide the proof of principle that the ED filter allows to trace the composition of the gut microbiome of the mice housed in a IVC system. The presence of pathogenic bacteria (Helicobacter (Taylor et al., 2007) hepaticus, Helicobacter typhlonius, Chlamydia muridarum, Rodentibacter pneumotropicus (Benga et al., 2018), Citrobacter rodentium, Staphylococcus aureus), intestinal protozoa (Tritrichomonas muris, Spironucleus muris) nematoda (Aspiculuris tetraptera,) and eukaryotic parasites (Myocoptes musculinus) was demonstrated by environmental filter mNGS test. All pathogens identified in the feces and presenting an average read count > 30 were represented in the filter. The filter mNGS test failed to detect two of eleven pathogens identified in fecal samples, namely Entamoeba muris and Syphacia obvelata; these species were found in the feces with average count less than 30 reads, which therefore seems to indicate the limit of sensitivity of the filter mNGS test. This limit of sensitivity could be probably reduced or overcome exposing the filter for a longer period of time (e.g. 90 days) as described (Mailhiot et al., 2020) (Gerwin et al., 2017) and improving sequencing depth. It is worth mentioning that false negative PCR results from environmental samples were already observed, in particular with pinworms (Kapoor et al., 2017). No false-positive results were produced by the ED mNGS test, since all pathogens identified from the filter have also been identified in the feces of the animals both by NGS and by standard molecular testing (PCR) (Scavizzi et al., 2021), which is currently considered standard method for the detection of mouse pathogens directly on colony animals (Miller and Brielmeier, 2018).
We observed that, mNGS test performed on a filter exposed to clean chow and bedding revealed the persistence of pathogens likely derived from the contaminated collection pipes of the IVC system after the removal of mice from the rack. This result, already described by Pettan-Brewer (Pettan-Brewer et al., 2020) and Miller (Miller et al., 2016) confirms, on the one hand, the need to periodically clean and sanitize the IVC system and the collector tubes. On the other hand, it suggests the possibility of using the mNGS ED test for the health surveillance of SPF colonies where the possible occurrence of pathogens could be easily monitored from filter analysis. In fact, the ED mNGS test of a SPF IVC rack revealed the absence of pathogens in the colony. To this end, the ED mNGS test could provide several advantages in pathogens surveillance of SPF colonies, namely (1) the increased sensitivity of ED monitoring compared to traditional sentinel-based methods, eliminating the need of sentinels dedicated to health monitoring, in accordance with the 3R principle; (2) the possibility to avoid the sampling of feces from individual cages with a reduction of the costs of purification of nucleic acids and the costs related to time spent by the staff on health-monitoring activities; (3) the completeness of the information that mNGS analysis offers compared to the partial picture that can be obtained with ED PCR assays, replacing a variety of specific tests and allowing the characterization of sample microbiota; (4) compared with the costs associated with multiple single PCR testing, costs associated with this technology are now comparable, if not advantageous.
There is a debate if all pathogens can be similarly detected by enviromental collection filters, and this depends on the route and the duration of transmission of the infectious agents (Compton et al., 2004a). Agents that are transmitted by animal-animal contact or by fecal-oral route like Mouse Parvovirus (Bauer et al., 2016) or Mouse Rotavirus (Compton et al., 2004b) could be detected less efficiently by environmental air monitoring, while, on the contrary, respiratory virus like Sendai are perfectly identified on enviromental filters (Compton et al., 2004b). Recently, however, a different environmental approach has been demonstrated sensitive for the detection of MPV (O’Connell et al., 2021). Many publications describe that environmental EAD analysis is qualitatively superior and economically convenient compared to classical sentinel system (Miller and Brielmeier, 2018) (Luchins et al., 2020a) (Mahabir et al., 2019) (Mailhiot et al., 2020) (Manuel et al., 2016) (Manuel et al., 2017) (Miller and Brielmeier, 2018; Miller et al., 2016) (Pettan-Brewer et al., 2020) (Zorn et al., 2017). To extend the general significance of the results, our future work will analyze filters from different facilities and with different exposure times in order to verify the variability of the system. Although in this case viruses were not present in the colony and therefore not detectable on filters, the possibility of detecting viruses in pellet fecal by mNGS had been demonstrated (Scavizzi et al., 2021). Even if this work couldn’t prove positive detection of all possible microorganisms, since not present in the colony, it provides the proof-of-concept that the use of a shotgun NGS metagenomics ED assay is a feasible and dependable approach for microbiome characterization and pathogen identification in laboratory animals. In its daily application, results suggest the usefulness of the test in SPF facilities (Miller and Brielmeier, 2018; Miller et al., 2016) where pathogenic micro-organisms are expected to be absent. mNGS analysis of ED filters allows the analysis of multiple cages, reducing the number of tests required for pathogen detection and corresponding costs, and avoiding the use of sentinel mice.
Additional File 1. Normalized data from NGS analyses (non SPF)
The different lines represent the different species identified in the non SPF facility with the normalized counts. For each species there are 8 columns that describe the taxonomy (superkingdom. phylum. class. order. family. genus. species. Species ID). The following columns identify the reads of each sample. The multiplier factor for normalizing stool samples on 1 million was variable, with an average of 2.5 (range between 1.4 and 3.9). This multiplication factor was applied to the filter count to allow comparison with the count number of fecal samples. P17-27: fecal samples collected from 11 non-SPF cages (in each cage mice n = 5); F-31: ED TEST filter; F-30: ED animal-free filter.
Additional File 2. Normalized data form NGS analyses (SPF).
The different lines represent the different species identified in the SPF facility with their respective counts. For each species there are 8 columns that describe the taxonomy (superkingdom. phylum. class. order. family. genus. species. species ID). The following columns identify the reads of each sample. R20/22 to R24/22: fecal sample collected from 5 SPF cages (mice n = 5 in each cage); F-26: SPF ED filter.
Additional File 3. Normalized data from NGS analyses.
The different lines represent the different species identified from pulverized clean chow and bedding DNA with their respective counts (Scavizzi et al., 2021). For each species there are 8 columns that describe the taxonomy (superkingdom. phylum. class. order. family. genus. species. species ID). The following columns identify the reads of each sample. Clean chow and bedding: DNA extracted from pulverized sample of chow and bedding taken from a microisolator cage (no animals) placed in the non SPF IVC rack for 4 weeks.
Additional File. 4 Microbial families in SPF mouse fecal samples and in SPF filter.
Column “family” lists the different microbial families identified by mNGS; column “fecal pellets”: average percentage of microbial families in SPF fecal pellets; column “ED filter”: microbial families percentage in the SPF ED filter. The percentage of microbial families deriving from chow and bedding is also indicated.
Data availability
All data generated or analysed during this study are included in this published article and its supplementary information files. The dataset supporting the conclusion of this article is included within the article and its additional files.
