This study documents how stormwater interventions that restore a more natural flow and disturbance regime can facilitate improvements in stream integrity that align with stream mitigation program goals and can be credited using conventional US protocols. By generating stream mitigation credits, hydrologic restoration programs could receive sustainable sources of funding at scales necessary to drive watershed-scale improvements in stream networks. Hydrologic-driven impacts (i.e. “hydromodification”) are a leading cause of impairments to US water resources (EPA 2009). Inadequately managed stormwater runoff from impervious surfaces is a primary cause of the “urban stream syndrome” (Walsh et al. 2005a, b)—a global phenomenon of degraded biological, chemical, and physical stream integrity in streams draining urban and suburban watersheds (Fig. 1). A sweeping study by the National Research Council of the National Academies documented that these impacts typically persist in suburban watersheds even with conventional stormwater control measures (SCMs) such as detention basins designed for peak discharge matching (NRC 2009).

Fig. 1
figure 1

Channel degradation in S. CA coinciding with a shift from ~ 2 to 10% watershed imperviousness–see Hawley and Bledsoe (2013)

Both the conventionally-managed and unmanaged flow regime can increase the frequency (Hawley et al. 2017) and durations (Bledsoe 2002; Hawley and Bledsoe 2011) of flows that exceed the critical discharge (Qcritical, or Qc) for mobilization of the streambed material (Fig. 2). For example, one Northern Kentucky study conducted by the United States Environmental Protection Agency / Office of Research and Development (EPA/ORD) and collaborators found that conventional peak detention reduced the recovery time between disturbance events by ~ four-fold (e.g. from the 12-month to 3-month design storm). The study also found that durations of discharges that exceed Qcritical were prolonged by a factor of 25 (e.g. ~ 34.8 h over a 20-yr period compared to ~ 1.4 h under pre-development conditions, Hawley et al. 2017). Similar geomorphically-relevant hydrologic responses to conventional suburban/urbanization have been documented across the globe (Russell et al. 2018; e.g. Papangelakis et al. 2019). In aggregate, more frequent, prolonged durations of erosive flows increase the cumulative energy expressed on the streambed and banks, which can initiate degradation via channel incision (Booth 1990), enlargement (Hammer 1972; Hawley and Bledsoe 2013), bed coarsening (Hawley et al. 2013; Pizzuto et al. 2000), habitat simplification (e.g. fewer benches) (Vietz et al. 2014) and less large wood (Finkenbine et al. 2000; Blauch and Jefferson 2019) among other impacts. Chronic channel instability and bank erosion can be a dominant source of fine sediment loads (Simon and Klimetz 2008) that can further impact benthic habitat through sedimentation and embeddedness, and is a leading water quality impairment in numerous states (OEPA 2010; e.g. KDOW 2008).

Fig. 2
figure 2

adapted from Bledsoe (2002))

Conventional “peak matching” detention can prolong durations that exceed Qcritical and mobilize streambed particles (2-yr, 2-h event for Ft. Collins, CO,

The degradational trajectory of streams experiencing increasingly erosive bed-mobilizing flows has been observed by numerous researchers across a diversity of urban settings (Paul and Meyer 2001; Hawley et al. 2012, 2020; Booth and Fischenich 2015), and is typically consistent with the “classic” Channel Evolution Model (CEM) of Schumm et al. (1984) (Fig. 3). Incision and downcutting (Stage 2) lead to taller, more unstable banks, which subsequently causes bank failure and channel widening (Stage 3). As the banks continue to slump and lose material to the stream, the channel begins to aggrade sediment, typically in the form of large, unstable bars (Stage 4). Over a long enough period of widening and aggradation, the slumped material can be recolonized by vegetation (i.e. “vegetated benches”), creating a new channel/floodplain corridor that is once again in a state of geomorphic equilibrium (Stage 5).

Fig. 3
figure 3

adapted from Schumm et al. (1984) and Hawley et al. (2012))

Channel Evolution Sequence in response to increased flows from urbanization (

However, this natural adjustment process can be disrupted through additional perturbations (Cluer and Thorne 2014) such as supplemental changes to the flow regime (e.g. further watershed development) and localized channel stabilization efforts that can be particularly common in urban areas (Vietz and Hawley 2019). Furthermore, property and infrastructure protection efforts can facilitate alternative channel endpoints such as an artificially armored channel via continuous riprap or concrete (Hawley et al. 2012).

Excess streambed disturbance can also adversely impact the aquatic ecosystem. For example, flows that exceed Qcritical can cause both non-lethal dislodgement and direct mortality to benthic macroinvertebrates that inhabit the streambed (Holomuzki and Biggs 2000). In a seven-year study at a reference site with otherwise excellent habitat and water quality, the interannual shifts in biotic integrity were largely explained by streambed disturbance (Hawley et al. 2016). Kentucky’s Macroinvertebrate Index for Biotic Integrity (MBI) was significantly correlated to the number of days since an event that exceeded Qcritical (Fig. 4), with more consecutive days of streambed stability leading to higher MBI scores. The influence of bed-mobilizing “disturbance events” on macroinvertebrate communities is so widely acknowledged by aquatic biologists and ecologists that many conventional sampling protocols preclude data collection for two weeks following such events (e.g. KDOW 2015).

Fig. 4
figure 4

adapted from Hawley et al. 2016)

Kentucky’s Macroinvertebrate Index for Biotic Integrity (MBI) at a Northern Kentucky reference site is significantly correlated to the number of days since a bed-mobilizing event (

In streams draining suburban and urban watersheds, the effects of amplified rates of streambed disturbance (i.e. the "urban disturbance regime," Hawley and Vietz 2016) is discernible across the full gradient of urbanization. For example, after accounting for a watershed’s total impervious area (TIA), Hawley et al. (2016) showed that MBI at a given level of TIA drops by an average of ~ 20–30 points during exceptionally wet years with frequent Qcritical events (e.g. 2011) as compared to sample years with much greater bed stability (e.g. reference sites had more than 300 days of stability in 2009) (Fig. 5). Years that show the steepest drop in MBI along a gradient of TIA (e.g. 2007 and 2008, Fig. 5) correspond to years where a storm produced flows that approached (but did not exceed) Qcritical at reference sites, but likely coincided with enough stormwater runoff in developed watersheds to cause a bed-mobilizing event at developed sites. That is, MBI remained high at sites draining undeveloped watersheds where flows did not exceed Qcritical, but MBI was exceptionally poor at developed sites where flows likely exceeded Qcritical (due to inadequate stormwater management).

Fig. 5
figure 5

adapted from Hawley et al. 2016)

MBI in northern Kentucky streams significantly decreases with watershed imperviousness, particularly when segregated by sample year, underscoring the role of exceptionally frequent benthic disturbance in wet years such as 2011 as compared to years with less frequent Qcritical exceedance such as 2009 (

One of the central aims of a hydrologic approach to stream restoration is to restore a more natural disturbance regime by intercepting and attenuating stormwater runoff, thereby reducing the frequency and duration of events that exceed Qcritical. By focusing on the primary driver of channel degradation, watershed-scale stormwater interventions can not only mitigate excess disturbance but also have the greatest mechanistic potential to induce water quality improvements (Walsh et al. 2005a, b). In a review of 100 studies on SCM effectiveness at the watershed scale, Jefferson et al. (2017) concluded that water quality effectiveness coincided with SCMs that created the largest runoff reductions. That is, volume-based SCMs not only have the greatest potential to restore a more natural flow and disturbance regime, but also show the most promise for improving water quality due (Jefferson et al. 2017).

Finally, hydrologic-based restoration has the potential to extend benefits to greater portions of the stream network and potentially greater numbers of stakeholders than can typically be achieved with conventional in-stream habitat restoration (Hawley 2018). Lammers et al. (2019) showed that stormwater mitigation approaches tend to have a greater potential to improve water quality than conventional stream restoration approaches, but even larger reductions in sediment and nutrient loads can be achieved through projects that couple both flow and in-stream restoration. And, just as inadequately managed stormwater runoff creates visually discernible changes in baseflows (Bhaskar et al. 2016) and responses to rain events (Fig. 6), flow restoration has the potential to positively impact both downstream stakeholders and aquatic communities in very tangible ways such as reduced flashiness, restored baseflows, and improved channel stability.

Fig. 6
figure 6

7.5 mm of rain in ~ 1 h creates visually apparent differences in the hydrologic and hydraulic responses of two Northern Kentucky streams: a 5.7 km2 watershed with 29% TIA (A) and an undeveloped 4.7 km2 watershed with 3% TIA (B)

Restoring a more natural flow and disturbance regime is therefore one of the most pressing needs to meeting the goals of the Clean Water Act (Booth 2005; Harman et al. 2012). Beyond inadequate stakeholder engagement (e.g. Herrington and Horndeski In review; Bixler et al. In review, Kaushal et al. Forthcoming this issue), one of the biggest barriers to watershed-scale flow restoration is cost. For example, a King County (2013) study that proposed distributed green infrastructure to restore a more natural flow regime was estimated to cost over $7 M per km2 of controlled drainage area. Even lower cost alternatives such as retrofits of existing detention basins are estimated at more than $100 k per km2 of controlled drainage area (Hawley et al. 2017).

Compensatory stream mitigation programs in the US, such as those administered by the Army Corps of Engineers (USACE) under the authority of the Clean Water Act, aim to restore comparable levels of aquatic habitat that were impacted by practices such as filling or culverting to accommodate other societal needs such as urban expansion, road/utility development, and reservoirs. ‘Credits’ associated with stream mitigation (and corresponding fees associated with impacts) typically have values on the order of several hundred US dollars (e.g. ~ $400 in Kentucky Although crediting protocols can vary by USACE District and ecoregion, stream mitigation activities can typically generate ~ 0.05 to 3 credits per foot of stream (e.g. ~ $65 to $4,000 per meter in Kentucky) depending on habitat quality, flow class and mitigation treatment.

Stream mitigation programs have predominately focused on the physical restoration of aquatic habitat, but crediting protocols are increasingly considering watershed-scale hydrologic factors and other components of stream integrity (TDEC 2018; Harman et al. 2012). This case study documents how stormwater interventions that restore a more natural flow and disturbance regime can produce stream restoration outcomes that align with programmatic mitigation goals. Such hydrologic restoration projects could not only generate credits with protocols that explicitly account for hydrologic factors (e.g. TDEC 2018) but also with conventional USACE protocols that only incorporate habitat quality and flow class. By providing a better understanding of stream mitigation credit values for watershed-scale stormwater interventions using conventional habitat/flow class protocols, this case study could be a step toward expanded economic and regulatory incentives (and/or reduced barriers) for more holistic stream mitigation programs that restore urban streams and meet other societal objectives such as delivering services to historically underrepresented communities (Smith et al. 2016).

Stream mitigation crediting in kentucky

Stream crediting protocols exist because not all streams provide comparable levels of habitat quality or ecosystem functions. For example, a high quality perennial stream can typically support fish communities with its permanently wet pools, whereas streams with only seasonal flow permanence might be more important for amphibian reproduction (Meyer et al. 2007). USACE (2009) stream mitigation credits in much of Kentucky are based on the Central Kentucky Assessment Protocol ( Adjusted Mitigation Units (AMUs) are based on a combination of flow type (i.e. ephemeral, intermittent, or perennial) and habitat quality (i.e. Rapid Bioassessment Protocol (RBP) classes of poor, average, or excellent, (KDOW 2011) Table 1). RBP habitat quality has long been used as a surrogate for biological community integrity (Plafkin et al. 1989; Barbour et al. 1999), and individual components of RBP such as low amounts of fine sediment, low embeddedness, and coarse/stable substrate continue to be highly correlated to the abundance and density of sensitive taxa such as Ephemeroptera, Plecoptera, and Trichoptera compared to purely geometric indices such as stream slope and the width to depth ratio (e.g. Kowalski and Richer 2020).

Table 1 Kentucky’s AMU quality valuesa are based on a combination of flow class and habitat (RBP) quality

The AMU value for an existing stream can be calculated by determining the Initial Quality value for a representative reach (Table 1) and multiplying it by its respective length in US customary units of feet (Eq. 1). For example, 1,000 feet (305 m) of a poor-quality perennial stream would correspond to a Quality value of 1.5 and be worth a total of 1,500 AMUs (1,000 ft × 1.5).Footnote 1 AMU credits for Mitigation Treatments typically use both the Initial and Final Quality values (Table 1), scaled by the Mitigation Ratio (Table 2) according to Eq. 2. For example, enhancement (Mitigation Ratio of 0.5) of 1,000 feet (305 m) of a poor-quality perennial stream (Initial Quality of 1.5) that is restored to an excellent-quality perennial stream (Final Quality of 3.0) would correspond to a net increase of 750 AMUs or “Mitigation Credits” (1,000 ft × 0.5 x (3.0 – 1.5)).

Table 2 Mitigation ratiosb are based on restoration treatment

AMU Value for an Existing Stream, including the Debit Value for a Re-establishment Reach

$$AMU=Length\times InitialQuality$$

where: AMU = Adjusted Mitigation Units

Length = stream length in feet

Initial Quality = Initial Quality value based on flow and habitat (Table 1).

AMU Credits for Mitigation Treatments

$$AMU=Length\times MitigationRatio\times (FinalQuality-InitialQuality)$$

where: AMU = Adjusted Mitigation Units

Length = stream length in feet

Mitigation Ratio = Mitigation Ratio for Restoration Treatment (Table 2)

Final Quality = Final Quality value based on flow and habitat (Table 1)

Initial QualityFootnote 2 = Initial Quality value based on flow and habitat (Table 1)

It is important to note that Mitigation Credits for preservation reaches are not deducted for their Initial Quality because it is typically the same as the Final Quality. As such, the Initial Quality is effectively dropped from Eq. 2 for preservation reaches (i.e. Preservation AMUs = Length × 0.1 x Quality).

Another special case involves channel re-establishment, where a stream is re-meandered into a more geomorphically appropriate alignment. Channel re-establishment often coincides with filling the former channel, and the AMU value of the filled channel is calculated via Eq. 1 so that it can be “debited” against the mitigation credits of the restored stream (Eq. 2) where the “Initial Quality” is valued as 0. The so-called “debit/credit” approach is necessary to account for potential differences in stream length between the pre-project and restored reaches.

How could hydrologic restoration improve stream credit values?

The existing USACE (2009) stream mitigation crediting protocol for central Kentucky could be used to facilitate mitigation credits for hydrologic restoration activities along two primary pathways: by directly improving the flow type and/or indirectly improving the habitat quality (RBP). For example, hydrologic restoration could potentially change a stream from ephemeral to intermittent, from intermittent to perennial, or even from ephemeral to perennial. In the EPA/ORD pilot study mentioned above, Hawley et al. (2017) showed how a simple restriction of a conventional detention basin outlet at a Toyota parts facility (i.e. the “Toyota” project) reduced flow flashiness (Fig. 7), restored a more natural disturbance regime, and prolonged baseflows. By extending ponding durations (Fig. 8) and inducing more topsoil saturation within the detention basin, gage data showed that the passive retrofit device, co-patented between US EPA and Sustainable Streams (Hawley et al. 2019), converted an intermittent stream with pools that used to go dry ~ 10% of the time to a stream with several pools that are nearly permanently wet (Hawley et al. 2017) where fish have been observed during seasonal low-flow visits on September 16, 2016 and July 8, 2019.

Fig. 7
figure 7

adapted from Hawley et al. 2017)

Precipitation and discharge hydrographs for pre-retrofit (A) and post-retrofit (B) events of a conventional detention basin piloted by EPA/ORD and collaborators document the reduced flashiness and restricted discharges with the SCM retrofit (

Fig. 8
figure 8

adapted from Hawley et al. 2017)

Detention basin retrofit devices such as the Detain H2O (co-patented between US EPA and Sustainable Streams, Hawley et al. 2019) can be optimized to restrict most events to discharges that no longer cause downstream erosion via a restricted primary outlet (A). Additional photos document the device in advance of (B) and during (C) the 6/4/14 event from Fig. 7, underscoring the attenuated discharges and prolonged ponding induced by the restricted outlet (

Categorical lifts in habitat quality

An indirect, but potentially just as effective, avenue to create stream restoration credits via hydrologic restoration is by facilitating a recovery in stream habitat. Regardless of whether the EPA/ORD pilot project created a change in flow class, the less erosive flow regime has resulted in discernable improvements in habitat quality. Moreover, by addressing the dominant driver of channel instability in the suburban stream network, the process-based approach has promoted a shift from a degradational trajectory toward a gradual return of geomorphic equilibrium (CEM Stage 5, Fig. 3) via bench development, bank re-stabilization, and increased wood retention, among other geomorphic processes.

To track the hydrologic, geomorphic, and habitat responses of the detention basin retrofit project, Hawley et al. (2017) established three monitoring sites in the receiving stream network (see Supplemental Material for location maps). The “Spur” is the ~ 800-ft (~ 245-m) reach that is the direct tributary of the retrofit detention basin. The drainage area to the Spur is 0.17 km2 with 45% TIA according to 2016 NLCD data. The upstream monitoring site (“US site”) is a control site that receives no drainage from the detention basin. Its drainage area is 1.10 km2 with 7.8% TIA. The downstream monitoring site (“DS site”) is on the second-order stream that is downstream of the confluence of the Spur and US site reaches. The drainage area to the DS site is 1.31 km2 with 12.4% TIA. Nearly half (47%) of the TIA that drains to the DS site comes from the Spur site (e.g. the Toyota parts facility that is managed by the retrofit detention basin) even though the Spur only contributes ~ 13% of the total drainage area to the DS site.

Since the detention retrofit installation on December 21, 2013, geomorphic data compiled by Hawley et al. (2020) documented a shift in the streambed material at the Spur site from a degradational (CEM Stage 3) to an aggregational/recovery trajectory (CEM Stages 4/5, Fig. 3). The shift is also apparent in the photos from pre-retrofit and post-retrofit installation (Fig. 9), which show bench development at the toes of formerly unstable banks. Combined with greater flow permanence and much higher wood retention throughout the reach, this has not only improved bank and bed stability but increased habitat complexity as the channel has begun to re-establish a meandering low-flow channel. The RBP score has improved from 113 in 2013 to 143 in 2019 (see Supplemental Material), corresponding to a shift from poor to average habitat quality (KDOW 2011). As an intermittent stream with a length of ~ 800 feet (~ 245 m), this would generate 200 AMUs if credited as enhancement (800 ft × 0.5 x (1.5 – 1.0)) and 400 AMUs if credited as rehabilitation (800 ft × 1.0 x (1.5 – 1.0)).

Fig. 9
figure 9

The immediate receiving stream downstream of the Toyota detention basin (“Spur”) was on a degradational trajectory prior to the stormwater retrofit installation, with bank erosion, channel widening, limited habitat complexity, little wood, and nominal benches evident in the 8/26/13 photo (A). Following the SCM retrofit on 12/21/13, monitoring has documented a recovery trajectory with the development of vegetated benches, increased wood retention, and the beginnings of a meandering low-flow channel evident in the 7/8/19 photo (B). Both photos are looking upstream

By contrast, the US control site that had no stormwater interventions experienced a degradational trajectory over the same time period. Vegetated benches were scoured away and bank stability decreased (Fig. 10). Fine sediment from bank erosion contributed to increased embeddedness and habitat became more homogeneous as the channel trends toward an over-widened, plane bed channel. The corresponding RBP changed from 151 in 2013 to 137 in 2019 (Supplementary Materials), falling from average to poor habitat quality. The time series degradation captured at this site is consistent with other regional streams draining watersheds with more than ~ 5% TIA that tend to systematically undergo streambed instability, headcutting, bank erosion, and channel enlargement (Hawley et al. 2013, 2020).

Fig. 10
figure 10

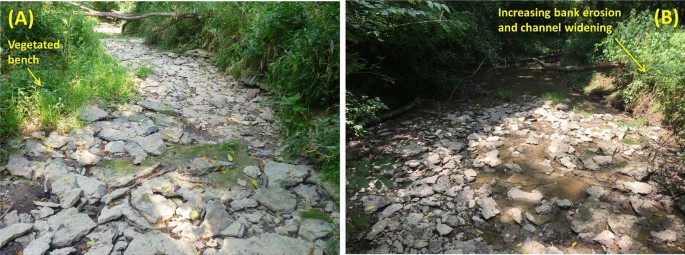

The upstream control stream (“US site”), upstream of the confluence draining the retrofit detention basin, experienced a degradational trajectory in the period following the retrofit installation. Vegetated benches that were evident in the 8/26/13 photo (A) have since been scoured away, with bank erosion and channel widening evident in the 7/8/19 photo (B). Both photos are looking downstream

Finally, the DS site, which drains both the Spur and the US sites, also experienced measurable improvements in bank stability and habitat quality. Cross section surveys between 2014 and 2017 documented substantial bench building at the toe of the right bank (Hawley et al. 2020), which is visually apparent in photos (Fig. 11). Similar to the Spur site, the RBP score at the DS site increased from 109 in 2013 to 146 in 2019 (Supplementary Materials), coinciding with a habitat quality improvement from poor to average. As a perennial stream with a length of ~ 1,200 feet (~ 365 m), this would generate 450 AMUs if credited as enhancement (1,200 ft × 0.5 x (2.25 – 1.5)) and 900 AMUs if credited as rehabilitation (1,200 ft × 1.0 x (2.25 – 1.5)).

Fig. 11
figure 11

adapted from Hawley et al. (2020))

The reach downstream (“DS site”) of the confluence with the Spur and US control site also experienced a recovery trajectory that followed the installation of the detention basin retrofit. The photo on 4/29/13 (A) documents bank erosion, channel widening and habitat homogenization; however, the photo on 7/8/19 (B) documents bench development at the toe of a formerly eroding bank. Both photos are looking downstream (photo (B)

As described in greater detail by Hawley et al. (2017), the weight of this evidence suggests that the geomorphic recovery captured at the Spur and DS sites is attributable to the hydrologic restoration induced by the basin retrofit. Potentially competing hypotheses such as milder weather (which was not the case—see Hawley et al. (2017)) would not explain the inconsistency in the US control site where habitat became worse, relative to the experimental sites (Spur and DS) where habitat demonstrably improved.

By reducing the frequency, magnitude, and durations of discharges that exceed Qcritical, such tailored stormwater interventions can mitigate excess streambed erosion thereby creating a shift from channel degradation and enlargement (CEM Stage 3, Fig. 3) to aggradation (CEM Stage 4) and the ultimate return of a meandering low-flow channel with vegetated benches and stable banks (CEM Stage 5). These habitat responses captured by the EPA/ORD pilot project are summarized more generally in Table 3.

Table 3 Potential habitat benefitsa of hydrologic restoration (with and without complementary hand-placed log structures and live stakes) by RBP category

Furthermore, the ecological gains of the hydrologic-based approach could be supplemented by in-stream mitigation efforts to create even greater lifts in aquatic habitat. For example, even “low-tech” restoration approaches that rely on hand work, as opposed to heavy equipment and grading operations, (e.g. Wheaton et al. 2019; Hawley 2018) can facilitate restoration of geomorphic processes and rehabilitation. For example, on one recent Kentucky mitigation project (USACE ID: LRL-2014–500-pgj), abundant installations of hand-placed log steps, toe wood, and ramped logs were used to restore habitat quality from poor to excellent (Fig. 12) on four reaches. The approach substantially improves habitat complexity, expands stable benthic habitat, and enhances bank strength while preserving existing riparian trees and the associated canopy shade, leaf litter inputs, groundwater chemistry, (Wood et al. In revision) and root steps (Hawley and MacMannis 2019). The in-stream wood can also provide a carbon source for nutrient cycling and other water quality benefits (Lazar et al. 2014), whereas stable, ramped wood can play an important role in emergence of sensitive benthic macroinvertebrate taxa such as plecoptera and trichoptera (Cheney et al. 2019).

Fig. 12
figure 12

Pre-restoration (A), log installation (B), and post-restoration after one growing season (C) photos from a recently completed mitigation project in KY (USACE ID: LRL-2014–500-pgj) where abundant hand-placed logs and live stakes were used on four project reaches to improve habitat quality from poor to excellent. All photos are looking upstream on project reach C16b

In some reaches, low-tech approaches such as hand-placed logs and live stakes (Fig. 12) could potentially provide enough supplemental improvements to habitat quality to attain an even higher quality class than could be achieved through flow restoration alone. Whereas the EPA/ORD case study above increased habitat quality from poor to average, complementary log structures could conceivably improve the habitat quality to excellent similar to the Kentucky mitigation example in Fig. 12. General ranges of potential RBP improvements associated with log structures and live stakes, in addition to flow restoration RBP improvements, have been added to Table 3.

Categorical lifts in flow class

The most direct way to create stream restoration credits via hydrologic restoration is by facilitating improvements in flow class. The EPA/ORD pilot study mentioned above documented extended baseflows (Hawley et al. 2017) and the subsequent establishment of fish in several summer pools (Hawley 2018). Despite such tangible improvements, the pilot project may not have been sufficient to completely shift the jurisdictional flow class from intermittent to perennial (i.e. it may have shifted the stream from a “low” intermittent to a “high” intermittent, which would not correspond to higher flow class credits). However, two additional flow restoration projects from the region have been associated with changes in flow class.

The first example is at the Single Point Urban Interchange (SPUI) at North Bend Road and Burlington Pike in Boone County, Kentucky, where an ephemeral roadway ditch was converted into an intermittent stream-wetland complex (Fig. 13, see Supplemental Materials for locations maps). The highly impervious drainage area (~ 32% TIA) contains approximately 1.2 hectares of roadway and associated right-of-way. In approximately a dozen site visits since construction, the stream-wetland complex has had flow discharging to the downstream ditch on all but one occasion. Additionally, the channel and surrounding area now support wetland vegetation indicative of wetland hydrology.

Fig. 13
figure 13

(A) Looking downstream at the SPUI project site prior to restoration documenting a mostly dry, grassed swale on a winter day (2/23/17). (B) Looking downstream at the restored stream-wetland complex on an autumn day (11/3/17) with wet pools and riffles. (C) Looking downstream at the restored stream-wetland complex with ponding and wetland vegetation on a summer day (7/27/18). (D) Looking upstream at the receiving ditch with wetland vegetation that is too wet to mow despite summer conditions (7/8/19)

Unfortunately, the mowed ditch downstream of the project is not a jurisdictional stream, and as such, no credits would be generated from this project (despite the clear improvement in flow class). However, the example shows how more sustainable management of stormwater flows could improve the flow class in jurisdictional channels. For example, if the ~ 450-ft (~ 135 m) receiving channel was jurisdictional, a flow class change from ephemeral to intermittent would be associated with a range of additional credits depending on the Initial Quality and Mitigation Ratio.

On the low end, converting a poor-quality ephemeral stream (Quality value of 0.5) to a poor-quality intermittent stream (Quality value of 1.0) would generate 112.5 AMUs if credited as enhancement (450 ft × 0.5 x (1.0 – 0.5)) and 225 AMUs if credited as rehabilitation (450 ft × 1.0 x (1.0 – 0.5)). An average-quality ephemeral stream (Quality value of 0.75) that was transformed into an average-quality intermittent stream (Quality value of 1.5) would create 168.75 AMUs if credited as enhancement (450 ft × 0.5 x (1.5 – 0.75)) and 337.5 AMUs if credited as rehabilitation (450 ft × 1.0 x (1.5 – 0.75)). On the high end, an excellent-quality ephemeral stream (Quality value of 1.0) that transitioned to an excellent-quality intermittent stream (Quality value of 2.0) would produce 225 AMUs if credited as enhancement (450 ft × 0.5 x (2.0 – 1.0)) and 450 AMUs if credited as rehabilitation (450 ft × 1.0 x (2.0 – 1.0)).

These hypothetical stream mitigation credits would increase even further if the non-jurisdictional receiving ditch could have been re-established as a jurisdictional stream via complementary habitat restoration, which would have coincided with improvements to habitat quality in addition to flow class (see next section). In the case of the SPUI project, if the ~ 450 feet (~ 135 m) of poor-quality ephemeral roadside ditch could have been re-established as an excellent-quality intermittent stream the project would have generated 900 AMUs if credited as re-establishment (450 ft × 1.0 x (2.0 – 0.0)). The reach would have had no associated debits due to the fact that the former ditch was not jurisdictional. Furthermore, by creating a jurisdictional connection to the stream/wetland complex, the ~ 200-ft long intermittent stream with excellent habitat that was re-established within the wetland could have generated an additional 400 AMUs (200 ft × 1.0 x (2.0 – 0.0)) and had no debits due to the non-jurisdictional ditch that it replaced.

Categorical lifts in flow class and habitat quality

A final example involves improvements in both flow class and habitat quality. It was facilitated by construction of a two-cell stormwater wetland as a part of a stream mitigation project in Boone County, Kentucky (USACE ID: LRL-2009–329-pgj, see Supplemental Material for location maps). The stormwater wetland intercepts formerly undetained impervious surfaces that drain to the Boone Woods mitigation project. The two cells are connected via pipe, which allows the upper wetland to slowly release flows to the lower wetland over a 48-h period, which in turn gradually discharges to the receiving stream network. Onsite monitoring in 2014 revealed significant reductions in peak discharges, reducing one rain event (91 mm over 24 h) from a peak inflow of 1.57 m3/s to a peak outflow of only 0.01 m3/s (Brown and Hopfensperger 2014). In addition to mitigating erosive flows, the stormwater wetland discharges perennial baseflow to the stream network.

The substantial improvements to the flow regime coincided with re-establishment of a jurisdictional stream in place of a non-jurisdictional ephemeral swale. According to the project’s Year 5 Monitoring Report (2016), the re-established 144 ft (44 m) of average-quality perennial stream was associated with 324 AMUs (144 ft × 1.0 x (2.25 – 0.0)) and no debits because the pre-project swale was not jurisdictional. Furthermore, the flow class benefits of the stormwater wetland have persisted since the completion of the Mitigation Project’s monitoring—the basin outfall was independently observed with trickle flow during summer low-flow periods on 7/8/19.

In summary, the three examples of potential flow class improvement showcased herein document a range of potential mitigation credits (Table 4). In cases where the receiving channel was not jurisdictional, or the flow improved but did not switch flow classes, no restoration credits would be directly attributable to flow restoration. However, in all cases, the potential stream credits substantially expand when considering the additional AMUs associated with both indirect and direct habitat improvements.

Table 4 Summary of flow class improvement examples and associated mitigation credits (with and without supplemental improvements in habitat quality)


Stream mitigation crediting protocols in the US are a legal mechanism to compensate USACE-approved mitigation projects for stream restoration interventions using fees generated by stream impacts. Crediting protocols have traditionally been applied to conventional stream restoration projects that physically restore habitat via in-stream construction. However, USACE stream mitigation protocols could also be applied to hydrologic-based mitigation activities that create demonstrable improvements in stream integrity. For example, flow restoration can generate stream mitigation credits via the Central Kentucky Assessment Protocol by:

  1. 1)

    lifting the flow class of a restoration reach(es), e.g. from ephemeral to intermittent,

  2. 2)

    restoring process-based habitat recovery, e.g. bench development, bank re-stabilization, and an overall shift from channel degradation (CEM Stage 3) to geomorphic equilibrium (CEM Stage 5, Fig. 3), and/or

  3. 3)

    supplemental in-stream habitat restoration efforts such as channel re-establishment, installation of hand-placed wood structures, etc.

Similar to conventional habitat mitigation projects, judgment is required to determine a mitigation ratio that is commensurate with the level of intervention. For example, in the case of a simple retrofit to a single existing stormwater detention basin, enhancement (Mitigation Ratio of 0.5) may be most appropriate. In cases where existing stormwater facilities are retrofit more substantially (e.g. expanded storage through grading, conversion to a wetland or filtration basin, etc.), new stormwater controls are installed (e.g. construction of new stream-wetland complexes), and/or stormwater interventions are supplemented by in-stream habitat restoration (e.g. hand-placed log structures and live stakes), rehabilitation (Mitigation Ratio of 1.0) may be more appropriate. Finally, projects that re-establish a jurisdictional stream in place of a non-jurisdictional swale should likely be credited as re-establishment (Mitigation Ratio of 1.0) and would not be associated with any debits due to the lack of a jurisdictional channel prior to mitigation.

Any credited stream lengths would inherently require conventional protection instruments (e.g. conservation easements or equivalent), and reaches with limited buffers would coincide with reduced mitigation ratios (Table 2). Site protections and/or maintenance agreements would also need to be tailored to the associated stormwater interventions to ensure that the hydrologic benefits persist beyond the monitoring period of the project.

Monitoring plans will need to be designed to capture the flow class changes and/or habitat improvements of representative project reaches and how far downstream they persist. Although there is unlikely to be a clear threshold, it is reasonable to assume that hydrologic interventions need to intercept a meaningful portion of a watershed’s impervious area and/or drainage area to be likely to show measurable improvements in receiving stream habitat and/or flow class (i.e. recall that the Toyota retrofit only controlled ~ 13% of the drainage area to the “DS site” but intercepted ~ 47% of its impervious area). The scale of stormwater intervention, complementary in-stream habitat mitigation, the hydroclimatic setting, and weather during the monitoring period, among other factors, could all affect the rate of measurable geomorphic recovery in the receiving streams (i.e. recall that the Toyota project documented quantifiable habitat improvements over a five-year recovery period following the stormwater retrofit).

Similar to conventional in-stream habitat mitigation projects, hydrologic-based stream mitigation will likely require customized Mitigation Plans tailored to the ecological potential of the urban setting (e.g. Paul et al. 2009). Although each project will be unique (e.g. how to proportion credits in the case of multiple project stakeholders?), the examples herein suggest that stormwater mitigation projects could use mitigation protocols, success metrics, and monitoring timeframes that are comparable to conventional mitigation projects. Like any new approach, adaptive management (i.e. corrective actions to address mitigation deficiencies identified during monitoring) could be used to accommodate particular needs of stormwater mitigation strategies. Furthermore, project partners could be encouraged to participate in conventional knowledge transfer venues to help share lessons learned and continue to advance the state of the industry toward more sustainable stream restoration outcomes.
