1 Introduction

In the past 30 years, optical trapping and manipulation (Ashkin 1970; Ashkin et al. 1986; Grier 2003; Neuman and Block 2004; Molloy and Padgett 2002; Dienerowitz et al. 2008; Marag et al. 2013; Ashkin 1997) has been a major tool for advances in biosciences (Khatibzadeh et al. 2014), physics (Gustavson et al. 2001) and chemistry (Misawa et al. 1991). In general, optical tweezers use forces based on the radiation pressure of laser light as a means to immobilise, rotate (Friese et al. 1998), Deufel et al. (2007) and guide small particles ranging from tens of nanometers to tens of micrometers in size (Grier 2003; Dienerowitz et al. 2008; Marag et al. 2013). They have been used in cutting edge research where small particles play a role. The applications of optical trapping include: the observation of the angular momentum of light (Yao and Padgett 2011), the transport of Bose–Einstein condensates (Gustavson et al. 2001), the investigation of the DNA mechanics (Bustamante et al. 2003), spectroscopy and sensing (Cetin et al. 2011), cancer research (Cross et al. 2007), nanofabrication (Pauzauskie et al. 2006), tissue engineering (Kim et al. 1999; Matsuda and Sugawara 1996), the manipulation of single proteins (Pang and Gordon 2012) and single atoms (Yu et al. 2014) and study and manipulation of live cell dynamics in animals (Zhong et al. 2013).

Conventional optical tweezers are most commonly used to trap particles in the Mie regime, where the particle size is of the order of the wavelength of light. In the Rayleigh regime, however, where the particle size is considerably smaller than the wavelength of light, the mechanisms to generate the optical forces rely more heavily on the material properties of the particle. This means that the optical trapping forces are typically lower, and greater power is often required to enable stable trapping. This can in turn cause damage to thel specimen in the trap. In this regime, it is particularly difficult to trap transparent biological objects with relatively low dielectric contrast (Juan et al. 2011; Dholakia and Reece 2006). Svoboda and Block (1994) reported that the gradient force is the major trapping force for Rayleigh sized particles and is proportional to their polarizability. They reported that it is \(7 \times\) easier to trap 36 nm gold nanoparticles compared to 38 nm latex beads—a factor equal to the ratio of the polarizabilities of the particles. For the same optical illumination, this results in higher trapping forces for metallic nanoparticles than for dielectric nanoparticles.

Near field optical tweezers use plasmonic substrates (Min et al. 2013) such as nanoantenna pairs (Grigorenko et al. 2008; Cetin et al. 2011; Righini et al. 2009; Ko et al. 2010; Roxworthy et al. 2012; Zhang et al. 2010; Wong et al. 2011) and plasmonic nanocavities (Chen et al. 2012) to confine and enhance the optical field in a subwavelength “hotspot”, thereby creating stable traps for nanoparticles. However, these plasmonic devices have relatively low quality factors (less than 100) due to the radiative and absorption losses of the metal structures, making them inefficient in terms of input power (Bozhevolnyi et al. 2006). Enhanced optical tweezers using photonic devices (Mandal et al. 2010; Cai and Poon 2010; Chen et al. 2012) such as microring resonators (Lin et al. 2010; Lin and Crozier 2011, coupled nanobeam cavities (Renaut et al. 2013), optical fibers (Liberale et al. 2013) PhC waveguides (Yu et al. 2014) and cavities (Van Leest and Caro 2013) have also been demonstrated. PhC resonators have high quality factors (Q  \(\sim\) 500–100,000) and enable enhancement and control of the profile of the field (Lin and Crozier 2011), but they have lower spatial confinement (typically 0.5–10 \(\upmu\)m) compared to near field plasmonic optical traps, which produce field hotspots of \(\sim\) tens of nanometers (Schuller et al. 2010).

Recently, there have been efforts to demonstrate combined photonic and plasmonic devices. Hybrid plasmonic–photonic devices were reported in 2014 for lasing (Zhang et al. 2014) and light matter coupling (Michael et al. 2010). In 2014, ODell et al. reported a technique for assembling photonic–plasmonic nanotweezers by optically guiding multi-walled carbon nanotubes to attach them onto a silicon waveguide (ODell et al. 2014). In the same year Berthelot et al. demonstrated a 3D near-field nanotweezer capable of trapping nanoparticles by fabricating a bowtie aperture on the end of a tapered, metal coated optical fiber (Berthelot et al. 2013).

In this paper, we propose to integrate photonic and plasmonic nanoresonators to take advantage of the high quality factor of the photonic cavity and the extreme light confinement of the plasmonic resonator for the optical trapping of Rayleigh particles in water. This device will have applications in biology, chemistary, naotechnology and quantum physics. In Mossayebi et al. (2016), we reported the design parameters for an L3 PhC coupled to a gold BNA separated by a silicon dioxide (\({SiO_2}\)) layer, where the structure was suspended in air. In this paper, we investigate the suitability of this device for the optical trapping of biological samples. For this application, we look at the performance of the device when it is immersed in water and introduce a polystyrene (PS) sphere above the BNA gap to represent the trapped particle. Finally, we also look at the gradient profile of the optical intensity, which is a key parameter for producing a stable optical trap. This device will sit on a substrate beneath the sample of interest replacing the standard coverslip, making it compatible with the use of an inverted microscope and commonly used sample preparation methods. We show that this hybrid cavity has the ability to confine light into extremely small volumes (outside the PhC and in the BNA gap) whilst maintaining a high quality factor.

2 Description of the structure and the FDTD model

2.1 Description of the structure

The hybrid plasmonic–photonic nanostructure proposed in this paper is illustrated in Fig. 1. The structure consists of an L3 PhC cavity based on a 275 nm thick gallium arsenide (GaAs) slab, a 40 nm thick gold (Au) BNA and a 175 nm thick \({SiO_2}\) layer separating the two and keeping the biological sample out of contact with the GaAs membrane. The PhC has a triangular lattice of holes with a lattice constant, a, of 410 nm and a hole radius, r, of 125 nm. The L3 cavity is created by removing three adjacent holes in the lattice. The end holes of the cavity are shifted by 0.2a to improve the quality factor of the PhC cavity (Malaguti et al. 2013; Sauvan et al. 2005). The holes of the PhC extend through the \({SiO_2}\) layer to preserve the high quality factor of the structure. The BNA consists of two head to head isosceles triangles placed 30 nm apart (BNA gap), with a tip width of 30 nm and an aperture angle of 30 degrees. The length of the BNA (including the gap) is 700 nm and is oriented perpendicular to the long axis (X direction) of the L3 cavity. The hybrid structure is immersed in water and a PS bead with a 50 nm radius is positioned 45 nm above the \({SiO_2}\) membrane to represent a particle in the trap. Further details of these specific design parameters and dimensions can be found in (Mossayebi et al. 2016).

Fig. 1
figure 1

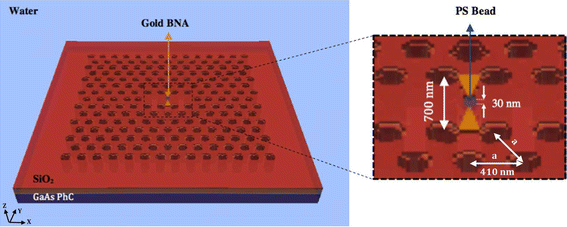

3D schematic of the hybrid photonic–plasmonic nano cavity showing the dimensions of the structure. The strcuture consists of an L3 PhC cavity based on a 275 nm thick GaAs slab, a 40 nm thick Au BNA and a 175 nm thick \({SiO_2}\) layer separating the two. The PhC has a triangular lattice of air holes with a lattice constant, a, of 410 nm, and hole radius, r, of 125 nm. The holes of the PhC extend through the \({SiO_2}\) layer. The BNA has a length of 700 nm and a gap size of 30 nm

Full size image

2.2 Description of the FDTD model

The simulation results presented in this paper were produced using 3D-FDTD calculations (Taflove and Hagness 2005), namely the Lumerical and Meep packages, with a conformal mesh in x, y and z(i.e. a varying mesh size depending on sample dimensions) and a minimum step size of 0.25 nm in the mesh grid (in x, y and Z directions). A 500 nm perfectly matched layer (PML) was placed at the boundaries of the computational domain to prevent artifacts due to numerical reflections. A Drude–Lorentz model (Palik parameters Palik 2012) was used to represent the real metal behaviour of the BNA (i.e. skin effect, dispersion etc.).

A TE polarized field was produced using an \({H_z}\) dipole providing a Gaussian temporal pulse to excite the hybrid structure and investigate its resonances and their quality factors. The source was turned on for approximately 300 ps and the simulation was run for approximately 3000 ps to ensure that the signal fully decayed by the end of the simulation and the results were accurate. The time step in the simulation was chosen to be small (\(\delta \hbox {t} = 0.267\hbox { ps}\)) to ensure accurate results. The dipole was positioned near the center of the PhC cavity to excite all of the modes of the resonator. Dipole probes were used to capture the optical field at the center of the BNA, \({SiO_2}\) layer and the PhC cavity to measure the quality factor of the structure. The field profiles were captured by performing a discrete Fourier transform (DFT) on the electromagnetic field components at resonance.

3 Characteristics of the hybrid plasmonic–photonic nanostructure in the presence of water (simulation results)

We investigated the suitability of the hybrid device for the optical trapping of Rayleigh particles by building on the previous model. In particular, we surrounded the device with water (as opposed to air) and introducing a PS bead above the BNA gap to represent a trapped object.

3.1 Resonant modes in water

The quality factor, Q, is an important design parameter of nanophotonic structures. It is defined as the total energy stored devided by energy lost per radian (Eq. 1) and determines the photon life time (and the enhancement in the stored energy for a given input power) in these structures.

$$\begin{aligned} Q=\frac{2\pi \nu _{0}\omega (t)}{-d\omega (t)/dt}, \end{aligned}$$
(1)

where \(\nu _{0}\) is the oscillation frequency and \(\omega (t)\) is the energy stored in the mode at time t.

Table 1 lists the resonant wavelengths and quality factors of the first three transverse electric (TE) modes for different configurations of the structure suspended in water and in air for comparison. Figure 2 shows the mode profiles of the first three TE modes of the L3 cavity in an XY plane passing through the center of the cavity in water. Note that the maximum of the field is in the plane passing through the center of the PhC cavity. In the next section, we show how this field couples to the BNA to produce a localized “hotspot” in the BNA gap.

Table 1 Resonant wavelengths and quality factors of the first three TE modes of the structure with and without the BNA and with and without the polystyrene bead both in water and air (Mossayebi et al. 2016)
Full size table
Fig. 2
figure 2

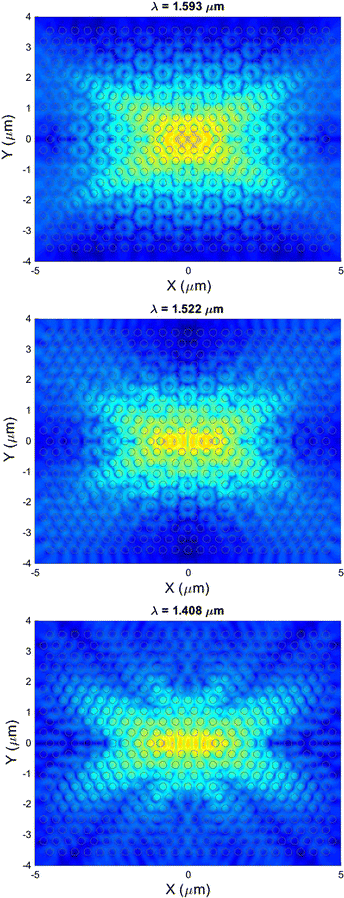

Plots of the mode patterns (\(\mid E \mid\), log scale with dark blue corresponding to \({-}3\) and red corresponding to 0.5) of the three resonant TE modes of the L3 cavity in an X Y plane passing through the center of the resonator in water. Each plot is normalised with respect to its maximum. Top first resonant mode at \(\lambda = 1.593\,\upmu \hbox {m}\). Center second resonant mode at \(\lambda = 1.522\,\upmu \hbox {m}\). Bottom third resonant mode at \(\lambda = 1.408\,\upmu \hbox {m}\). (Color figure online)

Full size image

Unlike in air (Mossayebi et al. 2016), the introduction of the BNA decreases the quality factor of the PhC cavity from 8200 to 5495 for the first resonant mode. We believe this is due to the reduction of the refractive index contrast between the surrounding medium and the PhC and a corresponding change in the PhC bandgap energy. Nevertheless, the structure still produces an impressively high quality factor compared to a simple near field plasmonic optical tweezer (\(\hbox {Q} < 100\)). Interestingly, when a particle is positioned above the BNA gap, the quality factor of the hybrid device increases from 5495 to 7726 as the bead acts as a resonator to reduce the radiative loss of the system. With the BNA and bead present, the quality factor is only 5.8 % smaller than the original PhC cavity submerged in water and 36.7 % smaller than the hybrid structure in air.

3.2 Confinement and enhancement of the optical field

Figure 3 illustrates the field profiles in an yz plane passing through the center of the hybrid structure submerged in water for the cases where: only the PhC and the \({SiO_2}\) layers are present (Top); the BNA is also present (Center); and where both the BNA and the PS bead are present (bottom). Figure 4 shows the optical intensity in the presence and absence of the BNA in the x, y and z axes passing through the center of the BNA gap.

Fig. 3
figure 3

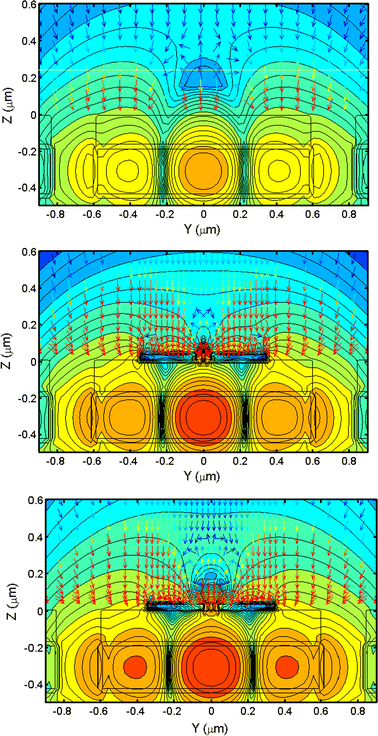

The optical intensity pattern (\(\mid E \mid ^{2}\), log scale) inside a YZ slice passing through the middle of the structure suspended in water: in absence of both the BNA and PS bead (Top); in the presence of the BNA (Center); and in the presence of both the BNA and PS bead (Bottom). These patterns are for the fundamental TE mode of the structure. The arrows show the field gradients and are colour coded so that the red represents the highest intensity gradient and light blue represents the lowest intensity gradient. Each graph is independently normalised with respect to its maximum field. All of the structures where excited with the same power. Dark blue represents 0.146 in the top figure, 0.135 in the center figure and 0.133 in the bottom figure. Red represents 0.428 in the top figure, 0.14 in the center figure and 0.137 in the bottom figure. (Color figure online)

Full size image
Fig. 4
figure 4

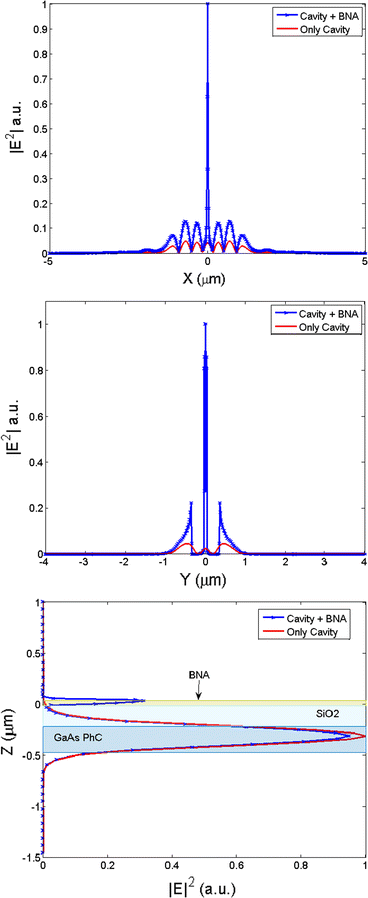

Illustration of the optical intensity in the structure with (blue curve with a marker) and without (red curve) the BNA. Top intensity profile of the mode along the x axis passing through the center of the BNA. Center intensity profile of the fundamental mode along the y axis passing through the center of the BNA. Bottom intensity profile of the fundamental mode along the z axis passing through the center of the BNA. All of the structures have the same excitation power. (Color figure online)

Full size image

Figure 3 shows that the field is coupled from the PhC cavity to the BNA gap to produce an externally accessible “hot spot”. This is confirmed in Fig. 4, where it can be seen that the optical intensity in the BNA gap is enhanced by a factor greater than 40 by introducing the BNA to the structure. This leads to an enhanced optical intensity gradient at the center of the BNA gap, which is proportional to the gradient force in optical trapping and will increase the trap strength. The field is confined to the BNA gap to a volume \({\sim } 30\hbox { nm} \times 30\hbox { nm} \times 40\hbox { nm}\) (x, y, z), or \({\sim } 30\) zl, which is comparable in size to proteins and viruses. By comparison, a conventional optical trapping system (with a wavelength almost two times smaller than the operation wavelength of our hybrid device) produces a diffraction limited focal spot that is \({\sim } 500\) nm in diameter or \({\sim }650\) fl. Although it is possible to trap Rayleigh particles with a conventional trap, in practice the particles will diffuse within this focal volume and not be highly localized. Our hybrid plasmonic–photonic nanoresonator provides a method to not only increase the field gradients, but also to produce a highly localized region with the potential to immobolise nanosized biological particles whilst maintaining a high quality factor for the system (Table 1). This hybrid structure can also be integrated with other photonic devices to create “lab on a chip” devices.

Two conditions must be met to have a successful optical trap for Rayleigh particles. Firstly, the gradient force must be larger than the scattering force. Secondly, the trapping energy must dominate the thermal energy (in other words, the trapping forces must pull the particle in before the Brownian motion of the particle moves it out of the trap). As discussed earlier, the polarizability of the particle in the trap is the key factor in determining how easily it can be trapped (Svoboda and Block 1994). We know that laser induced heating is also proportional to the intensity (Seol et al. 2006) of the light. To trap nanosized particles, the gradient force should be increased while limiting the heating of the sample. For the trapping of biological samples, it is also important to keep the heating to a minimum to maintain the viability of the sample.

4 Summary

We have investigated the use of a hybrid photonic–plasmonic nanoresonator for the optical trapping of nanosized biological particles in water. The hybrid structure comprises an L3 PhC cavity based on a GaAs membrane and a BNA. A layer of \(SiO_2\) is placed between the two to provide separation and surface passivation. Using FDTD simulations, we demonstrated that the optical intensity in the BNA gap is enhanced by a factor larger than 40 compared to the case when the BNA is not present. We have shown that the optical field is confined in the BNA gap to a volume \({\sim } 30\) zl, while the structure maintains a high quality factor (5400–7700)—properties that will aid the development of an efficient optical trap. This hybrid device is also compatible with integrated photonics (such as waveguides and other PhC devices), increasing its flexibility and making it suitable for a wide range of long term applications in nanotechnology, quantum physics, biology, medicine and chemistry.
