Newspapers as a validation proxy for GIS modeling in Fujairah, United Arab Emirates: identifying flood-prone areas

Abstract

The UN Office for Disaster Risk Reduction listed 10 reasons businesses should reduce their disaster exposure, including risk factoring, which cannot be achieved without historical data about hazards, their locations, magnitudes, and frequencies. Substantial hazard data are reported by newspapers, which could add value to disaster management decision making. In this study, a text-mining program extracted keywords related to floods’ geographic location, date, and damages from newspaper analyses of flash floods in Fujairah, UAE, from 2000–2018. The paper describes extracting such information as well as geocoding and validating flood-prone areas generated through geographic information system (GIS) modeling. The generation of flood-prone areas was based on elevation, slope, land use, soil, and geology coupled with topographic wetness index, topographic position index, and curve number. Analytical Hierarchy Process (AHP) produced relative weight for each factor, and GIS map algebra generated flood-prone areas. AHP inclusion helped minimize weight subjectivity among various experts. Of all areas, 85% are considered medium and low flood-prone zones, mainly mountainous areas. However, the 15% that are high/very high are dominated by urban areas in low coastal plains, predisposing them to flash floods. Eighty-four percent of flood events reported by newspapers were in areas rated as high/very high flood-prone zones. In the absence of flood records, newspapers reports can be used as a reference. Policymakers should assess whether flood-prone area models offer accurate analyses. These findings are useful for organizations related to disaster management, urban planning, insurance, archiving, and documentation.

Introduction

Decision makers everywhere are concerned about the safety of their people before, during, and after disasters. Floods top these disasters, and their impact on human lives and economy is well documented in the literature (Alaghmand and Abdullah 2010; Duan et al. 2016; Luino et al. 2016). For example, a recent report by the United Nations Office for Disaster Risk Reduction (UNDRR; formerly UNISDR) revealed that floods affected 2.3 billion and killed 157,000 people between 1995 and 2015 (Flood List 2018). Due to the flood impact on humans and the economy, many flood tools have been developed around the world to aid in prediction and assessment such as the Global Flood Awareness System (GloFAS) of the European Commission Copernicus Emergency Management Service and in the USA, the Hazus program. GloFAS provides flood predictions based on weather forecasts and hydrological modeling (GloFAS 2020). It contains a global dataset of daily river discharges, a land surface runoff model (HTESSEL), and a river-routing model (LISFLOOD) (van der Kniff et al. 2010). For more details about GloFAS, the reader is referred to Harrigan et al. (2020). The United States Federal Emergency Management Agency (FEMA) developed the Hazards United States (Hazus) program to aid in estimating potential losses from earthquakes, floods, and hurricanes. The program utilizes GIS to estimate physical, economic, and social impacts of disasters (FEMA 2020). The FEMA Flood Map Service Center (MSC) provides interactive maps regarding flood hazard/risk to support the National Flood Insurance Program (NFIP). Details about how flood maps are generated can be found in Wright (2014). In addition to this, the UK Environment Agency provides interactive maps that show flood risks from rivers, surface water, and reservoirs (UK Environment Agency 2020). Alexander et al. (2011) developed a geographic information system (GIS) tool that helps end users to be actively engaged in the generation of flood maps and assessment processes. The tool facilitates discussion between end users/professionals and developers. It includes options for flood hazard assessment, vulnerability assessment, and risk assessment. Other initiatives on flood hazard mapping can be found in Prinos (2008) and Van Alphen and Passchier (2007).

Flood impact is evident in hazard areas that sometimes experience heavy rains. In arid regions, such as the United Arab Emirates (UAE), the risk is not that high, but there has been an expansion of such risk into new areas in cities that have become impermeable due to paving (less infiltration, poor absorption, less vegetation, more runoff). Moreover, cities at foothills of mountains in the UAE such as Fujairah, Ras Al Khaimah, and Al Ain are more exposed to flash floods, for example, the Al Ain floods (1982, 1988, 1990, 1993), the Al Qurayah flood (1995), and the Sharm floods (1997, 2009). This has led many researchers to conduct studies related to flash floods in the UAE. Al-Shamsei (1993) conducted a study on flash floods in Al Ain and generated a flood-prone area map based on climate, geomorphology, and hydraulics. The results revealed major damage to in buildings and farms. Al Murshidi (2012) conducted a study on flash floods’ assessment using a geographic information system (GIS) in Dibba Fujairah. His study utilized GIS multi-criteria decision analysis and used three parameters to generate a flood-prone area map: the distance to the discharge channels, elevation, and slope. Additional parameters such as land use, soil, and geology, coupled with topographic wetness index (TWI), topographic position index (TPI), and curve number (CN) could be incorporated. The inclusion of more factors strengthens the flood-prone area model. However, previous studies related to flood potential mapping conducted in the UAE (Al Murshidi 2012; Al-Shamsei 1993) have not verified their output models. This creates a gap in the literature, which this study tries to fill.

A study conducted by Forkuo (2011) showed how flood risk index maps can be generated by integrating ASTER satellite image data with GIS. In the absence of maps on flooded areas, remote sensing is an effective tool to trace the occurrences of floods and identify hydrogeological settings. There is now a better chance of tracing back flooded areas because of the increase in the number of satellites. Quirós and Gagnon (2020) validated flood risk maps using open-source optical and radar satellite imagery. They used normalized difference vegetation index (NDVI) based on the principles that water absorbs the energy in the red band and that clear water has a negative NDVI value (− 1) and thus appears black in the processed satellite image. However, in many cases, flooded areas may not be captured by satellites due to temporal resolution, nature of the flood (the deluge caused by flash floods lasts for a few hours), size of the flooded area, or cloud cover (Quirós and Gagnon 2020). Therefore, newspapers reports could be used to trace back flooded areas. Known flood locations have been used to validate the flood-prone area maps. For example, Azizat and Omar (2018) used six factors to model flood hazard including rainfall, elevation, distance from the drainage network, soil texture, geology, and erosion. They evaluated the flood map using frequency ratio, statistical index, and Poisson methods and verified the model results by using 23 known flood locations recorded in 2013, 2014, and 2015. The locations of the points were checked with high and very-high risk zones, and the percentage of points was calculated. They found that the areas with frequent flood occurrence were located near drainage networks.

Periyasamy et al. (2018) used eight parameters to model flood hazard including rainfall, slope, drainage, soil, geological structures, lithology, geomorphology, and land use. They verified their hazard model output based on recorded floods that affected villages from 1996 to 2014. The output revealed that the study area was flooded mainly due to two reasons: aftermath of meteorological events, such as intense and prolonged rainfall, and increase in the water level in coastal and estuarine waters. Getahun and Gebre (2015) used six parameters to model flood hazard in Awash River Basin in Ethiopia. They were slope, elevation, rainfall, drainage density, land use, and soil type. Samanta et al. (2016) used four parameters to generate flood hazard maps in the area around Markham River, Papua New Guinea. They were elevation, slope, distance from river, and land use. In general, there is no consensus on the number of parameters that are required to generate flood hazard maps, and this depends on many factors such as data availability, geographic location of the study area (climate), and importance of the factor. In this study, the most important factors identified were elevation, slope, land use, soil, and geology coupled with TWI, TPI, and CN. Weight for each factor was set using AHP.

AHP is a multi-criteria decision making (MCDM) method (Saaty 1980). It provides a framework that can handle different views on a complex decision problem (Carver 1991; Estoque 2012; Ho 2008; Malczewski 1999; Samanta et al. 2016). AHP consists of three main levels. Level 1 is the goal, while level 2 (criteria/sub-criteria) and level 3 (alternatives/options) contain six necessary steps to get to that goal (Papaioannou et al. 2015). In AHP, multiple pairwise comparisons are based on a standardized comparison scale of nine levels (Ouma and Tateishi 2014). AHP has the advantage of permitting a hierarchical structure of the criteria, which provides users with a better focus on specific criteria and sub-criteria when allocating the weights (Ishizaka and Labib 2011; Saaty 1980). This method helps to discover and correct logical inconsistencies and allows for the “translation” of subjective opinions, such as preferences or feelings, into measurable numeric relationships (Goepel 2018). Due to these advantages, AHP is used in GIS to improve decision-making processes (Estoque 2012; Samanta et al. 2016). Substantial research has been conducted on the combination of AHP and GIS for flood studies (Dash and Sar 2020; Kazakis et al. 2015; Ouma and Tateishi 2014; Papaioannou et al. 2015; Stefanidis and Stathis 2013).

Despite remote sensing and GIS being sources of data and visualization, they lack detailed information about flood impact/damage on human lives and economy. Historically, people used various other sources such as newspapers reports, flood markers, eyewitness accounts, photographs, private diaries, private letters, boulder deposits, town records, historic compilations, courts records, paintings, and secondary sources (Benson 1950; Helley and Lamarche 1973; Tropeano and Turconi 2004). In Italy, Luino et al. (2016) highlighted that correct territorial planning for the prevention and mitigation of geo-hydrological risk cannot ignore the wealth of information that can be obtained from historical research. They collected historical records including thousands of articles from national and local newspapers from 1800 until 2016 and generated a GIS database. This study, too, uses newspapers to build a model. Previous studies in the UAE did not incorporate newspapers as a source of data to fill the gap in missing information on floods. Newspapers include valuable information about events (what, where, when, how, who are affected) on an often overlooked and relatively unknown time period in history. They disperse information to the general public and provide effective warnings as one of the crucial tools to protect the public from natural hazards (Luino et al. 2018; Trimble 2008; Zhang 2010).

Combining newspaper data with GIS is an effective tool. For example, Yagoub and Jalil (2014) used GIS to map 220 sampled fire incidents in Sharjah, UAE. The incidents were extracted from newspapers (2002 to 2012), geocoded and used with weighted overlay analysis to propose new suitable locations for fire stations. In the United Kingdom, Taylor et al. (2015) used newspapers to enrich the National Landslide Database with 111 landslide events. Abascal-Mena et al. (2013) used the Geoparsing Web Service (Yahoo! Placemaker Web Service) and eXtensible Markup Language (XML) to extract geographic coordinates from online unstructured documents and link them into a map-like image in order to visualize textual information. Geoparsing offers the ability to turn text documents into geospatial databases. Geocoding newspaper reports on flood events in a GIS environment can add additional information to rain gauge stations (Escobar and Demeritt 2014). The use of newspaper reports to enrich data about floods is evident in the literature. Tarhule (2005) used newspapers to explore the nature of flood events in Niger’s Sahel region. Escobar et al. (2016) utilized the Nexis digital newspaper database (LexisNexis 2018) to build a 25-year archive of flood events in the United Kingdom. They searched for data using date, region, keywords, and type of publication. Search results could then be filtered and downloaded for analysis. Although the database has proved useful in similar projects (e.g., Taylor et al. 2015), it unfortunately does not include reports on flood events in the UAE.

Recent experiments have used crowd-sourced data (Brisaboa et al. 2010; Kutija et al. 2014) and post-event surveys (Borga et al. 2011) to gather evidence on flood impacts. However, crowd-sourced/social media data lack completeness, consistency, and authorized references. Therefore, newspapers are considered more reliable source albeit with some limitations (Newby and Hardy 2018; Porter and Evans 2020), including errors and discrepancies due to misreported events, unreliable sources, or political slants and biases. This can be minimized by double-checking with more than one newspaper and using quantitative data from other sources (e.g., recorded rainfall by meteorological stations). Other problems that arise while using newspapers include the availability of old archives in the hardcopy format. Manually searching newspapers with long records is a tedious and time-consuming process.

The main objective of this study was to review newspapers reports on flash flood events published in five UAE newspapers during the period 2000–2018. A key component of the objective was automating the process of extracting flood information from newspapers reports using the text-mining approach. The second objective was to identify potential flood-prone areas based on multi-criteria analysis (MCA) (Belton and Stewart 2002; Malczewski 2006) and use flood events reported by newspapers as validation for the flood-prone areas. This flood-prone areas map could help city planners in drafting rules to prevent development in flood-prone zones (UN 2010). The objective of the flood-prone area map is not to stop the disaster, but to highlight possible flood zones that may impact society and economy.

This article is structured as follows: Sect. 2 provides a background about the study area, data, and methodology; Sect. 3 addresses the results; and Sect. 4 provides a general conclusion and recommendations.

Materials and methods

Study area

The eastern region of the UAE is the most prone to natural hazards of the entire country (floods, earthquakes, tropical storms/cyclones) (Al Ghasyah 2010). Therefore, it was selected as the study area. The region is at a strategic international location along the Arabian Gulf from where large volumes of oil is exported (Fig. 1). The offshore zones of the region (Gulf of Oman) represent an important asset for the UAE. This includes water (desalination plants), food (fishing industry), mineral exploration, navigation, research, and the laying of cables and pipelines. These zones include the territorial sea, contiguous zone, and the exclusive economic zone (UNCLOS 2019). The region covers a large inland area that extends along the Gulf of Oman (Fig. 1) and is dominated by the Al Hajar Mountains—the highest range in the eastern Arabian Peninsula that runs through both the UAE and Oman. The highest point in the study area measures 1,511 m above mean sea level. Many valleys (Wadis) originate from this mountain range, such as Ham, Zikit, and Al Wurayah. Wadi Ham is the largest and longest valley in the UAE. It spans 30 km from Masafi to the dam near Fujairah city. Several studies related to Wadi Ham have been conducted (Sherif et al. 2010, 2013). Although the valleys remain dry for most of the year, when it rains, the dry valley beds are transformed into gushing albeit ephemeral spectacles.

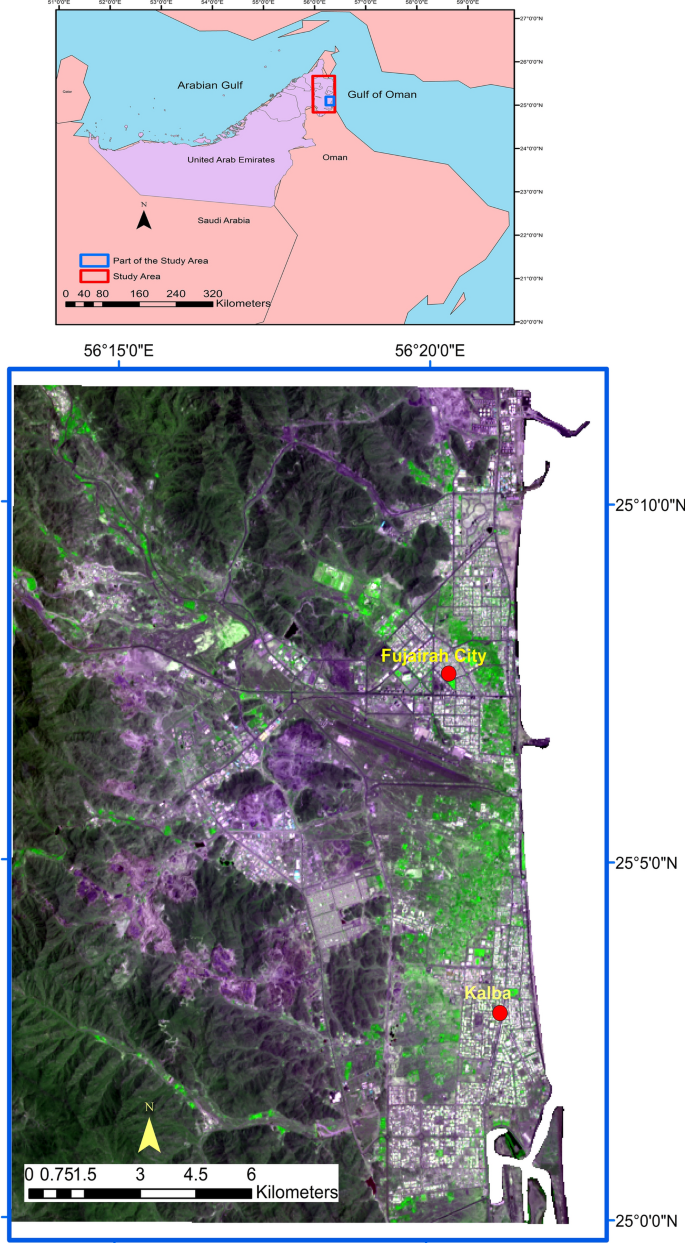

Fig. 1
figure1

Location of the study area

Fujairah is the main emirate in the eastern region of the UAE, covering an area of 1,580 square kilometers (1.9% of the UAE) with an estimated population of 243,127 inhabitants, almost 77% of whom live in main Fujairah city (Fujairah Statistics Centre 2018). The average temperature in Fujairah is around 15 and 47 degrees Celsius during winter and summer, respectively, with mean daily maximum relative humidity of 73 and average annual rainfall of 47 mm (Fujairah Statistics Centre 2018). Generally, the area falls in the arid climate zone (100–250 mm rainfall; Ghazanfar and Fisher 1998).

The majority of urban areas in the region are located at low coastal plains, which makes them more prone to flash floods (Fig. 2). To reduce the impact of flash floods, the UAE Ministry of Energy and Industry (https://www.moei.gov.ae) in cooperation with the Ministry of Climate Change and Environment (https://www.moccae.gov.ae) has adopted guidelines for protection against floods. They include a number of standards to be met when designing or developing any residential area close to valleys and estuaries. The identification of flood-prone zones from this study will support these guidelines.

Fig. 2
figure2

Source: https://twitter.com/Storm_centre

Example of flash flood in the study area 16 Feb 2016.

Data

Data about flash-flood-related events were collected from local newspapers, including Albayan (Arabic; https://www.albayan.ae), Alittihad (Arabic; https://www.alittihad.ae), Al Khaleej (Arabic; https://www.alkhaleej.ae), Gulf News (English; https://gulfnews.com/uae), and Khaleej Times (English; https://www.khaleejtimes.com). Digital elevation model (DEM) and Landsat 8 satellite images for the study area were downloaded from the United States Geological Survey (USGS)—Earth Explorer website (https://earthexplorer.usgs.gov/). The land use map was produced from Landsat-8 images (2020). The soil map for the study area was extracted from the 1 km-resolution soil map of the Harmonized World Soil Database (HWSD 2009). Monthly rainfall data (2009–2018) were obtained from the Department of Civil Aviation and World Weather (2019). Table 1 shows the data collected to identify flood-prone areas. It should be noted that rainfall is treated as constant because the study area is small. The question here is that if the overall region is subjected to the same amount of rainfall, which areas are prone to flood? The monthly rainfall data collected were used to validate newspapers reports and not as a criterion for identifying potential flood-prone areas.

Table 1 Data and sources

Method

Extraction of newspaper reports

Communication between various departments was established in order to obtain records of previous flood events, but without success. Therefore, Google’s free search engine was used. The Google search results were saved in the comma-separated values (CSV) file format using the SEOQuake extension (https://www.seoquake.com/), a free plug-in that helped save search results (websites) from search engines. This format was chosen because of its flexibility in importing and exporting data between various software. For example, the search for “UAE, Fujairah, flash floods” generated a listed of websites, which were downloaded in a CSV file. Normally, Google search lists 10 results for faster processing. However, saving every list of 10 websites in a file is not feasible; therefore, the Google search setting was changed to list 100 results per page. Google Search also provides an important setting for the region. The websites generated by the Google search were examined thoroughly, and the majority were found to be related to local newspapers. Therefore, the focus was directed toward local newspapers, which were found to have more detailed reports and coverage about flash floods in the UAE than other international sources, such as the FloodList web site (https://floodlist.com) and the Global Disaster Alert and Coordination System (GDACS) (https://www.gdacs.org/). Escobar et al. (2016) also revealed that regional newspapers in the United Kingdom tended to provide more detailed impact information than did the national press and wire services.

Newspaper content was reviewed for news items covering flash flood events in Fujairah Emirate between 2000 and 2018. This period was chosen because of the availability of digital editions of the newspapers. Taxonomy (“a set of words that have been organized to control the use of terms”) was used to facilitate retrieving flood items from newspapers reports (Escobar and Demeritt 2014). A different Boolean search was conducted (e.g., by inputting the keyword “flood” OR “rain” OR “flash flood”) to extract event-related articles along with the date and geographical filters (geoparsing). The reports were saved in document files with a date stamp and included information about the flood date, area affected, and damage caused. The main issue was to determine how to extract meaningful information from the reports and put them in a structured (tabular) format that would be easy for decision makers. Manual data entry from a document file to a structured format (e.g., Excel table) is a tedious, error-prone, costly, and time-consuming process especially when the actual data are non-structural (text report). Moreover, reading many document files and scanning them for flood impact is another challenge. To automate this process, a Java program was developed to read the document file and extract important flood damage information (text mining) using text-processing functions like keyword extraction, segmentation, parsing, and identification of contexts and similar terms.

The program was run on sample English documents by feeding keywords such as disaster words (flood, flash flood, rain, heavy rain, etc.), name of the location, damage caused (e.g., road blocked, house damaged), and evacuation procedures. This was supported by a database of geographic names in the area and link to the data extracted from the newspapers. However, it was difficult to find uniform newspapers reports on which to run the program. Therefore, data from some reports were extracted manually. The program’s algorithm works as follows:

  • Creating a text file (CSV) with the following headers “Disaster type,” “Date,” “Location,” and “Impact.”

  • Checking if the title/headline of the newspaper report or the body text includes (flood “OR” flash flood “OR” rain “OR” heavy rain, etc.); if yes, moving on to the next step otherwise terminating the search.

  • Checking the date and if the month falls during the rainy season (October–April) copying the date to a text file (CSV file); otherwise, writing a message for manual intervention.

  • Searching for the name of the area/location based on names given in the database of geographic names. Copying the name to the text file.

  • Searching for impact keywords (damage, houses, buildings, roads, farms, etc.)

  • Extracting a complete sentence that includes the impact keywords (e.g., “400 houses were damaged”) and copying it to the text file under the header “Impact.”

Appendix” shows the flowchart of the program and a sample of the Java code.

The keywords in flood reports were first extracted/summarized using Text Analytics software. There are many text analytics and natural language software available in the market such as Natural Language Toolkit (https://www.nltk.org), KH Coder (https://khcoder.net/en/), and RapidMiner (https://rapidminer.com/get-started). In this study, RapidMiner was selected because it is an open source data-mining framework that offers many operators that can be combined into a process. Text from different data sources can be loaded and transformed by different filtering techniques to analyze data. Text Extension includes all operators necessary for statistical text analysis and natural language processing (NLP). It supports several text formats and provides standard filters for tokenization, stemming, and stop-word filtering for preparing and analyzing texts. The collected newspapers report about flash floods were converted from Word files to plain text and the occurrence of keywords in all documents was analyzed.

Factors for identifying flood-prone areas

Factors for delineating flood-prone areas were identified based on a literature review, consultation with five expects, and availability and accessibility to data. The factors include elevation, slope, land use, soil, and geology coupled with TWI, TPI, and CN.

Elevation and slope: The probability of a flood increases with decreasing elevation and hence is a strong indicator for flood susceptibility. Slope is the rate of change of the surface in horizontal and vertical directions (Cabrera and Lee 2020). Areas with greater slope will have more runoff and thus a higher runoff co-efficient (Chang and Guo 2006). In areas with low slope (flatter terrain), there is a substantial decrease in the movement of water and an increase in the likelihood of ponding (Asare-Kyei et al. 2015; Ballerine 2017). Areas located close to valleys are more likely to flood (Cabrera and Lee 2020). The study area contains a series of valleys that are dried out most of the year. Valleys were overlaid on the final maps to improve visualization.

Land use: Land use determines how much rainfall infiltrates the soil and how much becomes runoff (Asare-Kyei et al. 2015). Land use for infrastructure such as buildings and roads (impervious surfaces) decreases penetration capacity of the soil and increases the water runoff, while vegetation act as a water storer (Asare-Kyei et al. 2015). Rapid urbanization has contributed significantly to the frequency and size of flood events in arid and semi-arid regions such as the UAE (Al Alabdouli et al. 2019). The land use/land cover map was derived from a satellite image (April 25, 2020) using supervised classification. Accuracy of the classification was checked with 500 random ground truth samples, and a confusion matrix was created. The availability of satellite image helped in the generation of up-to-date land use data and is considered an important input parameter.

Soil: The soil type controls the amount of water that can infiltrate the ground and hence the amount of water that becomes flow (runoff). The dominant soil groups found in the area are Calcisols, Leptosols, and Solonchaks. Calcisols is soil with accumulation of secondary calcium carbonates (USDA Group A). Leptosols is very shallow soil over hard rock or in unconsolidated gravelly material, and Solonchaks is strongly saline soil (USDA Group B). The soil map was reclassified into two main soil hydrological groups (A and B) based on the United States Natural Resources Conservation Service classification method (USDA-NRCS 1986). Group A soils have low runoff potential and high infiltration rates even when thoroughly wetted. Group B soils have moderate infiltration rates when thoroughly wetted (USDA-NRCS 1986).

Geology: The lateral movement of storm water is restricted to the weathered formations of the top zones, whereas the downward movement of the same looks for the fissured and jointed features of the bottom zones (Cao et al. 2016; Periyasamy et al. 2018). Therefore, inclusion of geology in flood modeling, especially in areas where soil is in a development stage, is important. The majority of the area is covered by ophiolite mountain (igneous and metamorphic rocks). The main rock types in the study area include Gabbros, Ultrabasics, Fluviatile deposits, Limestone Facies, and Metamorphics (UAE Atlas 1993).

TWI: TWI, also known as the compound topographic index, is an indicator of the effect of local topography on runoff flow direction and accumulation (Beven et al. 1979; Wolock and McCabe 1995) (Eq. 1). It shows how water interacts with the topography. The result is a GIS data layer (raster) that depicts areas with drainage depressions where water is likely to accumulate (Ballerine 2017). The TWI provides important information at a very low cost compared to detailed hydrologic and hydraulic studies and is an excellent planning tool (Ballerine 2017).

$$ {\text{TWI}} = \ln \left( {a/\tan \, \beta } \right) $$
(1)

where ln is the Napierian logarithm, a is the upslope area per unit contour length (catchment area), and tan β is the slope gradient.

TWI was generated from flow direction, flow accumulation, and slope. The output was smoothed to reduce local variations and remove noise. The file was reclassified into five classes using the natural break breaks (Jenks) method.

TPI: TPI compares elevation of each cell to the average elevation around that cell within a predetermined radius (Weiss 2001). Positive TPI values indicate higher areas (ridges), lower values represent locations that are lower than the surrounding areas (valleys), and values near zero are flat areas (Jenness 2004). TPI is used for landform classification, and this helps in the identification of flood-prone areas (slope, drainage network) (Al-Husban 2019; Jenness 2011). TPI was produced from DEM to classify the landscape into slope positions (valleys, lower slope, flat slope, upper slope, ridge). The TPI tool developed by Jenness (2011) and modified by Dilts (2015) was used.

CN: CN is an empirical parameter used in hydrology for predicting direct runoff or infiltration from rainfall excess (Papaioannou et al. 2015; USDA-NRCS 1986). CN is based on hydrologic soil group, land use, and soil moisture conditions. CN values range between 0 and 100 (Table 2). A high curve number means high runoff and low infiltration (urban areas), whereas a low curve number means low runoff and high infiltration (dry soil) (Zhan and Huang 2004). The soil and land use layers were merged and attributes such as soil type (hydrological soil group), land use type, and CN for each land use type were added (Table 2). The CNs were extracted from USDA-NRCS (1986).

Table 2 CNs for the land use/cover in the study area

All the data were geo-referenced to a common coordinate system (WGS 84, UTM, Zone 40), edited for quality assurance and quality control, and organized in the proper format. ArcGIS version 10.5.1 software was used to process the data.

AHP: expert scores of criteria and weights

Five experts (one each in modeling, climate, urban planning, soil, and geology) were surveyed to give their judgments regarding flood causal factors. Based on discussions with experts and preliminary maps produced, some factors such as dams and valleys (streams) were excluded from the criteria because their effect is included in the slope and TWI. Therefore, the factors considered in the criteria were elevation, slope, TWI, TPI, CN (land use, soil), and geology. The experts were asked to make pairwise comparison among the factors and sub-factors (two hierarchical levels of factors) based on the fundamental scale of AHP (1–9).The number of comparisons was calculated using Eq. 2 (Teknomo 2020). Comparison matrices were created, and consistency ratio (CR) was calculated. The CR is defined as ratio between Consistency Index (CI) and Random Index (RI) (Saaty, 1980, 1990) (Eqs. 3, 4). The experts were allowed to change their scores until CR was below 10% as recommended by Saaty (1990), Papaioannou et al. (2015), and Wu et al. (2015).

$$ {\text{Number}}\;{\text{of}}\;{\text{comparisons}} = \frac{n(n - 1)}{2} $$
(2)

where n is the total number of criteria.

$$ {\text{CR}} = \frac{{{\text{CI}}}}{{{\text{RI}}}} $$
(3)
$$ {\text{CI}} = \frac{{\lambda_{\max } - n}}{n - 1} $$
(4)

where λmax is the maximum eigenvalue of the comparison matrix (sum of the consistency measure), and n is the total number of criteria (Saaty 1980).

Pairwise comparison judgments (priorities) assigned by the five experts were combined using the geometric mean to form a judgment for the group (Saaty and Shang 2007). The basis for using the geometric rather than the arithmetic mean to combine judgments of different individuals has been justified mathematically by Saaty (1980). The same method was applied to find priorities of the sub-factors (Stefanidis and Stathis 2013). Examples of software that can be used to calculate the AHP parameters include Super Decision (https://www.superdecisions.com/), Expert choice (https://www.expertchoice.com/2020), and an extension developed by Oswald Marinoni (2004). In this study, the online free AHP tool developed by Goepel (2018) was used (https://bpmsg.com/ahp/ahp.php).

The following weights and rates set by the experts (AHP) were assigned to the GIS layers: elevation, slope, geology, TWI, TPI, and CN. The GIS layers were then converted to integer type raster format and reclassified to a common scale (1 to 5) with the highest rating of 5 implying extreme probability to flood and the rating of 1 implying low probability. The final map was also created on a fixed 1 to 5 scale based on the Index for Risk Management (INFORM; Marin-Ferrer et al. 2017).

The newspapers’ reports about previous floods were geocoded as point features (latitude, longitude) and used as a validation to the flood-prone areas map. This was done by overlaying previous flood events on the map and checking the frequency (number) and percentage of the events on each zone.

Results and discussion

Extraction of flood events from newspaper reports

Search engines within newspaper websites were not effective despite relevant material in the archives. For example, Albayan and Alittihad did not show results when a search was conducted for floods in Fujairah while Google Search generated results and provided links directed to the newspapers themselves. Khaleej Times provides an advanced search option based on keywords and date from 2003 onward. It has more reports (192) than other newspapers about flood events in the UAE. Information extracted from the newspaper reports include date, area affected, and impact (damage). Results from the text-mining model in RapidMiner text analytics software showed the words with the number of appearances in the text. In 10 newspaper reports tested, the word “Fujairah” appeared 59 times and “flood” appeared 52 times (Table 3). The occurrences of the words provided a guide to the words that could be included in the flood dictionary.

Table 3 Sample of words with highest total occurrences in 10 newspapers reports

Table 4 lists samples of flash flood events that were extracted from newspapers reports, organized in a structured format for easy review by decision makers. On average, flash floods were reported once a year in newspaper reports. Newspapers are key to understanding flood events and their impact, as they provide a clear picture about the damage caused. This includes number of people evacuated, accidents on roads, transport disruption, landslides, as well as damage to property, farms, and power lines (Table 4). These reports informed the readers about the events and their consequences and some of them provided references to previous floods and content to improve public awareness on how to minimize flood impact and adopt preventive measures. Newspapers also revealed damages not commonly reported in other sources: for instance, the destruction of the trade fair in Al Bedyah popular market on April 18, 2003, resulting in losses of up to AED 150,000 and the destruction of communication towers (Al Khaleej 2013). Although the majority of newspapers referenced in this study are well-known, errors in reporting and estimating damage could not be ruled out. It was thus better to verify whether the event had been reported by more than one newspaper. Regardless of their accuracy, newspapers filled an important information gap in terms of the difficulty of obtaining official records. The organization of data in a tabular form (Table 4) showing locations/space (where), temporal info (when), what and who are affected provides better visualization about flood incidences, which may help policymakers in formulating flood-prevention strategies by taking decisions based on actual data.

Table 4 Sample of flash flood events extracted from newspaper reports

Newspaper reports triggered policies that came into effect post the Al Qurayah flood (December 11, 1995; Alittihad 2012) based on a previous study conducted by Al Ghasyah (2010). Al Qurayah is small town located in the northern part of Fujairah Emirate with a population of 5026 and 414 houses. The flood occurred due to heavy rains over three days and the failure of a dam in Safad valley (second biggest valley in Fujairah). It damaged buildings, roads, and farms; resulted in the loss of poultry and livestock; and led to many people being evacuated from their houses, although no loss of life was reported (Al Ghasyah 2010). The UAE government allotted a budget of $4 million to rebuild the dam, and three breakwaters are being built in the Safad and Thayb valleys. New houses for the Al Qurayah population were built and compensation was paid to those affected (Al Ghasyah 2010). This case provides proof of the flood damage and its economic consequence.

Fujairah main city showed a high frequency of flood occurrence (31.4%) (Table 5). This may be due to many reasons such as the low elevation and the steep slope of the city at the mouth of Ham Valley. Moreover, the large city area makes it more vulnerable to floods in comparison with other small towns. The frequency metric should be interpreted by taking into account the causes and impact or “damage.” For example, the flood frequency et al. Qurayah is only 5.7%, but its impact is the biggest (evacuation of 5,000 people and damage to houses) (Tables 4, 5). Of all the flood events reported, 80% of them occurred during the winter and rainy seasons (October–April); this is consistent with historical rainfall records (Fig. 3). There is no annual flood probability detected from the data.

Table 5 Sample of spatiotemporal variation of flood frequency

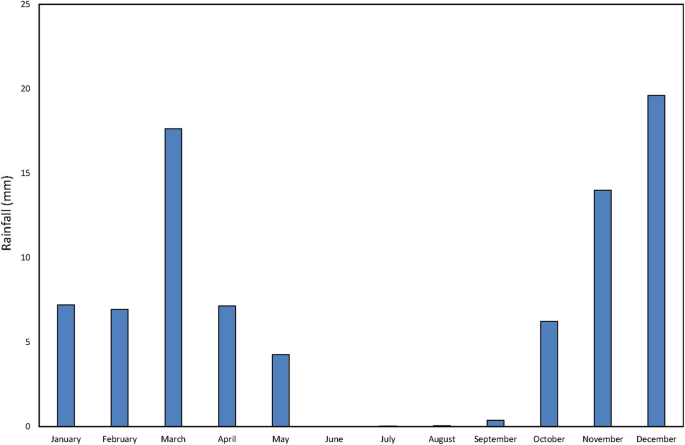

Fig. 3
figure3

Source: Department of Civil Aviation and World Weather

Average rainfall 2009–2018 at the study area.

Misspelled town names (e.g., Al Qurayah and AlQaryah) reported by newspapers was one of the problems faced in this study. Awareness thus needs to be spread among newspapers organizations to use standardized geographical names adopted by the municipality in each emirate. Differences in the reported number of “affected people” were also noticed; for example, the National newspaper reported that 600 people were affected in the flash flood on December 18, 2017, while FloodList.com reported that 188 people were displaced by the flood. Porter and Evans (2020) cited many cases where there was a difference in number of deaths reported by post-disaster news reporting and official figures.

It is very clear that newspapers have played an important role in documenting flash floods in Fujairah and could be used with other sources to reconstruct their history. They also reach a large audience (not only the scientific community) and attract the attention of decision makers who may act quickly to reduce the flood impact or manage the disaster and its magnitude.

Land use classification accuracy

Four land cover/use types were identified from the satellite image using supervised classification (Table 6). It was noted that similar rocks have different reflectance due to the effect of slope (shadow), and this was taken into account when delineating training signatures. The lowest user’s accuracies were in built-up and green areas (Table 6). This may be due to mixed pixels where some buildings include trees and gardens and some green areas include buildings. The overall classification accuracy of the land use map is 89% with a kappa of 0.85 (Table 6). A study conducted by Yagoub and Kolan (2006) resulted in a classification accuracy of 88% and Thomlinson et al. (1999) set a target of an overall accuracy of 85% with no class less than 70% accurate. Therefore, the accuracy obtained is consistent with previous work and meets the typically suggested classifications accuracy of 85% (Foody 2002).

Table 6 Confusion/error matrix

AHP results

Table 7 shows a sample of experts’ pairwise comparisons of the decision matrix. The values close to one have minimum flood probability and values close to nine have maximum flood probability. The group is homogenous in the majority of the comparisons (Table 8). The CR for all experts ranges between 2.2% and 4.0%, which is acceptable because it is below 10% (Saaty 1990; Papaioannou et al. 2015; Wu et al. 2015). Overall, the CR indicates that the evaluations are sufficiently consistent. The derived weights for the factors (geometric mean) show that elevation, slope, and TWI have the highest weights (Table 8). Cabrera and Lee (2020) found that the weights for criteria in the AHP method are 42% for rainfall, 23% for slope, 15% for elevation, 10% for distance to the main channel, 6% for drainage, and 4% for soil type. Results by Danumah et al. (2016) found that slope was the most significant causative factor in flood occurrence. This implies that local conditions play an important role in determining which areas are more vulnerable to flood, and, consequently, weight for the same flood factor could vary from one place to another (Getahun and Gebre 2015; Kazakis et al. 2015; Papaioannou et al. 2015). Geology has the lowest weight, and this may be due the steep nature of the area, where water drains very fast toward the sea and hence has a low chance of percolating down. A study by Dash and Sar (2020) also concluded that geology is the least significant factor in flood generation. The weights of the factors and sub-factors (Table 9) were used to generate the potential flood map.

Table 7 Sample of pairwise comparisons of the decision matrix
Table 8 Priorities (weights) of factors/criteria
Table 9 Weights of the factors considered in generating the flood-prone area map

Flood-prone areas map

Based on the criteria specified in Table 9, a flood-prone area map was generated (Fig. 4). Almost 85% of the area falls within medium, low, and very low zones (Table 10). This is because a large part of Fujairah (85% of the area) is covered by mountains with elevation greater than 80 m above mean sea level (Table 11, Fig. 5). The high elevation leads to a quick response time of the watershed (Al Alabdouli et al. 2019), and this makes flat areas more prone to flash floods. The rest of the area (15%) falls within high-prone zones (Table 10). This includes low areas facing the Gulf of Oman, where population centers are spread out, such as in Fujairah city and Khor Fakkan. The average elevation in these population centers is 50 m. Slope is considered to be an important predictor of surface runoff (Vaezi et al. 2017). Based on slope, around 50% of this area has high and very high potential for flooding. The area includes regions in proximity of valleys and low elevation. Slope alone is not a good indicator for flash floods in the study area because it includes areas close to valleys at high elevation, and these areas are rarely flooded. Since slope is derived from elevation, most of the variance within the study area can be explained by the elevation (Fig. 4).

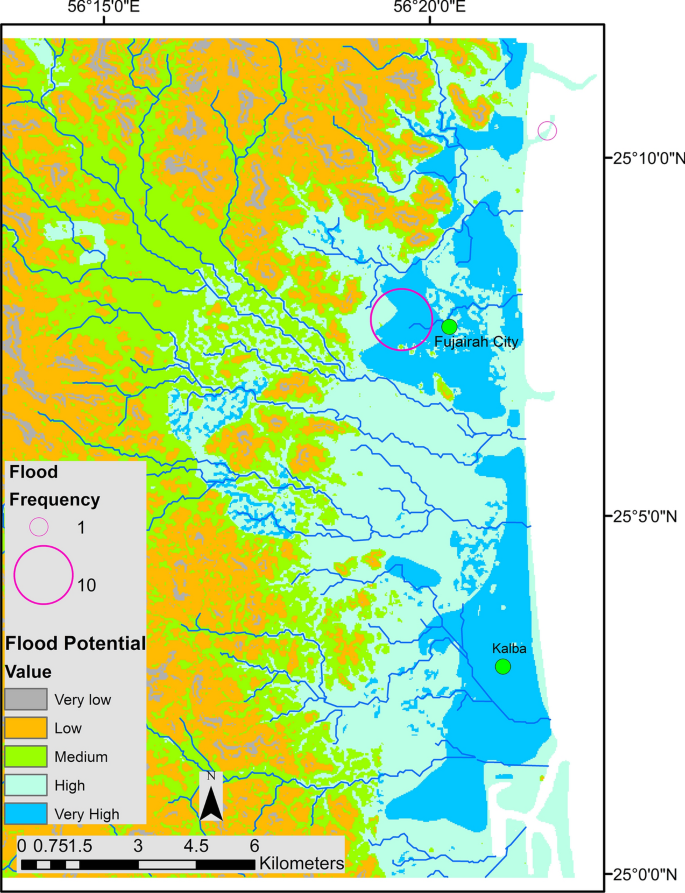

Fig. 4
figure4

Flood-prone area map for part of the study area

Table 10 Validation of potential flood-prone areas
Table 11 Areas based on elevation
Fig. 5
figure5

Elevation for part of the study area

The high probability results matched the TWI results (Fig. 6). Therefore, TWI could be used alone to provide an indication about flood-prone areas (Ballerine 2017). This is because elevation, slope, flow direction, and flow accumulation are included in calculations of TWI. Papaioannou et al. (2015) found that the most important index/factor is the TWI, followed by the CN. In this study, the CN did not show a good match with the final flood-prone areas. This may be due to the broad classification of land use and the alteration of soil characteristics in urban areas. A detailed breakdown of built-up infrastructure, such as commercial and residential areas, pavement, and so on, will enhance specification of CN for land use and consequently improve the output results.

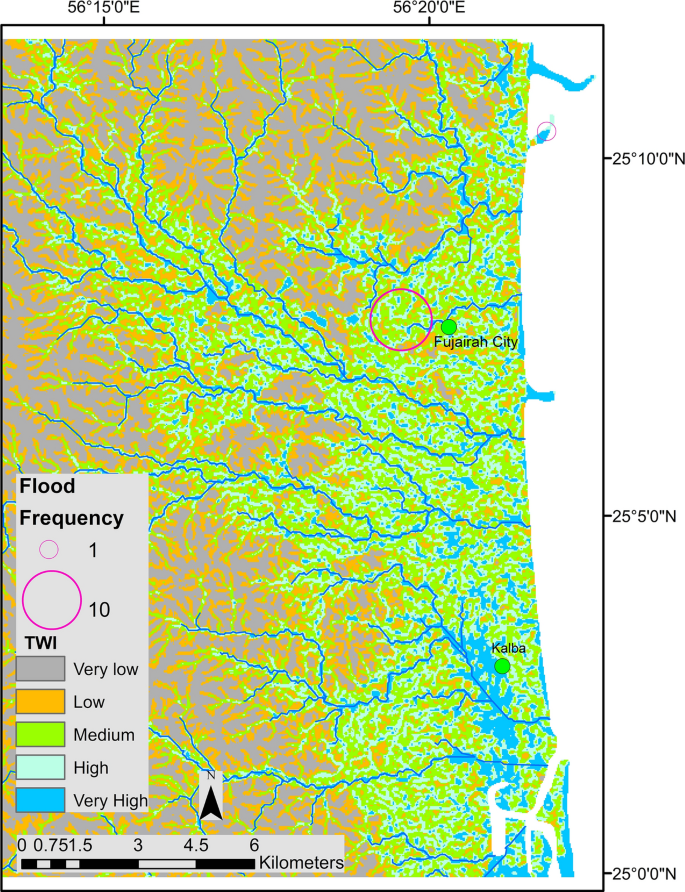

Fig. 6
figure6

TWI for part of the study area

Accuracy of the flood-prone area map (Fig. 4) was verified by previous flood events reported by the newspapers, 84.3% of which were found in areas with high potential for flooding (Table 10). This indicates that there is good agreement between the GIS model output and previous flood events. In the absence of a mechanism for checking GIS flood models, the results obtained are considered a step forward. However, it should be noted that the recorded events lack important information such as flood extent, water depth, and flow velocity (Aronica et al. 2002; Bates 2004; Molinari et al. 2017). Therefore, the output flood-prone area map should be combined with experts’ opinions. It is recommended that crowd sourcing, security cameras, sensor network systems, and unmanned aerial vehicles/drones be used to record the extent of floods (Chang and Guo 2006; Feng et al. 2015).

The flood-prone area map provides useful information that can be effective in planning flood defenses and ensuring the safety of those living in high-prone areas. For instance, because it revealed that more prone areas are along the low coastal line, which unfortunately are areas with high population density, preventive measures—such as incorporating planning rules, avoiding development near high-prone zones, building of embankments, and the spreading of public awareness and early warning systems—can be taken. Building more storage dams in addition to the existing ones will help in saving water, recharging groundwater, and protecting the public from flash floods (Alabdouli et al. 2019; Rizk and Al Sharhan 2003). The Ministry of Environment and Water constructed 113 recharge and storage dams to utilize the estimated 150 million m3 per year from 15 main catchment areas (Ministry of Energy, United Arab Emirates, 2006). An early-warning flood system and interactive maps will be vital for reducing flood impact. Examples of these maps are those developed by the Federal Emergency Management Agency (FEMA)-USA Flood Map Service Center (MSC) (https://msc.fema.gov/portal/advanceSearch#searchresultsanchor) (FEMA 2019) and the Global Flood Awareness System (GloFAS) of the European Commission Copernicus Emergency Management Service (www.globalfloods.eu/). Moreover, remote sensing data could be utilized to complement rain gauges for precipitation estimation in real time (Isma’il and Saanyol 2013; Legates 2000; Schumann et al. 2018; Wehbe et al. 2017).

As in any GIS work, the possible inaccuracy of results is inherited from both attribute and positional errors, as a result of employing maps/images obtained in various times and with various scales. There are possible errors in land use classification as a result of generalization. For example, some built-up areas include green areas although they are classified as built-up using the law of majority. Elevation data are based on the Shuttle Radar Topography Mission (SRTM). The resolution of the cells of the source data is only three-arc second data (approximately 90 m). The SRTM data are generally not applicable for flood modeling (Finn 2008) and were only applied in this study because no other terrain data were available. Moreover, classification of elevation is based solely on bare ground, which is misleading. For example, low land is assumed to have a high probability of flooding, but this may not be true if the area has a good drainage system (especially in urban areas). The flood-prone area map will change over time due to the development of urban areas and roads or because of climate change (FEMA 2019). Therefore, the flood-prone area map produced here provides a broad and general guide of the current time and should not be used for any long-term decision making. Additional input parameters could be added to enhance the map such real-time precipitation data.

Conclusion

Newspapers contain a wealth of space and temporal information that support many research topics such as flood studies. In this research, newspapers were used to trace flash floods in the Eastern region of the UAE over a span of 18 years (2000–2018). Valuable information such as frequency of and damage caused by floods could be extracted from them. A flood-prone area map was created for the study area, and newspapers reports were used as a validation tool for GIS model output. A large portion of populated areas in the region were found to fall in medium- and high-prone zones. However, data in newspapers are “unstructured,” similar to information in mass media (Twitter, Facebook, WhatsApp, etc.), and extraction of/searching for data is not like searching using a standard database management system (DBMS) wherein data are organized in tables (structured data). This study thus needed smart text-mining software, which was developed to extract information from newspapers reports. The future plan is to develop an application that accelerates the search process and interacts with GIS software dynamically.

It is recommended that all newspaper archives in the UAE have not only a common database managed by the Center for Documentation but also a search engine similar to that developed by LexisNexis (2018). Moreover, it would be helpful if newspaper reports were complemented with accurate geographic coordinates of the events to improve location-aware services. Some of the newspapers are in Arabic and searching Arabic text is another area that requires the development of a search engine and linkage with a GIS database. Considering the necessity to improve the means and methods to assess and monitor floods, this paper presents the capabilities offered by GIS techniques to produce flood-prone area maps. In addition, it is evident that flood-prone area mapping at the pre-feasibility level could be carried out using secondary information from maps, satellite images, and published documents. The number of factors to be included in the preparation of a flood-prone area map could be increased based on data availability. This type of flood-prone area map in digital form may be used as a database that could be shared among various government and non-government agencies concerned about floods. There is a need for proper assessment and archiving of flood damage together with their geographic locations. Data about such damage could be used for compensation and to check the accuracy of flood-prone area maps.
